1 User Interface – Switch Panel 6 Gang Switch Panel Configuration guide RS485 Terminal Fixing hole Bayonet Front ViewBack View

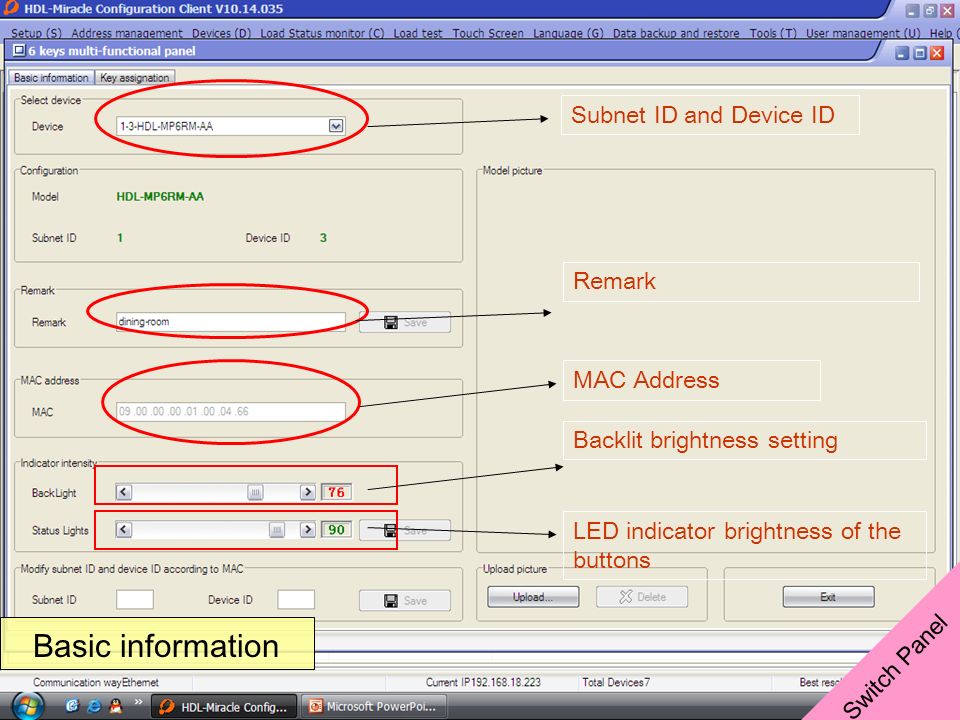

2 Subnet ID and Device ID Remark MAC Address Backlit brightness setting LED indicator brightness of the buttons Switch Panel Basic information

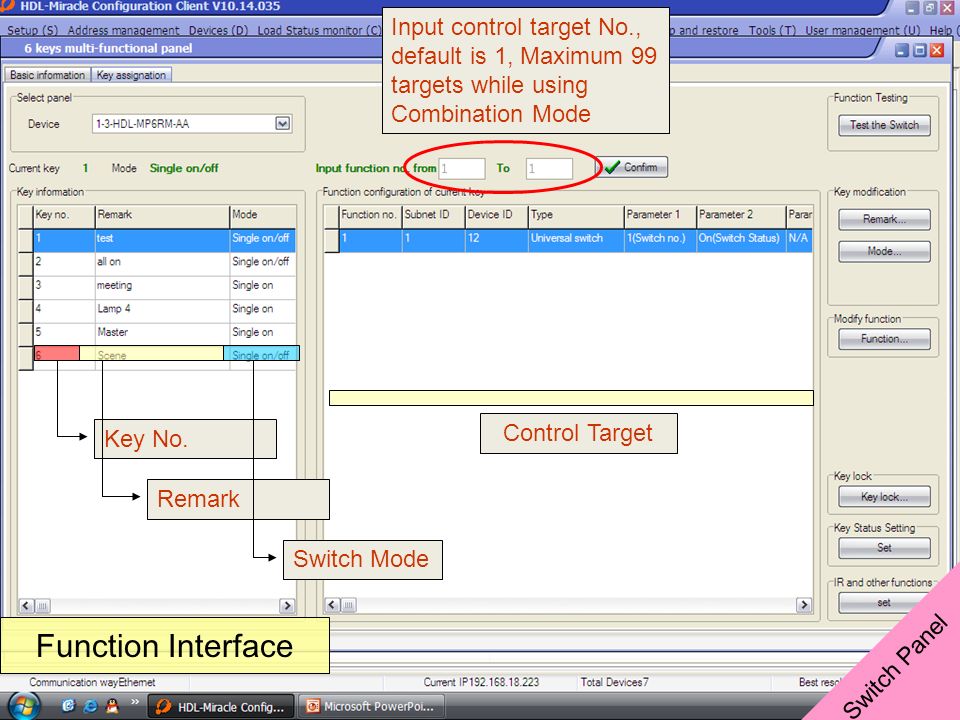

3 Switch Panel Key No. Remark Switch Mode Control Target Function Interface Input control target No., default is 1, Maximum 99 targets while using Combination Mode

4 1. Select Mode to open key mode menu 2. Select key control mode 3. Save Switch Panel Start Programming

5 Common Key Control Mode Single On: Run scene on or lights on every time you press Single Off: Off Light or scene, every time you press it Single On/Off: The classical use of toggling of single press ON/OFF Momentary: To run 1 command as momentary pressing Combination ON: To trigger up to 99 different commands every time the button pressed Combination OFF: To OFF up to 99 commands every time the button pressed Combination ON/OFF: To trigger up to 99 commands toggling between ON/OFF each time the button pressed

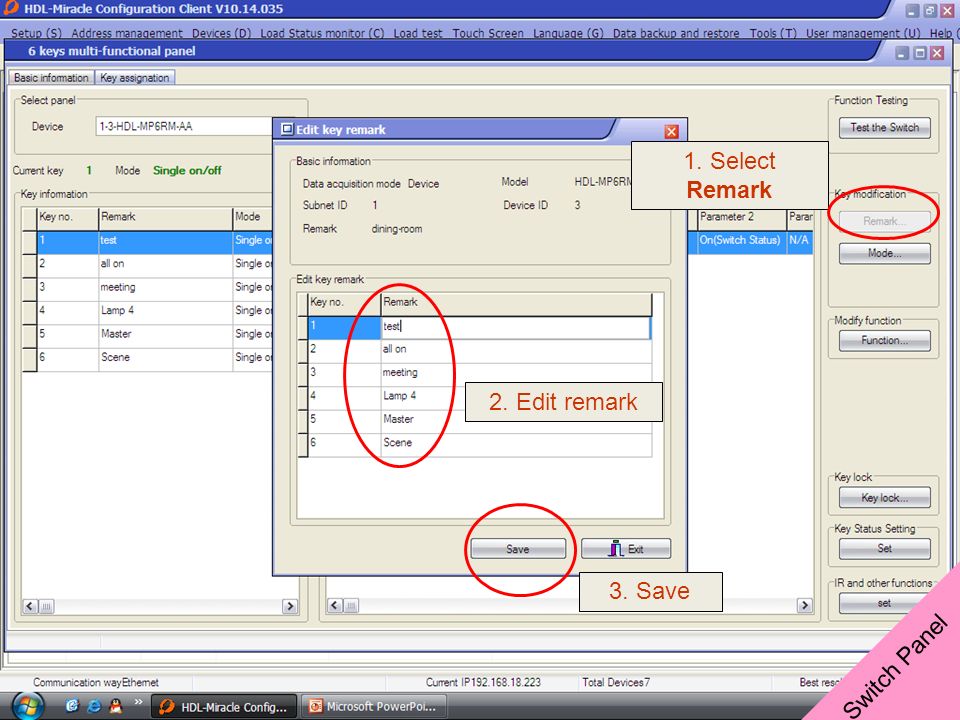

6 Switch Panel 1. Select Remark 2. Edit remark 3. Save

7 1. Select Function to open key function edit menu 2. Input device address, type and parameter. Example: the control target is a dimmer module(Subnet ID:0, DeviceID:30) channel 1, channel 2 and channel 3 intensity are both 60%, so first select area 1 and set scene 1 60% intensity, then input Subnet ID : 0 Device ID : 30 Type : Scene switch parameter 1 : 1, parameter 2 : 1 3. Save Switch Panel

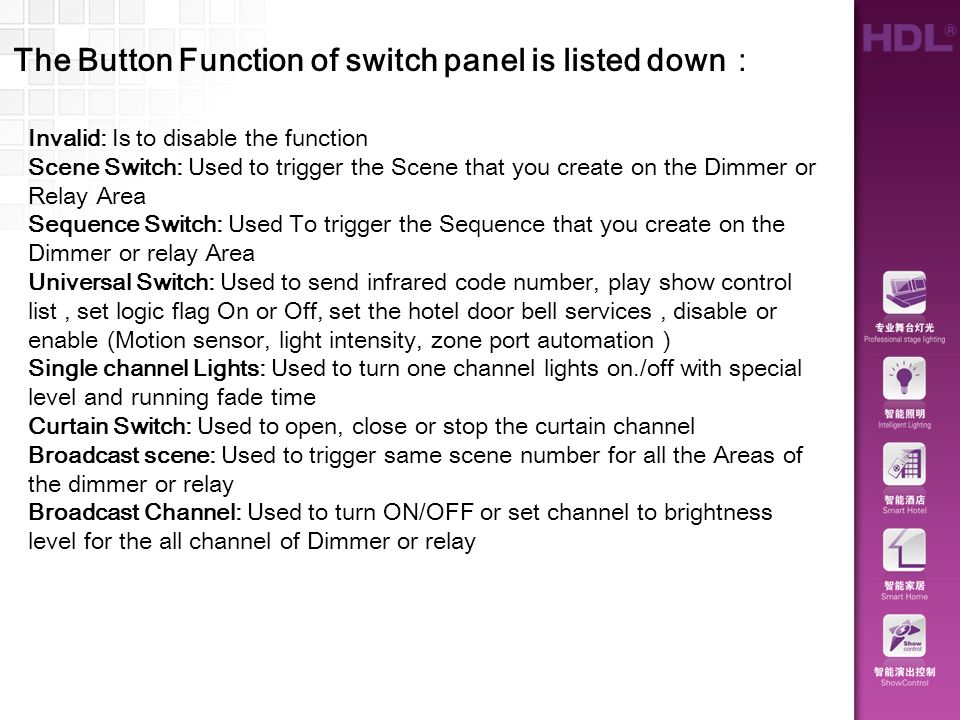

8 The Button Function of switch panel is listed down : Invalid: Is to disable the function Scene Switch: Used to trigger the Scene that you create on the Dimmer or Relay Area Sequence Switch: Used To trigger the Sequence that you create on the Dimmer or relay Area Universal Switch: Used to send infrared code number, play show control list, set logic flag On or Off, set the hotel door bell services, disable or enable (Motion sensor, light intensity, zone port automation ) Single channel Lights: Used to turn one channel lights on./off with special level and running fade time Curtain Switch: Used to open, close or stop the curtain channel Broadcast scene: Used to trigger same scene number for all the Areas of the dimmer or relay Broadcast Channel: Used to turn ON/OFF or set channel to brightness level for the all channel of Dimmer or relay
