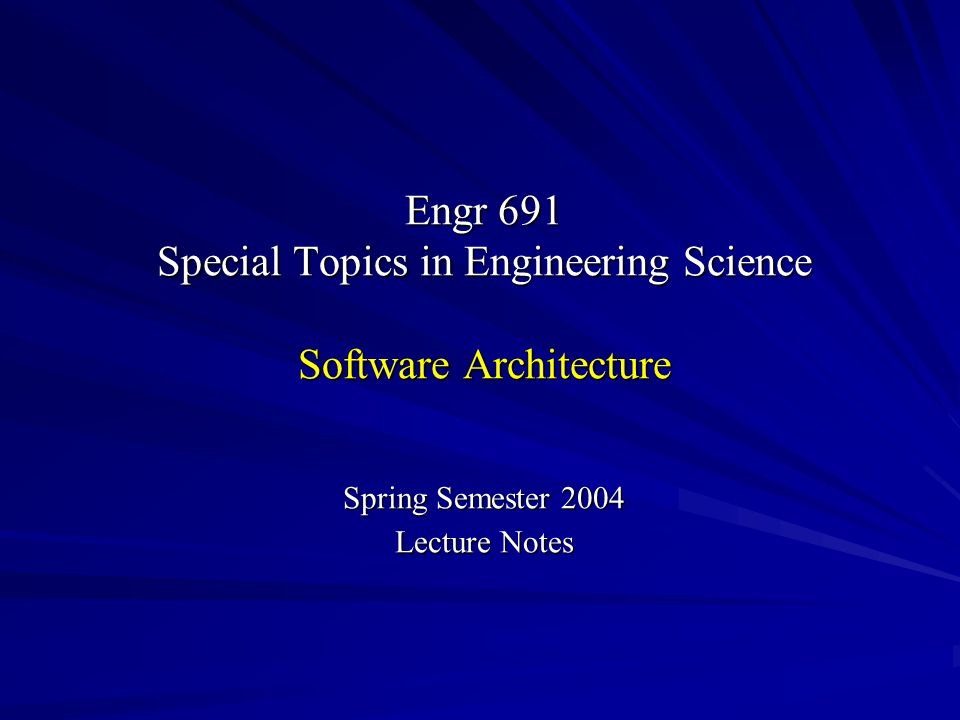

1. Engr 691 Special Topics in Engineering Science Software Architecture Spring Semester 2004 Lecture Notes

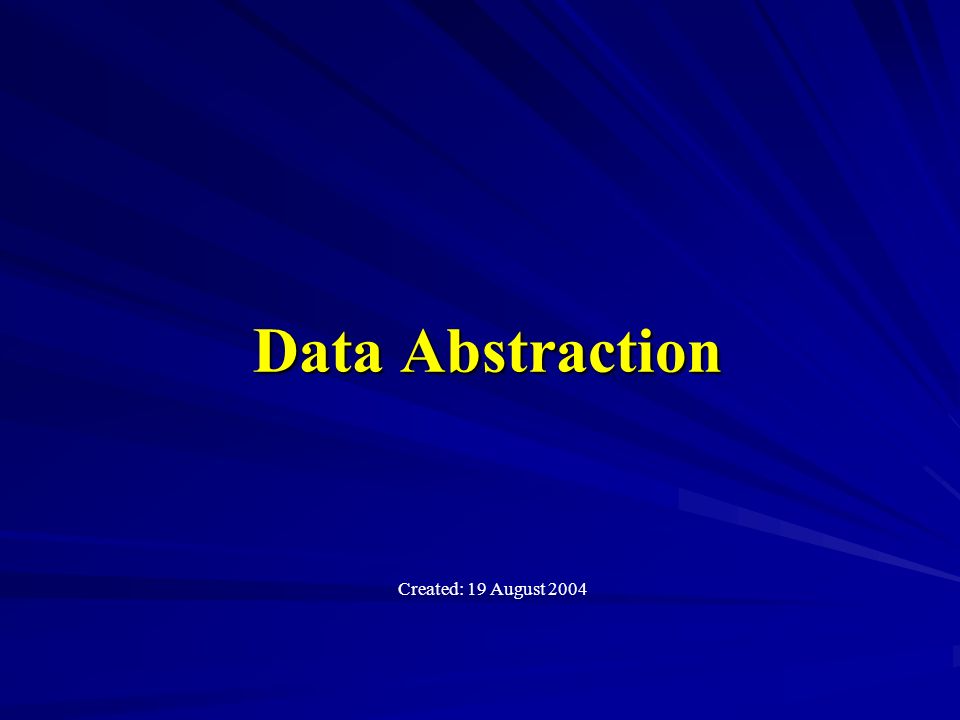

2. Data Abstraction Created: 19 August 2004

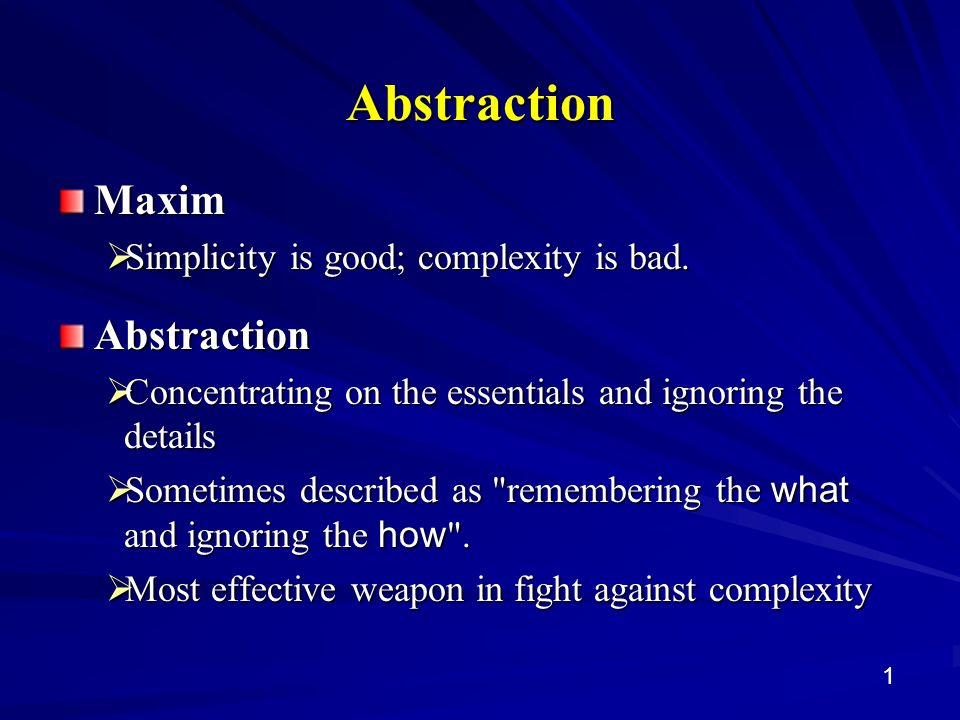

3. Abstraction Maxim  Simplicity is good; complexity is bad. Abstraction  Concentrating on the essentials and ignoring the details  Sometimes described as "remembering the what and ignoring the how ".  Most effective weapon in fight against complexity 1

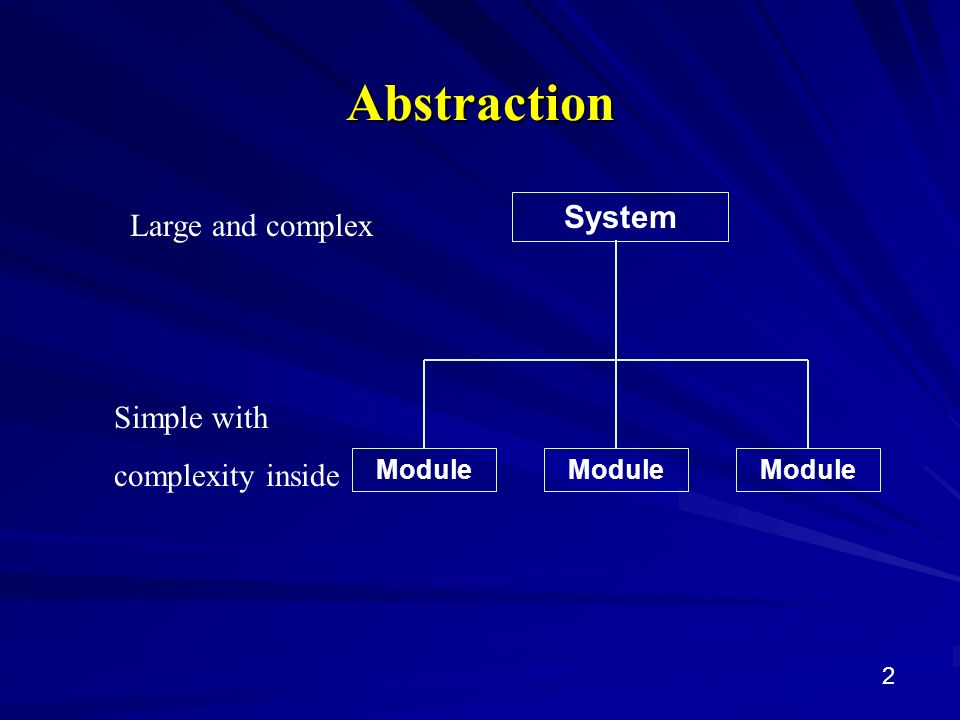

4. Abstraction System Module Large and complex Simple with complexity inside 2

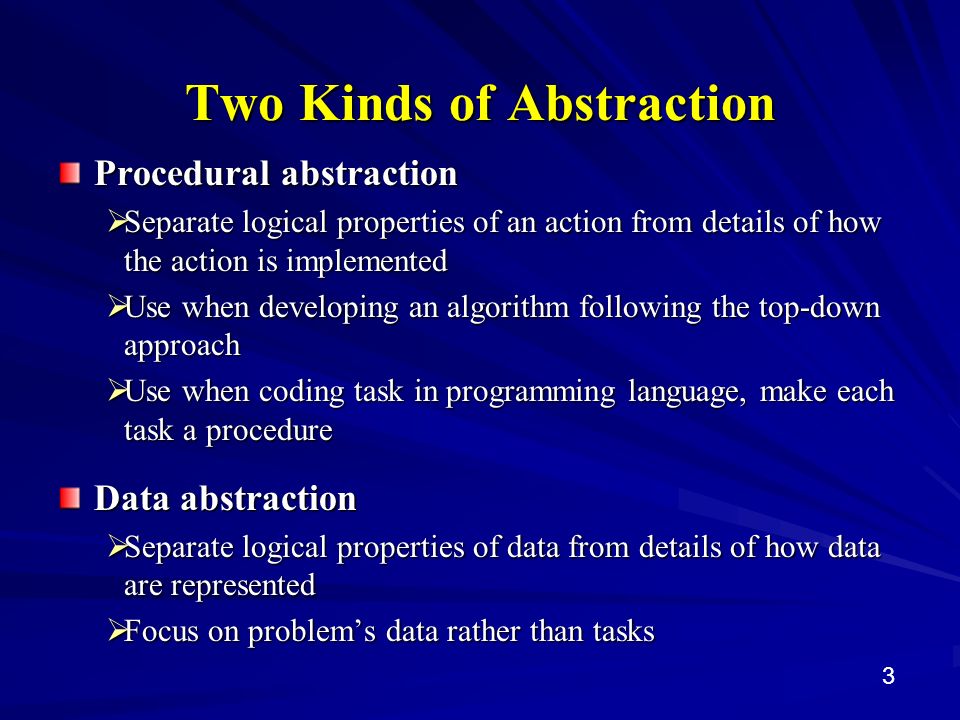

5. Two Kinds of Abstraction Procedural abstraction  Separate logical properties of an action from details of how the action is implemented  Use when developing an algorithm following the top-down approach  Use when coding task in programming language, make each task a procedure Data abstraction  Separate logical properties of data from details of how data are represented  Focus on problem’s data rather than tasks 3

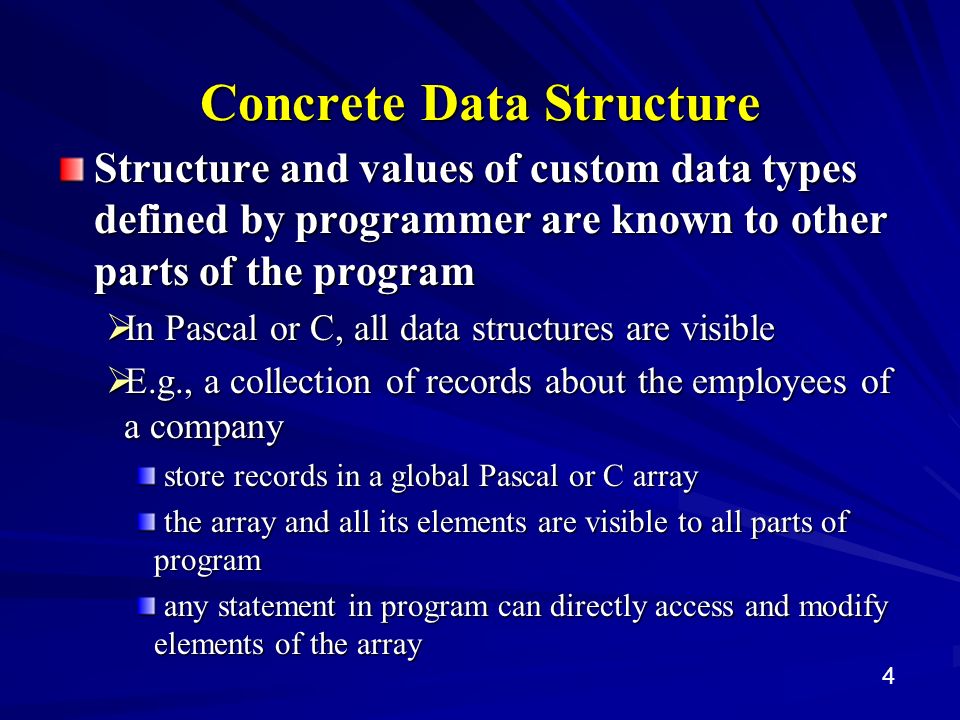

6. Concrete Data Structure Structure and values of custom data types defined by programmer are known to other parts of the program  In Pascal or C, all data structures are visible  E.g., a collection of records about the employees of a company store records in a global Pascal or C array store records in a global Pascal or C array the array and all its elements are visible to all parts of program the array and all its elements are visible to all parts of program any statement in program can directly access and modify elements of the array any statement in program can directly access and modify elements of the array 4

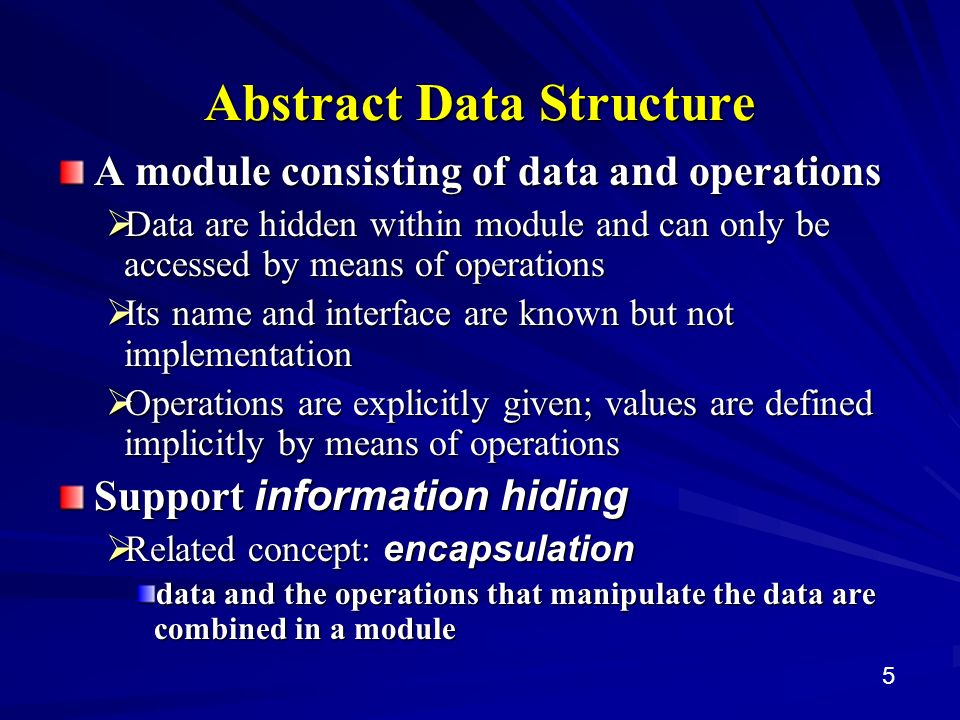

7. Abstract Data Structure A module consisting of data and operations  Data are hidden within module and can only be accessed by means of operations  Its name and interface are known but not implementation  Operations are explicitly given; values are defined implicitly by means of operations Support information hiding  Related concept: encapsulation data and the operations that manipulate the data are combined in a module 5

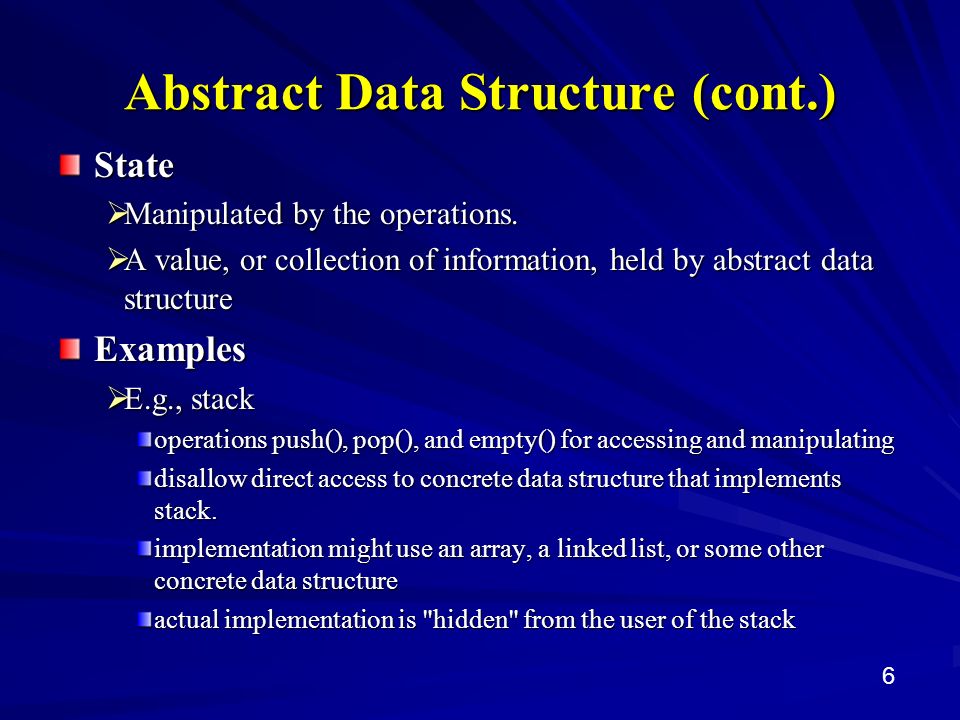

8. Abstract Data Structure (cont.) State  Manipulated by the operations.  A value, or collection of information, held by abstract data structure Examples  E.g., stack operations push(), pop(), and empty() for accessing and manipulating disallow direct access to concrete data structure that implements stack. implementation might use an array, a linked list, or some other concrete data structure actual implementation is "hidden" from the user of the stack 6

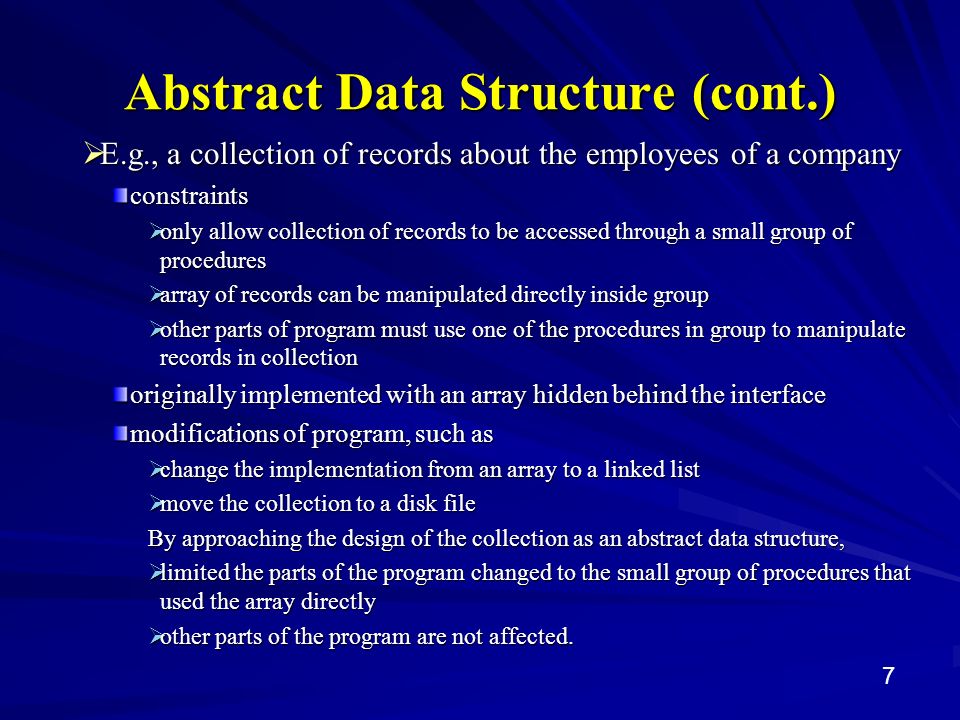

9. Abstract Data Structure (cont.)  E.g., a collection of records about the employees of a company constraints  only allow collection of records to be accessed through a small group of procedures  array of records can be manipulated directly inside group  other parts of program must use one of the procedures in group to manipulate records in collection originally implemented with an array hidden behind the interface modifications of program, such as  change the implementation from an array to a linked list  move the collection to a disk file By approaching the design of the collection as an abstract data structure,  limited the parts of the program changed to the small group of procedures that used the array directly  other parts of the program are not affected. 7

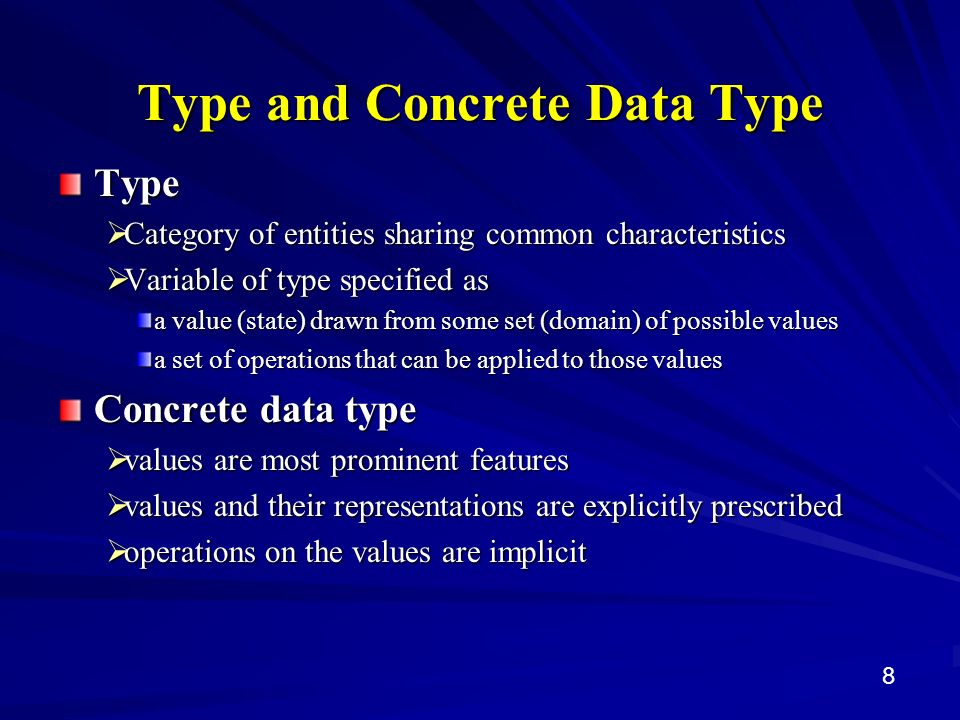

10. Type and Concrete Data Type Type  Category of entities sharing common characteristics  Variable of type specified as a value (state) drawn from some set (domain) of possible values a set of operations that can be applied to those values Concrete data type  values are most prominent features  values and their representations are explicitly prescribed  operations on the values are implicit 8

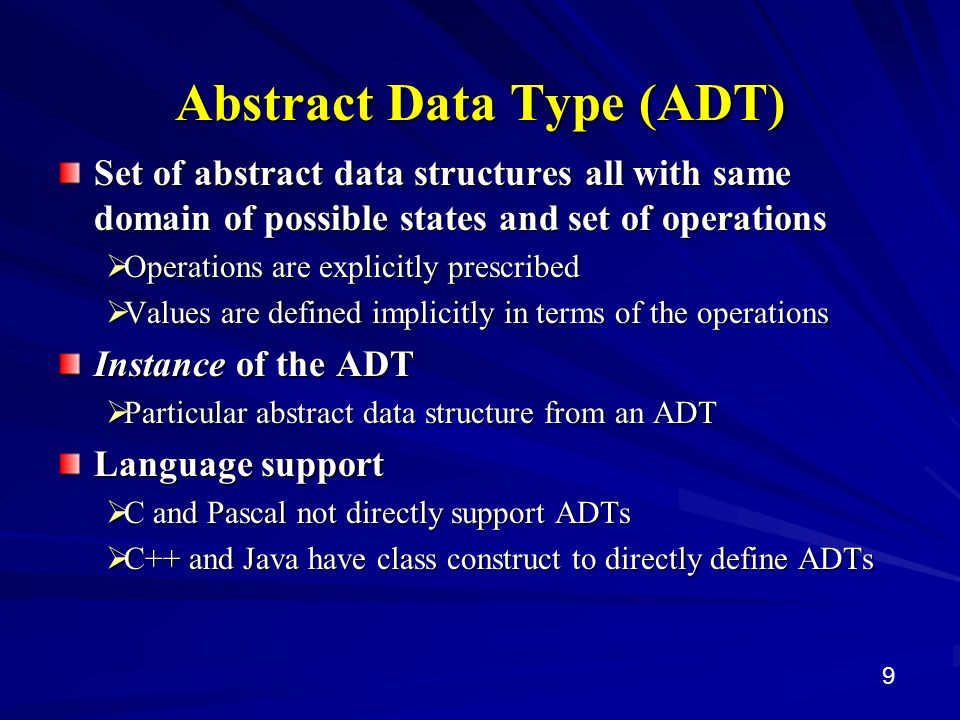

11. Abstract Data Type (ADT) Set of abstract data structures all with same domain of possible states and set of operations  Operations are explicitly prescribed  Values are defined implicitly in terms of the operations Instance of the ADT  Particular abstract data structure from an ADT Language support  C and Pascal not directly support ADTs  C++ and Java have class construct to directly define ADTs 9

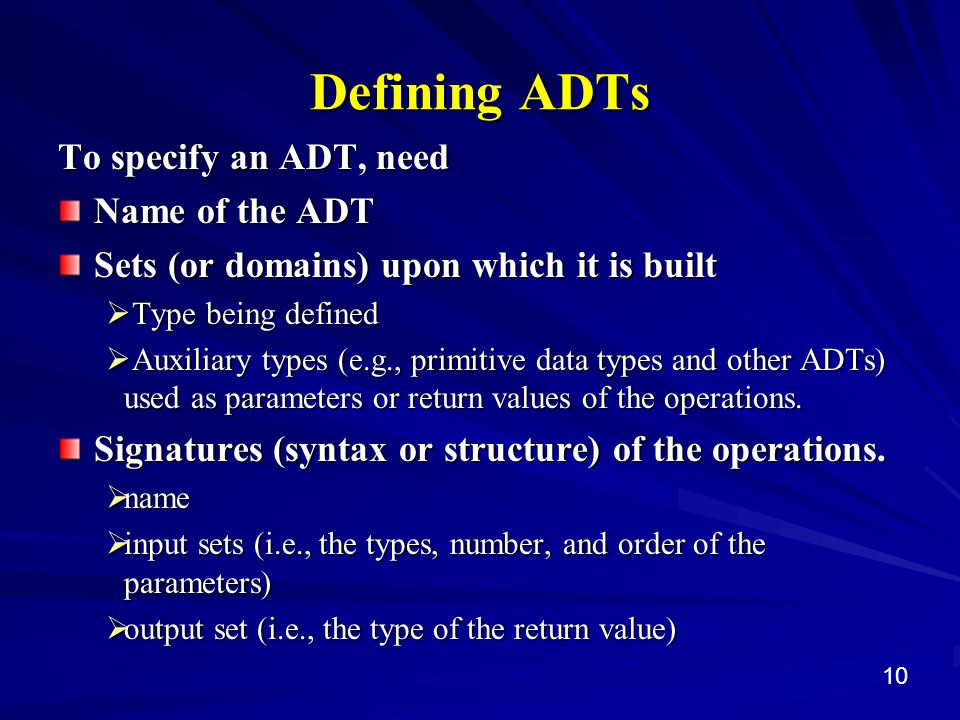

12. Defining ADTs To specify an ADT, need Name of the ADT Sets (or domains) upon which it is built  Type being defined  Auxiliary types (e.g., primitive data types and other ADTs) used as parameters or return values of the operations. Signatures (syntax or structure) of the operations.  name  input sets (i.e., the types, number, and order of the parameters)  output set (i.e., the type of the return value) 10

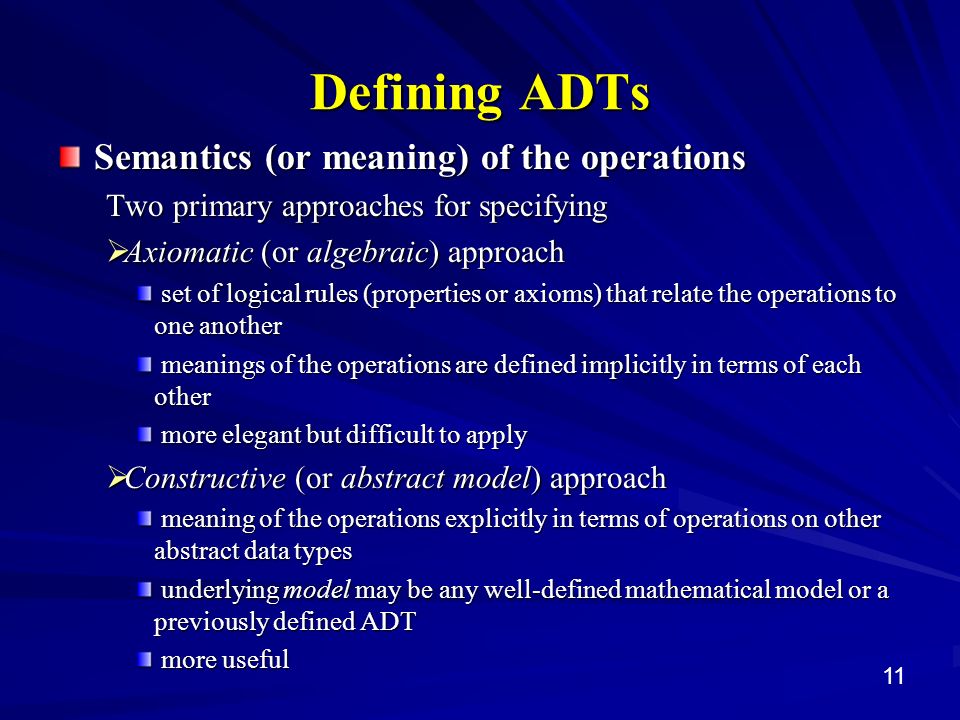

13. Defining ADTs Semantics (or meaning) of the operations Two primary approaches for specifying  Axiomatic (or algebraic) approach set of logical rules (properties or axioms) that relate the operations to one another set of logical rules (properties or axioms) that relate the operations to one another meanings of the operations are defined implicitly in terms of each other meanings of the operations are defined implicitly in terms of each other more elegant but difficult to apply more elegant but difficult to apply  Constructive (or abstract model) approach meaning of the operations explicitly in terms of operations on other abstract data types meaning of the operations explicitly in terms of operations on other abstract data types underlying model may be any well-defined mathematical model or a previously defined ADT underlying model may be any well-defined mathematical model or a previously defined ADT more useful more useful 11

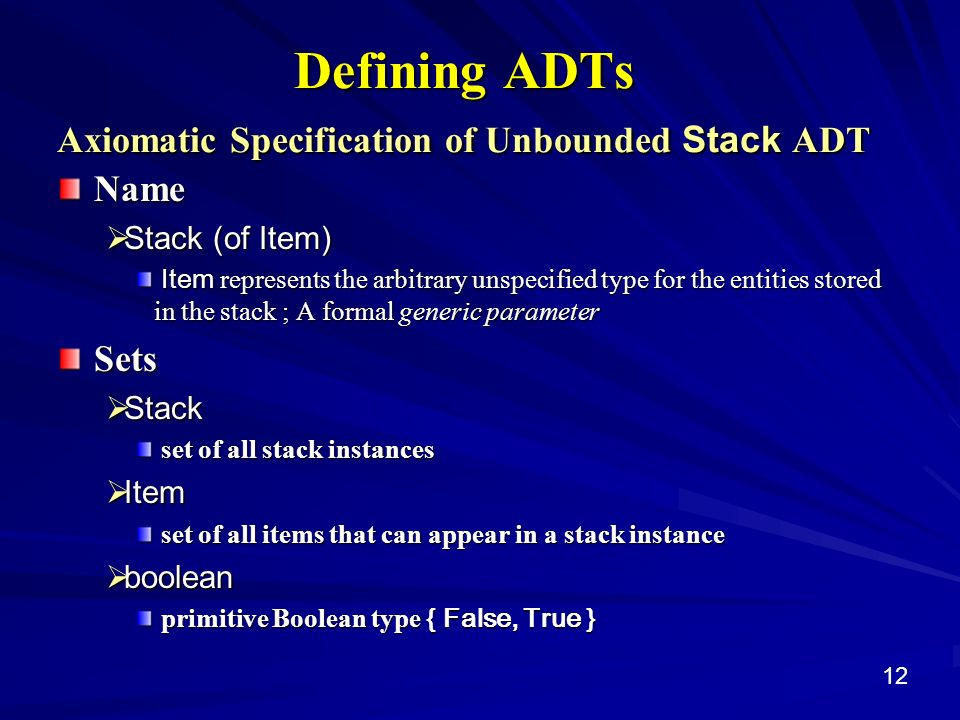

14. Defining ADTs Axiomatic Specification of Unbounded Stack ADT Name  Stack (of Item) Item represents the arbitrary unspecified type for the entities stored in the stack ; A formal generic parameter Item represents the arbitrary unspecified type for the entities stored in the stack ; A formal generic parameterSets  Stack set of all stack instances set of all stack instances  Item set of all items that can appear in a stack instance set of all items that can appear in a stack instance  boolean primitive Boolean type { False, True } primitive Boolean type { False, True } 12

15. Defining ADTs Axiomatic Specification of Unbounded Stack ADT Signatures  Constructor constructs and initializes an instance of the ADT constructs and initializes an instance of the ADT create: Stack create: Stack  Mutator returns the instance with its state changed returns the instance with its state changed push: (Stack, Item) Stack push: (Stack, Item) Stack pop: Stack Stack pop: Stack Stack  Accessor returns information from the state of an instance without changing the state returns information from the state of an instance without changing the state top: Stack Item top: Stack Item empty: Stack boolean empty: Stack boolean  Destructor destroys an instance of the ADT destroy: Stack 13

16. Defining ADTs Axiomatic Specification of Unbounded Stack ADT Semantics   Axioms for Stack ADT s : instance of type Stack ; x : entity of type Item top(push(s,x)) = x  : not empty(S)  precondition: not empty(S) pop(push(s,x)) = s  : not empty(S)  precondition: not empty(S) empty(create()) = True empty(create()) not empty(push(s,x)) empty(push(s,x)) = False not empty(push(s,x)) 14 rewrite

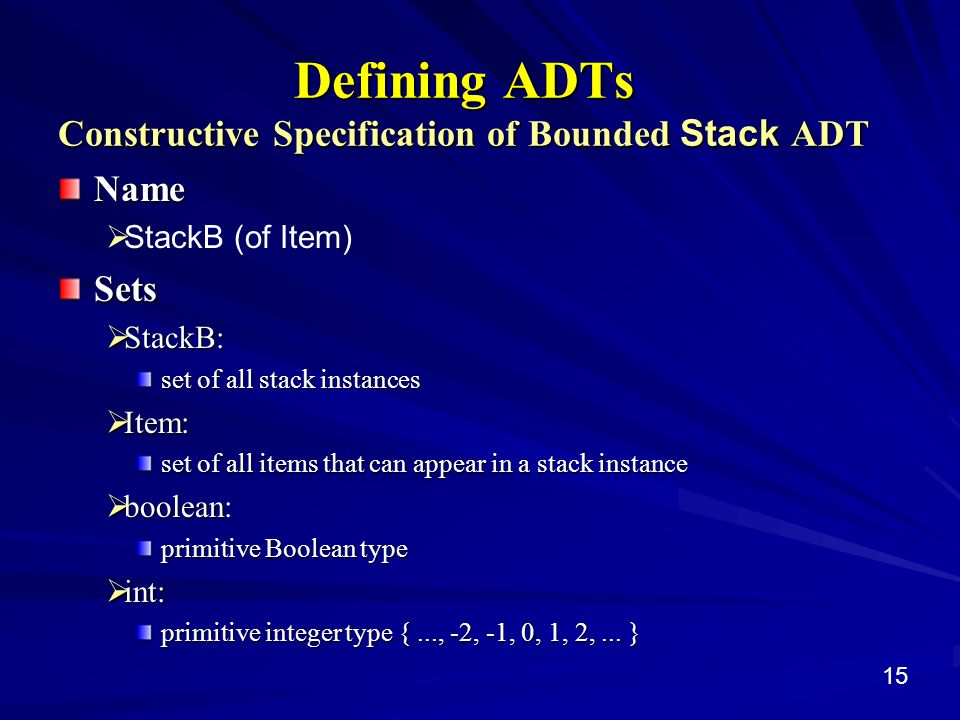

17. Defining ADTs Constructive Specification of Bounded Stack ADT Name   StackB (of Item)Sets  StackB: set of all stack instances set of all stack instances  Item: set of all items that can appear in a stack instance set of all items that can appear in a stack instance  boolean: primitive Boolean type primitive Boolean type  int: primitive integer type {..., -2, -1, 0, 1, 2,... } primitive integer type {..., -2, -1, 0, 1, 2,... } 15

18. Defining ADTs Constructive Specification of Bounded Stack ADT Signatures  Constructor create: int StackB create: int StackB  Mutator push: (StackB, Item) StackB push: (StackB, Item) StackB pop: StackB StackB pop: StackB StackB  Accessor top: StackB Item top: StackB Item empty: StackB boolean empty: StackB boolean full: StackB boolean full: StackB boolean  Destructor destroy: StackB destroy: StackB 16

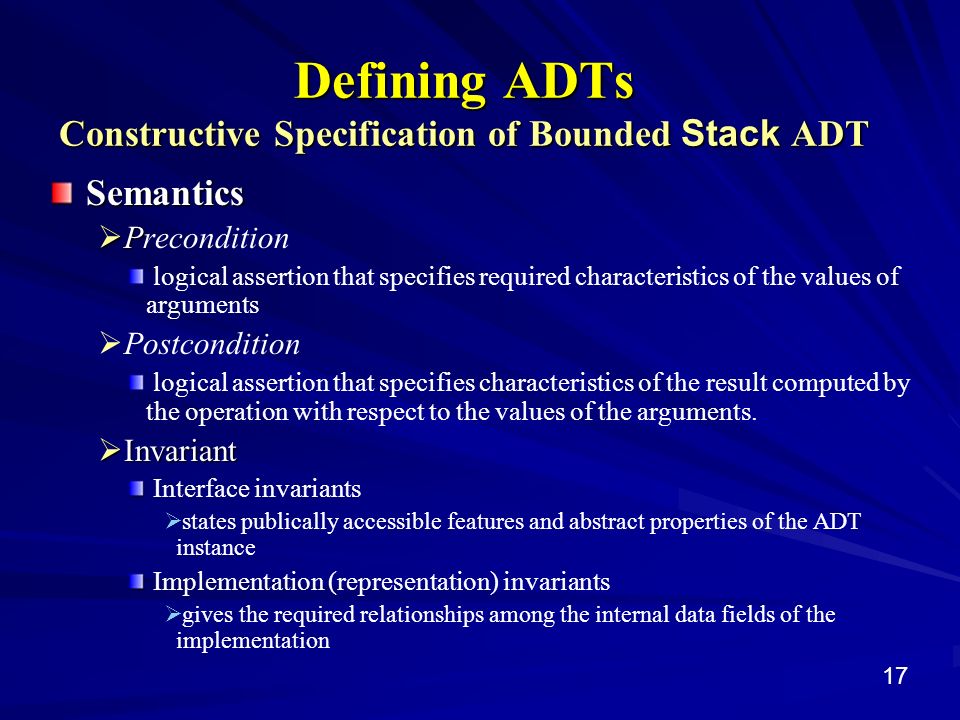

19. Defining ADTs Constructive Specification of Bounded Stack ADT Semantics  P  Precondition logical assertion that specifies required characteristics of the values of arguments   Postcondition logical assertion that specifies characteristics of the result computed by the operation with respect to the values of the arguments.  Invariant Interface invariants   states publically accessible features and abstract properties of the ADT instance Implementation (representation) invariants   gives the required relationships among the internal data fields of the implementation 17

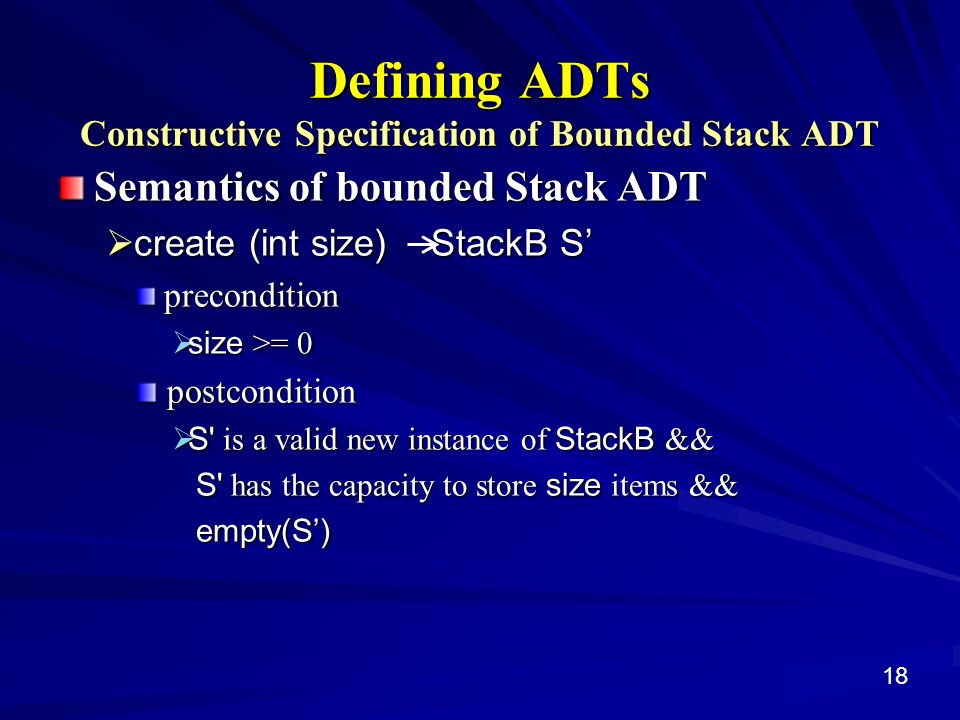

20. Defining ADTs Constructive Specification of Bounded Stack ADT Semantics of bounded Stack ADT  create (int size) StackB S’ precondition precondition  size >= 0 postcondition postcondition  S' is a valid new instance of StackB && S' has the capacity to store size items && S' has the capacity to store size items && empty(S’) empty(S’) 18

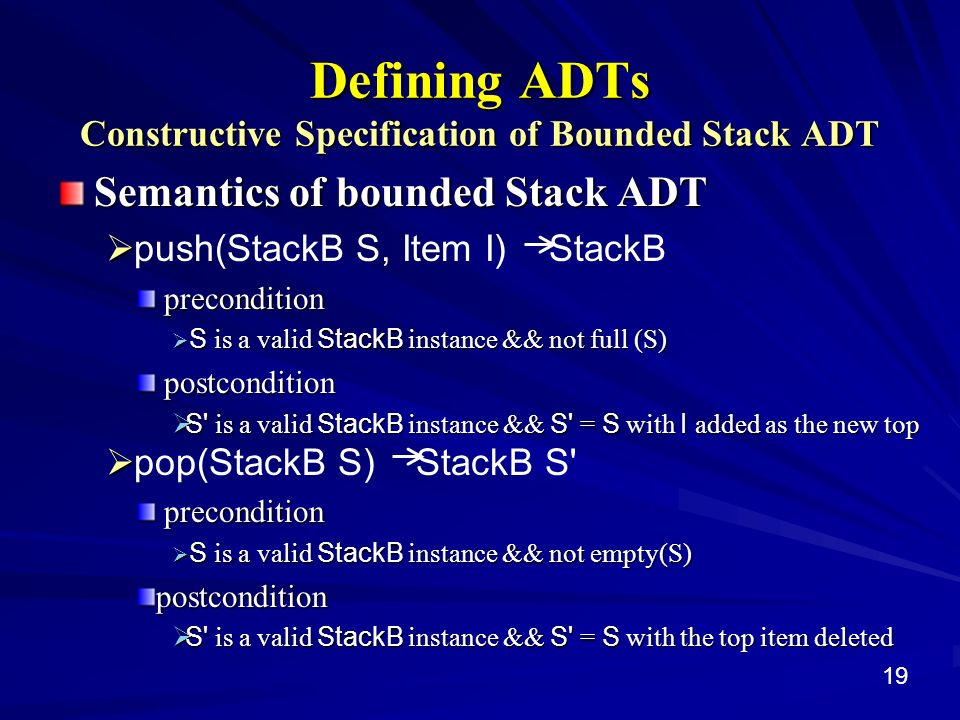

21. Defining ADTs Constructive Specification of Bounded Stack ADT Semantics of bounded Stack ADT   push(StackB S, Item I) StackB precondition precondition  S is a valid StackB instance && not full (S) postcondition postcondition  S' is a valid StackB instance && S' = S with I added as the new top   pop(StackB S) StackB S' precondition precondition  S is a valid StackB instance && not empty(S) postcondition  S' is a valid StackB instance && S' = S with the top item deleted 19

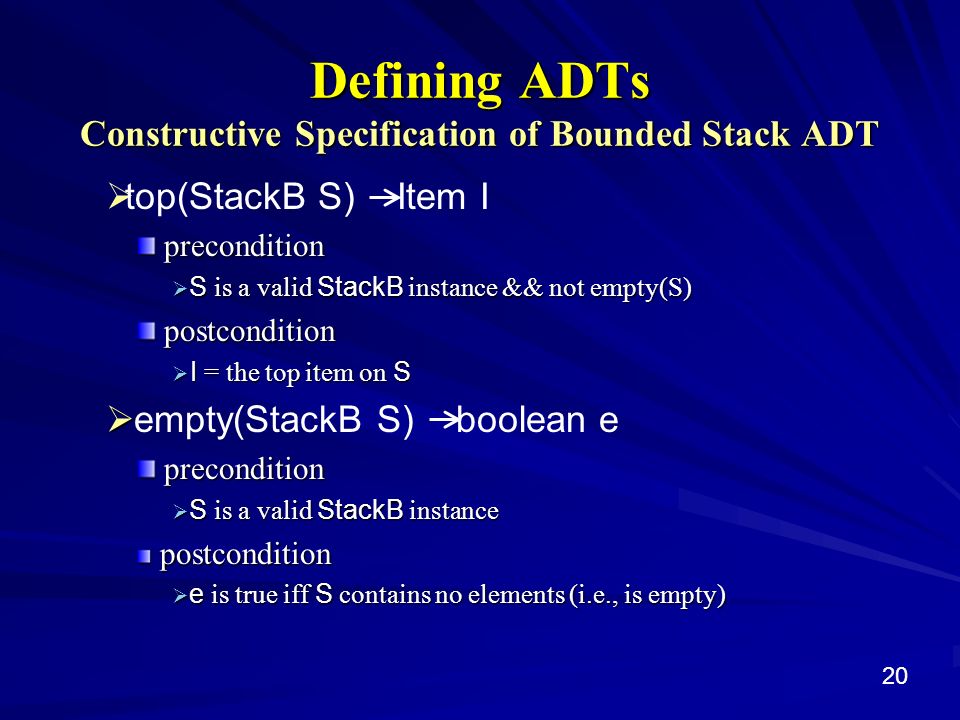

22. Defining ADTs Constructive Specification of Bounded Stack ADT   top(StackB S) Item I precondition precondition  S is a valid StackB instance && not empty(S) postcondition postcondition  I = the top item on S   empty(StackB S) boolean e precondition precondition  S is a valid StackB instance postcondition postcondition  e is true iff S contains no elements (i.e., is empty) 20

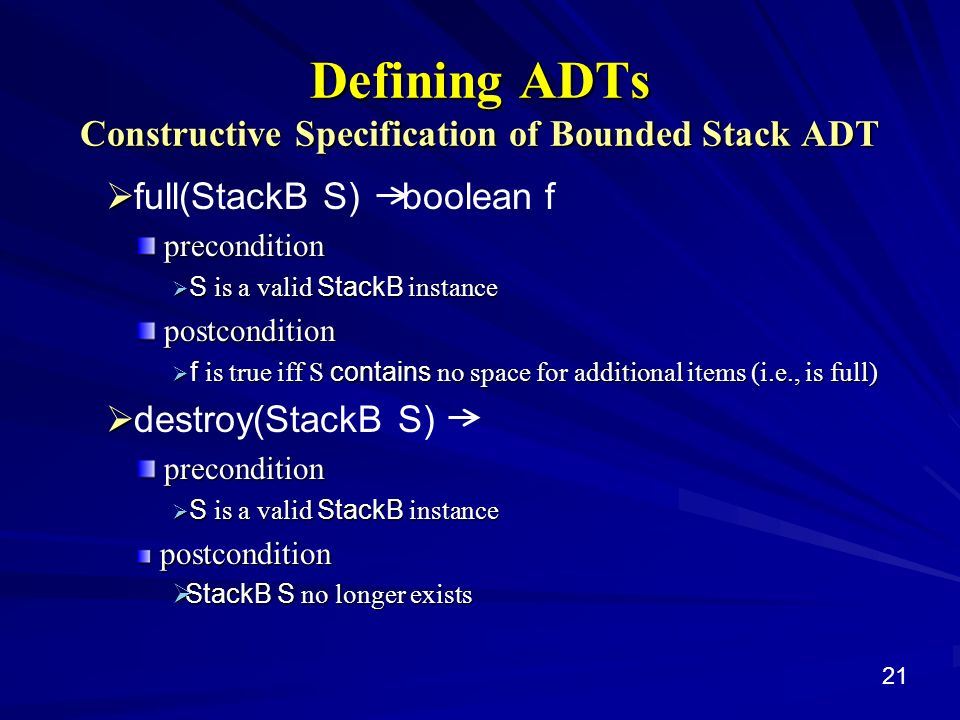

23. Defining ADTs Constructive Specification of Bounded Stack ADT   full(StackB S) boolean f precondition precondition  S is a valid StackB instance postcondition postcondition  f is true iff S contains no space for additional items (i.e., is full)   destroy(StackB S) precondition precondition  S is a valid StackB instance postcondition postcondition  StackB S no longer exists 21

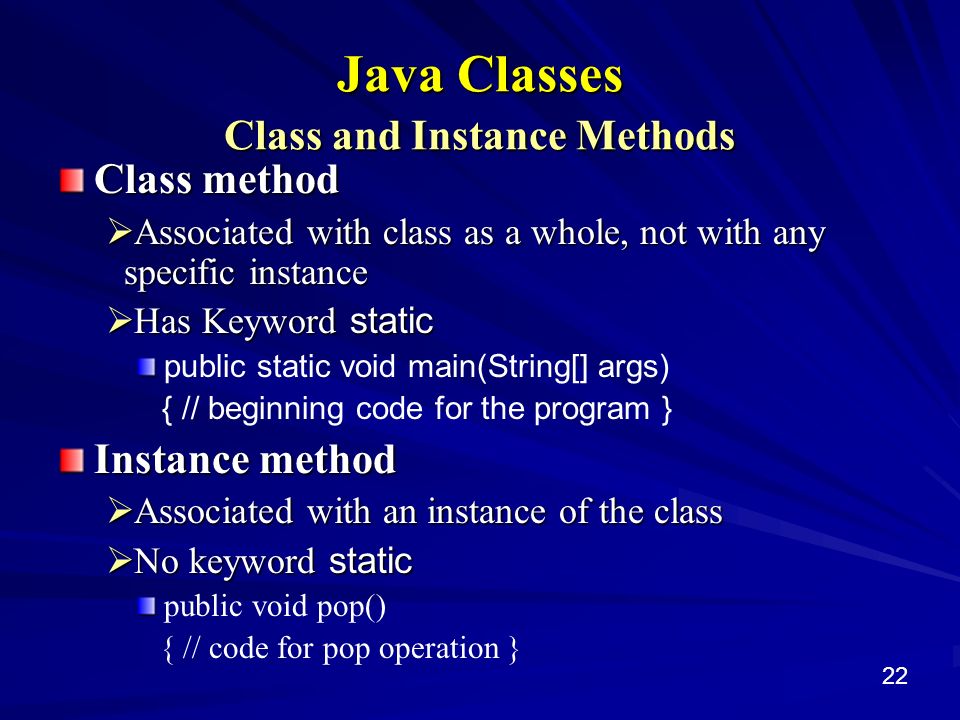

24. Java Classes Class and Instance Methods Class method  Associated with class as a whole, not with any specific instance  Has Keyword static public static void main(String[] args) { // beginning code for the program } Instance method  Associated with an instance of the class  No keyword static public void pop() { // code for pop operation } 22

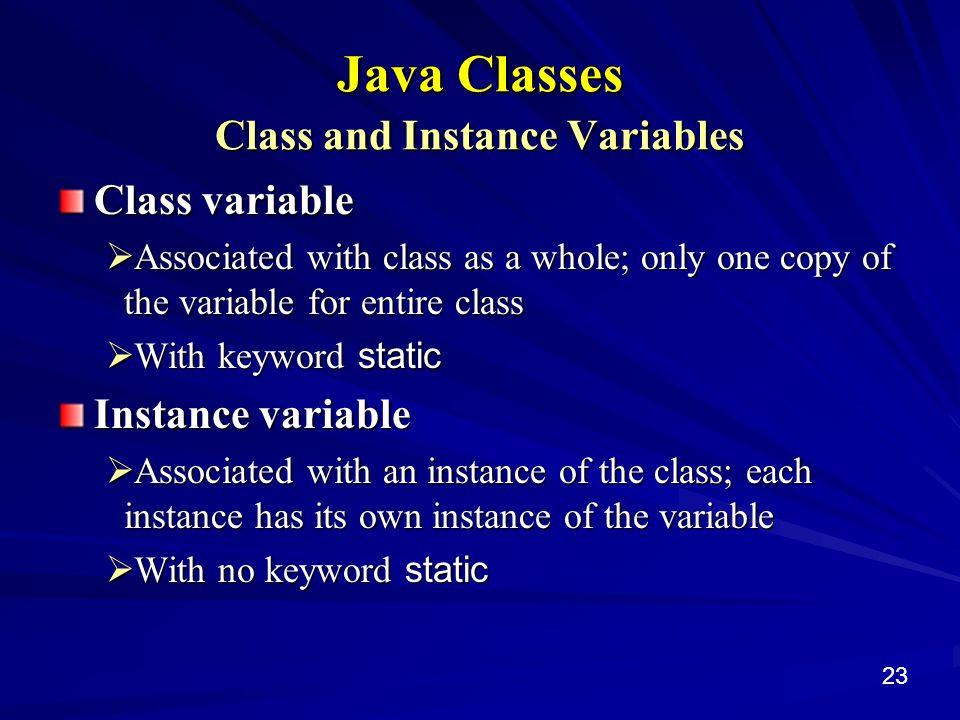

25. Java Classes Class and Instance Variables Class variable  Associated with class as a whole; only one copy of the variable for entire class  With keyword static Instance variable  Associated with an instance of the class; each instance has its own instance of the variable  With no keyword static 23

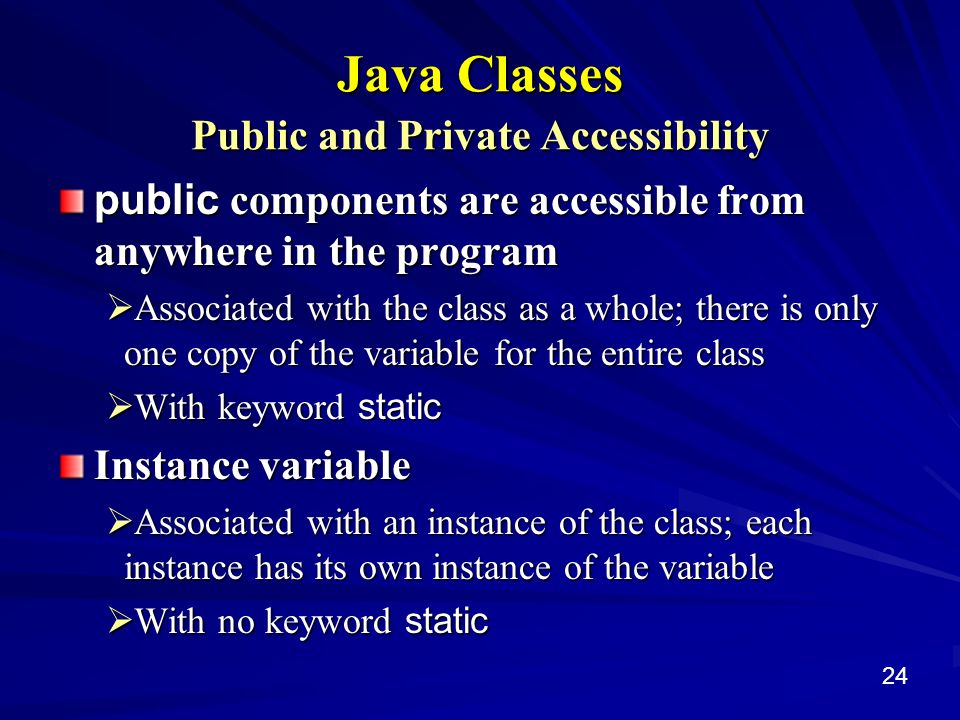

26. Java Classes Public and Private Accessibility public components are accessible from anywhere in the program  Associated with the class as a whole; there is only one copy of the variable for the entire class  With keyword static Instance variable  Associated with an instance of the class; each instance has its own instance of the variable  With no keyword static 24

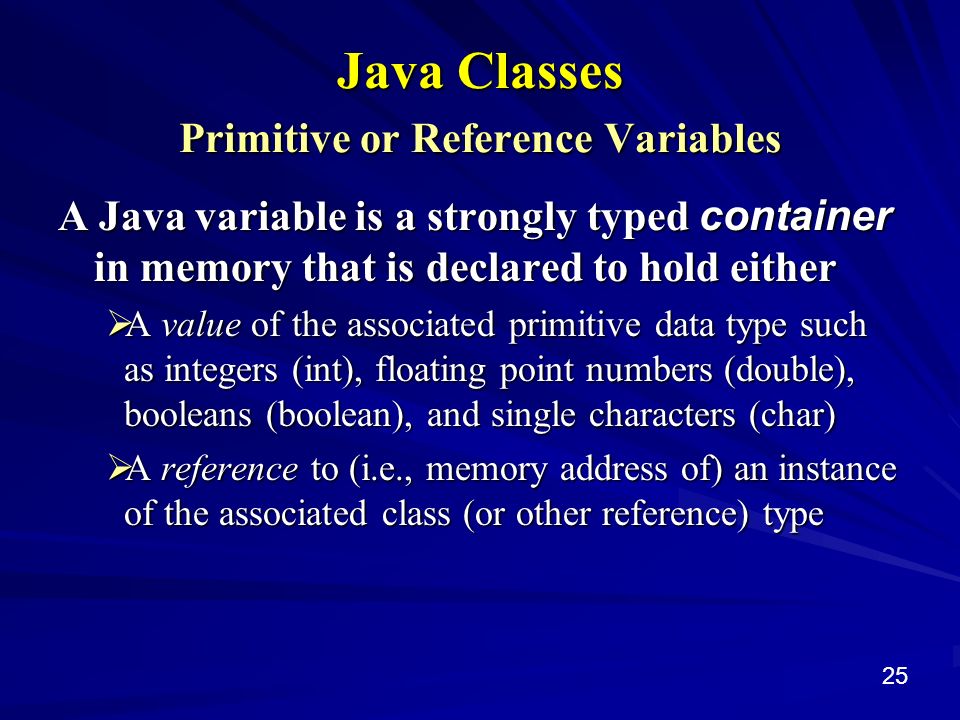

27. Java Classes Primitive or Reference Variables A Java variable is a strongly typed container in memory that is declared to hold either  A value of the associated primitive data type such as integers (int), floating point numbers (double), booleans (boolean), and single characters (char)  A reference to (i.e., memory address of) an instance of the associated class (or other reference) type 25

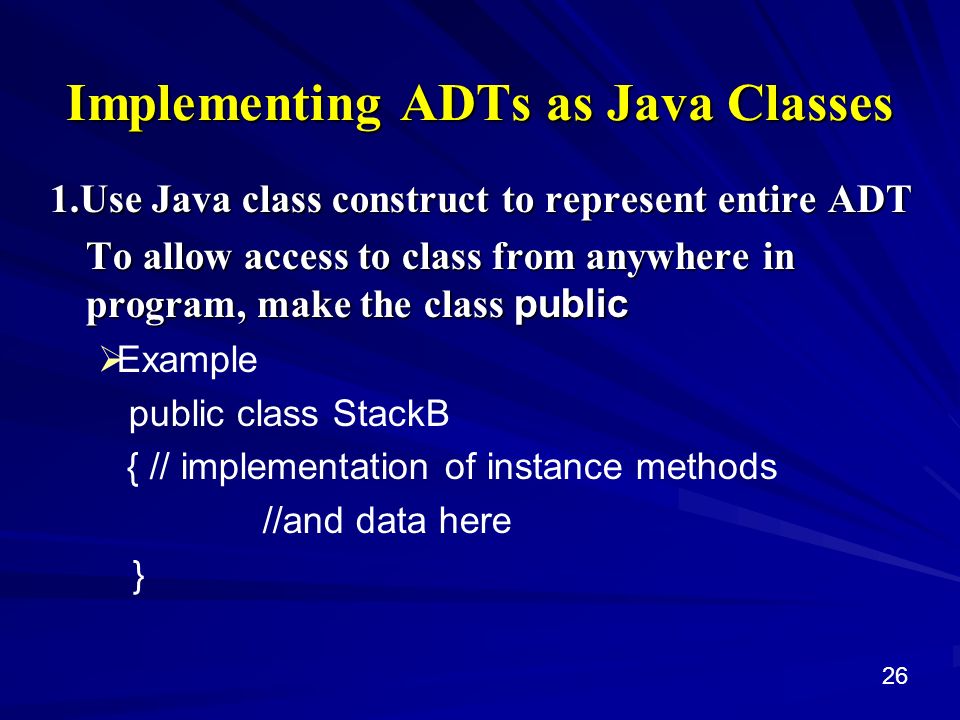

28. Implementing ADTs as Java Classes 1.Use Java class construct to represent entire ADT To allow access to class from anywhere in program, make the class public   Example public class StackB { // implementation of instance methods //and data here } 26

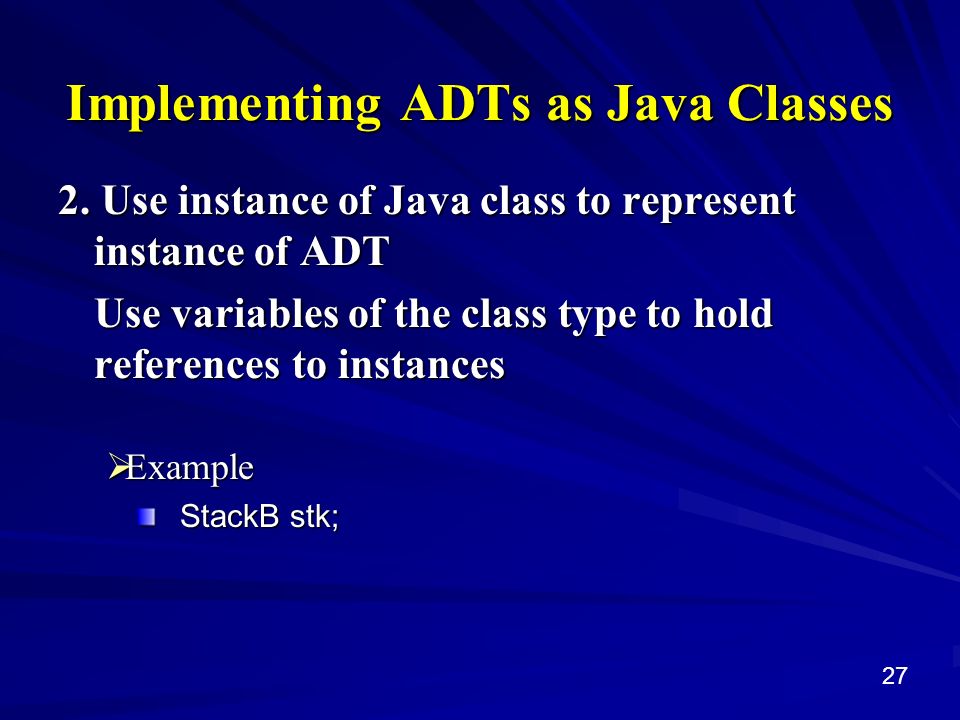

29. Implementing ADTs as Java Classes 2. Use instance of Java class to represent instance of ADT Use variables of the class type to hold references to instances  Example StackB stk; StackB stk; 27

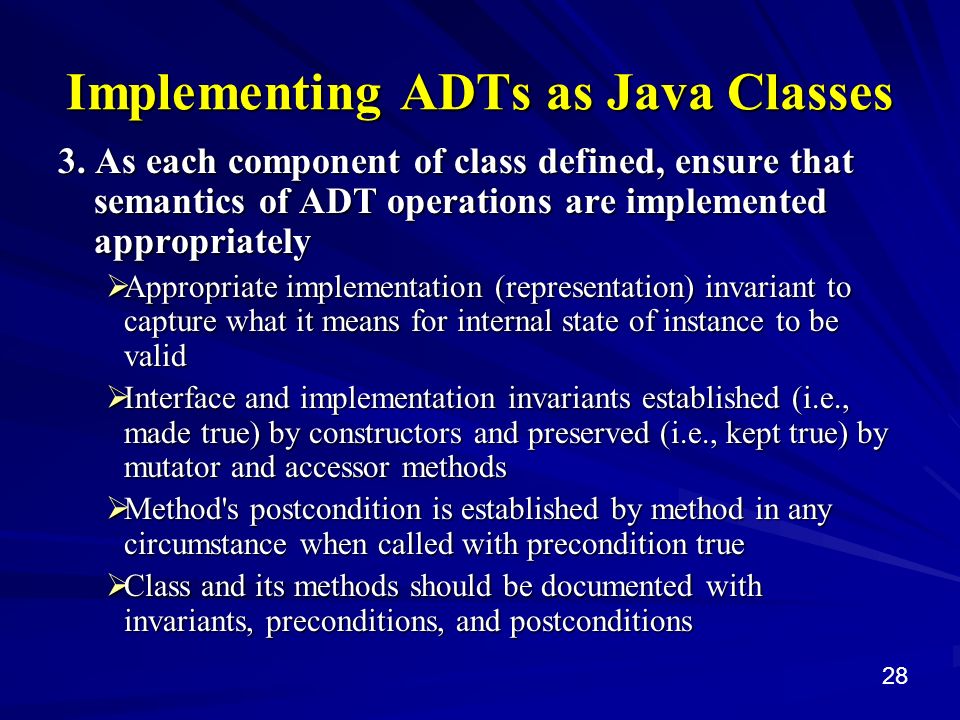

30. Implementing ADTs as Java Classes 3. As each component of class defined, ensure that semantics of ADT operations are implemented appropriately  Appropriate implementation (representation) invariant to capture what it means for internal state of instance to be valid  Interface and implementation invariants established (i.e., made true) by constructors and preserved (i.e., kept true) by mutator and accessor methods  Method's postcondition is established by method in any circumstance when called with precondition true  Class and its methods should be documented with invariants, preconditions, and postconditions 28

31. Implementing ADTs as Java Classes 4. Represent ADT's constructors by Java constructor methods Often include a parameterless default constructor Constructor is  Method with same name as class  No return type specified  Normally invoked by Java operator new  Example public class StackB public class StackB { public StackB(int size) { // initialization code } { // initialization code } // rest of StackB methods and data... } StackB stk = new StackB(100); StackB stk = new StackB(100); 29

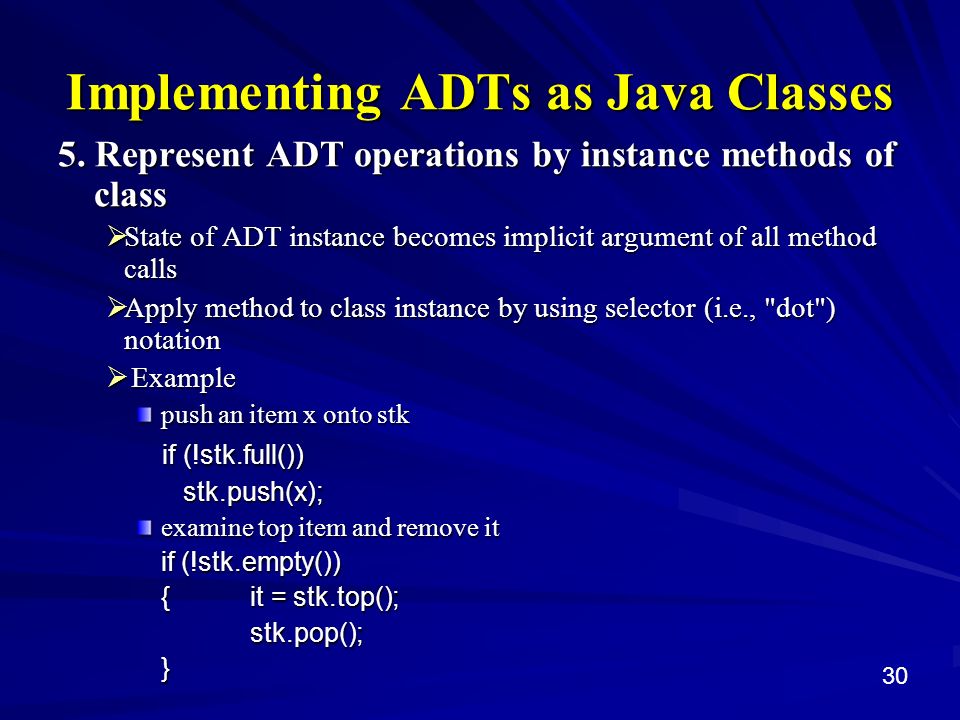

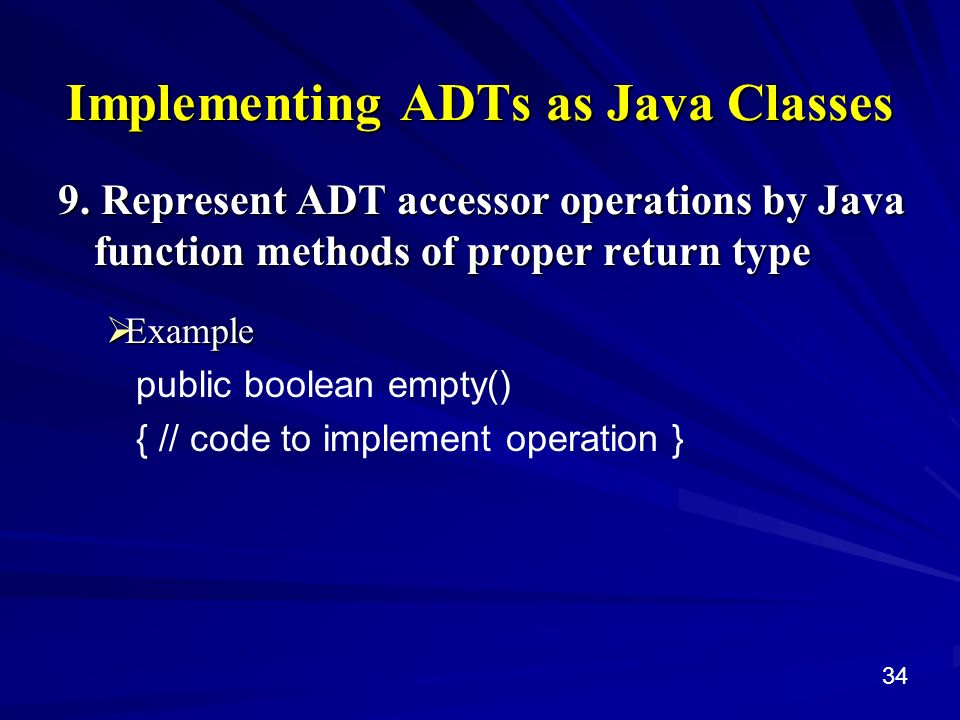

32. Implementing ADTs as Java Classes 5. Represent ADT operations by instance methods of class  State of ADT instance becomes implicit argument of all method calls  Apply method to class instance by using selector (i.e., "dot") notation  Example push an item x onto stk push an item x onto stk if (!stk.full()) if (!stk.full()) stk.push(x); stk.push(x); examine top item and remove it examine top item and remove it if (!stk.empty()) if (!stk.empty()) { it = stk.top(); { it = stk.top();stk.pop(); } 30

33. Implementing ADTs as Java Classes 6. Make the constructors, mutators, accessors, and destructors public methods of the class 31

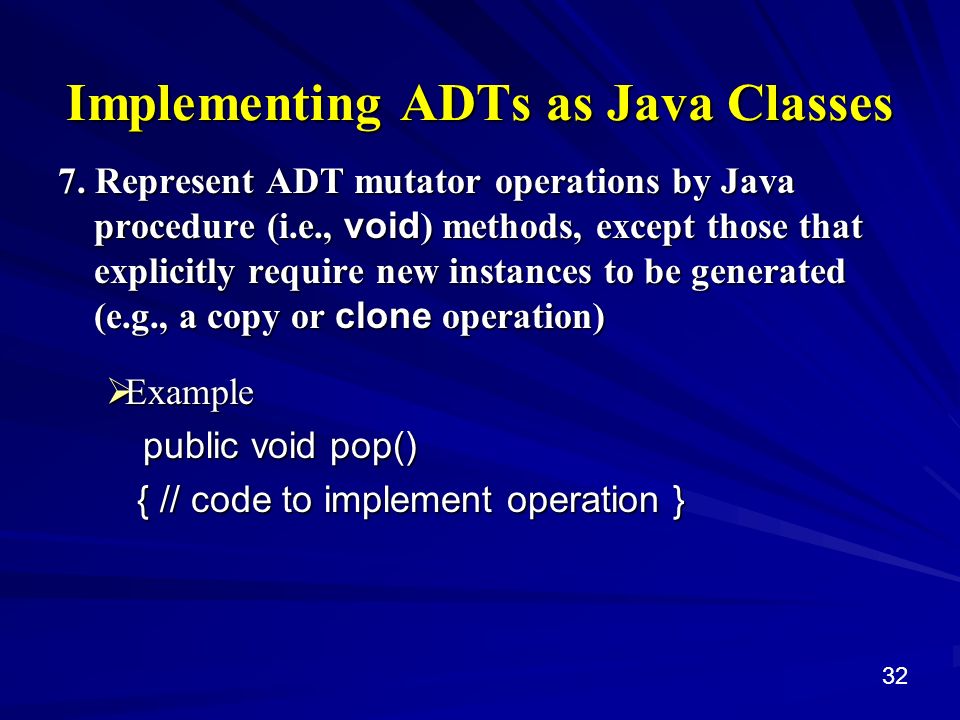

34. Implementing ADTs as Java Classes 7. Represent ADT mutator operations by Java procedure (i.e., void ) methods, except those that explicitly require new instances to be generated (e.g., a copy or clone operation)  Example public void pop() public void pop() { // code to implement operation } { // code to implement operation } 32

35. Implementing ADTs as Java Classes 8. For certain mutator operations (e.g., copy or clone ), implement Java methods to return new instances rather than modify the current instance 33

36. Implementing ADTs as Java Classes 9. Represent ADT accessor operations by Java function methods of proper return type  Example public boolean empty() { // code to implement operation } 34

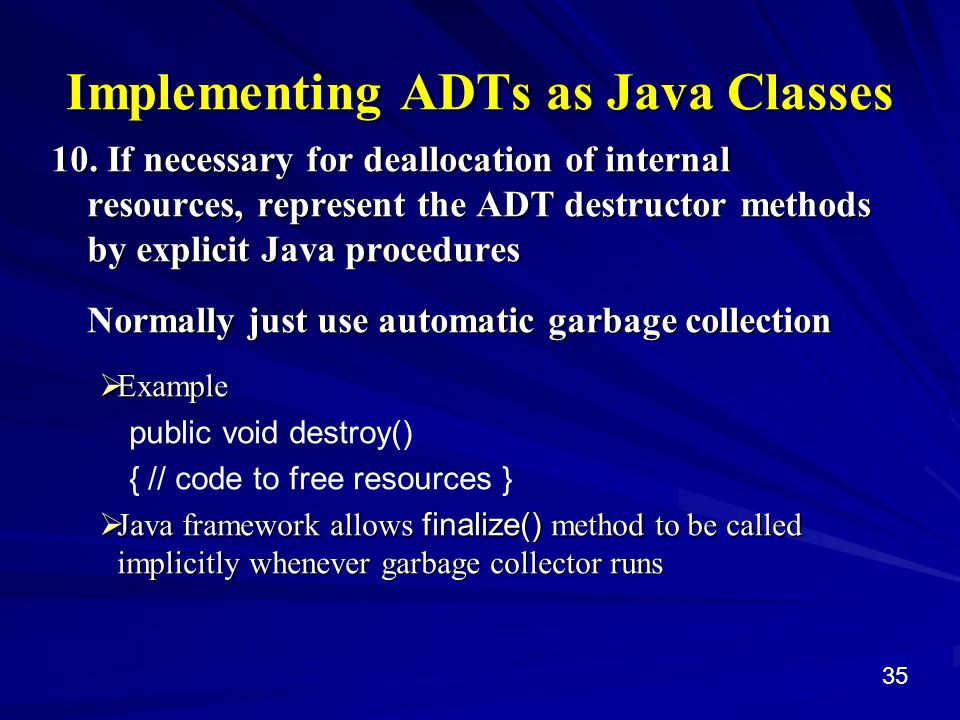

37. Implementing ADTs as Java Classes 10. If necessary for deallocation of internal resources, represent the ADT destructor methods by explicit Java procedures Normally just use automatic garbage collection  Example public void destroy() { // code to free resources }  Java framework allows finalize() method to be called implicitly whenever garbage collector runs 35

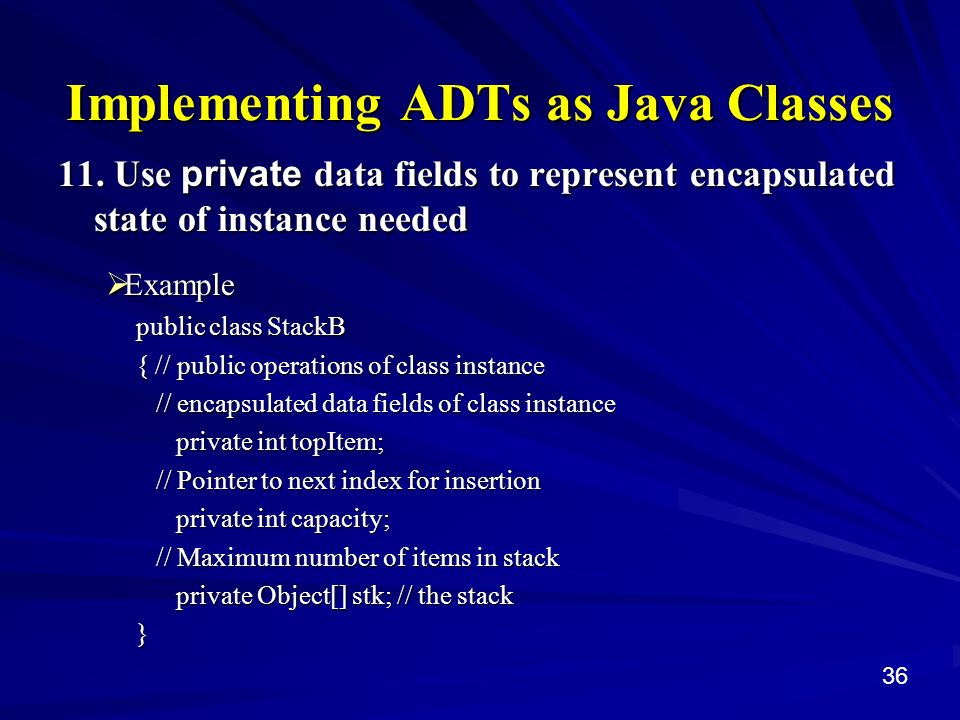

38. Implementing ADTs as Java Classes 11. Use private data fields to represent encapsulated state of instance needed  Example public class StackB { // public operations of class instance // encapsulated data fields of class instance // encapsulated data fields of class instance private int topItem; private int topItem; // Pointer to next index for insertion // Pointer to next index for insertion private int capacity; private int capacity; // Maximum number of items in stack // Maximum number of items in stack private Object[] stk; // the stack private Object[] stk; // the stack} 36

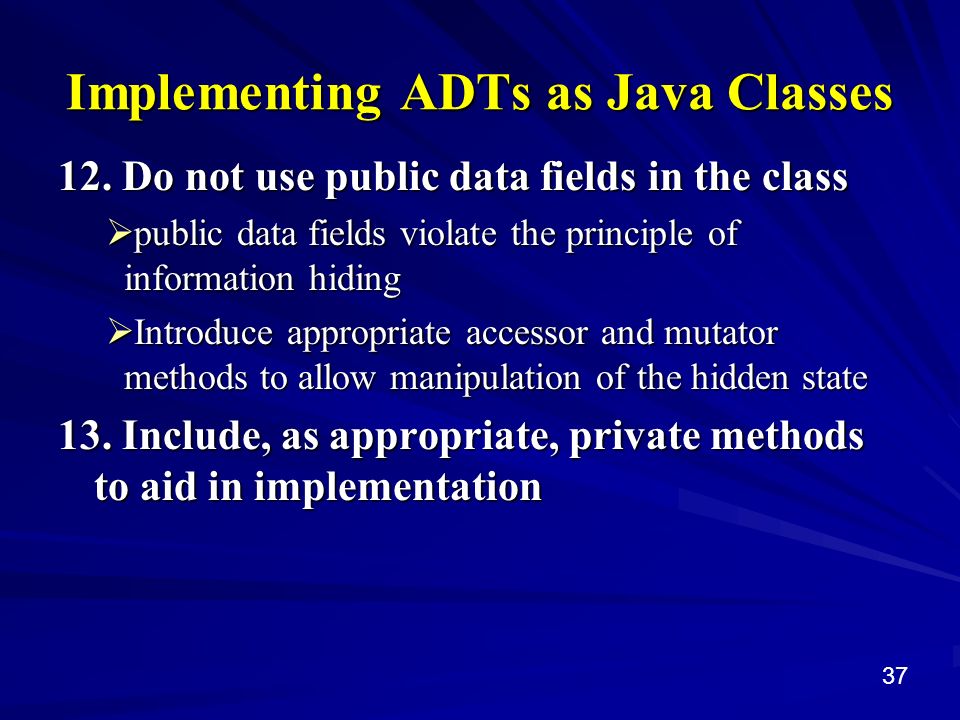

39. Implementing ADTs as Java Classes 12. Do not use public data fields in the class  public data fields violate the principle of information hiding  Introduce appropriate accessor and mutator methods to allow manipulation of the hidden state 13. Include, as appropriate, private methods to aid in implementation 37

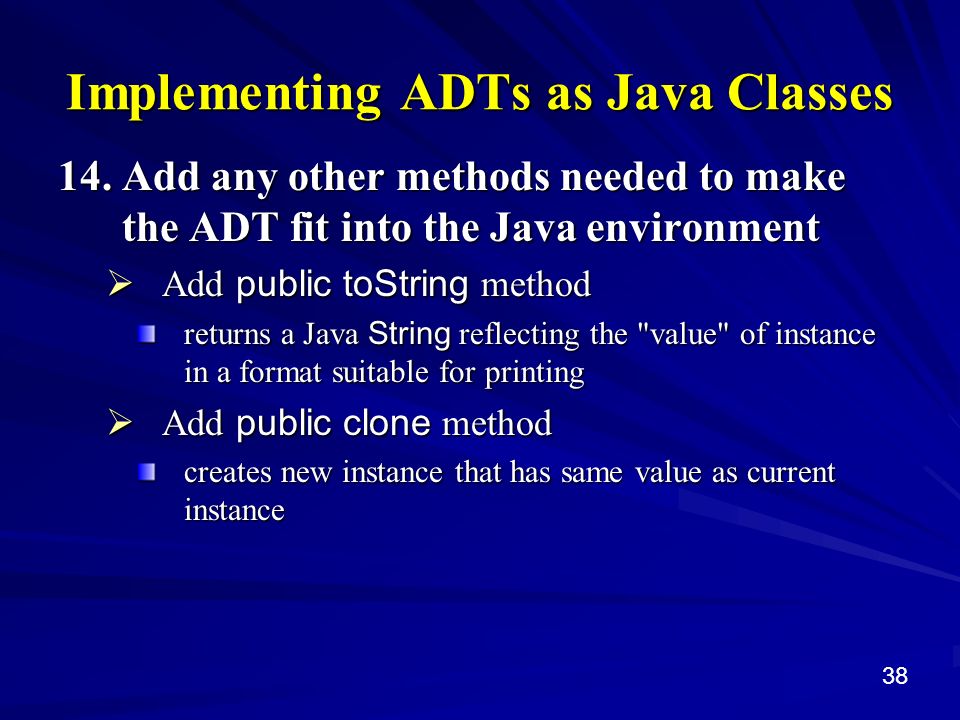

40. Implementing ADTs as Java Classes 14. Add any other methods needed to make the ADT fit into the Java environment  Add public toString method returns a Java String reflecting the "value" of instance in a format suitable for printing  Add public clone method creates new instance that has same value as current instance 38

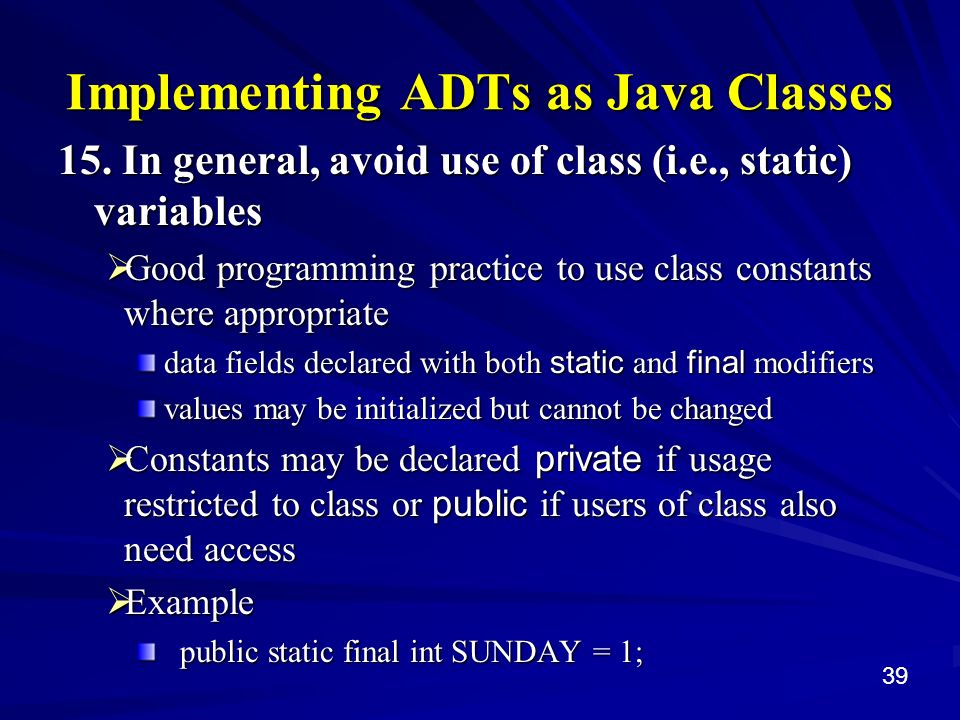

41. Implementing ADTs as Java Classes 15. In general, avoid use of class (i.e., static) variables  Good programming practice to use class constants where appropriate data fields declared with both static and final modifiers data fields declared with both static and final modifiers values may be initialized but cannot be changed values may be initialized but cannot be changed  Constants may be declared private if usage restricted to class or public if users of class also need access  Example public static final int SUNDAY = 1; public static final int SUNDAY = 1; 39

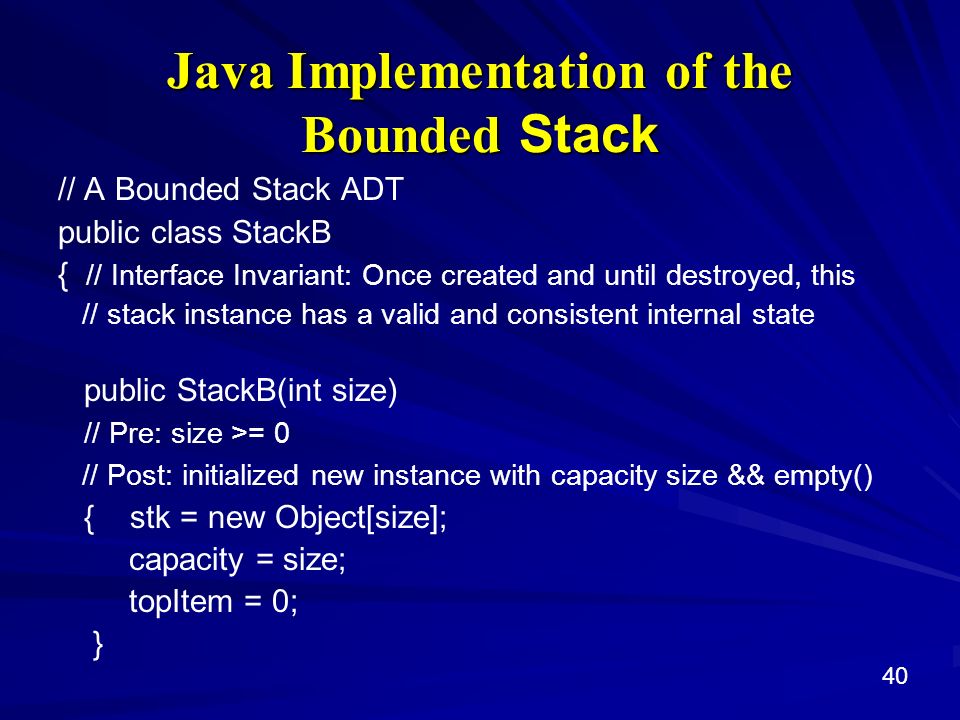

42. Java Implementation of the Bounded Stack // A Bounded Stack ADT public class StackB { // Interface Invariant: Once created and until destroyed, this // stack instance has a valid and consistent internal state public StackB(int size) // Pre: size >= 0 // Post: initialized new instance with capacity size && empty() { stk = new Object[size]; capacity = size; topItem = 0; } 40

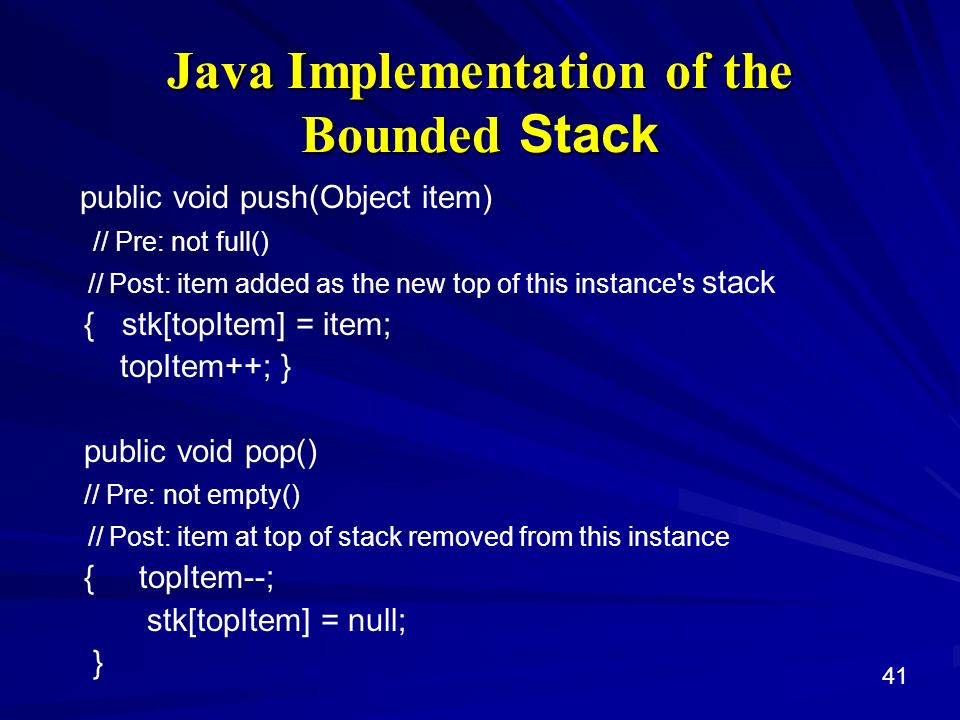

43. Java Implementation of the Bounded Stack public void push(Object item) // Pre: not full() // Post: item added as the new top of this instance's stack { stk[topItem] = item; topItem++; } public void pop() // Pre: not empty() // Post: item at top of stack removed from this instance { topItem--; stk[topItem] = null; } 41

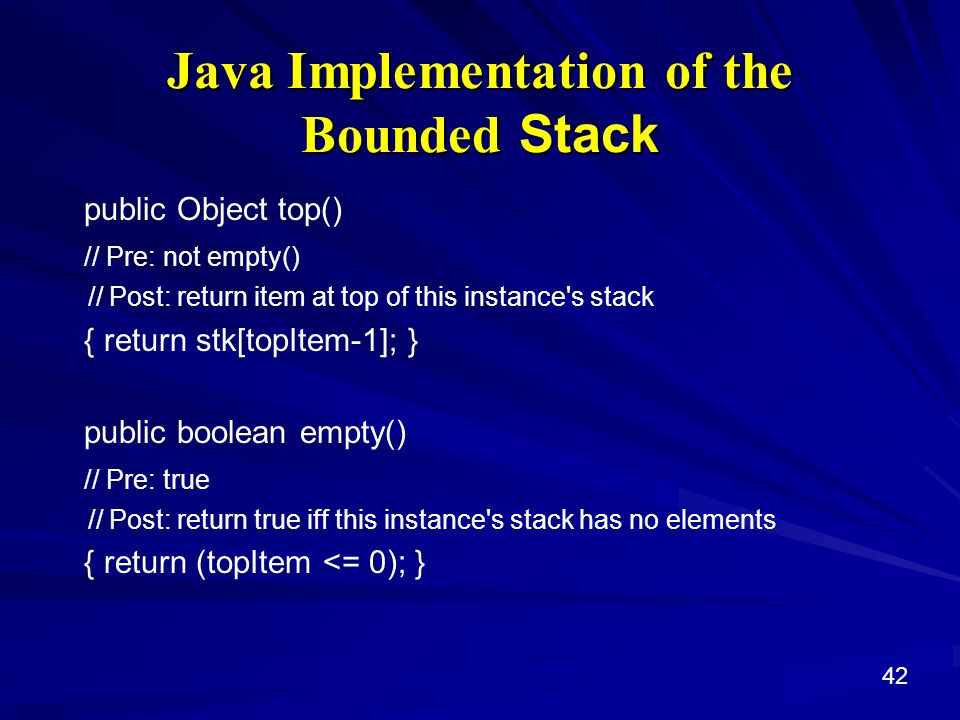

44. Java Implementation of the Bounded Stack public Object top() // Pre: not empty() // Post: return item at top of this instance's stack { return stk[topItem-1]; } public boolean empty() // Pre: true // Post: return true iff this instance's stack has no elements { return (topItem <= 0); } 42

45. Java Implementation of the Bounded Stack public boolean full() // Pre: true // Post: return true iff this instance's stack is at full capacity { return (topItem >= capacity); } public void destroy() // Pre: true // Post: internal resources released; stack effectively deleted { stk = null; capacity = 0; topItem = 0; } 43

46. Java Implementation of the Bounded Stack // Implementation Invariants: 0 <= topItem <= capacity // stack is in array section stk[0..topItem-1] // with the top at stk[topItem-1], etc. private int topItem; // Pointer to next index for insertion private int capacity; // Maximum number of items in stack private Object[] stk; // the stack } 44

47. Better Approach to Implementing ADTs in Java Ι. Define Java interface that specifies type signatures for ADT's mutator and accessor (and, if needed, destructor) operations 45

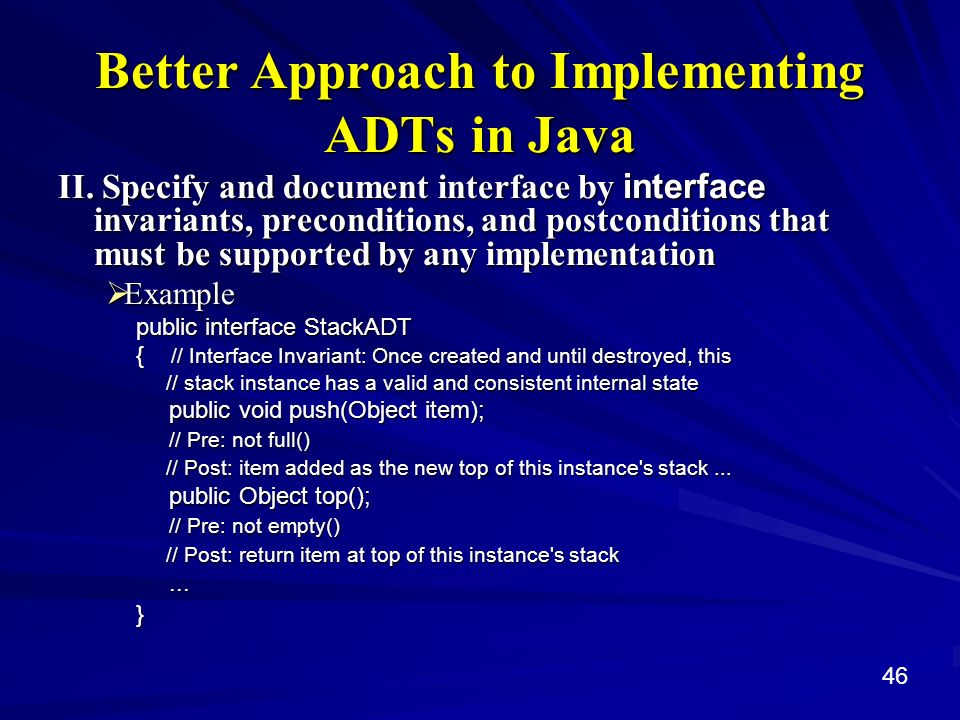

48. Better Approach to Implementing ADTs in Java II. Specify and document interface by interface invariants, preconditions, and postconditions that must be supported by any implementation  Example public interface StackADT { // Interface Invariant: Once created and until destroyed, this // stack instance has a valid and consistent internal state // stack instance has a valid and consistent internal state public void push(Object item); public void push(Object item); // Pre: not full() // Pre: not full() // Post: item added as the new top of this instance's stack... // Post: item added as the new top of this instance's stack... public Object top(); public Object top(); // Pre: not empty() // Pre: not empty() // Post: return item at top of this instance's stack // Post: return item at top of this instance's stack......} 46

49. Better Approach to Implementing ADTs in Java III. Provide one or more concrete classes that implement the interface  Example public class StackInArray implements StackADT public class StackInArray implements StackADT { // Interface Invariant: Once created and until destroyed, this { // Interface Invariant: Once created and until destroyed, this // stack instance has a valid and consistent internal state // stack instance has a valid and consistent internal state public StackInArray(int size) public StackInArray(int size) // Pre: size >= 0 // Pre: size >= 0 // Post: initialized new instance with capacity size && empty() // Post: initialized new instance with capacity size && empty() { stk = new Object[size]; stk = new Object[size]; capacity = size; topItem = 0; capacity = size; topItem = 0; } 47

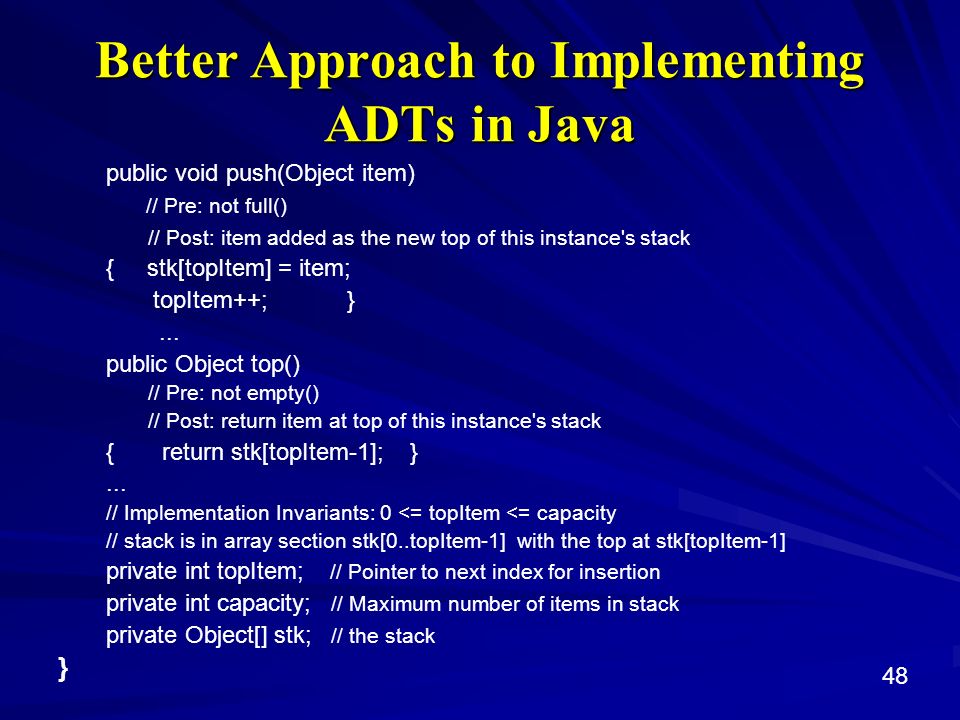

50. Better Approach to Implementing ADTs in Java public void push(Object item) // Pre: not full() // Post: item added as the new top of this instance's stack { stk[topItem] = item; topItem++; }... public Object top() // Pre: not empty() // Post: return item at top of this instance's stack { return stk[topItem-1]; }... // Implementation Invariants: 0 <= topItem <= capacity // stack is in array section stk[0..topItem-1] with the top at stk[topItem-1] private int topItem; // Pointer to next index for insertion private int capacity; // Maximum number of items in stack private Object[] stk; // the stack } 48

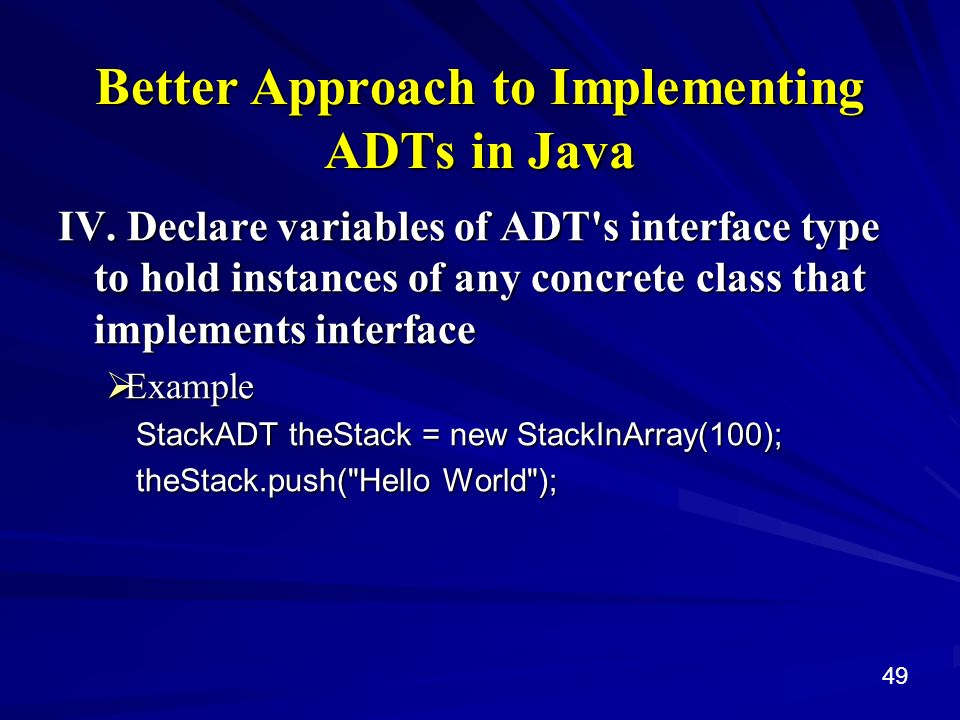

51. Better Approach to Implementing ADTs in Java IV. Declare variables of ADT's interface type to hold instances of any concrete class that implements interface  Example StackADT theStack = new StackInArray(100); theStack.push("Hello World"); 49

52. A Date (Day) ADT Constructor create(int y, int m, int d) Day D‘   Precondition y != 0 && 1 <= m <= 12 && 1 <= d <= #days in month m && (y,m,d) does not fall in the gap formed by the change to the modern (Gregorian) calendar  Postcondition D' is a valid new instance of Day with year y, month m, and day d 50

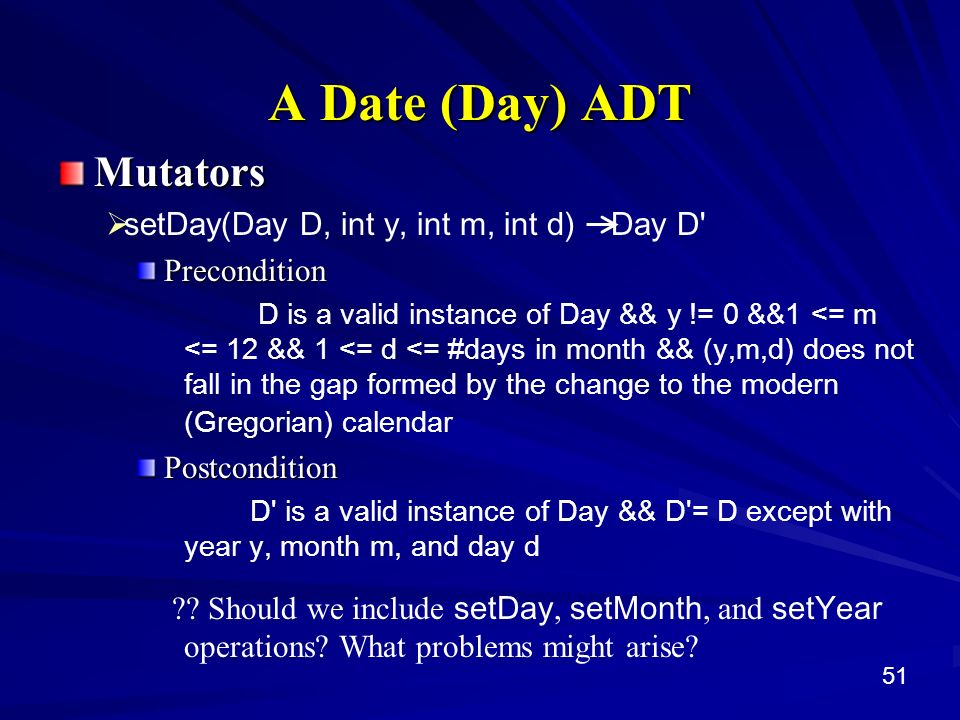

53. A Date (Day) ADT Mutators   setDay(Day D, int y, int m, int d) Day D' Precondition Precondition D is a valid instance of Day && y != 0 &&1 <= m <= 12 && 1 <= d <= #days in month && (y,m,d) does not fall in the gap formed by the change to the modern (Gregorian) calendar Postcondition Postcondition D' is a valid instance of Day && D'= D except with year y, month m, and day d ?? Should we include setDay, setMonth, and setYear operations? What problems might arise? 51

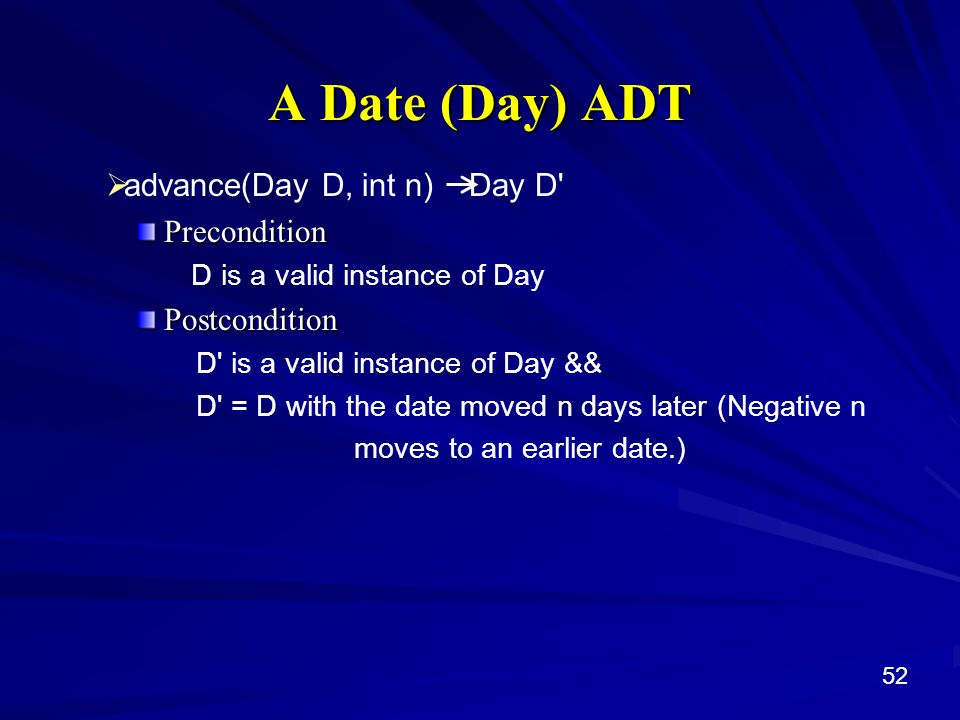

54. A Date (Day) ADT   advance(Day D, int n) Day D' Precondition Precondition D is a valid instance of Day Postcondition Postcondition D' is a valid instance of Day && D' = D with the date moved n days later (Negative n moves to an earlier date.) 52

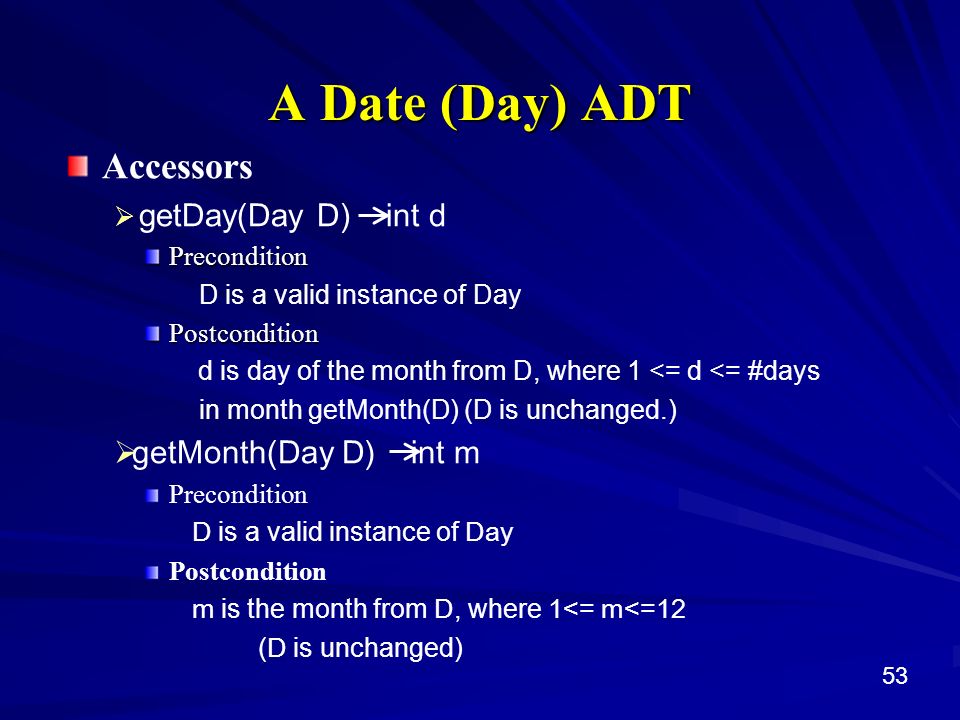

55. A Date (Day) ADT Accessors   getDay(Day D) int d Precondition Precondition D is a valid instance of Day Postcondition Postcondition d is day of the month from D, where 1 <= d <= #days in month getMonth(D) (D is unchanged.)   getMonth(Day D) int m Precondition D is a valid instance of Day Postcondition m is the month from D, where 1<= m<=12 ( D is unchanged) 53

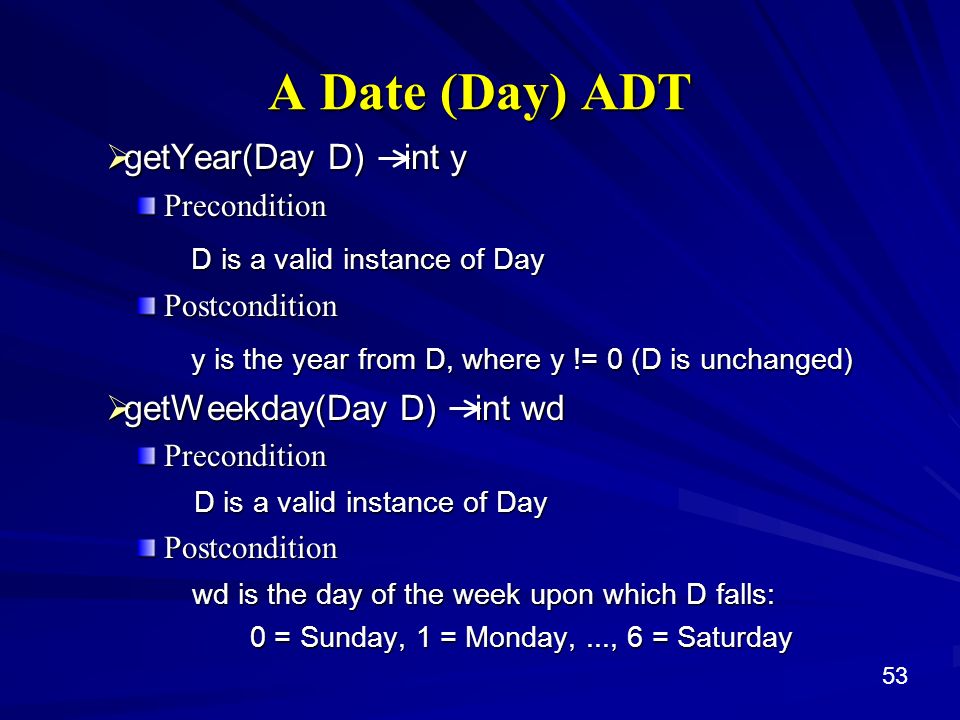

56. A Date (Day) ADT  getYear(Day D) int y Precondition Precondition D is a valid instance of Day D is a valid instance of Day Postcondition Postcondition y is the year from D, where y != 0 (D is unchanged) y is the year from D, where y != 0 (D is unchanged)  getWeekday(Day D) int wd Precondition Precondition D is a valid instance of Day D is a valid instance of Day Postcondition Postcondition wd is the day of the week upon which D falls: wd is the day of the week upon which D falls: 0 = Sunday, 1 = Monday,..., 6 = Saturday 53

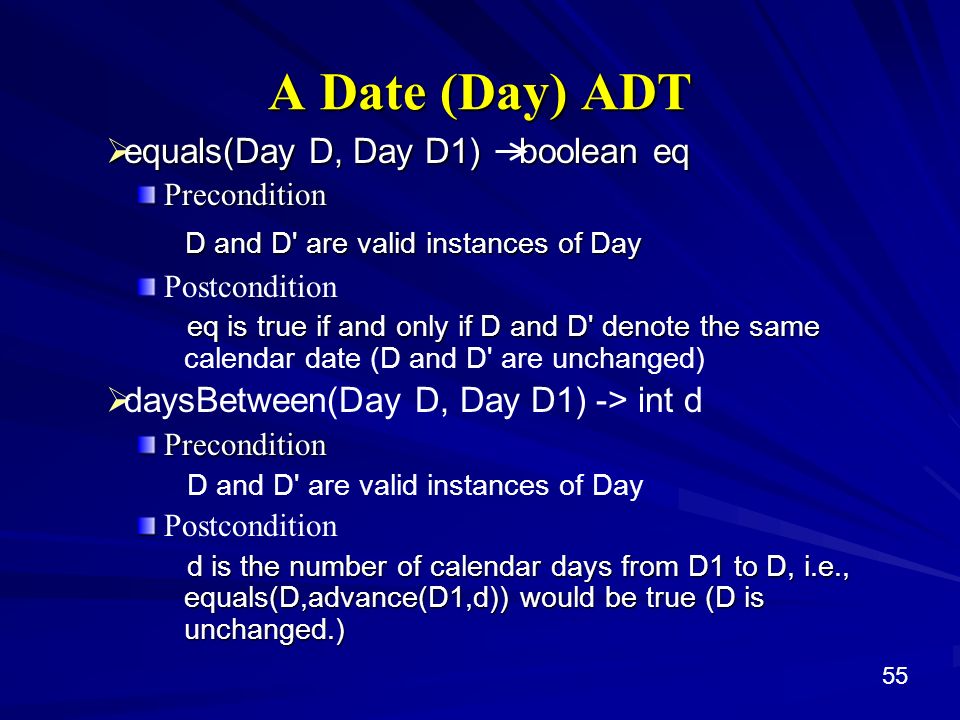

57. A Date (Day) ADT  equals(Day D, Day D1) boolean eq Precondition Precondition D and D' are valid instances of Day D and D' are valid instances of Day Postcondition eq is true if and only if D and D' denote the same eq is true if and only if D and D' denote the same calendar date (D and D' are unchanged)   daysBetween(Day D, Day D1) -> int d Precondition Precondition D and D' are valid instances of Day Postcondition d is the number of calendar days from D1 to D, i.e., equals(D,advance(D1,d)) would be true (D is unchanged.) d is the number of calendar days from D1 to D, i.e., equals(D,advance(D1,d)) would be true (D is unchanged.) 55

58. A Date (Day) ADT  toString(Day D) -> String s Precondition Precondition D is a valid instance of Day D is a valid instance of Day Postcondition s is the date D expressed in the format "Day[getYear(D),getMonth(D),getDay(D)]". s is the date D expressed in the format "Day[getYear(D),getMonth(D),getDay(D)]". (D is unchanged.) (D is unchanged.) Note Note  This method is a "standard" method that should be defined for most Java classes so that they fit well into the Java language framework. 56

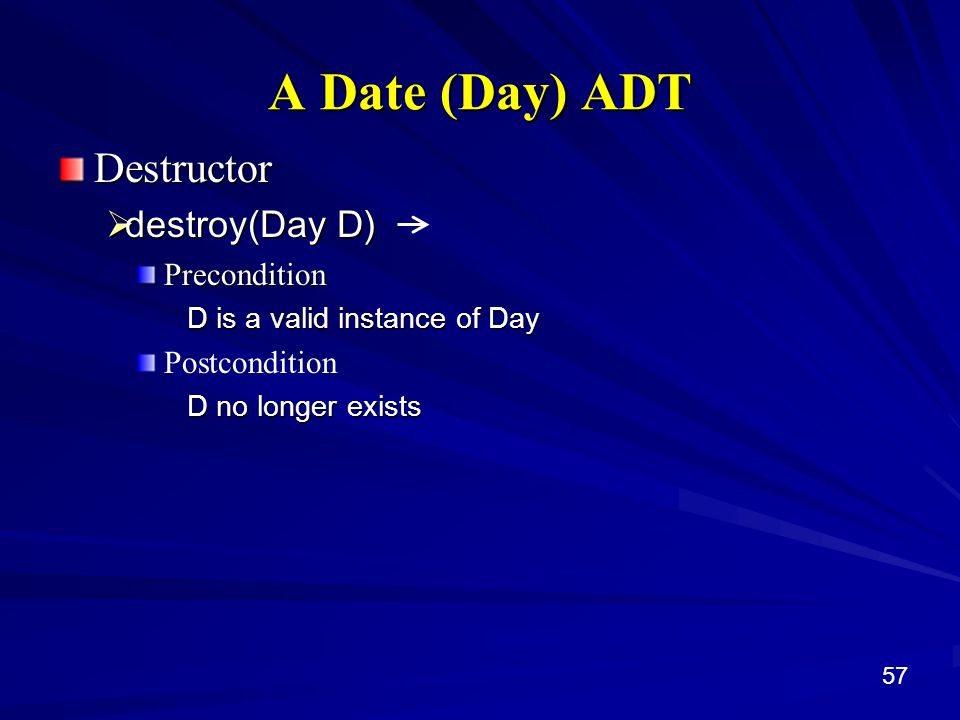

59. A Date (Day) ADT Destructor  destroy(Day D) Precondition Precondition D is a valid instance of Day D is a valid instance of Day Postcondition D no longer exists D no longer exists 57

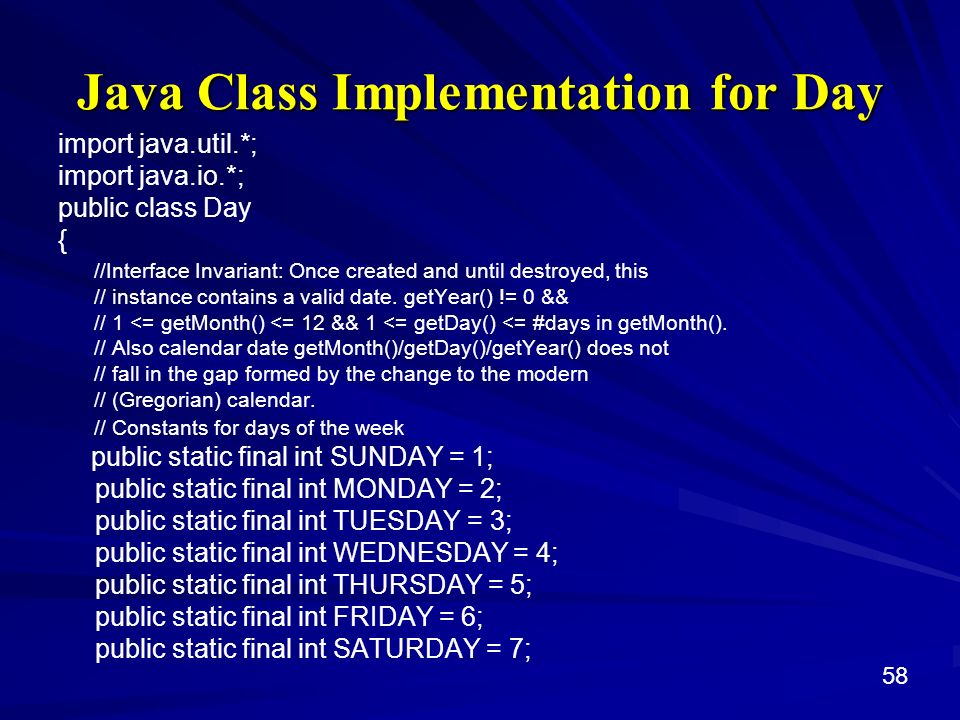

60. Java Class Implementation for Day import java.util.*; import java.io.*; public class Day { //Interface Invariant: Once created and until destroyed, this // instance contains a valid date. getYear() != 0 && // 1 <= getMonth() <= 12 && 1 <= getDay() <= #days in getMonth(). // Also calendar date getMonth()/getDay()/getYear() does not // fall in the gap formed by the change to the modern // (Gregorian) calendar. // Constants for days of the week public static final int SUNDAY = 1; public static final int MONDAY = 2; public static final int TUESDAY = 3; public static final int WEDNESDAY = 4; public static final int THURSDAY = 5; public static final int FRIDAY = 6; public static final int SATURDAY = 7; 58

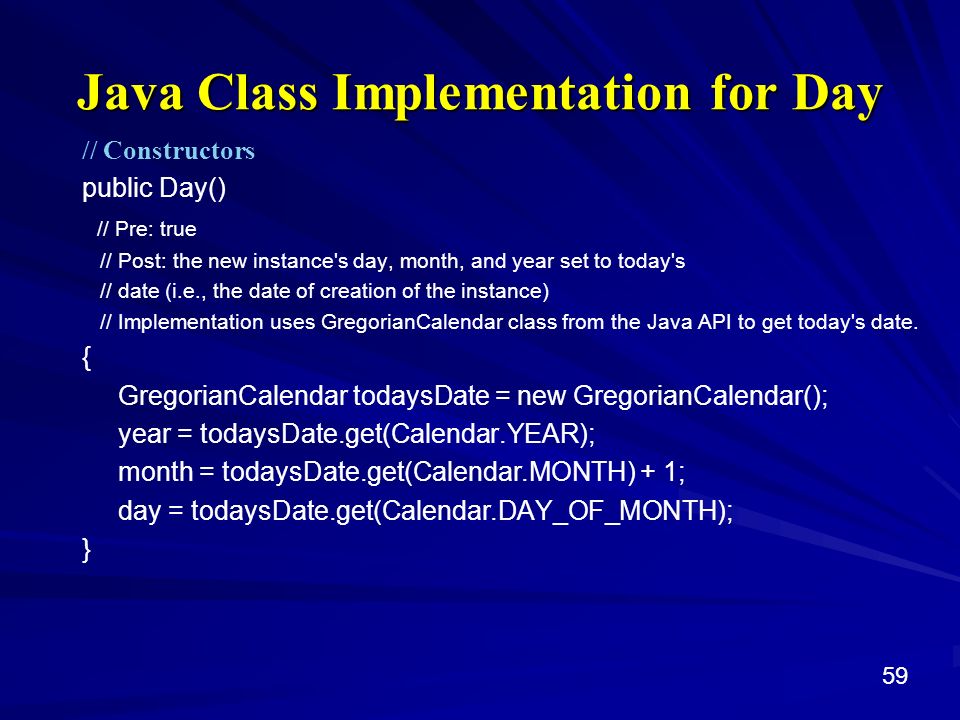

61. Java Class Implementation for Day // Constructors public Day() // Pre: true // Post: the new instance's day, month, and year set to today's // date (i.e., the date of creation of the instance) // Implementation uses GregorianCalendar class from the Java API to get today's date. { GregorianCalendar todaysDate = new GregorianCalendar(); year = todaysDate.get(Calendar.YEAR); month = todaysDate.get(Calendar.MONTH) + 1; day = todaysDate.get(Calendar.DAY_OF_MONTH); } 59

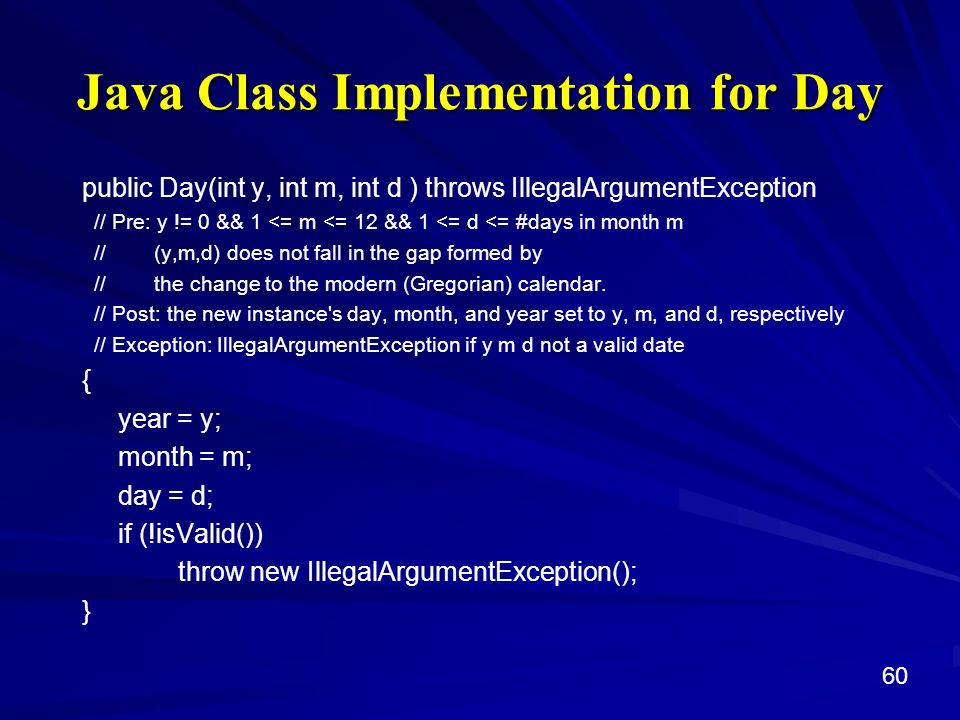

62. Java Class Implementation for Day public Day(int y, int m, int d ) throws IllegalArgumentException // Pre: y != 0 && 1 <= m <= 12 && 1 <= d <= #days in month m // (y,m,d) does not fall in the gap formed by // the change to the modern (Gregorian) calendar. // Post: the new instance's day, month, and year set to y, m, and d, respectively // Exception: IllegalArgumentException if y m d not a valid date { year = y; month = m; day = d; if (!isValid()) throw new IllegalArgumentException(); } 60

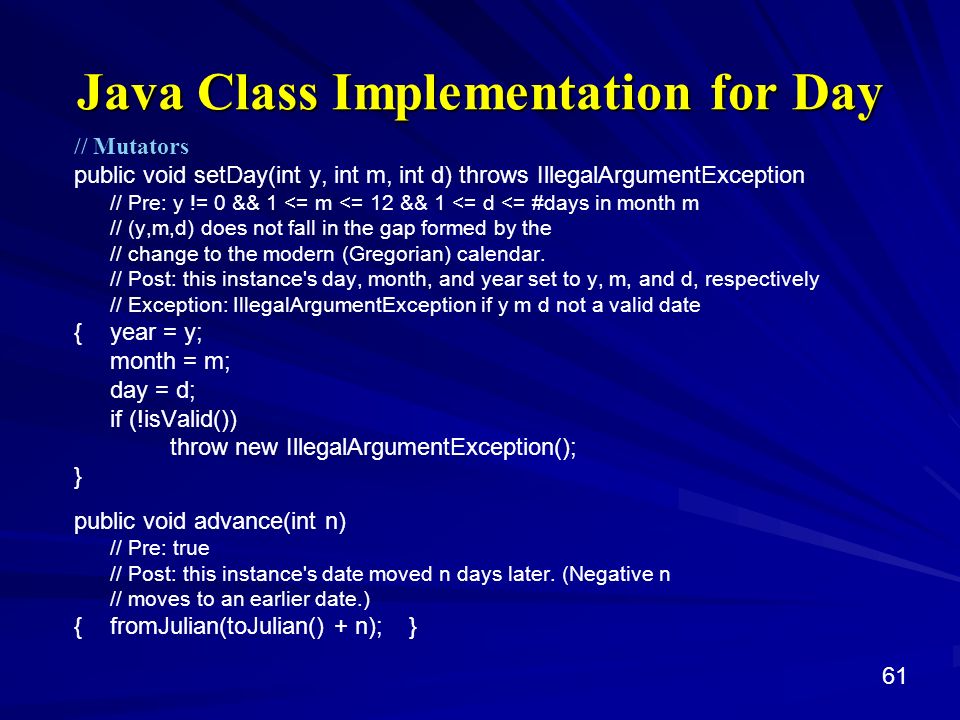

63. Java Class Implementation for Day // Mutators public void setDay(int y, int m, int d) throws IllegalArgumentException // Pre: y != 0 && 1 <= m <= 12 && 1 <= d <= #days in month m // (y,m,d) does not fall in the gap formed by the // change to the modern (Gregorian) calendar. // Post: this instance's day, month, and year set to y, m, and d, respectively // Exception: IllegalArgumentException if y m d not a valid date { year = y; month = m; day = d; if (!isValid()) throw new IllegalArgumentException(); } public void advance(int n) // Pre: true // Post: this instance's date moved n days later. (Negative n // moves to an earlier date.) {fromJulian(toJulian() + n); } 61

64. Java Class Implementation for Day // Accessors public int getDay() // Pre: true // Post: returns the day from this instance, where 1 <= getDay() <= #days // in this instance's month { return day;} public int getMonth() // Pre: true // Post: returns the month from this instance's date, where 1 <= getMonth() <= 12 { return month; } public int getYear() // Pre: true // Post: returns the year from this instance's date, where getYear() != 0 { return year; } 62

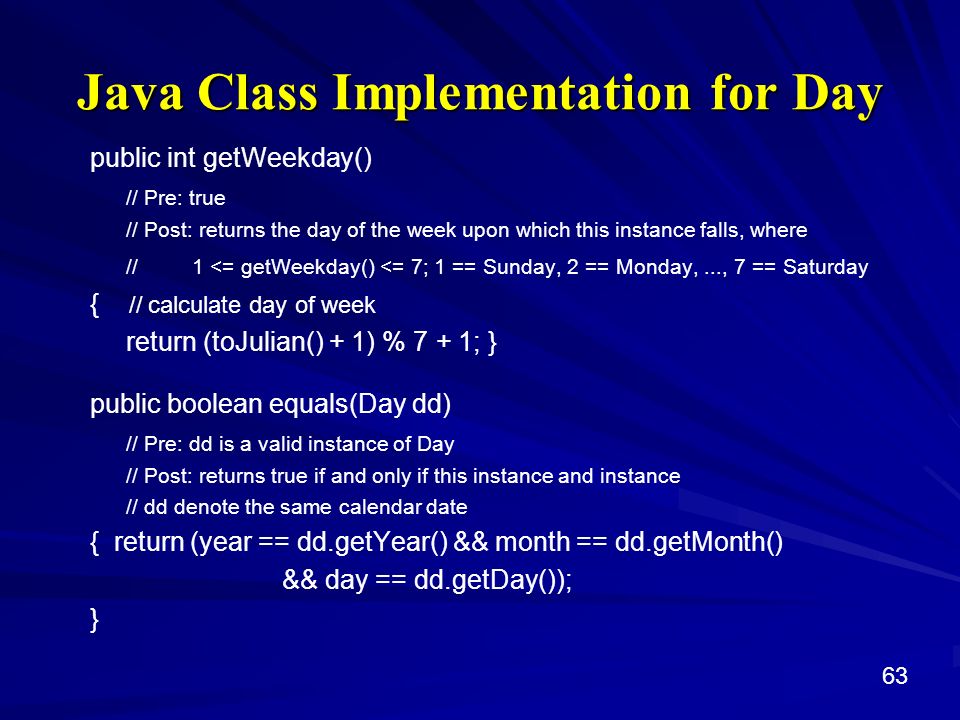

65. Java Class Implementation for Day public int getWeekday() // Pre: true // Post: returns the day of the week upon which this instance falls, where // 1 <= getWeekday() <= 7; 1 == Sunday, 2 == Monday,..., 7 == Saturday { // calculate day of week return (toJulian() + 1) % 7 + 1; } public boolean equals(Day dd) // Pre: dd is a valid instance of Day // Post: returns true if and only if this instance and instance // dd denote the same calendar date { return (year == dd.getYear() && month == dd.getMonth() && day == dd.getDay()); } 63

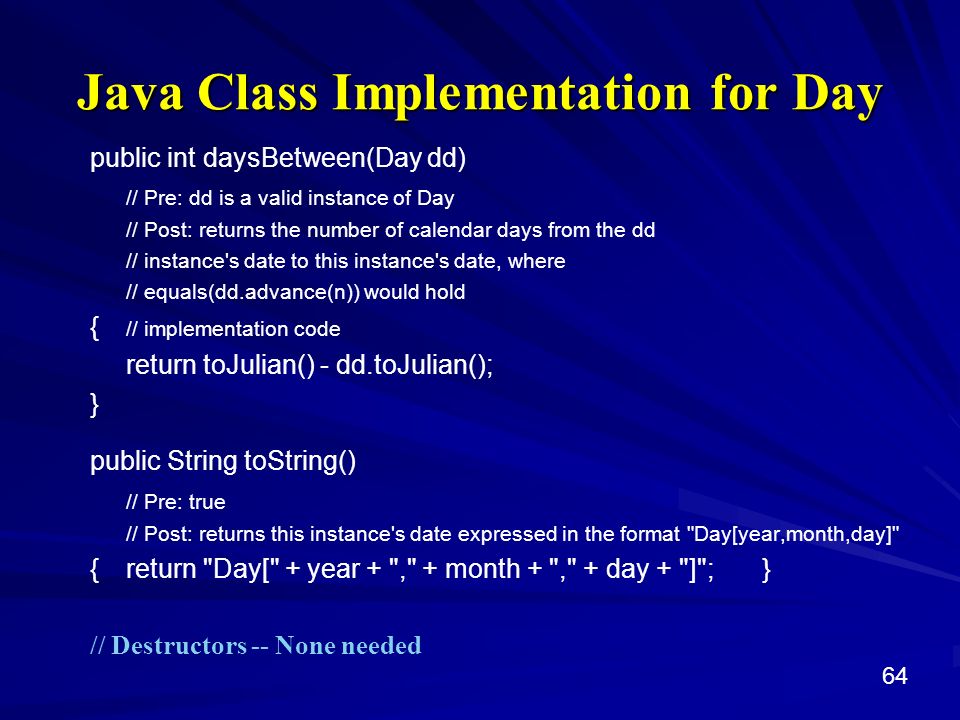

66. Java Class Implementation for Day public int daysBetween(Day dd) // Pre: dd is a valid instance of Day // Post: returns the number of calendar days from the dd // instance's date to this instance's date, where // equals(dd.advance(n)) would hold { // implementation code return toJulian() - dd.toJulian(); } public String toString() // Pre: true // Post: returns this instance's date expressed in the format "Day[year,month,day]" { return "Day[" + year + "," + month + "," + day + "]"; } // Destructors -- None needed 64

67. Java Class Implementation for Day // Private Methods private boolean isValid() // Pre: true // Post: returns true iff this is a valid date { Day t = new Day(); t.fromJulian(this.toJulian()); return t.day == day && t.month == month && t.year == year; } 65

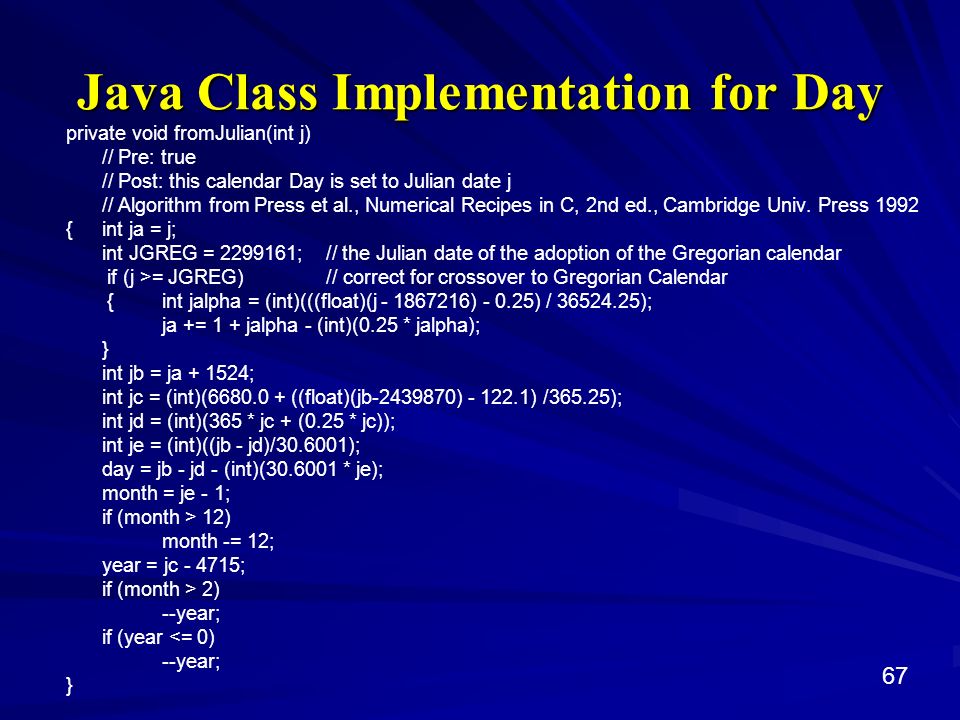

68. Java Class Implementation for Day private int toJulian() // Pre: true // Post: returns Julian day number that begins at noon of this day // A positive year signifies A.D., negative year B.C. // Remember that the year after 1 B.C. was 1 A.D. (i.e., no year 0). Julian day 0 is a Monday. // A convenient reference point is that May 23, 1968, at noon is Julian day 2440000. // Algorithm from Press et al., Numerical Recipes in C, 2nd ed., Cambridge Univ. Press 1992. { int jy = year; if (year < 0) jy++; int jm = month; if (month > 2) jm++; else { jy--; jm += 13; } int jul = (int) (java.lang.Math.floor(365.25 * jy) + java.lang.Math.floor(30.6001*jm) + day + 1720995.0); int IGREG = 15 + 31*(10+12*1582); // Gregorian Calendar adopted Oct. 15, 1582 if (day + 31 * (month + 12 * year) >= IGREG) // change over to Gregorian calendar { int ja = (int)(0.01 * jy); jul += 2 - ja + (int)(0.25 * ja); } return jul; } 66

69. Java Class Implementation for Day private void fromJulian(int j) // Pre: true // Post: this calendar Day is set to Julian date j // Algorithm from Press et al., Numerical Recipes in C, 2nd ed., Cambridge Univ. Press 1992 { int ja = j; int JGREG = 2299161; // the Julian date of the adoption of the Gregorian calendar if (j >= JGREG) // correct for crossover to Gregorian Calendar { int jalpha = (int)(((float)(j - 1867216) - 0.25) / 36524.25); ja += 1 + jalpha - (int)(0.25 * jalpha); } int jb = ja + 1524; int jc = (int)(6680.0 + ((float)(jb-2439870) - 122.1) /365.25); int jd = (int)(365 * jc + (0.25 * jc)); int je = (int)((jb - jd)/30.6001); day = jb - jd - (int)(30.6001 * je); month = je - 1; if (month > 12) month -= 12; year = jc - 4715; if (month > 2) --year; if (year <= 0) --year; } 67

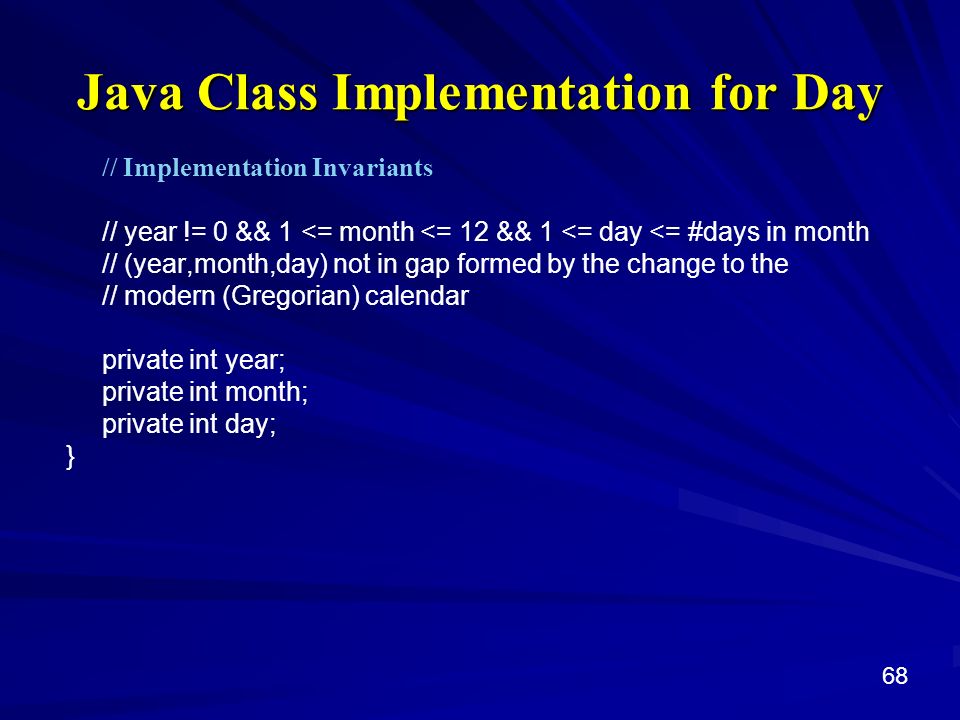

70. Java Class Implementation for Day // Implementation Invariants // year != 0 && 1 <= month <= 12 && 1 <= day <= #days in month // (year,month,day) not in gap formed by the change to the // modern (Gregorian) calendar private int year; private int month; private int day; } 68

71. Client-Supplier Relationship supplier  Developers of the ADT – providers of the services client  –  Users of the ADT – users of the services 69 ClientSupplier (ADT User) (ADT) uses

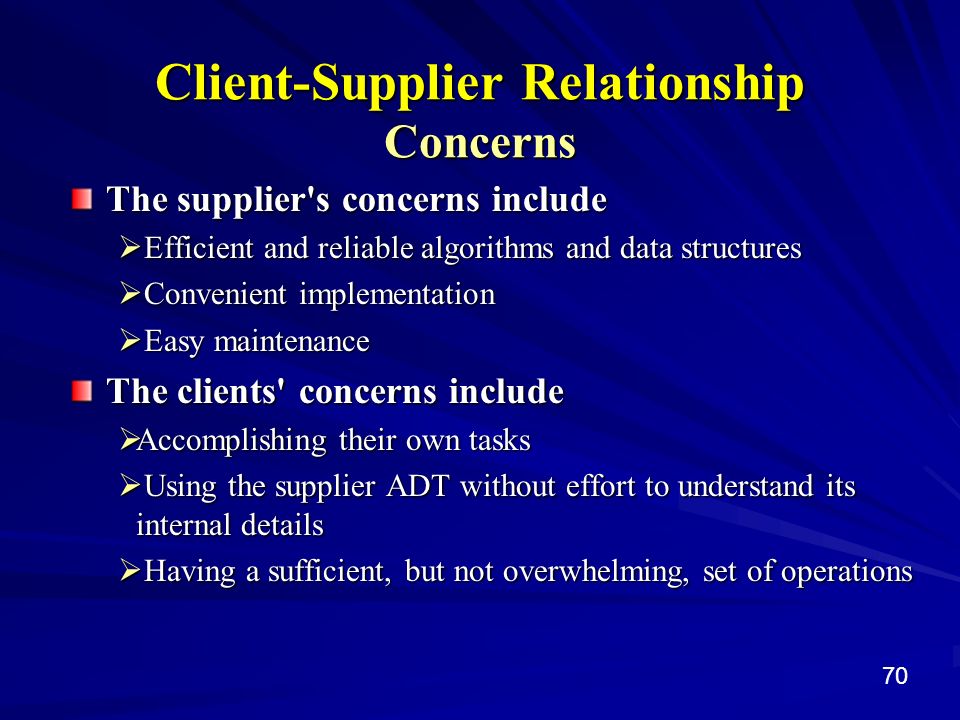

72. Client-Supplier Relationship Concerns The supplier's concerns include  Efficient and reliable algorithms and data structures  Convenient implementation  Easy maintenance The clients' concerns include  Accomplishing their own tasks  Using the supplier ADT without effort to understand its internal details  Having a sufficient, but not overwhelming, set of operations 70

73. Client-Supplier Relationship Client-supplier Contract Gives the responsibilities of the client  Conditions under which the supplier must deliver results – when the preconditions of the operations are satisfied when the preconditions of the operations are satisfied Gives the responsibilities of the supplier  Benefits the supplier must deliver – make the postconditions hold at the end of the operation postconditions hold at the end of the operation Protects the client by specifying how much must be done by the supplier Protects the supplier by specifying how little is acceptable to the client 71

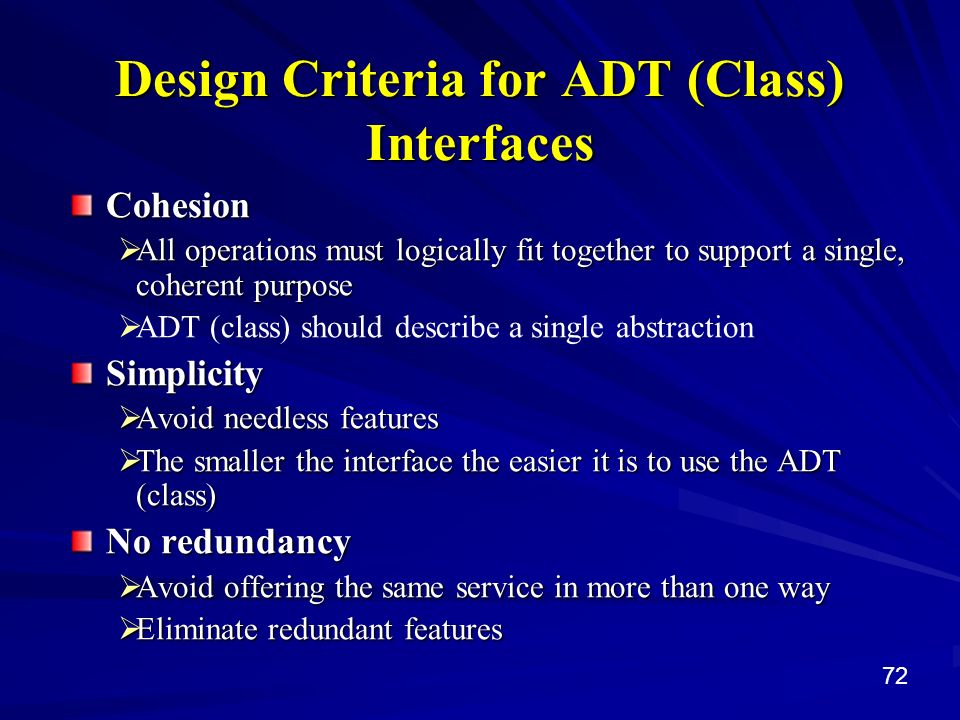

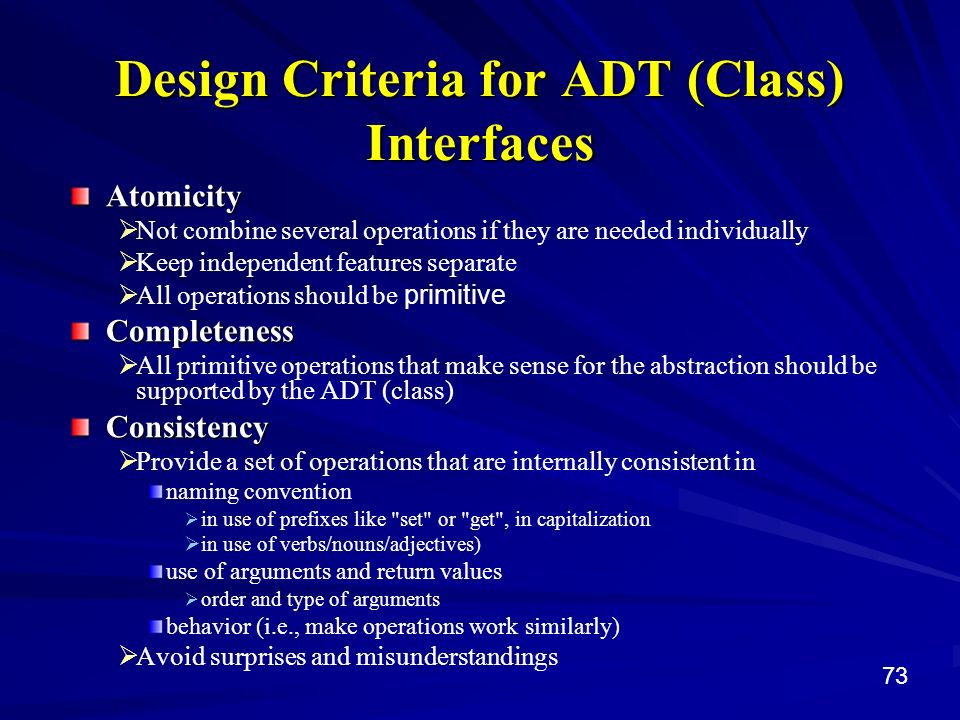

74. Design Criteria for ADT (Class) Interfaces Cohesion  All operations must logically fit together to support a single, coherent purpose   ADT (class) should describe a single abstractionSimplicity  Avoid needless features  The smaller the interface the easier it is to use the ADT (class) No redundancy  Avoid offering the same service in more than one way  Eliminate redundant features 72

75. Design Criteria for ADT (Class) Interfaces Atomicity   Not combine several operations if they are needed individually   Keep independent features separate   All operations should be primitiveCompleteness   All primitive operations that make sense for the abstraction should be supported by the ADT (class)Consistency   Provide a set of operations that are internally consistent in naming convention   in use of prefixes like "set" or "get", in capitalization   in use of verbs/nouns/adjectives) use of arguments and return values   order and type of arguments behavior (i.e., make operations work similarly)   Avoid surprises and misunderstandings 73

76. Design Criteria for ADT (Class) Interfaces Reusability   Do not customize ADTs (classes) to specific clients   Make them general enough to be reusable in other contexts Robustness with respect to modifications   Design the interface of an ADT (class) so that it remains stable even if the implementation of the ADT changesConvenience   Provide additional operations where appropriate   Add convenience operations only for frequently used combinations after careful study 74

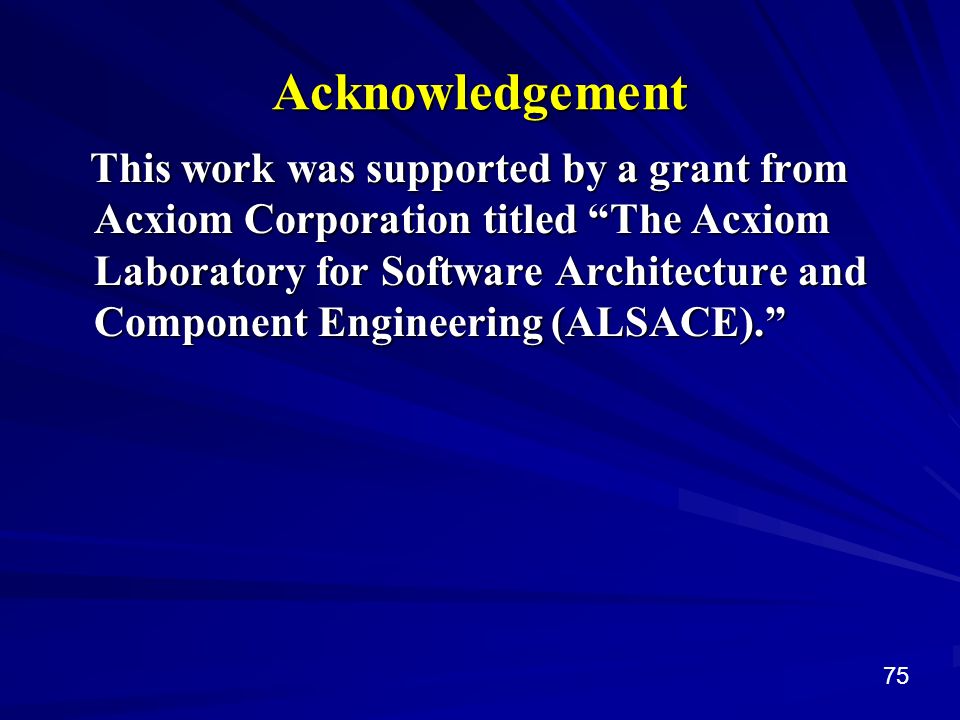

77. Acknowledgement 75 This work was supported by a grant from Acxiom Corporation titled “The Acxiom Laboratory for Software Architecture and Component Engineering (ALSACE).” This work was supported by a grant from Acxiom Corporation titled “The Acxiom Laboratory for Software Architecture and Component Engineering (ALSACE).”
