1. Introduction to BIM Module 05 – Fixtures, Fittings, and Furniture

2. Introduction to BIM In this lesson, students explore techniques for creating and adapting components to model fixtures, fittings, and furniture Students will learn how to: –Create in-place components to model project-specific elements and geometries –Adapt existing component families to meet their needs by adding and removing forms as well as assigning materials –Create new component families and add parameters that enable them to dynamically resize the components and change their materials Lesson Overview

3. Introduction to BIM After completing this lesson, students will be able to: Understand when to create unique components when suitable component families do not exist Explore the various techniques for creating custom geometry, including extrusions, blends, revolves, sweeps, and swept blends Appreciate the value of adapting existing components into custom components Understand the techniques for creating new parametric families from scratch and loading them into projects Learning Objectives

4. Introduction to BIM In this exercise, students will be able to: Use the Model In-Place tool to create project specific custom forms Create simple extruded shapes and set the extrusion’s thickness and material properties Combine and resize extruded shapes to model common building elements, such as furniture objects Exercise 01: Modeling In-Place Components

5. Introduction to BIM If you’ve got a hammer, everything looks like a nail… What do you when you need a screwdriver? Strategies for creating custom geometry –Model in-place –Create objects as reusable component families –Create objects in other tools –Import DWG objects Creating Custom Geometries

6. Introduction to BIM Modeling elements in place Use when –Objects will be used exclusively in this project Advantages –Quick to create –Perfect fit Limitations –Not reusable –Not resizable Creating Custom Geometries

7. Introduction to BIM Steps for modeling elements in place Open Component: Model-In Place tool Choose family category Create each form –Solid or void –Extrusion, blend, revolve, sweep, or swept blend Set properties for each form – extents, material, subcategory Finish family Creating Custom Geometries

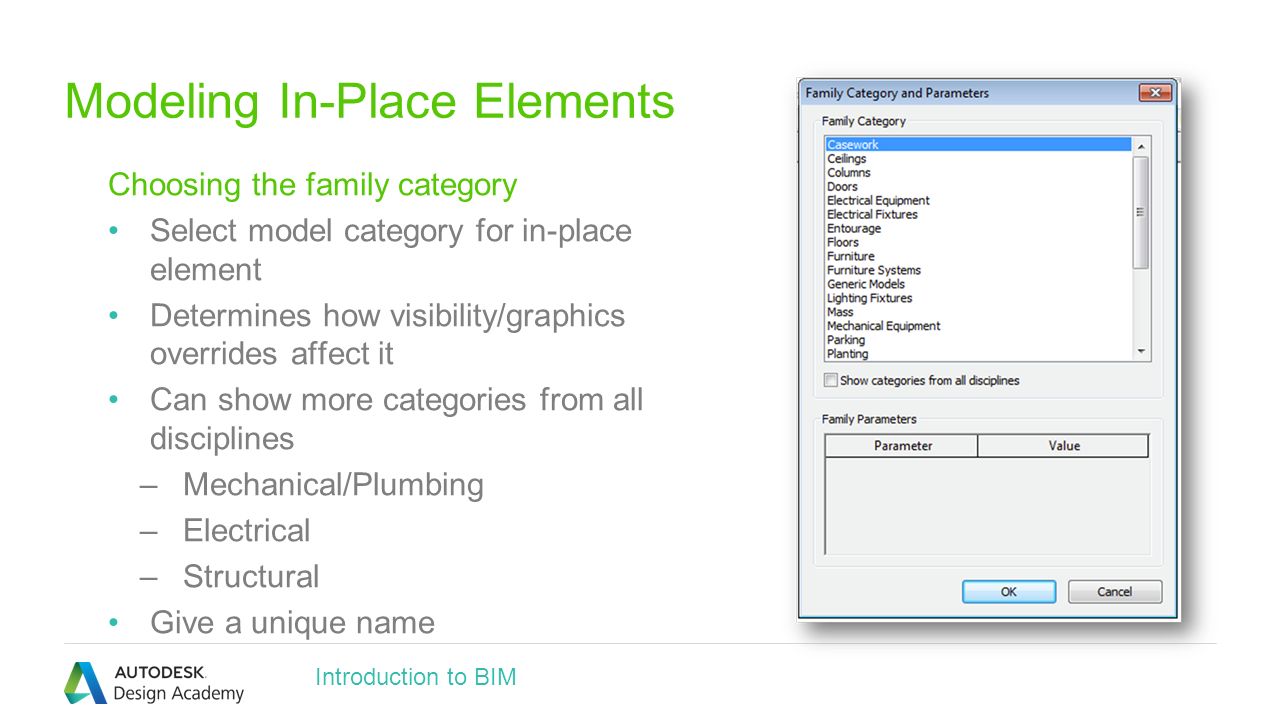

8. Introduction to BIM Choosing the family category Select model category for in-place element Determines how visibility/graphics overrides affect it Can show more categories from all disciplines –Mechanical/Plumbing –Electrical –Structural Give a unique name Modeling In-Place Elements

9. Introduction to BIM Creating solid or void forms — extrusions Trace or pick boundary lines –Form a continuous loop –Use Offset for parallel edges –Use Trim tool to clean up Interior loops create holes Set extrusion properties –Start and end –Material –Subcategory Modeling In-Place Elements

10. Introduction to BIM Creating solid or void forms — blends Sketch blend base Sketch blend top Set blend properties –First and second end –Material –Subcategory Modeling In-Place Elements

11. Introduction to BIM Creating solid or void forms — revolves Set up surface for easy drawing –Create reference plane and set work plane –Open perpendicular view Sketch or pick boundary lines Sketch or pick axis line Set revolve properties –Start and end angle –Material Modeling In-Place Elements

12. Introduction to BIM Creating solid or void forms — sweeps Sketch or pick path –Profile preview appears on first segment picked Sketch or pick profile –Load additional profiles –Modify flip, offset, or angle Set sweep properties –Material –Subcategory Modeling In-Place Elements

13. Introduction to BIM Creating solid or void forms — swept blends Sketch or pick path –Limited to one segment Sketch or pick profile 1 and profile 2 –Load additional –Modify flip, offset, or angle Set sweep properties –Material –Subcategory Modeling In-Place Elements

14. Introduction to BIM Completing and editing in-place elements Click Finish Model to complete element after forms defined Select element and click Edit In- Place to open for editing Select form then –Edit Extrusion –Edit Blend –Edit Revolve –Edit Sweep or Swept Blend Click Finish Model Modeling In-Place Elements

15. Introduction to BIM Student Exercise Create a in-place component to model a dining room table that fits the unique triangular geometry of the walls Model a custom-shaped bed as an in-place component for the non-rectangular master bedroom Exercise 01: Modeling In-Place Components

16. Introduction to BIM In this exercise, students will be able to: Leverage existing component families by adapting them Add new forms to the families and change the instance parameters Assign new materials and dimension properties Define new component family types and load them into a project Exercise 02: Modifying a Family Definition

17. Introduction to BIM Student Exercise Edit the family of the floor lamp in the living room of the residence to create a new one with a mid-century modern look Edit the lamp shade, base, and leg forms Modify the light source definition Assign materials Exercise 02: Modeling Custom Stairs

18. Introduction to BIM In this exercise, students will be able to: Use the family editor to add reference planes, dimensions and parameters Test parameters and define family types Create forms, set constraints, and assign materials to forms Save, load and place instances of a custom component family Exercise 03: Creating New Families

19. Introduction to BIM Student Exercise Modify the console table component created in the tutorial by editing the family to add additional parametric features Change the tabletop from a 4” slab of a single material to two pieces—a table surface and a table frame whose thickness and height can be resized parametrically Exercise 03: Creating New Families

20. Introduction to BIM Modeling In-Place Components What types of objects do you typically need to model as in- place components? Can you copy/paste to duplicate in-place components? Can you re-use your in-place component in another project? What factors determine whether a component should be modeled in-place or using the family editor? Assessment

21. Introduction to BIM Adapting Components to Fit Your Needs Which forms in the lamp component could be modeled in other ways (for example, as extrusions rather than revolves)? For which characteristics of the modern lamp would it be useful to vary parametrically by defining new types? By changing instance properties? Are materials assigned in the component definition automatically loaded into a host project? Where do they appear? Assessment

22. Introduction to BIM Creating New Families What are the advantages and disadvantages of creating single components with many parameters to create variations versus creating many independent component families? When would it be useful to define a relationship between parameters with formulas? What types of constraints can be added to a component definition to prevent users from creating impossible geometries? Assessment

23. Introduction to BIM Key Terms Used Key TermDefinition Parameter A detail that can be changed or adjusted–includes dimensions, materials, and off-sets. Parametric component A component–such as a piece of furniture, a door, or a window–that is comprised of adjustable parameters used to create variation within our model. Family A group of components with different settings for the same parameters. Each type is based on the same initial model but usually has different dimensions.
