1. Windows 10 Update Murray Gallagher

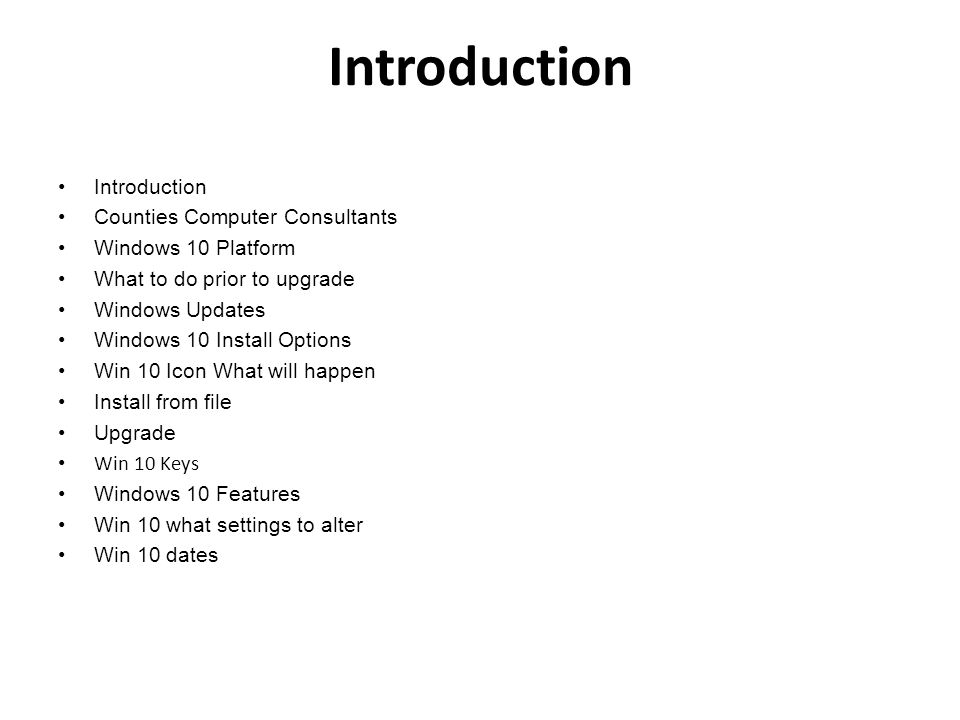

2. Introduction Counties Computer Consultants Windows 10 Platform What to do prior to upgrade Windows Updates Windows 10 Install Options Win 10 Icon What will happen Install from file Upgrade Win 10 Keys Windows 10 Features Win 10 what settings to alter Win 10 dates

3. 21 October 2015

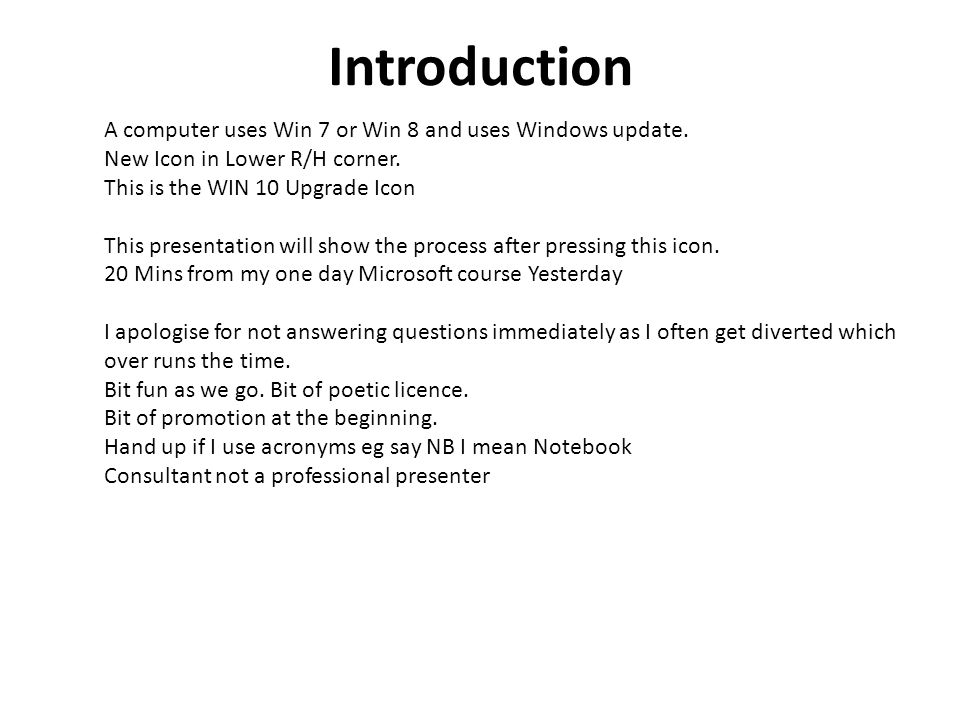

4. Introduction A computer uses Win 7 or Win 8 and uses Windows update. New Icon in Lower R/H corner. This is the WIN 10 Upgrade Icon This presentation will show the process after pressing this icon. 20 Mins from my one day Microsoft course Yesterday I apologise for not answering questions immediately as I often get diverted which over runs the time. Bit fun as we go. Bit of poetic licence. Bit of promotion at the beginning. Hand up if I use acronyms eg say NB I mean Notebook Consultant not a professional presenter

5. WINDOWS 10 A computer uses Win 7 or Win 8 and uses Windows update. New Icon in Lower R/H corner. This is the WIN 10 Upgrade Icon This presentation will show the process after pressing this icon. Murray attended a Microsoft Windows 10 Course I apologise for not answering questions immediately as I often get diverted I often run over the time. Bit fun as we go. Bit of poetic licence. Bit of promotion at the beginning. Hand up if I use acronyms eg say NB I mean Notebook Consultant not a professional presenter

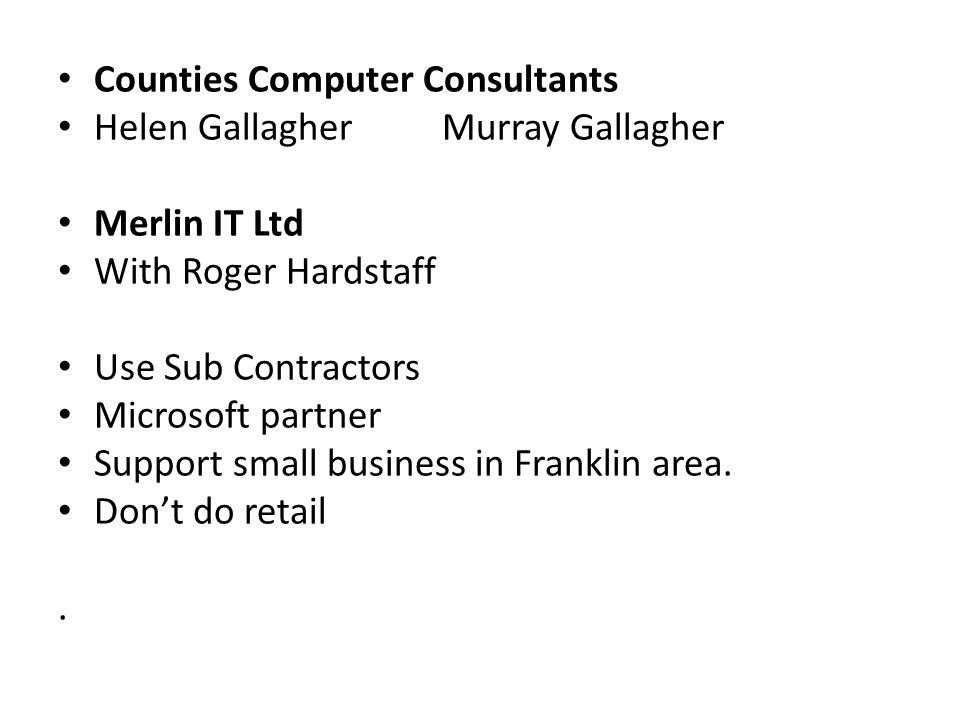

6. Counties Computer Consultants Helen GallagherMurray Gallagher Merlin IT Ltd With Roger Hardstaff Use Sub Contractors Microsoft partner Support small business in Franklin area. Don’t do retail.

7. Murray Gallagher Lived Gallagher Rd Patumahoe. Patumahoe Primary (150 next year) 1960’s PNS to 7 th form 70’s Ak Electrical engineering. NZ Steel as Student Electrician 2 x holidays 10 years English computer company ICL now Fujitsu. Started Computer hardware as engineer Night shift 3 years Business Degree Massey Major Computer Science. UK 1978 one year training Support on operating systems 1980 NZ Steel think big as analyst programmer ended as project manager. Married Helen McDonald from Otaua. Helen Operations Manager NZ Steel She supports Waiuku Rugby. 1986 Counties Computer Consultant’s

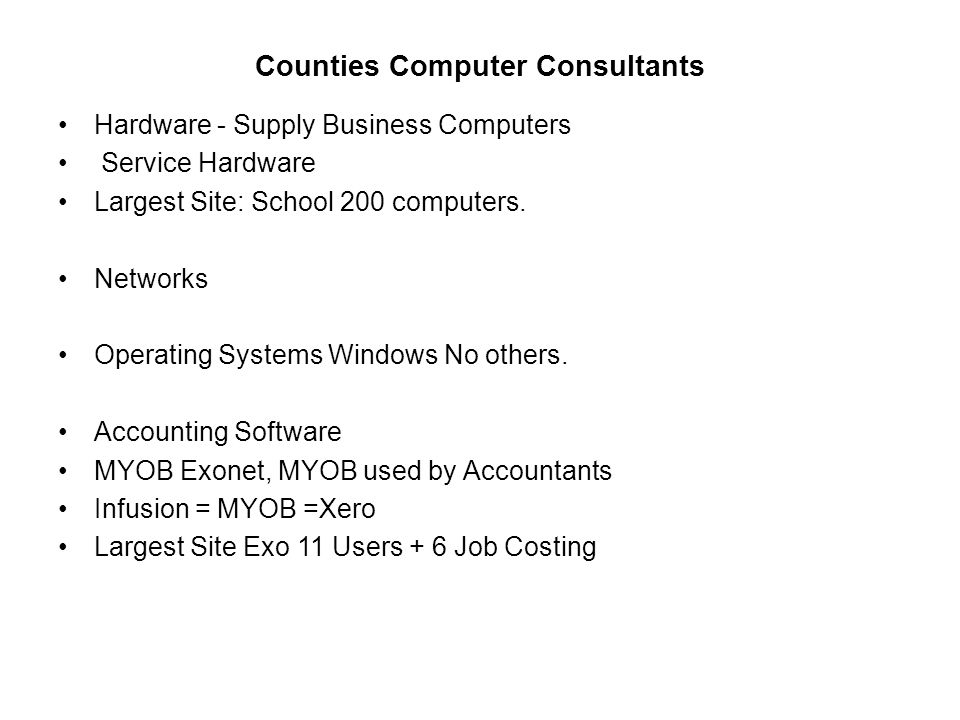

8. Counties Computer Consultants Hardware - Supply Business Computers Service Hardware Largest Site: School 200 computers. Networks Operating Systems Windows No others. Accounting Software MYOB Exonet, MYOB used by Accountants Infusion = MYOB =Xero Largest Site Exo 11 Users + 6 Job Costing

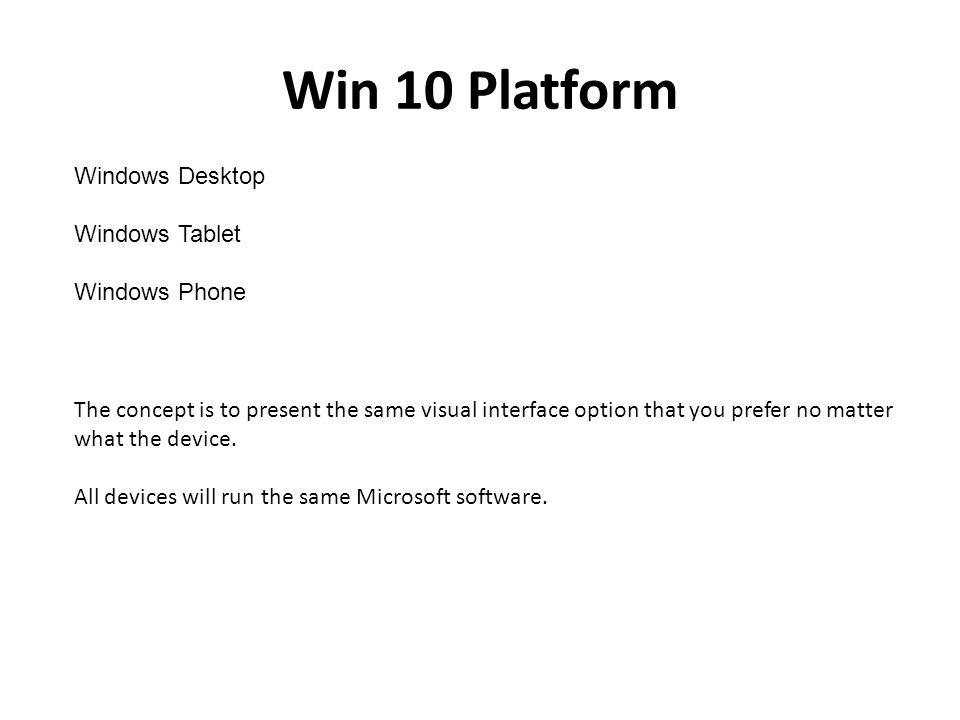

9. Win 10 Platform Windows Desktop Windows Tablet Windows Phone The concept is to present the same visual interface option that you prefer no matter what the device. All devices will run the same Microsoft software.

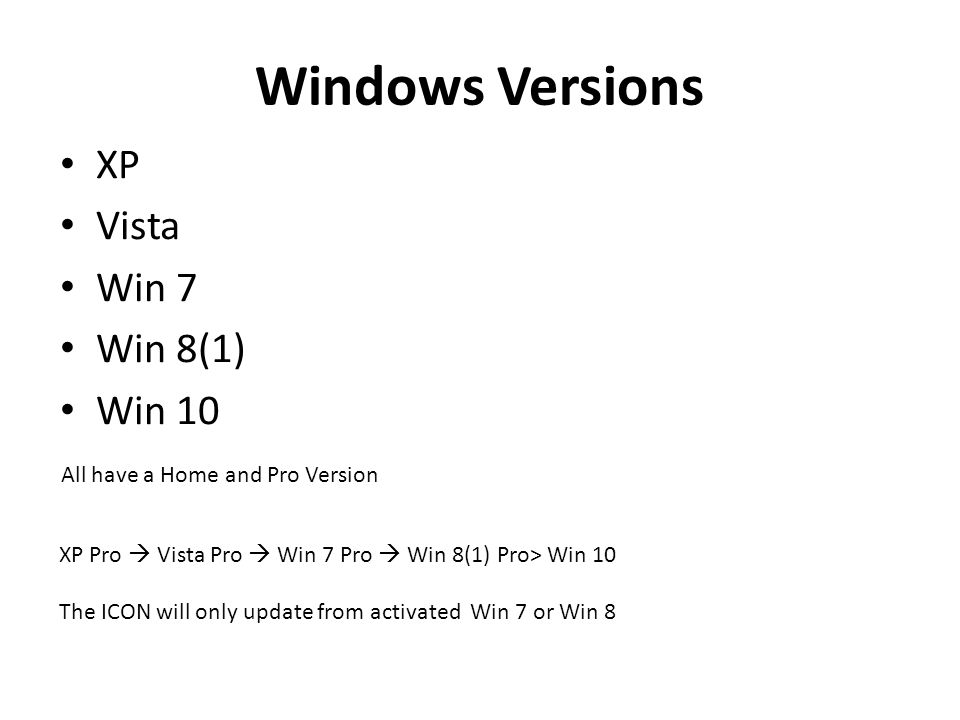

10. Windows Versions XP Vista Win 7 Win 8(1) Win 10 XP Pro  Vista Pro  Win 7 Pro  Win 8(1) Pro> Win 10 The ICON will only update from activated Win 7 or Win 8 All have a Home and Pro Version

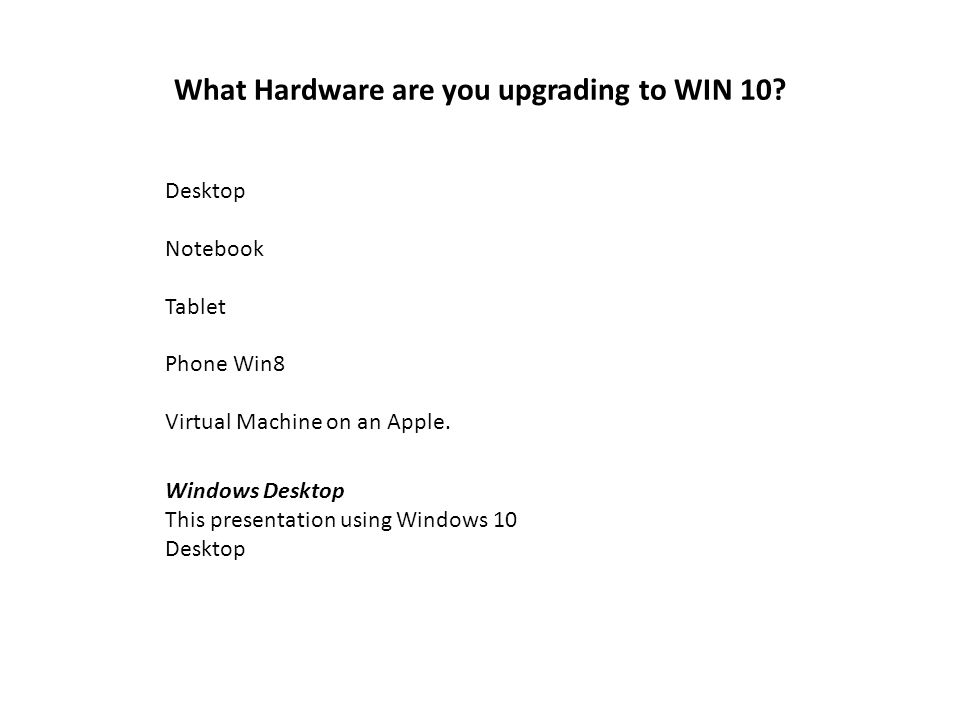

11. What Hardware are you upgrading to WIN 10? Desktop Notebook Tablet Phone Win8 Virtual Machine on an Apple. Windows Desktop This presentation using Windows 10 Desktop

12. Windows Tablet Desktop Tablet look like Traditional Win 7 Desktop if keyboard attached. App based like a smart phone or Win 8 if no keyboard. Tablet Tablet looks like Windows 8 App based. Both have Start button

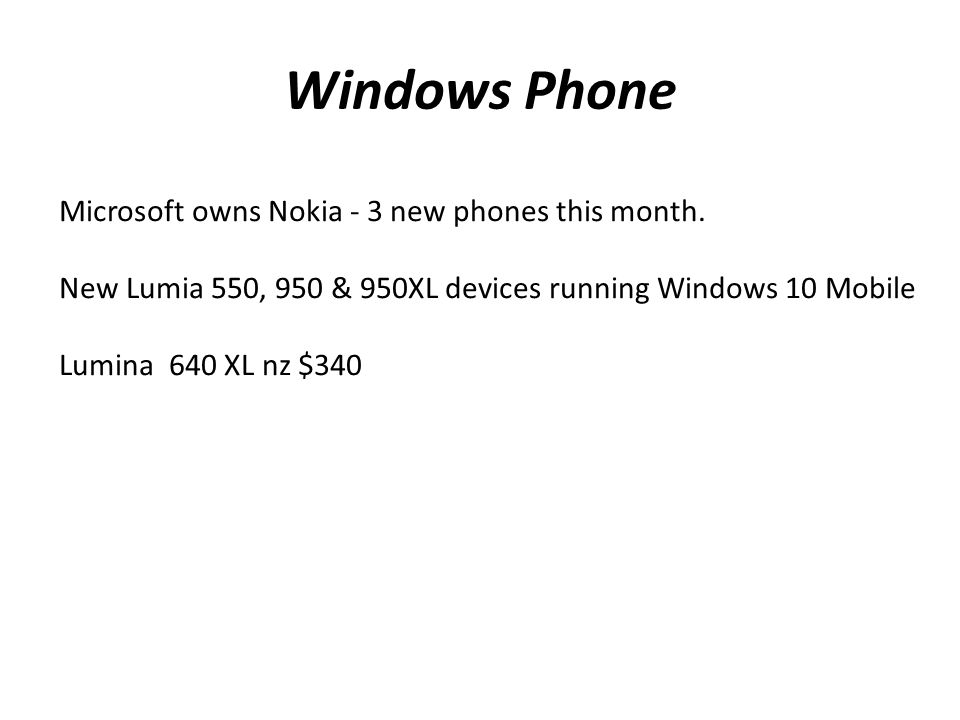

13. Windows Phone Microsoft owns Nokia - 3 new phones this month. New Lumia 550, 950 & 950XL devices running Windows 10 Mobile Lumina 640 XL nz $340

14. Prior to upgrade Create a Windows Account. Suggest a Hotmail account. Get free online Office – Word, Excel, Powerpoint, One Note, Powerpoint, Outlook OneDrive One TB storage in the cloud Send Non important email to this. Needed for Office 365, 2013 or 2016 Windows Login

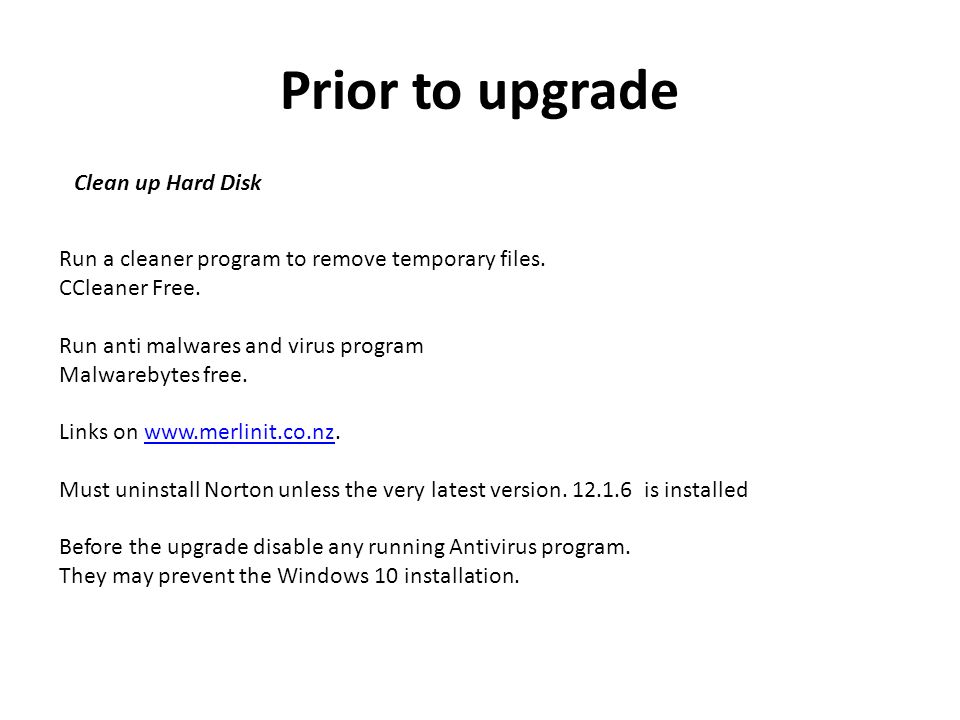

15. Prior to upgrade Run a cleaner program to remove temporary files. CCleaner Free. Run anti malwares and virus program Malwarebytes free. Links on www.merlinit.co.nz.www.merlinit.co.nz Must uninstall Norton unless the very latest version. 12.1.6 is installed Before the upgrade disable any running Antivirus program. They may prevent the Windows 10 installation. Clean up Hard Disk

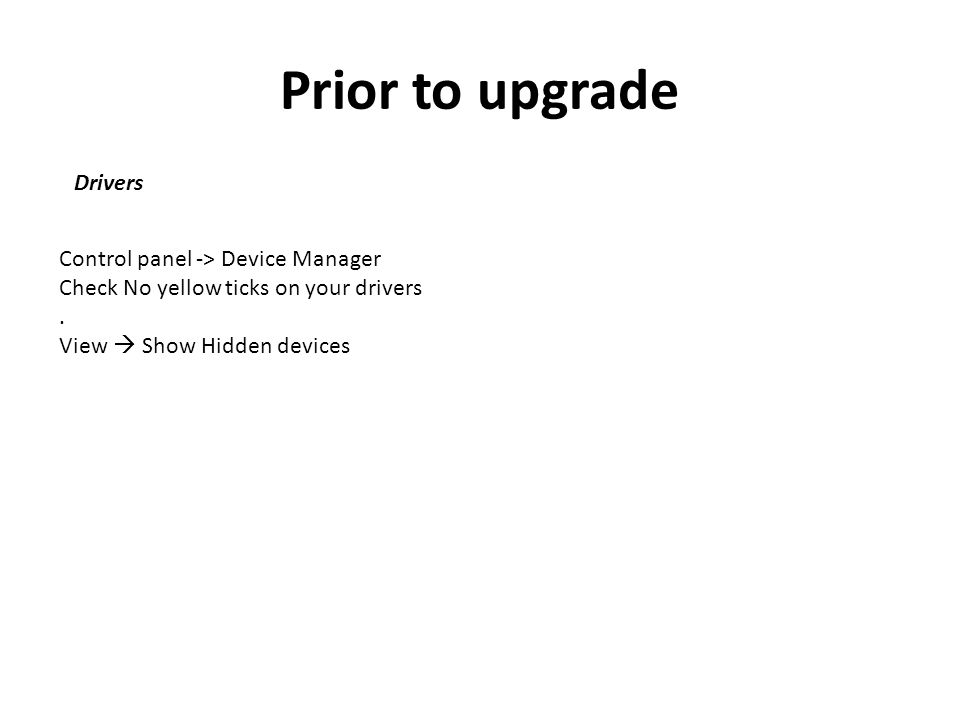

16. Prior to upgrade Control panel -> Device Manager Check No yellow ticks on your drivers. View  Show Hidden devices Drivers

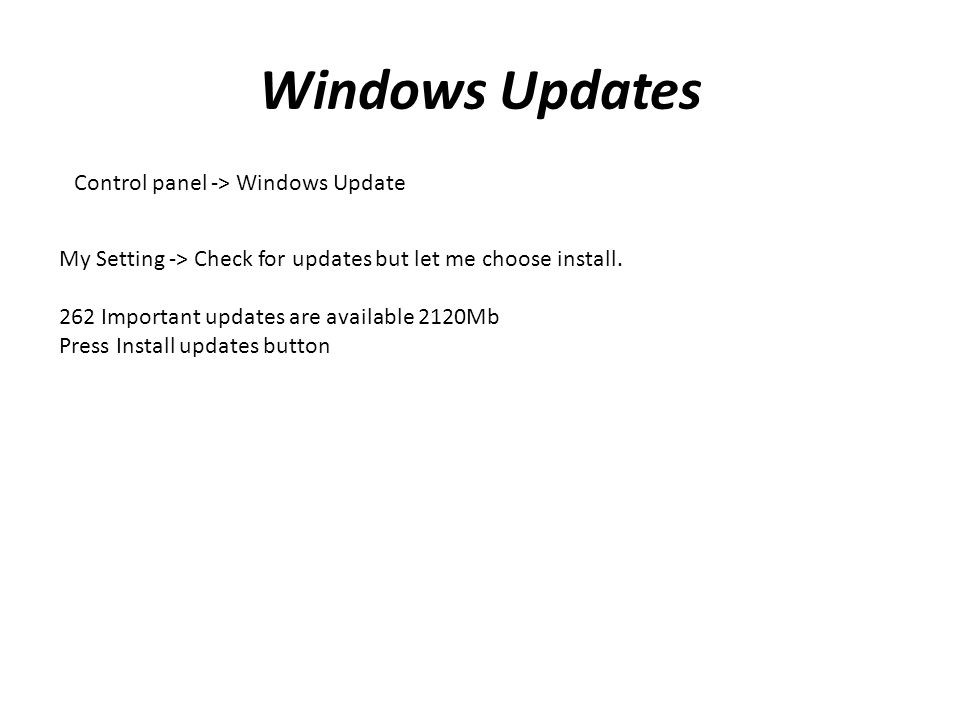

17. Windows Updates My Setting -> Check for updates but let me choose install. 262 Important updates are available 2120Mb Press Install updates button Control panel -> Windows Update

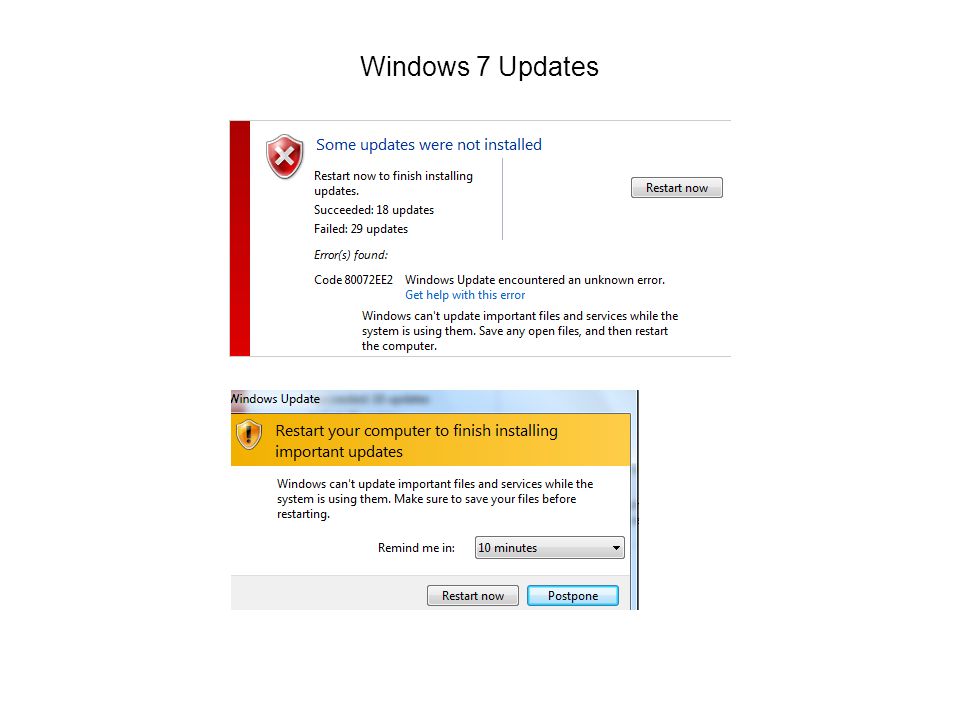

18. Windows 7 Updates

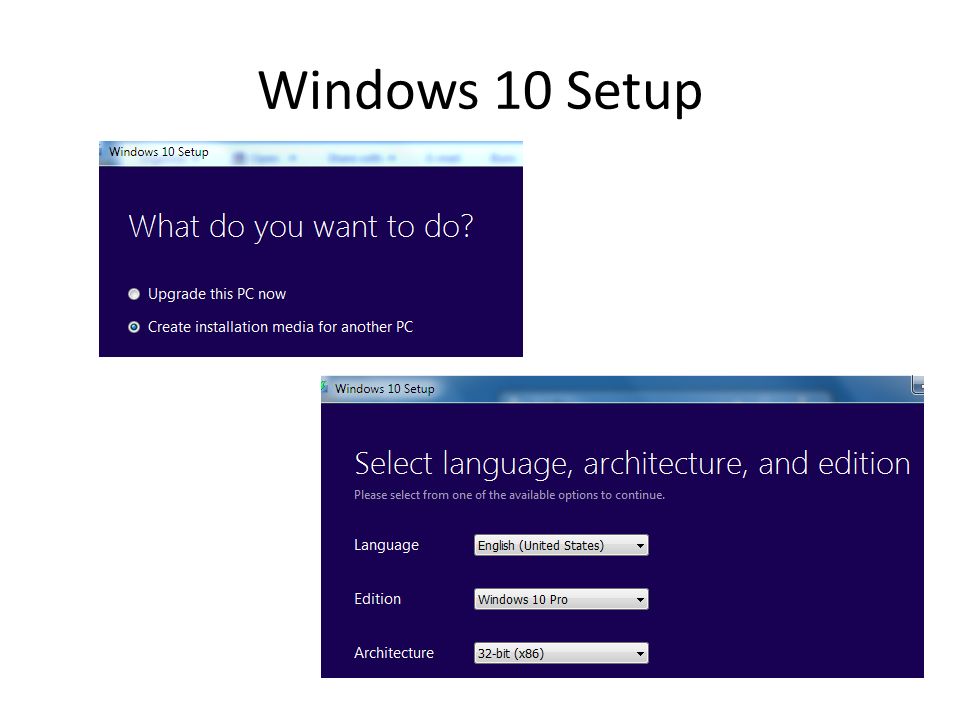

20. Windows 10 Setup

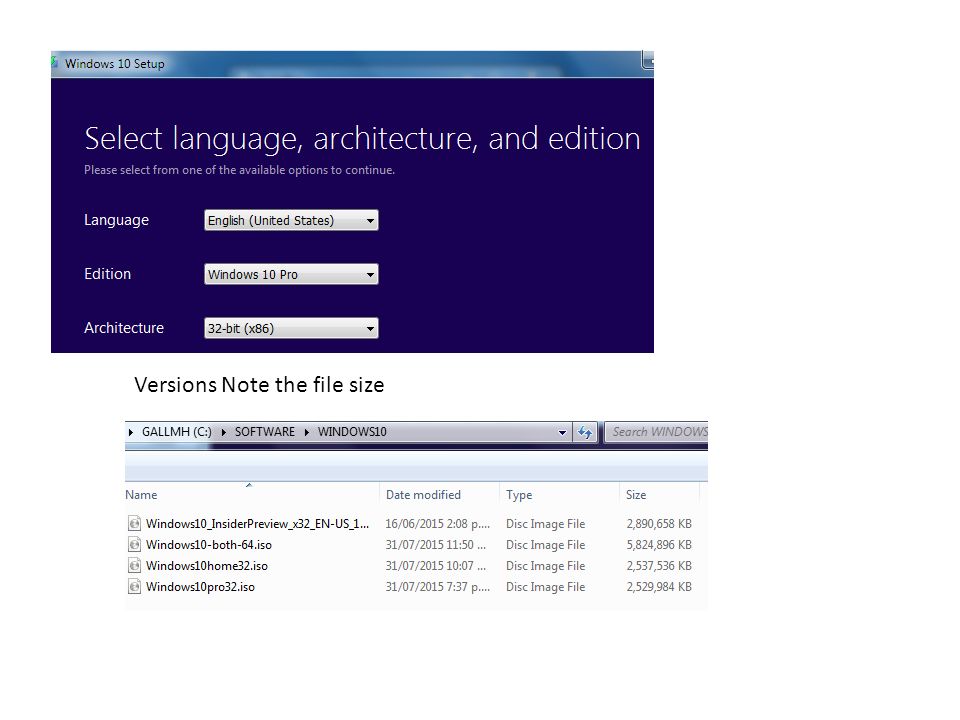

21. Versions Note the file size

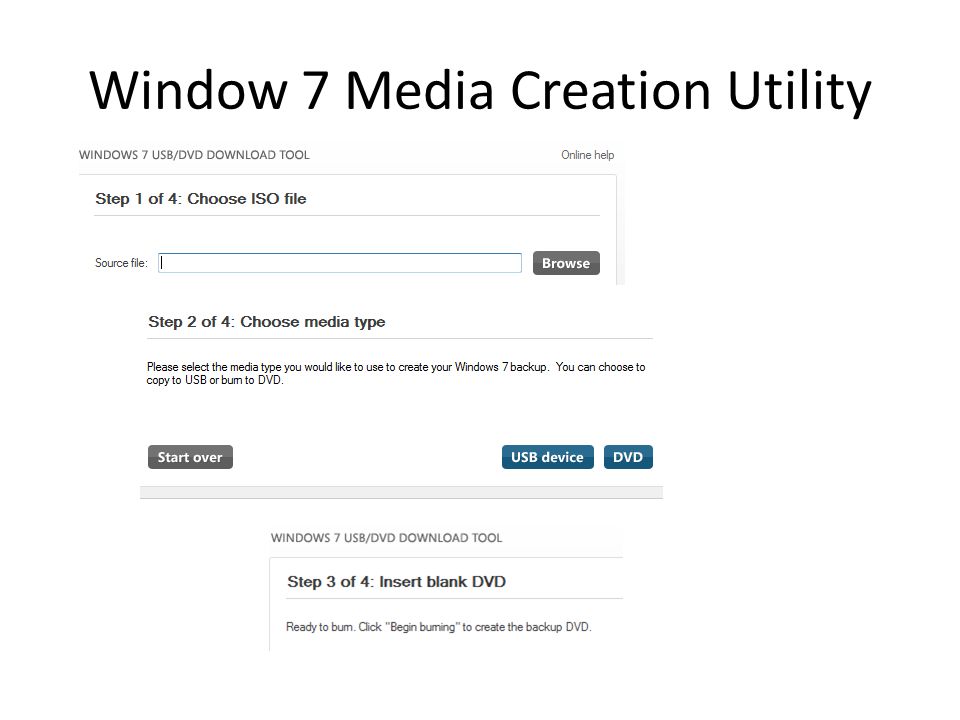

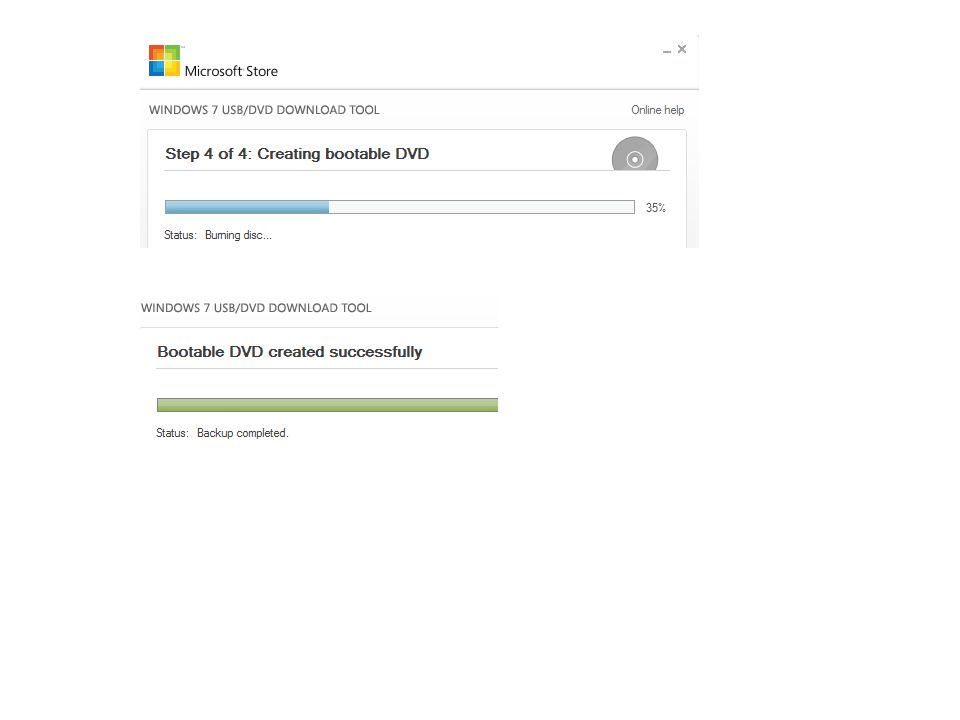

22. Window 7 Media Creation Utility

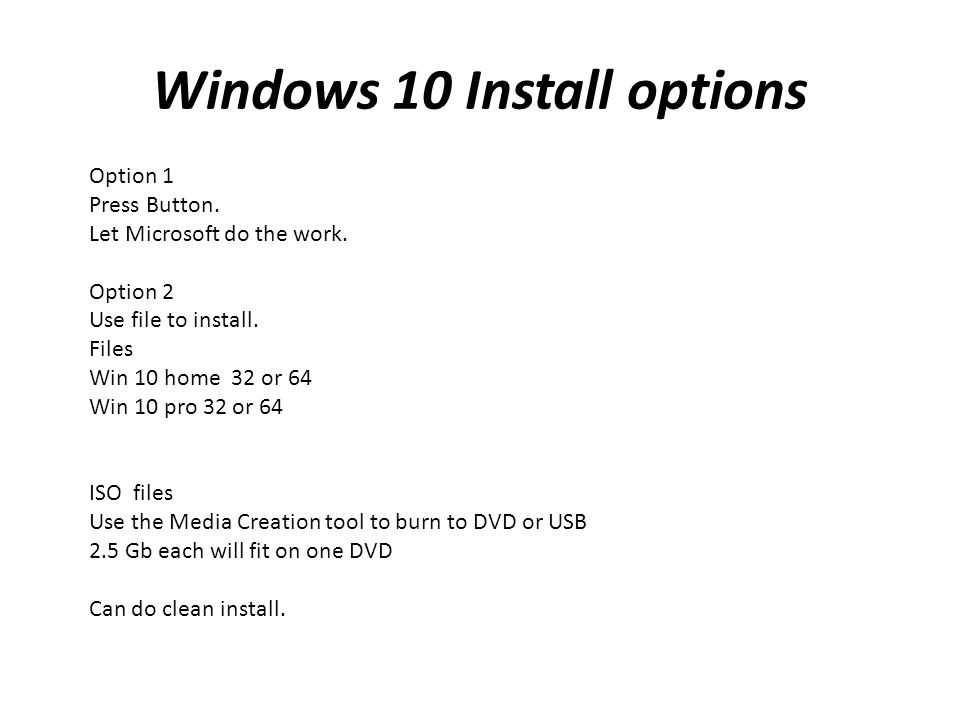

24. Windows 10 Install options Option 1 Press Button. Let Microsoft do the work. Option 2 Use file to install. Files Win 10 home 32 or 64 Win 10 pro 32 or 64 ISO files Use the Media Creation tool to burn to DVD or USB 2.5 Gb each will fit on one DVD Can do clean install.

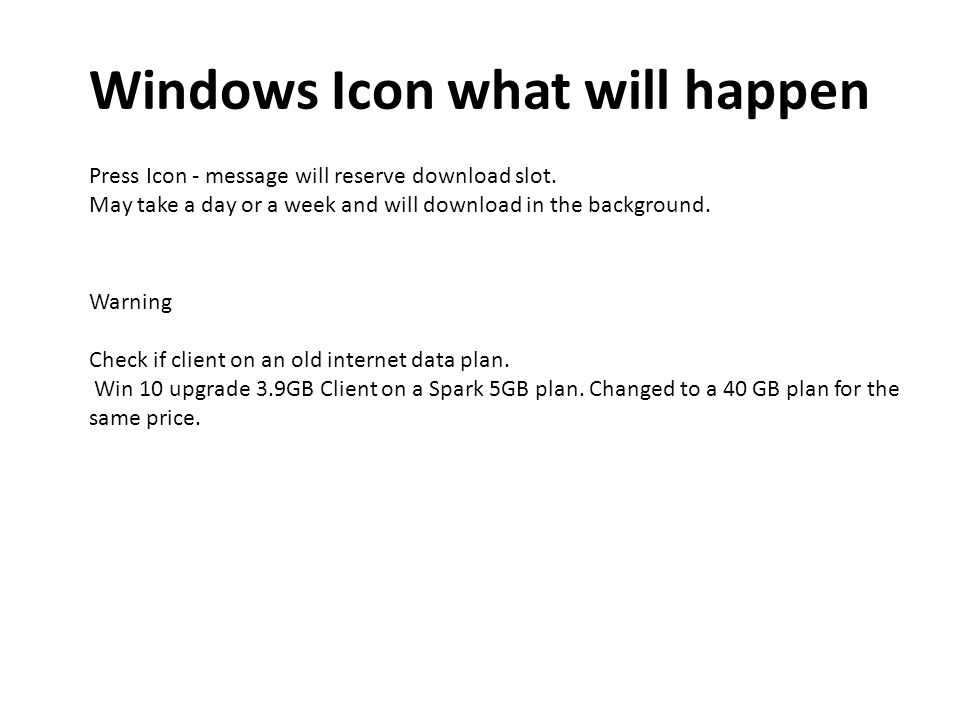

25. Windows Icon what will happen Press Icon - message will reserve download slot. May take a day or a week and will download in the background. Warning Check if client on an old internet data plan. Win 10 upgrade 3.9GB Client on a Spark 5GB plan. Changed to a 40 GB plan for the same price.

26. Upgrade from File Select Correct Version Screen CP  System

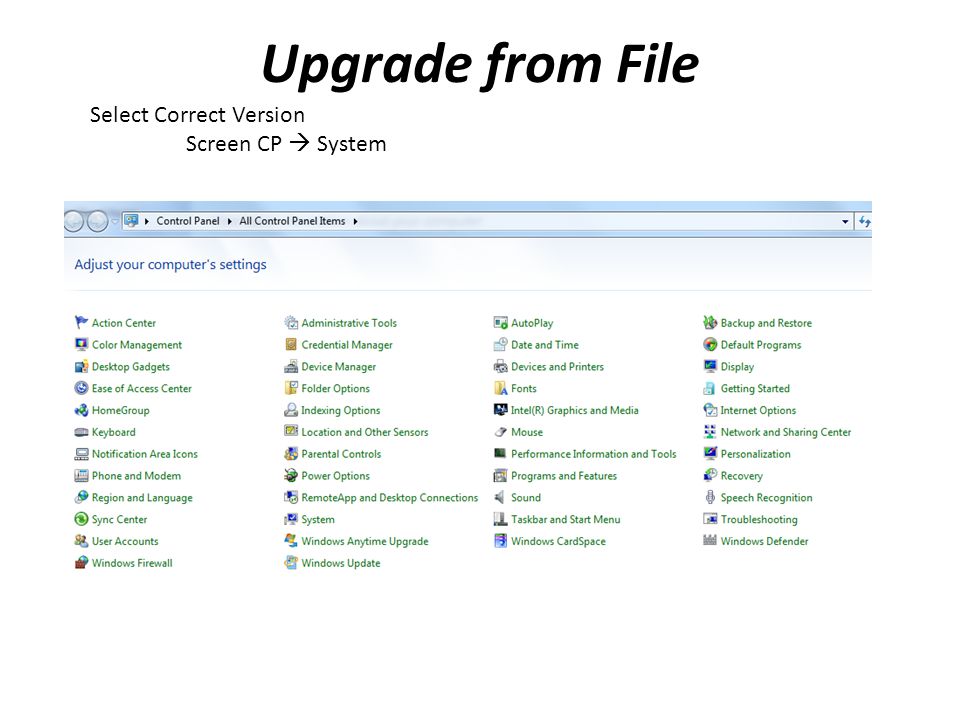

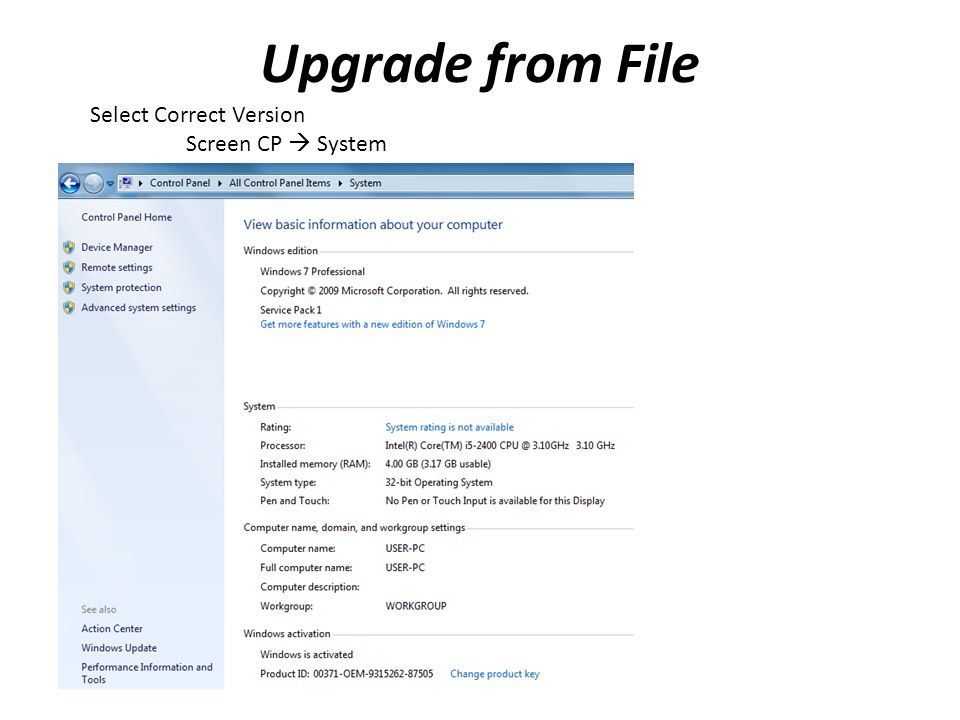

27. Upgrade from File Select Correct Version Screen CP  System

28. Upgrade from File Upgrade progress

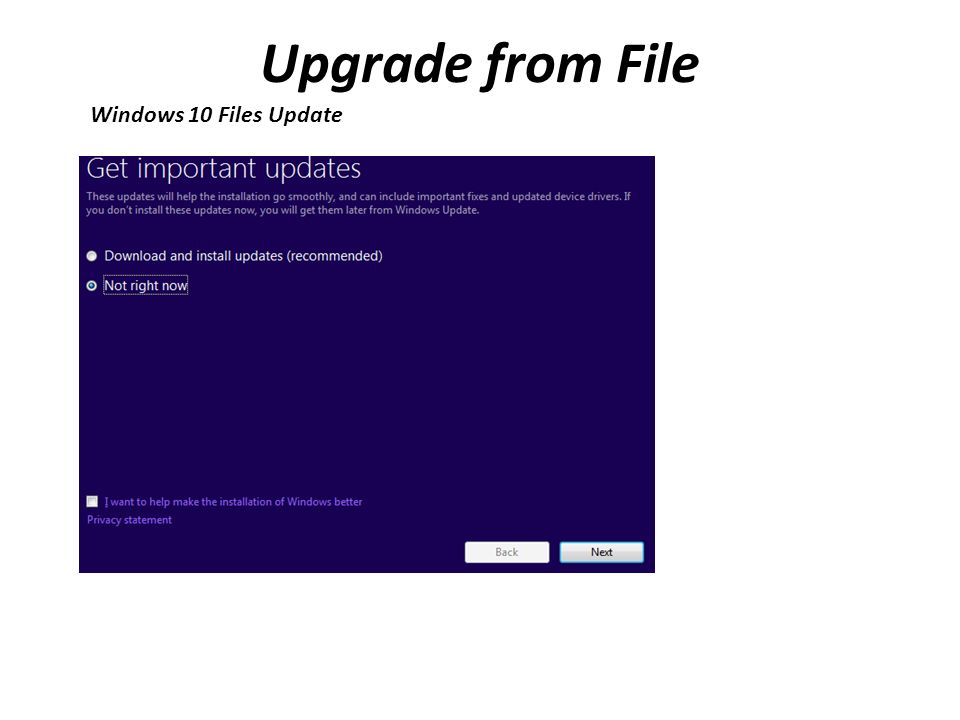

29. Upgrade from File Windows 10 Files Update

30. Windows 10 Upgrade Windows 10 running Messages

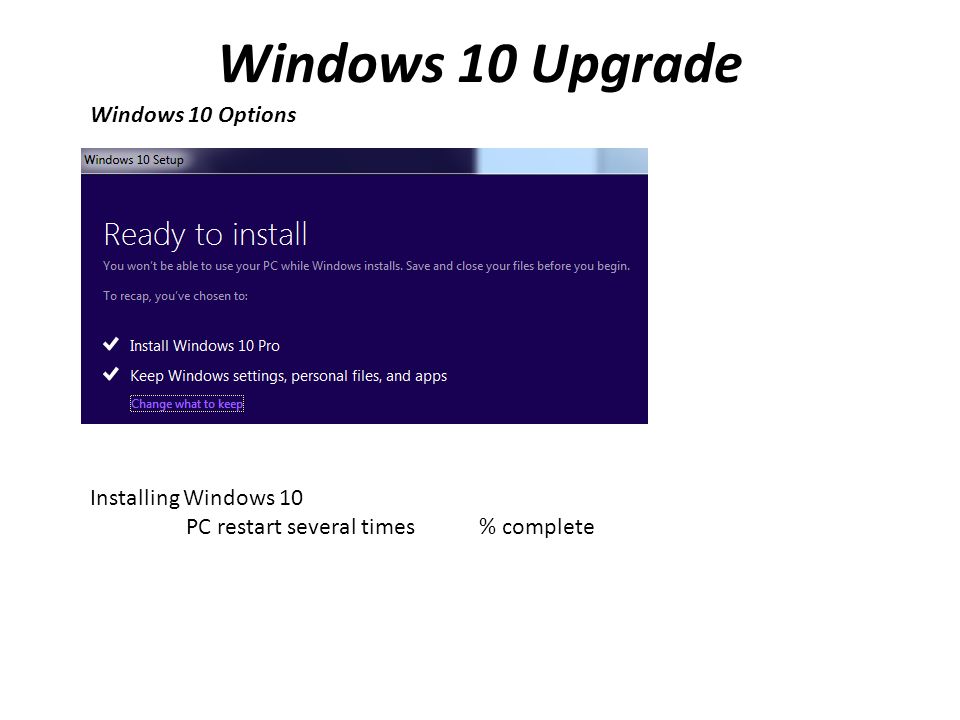

31. Windows 10 Upgrade Windows 10 Options Installing Windows 10 PC restart several times % complete

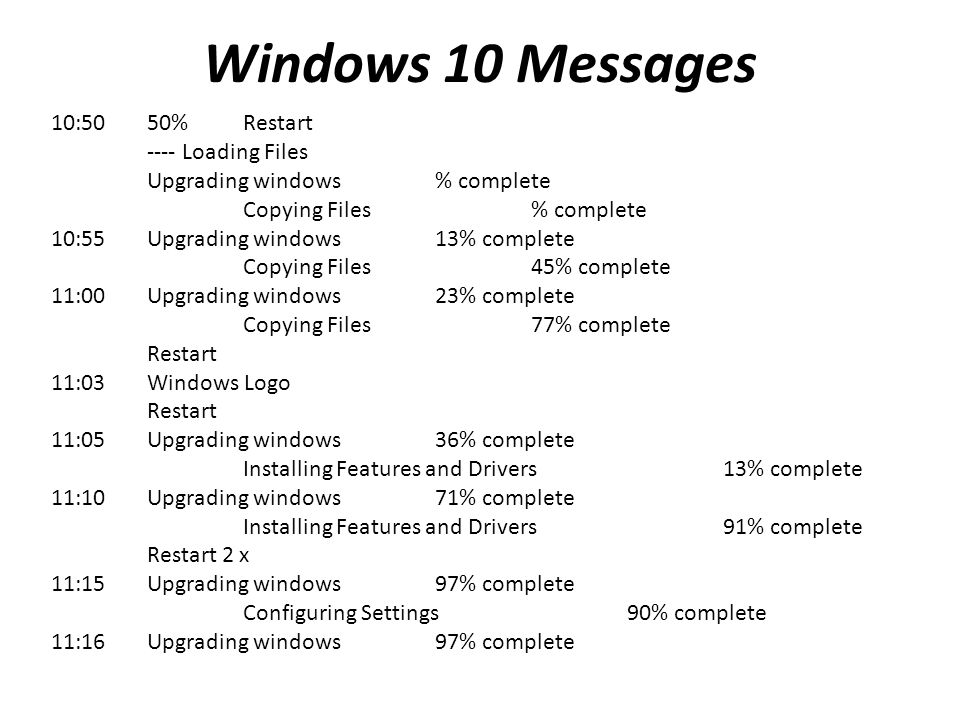

32. Windows 10 Messages 10:5050%Restart ---- Loading Files Upgrading windows % complete Copying Files % complete 10:55Upgrading windows 13% complete Copying Files 45% complete 11:00Upgrading windows 23% complete Copying Files 77% complete Restart 11:03Windows Logo Restart 11:05Upgrading windows 36% complete Installing Features and Drivers 13% complete 11:10Upgrading windows 71% complete Installing Features and Drivers 91% complete Restart 2 x 11:15Upgrading windows 97% complete Configuring Settings 90% complete 11:16Upgrading windows 97% complete

33. Windows 10 Initial Settings Hi There welcome backNext Get Going fast Customise Settings Personalization Speech etc to Microsoft 4 x off Browser and protection 2 x off Connectivity Automatically Connect to open Hotspots Automatically Connect to networks shared by your Contacts 2 x offNext Apps Choose default Apps YesEdge

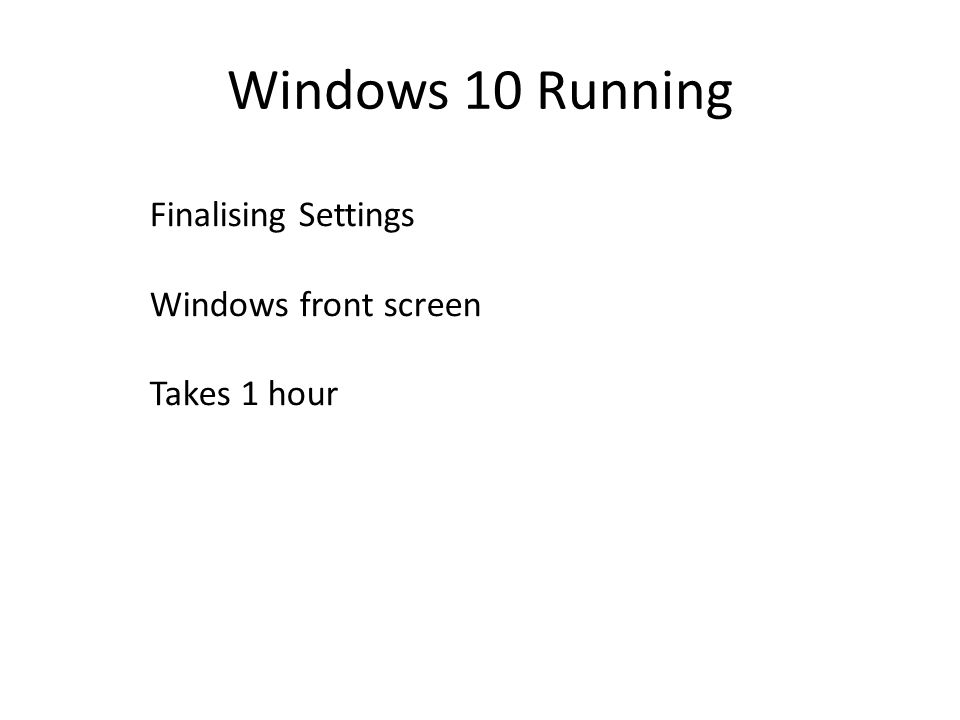

34. Windows 10 Running Finalising Settings Windows front screen Takes 1 hour

35. Windows 10 Quick Keys Windows logo key Start Menu Windows Key + Tab – This opens Task ViewClick to select Windows Key + DDesktop Windows Key + EExplorer Windows Key + RRun Windows Key + SSearch Virtual Desktop Windows Key + Ctrl + D – Create a new virtual desktop and switch to it Windows Key + Ctrl + F4 – Close the current virtual desktop. Windows Key + Ctrl + Left / Right – Switch to the virtual desktop left or right

36. Windows 10 Quick Keys Snap Windows Key + Left – Snap current window to the left side of the screen. Windows Key + Right – Snap current window the the right side of the screen. Windows Key + Up – Snap current window to the top of the screen. Windows Key + Down – Snap current window to the bottom of the screen. http://windows.microsoft.com/en-nz/windows-10/keyboard-shortcuts

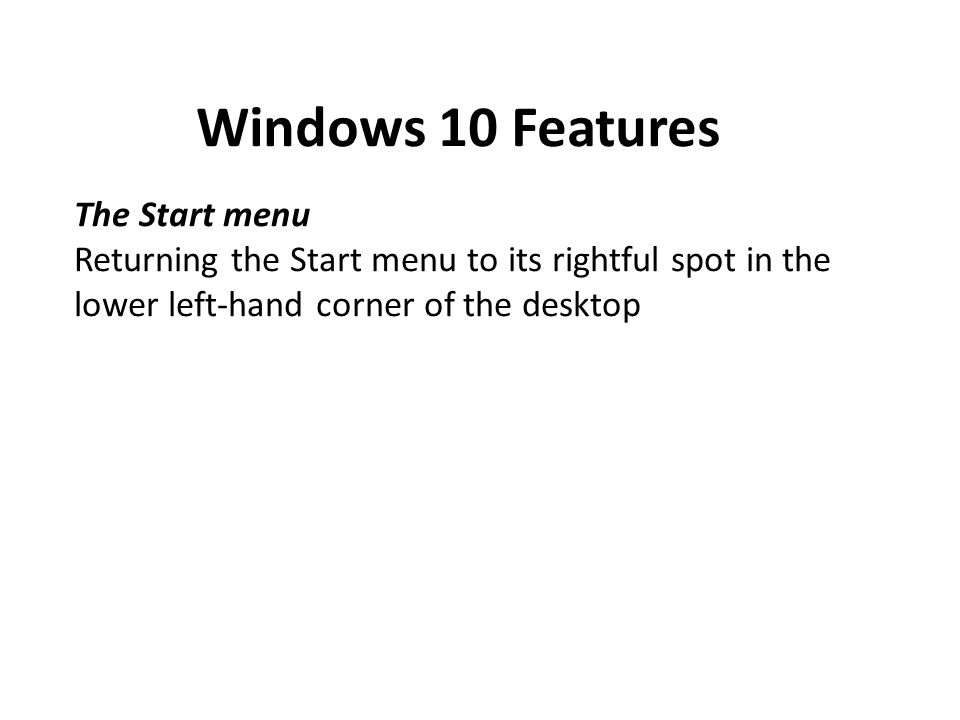

37. Windows 10 Features The Start menu Returning the Start menu to its rightful spot in the lower left-hand corner of the desktop

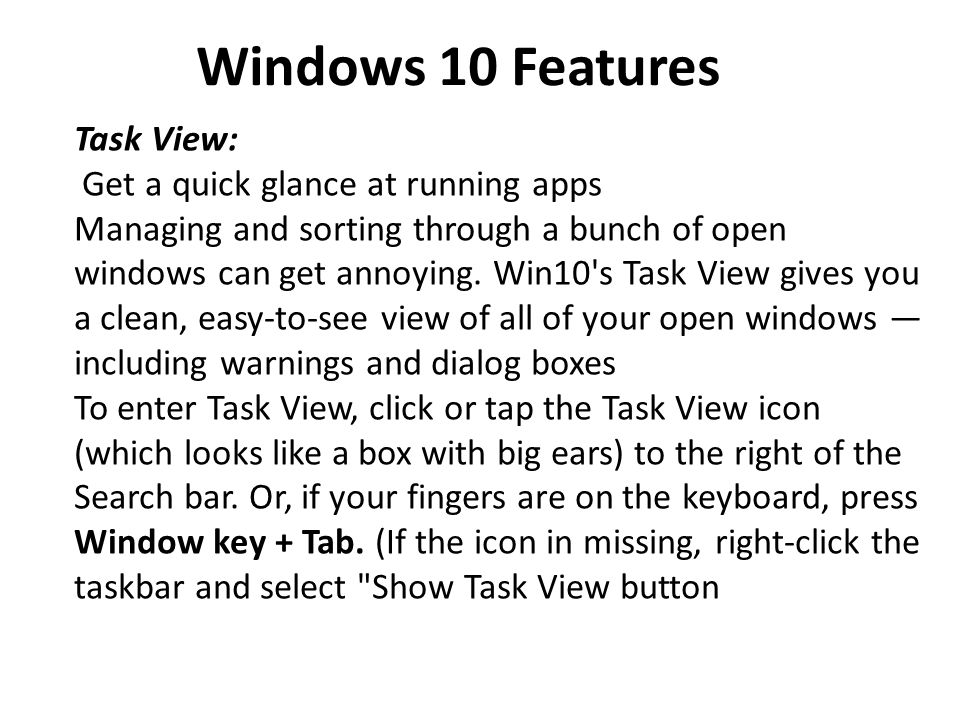

38. Windows 10 Features Task View: Get a quick glance at running apps Managing and sorting through a bunch of open windows can get annoying. Win10's Task View gives you a clean, easy-to-see view of all of your open windows — including warnings and dialog boxes To enter Task View, click or tap the Task View icon (which looks like a box with big ears) to the right of the Search bar. Or, if your fingers are on the keyboard, press Window key + Tab. (If the icon in missing, right-click the taskbar and select "Show Task View button

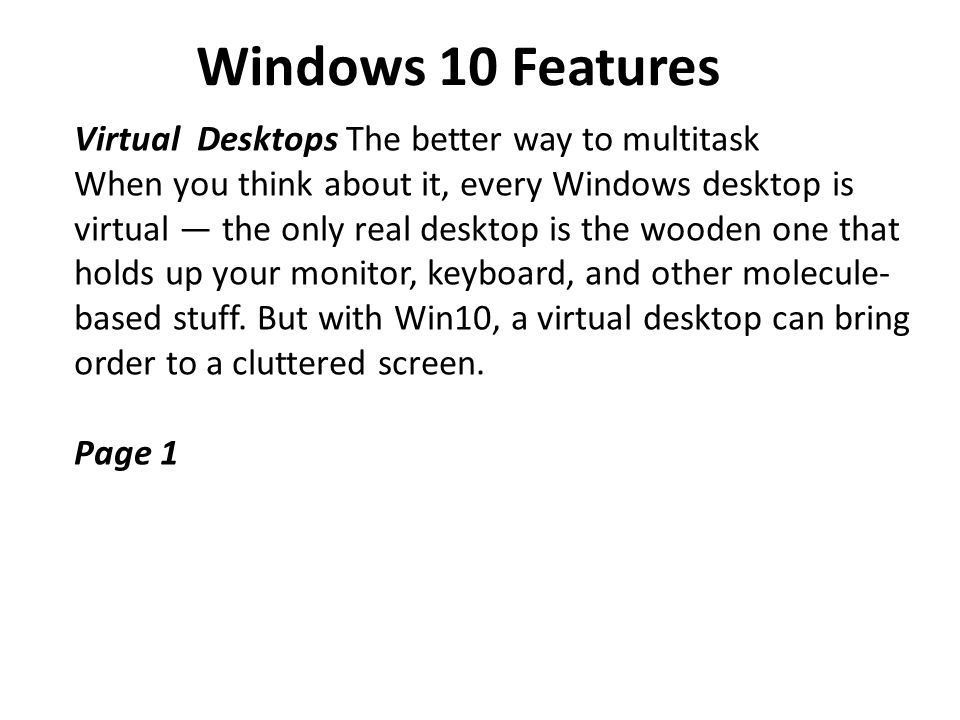

39. Windows 10 Features Virtual Desktops The better way to multitask When you think about it, every Windows desktop is virtual — the only real desktop is the wooden one that holds up your monitor, keyboard, and other molecule- based stuff. But with Win10, a virtual desktop can bring order to a cluttered screen. Page 1

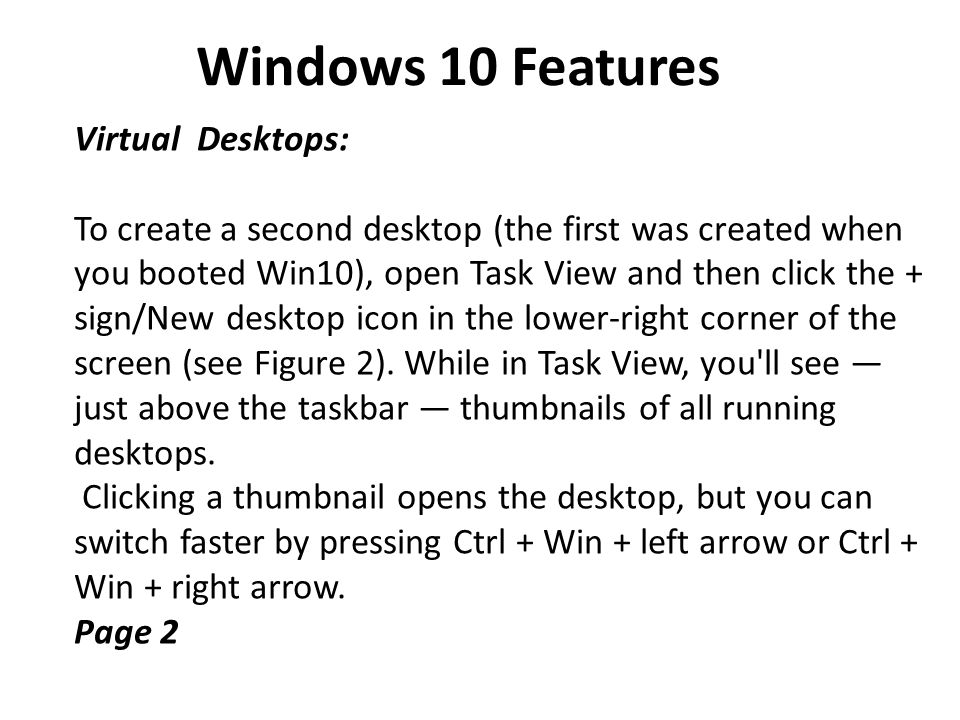

40. Windows 10 Features Virtual Desktops: To create a second desktop (the first was created when you booted Win10), open Task View and then click the + sign/New desktop icon in the lower-right corner of the screen (see Figure 2). While in Task View, you'll see — just above the taskbar — thumbnails of all running desktops. Clicking a thumbnail opens the desktop, but you can switch faster by pressing Ctrl + Win + left arrow or Ctrl + Win + right arrow. Page 2

41. Windows 10 Features File Explorer: Better file and folder management Almost every good operating system has basic file management — a way to find, organize, open, copy, move, and delete files. (We're still waiting, iOS.) Win7's Windows Explorer is great, but Win10's File Explorer is even better. (It's almost identical to Win8's.)

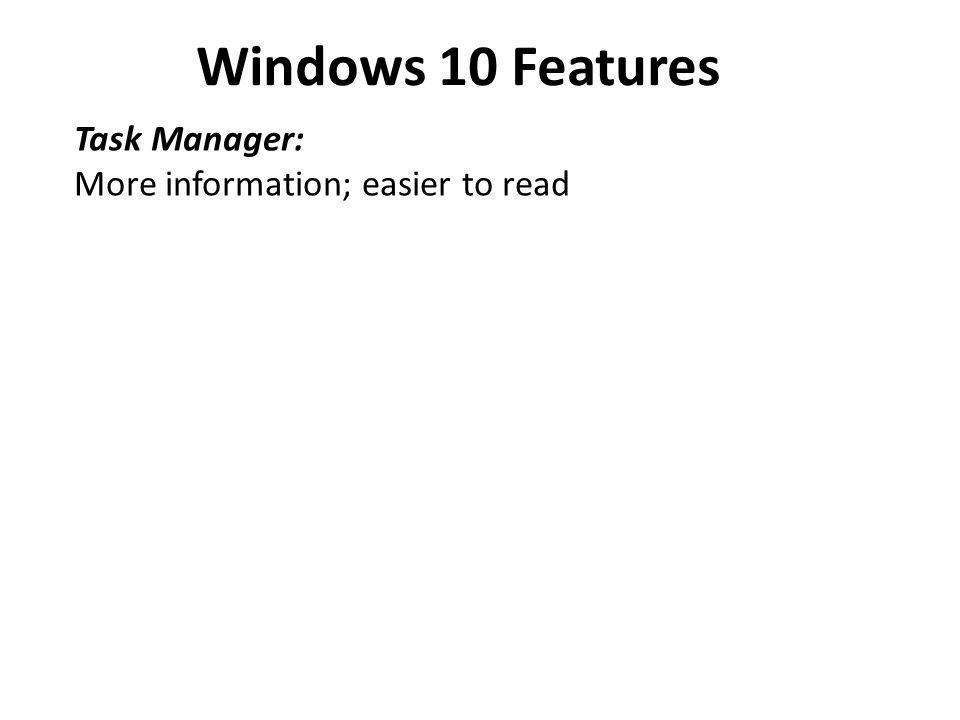

42. Windows 10 Features Task Manager: More information; easier to read

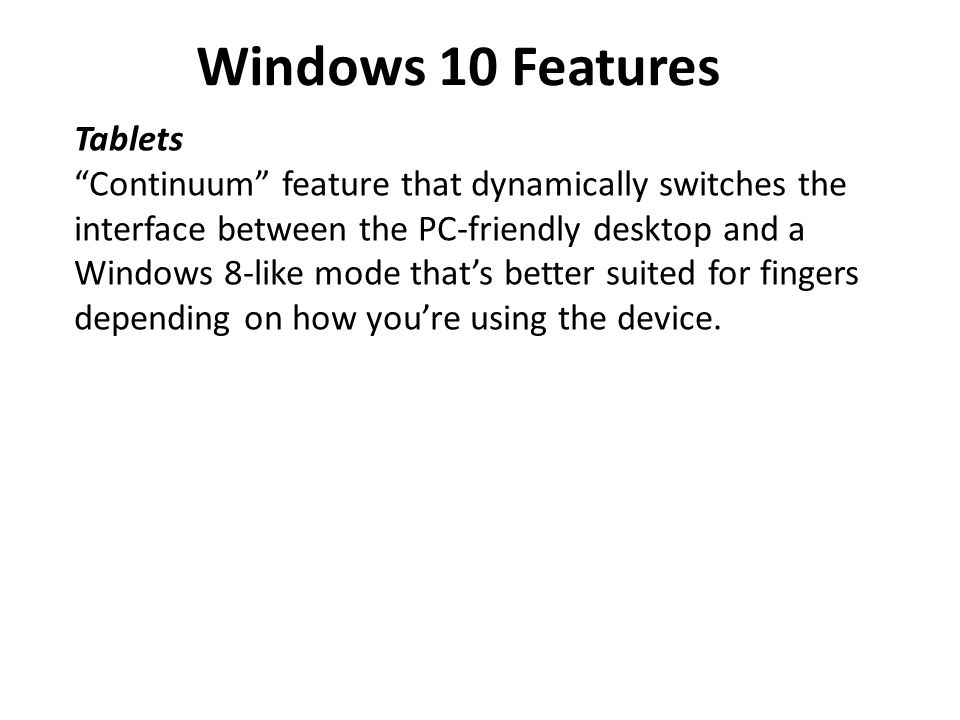

43. Windows 10 Features Tablets “Continuum” feature that dynamically switches the interface between the PC-friendly desktop and a Windows 8-like mode that’s better suited for fingers depending on how you’re using the device.

44. Windows 10 Features The Edge browser Forget Internet Explorer. Well, don’t forget it entirely—it’s still tucked away in a corner of Windows 10 for legacy compatibility purposes. But the star of the Internet show in Microsoft’s new operating system is clearly Edge, a brand-new browser built from the ground up for speed, slickness, and trawling the modern web.

45. Windows 10 Features Cortana Search with speech input and output Not Available for NZ yet

46. Win 10 what settings to alter Apps Right click Unpin from start Windows Update Start  Settings  Update and Security  Windows Update  Advanced Notify and Defer Updates Privacy Start  Settings  Privacy All Off Wi-Fi Sense Start  Settings  Network & Internet  Wi-Fi Wi-Fi Sense, shares an encrypted version of your Wi-Fi network password. Allow anyone in your Skype or Outlook or Hotmail contacts lists to use your Wi-Fi network if they within range or visit your home.

47. Windows Dates Free until 29 th June 2016 1 year Can revert back to Win 7 for a month. Start  Settings  Update and Security  Backup Go to Backup and restore (Windows 7)

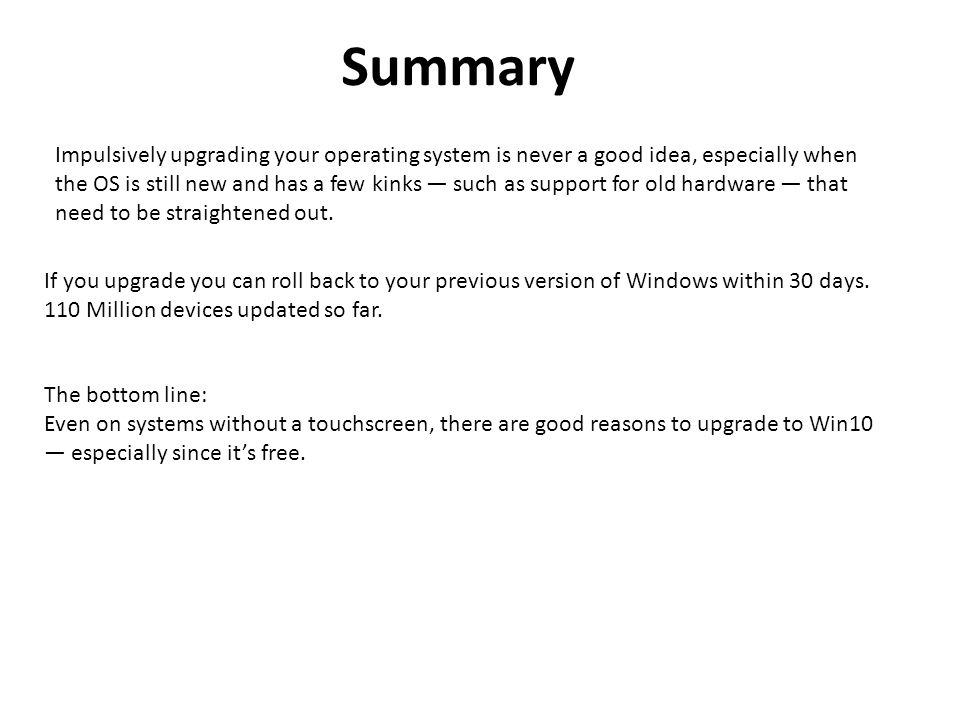

48. Summary If you upgrade you can roll back to your previous version of Windows within 30 days. 110 Million devices updated so far. The bottom line: Even on systems without a touchscreen, there are good reasons to upgrade to Win10 — especially since it’s free. Impulsively upgrading your operating system is never a good idea, especially when the OS is still new and has a few kinks — such as support for old hardware — that need to be straightened out.

49. Murray Gallagher murray@merlinit.co.nz www.merlinit.co.nzmurray@merlinit.co.nzwww.merlinit.co.nz
