1. DAT300 SQL Server Notification Services: Application Development Ken Henderson Technical Lead, SQL Server Support Microsoft Corporation kenneth@microsoft.com

2. Development Process ASP ASP.NET VB Script C#, VB.NET VB Script T-SQL Script XML T-SQL Events Subscriptions Subscribers Notifications Match Rules Define Schemas and Rules Web Application Subscribers Subscriptions Events nscontrol create, register, update Build the SMA Load Sample Data Compile the application Extend the platformBuild the foundation XSLT C# VB.NET Event Providers, Content Formatters, Delivery Protocols Add Custom Components Operations T-SQL Perfmon SQLNS reports Integrate for end to end testing Tasks Focus Skills set

3. Demo Outline: Stock Quotes Notifications  More sources of events (SQL Provider)  Richer notifications (Content Formatter)  File System Watcher for events  Xslt content formatter  Email for notifications Define Schemas Test application using built-in features Extend the platform  Events, subscriptions, notifications  Write Match rule

4. NS Instance Makes it possible for two or more applications to share the same set of subscribers Multithreaded Windows Service Hosts threads for Event Providers, Generator, Distributor Multiple Instances per computer Test and production Instance may span multiple computers E.g., multiple Distributors Defined by an xml configuration file NewsStockSports Subscribers StockInstance

5. NS Application Defines the logic of your notification application One or more per instance Entirely defined by an application definition file Schemas for Events, Subscriptions, Notifications Match rules Content Formatters Event providers Delivery protocols

6. Building The Foundation: Defining Schemas and Rules Model your Events as rows in a SQL table Model your subscriptions as rows in a table Use the power of SQL to write your match rule Format the raw notification using a basic xslt

7. Building The Foundation: ’Compiling’ the application nscontrol create Reads config. / ADF xml files Creates supporting databases, tables, views, stored procs… nscontrol register (on every machine running the service) Specify Windows/SQL credentials/encryption key Installs a multi threaded Windows service per instance Registers perfmon counters and SQLNS keys nscontrol enable Activates EP, GP, DP Start instance Event Provider disabled Generator disabled Distributor disabled Event Provider enabled Generator enabled Distributor enabled Event Provider enabled Generator enabled Distributor enabled Config InstanceApp1 App2 App3 ADF1 ADF2 ADF3

8. Building The Foundation: Loading Sample Data Load sample data: Subscribers, subscriptions, events Pick data that will generate notifications! Use built-in components FileSystemWatcher, xslt, smtp How? Subscribers and subscriptions: ASP, ASP.NET (unlikely at this stage of development, unless you are a UI god!) VB Script, using our object model C++, C#, VB, VB.NET, using our object model Events: using the File System Watcher provider C++, C#, VB, VB.NET, using our object model NEVER insert data directly in the SQLNS tables!

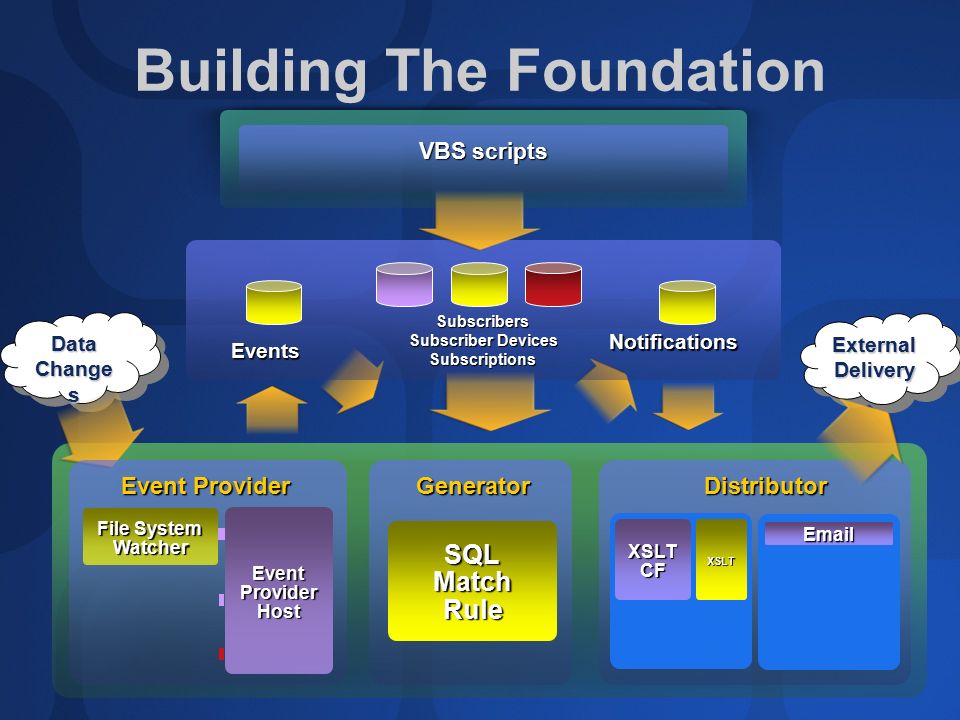

9. Building The Foundation VBS scripts Data Change s ExternalDeliveryExternalDelivery Event Provider Events Subscribers Subscriber Devices Subscriptions Notifications GeneratorDistributor SQL Match Rule File System Watcher Event Provider Host XSLT CF XSLT Email

10. Building The Foundation demo demo

11. Extending the platform VBS scripts Data Change s ExternalDeliveryExternalDelivery Event Provider Events Subscribers Subscriber Devices Subscriptions Notifications GeneratorDistributor SQL Match Rule File System Watcher Event Provider Host XSLT CF XSLT Email SQL Server provider

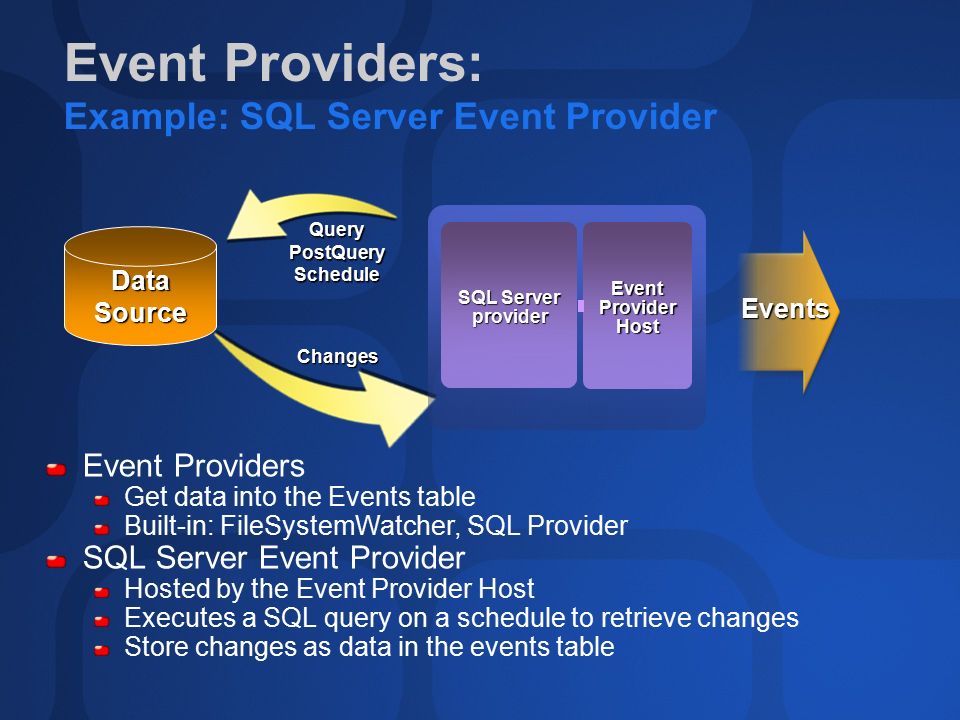

12. Event Providers: Example: SQL Server Event Provider Event Providers Get data into the Events table Built-in: FileSystemWatcher, SQL Provider SQL Server Event Provider Hosted by the Event Provider Host Executes a SQL query on a schedule to retrieve changes Store changes as data in the events table Events Data Source SQL Server provider Event Provider Host Query PostQuery Schedule Changes

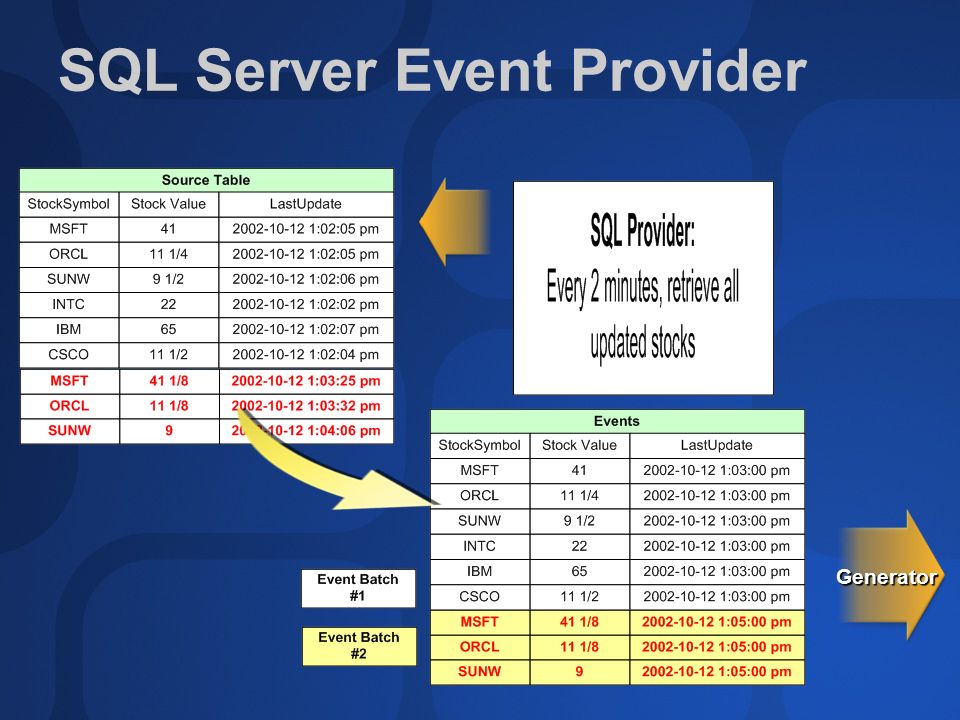

13. SQL Server Event Provider Generator

14. SQL Server Provider demo demo

15. Extending the platform VBS scripts Data Change s ExternalDeliveryExternalDelivery Event Provider Events Subscribers Subscriber Devices Subscriptions Notifications GeneratorDistributor SQL Match Rule File System Watcher Event Provider Host XSLT CF XSLT Email SQL Server provider Custom CF Custom EP

16. Content Formatter Content Formatters Transform raw notification Built-in: XSLT Content Formatter Why a custom content formatter? Beyond simple xslt formatting (complex html, external formatting dependencies, compute operations) Target multiple devices/languages within a single piece of code (vs. Multiple xslt files) Performance Managed code dll loaded by the distributor. Cached in memory (stop, disable, update, enable, start) Exposes 3 methods: Initialize, FormatContent, Close

17. Distributor Content Formatting Example Notifications Subscribers Subscriptions Subscriber Devices Notification Fields City: Seattle HighTemp: 54 LowTemp: 45 Recipient Info SubscriberId: patricet SubscriberLocale: en-US DeviceType: Phone

18. Content Formatter demo demo

19. Extending the platform VBS scripts Data Change s ExternalDeliveryExternalDelivery Event Provider Events Subscribers Subscriber Devices Subscriptions Notifications GeneratorDistributor SQL Match Rule File System Watcher Event Provider Host XSLT CF XSLT Email SQL Server provider Custom CF SMS DP Custom EP.NET Alerts * File HttpExt

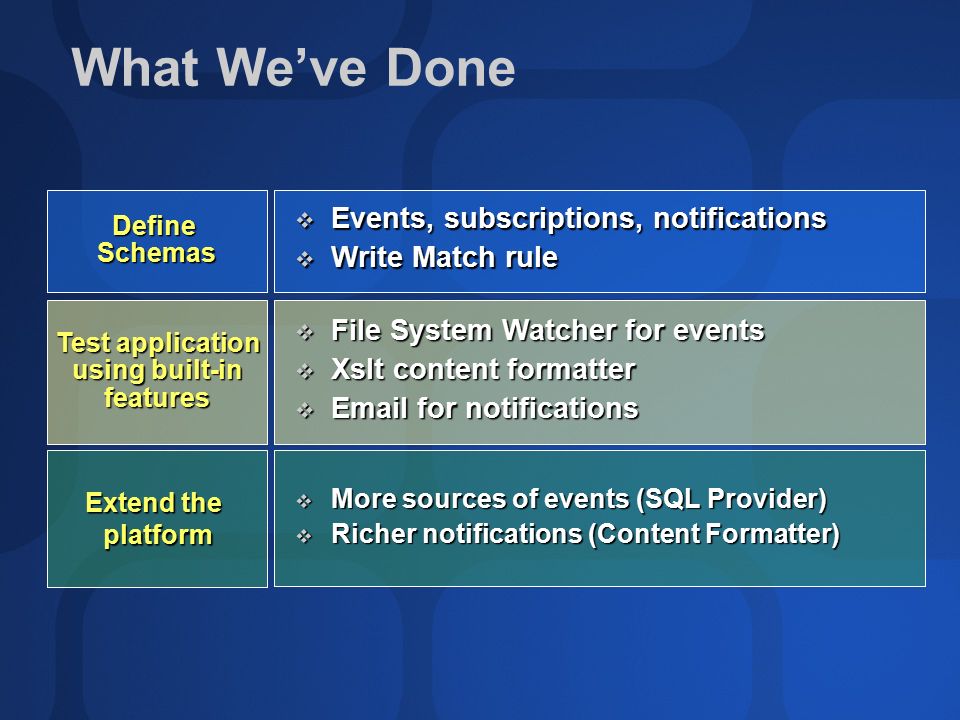

20. What We’ve Done  More sources of events (SQL Provider)  Richer notifications (Content Formatter)  File System Watcher for events  Xslt content formatter  Email for notifications Define Schemas Test application using built-in features Extend the platform  Events, subscriptions, notifications  Write Match rule

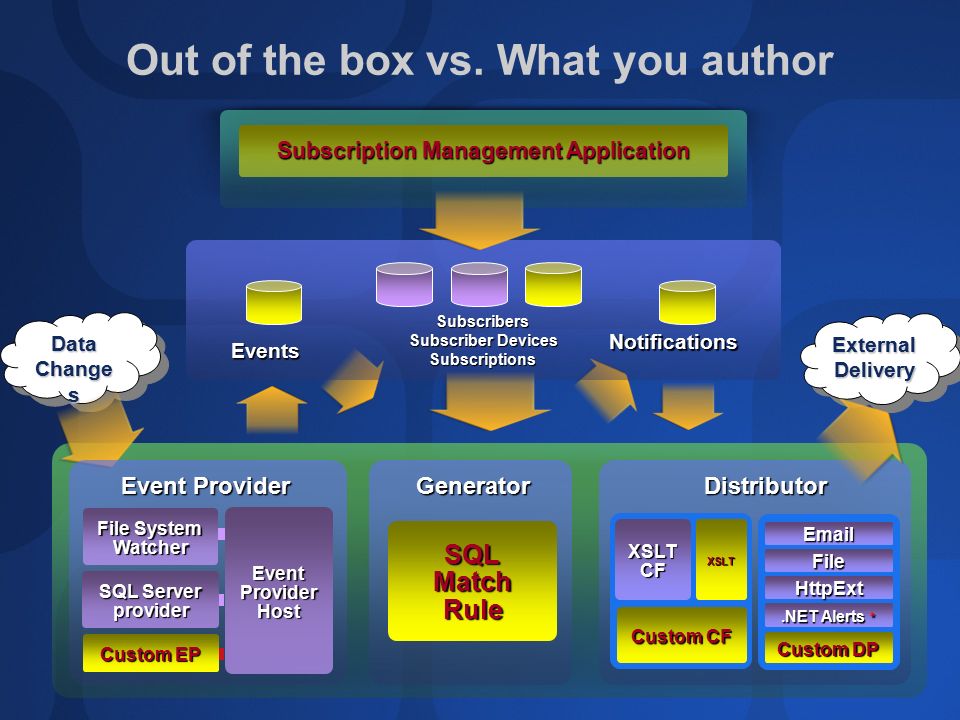

21. Out of the box vs. What you author Subscription Management Application Data Change s ExternalDeliveryExternalDelivery Event Provider Events Subscribers Subscriber Devices Subscriptions Notifications GeneratorDistributor SQL Match Rule File System Watcher SQL Server provider Custom EP Event Provider Host XSLT CF Custom CF XSLT Custom DP Email.NET Alerts * File HttpExt

22. Summary Think of events, subscriptions and notifications as rows in SQL tables! Start building the foundation before extending it We want to hear from you: Come and talk to us about your application!

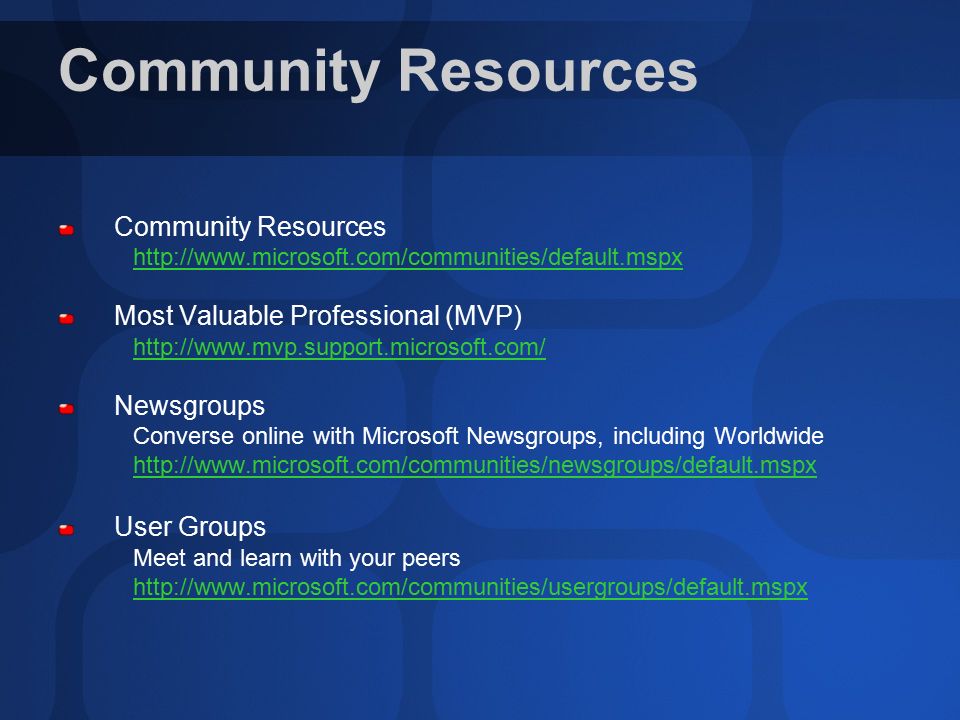

23. Community Resources http://www.microsoft.com/communities/default.mspx Most Valuable Professional (MVP) http://www.mvp.support.microsoft.com/ Newsgroups Converse online with Microsoft Newsgroups, including Worldwide http://www.microsoft.com/communities/newsgroups/default.mspx User Groups Meet and learn with your peers http://www.microsoft.com/communities/usergroups/default.mspx

24. evaluations evaluations
