1. RICE UNIVERSITY Flexible wireless communication architectures Sridhar Rajagopal Department of Electrical and Computer Engineering Rice University, Houston TX Faculty Candidate Seminar – University of Rochester March 31, 2003 This work has been supported in part by NSF, Nokia and TI

2. RICE UNIVERSITY 2 Future wireless devices demand flexibility  High data rate mobile devices with multimedia  Multiple antennas w/ complex signal processing algorithms  High performance and low power needs  Multiple algorithms and environments supported in same device  Fast design time Bluetooth/ Home Networks Wireless Cellular Wireless LAN

3. RICE UNIVERSITY 3 Flexibility needed in different layers Physical Layer MAC Layer Network Layer Application Layer Support for multiple wireless environments and algorithms at high data rates Puppeteer project at Rice http://www.cs.rice.edu/CS/Systems/Puppeteer/ Analog RF

4. RICE UNIVERSITY 4 Research vision: Attain flexibility  Architectures:  Flexibility : support variety of sophisticated algorithms  High Performance: GOPs of computation (Mbps)  Low Power: < 500 mW  Algorithms:  Need efficient algorithms for mapping to architectures  Fast design exploration for efficient algorithms & architectures Design me

5. RICE UNIVERSITY 5 My contributions: Algorithms Multi-user channel estimation:[Jnl. Of VLSI Sig. Proc.’02, ASAP’00]  Matrix-inversions  Numerical techniques  conjugate-gradient descent for complexity reduction Multi-user detection: [ISCAS’01]  Block-based computation to streaming computations  Pipelining, lower memory requirements Parallel, fixed-point, streaming VLSI implementations [IEEE Trans. Wireless Comm.’02]

6. RICE UNIVERSITY 6 My contributions: Architectures Heterogeneous DSP-FPGA system designs: [ICSPAT’00] Computer arithmetic:[Symp. On Comp. Arith’01] Dynamic truncation in ASICs using on-line arithmetic [Ph.D. Thesis] Scalable Wireless Application-specific Processors (SWAPs) Rapid architecture exploration for flexibility-performance tradeoffs

7. RICE UNIVERSITY 7 Scalable Wireless Application-specific Processors  Family of flexible programmable processors  Clusters of ALUs  High performance by supporting 100’s of ALUs  Can provide customization for various algorithms  Adapts (“swaps”) architecture dynamically for power + ? * * + * * + * * + * * … ??? Scale Clusters Scale ALUs

8. RICE UNIVERSITY 8 Rapid design exploration for SWAPs Low “complexity”, parallel, fixed point algorithms Architecture Exploration ASIC design apply DSP design apply SWAPs + ? * * + * * + * * + * * … ???

9. RICE UNIVERSITY 9 Research vision summary  Provide a framework to rapidly explore:  flexible, high performance, low power architectures (SWAPs)  Efficient algorithm design for mapping to SWAPs  Understanding of algorithms, DSPs and ASICs used  Flexibility-performance trade-off with increasing customization in SWAPs Inter-disciplinary research: Wireless communications, VLSI Signal Processing, Computer architecture, Computer arithmetic, CAD, Compilers

10. RICE UNIVERSITY 10 Talk Outline  Research vision  SWAPs - Background  Algorithm design for SWAPs  Architecture design for SWAPs  Current and Future Research Goals

11. RICE UNIVERSITY 11 SWAPs borrow from DSPs  DSPs use  Instruction Level Parallelism (ILP)  Subword Parallelism (MMX)  Current DSPs  Not enough functional units (ALUs) for GOPs of computation cannot extend to more ALUs TI C6x DSP has 8 ALUs -- Need 100’s of ALUs  Cannot support more registers (area,ports)  Difficult to find ILP as ALUs increase

12. RICE UNIVERSITY 12 SWAPs borrow from ASICs  Exploit data parallelism (DP) also  Available in many wireless algorithms  This is what ASICs do! int i,a[N],b[N],c[N]; // 32 bits short int d[N],e[N],f[N]; // 16 bits packed for (i = 0; i< 1024; ++i) { a[i] = b[i] + c[i]; d[i] = e[i] + f[i]; } ILP DP Subword

13. RICE UNIVERSITY 13 SWAPs borrow from stream processors Kernel Viterbi decoding Stream Input Data Output Data Correlator channel estimation received signal Matched filter Interference Cancellation Decoded bits  Kernels (computation) and streams (communication)  Operations on kernels use local data in clusters providing GOPs support  Streams expose data parallelism  Imagine stream processor at Stanford [Rixner’01] Scott Rixner. Stream Processor Architecture, Kluwer Academic Publishers: Boston, MA, 2001.

14. RICE UNIVERSITY 14 SWAPs: multi-cluster DSPs + + + * * * Internal Memory ILP Memory: Stream Register File (SRF) DSP (1 cluster) + + + * * * + + + * * * + + + * * * + + + * * * … ILP DP SWAPs adapt clusters to DP Identical clusters, same operations. Power-down unused FUs, clusters

15. RICE UNIVERSITY 15 Arithmetic clusters in SWAPs  ALUs (+,*,/)  Scratch-pad (Sp)  Indexed accesses  Comm. unit (CU)  Intercluster comm.  Distributed reg. Files  Support more ALUs Intercluster Network From/To SRF Cross Point Local Register File CU + + + * * / + / + + + * * / + / Sp SRF

16. RICE UNIVERSITY 16 Talk Outline  Research vision  SWAPs Background  Algorithm design for SWAPs  Architecture design for SWAPs  Current and Future Research Goals

17. RICE UNIVERSITY 17 SWAPs: Physical layer algorithms Antenna Channel estimation DetectionDecoding Higher (MAC/Network/ OS) Layers RF Front-end Baseband processing

18. RICE UNIVERSITY 18 SWAP mapping example: Viterbi decoding  Multiple antenna systems (MIMO systems)  Complexity exponential with transmit x receive antennas  Estimation: Linear MMSE, blind, conjugate gradient….  Detection: FFT, (blind) interference cancellation….  Decoding: Viterbi, Turbo, LDPC…. & joint schemes  SWAP flexibility lets you use the best algorithms for the situation Example for concept demonstration: Viterbi decoding

19. RICE UNIVERSITY 19 Parallel Viterbi Decoding for SWAPs  Add-Compare-Select (ACS) : trellis interconnect : computations  Parallelism depends on constraint length (#states)  Traceback: searching  Conventional Sequential (No DP) with dynamic branching Difficult to implement in parallel architecture  Use Register Exchange (RE) parallel solution ACS Unit Traceback Unit Detected bits Decoded bits

20. RICE UNIVERSITY 20 Parallel Viterbi needs re-ordering for SWAPs Exploiting Viterbi DP in SWAPs:  Use RE instead of regular traceback  Re-order ACS, RE X(0) X(1) X(2) X(3) X(4) X(5) X(6) X(7) X(8) X(9) X(10) X(11) X(12) X(13) X(14) X(15) X(0) X(1) X(2) X(3) X(4) X(5) X(6) X(7) X(8) X(9) X(10) X(11) X(12) X(13) X(14) X(15) X(0) X(2) X(4) X(6) X(8) X(10) X(12) X(14) X(1) X(3) X(5) X(7) X(9) X(11) X(13) X(15) X(0) X(1) X(2) X(3) X(4) X(5) X(6) X(7) X(8) X(9) X(10) X(11) X(12) X(13) X(14) X(15) DP vector Regular ACSACS in SWAPs

21. RICE UNIVERSITY 21 Talk Outline  Research vision  SWAP Background  Algorithm design for SWAPs  Architecture design for SWAPs  Current and Future Research Goals

22. RICE UNIVERSITY 22 Designing the SWAP architecture More clusters better than more ALUs/per cluster 1.Decide how many clusters  Exploit DP 2.Decide what to put within each cluster  Maximize ILP with high functional unit efficiency  Search design space with “explore” tool Time-power-area characterization + ? * * + * * + * * + * * … ILP DP ???

23. RICE UNIVERSITY 23 Design a SWAP cluster: “Explore” Auto-exploration of adders and multipliers for “ACS" (Adder util%, Multiplier util%)

24. RICE UNIVERSITY 24 “Explore” tool benefits  Instruction count vs. ALU efficiency  What goes inside each cluster  Design customized application-specific units  Better performance with increased ALU utilization Explore Algorithm 1 : 3 adders, 3 multipliers, 32 clusters Explore Algorithm 2 : 4 adders, 1 multiplier, 64 clusters Chosen Architecture: 4 adders, 3 multipliers, 64 clusters  Explore multiple algorithms  turn off functional units not in use for given kernel

25. RICE UNIVERSITY 25 SWAP flexibility provides power savings  Multiple algorithms  Different ALU requirements  Different cluster requirements  Turning off ALUs  Use the right #ALUs for kernel from static code schedule  Turning off clusters  Data across SRF of all clusters  Each cluster does not have access to entire SRF  Next kernel may need data from SRF of other clusters  Reconfiguration support needs to be provided

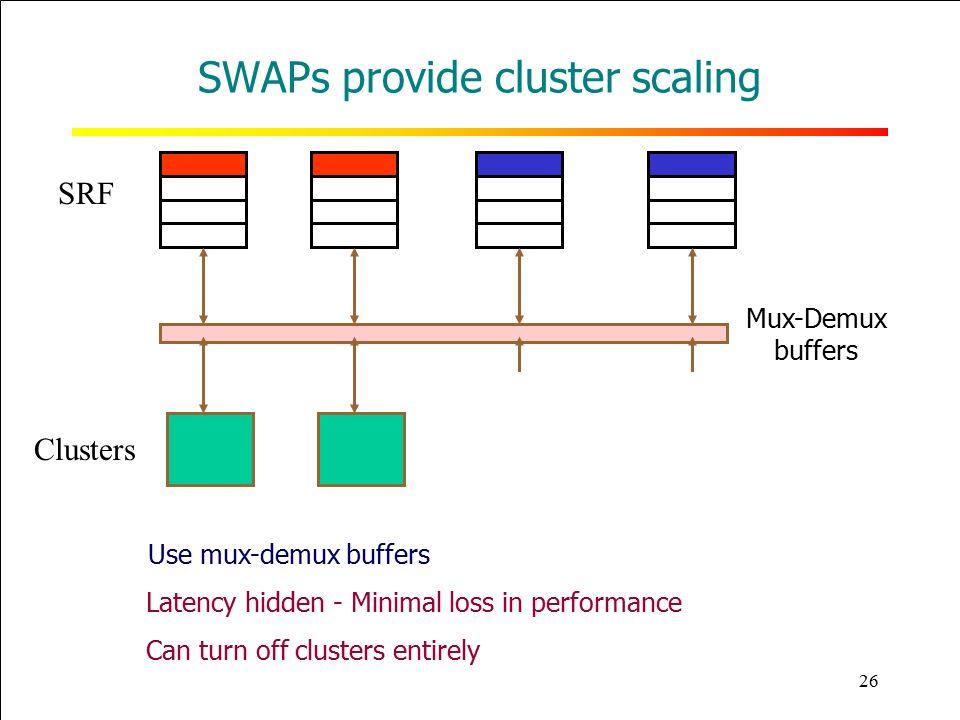

26. RICE UNIVERSITY 26 SWAPs provide cluster scaling Use mux-demux buffers Latency hidden - Minimal loss in performance Can turn off clusters entirely SRF Clusters Mux-Demux buffers

27. RICE UNIVERSITY 27 Viterbi reconfiguration using SWAPs Packet 1 Constraint length 7 (16 clusters) Packet 2 Constraint length 9 (64 clusters) Packet 3 Constraint length 5 (4 clusters) DPCan be turned OFF

28. RICE UNIVERSITY 28 64-bit Rate ½ Packet 1 K = 7 Packet 2 K = 9 Packet 3 K = 5 Kernels (Computation) No Data Memory accesses Execution Time (cycles) ClustersMemory Run-time SWAP flexibility

29. RICE UNIVERSITY 29 SWAP exploration for Viterbi decoding 110100 1 10 100 1000 Number of clusters Frequency needed to attain real-time (in MHz) K = 9 K = 7 K = 5 Different SWAPs (Without reconfiguration) Same SWAP (With reconfiguration) DSP Ideal C64x (w/o co-proc) needs ~200 MHz for real-time Max DP

30. RICE UNIVERSITY 30 SWAPs : Salient features  1-2 orders of magnitude better than a DSP  Any constraint length  10 MHz at 128 Kbps  Same code for all constraint lengths  no need to re-compile or load another code  as long as parallelism/cluster ratio is constant  Power savings due to dynamic cluster scaling

31. RICE UNIVERSITY 31 Expected SWAP power consumption  Power model based on [Khailany’03]  64 clusters and 1 multiplier per cluster:  0.13 micron, 1.2 V  Peak Active Power: ~9 mW at 1 MHz (DSP ~1 mW at 1 MHz)  Area: ~53.7 mm 2  10 MHz, 128 Kbps with reconfiguration ( DSP ~200mW) Exploring the VLSI Scalability of Stream Processors, Brucek Khailany et al, Proceedings of the Ninth Symposium on High Performance Computer Architecture, February 8-12, 2003 010203040506070 0 10 20 30 40 50 60 70 80 90 Active Clusters (max 64) Power (in mW) ViterbiClustersPeak Power K = 964~90 mW K = 716~28.57 mW K = 54~13.8 mW overhead0~8.1 mW

32. RICE UNIVERSITY 32 Multiuser Estimation-Detection+Decoding Real-time target : 128 Kbps per user Ideal C64x (w/o co-proc) needs ~15 GHz for real-time

33. RICE UNIVERSITY 33 Expected SWAP power : base-station  32 user base-station with 3 X’s per cluster and 64 clusters:  0.13 micron, 1.2 V  Peak Active Power: ~18.19 mW for 1 MHz (increased X)  Area: ~93.4 mm 2  Total Peak Base-station power consumption:  ~18.19 W at 1 GHz for 32 users at 128 Kbps/user

34. RICE UNIVERSITY 34 Talk Outline  Research vision  SWAP Background  Algorithm design for SWAPs  Architecture design for SWAPs  Current and Future Research Goals

35. RICE UNIVERSITY 35 Current research: Flexibility vs. performance SWAPs: 128 Kbps at ~10-100 mW for Viterbi  Borrow DP from ASICs!  suitable for base-stations  Flexibility more important than power  suitable for mobile devices  Power constraints tighter  can be customized for further power savings Handset SWAPs (H-SWAPs)  Borrow Task pipelining from ASICs!  Application-specific units and specialized comm. network

36. RICE UNIVERSITY 36 Handset SWAPs: H-SWAPs  Trade Data Parallelism for Task Pipelining SWAPs (max. clusters and reconfigure) + + + * + + + * + + + * + + + * Limited DP SWAPlet (limit clusters) + + + * + + + * + + + * + + + * Limited DP + + * + + * + + * + + * Limited DP + + + + + + + + Limited DP H-SWAPs (collection of customized SWAPlets)

37. RICE UNIVERSITY 37 Sample points in architecture exploration DSPs (1 cluster) ILP Subword ILP Subword DP SWAPs (multiple) H-SWAPs (optimized for handsets) ILP Subword DP Task Pipelining Custom ALUs Programmable solutions with increased customization Performance, Power benefits

38. RICE UNIVERSITY 38 Future research: Efficient algorithms Multiple Antenna Systems

39. RICE UNIVERSITY 39 Future research: Architectures Generalized framework and tools for evaluating algorithm- architecture and area-time-power-flexibility trade-offs Potential applications  Image processing:  Cameras : variety of compression algorithms  Biomedical applications:  Hearing aids: DSP running on body heat *  Sensor networks  Compression of data before transmission *Quote: Gene Frantz, TI Fellow

40. RICE UNIVERSITY 40 SWAPs: Flexibility, Performance, Power  Need flexible architectures for future wireless devices  Higher data rates, lower power, more complex algorithms  Rapid Exploration for Scalable, Wireless Application-specific Processors  Flexibility vs. performance trade-offs  SWAPs - flexibility, high performance and low power  Exploit data parallelism like ASICs  1-2 orders better performance than DSPs  Turn off unused clusters and unused ALUs for low power
