1. Efficient VLSI architectures for baseband signal processing in wireless base-station receivers Sridhar Rajagopal, Srikrishna Bhashyam, Joseph R. Cavallaro, and Behnaam Aazhang This work is supported by Nokia, TI, TATP and NSF

2. Introduction A real-time VLSI architecture for channel estimation Usually neglected, but high computational complexity Current DSP solutions do not meet real-time Iterative fixed point algorithm developed Area-Time Tradeoffs discussed –Area-Constrained (Pico-cells) –Time-Constrained (Theoretical Data Rates) –Area-Time efficient (Real-Time Solution)

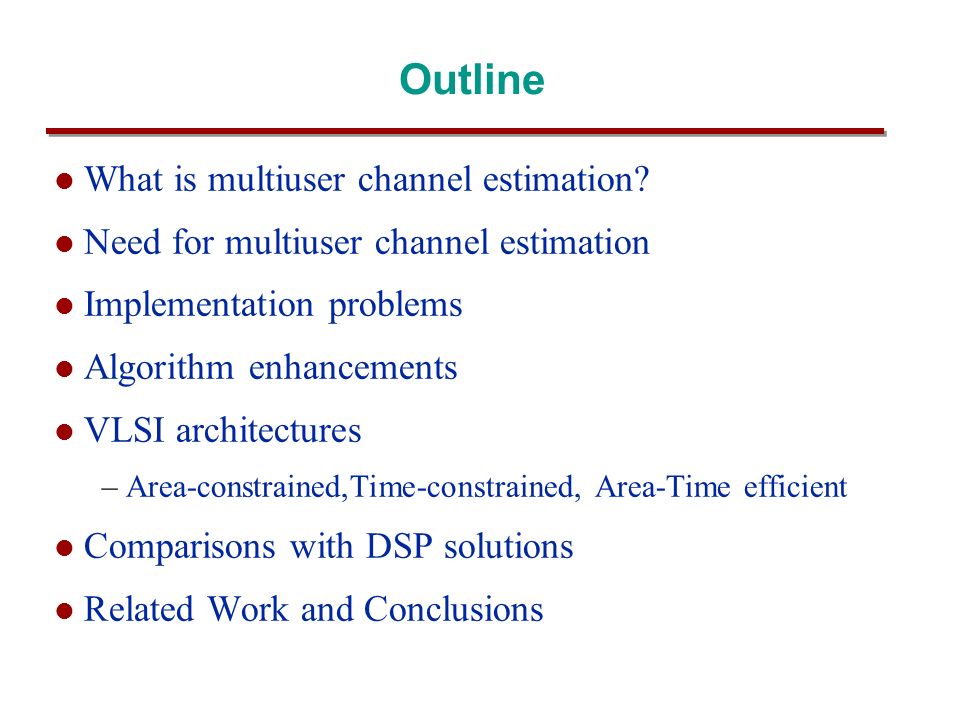

3. Outline What is multiuser channel estimation? Need for multiuser channel estimation Implementation problems Algorithm enhancements VLSI architectures –Area-constrained,Time-constrained, Area-Time efficient Comparisons with DSP solutions Related Work and Conclusions

4. Evolution of mobile communications First generation Voice Second/Current generation Voice + Low-rate data (9.6Kbps) Third generation + Voice + High-rate data (2 Mbps/384 Kbps/128 Kbps) + multimedia

5. Channel estimation Direct Path Reflected Path Noise +MAI User 1 User 2 Base Station

6. Need for channel estimation To compensate for unknown fading amplitudes and asynchronous delays. Detector performance depends on accuracy of channel estimator

7. Computing channel estimates Computed by sending a training sequence of known bits to the receiver. When absent, detected bits can be used to update estimates in a decision feedback mode for tracking. Importance usually neglected May exceed detector complexity

8. Baseband signal processing Base-Station Receiver Channel estimation DetectionDecoding Multiple Users Antenna Detected Bits Tracking Training

9. Implementation complexity Matrix inversions (size 32x32) per window Unable to meet real-time on DSPs [Asilomar’99] VLSI fixed-point architectures for matrix inversions –Precision problems Typically, simpler single-user sliding correlator structures used.

10. Outline What is multiuser channel estimation? Need for multiuser channel estimation Implementation problems Algorithm enhancements VLSI architectures –Area-constrained,Time-constrained, Area-Time efficient Comparisons with DSP solutions Related Work and Conclusions

11. Iterative scheme for channel estimation Method of Gradient Descent Stable convergence behavior Same Performance Simpler Bit-Streaming Hardware Implementation

12. Simulations - Static multipath channel SINR = 0 Paths =3 Preamble L =150 Spreading N = 31 Users K = 15

13. Fading channel with tracking Doppler = 10 Kmph

14. Outline What is multiuser channel estimation? Need for multiuser channel estimation Implementation problems Algorithm enhancements VLSI architectures –Area-constrained,Time-constrained, Area-Time efficient Comparisons with DSP solutions Related Work and Conclusions

15. Area-Time Tradeoffs Design for 32 users (K) and spreading code (N) 32 Target Data Rate = 128 Kbps Low Power Issues ignored! Area-Constrained Architecture –Pico-cells ; lower data rates Time-Constrained Architecture –Maximum achieve-able data rates Area-Time Efficient Architecture –Real-Time with minimum area overhead

16. Task Decomposition IterateCorrelation Matrices (Per Bit) Pilot Bits Pilot MUXMUX Detected Bits Data MUXMUX A O(4K 2 N,8) R br O(2KN,8) R bb O(2K 2,8) TIME Channel Estimate to Detector b 0 (2K,1) Tracking Window r 0 (N,8) b(2K,1) r(N,8) L

17. Architecture Design: Auto-correlation b = {+1,-1} Multiplication is a XNOR operation Entire matrix can be updated sequentially or in parallel using XNOR gates Auto-correlation matrix implemented as an UP/DOWN counter(s)

18. Architecture Design: Cross-Correlation b = {+1,-1}, r = 8-bit integer vector (complex) Multiplications reduce to additions/subtractions Entire matrix (complex) can be updated sequentially or in parallel using 8-bit adders Cross-correlation matrix stored as RAM.

19. Architecture Design: Channel Estimate A = 8-bit integer matrix (complex) µ << 1 : Truncated Multiplication [Schulte’93] Matrix-matrix (real-complex) multiplication of integers Forms the bottleneck Can be done sequentially with a single multiplier or totally parallel or partially parallel Concentrate on multiplication for area-time tradeoffs!

20. Area-Constrained Architecture b0 b

21. Area-constrained Architecture: Hardware Requirements

22. Time-constrained Architecture b*b T b 0 *b 0 T b b0b0 MUX R br MUXMUX r r0r0 MUXMUX R bb A Mult Subtract >> Subtract 2K*1 K(2K-1)*1 2K 2 *8 2KN*16 2KN*8 2K*1 N*8 2KN*8 Channel Estimate

23. Auto-correlation Update in Parallel Rbb(i,j) Counter bb T (i,j) U/D# Rbb(i,i) Counter 1 U/D# Array of XNORs a·ba·ca·d b·cb·d c·d bcda b (2K) bb T (K*{2K-1}*1) R bb (2K 2 *8) Array of Counters

24. Cross-Correlation Update in Parallel bcda b (2K*1) r (N*8) R br (2KN*8) r(j) Rbr(i,j) Adder b(i) Add/ Sub# 88 1

25. Time-constrained Architecture: Hardware Requirements

26. Area-Time Efficient Architecture b*b T b 0 *b 0 T b b0b0 MUX MUXMUX r r0r0 Mult Subtract >> Subtract 2K*1 2K*8 1*16 1*8 1*1 1*8 N*8 1*8 R br Counters StoreLoad R bb A DEMUX MUX A new 1*8 Adder 1*8 2K*1 2K*8

27. Area-Time Efficient Architecture: Hardware Requirements

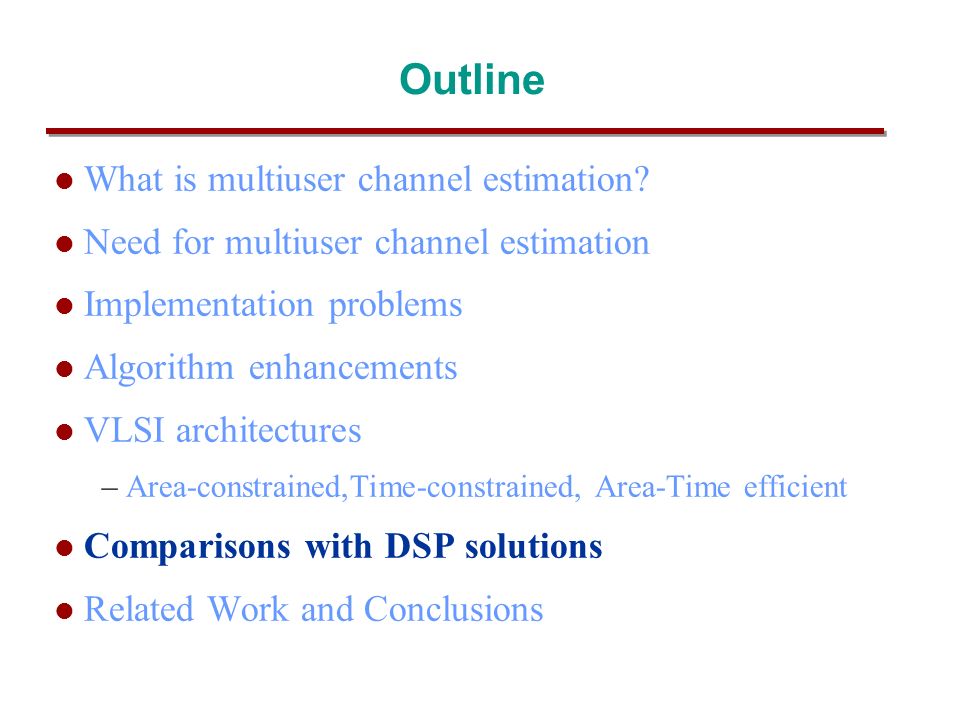

28. Outline What is multiuser channel estimation? Need for multiuser channel estimation Implementation problems Algorithm enhancements VLSI architectures –Area-constrained,Time-constrained, Area-Time efficient Comparisons with DSP solutions Related Work and Conclusions

29. DSP Comparisons DSPs unable to exploit bit-level parallelism Inefficient storage of bits Replacing multiplications by additions/subtractions

30. Related Work: DSP Extensions 64-bit Register D[i][j] +/- 64-bit Register D[i][j] 8-bit Control Register b[i] 8 8 8 (Cross-Correlation) For i = 1..8, j= 1..8 D[i][j] = D[i][j] + b[i]*C[j]

31. Related Work: Online Arithmetic Multiuser Detection –Need to compute only the Sign Bit (Most Significant Digit ) –No back-conversion to conventional representation –complex-number representation possible –Integration with channel estimation also.

32. Related Work : DSP-FPGA solutions Multiple DSP-FPGA task partitioning Bit level parallelism on FPGAs Multiplications on DSPs. Sundance Multi-DSP System –2 TI C67 DSPs –2 Xilinx Virtex FPGAs –http://www.sundance.com

33. Conclusions Real-Time VLSI architecture for multiuser channel estimation Iterative fixed-point algorithm developed to avoid matrix inversions Area-Time Tradeoffs discussed –Area-Constrained (Pico-cells) –Time-Constrained (Data Rates) –Area-Time efficient (Real-Time) VLSI architectures better exploit bit-level computations and parallelism to meet real-time constraints than DSPs.
