1. © 2009, Renesas Technology America, Inc., All Rights Reserved 1 Course Introduction  Purpose:  This course provides an overview of the serial communication interfaces and data converters on devices in the SH-2 and SH-2A families of 32-bit RISC microcontrollers, which are members of the SuperH ™ series  Objectives:  Gain a basic knowledge of the features and operation of the serial communication interface (SCI)  Discover the extra capabilities of the SCIF version  Learn about synchronous serial interface options  Learn basic facts about analog-to-digital converter (ADC or A/D) and digital-to-analog converter (DAC or D/A) peripherals  Content:  22 pages  3 questions  Learning Time:  20 minutes

2. © 2009, Renesas Technology America, Inc., All Rights Reserved SuperH Peripheral Functions  Microcontrollers for embedded system applications require extensive on-chip peripherals to  Minimize system chip count  Reduce overall system cost  Facilitate small system size, etc.  Built-in peripheral functions must  Provide required capabilities  Deliver needed performance levels  Offer design flexibility  Maintain a basic commonality within product family, if possible  Offer an acceptable cost-benefit compromise, etc. SH-2 SuperH 32-bit RISC CPU SH7047 SuperH Series Microcontroller Multi-function Timer Pulse Unit Compare-Match Timer Watchdog Timer Advanced User Debugger Bus Interface Flash Bus State Controller High-performance User Debug Interface Clock Pulse Generator RAM Data Transfer Controller Interrupt Controller User Break Controller I/O Ports Motor Management Timer Serial Communication Interface D/A Converter* A/D Converter * included on some SH-2 series devices, but not the SH7047 CAN Function

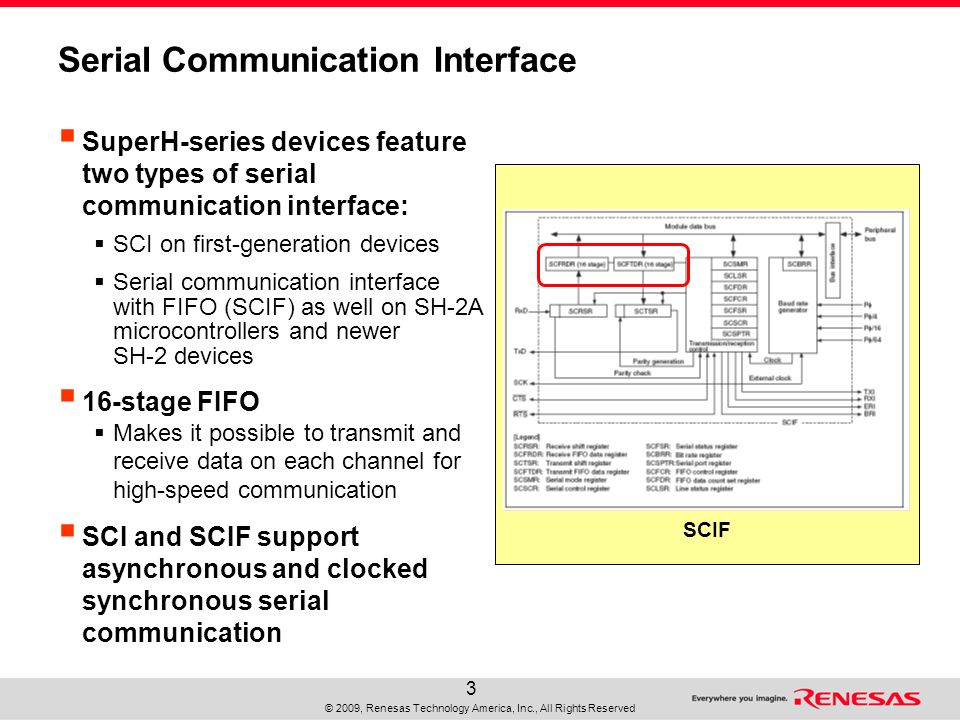

3. © 2009, Renesas Technology America, Inc., All Rights Reserved 3 Serial Communication Interface  SuperH-series devices feature two types of serial communication interface:  SCI on first-generation devices  Serial communication interface with FIFO (SCIF) as well on SH-2A microcontrollers and newer SH-2 devices  16-stage FIFO  Makes it possible to transmit and receive data on each channel for high-speed communication  SCI and SCIF support asynchronous and clocked synchronous serial communication SCIF

4. © 2009, Renesas Technology America, Inc., All Rights Reserved 4 Serial Communication Modes  Asynchronous mode provides  7- or 8-bit data length  1 or 2 stop bits  Even, odd, or no parity  Parity, framing and overrun error detection  Break detection (SH-2A)  Up to 3Mbit/s operation  Clocked synchronous mode provides  8-bit data length  Overrun error detection  Up to 5Mbit/s operation Data format in clocked synchronous mode Data format in asynchronous mode

5. © 2009, Renesas Technology America, Inc., All Rights Reserved 5 Full Duplex Communication  SCI and SCIF offer full duplex communication, allowing simultaneous transmission and reception  Each channel has an Independent baud rate generator that uses none of the microcontroller’s timer resources  The interface supports internal and external clock sources

6. © 2009, Renesas Technology America, Inc., All Rights Reserved 6 Baud Rate/Bit Error Calculation When you choose a baud rate, consider the percentage error rate, too!

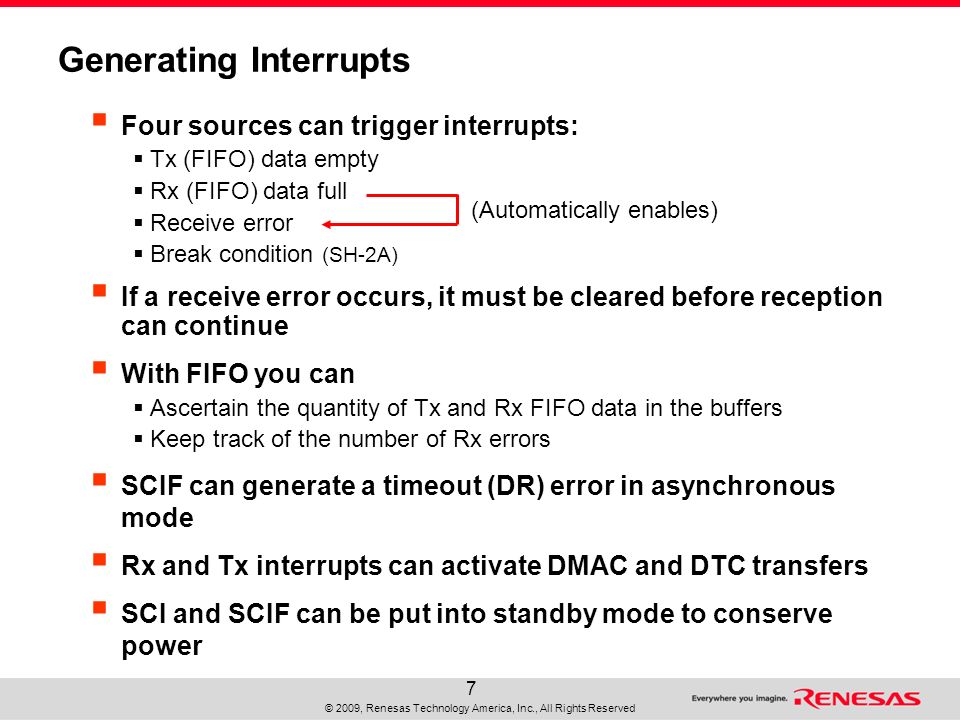

7. © 2009, Renesas Technology America, Inc., All Rights Reserved 7  Four sources can trigger interrupts:  Tx (FIFO) data empty  Rx (FIFO) data full  Receive error  Break condition (SH-2A)  If a receive error occurs, it must be cleared before reception can continue  With FIFO you can  Ascertain the quantity of Tx and Rx FIFO data in the buffers  Keep track of the number of Rx errors  SCIF can generate a timeout (DR) error in asynchronous mode  Rx and Tx interrupts can activate DMAC and DTC transfers  SCI and SCIF can be put into standby mode to conserve power Generating Interrupts (Automatically enables)

8. © 2009, Renesas Technology America, Inc., All Rights Reserved 8 Modem Flow Control SCIF in SH-2A devices can generate modem control signals (/CTS, /RTS)

10. © 2009, Renesas Technology America, Inc., All Rights Reserved 10 I 2 C Interface and Peripherals  I 2 C is a serial bus interface standard developed by Philips Semiconductor  Two SH-2 series I 2 C peripherals provide an I 2 C-compatible bus interface  IIC2 on earlier devices in the SH-2 series  IIC3 on SH-2A microcontrollers and newer SH-2 devices  Select I 2 C or clocked-synchronous serial formats  Master and slave modes are supported  Independent registers make possible continuous data transmission and reception  Shift register  Tx data register  Rx data register Peripherals operate in I 2 C or clocked synchronous mode

11. © 2009, Renesas Technology America, Inc., All Rights Reserved 11 I 2 C Bus Format Features  IIC2 and IIC3 peripherals can  Automatically generate start and stop conditions  Automatically transmit acknowledge bit  Reception acknowledge levels are selectable  IIC3 (on SH-2A and newer SH-2 devices) has a bit synchronization/wait function in master mode that  Monitors SCL per bit  Synchronizes timing automatically  Holds SCL low to wait  Multiple interrupt sources include Tx empty, Tx end, Rx data full, arbitration lost, NACK detection, and stop condition detection  Tx data empty or Rx data full can activate SH-2A DMAC  Direct bus drive is provided

12. © 2009, Renesas Technology America, Inc., All Rights Reserved 12 Clocked Synchronous Serial  This format  Adds more synchronous serial communication channels  Supports multiple interrupt sources, including Tx data empty, Tx end, Rx data full, and overrun error  Tx data empty and Rx data full interrupts can activate DMAC interrupt handling on SH-2A series microcontrollers  SDA outputs data in synchronization with the SCL clock Bit 0 Bit 7 SDA SCL Bit 6Bit 5Bit 4Bit 3Bit 2Bit 1

13. © 2009, Renesas Technology America, Inc., All Rights Reserved 13 IIC3: I 2 C Interface on SH-2A MCU IIC3 Implementation IIC3 External Circuit Connections

14. © 2009, Renesas Technology America, Inc., All Rights Reserved 14 Synchronous Serial Comm. Unit SSU on the SH-2 series devices  Communicates with clocked synchronous devices that use separate input and output pins  Works in standard clocked synchronous mode  Supports master and slave modes of operation with internal or external clock  Has selectable clock polarity and phase  Supports full duplex communication with 8-, 16-, and 32-bit-wide data  Can be configured to send LSB or MSB first  Provides interrupt sources: Tx end, Tx empty, Rx full, overrun, and conflict errors  Triggers DTC for interrupt handling  Can be put into standby mode to conserve power

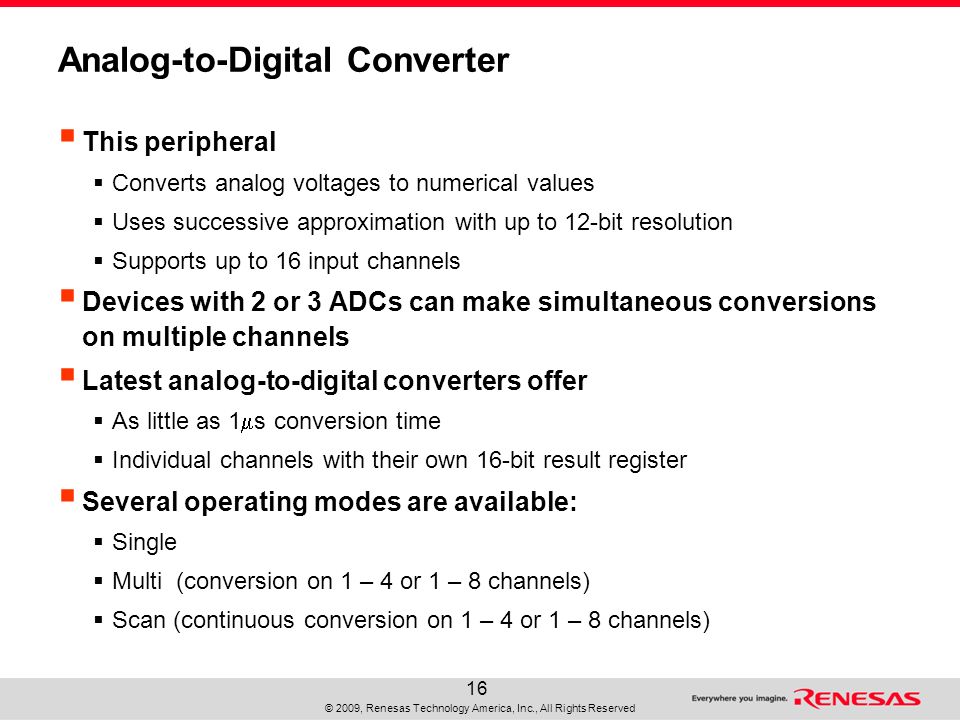

16. © 2009, Renesas Technology America, Inc., All Rights Reserved 16 Analog-to-Digital Converter  This peripheral  Converts analog voltages to numerical values  Uses successive approximation with up to 12-bit resolution  Supports up to 16 input channels  Devices with 2 or 3 ADCs can make simultaneous conversions on multiple channels  Latest analog-to-digital converters offer  As little as 1  s conversion time  Individual channels with their own 16-bit result register  Several operating modes are available:  Single  Multi (conversion on 1 – 4 or 1 – 8 channels)  Scan (continuous conversion on 1 – 4 or 1 – 8 channels)

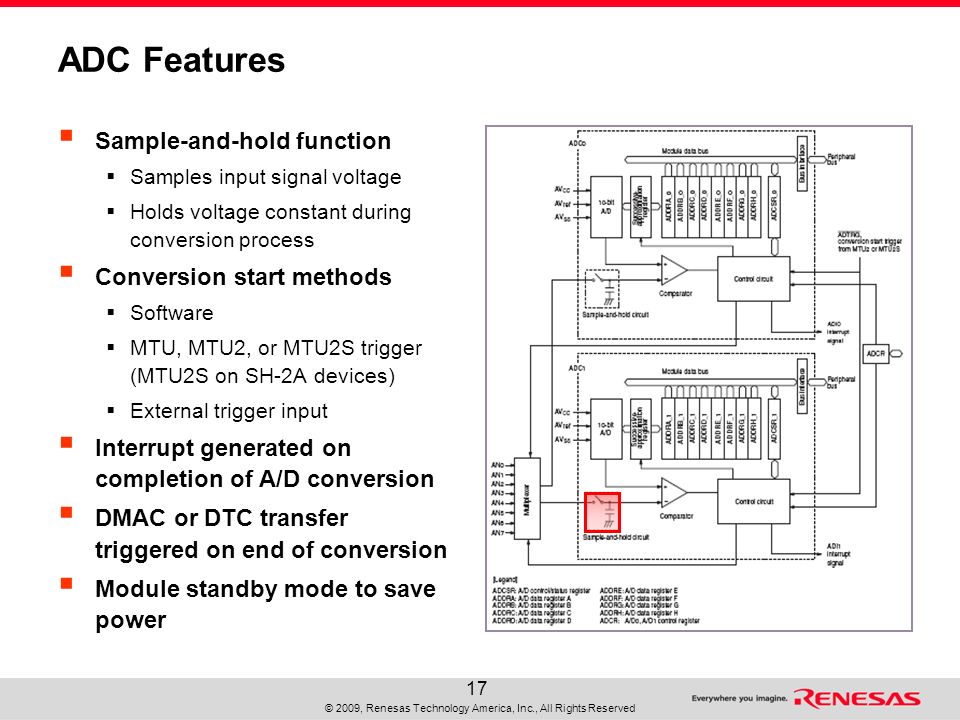

17. © 2009, Renesas Technology America, Inc., All Rights Reserved 17 ADC Features  Sample-and-hold function  Samples input signal voltage  Holds voltage constant during conversion process  Conversion start methods  Software  MTU, MTU2, or MTU2S trigger (MTU2S on SH-2A devices)  External trigger input  Interrupt generated on completion of A/D conversion  DMAC or DTC transfer triggered on end of conversion  Module standby mode to save power

18. © 2009, Renesas Technology America, Inc., All Rights Reserved 18 ADC Implementation

19. © 2009, Renesas Technology America, Inc., All Rights Reserved 19 ADC Conversion Errors

20. © 2009, Renesas Technology America, Inc., All Rights Reserved 20 Digital-to- Analog Converter  Features include  2 output channels  8-bit resolution  10  s conversion time (20pF load)  Output voltage 0V to AVref  DAC holds output voltage constant, even in software standby mode  DAC can be put in module standby mode to conserve power DACR: D/A Control Register DADR0: D/A Data Register 0; DADR1: D/A Data Register 1 8-bit D/A DACRDACR Bus Interface Module Data Bus Internal Data Bus AVCC AVSS DADR0DADR0 Control Circuit DADR1DADR1 DA0 DA1 AVref

22. © 2009, Renesas Technology America, Inc., All Rights Reserved 22 Course Summary  Serial communication interfaces  Analog-to-Digital converter  Digital-to-Analog converter
