1 TRUTH TABLES

2 Introduction The truth value of a statement is the classification as true or false which denoted by T or F. A truth table is a listing of all possible combinations of the individual statements as true or false, along with the resulting truth value of the compound statements. Truth tables are an aide in distinguishing valid and invalid arguments.

3 Truth Table for !p Recall that the negation of a statement is the denial of the statement. If the statement p is true, the negation of p, i.e. !p is false. If the statement p is false, then !p is true. Note that since the statement p could be true or false, we have 2 rows in the truth table. p!p TF FT

4 Truth Table for p && q Recall that the conjunction is the joining of two statements with the word and. The number of rows in this truth table will be 4. (Since p has 2 values, and q has 2 value.) For p && q to be true, then both statements p, q, must be true. If either statement or if both statements are false, then the conjunction is false. pq p && q TTT TFF FTF FFF

5 Truth Table for p || q Recall that a disjunction is the joining of two statements with the word or. The number of rows in this table will be 4, since we have two statements and they can take on the two values of true and false. For a disjunction to be true, at least one of the statements must be true. A disjunction is only false, if both statements are false. pq p || q TTT TFT FTT FFF

6 Equivalent Expressions Equivalent expressions are symbolic expressions that have identical truth values for each corresponding entry in a truth table. Hence !(!p) ≡ p. The symbol ≡ means equivalent to. p!p!(!p) TFT FTF

7 Proof that p||q Ξ (p&&!q) || q pq!q p && !q p || q (p&&!q) || q TTFFTT TFTTTT FTFFTT FFTFFF

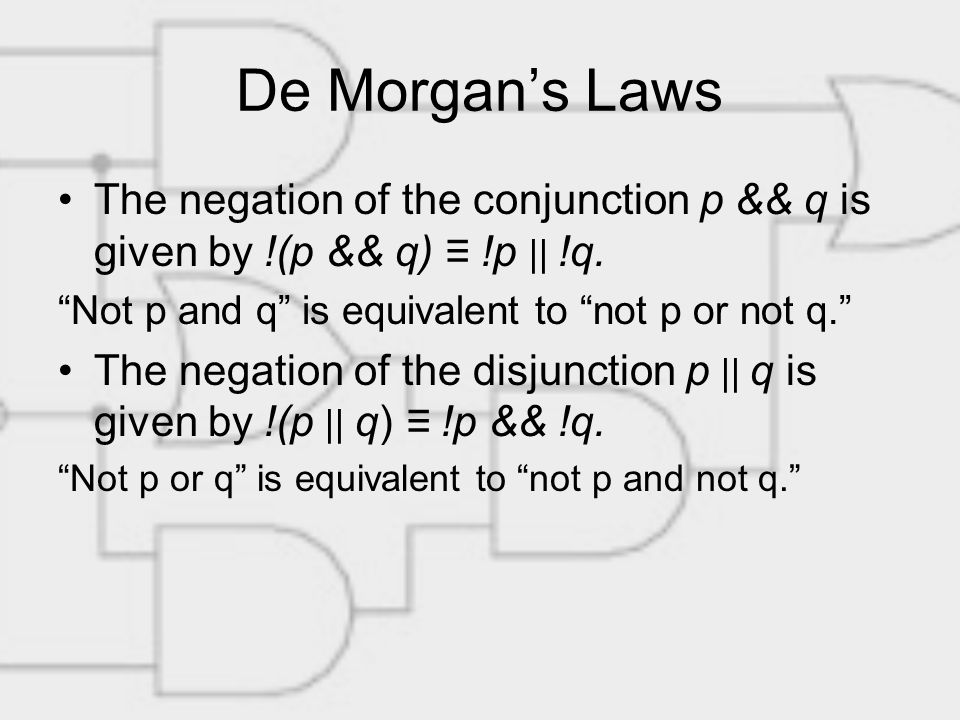

8 De Morgan’s Laws The negation of the conjunction p && q is given by !(p && q) ≡ !p || !q. “Not p and q” is equivalent to “not p or not q.” The negation of the disjunction p || q is given by !(p || q) ≡ !p && !q. “Not p or q” is equivalent to “not p and not q.”
