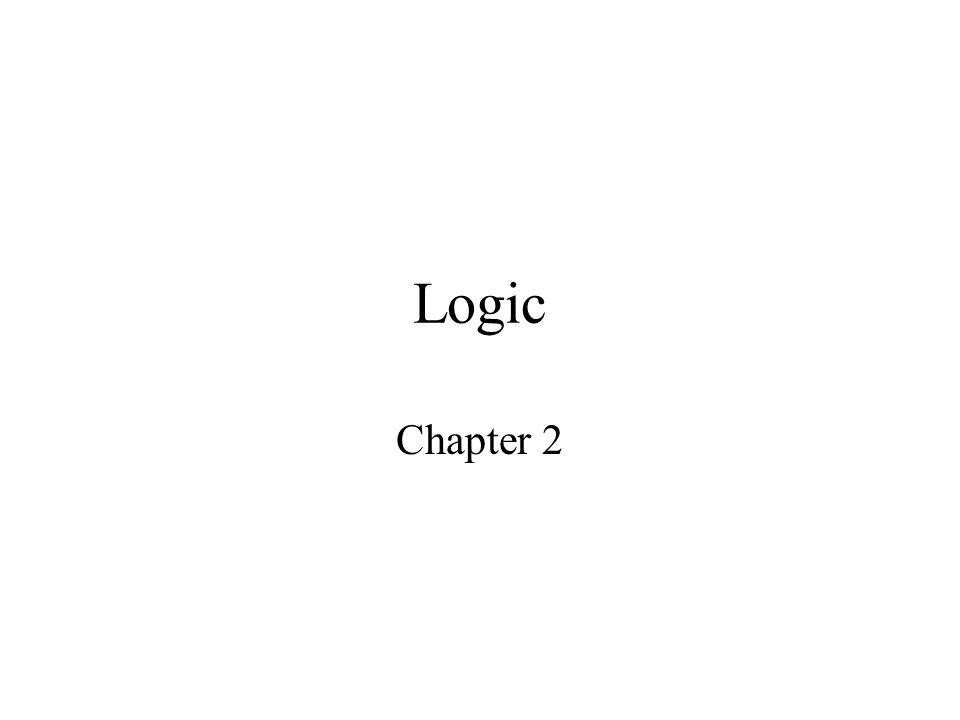

Logic Chapter 2

2
Proposition "Proposition" can be defined as a declarative statement having a specific truth-value, true or false. Examples: 2 is a odd number. 4 is a perfect square. The above statements are propositions as they have precise truth values. Their truth values are false and true, respectively.

3

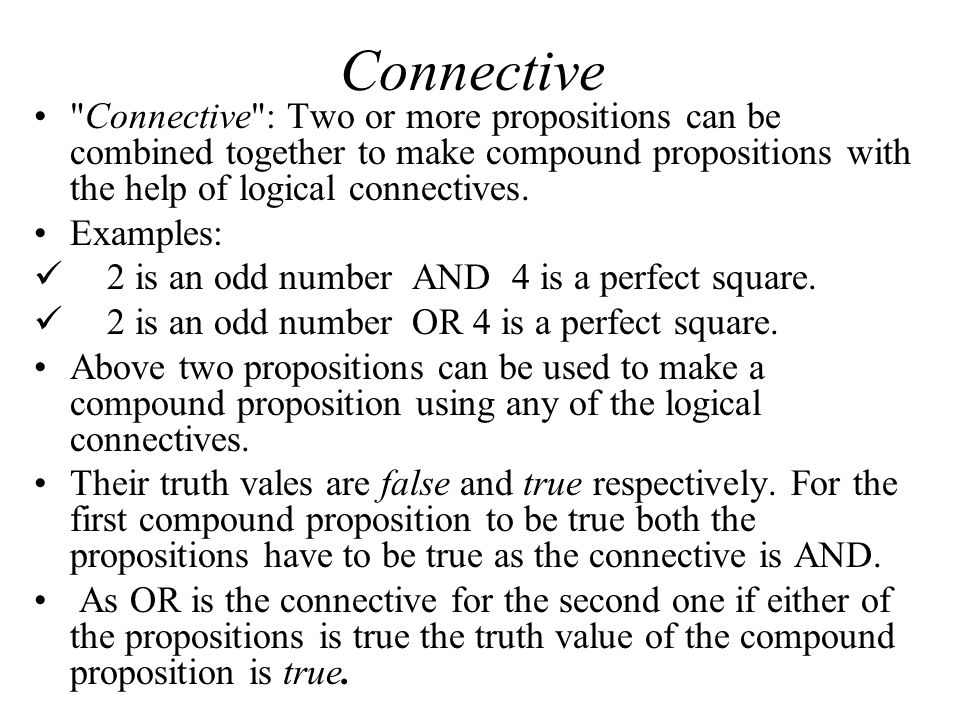

Connective "Connective": Two or more propositions can be combined together to make compound propositions with the help of logical connectives. Examples: 2 is an odd number AND 4 is a perfect square. 2 is an odd number OR 4 is a perfect square. Above two propositions can be used to make a compound proposition using any of the logical connectives. Their truth vales are false and true respectively. For the first compound proposition to be true both the propositions have to be true as the connective is AND. As OR is the connective for the second one if either of the propositions is true the truth value of the compound proposition is true.

4

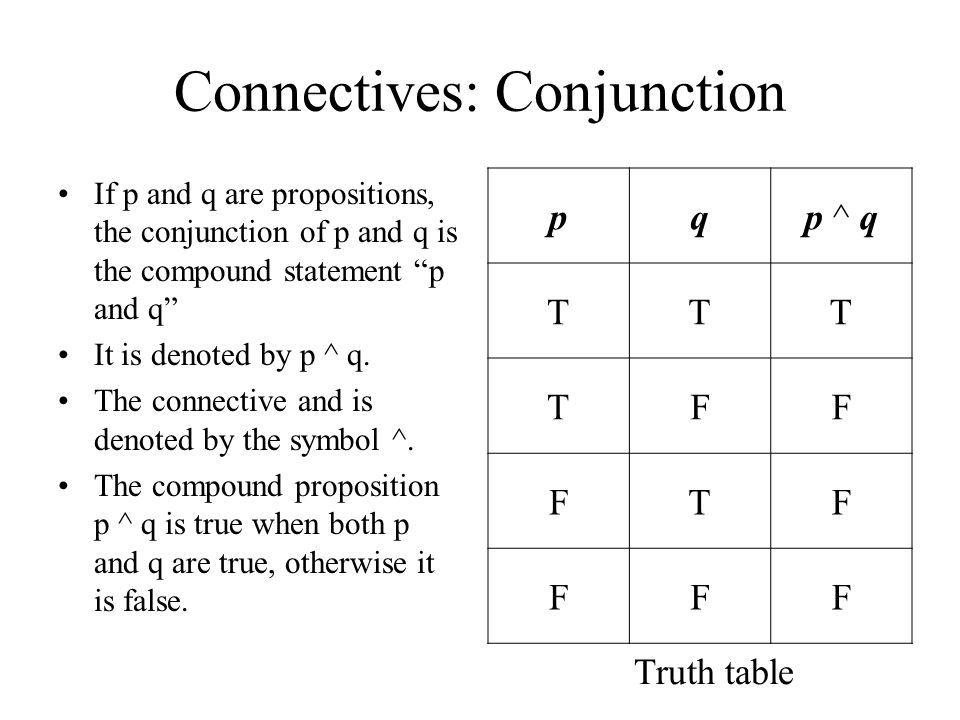

Connectives: Conjunction If p and q are propositions, the conjunction of p and q is the compound statement “p and q” It is denoted by p ^ q. The connective and is denoted by the symbol ^. The compound proposition p ^ q is true when both p and q are true, otherwise it is false. pqp ^ q TTT TFF FTF FFF Truth table

5

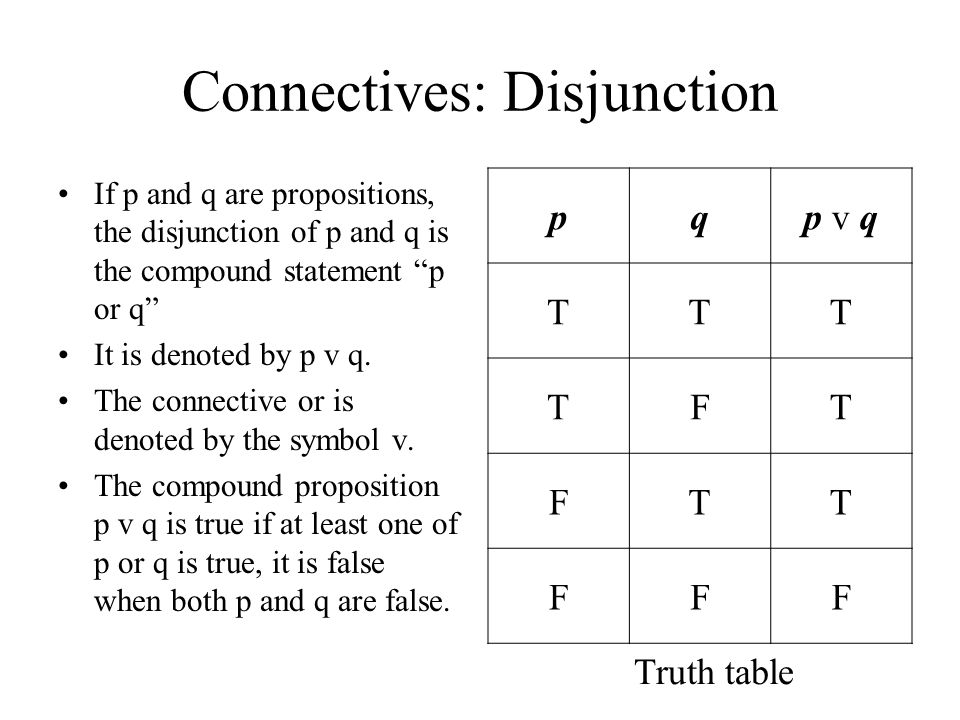

Connectives: Disjunction If p and q are propositions, the disjunction of p and q is the compound statement “p or q” It is denoted by p v q. The connective or is denoted by the symbol v. The compound proposition p v q is true if at least one of p or q is true, it is false when both p and q are false. pqp v q TTT TFT FTT FFF Truth table

6

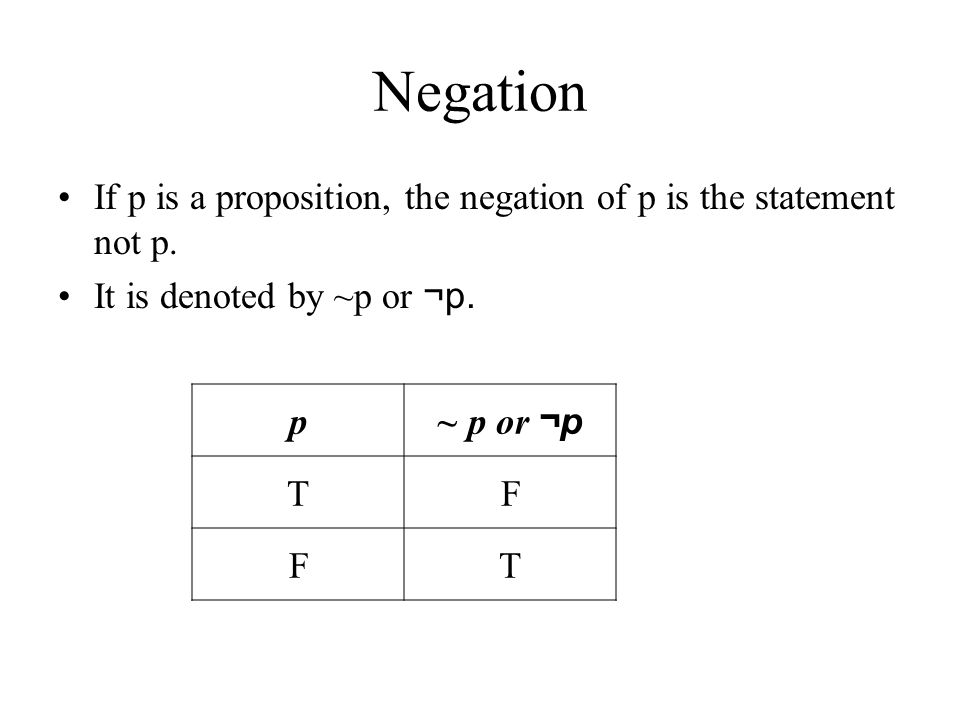

Negation If p is a proposition, the negation of p is the statement not p. It is denoted by ~p or ¬p. p ~ p or ¬p TF FT

7
Conditional Statement If p and q are statements, the compound statement ‘if p then q’ (denoted by p => q) is called a conditional statement / implication. The statement p is called hypothesis. The statement q is called the consequent /conclusion. The connective if …then is denoted by the symbol =>.

8
Conditional Statement Determines whether a proposition is true if another proposition is true. Example: p: I am hungry q: I will eat p => q: If I am hungry, I will eat. pqp q TTT TFF FTT FFT

9
Conditional Statement p -> q is also expressed in a number of different (but equivalent) ways in English. For example, the following are all different ways of saying "if p then q". "p only if q", "if not q then not p", "p is sufficient for q", "q is necessary for p", "q is a necessity/consequence of p" and "q whenever p"

10
Converse, Contrapositive, and Inverse If p =>q is an implication, then √the converse of p => is the implication q => p. √the contrapositive of p => q is the implication ~q => ~p. the inverse of p => q is is the implication ~p => ~q. Examples: p: I am elected q: I will lower taxes p => q: If I am elected, then I will lower taxes. Converse: q => p: I will lower taxes if I am elected. Contrapositive: ~q => ~p: I will not lower taxes if I am not elected. Inverse: ~p => ~q: If I am not elected, then I will not lower the taxes.

11
Converse, Contrapositive, and Inverse QWhat are the contrapositive, the converse, and the inverse of the implication “The home team wins whenever it is raining”? S“q whenever p” is one of the ways to express the implication p => q, the original statement can be written as ”If it is raining, then home team wins”. Contrapositive: If the home team does not win, then it is not raining. Converse: If the home team wins, then it is raining. Inverse: If it is not raining, then the home team does not win.

12

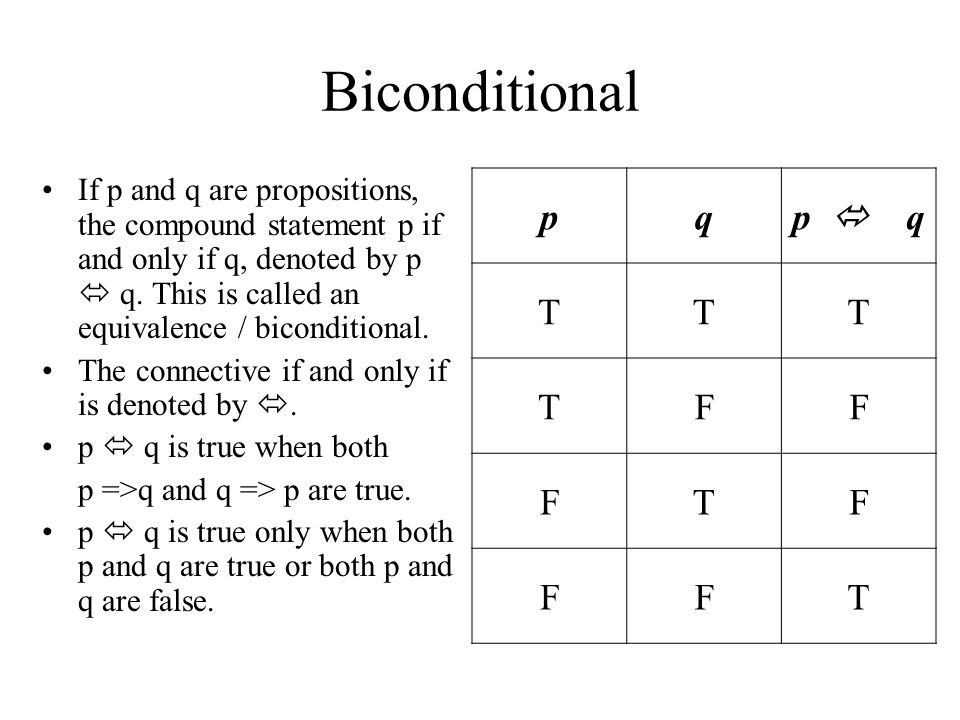

Biconditional If p and q are propositions, the compound statement p if and only if q, denoted by p q. This is called an equivalence / biconditional. The connective if and only if is denoted by . p q is true when both p =>q and q => p are true. p q is true only when both p and q are true or both p and q are false. pq p q TTT TFF FTF FFT

13

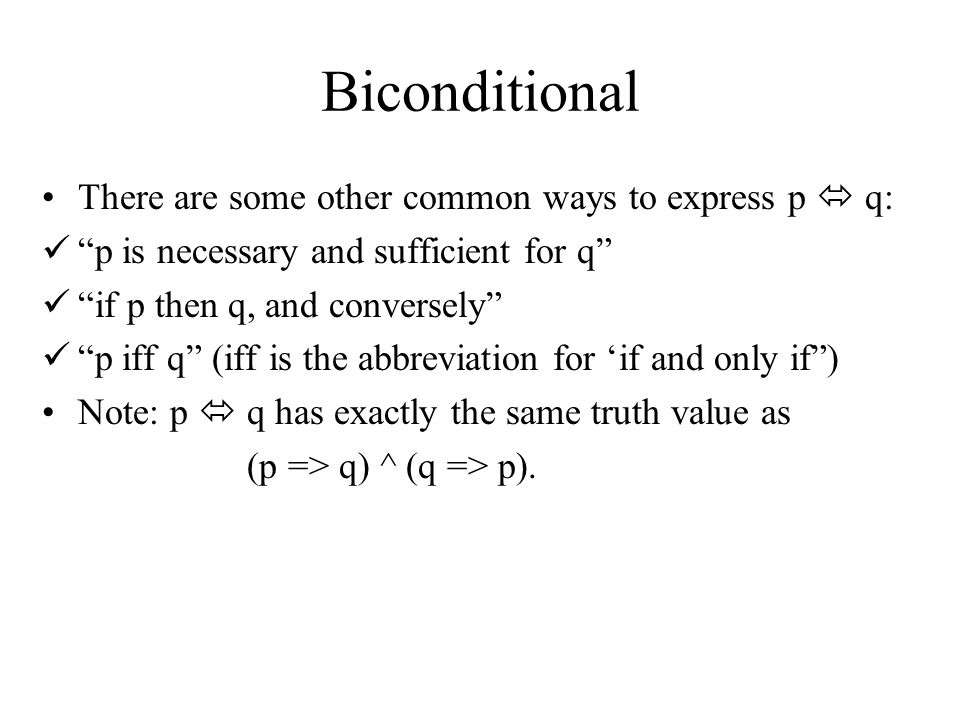

Biconditional There are some other common ways to express p q: “p is necessary and sufficient for q” “if p then q, and conversely” “p iff q” (iff is the abbreviation for ‘if and only if”) Note: p q has exactly the same truth value as (p => q) ^ (q => p).

14

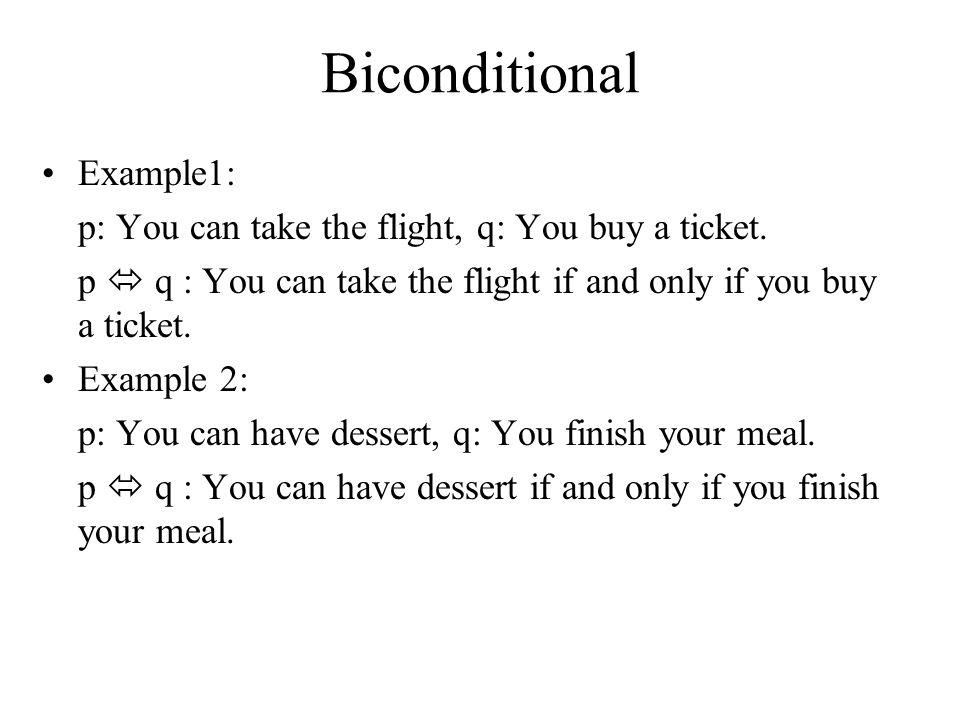

Biconditional Example1: p: You can take the flight, q: You buy a ticket. p q : You can take the flight if and only if you buy a ticket. Example 2: p: You can have dessert, q: You finish your meal. p q : You can have dessert if and only if you finish your meal.

15

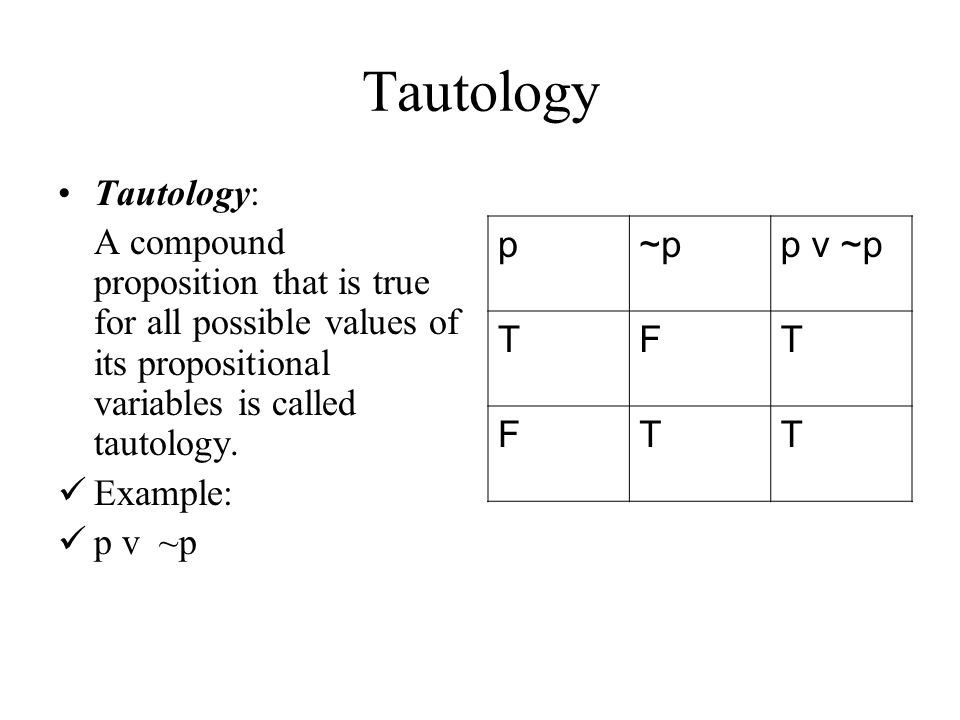

Tautology Tautology: A compound proposition that is true for all possible values of its propositional variables is called tautology. Example: p v ~p p~pp v ~p TFT FTT

16
Tautology The truth table for (p v q) (q v p) shows the statement is a tautology. pqp v qq v p(p v q) (q v p) TTTTT TFTTT FTTTT FFFFT

17

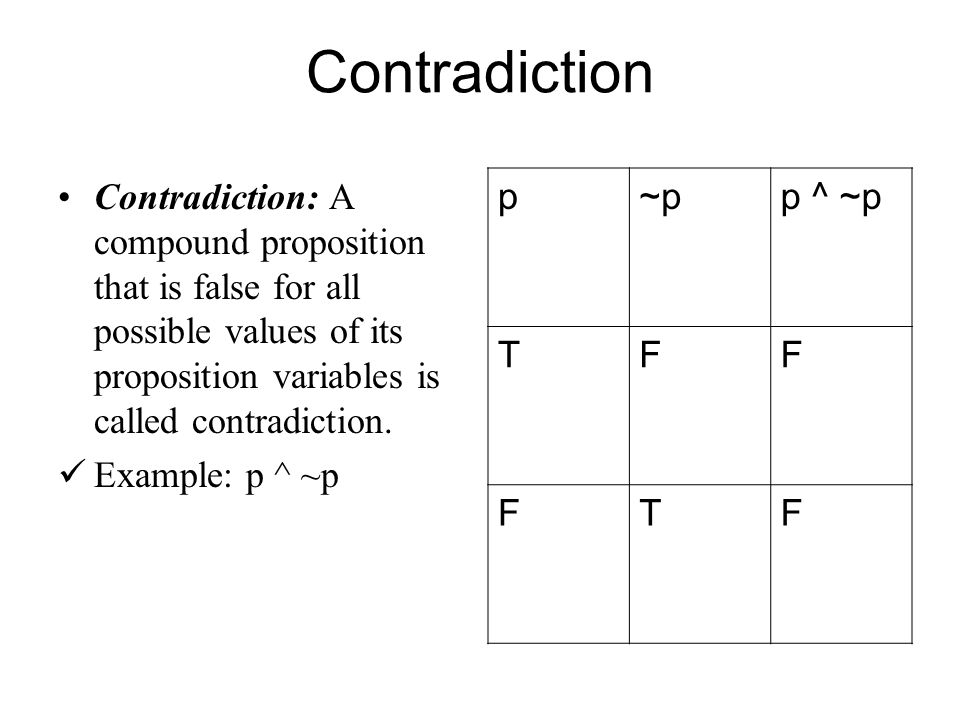

Contradiction Contradiction: A compound proposition that is false for all possible values of its proposition variables is called contradiction. Example: p ^ ~p p~pp ^ ~p TFF FTF

18

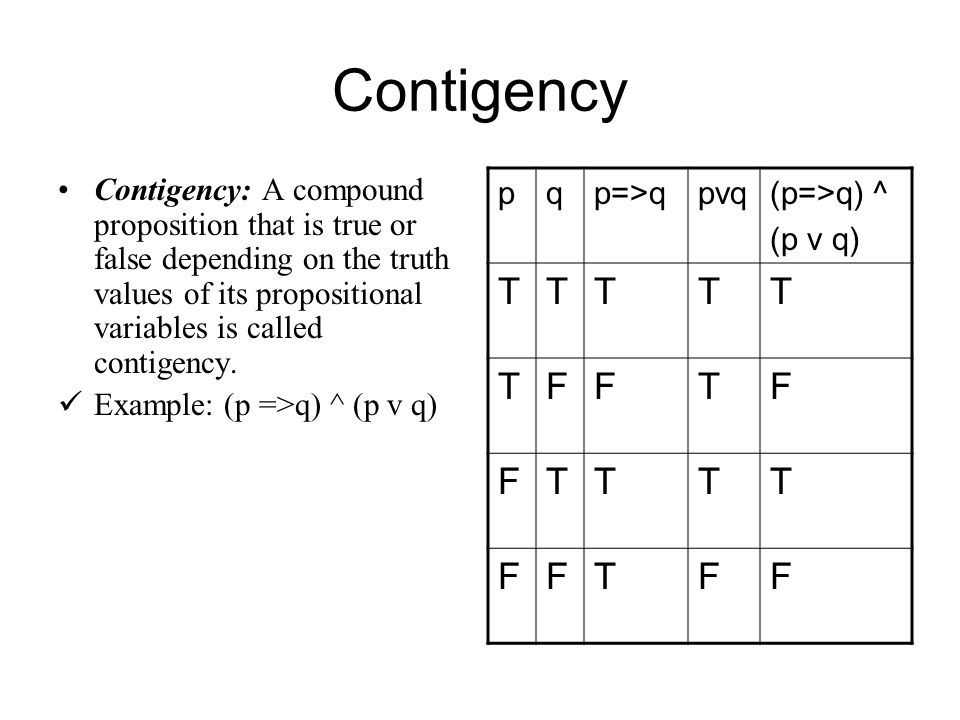

Contigency Contigency: A compound proposition that is true or false depending on the truth values of its propositional variables is called contigency. Example: (p =>q) ^ (p v q) pqp=>qpvq(p=>q) ^ (p v q) TTTTT TFFTF FTTTT FFTFF

19
Quantifiers Set is defined as A = {x | P(x)} where p(x) is predicate/propositional function Quantification: universal & existential quantifications The universal quantification of P(x) is the proposition “P(x) is true for all values of x in the universe of discourse”. The notation Vx P(x) denotes the universal quantification of P(x). V is called the universal quantifier

20

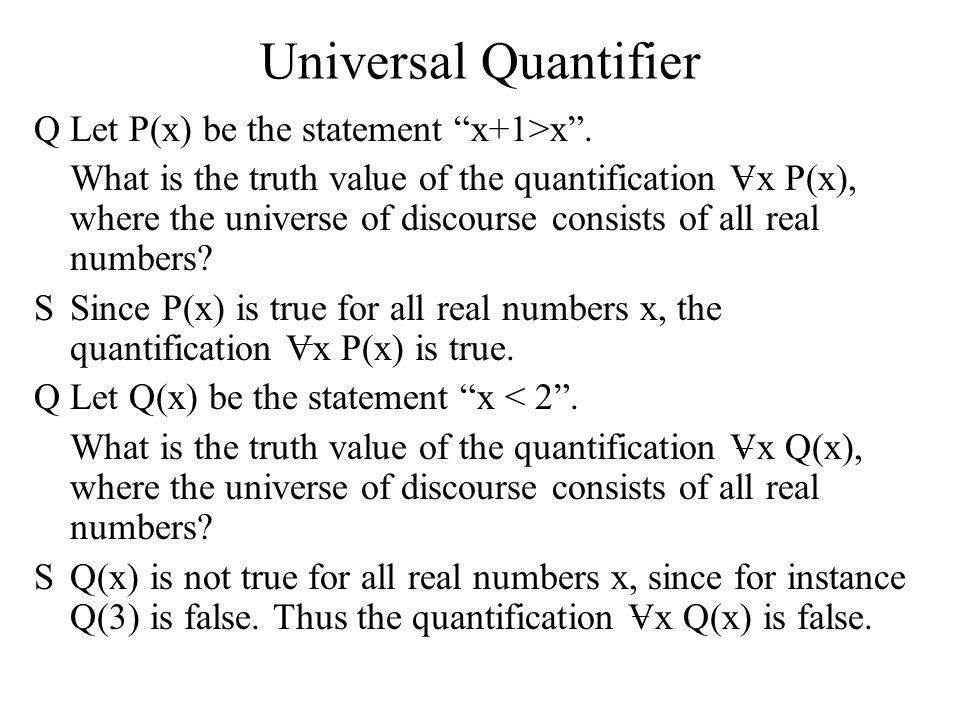

Universal Quantifier QLet P(x) be the statement “x+1>x”. What is the truth value of the quantification Vx P(x), where the universe of discourse consists of all real numbers? SSince P(x) is true for all real numbers x, the quantification Vx P(x) is true. QLet Q(x) be the statement “x < 2”. What is the truth value of the quantification Vx Q(x), where the universe of discourse consists of all real numbers? SQ(x) is not true for all real numbers x, since for instance Q(3) is false. Thus the quantification Vx Q(x) is false.

21

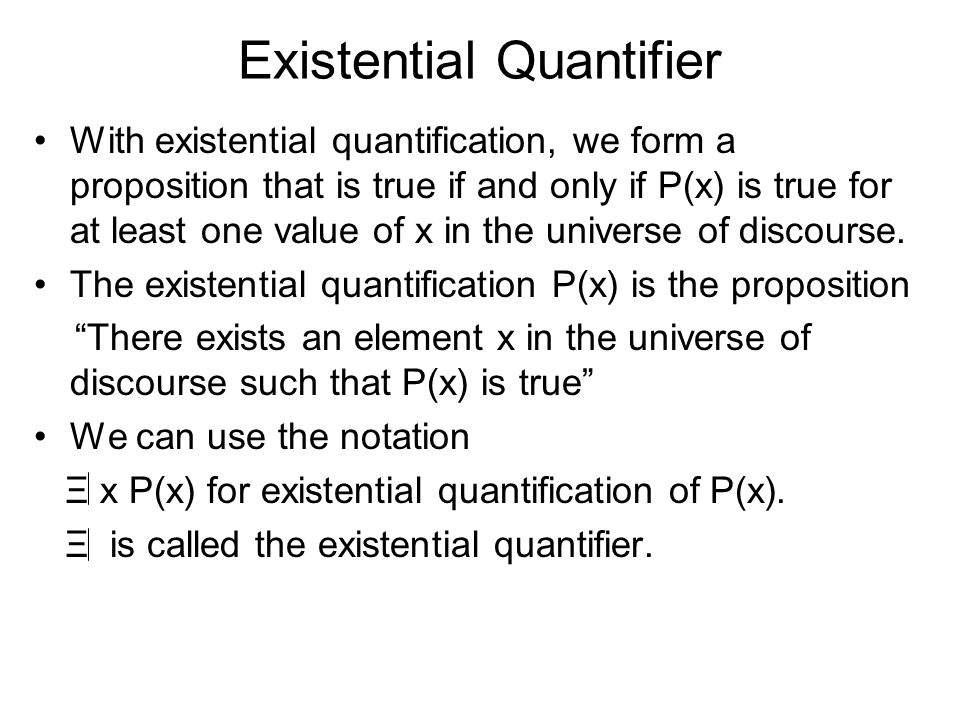

Existential Quantifier With existential quantification, we form a proposition that is true if and only if P(x) is true for at least one value of x in the universe of discourse. The existential quantification P(x) is the proposition “There exists an element x in the universe of discourse such that P(x) is true” We can use the notation Ξ x P(x) for existential quantification of P(x). Ξ is called the existential quantifier.

22

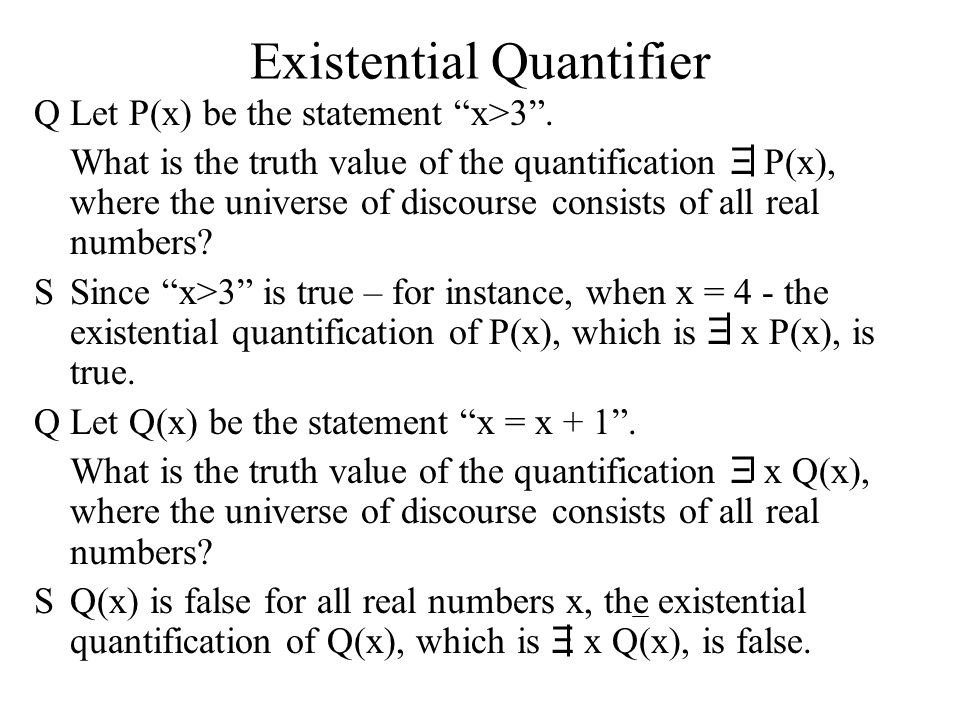

Existential Quantifier QLet P(x) be the statement “x>3”. What is the truth value of the quantification Ξ P(x), where the universe of discourse consists of all real numbers? SSince “x>3” is true – for instance, when x = 4 - the existential quantification of P(x), which is Ξ x P(x), is true. QLet Q(x) be the statement “x = x + 1”. What is the truth value of the quantification Ξ x Q(x), where the universe of discourse consists of all real numbers? SQ(x) is false for all real numbers x, the existential quantification of Q(x), which is Ξ x Q(x), is false.
