1. FacetWin Technical Presentation http://www.facetcorp.com

2. Share UNIX files with PC Access PC shares from UNIX Print from UNIX to PC printers Print from PC to UNIX printers Backup PC to UNIX tape-drive Share UNIX modems with PC Read UNIX email from PC Sync PC clocks with UNIX FacetWin provides the missing pieces necessary to bring the UNIX system resources into the Windows networking world… Precise Terminal Emulation Launch PC programs from UNIX UNIX system messages to PC UNIX text-based configuration PC property sheet configuration Encrypted Terminal via Internet Encrypted Printing via Internet Flexible configuration for firewalls FacetWin Technical Intro Free Technical Support!

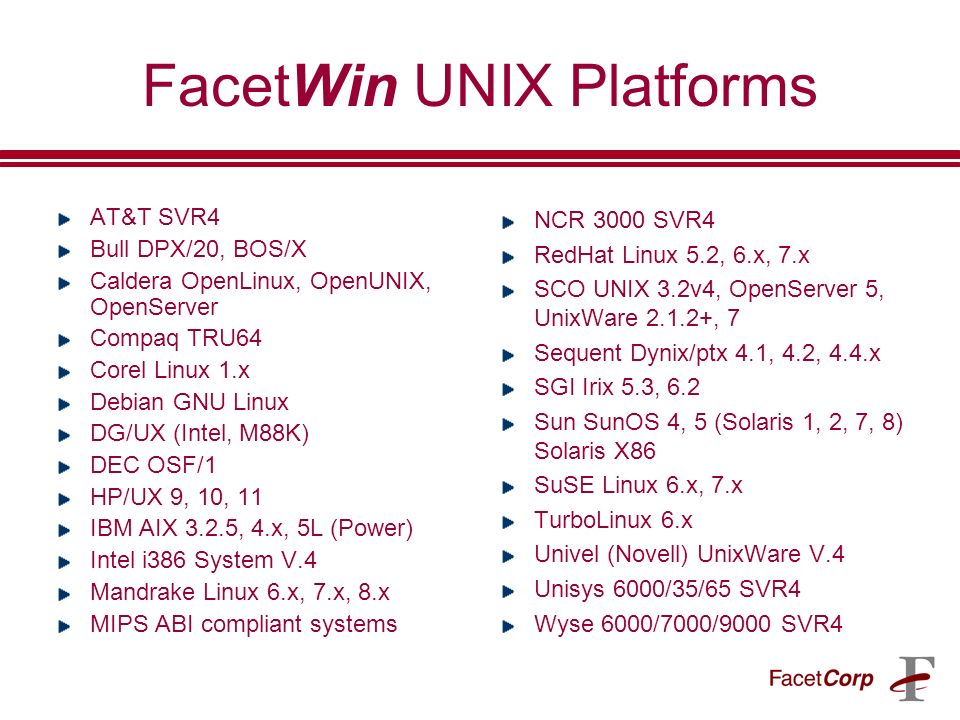

3. FacetWin UNIX Platforms AT&T SVR4 Bull DPX/20, BOS/X Caldera OpenLinux, OpenUNIX, OpenServer Compaq TRU64 Corel Linux 1.x Debian GNU Linux DG/UX (Intel, M88K) DEC OSF/1 HP/UX 9, 10, 11 IBM AIX 3.2.5, 4.x, 5L (Power) Intel i386 System V.4 Mandrake Linux 6.x, 7.x, 8.x MIPS ABI compliant systems NCR 3000 SVR4 RedHat Linux 5.2, 6.x, 7.x SCO UNIX 3.2v4, OpenServer 5, UnixWare 2.1.2+, 7 Sequent Dynix/ptx 4.1, 4.2, 4.4.x SGI Irix 5.3, 6.2 Sun SunOS 4, 5 (Solaris 1, 2, 7, 8) Solaris X86 SuSE Linux 6.x, 7.x TurboLinux 6.x Univel (Novell) UnixWare V.4 Unisys 6000/35/65 SVR4 Wyse 6000/7000/9000 SVR4

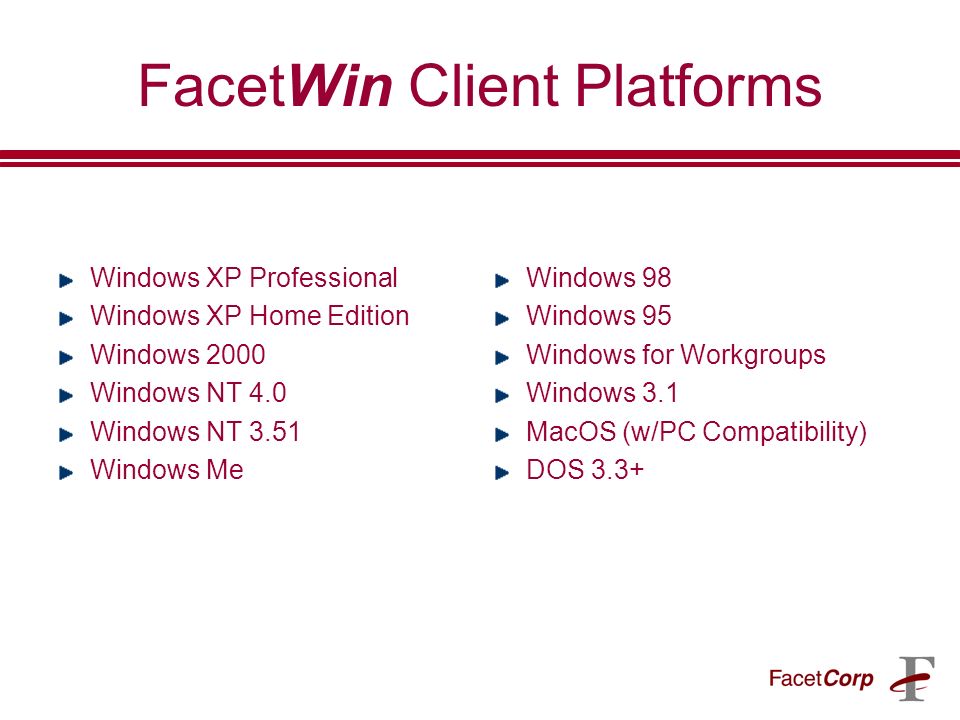

4. FacetWin Client Platforms Windows XP Professional Windows XP Home Edition Windows 2000 Windows NT 4.0 Windows NT 3.51 Windows Me Windows 98 Windows 95 Windows for Workgroups Windows 3.1 MacOS (w/PC Compatibility) DOS 3.3+

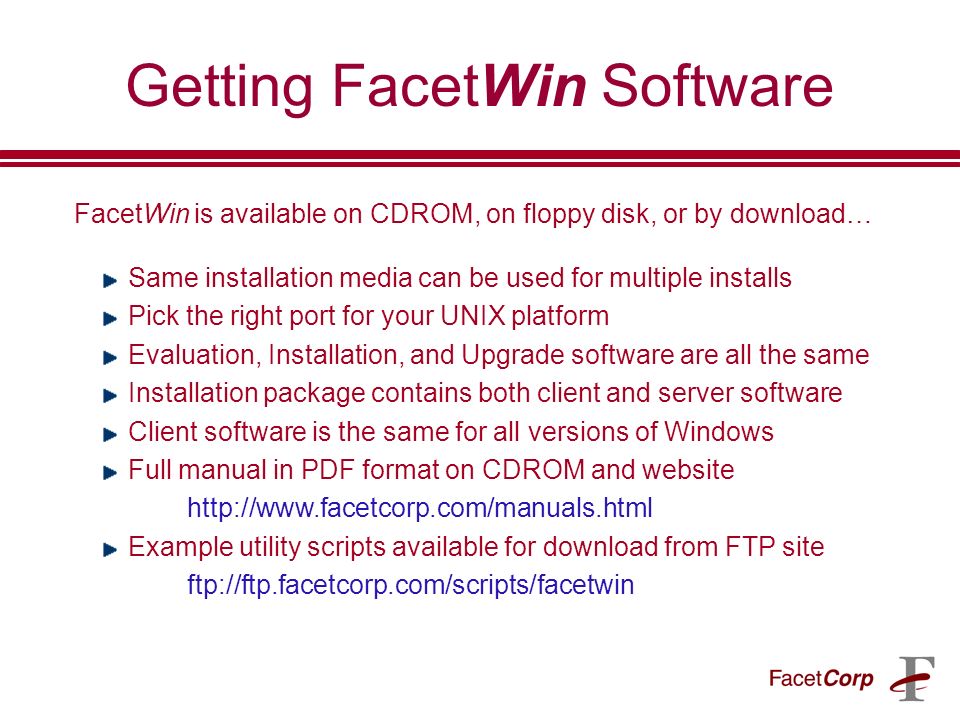

5. Getting FacetWin Software FacetWin is available on CDROM, on floppy disk, or by download… Same installation media can be used for multiple installs Pick the right port for your UNIX platform Evaluation, Installation, and Upgrade software are all the same Installation package contains both client and server software Client software is the same for all versions of Windows Full manual in PDF format on CDROM and website http://www.facetcorp.com/manuals.html Example utility scripts available for download from FTP site ftp://ftp.facetcorp.com/scripts/facetwin

6. FacetWin Installation Procedure Typical FacetWin installation procedure: 1.Put installation files on UNIX system. mount installation CDROM (“mount –r /dev/cd0 /mnt”) or FTP downloaded files from PC to UNIX 2.Run UNIX installation shell script. as “root” user, run “sh install.sh” 3.Run “setup.exe” Windows client installation program. via Network Neighborhood (“\\UNIX\FacetWinPC\setup.exe”) or directly from CDROM in PC

7. FacetWin Installation Prep UNIX system must be running TCP/IP properly Windows systems must be running TCP/IP and to use File & Print Services must have Client for Microsoft Networks installed Determine workgroup/domain the UNIX server should join Decide which UNIX directory to install in (need about 6-8 MB) Decide FacetWin File & Print Services authentication method

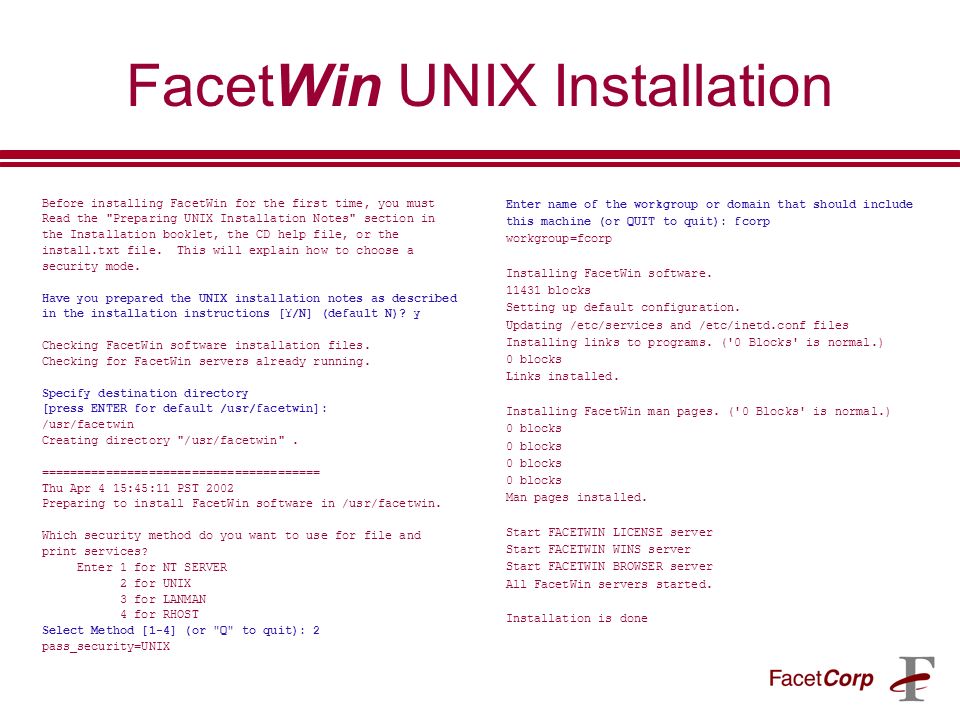

8. FacetWin UNIX Installation Before installing FacetWin for the first time, you must Read the "Preparing UNIX Installation Notes" section in the Installation booklet, the CD help file, or the install.txt file. This will explain how to choose a security mode. Have you prepared the UNIX installation notes as described in the installation instructions [Y/N] (default N)? y Checking FacetWin software installation files. Checking for FacetWin servers already running. Specify destination directory [press ENTER for default /usr/facetwin]: /usr/facetwin Creating directory "/usr/facetwin". ======================================= Thu Apr 4 15:45:11 PST 2002 Preparing to install FacetWin software in /usr/facetwin. Which security method do you want to use for file and print services? Enter 1 for NT SERVER 2 for UNIX 3 for LANMAN 4 for RHOST Select Method [1-4] (or "Q" to quit): 2 pass_security=UNIX Enter name of the workgroup or domain that should include this machine (or QUIT to quit): fcorp workgroup=fcorp Installing FacetWin software. 11431 blocks Setting up default configuration. Updating /etc/services and /etc/inetd.conf files Installing links to programs. ('0 Blocks' is normal.) 0 blocks Links installed. Installing FacetWin man pages. ('0 Blocks' is normal.) 0 blocks Man pages installed. Start FACETWIN LICENSE server Start FACETWIN WINS server Start FACETWIN BROWSER server All FacetWin servers started. Installation is done

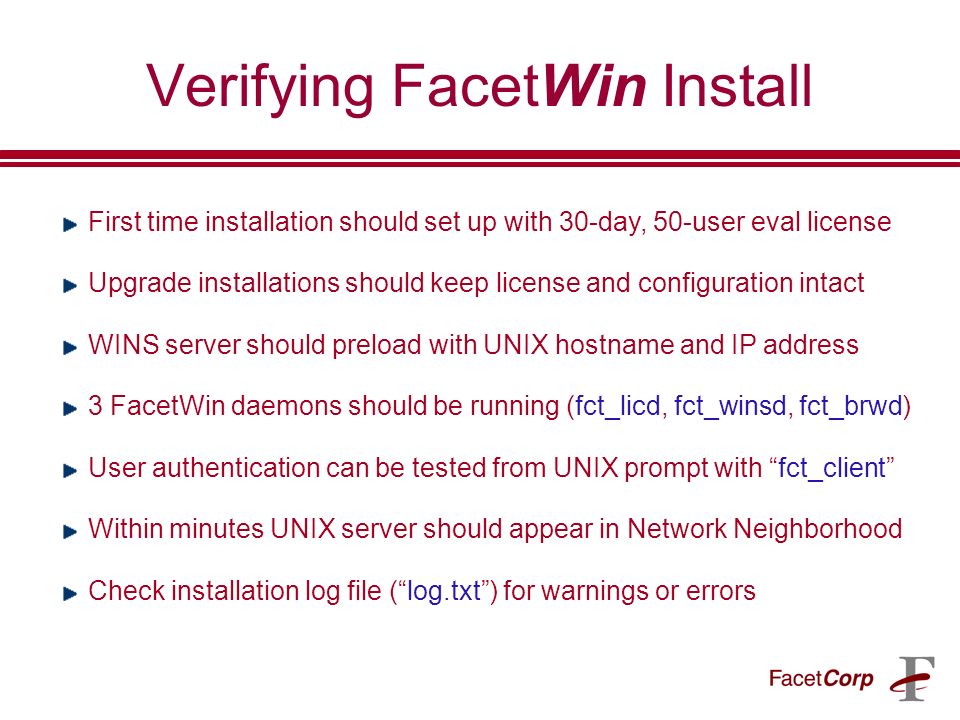

9. Verifying FacetWin Install First time installation should set up with 30-day, 50-user eval license Upgrade installations should keep license and configuration intact WINS server should preload with UNIX hostname and IP address 3 FacetWin daemons should be running (fct_licd, fct_winsd, fct_brwd) User authentication can be tested from UNIX prompt with “fct_client” Within minutes UNIX server should appear in Network Neighborhood Check installation log file (“log.txt”) for warnings or errors

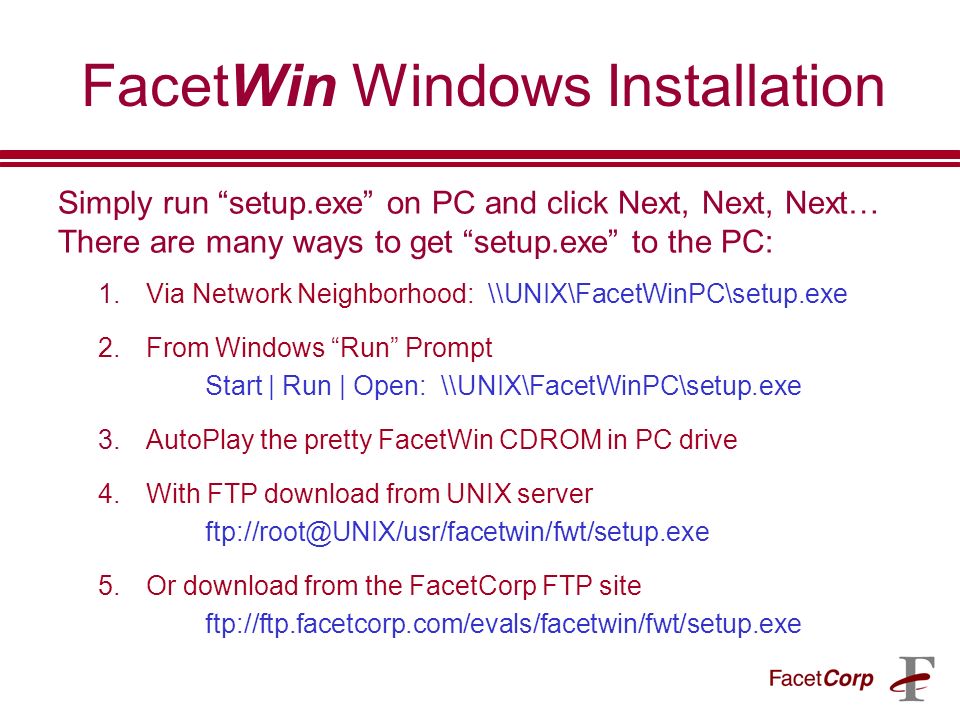

10. FacetWin Windows Installation 1.Via Network Neighborhood: \\UNIX\FacetWinPC\setup.exe 2.From Windows “Run” Prompt Start | Run | Open: \\UNIX\FacetWinPC\setup.exe 3.AutoPlay the pretty FacetWin CDROM in PC drive 4.With FTP download from UNIX server ftp://root@UNIX/usr/facetwin/fwt/setup.exe 5.Or download from the FacetCorp FTP site ftp://ftp.facetcorp.com/evals/facetwin/fwt/setup.exe Simply run “setup.exe” on PC and click Next, Next, Next… There are many ways to get “setup.exe” to the PC:

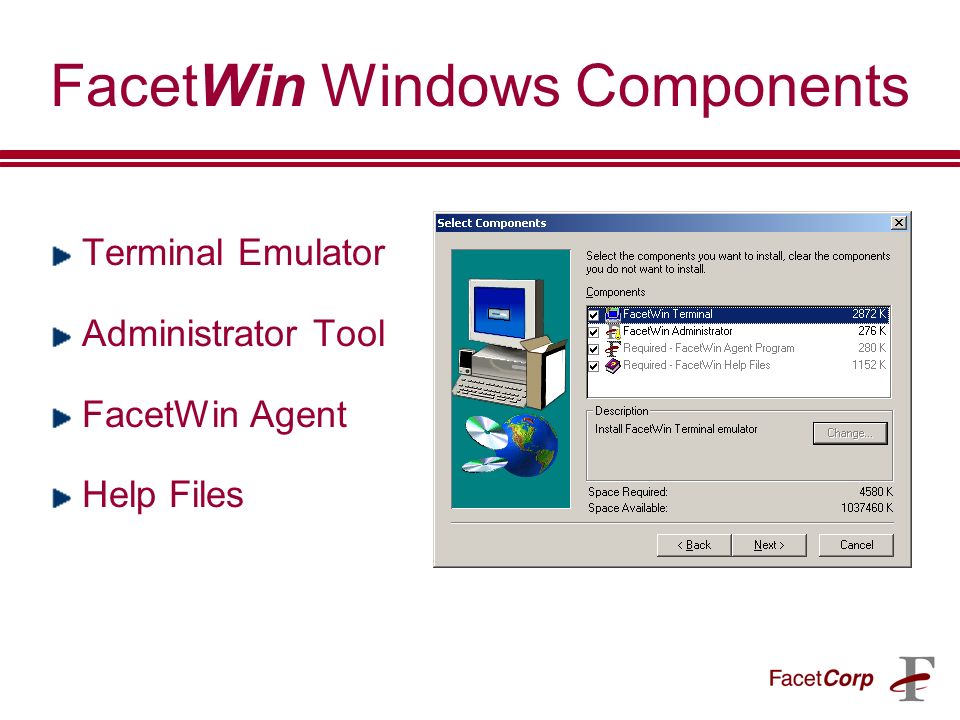

11. FacetWin Windows Components Terminal Emulator Administrator Tool FacetWin Agent Help Files

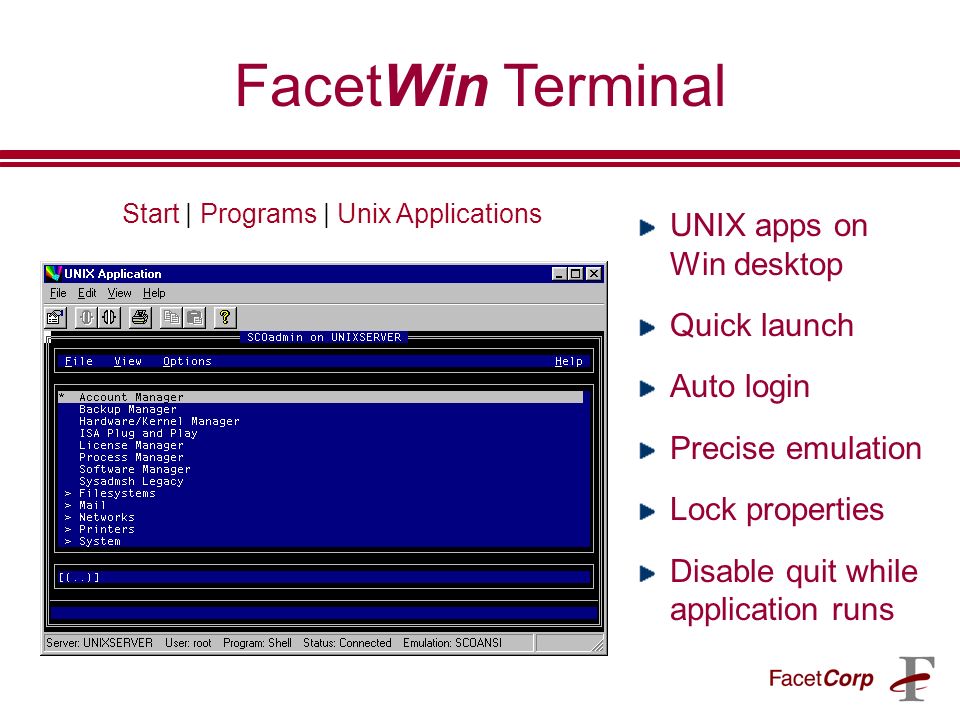

12. FacetWin Terminal Start | Programs | Unix Applications UNIX apps on Win desktop Quick launch Auto login Precise emulation Lock properties Disable quit while application runs

13. Configuring FacetWin Terminal Start | Programs | FacetWin | Add a UNIX Application Server: hostname or IP address UNIX user name & password Check “Save Password” Leave “Program” field blank Check “Run Profile” Check “Set LINES and COLUMNS” if using odd screen size (e.g. 36x80)

14. Configuring FacetWin Terminal Add a UNIX Application | Start Me Up! Application Title: name on shortcuts and name of “.fwt” session config file Select an icon from “Icons” directory C:\Program Files\FacetCorp\FacetWin\Icons Put shortcut on Start Menu or on desktop for easy launch

15. Configuring FacetWin Terminal Add a UNIX Application | Emulation Select an Emulation mode: IBM3151, IBM3164, SCO ANSI, VT100/102, VT220, VT320, VT420, VT520, VT525, WY50, WY60, WY60 SCO Default Colors Copy, Paste, and Print Screen Hotkeys

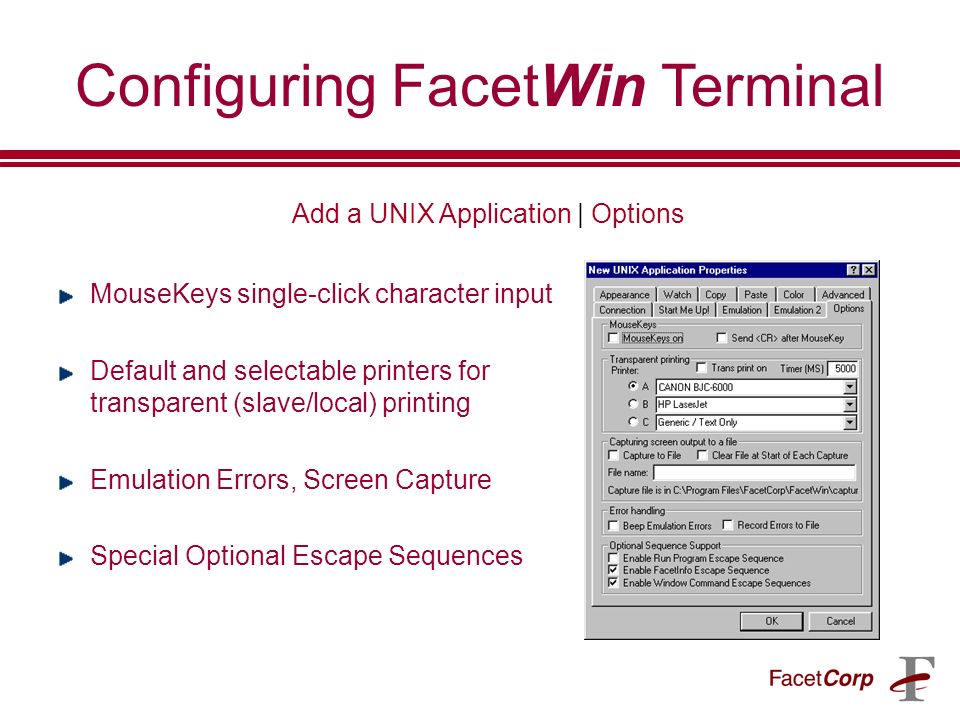

16. Configuring FacetWin Terminal Add a UNIX Application | Options MouseKeys single-click character input Default and selectable printers for transparent (slave/local) printing Emulation Errors, Screen Capture Special Optional Escape Sequences

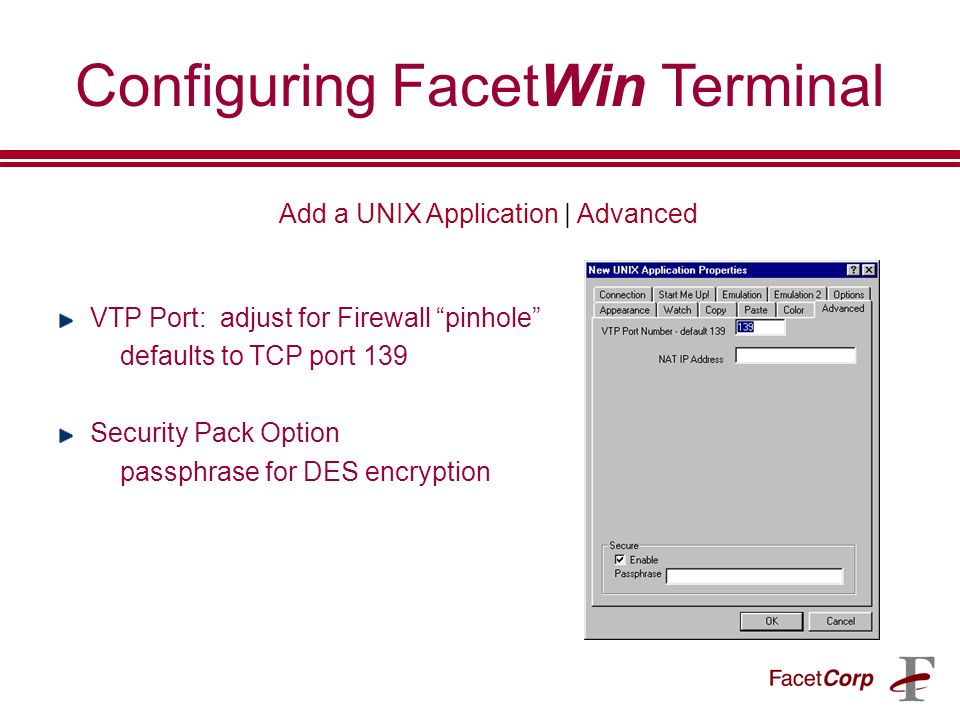

17. Configuring FacetWin Terminal Add a UNIX Application | Advanced VTP Port: adjust for Firewall “pinhole” defaults to TCP port 139 Security Pack Option passphrase for DES encryption

18. Configuring FacetWin Terminal Add a UNIX Application | Watch, Copy & Paste

19. Configuring FacetWin Terminal Add a UNIX Application | Appearance, Color, Emulation 2

20. FacetWin Security Pack Full-featured FacetWin terminal emulator with encryption 56-bit DES (Data Encryption Standard) encryption Login name and password are encrypted Entire terminal conversation is encrypted Employs highly secure manual key exchange Server-side key is set on UNIX system Client-side key set in FacetWin Terminal properties Key is never transmitted over network Server-side already included with UNIX install

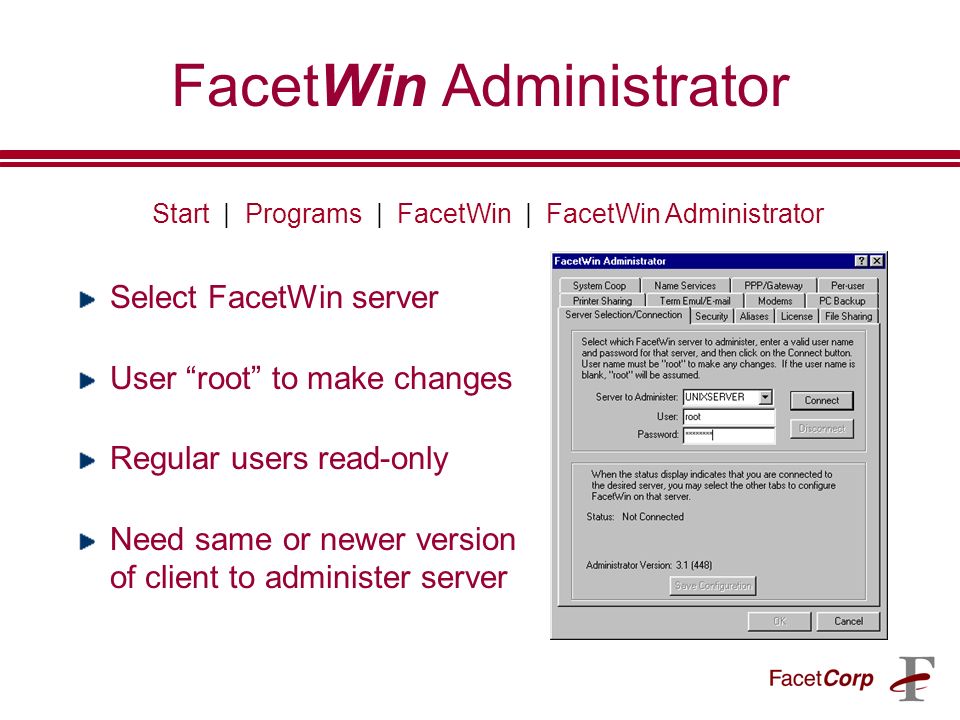

21. FacetWin Administrator Start | Programs | FacetWin | FacetWin Administrator Select FacetWin server User “root” to make changes Regular users read-only Need same or newer version of client to administer server

22. FacetWin Administrator FacetWin Administrator | Security File & Print security method NT authentication server Backup authentication Automatic UNIX user creation Guest account access

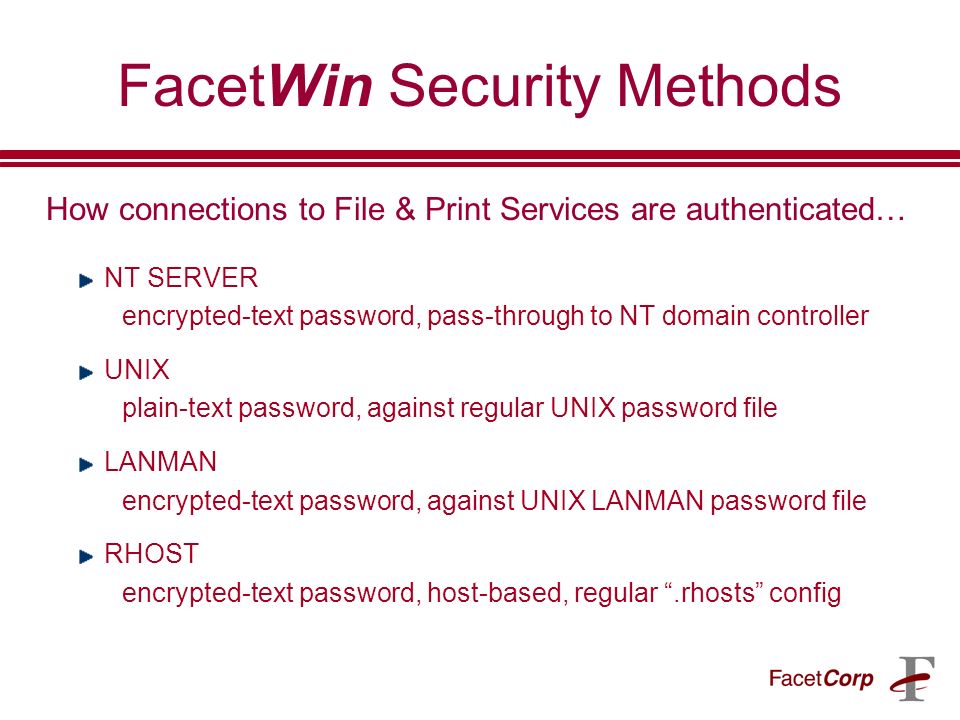

23. FacetWin Security Methods How connections to File & Print Services are authenticated… NT SERVER encrypted-text password, pass-through to NT domain controller UNIX plain-text password, against regular UNIX password file LANMAN encrypted-text password, against UNIX LANMAN password file RHOST encrypted-text password, host-based, regular “.rhosts” config

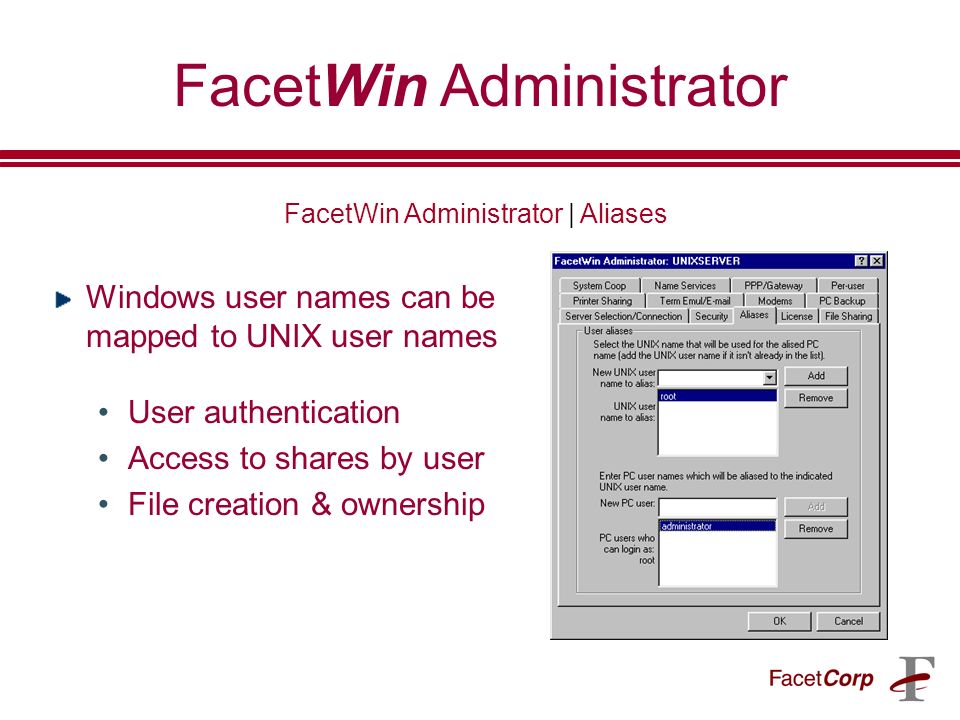

24. FacetWin Administrator FacetWin Administrator | Aliases Windows user names can be mapped to UNIX user names User authentication Access to shares by user File creation & ownership

25. FacetWin Administrator FacetWin Administrator | File Sharing Adding UNIX file shares Read-only oplocks for speed Per share access restrictions by user or by machine name

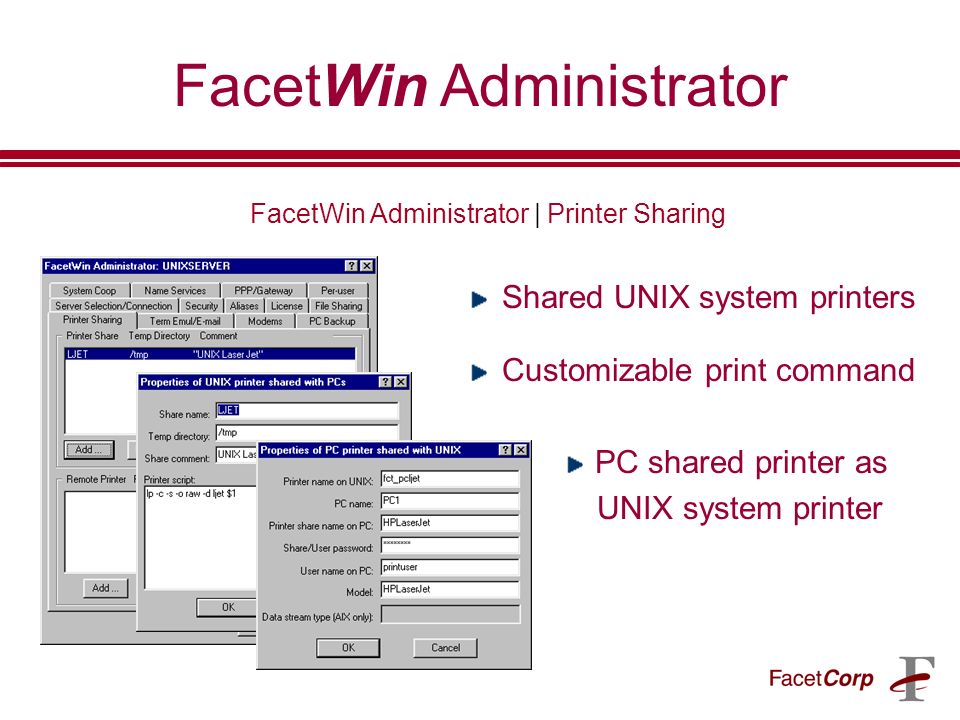

26. FacetWin Administrator FacetWin Administrator | Printer Sharing Shared UNIX system printers Customizable print command PC shared printer as UNIX system printer

27. FacetWin Administrator FacetWin Administrator | License Evaluation license 30 days from installation 50 concurrent users Complete feature set Regular license FacetWin Machine ID No interruption upgrade

28. FacetWin Administrator FacetWin Administrator | License Online license registration by return email Registration by fax back within 1 hour

29. FacetWin Administrator FacetWin Administrator | PC Backup PC files backed up to UNIX tape Multiple PC file sets into Backup Sets Multiple UNIX tape sizes and drive configurations

30. FacetWin Administrator FacetWin Administrator | System Coop, Name Services, PPP/Gateway

31. FacetWin Administrator FacetWin Administrator | Term Emul/Email, Modems, Per-user

32. FacetWin Agent Start | Programs | FacetWin | FacetWin Agent Modem Server configuration Virtual Serial Port Attach to UNIX modem Local control of PC Backup Enable Plain-text Passwords Default file creation mask

33. FacetWin Agent FacetWin Agent | Modem Server Define virtual COM port then associate Modem

34. FacetWin Agent FacetWin Agent | PC Backup Select files, then “Backup Now” Detailed backup log

35. 35 FacetWin Agent FacetWin Agent | Miscellaneous Enable plain-text passwords for File & Print connections Allow PC to receive system messages Set default file creation mask

36. FacetWin Terminal Run Program Escape Sequence

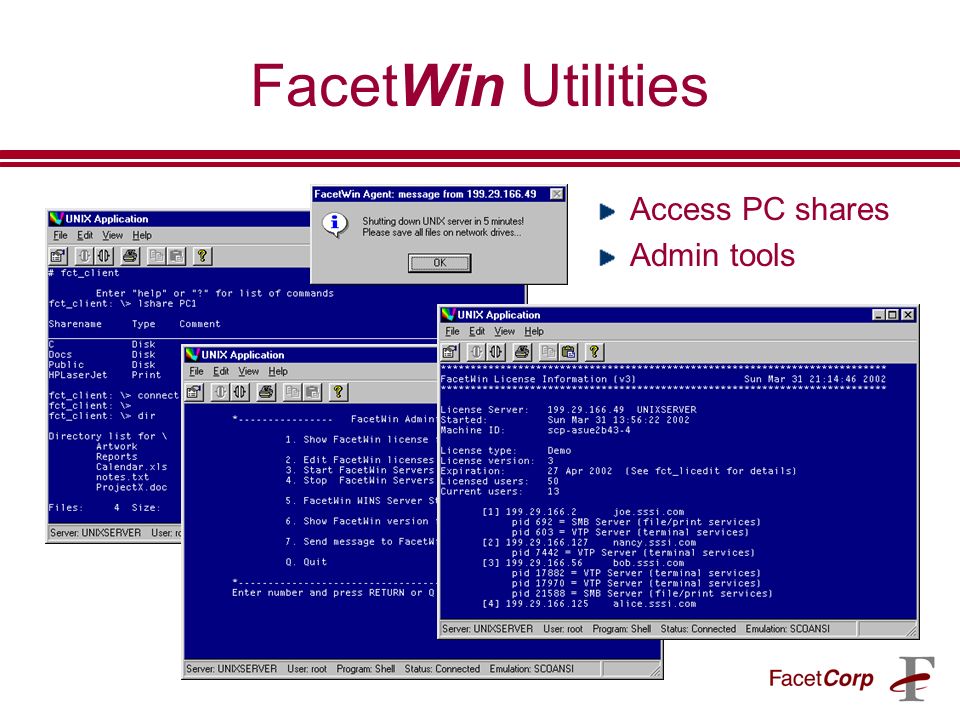

37. FacetWin Utilities Access PC shares Admin tools

38. FacetWin Internet Printing Several ways of printing across the Internet… Regular remote print works if ports are not blocked XP Printing Scheme works even when they are Uses Printer Control polling window Prints back to PC via FacetWin Terminal With Security Pack, encrypted print jobs ftp://ftp.facetcorp.com/scripts/facetwin/xp/xp.cpio LANMAN names can be resolved to dynamically assigned IP addresses

39. FacetWin Trouble-shooting Many ways of diagnosing and fixing problems… Check UNIX “syslog” messages FacetWin daemons have special debug mode Windows error dialog boxes Terminal session capture files Emulation errors (screen garbage) logged Online technical application notes http://www.facetcorp.com/tnotes Tech Support email: support@facetcorp.com Free & available Support Engineers 1-877-322-3846 (1-877-FacetGo) 1-972-985-9901 (outside North America)
