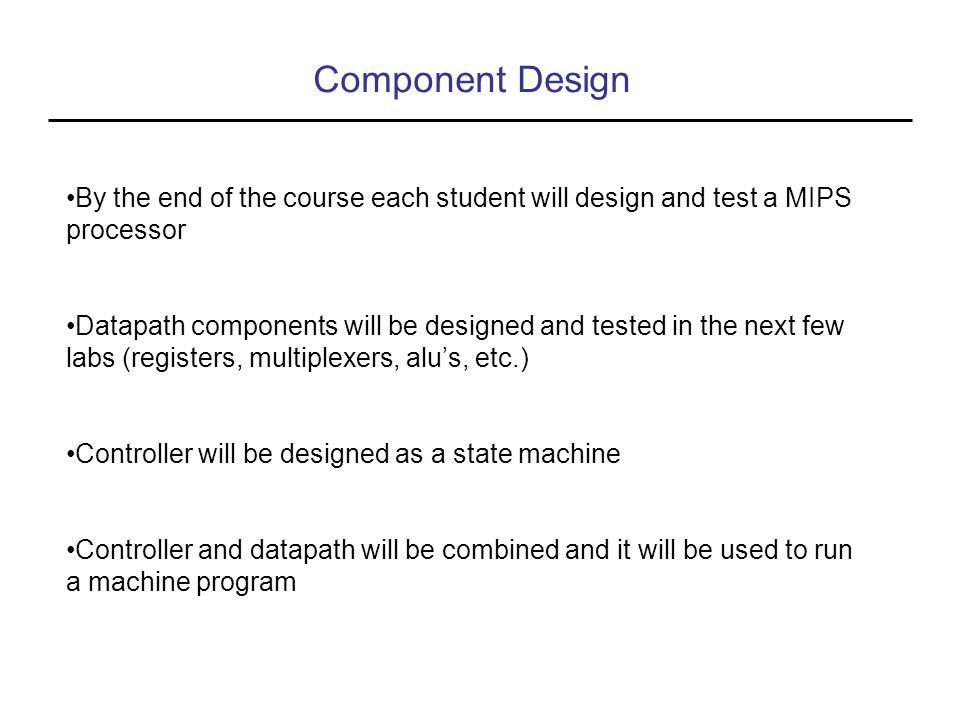

1. Component Design By the end of the course each student will design and test a MIPS processor Datapath components will be designed and tested in the next few labs (registers, multiplexers, alu’s, etc.) Controller will be designed as a state machine Controller and datapath will be combined and it will be used to run a machine program

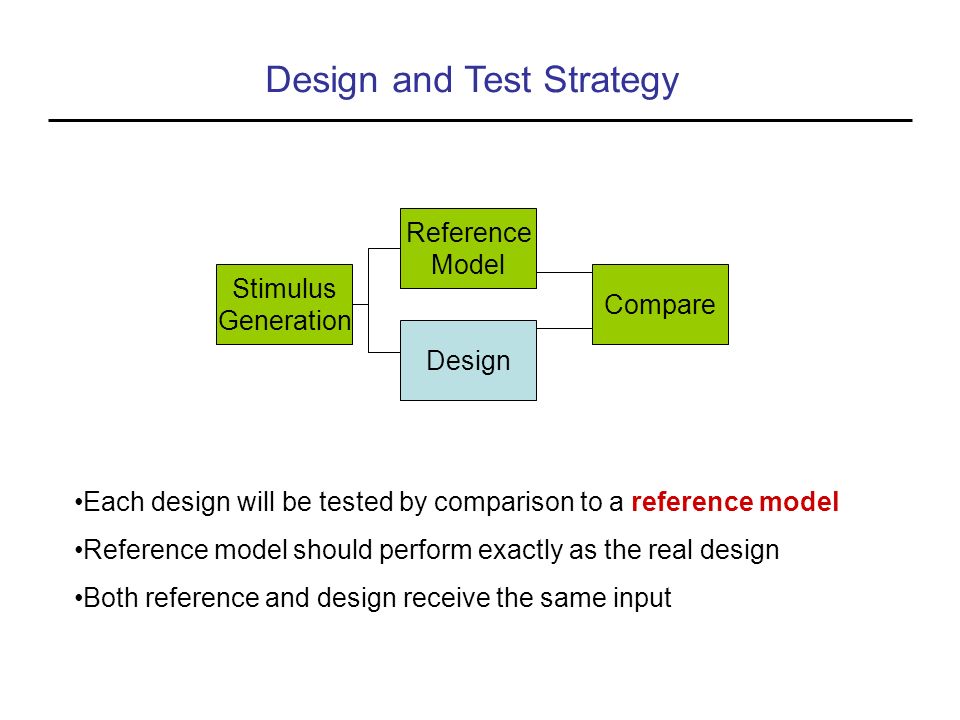

2. Design and Test Strategy Reference Model Design Compare Stimulus Generation Each design will be tested by comparison to a reference model Reference model should perform exactly as the real design Both reference and design receive the same input

3. Reference Model Reference model is behavioral, design is structural A behavioral design is easier to create and easier to assume correct Difficulties A bug in either the reference model or the design will be detected The reference model must be debugged before the design The reference model may not be timing-accurate

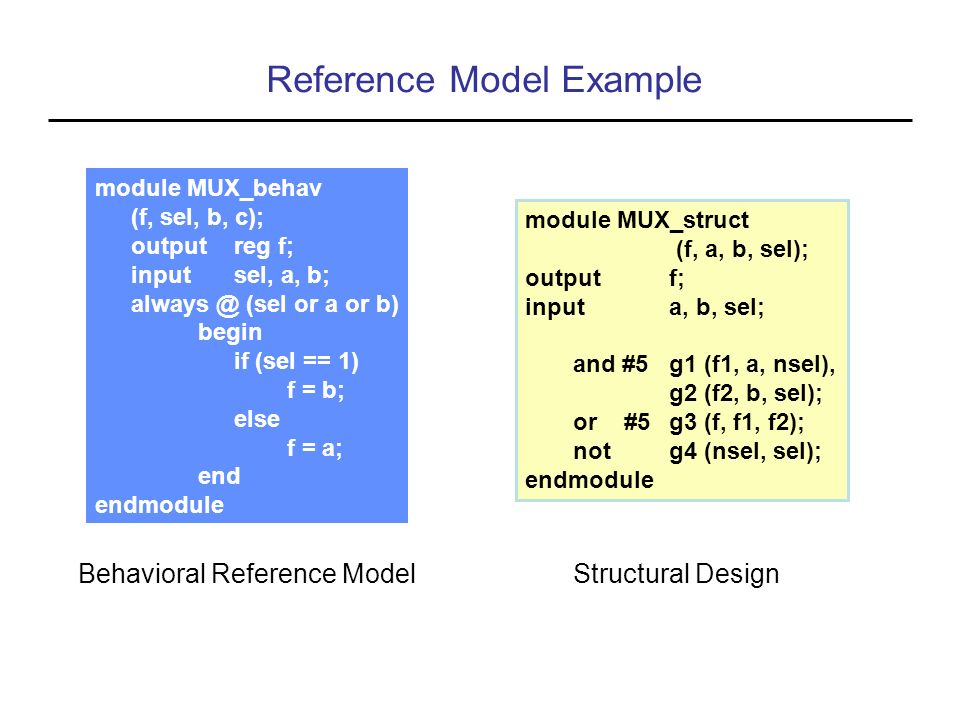

4. Reference Model Example module MUX_behav (f, sel, b, c); output reg f; input sel, a, b; always @ (sel or a or b) begin if (sel == 1) f = b; else f = a; end endmodule module MUX_struct (f, a, b, sel); outputf; inputa, b, sel; and #5g1 (f1, a, nsel), g2 (f2, b, sel); or #5g3 (f, f1, f2); notg4 (nsel, sel); endmodule Behavioral Reference ModelStructural Design

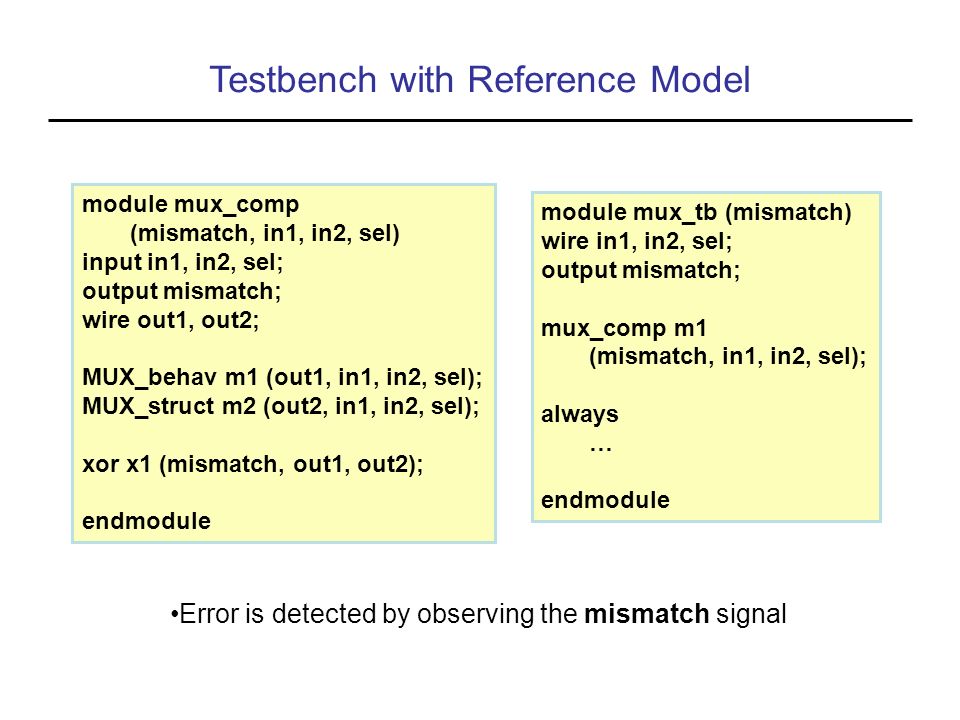

5. Testbench with Reference Model module mux_comp (mismatch, in1, in2, sel) input in1, in2, sel; output mismatch; wire out1, out2; MUX_behav m1 (out1, in1, in2, sel); MUX_struct m2 (out2, in1, in2, sel); xor x1 (mismatch, out1, out2); endmodule module mux_tb (mismatch) wire in1, in2, sel; output mismatch; mux_comp m1 (mismatch, in1, in2, sel); always … endmodule Error is detected by observing the mismatch signal

6. Reference Model for a Design with Timing module mult_behav (prod, in1, in2) input [7:0] in1, in2; output [15:0] prod; res = in1 * in2; endmodule module mult_struct (prod, in1, in2, clk) input [7:0] in1, in2; input clk; output [15:0] prod; // shift-add algorithm endmodule Design is timing-accurate, reference model is not Need to choose the sample points

7. A Sample Clock module mult_comp (in1, in2, clk, sclk) // declare inputs, outputs, wires mult_behav m1 (out1, in1, in2); mult_struct m2 (out2, in1, in2, clk); always (sclk) if (out1 != out2) $display(“error); endmodule module mult_tb wire in1, in2, clk, sclk; mult_comp m1 (in1, in2, clk, sclk); initial clk = 0; sclk = 0; always #5 sclk = ~sclk; always (sclk) #1 clk = ~clk; always … endmodule Signals must settle just before the clock Sample clock rises just before regular clock
