COMPUTER ORGANISATION Sri.S.A.Hariprasad Sr.Lecturer R.V.C.E Bangalore.

Similar presentations


Presentation on theme: "COMPUTER ORGANISATION Sri.S.A.Hariprasad Sr.Lecturer R.V.C.E Bangalore."— Presentation transcript:

1 COMPUTER ORGANISATION Sri.S.A.Hariprasad Sr.Lecturer R.V.C.E Bangalore

2

3 SUMMARY OF THE TABLE  SIGN & MAGNITUE SYSTEM: Negative value is obtained by changing the sign bit (MSB)  SIGNED 1’S COMPLEMENT: Negative number is obtained by complementing each bit of the corresponding positive number i.e (2 n -1) –N  SIGNED 2’S COMPLEMENT: Negative number is obtained by taking 2’s complement of positive number  2 n -N  Range: - (2 n-1 ) to + (2 n-1 -1)

4 ADDITION AND SUBSTRACTION OF SIGNED NUMBERS  In unsigned operation if there is a carry from MSB position it is called carry  In signed operations if there is a carry form MSB position it is called end – around – carry  For signed arithmetic operations 2’s complement format is used  For signed arithmetic operation sign and magnitude and 1’s complement format is not suitable

5

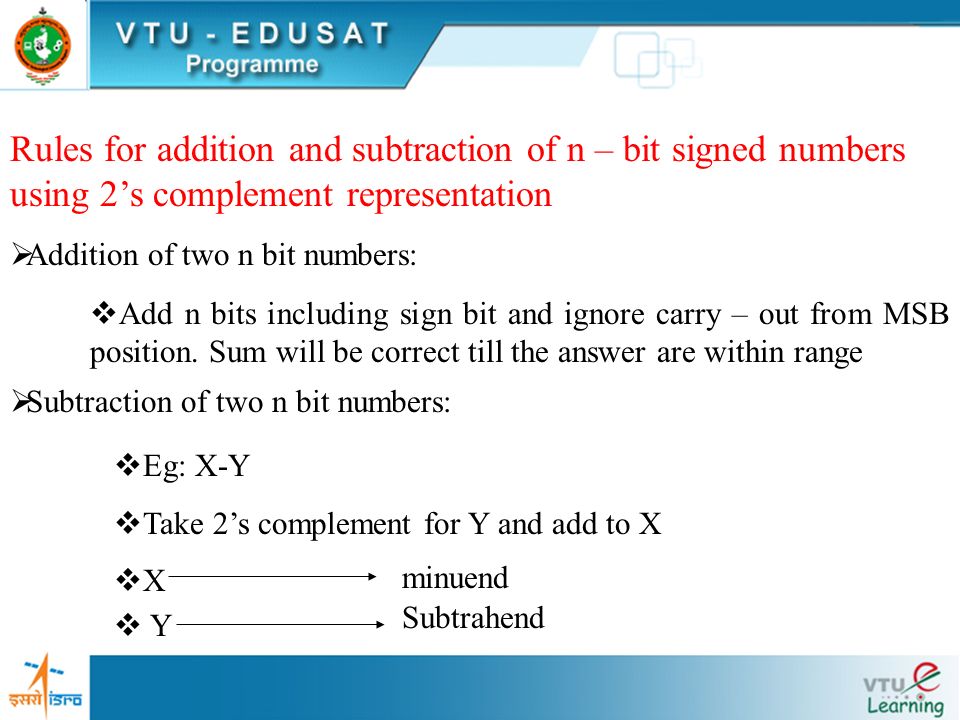

6 Rules for addition and subtraction of n – bit signed numbers using 2’s complement representation  Addition of two n bit numbers:  Add n bits including sign bit and ignore carry – out from MSB position. Sum will be correct till the answer are within range  Subtraction of two n bit numbers:  Eg: X-Y  Take 2’s complement for Y and add to X  X minuend  Y Subtrahend

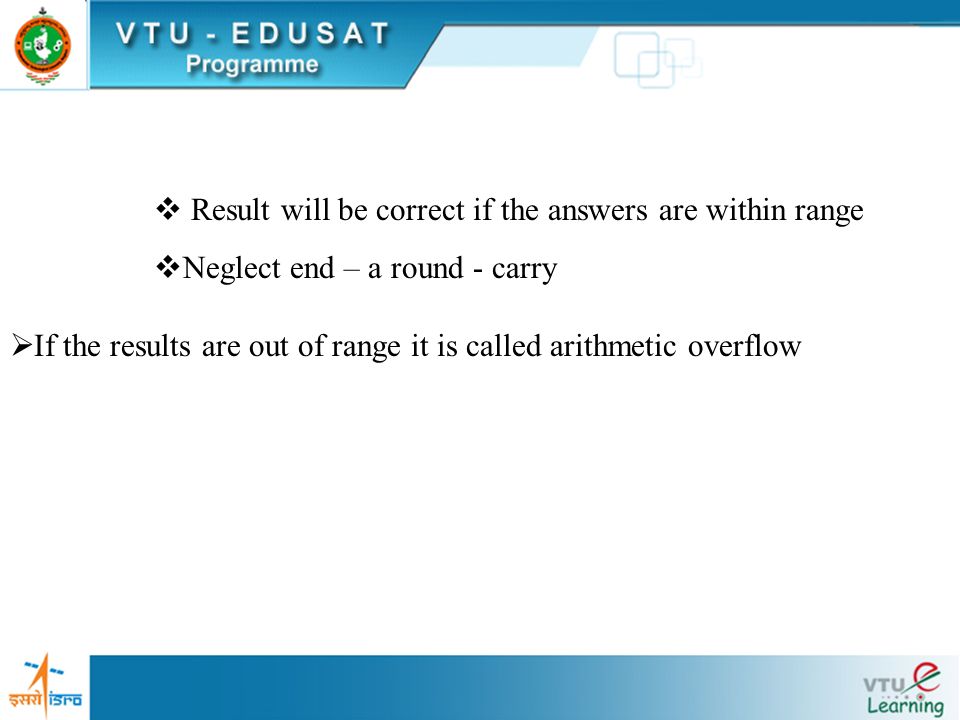

7  Result will be correct if the answers are within range  Neglect end – a round - carry  If the results are out of range it is called arithmetic overflow

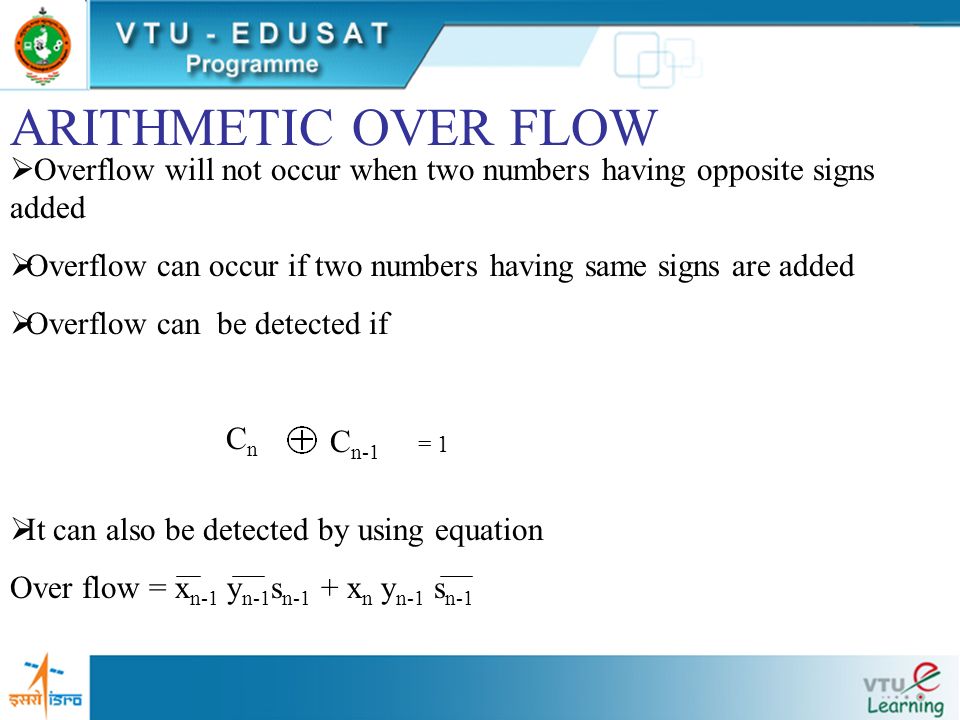

8 ARITHMETIC OVER FLOW  Overflow will not occur when two numbers having opposite signs added  Overflow can occur if two numbers having same signs are added  Overflow can be detected if C n C n-1  It can also be detected by using equation Over flow = x n-1 y n-1 s n-1 + x n y n-1 s n-1 = 1

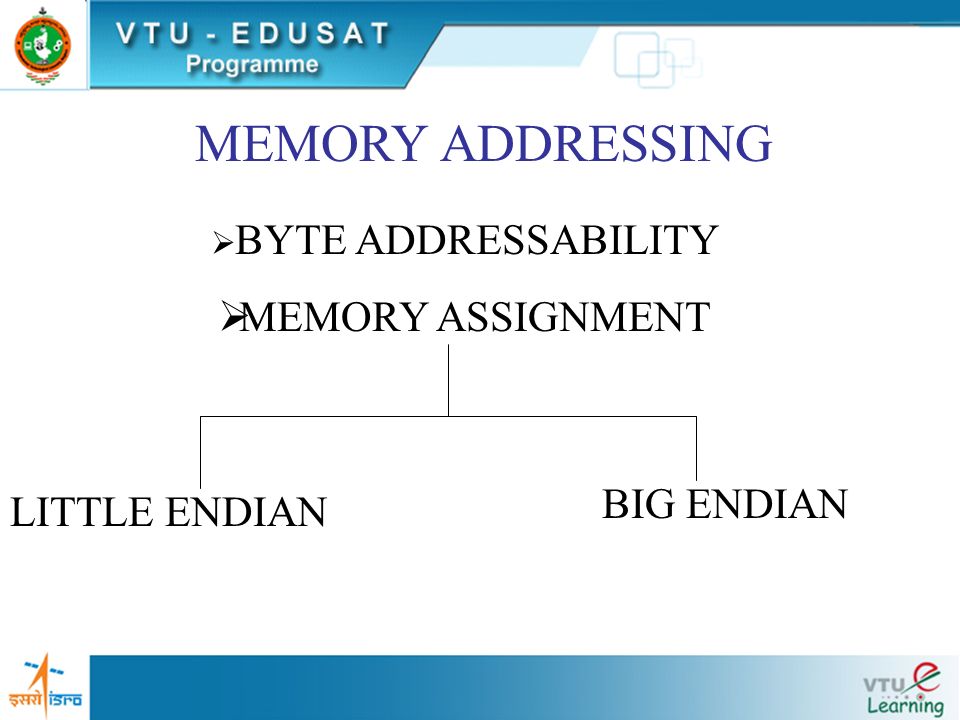

9 MEMORY ADDRESSING  BYTE ADDRESSABILITY  MEMORY ASSIGNMENT LITTLE ENDIAN BIG ENDIAN

10 n bit LASTWORD  In theoretical approach each row is called as WORD or LOCATION  But in practice each location contains one byte information, which is referred as byte addressability

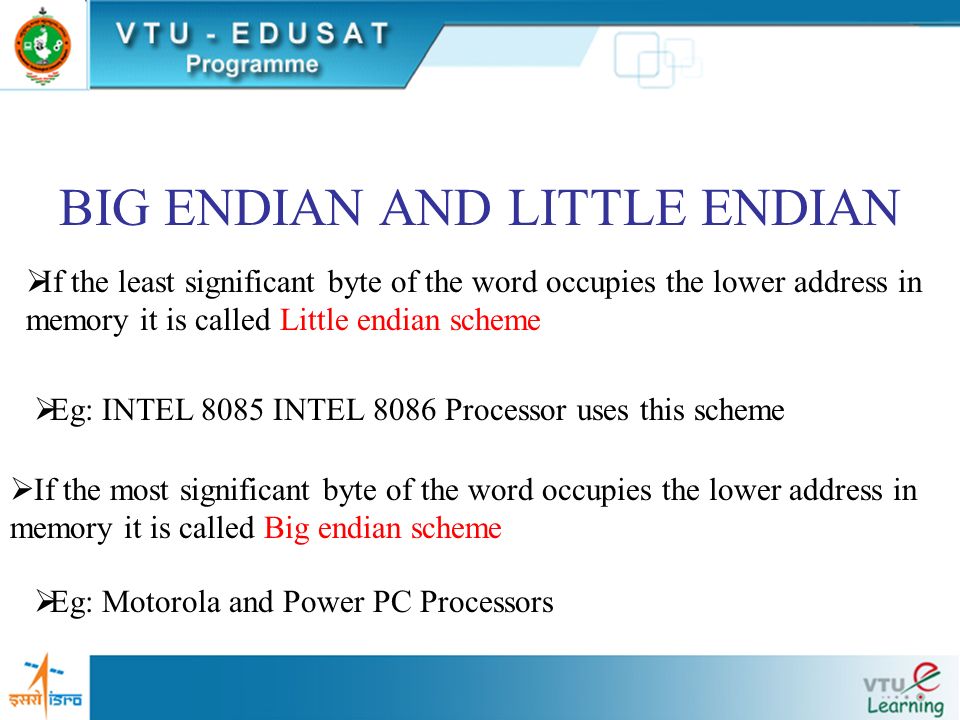

11 BIG ENDIAN AND LITTLE ENDIAN  If the least significant byte of the word occupies the lower address in memory it is called Little endian scheme  Eg: INTEL 8085 INTEL 8086 Processor uses this scheme  If the most significant byte of the word occupies the lower address in memory it is called Big endian scheme  Eg: Motorola and Power PC Processors

12 EXAMPLE TO LITTLE ENDIAN SCHEME Eg: 46,78,96,54 (32 bit data) L BYTEH BYTE 54 96 78 46 8000 8001 8002 8003

13 BIG ENDIAN SCHEME Eg: 46,78,96,54 H BYTEL BYTE 46 78 96 54 8000

14 SUMMARY:  In case of 16 bit data, aligned words begin at byte addresses of 0,2,4,………………………….  In case of 32 bit data, aligned words begin at byte address of 0,4,8,………………………….  In case of 64 bit data, aligned words begin at byte addresses of 0,8,16,………………………..  In some cases words can start at an arbitrary byte address also then, we say that word locations are unaligned

15 MEMORY OPERATION LOAD (READ OR FETCH) STORE (WRITE)

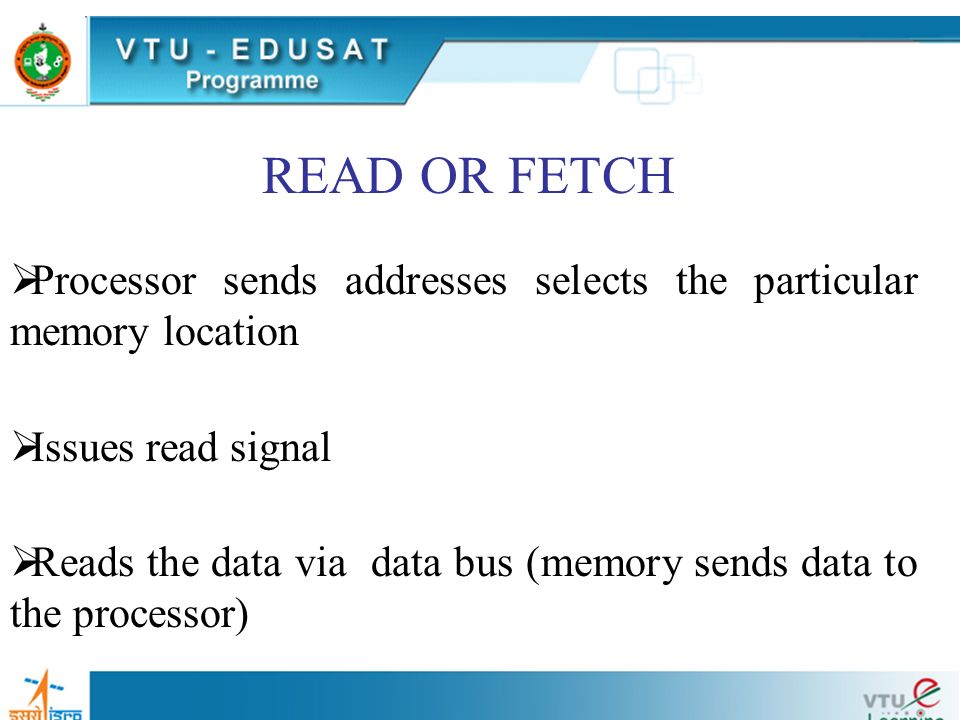

16 READ OR FETCH  Processor sends addresses selects the particular memory location  Issues read signal  Reads the data via data bus (memory sends data to the processor)

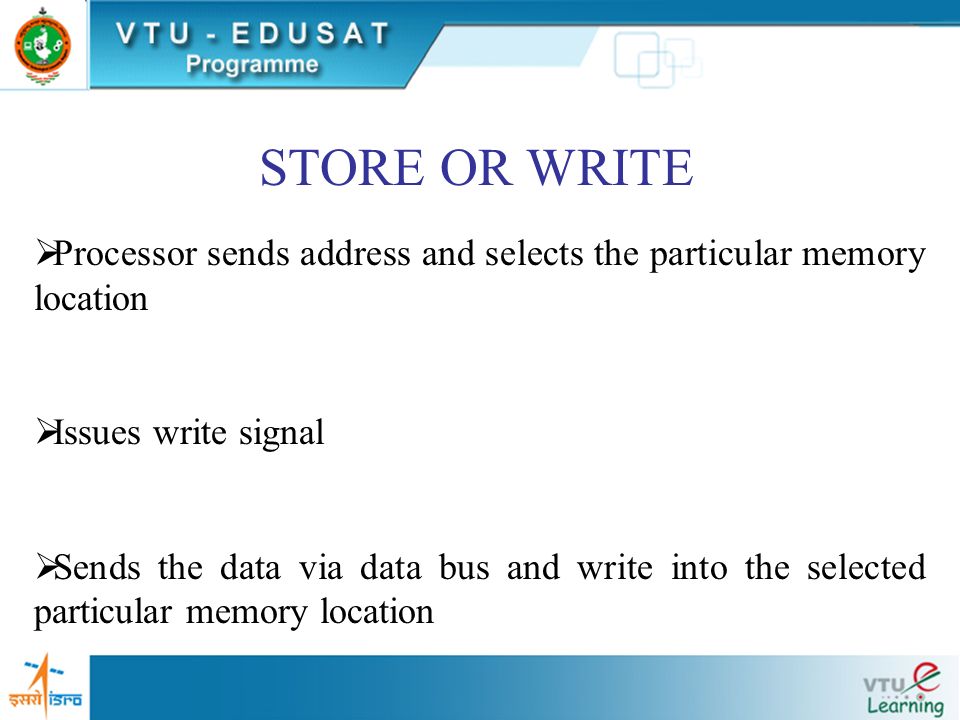

17 STORE OR WRITE  Processor sends address and selects the particular memory location  Issues write signal  Sends the data via data bus and write into the selected particular memory location

18 INSTRUCTIONS AND INSTRUCTION SEQUENCING  INSTRUCTION  PROGRAM  INSTRUCTION SET ARCHITECTURE  BASIC FOUR TYPES OF OPERATION  REGISTER TRANSFER NOTATION  ASSEMBLY LANGUAGE NOTATION

19  TYPES OF INSTRUCTION  INSTRUCTION EXECUTION AND STRIAGHT LINE SEQUENCING  BRANCHING  CONDITION CODES

20  INSTRUCTION SET ARCHITECTURE:- Complete instruction set of the processor  BASIC 4 TYPES OF OPERATION :- Data transfer between memory and processor register Arithmetic and logic operation Program sequencing and control I/O transfer

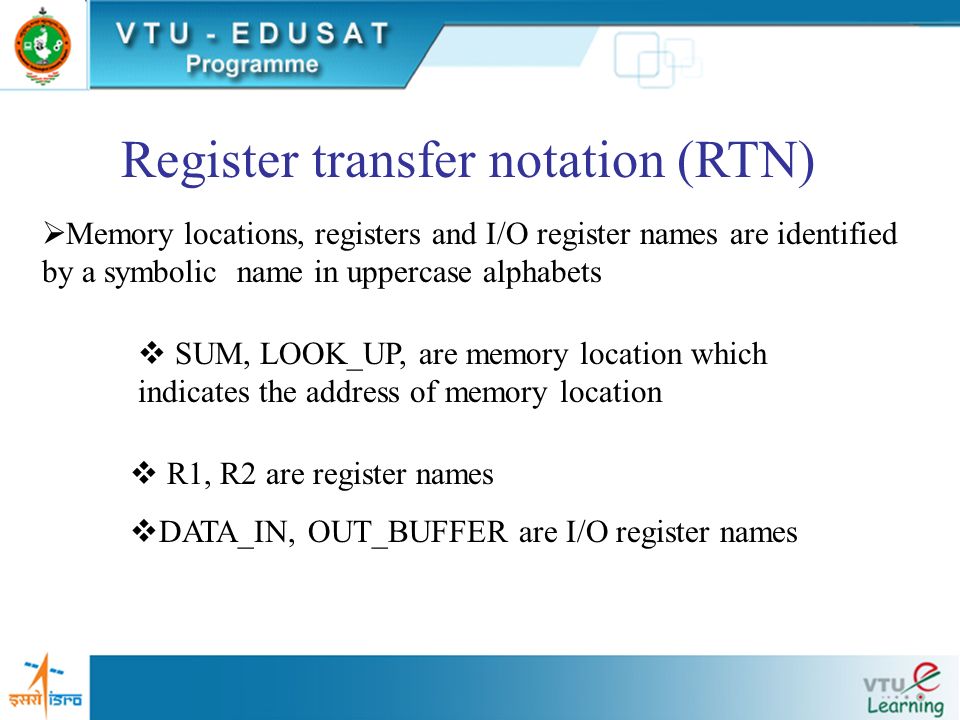

21 Register transfer notation (RTN)  Memory locations, registers and I/O register names are identified by a symbolic name in uppercase alphabets  SUM, LOOK_UP, are memory location which indicates the address of memory location  R1, R2 are register names  DATA_IN, OUT_BUFFER are I/O register names

22  Contents of location is indicated by using square brackets  RHS of RTN always denotes a values, and is called Source  LHS of RTN always denotes a symbolic name where value is to be stored and is called destination  Source contents are not modified  Destination contents are overwritten

23 Examples of RTN statements 1.R2 [LOCN] 2.R4 [R3] +[R2]

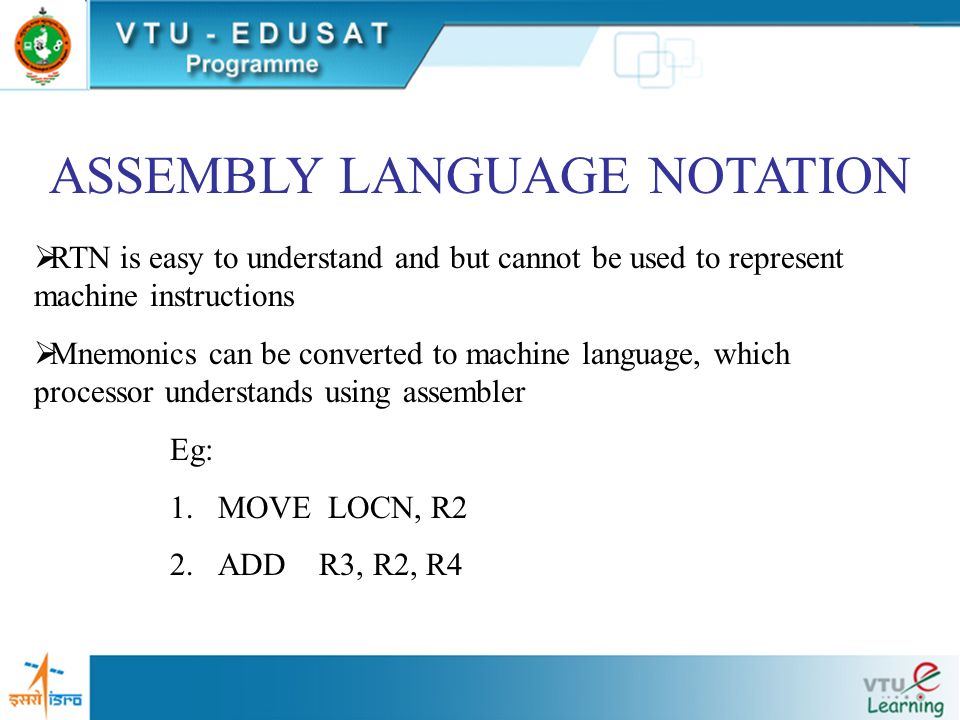

24 ASSEMBLY LANGUAGE NOTATION  RTN is easy to understand and but cannot be used to represent machine instructions  Mnemonics can be converted to machine language, which processor understands using assembler Eg: 1.MOVE LOCN, R2 2.ADD R3, R2, R4

25 TYPE OF INSTRUCTION  Three address instruction  Syntax: Operation source 1, source 2, destination  Eg: ADD D,E,F where D,E,F are memory location  Advantage: Single instruction can perform the complete operation  Disadvantage : Instruction code will be too large to fit in one word location in memory

26 TWO ADDRESS INSTRUCTION  Syntax : Operation source, destination  Eg: MOVE E,F MOVE D,F ADD D,F OR ADD E,F  Disadvantage: Single instruction is not sufficient to perform the entire operation.

27 ONE ADDRESS INSTRUCTION  Syntax- Operation source/destination  In this type either a source or destination operand is mentioned in the instruction  Other operand is implied to be a processor register called Accumulator  Eg: ADD B (general) 1.Load D; ACC [memlocation _D] 2.ADD E; ACC (ACC) +(E) 3.STORE F; memlocation_ F (ACC )

28 Load E ACC[Memlocation –E] ADD D ACC (ACC) + (E) STORE F (memlocation F) (A) Zero address instruction  Location of all operands are defined implicitly  Operands are stored in a structure called pushdown stack

29 Note:  Basic load, store, add, operation  Load A, Ri  Stores Ri, B  Add B, Ri  If processor supports ALU operations one data in memory and other in register then the instruction sequence is  MOVE D, Ri  ADD E, Ri  MOVE Ri, F

30  If processor supports ALU operations only with registers then one has to follow the instruction sequence given below  LOAD D, Ri  LOAD E, Rj  ADD Ri, Rj  MOVE Rj, F

31 INSTRUCTION EXECUTION & STRIAGHT LINGE SEQUENCING MOVE D, R1 ADD E, R1 MOVE R1, F Instruction Data D E F i + 8 i + 4 (PC) i Program for F [D] +[E]

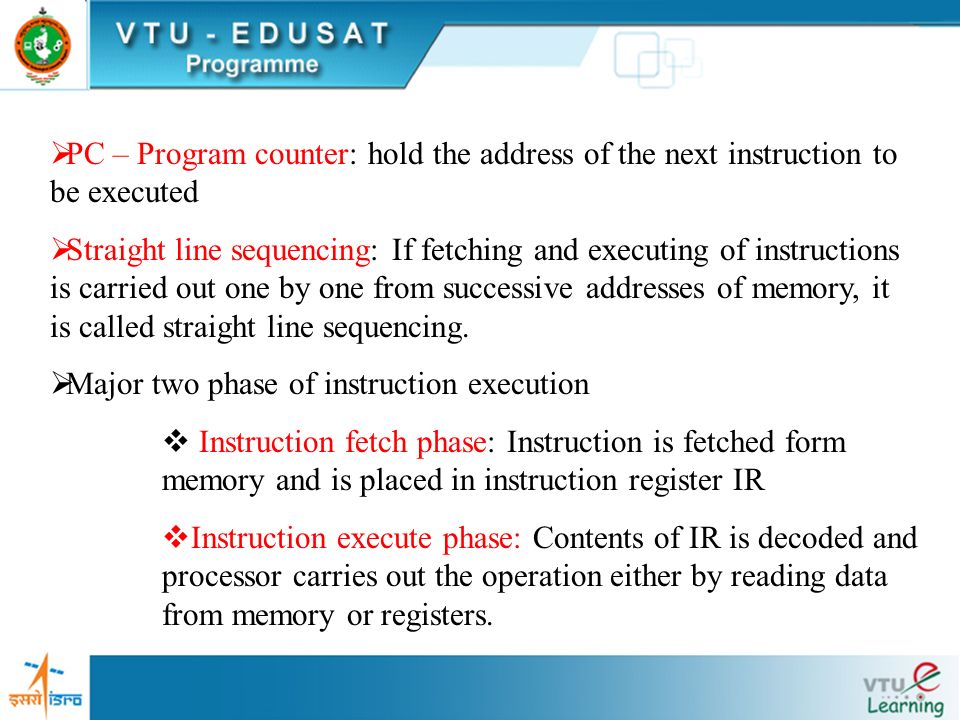

32  PC – Program counter: hold the address of the next instruction to be executed  Straight line sequencing: If fetching and executing of instructions is carried out one by one from successive addresses of memory, it is called straight line sequencing.  Major two phase of instruction execution  Instruction fetch phase: Instruction is fetched form memory and is placed in instruction register IR  Instruction execute phase: Contents of IR is decoded and processor carries out the operation either by reading data from memory or registers.

33 BRANCHING

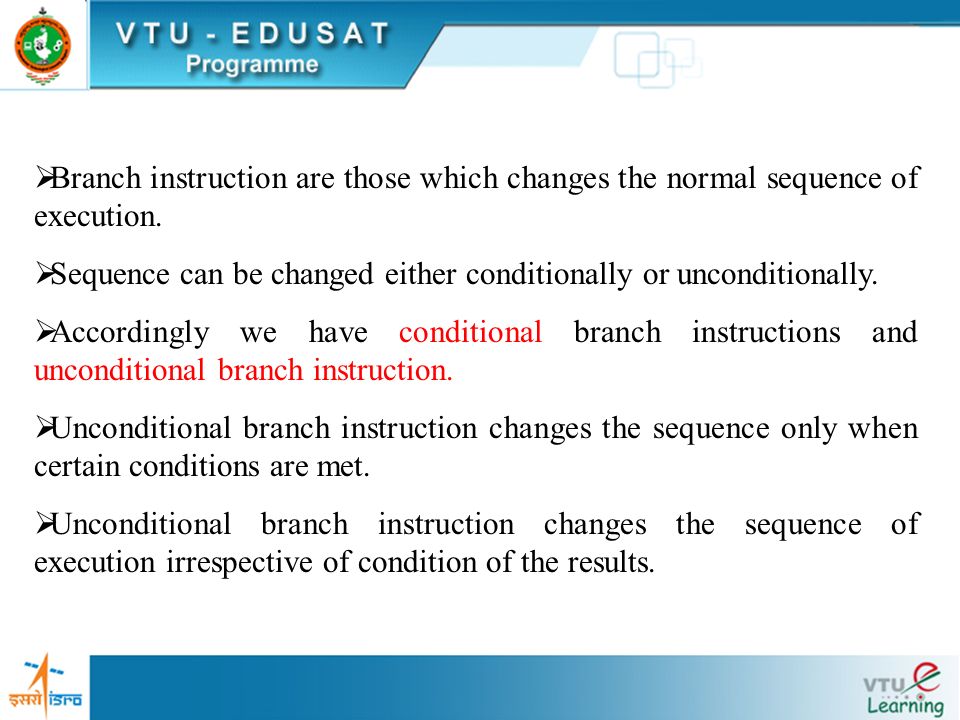

34  Branch instruction are those which changes the normal sequence of execution.  Sequence can be changed either conditionally or unconditionally.  Accordingly we have conditional branch instructions and unconditional branch instruction.  Unconditional branch instruction changes the sequence only when certain conditions are met.  Unconditional branch instruction changes the sequence of execution irrespective of condition of the results.

35 CONDITION CODES  CONDITIONAL CODE FLAGS:  N – Negative 1 if results are Negative 0 if results are Positive  Z – Zero 1 if results are Zero 0 if results are Non zero  V – Overflow 1 if arithmetic overflow occurs 0 non overflow occurs  C – Carry 1 if carry and from MSB bit 0 if there is no carry from MSB bit
