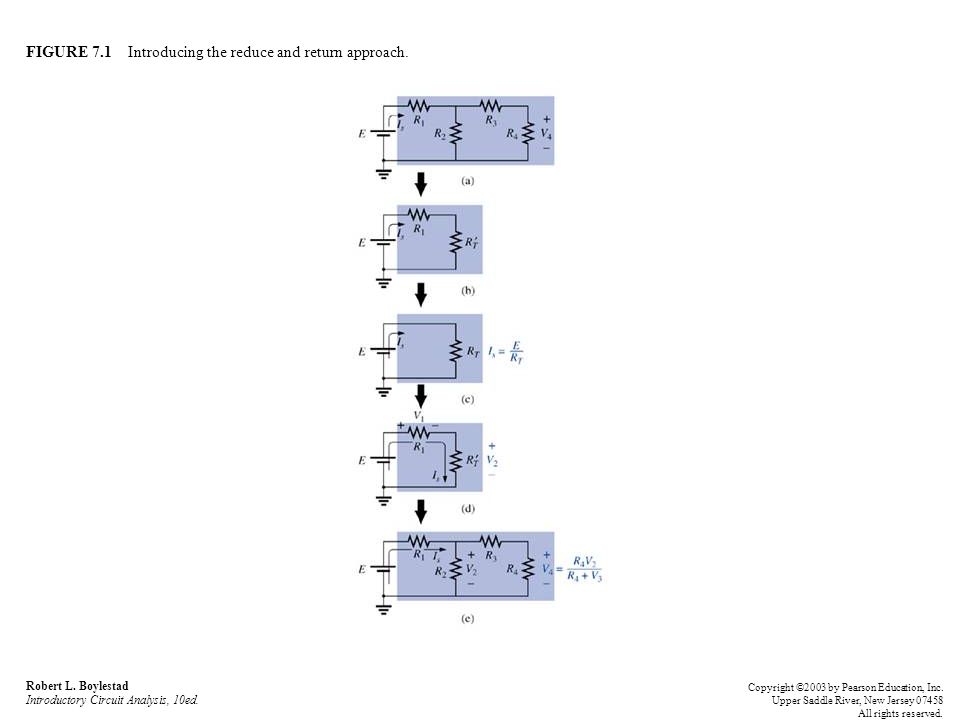

FIGURE 7.1 Introducing the reduce and return approach. Robert L. Boylestad Introductory Circuit Analysis, 10ed. Copyright ©2003 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.
2
FIGURE 7.2 Introducing the block diagram approach. Robert L. Boylestad Introductory Circuit Analysis, 10ed. Copyright ©2003 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.
3
FIGURE 7.3 Example 7.1. Robert L. Boylestad Introductory Circuit Analysis, 10ed. Copyright ©2003 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.
4
FIGURE 7.4 Reduced equivalent of Fig. 7.3. Robert L. Boylestad Introductory Circuit Analysis, 10ed. Copyright ©2003 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.
5
FIGURE 7.5 Determining I B and I C for the network of Fig. 7.3. Robert L. Boylestad Introductory Circuit Analysis, 10ed. Copyright ©2003 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.
6
FIGURE 7.6 Example 7.2. Robert L. Boylestad Introductory Circuit Analysis, 10ed. Copyright ©2003 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.
7
FIGURE 7.7 Reduced equivalent of Fig. 7.6. Robert L. Boylestad Introductory Circuit Analysis, 10ed. Copyright ©2003 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.
8

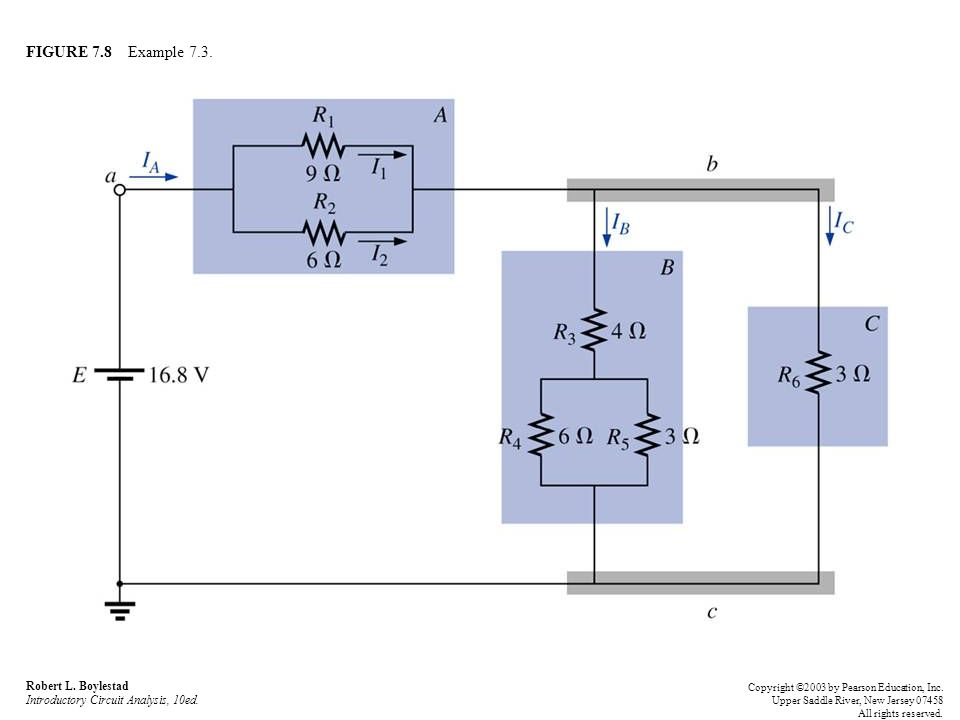

FIGURE 7.8 Example 7.3. Robert L. Boylestad Introductory Circuit Analysis, 10ed. Copyright ©2003 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.
9
FIGURE 7.9 Reduced equivalent of Fig. 7.8. Robert L. Boylestad Introductory Circuit Analysis, 10ed. Copyright ©2003 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.
10
FIGURE 7.10 Example 7.4. Robert L. Boylestad Introductory Circuit Analysis, 10ed. Copyright ©2003 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.
11
FIGURE 7.13 Example 7.5. Robert L. Boylestad Introductory Circuit Analysis, 10ed. Copyright ©2003 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.
12
FIGURE 7.14 Block diagram for Fig. 7.13. Robert L. Boylestad Introductory Circuit Analysis, 10ed. Copyright ©2003 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.
13
FIGURE 7.15 Reduced form of Fig. 7.13. Robert L. Boylestad Introductory Circuit Analysis, 10ed. Copyright ©2003 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.
14
FIGURE 7.16 Example 7.6. Robert L. Boylestad Introductory Circuit Analysis, 10ed. Copyright ©2003 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.
15
FIGURE 7.17 Network of Fig. 7.16 redrawn. Robert L. Boylestad Introductory Circuit Analysis, 10ed. Copyright ©2003 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.
16
FIGURE 7.18 Example 7.7. Robert L. Boylestad Introductory Circuit Analysis, 10ed. Copyright ©2003 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.
17
FIGURE 7.19 Network of Fig. 7.18 redrawn. Robert L. Boylestad Introductory Circuit Analysis, 10ed. Copyright ©2003 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.
18
FIGURE 7.22 Example 7.9. Robert L. Boylestad Introductory Circuit Analysis, 10ed. Copyright ©2003 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.
19
FIGURE 7.23 Network of Fig. 7.22 redrawn. Robert L. Boylestad Introductory Circuit Analysis, 10ed. Copyright ©2003 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.
20
FIGURE 7.24 An alternative approach to Example 7.9. Robert L. Boylestad Introductory Circuit Analysis, 10ed. Copyright ©2003 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.
21
FIGURE 7.25 Example 7.10. Robert L. Boylestad Introductory Circuit Analysis, 10ed. Copyright ©2003 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.
22
FIGURE 7.26 Defining the paths for Kirchhoff’s voltage law. Robert L. Boylestad Introductory Circuit Analysis, 10ed. Copyright ©2003 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.
23
FIGURE 7.27 Ladder network. Robert L. Boylestad Introductory Circuit Analysis, 10ed. Copyright ©2003 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.
24

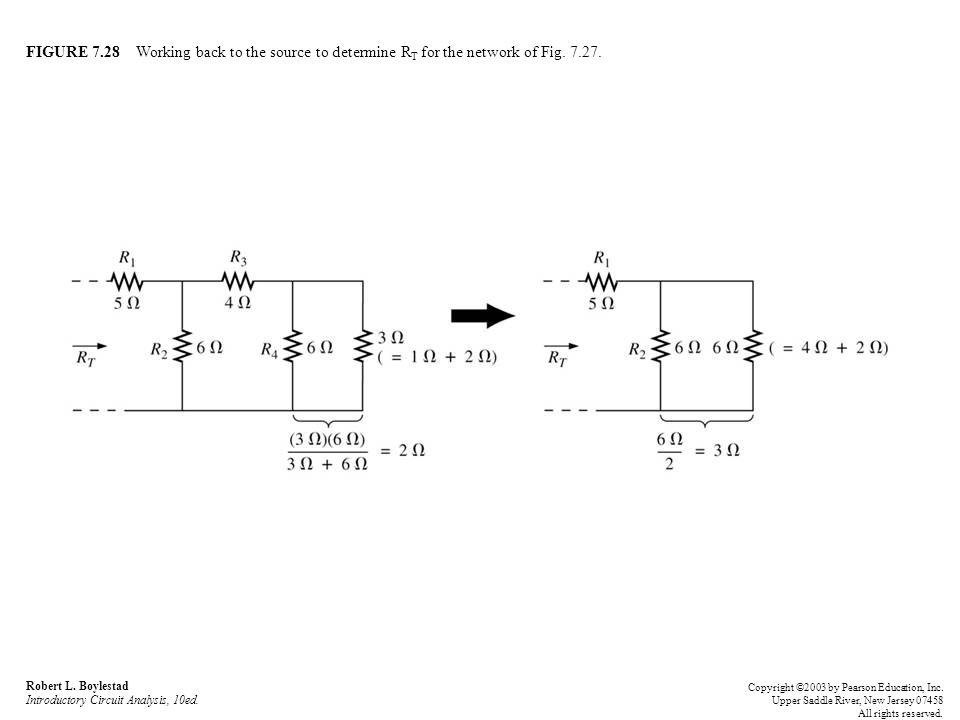

FIGURE 7.28 Working back to the source to determine R T for the network of Fig. 7.27. Robert L. Boylestad Introductory Circuit Analysis, 10ed. Copyright ©2003 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.
25
FIGURE 7.29 Calculating R T and I S. Robert L. Boylestad Introductory Circuit Analysis, 10ed. Copyright ©2003 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.
26
FIGURE 7.30 Working back toward I 6. Robert L. Boylestad Introductory Circuit Analysis, 10ed. Copyright ©2003 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.
27
FIGURE 7.31 Calculating I 6. Robert L. Boylestad Introductory Circuit Analysis, 10ed. Copyright ©2003 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.
28
FIGURE 7.32 An alternative approach for ladder networks. Robert L. Boylestad Introductory Circuit Analysis, 10ed. Copyright ©2003 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.
29
FIGURE 7.36 Example 7.11. Robert L. Boylestad Introductory Circuit Analysis, 10ed. Copyright ©2003 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.
30
FIGURE 7.64 Problem 1. Robert L. Boylestad Introductory Circuit Analysis, 10ed. Copyright ©2003 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.
31
FIGURE 7.65 Problem 2. Robert L. Boylestad Introductory Circuit Analysis, 10ed. Copyright ©2003 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.
32
FIGURE 7.66 Problem 3. Robert L. Boylestad Introductory Circuit Analysis, 10ed. Copyright ©2003 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.
33
FIGURE 7.67 Problem 4. Robert L. Boylestad Introductory Circuit Analysis, 10ed. Copyright ©2003 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.
34
FIGURE 7.68 Problem 5. Robert L. Boylestad Introductory Circuit Analysis, 10ed. Copyright ©2003 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.
35
FIGURE 7.69 Problem 6. Robert L. Boylestad Introductory Circuit Analysis, 10ed. Copyright ©2003 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.
36
FIGURE 7.70 Problem 7. Robert L. Boylestad Introductory Circuit Analysis, 10ed. Copyright ©2003 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.
37

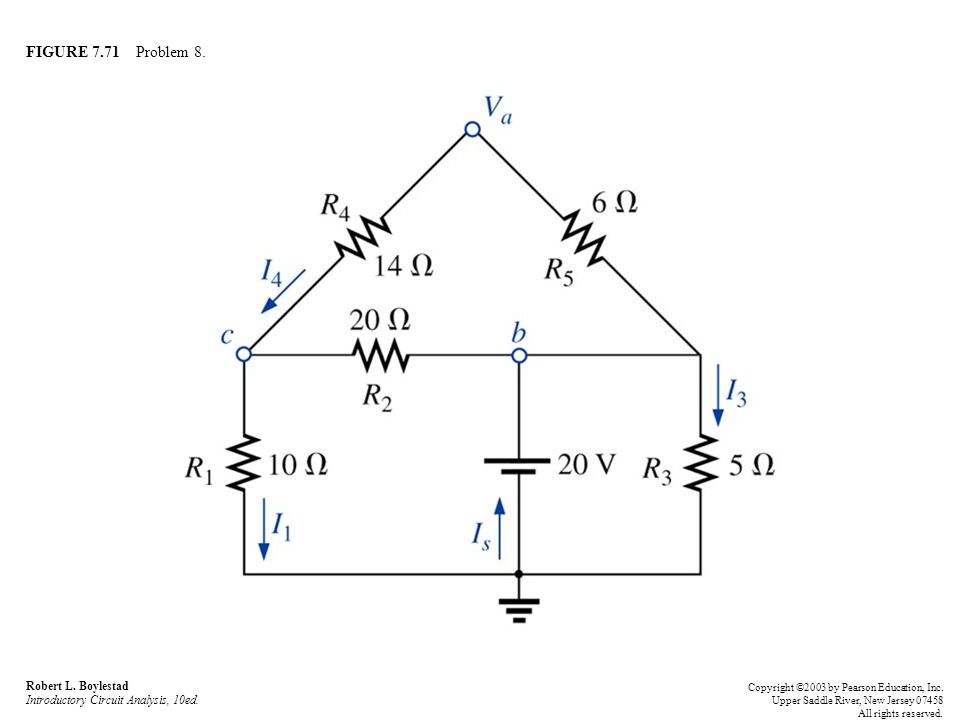

FIGURE 7.71 Problem 8. Robert L. Boylestad Introductory Circuit Analysis, 10ed. Copyright ©2003 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.
38
FIGURE 7.72 Problem 9. Robert L. Boylestad Introductory Circuit Analysis, 10ed. Copyright ©2003 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.
39
FIGURE 7.73 Problem 10. Robert L. Boylestad Introductory Circuit Analysis, 10ed. Copyright ©2003 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.
40
FIGURE 7.74 Problem 11. Robert L. Boylestad Introductory Circuit Analysis, 10ed. Copyright ©2003 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.
41
FIGURE 7.77 Problem 14. Robert L. Boylestad Introductory Circuit Analysis, 10ed. Copyright ©2003 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.
42

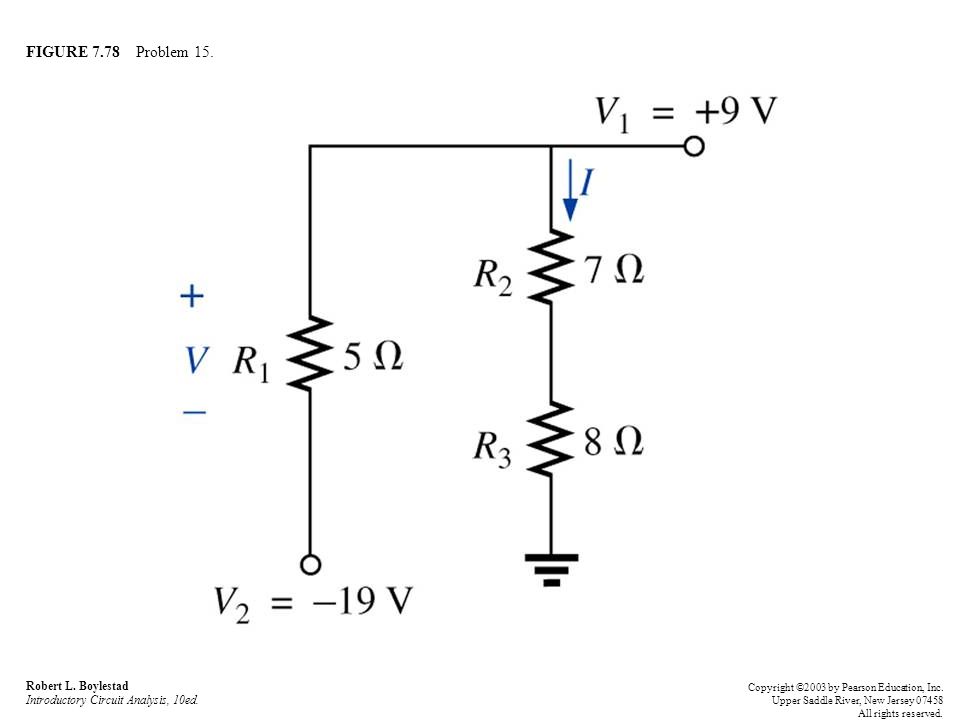

FIGURE 7.78 Problem 15. Robert L. Boylestad Introductory Circuit Analysis, 10ed. Copyright ©2003 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.
43
FIGURE 7.79 Problem 16. Robert L. Boylestad Introductory Circuit Analysis, 10ed. Copyright ©2003 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.
44
FIGURE 7.80 Problem 17. Robert L. Boylestad Introductory Circuit Analysis, 10ed. Copyright ©2003 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.
45
FIGURE 7.81 Problem 18. Robert L. Boylestad Introductory Circuit Analysis, 10ed. Copyright ©2003 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.
46
FIGURE 7.82 Problem 19. Robert L. Boylestad Introductory Circuit Analysis, 10ed. Copyright ©2003 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.
47
FIGURE 7.83 Problem 20. Robert L. Boylestad Introductory Circuit Analysis, 10ed. Copyright ©2003 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.
48
FIGURE 7.84 Problem 21. Robert L. Boylestad Introductory Circuit Analysis, 10ed. Copyright ©2003 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.
49
FIGURE 7.85 Problem 22. Robert L. Boylestad Introductory Circuit Analysis, 10ed. Copyright ©2003 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.
50
FIGURE 7.86 Problem 23. Robert L. Boylestad Introductory Circuit Analysis, 10ed. Copyright ©2003 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.
51
FIGURE 7.87 Problem 24. Robert L. Boylestad Introductory Circuit Analysis, 10ed. Copyright ©2003 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.
52
FIGURE 7.88 Problem 25. Robert L. Boylestad Introductory Circuit Analysis, 10ed. Copyright ©2003 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.
53
FIGURE 7.89 Problem 26. Robert L. Boylestad Introductory Circuit Analysis, 10ed. Copyright ©2003 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.
54
FIGURE 7.90 Problem 27. Robert L. Boylestad Introductory Circuit Analysis, 10ed. Copyright ©2003 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.
55
FIGURE 7.91 Problem 28. Robert L. Boylestad Introductory Circuit Analysis, 10ed. Copyright ©2003 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.
56
FIGURE 7.92 Problem 29. Robert L. Boylestad Introductory Circuit Analysis, 10ed. Copyright ©2003 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.
57
FIGURE 7.93 Problem 30. Robert L. Boylestad Introductory Circuit Analysis, 10ed. Copyright ©2003 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.
58
FIGURE 7.96 Problem 40. Robert L. Boylestad Introductory Circuit Analysis, 10ed. Copyright ©2003 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.
