1

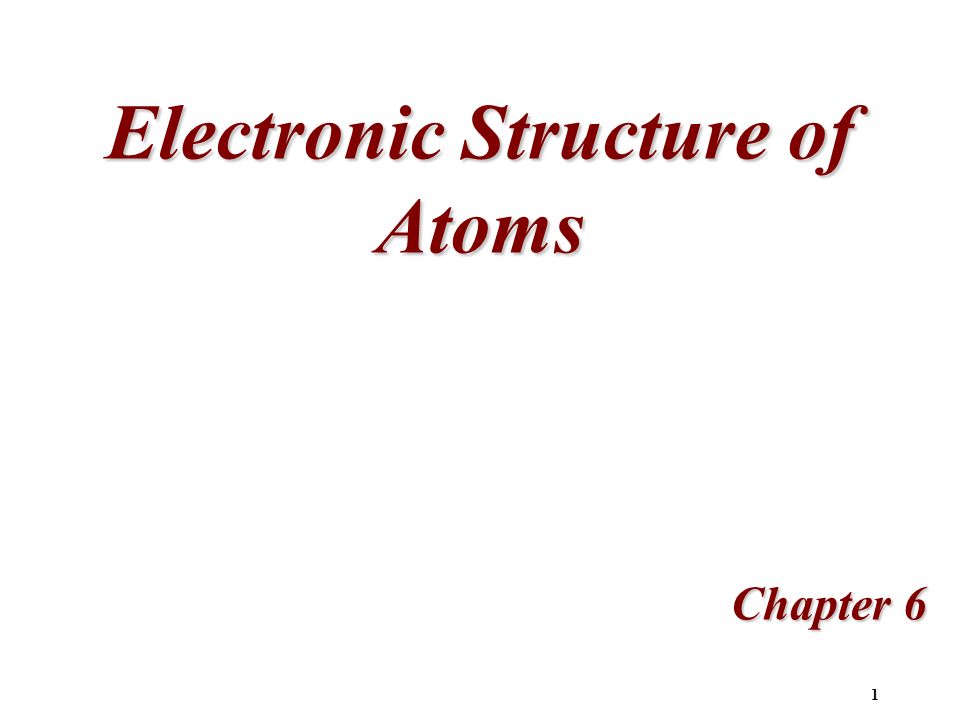

2 1 Electronic Structure of Atoms Chapter 6

3 2 The Wave Nature of Light All waves have a characteristic wavelength,, and amplitude, A. The frequency,, of a wave is the number of cycles which pass a point in one second. The speed of a wave, v, is given by its frequency multiplied by its wavelength: For light, speed = c. c =

4 3 The Wave Nature of Light

5 4 Quantized Energy and Photons Planck quanta Planck: energy can only be absorbed or released from atoms in certain amounts called quanta. The relationship between energy and frequency is E = h where h is Planck’s constant (6.626  10 -34 J.s). To understand quantization consider the notes produced by a violin (continuous) and a piano (quantized): a violin can produce any note by placing the fingers at an appropriate spot on the bridge. A piano can only produce notes corresponding to the keys on the keyboard.

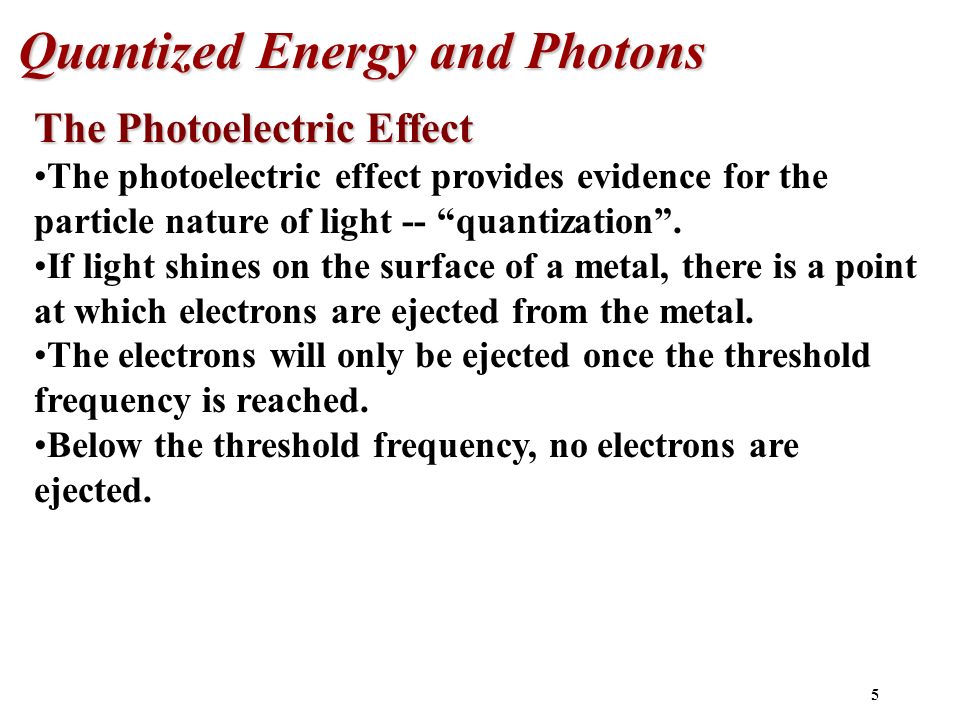

6 5 Quantized Energy and Photons The Photoelectric Effect The photoelectric effect provides evidence for the particle nature of light -- “quantization”. If light shines on the surface of a metal, there is a point at which electrons are ejected from the metal. The electrons will only be ejected once the threshold frequency is reached. Below the threshold frequency, no electrons are ejected.

7 6 Quantized Energy and Photons The Photoelectric Effect Above the threshold frequency, the number of electrons ejected depend on the intensity of the light. Einstein assumed that light traveled in energy packets called photons. The energy of one photon, E = h.

8 7 Quantized Energy and Photons The Photoelectric Effect

9 8 Bohr’s Model of the Hydrogen Atom Line Spectra Radiation composed of only one wavelength is called monochromatic. Radiation that spans a whole array of different wavelengths is called continuous. White light can be separated into a continuous spectrum of colors. Note that there are no dark spots on the continuous spectrum that would correspond to different lines.

10 9 Bohr’s Model of the Hydrogen Atom Line Spectra Shows that visible light contains many wavelengths

11 10 Bohr’s Model of the Hydrogen Atom Bohr’s Model Colors from excited gases arise because electrons move between energy states in the atom. Only a few wavelengths emitted from elements

12 11 Bohr’s Model of the Hydrogen Atom Bohr’s Model Since the energy states are quantized, the light emitted from excited atoms must be quantized and appear as line spectra. After lots of math, Bohr showed that E = (-2.18 x 10 -18 J)(1/n 2 ) where n is the principal quantum number (i.e., n = 1, 2, 3, …. and nothing else)

13 12 Bohr’s Model of the Hydrogen Atom Bohr’s Model The first orbit in the Bohr model has n = 1, is closest to the nucleus, and has negative energy by convention. The furthest orbit in the Bohr model has n close to infinity and corresponds to zero energy. Electrons in the Bohr model can only move between orbits by absorbing and emitting energy in quanta (h ). The amount of energy absorbed or emitted on movement between states is given by

14 13 Bohr’s Model of the Hydrogen Atom Bohr’s Model We can show that  E = (-2.18 x 10 -18 J)(1/n f 2 - 1/n i 2 ) When n i > n f, energy is emitted. When n f > n i, energy is absorbed.

15 14 The Wave Behavior of Matter Using Einstein’s and Planck’s equations, de Broglie supposed: mv = momentum

16 15 The Uncertainty Principle Heisenberg’s Uncertainty Principle Heisenberg’s Uncertainty Principle: on the mass scale of atomic particles, we cannot determine the exactly the position, direction of motion, and speed simultaneously. For electrons: we cannot determine their momentum and position simultaneously.

17 16 Quantum Mechanics and Atomic Orbitals Schrödinger proposed an equation that contains both wave and particle terms. Solving the equation leads to wave functions. The wave function gives the shape of the electronic orbital. The square of the wave function, gives the probability of finding the electron, that is, gives the electron density for the atom.

18 17 Quantum Mechanics and Atomic Orbitals

19 18 Quantum Mechanics and Atomic Orbitals Orbitals and Quantum Numbers If we solve the Schrödinger equation, we get wave functions and energies for the wave functions. orbitals We call wave functions orbitals. Schrödinger’s equation requires 3 quantum numbers: Principal Quantum Number, n. This is the same as Bohr’s n. As n becomes larger, the atom becomes larger and the electron is further from the nucleus.

20 19 Orbitals and Quantum Numbers Azimuthal Quantum Number, l. Shape This quantum number depends on the value of n. The values of l begin at 0 and increase to (n - 1). We usually use letters for l (s, p, d and f for l = 0, 1, 2, and 3). Usually we refer to the s, p, d and f-orbitals. Magnetic Quantum Number, m l direction This quantum number depends on l. The magnetic quantum number has integral values between -l and +l. Magnetic quantum numbers give the 3D orientation of each orbital.

21 20 Orbitals and Quantum Numbers

22 21 Quantum Mechanics and Atomic Orbitals Orbitals and Quantum Numbers Orbitals can be ranked in terms of energy to yield an Aufbau diagram. Note that the following Aufbau diagram is for a single electron system. As n increases, note that the spacing between energy levels becomes smaller.

23 22

24 23 Representation of Orbitals The s Orbitals All s-orbitals are spherical. As n increases, the s-orbitals get larger. As n increases, the number of nodes increase. A node is a region in space where the probability of finding an electron is zero. At a node,  2 = 0 For an s-orbital, the number of nodes is (n - 1).

25 24 Representation of Orbitals The s Orbitals

26 25 Representation of Orbitals The p Orbitals There are three p-orbitals p x, p y, and p z. (The three p- orbitals lie along the x-, y- and z- axes. The letters correspond to allowed values of m l of -1, 0, and +1.) The orbitals are dumbbell shaped. As n increases, the p-orbitals get larger. All p-orbitals have a node at the nucleus.

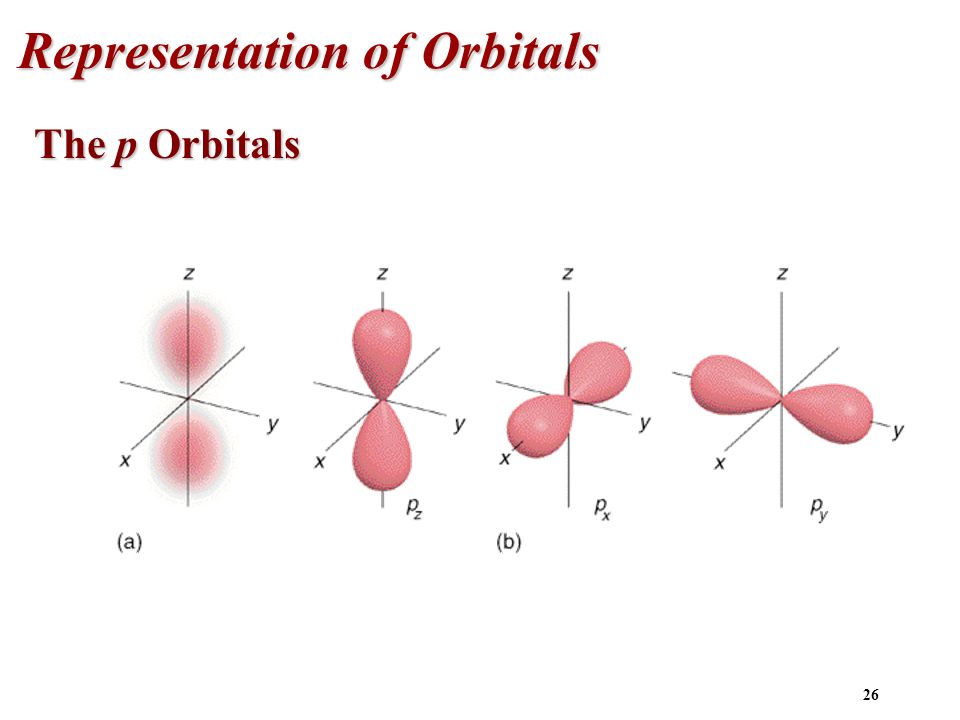

27 26 Representation of Orbitals The p Orbitals

28 27 Representation of Orbitals The d and f Orbitals There are 5 d- and 7 f-orbitals. Three of the d-orbitals lie in a plane bisecting the x-, y- and z-axes. Two of the d-orbitals lie in a plane aligned along the x-, y- and z-axes. Four of the d-orbitals have four lobes each. One d-orbital has two lobes and a collar.

29 28 Representation of Orbitals The d Orbitals

30 29 Orbitals in Many Electron Atoms Orbitals of the same energy are said to be degenerate. All orbitals of a given subshell have the same energy (are degenerate) For example the three 4p orbitals are degenerate

31 30 Orbitals in Many Electron Atoms Energies of Orbitals

32 31 Orbitals in Many Electron Atoms Electron Spin and the Pauli Exclusion Principle Line spectra of many electron atoms show each line as a closely spaced pair of lines. Stern and Gerlach designed an experiment to determine why. A beam of atoms was passed through a slit and into a magnetic field and the atoms were then detected. Two spots were found: one with the electrons spinning in one direction and one with the electrons spinning in the opposite direction.

33 32 Orbitals in Many Electron Atoms Electron Spin and the Pauli Exclusion Principle

34 33 Orbitals in Many Electron Atoms Electron Spin and the Pauli Exclusion Principle Since electron spin is quantized, we define m s = spin quantum number =  ½. Pauli’s Exclusions Principle: Pauli’s Exclusions Principle: no two electrons can have the same set of 4 quantum numbers. Therefore, two electrons in the same orbital must have opposite spins.

35 34 Electron configurations tells us in which orbitals the electrons for an element are located. Three rules: electrons fill orbitals starting with lowest n and moving upwards no two electrons can fill one orbital with the same spin (Pauli) for degenerate orbitals, electrons fill each orbital singly before any orbital gets a second electron (Hund’s rule).

36 35

37 36 Electron Configurations and the Periodic Table

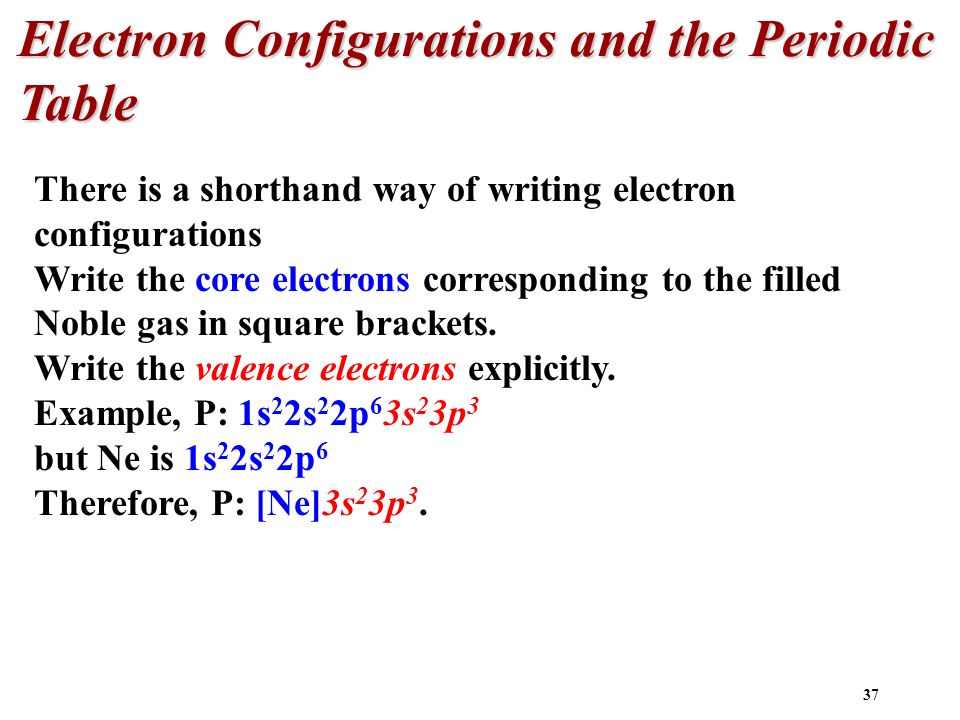

38 37 Electron Configurations and the Periodic Table There is a shorthand way of writing electron configurations Write the core electrons corresponding to the filled Noble gas in square brackets. Write the valence electrons explicitly. Example, P: 1s 2 2s 2 2p 6 3s 2 3p 3 but Ne is 1s 2 2s 2 2p 6 Therefore, P: [Ne]3s 2 3p 3.

39 38 End of Chapter 6 Electronic Structure of Atoms
