1 The W W W: History, Hypertext, and Interface Design

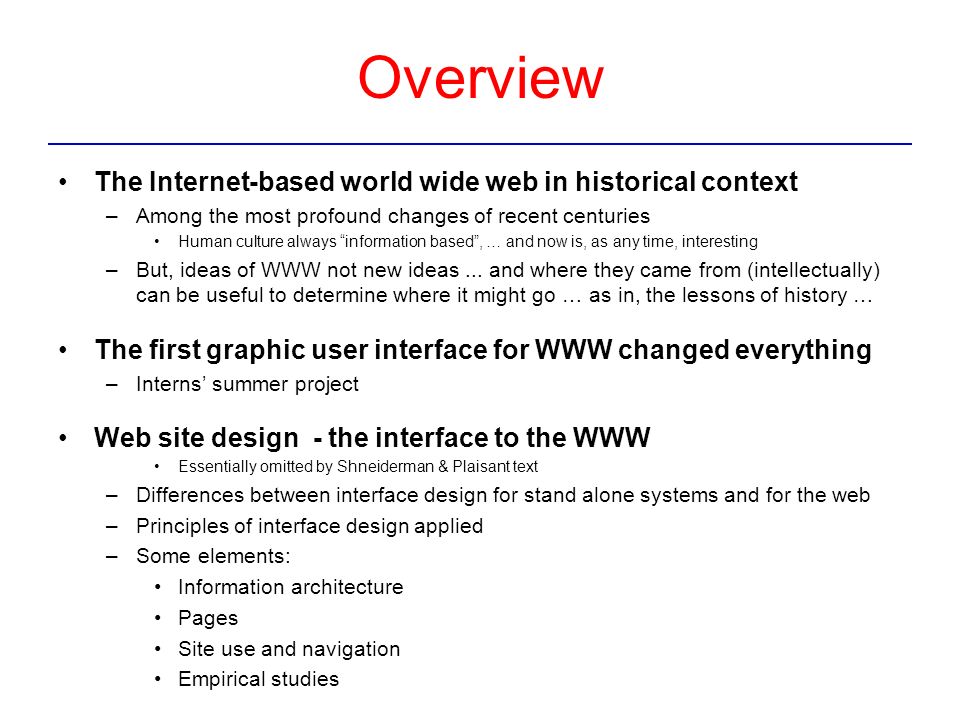

2 Overview The Internet-based world wide web in historical context –Among the most profound changes of recent centuries Human culture always “information based”, … and now is, as any time, interesting –But, ideas of WWW not new ideas... and where they came from (intellectually) can be useful to determine where it might go … as in, the lessons of history … The first graphic user interface for WWW changed everything –Interns’ summer project Web site design - the interface to the WWW Essentially omitted by Shneiderman & Plaisant text –Differences between interface design for stand alone systems and for the web –Principles of interface design applied –Some elements: Information architecture Pages Site use and navigation Empirical studies

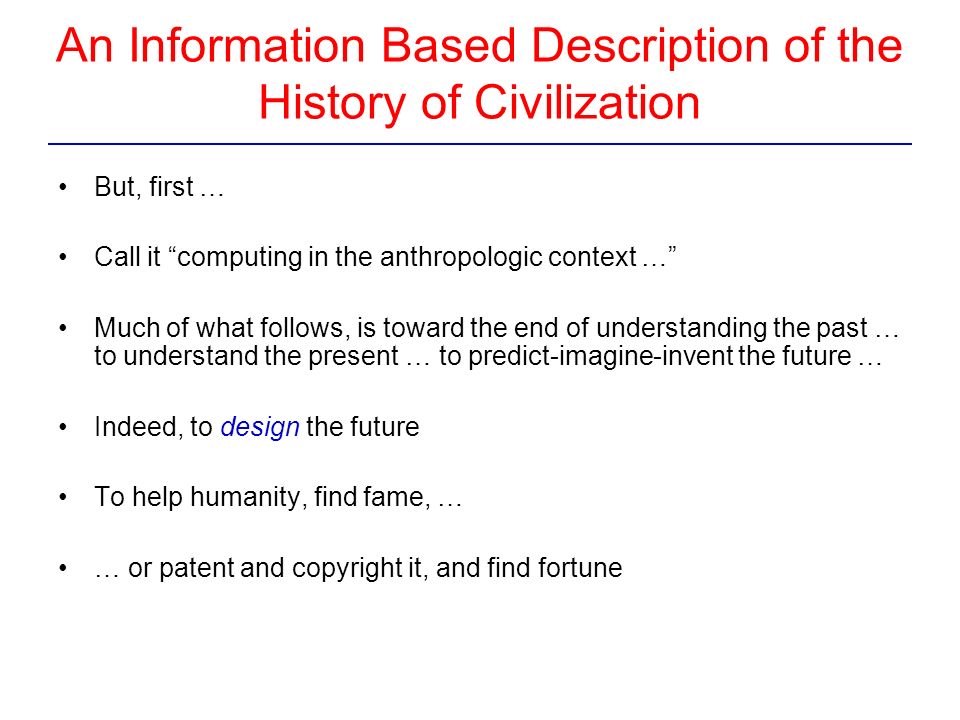

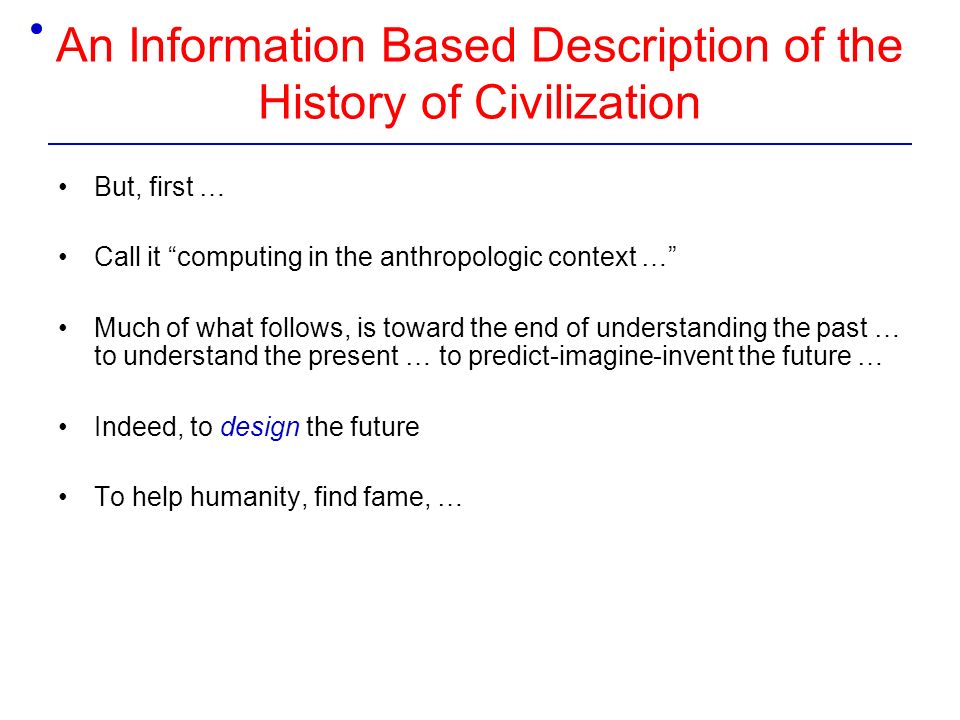

3 An Information Based Description of the History of Civilization But, first … Call it “computing in the anthropologic context …” Much of what follows, is toward the end of understanding the past … to understand the present … to predict-imagine-invent the future … Indeed, to design the future To help humanity, find fame, …

4 An Information Based Description of the History of Civilization But, first … Call it “computing in the anthropologic context …” Much of what follows, is toward the end of understanding the past … to understand the present … to predict-imagine-invent the future … Indeed, to design the future To help humanity, find fame, … … or patent and copyright it, and find fortune

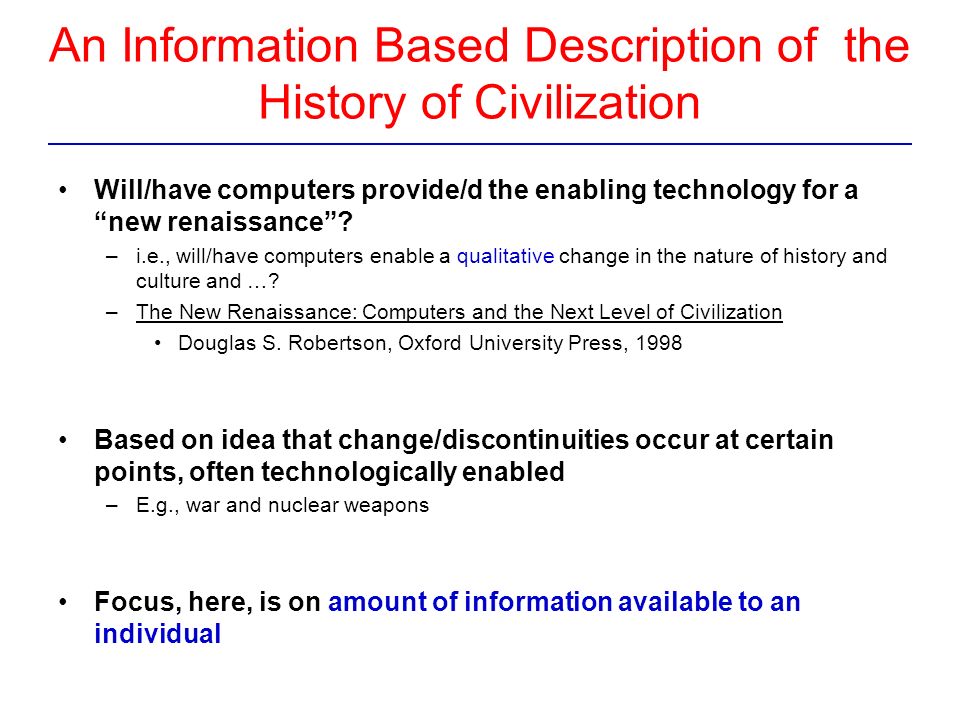

5 An Information Based Description of the History of Civilization Will/have computers provide/d the enabling technology for a “new renaissance”? –i.e., will/have computers enable a qualitative change in the nature of history and culture and …? –The New Renaissance: Computers and the Next Level of Civilization Douglas S. Robertson, Oxford University Press, 1998 Based on idea that change/discontinuities occur at certain points, often technologically enabled –E.g., war and nuclear weapons Focus, here, is on amount of information available to an individual

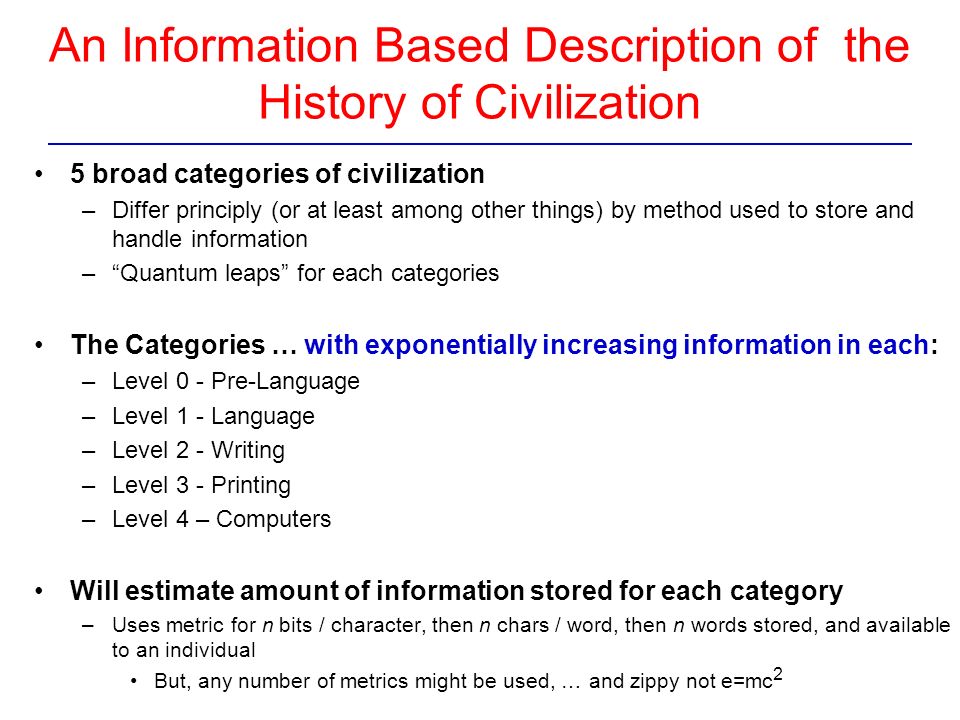

6 An Information Based Description of the History of Civilization 5 broad categories of civilization –Differ principly (or at least among other things) by method used to store and handle information –“Quantum leaps” for each categories The Categories … with exponentially increasing information in each: –Level 0 - Pre-Language –Level 1 - Language –Level 2 - Writing –Level 3 - Printing –Level 4 – Computers Will estimate amount of information stored for each category –Uses metric for n bits / character, then n chars / word, then n words stored, and available to an individual But, any number of metrics might be used, … and zippy not e=mc 2

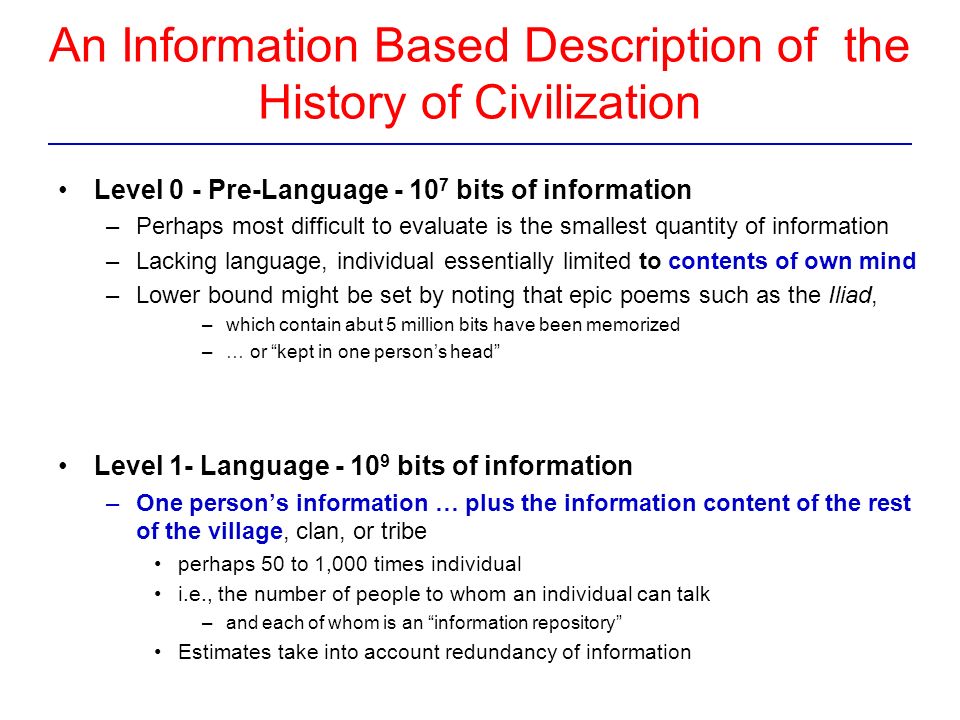

7 An Information Based Description of the History of Civilization Level 0 - Pre-Language - 10 7 bits of information –Perhaps most difficult to evaluate is the smallest quantity of information –Lacking language, individual essentially limited to contents of own mind –Lower bound might be set by noting that epic poems such as the Iliad, –which contain abut 5 million bits have been memorized –… or “kept in one person’s head” Level 1- Language - 10 9 bits of information –One person’s information … plus the information content of the rest of the village, clan, or tribe perhaps 50 to 1,000 times individual i.e., the number of people to whom an individual can talk –and each of whom is an “information repository” Estimates take into account redundancy of information

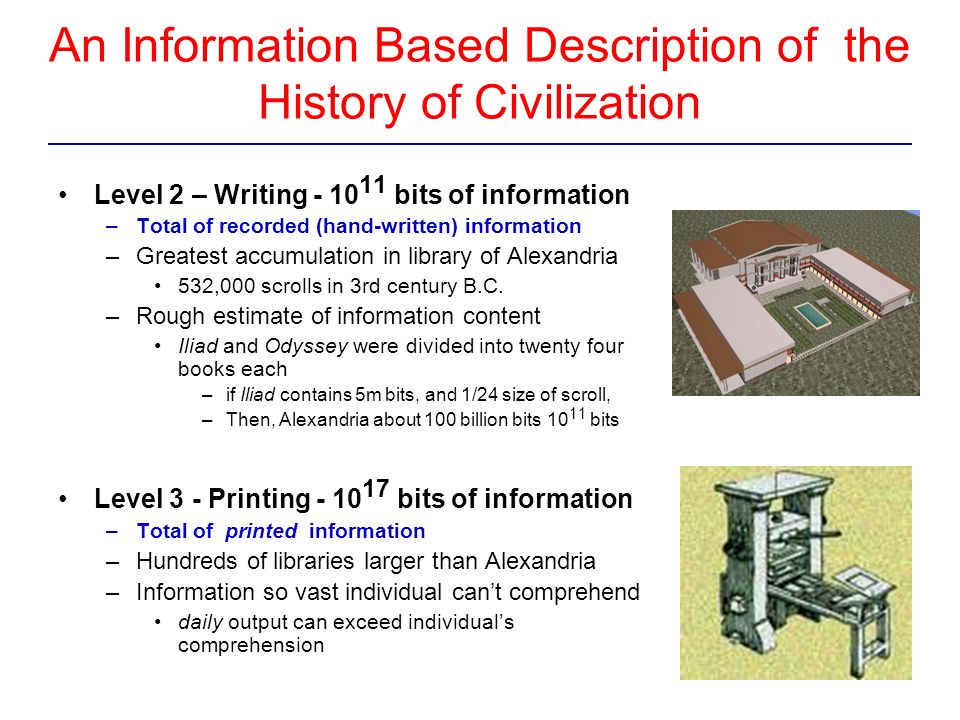

8 An Information Based Description of the History of Civilization Level 2 – Writing - 10 11 bits of information –Total of recorded (hand-written) information –Greatest accumulation in library of Alexandria 532,000 scrolls in 3rd century B.C. –Rough estimate of information content Iliad and Odyssey were divided into twenty four books each –if Iliad contains 5m bits, and 1/24 size of scroll, –Then, Alexandria about 100 billion bits 10 11 bits Level 3 - Printing - 10 17 bits of information –Total of printed information –Hundreds of libraries larger than Alexandria –Information so vast individual can’t comprehend daily output can exceed individual’s comprehension

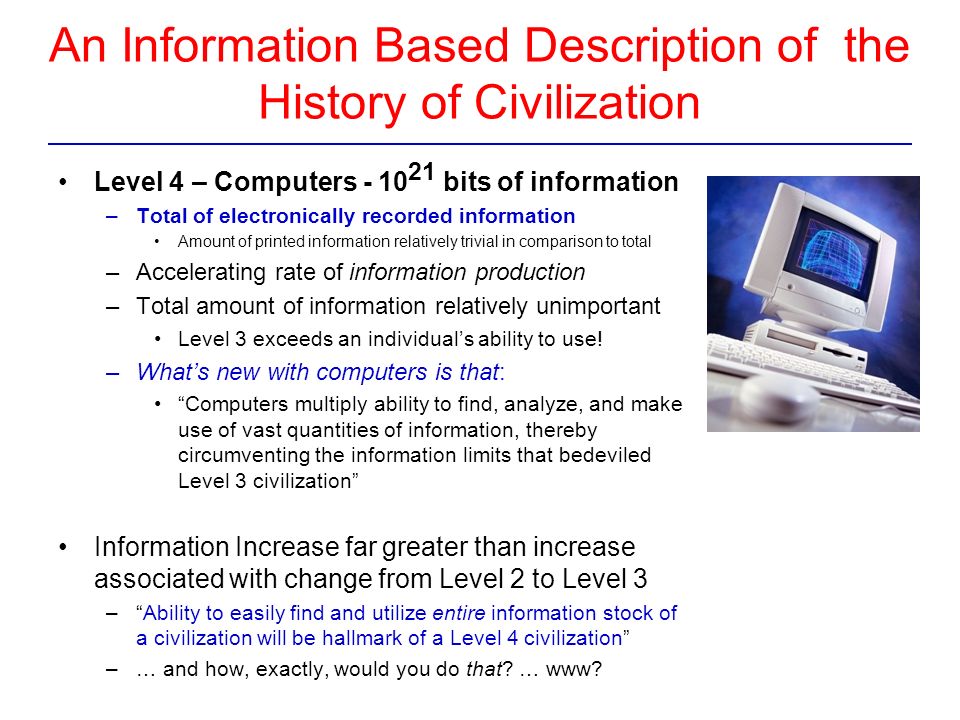

9 An Information Based Description of the History of Civilization Level 4 – Computers - 10 21 bits of information –Total of electronically recorded information Amount of printed information relatively trivial in comparison to total –Accelerating rate of information production –Total amount of information relatively unimportant Level 3 exceeds an individual’s ability to use! –What’s new with computers is that: “Computers multiply ability to find, analyze, and make use of vast quantities of information, thereby circumventing the information limits that bedeviled Level 3 civilization” Information Increase far greater than increase associated with change from Level 2 to Level 3 –“Ability to easily find and utilize entire information stock of a civilization will be hallmark of a Level 4 civilization” –… and how, exactly, would you do that? … www?

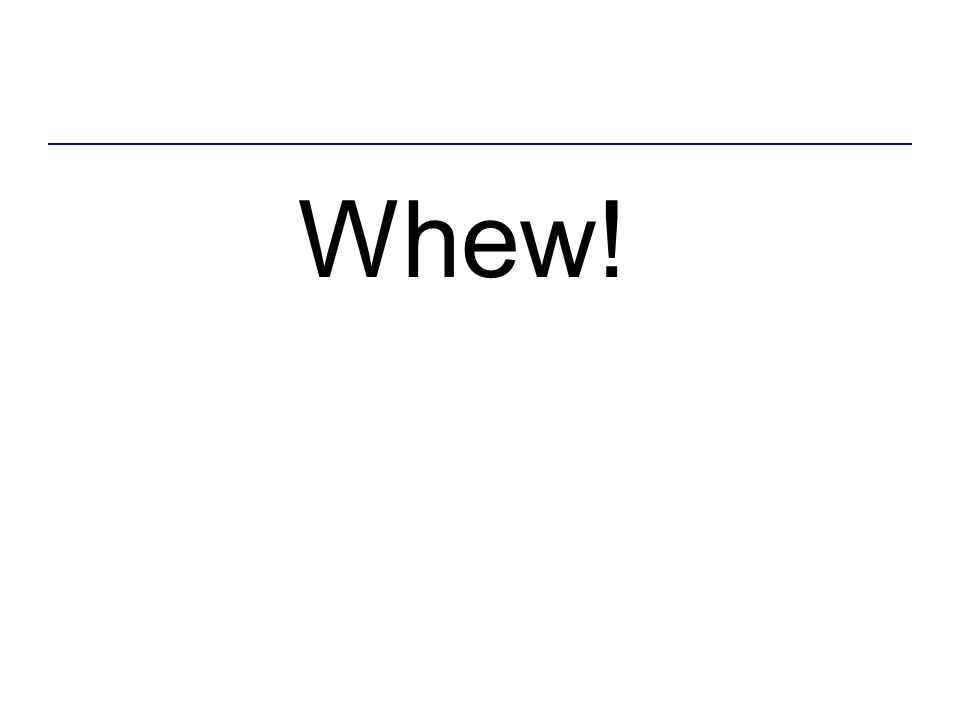

10 Whew!

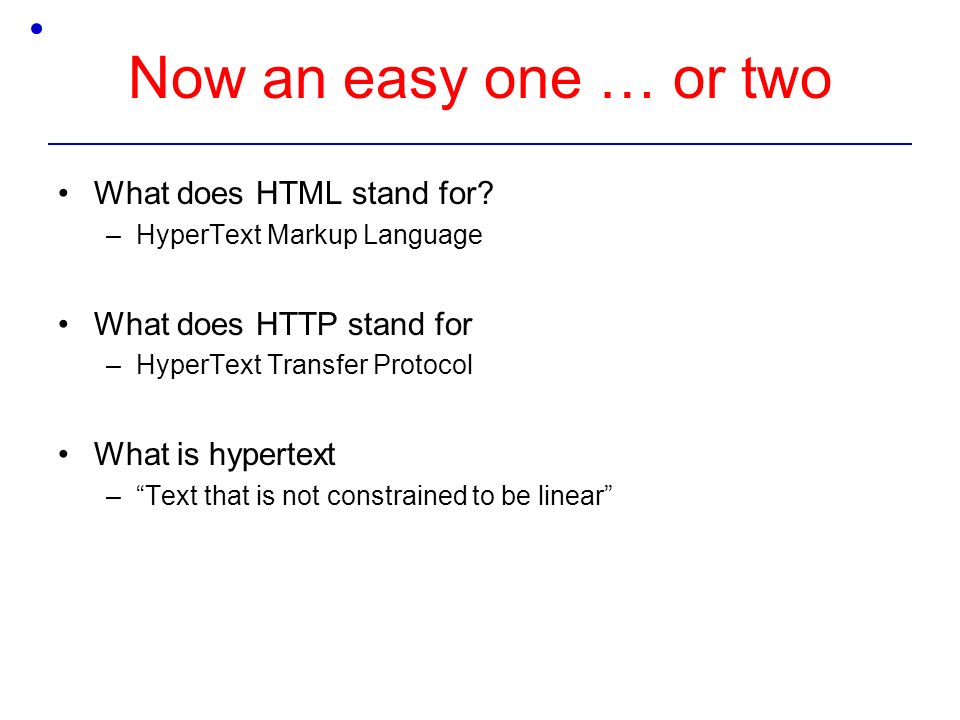

11 Now an easy one … or two What does HTML stand for? –HyperText Markup Language What does HTTP stand for –HyperText Transfer Protocol What is hypertext –“Text that is not constrained to be linear”

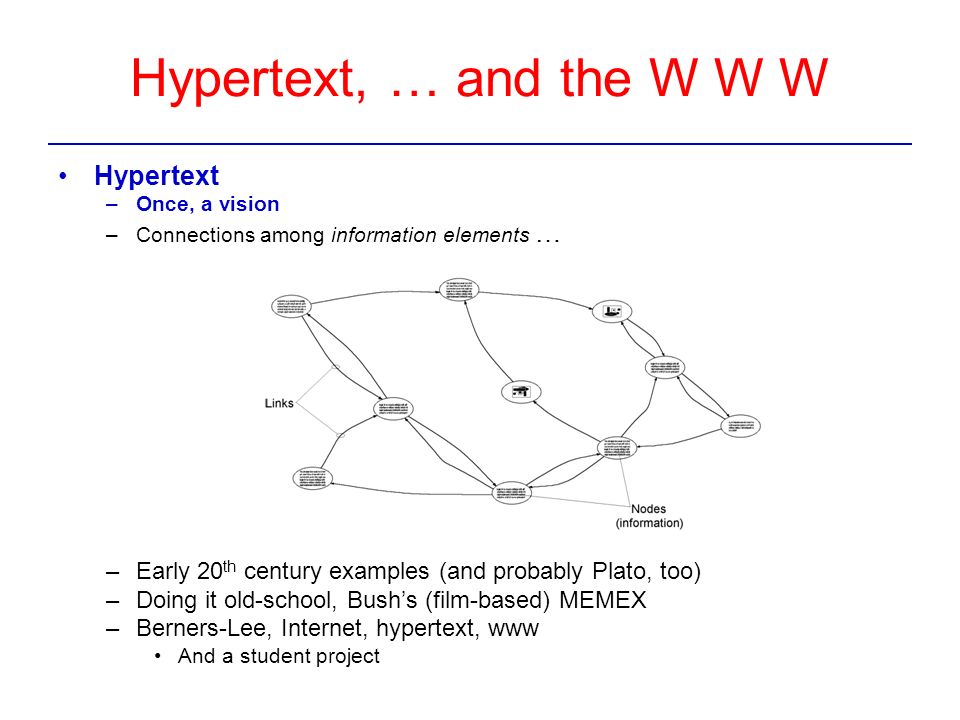

12 Hypertext, … and the W W W Hypertext –Once, a vision –Connections among information elements … –Early 20 th century examples (and probably Plato, too) –Doing it old-school, Bush’s (film-based) MEMEX –Berners-Lee, Internet, hypertext, www And a student project

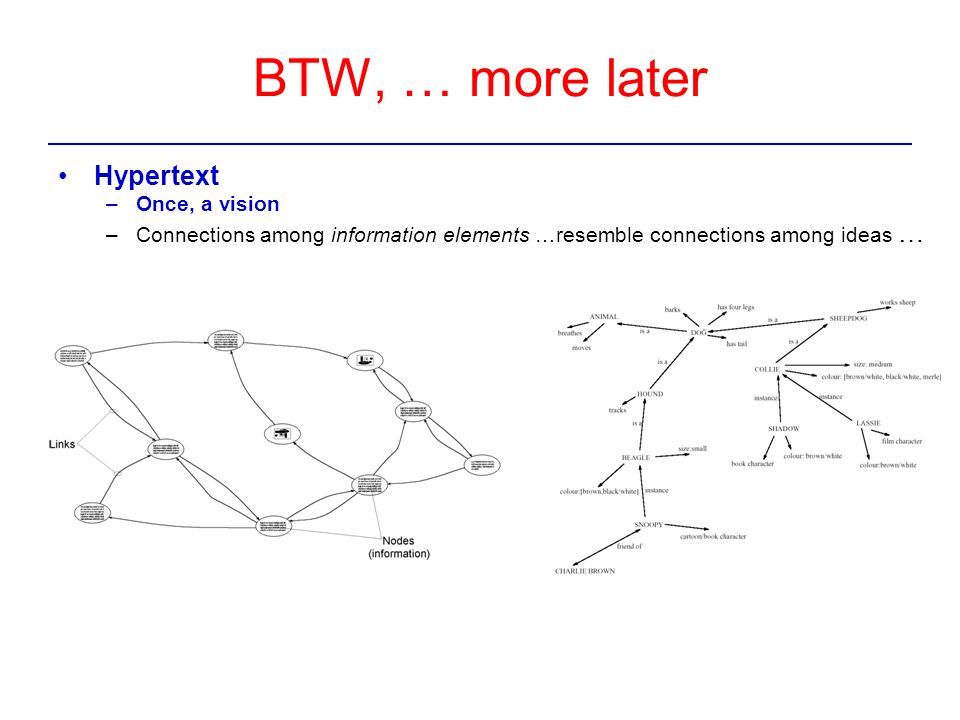

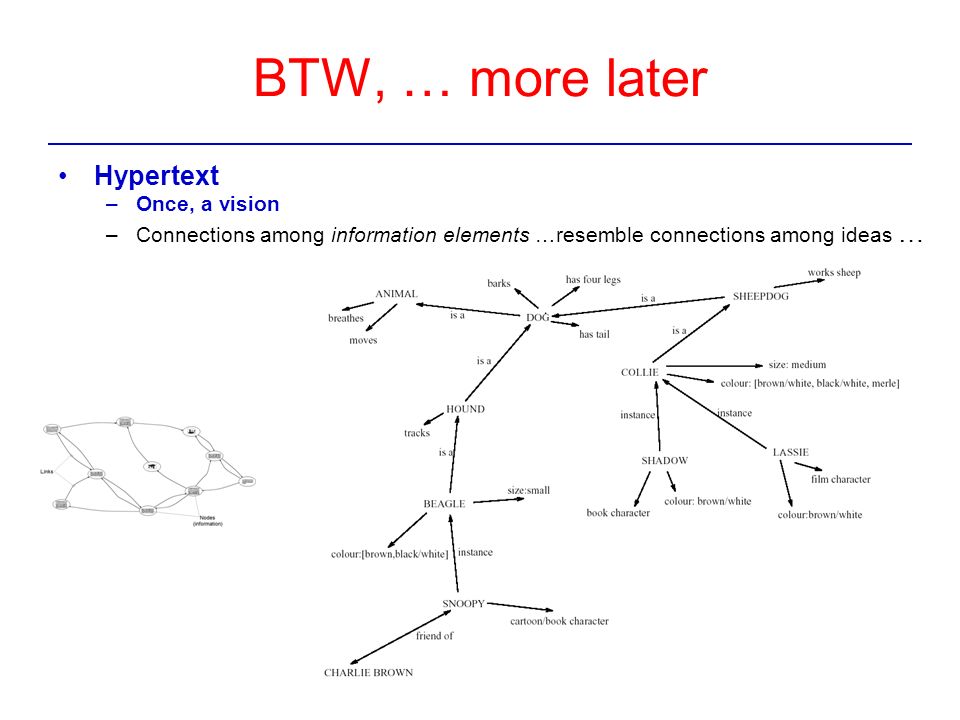

13 BTW, … more later Hypertext –Once, a vision –Connections among information elements …resemble connections among ideas …

14 BTW, … more later Hypertext –Once, a vision –Connections among information elements …resemble connections among ideas …

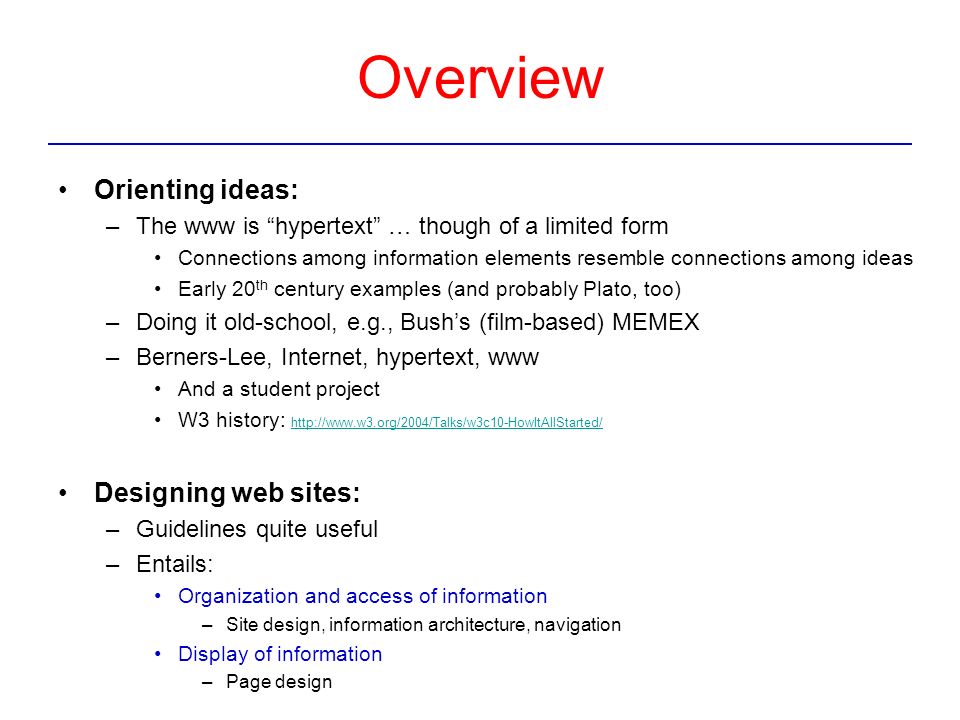

15 Overview Orienting ideas: –The www is “hypertext” … though of a limited form Connections among information elements resemble connections among ideas Early 20 th century examples (and probably Plato, too) –Doing it old-school, e.g., Bush’s (film-based) MEMEX –Berners-Lee, Internet, hypertext, www And a student project W3 history: http://www.w3.org/2004/Talks/w3c10-HowItAllStarted/ http://www.w3.org/2004/Talks/w3c10-HowItAllStarted/ Designing web sites: –Guidelines quite useful –Entails: Organization and access of information –Site design, information architecture, navigation Display of information –Page design

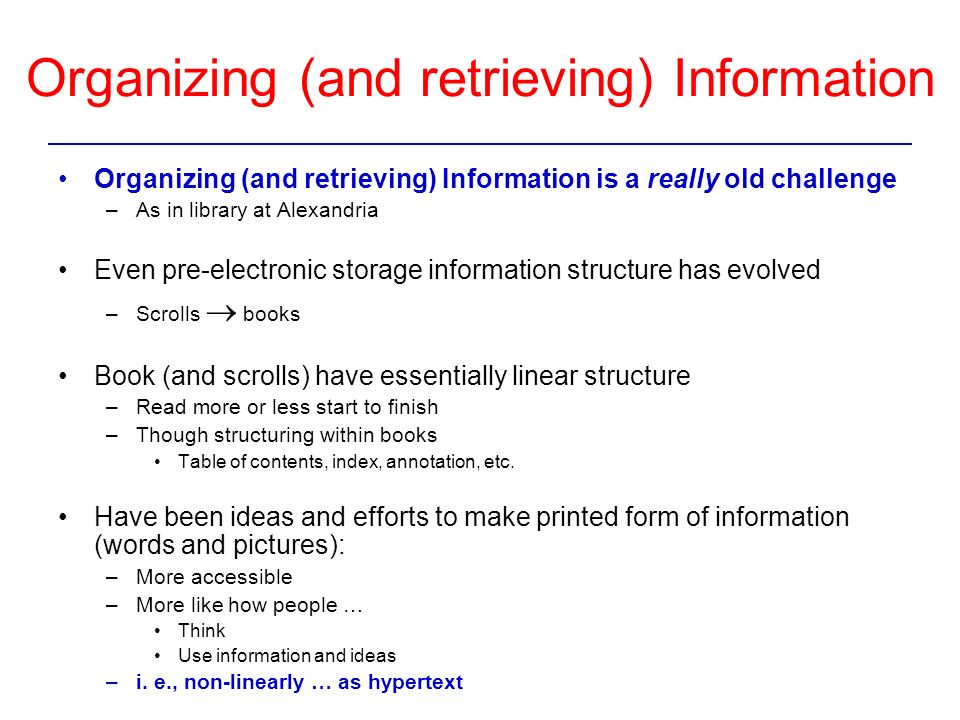

16 Organizing (and retrieving) Information Organizing (and retrieving) Information is a really old challenge –As in library at Alexandria Even pre-electronic storage information structure has evolved –Scrolls  books Book (and scrolls) have essentially linear structure –Read more or less start to finish –Though structuring within books Table of contents, index, annotation, etc. Have been ideas and efforts to make printed form of information (words and pictures): –More accessible –More like how people … Think Use information and ideas –i. e., non-linearly … as hypertext

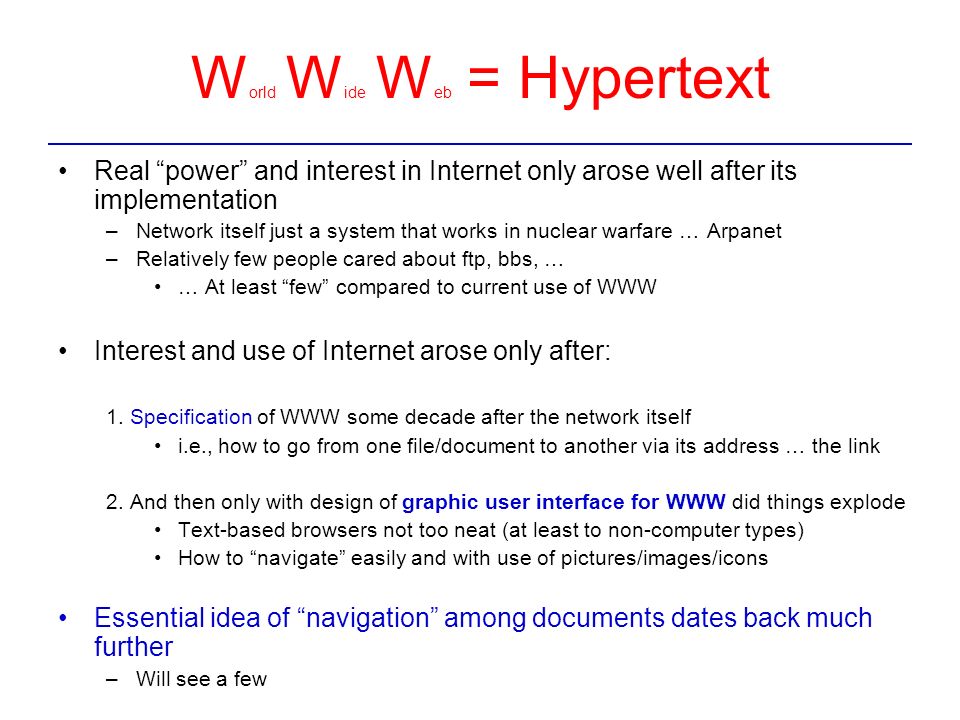

17 W orld W ide W eb = Hypertext Real “power” and interest in Internet only arose well after its implementation –Network itself just a system that works in nuclear warfare … Arpanet –Relatively few people cared about ftp, bbs, … … At least “few” compared to current use of WWW Interest and use of Internet arose only after: 1. Specification of WWW some decade after the network itself i.e., how to go from one file/document to another via its address … the link 2. And then only with design of graphic user interface for WWW did things explode Text-based browsers not too neat (at least to non-computer types) How to “navigate” easily and with use of pictures/images/icons Essential idea of “navigation” among documents dates back much further –Will see a few

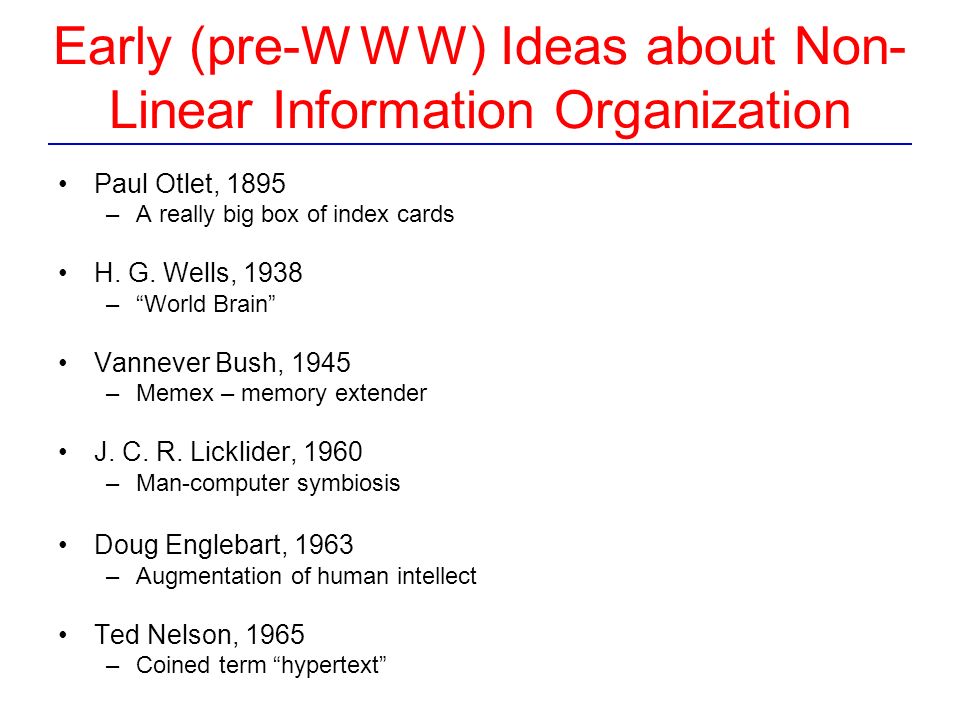

18 Early (pre-W W W) Ideas about Non- Linear Information Organization Paul Otlet, 1895 –A really big box of index cards H. G. Wells, 1938 –“World Brain” Vannever Bush, 1945 –Memex – memory extender J. C. R. Licklider, 1960 –Man-computer symbiosis Doug Englebart, 1963 –Augmentation of human intellect Ted Nelson, 1965 –Coined term “hypertext”

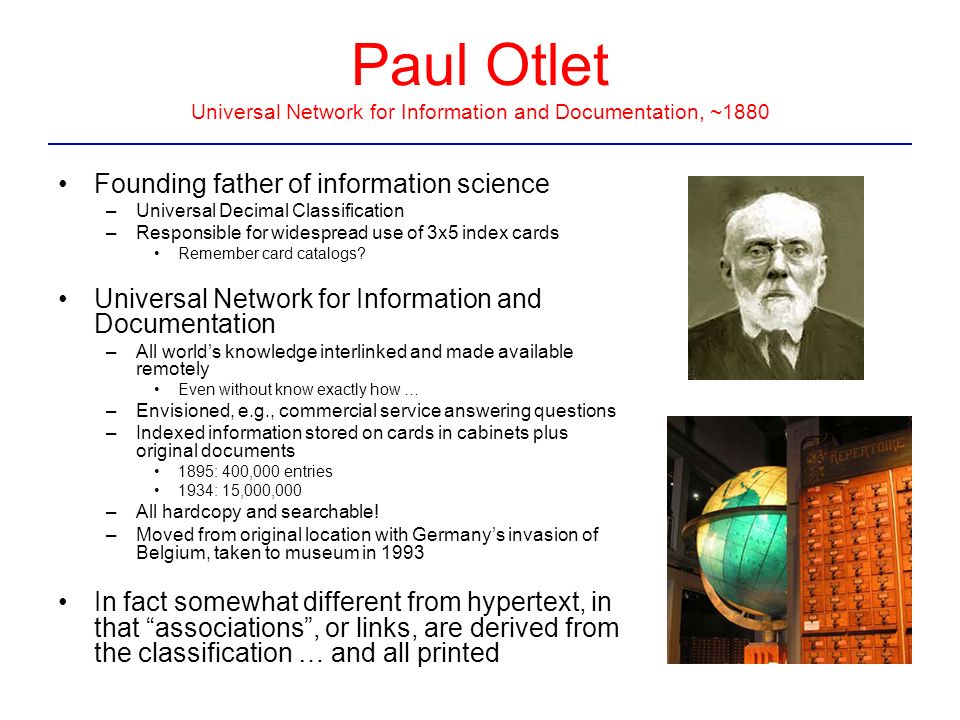

19 Paul Otlet Universal Network for Information and Documentation, ~1880 Founding father of information science –Universal Decimal Classification –Responsible for widespread use of 3x5 index cards Remember card catalogs? Universal Network for Information and Documentation –All world’s knowledge interlinked and made available remotely Even without know exactly how … –Envisioned, e.g., commercial service answering questions –Indexed information stored on cards in cabinets plus original documents 1895: 400,000 entries 1934: 15,000,000 –All hardcopy and searchable! –Moved from original location with Germany’s invasion of Belgium, taken to museum in 1993 In fact somewhat different from hypertext, in that “associations”, or links, are derived from the classification … and all printed

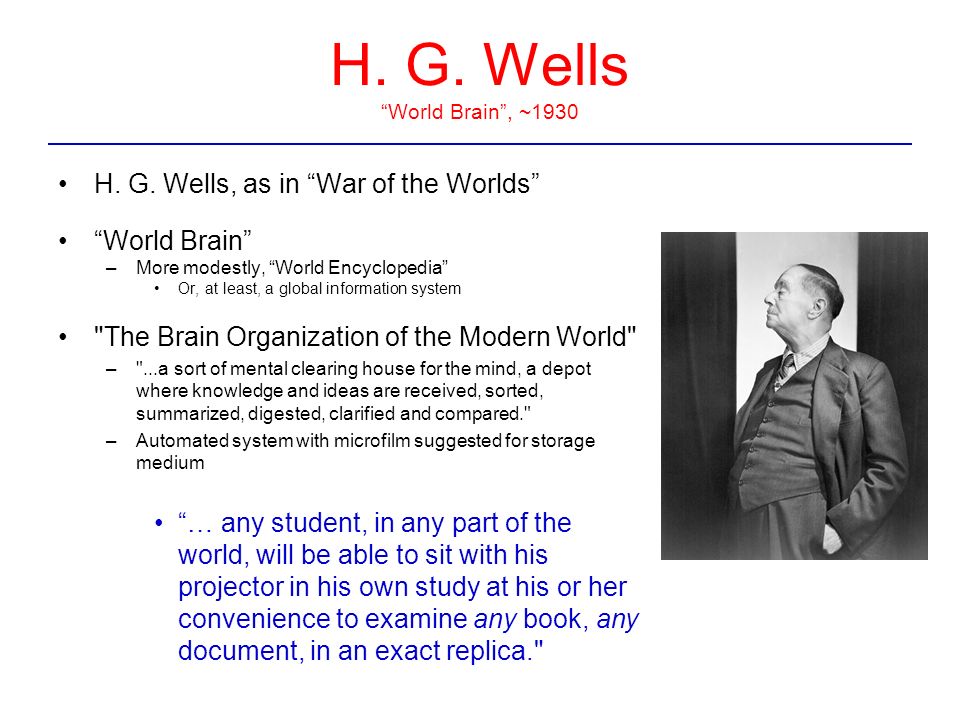

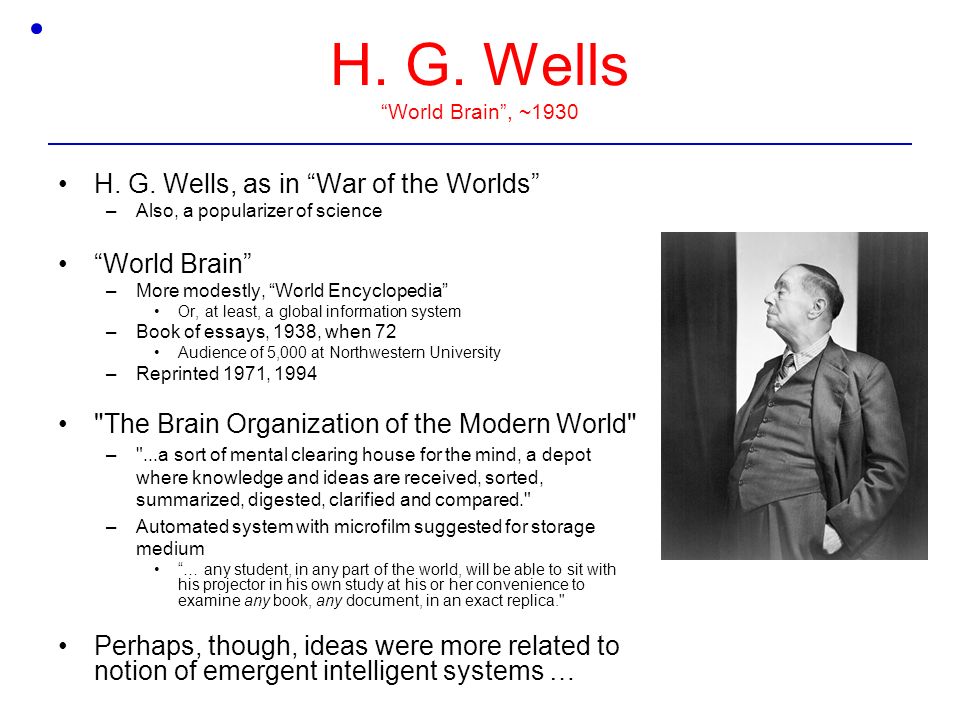

20 H. G. Wells “World Brain”, ~1930 H. G. Wells, as in “War of the Worlds” –Also, a popularizer of science “World Brain” –More modestly, “World Encyclopedia” Or, at least, a global information system –Book of essays, 1938, when 72 Audience of 5,000 at Northwestern University –Reprinted 1971, 1994 "The Brain Organization of the Modern World" –"...a sort of mental clearing house for the mind, a depot where knowledge and ideas are received, sorted, summarized, digested, clarified and compared." –Automated system with microfilm suggested for storage medium “… any student, in any part of the world, will be able to sit with his projector in his own study at his or her convenience to examine any book, any document, in an exact replica." Perhaps, though, ideas were more related to notion of emergent intelligent systems …

21 H. G. Wells “World Brain”, ~1930 H. G. Wells, as in “War of the Worlds” “World Brain” –More modestly, “World Encyclopedia” Or, at least, a global information system "The Brain Organization of the Modern World" –"...a sort of mental clearing house for the mind, a depot where knowledge and ideas are received, sorted, summarized, digested, clarified and compared." –Automated system with microfilm suggested for storage medium “… any student, in any part of the world, will be able to sit with his projector in his own study at his or her convenience to examine any book, any document, in an exact replica."

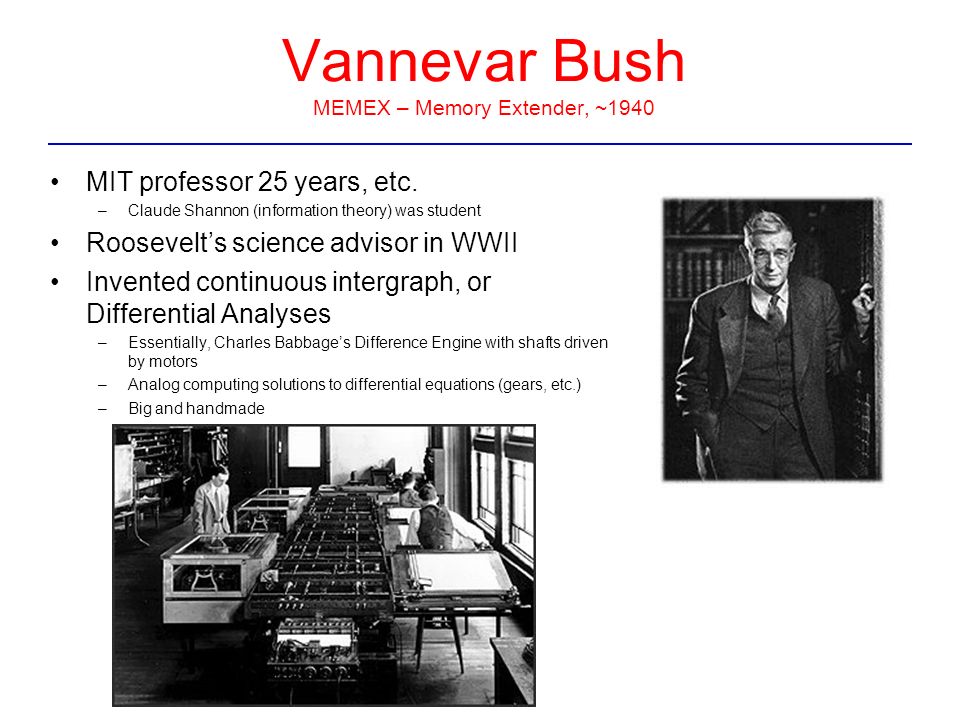

22 Vannevar Bush MEMEX – Memory Extender, ~1940 MIT professor 25 years, etc. –Claude Shannon (information theory) was student Roosevelt’s science advisor in WWII Invented continuous intergraph, or Differential Analyses –Essentially, Charles Babbage’s Difference Engine with shafts driven by motors –Analog computing solutions to differential equations (gears, etc.) –Big and handmade

23 Bush's MEMEX, 1945 "As We May Think", 1945 –MEMory EXtender system –Atlantic Monthly! Problem: –“new knowledge not reaching the people who would benefit from it” –Concerned about the explosion of scientific literature which made it impossible even for specialists to follow developments in a field, Solution: –“A Memex is a device in which an individual stores all his books, records, and communications, and which is mechanized so that it may be consulted with exceeding speed and flexibility. It is an enlarged intimate supplement to his memory.” –desk, slanting screens, buttons, levers, and keyboard “ A memex looked like a desk with two pen-ready touch screen monitors and a scanner surface. It had several gigabytes of storage space filled with textual and graphic, indexed, information ”

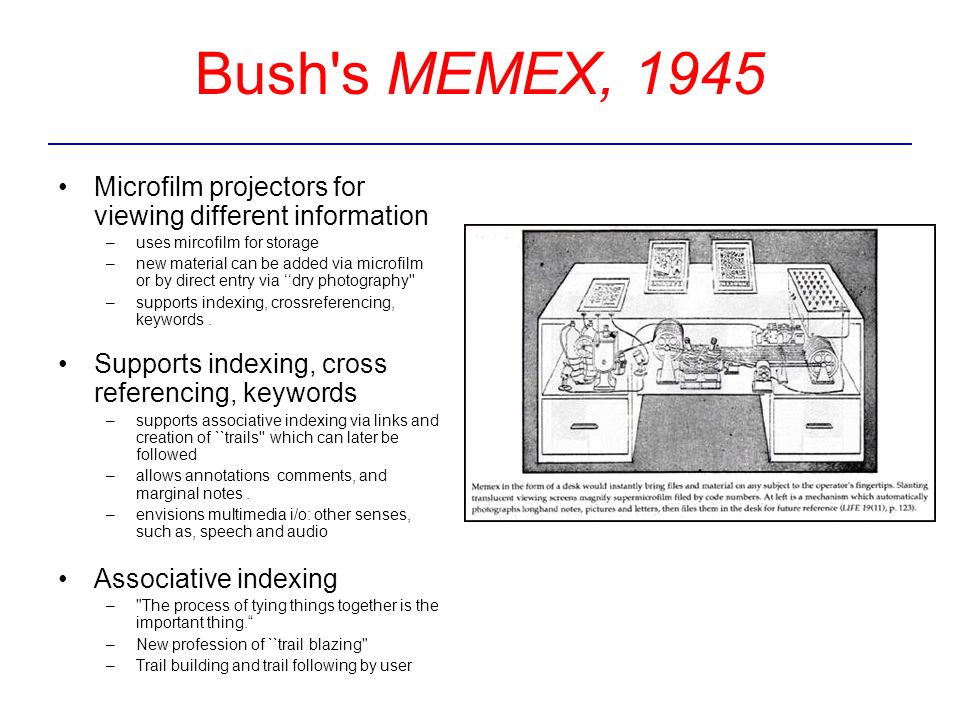

24 Bush's MEMEX, 1945 Microfilm projectors for viewing different information –uses mircofilm for storage –new material can be added via microfilm or by direct entry via ‘‘dry photography'' –supports indexing, cross­referencing, keywords. Supports indexing, cross ­ referencing, keywords –supports associative indexing via links and creation of ``trails'' which can later be followed –allows annotations ­ comments, and marginal notes. –envisions multimedia i/o: other senses, such as, speech and audio Associative indexing –"The process of tying things together is the important thing.“ –New profession of ``trail blazing" –Trail building and trail following by user

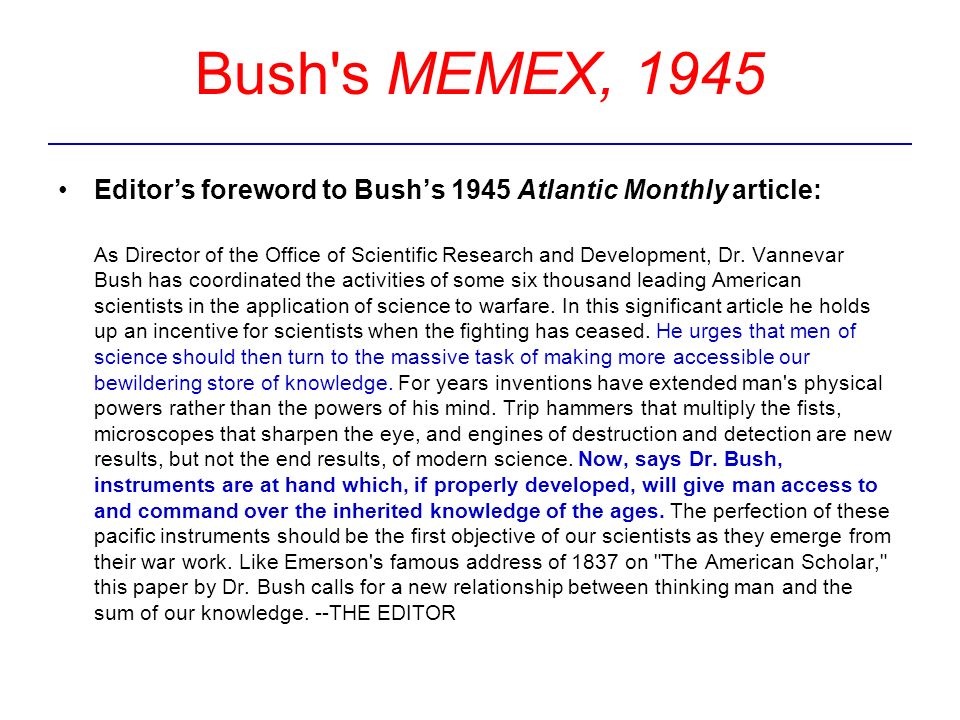

25 Bush's MEMEX, 1945 Editor’s foreword to Bush’s 1945 Atlantic Monthly article: As Director of the Office of Scientific Research and Development, Dr. Vannevar Bush has coordinated the activities of some six thousand leading American scientists in the application of science to warfare. In this significant article he holds up an incentive for scientists when the fighting has ceased. He urges that men of science should then turn to the massive task of making more accessible our bewildering store of knowledge. For years inventions have extended man's physical powers rather than the powers of his mind. Trip hammers that multiply the fists, microscopes that sharpen the eye, and engines of destruction and detection are new results, but not the end results, of modern science. Now, says Dr. Bush, instruments are at hand which, if properly developed, will give man access to and command over the inherited knowledge of the ages. The perfection of these pacific instruments should be the first objective of our scientists as they emerge from their war work. Like Emerson's famous address of 1837 on "The American Scholar," this paper by Dr. Bush calls for a new relationship between thinking man and the sum of our knowledge. --THE EDITOR

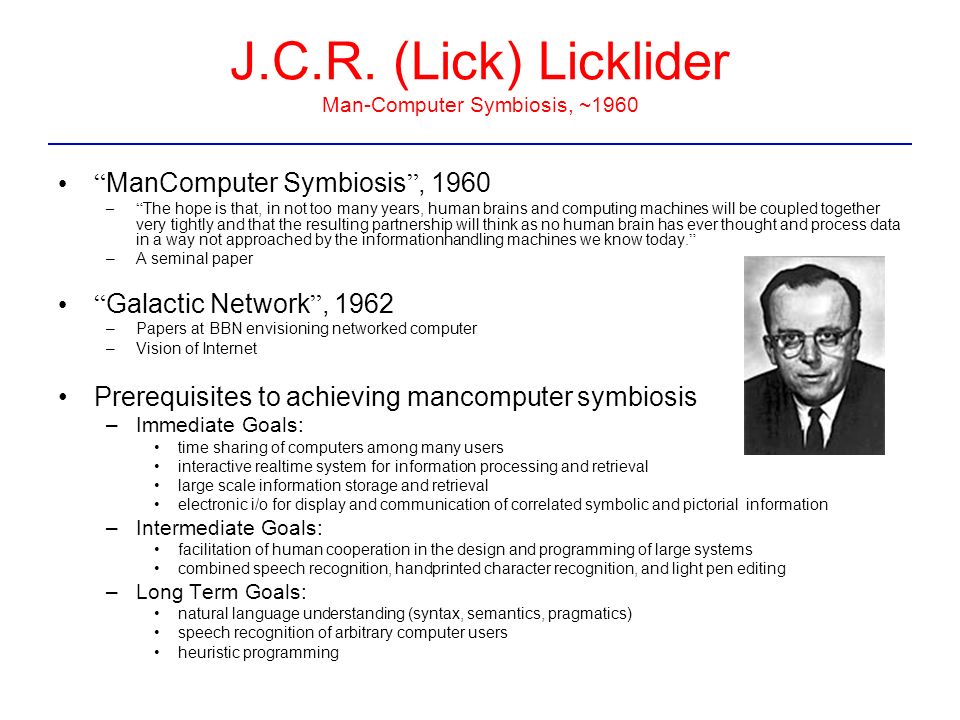

26 J.C.R. (Lick) Licklider Man-Computer Symbiosis, ~1960 “ Man ­ Computer Symbiosis ”, 1960 –“ The hope is that, in not too many years, human brains and computing machines will be coupled together very tightly and that the resulting partnership will think as no human brain has ever thought and process data in a way not approached by the information ­ handling machines we know today. ” –A seminal paper “ Galactic Network ”, 1962 –Papers at BBN envisioning networked computer –Vision of Internet Prerequisites to achieving man ­ computer symbiosis –Immediate Goals: time sharing of computers among many users interactive real ­ time system for information processing and retrieval large scale information storage and retrieval electronic i/o for display and communication of correlated symbolic and pictorial information –Intermediate Goals: facilitation of human cooperation in the design and programming of large systems combined speech recognition, hand ­ printed character recognition, and light pen editing –Long Term Goals: natural language understanding (syntax, semantics, pragmatics) speech recognition of arbitrary computer users heuristic programming

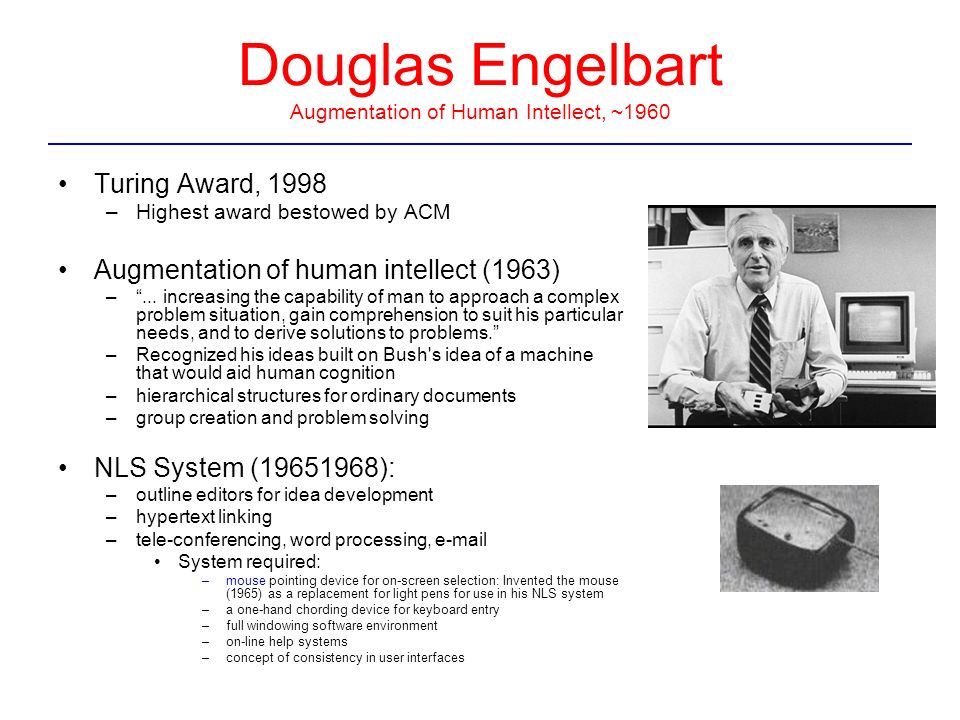

27 Douglas Engelbart Augmentation of Human Intellect, ~1960 Turing Award, 1998 –Highest award bestowed by ACM Augmentation of human intellect (1963) –“... increasing the capability of man to approach a complex problem situation, gain comprehension to suit his particular needs, and to derive solutions to problems.” –Recognized his ideas built on Bush's idea of a machine that would aid human cognition –hierarchical structures for ordinary documents –group creation and problem solving NLS System (1965­1968): –outline editors for idea development –hypertext linking –tele-conferencing, word processing, e-mail System required: –mouse pointing device for on-screen selection: Invented the mouse (1965) as a replacement for light pens for use in his NLS system –a one-hand chording device for keyboard entry –full windowing software environment –on-line help systems –concept of consistency in user interfaces

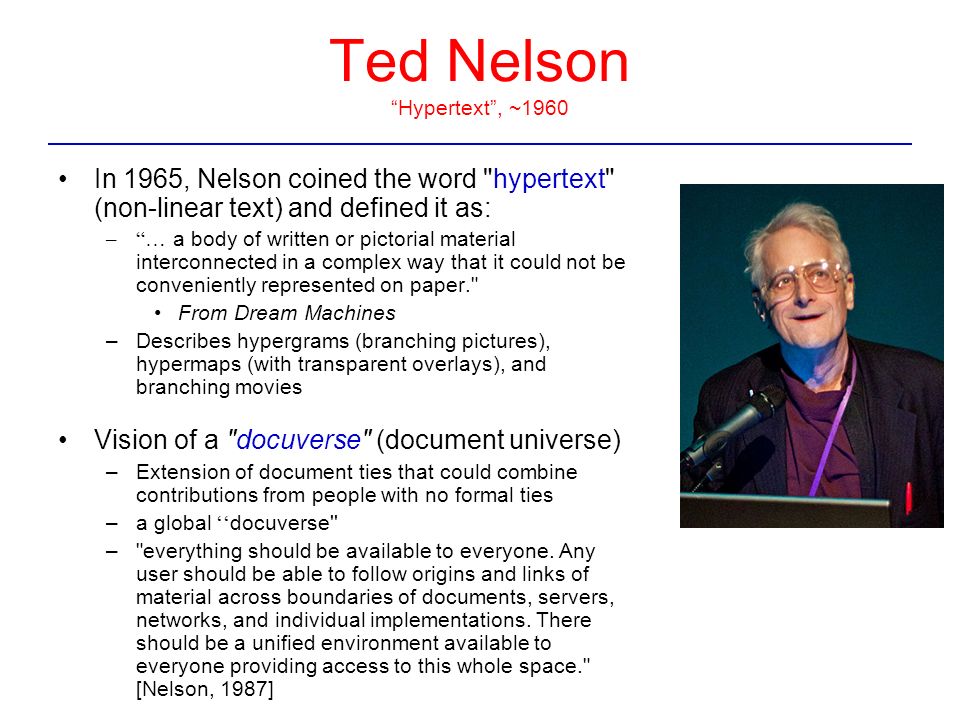

28 Ted Nelson “Hypertext”, ~1960 In 1965, Nelson coined the word "hypertext" (non-linear text) and defined it as: –“… a body of written or pictorial material interconnected in a complex way that it could not be conveniently represented on paper." From Dream Machines –Describes hypergrams (branching pictures), hypermaps (with transparent overlays), and branching movies Vision of a "docuverse" (document universe) –Extension of document ties that could combine contributions from people with no formal ties –a global ‘‘ docuverse'' –"everything should be available to everyone. Any user should be able to follow origins and links of material across boundaries of documents, servers, networks, and individual implementations. There should be a unified environment available to everyone providing access to this whole space." [Nelson, 1987]

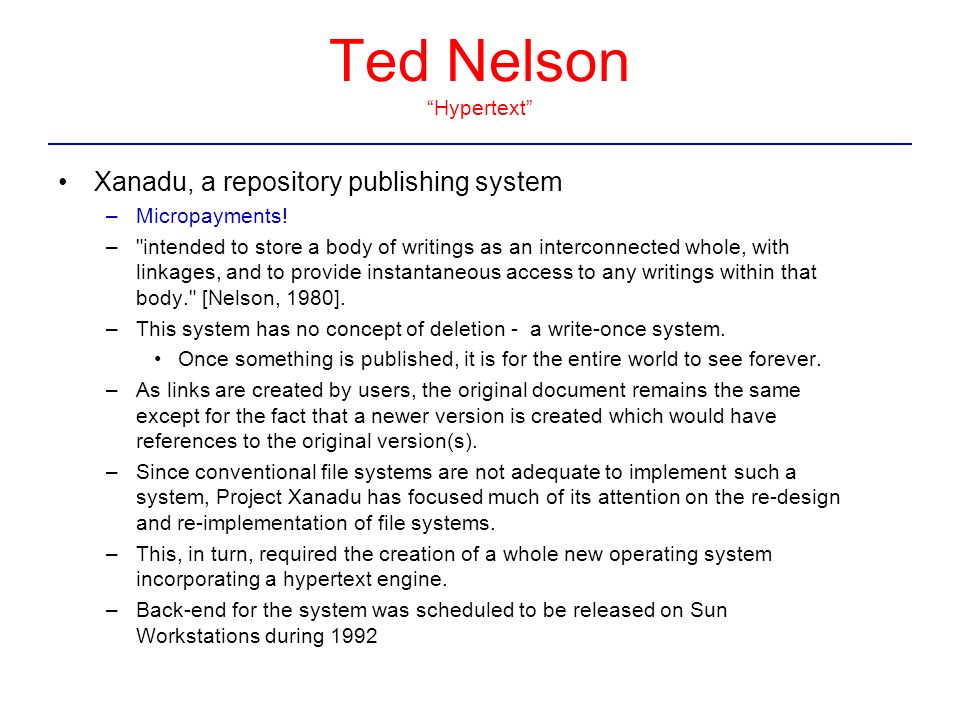

29 Ted Nelson “Hypertext” Xanadu, a repository publishing system –Micropayments! –"intended to store a body of writings as an interconnected whole, with linkages, and to provide instantaneous access to any writings within that body." [Nelson, 1980]. –This system has no concept of deletion - a write-once system. Once something is published, it is for the entire world to see forever. –As links are created by users, the original document remains the same except for the fact that a newer version is created which would have references to the original version(s). –Since conventional file systems are not adequate to implement such a system, Project Xanadu has focused much of its attention on the re-design and re-implementation of file systems. –This, in turn, required the creation of a whole new operating system incorporating a hypertext engine. –Back-end for the system was scheduled to be released on Sun Workstations during 1992

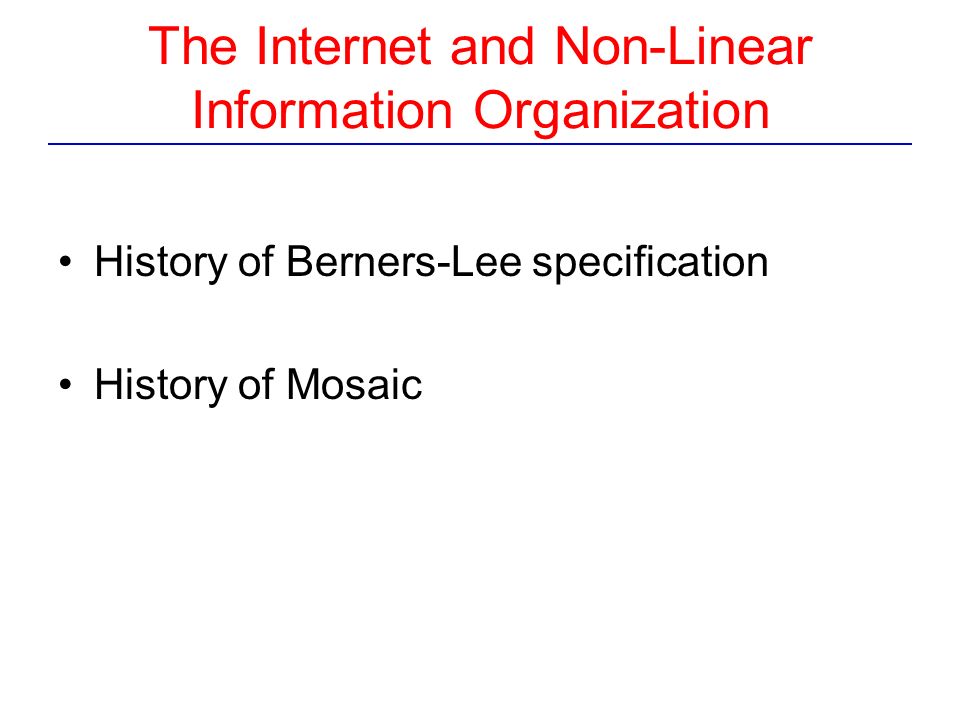

30 The Internet and Non-Linear Information Organization History of Berners-Lee specification History of Mosaic

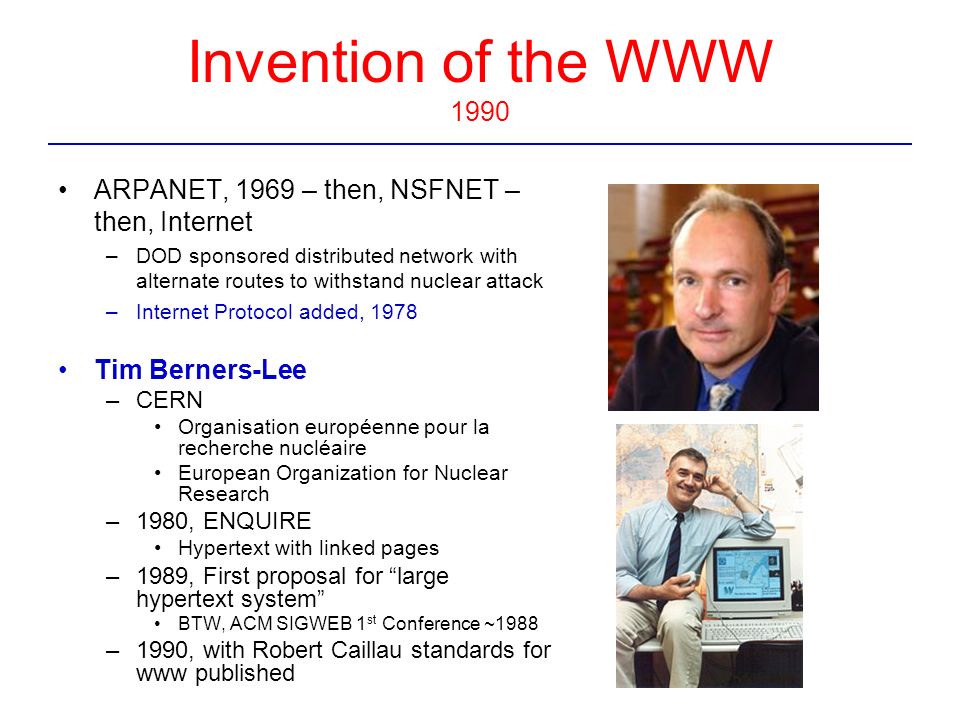

31 Invention of the WWW 1990 ARPANET, 1969 – then, NSFNET – then, Internet –DOD sponsored distributed network with alternate routes to withstand nuclear attack –Internet Protocol added, 1978 Tim Berners-Lee –CERN Organisation européenne pour la recherche nucléaire European Organization for Nuclear Research –1980, ENQUIRE Hypertext with linked pages –1989, First proposal for “large hypertext system” BTW, ACM SIGWEB 1 st Conference ~1988 –1990, with Robert Caillau standards for www published

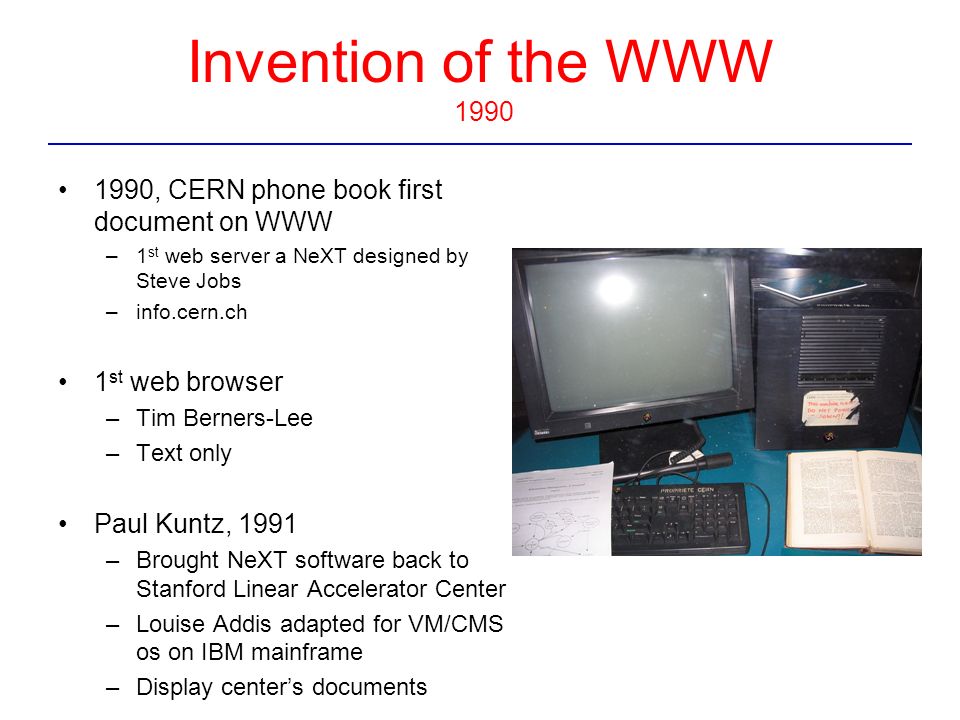

32 Invention of the WWW 1990 1990, CERN phone book first document on WWW –1 st web server a NeXT designed by Steve Jobs –info.cern.ch 1 st web browser –Tim Berners-Lee –Text only Paul Kuntz, 1991 –Brought NeXT software back to Stanford Linear Accelerator Center –Louise Addis adapted for VM/CMS os on IBM mainframe –Display center’s documents

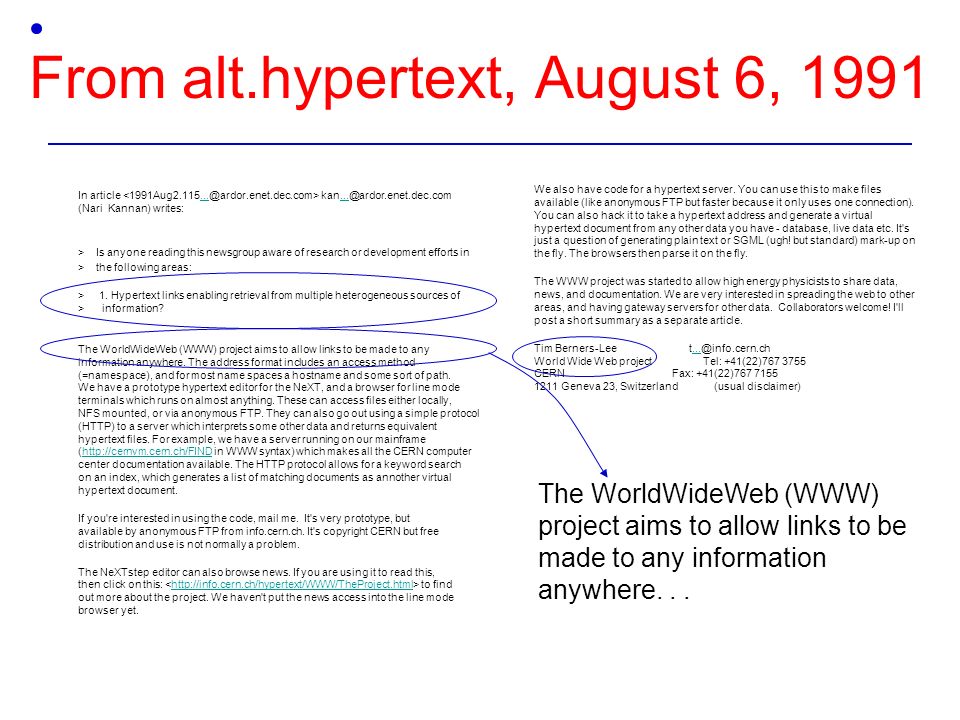

33 From alt.hypertext, August 6, 1991 In article kan...@ardor.enet.dec.com (Nari Kannan) writes:... > Is anyone reading this newsgroup aware of research or development efforts in > the following areas: > 1. Hypertext links enabling retrieval from multiple heterogeneous sources of > information? The WorldWideWeb (WWW) project aims to allow links to be made to any information anywhere. The address format includes an access method (=namespace), and for most name spaces a hostname and some sort of path. We have a prototype hypertext editor for the NeXT, and a browser for line mode terminals which runs on almost anything. These can access files either locally, NFS mounted, or via anonymous FTP. They can also go out using a simple protocol (HTTP) to a server which interprets some other data and returns equivalent hypertext files. For example, we have a server running on our mainframe (http://cernvm.cern.ch/FIND in WWW syntax) which makes all the CERN computer center documentation available. The HTTP protocol allows for a keyword search on an index, which generates a list of matching documents as annother virtual hypertext document.http://cernvm.cern.ch/FIND If you're interested in using the code, mail me. It's very prototype, but available by anonymous FTP from info.cern.ch. It's copyright CERN but free distribution and use is not normally a problem. The NeXTstep editor can also browse news. If you are using it to read this, then click on this: to find out more about the project. We haven't put the news access into the line mode browser yet.http://info.cern.ch/hypertext/WWW/TheProject.html We also have code for a hypertext server. You can use this to make files available (like anonymous FTP but faster because it only uses one connection). You can also hack it to take a hypertext address and generate a virtual hypertext document from any other data you have - database, live data etc. It's just a question of generating plain text or SGML (ugh! but standard) mark-up on the fly. The browsers then parse it on the fly. The WWW project was started to allow high energy physicists to share data, news, and documentation. We are very interested in spreading the web to other areas, and having gateway servers for other data. Collaborators welcome! I'll post a short summary as a separate article. Tim Berners-Lee t...@info.cern.ch World Wide Web project Tel: +41(22)767 3755 CERN Fax: +41(22)767 7155 1211 Geneva 23, Switzerland (usual disclaimer)... The WorldWideWeb (WWW) project aims to allow links to be made to any information anywhere...

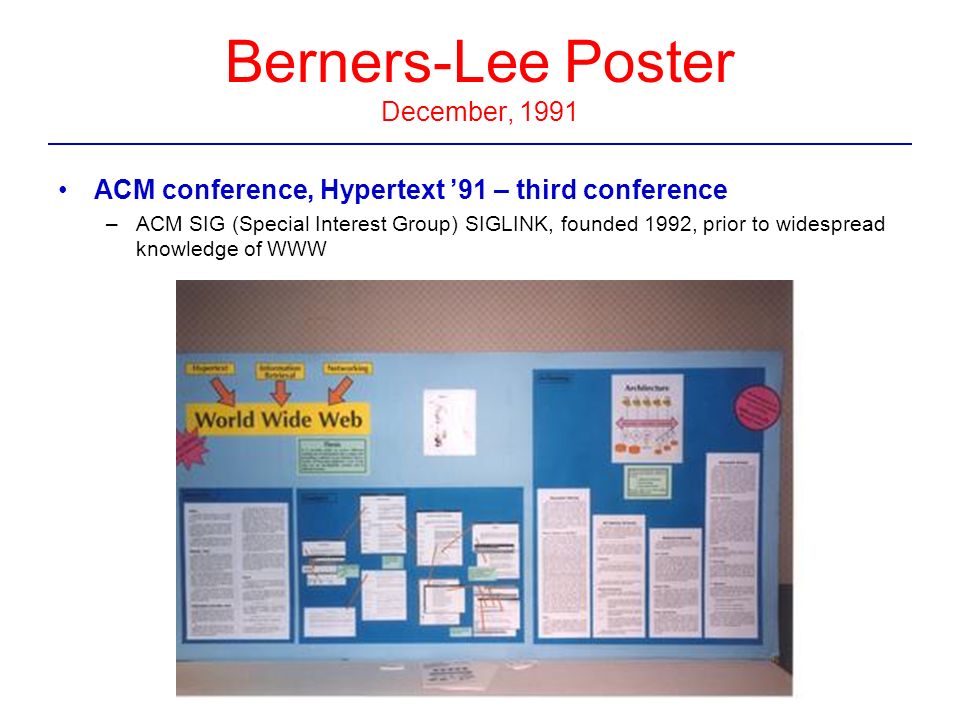

34 Berners-Lee Poster December, 1991 ACM conference, Hypertext ’91 – third conference –ACM SIG (Special Interest Group) SIGLINK, founded 1992, prior to widespread knowledge of WWW

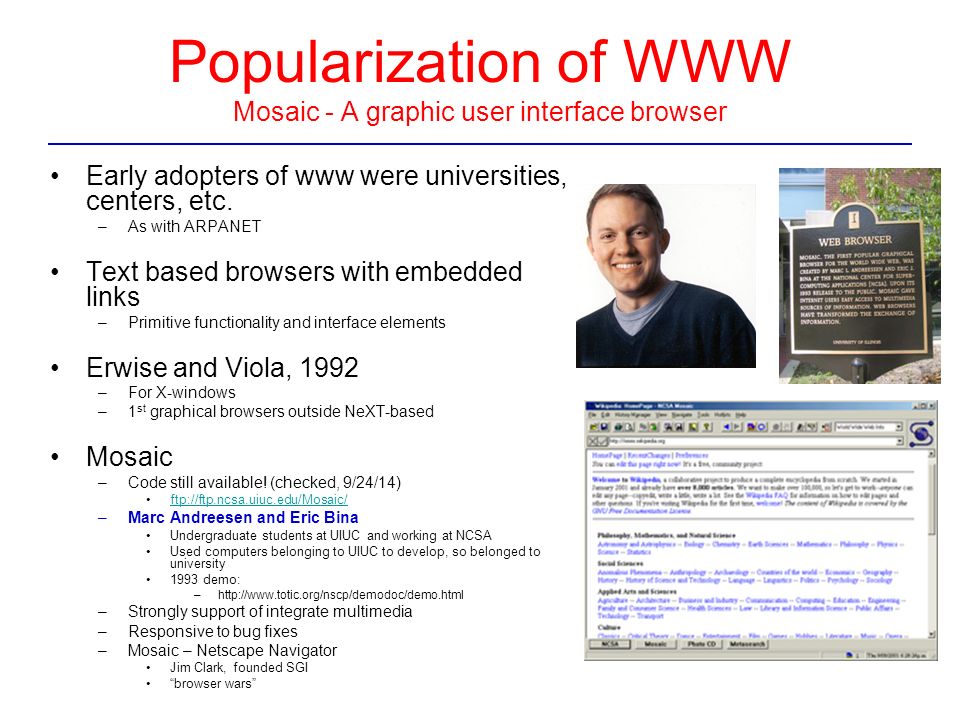

35 Popularization of WWW Mosaic - A graphic user interface browser Early adopters of www were universities, centers, etc. –As with ARPANET Text based browsers with embedded links –Primitive functionality and interface elements Erwise and Viola, 1992 –For X-windows –1 st graphical browsers outside NeXT-based Mosaic –Code still available! (checked, 9/24/14) ftp://ftp.ncsa.uiuc.edu/Mosaic/ –Marc Andreesen and Eric Bina Undergraduate students at UIUC and working at NCSA Used computers belonging to UIUC to develop, so belonged to university 1993 demo: –http://www.totic.org/nscp/demodoc/demo.html –Strongly support of integrate multimedia –Responsive to bug fixes –Mosaic – Netscape Navigator Jim Clark, founded SGI “browser wars”

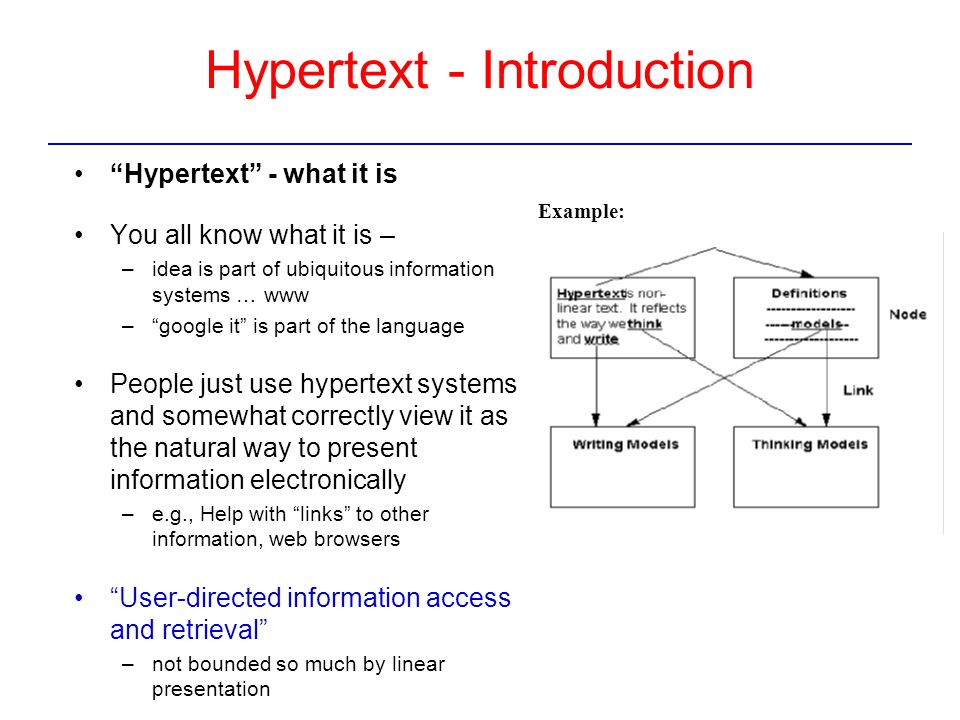

36 Hypertext - Introduction “Hypertext” - what it is You all know what it is – –idea is part of ubiquitous information systems … www –“google it” is part of the language People just use hypertext systems and somewhat correctly view it as the natural way to present information electronically –e.g., Help with “links” to other information, web browsers “User-directed information access and retrieval” –not bounded so much by linear presentation Example:

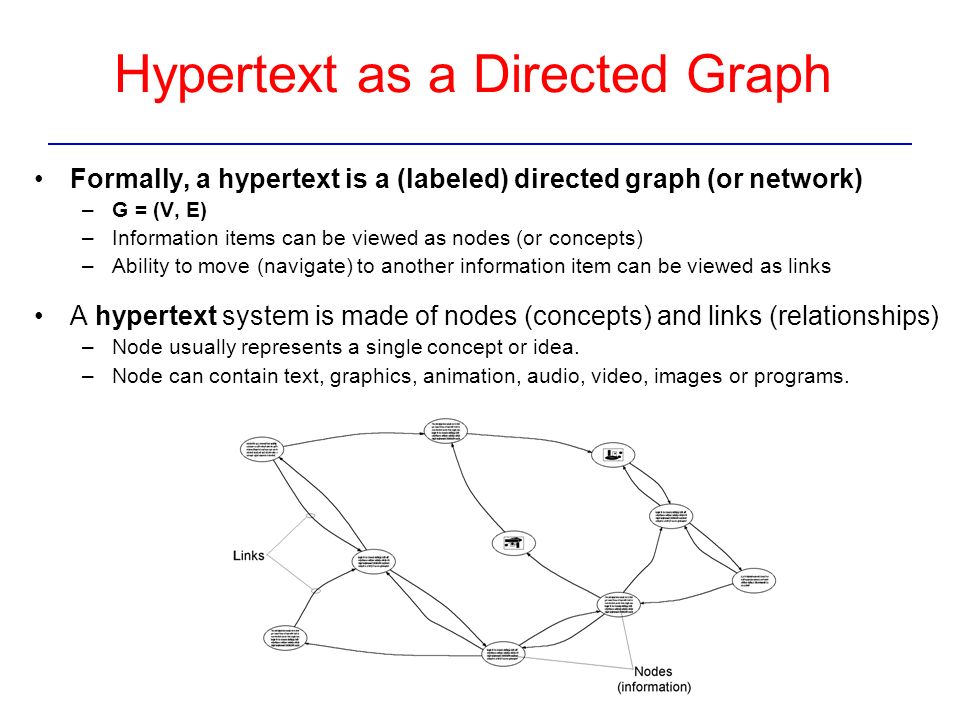

37 Hypertext as a Directed Graph Formally, a hypertext is a (labeled) directed graph (or network) –G = (V, E) –Information items can be viewed as nodes (or concepts) –Ability to move (navigate) to another information item can be viewed as links A hypertext system is made of nodes (concepts) and links (relationships) –Node usually represents a single concept or idea. –Node can contain text, graphics, animation, audio, video, images or programs.

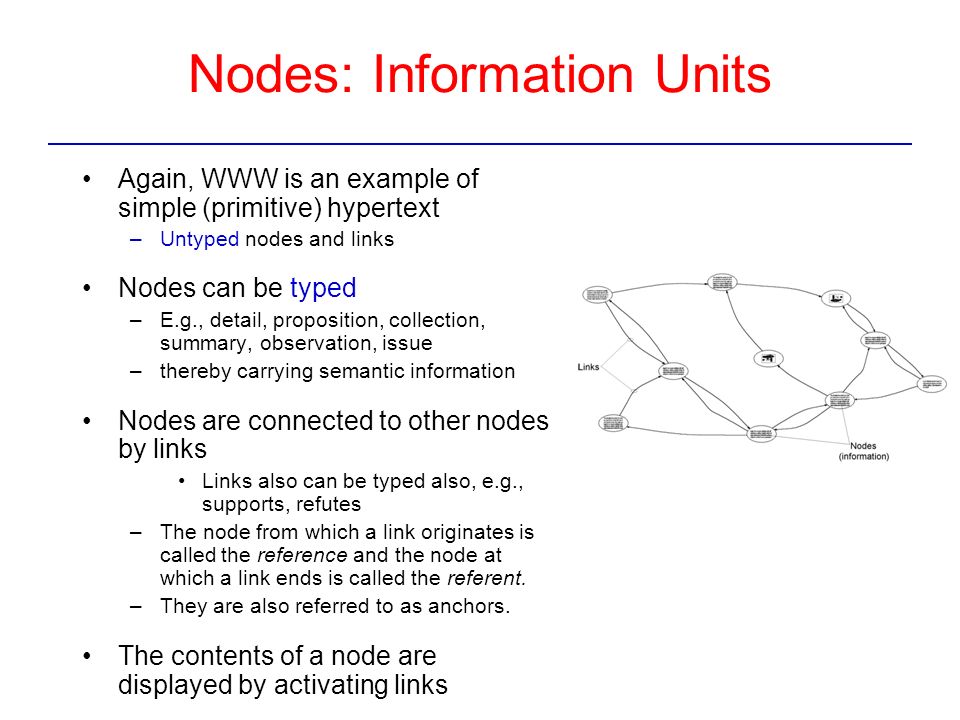

38 Nodes: Information Units Again, WWW is an example of simple (primitive) hypertext –Untyped nodes and links Nodes can be typed –E.g., detail, proposition, collection, summary, observation, issue –thereby carrying semantic information Nodes are connected to other nodes by links Links also can be typed also, e.g., supports, refutes –The node from which a link originates is called the reference and the node at which a link ends is called the referent. –They are also referred to as anchors. The contents of a node are displayed by activating links

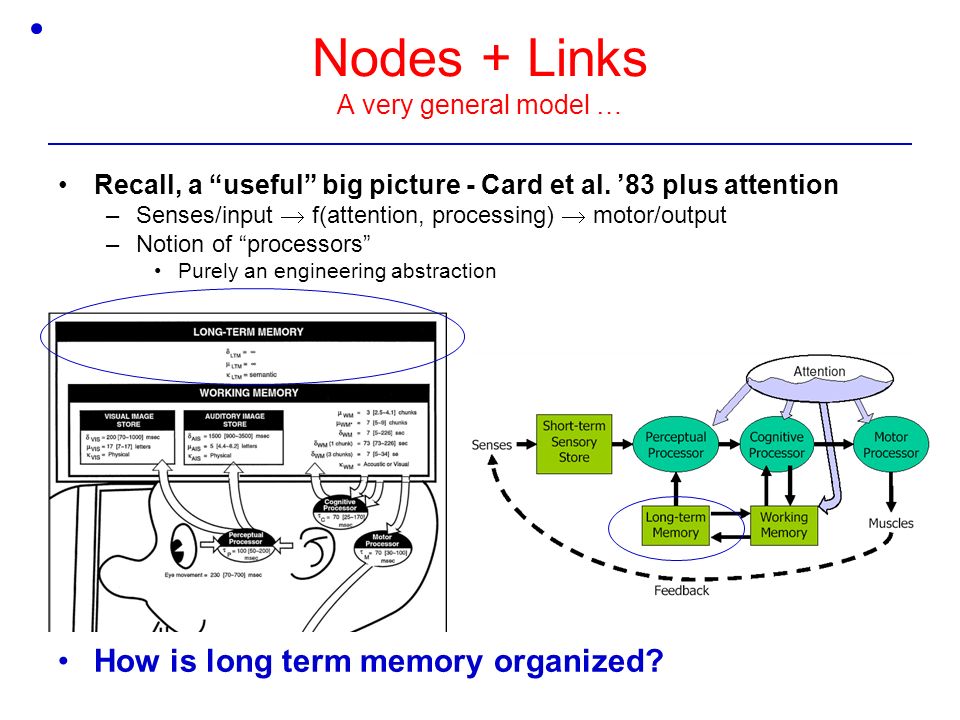

39 Nodes + Links A very general model … Recall, a “useful” big picture - Card et al. ’83 plus attention –Senses/input  f(attention, processing)  motor/output –Notion of “processors” Purely an engineering abstraction How is long term memory organized?

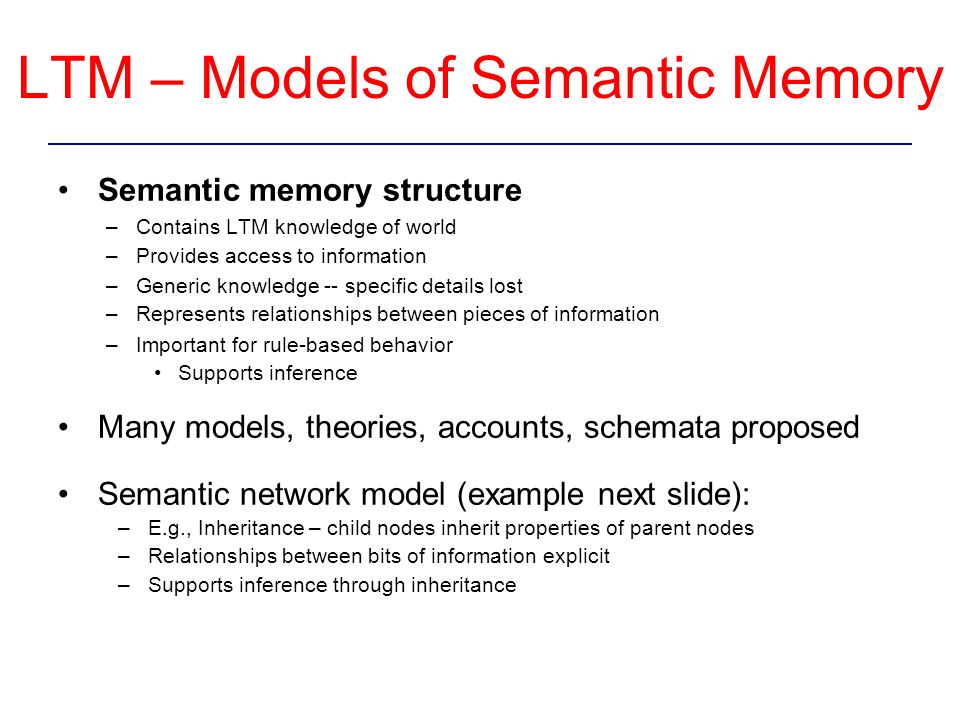

40 LTM – Models of Semantic Memory Semantic memory structure –Contains LTM knowledge of world –Provides access to information –Generic knowledge -- specific details lost –Represents relationships between pieces of information –Important for rule-based behavior Supports inference Many models, theories, accounts, schemata proposed Semantic network model (example next slide): –E.g., Inheritance – child nodes inherit properties of parent nodes –Relationships between bits of information explicit –Supports inference through inheritance

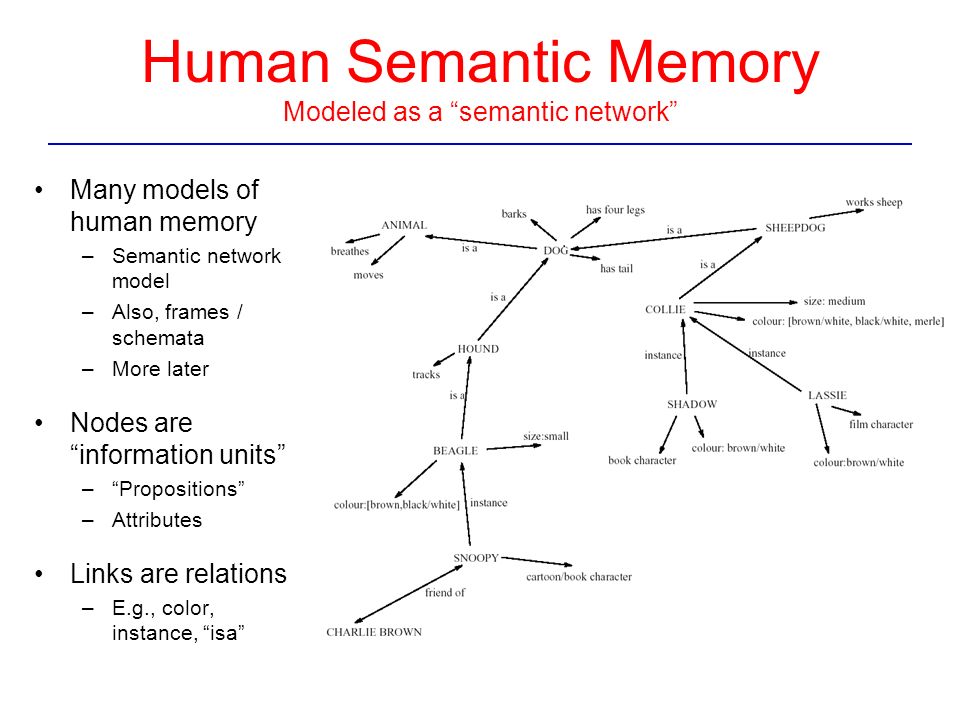

41 Human Semantic Memory Modeled as a “semantic network” Many models of human memory –Semantic network model –Also, frames / schemata –More later Nodes are “information units” –“Propositions” –Attributes Links are relations –E.g., color, instance, “isa”

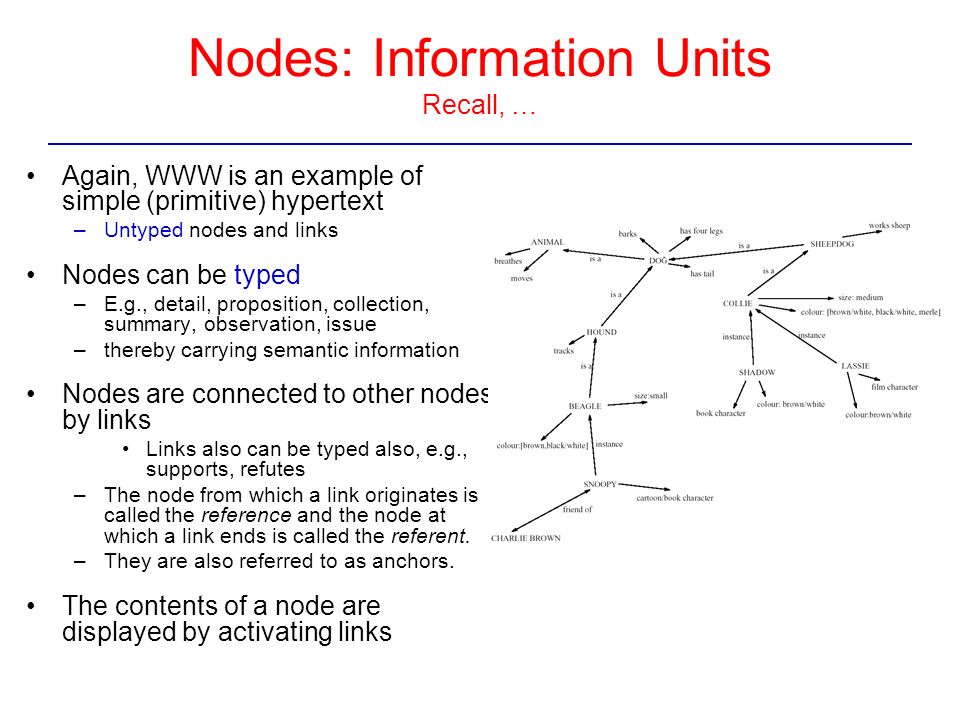

42 Nodes: Information Units Recall, … Again, WWW is an example of simple (primitive) hypertext –Untyped nodes and links Nodes can be typed –E.g., detail, proposition, collection, summary, observation, issue –thereby carrying semantic information Nodes are connected to other nodes by links Links also can be typed also, e.g., supports, refutes –The node from which a link originates is called the reference and the node at which a link ends is called the referent. –They are also referred to as anchors. The contents of a node are displayed by activating links

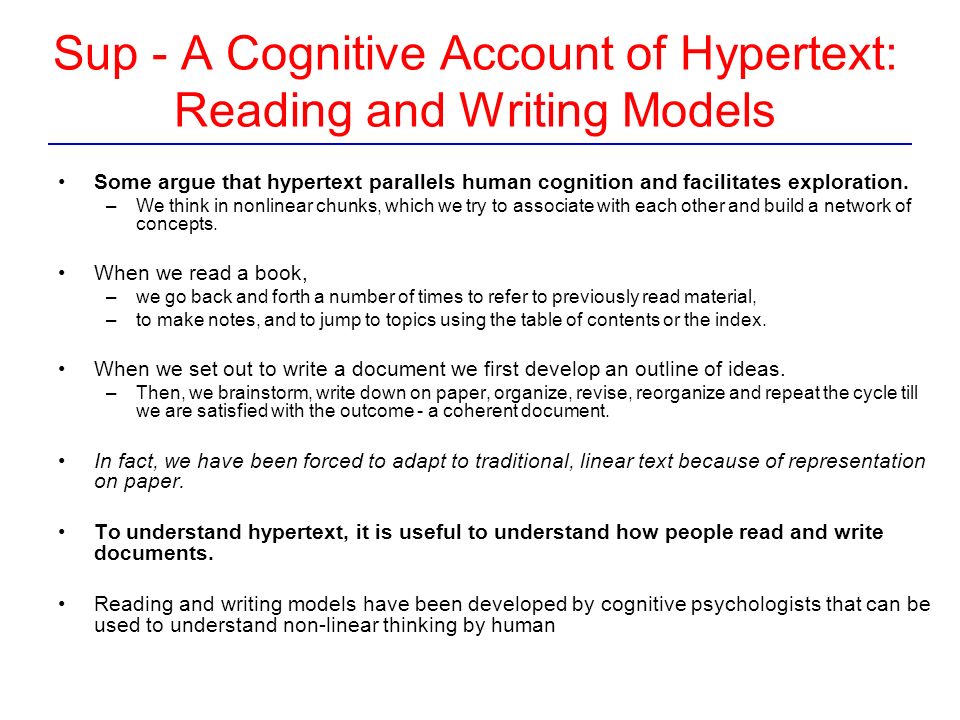

43 Sup - A Cognitive Account of Hypertext: Reading and Writing Models Some argue that hypertext parallels human cognition and facilitates exploration. –We think in nonlinear chunks, which we try to associate with each other and build a network of concepts. When we read a book, –we go back and forth a number of times to refer to previously read material, –to make notes, and to jump to topics using the table of contents or the index. When we set out to write a document we first develop an outline of ideas. –Then, we brainstorm, write down on paper, organize, revise, reorganize and repeat the cycle till we are satisfied with the outcome - a coherent document. In fact, we have been forced to adapt to traditional, linear text because of representation on paper. To understand hypertext, it is useful to understand how people read and write documents. Reading and writing models have been developed by cognitive psychologists that can be used to understand non-linear thinking by human

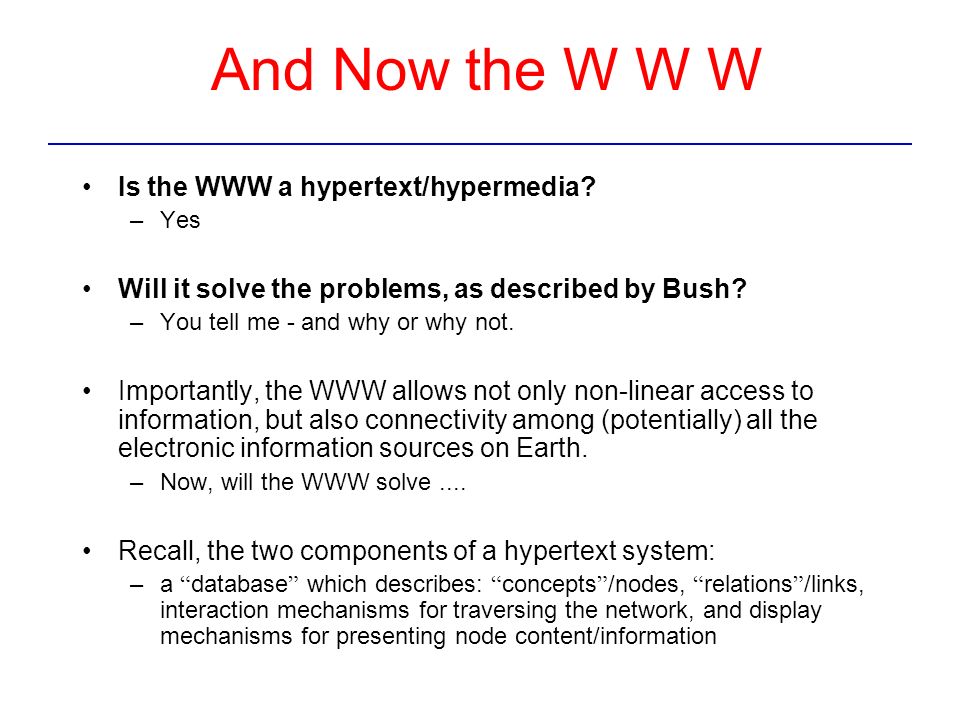

44 And Now the W W W Is the WWW a hypertext/hypermedia? –Yes Will it solve the problems, as described by Bush? –You tell me - and why or why not. Importantly, the WWW allows not only non-linear access to information, but also connectivity among (potentially) all the electronic information sources on Earth. –Now, will the WWW solve.... Recall, the two components of a hypertext system: –a “ database ” which describes: “ concepts ” /nodes, “ relations ” /links, interaction mechanisms for traversing the network, and display mechanisms for presenting node content/information

45 Web Site Design

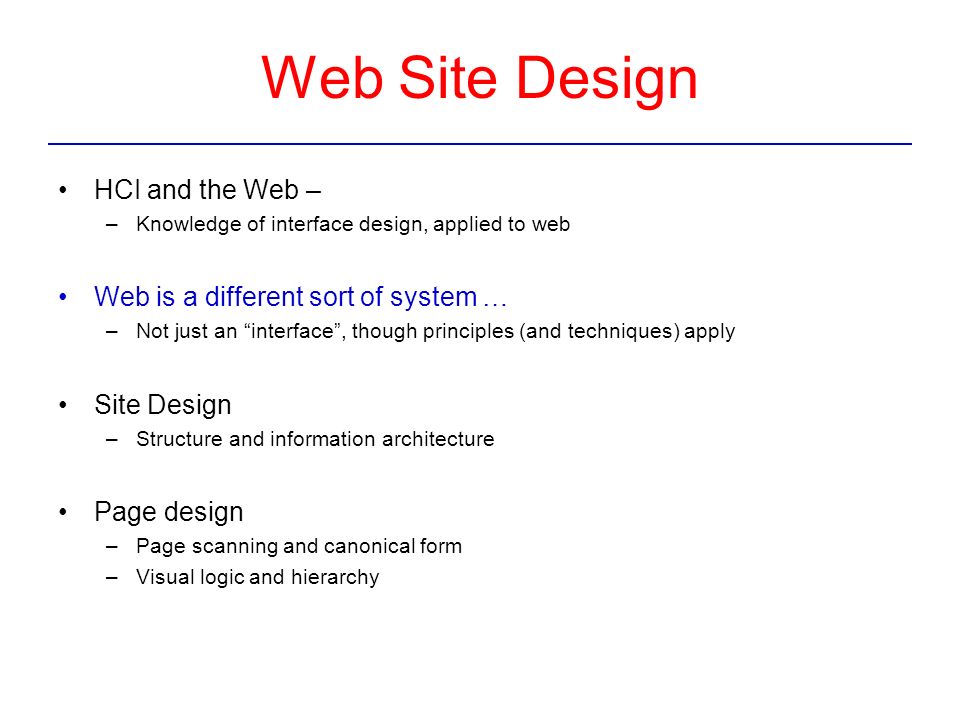

46 HCI and the Web – –Knowledge of interface design, applied to web Web is a different sort of system … –Not just an “interface”, though principles (and techniques) apply Site Design –Structure and information architecture Page design –Page scanning and canonical form –Visual logic and hierarchy

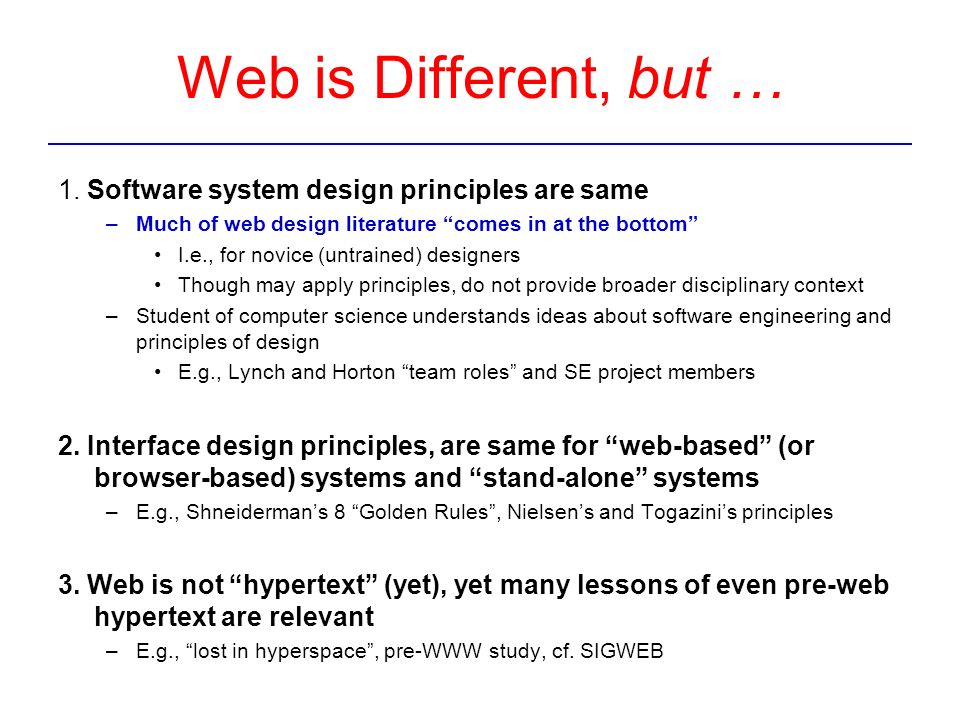

47 Web is Different, but … 1. Software system design principles are same –Much of web design literature “comes in at the bottom” I.e., for novice (untrained) designers Though may apply principles, do not provide broader disciplinary context –Student of computer science understands ideas about software engineering and principles of design E.g., Lynch and Horton “team roles” and SE project members 2. Interface design principles, are same for “web-based” (or browser-based) systems and “stand-alone” systems –E.g., Shneiderman’s 8 “Golden Rules”, Nielsen’s and Togazini’s principles 3. Web is not “hypertext” (yet), yet many lessons of even pre-web hypertext are relevant –E.g., “lost in hyperspace”, pre-WWW study, cf. SIGWEB

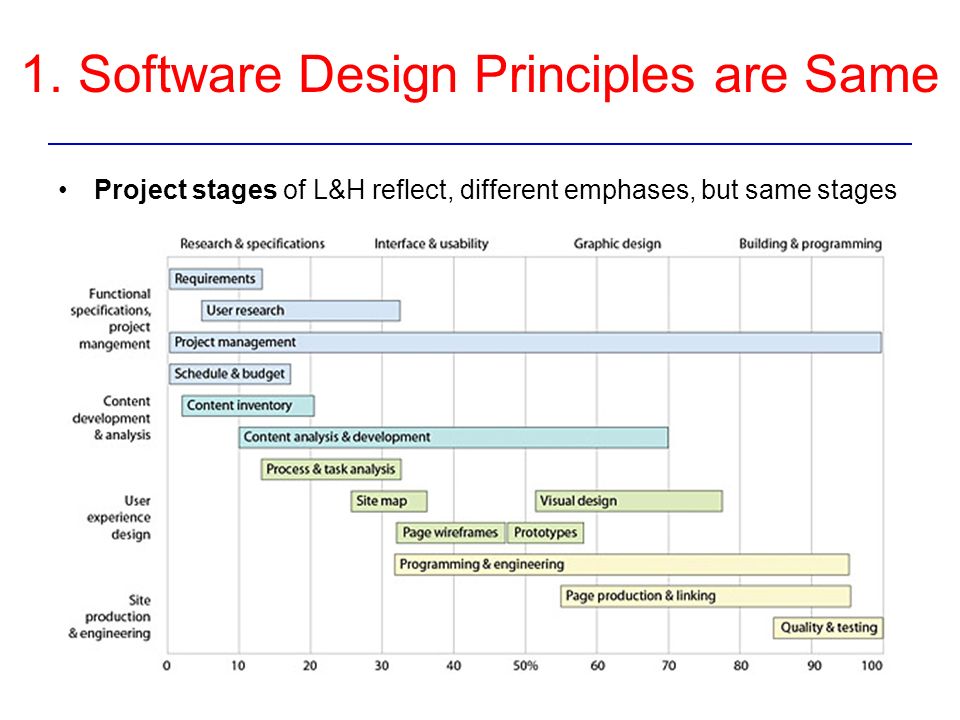

48 1. Software Design Principles are Same Project stages of L&H reflect, different emphases, but same stages

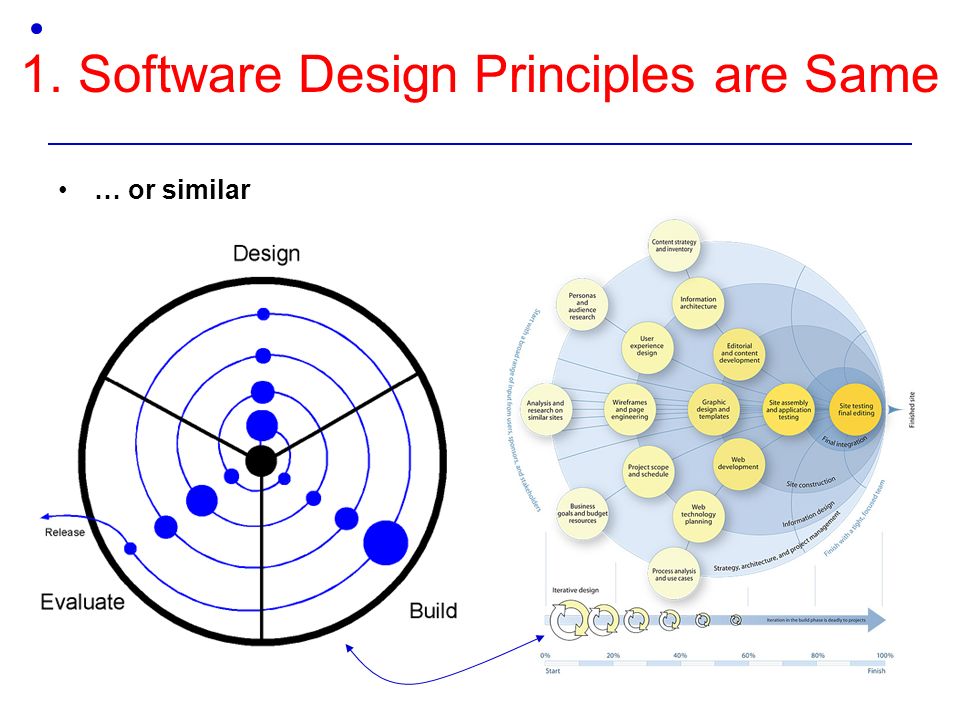

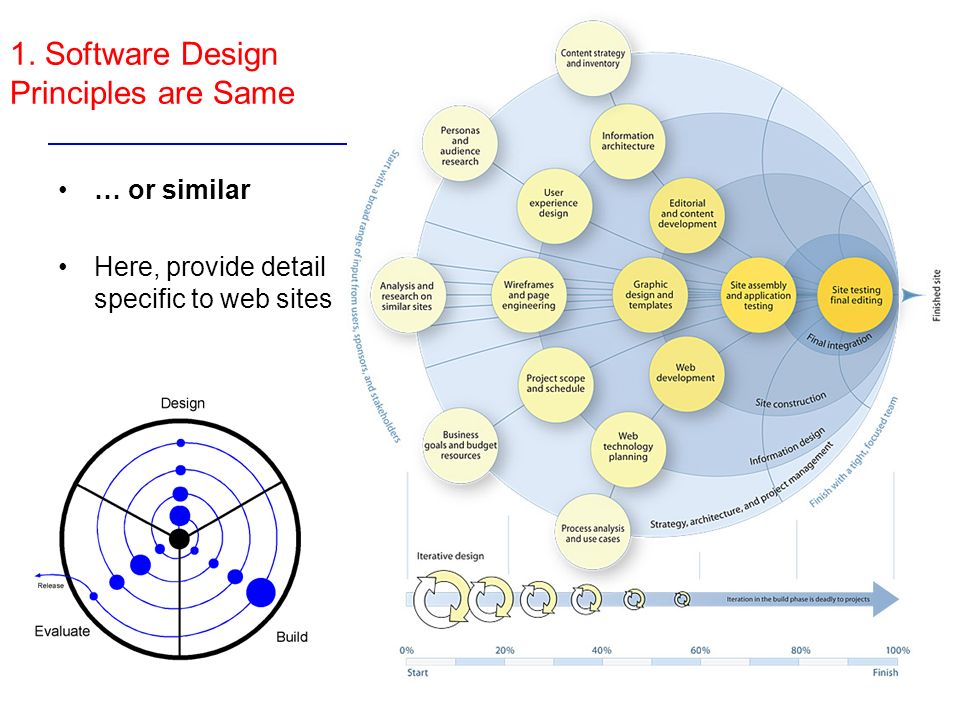

49 1. Software Design Principles are Same … or similar

50 1. Software Design Principles are Same … or similar Here, provide detail specific to web sites

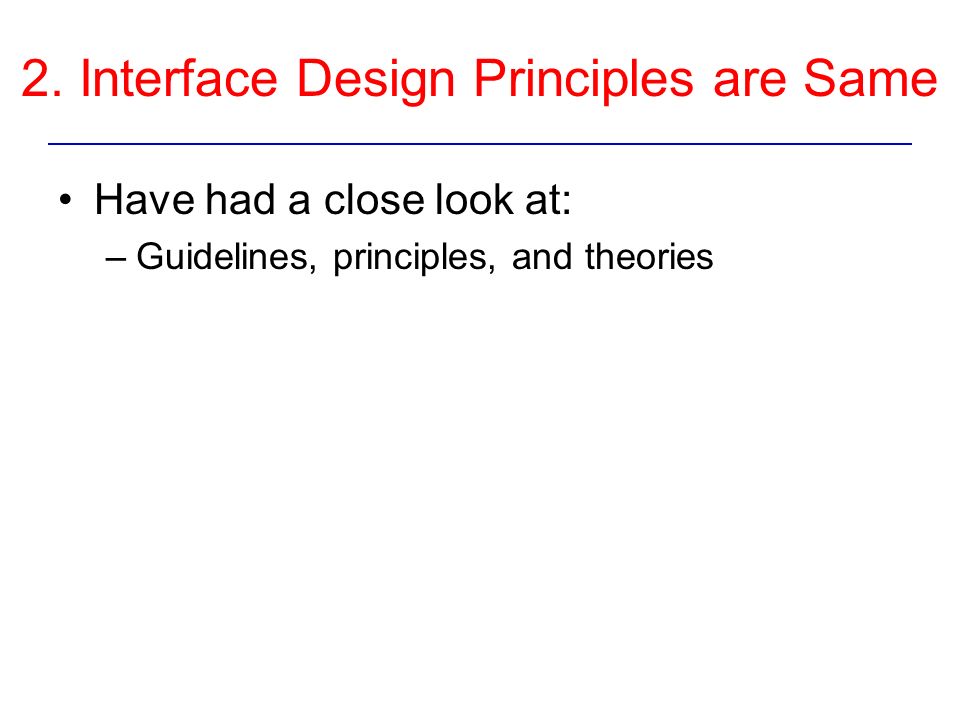

51 2. Interface Design Principles are Same Have had a close look at: –Guidelines, principles, and theories

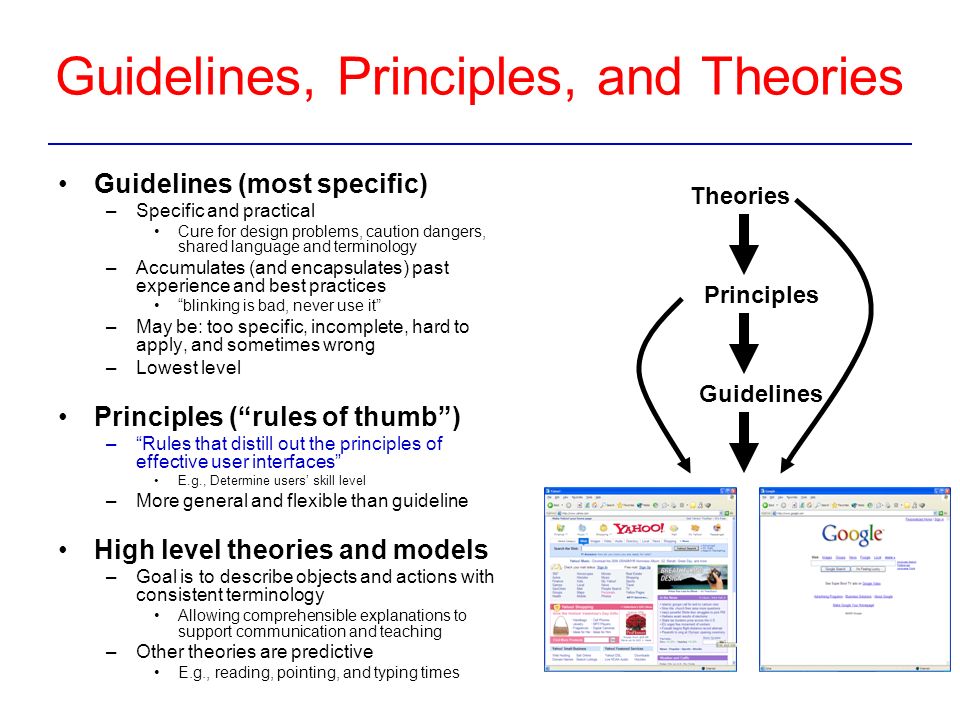

52 Guidelines, Principles, and Theories Guidelines (most specific) –Specific and practical Cure for design problems, caution dangers, shared language and terminology –Accumulates (and encapsulates) past experience and best practices “blinking is bad, never use it” –May be: too specific, incomplete, hard to apply, and sometimes wrong –Lowest level Principles (“rules of thumb”) –“Rules that distill out the principles of effective user interfaces” E.g., Determine users’ skill level –More general and flexible than guideline High level theories and models –Goal is to describe objects and actions with consistent terminology Allowing comprehensible explanations to support communication and teaching –Other theories are predictive E.g., reading, pointing, and typing times Theories Guidelines Principles

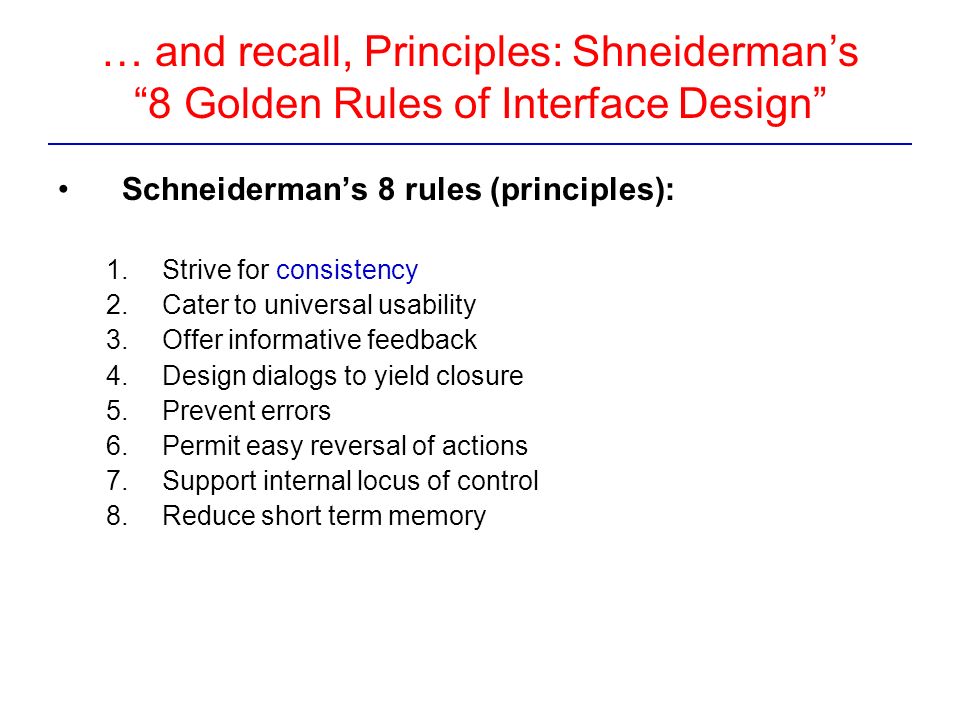

53 … and recall, Principles: Shneiderman’s “8 Golden Rules of Interface Design” Schneiderman’s 8 rules (principles): 1.Strive for consistency 2.Cater to universal usability 3.Offer informative feedback 4.Design dialogs to yield closure 5.Prevent errors 6.Permit easy reversal of actions 7.Support internal locus of control 8.Reduce short term memory

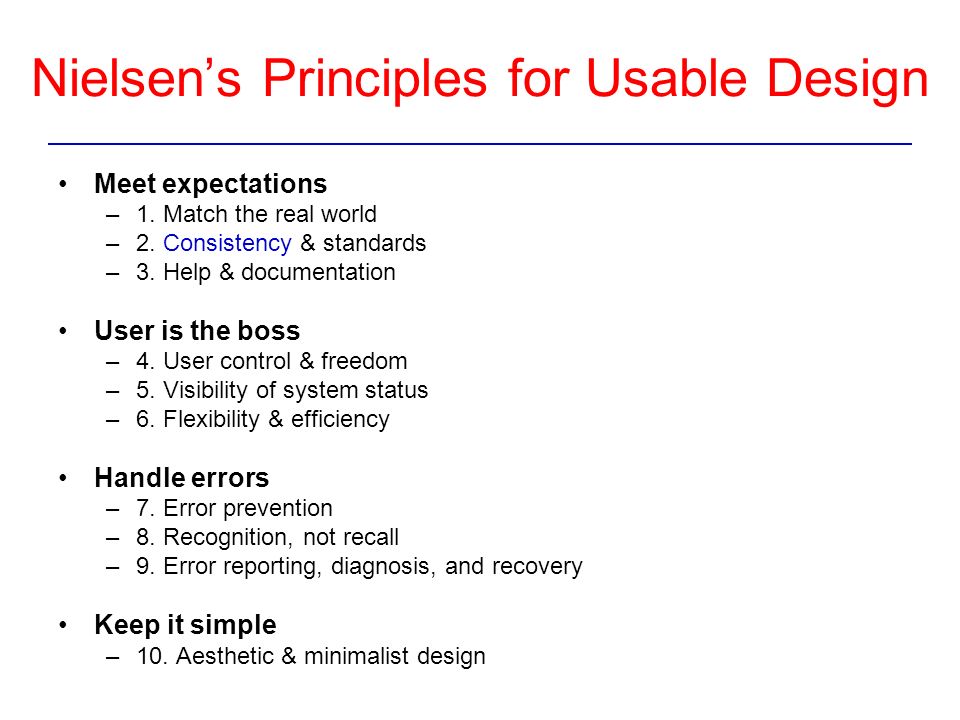

54 Nielsen’s Principles for Usable Design Meet expectations –1. Match the real world –2. Consistency & standards –3. Help & documentation User is the boss –4. User control & freedom –5. Visibility of system status –6. Flexibility & efficiency Handle errors –7. Error prevention –8. Recognition, not recall –9. Error reporting, diagnosis, and recovery Keep it simple –10. Aesthetic & minimalist design

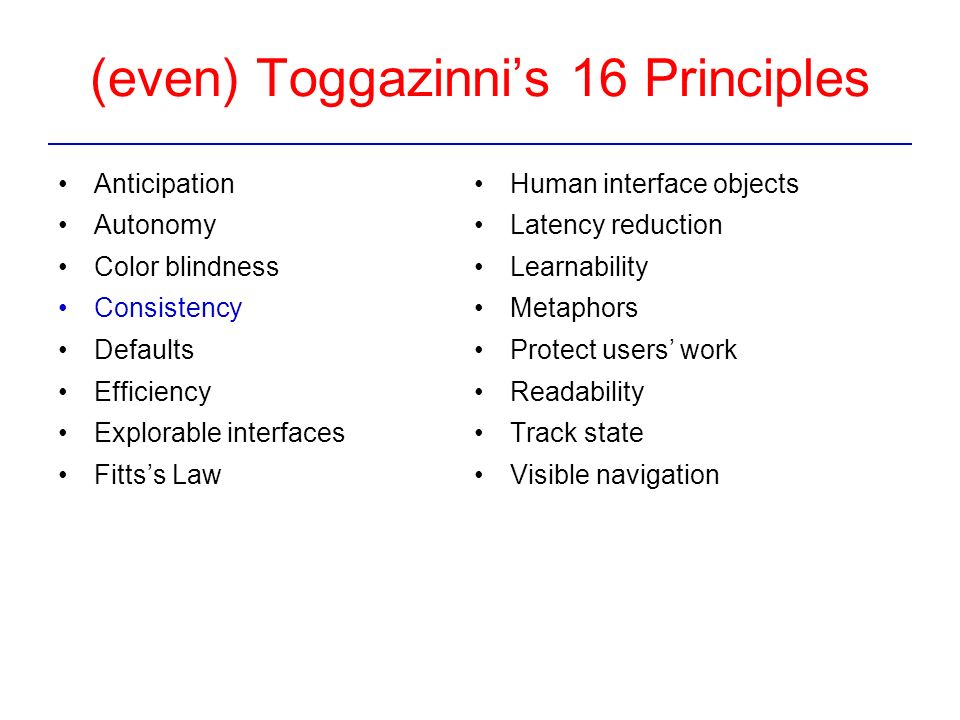

55 (even) Toggazinni’s 16 Principles Anticipation Autonomy Color blindness Consistency Defaults Efficiency Explorable interfaces Fitts’s Law Human interface objects Latency reduction Learnability Metaphors Protect users’ work Readability Track state Visible navigation

56 Web Site Design differs from User Interface Design WWW not same kind of interactive system, as “computer interface” (at least as discussed in traditional HCI literature) –Looong latency 1/10 – 1/30 second required for perceptual continuity 1 sec continuity of interaction –i.e., “immediate response” ~ 10 (or 5-30) seconds for task continuity –So, response time from web is at limit of task continuity Different, and not an interactive system with “immediate” response –Not to be studied in same way many elements of interfaces are –… and maybe principle focus and principles of design yet to evolve Thus www, acts as information repository, and other things –Whether for “knowledge”, shopping, chatting,..., but not traditional system –Hence, focus on information architecture

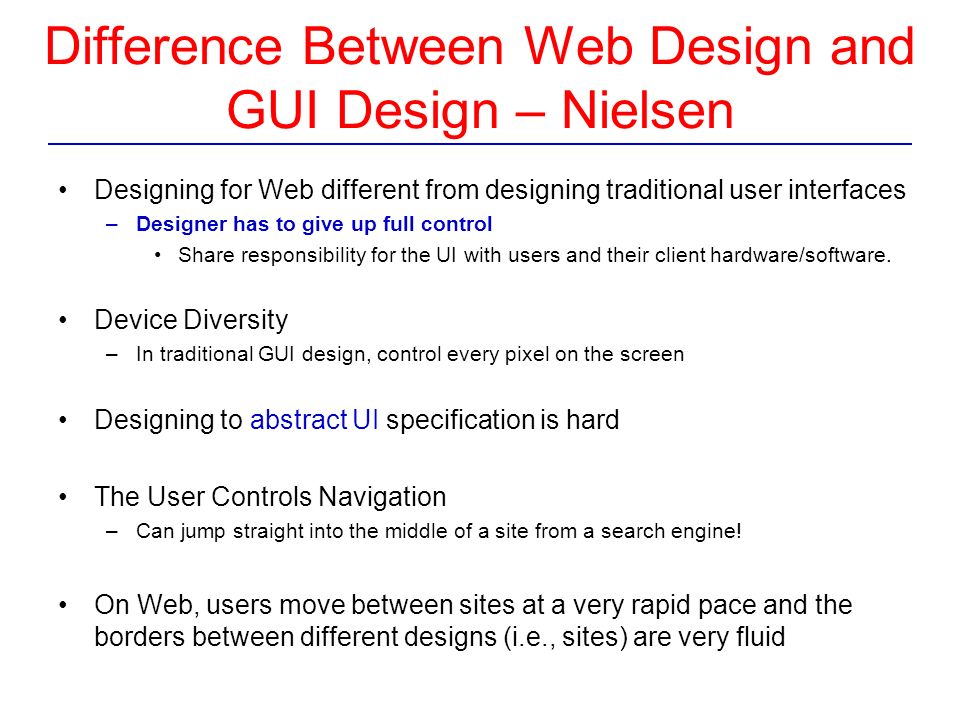

57 Difference Between Web Design and GUI Design – Nielsen Designing for Web different from designing traditional user interfaces –Designer has to give up full control Share responsibility for the UI with users and their client hardware/software. Device Diversity –In traditional GUI design, control every pixel on the screen Designing to abstract UI specification is hard The User Controls Navigation –Can jump straight into the middle of a site from a search engine! On Web, users move between sites at a very rapid pace and the borders between different designs (i.e., sites) are very fluid

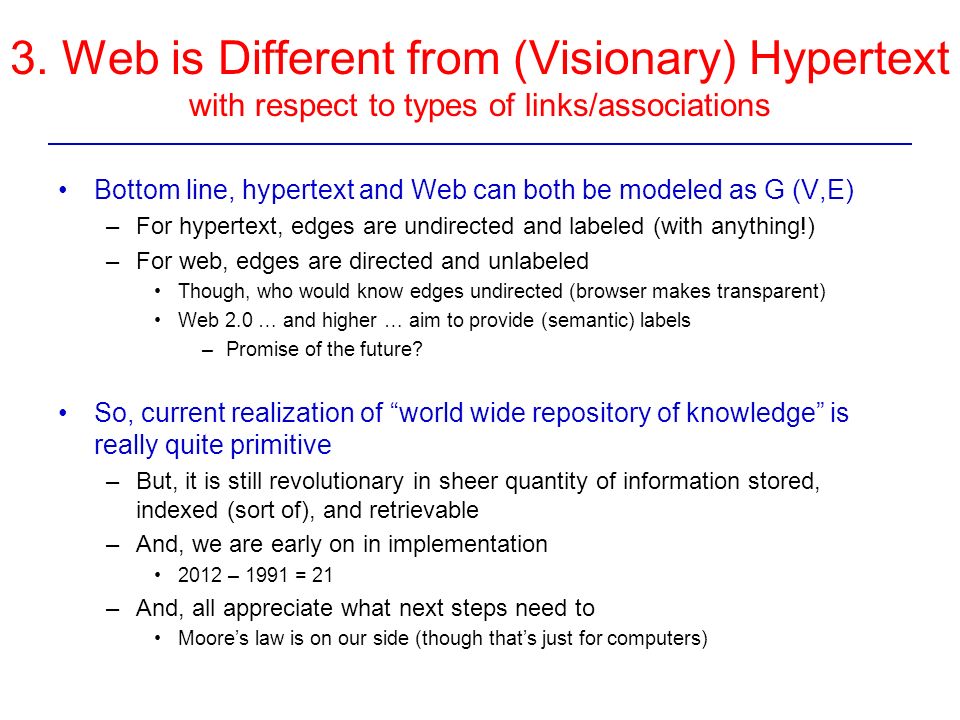

58 3. Web is Different from (Visionary) Hypertext with respect to types of links/associations Bottom line, hypertext and Web can both be modeled as G (V,E) –For hypertext, edges are undirected and labeled (with anything!) –For web, edges are directed and unlabeled Though, who would know edges undirected (browser makes transparent) Web 2.0 … and higher … aim to provide (semantic) labels –Promise of the future? So, current realization of “world wide repository of knowledge” is really quite primitive –But, it is still revolutionary in sheer quantity of information stored, indexed (sort of), and retrievable –And, we are early on in implementation 2012 – 1991 = 21 –And, all appreciate what next steps need to Moore’s law is on our side (though that’s just for computers)

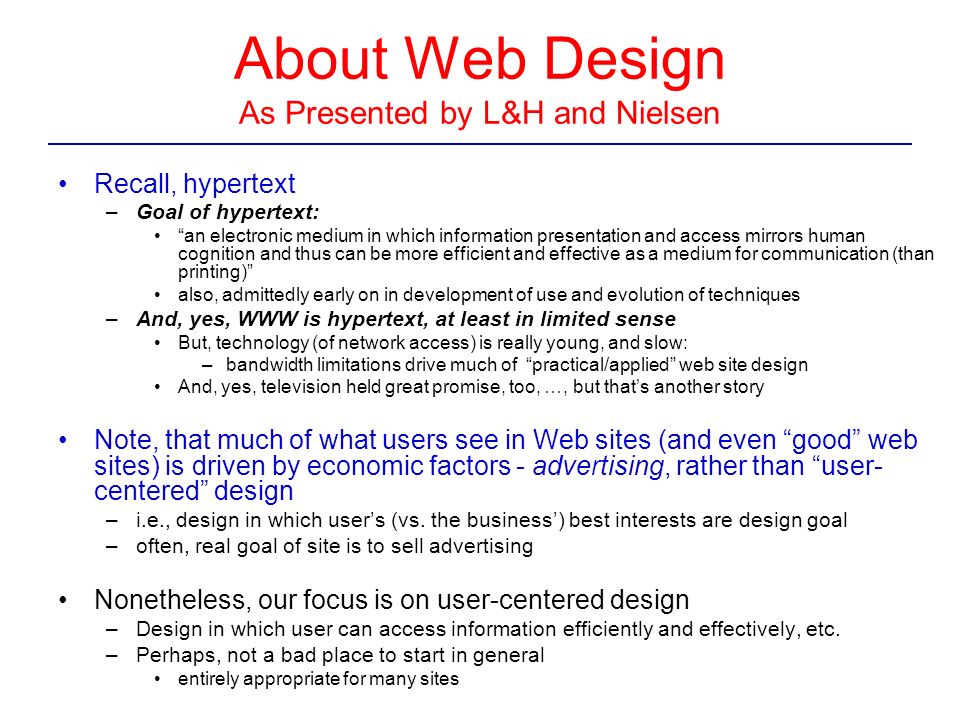

59 About Web Design As Presented by L&H and Nielsen Recall, hypertext –Goal of hypertext: “an electronic medium in which information presentation and access mirrors human cognition and thus can be more efficient and effective as a medium for communication (than printing)” also, admittedly early on in development of use and evolution of techniques –And, yes, WWW is hypertext, at least in limited sense But, technology (of network access) is really young, and slow: –bandwidth limitations drive much of “practical/applied” web site design And, yes, television held great promise, too, …, but that’s another story Note, that much of what users see in Web sites (and even “good” web sites) is driven by economic factors - advertising, rather than “user- centered” design –i.e., design in which user’s (vs. the business’) best interests are design goal –often, real goal of site is to sell advertising Nonetheless, our focus is on user-centered design –Design in which user can access information efficiently and effectively, etc. –Perhaps, not a bad place to start in general entirely appropriate for many sites

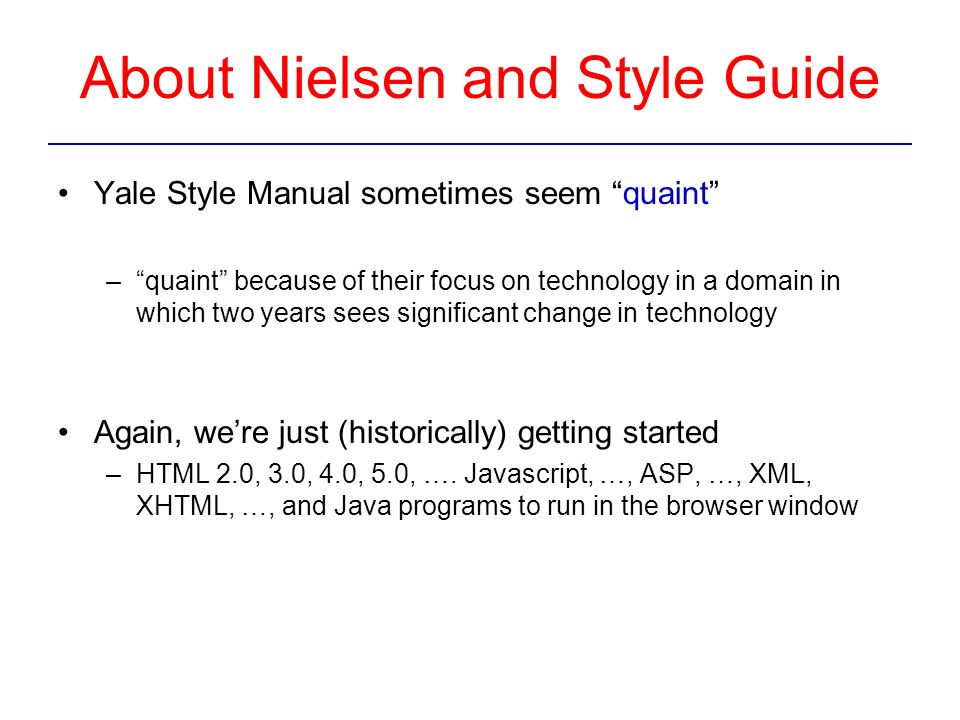

60 About Nielsen and Style Guide Yale Style Manual sometimes seem “quaint” –“quaint” because of their focus on technology in a domain in which two years sees significant change in technology Again, we’re just (historically) getting started –HTML 2.0, 3.0, 4.0, 5.0, …. Javascript, …, ASP, …, XML, XHTML, …, and Java programs to run in the browser window

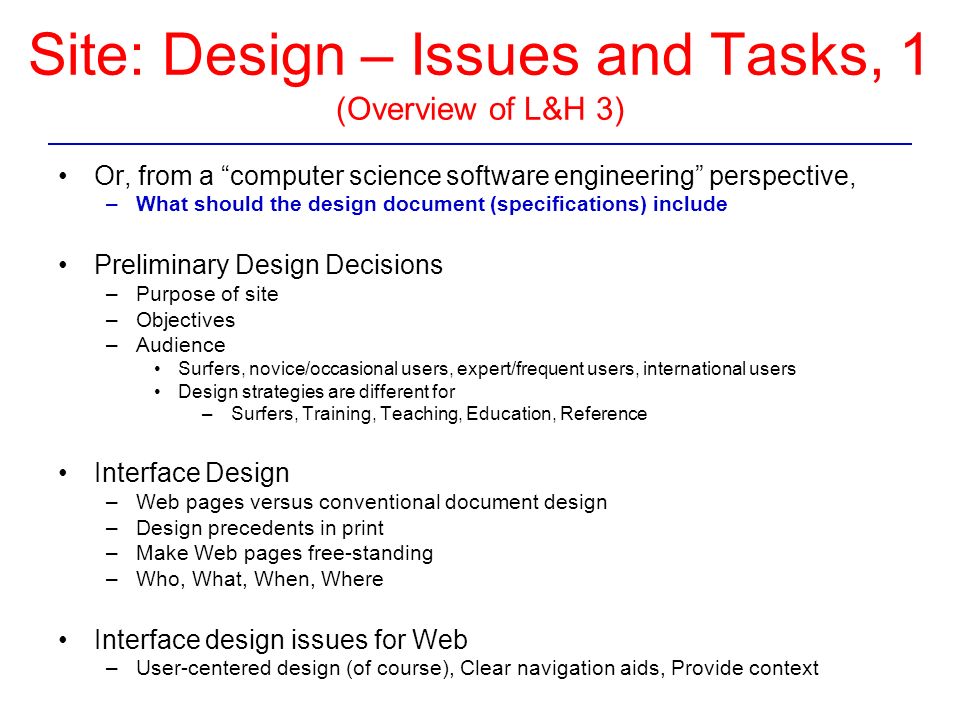

61 Site: Design – Issues and Tasks, 1 (Overview of L&H 3) Or, from a “computer science software engineering” perspective, –What should the design document (specifications) include Preliminary Design Decisions –Purpose of site –Objectives –Audience Surfers, novice/occasional users, expert/frequent users, international users Design strategies are different for – Surfers, Training, Teaching, Education, Reference Interface Design –Web pages versus conventional document design –Design precedents in print –Make Web pages free-standing –Who, What, When, Where Interface design issues for Web –User-centered design (of course), Clear navigation aids, Provide context

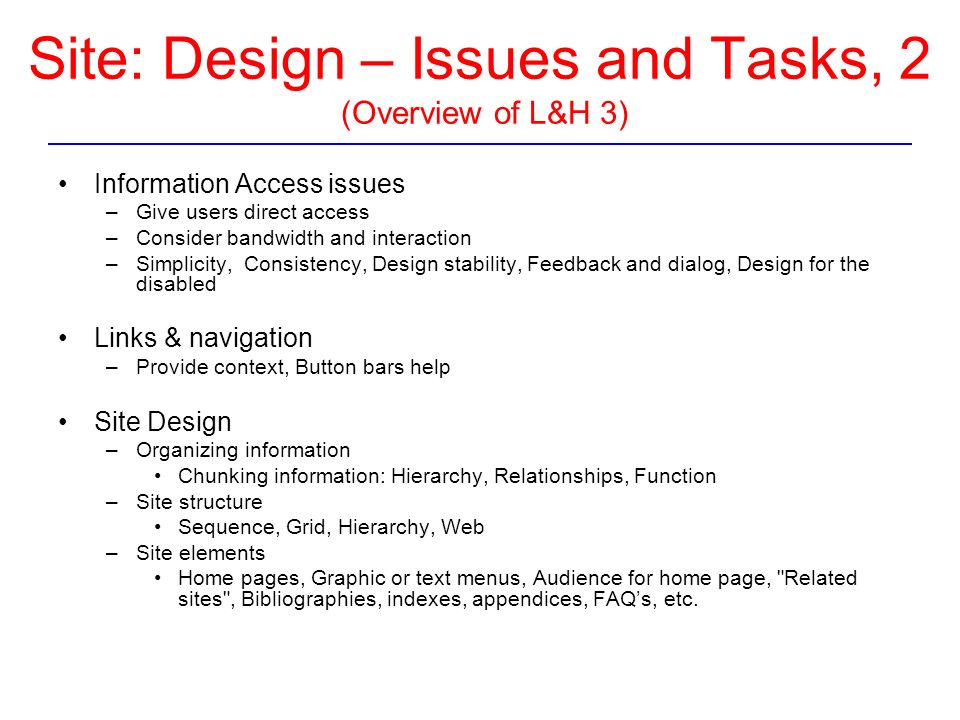

62 Site: Design – Issues and Tasks, 2 (Overview of L&H 3) Information Access issues –Give users direct access –Consider bandwidth and interaction –Simplicity, Consistency, Design stability, Feedback and dialog, Design for the disabled Links & navigation –Provide context, Button bars help Site Design –Organizing information Chunking information: Hierarchy, Relationships, Function –Site structure Sequence, Grid, Hierarchy, Web –Site elements Home pages, Graphic or text menus, Audience for home page, "Related sites", Bibliographies, indexes, appendices, FAQ’s, etc.

63 About Information Architecture

64 About “architecture”: –Architecture is about design … 1. the profession of designing buildings, open areas, communities, and other artificial constructions and environments –For computer organization (computer architecture) –About compromises, experience, …, and design principles Information structuring on WWW is almost exclusively about web site design –Thus, is changing rapidly due to: –Change in hardware and software technologies: –HTML and variants expanding functionalities, also on server side, asp, … –Uses for web – information dissemination, e-commerce, pure advertising, … –Users – literacy, expertness, expectations, populations, …

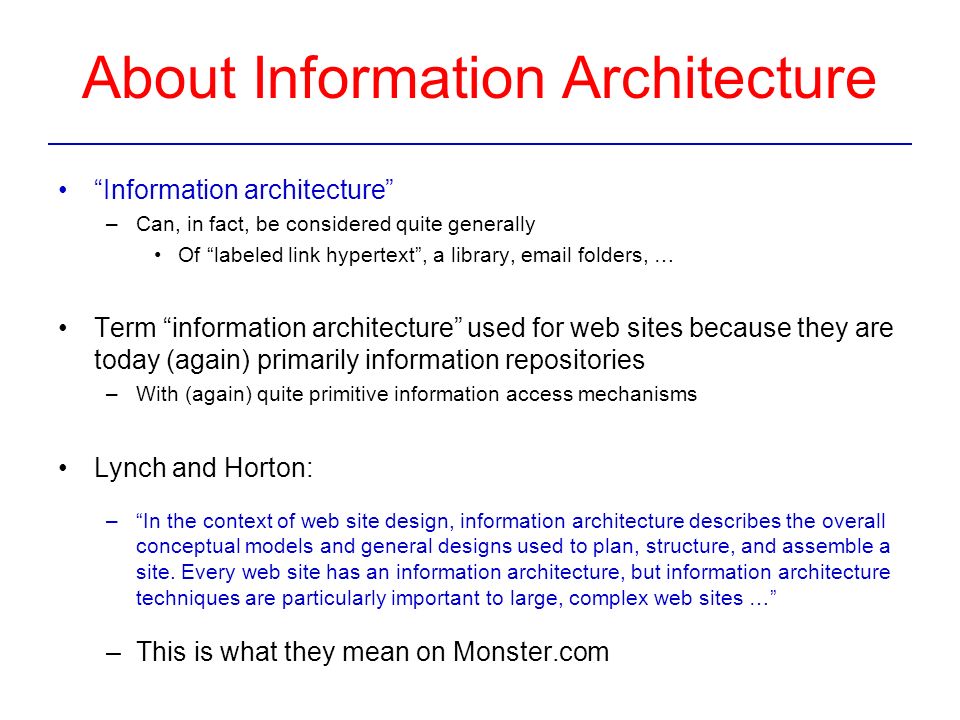

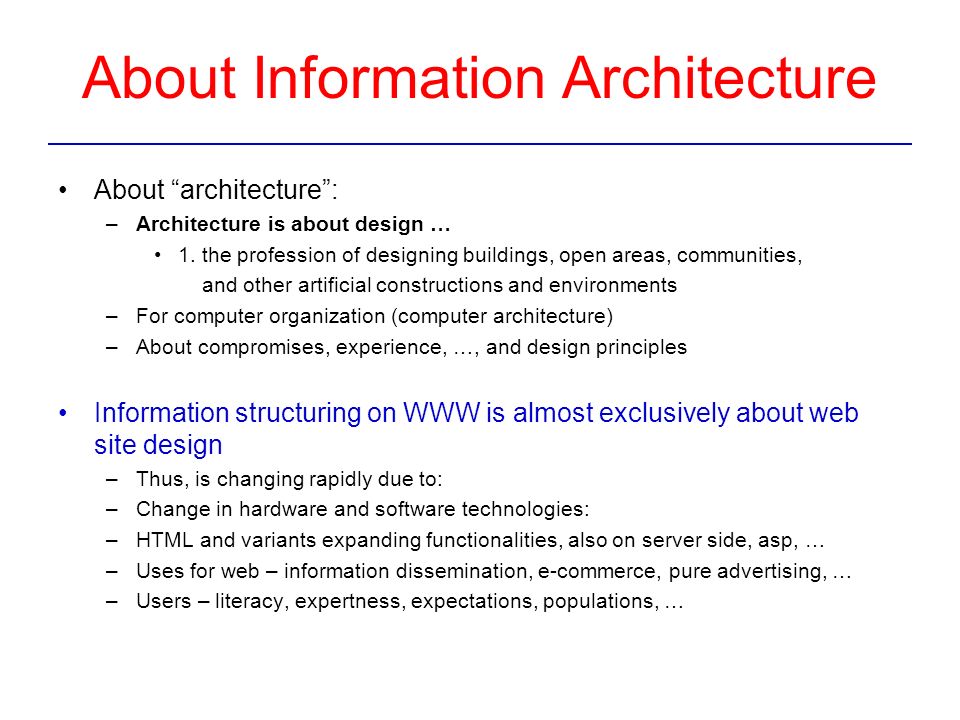

65 About Information Architecture “Information architecture” –Can, in fact, be considered quite generally Of “labeled link hypertext”, a library, email folders, … Term “information architecture” used for web sites because they are today (again) primarily information repositories –With (again) quite primitive information access mechanisms Lynch and Horton: –“In the context of web site design, information architecture describes the overall conceptual models and general designs used to plan, structure, and assemble a site. Every web site has an information architecture, but information architecture techniques are particularly important to large, complex web sites …” –This is what they mean on Monster.com

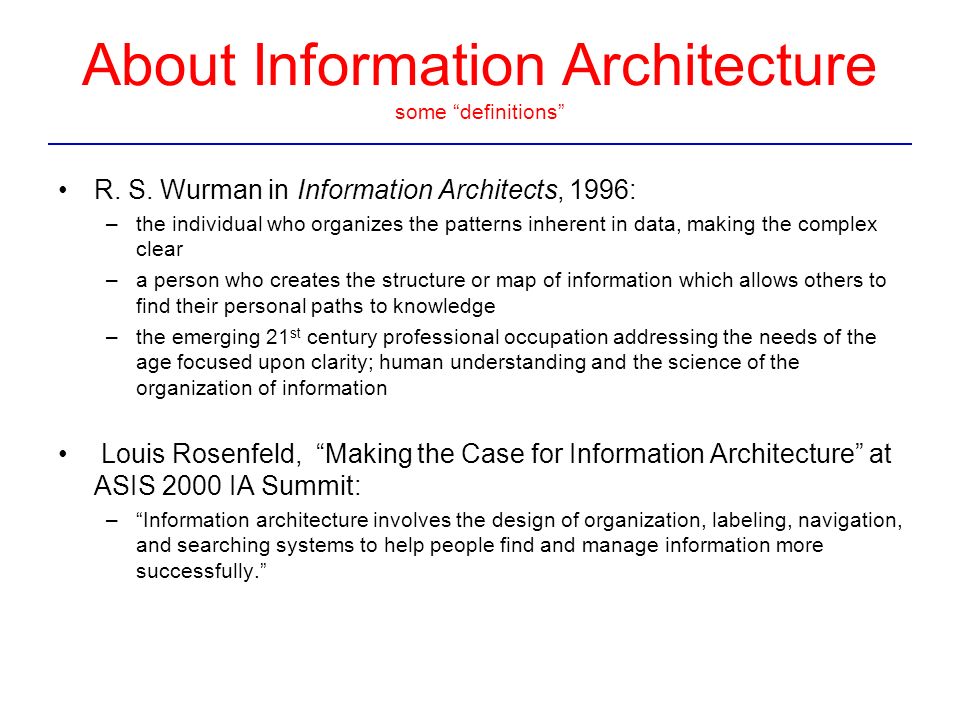

66 About Information Architecture some “definitions” R. S. Wurman in Information Architects, 1996: –the individual who organizes the patterns inherent in data, making the complex clear –a person who creates the structure or map of information which allows others to find their personal paths to knowledge –the emerging 21 st century professional occupation addressing the needs of the age focused upon clarity; human understanding and the science of the organization of information Louis Rosenfeld, “Making the Case for Information Architecture” at ASIS 2000 IA Summit: –“Information architecture involves the design of organization, labeling, navigation, and searching systems to help people find and manage information more successfully.”

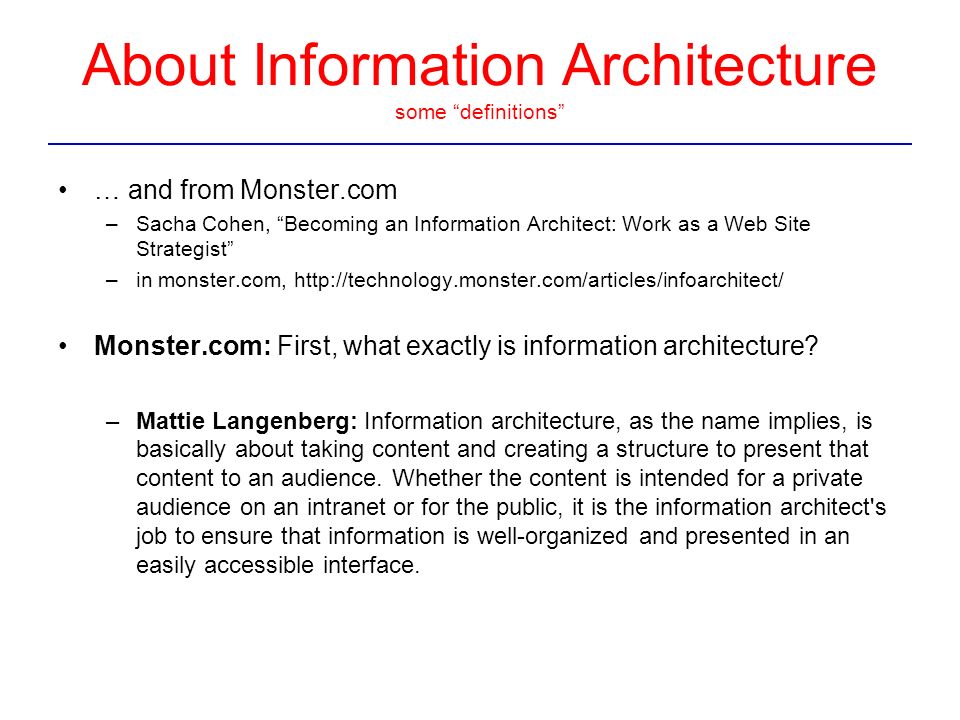

67 About Information Architecture some “definitions” … and from Monster.com –Sacha Cohen, “Becoming an Information Architect: Work as a Web Site Strategist” –in monster.com, http://technology.monster.com/articles/infoarchitect/ Monster.com: First, what exactly is information architecture? –Mattie Langenberg: Information architecture, as the name implies, is basically about taking content and creating a structure to present that content to an audience. Whether the content is intended for a private audience on an intranet or for the public, it is the information architect's job to ensure that information is well-organized and presented in an easily accessible interface.

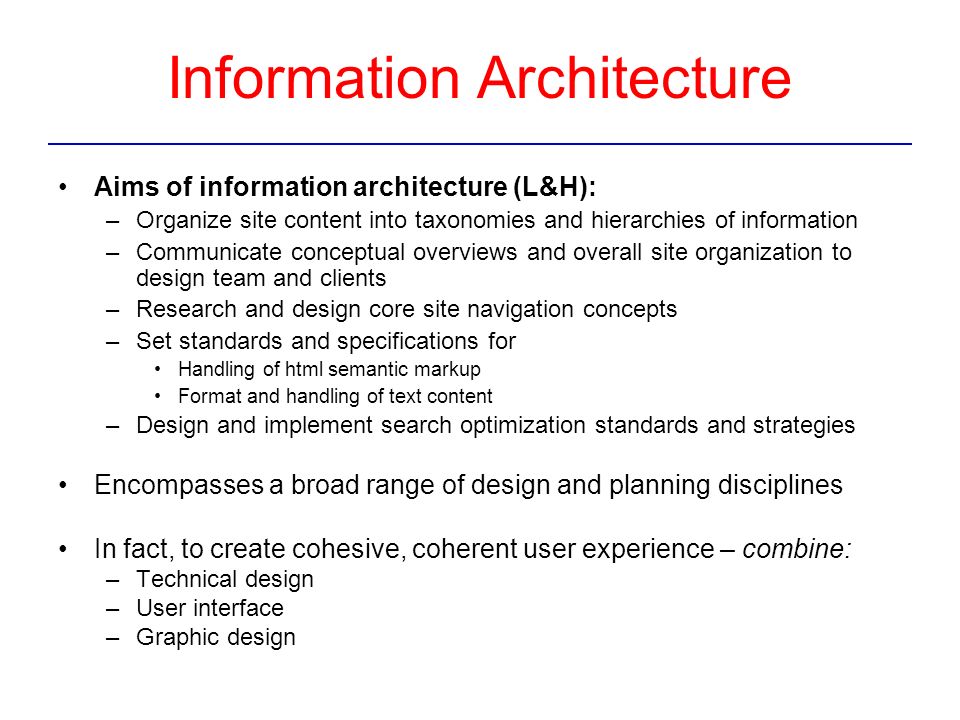

68 Information Architecture Aims of information architecture (L&H): –Organize site content into taxonomies and hierarchies of information –Communicate conceptual overviews and overall site organization to design team and clients –Research and design core site navigation concepts –Set standards and specifications for Handling of html semantic markup Format and handling of text content –Design and implement search optimization standards and strategies Encompasses a broad range of design and planning disciplines In fact, to create cohesive, coherent user experience – combine: –Technical design –User interface –Graphic design

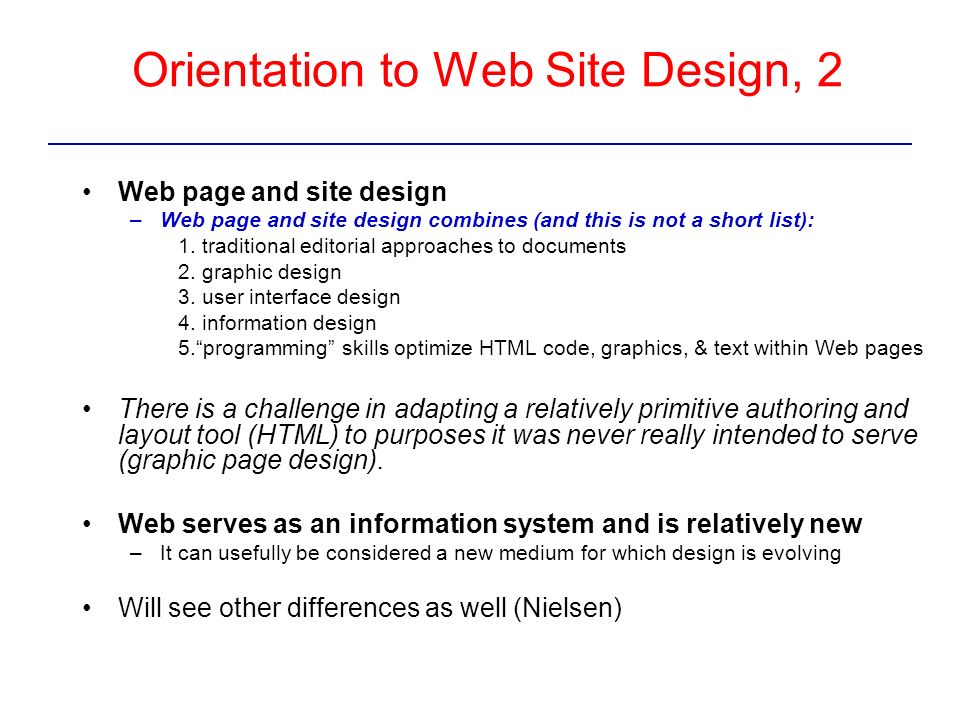

69 Orientation to Web Site Design, 2 Web page and site design –Web page and site design combines (and this is not a short list): 1. traditional editorial approaches to documents 2. graphic design 3. user interface design 4. information design 5.“programming” skills optimize HTML code, graphics, & text within Web pages There is a challenge in adapting a relatively primitive authoring and layout tool (HTML) to purposes it was never really intended to serve (graphic page design). Web serves as an information system and is relatively new –It can usefully be considered a new medium for which design is evolving Will see other differences as well (Nielsen)

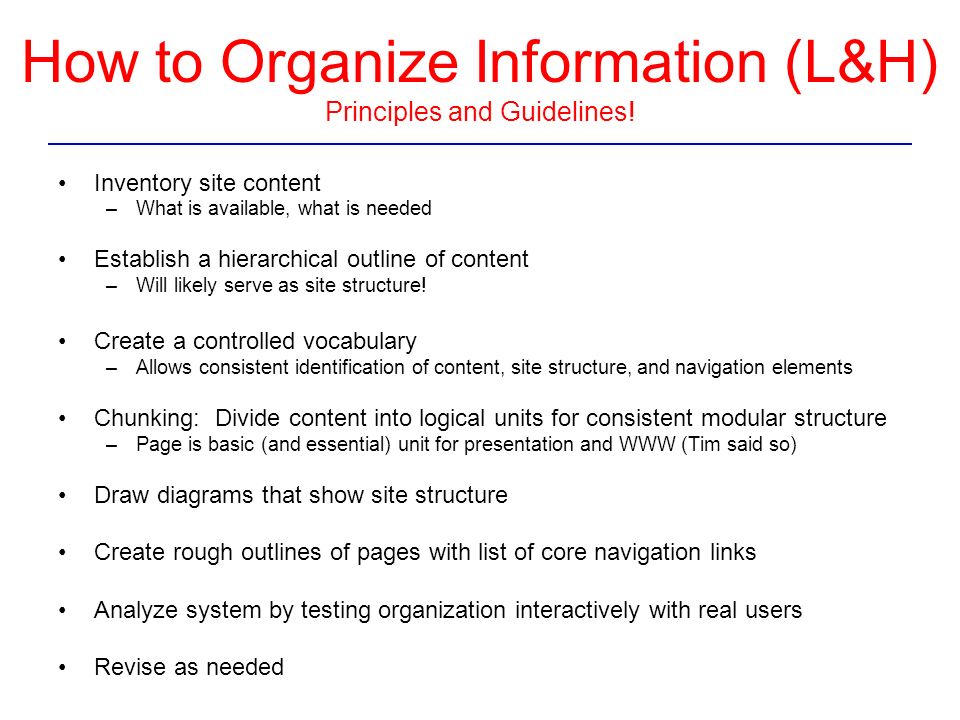

70 How to Organize Information (L&H) Principles and Guidelines! Inventory site content –What is available, what is needed Establish a hierarchical outline of content –Will likely serve as site structure! Create a controlled vocabulary –Allows consistent identification of content, site structure, and navigation elements Chunking: Divide content into logical units for consistent modular structure –Page is basic (and essential) unit for presentation and WWW (Tim said so) Draw diagrams that show site structure Create rough outlines of pages with list of core navigation links Analyze system by testing organization interactively with real users Revise as needed

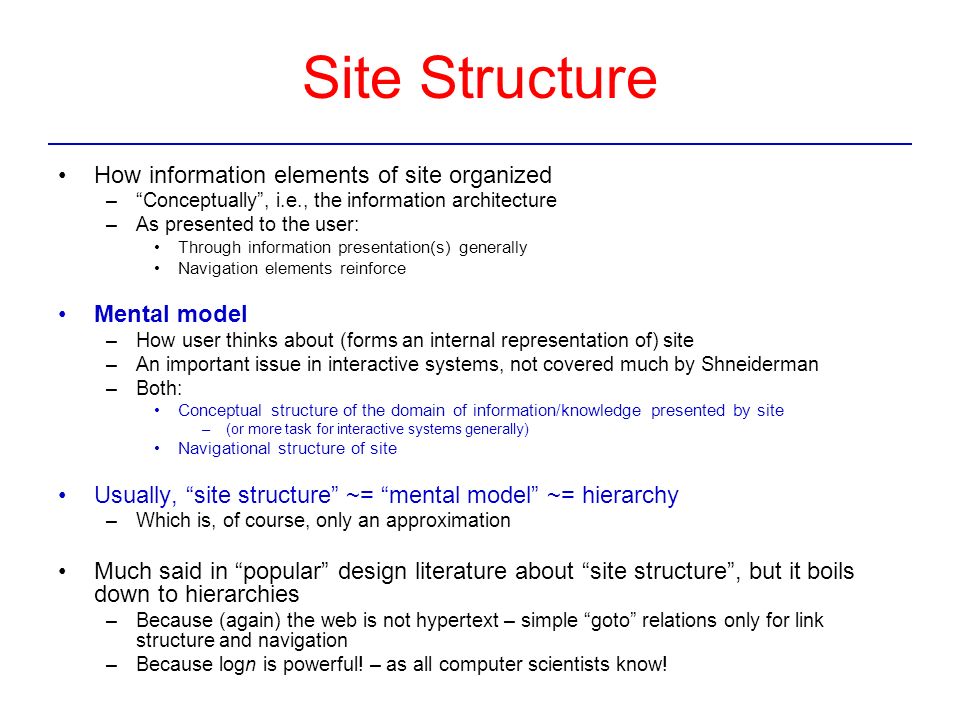

71 Site Structure How information elements of site organized –“Conceptually”, i.e., the information architecture –As presented to the user: Through information presentation(s) generally Navigation elements reinforce Mental model –How user thinks about (forms an internal representation of) site –An important issue in interactive systems, not covered much by Shneiderman –Both: Conceptual structure of the domain of information/knowledge presented by site –(or more task for interactive systems generally) Navigational structure of site Usually, “site structure” ~= “mental model” ~= hierarchy –Which is, of course, only an approximation Much said in “popular” design literature about “site structure”, but it boils down to hierarchies –Because (again) the web is not hypertext – simple “goto” relations only for link structure and navigation –Because logn is powerful! – as all computer scientists know!

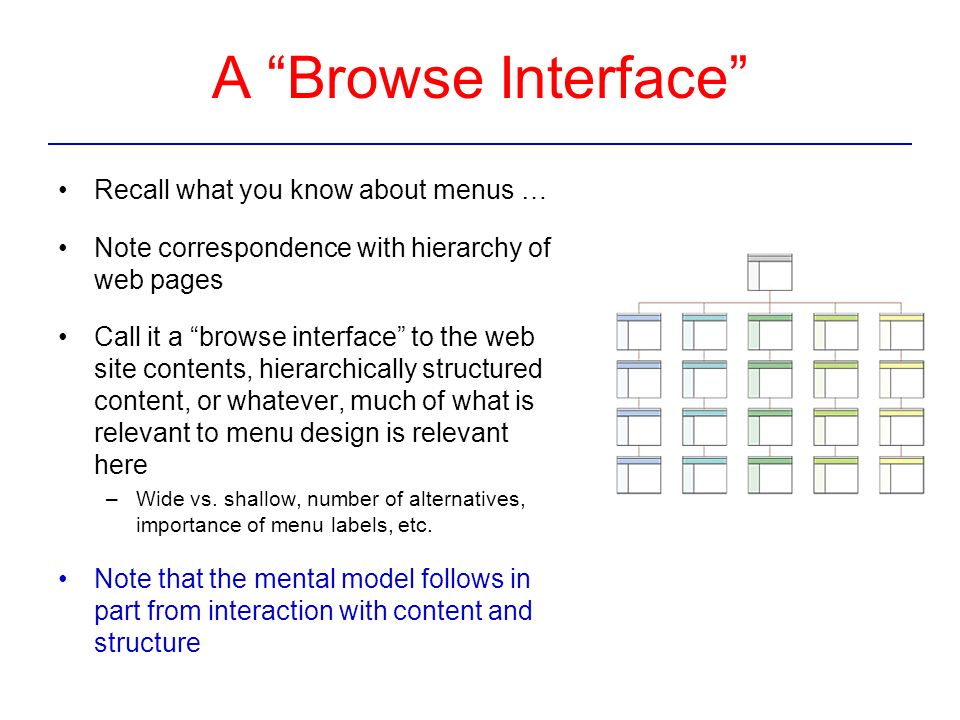

72 A “Browse Interface” Recall what you know about menus … Note correspondence with hierarchy of web pages Call it a “browse interface” to the web site contents, hierarchically structured content, or whatever, much of what is relevant to menu design is relevant here –Wide vs. shallow, number of alternatives, importance of menu labels, etc. Note that the mental model follows in part from interaction with content and structure

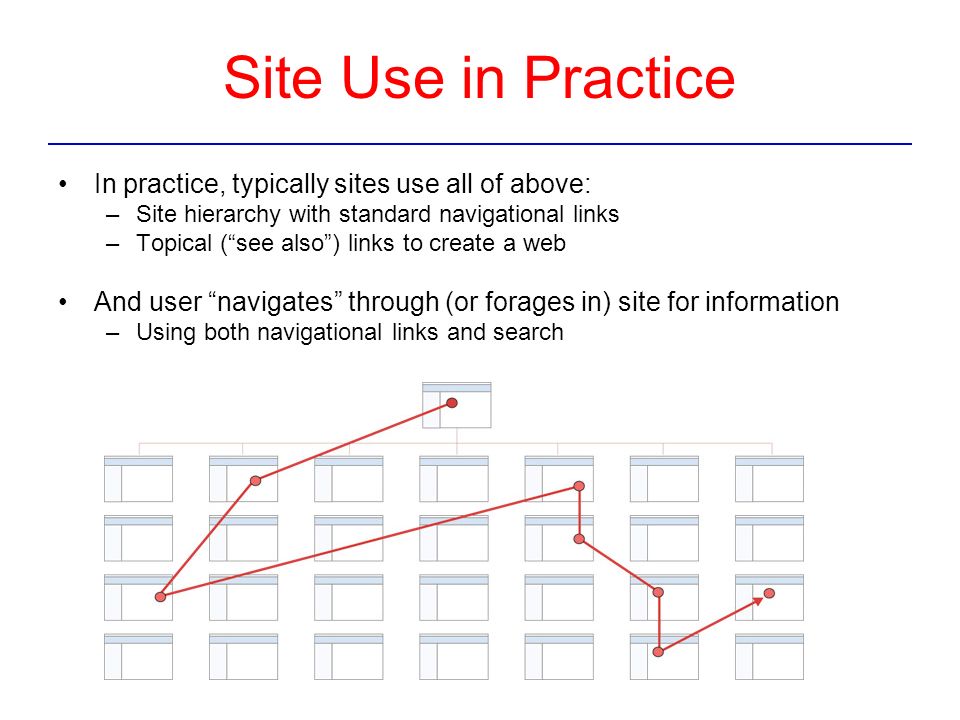

73 Site Use in Practice In practice, typically sites use all of above: –Site hierarchy with standard navigational links –Topical (“see also”) links to create a web And user “navigates” through (or forages in) site for information –Using both navigational links and search

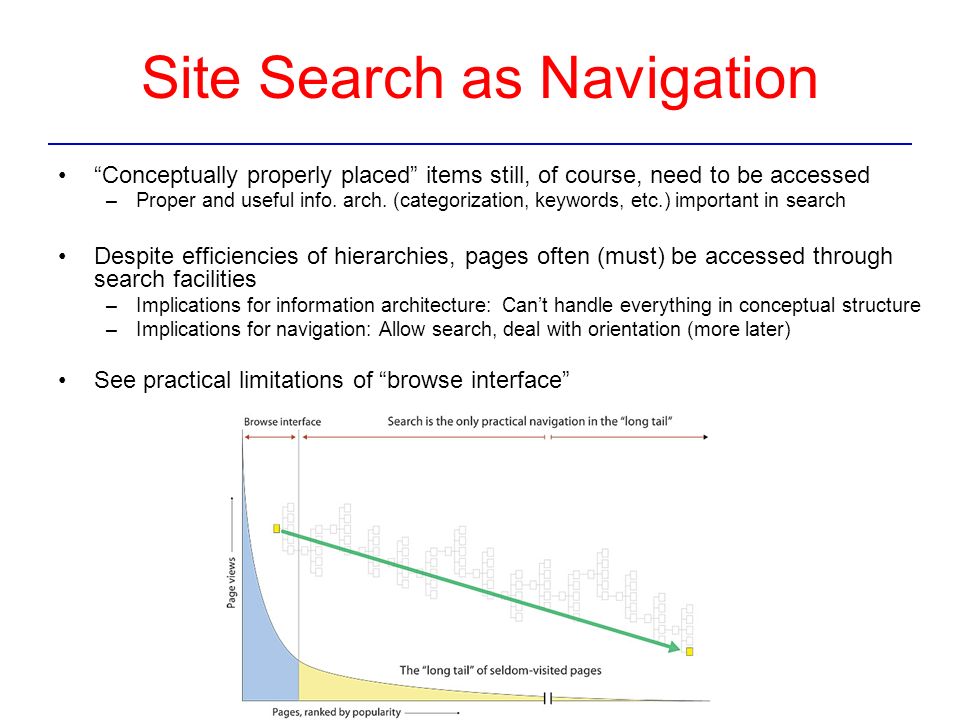

74 Site Search as Navigation “Conceptually properly placed” items still, of course, need to be accessed –Proper and useful info. arch. (categorization, keywords, etc.) important in search Despite efficiencies of hierarchies, pages often (must) be accessed through search facilities –Implications for information architecture: Can’t handle everything in conceptual structure –Implications for navigation: Allow search, deal with orientation (more later) See practical limitations of “browse interface”

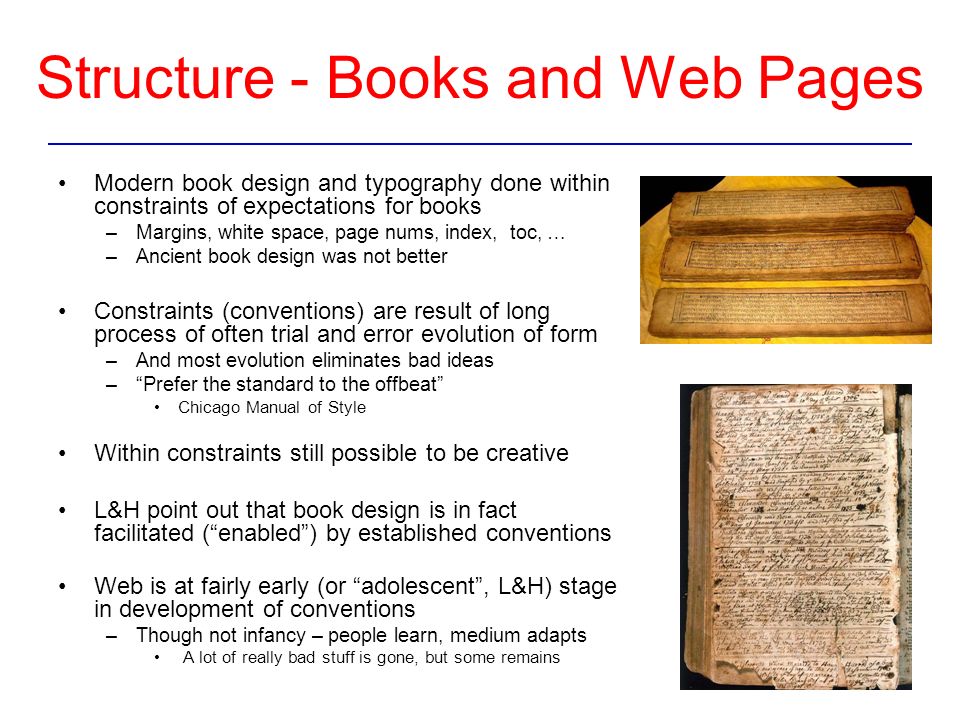

75 Structure - Books and Web Pages Modern book design and typography done within constraints of expectations for books –Margins, white space, page nums, index, toc, … –Ancient book design was not better Constraints (conventions) are result of long process of often trial and error evolution of form –And most evolution eliminates bad ideas –“Prefer the standard to the offbeat” Chicago Manual of Style Within constraints still possible to be creative L&H point out that book design is in fact facilitated (“enabled”) by established conventions Web is at fairly early (or “adolescent”, L&H) stage in development of conventions –Though not infancy – people learn, medium adapts A lot of really bad stuff is gone, but some remains

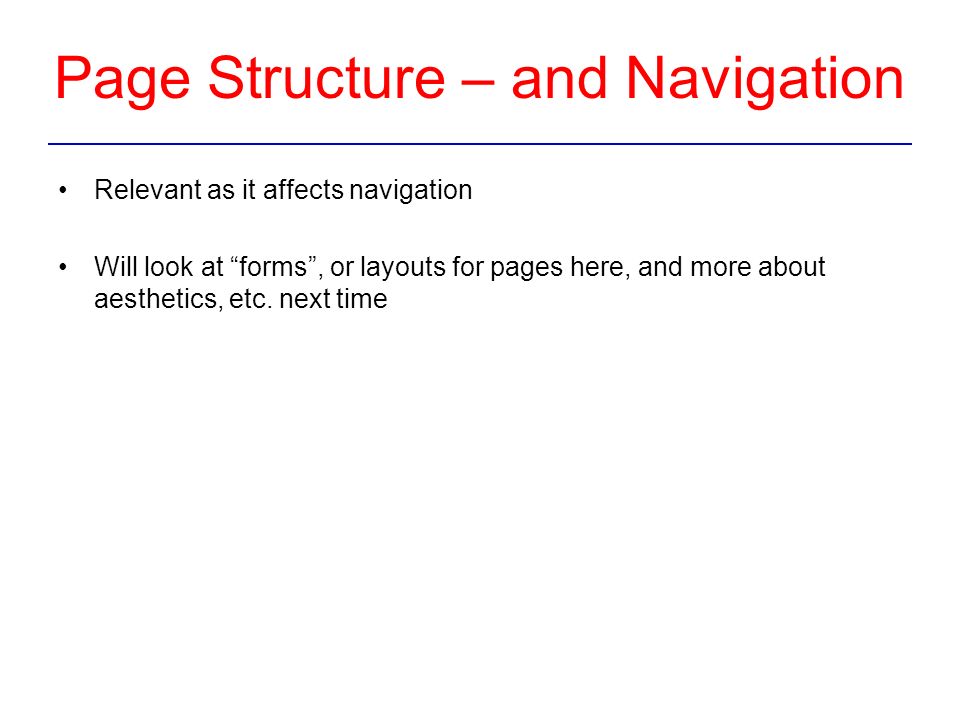

76 Page Structure – and Navigation Relevant as it affects navigation Will look at “forms”, or layouts for pages here, and more about aesthetics, etc. next time

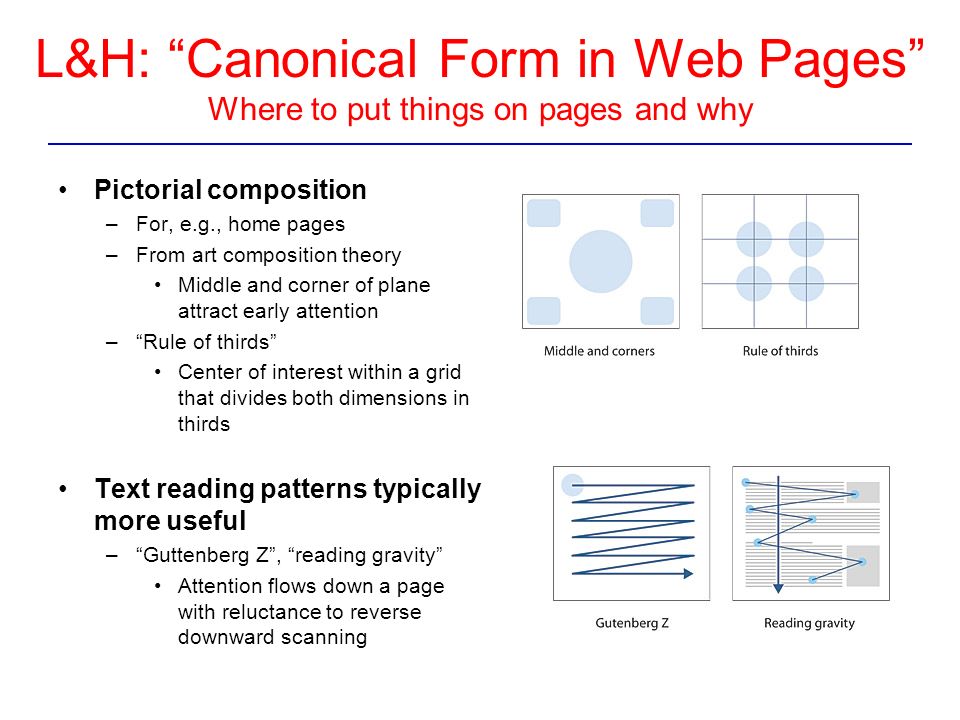

77 L&H: “Canonical Form in Web Pages” Where to put things on pages and why Pictorial composition –For, e.g., home pages –From art composition theory Middle and corner of plane attract early attention –“Rule of thirds” Center of interest within a grid that divides both dimensions in thirds Text reading patterns typically more useful –“Guttenberg Z”, “reading gravity” Attention flows down a page with reluctance to reverse downward scanning

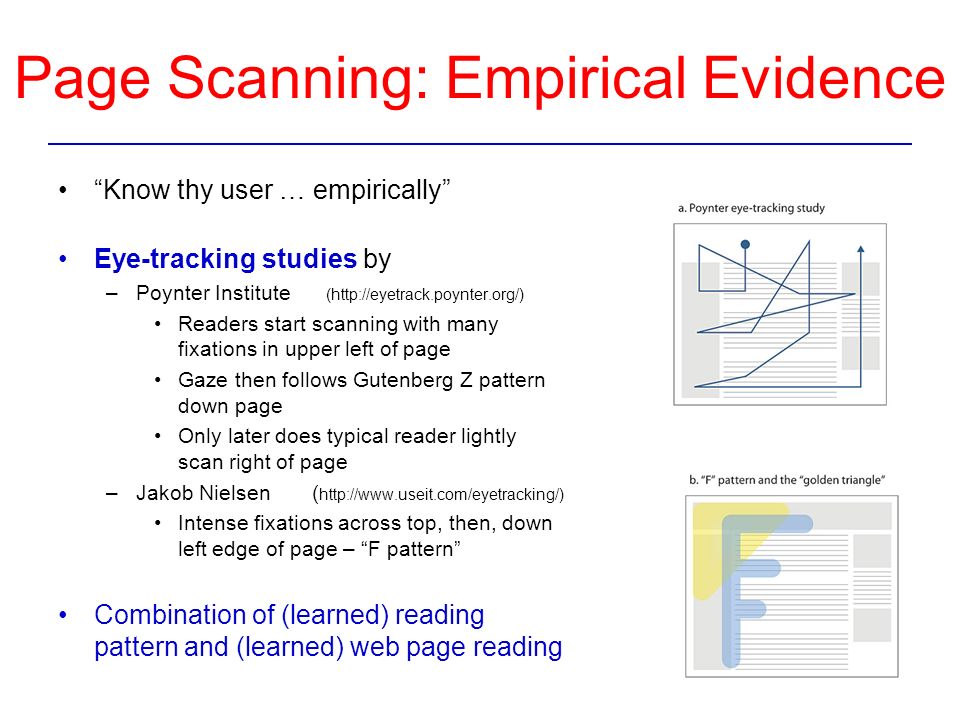

78 Page Scanning: Empirical Evidence “Know thy user … empirically” Eye-tracking studies by –Poynter Institute (http://eyetrack.poynter.org/) Readers start scanning with many fixations in upper left of page Gaze then follows Gutenberg Z pattern down page Only later does typical reader lightly scan right of page –Jakob Nielsen ( http://www.useit.com/eyetracking/) Intense fixations across top, then, down left edge of page – “F pattern” Combination of (learned) reading pattern and (learned) web page reading

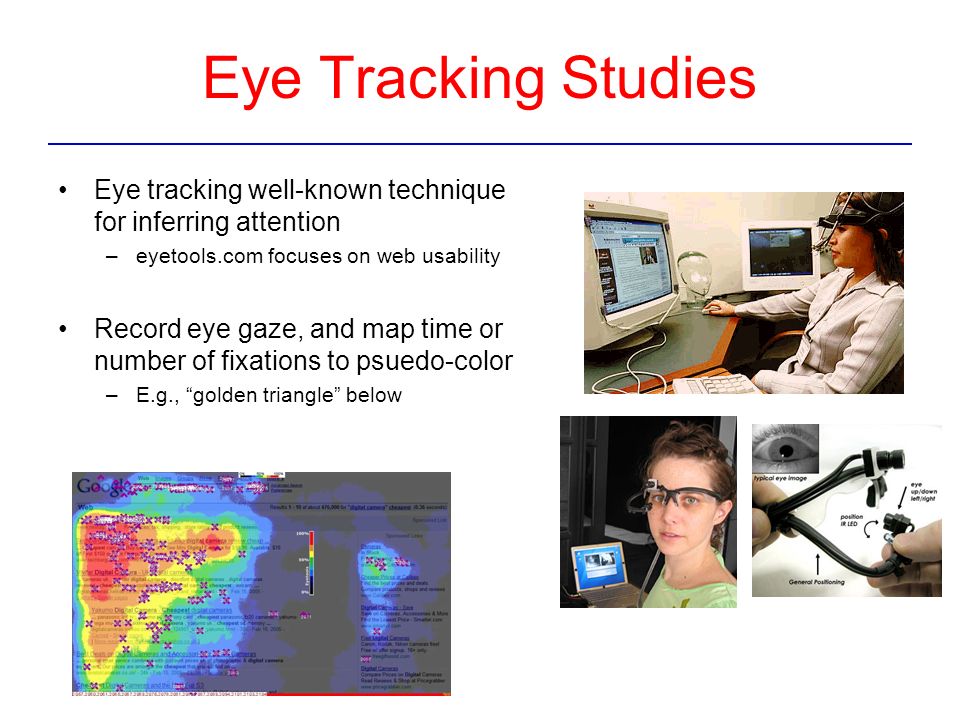

79 Eye Tracking Studies Eye tracking well-known technique for inferring attention –eyetools.com focuses on web usability Record eye gaze, and map time or number of fixations to psuedo-color –E.g., “golden triangle” below

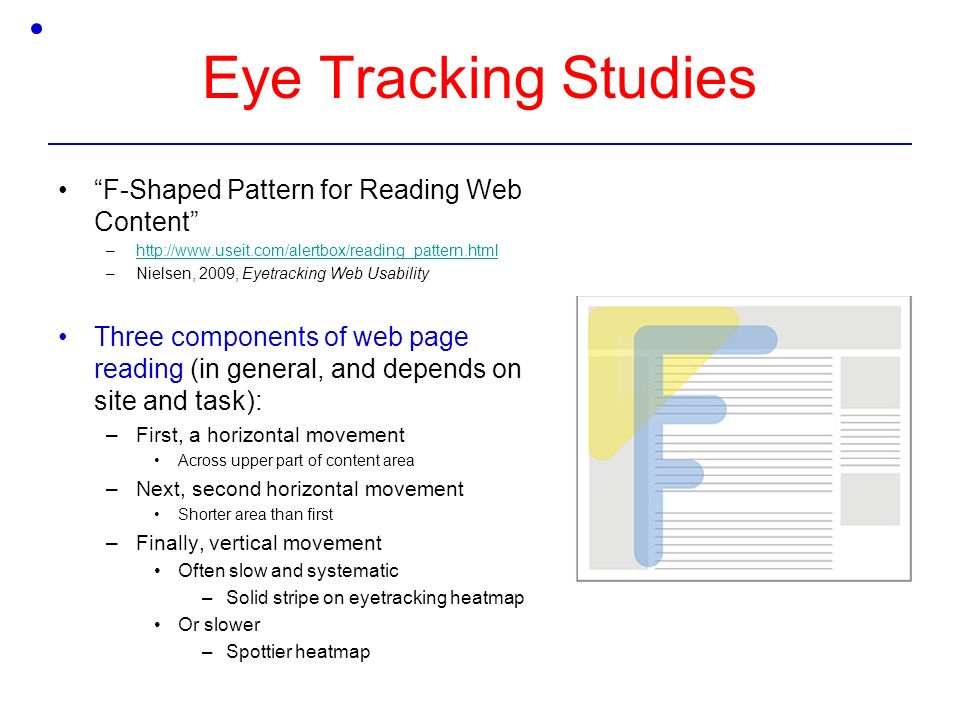

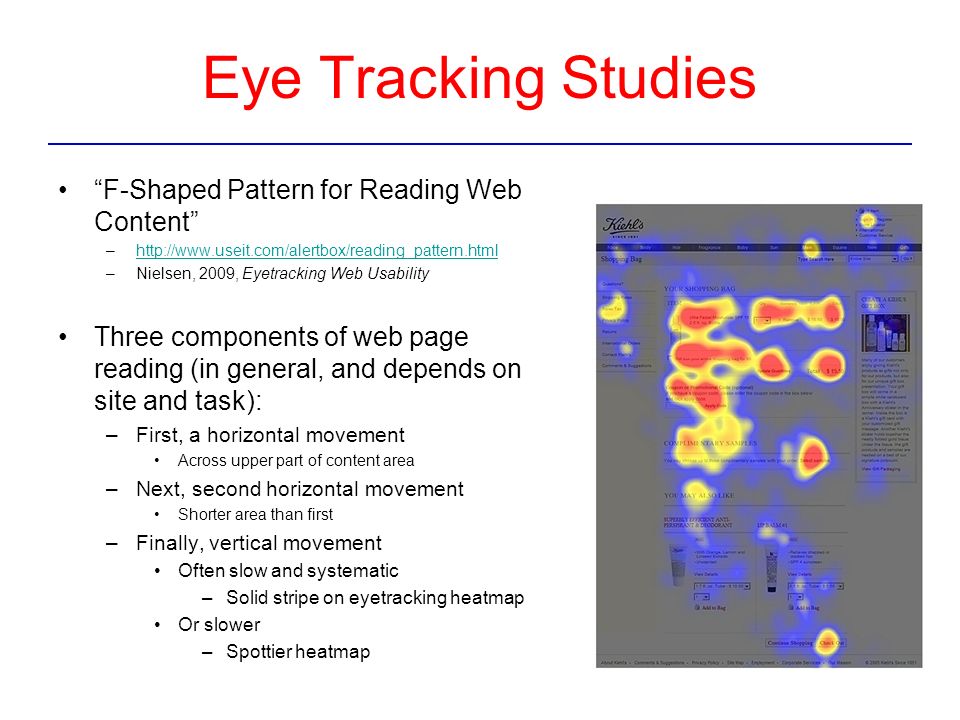

80 Eye Tracking Studies “F-Shaped Pattern for Reading Web Content” –http://www.useit.com/alertbox/reading_pattern.htmlhttp://www.useit.com/alertbox/reading_pattern.html –Nielsen, 2009, Eyetracking Web Usability Three components of web page reading (in general, and depends on site and task): –First, a horizontal movement Across upper part of content area –Next, second horizontal movement Shorter area than first –Finally, vertical movement Often slow and systematic –Solid stripe on eyetracking heatmap Or slower –Spottier heatmap

81 Eye Tracking Studies “F-Shaped Pattern for Reading Web Content” –http://www.useit.com/alertbox/reading_pattern.htmlhttp://www.useit.com/alertbox/reading_pattern.html –Nielsen, 2009, Eyetracking Web Usability Three components of web page reading (in general, and depends on site and task): –First, a horizontal movement Across upper part of content area –Next, second horizontal movement Shorter area than first –Finally, vertical movement Often slow and systematic –Solid stripe on eyetracking heatmap Or slower –Spottier heatmap

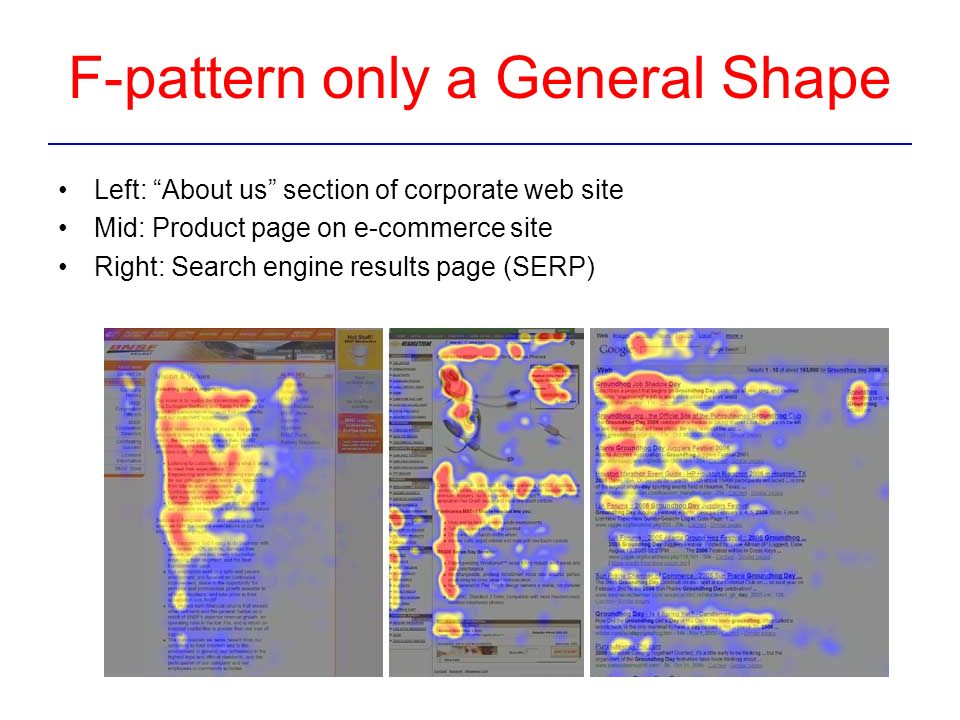

82 F-pattern only a General Shape Left: “About us” section of corporate web site Mid: Product page on e-commerce site Right: Search engine results page (SERP)

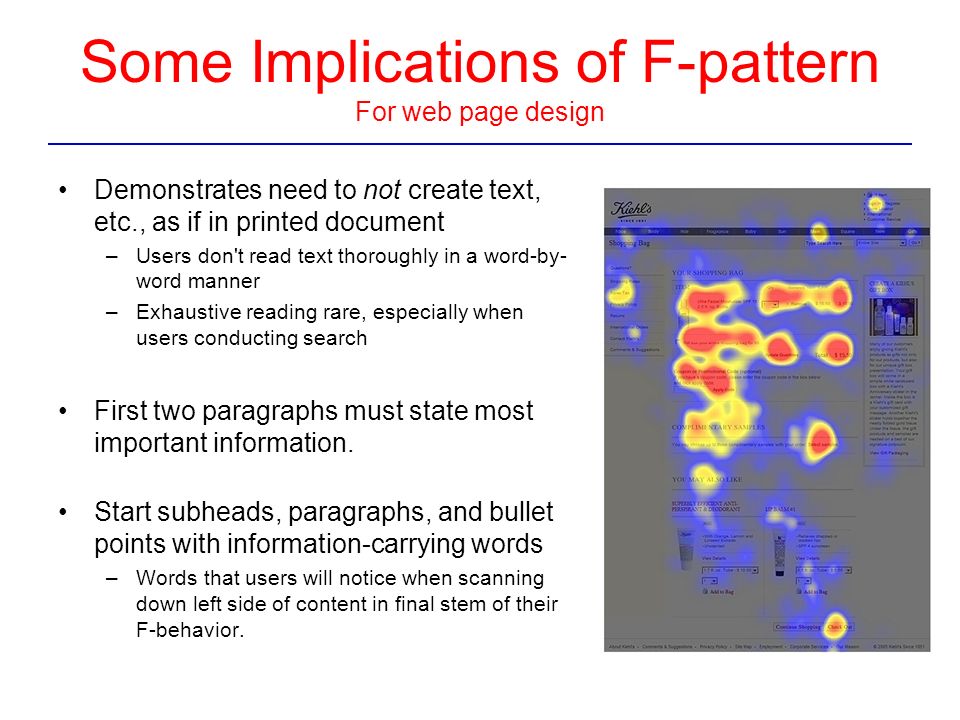

83 Some Implications of F-pattern For web page design Demonstrates need to not create text, etc., as if in printed document –Users don't read text thoroughly in a word-by- word manner –Exhaustive reading rare, especially when users conducting search First two paragraphs must state most important information. Start subheads, paragraphs, and bullet points with information-carrying words –Words that users will notice when scanning down left side of content in final stem of their F-behavior.

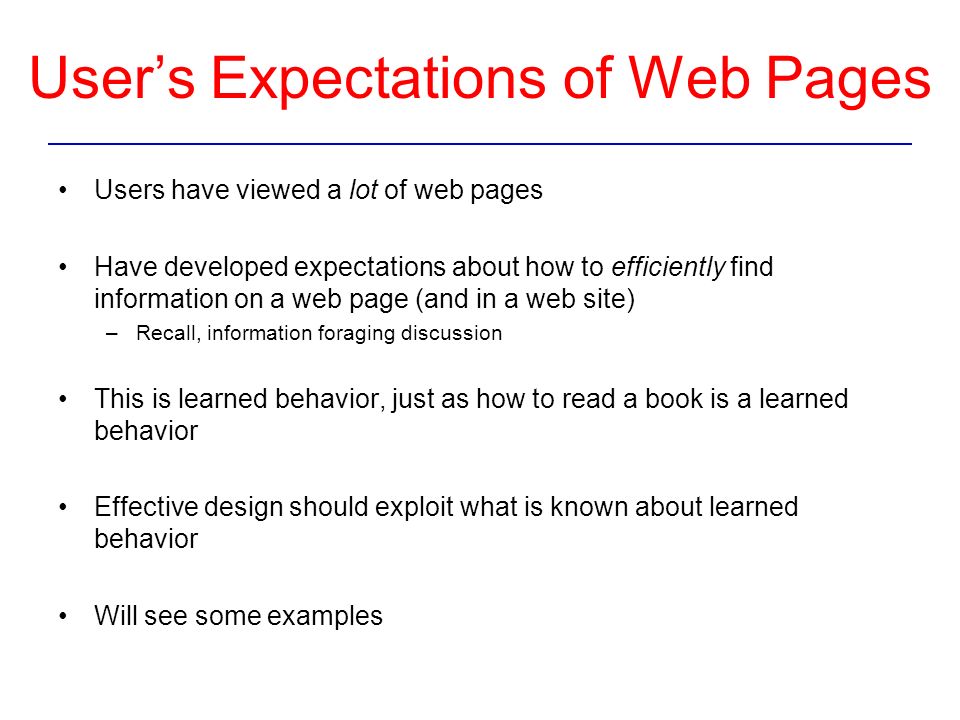

84 User’s Expectations of Web Pages Users have viewed a lot of web pages Have developed expectations about how to efficiently find information on a web page (and in a web site) –Recall, information foraging discussion This is learned behavior, just as how to read a book is a learned behavior Effective design should exploit what is known about learned behavior Will see some examples

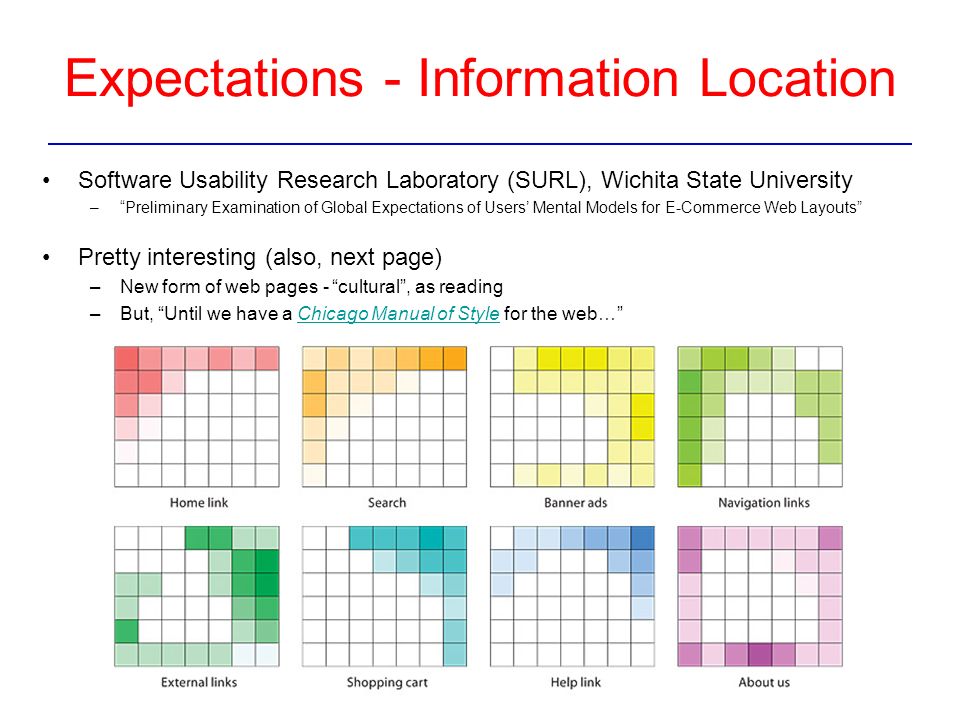

85 Expectations - Information Location Software Usability Research Laboratory (SURL), Wichita State University –“Preliminary Examination of Global Expectations of Users’ Mental Models for E-Commerce Web Layouts” Pretty interesting (also, next page) –New form of web pages - “cultural”, as reading –But, “Until we have a Chicago Manual of Style for the web…”Chicago Manual of Style

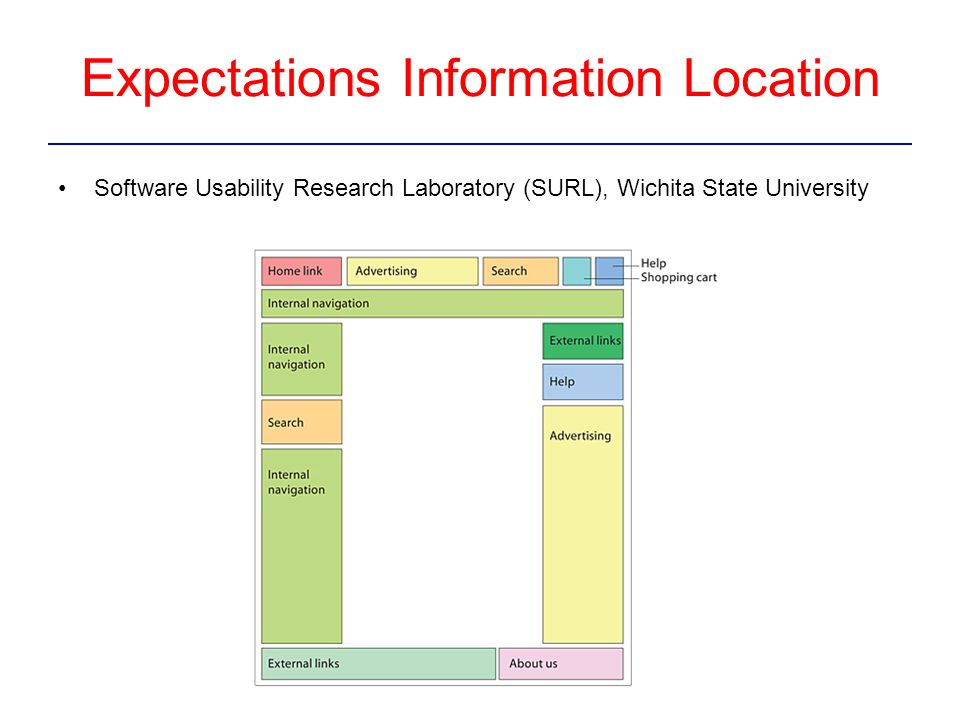

86 Expectations Information Location Software Usability Research Laboratory (SURL), Wichita State University

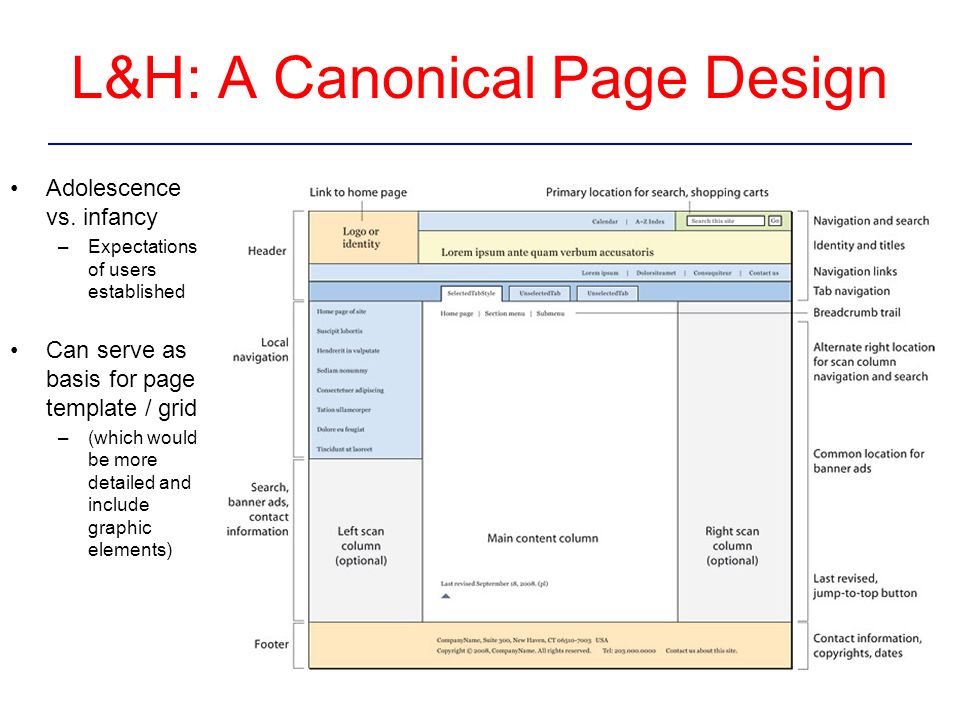

87 L&H: A Canonical Page Design Adolescence vs. infancy –Expectations of users established Can serve as basis for page template / grid –(which would be more detailed and include graphic elements)

88 Current Tools Reflect Form Ubiquity UTPA Computer Science, 2008 Design provided by tool –Content management system “De facto standard”

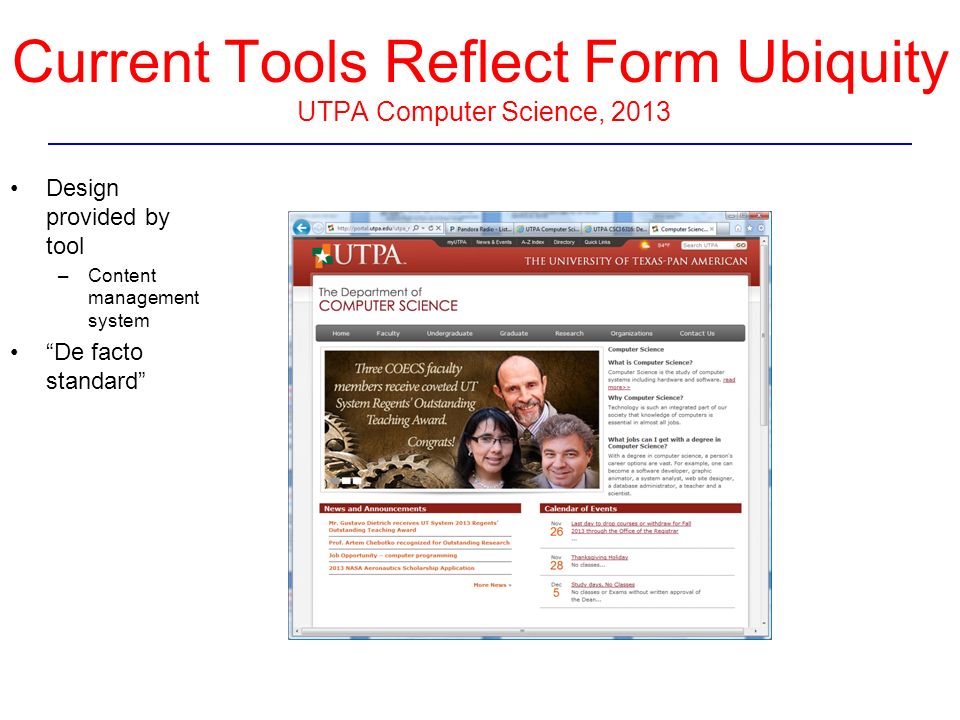

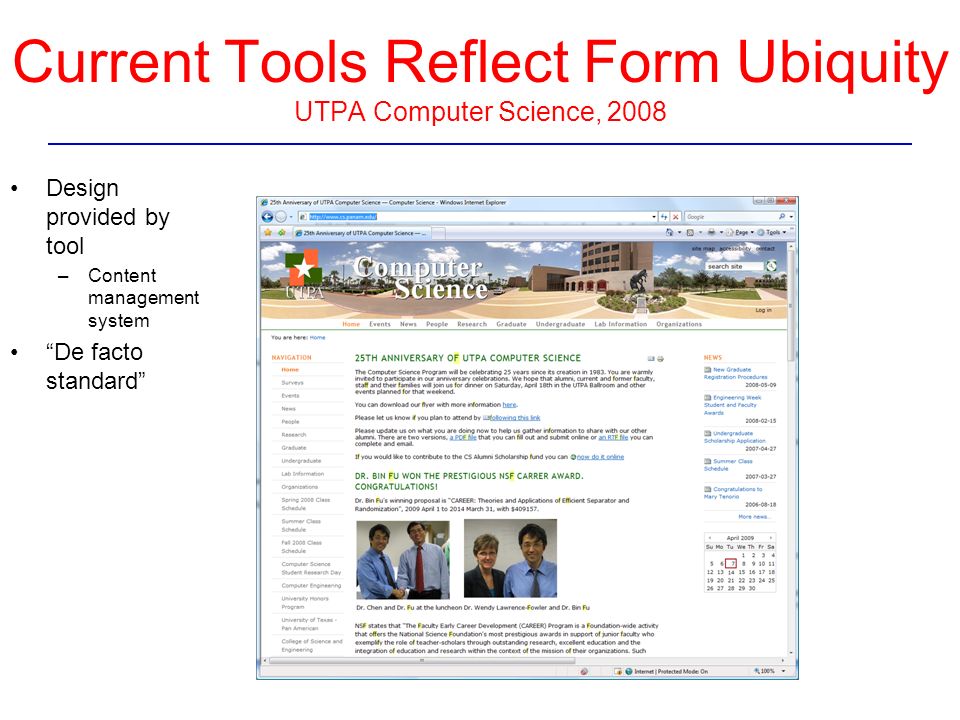

89 Current Tools Reflect Form Ubiquity UTPA Computer Science, 2013 Design provided by tool –Content management system “De facto standard”

90 End.
