1
New Generetion EW ESAWARE offers a range of new products that perfectly fit the future trends of automation thanks to innovating characteristics and a superior flexibility.
2

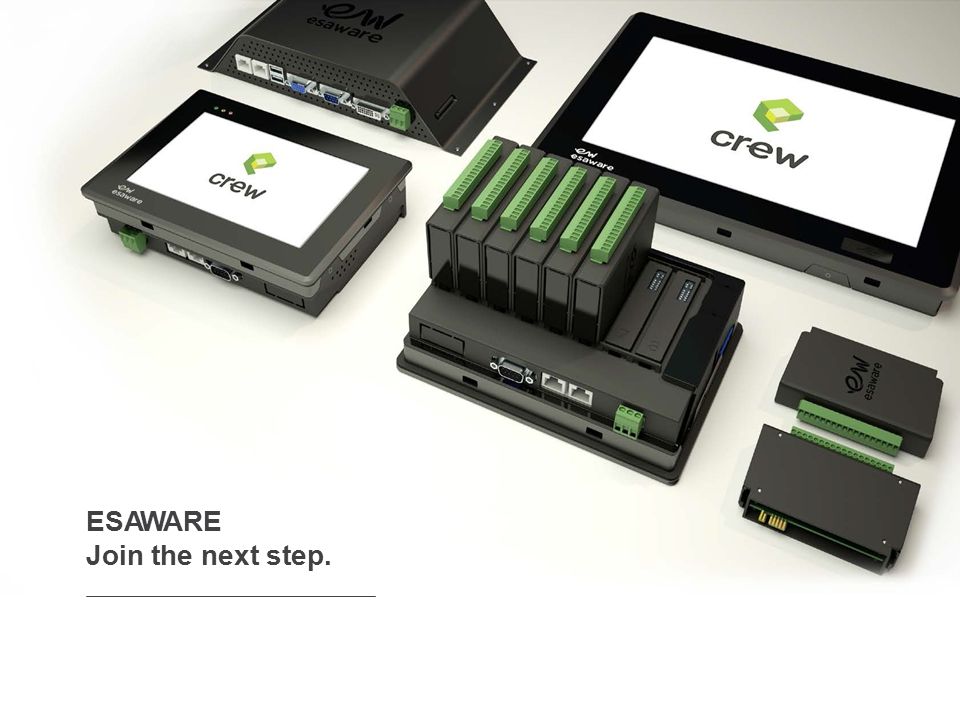

ESAWARE Join the next step.
3

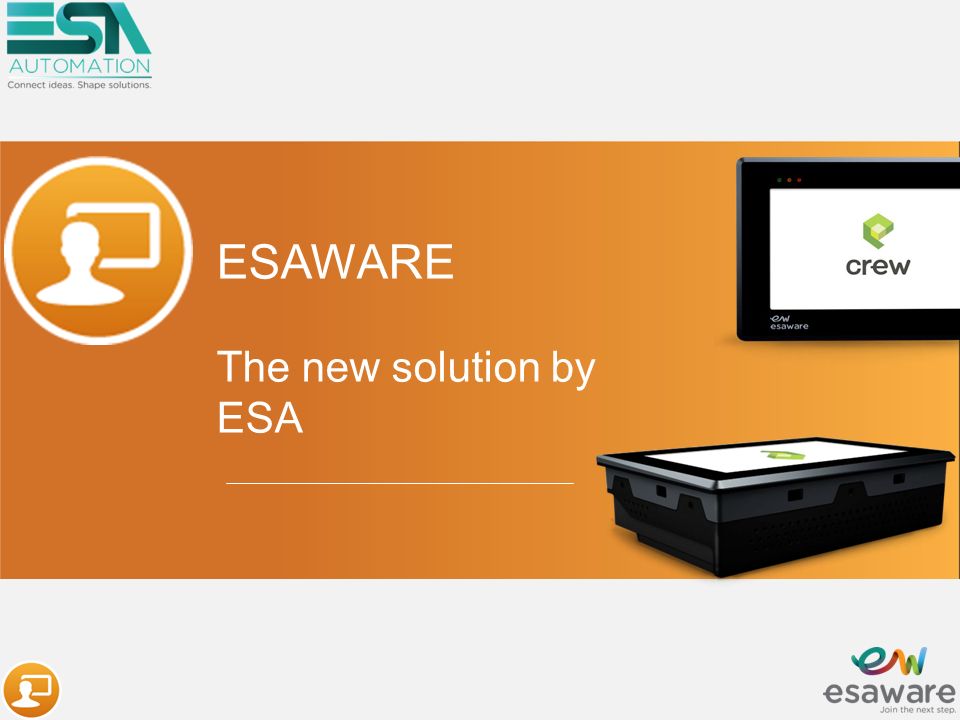

ESAWARE The new solution by ESA
4

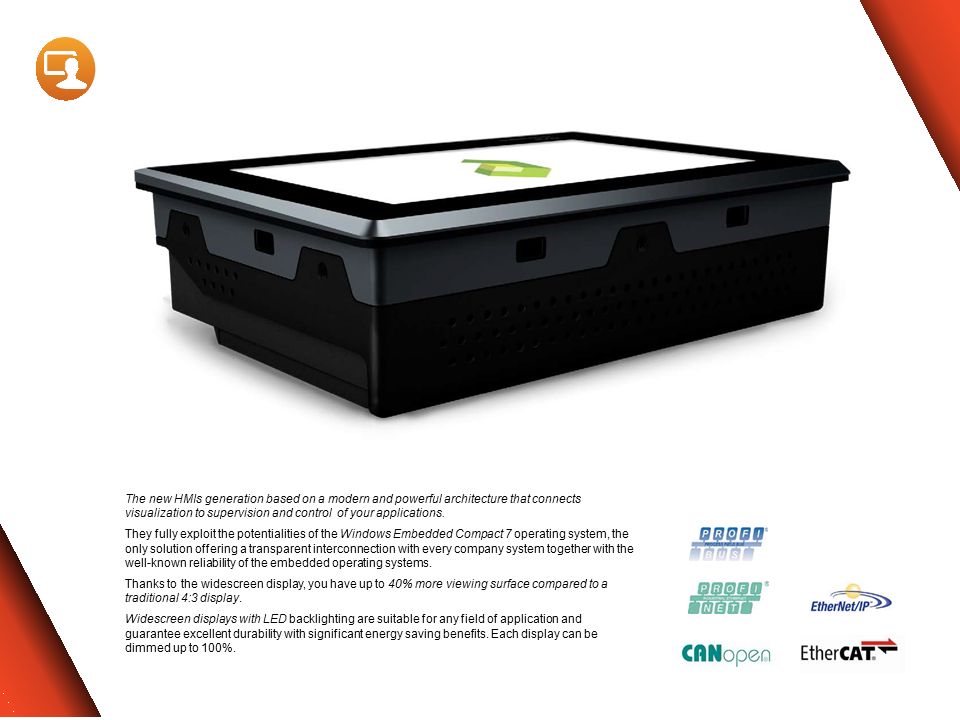

The new HMIs generation based on a modern and powerful architecture that connects visualization to supervision and control of your applications. They fully exploit the potentialities of the Windows Embedded Compact 7 operating system, the only solution offering a transparent interconnection with every company system together with the well-known reliability of the embedded operating systems. Thanks to the widescreen display, you have up to 40% more viewing surface compared to a traditional 4:3 display. Widescreen displays with LED backlighting are suitable for any field of application and guarantee excellent durability with significant energy saving benefits. Each display can be dimmed up to 100%.
5

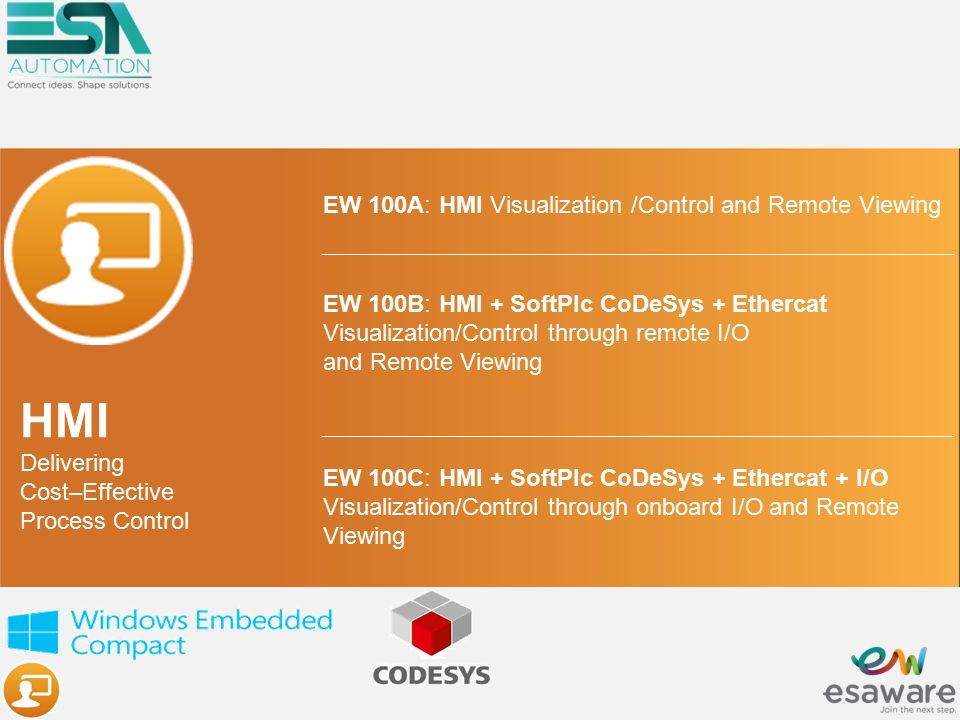

HMI Delivering Cost–Effective Process Control EW 100A: HMI Visualization /Control and Remote Viewing EW 100B: HMI + SoftPlc CoDeSys + Ethercat Visualization/Control through remote I/O and Remote Viewing EW 100C: HMI + SoftPlc CoDeSys + Ethercat + I/O Visualization/Control through onboard I/O and Remote Viewing
6

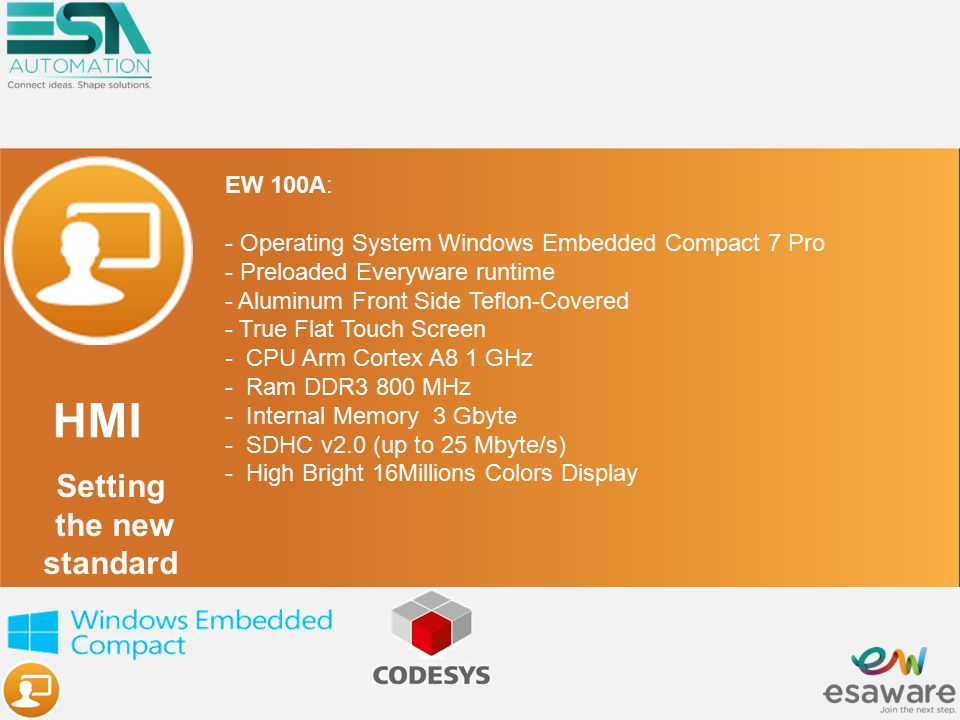

EW 100A: - Operating System Windows Embedded Compact 7 Pro - Preloaded Everyware runtime - Aluminum Front Side Teflon-Covered - True Flat Touch Screen - CPU Arm Cortex A8 1 GHz - Ram DDR3 800 MHz - Internal Memory 3 Gbyte - SDHC v2.0 (up to 25 Mbyte/s) - High Bright 16Millions Colors Display HMI Setting the new standard
7
Additional features on EW 100B: - Runtime CoDeSys v.3.5 preinstalled - NVRam integrated - Watchdog Sw - Watchdog Hw - Built in Ethercat interface - Additional features on EW 100C: - EW600 I/O Backplane HMI All the components you will need to complete your automated system
8

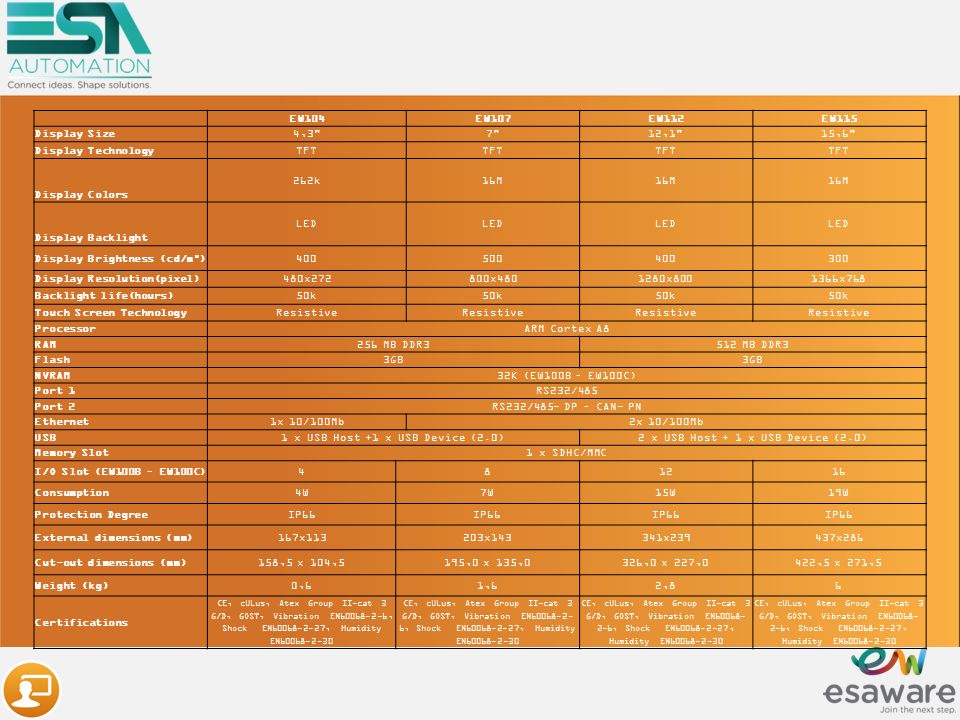

EW104EW107EW112EW115 Display Size4,3"7"12,1"15,6" Display TechnologyTFT Display Colors 262k16M Display Backlight LED Display Brightness (cd/m²)400500400300 Display Resolution(pixel)480x272800x4801280x8001366x768 Backlight life(hours)50k Touch Screen TechnologyResistive ProcessorARM Cortex A8 RAM256 MB DDR3512 MB DDR3 Flash3GB NVRAM32K (EW100B – EW100C) Port 1RS232/485 Port 2RS232/485- DP – CAN- PN Ethernet1x 10/100Mb2x 10/100Mb USB1 x USB Host +1 x USB Device (2.0)2 x USB Host + 1 x USB Device (2.0) Memory Slot1 x SDHC/MMC I/O Slot (EW100B – EW100C)481216 Consumption4W7W15W19W Protection DegreeIP66 External dimensions (mm)167x113203x143341x239437x286 Cut-out dimensions (mm)158,5 x 104,5195,0 x 135,0326,0 x 227,0422,5 x 271,5 Weight (kg)0,61,62,86 Certifications CE, cULus, Atex Group II-cat 3 G/D, GOST, Vibration EN60068-2-6, Shock EN60068-2-27, Humidity EN60068-2-30
9

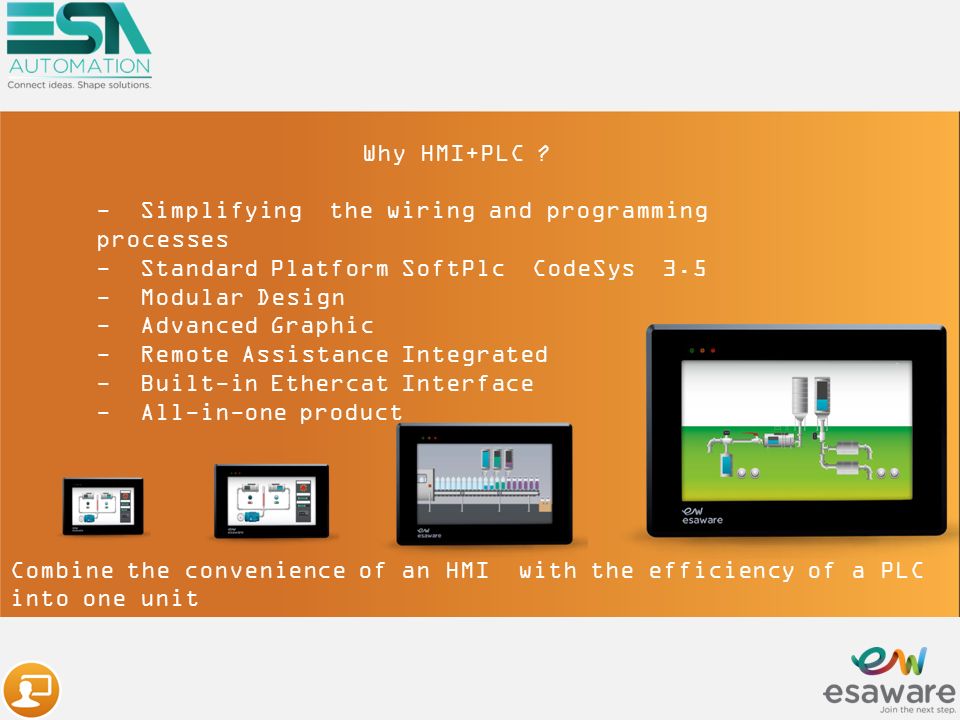

Why HMI+PLC ? - Simplifying the wiring and programming processes - Standard Platform SoftPlc CodeSys 3.5 - Modular Design - Advanced Graphic - Remote Assistance Integrated - Built-in Ethercat Interface - All-in-one product Combine the convenience of an HMI with the efficiency of a PLC into one unit
10

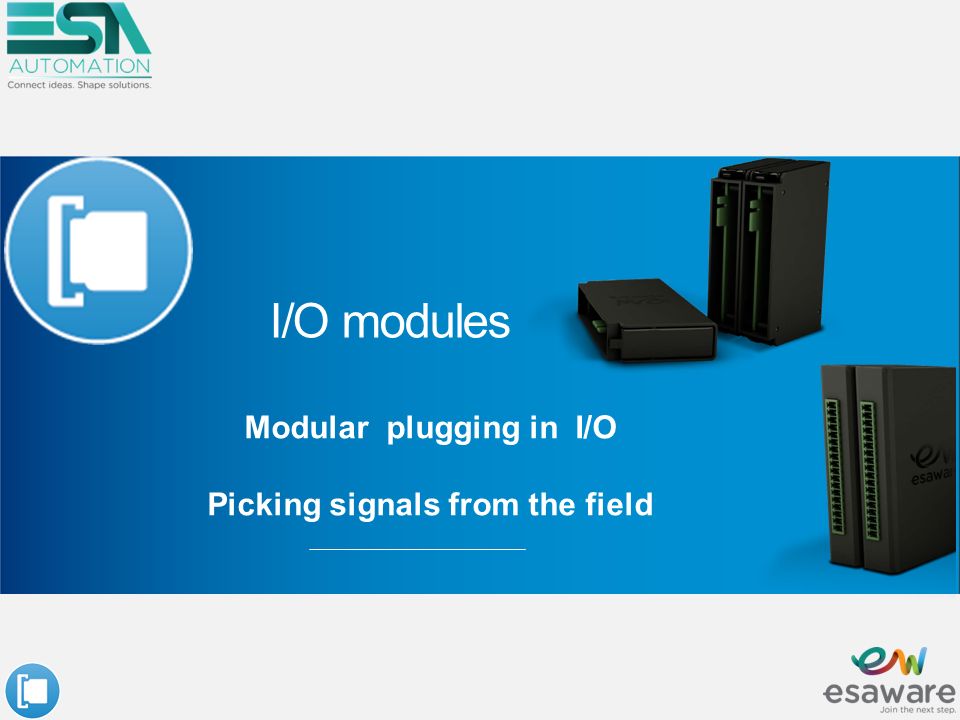

Modular plugging in I/O Picking signals from the field I/O modules
11

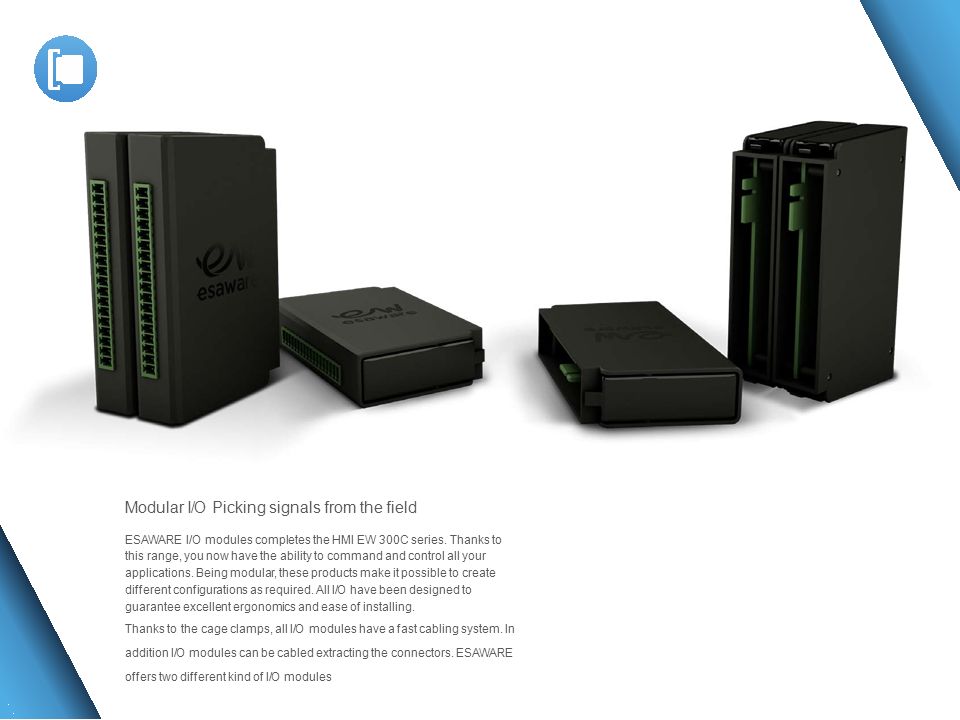

Modular I/O Picking signals from the field ESAWARE I/O modules completes the HMI EW 300C series. Thanks to this range, you now have the ability to command and control all your applications. Being modular, these products make it possible to create different configurations as required. All I/O have been designed to guarantee excellent ergonomics and ease of installing. Thanks to the cage clamps, all I/O modules have a fast cabling system. In addition I/O modules can be cabled extracting the connectors. ESAWARE offers two different kind of I/O modules
12

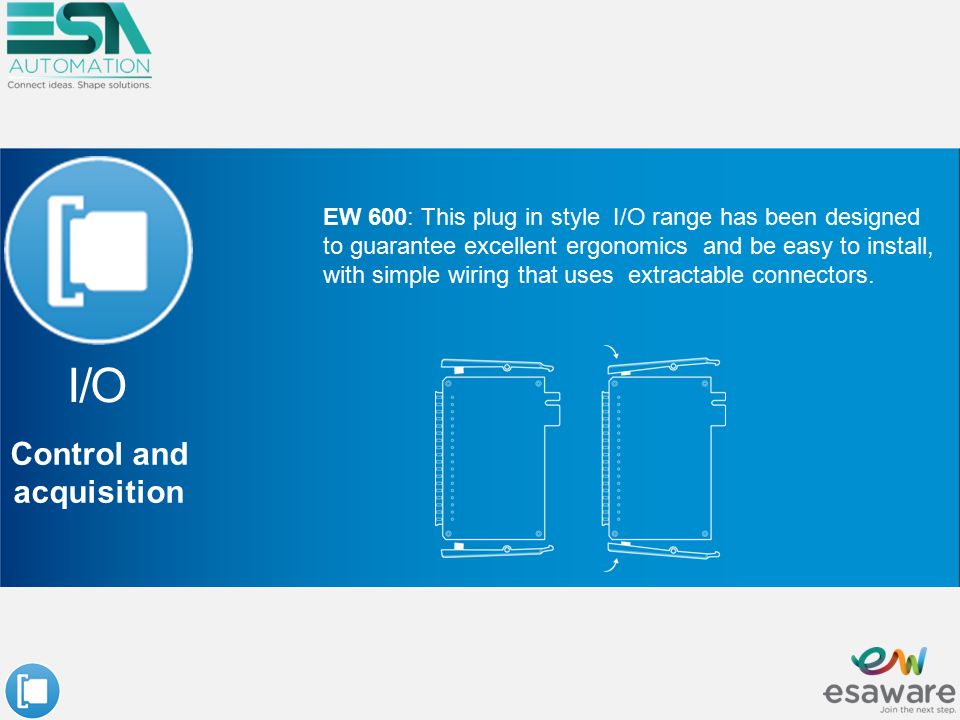

Control and acquisition I/OI/O EW 600: This plug in style I/O range has been designed to guarantee excellent ergonomics and be easy to install, with simple wiring that uses extractable connectors.
13
Control and acquisition I/OI/O EW 600NA: Digital I/O Supply Voltage 24Vdc Isolation Optoisolated Input Number 8 Input Type pnp,npn Output Number 4 Output Type pnp Protection Degree IP20 External dimensions (mm) 96x63x20 Certifications CE, Vibration EN60068-2-6, Shock EN60068-2-27, Humidity EN60068-2-30
14
Control and acquisition I/OI/O EW 600NB: Analog I/O Supply Voltage24 Vdc Input Number 3 Input Type 0/5 V, 0/10 V, +10/-10 V, 0/20 mA, 4/20 mA Output Number 2 Output Type 0/5 V, 0/10 V, +10/-10 V, 0/20 mA, 4/20 mA Resolution 16 Bit External dimensions (mm) 96x63x20 Certifications CE, Vibration EN60068-2-6, Shock EN60068-2- 27, Humidity EN60068-2-30 All modules are configured by SW
15
Suite Software ESAWARE
16

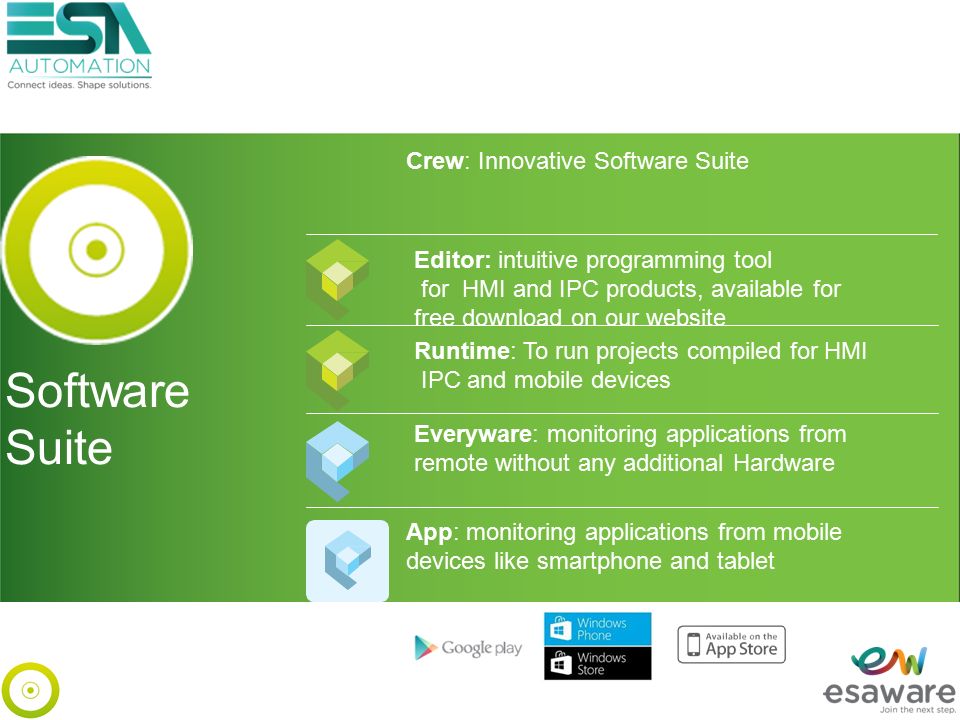

Software Suite Crew: Innovative Software Suite Editor: intuitive programming tool for HMI and IPC products, available for free download on our website Runtime: To run projects compiled for HMI IPC and mobile devices Everyware: monitoring applications from remote without any additional Hardware App: monitoring applications from mobile devices like smartphone and tablet
17

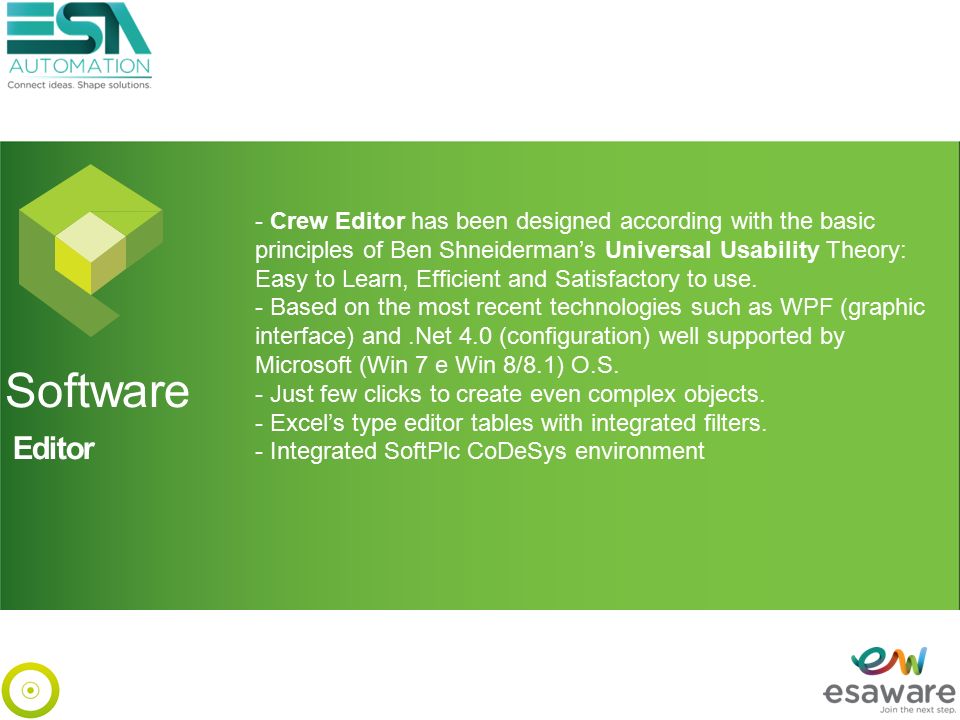

Editor Software - Crew Editor has been designed according with the basic principles of Ben Shneiderman’s Universal Usability Theory: Easy to Learn, Efficient and Satisfactory to use. - Based on the most recent technologies such as WPF (graphic interface) and.Net 4.0 (configuration) well supported by Microsoft (Win 7 e Win 8/8.1) O.S. - Just few clicks to create even complex objects. - Excel’s type editor tables with integrated filters. - Integrated SoftPlc CoDeSys environment
18
Software - Today’s users are very familiar with mobile devices and having this in mind our engineers have developed Crew Runtime to offer the same kind of experience people are used to. -Crew Runtime fully support gesture functionality once combined with a capacitive touch screen while support Swipe and Drag gestures once combined with a resistive touch screen. -Features also supported are the Advanced Trend Touch, High Res Vectorial Graphic objects, Alphanumeric and Graphic passwords with read/write permission - Runtime
19
Software Everyware System Overview
20
Software Crew Everyware: The most advanced solution for the remote control and manteinance. no additional hardware required. Key points: Safe and Encrypted VPN connection, guaranted reliability ensured by redundant server system. In touch with the world
21

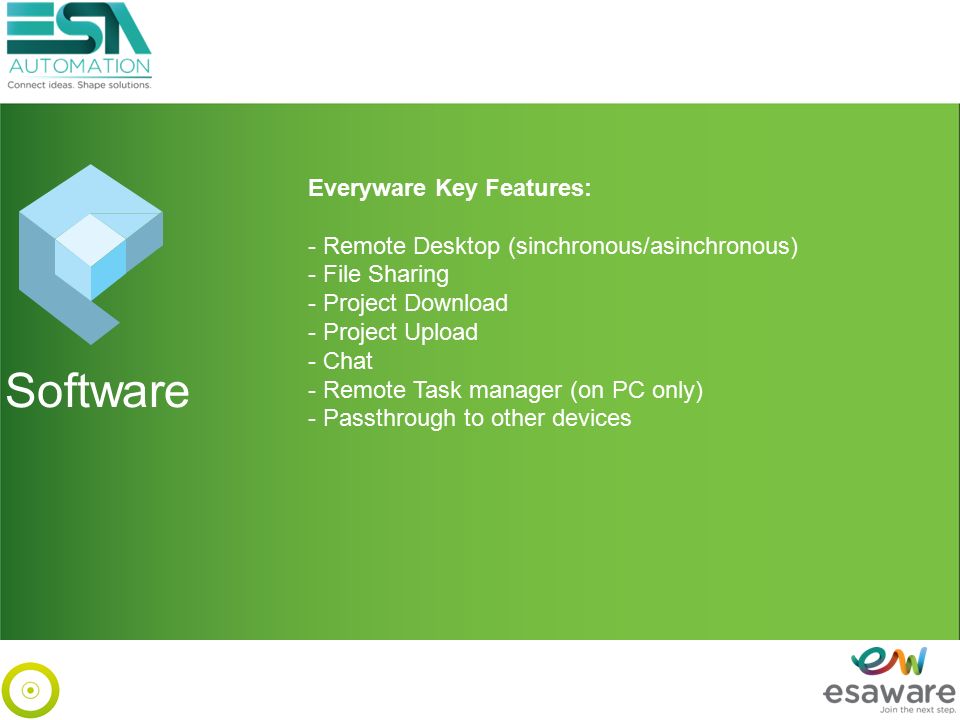

Software Everyware Key Features: - Remote Desktop (sinchronous/asinchronous) - File Sharing - Project Download - Project Upload - Chat - Remote Task manager (on PC only) - Passthrough to other devices
22
Software Everyware: -Easy: just an Ethernet connection is required - Fast: Automatic selection of the best response time -Flexible: Runtime ARM/X86 Compatible - Safe: Everyware adopt a safe VPN connection based on TLS 1.2 Encryption Algorithm (best standard available today) which ensure protection from any cyber attack. -The Server infrastructure is based on a redundant Server replicated in 72 Data Center in the world. -The support to other Data Center is done by a Routing table updated every hour. -The Data Center is class IV rated (according with International Standard ANSI/TIA 942) Everyware Easy yet Powerful
23

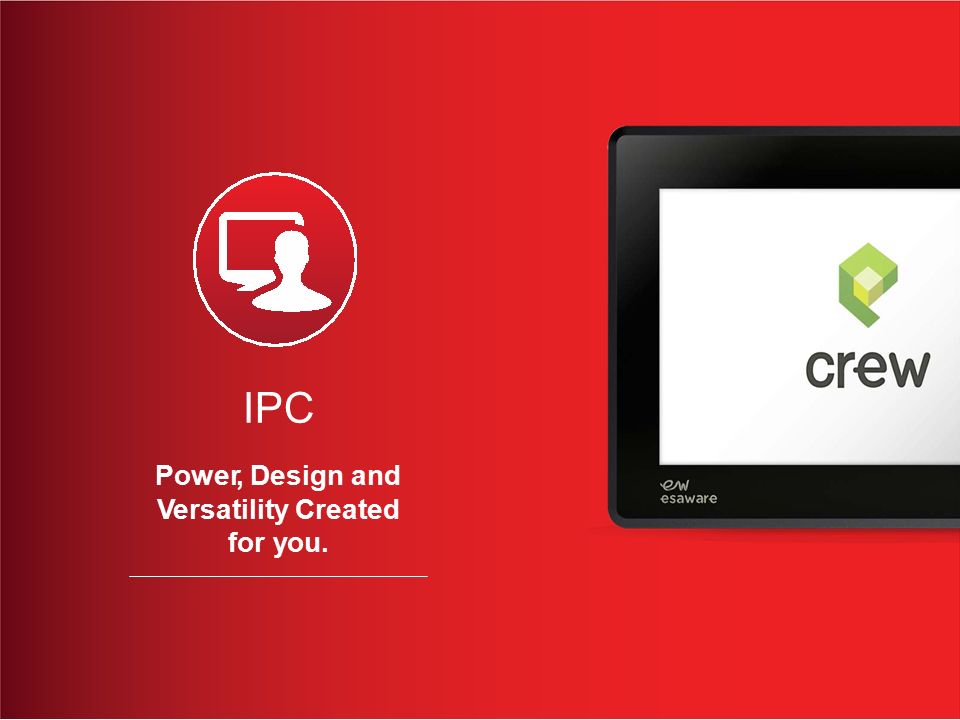

Power, Design and Versatility Created for you. IPC
24

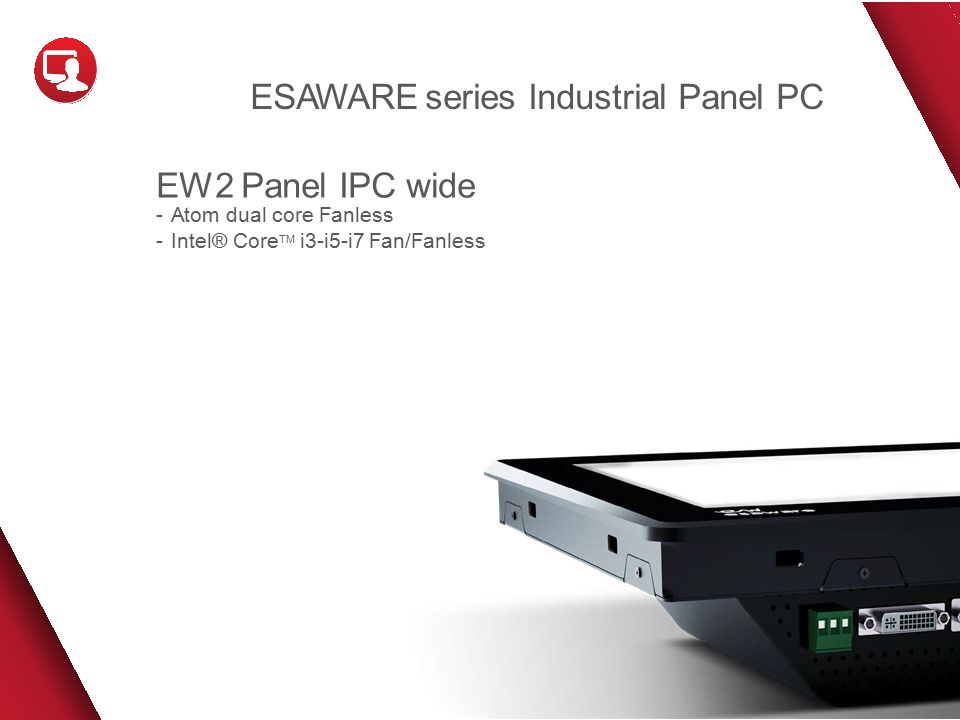

ESAWARE series Industrial Panel PC EW2 Panel IPC wide Atom dual core Fanless Intel® Core TM i3-i5-i7 Fan/Fanless
25

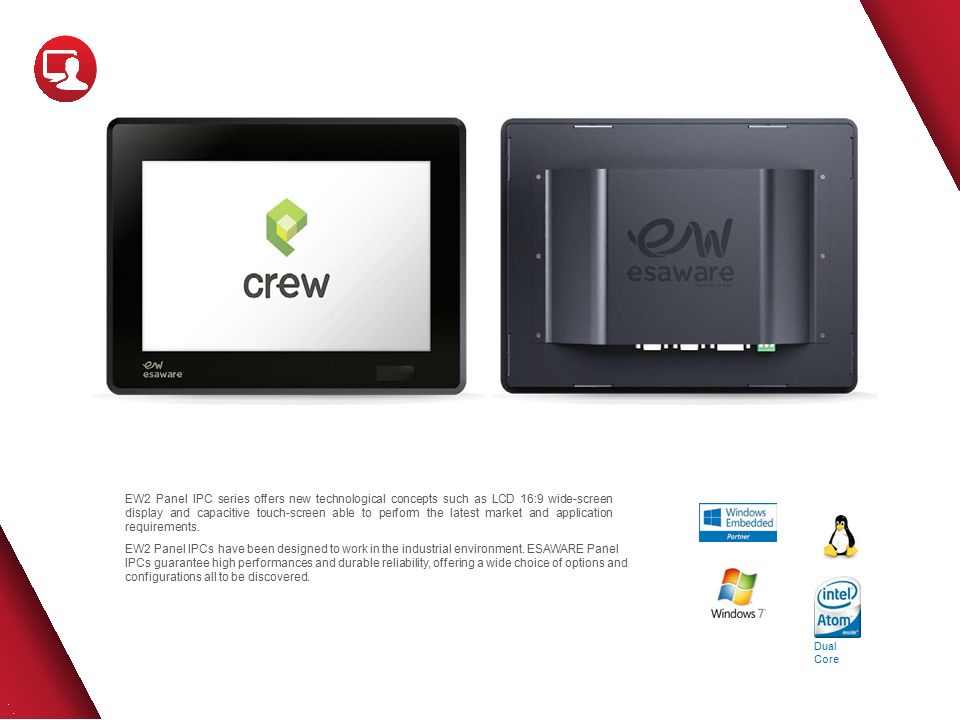

Dual Core EW2 Panel IPC series offers new technological concepts such as LCD 16:9 wide-screen display and capacitive touch-screen able to perform the latest market and application requirements. EW2 Panel IPCs have been designed to work in the industrial environment. ESAWARE Panel IPCs guarantee high performances and durable reliability, offering a wide choice of options and configurations all to be discovered.
26

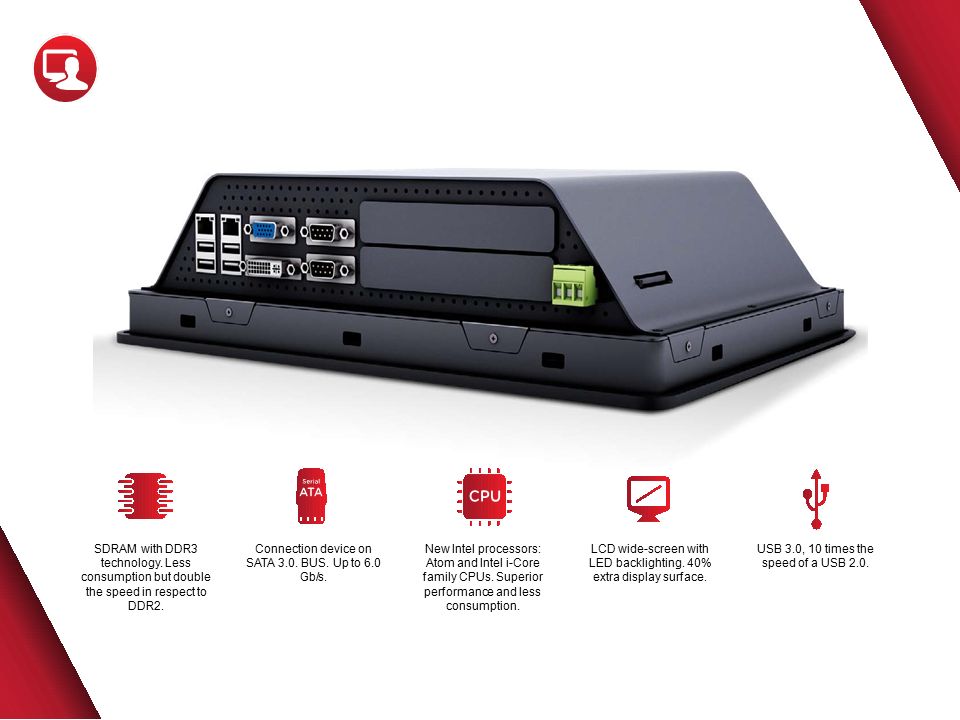

SDRAM with DDR3 technology. Less consumption but double the speed in respect to DDR2. LCD wide-screen with LED backlighting. 40% extra display surface. Connection device on SATA 3.0. BUS. Up to 6.0 Gb/s. USB 3.0, 10 times the speed of a USB 2.0. New Intel processors: Atom and Intel i-Core family CPUs. Superior performance and less consumption.

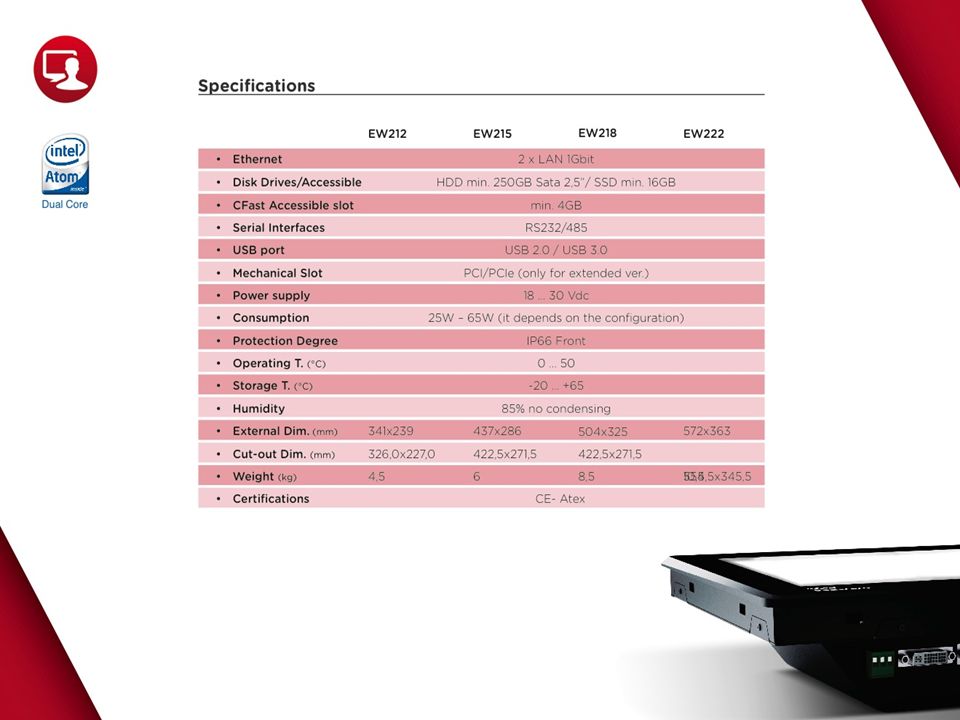

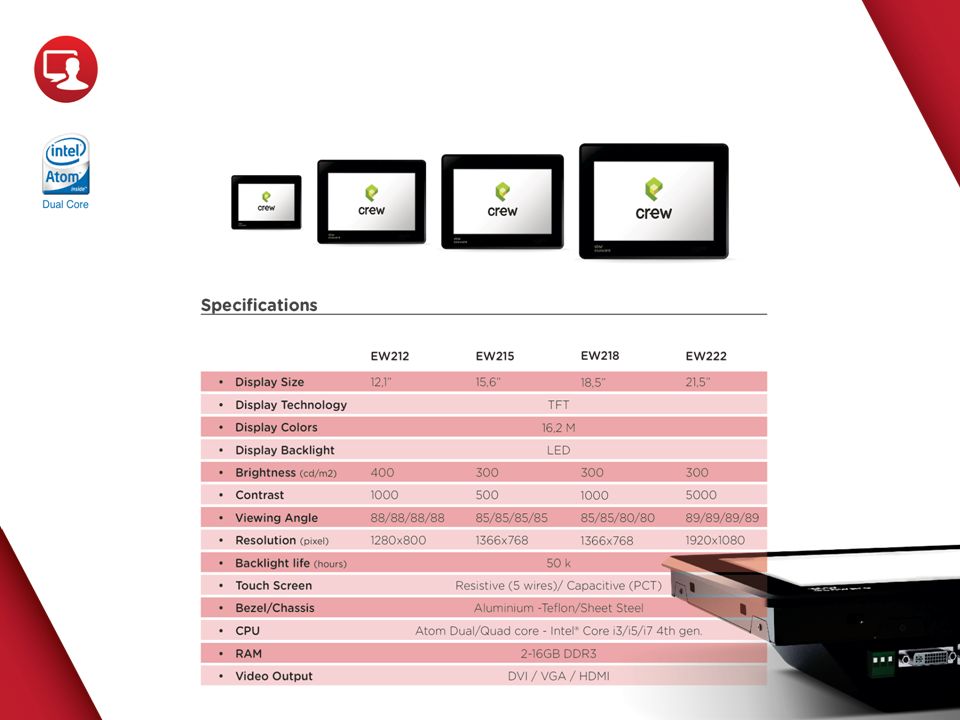

29

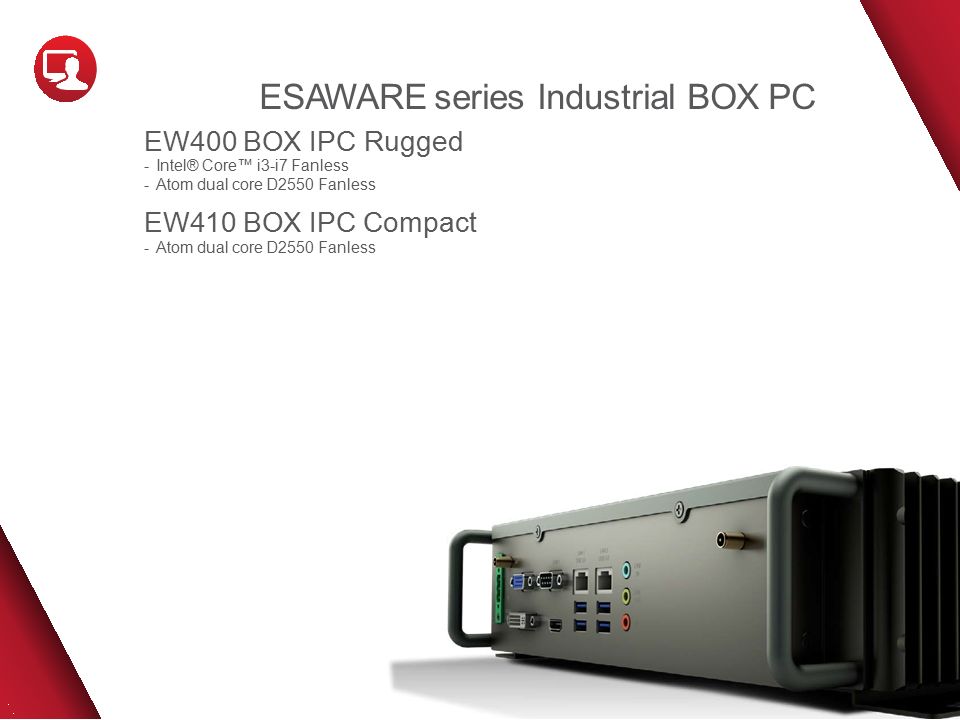

ESAWARE series Industrial BOX PC EW400 BOX IPC Rugged Intel® Core™ i3-i7 Fanless Atom dual core D2550 Fanless EW410 BOX IPC Compact Atom dual core D2550 Fanless
30
EW400 Box IPC Rugged Fanless Advanced Heat-pipe thermal solution Size 337x239x77 mm
32

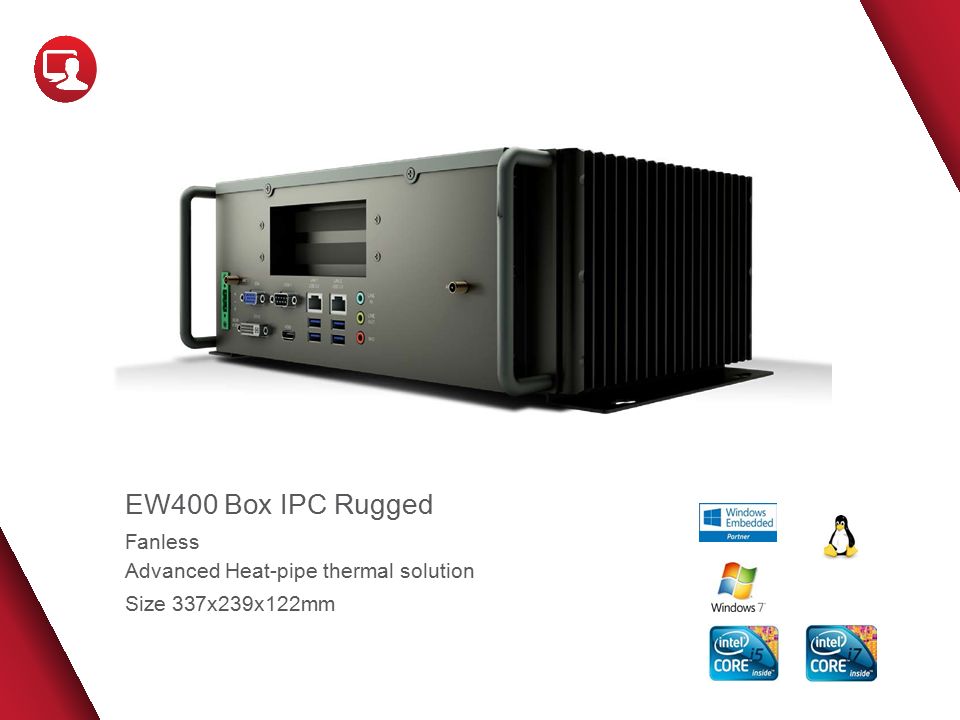

EW400 Box IPC Rugged Fanless Advanced Heat-pipe thermal solution Size 337x239x122mm
34
EW400 Box IPC Rugged Fanless Advanced Heat-pipe thermal solution Size 299x216x59mm Dual Core
36
Advanced Heat-pipe, thermal solution for Fanless design. The EW400 thermal solution is designed with copper plus aluminum heat-sink and 4 copper vacuum tube liquid-vapors (Heat-Pipe) which have high efficiency for heat dissipation. The rugged mechanical structure improves the cooling efficiency to secure EW400 to maintain superior computing performances stable at high temperature environments without CPU throttling. HOW IT WORKS The tubes liquid-vapor, rapidly and continuously transfer heat from the heat-source, Evaporator, to the heat-sink Condenser. The Principle is the thermal conductivity, no moving parts, ability to transport heat over long distances. The vapor transports heat to the condenser region where the condensed vapor releases heat to a cooling medium. The condensed working fluid is returned to the evaporator by gravity, or by the heat pipe’s wick structure, creating capillary action. Dual Core
37

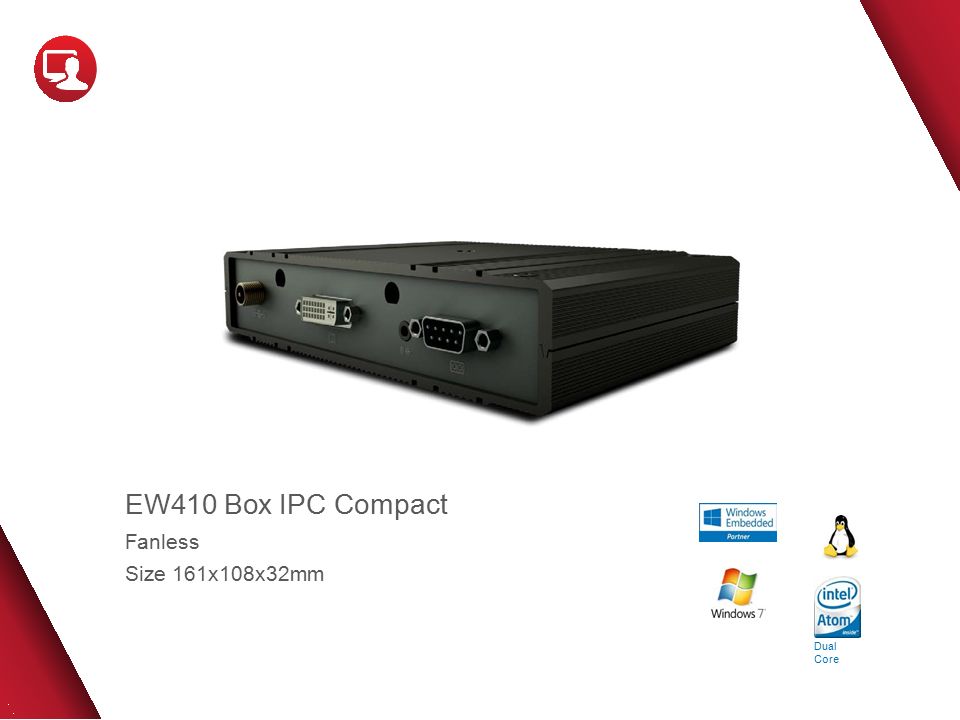

EW410 Box IPC Compact Fanless Size 161x108x32mm Dual Core
39
Heat-pad, passive cooling solution for Fanless design. Even using standard passive thermal solution, the EW410 is designed with two parts aluminum heat-sink for high efficiency heat dissipation. The two rugged aluminum structures improves the cooling efficiency to secure EW410 to maintain superior computing performances stable at high temperature environments without CPU throttling.
40

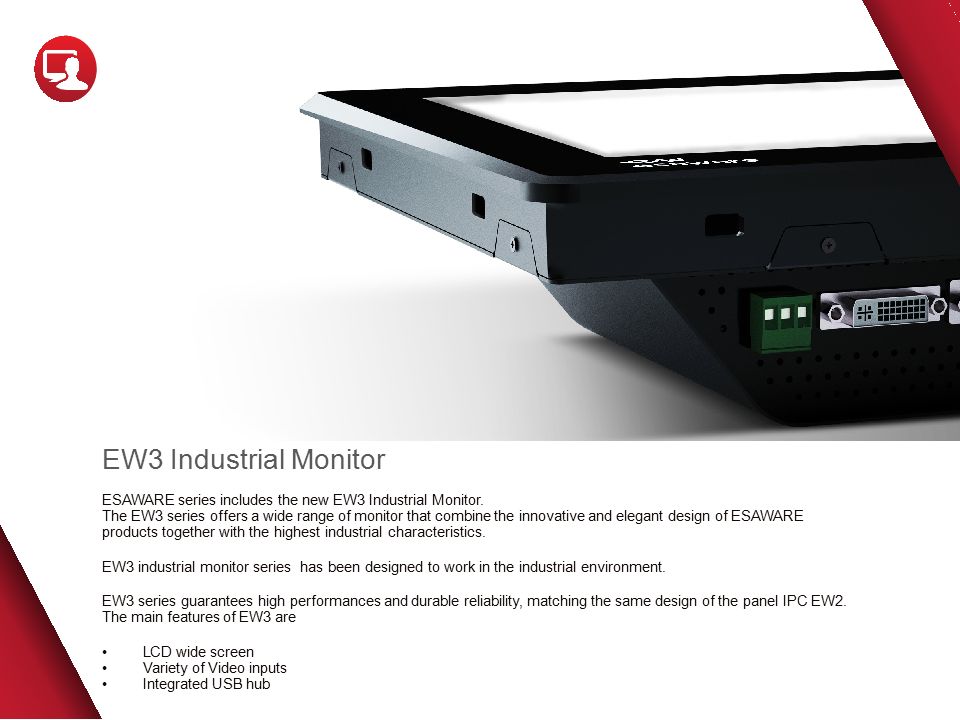

EW3 Industrial Monitor ESAWARE series includes the new EW3 Industrial Monitor. The EW3 series offers a wide range of monitor that combine the innovative and elegant design of ESAWARE products together with the highest industrial characteristics. EW3 industrial monitor series has been designed to work in the industrial environment. EW3 series guarantees high performances and durable reliability, matching the same design of the panel IPC EW2. The main features of EW3 are LCD wide screen Variety of Video inputs Integrated USB hub
42
Thank you www.esa-automation.com info@esa-automation.com ESA Automation Via Padre Masciadri 4/a 22066 Mariano Comense (CO) ITALIA +39 031 757400
