1. © 2011 Autodesk Automotive Surfacing Techniques with Autodesk ® Alias ® Surface Nils Kremser Major Accounts Automotive - Subject Matter Expert

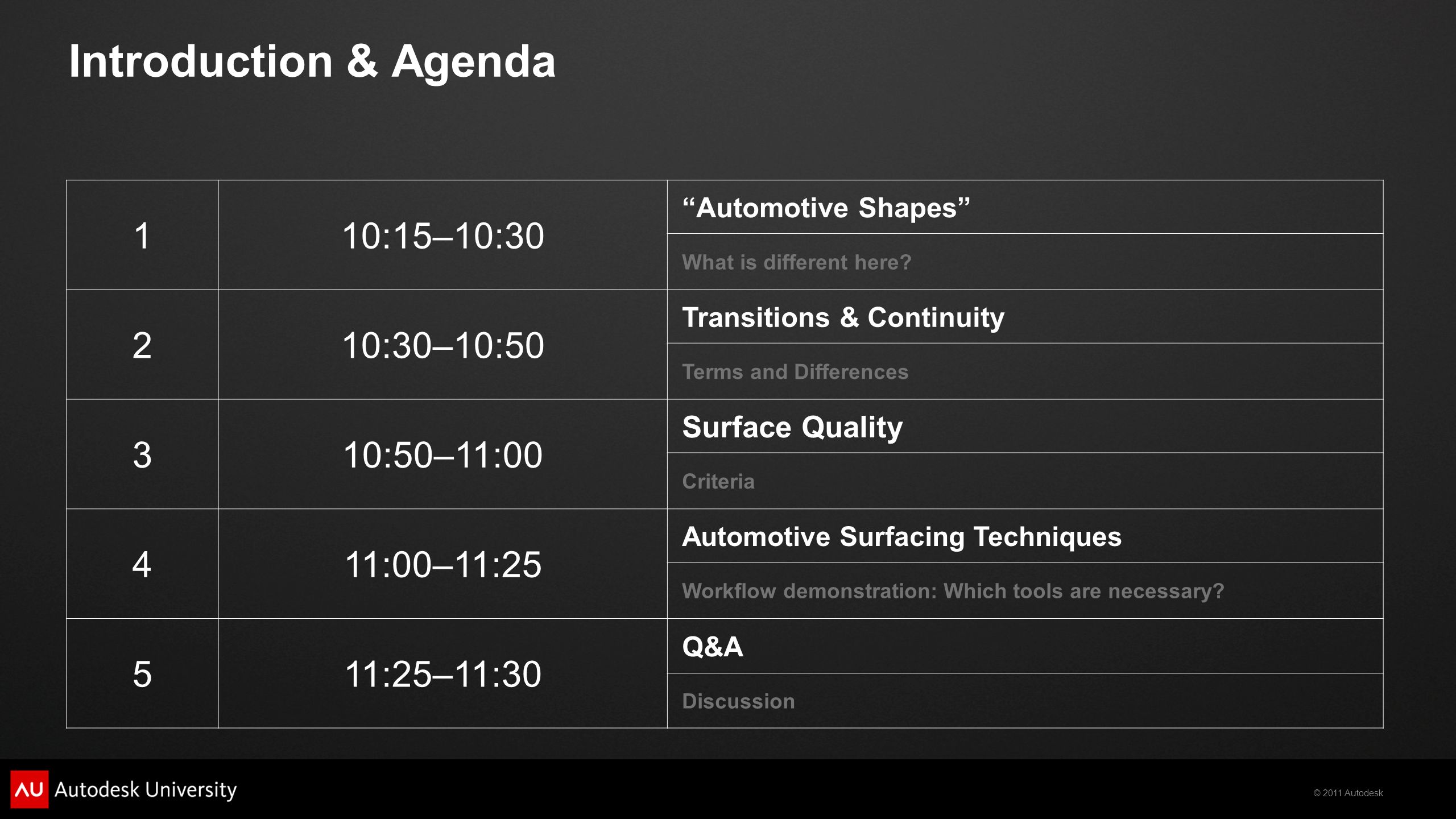

2. © 2011 Autodesk Introduction & Agenda 110:15–10:30 “Automotive Shapes” What is different here? 210:30–10:50 Transitions & Continuity Terms and Differences 310:50–11:00 Surface Quality Criteria 411:00–11:25 Automotive Surfacing Techniques Workflow demonstration: Which tools are necessary? 511:25–11:30 Q&A Discussion

3. © 2011 Autodesk Automotive Shapes

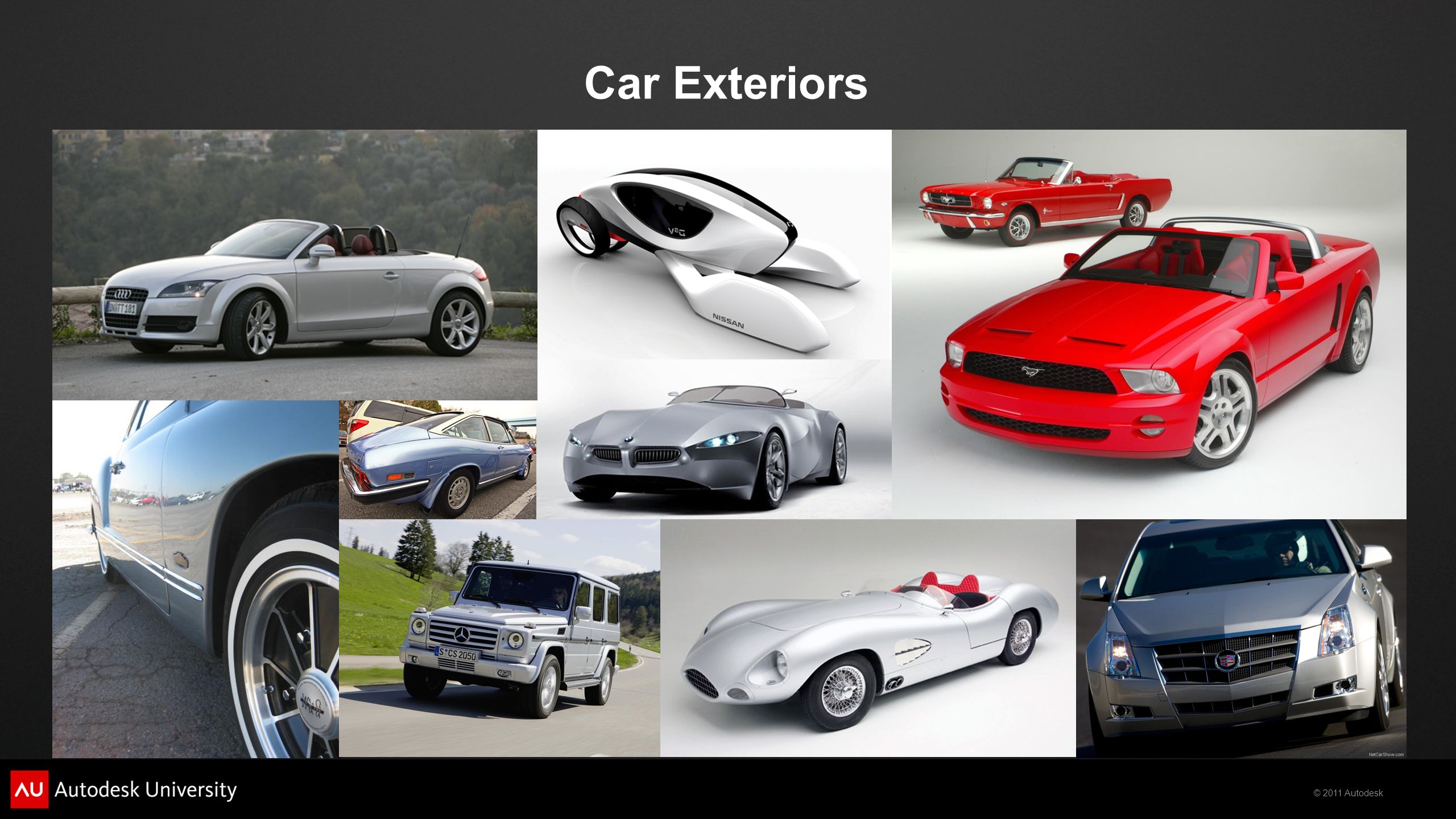

4. © 2011 Autodesk Car Exteriors

5. © 2011 Autodesk Car Interiors

6. © 2011 Autodesk „Automotive“ shapes

7. © 2011 Autodesk What does „Freeform surface“ mean? source: Wikipedia: “Freeform surface modeling”

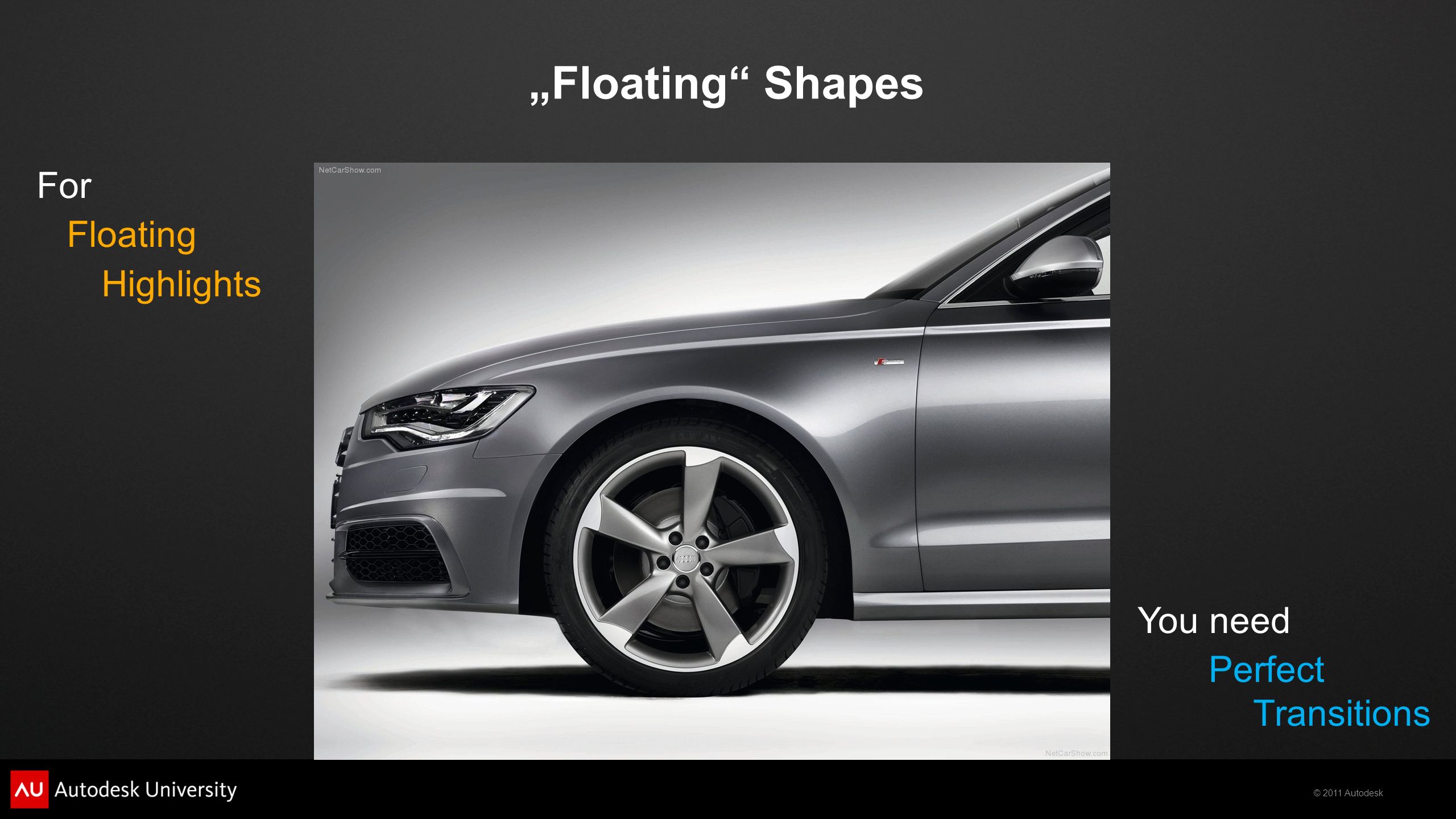

8. © 2011 Autodesk „Floating“ Shapes For Floating Highlights You need Perfect Transitions

9. © 2011 Autodesk Transitions & Continuity

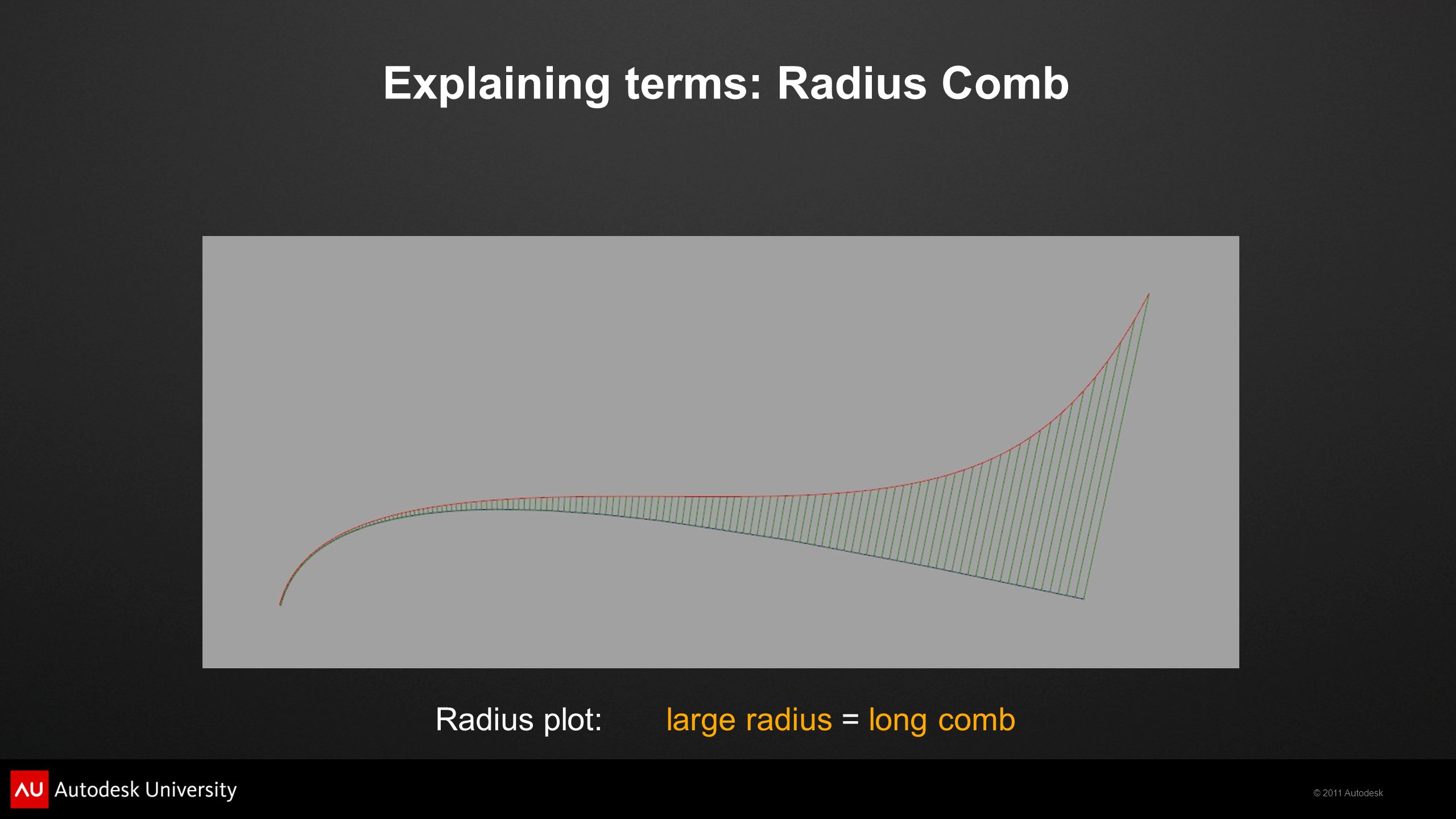

10. © 2011 Autodesk Explaining terms: Radius Comb Radius plot:large radius = long comb

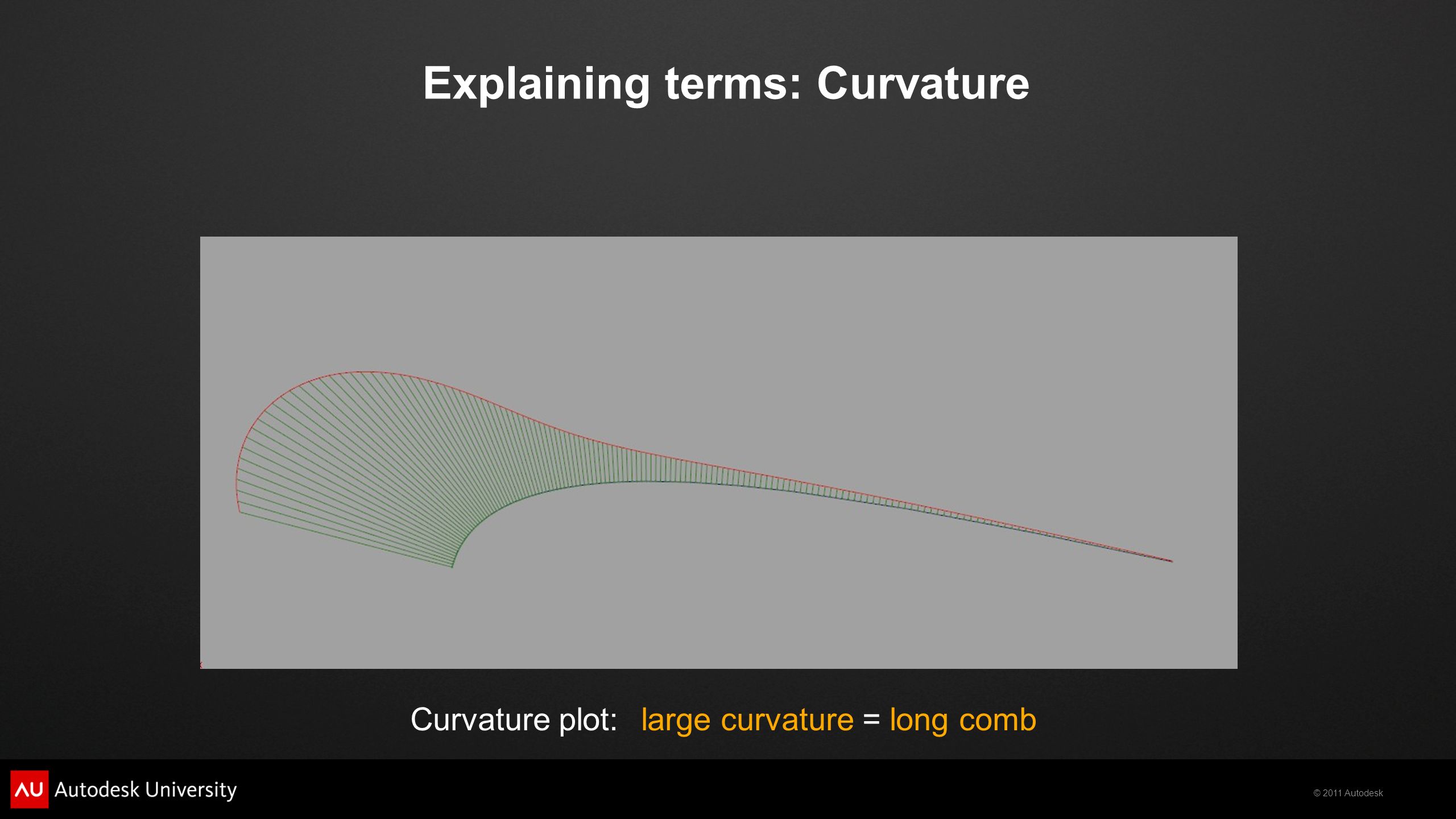

11. © 2011 Autodesk Explaining terms: Curvature Curvature plot:large curvature = long comb

12. © 2011 Autodesk Transitions & Continuity EXAMPLE

13. © 2011 Autodesk Transitions CAD Industrial Design ID / Automotive Tangent Curvature G3 continuity

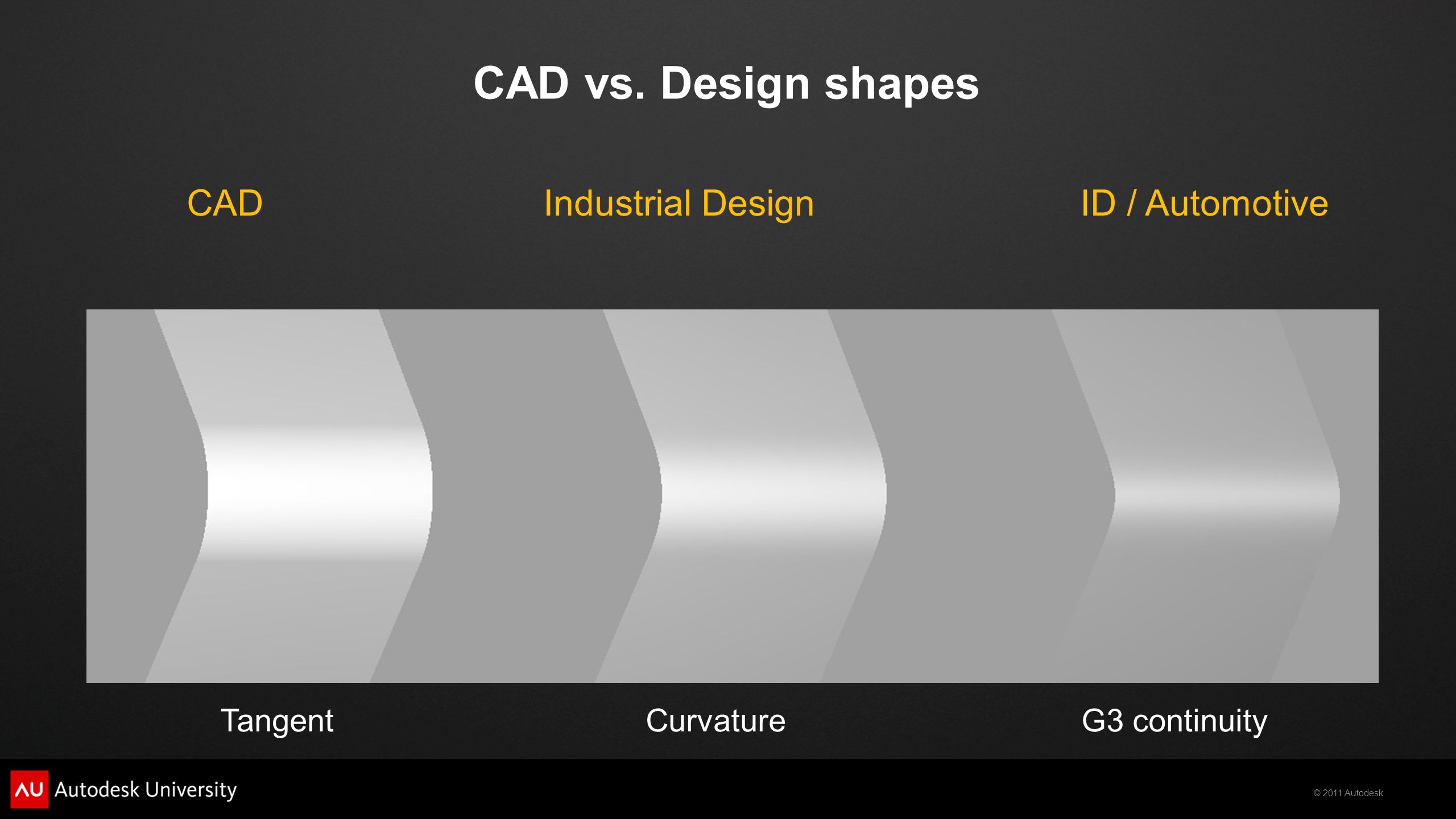

14. © 2011 Autodesk CAD vs. Design shapes CAD Industrial DesignID / Automotive Tangent Curvature G3 continuity

15. © 2011 Autodesk CAD vs. Design shapes CAD Industrial Design ID / Automotive Tangent CurvatureG3 continuity

16. © 2011 Autodesk Surface Quality

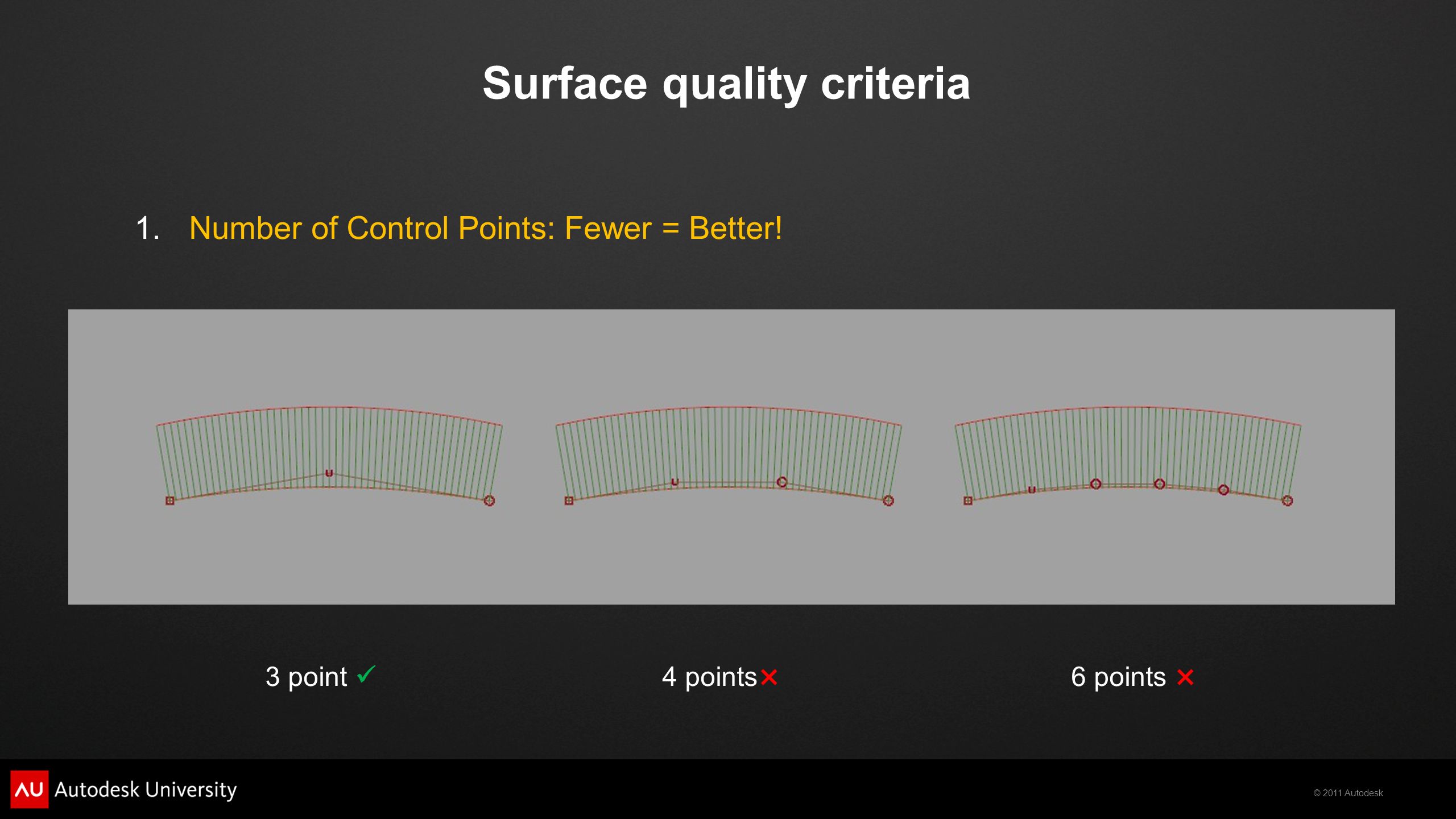

17. © 2011 Autodesk Surface quality criteria 1.Number of Control Points: Fewer = Better! 3 point 4 points× 6 points ×

18. © 2011 Autodesk Surface quality criteria 1.Number of Control Points 2.CV distribution Proportional distances non-proportionally distances × All CVs follow positive shape CV does not follow positive shape ×

19. © 2011 Autodesk Surface quality criteria 1.Number of Control Points 2.Logical CV distribution 3.Internal G3 continuity (rate of change of curvature) Internal G3 continuity  Internal G3 break ×

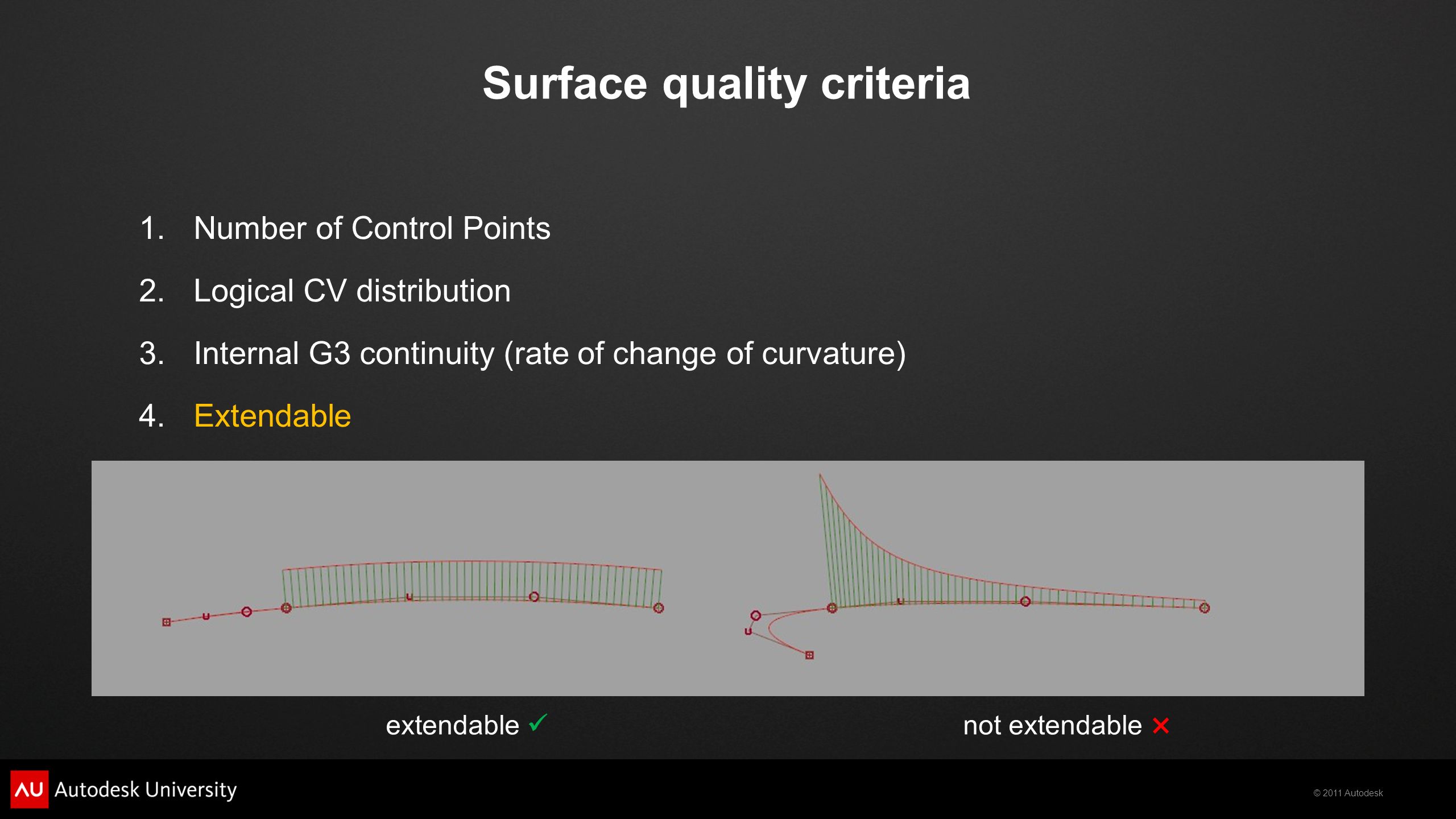

20. © 2011 Autodesk Surface quality criteria 1.Number of Control Points 2.Logical CV distribution 3.Internal G3 continuity (rate of change of curvature) 4.Extendable extendable  not extendable ×

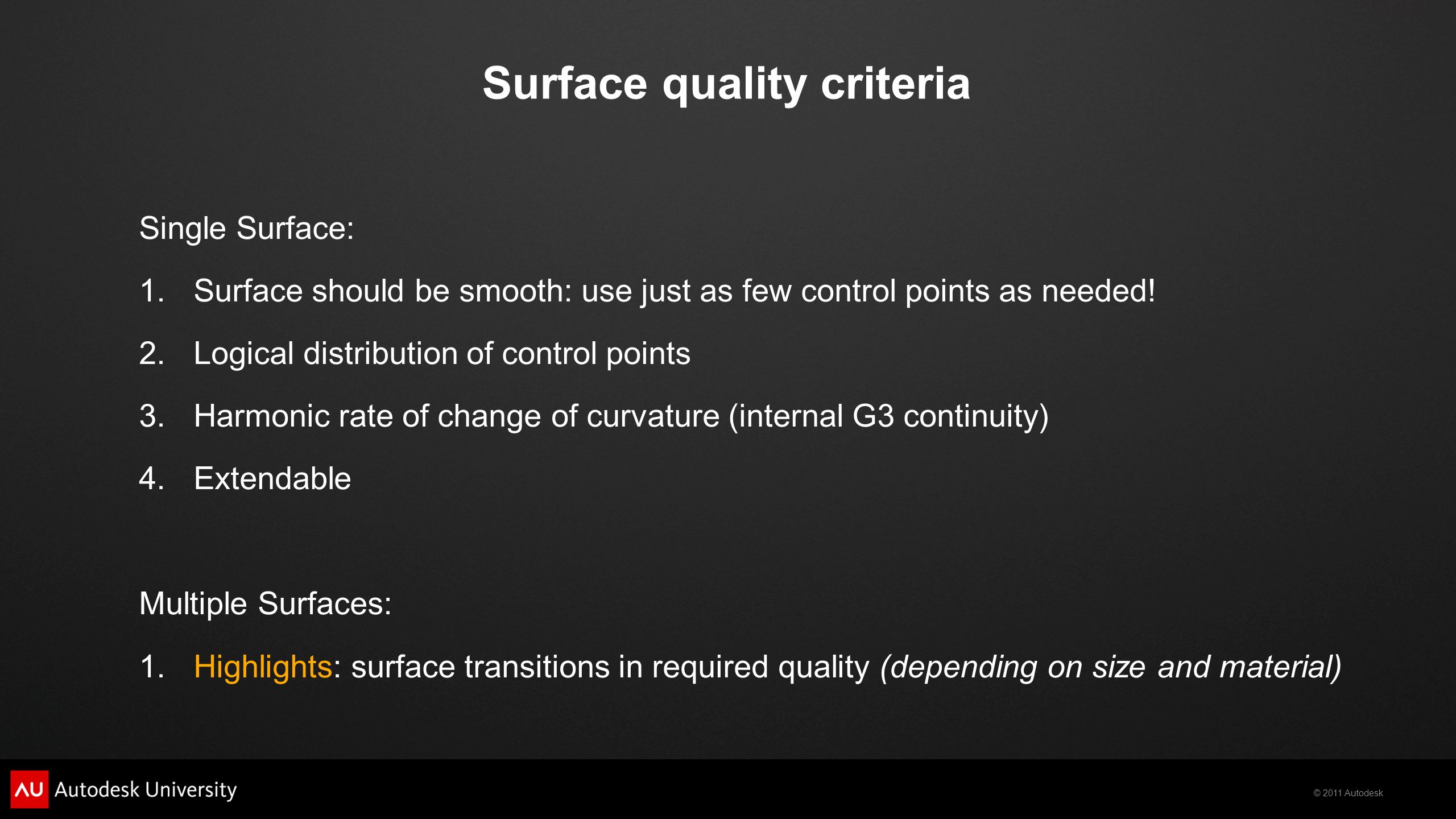

21. © 2011 Autodesk Surface quality criteria Single Surface: 1.Surface should be smooth: use just as few control points as needed! 2.Logical distribution of control points 3.Harmonic rate of change of curvature (internal G3 continuity) 4.Extendable Multiple Surfaces: 1.Highlights: surface transitions in required quality (depending on size and material)

22. © 2011 Autodesk Surface Quality Without Surface Quality emotions don‘t work!

23. © 2011 Autodesk Automotive Surfacing Techniques

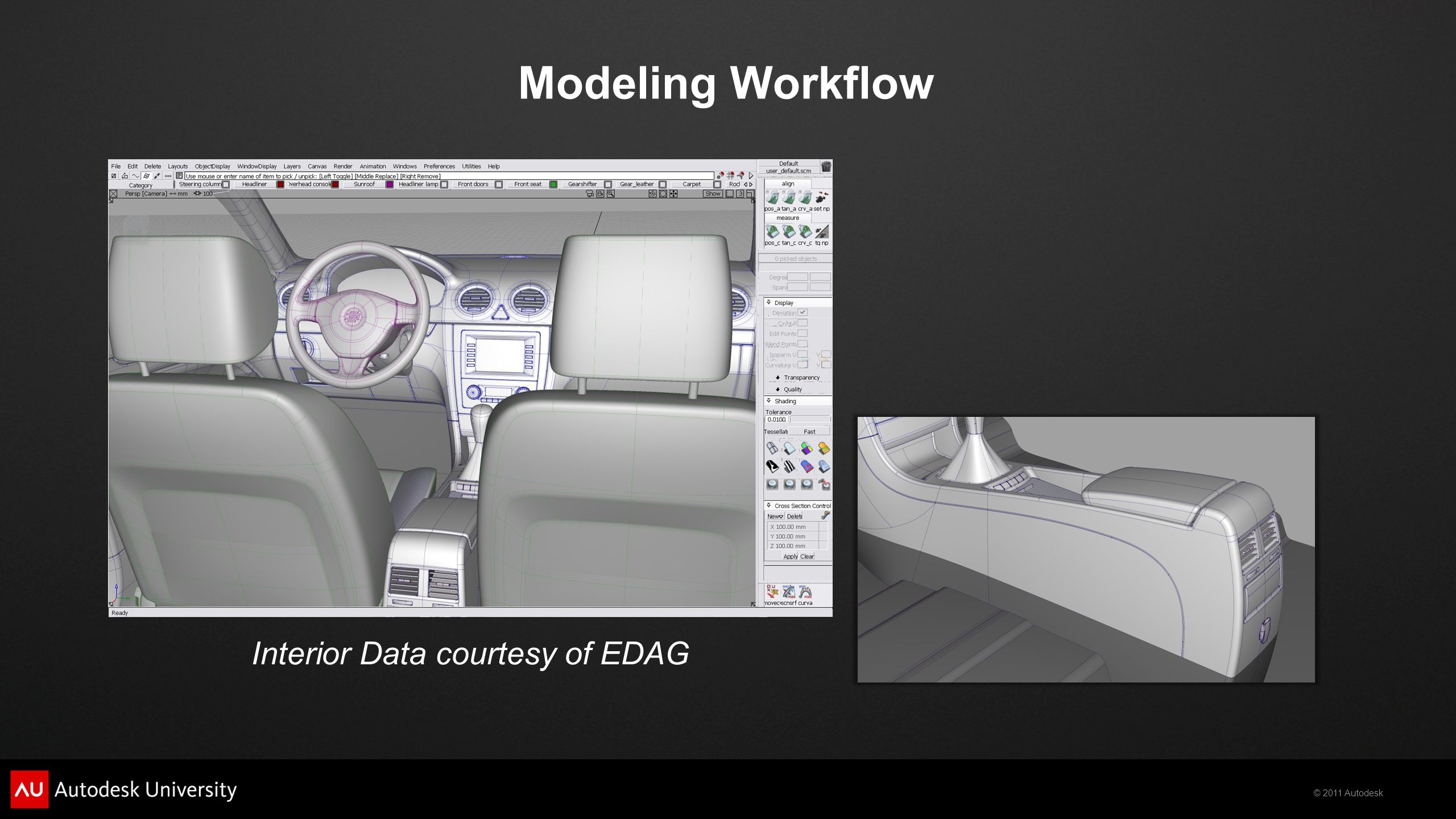

24. © 2011 Autodesk Modeling Workflow Interior Data courtesy of EDAG

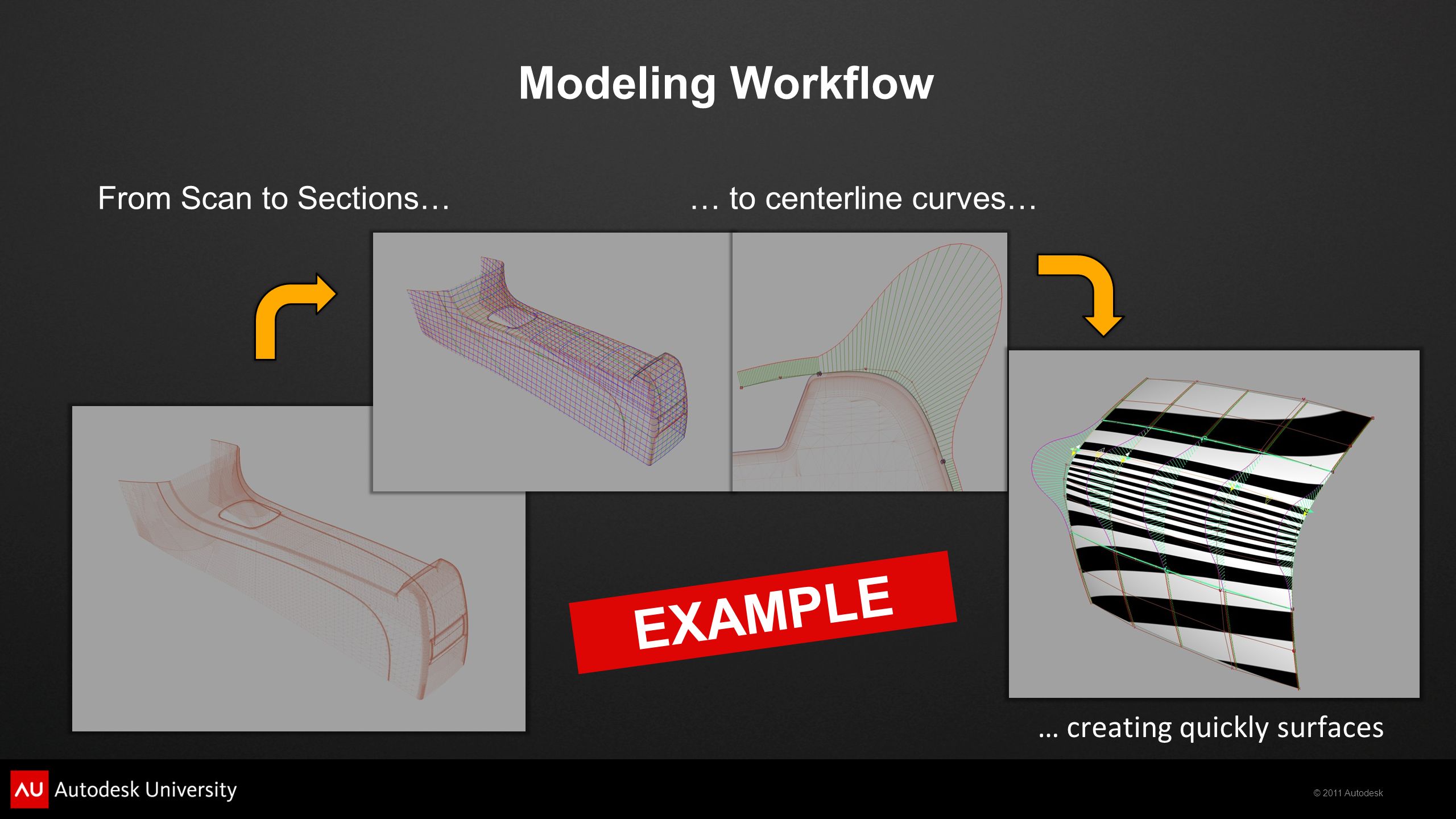

25. © 2011 Autodesk Modeling Workflow From Scan to Sections… … to centerline curves… … creating quickly surfaces EXAMPLE

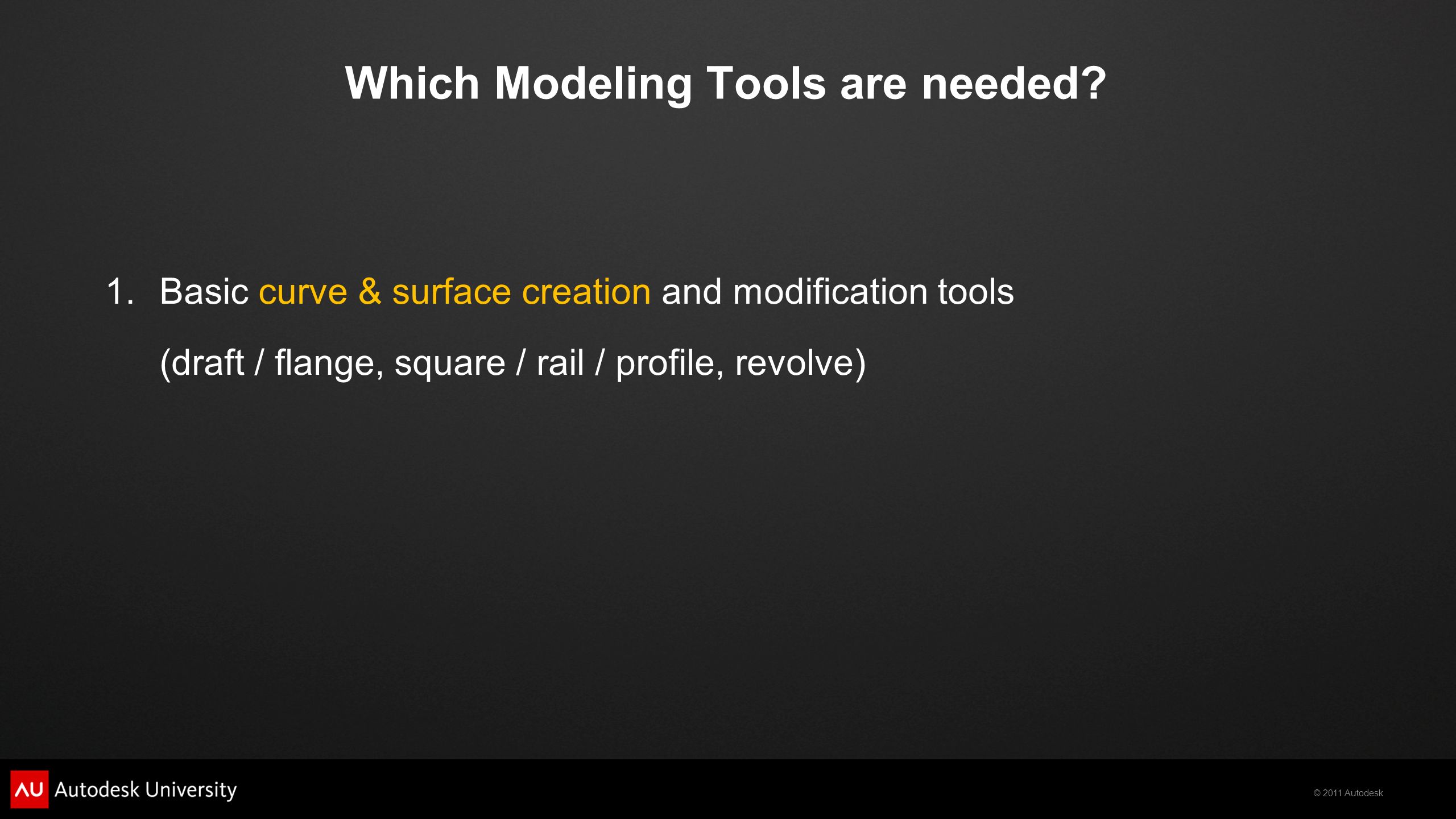

26. © 2011 Autodesk Which Modeling Tools are needed? 1.Basic curve & surface creation and modification tools (draft / flange, square / rail / profile, revolve)

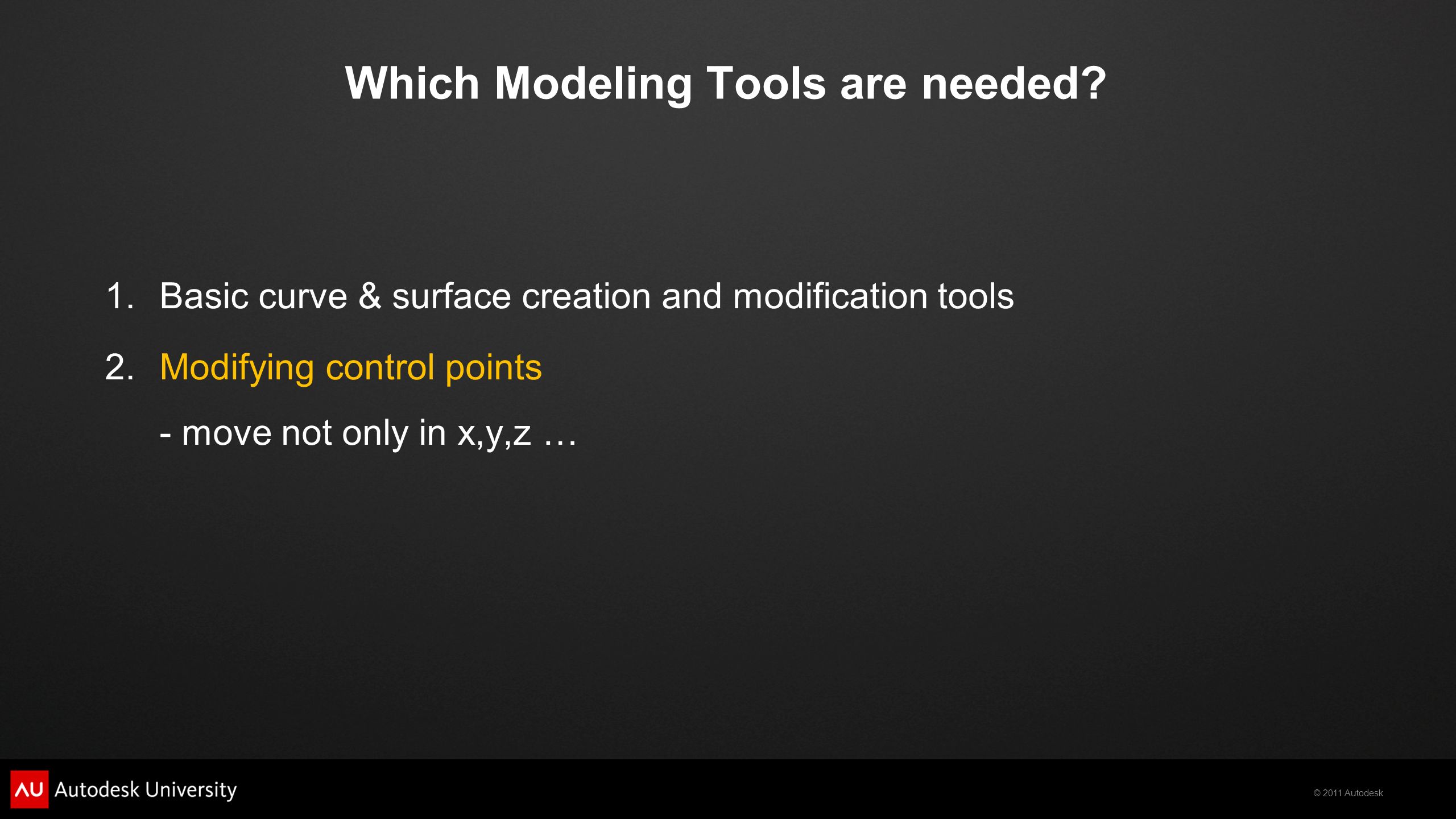

27. © 2011 Autodesk Which Modeling Tools are needed? 1.Basic curve & surface creation and modification tools 2.Modifying control points - move not only in x,y,z …

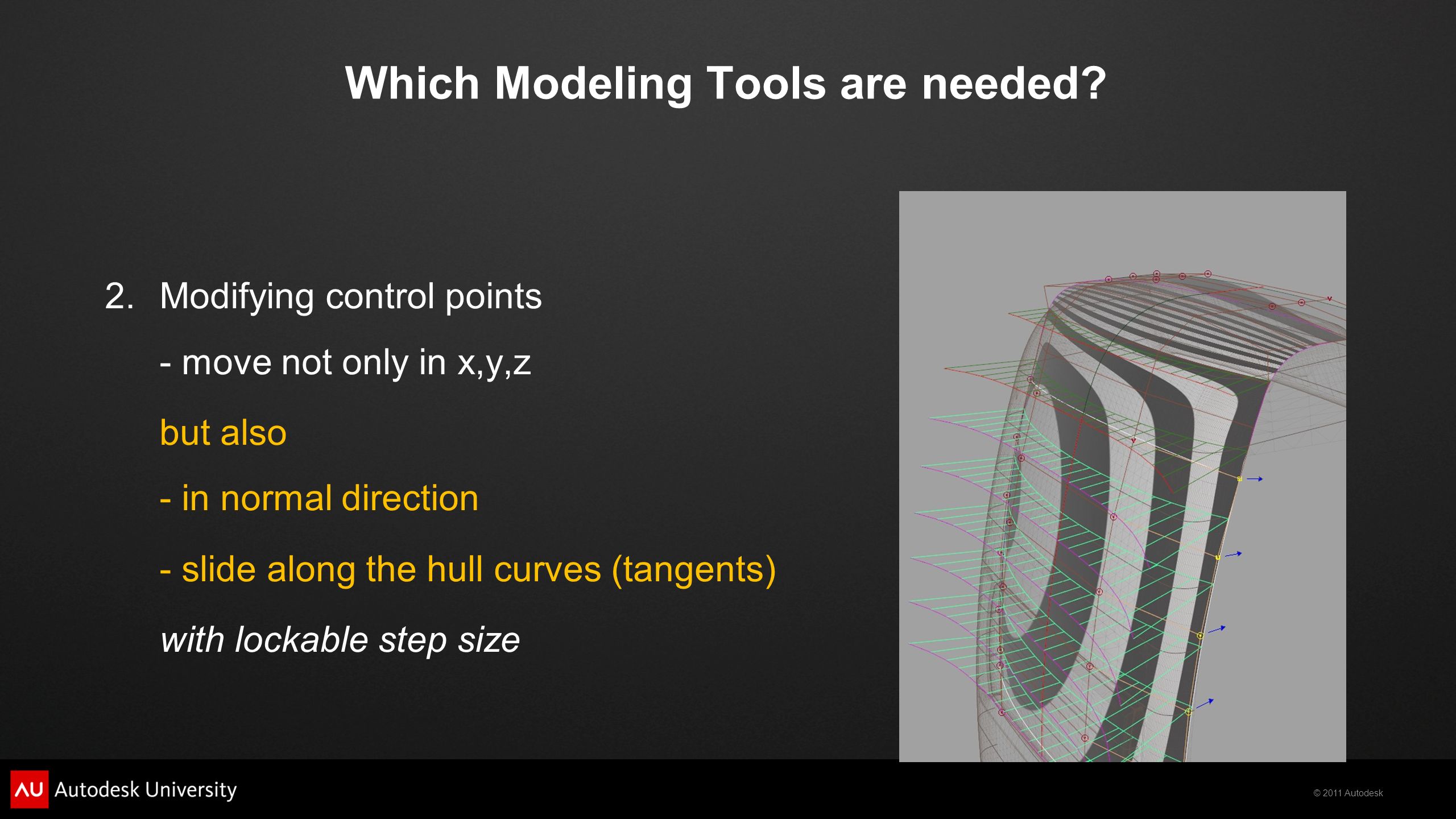

28. © 2011 Autodesk Which Modeling Tools are needed? 2.Modifying control points - move not only in x,y,z but also - in normal direction - slide along the hull curves (tangents) with lockable step size

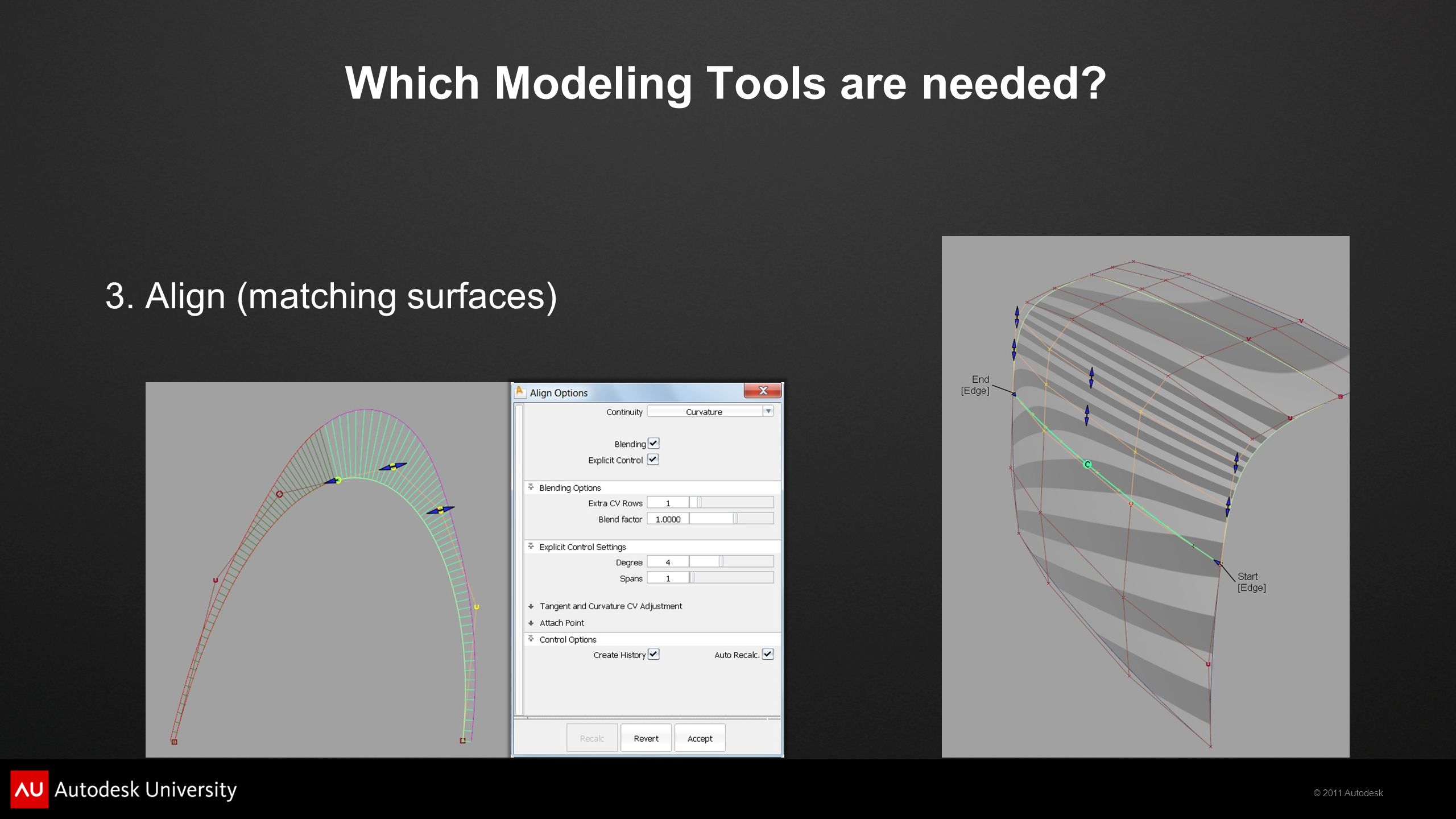

29. © 2011 Autodesk Which Modeling Tools are needed? 3. Align (matching surfaces)

30. © 2011 Autodesk Which Modeling Tools are needed? 4. Fillet and Freeform Blend (with form factor)

31. © 2011 Autodesk Which Tools to analyse and diagnose are needed? 5. Managing sections and planes (x,y,z and radial sections, „true“ / normal section, interactive sections etc.)

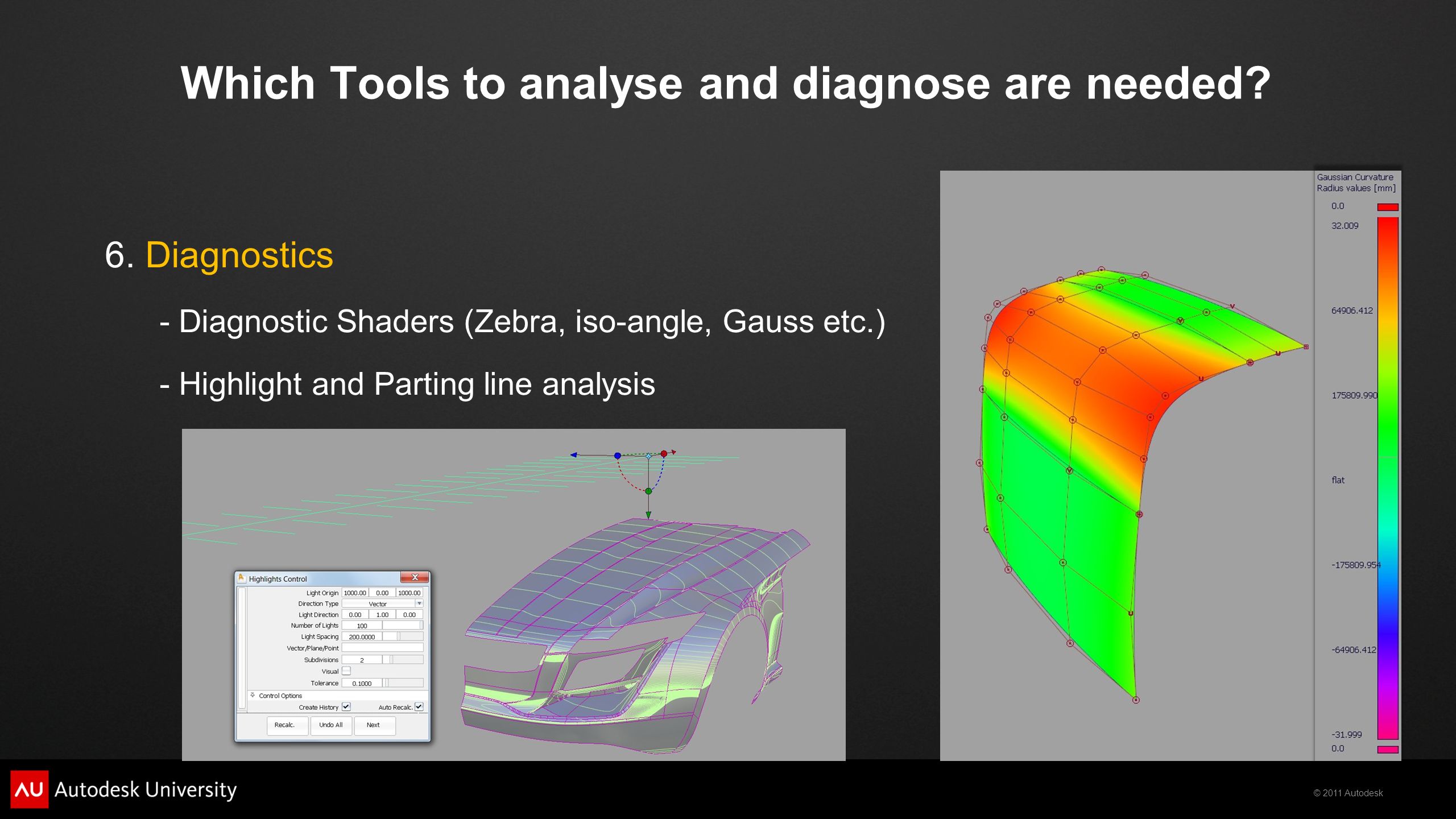

32. © 2011 Autodesk Which Tools to analyse and diagnose are needed? 6. Diagnostics - Diagnostic Shaders (Zebra, iso-angle, Gauss etc.) - Highlight and Parting line analysis

33. © 2011 Autodesk Which Tools to analyse and diagnose are needed? 7. Visualization - photorealistic - but also technical (for design reviews, shutline discussions etc.)

34. © 2011 Autodesk Which Modeling Tools are needed - Summary 1.Curve & surface creation 2.Control point modification 3.Align (matching surfaces) 4.Sections and plane manager 5.Fillets / Blends 6.Diagnostics 7.Visualization

35. © 2011 Autodesk Learning Objectives At the end of this class, you will be able to:  understand better what is special in Automotive modeling  explain what “freeform surfaces” are  describe criteria for surface quality  describe different levels of surface continuity  know why a regular CAD system is not a sufficient tool for Automotive modeling  which modeling tools & features are needed

36. © 2011 Autodesk Thank you

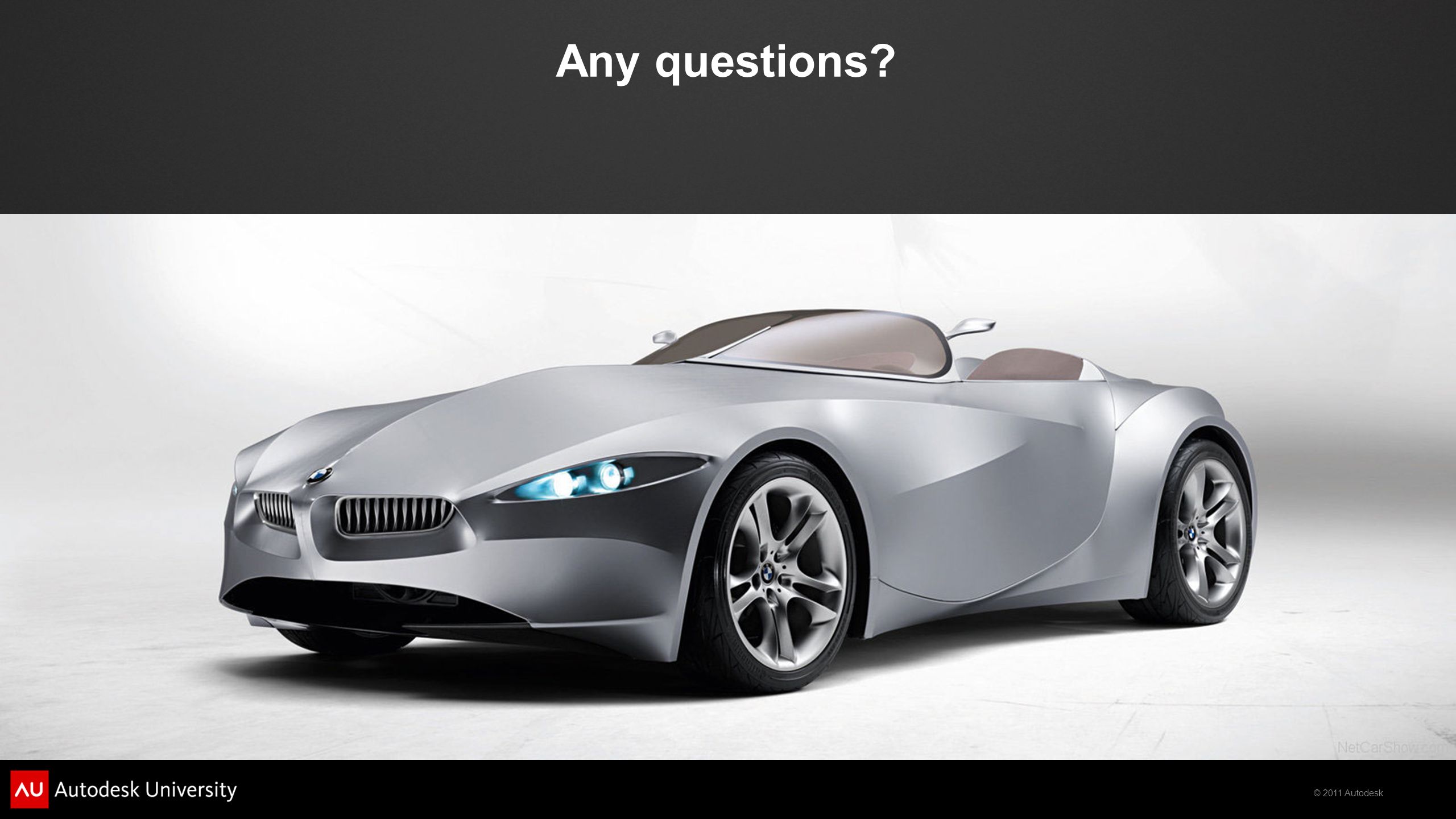

37. © 2011 Autodesk Any questions?
