1. 3D Studio Max Powerful rendering engine, lame-o modeling software

2. Workflow overview Create project entirely in Revit Export to FBX file, import into MAX Test single rendering Set up animation Export preview animation Render and export final

3. Revit (building, lighting) Revit: materials Export FBX MAX: Minimal materials, lighting Render in MAX SketchUp: interior elements Revit model (building, lighting) Revit: materials Export FBX MAX: Minimal materials, lighting Render in MAX SketchUp: interior elements Export DWG (layers, etc) MAX: materials Workflow for MAX Rendering Revit model (building, lighting) Revit: materials Export FBX MAX: Minimal materials, lighting Render in MAX SketchUp: interior elements Export: DWG (layers, etc) MAX: materials Familiar way; best for projects where this is not the last step Avoids materials problem; retains layers in MAX Fastest Rendering Link

4. Revit export Use simplest walls, floors, and ceilings Apply materials entirely in Revit Create and test lighting in Revit Purge out drawing Just one 3D view needed

5. SketchUp export to DWG No textures Layers Use Color By Layer to check

6. Overview: working in Max Get geometry into MAX via FBX or DWG Apply materials and lighting Set frame rate, total frames in animation Modify camera across timeline Export preview Render stills as tests Specify output file Export final

7. Max interface

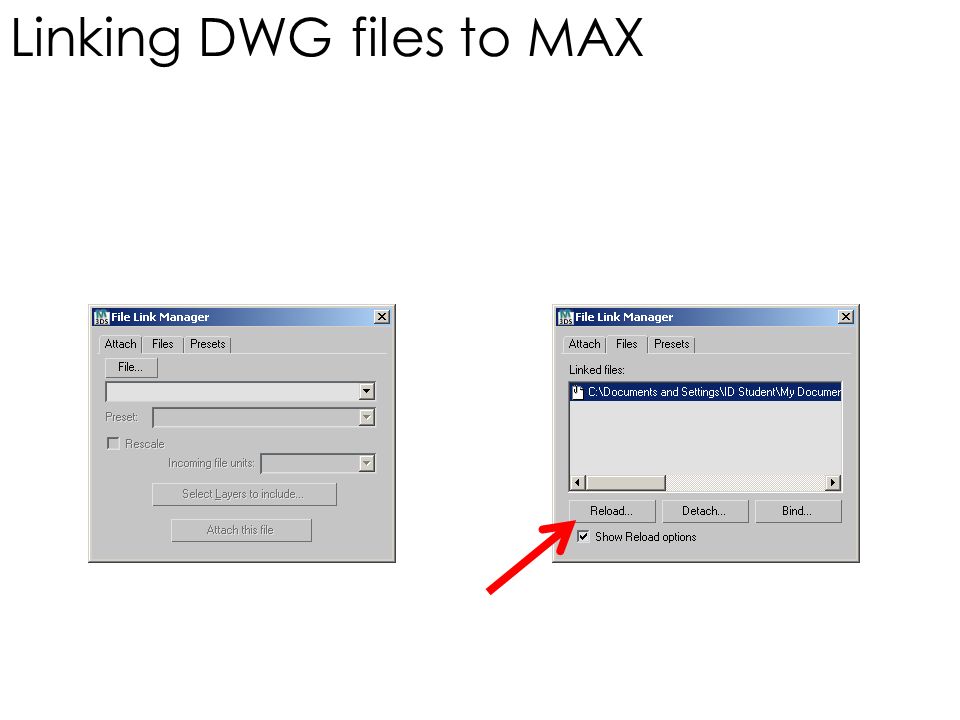

8. Linking DWG files to MAX

10. Quick Keys and hints Click in a viewport to zoom around C switches to camera view F10 brings up the rendering options window ALT-W toggles full-screen view F9 renders current view immediately

11. Shading viewports Use View>Viewport Settings… May have to hide elements (right-click)

12. Basic Still Rendering

15. Sample quality (can also change in Render window) For a draft For high quality

17. Render window check for animation can also choose to render a region

18. File formats make a different JPEGBMP

19. Lighting

20. Adjusting lighting

21. Adding Materials

22. Mapped single image: modify size Displays material preview in shaded viewports Change size and location of map in real time

23. Creating a custom material Click on empty material to create your own Choose a different material (for mirror, use Reflect/Base, reflectivity = 1 Options – you can change # of materials shown Use default templates for simple materials

24. double-click to choose a bitmap

25. Display material in viewport

26. Modifying viewports

27. Creating a new camera

28. Modify a camera

29. Modify perspective Field of view Pan, orbit Tilt camera

30. Animation Rendering

31. Change Time Settings Time settings

32. 12 is minimum, 15 is better Determines total time in seconds of movie

33. Auto Key forces memory of changes to model in a Key Frame Move slider to change view to a different point along the animation

34. Set file type and location in Render Menu

35. Create walkthrough preview

37. Hiding objects Right-click on object, and choose Hide Elements Freeze in Layer Manager Both are Global changes Rendered view will leave out hidden object

38. Testing Render at lowest settings and small size first Render at several points to make sure lighting and materials are working throughout Create Animation Preview to test overall animation Create rendering at lowest settings – takes about 4 hours (it will estimate) Resolution: 320x240 Final Gather quality:

39. Final production Create animation in pieces if you have more than one computer Final resolution: 640x480 Final rendering quality:

40. Composing in Windows Movie Maker Follow the numbers Break apart video if needed Add titles Add stills for renderings, plans, materials, whatever Add credits Export

41. Timeline view easier for adding titles and transitions Follow steps

44. Exporting

45. Other software options Adobe Premiere Elements – Free trial Final Cut Pro (on Macs) – Pretty complex They’re very complex, but have some terrific features
