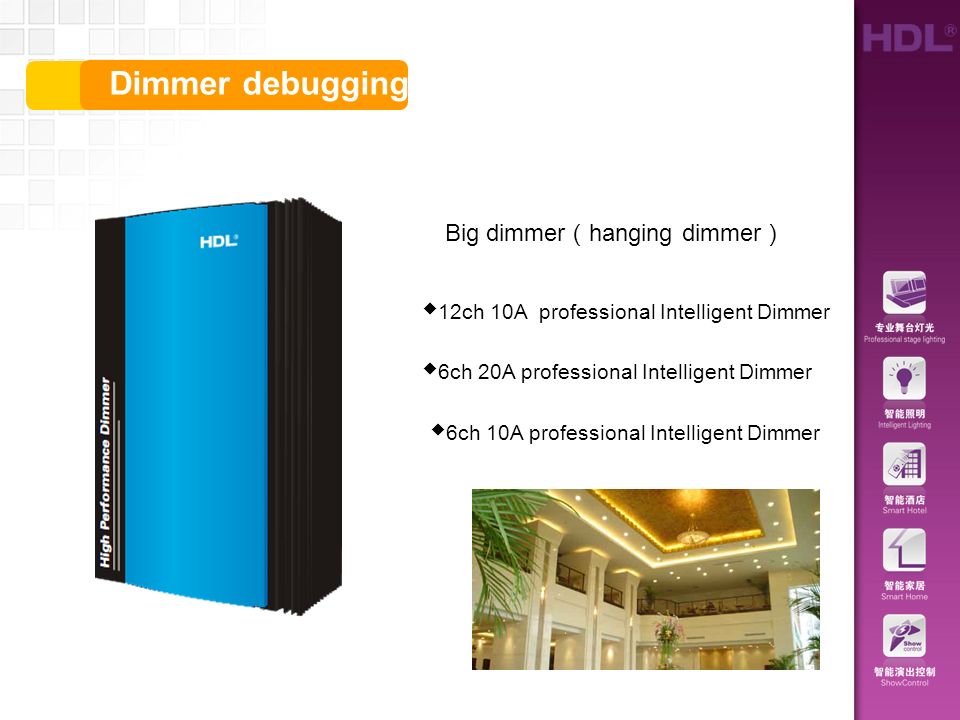

1. Dimmer debugging Big dimmer （ hanging dimmer ） ◆ 12ch 10A professional Intelligent Dimmer ◆ 6ch 20A professional Intelligent Dimmer ◆ 6ch 10A professional Intelligent Dimmer

2. Small dimmer （ Din rail mount ） ◆ 6ch 2A dimmer ◆ 4ch 3A dimmer ◆ 2ch 6A dimmer dimmer debugging

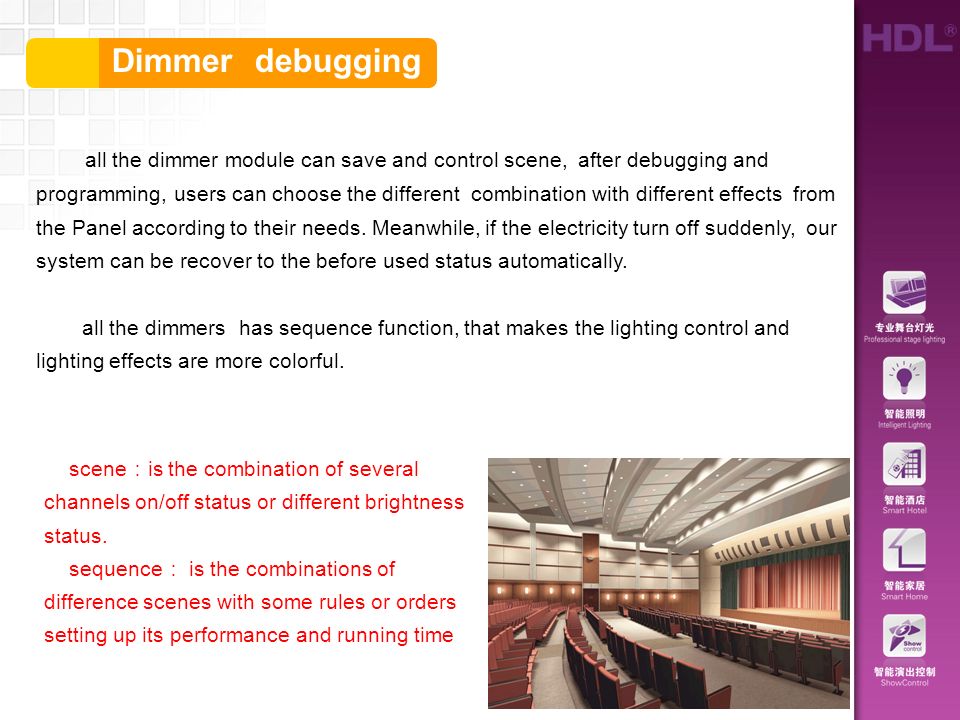

3. scene ： is the combination of several channels on/off status or different brightness status. sequence ： is the combinations of difference scenes with some rules or orders setting up its performance and running time all the dimmer module can save and control scene, after debugging and programming, users can choose the different combination with different effects from the Panel according to their needs. Meanwhile, if the electricity turn off suddenly, our system can be recover to the before used status automatically. all the dimmers has sequence function, that makes the lighting control and lighting effects are more colorful. Dimmer debugging

4. Subnet ID and device ID Can remark accordingly in order to convenient in maintenance and management. Device MAC ( physical ） address Basical information

5. Area ： devide the devices into several areas, and each area is independent. Area no. channels including in Current selected area A rea concept

6. 1, remark to the current selected area 2, input the remarks 3, save the setup Area remark

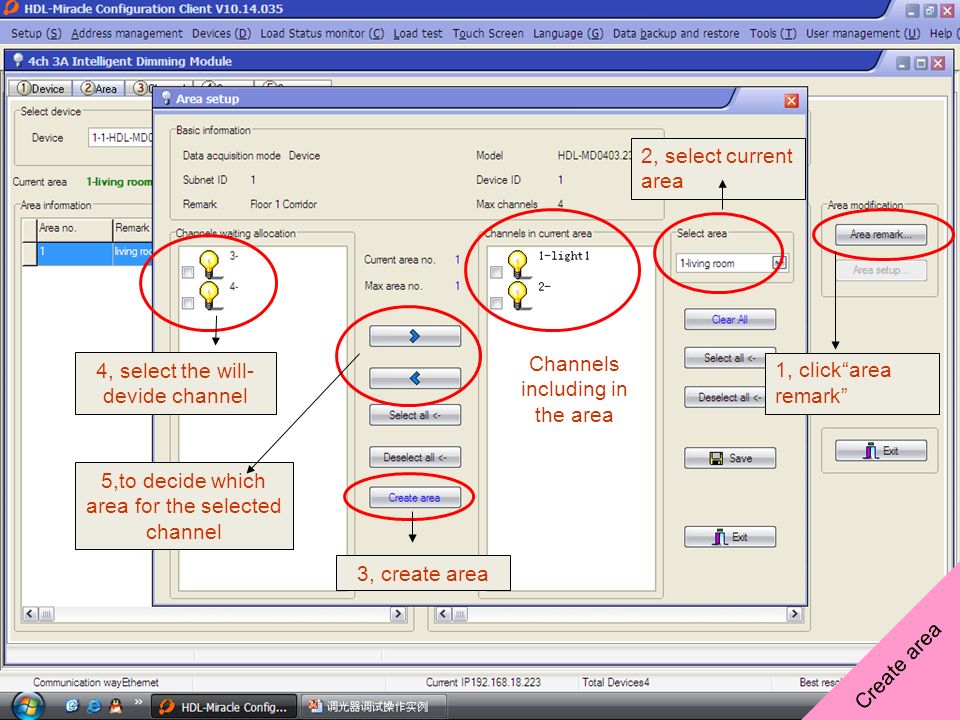

7. Create area 1, click“area remark” Channels including in the area 2, select current area 4, select the will- devide channel 5,to decide which area for the selected channel 3, create area

8. Max level: Max brightness of a channel. Range 00 ～ FL. Note: in the same channel, its lower limit value can not be over the higher limit value, generally speaking, keep the default is ok Channel configuration Lower limit: if the lower limit setup, when the dimming reach this value, the channel output is 0. Range 00 ～ 99. Higher limit : if the Higher limit is setup, when the dimming reach this value, this channel output is 100%. Range 01 ～ FL

9. Edit scene 1, select area 2, input scene no., key in a start scene and end scene according to your needs 3, scene remark setup 4, scene setup

10. Edit scene 3, set up each channel brightness value 2,set up scene run time ， that is the time from one bright status to anther status 4, save the scene 1, click the scene setup

11. Sequence configuration 1,sequence remark setup 2, sequence configuration Sequence step, ie. The invoked scene by each step Sequence information

12. Sequence setup 1, Sequence mode selecting 2, step setup 3,save setup

13. Sequence configuration 2, step setup, key in the invoked scene No. of each step 3, step time setup 4, save setup 1, sequence step configuration
