1. Raymond Welch Forrest Holub Sean Brooks Advisor: Dr. Gayatri Mehta

2.  Raymond Welch  Display code and testing, poster, progress presentation, final report and presentation  Forrest Holub  Proposal, research, parts ordering, progress report, wireless implementation, construction  Sean Brooks  Proposal, research, progress report, shopping runs, construction

3.  This project is a prototype flexible display attached to a jacket that receives text wirelessly from a nearby computer and outputs it to an LED display matrix by multiplexing the text data through a series of 8-bit shift registers.

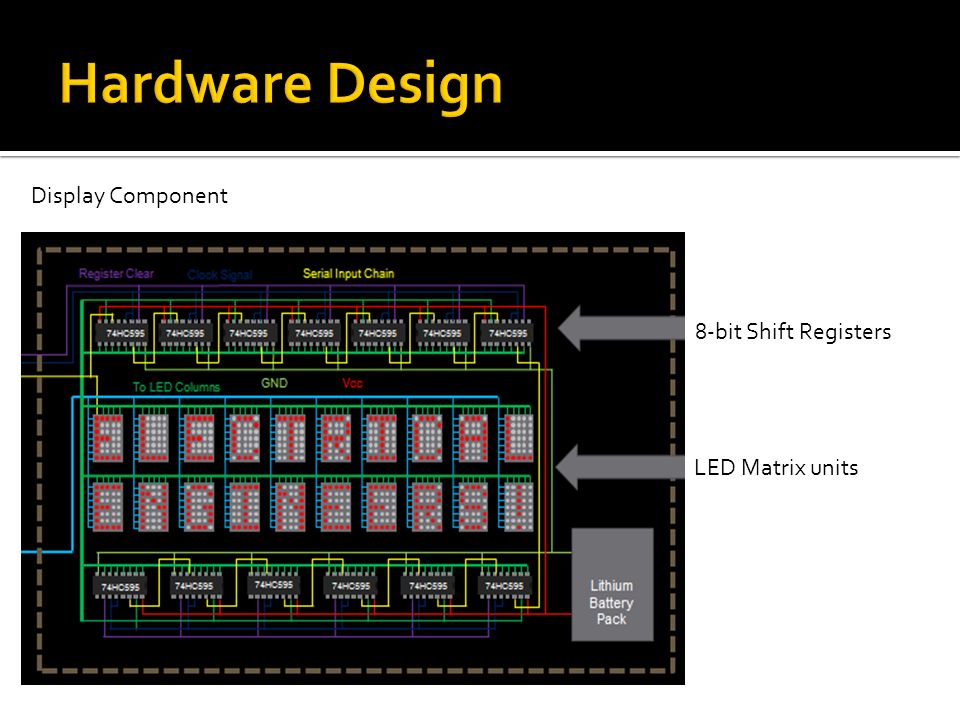

5. Display Component 8-bit Shift Registers LED Matrix units

6. Control Component Wireless Component To Display

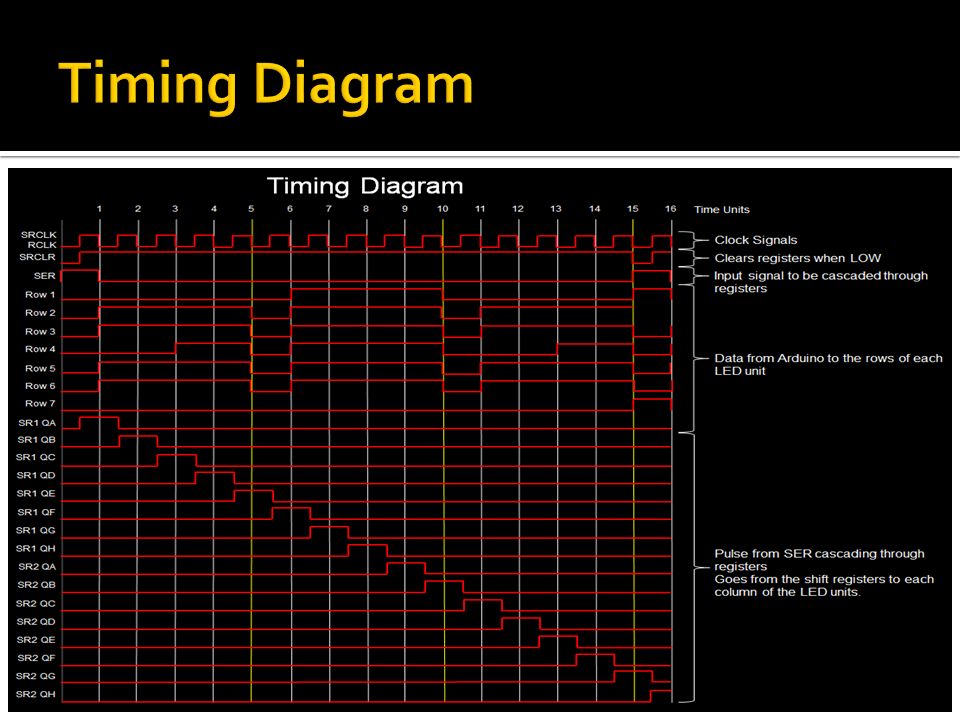

7.  Arduino Code  3 functions  Get Input from Xbee ▪ Trim to display width  Convert input to display pixels ▪ Look up characters in table  Refresh display ▪ Controls clock signals and row updates ▪ Synchronized

9.  Construction took longer and got started later than anticipated  Ended up ordering parts later because of broken components

10.  Attached LED units to jacket sleeve  Soldered shift registers to PCB  Sewed bus lines from display to control with conductive thread  Attached Lilypad and Xbee with thread  Connected PCB and LED units  Attached batteries

11.  Single LED unit and single shift register  Added more units and registers  Changed from hardcoded input to dynamic strings  Added wireless capability  Polished timing issues and finalized wiring  Tested connectivity and voltage on jacket

13.  Working display  Working wireless  Ran out of time embedding on jacket

14.  No eInk or other integrated flexible display screen available  Individual LEDs too much labor  5x7 matrix units more manageable  Timing issues  Too much wiring  Thread doesn’t connect to pins easily  Take too much time to complete

15.  This project  Detatchable components for washability  More efficient screen  Better wireless  Applications  Doctors  Soldiers  Astronauts

16.  We used the IEEE 802.15.4 standard which specifies the media access control for low- rate wireless personal area networks (LR- WPANs) using the XBee Series 1 transceiver.

17.  User safety  Sharp edges  Exposed wires/thread  Possible heat dissipation  Waterproofing

18.  Atluri Sri Harsha  Dr. Gayatri Mehta  Alex Lin  Dr. Murali Varanasi  Kaushani Dasgupta  UNT Department of Electrical Engineering We would like to thank:

19.  Helpful XBee communication examples: http://code.google.com/p/xbee-arduino/http://code.google.com/p/xbee-arduino/  Faludi, Robert (2010-12-14). Building Wireless Sensor Networks: with ZigBee, XBee, Arduino, and Processing (Kindle Locations 252-253). OReilly Media - A. Kindle Edition.  Arizona State University Page on Flexible Displays: http://flexdisplay.asu.edu/http://flexdisplay.asu.edu/  OLED Info Aggregator site: http://www.oled-info.com/flexible-oledhttp://www.oled-info.com/flexible-oled  2005 Research Publication about flexible displays: http://www.nhk.or.jp/strl/publica/bt/en/fe0021- 2.pdfhttp://www.nhk.or.jp/strl/publica/bt/en/fe0021- 2.pdf  This is the kind of display we had in mind: http://eink.com/rugged.htmlhttp://eink.com/rugged.html  Post from the Arduino forum concerning flexible display availability: http://arduino.cc/forum/index.php?topic=55051.0;wap2 http://arduino.cc/forum/index.php?topic=55051.0;wap2  Video with a similar device: http://www.youtube.com/watch?v=N3jvJ9GbRnk&feature=youtu.behttp://www.youtube.com/watch?v=N3jvJ9GbRnk&feature=youtu.be  A construction kit for electronic textile: http://web.media.mit.edu/~leah/publications/buechley_ISWC_06.pdf http://web.media.mit.edu/~leah/publications/buechley_ISWC_06.pdf  A paper about Lilypads: http://web.media.mit.edu/~leah/publications/buechley_CHI_08.pdfhttp://web.media.mit.edu/~leah/publications/buechley_CHI_08.pdf  Arduino LilyPad: http://arduino.cc/en/Main/ArduinoBoardLilyPadhttp://arduino.cc/en/Main/ArduinoBoardLilyPad  Arduino code reference: http://arduino.cc/en/Reference/HomePagehttp://arduino.cc/en/Reference/HomePage  Video demonstrating Lilypads: http://www.youtube.com/watch?v=Yj639_ez6TMhttp://www.youtube.com/watch?v=Yj639_ez6TM  LED unit Datasheet: http://www.jameco.com/Jameco/Products/ProdDS/2005420.pdfhttp://www.jameco.com/Jameco/Products/ProdDS/2005420.pdf  Video about shift registers: http://bildr.org/2011/02/74hc595/http://bildr.org/2011/02/74hc595/  Most of our components came from here: http://www.sparkfun.com/http://www.sparkfun.com/  And we used a lot of this: http://www.google.com/http://www.google.com/
