1. 1 PUPPET AND DSC. INTRODUCTION AND USAGE IN CONTINUOUS DELIVERY PROCESS. VIKTAR VEDMICH PAVEL PESETSKIY AUGUST 1, 2015

2. 2 Need to apply new Java version to all web servers ?????? CONFIGURATION ISSUES Jim Update_java Web01 x64 Web01 x86 Web01 x86 Web01 x64 Web01 x64 Web01 x86 Web01 x64 Web01 x64 Update_java

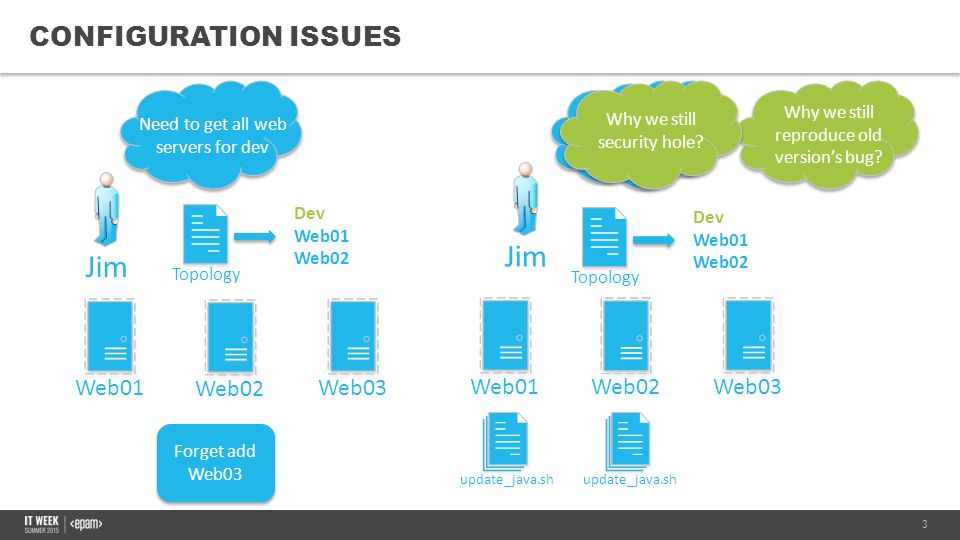

3. 3 CONFIGURATION ISSUES Dev Web01 Web02 Forget add Web03 Jim Need to get all web servers for dev Topology Web01Web03Web02Web01Web03Web02 Dev Web01 Web02 Topology update_java.sh Why we still have security hole? Need to update java Why we still reproduce old version’s bug? Jim Why we still security hole?

4. 4 REQUIREMENTS TO CONFIGURATION FLOW Configuration point Central configuration storage Inventory We can install Java on all platform types We know were to install java update Configuration edit audit Know were profiler installed Configuration

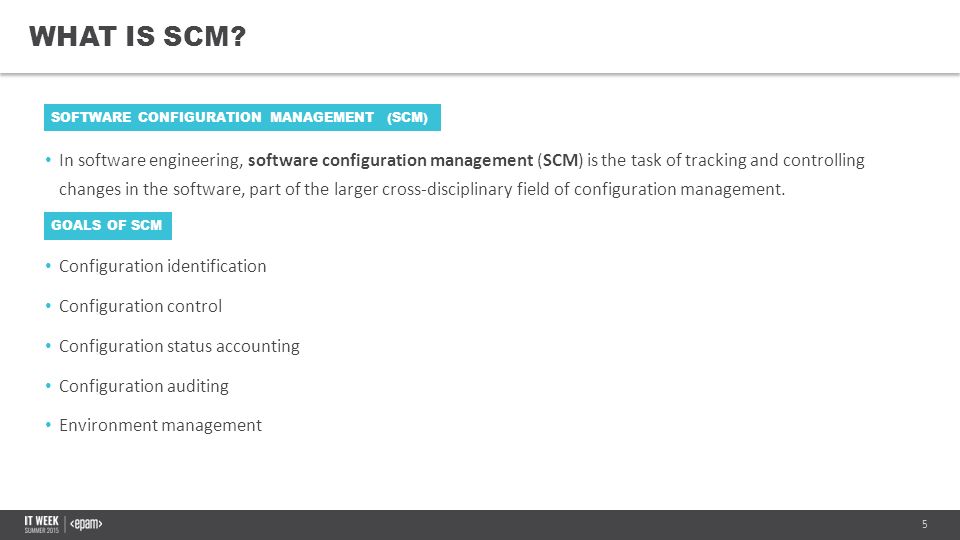

5. 5 In software engineering, software configuration management (SCM) is the task of tracking and controlling changes in the software, part of the larger cross-disciplinary field of configuration management. Configuration identification Configuration control Configuration status accounting Configuration auditing Environment management WHAT IS SCM? SOFTWARE СONFIGURATION MANAGEMENT (SCM) GOALS OF SCM

6. 6 2 1 3 CROSSPLATFORM IDEMPOTENCY DECLARATIVE APPROACH

7. 7 PUPPET Puppet's declarative language Manifests Facter Client–server paradigm SSL authentication Report HOW WORKS

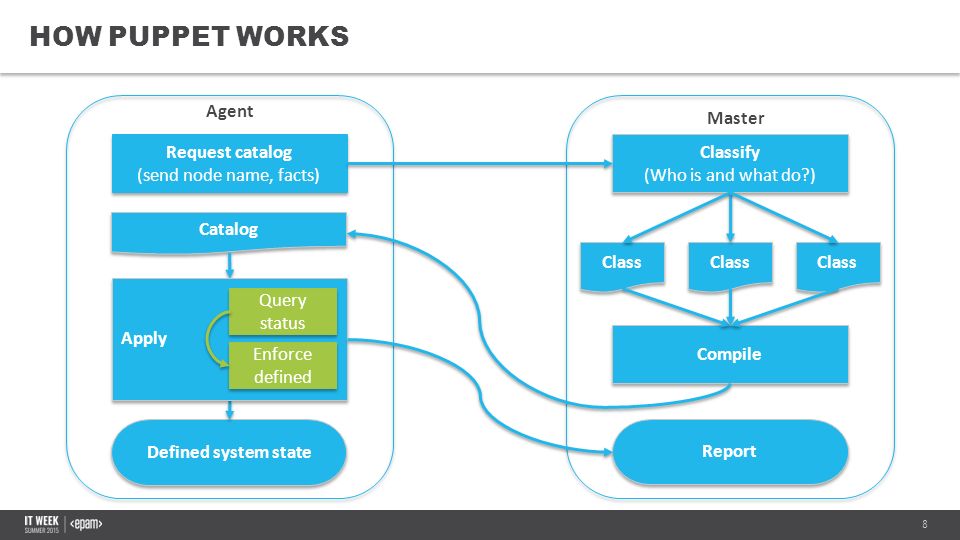

8. 8 HOW PUPPET WORKS Agent Request catalog (send node name, facts) Request catalog (send node name, facts) Master Classify (Who is and what do?) Classify (Who is and what do?) Class Compile Catalog Defined system state Apply Query status Enforce defined Report

9. 9 PowerShell Declarative and Imperative Code Local Configuration Management (LCM) WMF MOF (Management Object Format) files Push/Pull Pull Mode over SMB, HTTP/S, OData DSC - DESIRED STATE CONFIGURATION HOW WORKS

10. 10 HOW DSC WORKS Previous.MOF Pending.MOF Current.MOF Hello, My name is Server. Give configuration. Hello, My name is Server. Give configuration. Download MOF and Resources Compare config with Current state. Install Compare config with Current state. Install LCM Agent Pull Server

11. 11 PUPPET MANIFESTS Copy msi file Install msi package Copy config file Ensure service is running 1 1 2 2 3 3 4 4

12. 12 POWERSHELL CONFIGURATION Copy source Install service Ensure service is running 2 2 3 3 1 1

13. 13 java net40 Site1 httpd Site1 Site2 IIS NODES AND MODULES MAGIC Node web01 Node web02 Module web Module framework IIS Site1 httpd net40 java

14. 14 Manage files and directories Install apache Configure hosts for apache Add second agent (Ubuntu) DEMO PUPPET Manage files and directories Install Windows Features Install SQL Run Windows PowerShell scripts (fill database) DSC

15. 15 2 1 3 HASH TABLE CONFIGURATION DATA VARIABLE CONFIGURATION DATA FILE

16. 16 Write a configuration to be applied to a target node Use the configuration to generate a MOF file Generate a checksum file to accompany the MOF Create the pull server itself Deploy the MOF and checksum files to the pull server Configure the target node to use the pull server DSC – PULL SERVER PRACTICE – DEPLOY PULL SERVER

17. 17 123 PARTIAL DSC CONFIGURATIONS OS Configuration Fragment Join Domain SQL Configuration Fragment.NET Framework 4.5 Install SQL Server Configure SQL Instance Settings OS and Application Configuration Service Configuration Application Configuration

18. 18 Service Config App Config.NET 4.5 Install SQL Config SQL Join Domain PARTIAL DSC CONFIGURATIONS Node SQL01 OS Configuration Join Domain SQL Configuration.NET 4.5 Install SQL Config SQL Service Config Application Configuration App Config

19. 19 AZURE POWERSHELL DSC EXTENSION Write a configuration to be applied to a target node Publish Configuration to Azure Connect Azure Extension Create New VM with Extension

20. 20 Create Simple Configuration Publish to Azure Create New VM Check Status of Deployment DSC DEMO AZURE EXTENSION

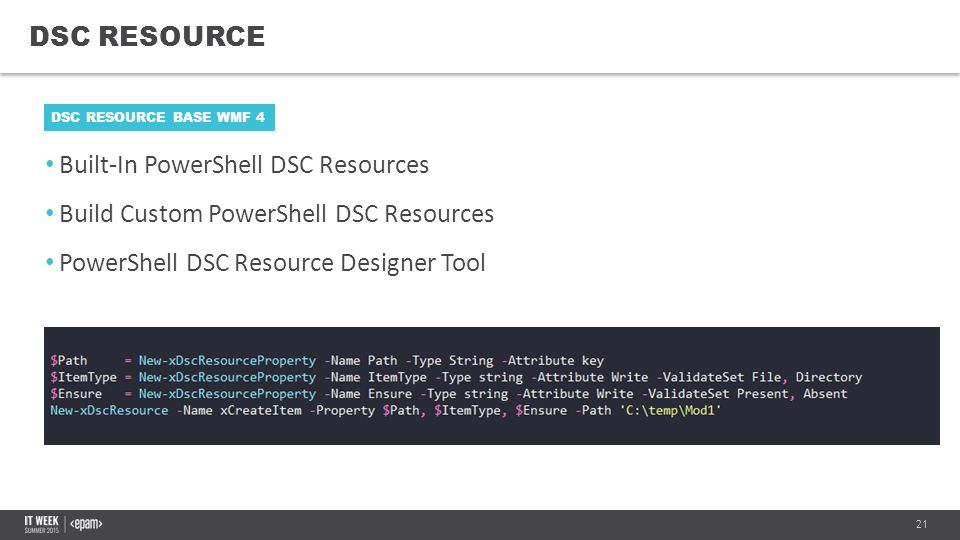

21. 21 Built-In PowerShell DSC Resources Build Custom PowerShell DSC Resources PowerShell DSC Resource Designer Tool DSC RESOURCE DSC RESOURCE BASE WMF 4

22. 22 2 1 3 DEPLOY $env: psmodulepath (folder) |- DSCResources (folder) |- (file, required) DISCOVER Import-DscResource [-Name ] [-ModuleName ] DEPLOY TO PULL SERVER Archive Resource ModuleName_Version.zip Generate new Checksum ModuleName_Version.zip.checksum

23. 23 ROLES AND PROFILES : BUSINESS NEEDS Web Application Mail Business View

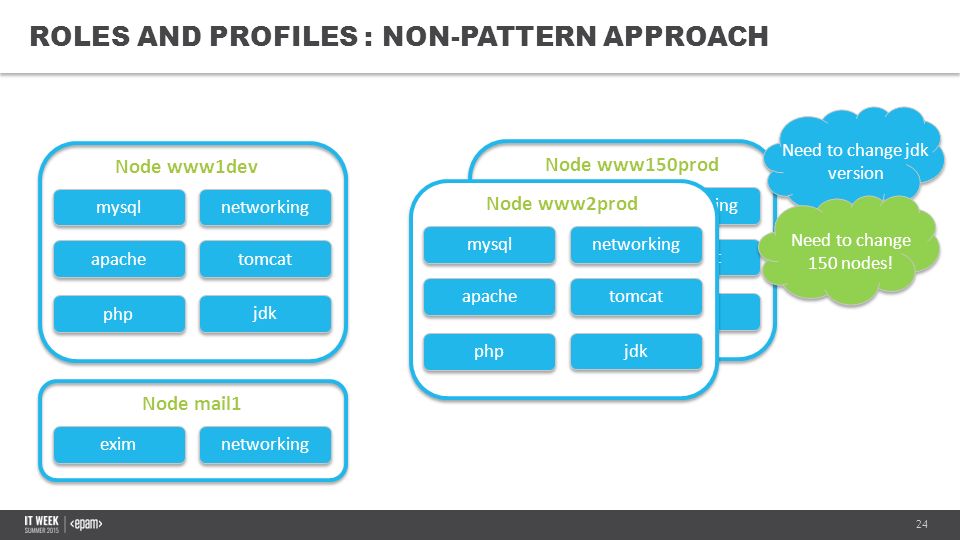

24. 24 Node www150prod mysql networking apache tomcat php jdk ROLES AND PROFILES : NON-PATTERN APPROACH Node www1dev mysql networking apache tomcat php jdk Node www2prod mysql networking apache tomcat php jdk Node mail1 exim networking Need to change jdk version Need to change 150 nodes!

25. 25 ROLES AND PROFILES : IMPLEMENTATION REALITY Mail Web Application Technical Reality

26. 26 ROLES AND PROFILES : APPLYING PATTERN Node www1dev mysql networking apache tomcat php jdk Node www2prod mysql networking tomcat jdk profile::webserver apache php profile::common networking profile::appserver tomcat jdk profile::sqlserver mysql apache php role:webappdb_prod role:webappdb_dev profile::appserver tomcat

27. 27 ROLES AND PROFILES : APPLYING PATTERN profile::webserver apache php profile::common networking jdk profile::sqlserver mysql profile::appserver tomcat Node www1dev role:webappdb_dev Node www2prod role:webappdb_prod profile::common profile::webserver

28. 28 jdk {version -> 1.75} ROLES AND PROFILES : EDITS WITH PATTERN Node www1dev role:webappdb_dev Node www2prod role:webappdb_prod Need to change jdk version jdk profile::appserver tomcat Need to change one appserver profile

29. 29 HIERA: ISSUE WITHOUT HIERA Sets the binding variable for different environments Creates config based on variable name

30. 30 HIERA: ISSUE WITHOUT HIERA

31. 31 HIERA: MAIN CONCEPT HIERA SEPARATES DATA FROM THE CODE

32. 32 HIERA: LOOKUP www1 Environment: production Facts Easy to editable data in one file

33. 33 TIME FOR DEMO DEMO

34. 34 DEMO FOR REAL CUSTOMER

35. 35 APPLICATION INFRASTRUCTURE mysitemyservice sqlserver My Application Puppet Master Zabbix Log audit, monitoring data Logstash Application, IIS logs Puppet dashboard Puppet reports Build Server

36. 36 ANY QUESTIONS
