1 The Visceral Nervous System 山东大学医学院 解剖教研室 李振华

2 The Visceral Nervous System Composition Visceral motor nerves (autonomic nervous system)  Sympathetic part 交感部  Parasympathetic part 副交感部 Visceral sensory nerves

3 Somatic and Autonomic Nervous System

4 Main Differences Between Somatic Motor and Visceral Motor n. SomaticVisceral EffectorsSkeletal musclesCardiac, smooth muscles and glands ControlVoluntary (consciousness) Involuntary (unconsciousness ) From lower center to effect require Single neuronTwo neurons: preganglionic neuron and postganglionic neuron Kind of fibersOneTwo: sympathetic & parasympathetic FibersThick myelinatedPreganglionic: thin myelinated postganglionic: unmyelinated Distributive formNerve trunkNerve plexuses

5 Somatic and Autonomic Nervous System

6 Somatic Skeletal muscle Conscious and unconscious movement Skeletal muscle contracts One synapse Acetylcholine Autonomic Smooth and cardiac muscle and glands Unconscious regulation Target tissues stimulated or inhibited Two synapses Acetylcholine by preganglionic neurons and ACh or norepinephrine by postganglionic neurons

7 Neurotransmitters ACh Sweat glands Striated muscle ACh SOMATIC NERVOUS SYSTEM Heart Sm. mus. Glands ACh Parasympathetic ACh E, NE Ad. M.  Heart Sm. mus. Glands ACh NE AUTONOMIC NERVOUS SYSTEM Sympathetic

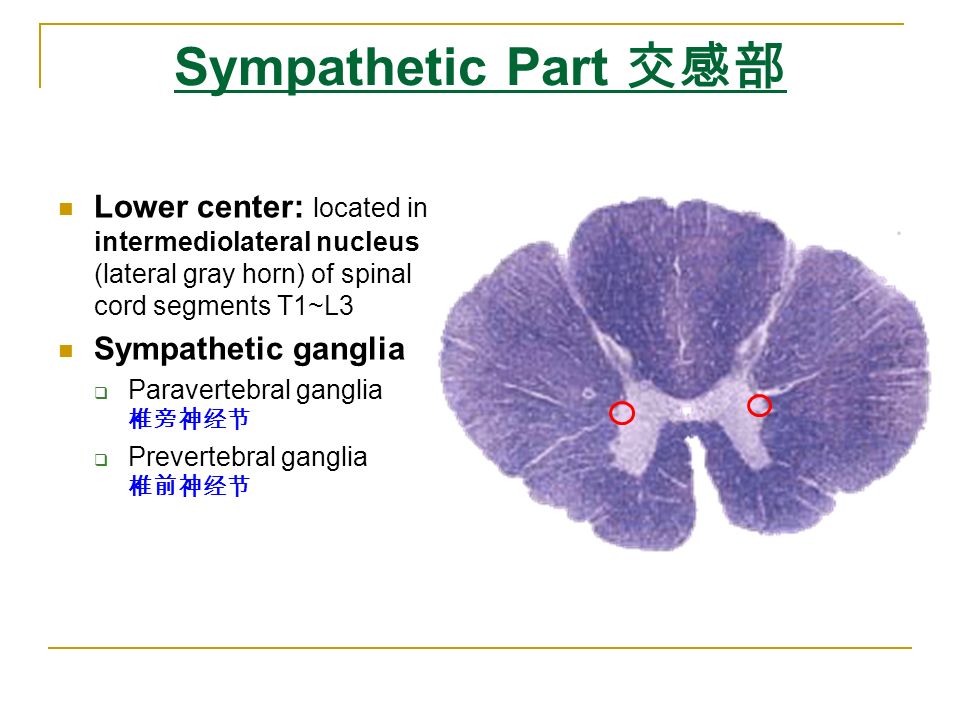

8 Sympathetic Part 交感部 Lower center: located in intermediolateral nucleus (lateral gray horn) of spinal cord segments T1~L3 Sympathetic ganglia  Paravertebral ganglia 椎旁神经节  Prevertebral ganglia 椎前神经节

9 Paravertebral Ganglia 椎旁神经节 Arranged on either side of vertebral column Consist of 19~22 of oval- shaped ganglia  3 cervical  10~12 thoracic  4 lumbar  2~3 sacral  Ganglion impar 奇神经节 : unpaired on the anterior face of coccyx

10 Paravertebral Ganglia 椎旁神经节 Superior cervical ganglion: largest, situated in front of transverse processes of C1~C3 vertebra Middle cervical ganglion: smallest, is at level of transverse processes of C6 vertebra Inferior cervical ganglion: situated at level of C7 vertebra, and may be fused with first thoracic ganglion to form cervicothoracic ganglion 颈胸神经节

11 Paravertebral Ganglia 椎旁神经节

12 Sympathetic Trunk 交感干 Formed by paravertebral ganglia and interganglionic branches Lie on either side of vertebral column from base of skull to coccyx The trunks of two side unite in front of the coccyx at a small swelling, the ganglion impar

13 Prevertebral Ganglia 椎前节 Lie anterior to vertebral column and near the arteries for which they are named Celiac ganglion 腹腔神经节 Aorticorenal ganglion 主动脉肾神经节 Superior mesenteric ganglion 肠系膜上神经节 Inferior mesenteric ganglion 肠系膜下神经节

14 Preganglionic Fibers Preganglionic fibers 15 pairs white communicating branches Sympathetic trunk (only spinal levels T1~L3 have white communicating branch)

15 Three Fates of Preganglionic Fibers 1. Relay in corresponding ganglion 2. Ascend or descend in sympathetic trunk and relay in higher or lower ganglia 3. Pass without synapse to a prevertebral ganglion for relay

16 Preganglionic Fibers Greater splanchnic nerve 内脏大神经 formed by preganglionic fibers from T5~T9 ganglia, and relay in celiac ganglion. Lesser splanchnic nerve 内脏小神经 formed by preganglionic fibers from T10~T12 ganglia, and relay in aorticorenal ganglion. The postganglionic fibers supply the liver, spleen, kidney and alimentary tract as far as the left colic flexure.

17 Preganglionic Fibers Lumbar splanchnic nerve 腰内脏神经  Formed by preganglionic fibers from L1~L4 ganglia, and relay in prevertebral ganglia.  The postganglionic fibers supply descending and sigmoid colon, rectum, pelvic viscera and lower limbs.

18 Three Fates of Postganglionic Fibers Back to a spinal nerve along gray communicating branches 灰交通支 to terminate in blood vessels, arrector pili muscles and sweat glands of head, neck, trunk and limbs The fibers form their networks around blood vessels passing to visceral end organs Terminate directly in certain organs

19 Postganglionic Fibers

20 Distribution of Sympathetic Nerve Preganglionic fibersPostganglionic fibers T1~T5Head, neck, upper limb and thoracic viscera T5~T12Abdominal viscera L1~L3Pelvic viscera and lower limb

21 Parasympathetic Part 副交感部 Lower center : located in four pairs parasympathetic nuclei in brain stem and in sacral parasympathetic nucleus of spinal cord segments S2~S4 Parasympathetic ganglia : terminal ganglia are near or within the wall of a visceral organ  Para-organ ganglia 器官旁节 Ciliary ganglion 睫状神经节 Pterygopalatine ganglion 翼腭神经节 Submandibular ganglion 下颌下神经节 Otic ganglion 耳神经节  Intra-organ ganglia 器官内节

22 Cranial Portion of Parasympathetic Nerve 副交感神经颅部 Ⅲ ciliary ganglion sphincter pupillae and ciliary muscles pterygopalatine ganglion Ⅶ lacrimal gland submandibular ganglion sublingual gland submandibular gland Ⅸ otic ganglion parotid gland Ⅹ terminal ganglia heart, lungs, liver, spleen kidneys,alimentary tract as far as left colic flexure

23 Cranial Portion of Parasympathetic Nerve Ⅲ accessory oculomotor nucleus 〈 ○ sphincter pupillae and ciliary muscles ciliary ganglion pterygopalatine ganglion Ⅶ 〈 ○ lacrimal gland superior salivatory nucleus 〈 ○ sublingual gland submandibular ganglion submandibular gland Ⅸ inferior salivator nucleus 〈 ○ parotid gland otic ganglion Ⅹ heart, lungs, liver, spleen, dorsal nucleus of vagus n. 〈 ○ kidneys,alimentary tract terminal ganglia as far as left colic flexure

24 Sacral Portion of Parasympathetic Nerve 副交感神经骶部 Preganglionic fibers from sacral parasympathetic nucleus leave spinal cord with anterior roots of the spinal nerves S2~S4, Then leave sacral nerves and form pelvic splanchnic nerve 盆内脏神经 and travel by way of pelvic plexus to terminal ganglia in pelvic cavity Postganglionic fibers terminate in descending and sigmoid colon, rectum and pelvic viscera

25

26 Main Differences Between Sympathetic and Parasympathetic SympatheticParasympathetic Lower centerIntermediolateral nucleus (lateral gray horn) of spinal cord segments T1~L3 Four pairs parasympathetic nuclei and sacral parasympathetic nucleus GangliaParavertebral, prevertebralTerminal Preganglionic f.ShorterLonger Postganglionic f.LongerShorter Pre: Postganglionic1: many more1: a few DistributionsThroughout the bodyLimited primarily to head and viscera of thorax, abdomen, and pelvis Different actionPrepares for emergency situation (expends energy) Conserve and restore body energy (conserves energy)

27 Main Differences Between Sympathetic and Parasympathetic SympatheticParasympathetic Different actionPrepares for emergency situation (fight or flight) Conserve and restore body energy (rest and relaxation) PupilDilatesConstricts HeartIncreases force of contraction Decreases force of contraction Rhythm of the heartTo become more rapidTo make slow Blood pressureHeightenDepress BronchiDilates bronchiConstricts bronchi

28 Main Differences Between Sympathetic and Parasympathetic

29 Sympathetic neurone Dilator pupillae Sphincter pupillae Pupil Ganglion Parasympathetic neurone Normal light Low light:- iris dilates Bright light:- iris constricts FUNCTION OF THE IRIS

30 Visceral Plexuses Cardiac plexuses 心丛  Superficial, below aortic arch  Deep, anterior to bifurcation of trachea Pulmonary plexus 肺丛

31 Visceral Plexuses Celiac plexus 腹腔丛 Abdominal aortic plexus 腹主动脉丛 Hypogastric plexus 腹下丛  Superior hypogastric plexus  Inferior hypogastric plexus (pelvic plexus)

32 Visceral Sensory Nerves Enteroceptors Ⅶ,Ⅸ, Ⅹ Nucleus of solitary tract Sympathetic nerve Pelvic splanchnic nerve Posterior horn Thalamus Hypothalamus Cerebral cortex Somatic motor neurons visceral motor neuclei Effectors

33 Referred Pain 牵涉痛 Pain originating from organs perceived as coming from skin Site of pain may be distant from organ

34 Referred Pain 牵涉痛 Convergence theory: This type of referred pain occurs because both visceral and somatic afferents often converge on the same interneurons in the pain pathways. Excitation of the somatic afferent fibers is the more usual source of afferent discharge, so we “refer” the location of visceral receptor activation to the somatic source even though in the case of visceral pain. The perception is incorrect. The convergence of nociceptor input from the viscera and the skin.

35 Referred Pain 牵涉痛
