1. CLIQ unit Integration

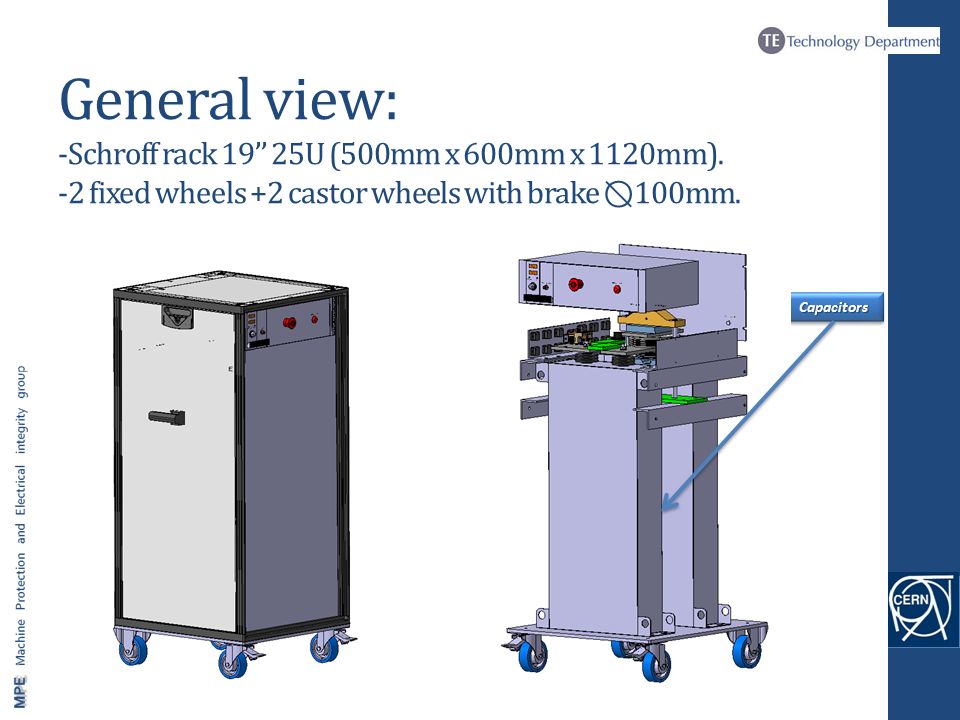

2. General view: -Schroff rack 19’’ 25U (500mm x 600mm x 1120mm). -2 fixed wheels +2 castor wheels with brake ⦰100mm. Capacitors Capacitors

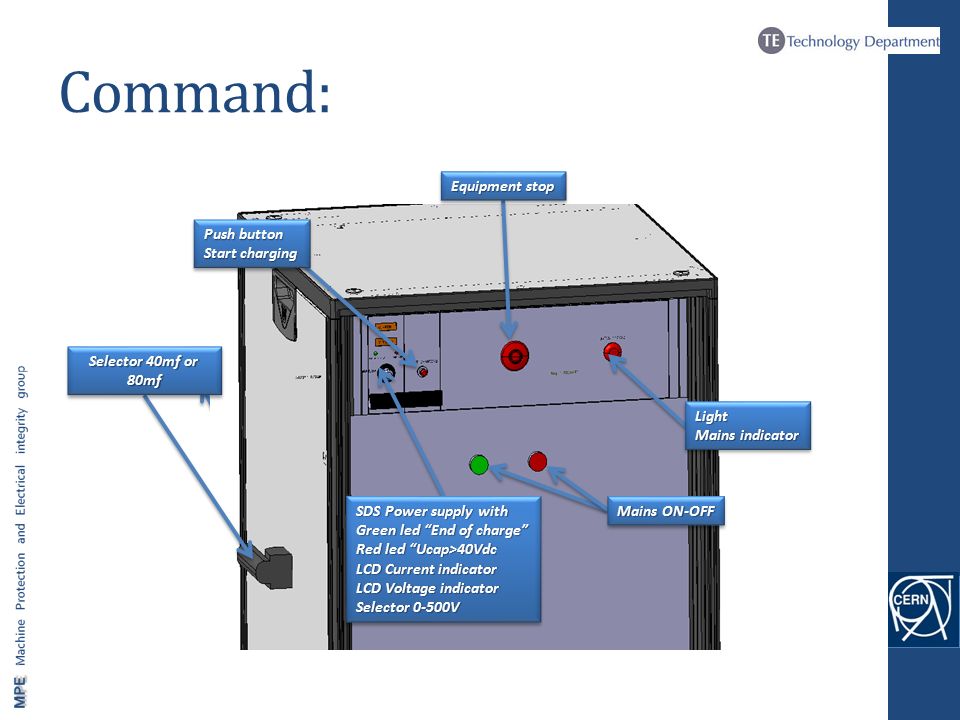

3. Command: 3 Light Mains indicator Light Mains ON-OFF SDS Power supply with Green led “End of charge” Red led “Ucap>40Vdc LCD Current indicator LCD Voltage indicator Selector 0-500V SDS Power supply with Green led “End of charge” Red led “Ucap>40Vdc LCD Current indicator LCD Voltage indicator Selector 0-500V Push button Start charging Push button Start charging Equipment stop Light Mains indicator Light Mains ON-OFF Selector 40mf or 80mf

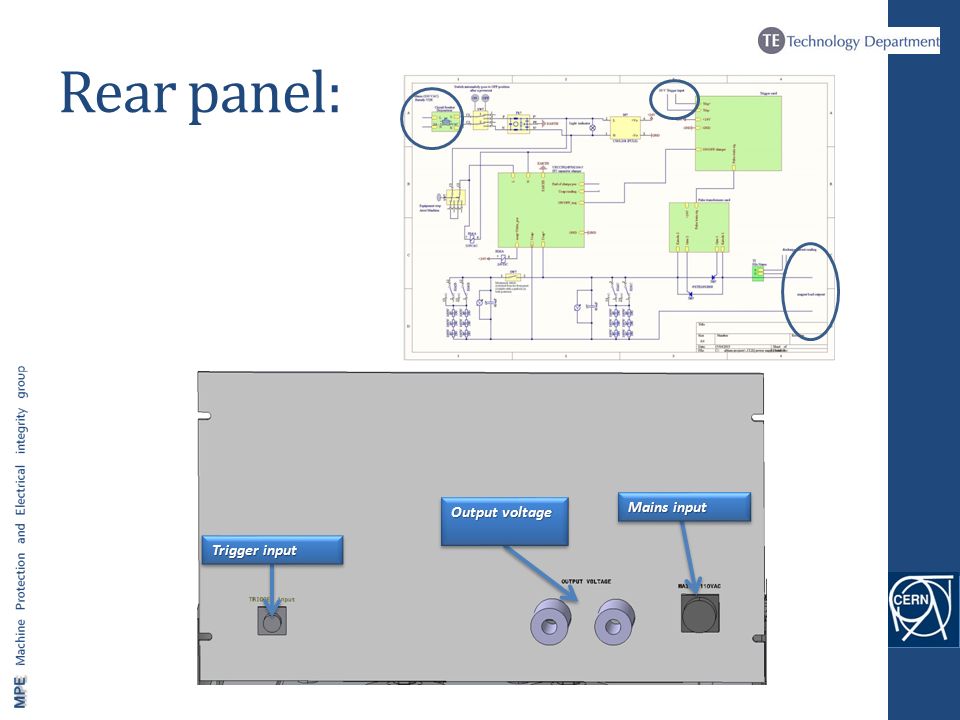

4. Rear panel: Mains input Trigger input Output voltage

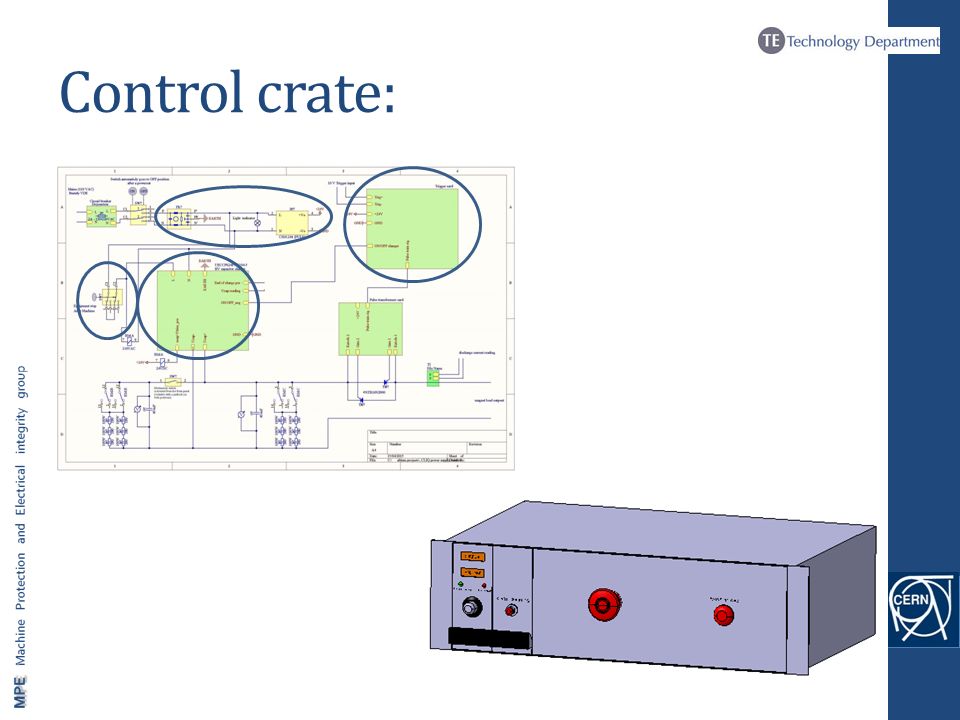

5. Control crate:

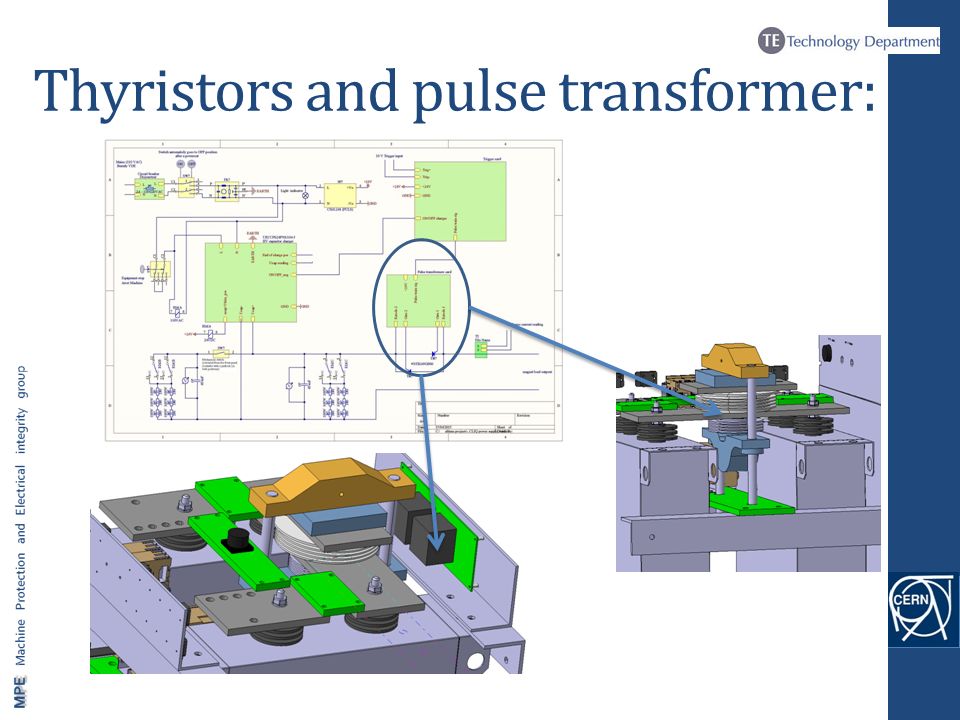

6. 6 Thyristors and pulse transformer:

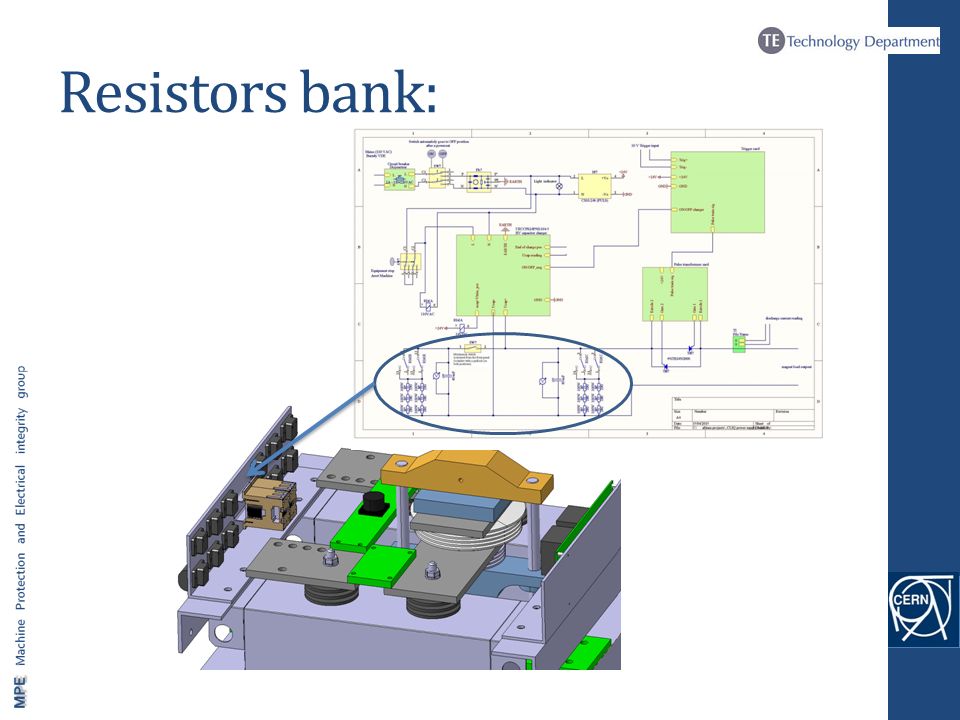

7. 7 Resistors bank:

8. 8 Output voltage and selector capacitors:
