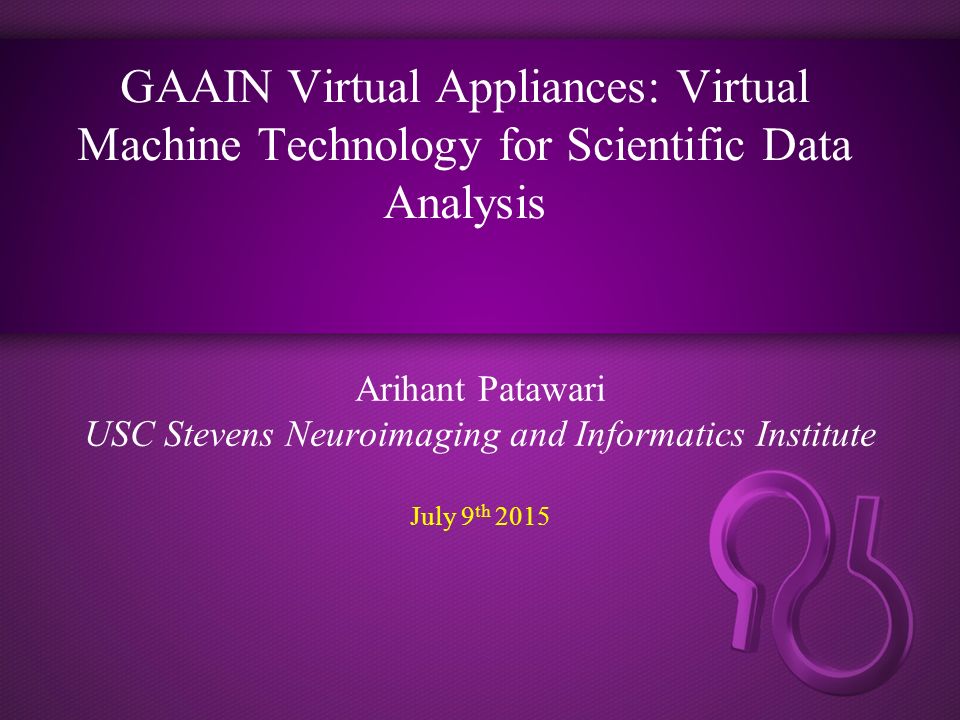

1. GAAIN Virtual Appliances: Virtual Machine Technology for Scientific Data Analysis Arihant Patawari USC Stevens Neuroimaging and Informatics Institute July 9 th 2015

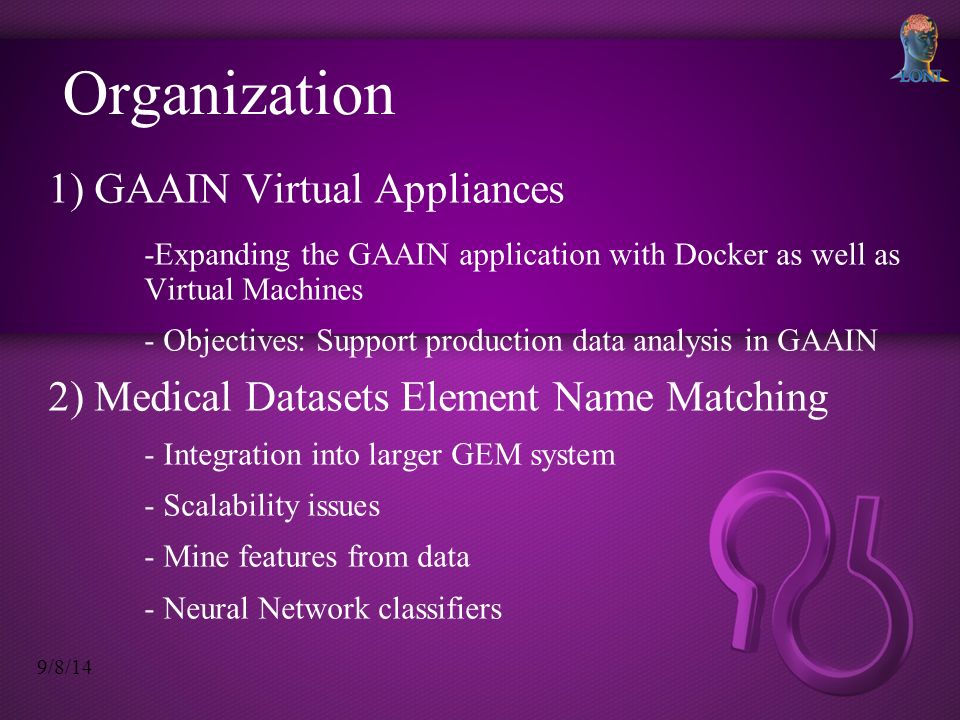

2. Organization 1) GAAIN Virtual Appliances -Expanding the GAAIN application with Docker as well as Virtual Machines - Objectives: Support production data analysis in GAAIN 2) Medical Datasets Element Name Matching - Integration into larger GEM system - Scalability issues - Mine features from data - Neural Network classifiers 9/8/14

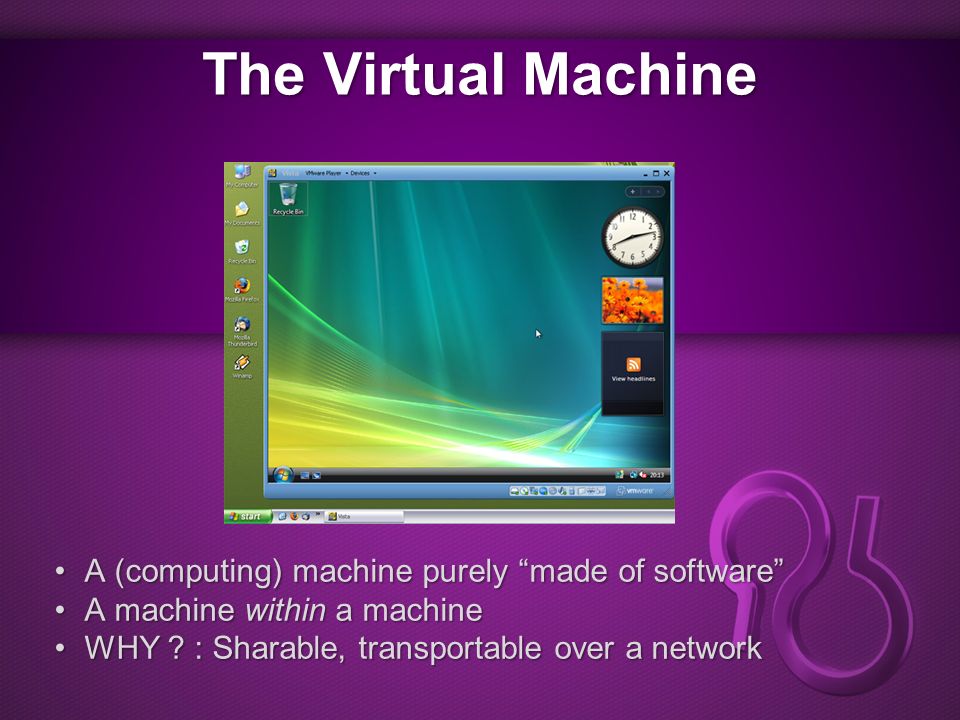

3. The Virtual Machine A (computing) machine purely “made of software”A (computing) machine purely “made of software” A machine within a machineA machine within a machine WHY ? : Sharable, transportable over a networkWHY ? : Sharable, transportable over a network

4. GAAIN Virtual Machines Investigator Data Partner

5. Virtual Appliances 9/8/14

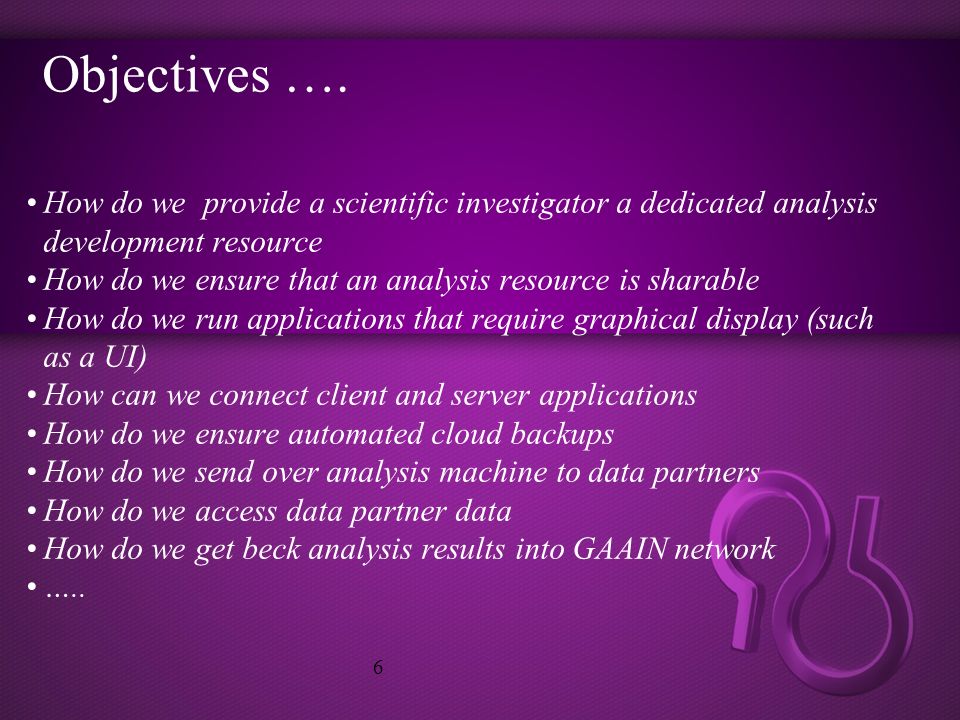

6. 6 How do we provide a scientific investigator a dedicated analysis development resource How do we ensure that an analysis resource is sharable How do we run applications that require graphical display (such as a UI) How can we connect client and server applications How do we ensure automated cloud backups How do we send over analysis machine to data partners How do we access data partner data How do we get beck analysis results into GAAIN network ….. Objectives ….

7. 7 Designed to provide framework for (specific) application encapsulation Provide minimal support for application Not intended as a general purpose computing machine Other aspects - Dockerfile management - Docker Hub - Security Relatively new and evolving framework Recap: Docker Framework

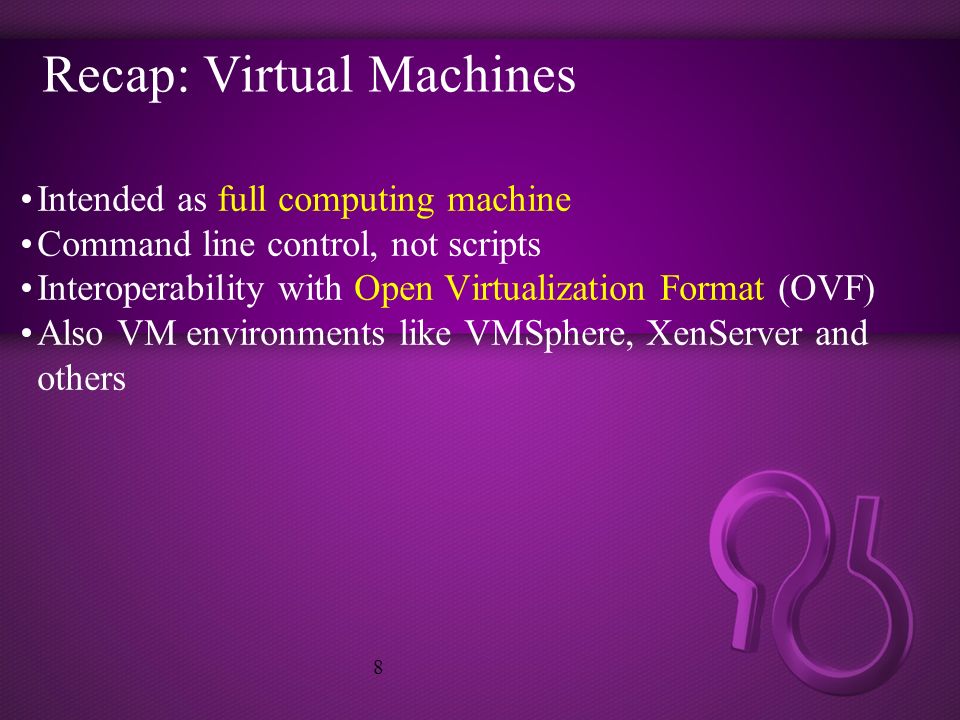

8. 8 Intended as full computing machine Command line control, not scripts Interoperability with Open Virtualization Format (OVF) Also VM environments like VMSphere, XenServer and others Recap: Virtual Machines

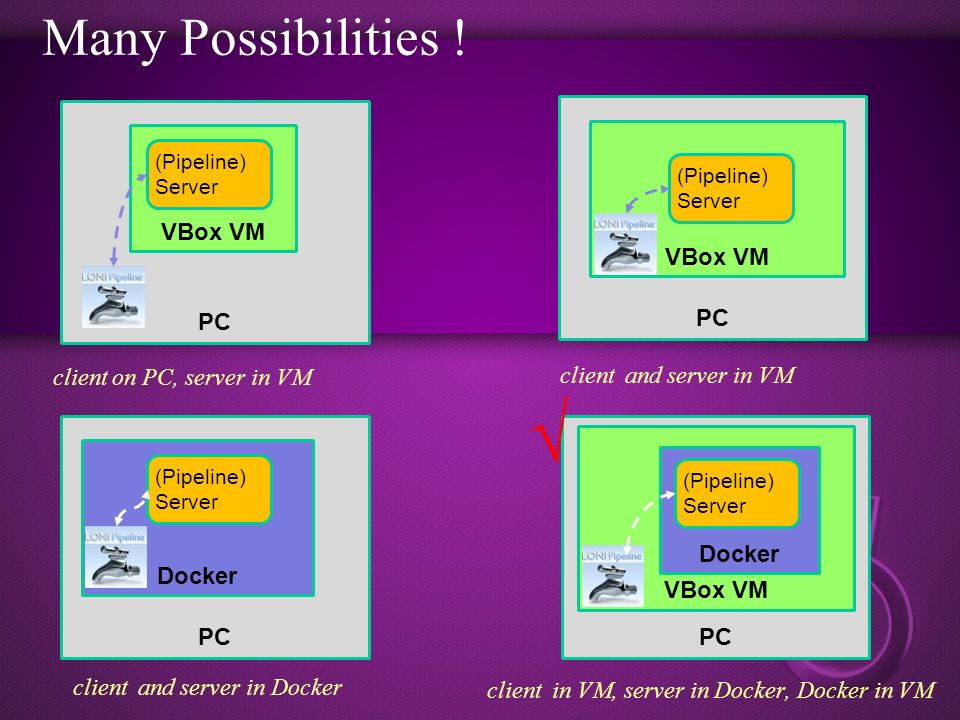

9. PC VBox VM (Pipeline) Server PC VBox VM (Pipeline) Server PC Docker (Pipeline) Server PC VBox VM Docker (Pipeline) Server Many Possibilities ! client on PC, server in VM client and server in VM client and server in Docker client in VM, server in Docker, Docker in VM √

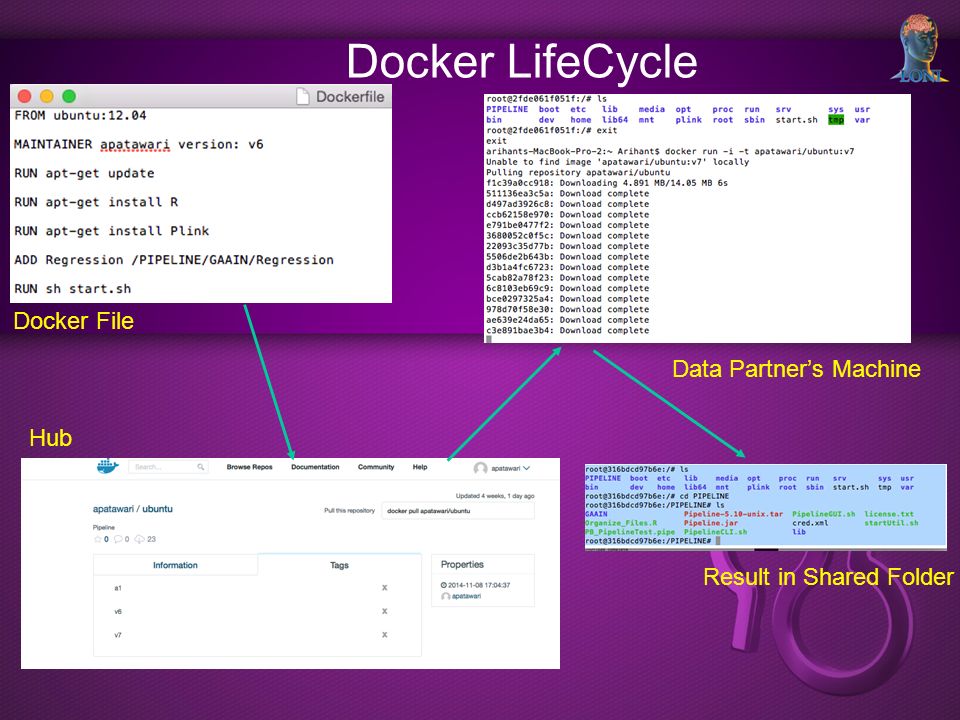

10. 10 Docker LifeCycle Docker File Hub Data Partner’s Machine Result in Shared Folder

11. Docker vs Virtual Machines Aspects VirtualBoxDocker Virtual Image Type (Formats) The open-virtual-format as ‘.OVF’ and ‘’.OVA’ files Proprietary Docker image format Requirements Any virtualization hypervisor that can run the open virtualization format images Docker Engine Architecture Typically the core virtual image contains a complete operating system of choice Minimal system layer is provided and components are added only as required ‘Typical’ Image Sizes Encapsulating a simple application (for instance a single workflow) results in a machine of size ~ 1.5GB. However options are recently becoming available for including only a liminal operating system layer. Typically only a few hundred MB for the same applications Management and Sharing No specific capabilities provided Docker Hub for centralized Docker image storage, tagging, and sharing Access ControlNo specific capabilities provided Docker Hub provides account management and access control Network Access Can provide network access between Virtual Box VM and external machines/networks. External network access to Docker image can be provided but with limitations Host Folder Mounting Possible but with some additional software installation Host folder mounting can be done more easily with a single command

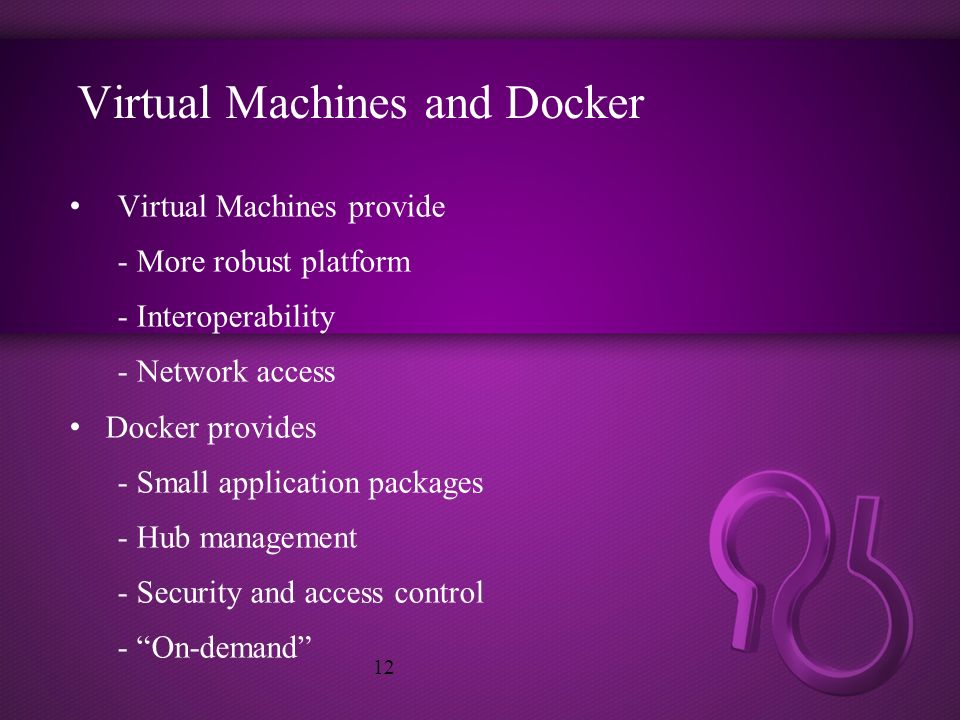

12. 12 Virtual Machines and Docker Virtual Machines provide - More robust platform - Interoperability - Network access Docker provides - Small application packages - Hub management - Security and access control - “On-demand”

13. 13 Docker File - Docker can build images automatically by reading the instructions from a Docker file. - Only requirement is to have docker installed - Docker file can be created automatically by recording the actions performed just by a command (Using Auto-commit module), which makes it flexible for any user unfamiliar with docker commands - Just by executing simple text file, the whole system can built from the scratch. - The idea behind using docker file, it helps to manage size with requirements.

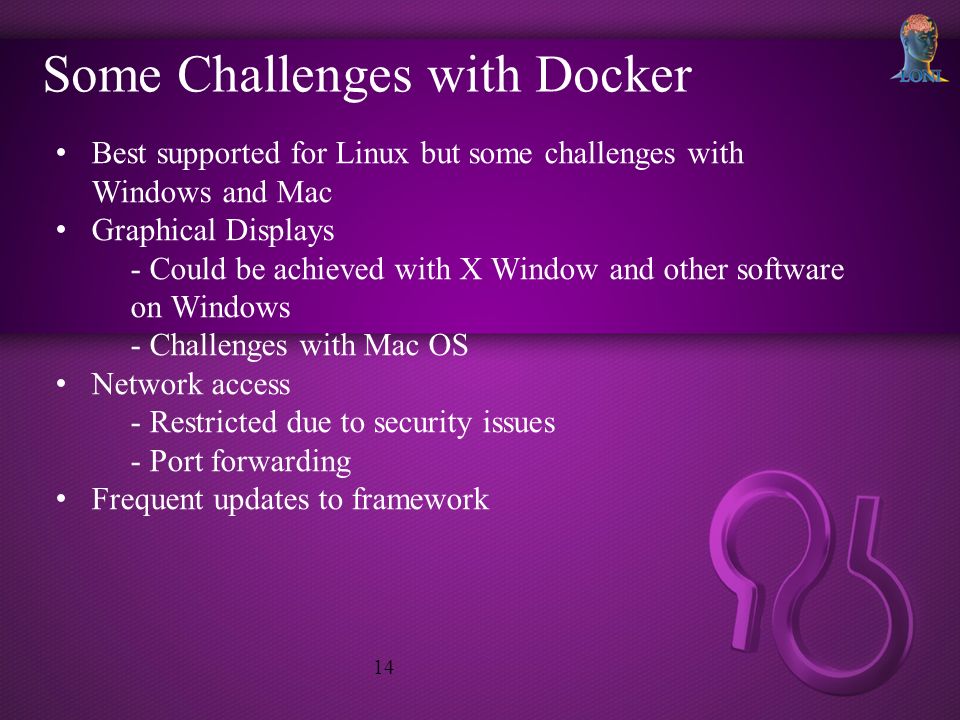

14. 14 Best supported for Linux but some challenges with Windows and Mac Graphical Displays - Could be achieved with X Window and other software on Windows - Challenges with Mac OS Network access - Restricted due to security issues - Port forwarding Frequent updates to framework Some Challenges with Docker

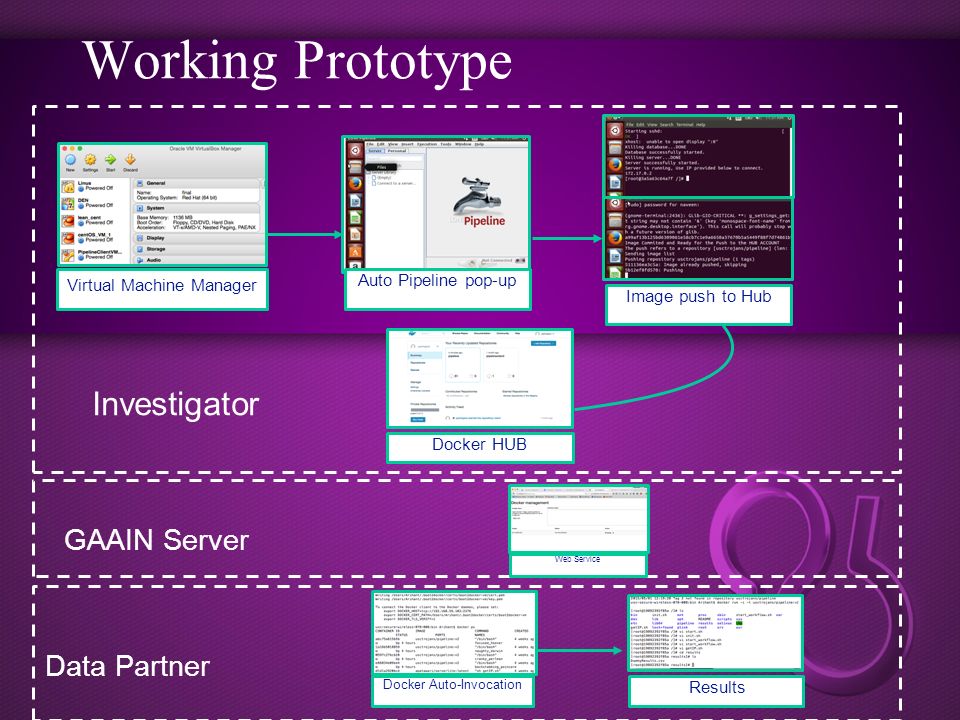

15. 15 Working Prototype Virtual Machine Manager Auto Pipeline pop-up Investigator Data Partner Image push to Hub Docker HUB Web Service GAAIN Server Docker Auto-Invocation Results

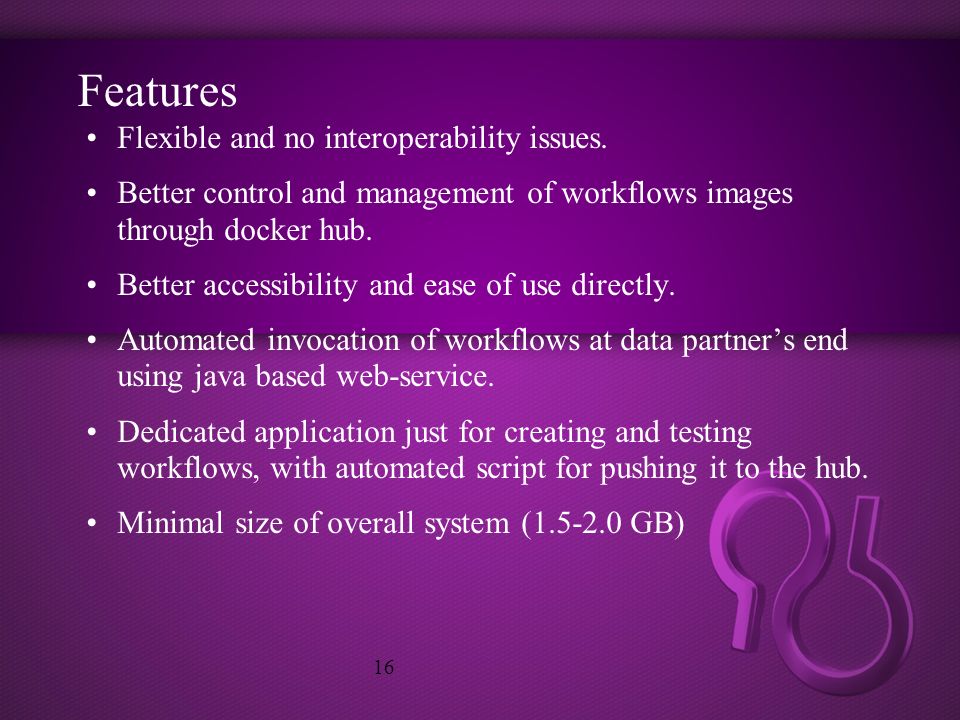

16. 16 Features Flexible and no interoperability issues. Better control and management of workflows images through docker hub. Better accessibility and ease of use directly. Automated invocation of workflows at data partner’s end using java based web-service. Dedicated application just for creating and testing workflows, with automated script for pushing it to the hub. Minimal size of overall system (1.5-2.0 GB)

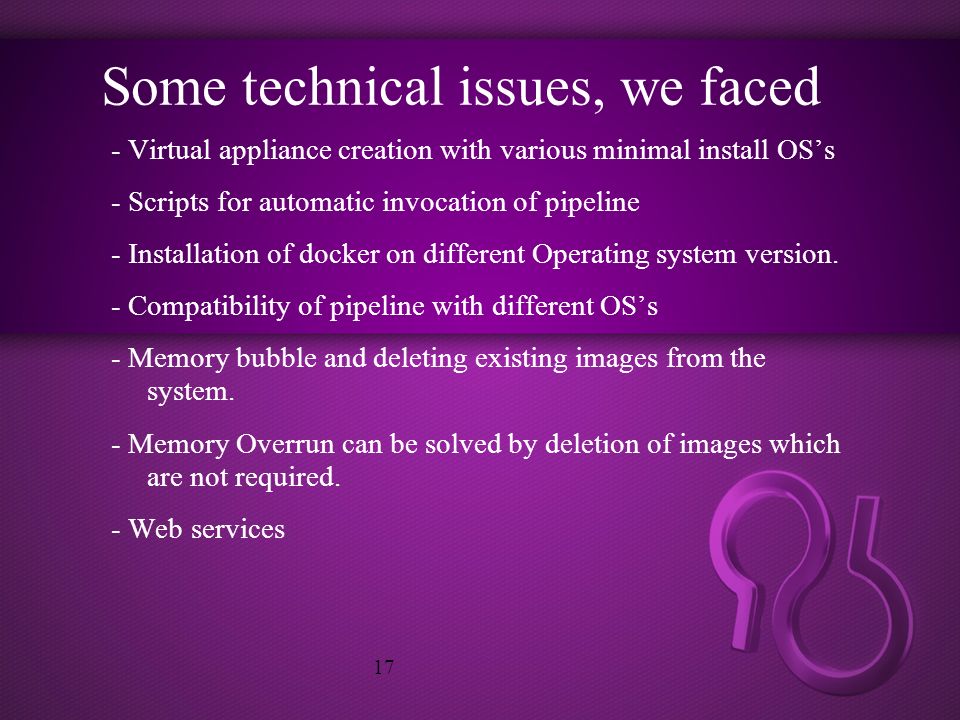

17. 17 Some technical issues, we faced - Virtual appliance creation with various minimal install OS’s - Scripts for automatic invocation of pipeline - Installation of docker on different Operating system version. - Compatibility of pipeline with different OS’s - Memory bubble and deleting existing images from the system. - Memory Overrun can be solved by deletion of images which are not required. - Web services

18. 18 Choice of VM OS Choice of Docker OS How to get a minimal VM working How to work with a minimal Docker image How to enable network access in VMs Limitations of network access How to mount folders from host Differences between Linux, Windows and Mac hosts How to get GUI displays to work in different Docker images and VMs How to enable external (client/server access) to VMs and Docker images How to autostart applications How to manage scripts Issues Addressed

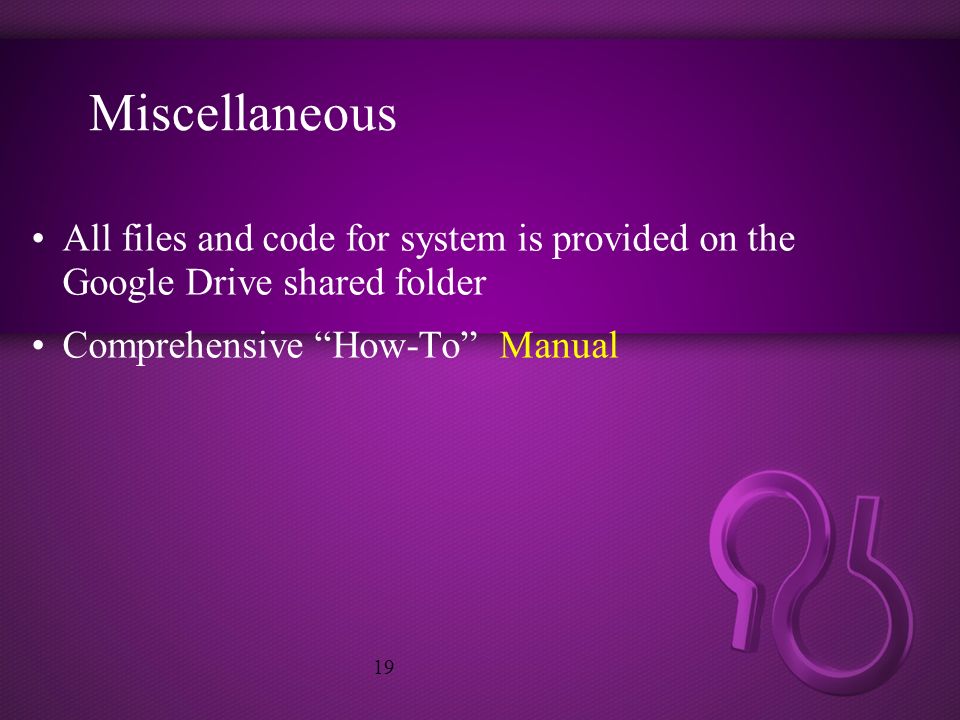

19. 19 All files and code for system is provided on the Google Drive shared folder Comprehensive “How-To” Manual Miscellaneous
