1. Peter-Paul van Maanen (TNO/VU), Lisette de Koning (TNO), Kees van Dongen (TNO) Effects of Task Performance and Task Complexity on the Validity of Computational Models of Attention

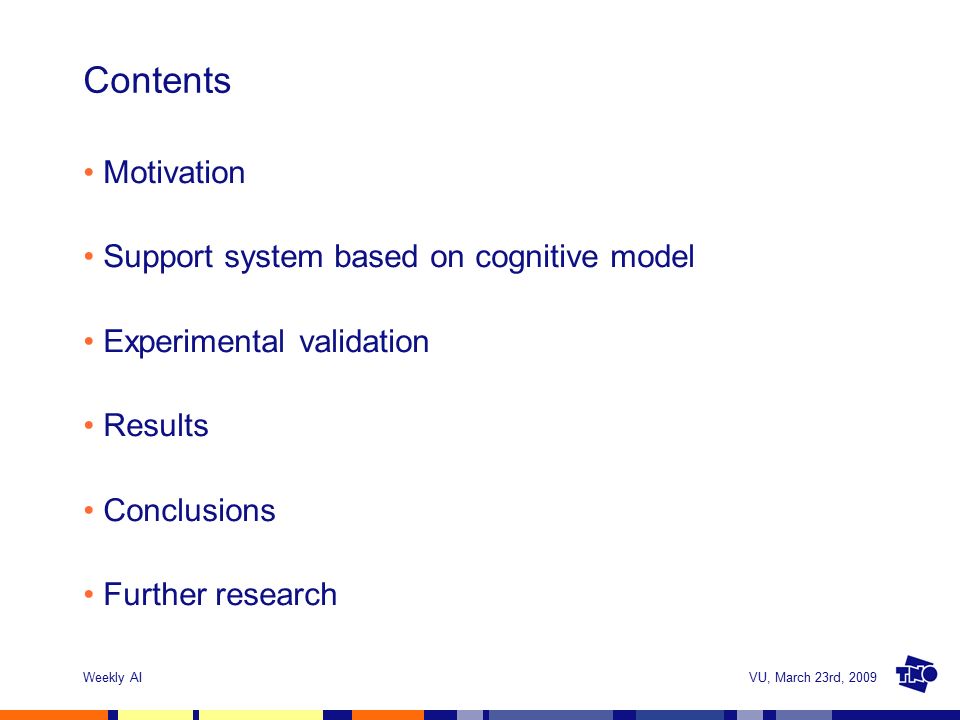

2. VU, March 23rd, 2009Weekly AI Contents Motivation Support system based on cognitive model Experimental validation Results Conclusions Further research

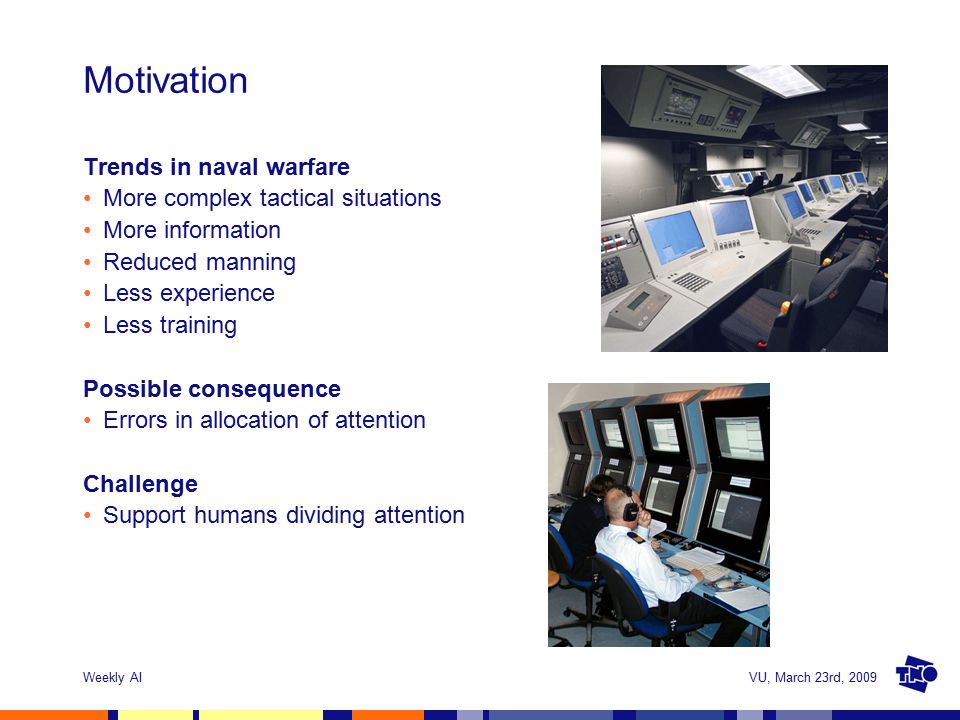

3. VU, March 23rd, 2009Weekly AI Motivation Trends in naval warfare More complex tactical situations More information Reduced manning Less experience Less training Possible consequence Errors in allocation of attention Challenge Support humans dividing attention

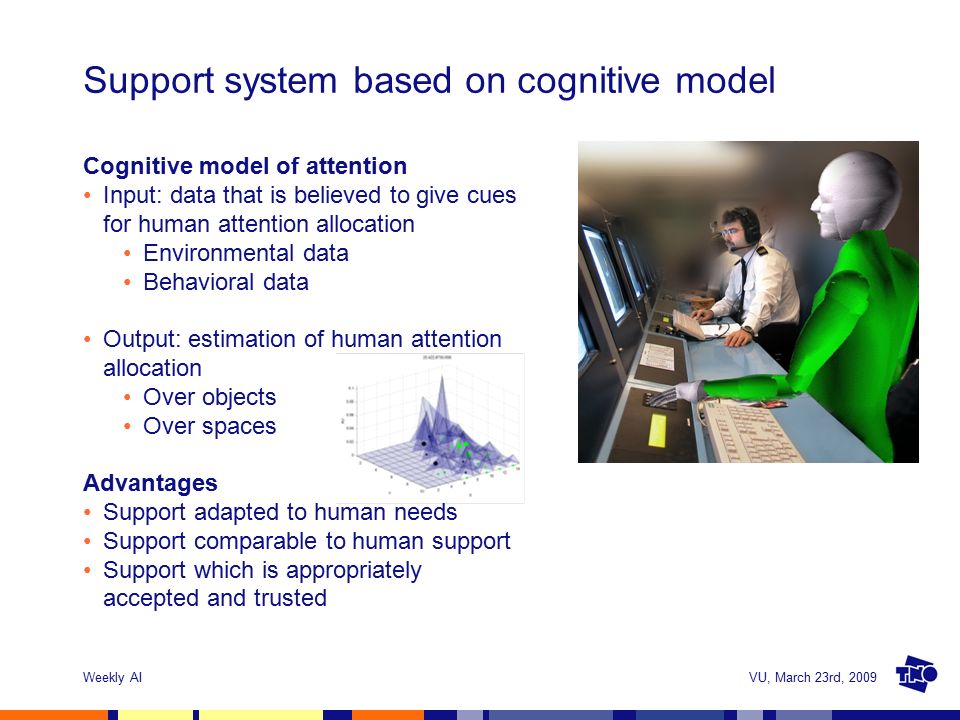

4. VU, March 23rd, 2009Weekly AI Support system based on cognitive model Cognitive model of attention Input: data that is believed to give cues for human attention allocation Environmental data Behavioral data Output: estimation of human attention allocation Over objects Over spaces Advantages Support adapted to human needs Support comparable to human support Support which is appropriately accepted and trusted

5. VU, March 23rd, 2009Weekly AI Support system based on cognitive model Attention of user (descriptive model)Attention needed (prescriptive model) Compare: (Adapt) support Discrepancy?

6. VU, March 23rd, 2009Weekly AI Support system based on cognitive model Such support systems are effective iff: The validity of the used cognitive models is high enough Otherwise support becomes unpredictable and most probably ineffective We need to know the effect of different factors on the validity of models, e.g.: Task performance: Can we expect differences in validity with respect to good and poor performers? If so, does this require different models/parameter settings? Task complexity: How about differences in validity with respect to complex and easy instances of a scenario? Different models/parameter settings? Different model types How do different models/parameter settings themselves affect validity?

7. VU, March 23rd, 2009Weekly AI Experimental validation: Task Goal:(1) Select 5 most threatening contacts (2) Monitor gauge Criteria: (1) Speed, heading, distance, in sea-lane? (2) In red? Primary: Tactical picture compilation Secondary: Gauge

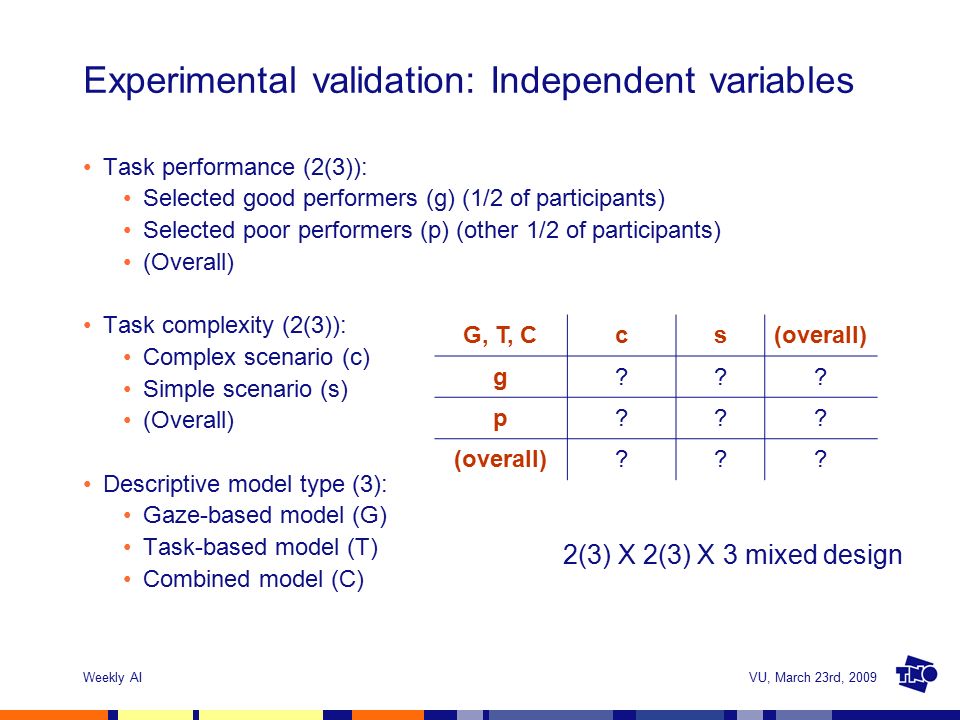

8. VU, March 23rd, 2009Weekly AI Experimental validation: Independent variables Task performance (2(3)): Selected good performers (g) (1/2 of participants) Selected poor performers (p) (other 1/2 of participants) (Overall) Task complexity (2(3)): Complex scenario (c) Simple scenario (s) (Overall) Descriptive model type (3): Gaze-based model (G) Task-based model (T) Combined model (C) G, T, Ccs(overall) g??? p??? ??? 2(3) X 2(3) X 3 mixed design

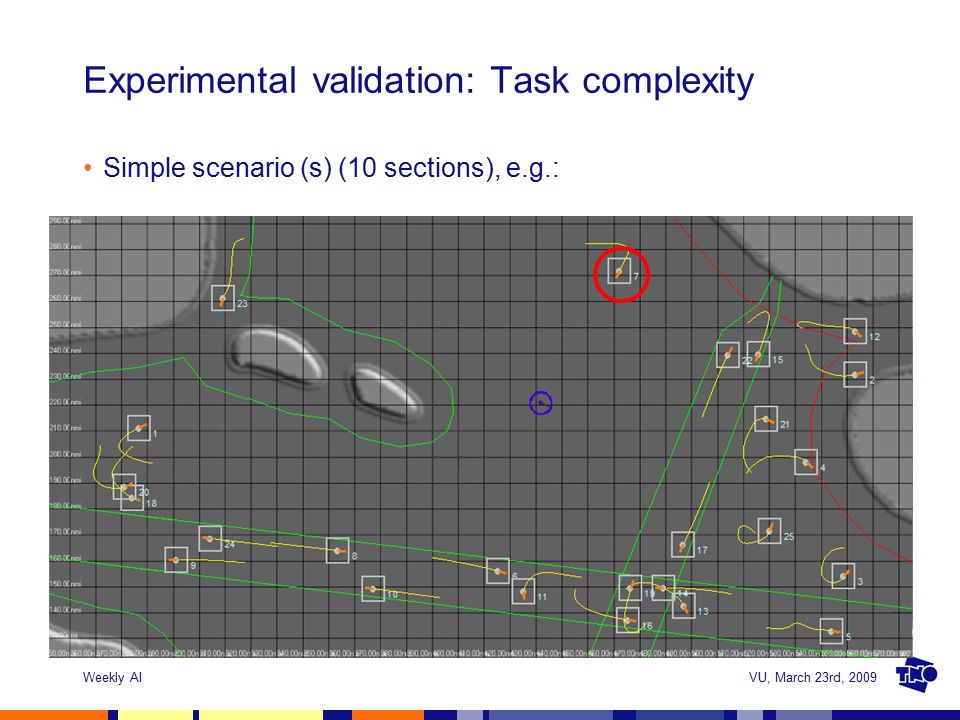

9. VU, March 23rd, 2009Weekly AI Simple scenario (s) (10 sections), e.g.: Experimental validation: Task complexity

10. VU, March 23rd, 2009Weekly AI Complex scenario (c) (10 sections), e.g.: Experimental validation: Task complexity

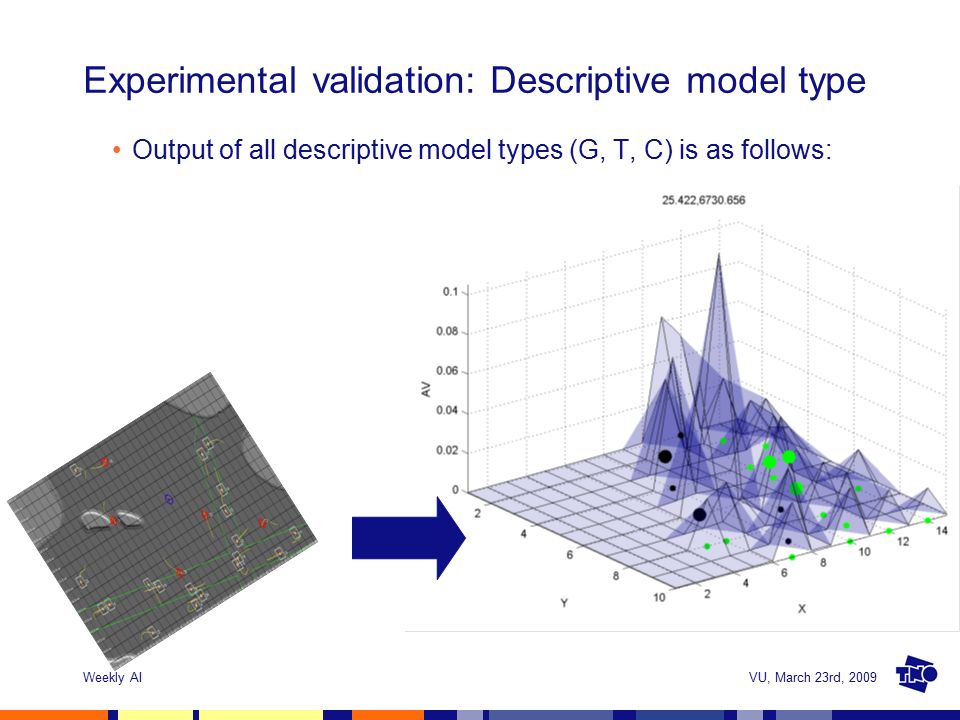

11. VU, March 23rd, 2009Weekly AI Output of all descriptive model types (G, T, C) is as follows: Experimental validation: Descriptive model type

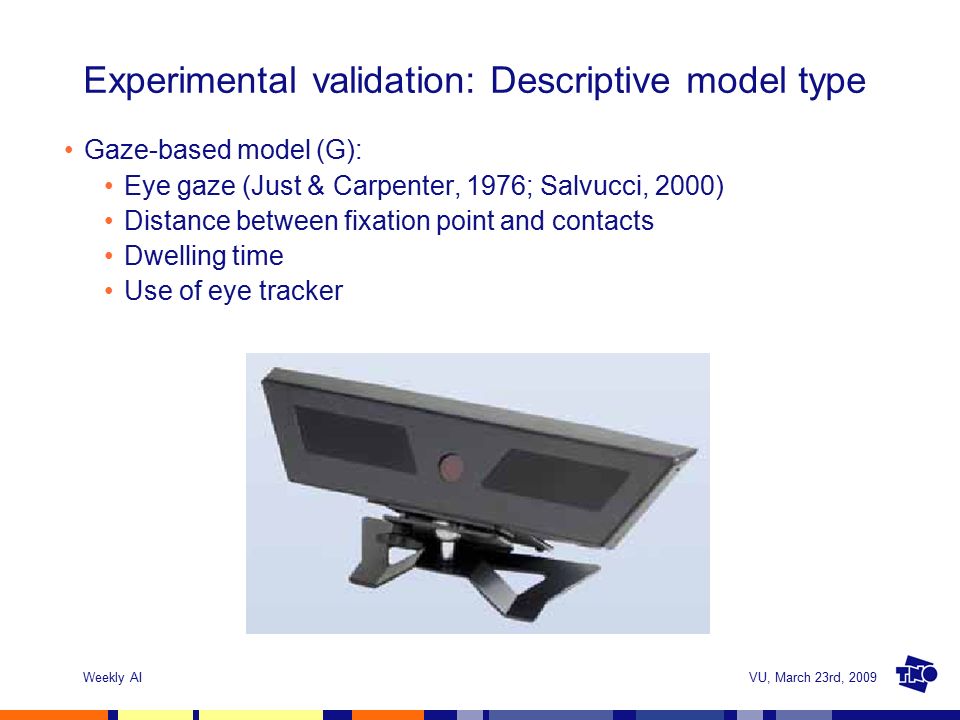

12. VU, March 23rd, 2009Weekly AI Experimental validation: Descriptive model type Gaze-based model (G): Eye gaze (Just & Carpenter, 1976; Salvucci, 2000) Distance between fixation point and contacts Dwelling time Use of eye tracker

13. VU, March 23rd, 2009Weekly AI Task-based model (T): Goal directed search (Treisman & Gelade, 1980) Information of task environment (Speed, heading, distance, in sea-lane?) Calculates a threat value of contacts Experimental validation: Descriptive model type

14. VU, March 23rd, 2009Weekly AI Combined model (C): Both types of information Experimental validation: Descriptive model type +

15. VU, March 23rd, 2009Weekly AI Experimental validation: Dependent variables = model estimation = human estimation Hit FA Miss CR Confusion matrix

16. VU, March 23rd, 2009Weekly AI Receiver-Operator Characteristic (ROC) analysis useful for: evaluation, validation, selection, construction, and OF: improvement Experimental validation: Dependent variables models, classifiers, rankers, etc.

17. VU, March 23rd, 2009Weekly AI Construct confusion matrix for each Participant (40) Scenario type (s, c, overall) Descriptive model type (G, T, C) Decision threshold (1000) Plot ROC curves (40 X 3 X 3 = 360, using 360.000 matrices) Calculate Area Under the Curve (AUC) for each ROC curve (1 = good, 0 = poor) Performance = average over AUCs per condition (3 X 3 X 3 = 27) Calculate statistical significance of differences between conditions based on hypotheses (i.e. ANOVA and (un)paired, one-tailed t-tests) Experimental validation: Procedure

18. VU, March 23rd, 2009Weekly AI

19. VU, March 23rd, 2009Weekly AI % CALCULATE AUC PER SECTION PER MODEL (ONE PARTICIPANT) for m = 1:m_steps % modeltype (G, T, C) for s = 1:s_steps % scenario type (s, c, overall) for t = 2:t_steps % thresholdstep (1000) A = FA(s,m,t); B = FA(s,m,t-1); C = HIT(s,m,t); D = HIT(s,m,t-1); % AUC using Trapezoidal Rule: AUC(s,m) = AUC(s,m) + (A - B)*(C + D) / 2; end Experimental validation: Procedure

20. VU, March 23rd, 2009Weekly AI Experimental validation: Hypotheses Task complexity H1: The validity of all three models is higher in a simple than in a complex task. H2: For both complex and simple tasks, the validity of the combined model is higher than both the task- and the gaze-based models. H3: The difference in validity between the combined model and the task- and gaze-based model is higher in a complex than in a simple task. Task performance H4: The validity of the combined and the task-based model is higher for good performers than for poor performers. H5: For both good and poor performers, the validity of the combined model is higher than both the task- and the gaze-based models. Descriptive model type H6: The validity of the combined model is higher than both the task- and the gaze-based models.

21. VU, March 23rd, 2009Weekly AI Results: Task complexity (marg.) sign. sign.

22. VU, March 23rd, 2009Weekly AI Results: Task performance (marg.) sign.

23. VU, March 23rd, 2009Weekly AI Results: Descriptive model type sign.

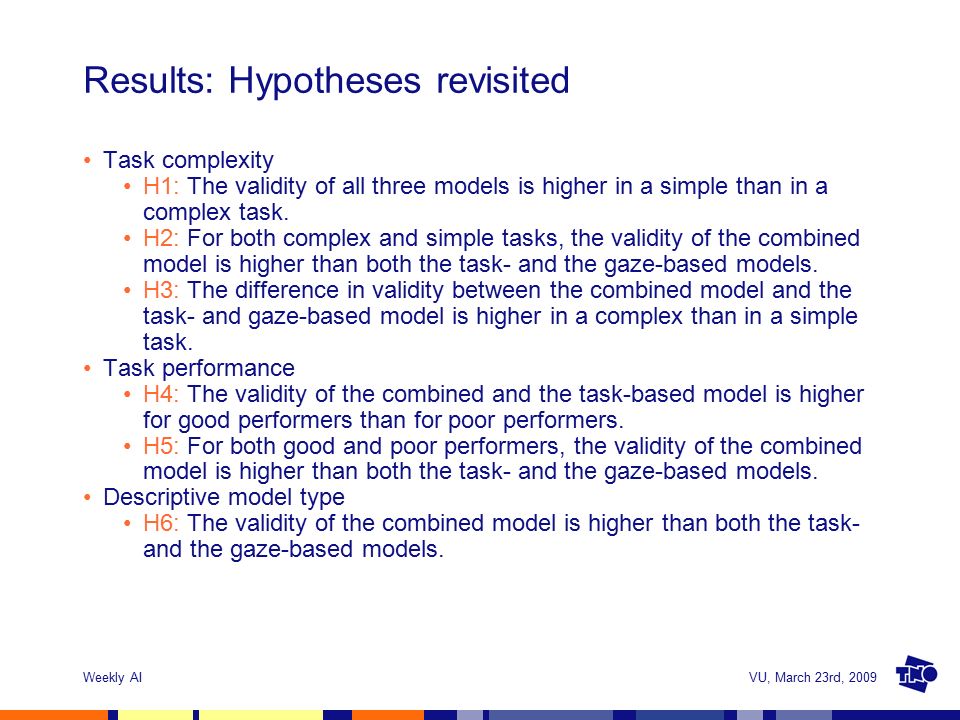

24. VU, March 23rd, 2009Weekly AI Results: Hypotheses revisited Task complexity H1: The validity of all three models is higher in a simple than in a complex task. H2: For both complex and simple tasks, the validity of the combined model is higher than both the task- and the gaze-based models. H3: The difference in validity between the combined model and the task- and gaze-based model is higher in a complex than in a simple task. Task performance H4: The validity of the combined and the task-based model is higher for good performers than for poor performers. H5: For both good and poor performers, the validity of the combined model is higher than both the task- and the gaze-based models. Descriptive model type H6: The validity of the combined model is higher than both the task- and the gaze-based models.

25. VU, March 23rd, 2009Weekly AI Conclusions Combination of gaze- and task-based information as input can increase the predictive power of models of attention independent of the task complexity and task performance Less increase of predictive power in simple tasks: More complex tasks need more complex models Several expected effects of task performance and task complexity on model validity not found Possible explanations: Indeed no effect Difference in complexity too small (albeit sign. diff.) Difference in performance too small (albeit sign. diff.) A more complex model is needed More participants Task unsuitable …

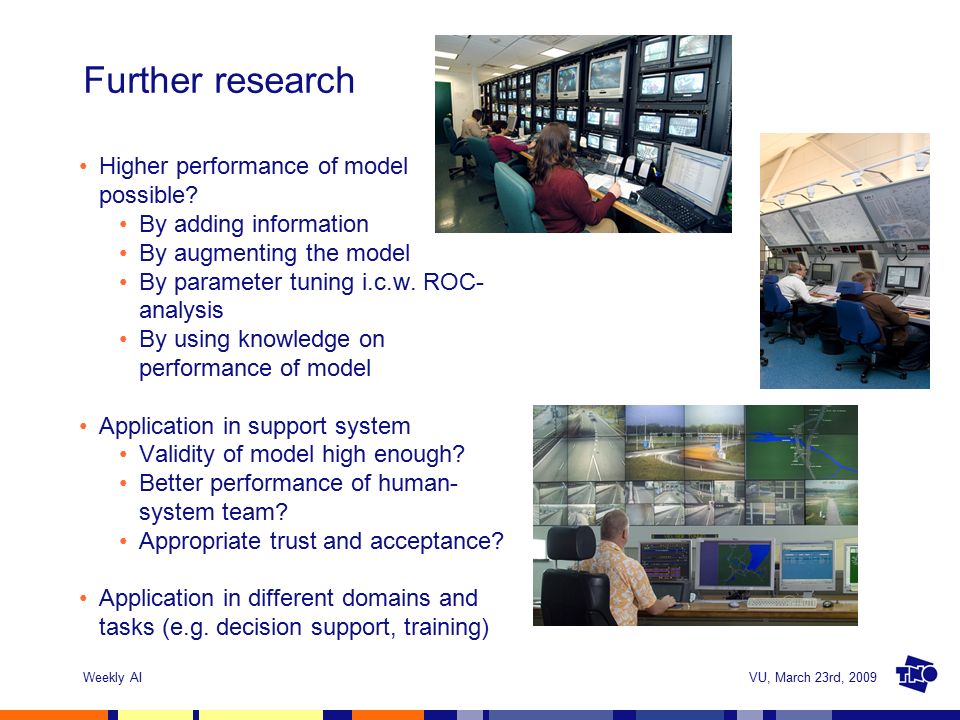

26. VU, March 23rd, 2009Weekly AI Further research Higher performance of model possible? By adding information By augmenting the model By parameter tuning i.c.w. ROC- analysis By using knowledge on performance of model Application in support system Validity of model high enough? Better performance of human- system team? Appropriate trust and acceptance? Application in different domains and tasks (e.g. decision support, training)
