1. Doodle Bot Kenny Hepner Eric Hepp Michael Huang

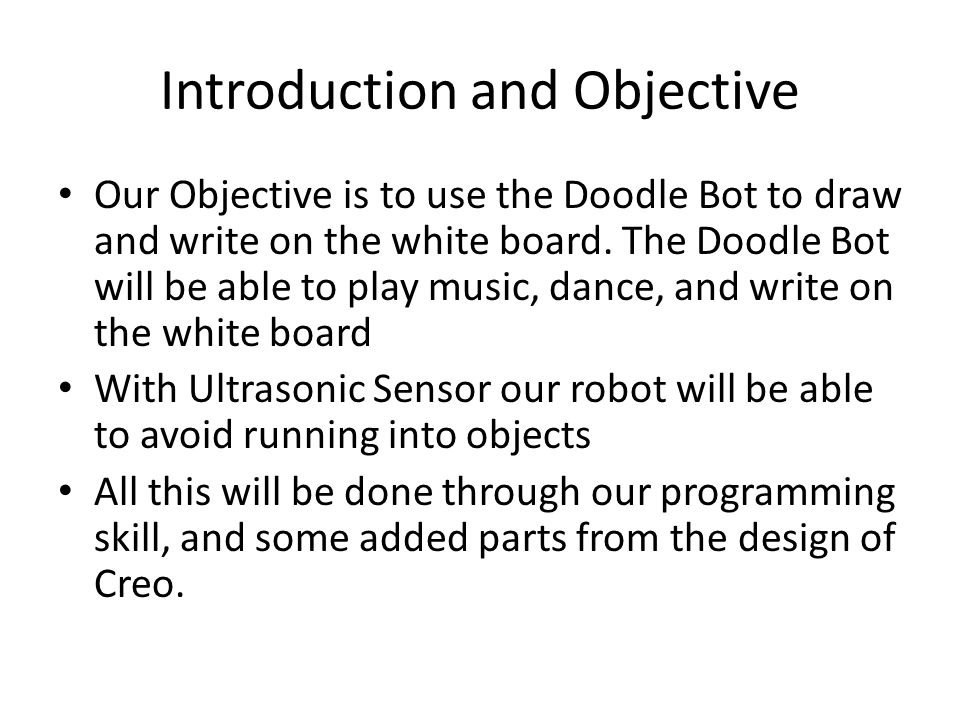

2. Introduction and Objective Our Objective is to use the Doodle Bot to draw and write on the white board. The Doodle Bot will be able to play music, dance, and write on the white board With Ultrasonic Sensor our robot will be able to avoid running into objects All this will be done through our programming skill, and some added parts from the design of Creo.

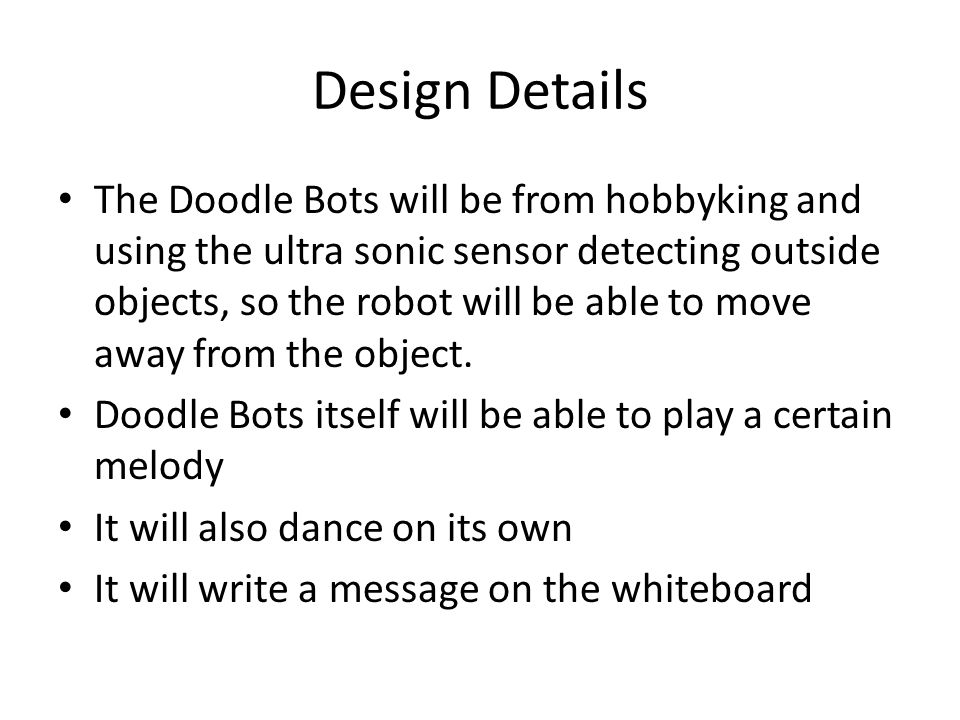

3. Design Details The Doodle Bots will be from hobbyking and using the ultra sonic sensor detecting outside objects, so the robot will be able to move away from the object. Doodle Bots itself will be able to play a certain melody It will also dance on its own It will write a message on the whiteboard

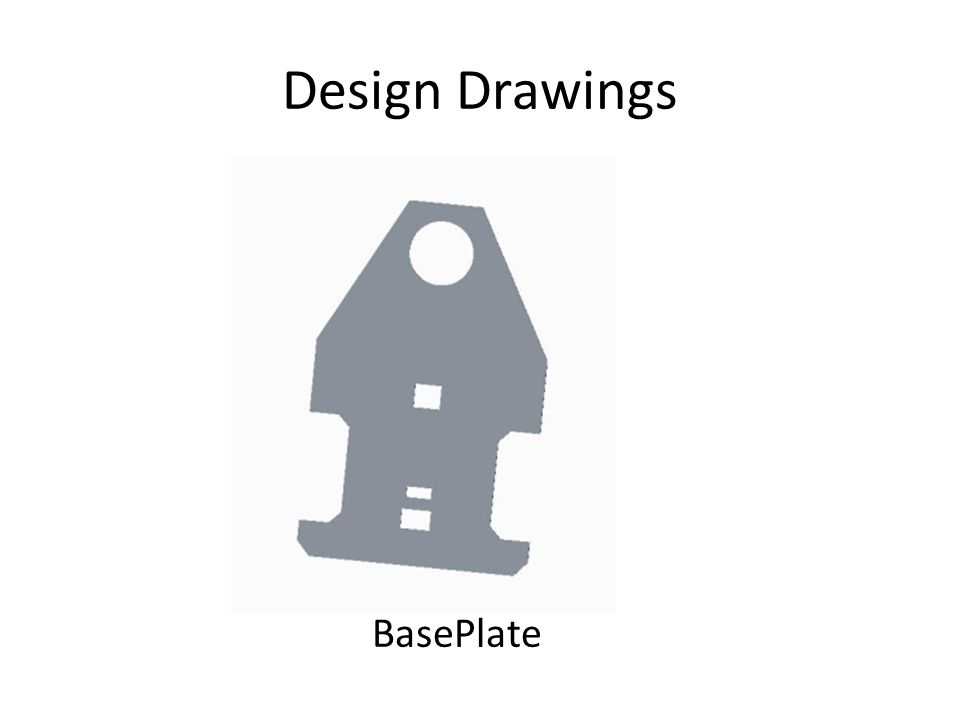

4. Design Drawings BasePlate

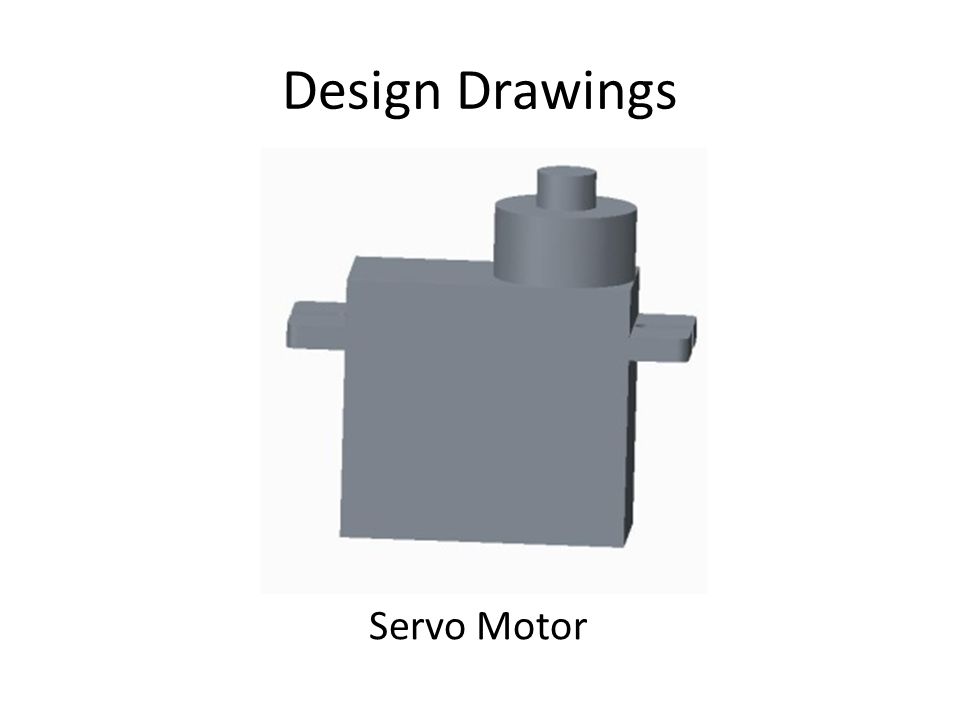

5. Design Drawings Servo Motor

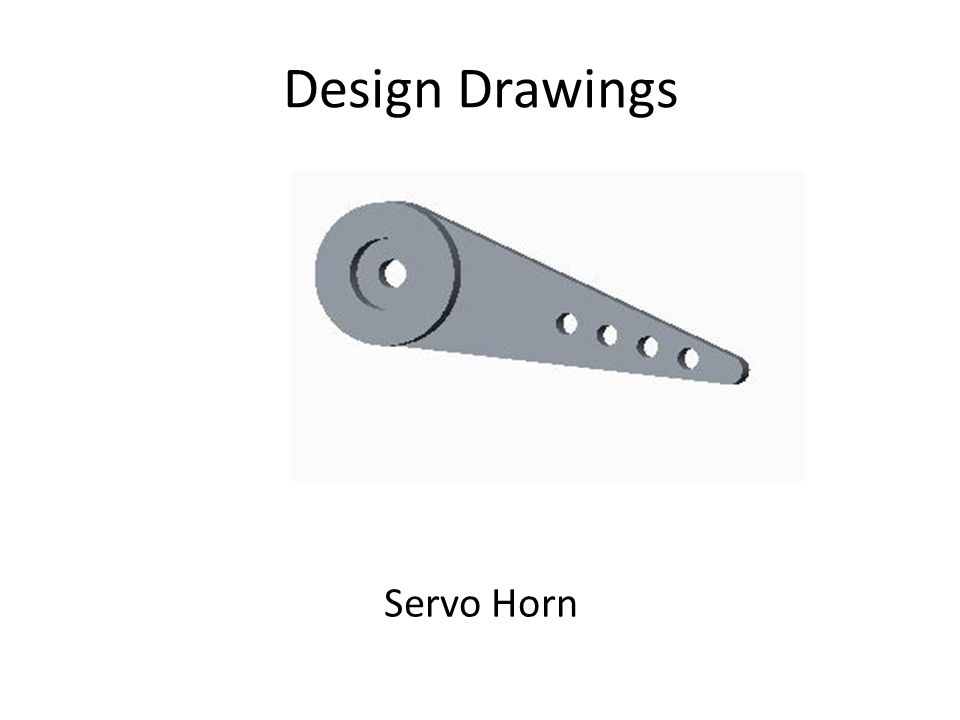

6. Design Drawings Servo Horn

7. Design Drawings Pen Holder

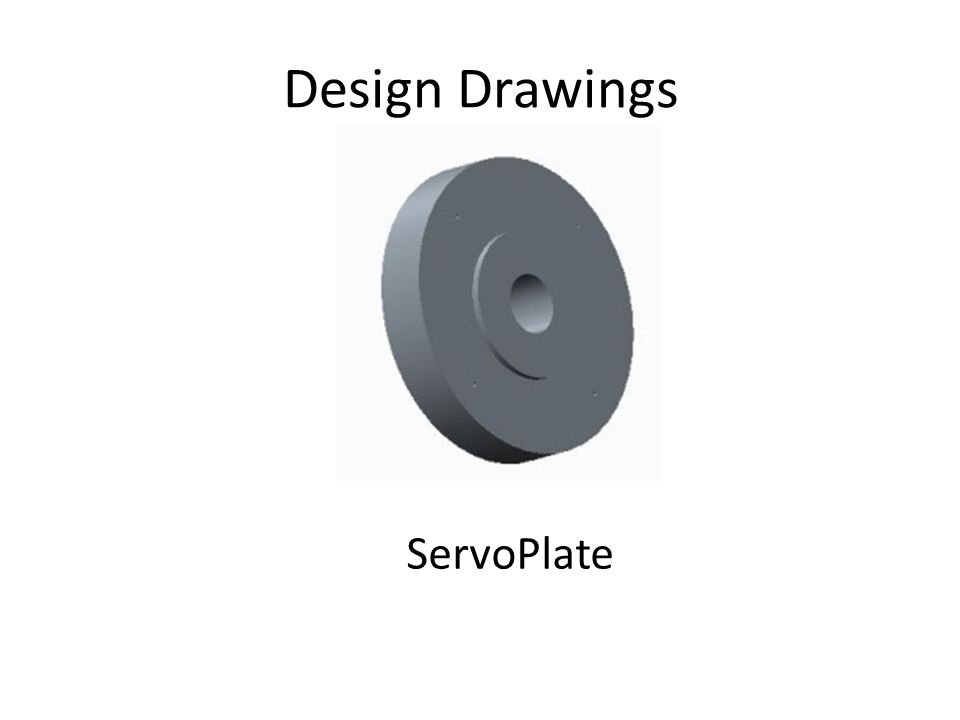

8. Design Drawings ServoPlate

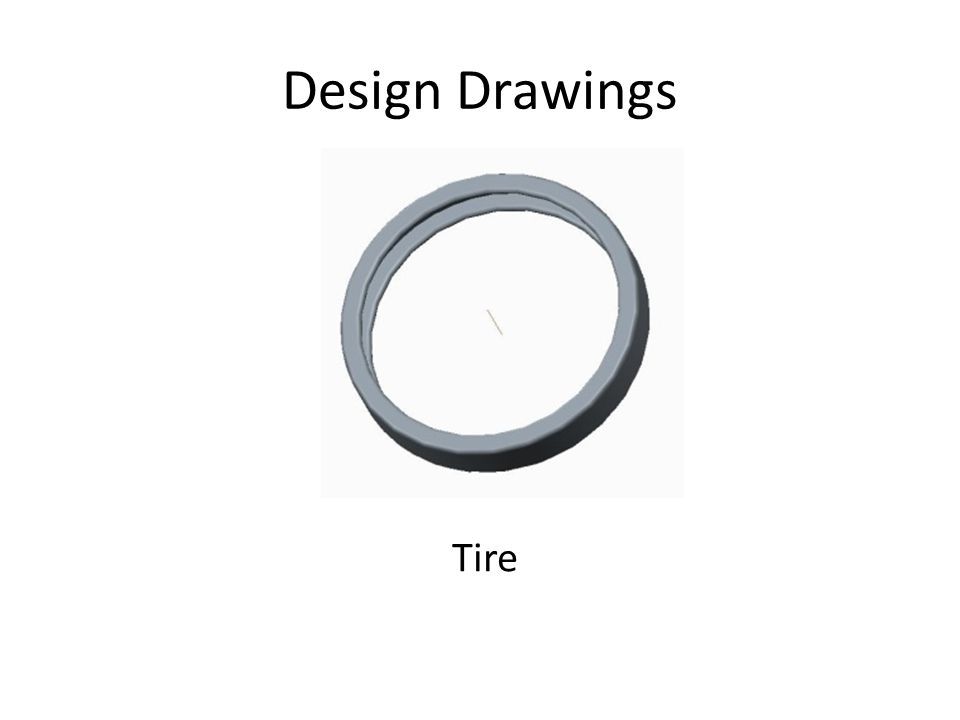

9. Design Drawings Tire

10. Design Drawings BoardSpacer

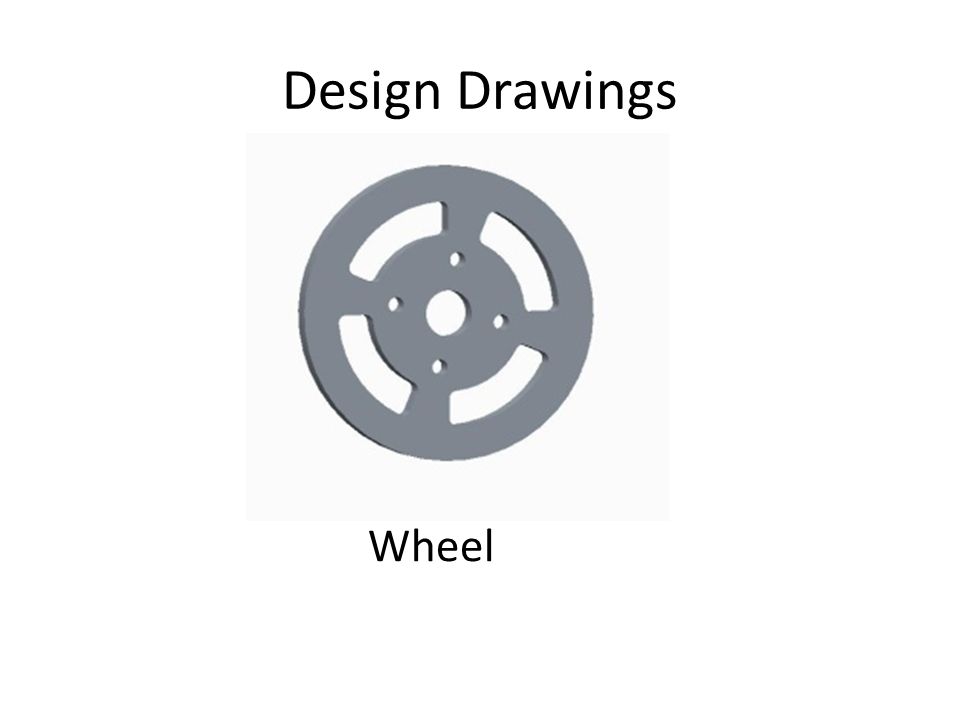

11. Design Drawings Wheel

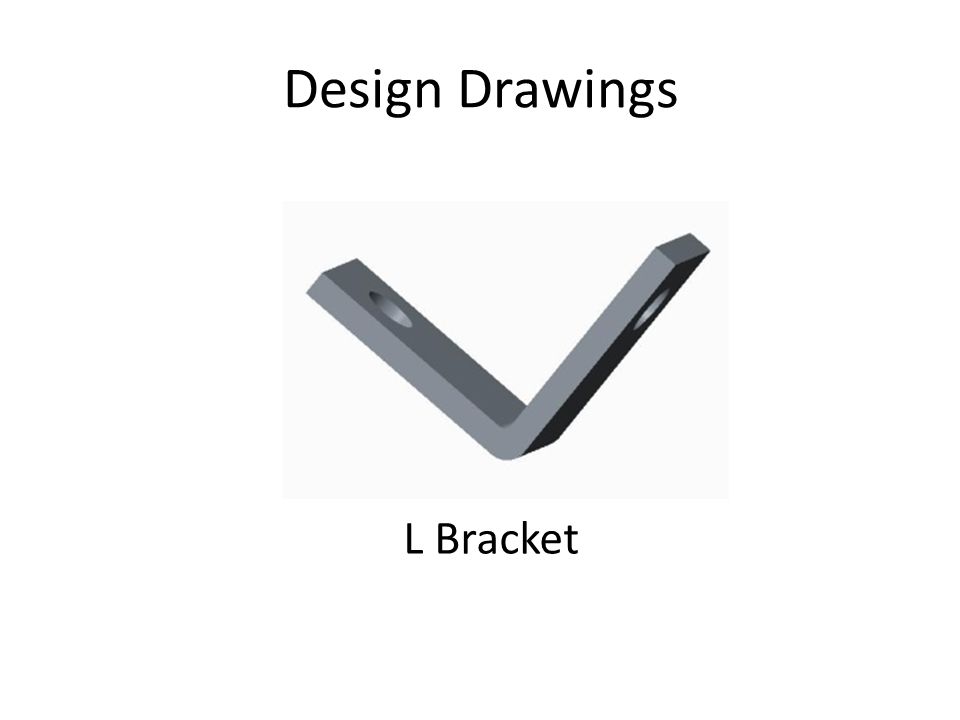

12. Design Drawings L Bracket

13. Design Drawings Controller Board

14. Parts list and cost Doodle Bot : 29.68 Shipping Fee : 8.59 Ultra Sonic : 2.59 Free ask from other group

15. Gantt Chart
