1. Analysis of the Site from Black Scenario Mobile Space 2014 / 12 / 05 1250593 赵元星 / 1250598 应逸含 / 1250610 梁倚翎

2. Current Condition | 现状分析 Future Scenario | 设计展望

3. Air Matter | 空气问题 Site | 场地现状 Human Factor | 人为因素 Nature Factor | 自然因素 Wind Direction | 风向因素 Traffic | 交通情况 Human 's Activity | 人流情况 Current Condition | 现状分析

4. Air Matter | 空气问题 Human Factor | 人为因素 Nature Factor | 自然因素 Current Condition | 现状分析

5. Air Odour 异味 SMOG 雾霾

6. Air Odour 异味 SMOG 雾霾

7. Human Factor | 人为因素 SMOG 雾霾 SMOGSMOKE FOG 霾 雾 natural phenomenon + SO 2 / NO X inhalable particles ( PM2.5 ) | Definition

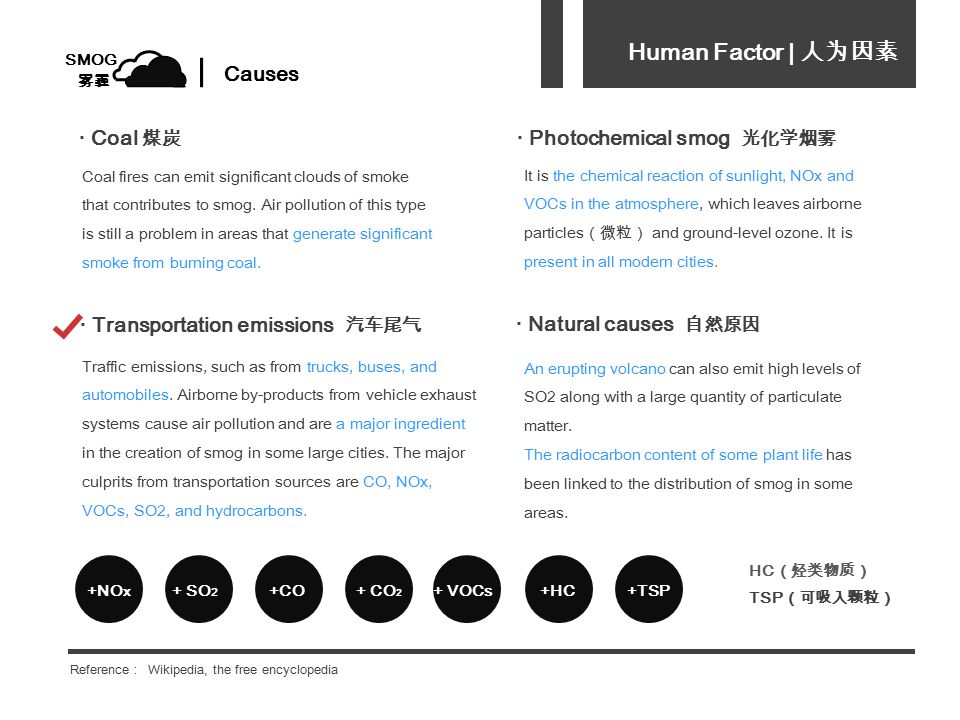

8. +NO x Human Factor | 人为因素 SMOG 雾霾 | Causes Coal fires can emit significant clouds of smoke that contributes to smog. Air pollution of this type is still a problem in areas that generate significant smoke from burning coal. · Coal 煤炭 Traffic emissions, such as from trucks, buses, and automobiles. Airborne by-products from vehicle exhaust systems cause air pollution and are a major ingredient in the creation of smog in some large cities. The major culprits from transportation sources are CO, NOx, VOCs, SO2, and hydrocarbons. · Transportation emissions 汽车尾气 · Photochemical smog 光化学烟雾 It is the chemical reaction of sunlight, NOx and VOCs in the atmosphere, which leaves airborne particles （微粒） and ground-level ozone. It is present in all modern cities. · Natural causes 自然原因 An erupting volcano can also emit high levels of SO2 along with a large quantity of particulate matter. The radiocarbon content of some plant life has been linked to the distribution of smog in some areas. +HC+ SO 2 +CO+ CO 2 + VOCs+TSP TSP （可吸入颗粒） HC （烃类物质） Reference ： Wikipedia, the free encyclopedia

9. Air Odour 异味 SMOG 雾霾

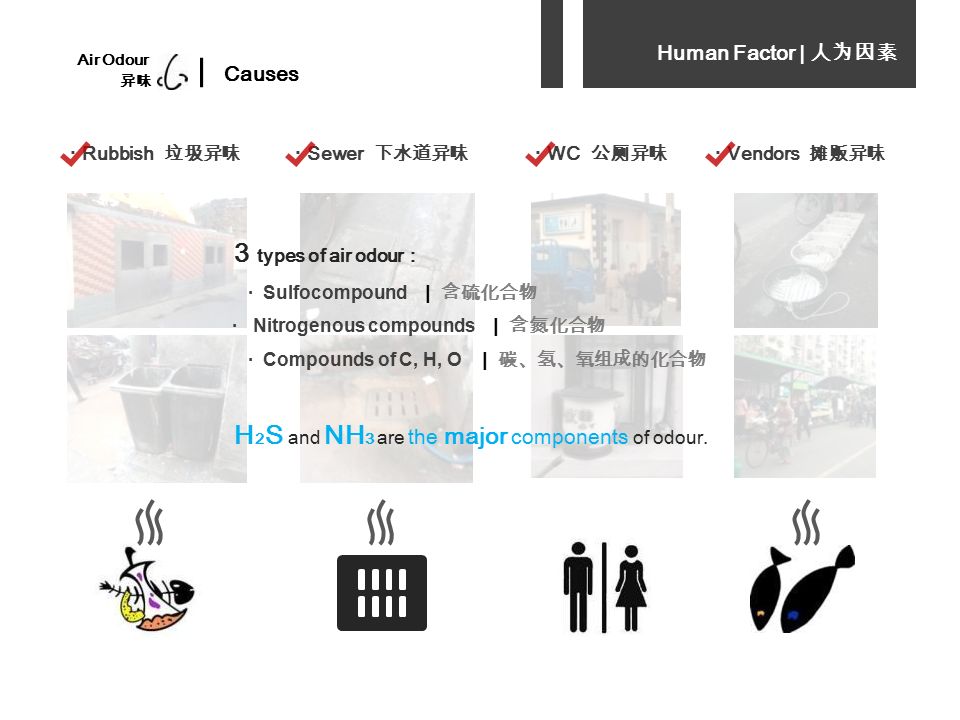

10. Human Factor | 人为因素 | Causes Air Odour 异味 · Rubbish 垃圾异味 · WC 公厕异味 · Sewer 下水道异味 · Vendors 摊贩异味 3 types of air odour ： · Sulfocompound | 含硫化合物 · Nitrogenous compounds | 含氮化合物 · Compounds of C, H, O | 碳、氢、氧组成的化合物 H 2 S and NH 3 are the major components of odour.

11. Air Matter | 空气问题 Human Factor | 人为因素 Nature Factor | 自然因素 Current Condition | 现状分析

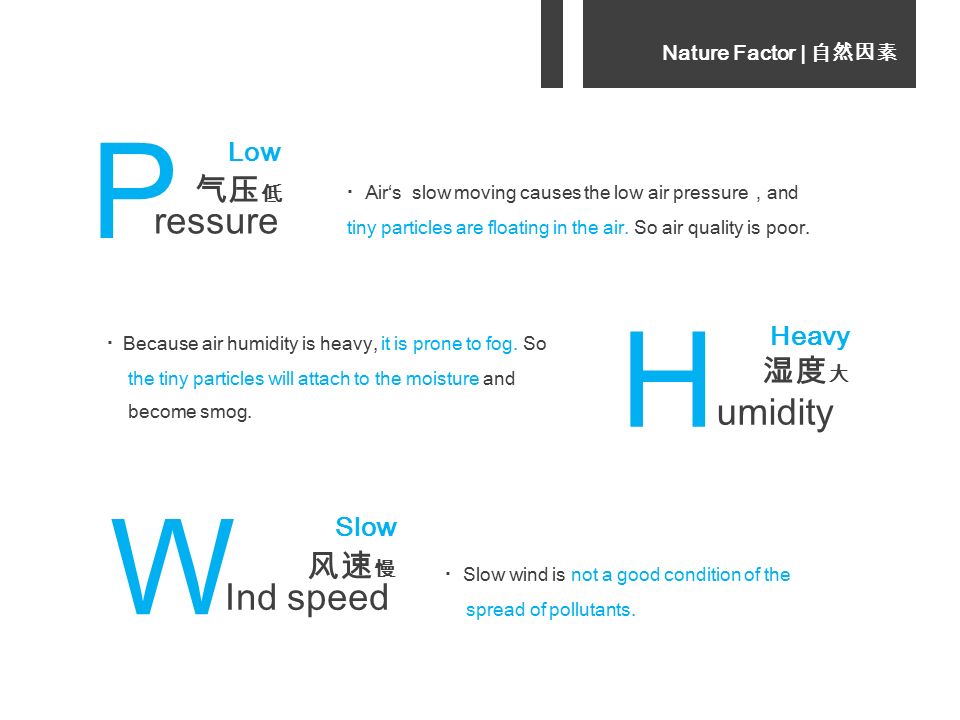

12. Nature Factor | 自然因素 · Air‘s slow moving causes the low air pressure ， and tiny particles are floating in the air. So air quality is poor. · Because air humidity is heavy, it is prone to fog. So the tiny particles will attach to the moisture and become smog. · Slow wind is not a good condition of the spread of pollutants. P 气压 低 ressure Low H 湿度 大 umidity Heavy W 风速 慢 Ind speed Slow

13. Air Matter | 空气问题 Site | 场地现状 Human Factor | 人为因素 Nature Factor | 自然因素 Wind Direction | 风向因素 Traffic | 交通情况 Human 's Activity | 人流情况 Current Condition | 现状分析

14. Site | 场地现状 Wind Direction | 风向因素 Traffic | 交通情况 Human 's Activity | 人流情况 Current Condition | 现状分析

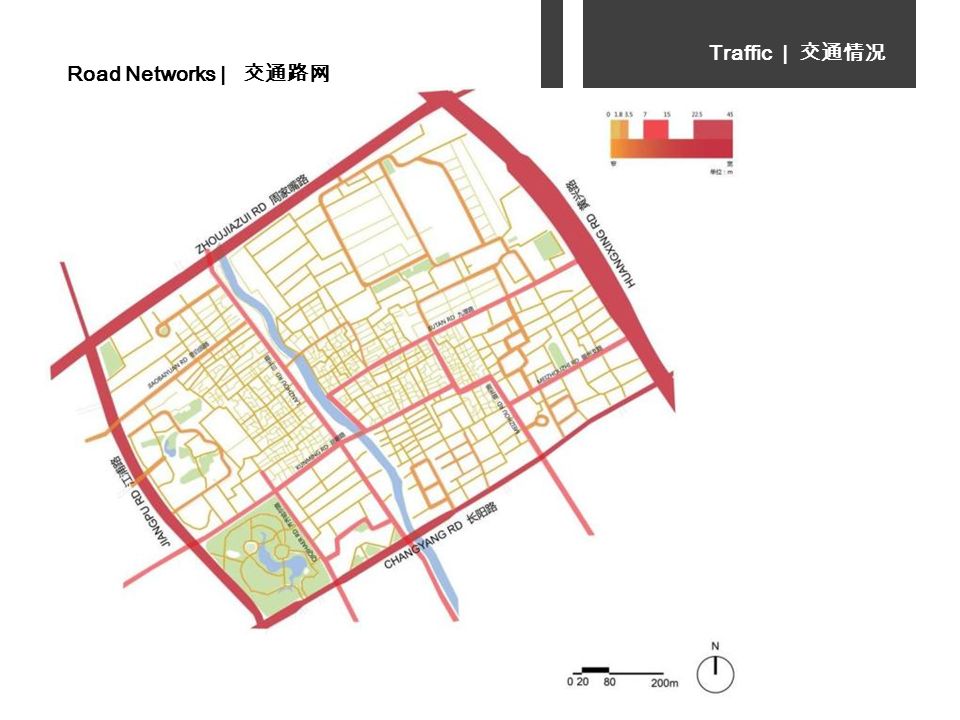

15. Traffic | 交通情况 Road Networks | 交通路网

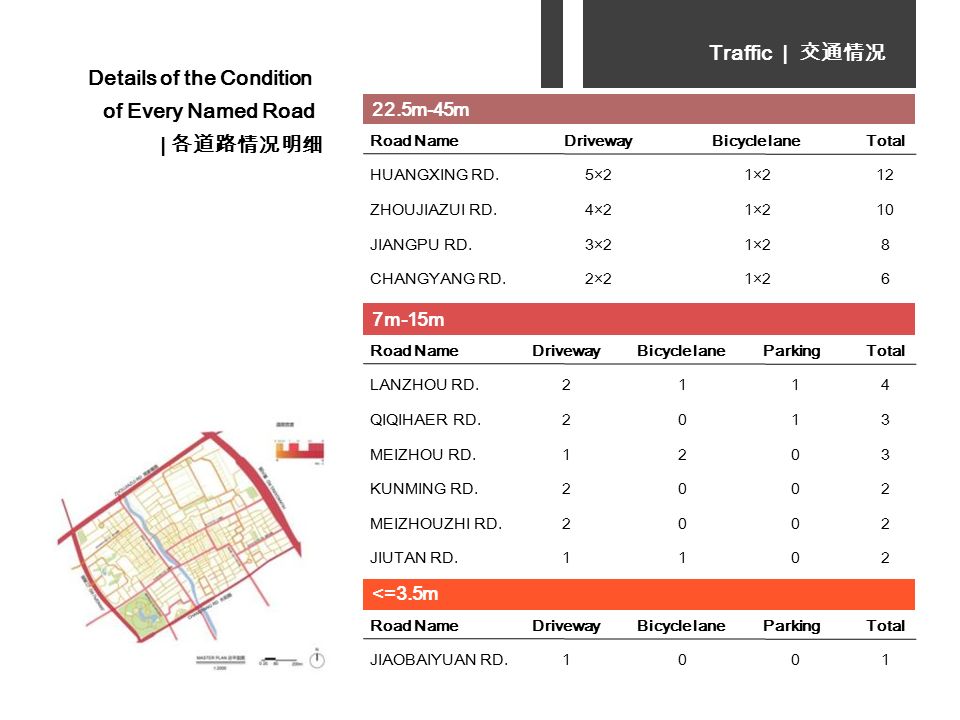

16. 7m-15m Road Name LANZHOU RD. QIQIHAER RD. MEIZHOU RD. KUNMING RD. MEIZHOUZHI RD. JIUTAN RD. Total 4 3 2 Driveway 2 1 2 1 Bicycle lane 1 0 2 0 1 Parking 1 0 Traffic | 交通情况 Details of the Condition of Every Named Road | 各道路情况明细 22.5m-45m Road Name HUANGXING RD. ZHOUJIAZUI RD. JIANGPU RD. CHANGYANG RD. Total 12 10 8 6 Driveway 5×2 4×2 3×2 2×2 Bicycle lane 1×2 <=3.5m Road Name JIAOBAIYUAN RD. Total 1 Driveway 1 Bicycle lane 0 Parking 0

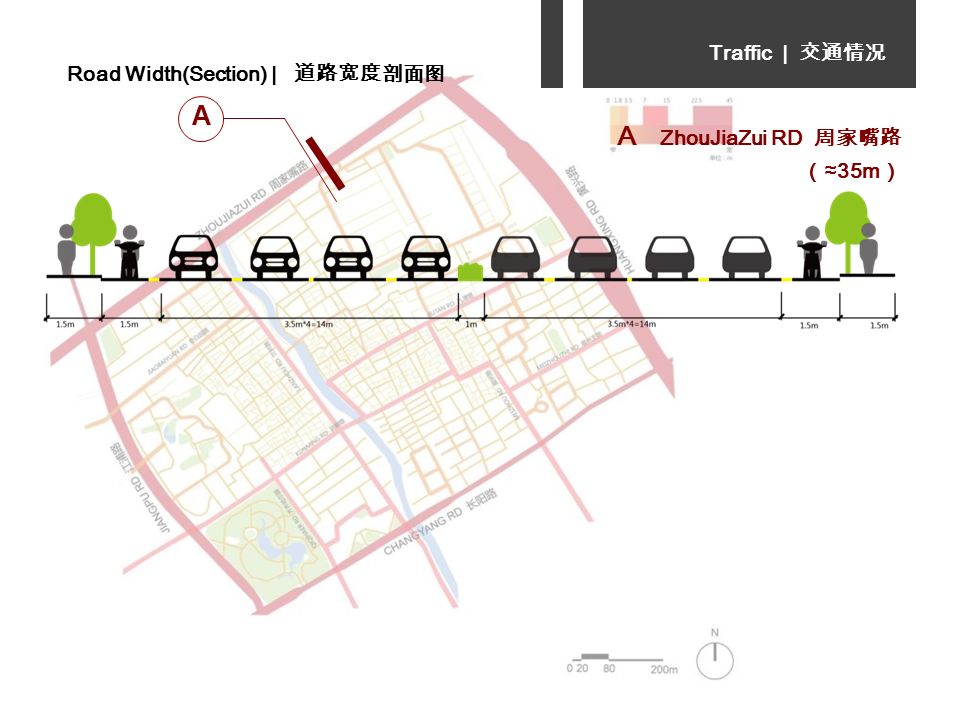

17. Road Width(Section) | 道路宽度剖面图 Traffic | 交通情况 A ZhouJiaZui RD 周家嘴路 （ ≈35m ） A

18. Road Width | 道路宽度 Traffic | 交通情况 B LanZhou RD 兰州路 （ ≈15m ） C KunMing RD 昆明路 （ ≈7m ） B C

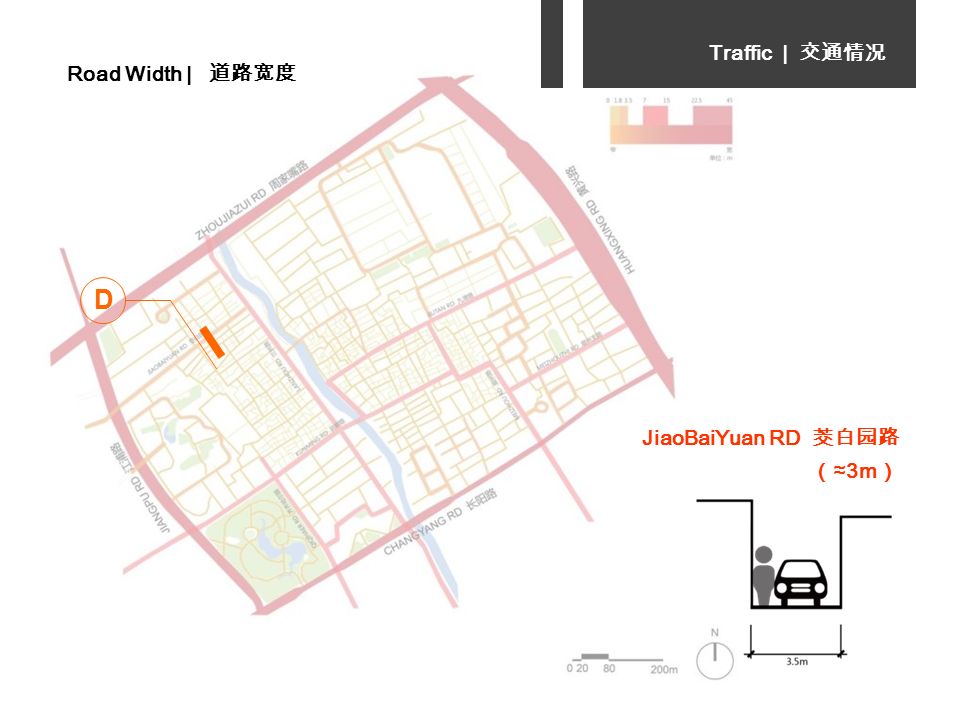

19. Road Width | 道路宽度 Traffic | 交通情况 JiaoBaiYuan RD 茭白园路 （ ≈3m ） D

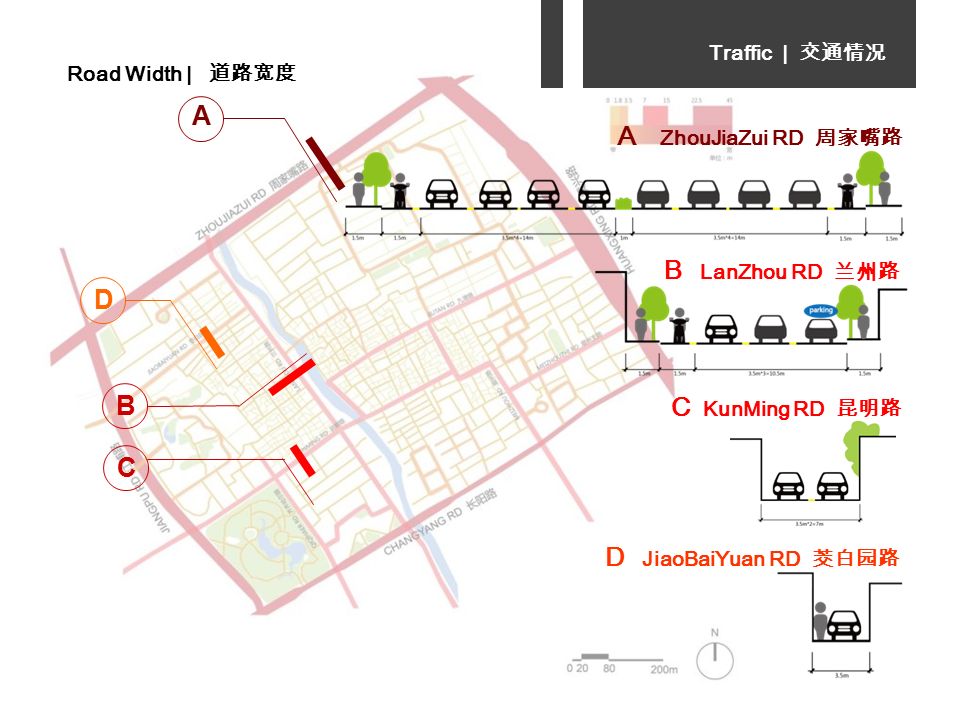

20. Road Width | 道路宽度 Traffic | 交通情况 A ZhouJiaZui RD 周家嘴路 B LanZhou RD 兰州路 C KunMing RD 昆明路 D JiaoBaiYuan RD 茭白园路 A B C D

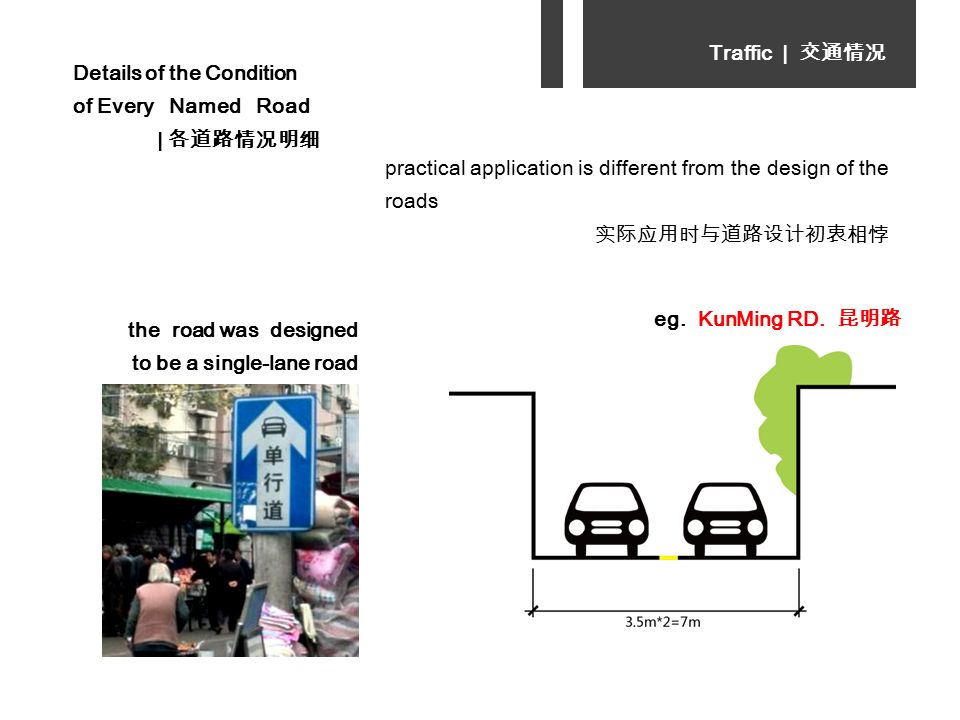

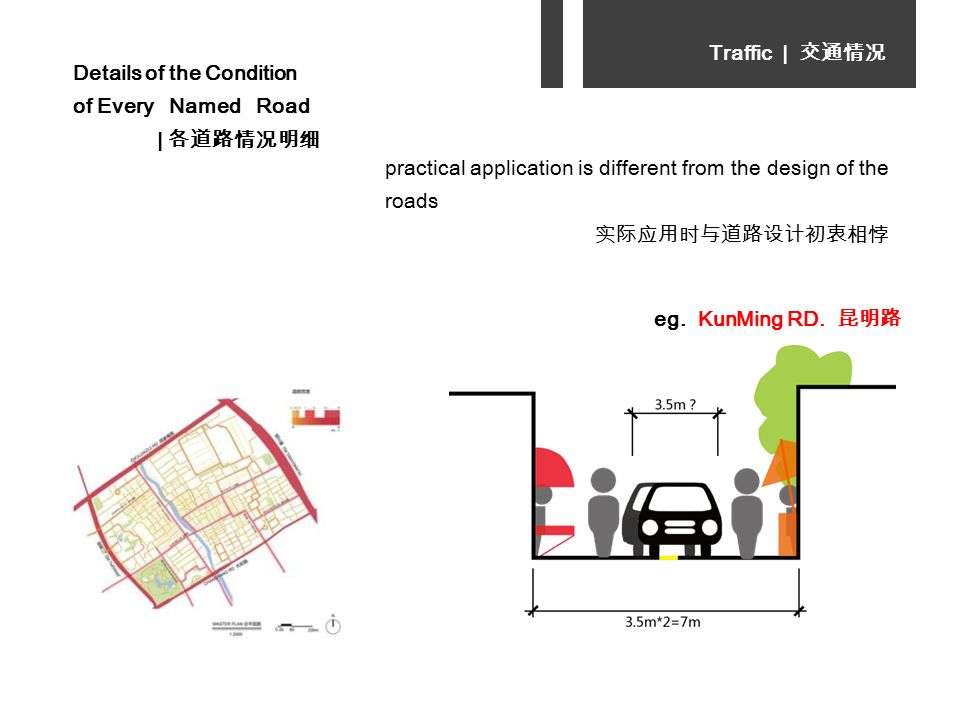

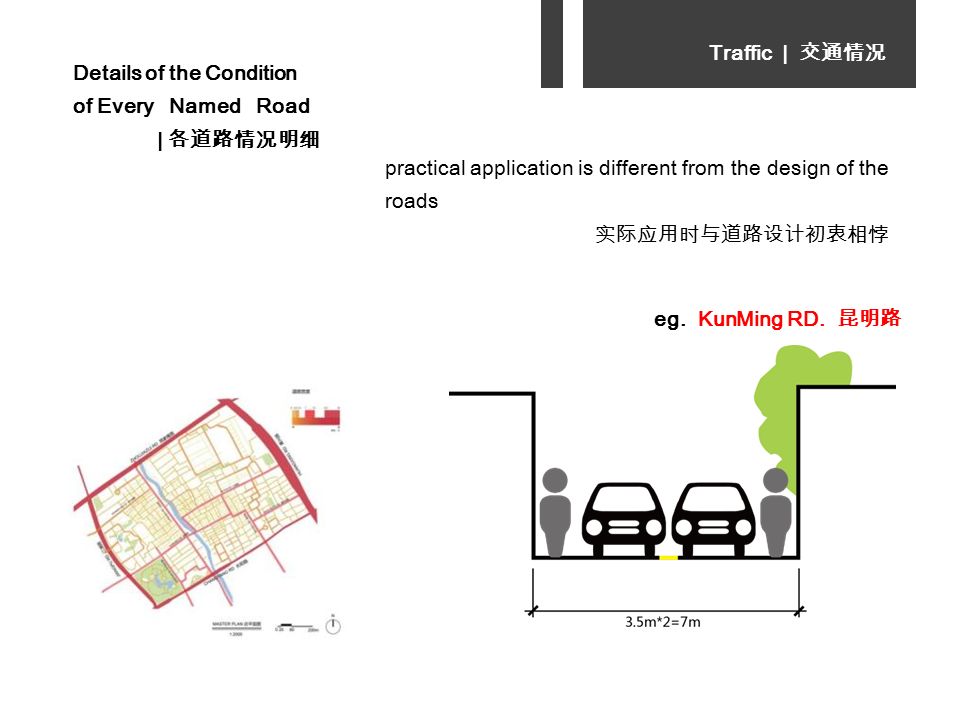

21. Traffic | 交通情况 Details of the Condition of Every Named Road | 各道路情况明细 practical application is different from the design of the roads 实际应用时与道路设计初衷相悖 the road was designed to be a single-lane road eg. KunMing RD. 昆明路

22. Traffic | 交通情况 Details of the Condition of Every Named Road | 各道路情况明细 eg. KunMing RD. 昆明路 practical application is different from the design of the roads 实际应用时与道路设计初衷相悖

23. Traffic | 交通情况 Details of the Condition of Every Named Road | 各道路情况明细 eg. KunMing RD. 昆明路 practical application is different from the design of the roads 实际应用时与道路设计初衷相悖

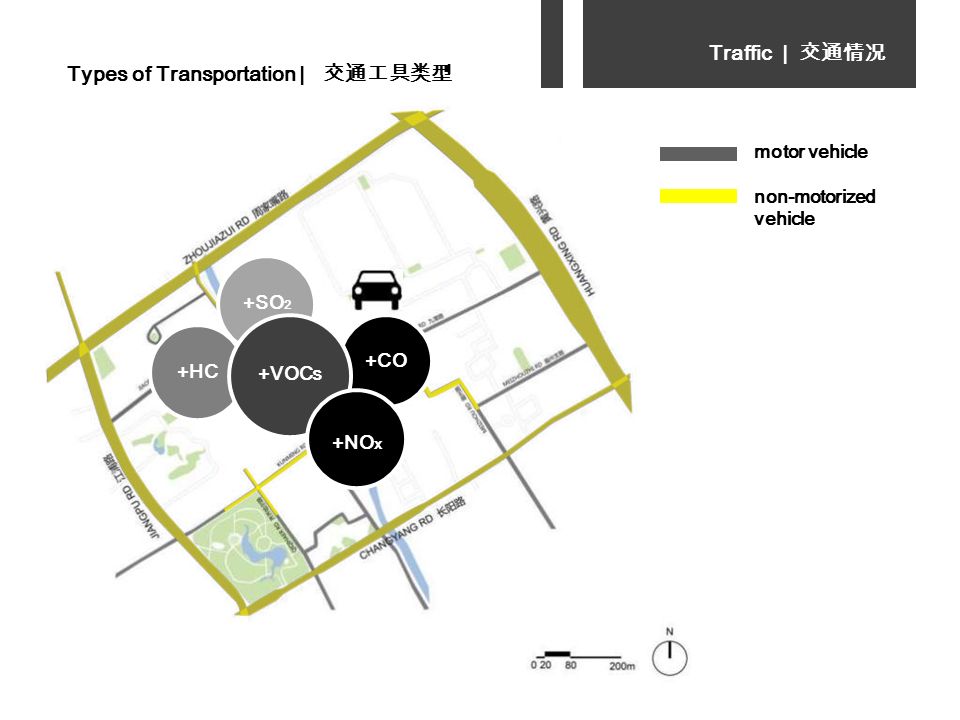

24. +SO 2 +CO +HC +VOCs +NO x motor vehicle non-motorized vehicle Traffic | 交通情况 Types of Transportation | 交通工具类型

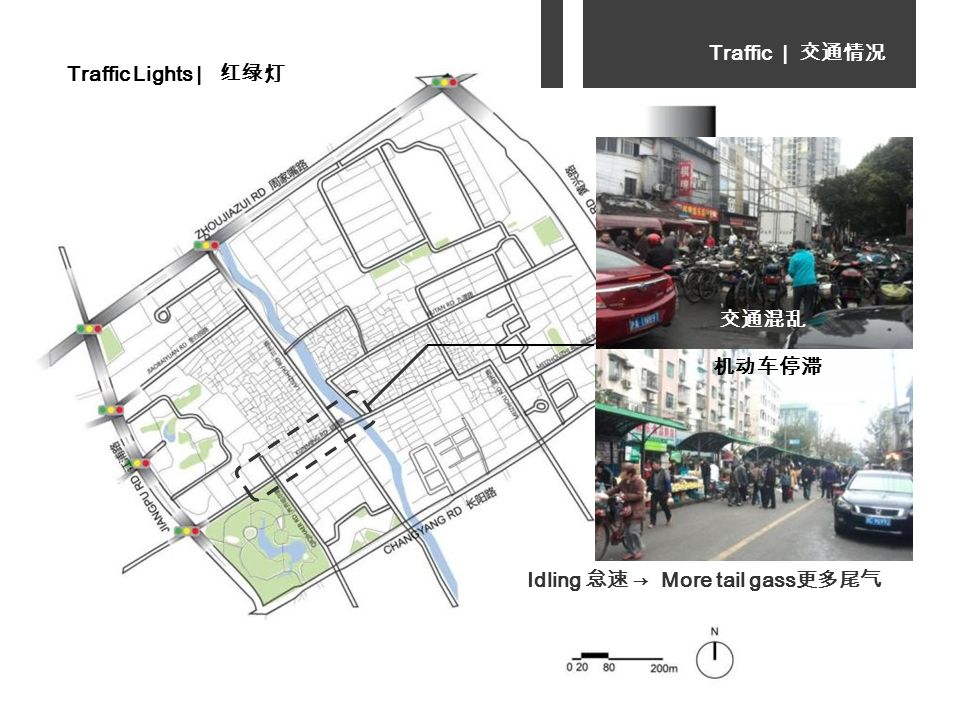

25. Traffic | 交通情况 交通混乱 机动车停滞 Traffic Lights | 红绿灯 Idling 怠速 → More tail gass 更多尾气

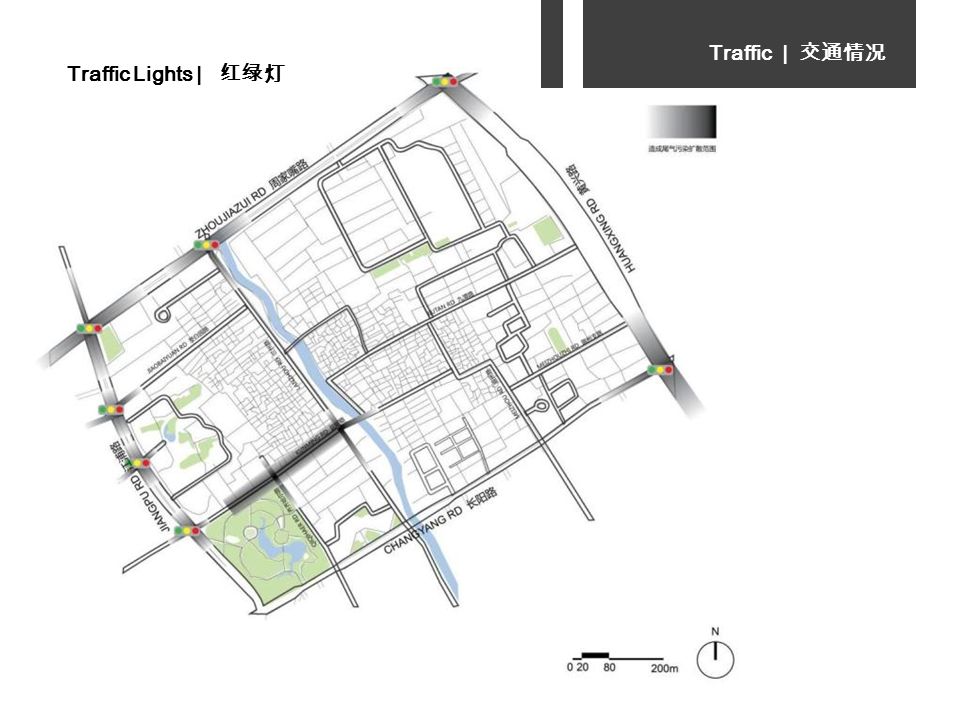

26. Traffic | 交通情况 Traffic Lights | 红绿灯

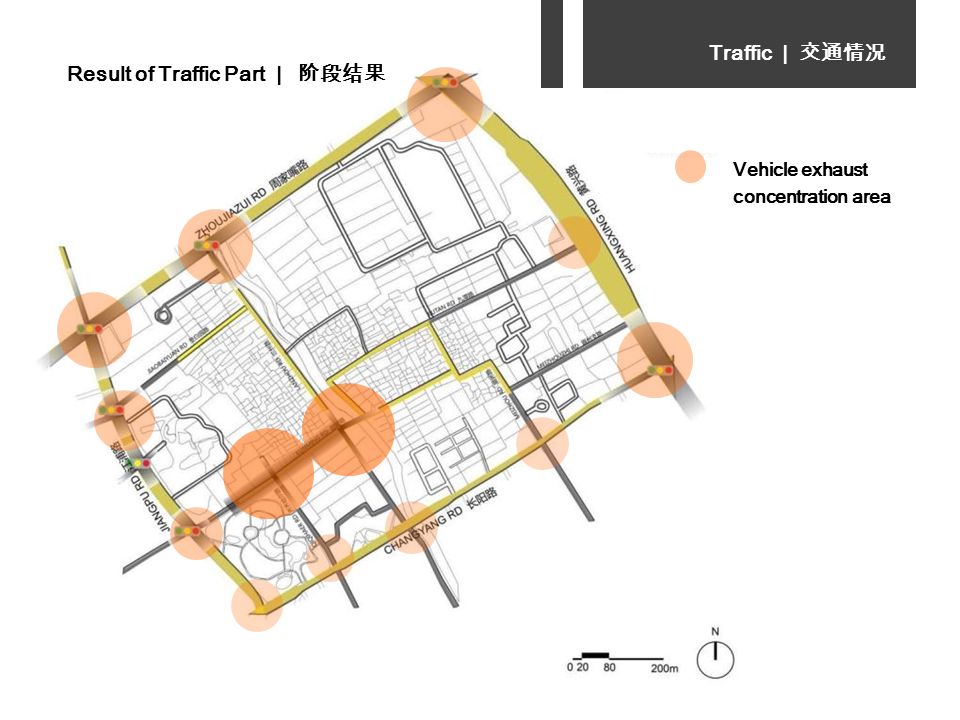

27. Traffic | 交通情况 Result of Traffic Part | 阶段结果 Vehicle exhaust concentration area

28. Site | 场地现状 Wind Direction | 风向因素 Traffic | 交通情况 Human 's Activity | 人流情况 Current Condition | 现状分析

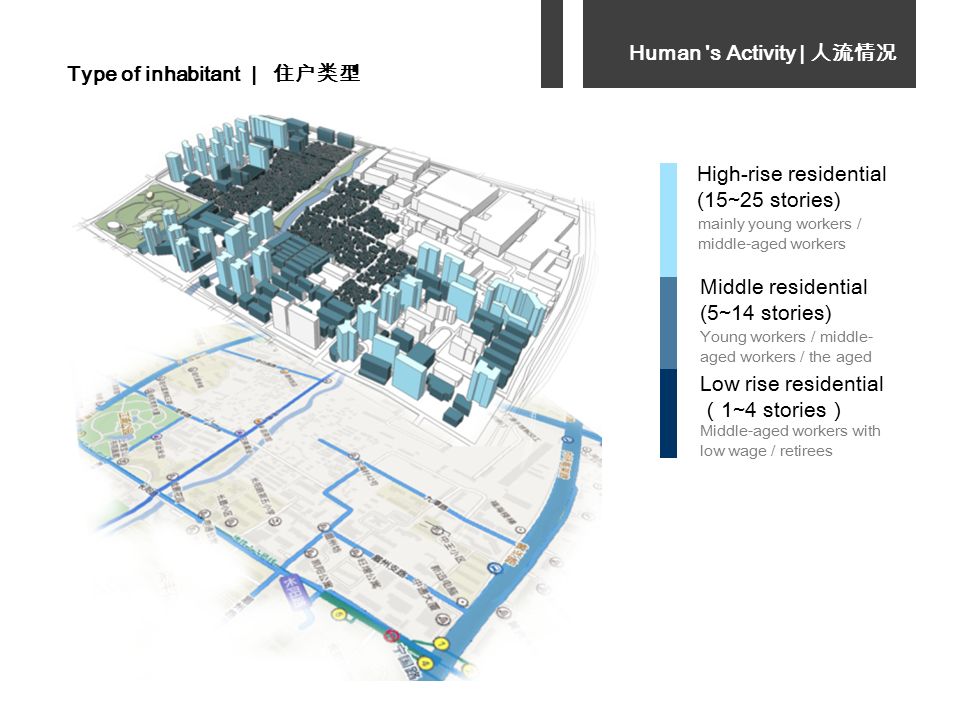

29. Human 's Activity | 人流情况 High-rise residential (15~25 stories) Middle residential (5~14 stories) Low rise residential （ 1~4 stories ） mainly young workers / middle-aged workers Young workers / middle- aged workers / the aged Middle-aged workers with low wage / retirees Type of inhabitant | 住户类型

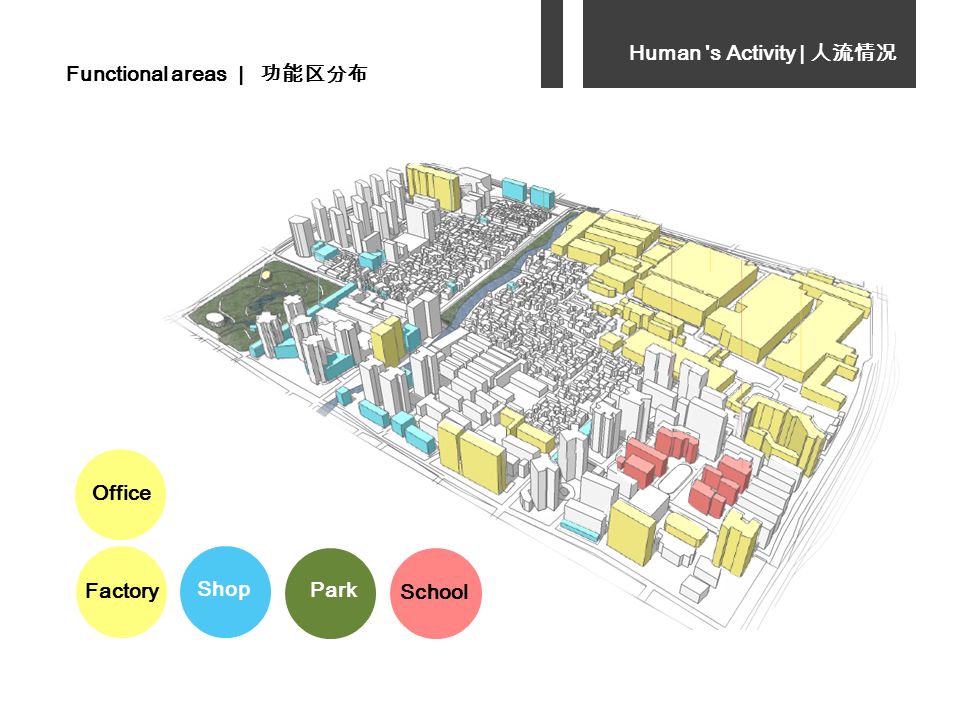

30. Human 's Activity | 人流情况 Functional areas | 功能区分布 ParkShop OfficeFactorySchool

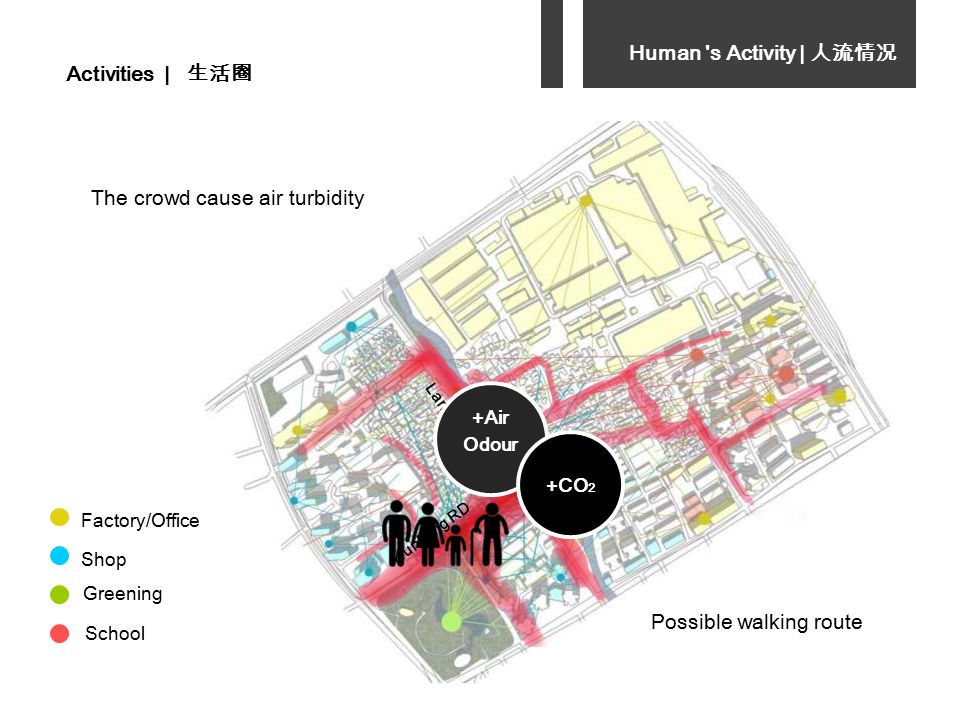

31. Human 's Activity | 人流情况 Possible walking route The crowd cause air turbidity Factory/Office Shop School Greening Activities | 生活圈 KunMing RD LanZhou RD +Air Odour +CO 2

32. Site | 场地现状 Wind Direction | 风向因素 Traffic | 交通情况 Human 's Activity | 人流情况 Current Condition | 现状分析

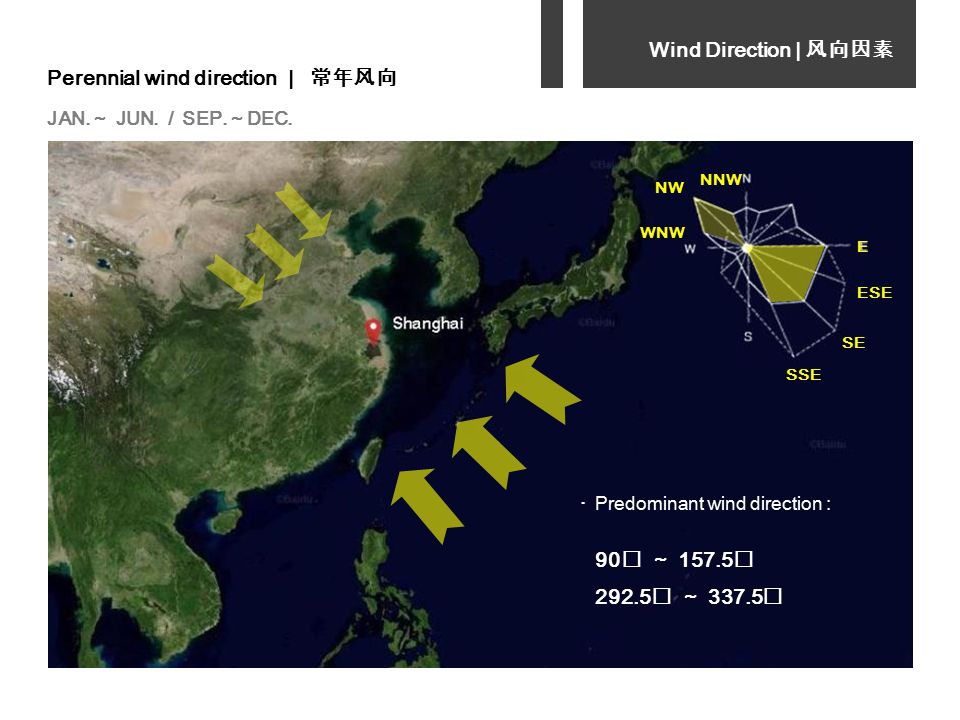

33. Wind Direction | 风向因素 Perennial wind direction | 常年风向 JAN. ~ JUN. / SEP. ~ DEC. · Predominant wind direction : 90 ~ 157.5 292.5 ~ 337.5 E ESE SE SSE NNW NW WNW

34. Wind Direction | 风向因素 Typhoon's wind direction | 台风季节风向 JUL. ~ AUG. A typhoon is a mature tropical cyclone that develops in the western part of the North Pacific Ocean between 180° and 100°E.

35. Wind Direction | 风向因素 Wind direction in site | 场地风向 Vehicle exhaust concentration area Crowded area

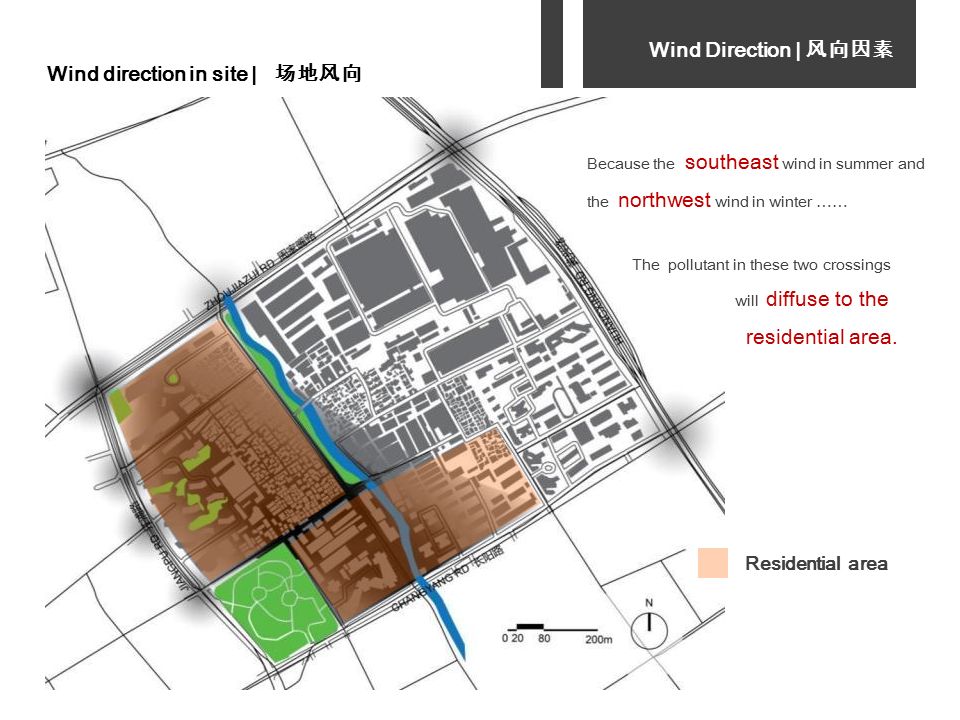

36. Wind Direction | 风向因素 Wind direction in site | 场地风向 The pollutant in these two crossings will diffuse to the residential area. Residential area Because the southeast wind in summer and the northwest wind in winter ……

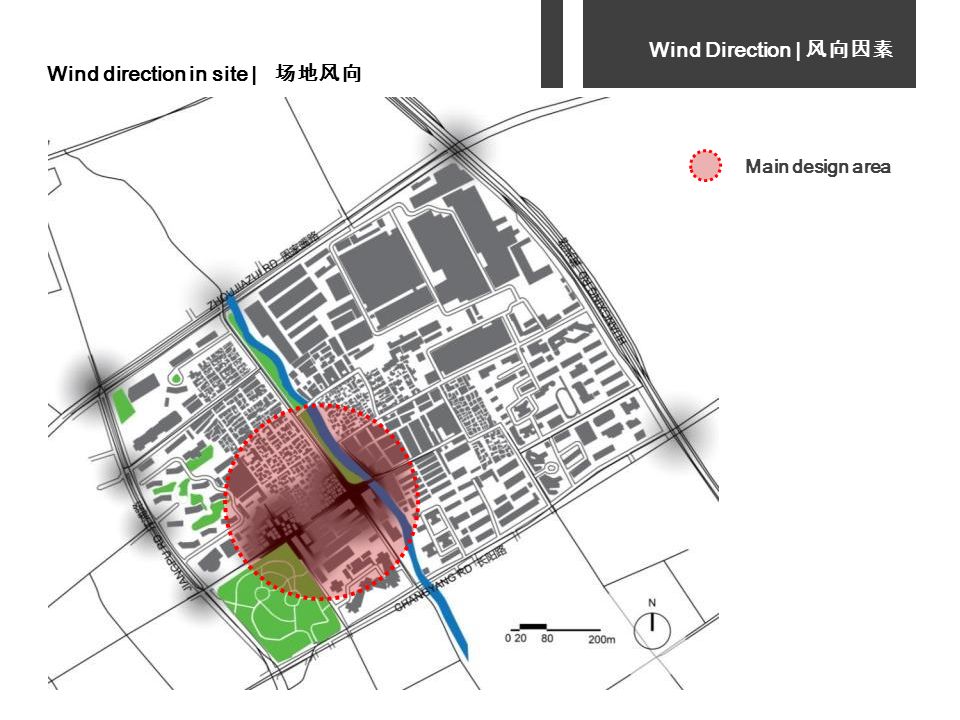

37. Wind Direction | 风向因素 Wind direction in site | 场地风向 Main design area

38. Scenario | A Future Scenario | 设计展望

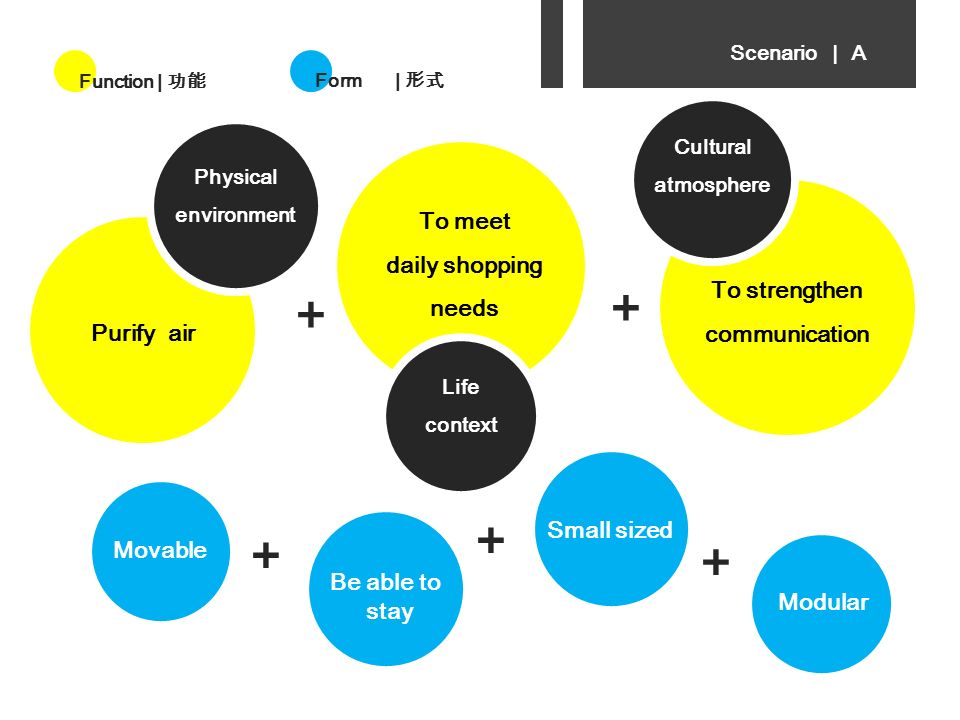

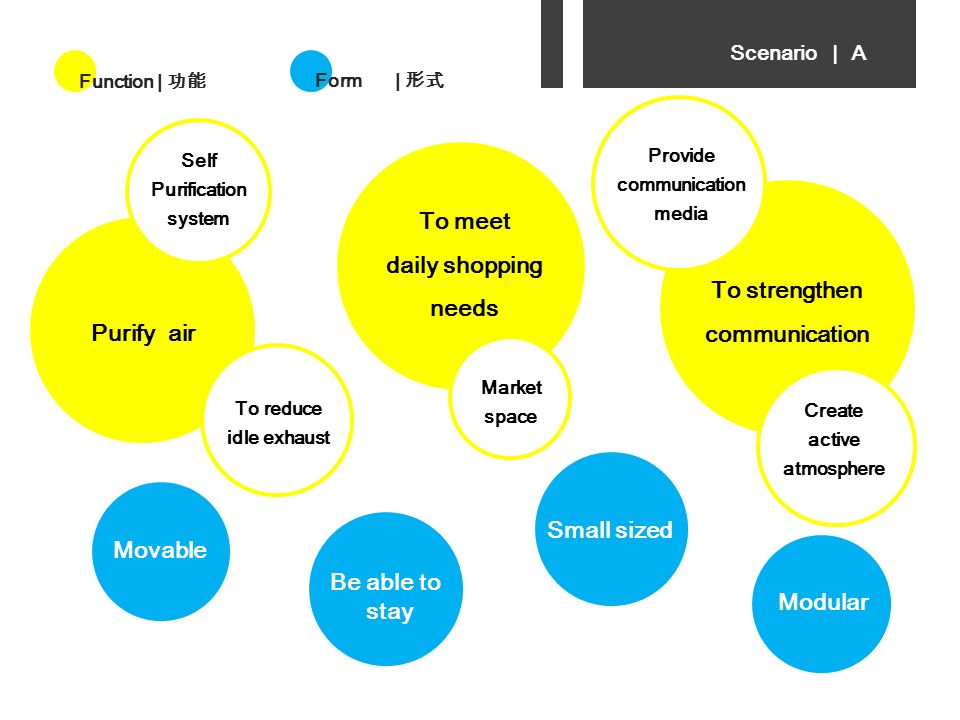

39. Scenario | A Function | 功能 Form | 形式 Purify air Physical environment + To meet daily shopping needs Life context + To strengthen communication Cultural atmosphere Movable + Be able to stay + Small sized + Modular

40. Scenario | A Function | 功能 Form | 形式 Purify air To meet daily shopping needs To strengthen communication Movable Be able to stay Small sized Modular Self Purification system To reduce idle exhaust Market space Create active atmosphere Provide communication media

41. The end, thank you.
