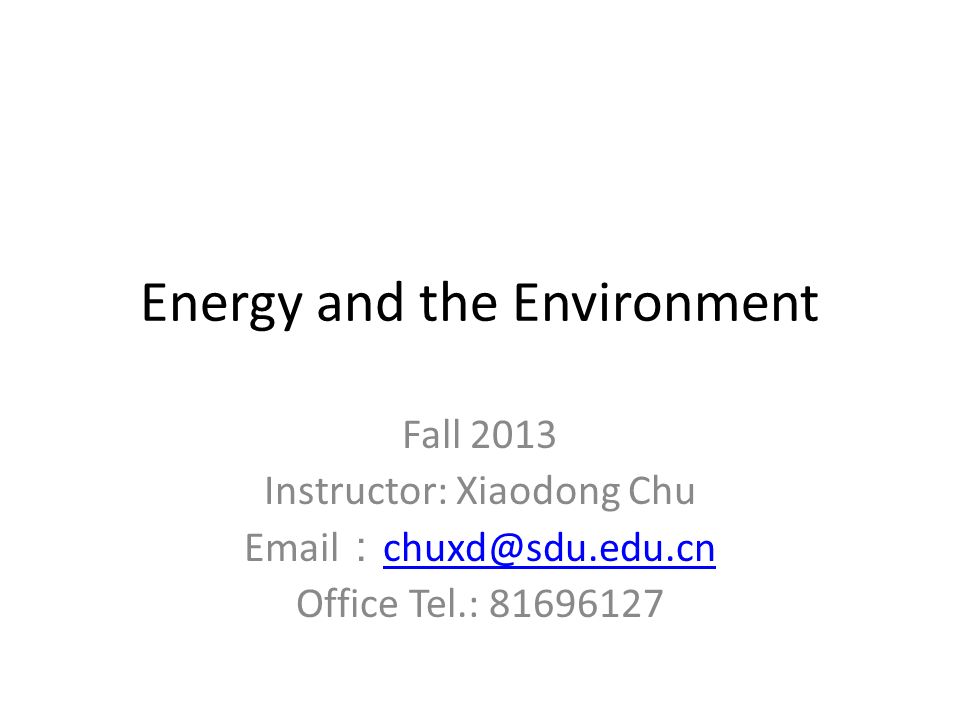

1. Energy and the Environment Fall 2013 Instructor: Xiaodong Chu Email ： chuxd@sdu.edu.cn chuxd@sdu.edu.cn Office Tel.: 81696127

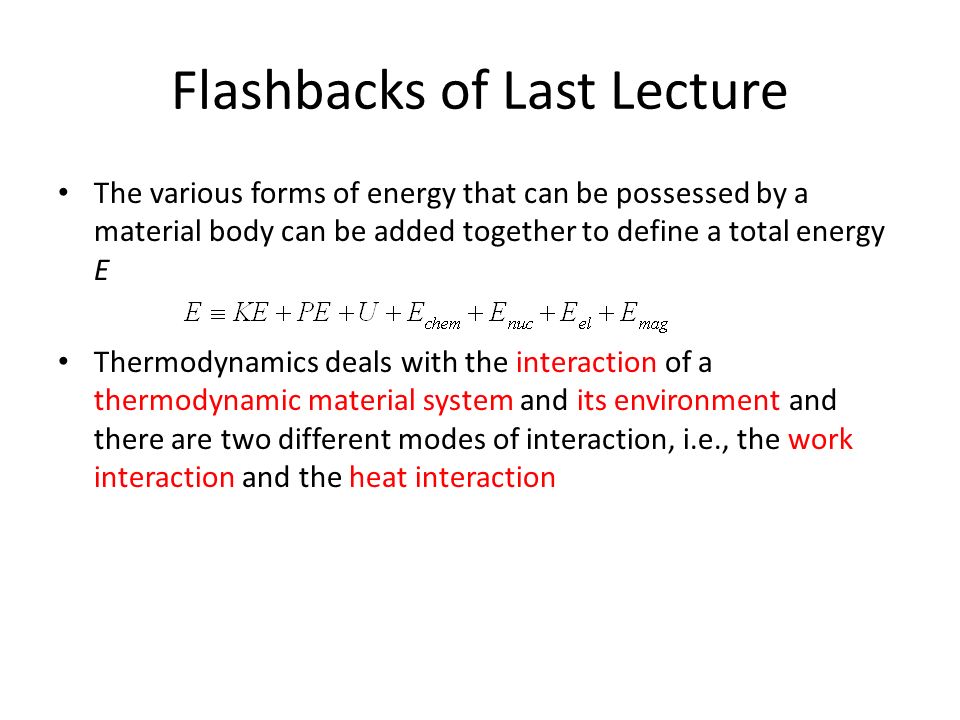

2. Flashbacks of Last Lecture The various forms of energy that can be possessed by a material body can be added together to define a total energy E Thermodynamics deals with the interaction of a thermodynamic material system and its environment and there are two different modes of interaction, i.e., the work interaction and the heat interaction

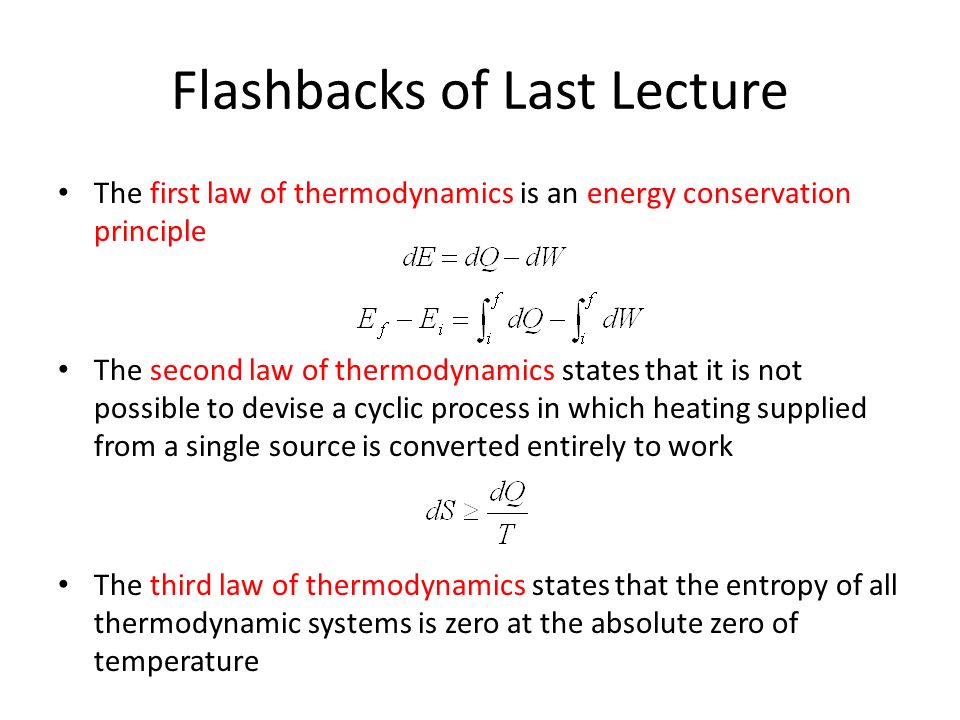

3. Flashbacks of Last Lecture The first law of thermodynamics is an energy conservation principle The second law of thermodynamics states that it is not possible to devise a cyclic process in which heating supplied from a single source is converted entirely to work The third law of thermodynamics states that the entropy of all thermodynamic systems is zero at the absolute zero of temperature

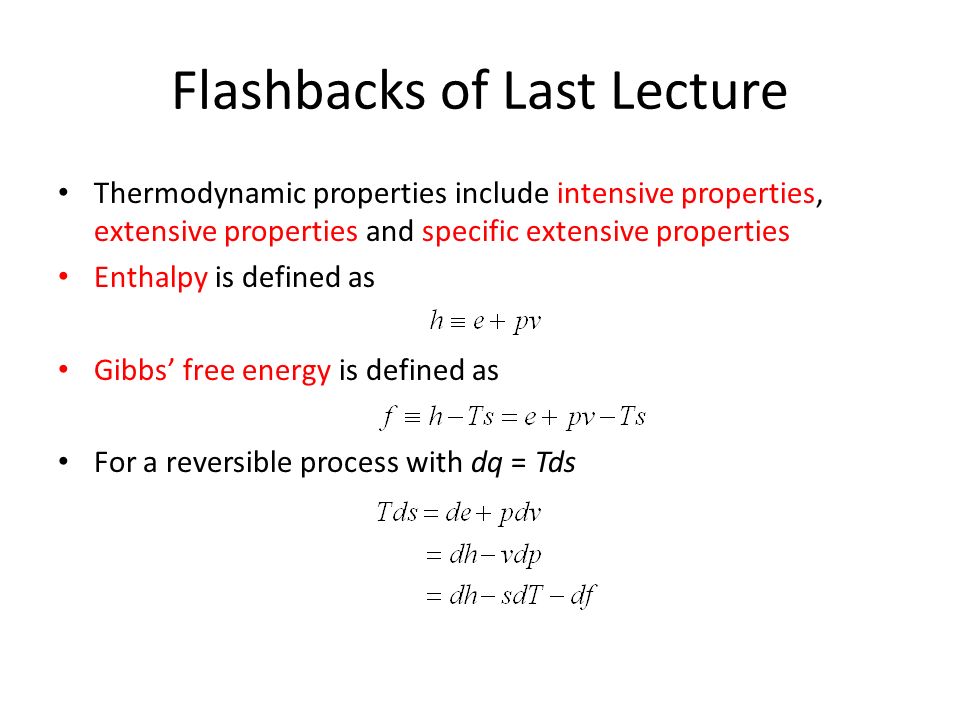

4. Flashbacks of Last Lecture Thermodynamic properties include intensive properties, extensive properties and specific extensive properties Enthalpy is defined as Gibbs’ free energy is defined as For a reversible process with dq = Tds

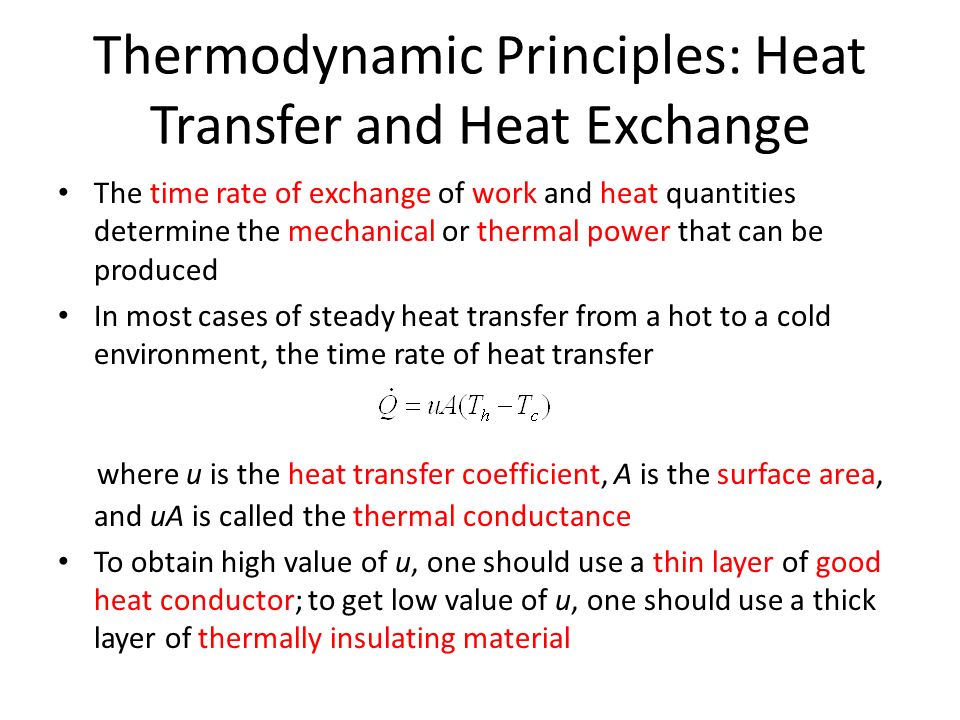

5. Thermodynamic Principles: Heat Transfer and Heat Exchange The time rate of exchange of work and heat quantities determine the mechanical or thermal power that can be produced In most cases of steady heat transfer from a hot to a cold environment, the time rate of heat transfer where u is the heat transfer coefficient, A is the surface area, and uA is called the thermal conductance To obtain high value of u, one should use a thin layer of good heat conductor; to get low value of u, one should use a thick layer of thermally insulating material

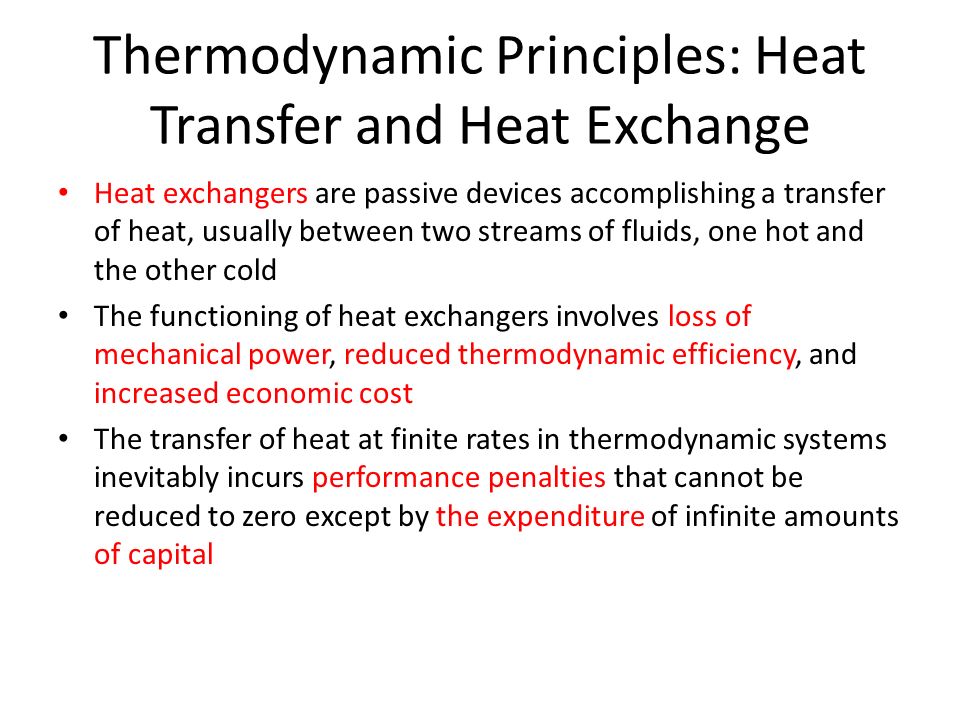

6. Thermodynamic Principles: Heat Transfer and Heat Exchange Heat exchangers are passive devices accomplishing a transfer of heat, usually between two streams of fluids, one hot and the other cold The functioning of heat exchangers involves loss of mechanical power, reduced thermodynamic efficiency, and increased economic cost The transfer of heat at finite rates in thermodynamic systems inevitably incurs performance penalties that cannot be reduced to zero except by the expenditure of infinite amounts of capital

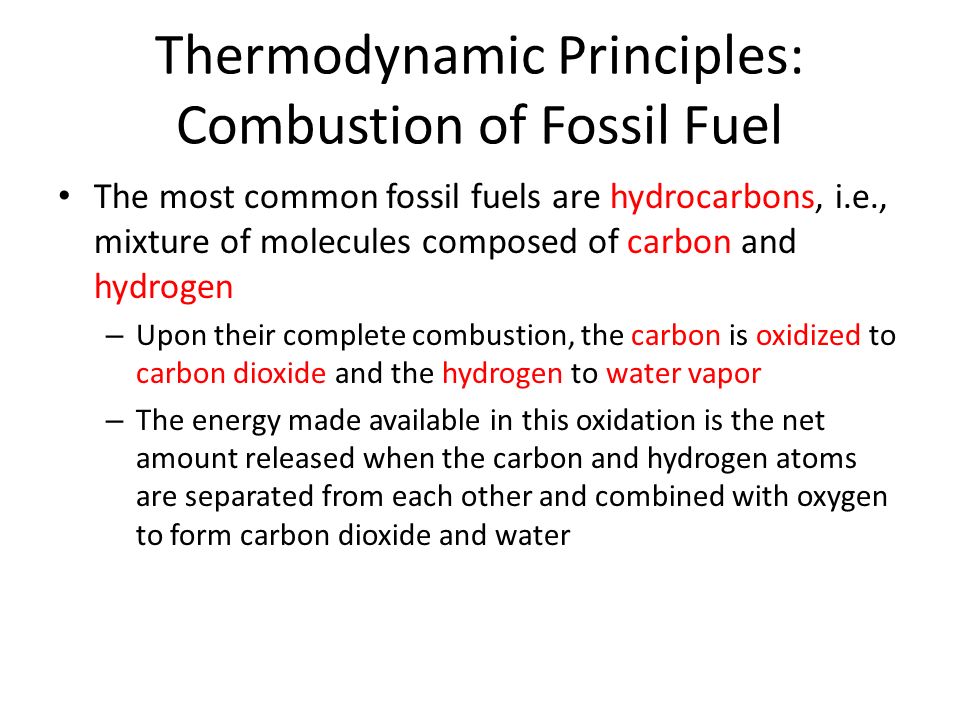

7. Thermodynamic Principles: Combustion of Fossil Fuel The most common fossil fuels are hydrocarbons, i.e., mixture of molecules composed of carbon and hydrogen – Upon their complete combustion, the carbon is oxidized to carbon dioxide and the hydrogen to water vapor – The energy made available in this oxidation is the net amount released when the carbon and hydrogen atoms are separated from each other and combined with oxygen to form carbon dioxide and water

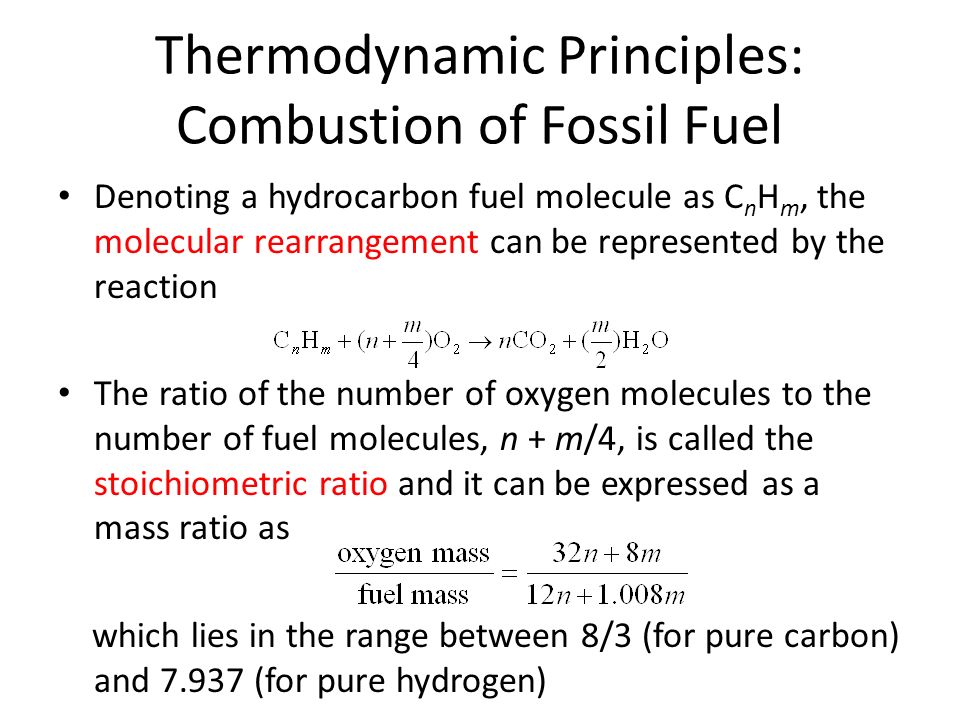

8. Thermodynamic Principles: Combustion of Fossil Fuel Denoting a hydrocarbon fuel molecule as C n H m, the molecular rearrangement can be represented by the reaction The ratio of the number of oxygen molecules to the number of fuel molecules, n + m/4, is called the stoichiometric ratio and it can be expressed as a mass ratio as which lies in the range between 8/3 (for pure carbon) and 7.937 (for pure hydrogen)

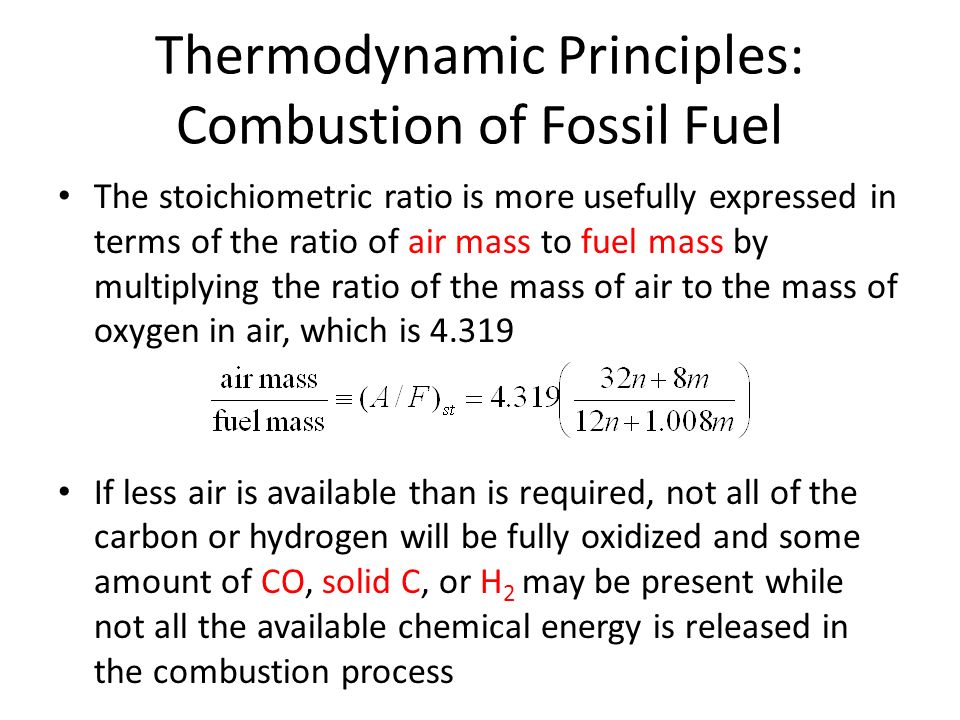

9. Thermodynamic Principles: Combustion of Fossil Fuel The stoichiometric ratio is more usefully expressed in terms of the ratio of air mass to fuel mass by multiplying the ratio of the mass of air to the mass of oxygen in air, which is 4.319 If less air is available than is required, not all of the carbon or hydrogen will be fully oxidized and some amount of CO, solid C, or H 2 may be present while not all the available chemical energy is released in the combustion process

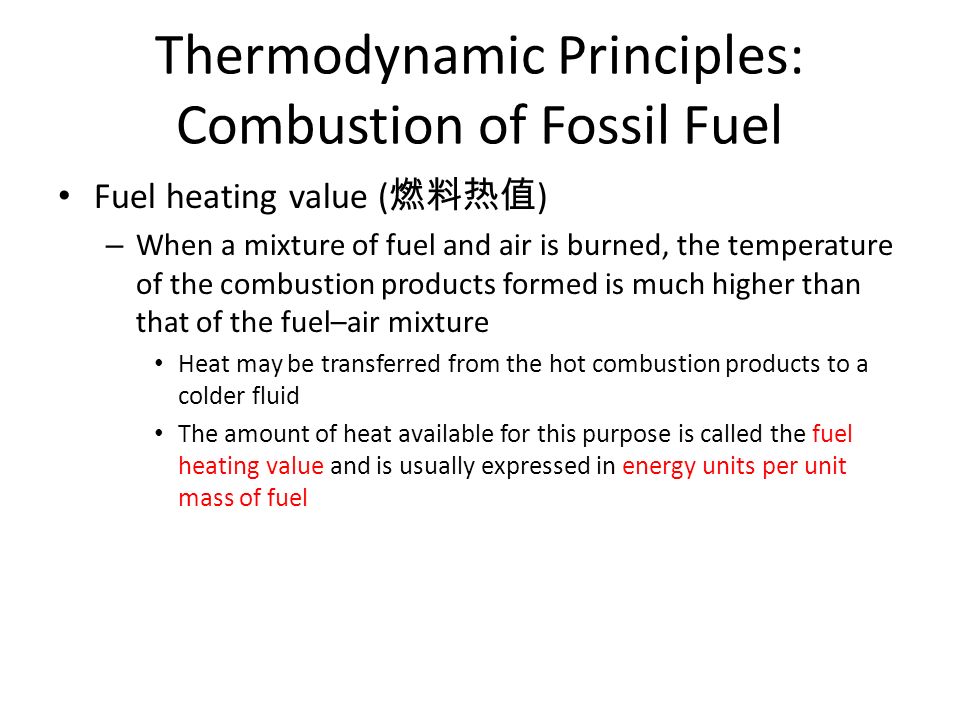

10. Thermodynamic Principles: Combustion of Fossil Fuel Fuel heating value ( 燃料热值 ) – When a mixture of fuel and air is burned, the temperature of the combustion products formed is much higher than that of the fuel–air mixture Heat may be transferred from the hot combustion products to a colder fluid The amount of heat available for this purpose is called the fuel heating value and is usually expressed in energy units per unit mass of fuel

11. Thermodynamic Principles: Combustion of Fossil Fuel – Consider a combustion chamber of a gas turbine power plant that is supplied with a steady flow of a fuel-air mixture (reactant) If fuel is burned at constant pressure and no heat is lost, i.e., adiabatic and workless, by recalling the equation The product gas enthalpy h p {T p, p r } will equal the reactant stream enthalpy h r {T r, p r }, where T p is called the adiabatic combustion temperature

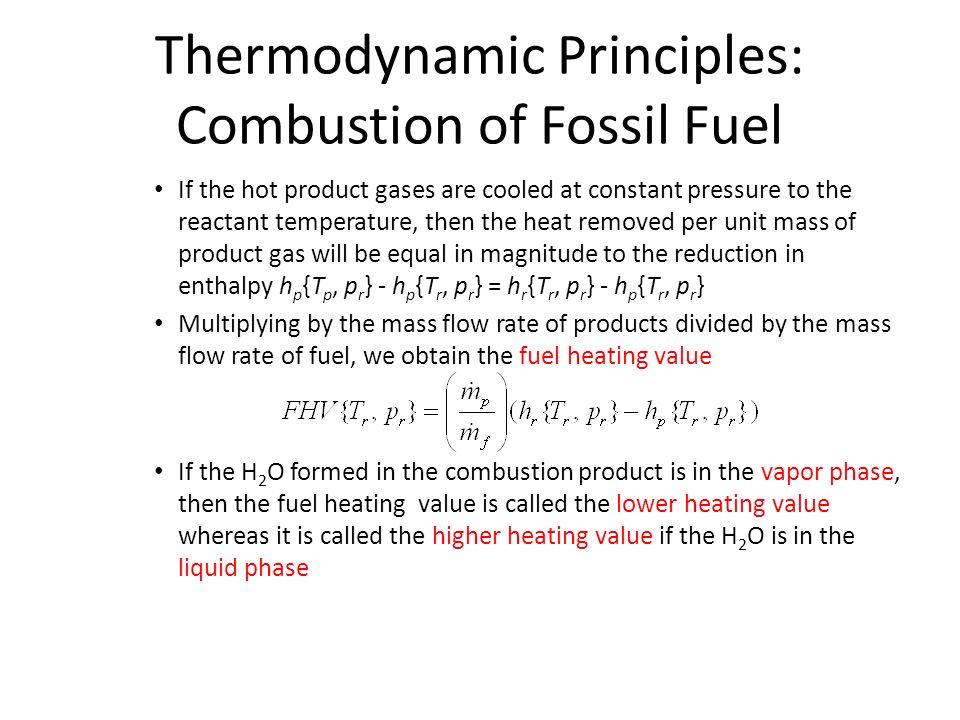

12. Thermodynamic Principles: Combustion of Fossil Fuel If the hot product gases are cooled at constant pressure to the reactant temperature, then the heat removed per unit mass of product gas will be equal in magnitude to the reduction in enthalpy h p {T p, p r } - h p {T r, p r } = h r {T r, p r } - h p {T r, p r } Multiplying by the mass flow rate of products divided by the mass flow rate of fuel, we obtain the fuel heating value If the H 2 O formed in the combustion product is in the vapor phase, then the fuel heating value is called the lower heating value whereas it is called the higher heating value if the H 2 O is in the liquid phase

13. Thermodynamic Principles: Combustion of Fossil Fuel

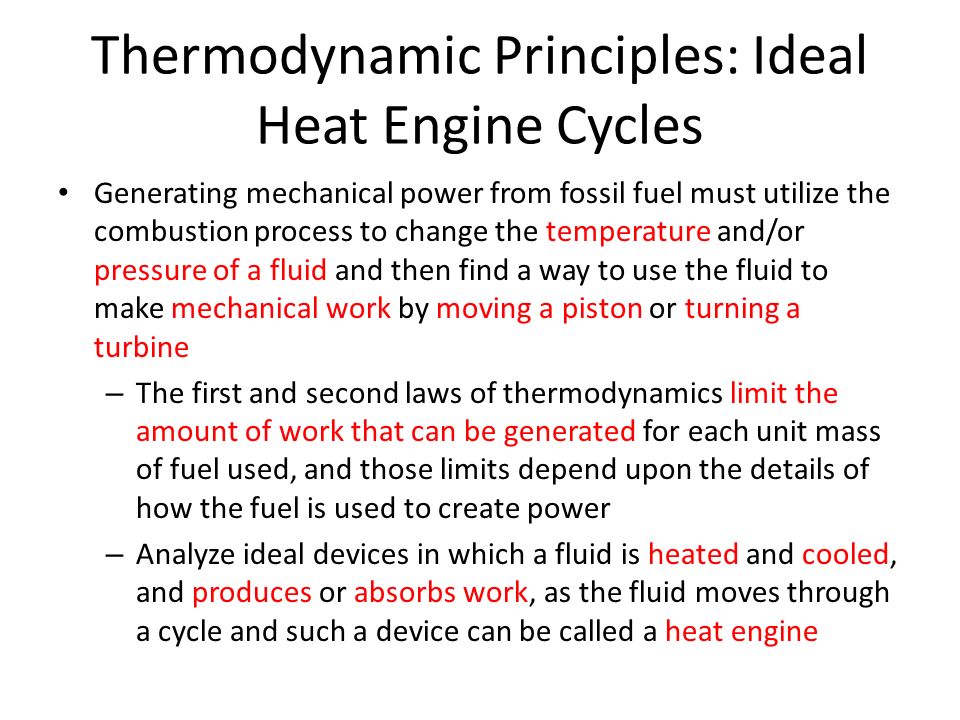

14. Thermodynamic Principles: Ideal Heat Engine Cycles Generating mechanical power from fossil fuel must utilize the combustion process to change the temperature and/or pressure of a fluid and then find a way to use the fluid to make mechanical work by moving a piston or turning a turbine – The first and second laws of thermodynamics limit the amount of work that can be generated for each unit mass of fuel used, and those limits depend upon the details of how the fuel is used to create power – Analyze ideal devices in which a fluid is heated and cooled, and produces or absorbs work, as the fluid moves through a cycle and such a device can be called a heat engine

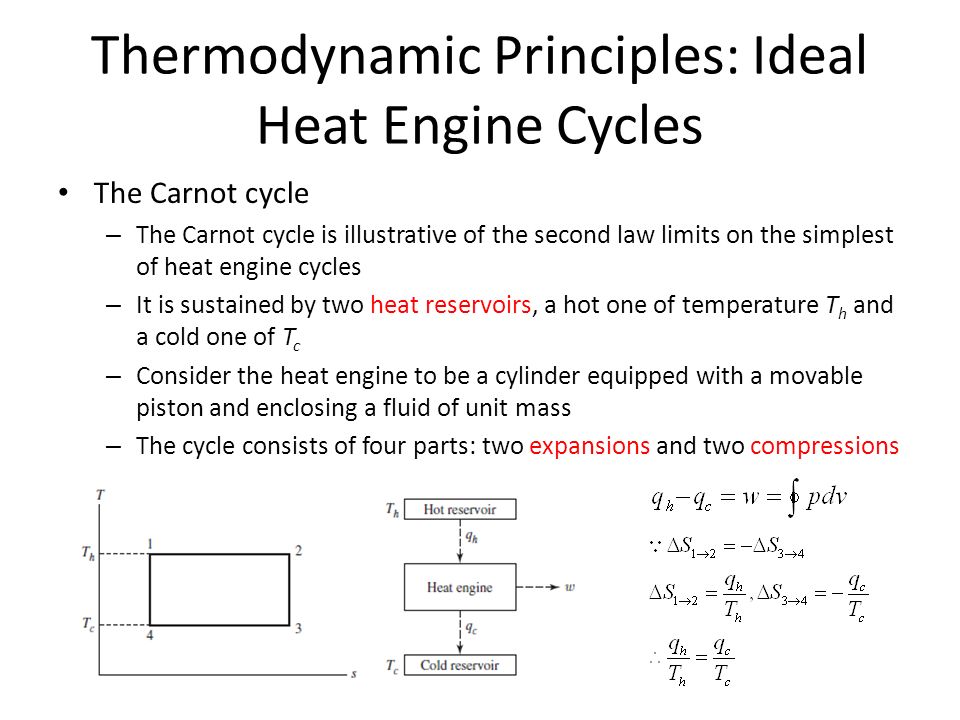

15. Thermodynamic Principles: Ideal Heat Engine Cycles The Carnot cycle – The Carnot cycle is illustrative of the second law limits on the simplest of heat engine cycles – It is sustained by two heat reservoirs, a hot one of temperature T h and a cold one of T c – Consider the heat engine to be a cylinder equipped with a movable piston and enclosing a fluid of unit mass – The cycle consists of four parts: two expansions and two compressions

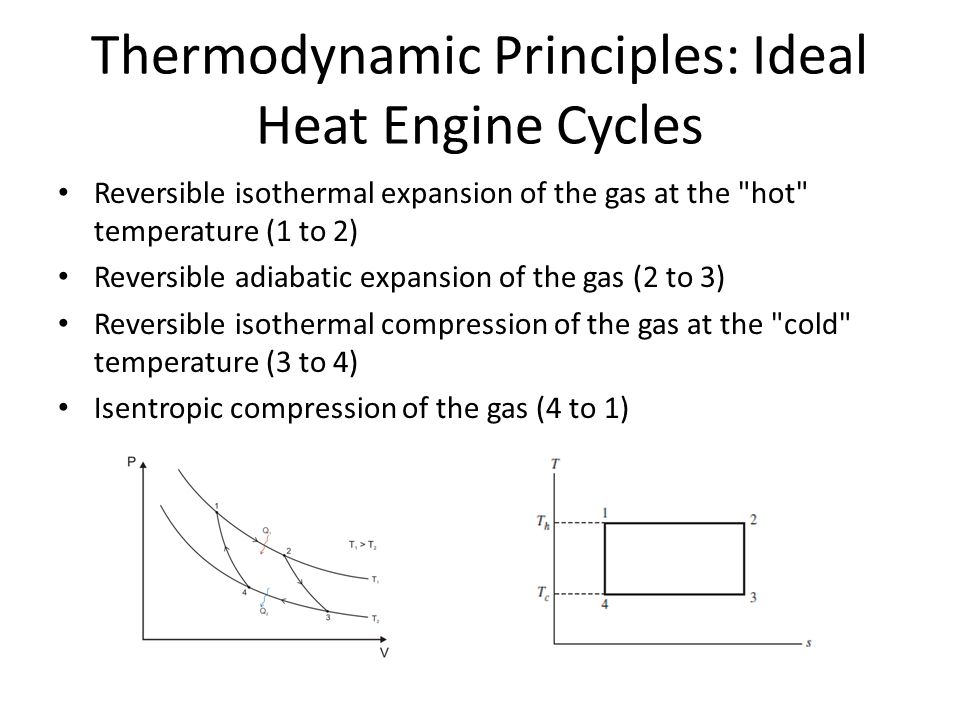

16. Thermodynamic Principles: Ideal Heat Engine Cycles Reversible isothermal expansion of the gas at the "hot" temperature (1 to 2) Reversible adiabatic expansion of the gas (2 to 3) Reversible isothermal compression of the gas at the "cold" temperature (3 to 4) Isentropic compression of the gas (4 to 1)

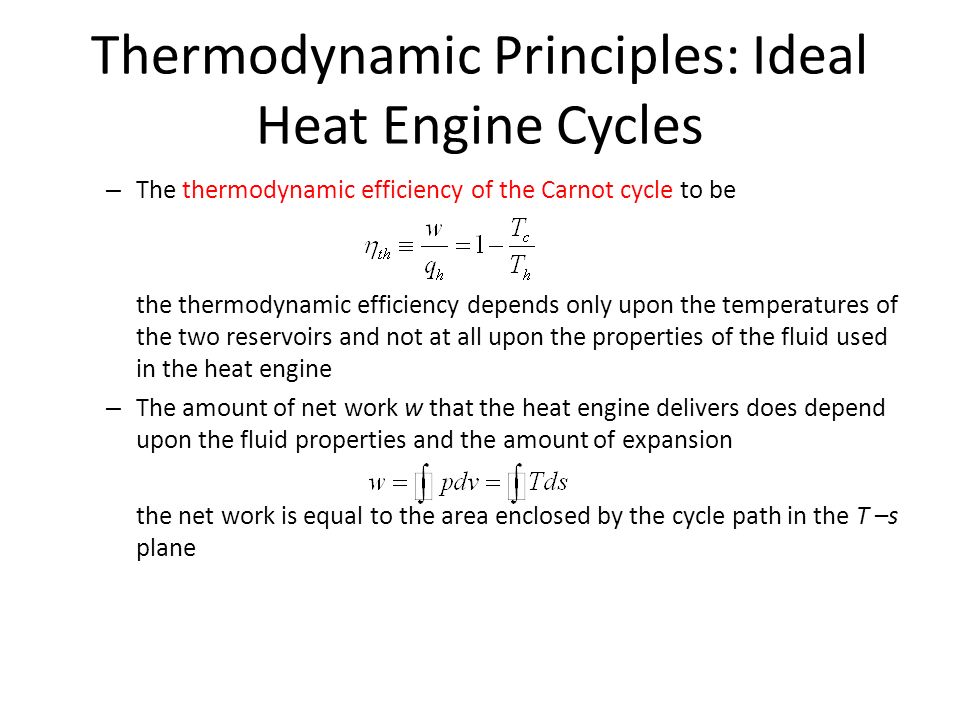

17. Thermodynamic Principles: Ideal Heat Engine Cycles – The thermodynamic efficiency of the Carnot cycle to be the thermodynamic efficiency depends only upon the temperatures of the two reservoirs and not at all upon the properties of the fluid used in the heat engine – The amount of net work w that the heat engine delivers does depend upon the fluid properties and the amount of expansion the net work is equal to the area enclosed by the cycle path in the T –s plane

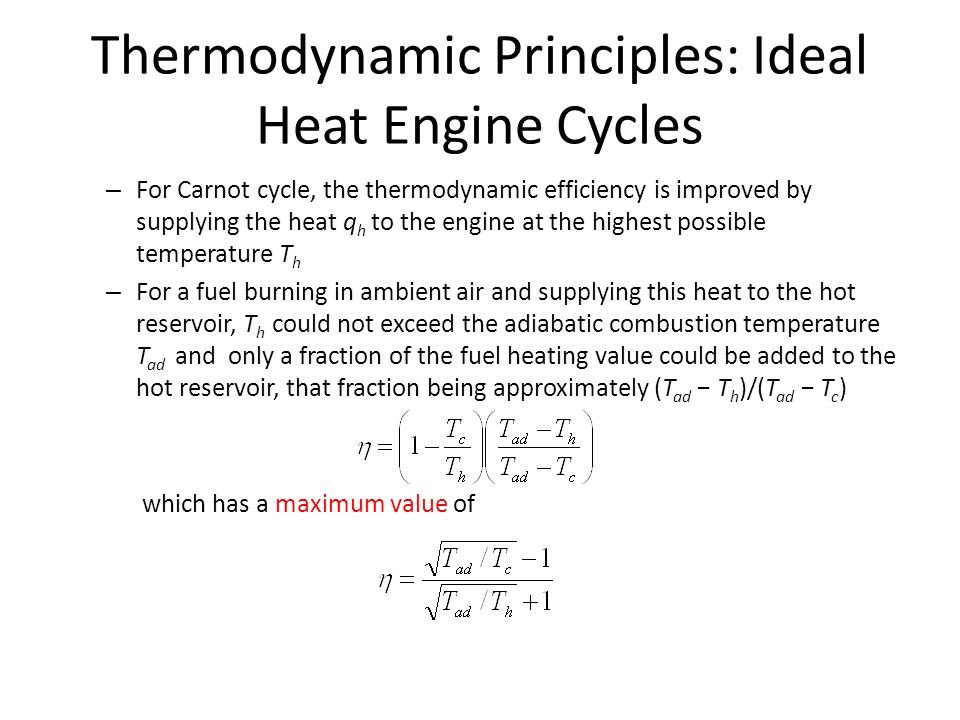

18. Thermodynamic Principles: Ideal Heat Engine Cycles – For Carnot cycle, the thermodynamic efficiency is improved by supplying the heat q h to the engine at the highest possible temperature T h – For a fuel burning in ambient air and supplying this heat to the hot reservoir, T h could not exceed the adiabatic combustion temperature T ad and only a fraction of the fuel heating value could be added to the hot reservoir, that fraction being approximately (T ad − T h )/(T ad − T c ) which has a maximum value of

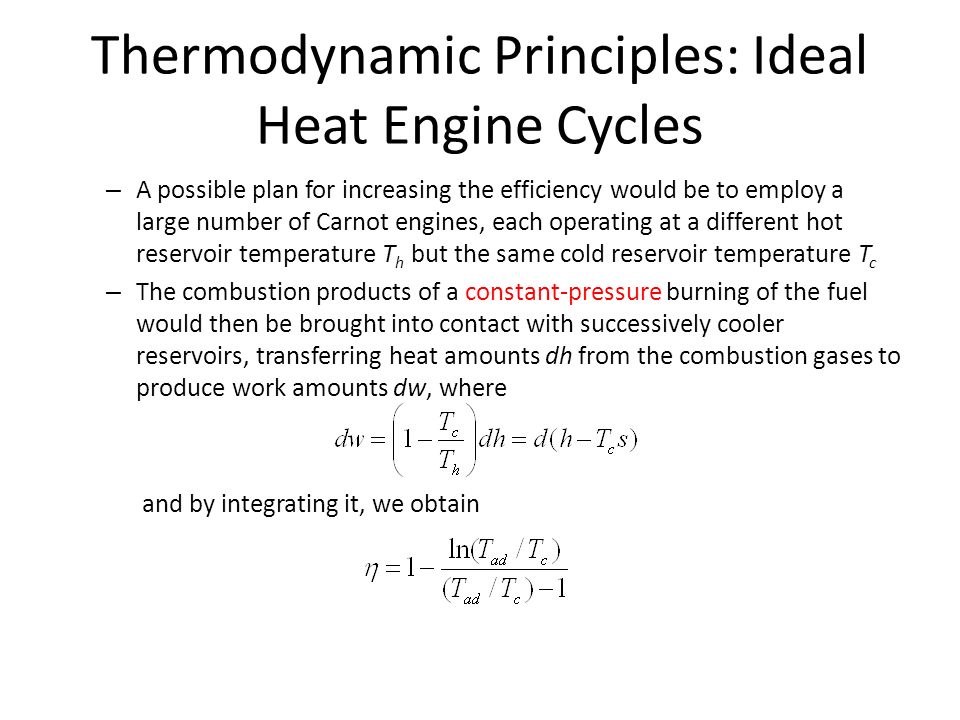

19. Thermodynamic Principles: Ideal Heat Engine Cycles – A possible plan for increasing the efficiency would be to employ a large number of Carnot engines, each operating at a different hot reservoir temperature T h but the same cold reservoir temperature T c – The combustion products of a constant-pressure burning of the fuel would then be brought into contact with successively cooler reservoirs, transferring heat amounts dh from the combustion gases to produce work amounts dw, where and by integrating it, we obtain

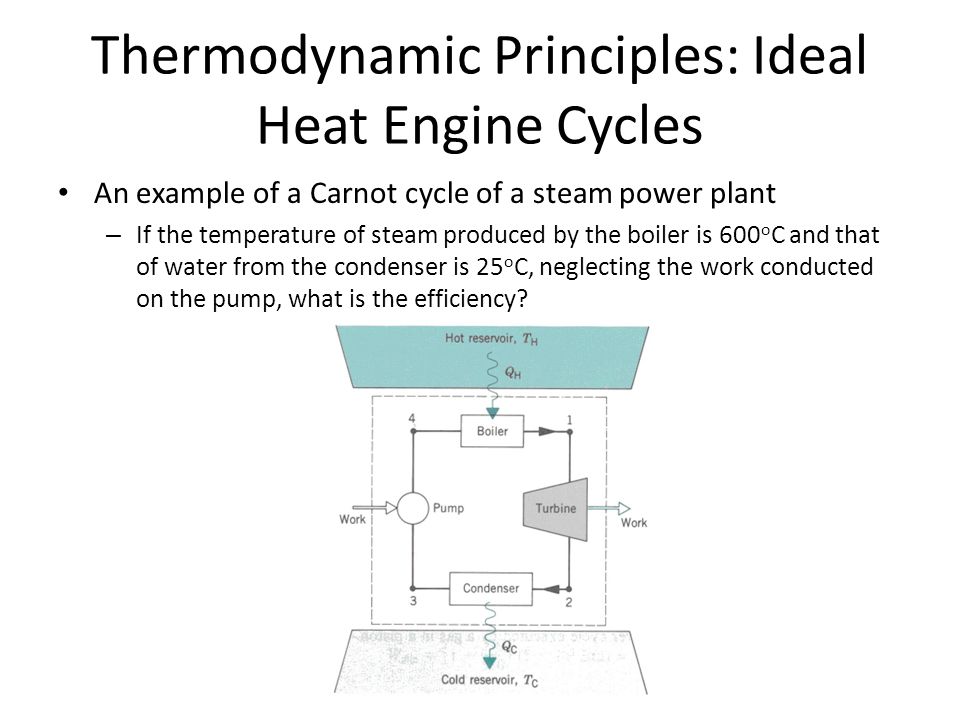

20. Thermodynamic Principles: Ideal Heat Engine Cycles An example of a Carnot cycle of a steam power plant – If the temperature of steam produced by the boiler is 600 o C and that of water from the condenser is 25 o C, neglecting the work conducted on the pump, what is the efficiency?

21. Thermodynamic Principles: Ideal Heat Engine Cycles

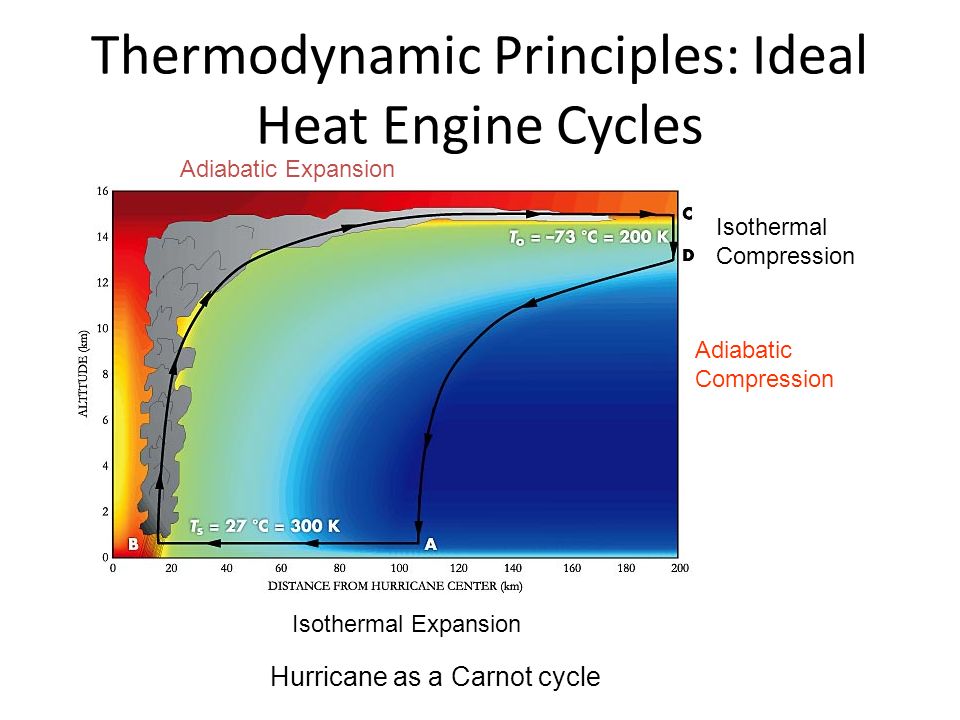

22. Adiabatic Expansion Isothermal Compression Adiabatic Compression Isothermal Expansion Hurricane as a Carnot cycle
