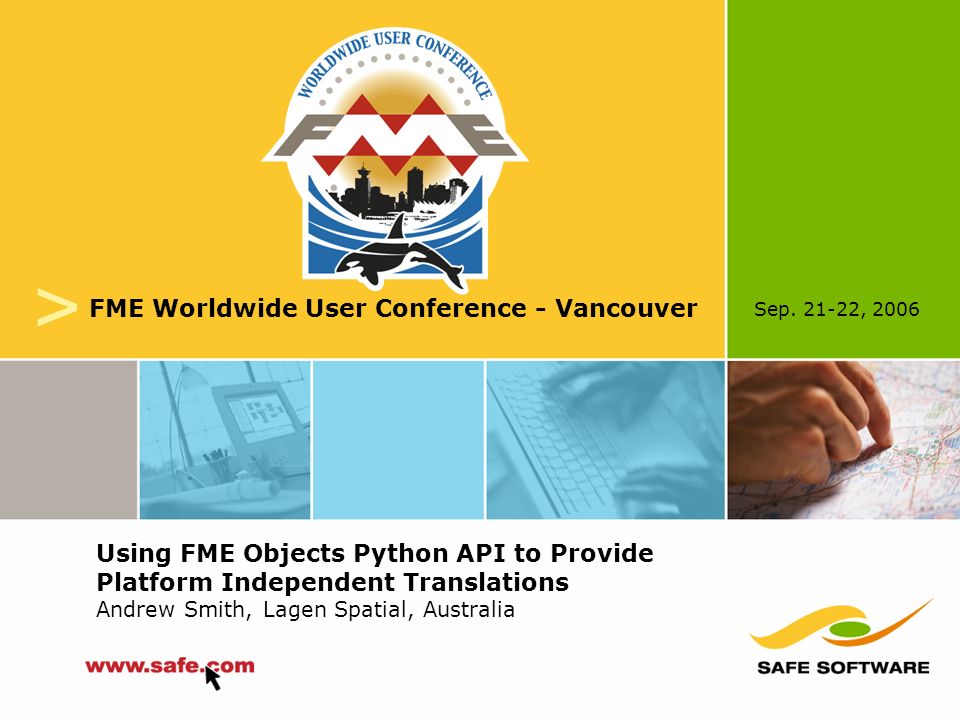

1. Sep. 21-22, 2006 v FME Worldwide User Conference - Vancouver Using FME Objects Python API to Provide Platform Independent Translations Andrew Smith, Lagen Spatial, Australia

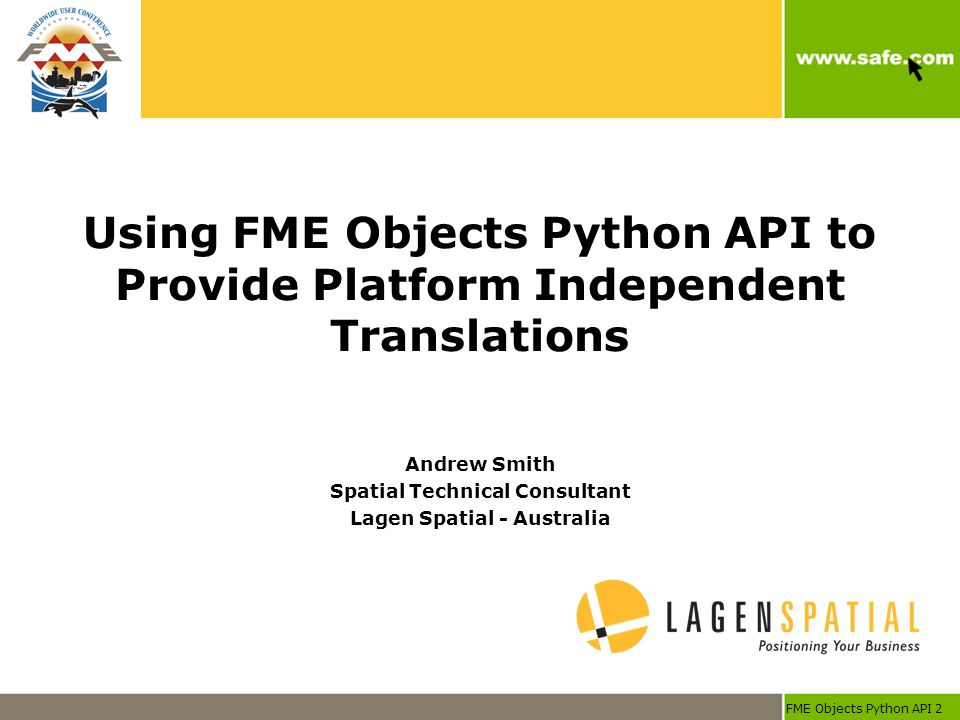

2. FME Objects Python API 2 Using FME Objects Python API to Provide Platform Independent Translations Andrew Smith Spatial Technical Consultant Lagen Spatial - Australia

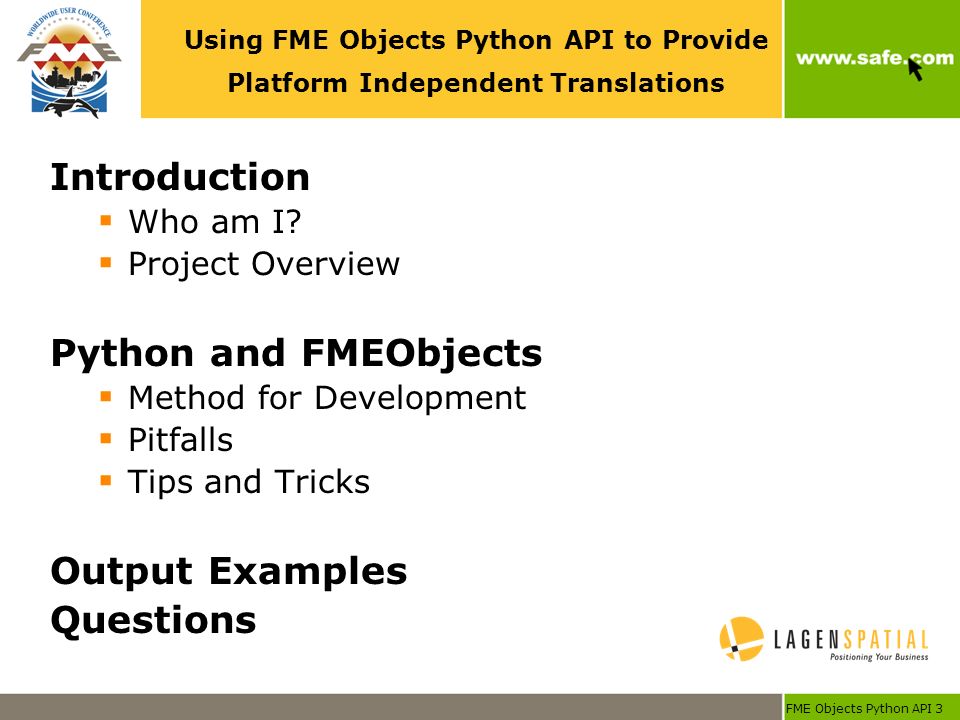

3. FME Objects Python API 3 Using FME Objects Python API to Provide Platform Independent Translations Introduction  Who am I?  Project Overview Python and FMEObjects  Method for Development  Pitfalls  Tips and Tricks Output Examples Questions

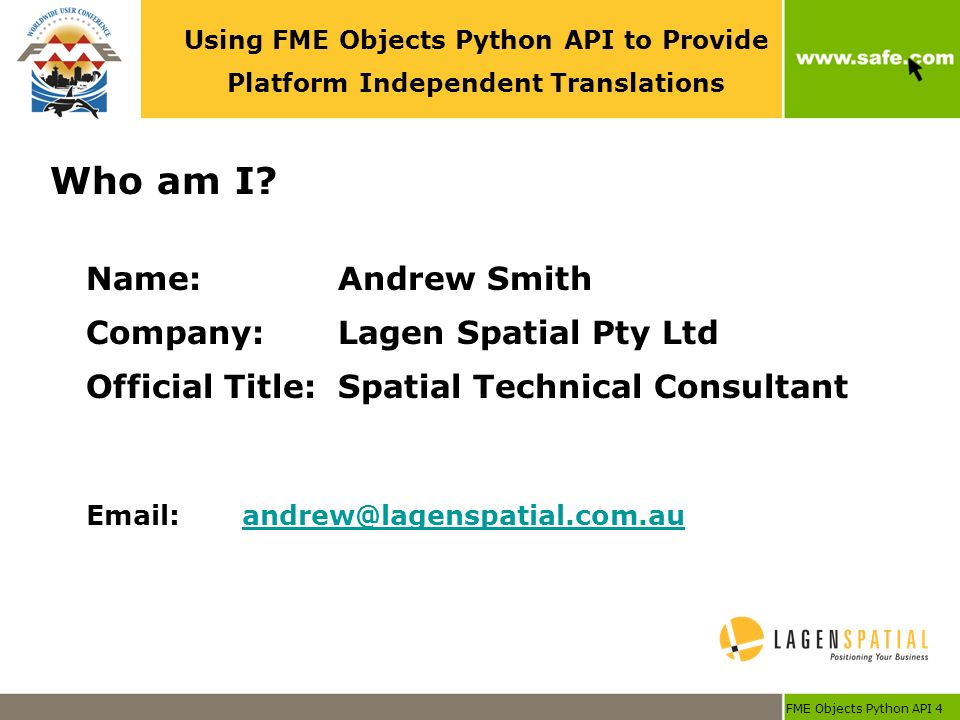

4. FME Objects Python API 4 Using FME Objects Python API to Provide Platform Independent Translations Who am I? Name:Andrew Smith Company:Lagen Spatial Pty Ltd Official Title:Spatial Technical Consultant Email:andrew@lagenspatial.com.auandrew@lagenspatial.com.au

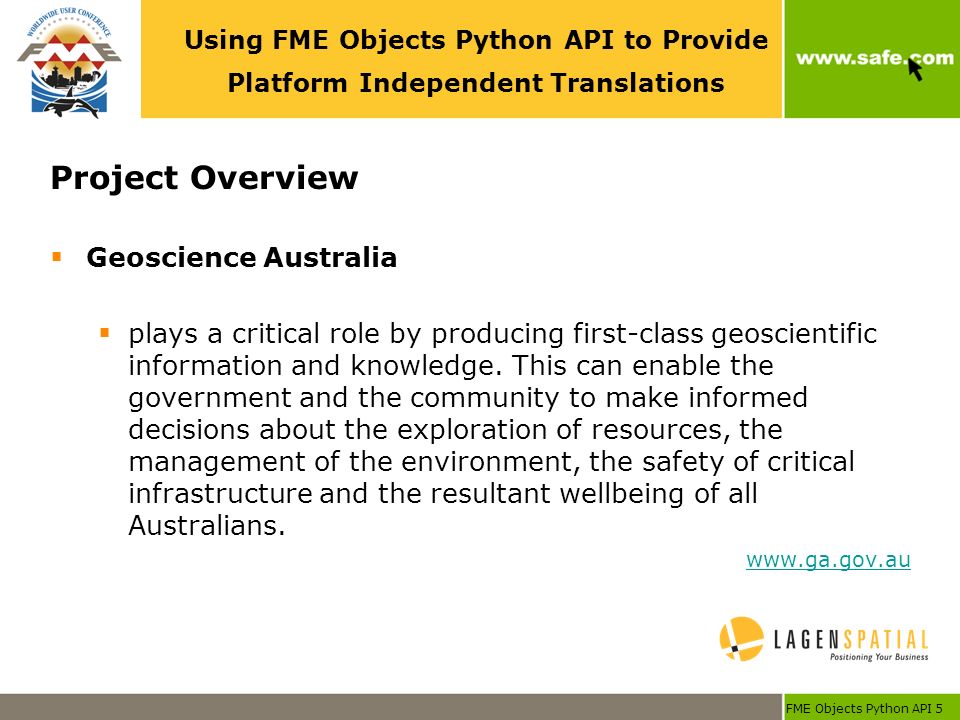

5. FME Objects Python API 5 Using FME Objects Python API to Provide Platform Independent Translations Project Overview  Geoscience Australia  plays a critical role by producing first-class geoscientific information and knowledge. This can enable the government and the community to make informed decisions about the exploration of resources, the management of the environment, the safety of critical infrastructure and the resultant wellbeing of all Australians. www.ga.gov.au

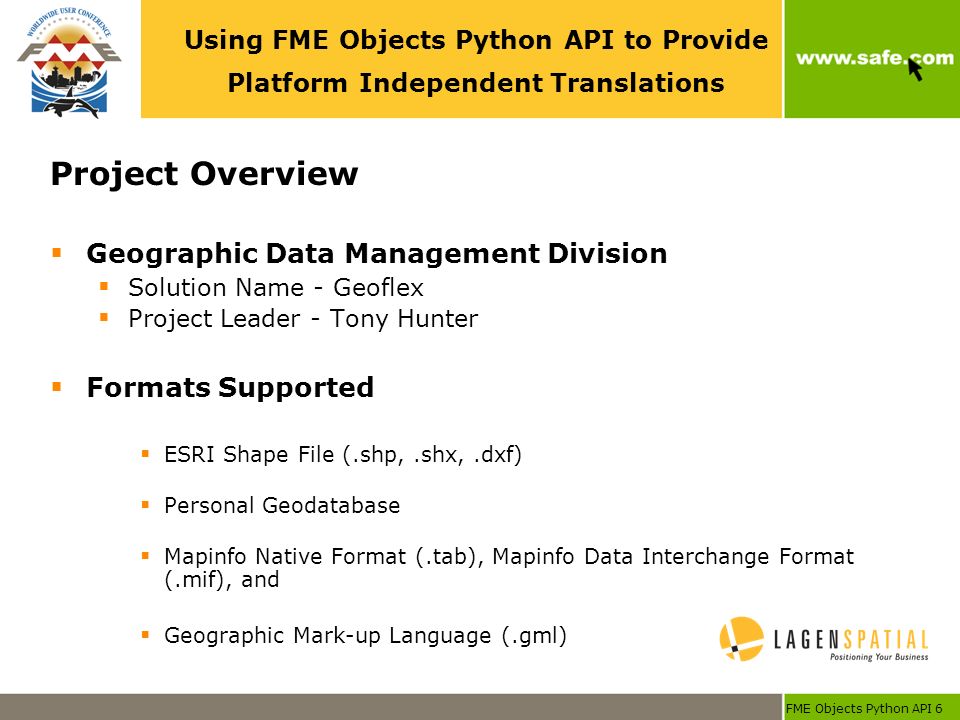

6. FME Objects Python API 6 Using FME Objects Python API to Provide Platform Independent Translations Project Overview  Geographic Data Management Division  Solution Name - Geoflex  Project Leader - Tony Hunter  Formats Supported  ESRI Shape File (.shp,.shx,.dxf)  Personal Geodatabase  Mapinfo Native Format (.tab), Mapinfo Data Interchange Format (.mif), and  Geographic Mark-up Language (.gml)

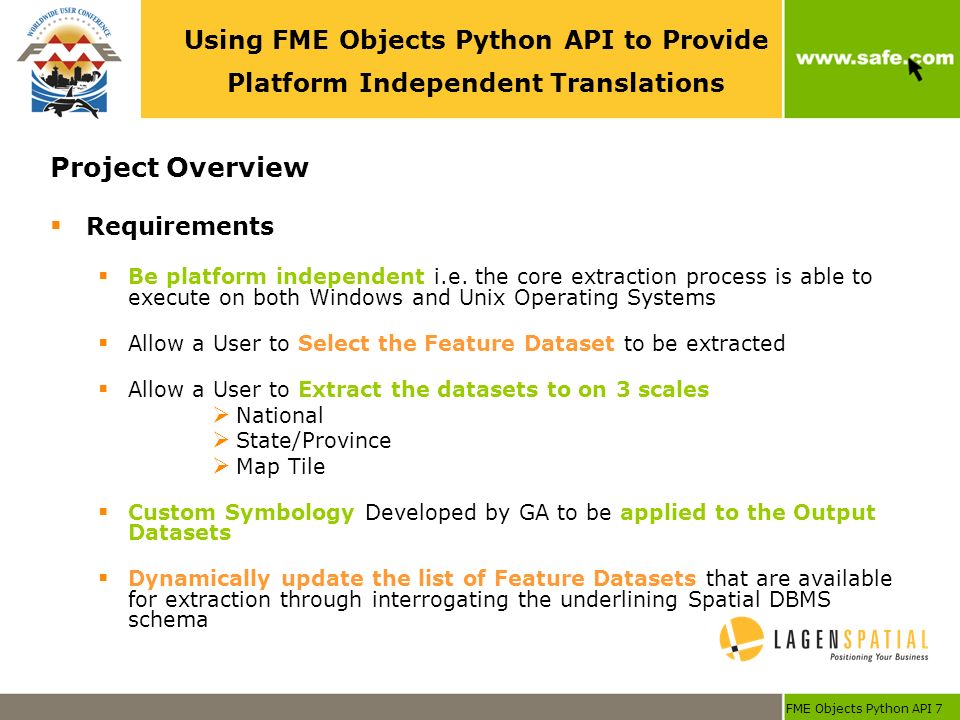

7. FME Objects Python API 7 Using FME Objects Python API to Provide Platform Independent Translations Project Overview  Requirements  Be platform independent i.e. the core extraction process is able to execute on both Windows and Unix Operating Systems  Allow a User to Select the Feature Dataset to be extracted  Allow a User to Extract the datasets to on 3 scales  National  State/Province  Map Tile  Custom Symbology Developed by GA to be applied to the Output Datasets  Dynamically update the list of Feature Datasets that are available for extraction through interrogating the underlining Spatial DBMS schema

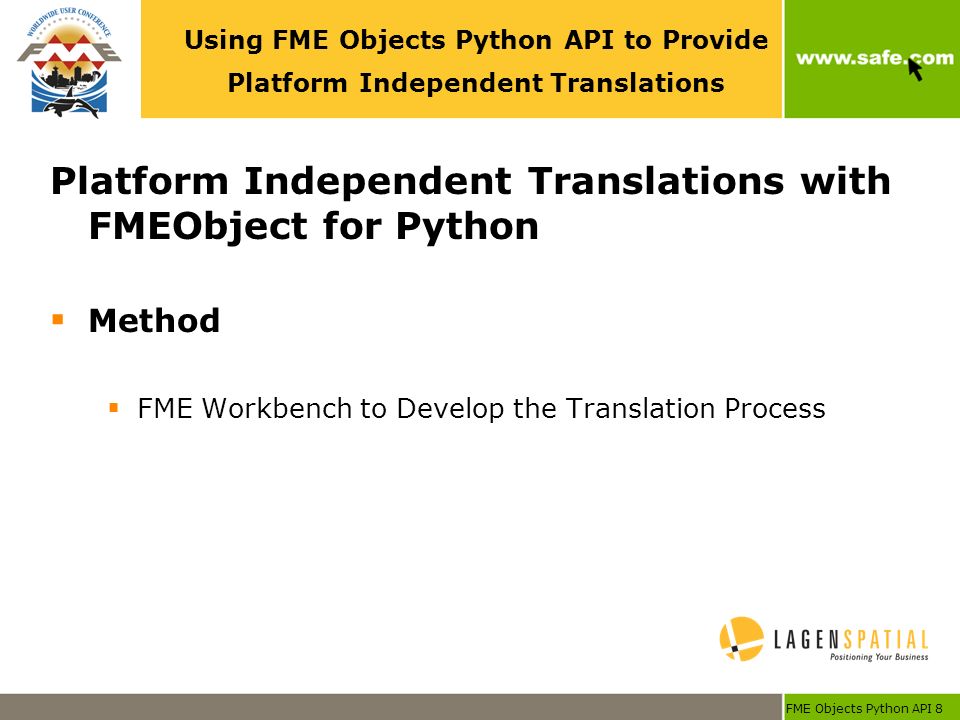

8. FME Objects Python API 8 Using FME Objects Python API to Provide Platform Independent Translations Platform Independent Translations with FMEObject for Python  Method  FME Workbench to Develop the Translation Process

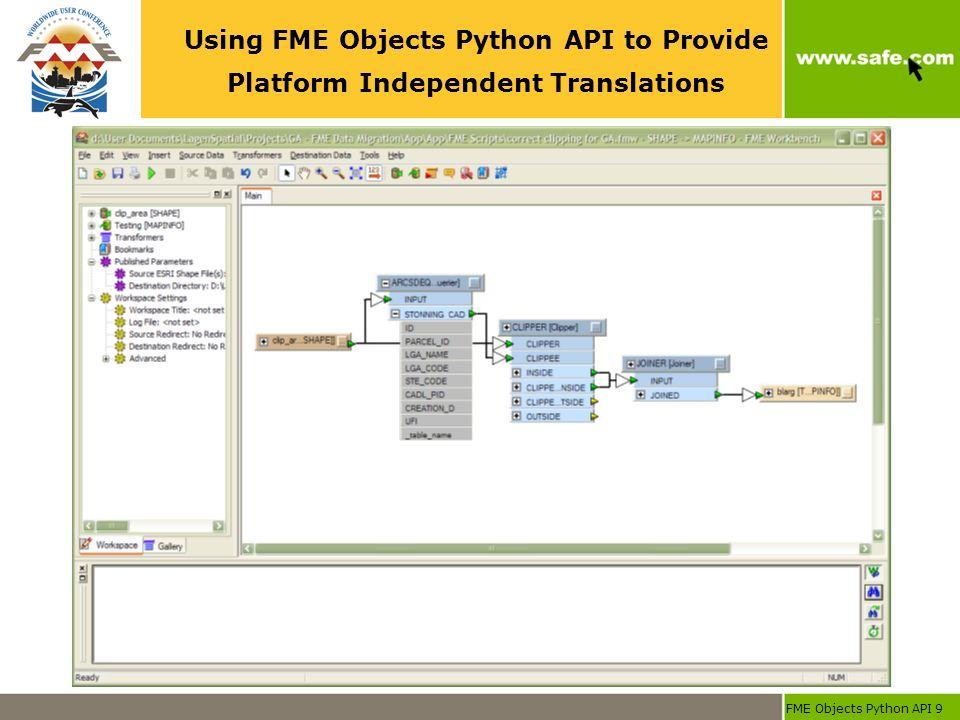

9. FME Objects Python API 9 Using FME Objects Python API to Provide Platform Independent Translations

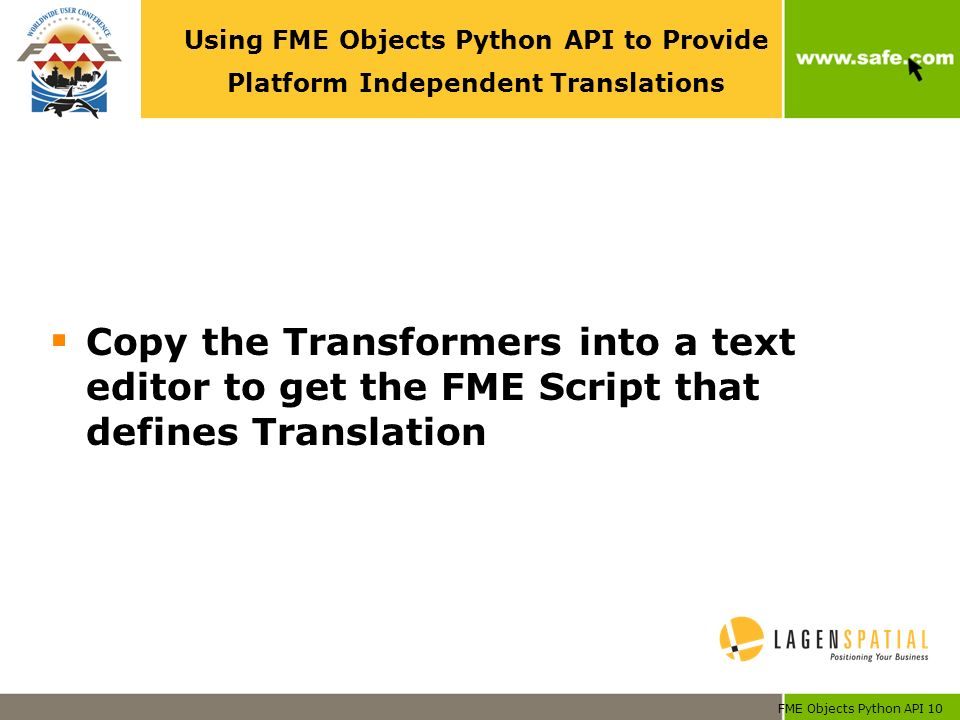

10. FME Objects Python API 10 Using FME Objects Python API to Provide Platform Independent Translations  Copy the Transformers into a text editor to get the FME Script that defines Translation

11. FME Objects Python API 11 ArcSDEQuerier MACRO wheremac SDE_SEARCH_METHOD_FIELD __SEARCH_METHOD INCLUDE [ if { {SDE_AREA_INTERSECT} == {SDE_NONE} } { puts {MACRO wheremac}} ] FACTORY_DEF * TeeFactory \ FACTORY_NAME ARCSDEQUERIER_Globber \ INPUT FEATURE_TYPE clip_area_0 \ OUTPUT FEATURE_TYPE __GLOBBED__ FACTORY_DEF * SDE30QueryFactory \ FACTORY_NAME ARCSDEQUERIER_Querier \ INPUT FEATURE_TYPE __GLOBBED__ \ @SupplyAttributes(__SERVER,lagen-pc- 1,__INSTANCE,esri_sde,__DATASET,sde,__USERID,sde,__PASSWORD,sdeuser,__TARGET_TABLE,STONNING_CAD,__SEA RCH_METHOD,SDE_AREA_INTERSECT,__WHERE_CLAUSE,"",__VERSION,SDE.DEFAULT) \ SDE_SERVER_FIELD __SERVER \ SDE_INSTANCE_FIELD __INSTANCE \ SDE_DATASET_FIELD __DATASET \ SDE_USERID_FIELD __USERID \ SDE_PASSWORD_FIELD __PASSWORD \ SDE_VERSION_NAME_FIELD __VERSION \ SDE_TARGET_TABLE_FIELD __TARGET_TABLE \ $(wheremac) \ WHERE_CLAUSE_FIELD __WHERE_CLAUSE \ QUERY_MODE QUERY \ SEARCH_ORDER SPATIAL_FIRST \ COMBINE_ATTRIBUTES ADD \ OUTPUT_DUPLICATES NO \ GET_SPATIAL_RELATIONS \ OUTPUT RESULT FEATURE_TYPE * \ @RemoveAttributes(__SERVER,__INSTANCE,__DATASET,__USERID,__PASSWORD,__TARGET_TABLE,__SEARCH_METHOD,__WHERE_CLAUSE,__VERSION) \ @SupplyAttributes(_table_name,@FeatureType()) \ @FeatureType(@Concatenate(ARCSDEQUERIER,"_",@FeatureType())) \ @Transform(SDE30,FME_GENERIC)

12. FME Objects Python API 12 ClippingFactory FACTORY_DEF * ClippingFactory \ FACTORY_NAME CLIPPER \ INPUT CLIPPER FEATURE_TYPE clip_area_1 \ INPUT CLIPPEE FEATURE_TYPE ARCSDEQUERIER_STONNING_CAD \ MULTICLIP YES \ CLIPPEE_ON_BOUNDARY INSIDE \ MERGE_CLIPPER_ATTRIBUTES No \ DO_NOT_AGGREGATE NO \ CLIPPER_ATTR_PREFIX "clipper_" \ OUTPUT INSIDE FEATURE_TYPE CLIPPER_INSIDE \ OUTPUT CLIPPED_INSIDE FEATURE_TYPE CLIPPER_CLIPPED_INSIDE \ OUTPUT EXTRA_CLIPPER FEATURE_TYPE CLIPPER__delete__ @Tcl2("FME_LogMessage fme_warn {Deleting extra clipper feature encountered which entered transformer CLIPPER}") \ OUTPUT NONPOLY_CLIPPER FEATURE_TYPE CLIPPER__delete__ @Tcl2("FME_LogMessage fme_warn {Deleting non-polygonal clipper feature which entered transformer CLIPPER}") FACTORY_DEF * TeeFactory \ FACTORY_NAME CLIPPER_Nuker \ INPUT FEATURE_TYPE CLIPPER__delete__ \ @Log("Offending feature was:")

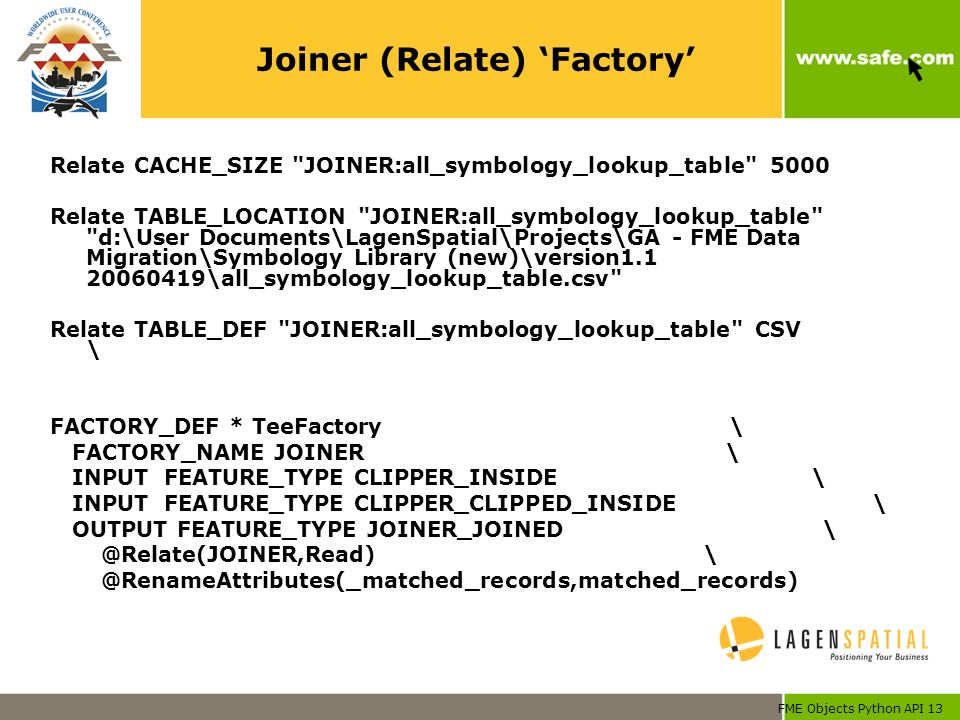

13. FME Objects Python API 13 Joiner (Relate) ‘Factory’ Relate CACHE_SIZE "JOINER:all_symbology_lookup_table" 5000 Relate TABLE_LOCATION "JOINER:all_symbology_lookup_table" "d:\User Documents\LagenSpatial\Projects\GA - FME Data Migration\Symbology Library (new)\version1.1 20060419\all_symbology_lookup_table.csv" Relate TABLE_DEF "JOINER:all_symbology_lookup_table" CSV \ FACTORY_DEF * TeeFactory \ FACTORY_NAME JOINER \ INPUT FEATURE_TYPE CLIPPER_INSIDE \ INPUT FEATURE_TYPE CLIPPER_CLIPPED_INSIDE \ OUTPUT FEATURE_TYPE JOINER_JOINED \ @Relate(JOINER,Read) \ @RenameAttributes(_matched_records,matched_records)

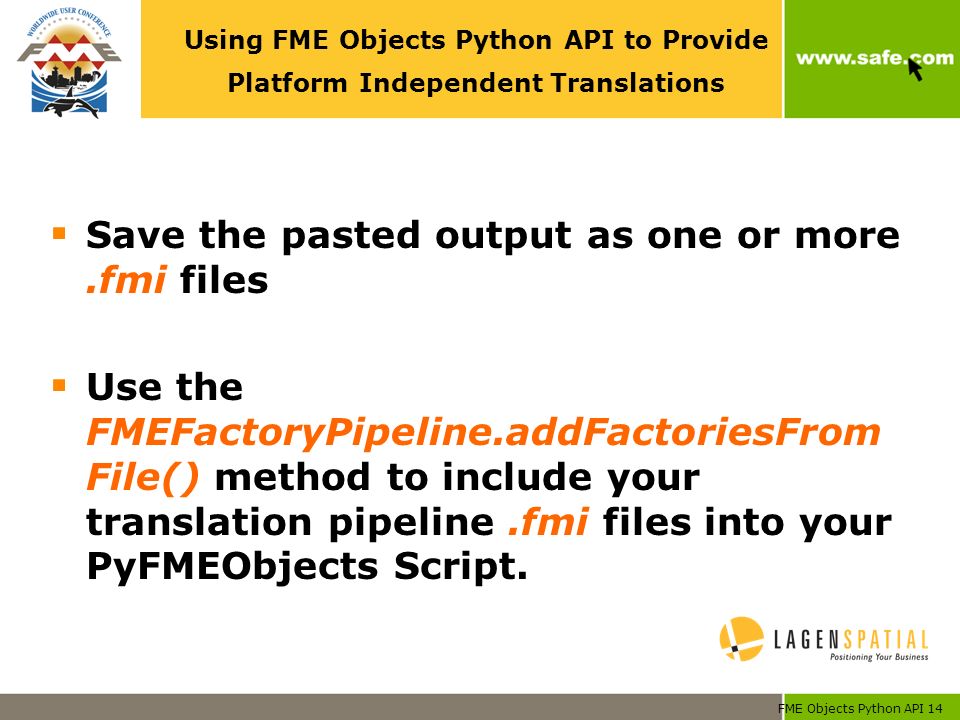

14. FME Objects Python API 14 Using FME Objects Python API to Provide Platform Independent Translations  Save the pasted output as one or more.fmi files  Use the FMEFactoryPipeline.addFactoriesFrom File() method to include your translation pipeline.fmi files into your PyFMEObjects Script.

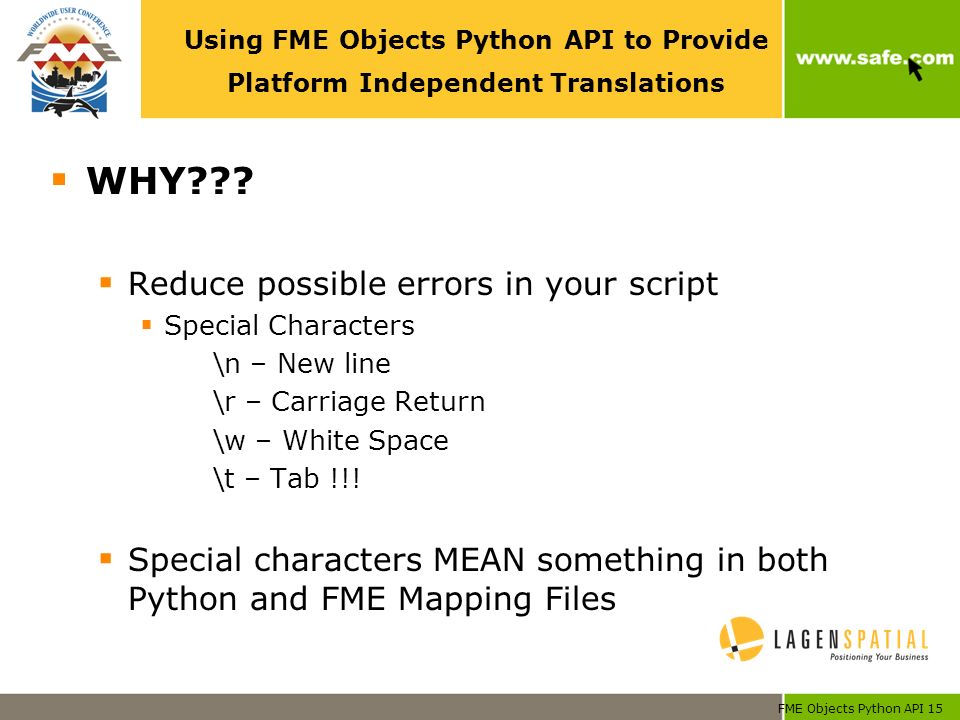

15. FME Objects Python API 15 Using FME Objects Python API to Provide Platform Independent Translations  WHY???  Reduce possible errors in your script  Special Characters \n – New line \r – Carriage Return \w – White Space \t – Tab !!!  Special characters MEAN something in both Python and FME Mapping Files

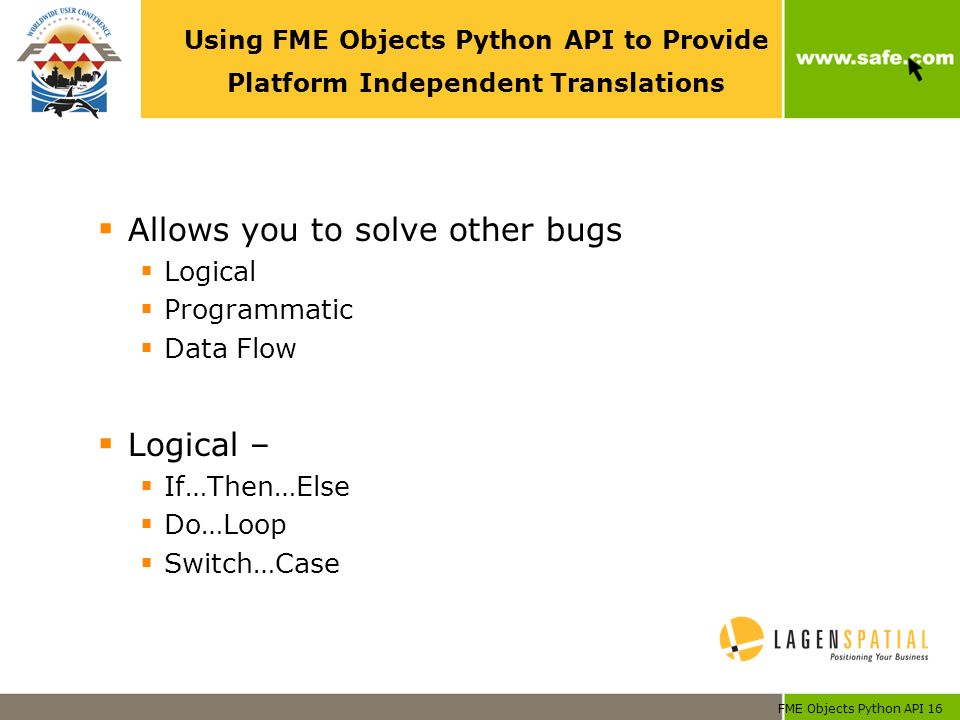

16. FME Objects Python API 16 Using FME Objects Python API to Provide Platform Independent Translations  Allows you to solve other bugs  Logical  Programmatic  Data Flow  Logical –  If…Then…Else  Do…Loop  Switch…Case

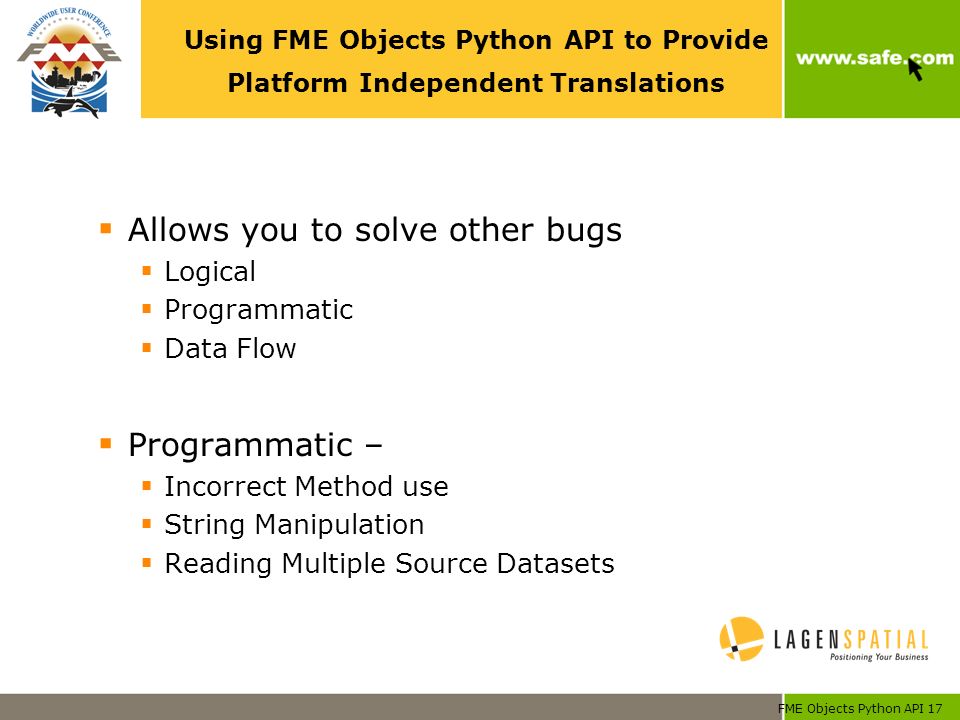

17. FME Objects Python API 17 Using FME Objects Python API to Provide Platform Independent Translations  Allows you to solve other bugs  Logical  Programmatic  Data Flow  Programmatic –  Incorrect Method use  String Manipulation  Reading Multiple Source Datasets

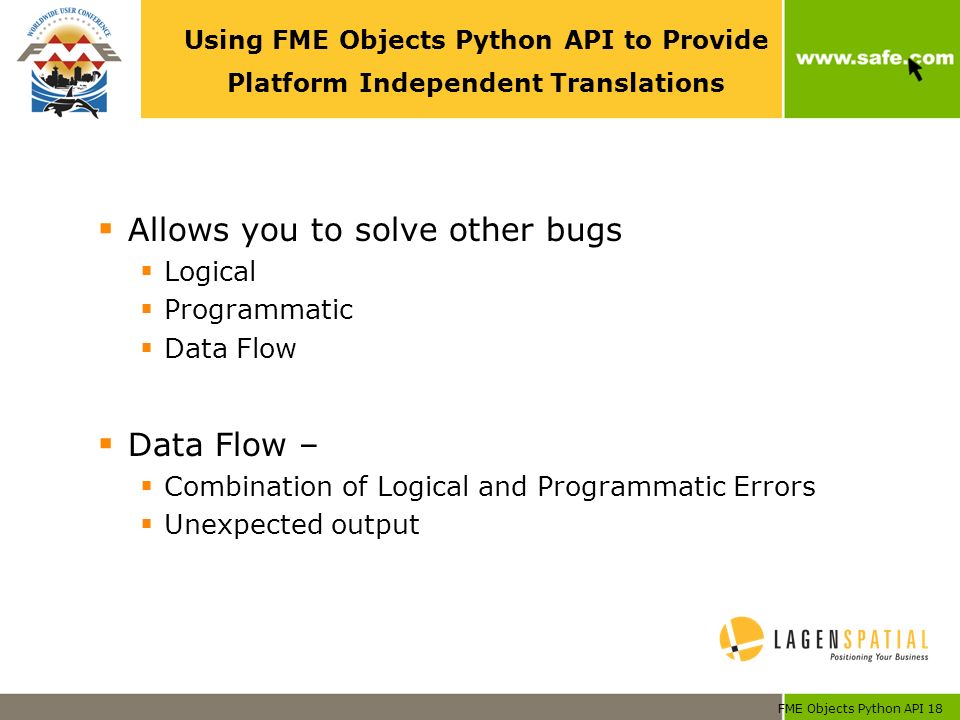

18. FME Objects Python API 18 Using FME Objects Python API to Provide Platform Independent Translations  Allows you to solve other bugs  Logical  Programmatic  Data Flow  Data Flow –  Combination of Logical and Programmatic Errors  Unexpected output

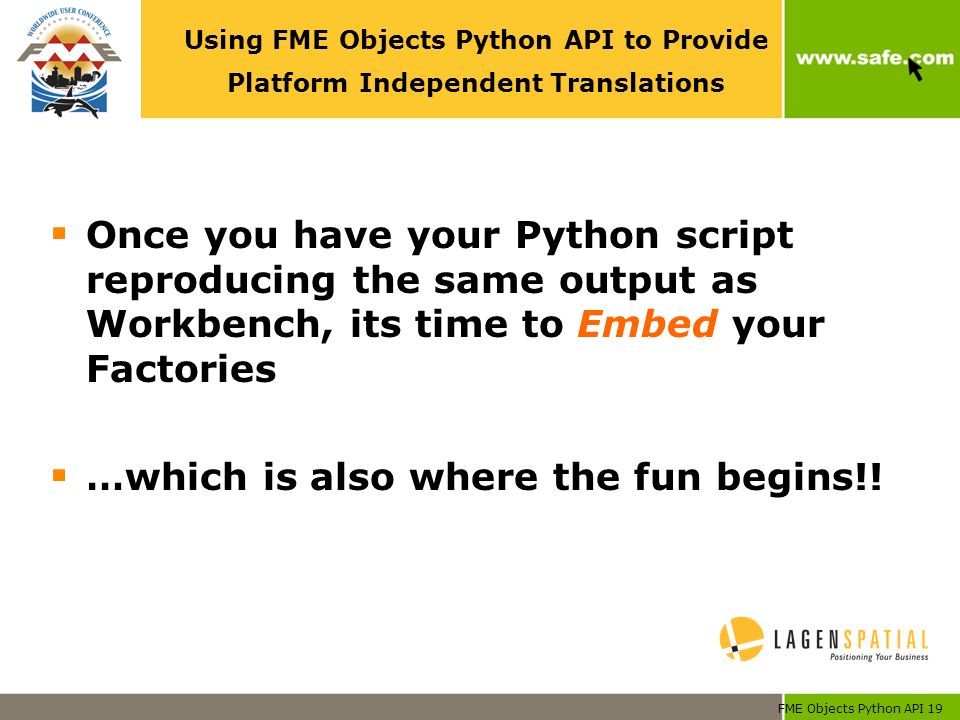

19. FME Objects Python API 19 Using FME Objects Python API to Provide Platform Independent Translations  Once you have your Python script reproducing the same output as Workbench, its time to Embed your Factories  …which is also where the fun begins!!

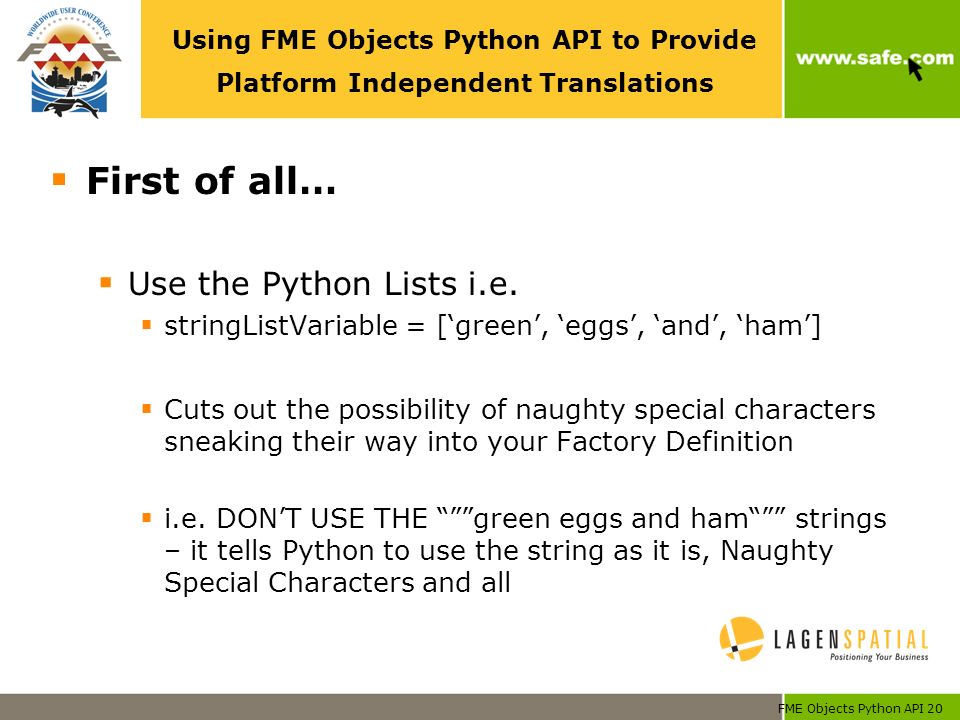

20. FME Objects Python API 20 Using FME Objects Python API to Provide Platform Independent Translations  First of all…  Use the Python Lists i.e.  stringListVariable = [‘green’, ‘eggs’, ‘and’, ‘ham’]  Cuts out the possibility of naughty special characters sneaking their way into your Factory Definition  i.e. DON’T USE THE “””green eggs and ham“”” strings – it tells Python to use the string as it is, Naughty Special Characters and all

21. FME Objects Python API 21 GOOD fme_session.config(['Relate', 'RELATION_DEF', 'JOINER', '1:0..1+', 'TABLE', 'JOINER:all_symbology_lookup_table', 'UNIQUE(Esri_No,feature_type)', 'JOIN', 'Esri_No', 'TO', 'SYMBOL', 'JOIN', 'feature_type', 'TO', 'fme_type', 'MATCHED_RECORDS_ATTR', 'matched_records', 'TRIM_TRAILING', 'No', 'TRANSFER', 'mapinfo_brush_background', 'TO', 'mapinfo_brush_background', 'TRANSFER', 'mapinfo_brush_foreground', 'TO', 'mapinfo_brush_foreground', 'TRANSFER', 'mapinfo_brush_pattern', 'TO', 'mapinfo_brush_pattern', 'TRANSFER', 'mapinfo_pen_color', 'TO', 'mapinfo_pen_color', 'TRANSFER', 'mapinfo_pen_pattern', 'TO', 'mapinfo_pen_pattern', 'TRANSFER', 'mapinfo_pen_width', 'TO', 'mapinfo_pen_width', 'TRANSFER', 'mapinfo_symbol_angle', 'TO', 'mapinfo_symbol_angle', 'TRANSFER', 'mapinfo_symbol_color', 'TO', 'mapinfo_symbol_color', 'TRANSFER', 'mapinfo_symbol_file_name', 'TO', 'mapinfo_symbol_file_name', 'TRANSFER', 'mapinfo_symbol_font', 'TO', 'mapinfo_symbol_font', 'TRANSFER', 'mapinfo_symbol_shape', 'TO', 'mapinfo_symbol_shape', 'TRANSFER', 'mapinfo_symbol_size', 'TO', 'mapinfo_symbol_size', 'TRANSFER', 'mif_brush_background', 'TO', 'mif_brush_background', 'TRANSFER', 'mif_brush_foreground', 'TO', 'mif_brush_foreground', 'TRANSFER', 'mif_brush_pattern', 'TO', 'mif_brush_pattern', 'TRANSFER', 'mif_pen_color', 'TO', 'mif_pen_color', 'TRANSFER', 'mif_pen_pattern', 'TO', 'mif_pen_pattern', 'TRANSFER', 'mif_pen_width', 'TO', 'mif_pen_width', 'TRANSFER', 'mif_symbol_angle', 'TO', 'mif_symbol_angle', 'TRANSFER', 'mif_symbol_color', 'TO', 'mif_symbol_color', 'TRANSFER', 'mif_symbol_file_name', 'TO', 'mif_symbol_file_name', 'TRANSFER', 'mif_symbol_font', 'TO', 'mif_symbol_font', 'TRANSFER', 'mif_symbol_shape', 'TO', 'mif_symbol_shape', 'TRANSFER', 'mif_symbol_size', 'TO', 'mif_symbol_size',])

22. FME Objects Python API 22 BAD fme_pipeline.addFactoryFromString( """FACTORY_DEF * SDE30QueryFactory \ FACTORY_NAME ARCSDEQUERIER_Querier \ INPUT FEATURE_TYPE __GLOBBED__ \ @SupplyAttributes(__SERVER,""" + server + """,__INSTANCE,port:""" + instance +""",__DATASET,""" + _dataset + """,__USERID,""" + username + """,__PASSWORD,""" + password + """,__TARGET_TABLE,""" + _owner + "." + featuredataset.upper() + """,__SEARCH_METHOD,SDE_ENVELOPE,__VERSION,SDE.DEFAULT) \ SDE_SERVER_FIELD __SERVER \ SDE_INSTANCE_FIELD __INSTANCE \ SDE_DATASET_FIELD __DATASET \ SDE_USERID_FIELD __USERID \ SDE_PASSWORD_FIELD __PASSWORD \ SDE_VERSION_NAME_FIELD __VERSION \ SDE_TARGET_TABLE_FIELD __TARGET_TABLE \ SDE_SEARCH_METHOD_FIELD __SEARCH_METHOD QUERY_MODE QUERY \ SEARCH_ORDER OPTIMIZE \ COMBINE_ATTRIBUTES MERGE \ GET_SPATIAL_RELATIONS \ OUTPUT RESULT FEATURE_TYPE ARCSDEQUERIER_OUTPUT \ @RemoveAttributes(__SERVER,__INSTANCE,__DATASET,__USERID,__PASSWORD,__TARG ET_TABLE,__SEARCH_METHOD,__WHERE_CLAUSE,__VERSION) \ @SupplyAttributes(_table_name,@FeatureType()) \ @Transform(SDE30,FME_GENERIC)""" )

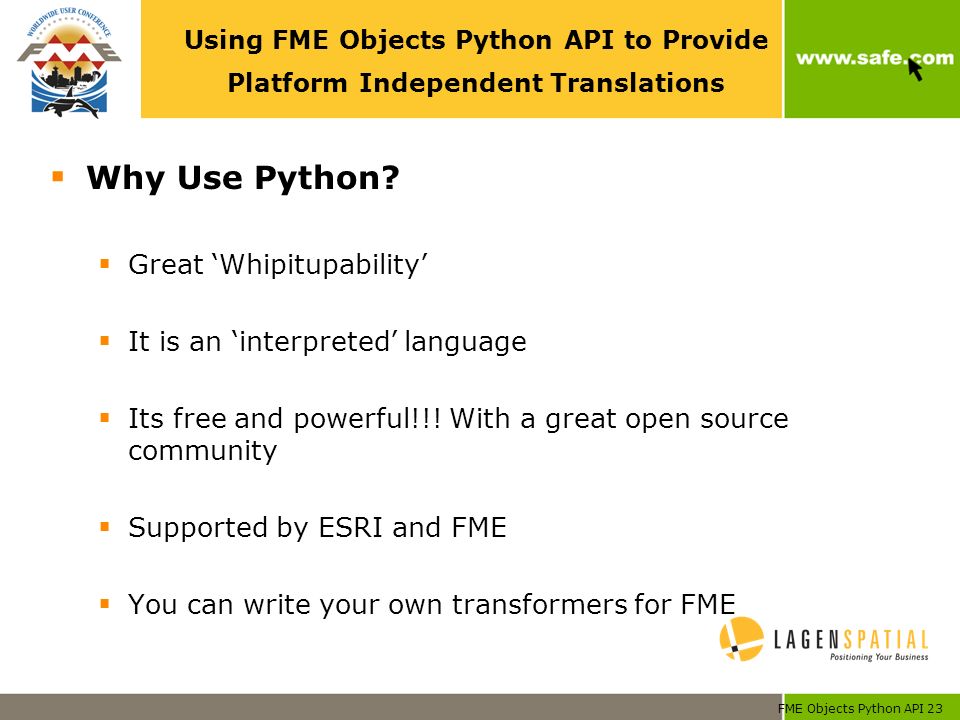

23. FME Objects Python API 23 Using FME Objects Python API to Provide Platform Independent Translations  Why Use Python?  Great ‘Whipitupability’  It is an ‘interpreted’ language  Its free and powerful!!! With a great open source community  Supported by ESRI and FME  You can write your own transformers for FME

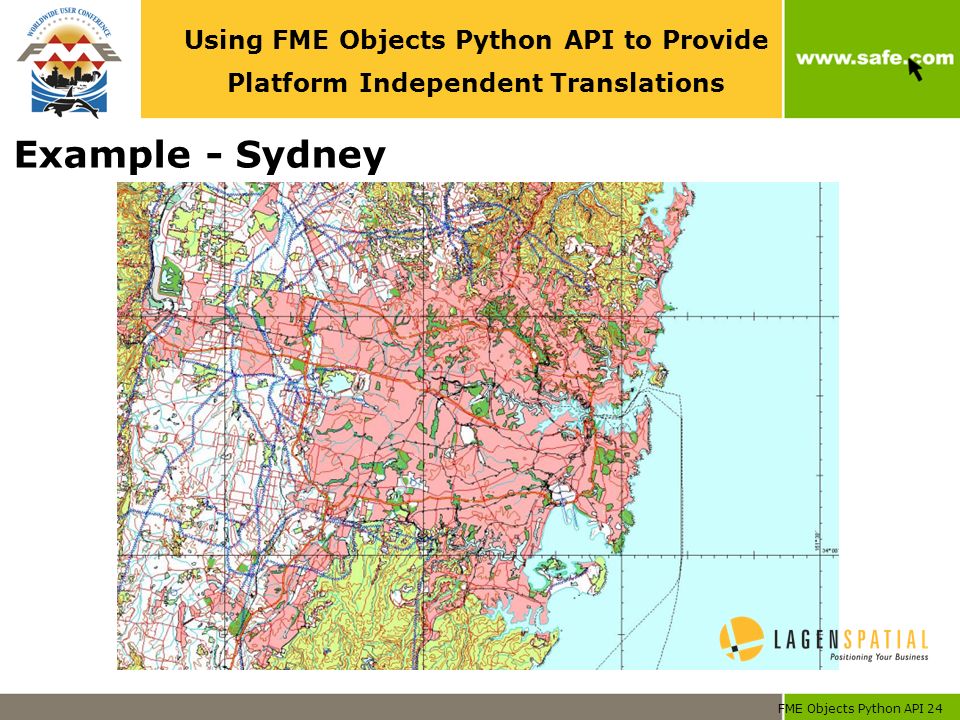

24. FME Objects Python API 24 Using FME Objects Python API to Provide Platform Independent Translations Example - Sydney

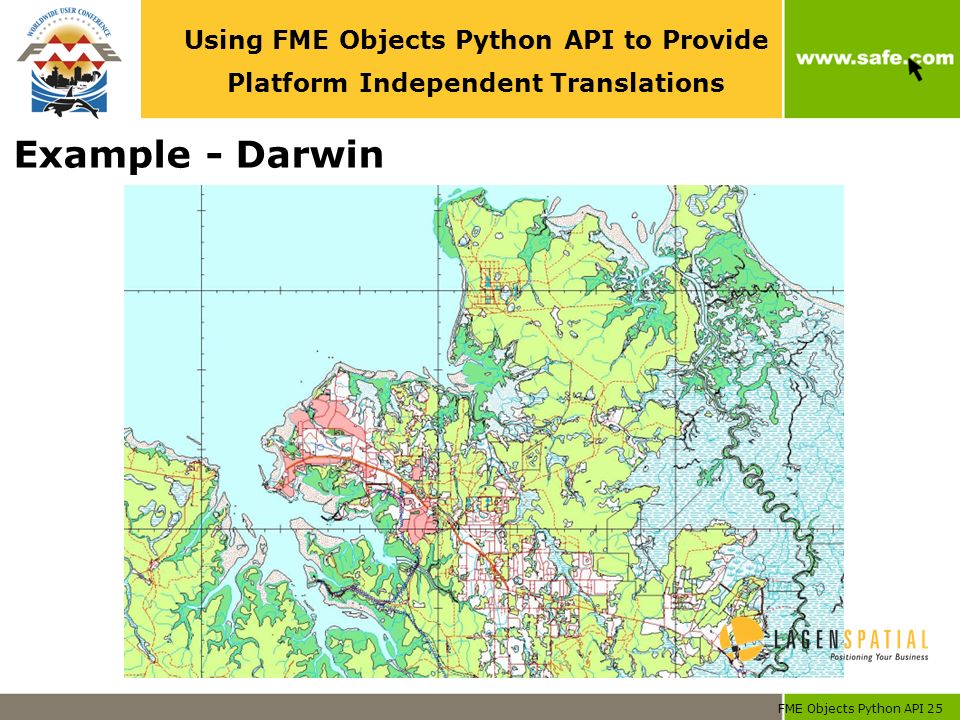

25. FME Objects Python API 25 Using FME Objects Python API to Provide Platform Independent Translations Example - Darwin

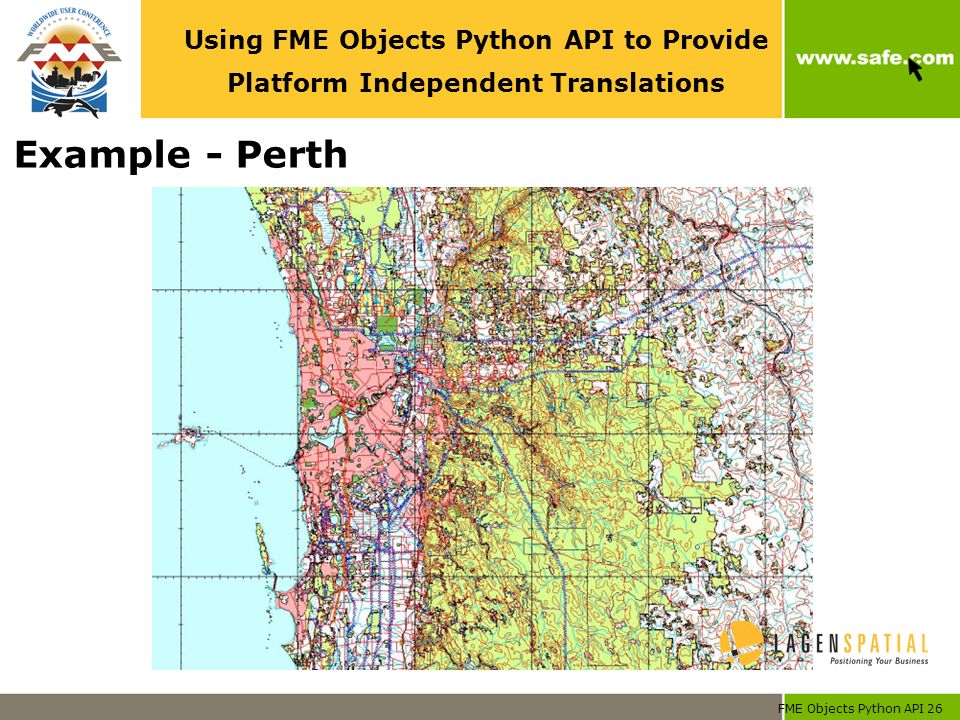

26. FME Objects Python API 26 Using FME Objects Python API to Provide Platform Independent Translations Example - Perth

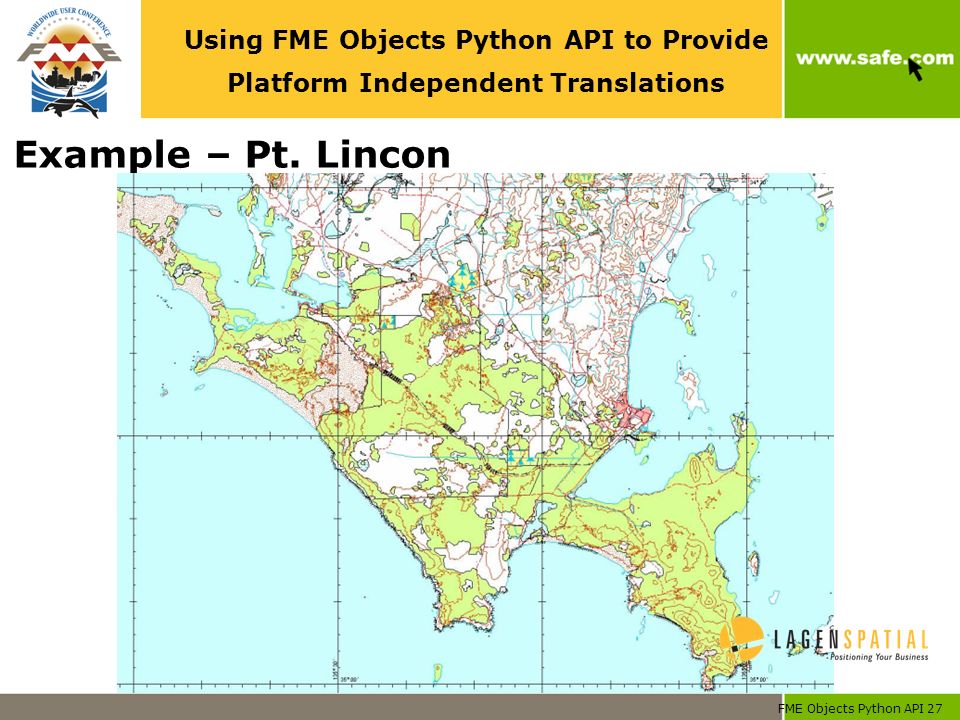

27. FME Objects Python API 27 Using FME Objects Python API to Provide Platform Independent Translations Example – Pt. Lincon

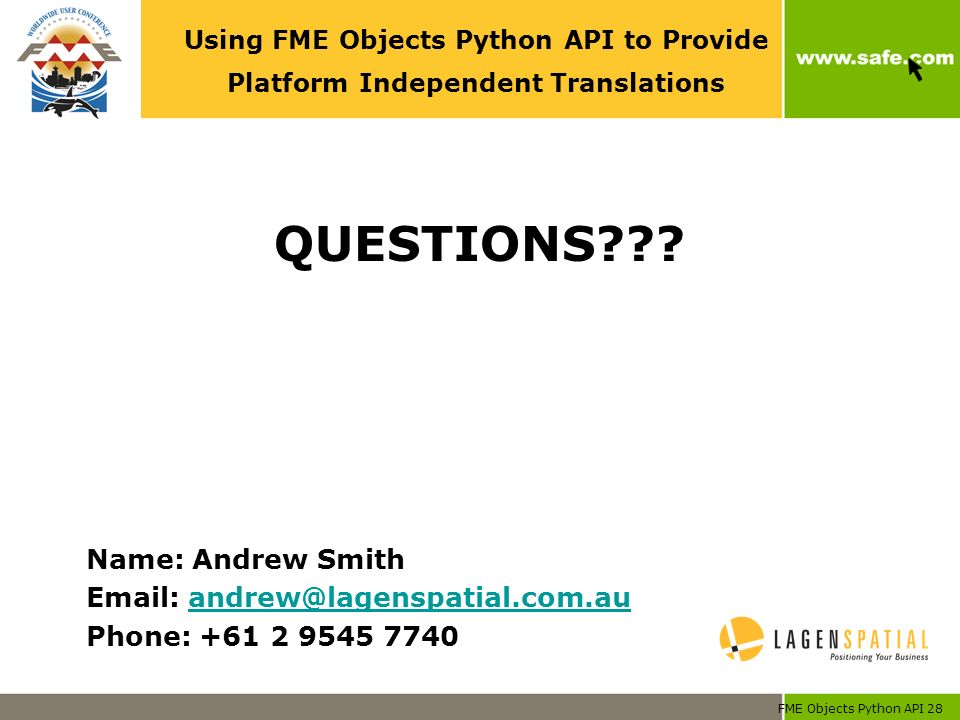

28. FME Objects Python API 28 Using FME Objects Python API to Provide Platform Independent Translations QUESTIONS??? Name: Andrew Smith Email: andrew@lagenspatial.com.auandrew@lagenspatial.com.au Phone: +61 2 9545 7740
