1. III. Periodic Trends

2. Types of Periodic Trends Atomic size (atomic radius) Ionic size (ionic radius) Ionization energy electronegativity

3. Trends in Atomic Size The atomic radius is the distance between the nucleus and the outer edge of the electron cloud.

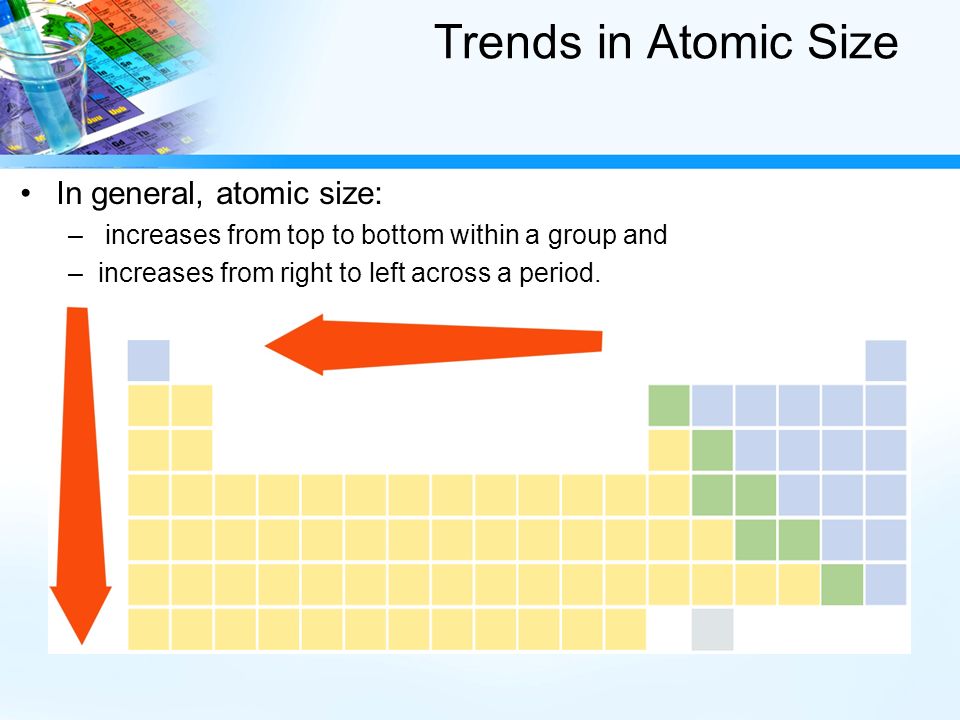

4. Trends in Atomic Size In general, atomic size: – increases from top to bottom within a group and –increases from right to left across a period.

5. Atomic radius vs. atomic number

6. Trends in Atomic Size

7. Ions Ions form when electrons are transferred between atoms. If an atom loses an electron: cation (positive charge) METALS ALWAYS LOSE (electrons)

8. Ions If an atom gains an electron: anion (negative charge) Non-metals always gain electrons

9. Trends in Ionic Size The size of ions: –Cations (LOSE ELECTRONS) are always smaller than the original atoms. –Anions (GAIN ELECTRONS) are always larger than the original atoms.

10. Trends in Ionic Size Trends in Ionic Size: Size of anions and cations increase from right to left Size generally increases Negative Ions (anions) Positive Ions (cations)

11. Trends in Ionization Energy Atoms hold onto its electrons with different “strengths” The energy required to remove an electron from an atom is called ionization energy. –Energy required to remove the first electron is called the first ionization energy. –Energy required to remove an electron from an ion with a 1+ charge is called the second ionization energy.

12. Trends in Ionization Energy First ionization energy: –increases from bottom to top within a group, and –increases from left to right across a period.

13. Ionization energy vs. atomic number

14. Trends in Electronegativity * * Fluorine has the highest electronegativity Electronegativity is the ability of an atom to attract electrons when the atom is in a compound

15. Trends in Electronegativity Electronegativity is the ability of an atom to attract electrons when the atom is in a compound. Fluorine has the highest electronegativity. Noble gases have zero electronegativity (they already have a full valence shell)
