1. Climate Change and Conservation

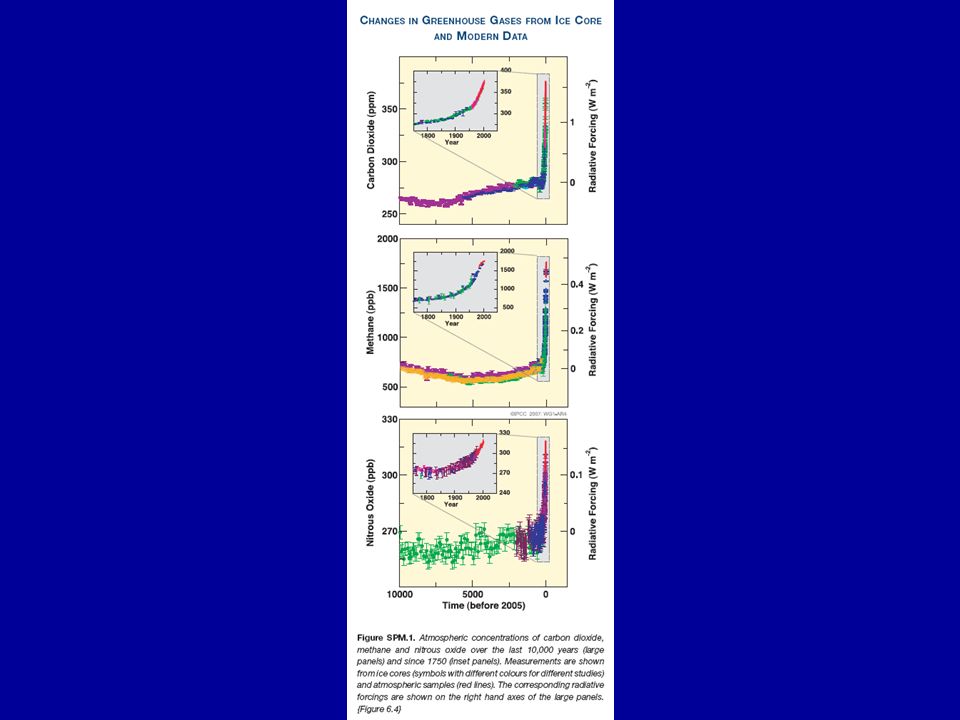

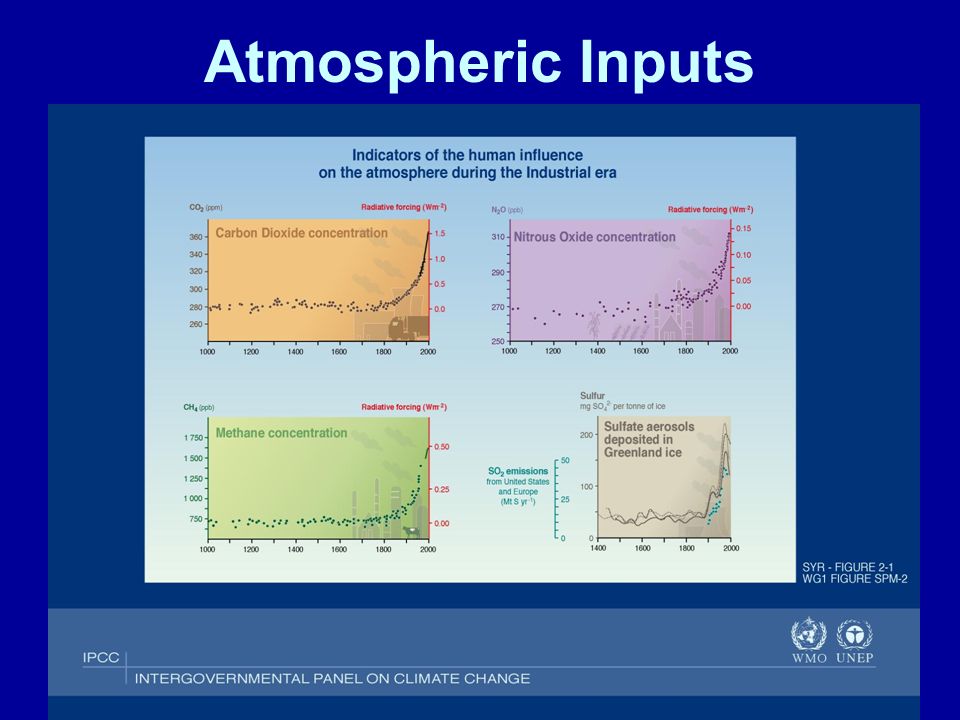

3. Atmospheric Inputs

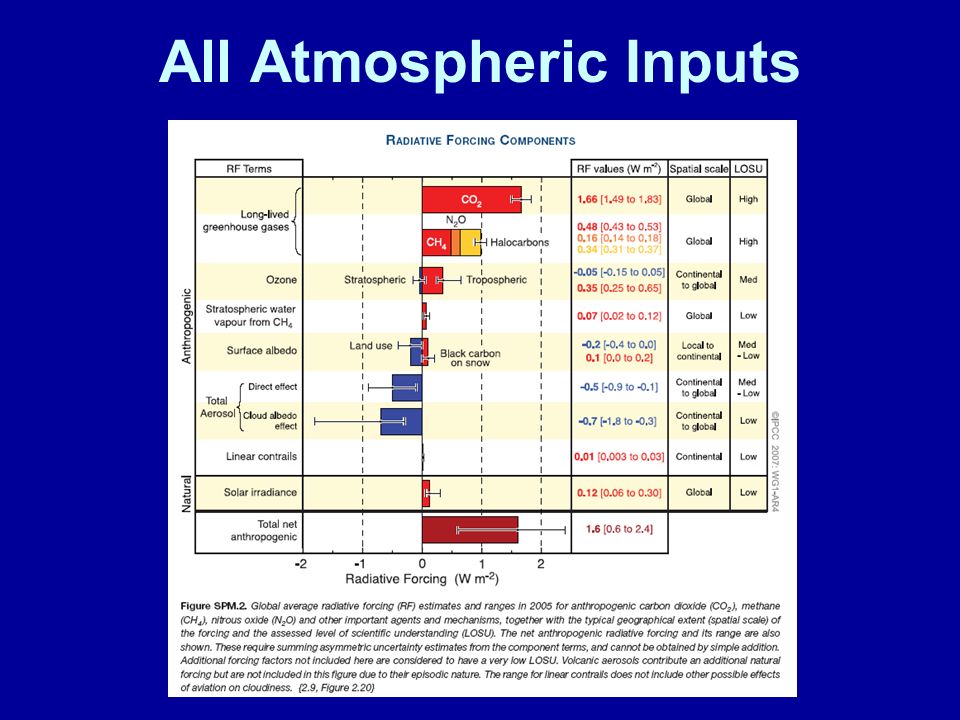

4. All Atmospheric Inputs

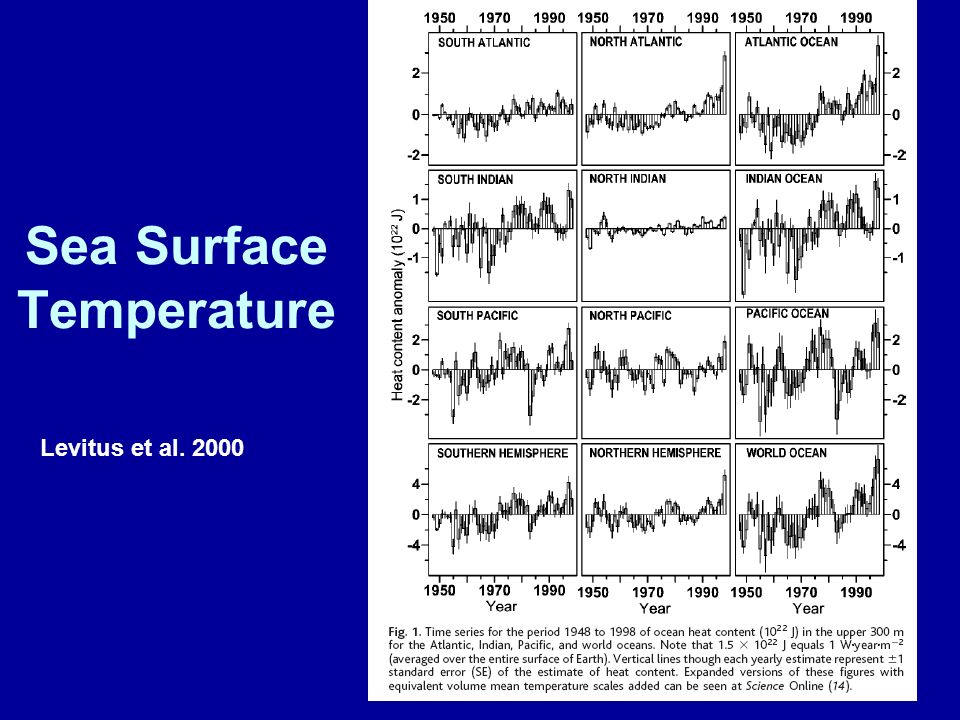

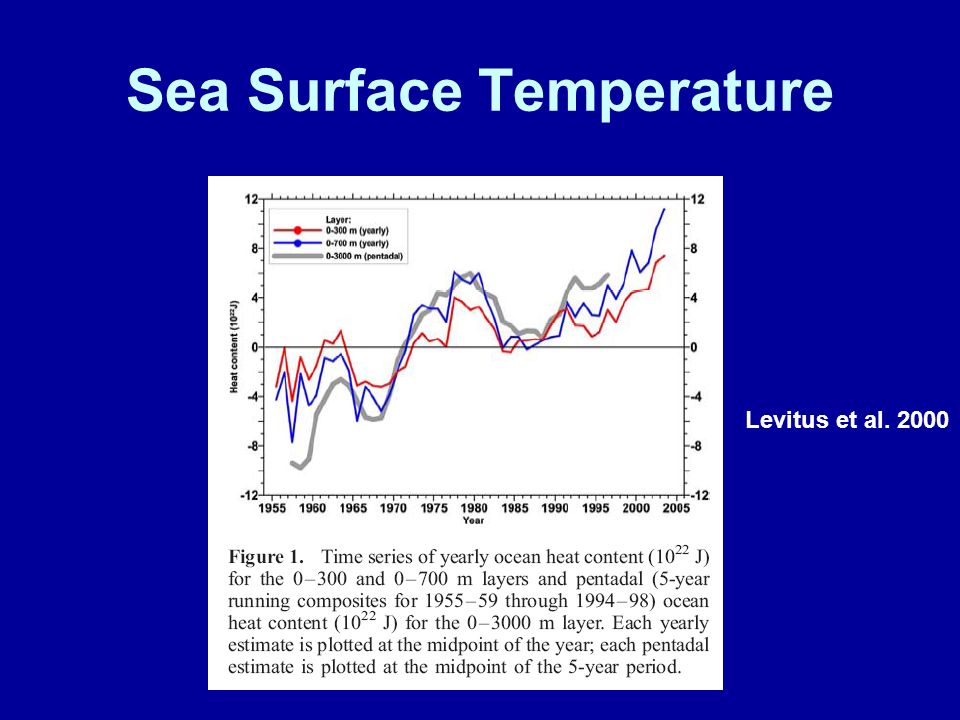

7. Sea Surface Temperature Levitus et al. 2000

8. Sea Surface Temperature Levitus et al. 2000

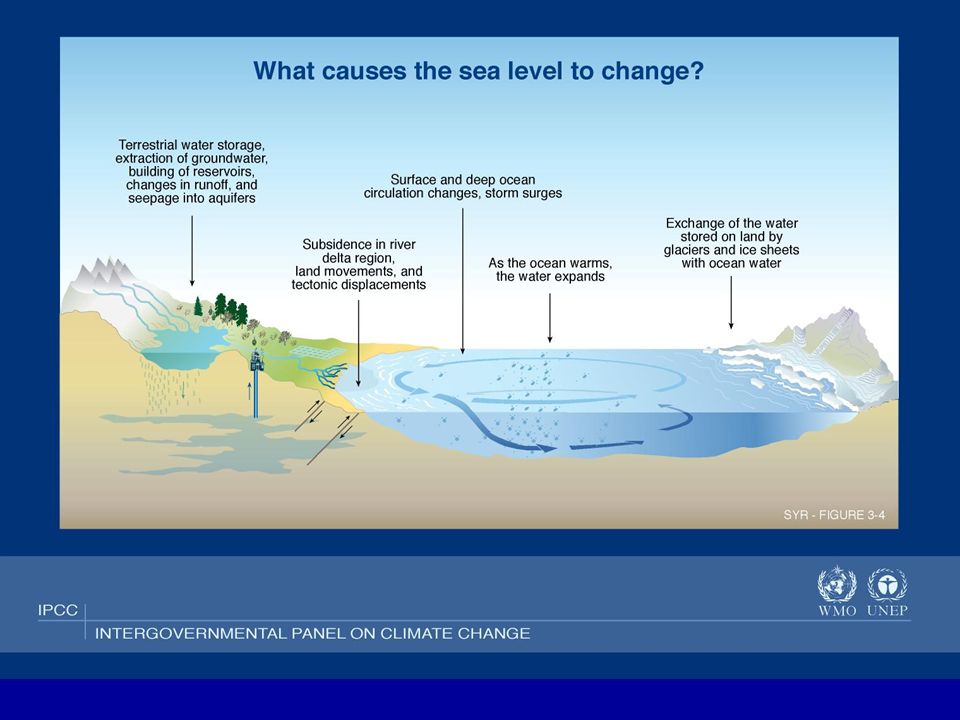

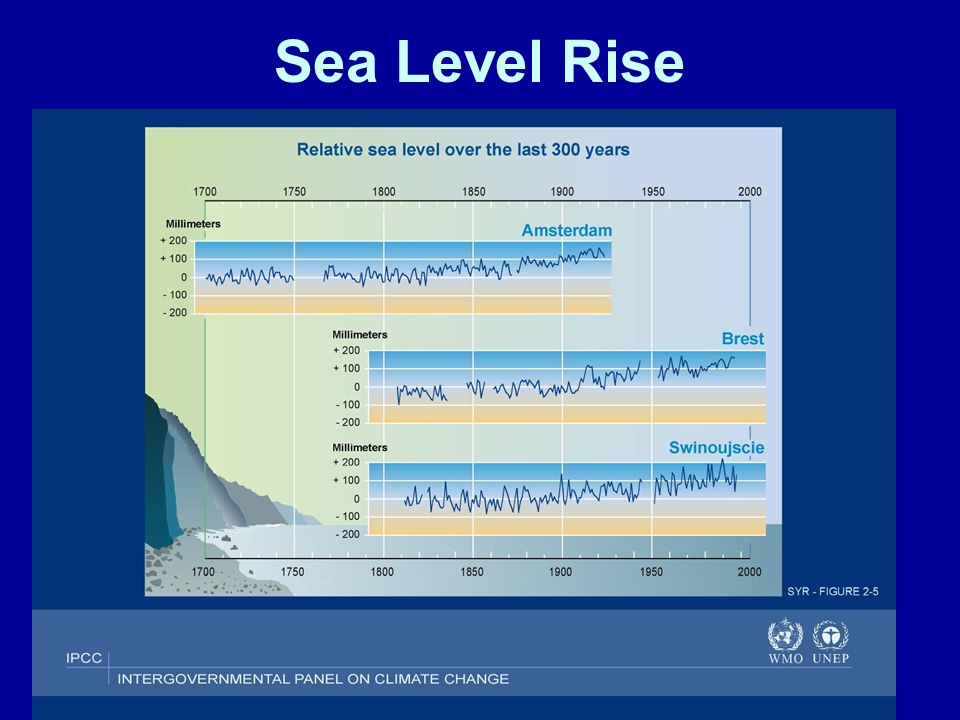

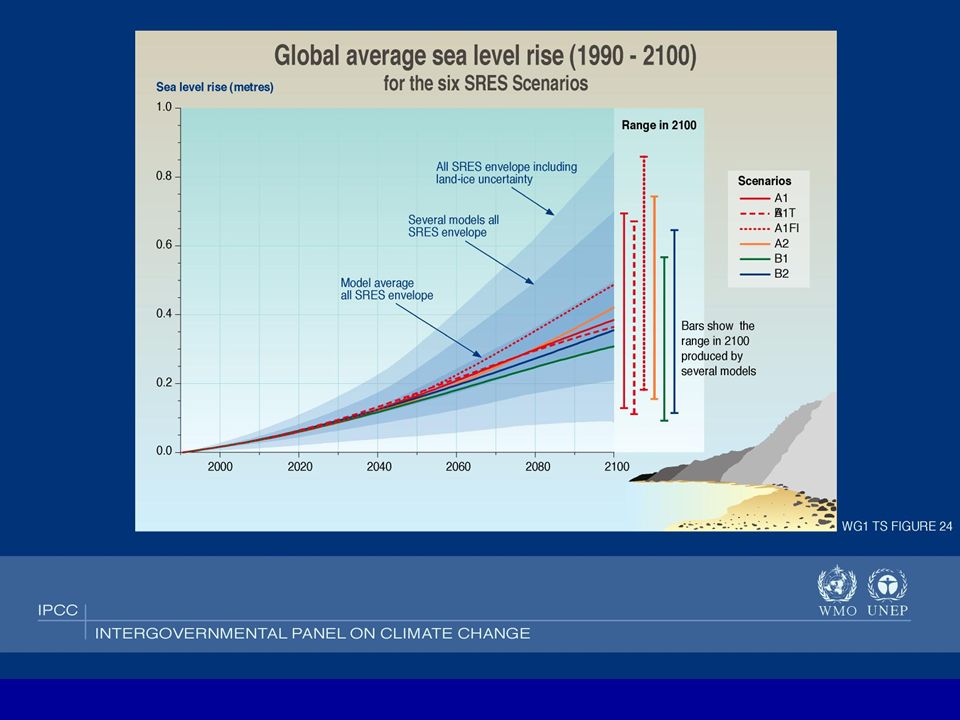

9. Sea Level Rise

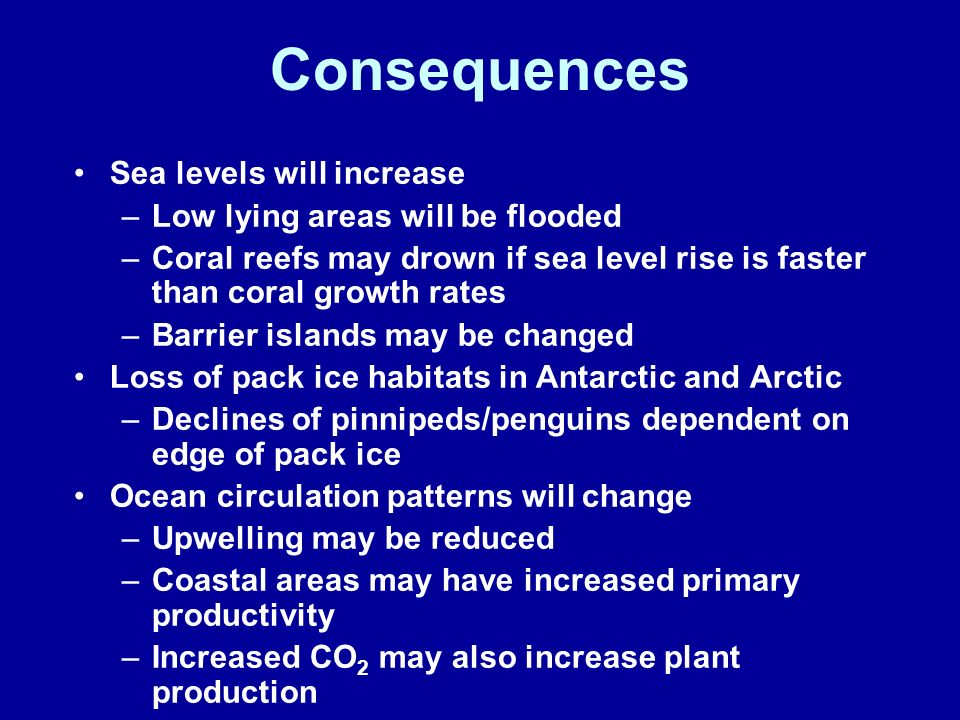

12. Consequences Sea levels will increase –Low lying areas will be flooded –Coral reefs may drown if sea level rise is faster than coral growth rates –Barrier islands may be changed Loss of pack ice habitats in Antarctic and Arctic –Declines of pinnipeds/penguins dependent on edge of pack ice Ocean circulation patterns will change –Upwelling may be reduced –Coastal areas may have increased primary productivity –Increased CO 2 may also increase plant production

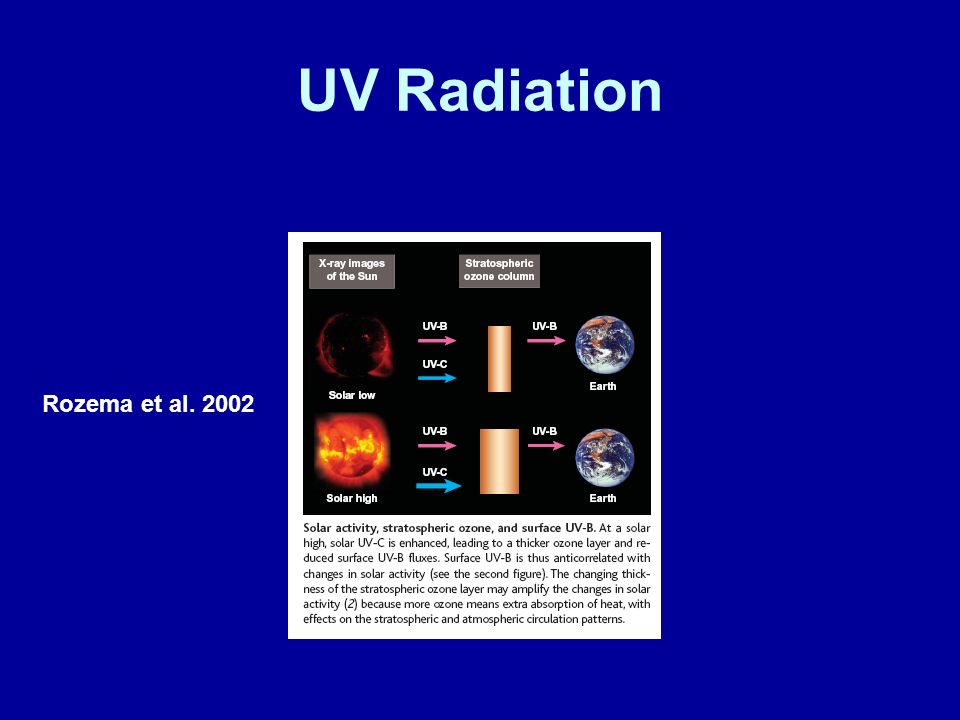

13. UV Radiation Rozema et al. 2002

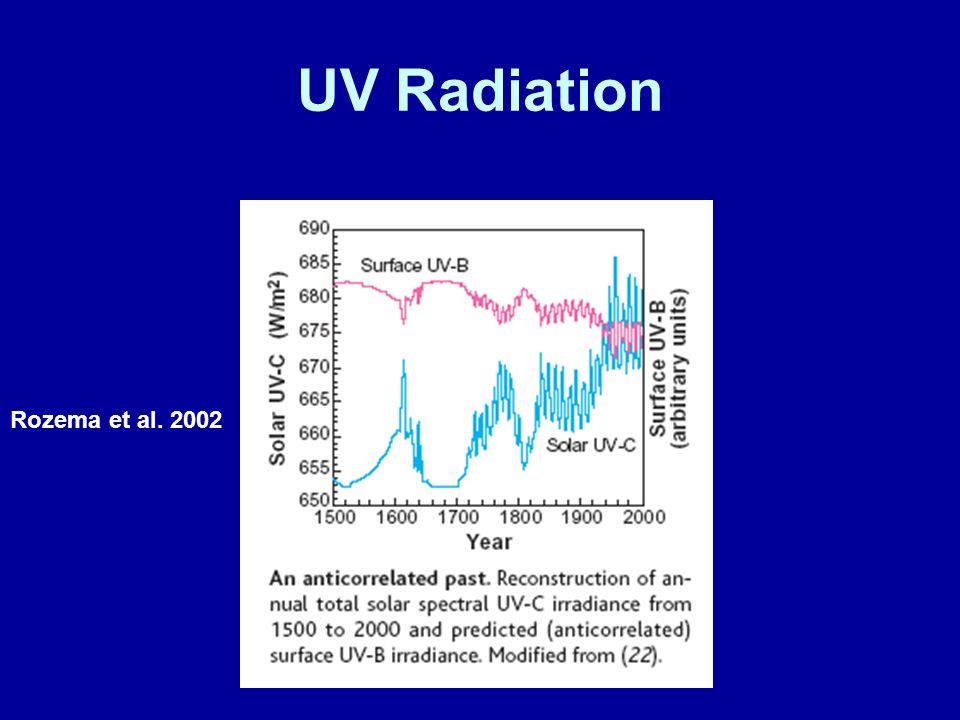

14. UV Radiation Rozema et al. 2002

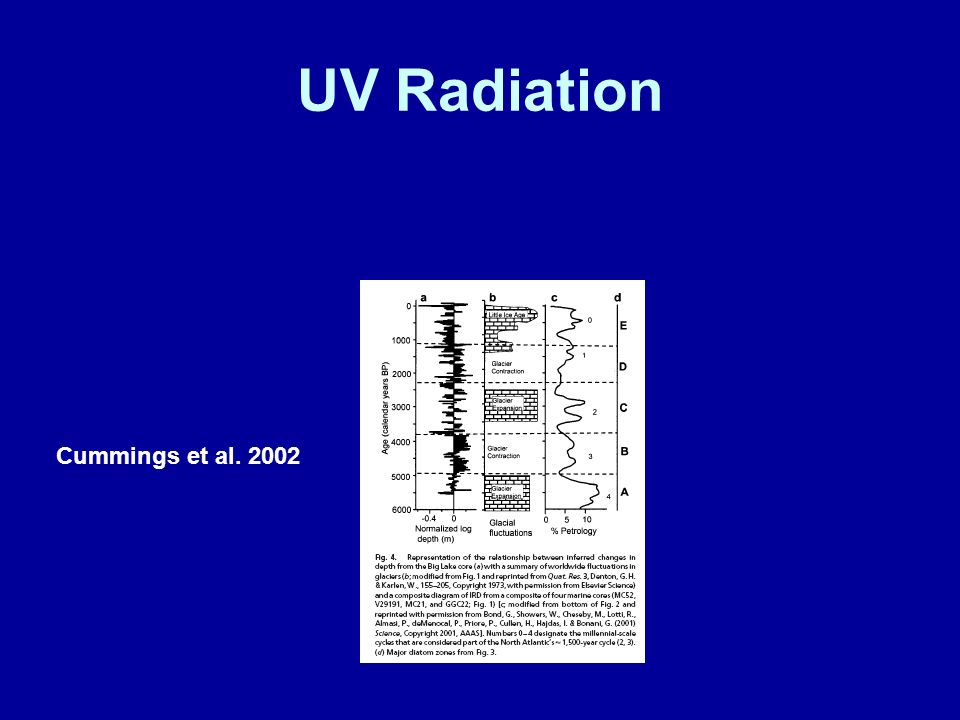

15. UV Radiation Cummings et al. 2002

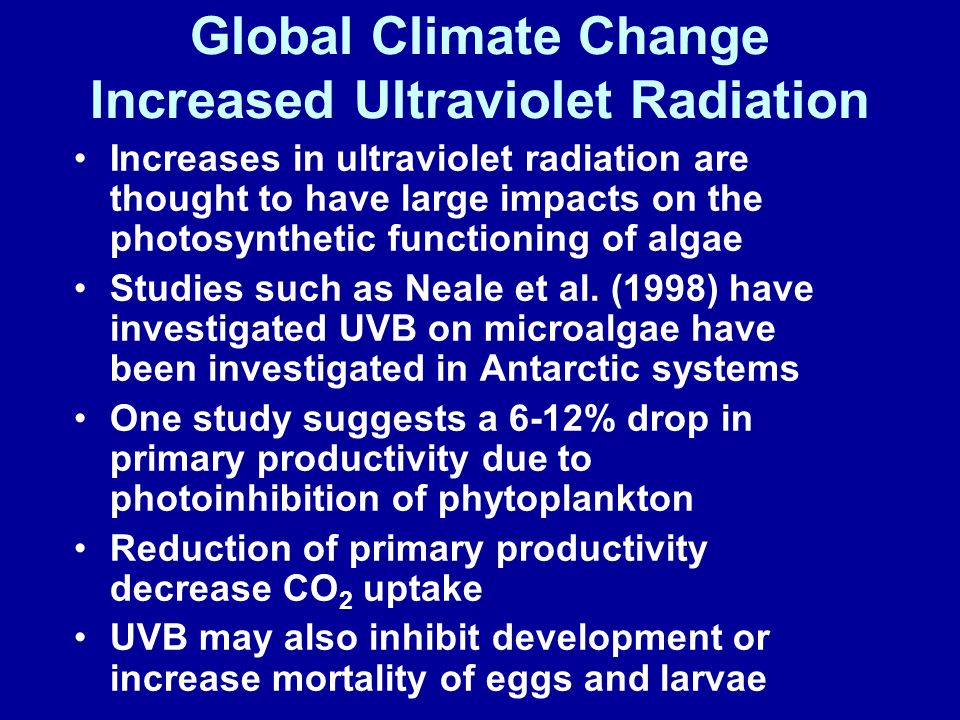

16. Global Climate Change Increased Ultraviolet Radiation Increases in ultraviolet radiation are thought to have large impacts on the photosynthetic functioning of algae Studies such as Neale et al. (1998) have investigated UVB on microalgae have been investigated in Antarctic systems One study suggests a 6-12% drop in primary productivity due to photoinhibition of phytoplankton Reduction of primary productivity decrease CO 2 uptake UVB may also inhibit development or increase mortality of eggs and larvae

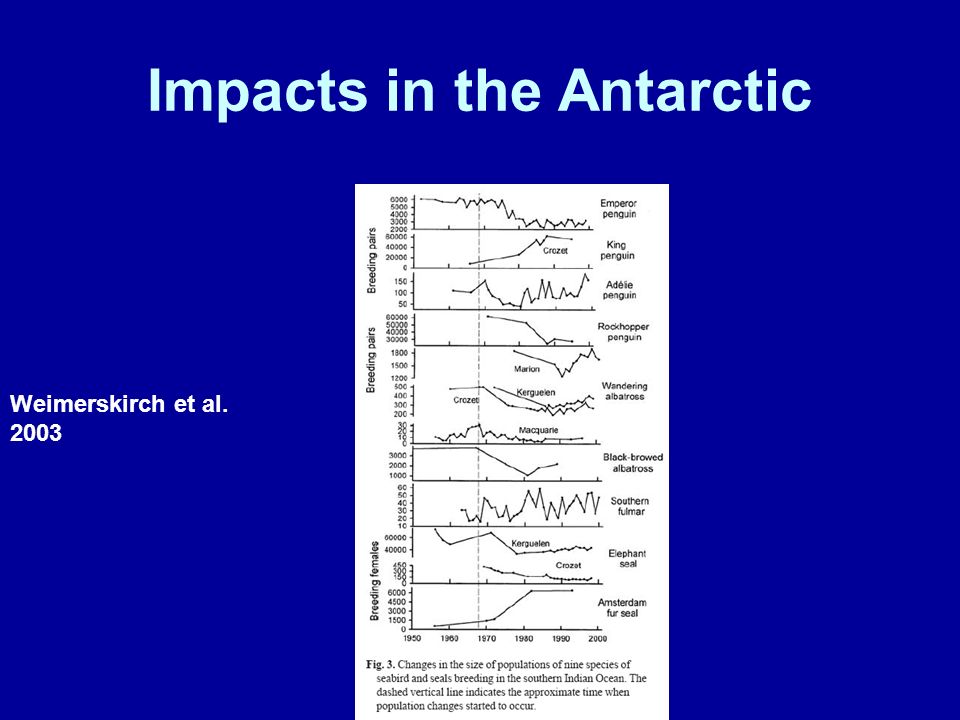

17. Impacts in the Antarctic Weimerskirch et al. 2003

18. Impacts in the Antarctic Weimerskirch et al. 2003

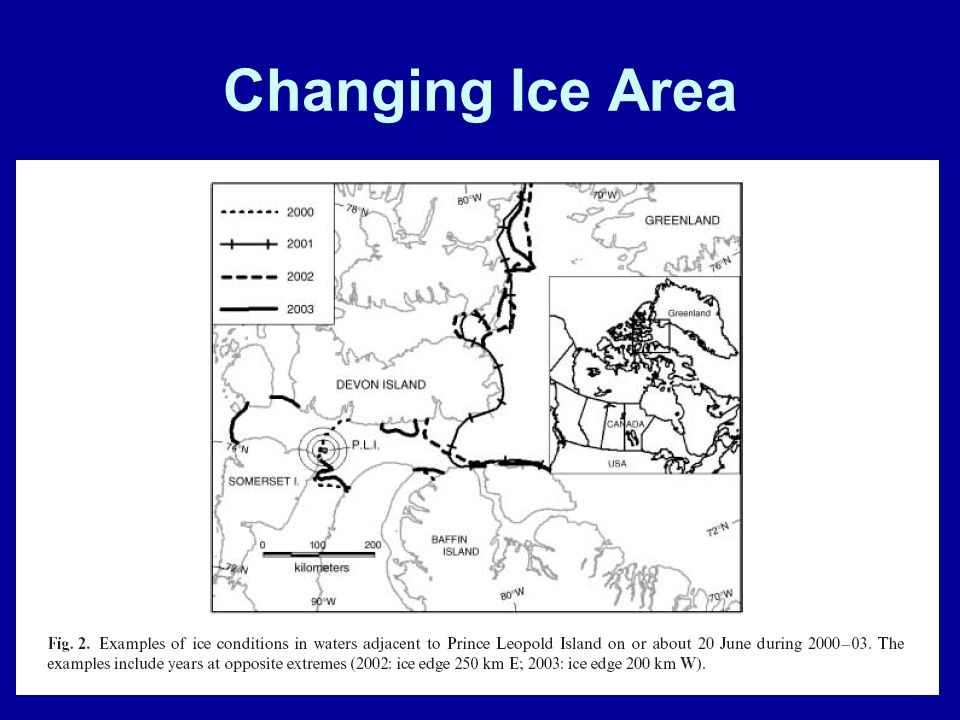

19. Changing Ice Area

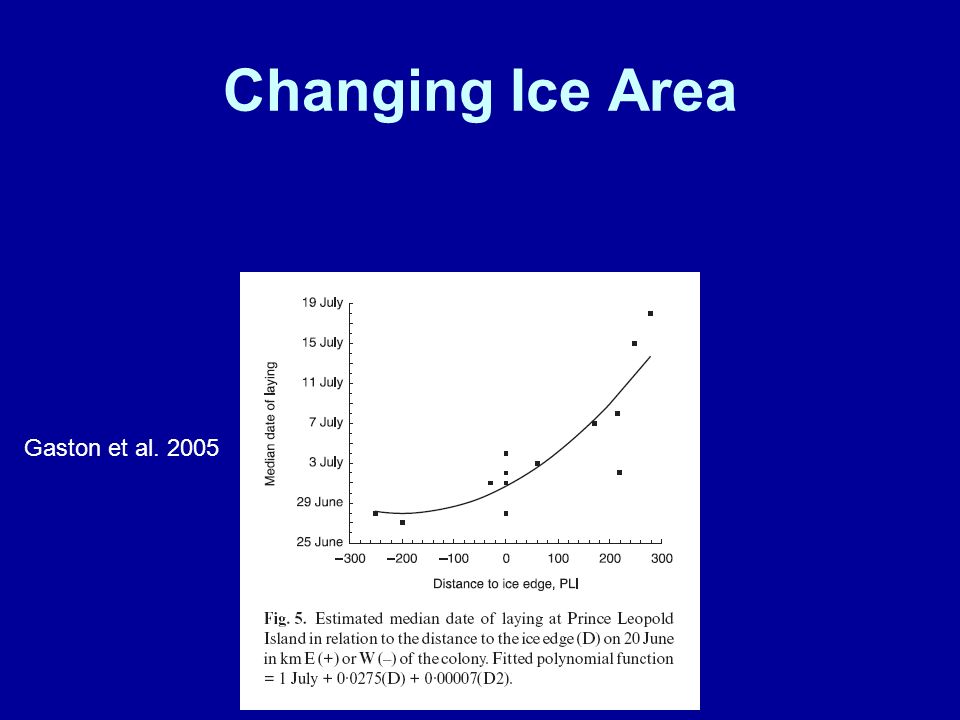

20. Gaston et al. 2005

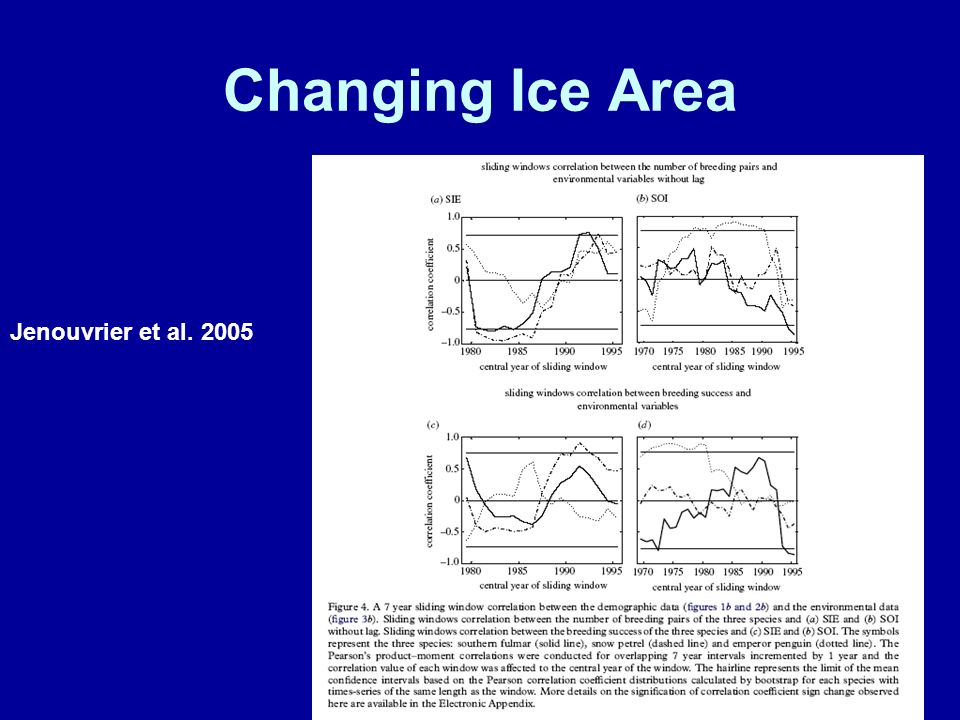

21. Changing Ice Area Jenouvrier et al. 2005

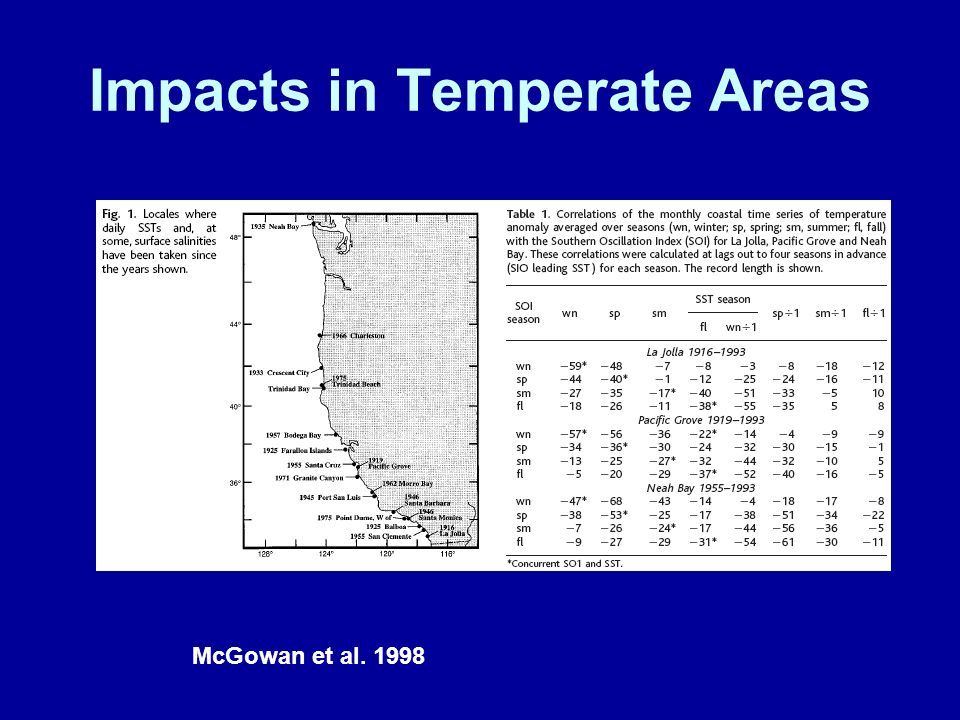

22. Impacts in Temperate Areas McGowan et al. 1998

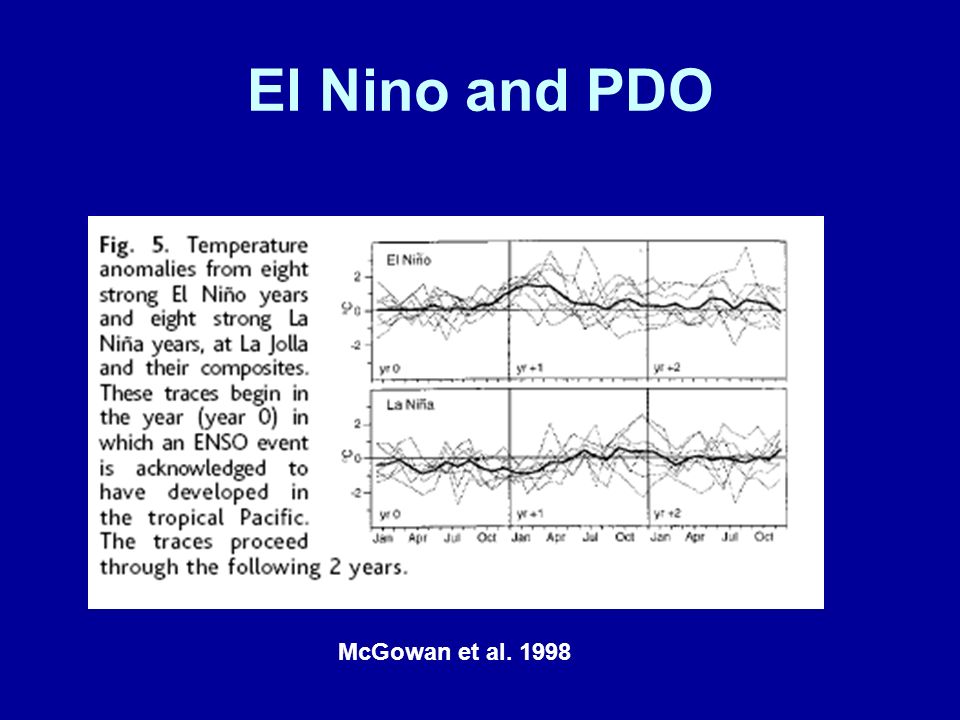

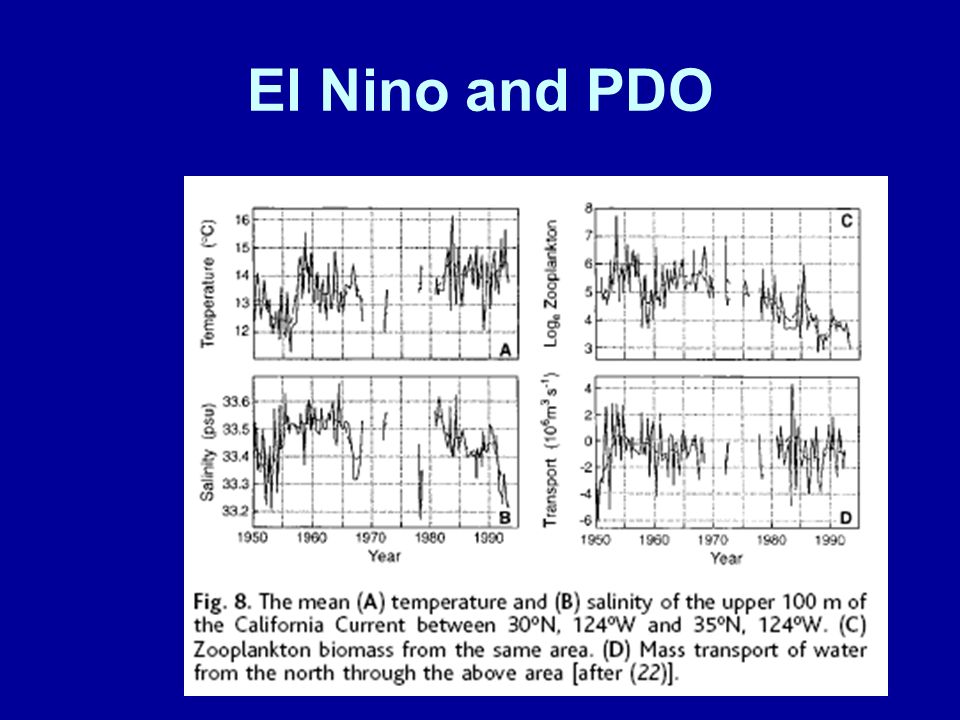

23. El Nino and PDO McGowan et al. 1998

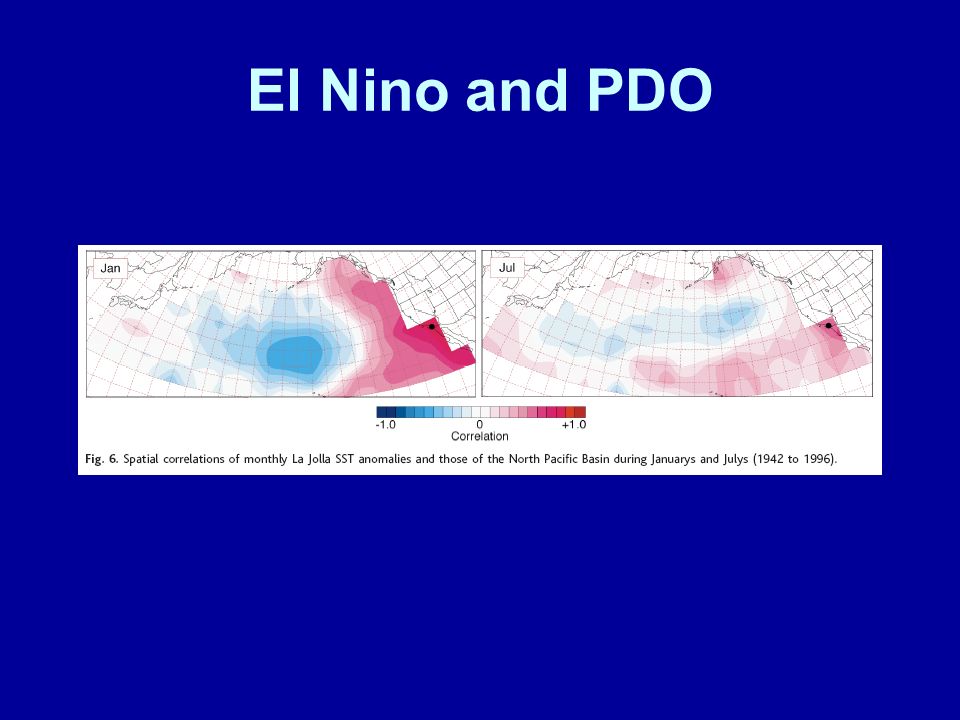

24. El Nino and PDO

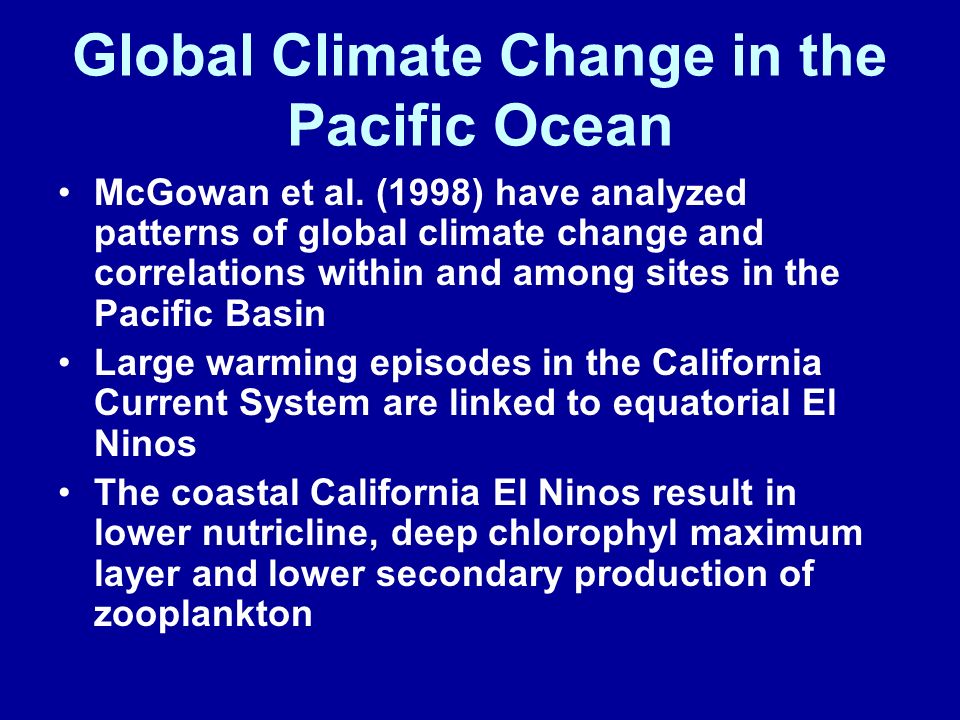

26. Global Climate Change in the Pacific Ocean McGowan et al. (1998) have analyzed patterns of global climate change and correlations within and among sites in the Pacific Basin Large warming episodes in the California Current System are linked to equatorial El Ninos The coastal California El Ninos result in lower nutricline, deep chlorophyl maximum layer and lower secondary production of zooplankton

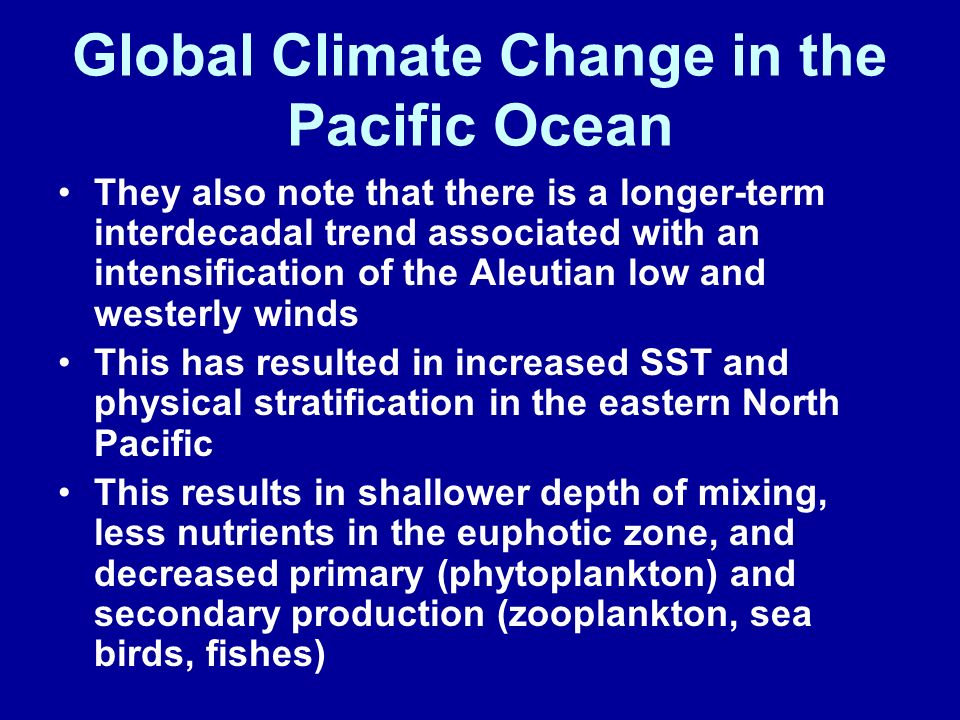

27. Global Climate Change in the Pacific Ocean They also note that there is a longer-term interdecadal trend associated with an intensification of the Aleutian low and westerly winds This has resulted in increased SST and physical stratification in the eastern North Pacific This results in shallower depth of mixing, less nutrients in the euphotic zone, and decreased primary (phytoplankton) and secondary production (zooplankton, sea birds, fishes)

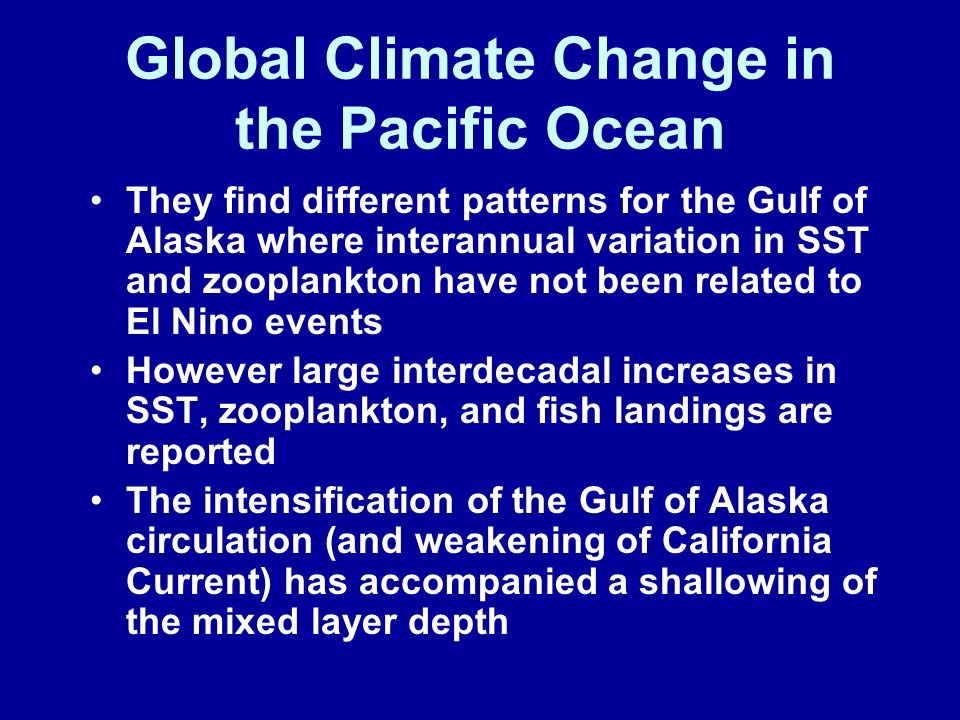

28. Global Climate Change in the Pacific Ocean They find different patterns for the Gulf of Alaska where interannual variation in SST and zooplankton have not been related to El Nino events However large interdecadal increases in SST, zooplankton, and fish landings are reported The intensification of the Gulf of Alaska circulation (and weakening of California Current) has accompanied a shallowing of the mixed layer depth

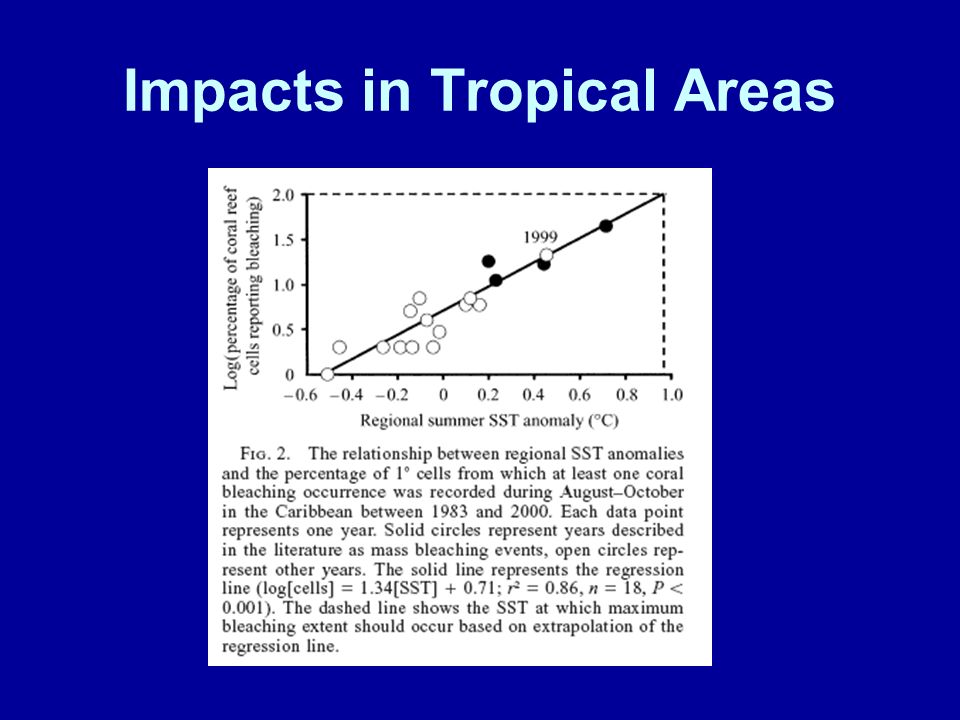

29. Impacts in Tropical Areas

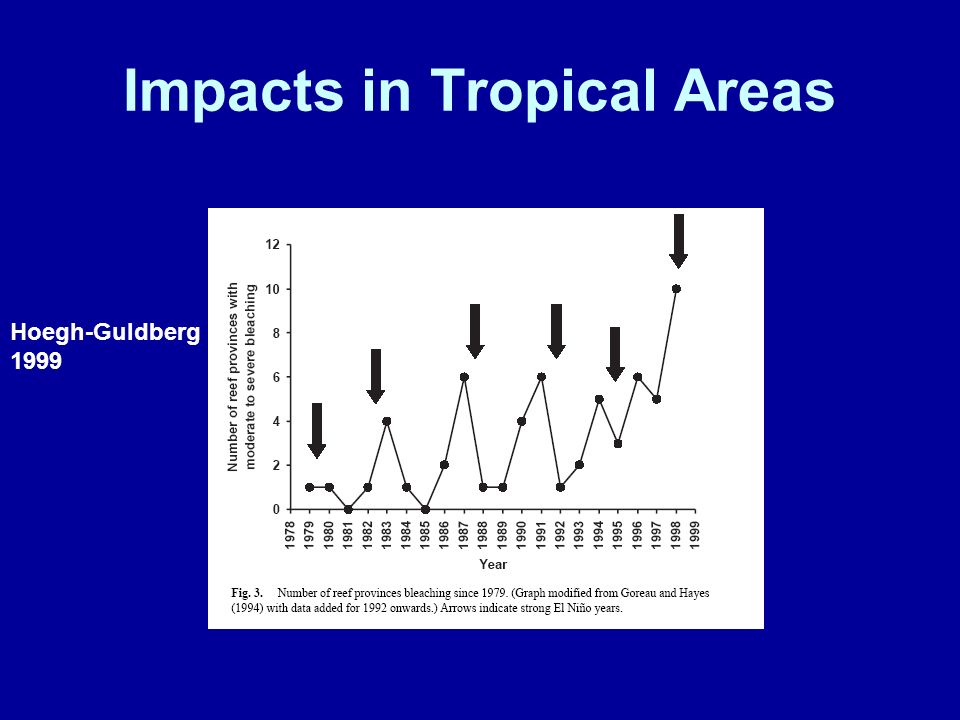

32. Hoegh-Guldberg 1999

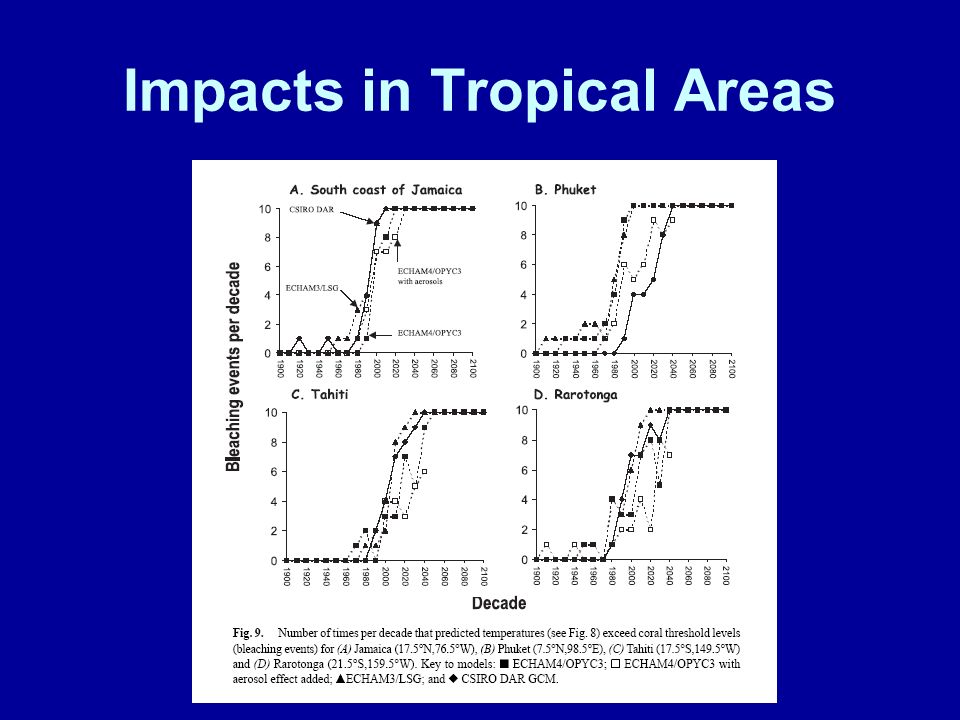

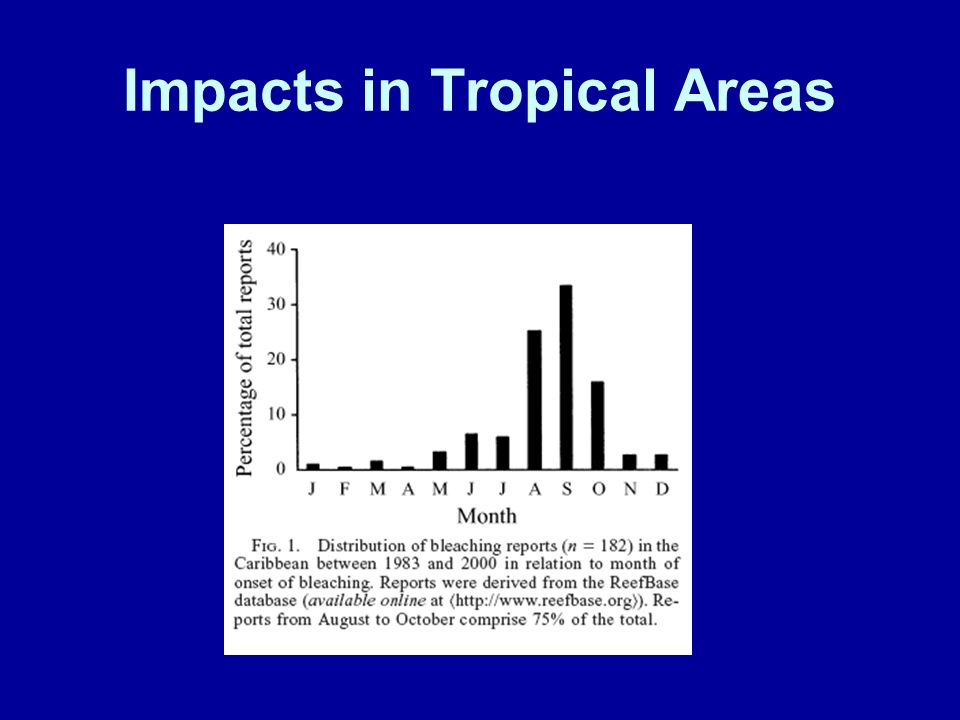

33. Impacts in Tropical Areas

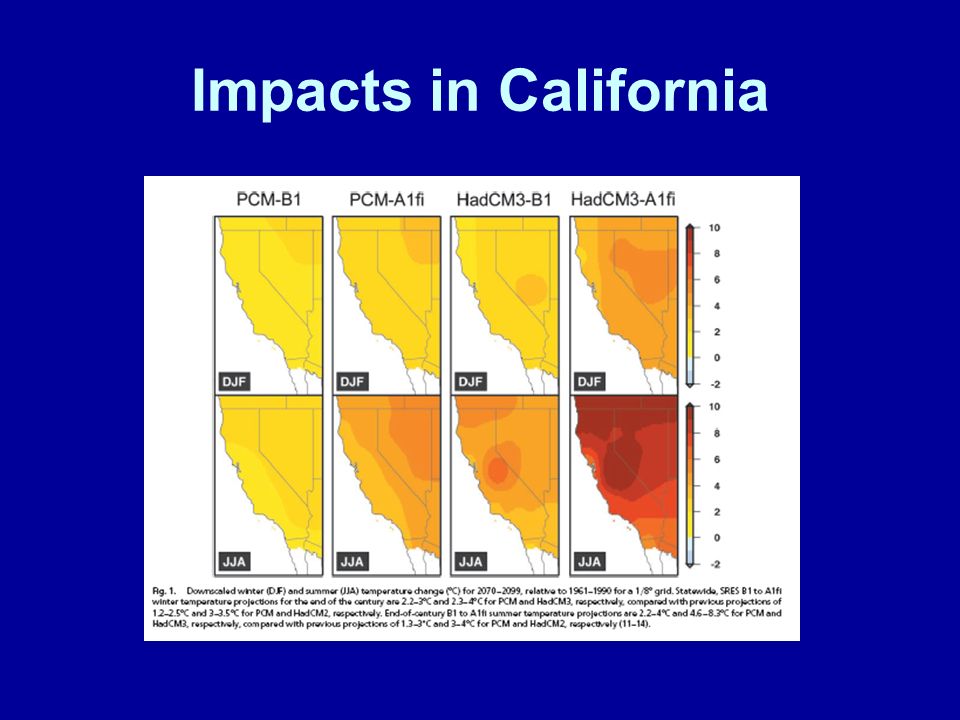

34. Impacts in California

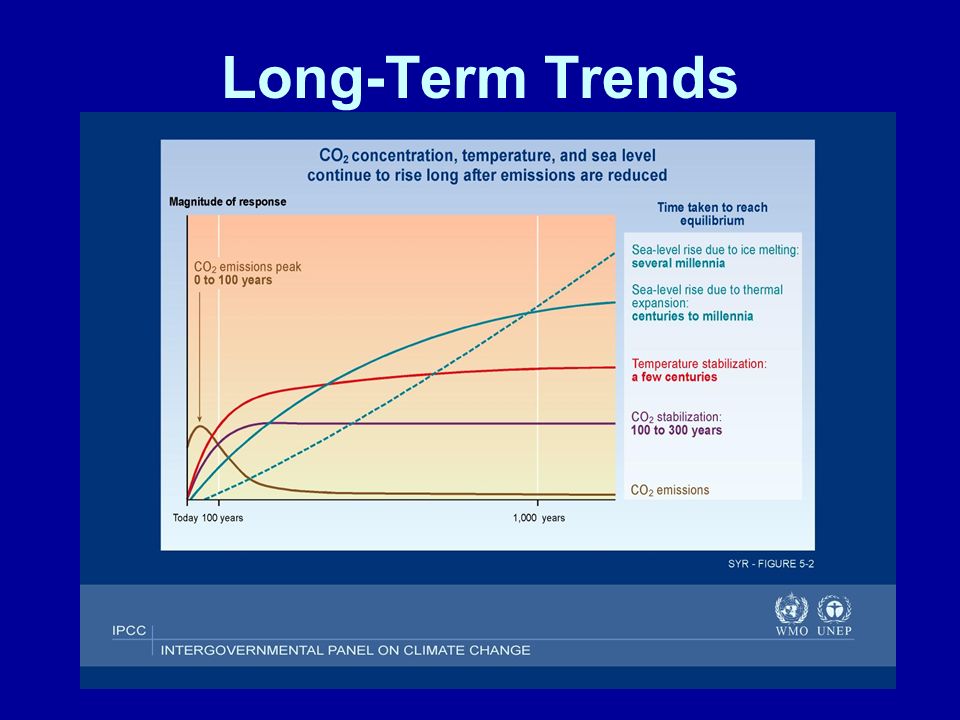

37. Long-Term Trends

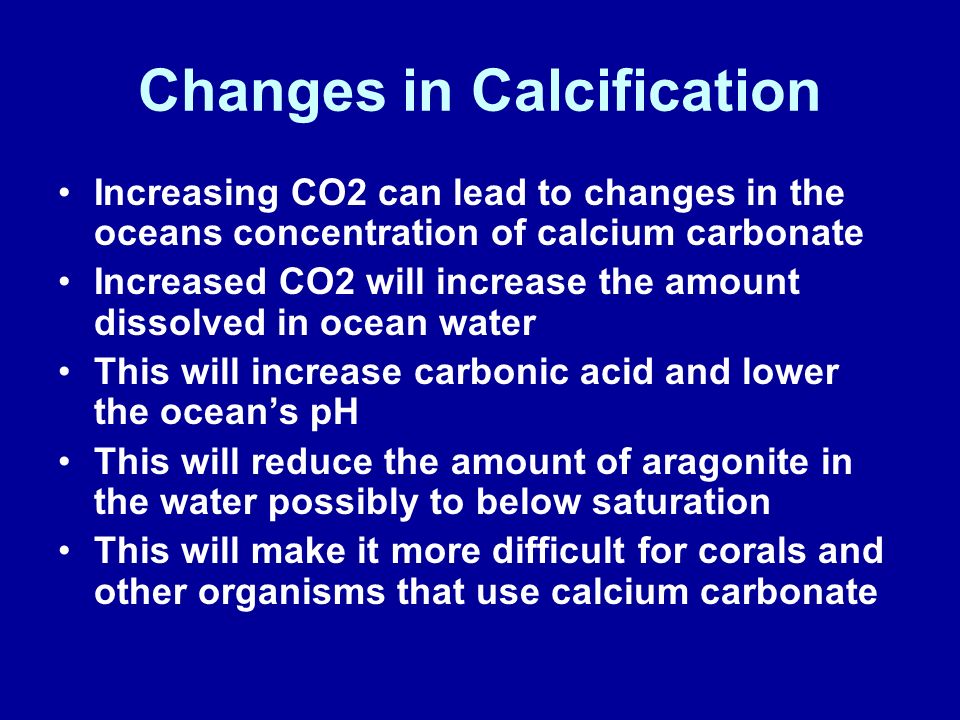

38. Changes in Calcification Increasing CO2 can lead to changes in the oceans concentration of calcium carbonate Increased CO2 will increase the amount dissolved in ocean water This will increase carbonic acid and lower the ocean’s pH This will reduce the amount of aragonite in the water possibly to below saturation This will make it more difficult for corals and other organisms that use calcium carbonate

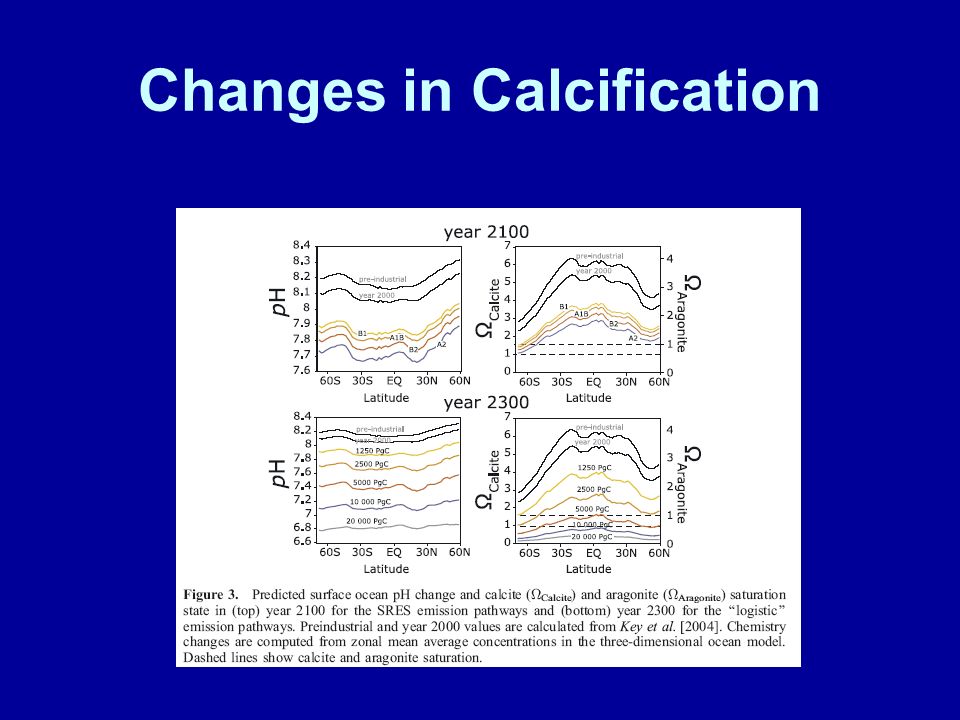

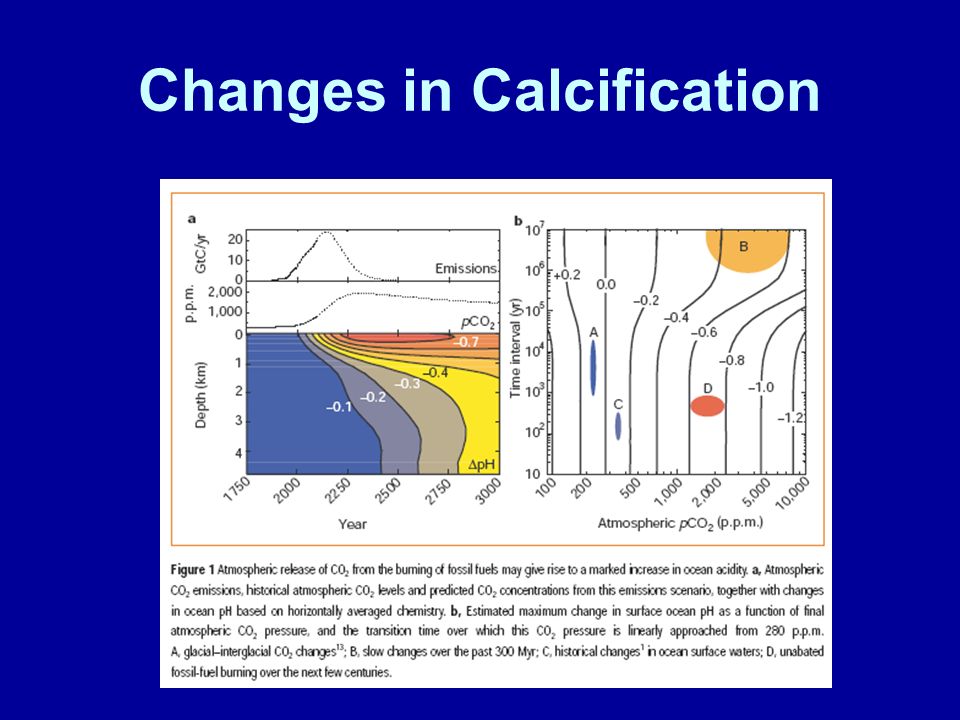

39. Changes in Calcification

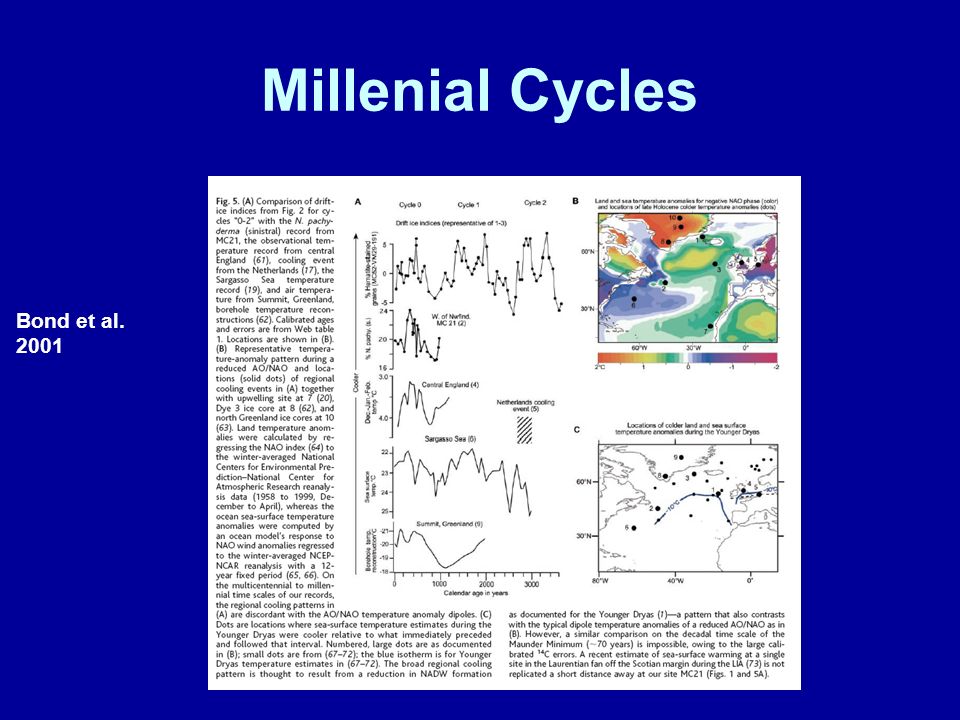

42. Bond et al. 2001 Millenial Cycles

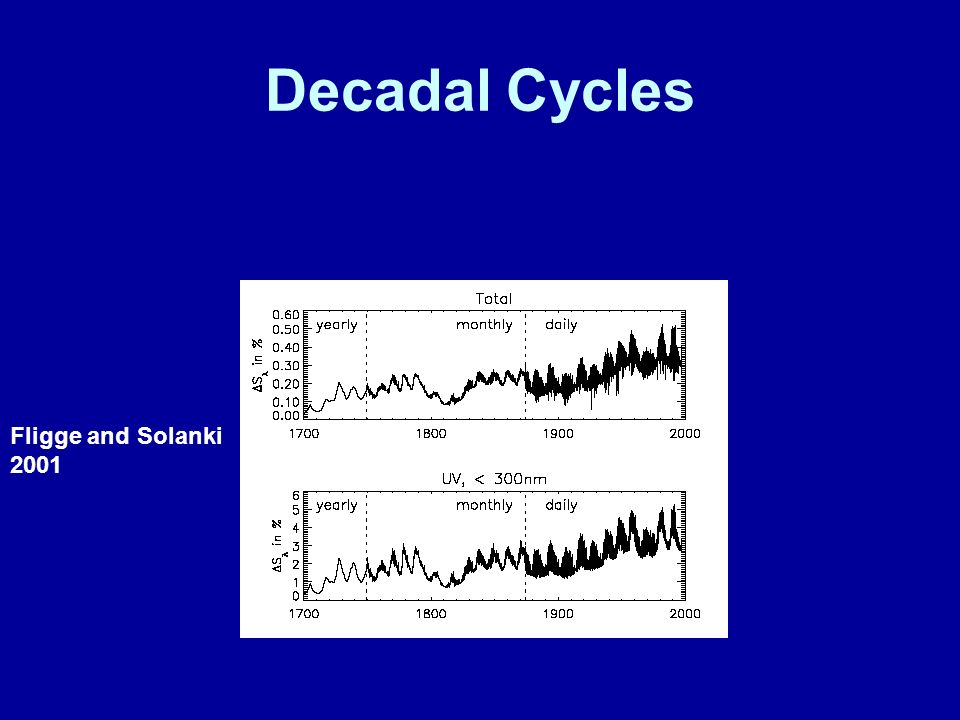

43. Decadal Cycles Fligge and Solanki 2001

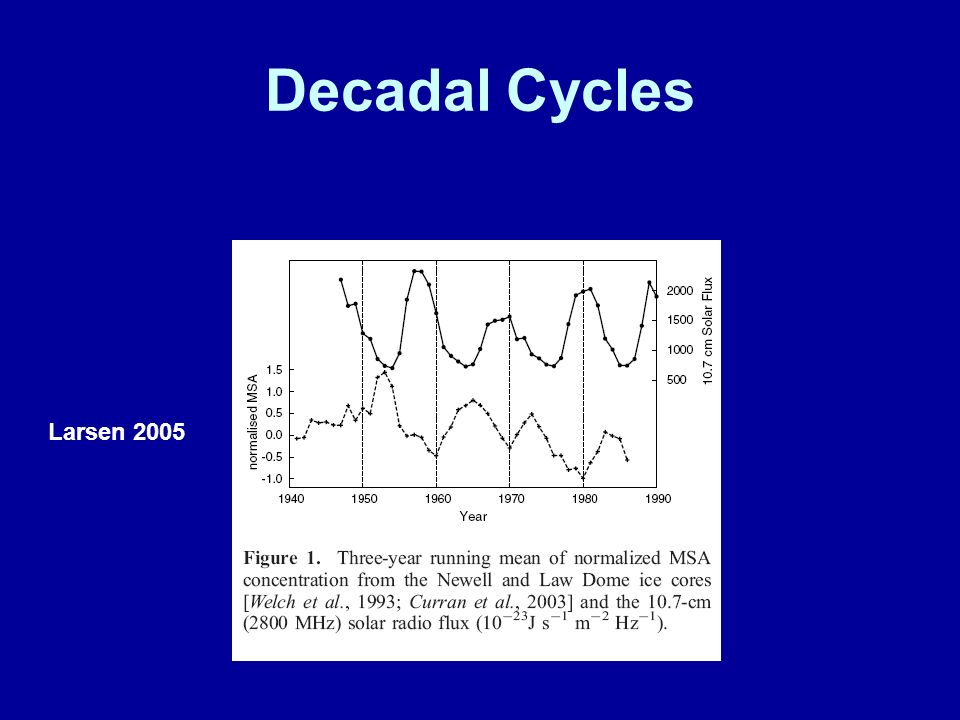

44. Decadal Cycles Larsen 2005

45. Decadal Cycles Larsen 2005
