1. ADOBE INDESIGN CS3 Chapter 1 EXPLORING THE INDESIGN WORKSPACE

2. Chapter 12 Exploring the InDesign Workspace Workspace : arrangement of windows and panels on your computer screen 4 areas of the workspace… LESSON 1 2 Panels Document window Toolbox Pasteboard

3. Chapter 13 Exploring the InDesign Workspace Document Window The document being worked on Dark border shows the document edges Pasteboard White area that surrounds the document window A place to store objects that may or may not be used in the document window Objects may extend from the document into the pasteboard Objects that are completely on the pasteboard will not print LESSON 1 3

4. Chapter 14 Exploring the InDesign Workspace Exploring the Toolbox Contains 32 tools Some are hidden Click black triangles to expose hidden tools Position pointer over tool to expose tooltip Horizontal lines divide the toolbox into sections: Selection tools Creation tools Transform tools Navigation tools Color/gradient/views LESSON 1 4 Tooltip shows tool name and quick key

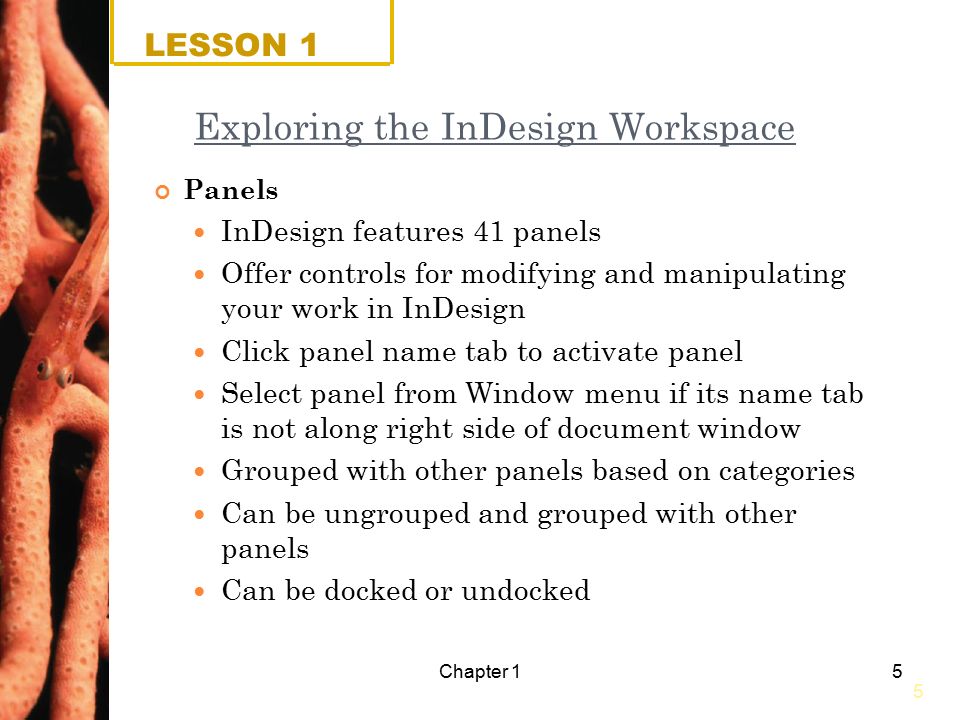

5. Chapter 15 Exploring the InDesign Workspace Panels InDesign features 41 panels Offer controls for modifying and manipulating your work in InDesign Click panel name tab to activate panel Select panel from Window menu if its name tab is not along right side of document window Grouped with other panels based on categories Can be ungrouped and grouped with other panels Can be docked or undocked LESSON 1 5

6. Chapter 16 Exploring the InDesign Workspace To restore default panels, Window>Workspace>Default Workspace LESSON 1 Navigator panel docked beneath Paragraph, Character, and Transform panels

7. Chapter 17 Change Document Views Zoom Tool Enlarges and reduces the view of the document By default, there is a + sign in magnifier and each click enlarges the view To reduce the view, hold the ALT key when clicking Another option to enlarge or reduce view without using the zoom tool: CTRL + to enlarge and CTRL – to reduce Zoom % appears in the title bar at the top of the screen and the lower left corner of the document window Double-click the zoom tool to change the view to 100% LESSON 2 7

8. Chapter 18 Change Document Views Hand Tool Scroll around a document that has been enlarged with the Zoom Tool Press [Spacebar] to access Hand Tool while using any tool (except the Type tool) Often a better choice for scrolling than the scroll bars or arrows Double-clicking the hand tool in the toolbox changes the view to fit the page in the window LESSON 2 8

9. Chapter 19 Change Document Views Create multiple views of a document Use the New Window command on the Window menu to create a new window Window>Arrange>New Window Use the Tile command on the Window menu to view both windows simultaneously Window>Arrange>Tile Horizontally or Tile Vertically LESSON 2 9

10. Chapter 110 Navigate Through A Document Navigating to pages in a document Spreads are two pages that face each other Methods for navigating to pages or spreads Scroll bars on bottom and right side of document window Choose page from Page window Use First Spread, Previous Spread, Next Spread, and Last Spread buttons LESSON 3

11. Chapter 111 Navigate Through A Document LESSON 3 11 Page buttons and Page menu First Spread button Previous Spread button Page menu Last Spread button Next Spread button

12. Chapter 112 Navigate Through A Document Using the Pages panel LESSON 3 12 Pages panel list arrow Double-click page numbers to cause a spread to be displayed. Double-click a page icon to cause that page to be displayed.

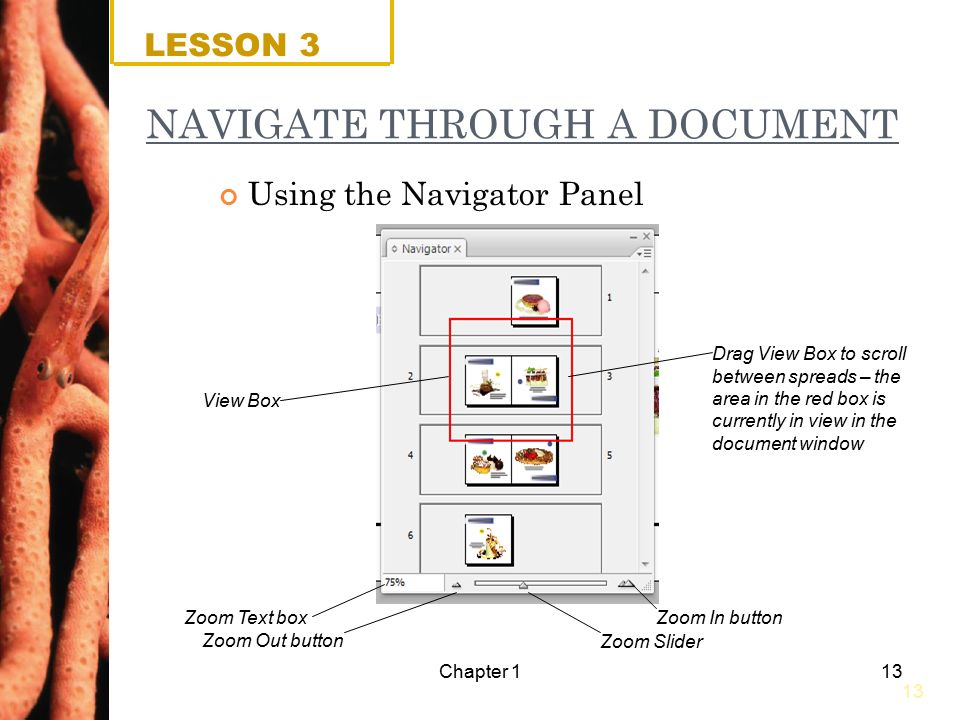

13. Chapter 113 NAVIGATE THROUGH A DOCUMENT Using the Navigator Panel LESSON 3 13 Zoom Text box Zoom Out button Zoom In button Zoom Slider View Box Drag View Box to scroll between spreads – the area in the red box is currently in view in the document window
