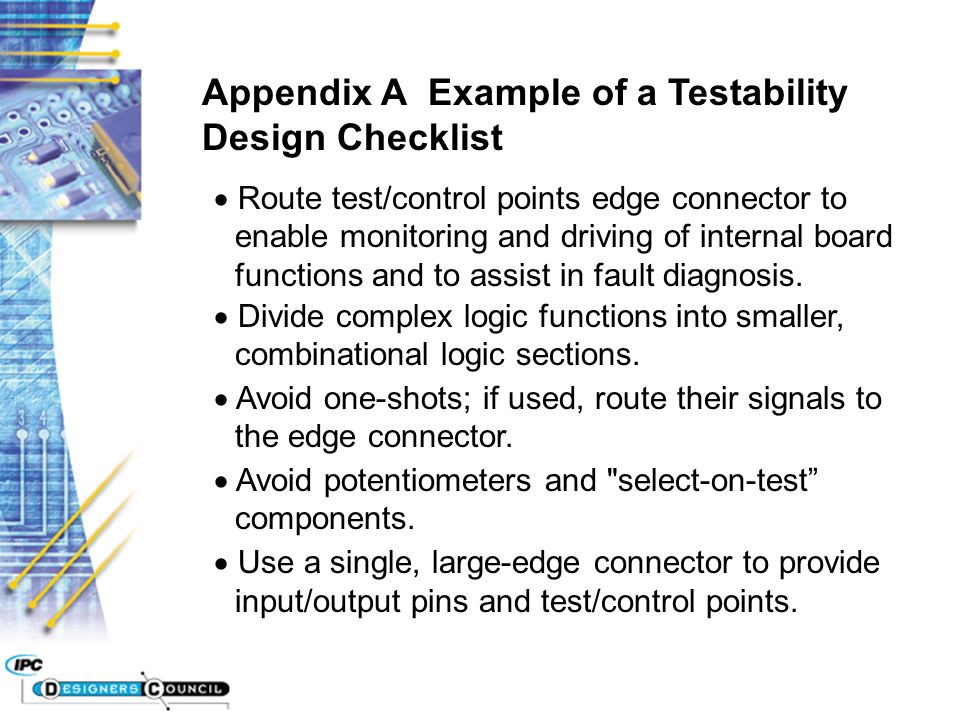

1. Appendix A Example of a Testability Design Checklist  Route test/control points edge connector to enable monitoring and driving of internal board functions and to assist in fault diagnosis.  Divide complex logic functions into smaller, combinational logic sections.  Avoid one-shots; if used, route their signals to the edge connector.  Avoid potentiometers and "select-on-test” components.  Use a single, large-edge connector to provide input/output pins and test/control points.

2. Appendix A Example of a Testability Design Checklist  Make printed board input/output signal logic- compatible to keep test equipment interface costs low and give flexibility.  Provide adequate decoupling at the board edge and locally at each integrated circuit.  Provide signals leaving the board with maximum fan-out drive, or buffer them.  Buffer edge-sensitive components from the edge connector - such as clock lines and flip-flop outputs.  Do not tie signal outputs together.  Never exceed the logic rated fan-out; in fact, keep it to a minimum.

3. Appendix A Example of a Testability Design Checklist  Do not use high fan-out logic devices. do use multiple fan-out devices, and keep their outputs separate.  Keep logic depth on any board to a low level by using edge terminated test/control points.  Single-load each signal entering the board whenever possible.  Terminate unused logic pins with a resistive pull-up to minimize noise pick-up.  Do not terminate logic outputs directly into transistor bases. do use a series current- limiting resistor.  Buffer flip-flop output signals before they leave the board.

4. Appendix A Example of a Testability Design Checklist  Use open-collector devices with pull-up resistors to enable external override control.  Avoid using redundant logic to minimize undetectable faults.  Bring outputs of cascaded counters to higher-order counters so that they can be tested without large counts.  Construct trees to check the parity of selected groups of eight bits or fewer.  Avoid "wired'OR" and "wired'AND” connections.

5. Appendix A Example of a Testability Design Checklist  If you cannot, use gates from the same integrated circuit package.  Provide some way to bypass level-changing diodes in series with logic out-puts.  Break paths when a logic element fans out to several places that converge later.  Use elements in the same integrated circuit package when designing a series of inverters or inverters following a gate function.  Standardize power-on and ground pins to avoid test-harness multiplicity.

6. Appendix A Example of a Testability Design Checklist  Bring out test points as near to digital-to-analog conversion as possible.  Provide a means of disabling on-board clocks so that the tester clock may be substituted.  Provide mounted switches and resistor- capacitor networks with override lines to the edge-board connector.  Route logic drivers of lamps and displays to the edge connector so that the tester can check for correct operation.  Divide large printed boards into subsections whenever possible, preferably by function.

7. Appendix A Example of a Testability Design Checklist  Separate analog circuits from digital logic, except for timing circuits.  Uniformly mount integrated circuits and clearly identify them to make it easier to locate them.  Provide sufficient clearance around integrated circuit sockets and direct-soldered integrated circuits so that clips can be attached whenever necessary.  Add top-hat connector pins or mount extra integrated circuit sockets when there are not enough edge-board connector pins for test/control points.

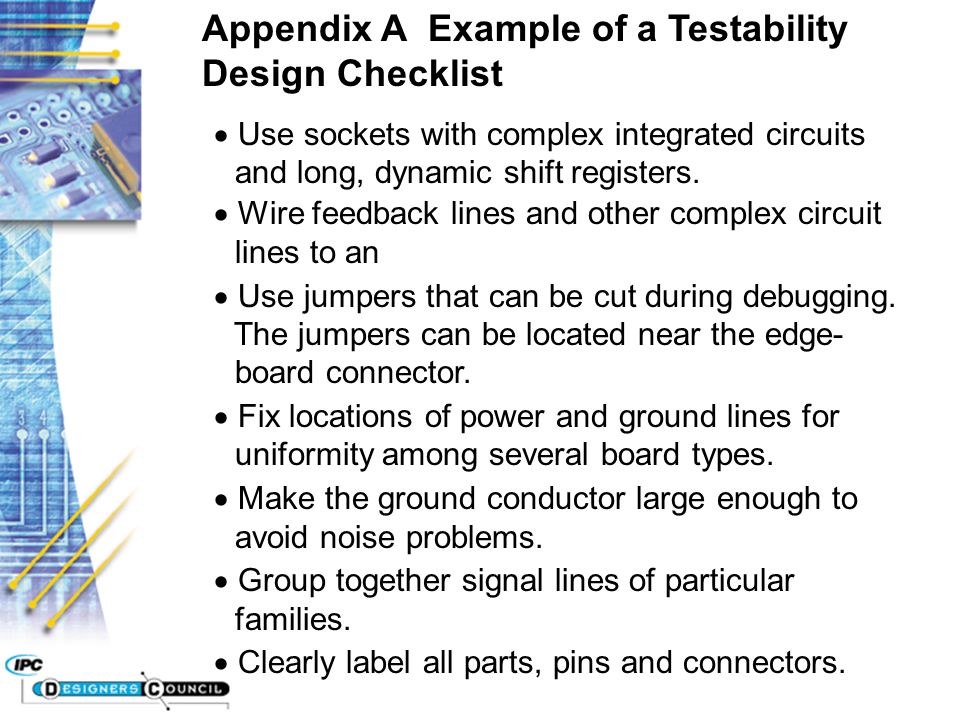

8. Appendix A Example of a Testability Design Checklist  Use sockets with complex integrated circuits and long, dynamic shift registers.  Wire feedback lines and other complex circuit lines to an  Use jumpers that can be cut during debugging. The jumpers can be located near the edge- board connector.  Fix locations of power and ground lines for uniformity among several board types.  Make the ground conductor large enough to avoid noise problems.  Group together signal lines of particular families.  Clearly label all parts, pins and connectors.
