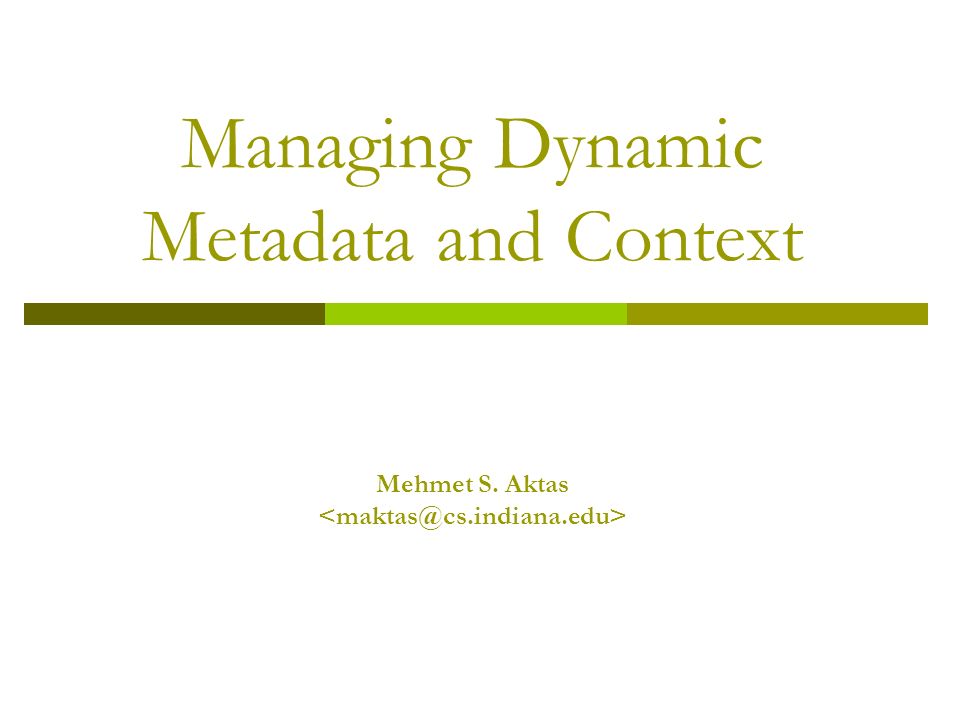

1. Managing Dynamic Metadata and Context Mehmet S. Aktas

2. 2 of 29 Outline  Introduction  Problem Statement, Hypothesis, Design Goals  Literature Survey  Research Issues  Milestones  Contributions  Summary

3. 3 of 29 Context  Def: "Context is any information that can be used to characterize the situation of an entity, where an entity can be a person, place, or computational object.“ Dey A. et al, 1999  Context is metadata associated to both services and their activities  Context can be independent of any interaction  static context  Examples: type or endpoint of a service, less likely to change  dynamic context  Examples: throughput of a service, likely to change over time generated as result of interaction  information associated to an activity or session  Examples: session-id, URI of the coordinator of a session

4. 4 of 29 Gaggle of Services  Gaggle of Services are set of actively collaborating managed services put together for a particular functionality, such as collaboration, visualization or sensor Grid collaborate for a particular common goal  Example: emergence preparedness and response are actively generate events as result of interactions are very small part of the whole Grid

5. 5 of 29 Motivation  Current Grid Information Services provide information describing services independent of their interactions.  We need management of all information associated with services for; correlating activities of widely distributed services  workflow-style, SOA based applications management of events especially in multimedia collaboration  distributed session management  for instance; audio, video, audio/video meetings in Chinese Olympics

6. 6 of 29 Motivation II  More reasons for management of Context enabling uniform query capabilities to both dialog or monolog context information  “Give me list of services satisfying C:{a,b,c..} QoS requirements and participating S:{x,y,z..} sessions” enabling real-time replay/playback capabilities in collaboration based sessions enabling session failure recovery

7. 7 of 29 Application Use Domain  Multimedia Collaboration domain: Global MMCS multiple A/V services talk to various collaboration clients and services defines a general session collaboration protocol (XGSP) XSGP enables different collaboration tools to talk to each other e.g. AccessGrid, H.323 needs a distributed session management systems  Characteristics of the domain widely distributed services metadata of events (archival data)  mostly read-only  persistent, but lifetime is bounded to lifetime of events

8. 8 of 29 Application Use Domain - II  Workflow-style distributed application: Geographic Information System Grid sensor grid data services generates events when a certain magnitude event occurs firing off various codes, filtering, analyzing raw data, generating images, maps needs a distributed context management to correlate workflow activities  Characteristics of domain any number of widely distributed services can be involved conversation metadata  transient  multiple writers

9. 9 of 29 1 WMS GUIWFS http://..../..../..txt HP Search Data Filter PI Code Data Filter http://..../..../tmp.xml Context Information Service 2 5,6,7 8 4 3,9 http://.../WMS http://.../WMS http://.../HPSearch session http://.../HPSearch http://../abcdef:012345 profile information related WMS user profile http://.../HPSearch http://../abcdef:012345 shared data for HPSearch activity http://.../DataFilter1 http://.../PICode http://.../DataFilter2 activity http://../abcdef:012345 http://.../HPSearch http://danube.ucs.indiana.edu:8080\x.xml shared state <soap:Header encodingStyle=“WSCTX URL" mustUnderstand="true"> http.. <activity-list mustUnderstand="true" mustPropagate="true"> http://../WMS http://../HPSearch... SOAP header for Context 1.session associated dynamic metadata 2.user profile 3.activity associated dynamic metadata 4.service associated dynamically generated metadata What are the examples of dynamically generated metadata in a real-life example? 3,4: WMS starts a session, invokes HPSearch to run workflow script for PI Code with a session id 5,6,7: HPSearch runs the workflow script and generates output file in GML format (& PDF Format) as result 8: HPSearch writes the URI of the of the output file into Context 9: WMS polls the information from Context Service 10: WMS retrieves the generated output file by workflow script and generates a map http://.../HPSearch HPSearch associated additional data generated during execution of workflow. service associated

10. 10 of 29 Problem Statement What is a novel process of building Information Services, maintaining dynamic session-related metadata of widely distributed services, providing uniform interface to both interaction-independent and conversation-based context?

11. 11 of 29 Hypothesis  A fault-tolerant, high performance, scalable information system maintaining widely distributed dynamically generated metadata for Gaggle of Services providing uniform interface to context information  utilization of existing Grid Information Services for interaction-independent context to improve search capabilities enabling coordination of widely distributed services in Gaggles  workflow-style Grid applications enabling distributed event management and various capabilities for A/V conferencing applications  discovery of entities in a session  enabling playback/replay capabilities,  enabling session failure recovery

12. 12 of 29 Architectural Design Goals  Key Design Goals of our Design scalability  with respect to #  widely distributed services performance  high responsiveness, reduced access latency fault tolerance  high availability of information  robust to replica crashes flexibility  accommodate broad range of application domains  read-dominated, read/write dominated

13. 13 of 29 Literature Survey  Main Stream Grid Information Services MDS, R-GMA, UDDI (Grimories)  Specifications for stateful service interactions WS-CAF, WSRF, WS-Metadata Exchange  Linda TupleSpaces coordination model

14. 14 of 29 MDS4-(GT4)R-GMA (European Data Grid) Grimories UDDI Extension (myGrid) Functionalitymonitoring and discoveryperformance monitoring, information registry and discovery of services and workflows Componentsaggregator services, information sources registry, producersregistry Provided dataapplication-oriented resource-oriented, stateful interaction data application-oriented, resource-oriented application- oriented Distribution, Organizational Structure decentralized, hierarchicaldecentralized, hierarchical, peer-to-peer centralized Main Stream Grid Information Services

15. 15 of 29 Limitations in Grid Information Services  Lack of support for session related dynamic metadata MDS4 adopts WSRF approach which does not scale managing activities of multiple services sharing same state  Lack of support for advanced query capabilities ex: “Give me list of WFS services participating “fault displacement calculations” workflow session where the service connected by a network path over 2MB/sec of bandwidth with max 100 msec of latency.”

16. 16 of 29 WS-CAF WS-Context - Key Concepts  WS Composite Application Framework (WS-CAF) WS-Context, WS-Coordination, WS-Transaction Mngmt.  WS Context defines context, context service and mapping on SOAP shared data to correlate service activities context information dependent on the type of the activity  transactional activity: the URI of the coordinator in a session context service maintains associated context participants of an activity register with context service for lifecycle of that activity

17. 17 of 29 Web Service Resource Framework Key Concepts  defines standard interfaces and behaviors for distributed system integration standard XML-based information model standard interfaces for push and pull mode access to service data  enables every service to expose state data for query, update monitoring shared state  models resource state as private to a service  supports resource oriented approach for stateful interactions requires the identity of the resource to be passed in the SOAP message

18. 18 of 29 WS-Metadata Exchange Key Concepts  WS Metadata is key to interactions WS-Policy: capabilities, requirements, general characteristics of services WSDL: describes message operations, supported network protocols used by services  WS-Metadata Exchange provides mechanism for sharing information about the capabilities of individual Web services allows querying a WS Endpoint to retrieve metadata about what to know to interact with them defines request/response message pairs to retrieve WS metadata

19. 19 of 29 Limitations in Specifications for Service Communication  WSRF does not actually accomplish state management by just enabling access and update rights heterogeneous service environment workflow-style applications  WSRF, WS-Metadata Exchange models service metadata private to a service does not scale in managing activities of multiple services WS-Metadata Exchange defines only how to access interaction-independent metadata  WS-Context is promising it has limitations simple framework for context management limited query capability does not address distributed management aspects of context metadata

20. 20 of 29 TupleSpaces Paradigm  a communication paradigm space-based asynchronous communication first described in Linda project in 1982 at Yale pioneered by David Gelernter  Linda is a coordination language using primitive operations on shared data in shared space  data-centric coordination model  communication units are tuples data-structure consisting of one or more typed fields  a TupleSpace is an intermediary container

21. 21 of 29 JavaSpaces [Sun Microsystems]  JavaSpaces is an object oriented strongly influenced by Linda model Java based, platform independent  spaces are transactionally secure mutual exclusive access to objects  spaces are persistent temporal, spatial uncoupling  spaces are associative content based search  limitations centralized inefficient reading/writing performance dependent on stack of different software layers

22. 22 of 29 Research Issues  Recap on key design goals: scalability, performance, fault tolerance  research issues related replicating dynamic metadata deployment (dynamic vs. static replication)  Where to place replicas of given context metadata?  What are the properties of new location must meet?  How to know if replica location stable?  How can we provide tailored replication based on R/W properties?

23. 23 of 29 Research Issues II consistency  What is the appropriate consistency model?  How do replicas exchange replica updates in what direction?  How can we utilize an ordering capability based on NTP (Network Time Protocol) to provide consistency on the replicated context metadata?  performance efficient metadata access  How to choose a replica server to best serve client request?  How to avoid performance degradation due to repetitive queries?

24. 24 of 29 Research Issues III  scalability load balancing strategies  How to manage load balancing?  other research issues replay/playback capabilities  How to enable real-time replay/playback capabilities? session recovery  How to enable session recovery? uniform interface to context  How to provide a uniform interface to context?

25. 25 of 29 Milestones  Implementation of TupleSpaces paradigm  Uniform Update and Query (search, discovery) Services  Sequencer Service ensures that an order is imposed on actions/events that take place in a session

26. 26 of 29 Milestones II  Storage (Replication) Service decide # and placement of replicas enable autonomous behavior support robust behavior for replica crashes  Access (Request Distribution) Service distribute request among object replicas  Expeditor Service generalized caching mechanism reduce storage access due to repetitive queries

27. 27 of 29 Evaluation of Hypothesis  Qualitative evaluation Does the system delivers what it promises in terms of functionality?  Example test domains: Geographical Information System Grid, Global MMCS  How does the system function incase of replica crashes?  Quantitative evaluation How well the system delivers what it promises in terms of performance? What are the performance cost and gains brought together with scalability and fault tolerance?  trade offs between fault-tolerance, scalability and performance  what limitations does the trade offs impose to the practical use of my system?  what is # of replicas needed for certain availability?  what is the cost of fault tolerance?  what is the cost of scalability?

28. 28 of 29 Contribution of this Thesis  Identifies a novel approach for building Information Services managing session related context.  Identifies a novel approach for providing fault tolerance and scalability while providing high performance when managing dynamic metadata Identifies a dynamic replication mechanism for widely distributed dynamic and transient metadata

29. 29 of 29 Summary  This thesis addresses following problems Lack of support in Grid Information Services for context (session-related dynamic metadata) management to correlate activities in workflow-style applications:  by providing a novel approach for management of widely distributed, shared session-related dynamic metadata Lack of support in Grid Information Services to provide distributed session management:  by providing distributed event management system enabling session failure recovery or replay/playback capabilities Lack of search capabilities in Grid Information Services:  by providing uniform search interface to both interaction independent and conversation-based context enabling service discovery through events
