1. Connect. Communicate. Collaborate Click to edit Master title style MODULE 1: perfSONAR TECHNICAL OVERVIEW

2. 2 WHAT IS PERFSONAR? perfSONAR is: A project consisting of a variety of organisations and individuals A set of protocols that: Assume a set of services based on defined roles. Define their communication syntax and semantics. Allow anyone to develop an implementation of a service. A set of code Service implementations

3. 3 WHAT ARE THE PERFSONAR SERVICES? The perfSONAR services form an interoperable, distributed performance measurement middleware framework. perfSONAR stands for PERformance Service Oriented Network monitoring Architecture.

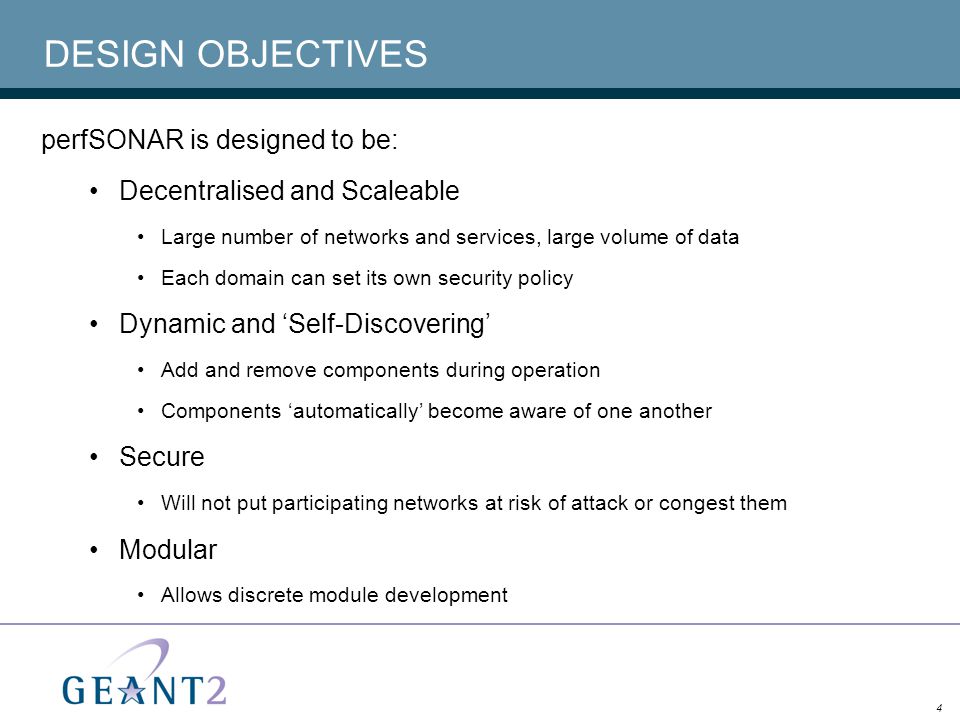

4. 4 DESIGN OBJECTIVES perfSONAR is designed to be: Decentralised and Scaleable Large number of networks and services, large volume of data Each domain can set its own security policy Dynamic and ‘Self-Discovering’ Add and remove components during operation Components ‘automatically’ become aware of one another Secure Will not put participating networks at risk of attack or congest them Modular Allows discrete module development

5. 5 THREE-TIER ARCHITECTURE The perfSONAR framework: Is middleware. Is distributed between domains. Facilitates inter-domain performance information sharing. perfSONAR services ‘wrap’ existing measurement tools.

6. 6 WHAT IS A SERVICE? A Service is a tightly defined, independent entity that has a well defined interface and can be accessed directly.

7. 7 ARCHITECTURAL PRINCIPLES Postulate: all measurement systems contain a combination of: Measurement tools Data Storage Security and Policy implementation Topology information Visualization Services have been identified that are: Based on these ‘roles’ Based on requirement for other functionality such as Service discovery, resource protection, data formatting

8. 8 THE PERFSONAR SERVICES FRAMEWORK (1) perfSONAR divides measurement system tools into generic ‘families’ or ‘services’. Each service has a protocol.

9. 9 THE PERFSONAR SERVICES FRAMEWORK (2) Authentication Service Authentication Service Lookup Service Lookup Service Resource Protector Service Resource Protector Service Measurement Archive Service Measurement Archive Service Measurement Point Service Measurement Point Service Transformation Service Transformation Service Client

10. 10 THE CLIENT Authentication Service Authentication Service Lookup Service Lookup Service Resource Protector Service Resource Protector Service Measurement Archive Service Measurement Archive Service Measurement Point Service Measurement Point Service Transformation Service Transformation Service Client For example the perfSONAR Visualisation User Interface

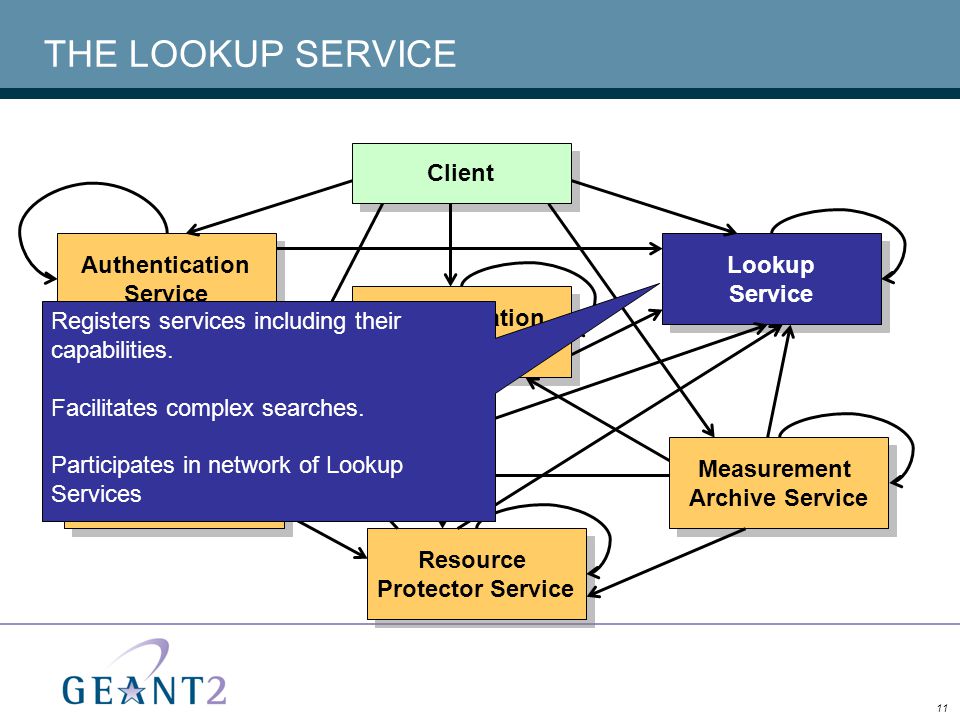

11. 11 THE LOOKUP SERVICE Authentication Service Authentication Service Lookup Service Lookup Service Resource Protector Service Resource Protector Service Measurement Archive Service Measurement Archive Service Measurement Point Service Measurement Point Service Transformation Service Transformation Service Client Registers services including their capabilities. Facilitates complex searches. Participates in network of Lookup Services

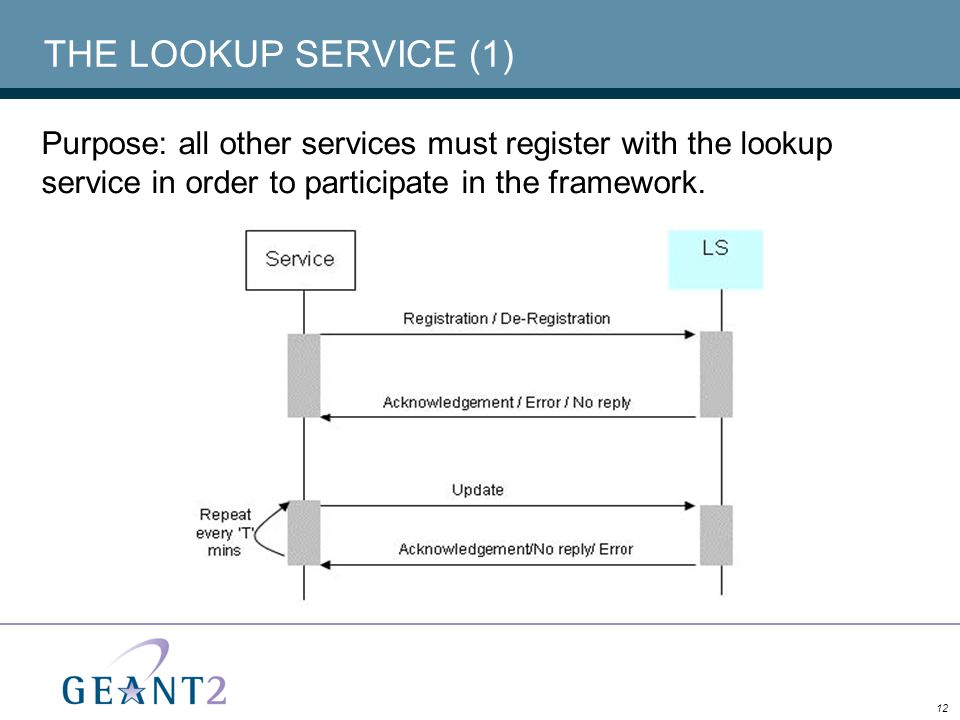

12. 12 THE LOOKUP SERVICE (1) Purpose: all other services must register with the lookup service in order to participate in the framework.

13. 13 THE LOOKUP SERVICE (2) Other services (including measurement points) register their existence with a lookup service, by delivering ‘lookup information’: Location Type of Service Each domain has an instance of the lookup service These instances (will) communicate with one another Clients find other services by querying the lookup service. All the client needs to know is the URL of a Lookup Service

14. 14 THE AUTHENTICATION SERVICE Authentication Service Authentication Service Lookup Service Lookup Service Resource Protector Service Resource Protector Service Measurement Archive Service Measurement Archive Service Measurement Point Service Measurement Point Service Transformation Service Transformation Service Client Provides authentication for clients and protects privacy. Can be federated.

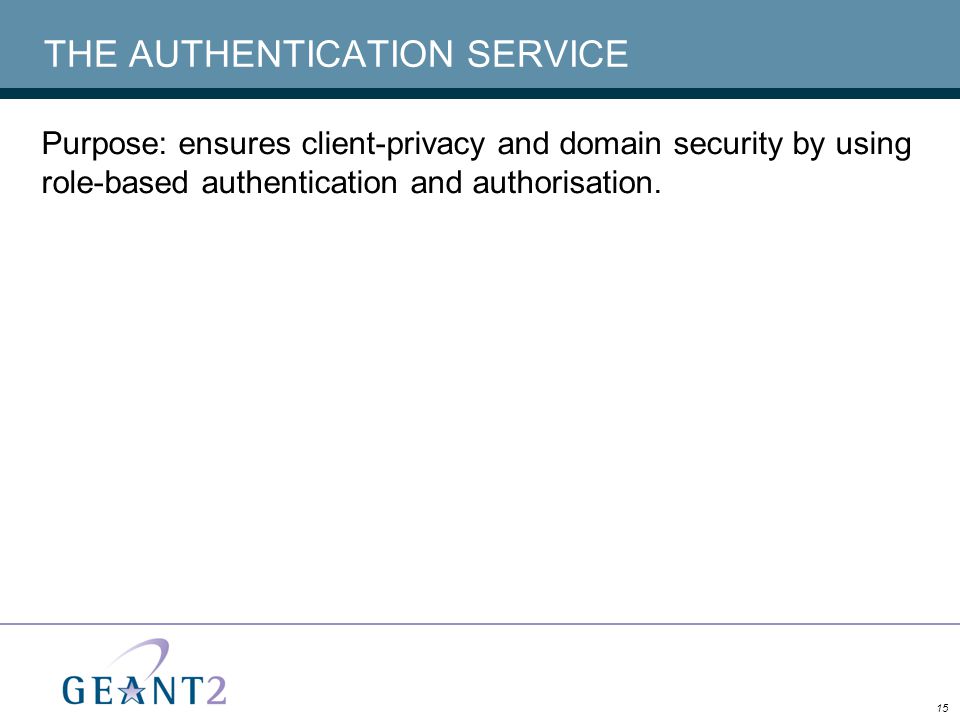

15. 15 THE AUTHENTICATION SERVICE Purpose: ensures client-privacy and domain security by using role-based authentication and authorisation.

16. 16 THE MEASUREMENT POINT SERVICE Authentication Service Authentication Service Lookup Service Lookup Service Resource Protector Service Resource Protector Service Measurement Archive Service Measurement Archive Service Measurement Point Service Measurement Point Service Transformation Service Transformation Service Client Exposes measurement tools and publishes their data.

17. 17 MEASUREMENT POINTS Measurement Points: Belong to domains (domain = a network) Each measurement point implementation maps to a tool that provides one or several metrics Examples: –One-way-loss –Jitter –TCP throughput –Show commands on routers

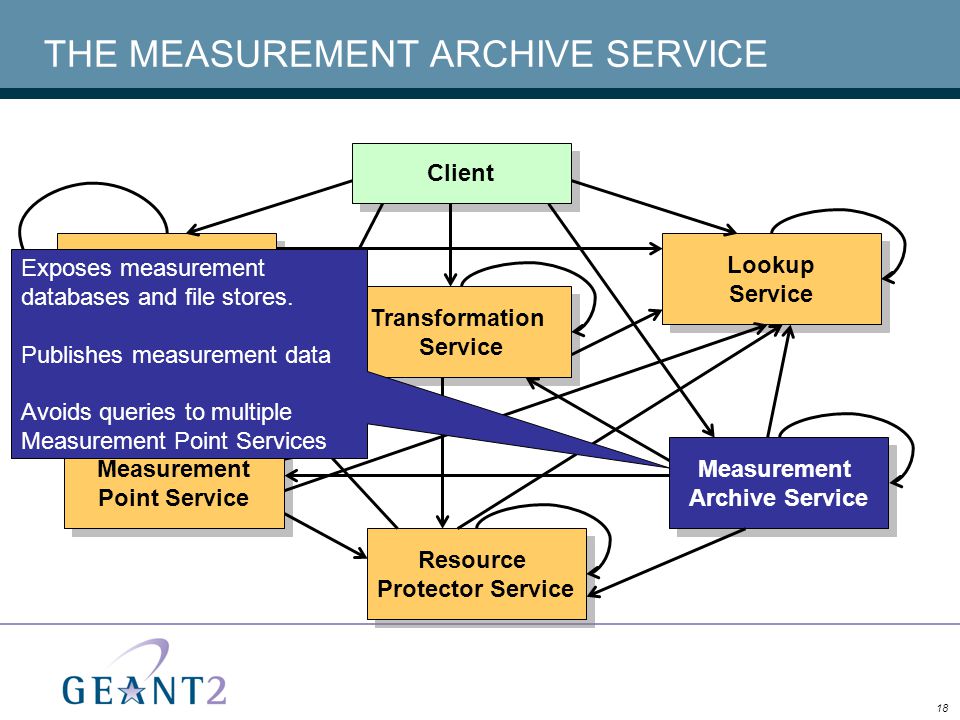

18. 18 THE MEASUREMENT ARCHIVE SERVICE Authentication Service Authentication Service Lookup Service Lookup Service Resource Protector Service Resource Protector Service Measurement Archive Service Measurement Archive Service Measurement Point Service Measurement Point Service Transformation Service Transformation Service Client Exposes measurement databases and file stores. Publishes measurement data Avoids queries to multiple Measurement Point Services

19. 19 MEASUREMENT ARCHIVES Purpose: expose measurement data held in databases or file systems. Wrapper for any type of storage mechanism (SQL Databases, RRD files, etc) Provides access to recent and stored data Collects information from Measurement Points, Transformation Services or other Measurement Archives. –i.e. it ‘subscribes’ to these other services Can also write to databases and file systems

20. 20 Authentication Service Authentication Service Lookup Service Lookup Service Resource Protector Service Resource Protector Service Measurement Archive Service Measurement Archive Service Measurement Point Service Measurement Point Service Transformation Service Transformation Service Client Transforms data in a variety of ways (e.g., aggregation, filtering, correlation). For future development. Precise role needs to be defined. THE TRANSFORMATION SERVICE

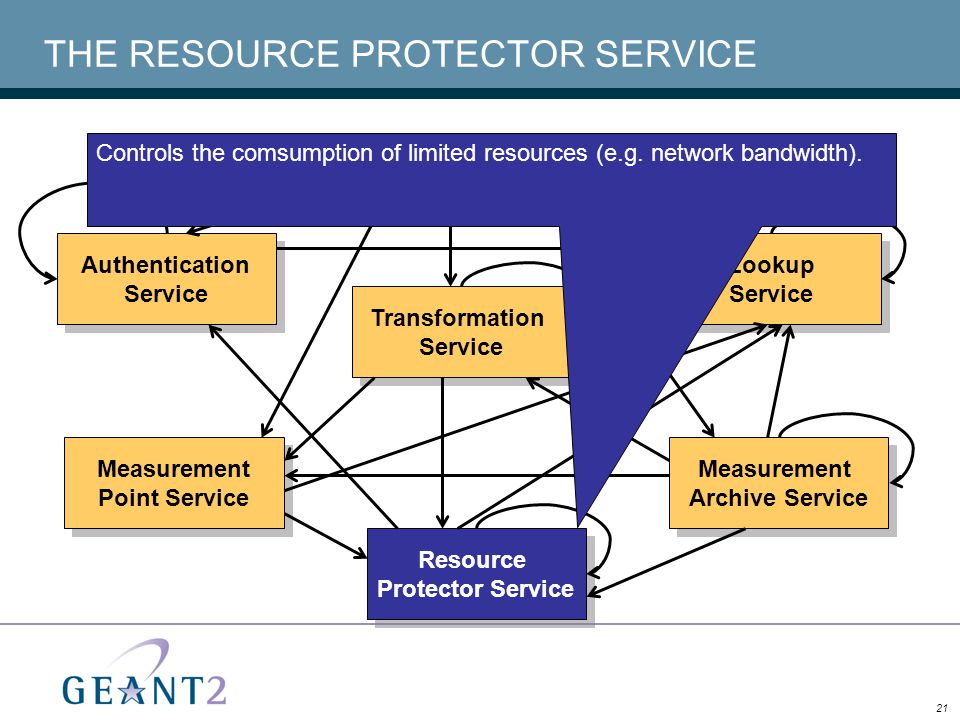

21. 21 THE RESOURCE PROTECTOR SERVICE Authentication Service Authentication Service Lookup Service Lookup Service Resource Protector Service Resource Protector Service Measurement Archive Service Measurement Archive Service Measurement Point Service Measurement Point Service Transformation Service Transformation Service Client Controls the comsumption of limited resources (e.g. network bandwidth).

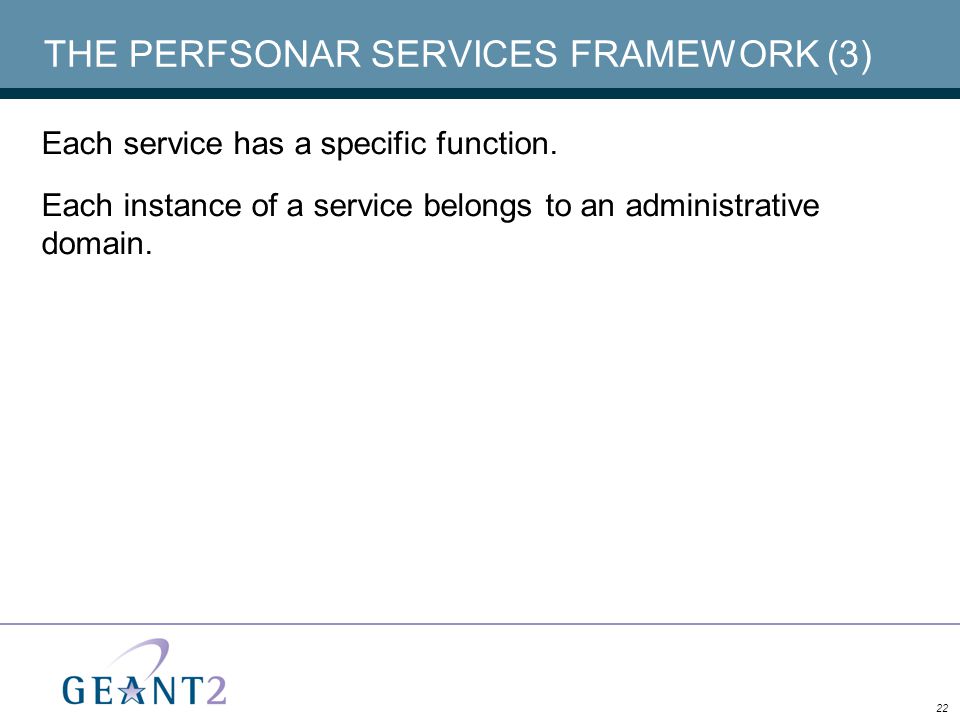

22. 22 THE PERFSONAR SERVICES FRAMEWORK (3) Each service has a specific function. Each instance of a service belongs to an administrative domain.

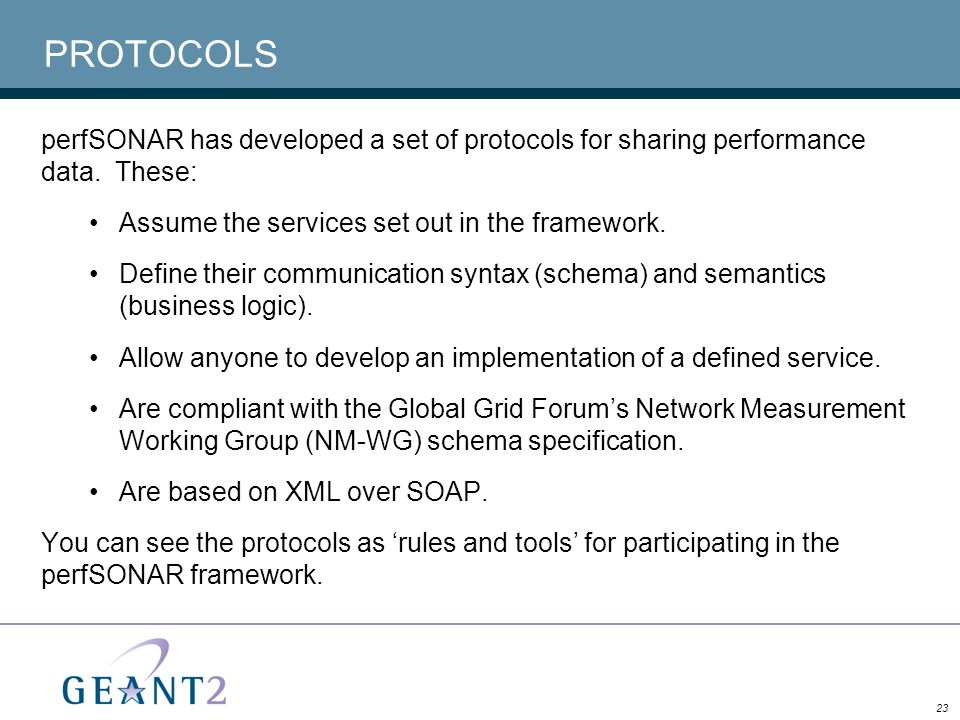

23. 23 PROTOCOLS perfSONAR has developed a set of protocols for sharing performance data. These: Assume the services set out in the framework. Define their communication syntax (schema) and semantics (business logic). Allow anyone to develop an implementation of a defined service. Are compliant with the Global Grid Forum’s Network Measurement Working Group (NM-WG) schema specification. Are based on XML over SOAP. You can see the protocols as ‘rules and tools’ for participating in the perfSONAR framework.

24. 24 GENERIC SERVICES AND SERVICE IMPLEMENTATIONS

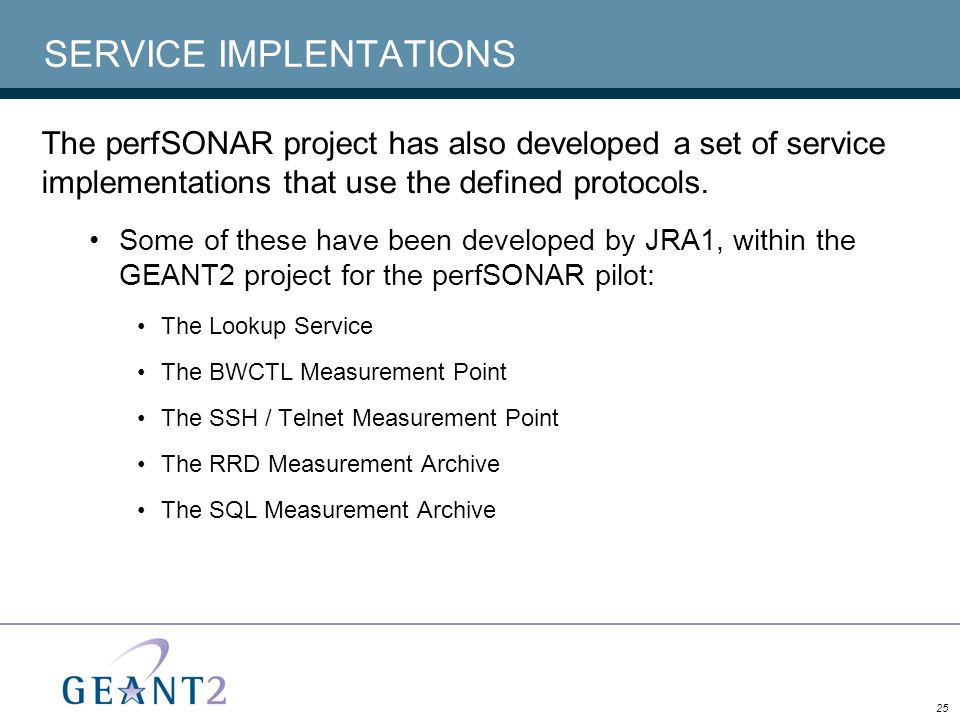

25. 25 SERVICE IMPLENTATIONS The perfSONAR project has also developed a set of service implementations that use the defined protocols. Some of these have been developed by JRA1, within the GEANT2 project for the perfSONAR pilot: The Lookup Service The BWCTL Measurement Point The SSH / Telnet Measurement Point The RRD Measurement Archive The SQL Measurement Archive

26. 26 DATA COLLECTION, NORMALISATION AND SHARING VIA THE FRAMEWORK

27. 27 FRAMEWORK FACILITATES NORMALISED END-TO-END PERFORMANCE DATA (SIMPLIFIED DEPICTION)

28. 28 THE PERFSONAR PILOT: MEASUREMENT AND ARCHIVING SERVICES

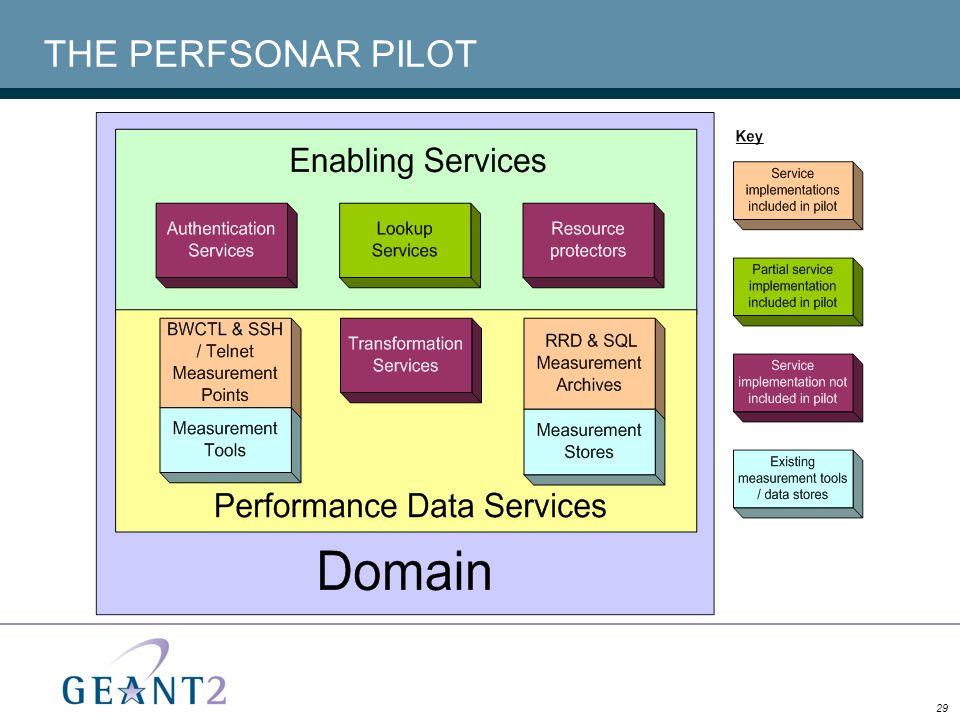

29. 29 THE PERFSONAR PILOT

30. 30 THE ROADMAP Enhanced Lookup Service: Lookup Services (ideally one per domain) peer with one another for increased ease of data discovery. Authentication Service: Collaborating with JRA5 and Edugain to produce an implementation of the service. A data subscriber (client) and a data producer (server) can communicate directly across domains provided that they are authorised to do so. Further service implementations using Netflow information or packet capture features

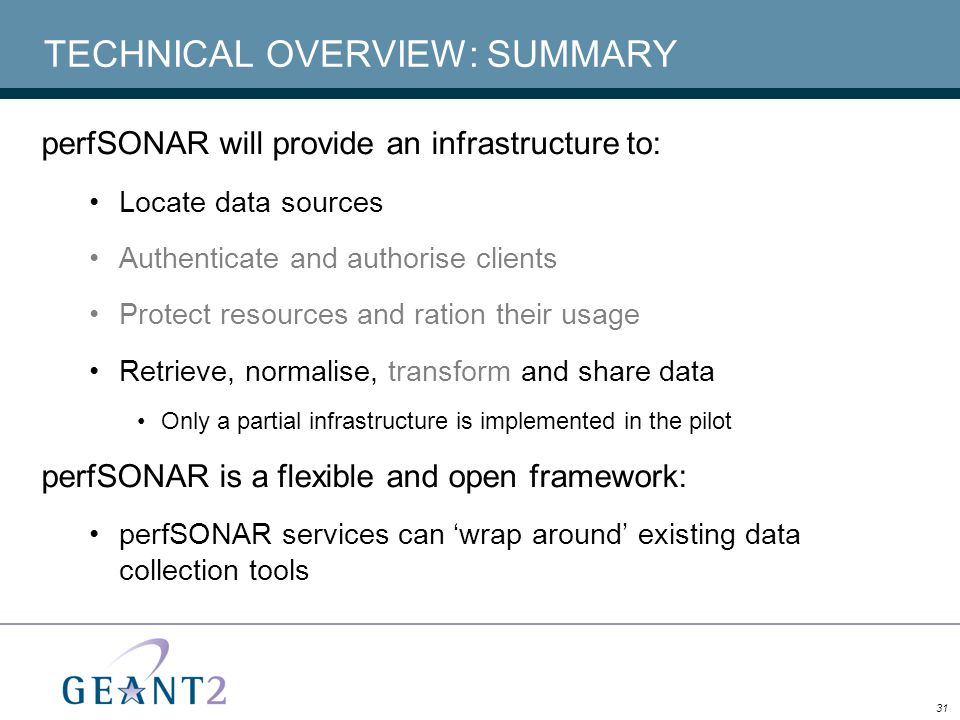

31. 31 TECHNICAL OVERVIEW: SUMMARY perfSONAR will provide an infrastructure to: Locate data sources Authenticate and authorise clients Protect resources and ration their usage Retrieve, normalise, transform and share data Only a partial infrastructure is implemented in the pilot perfSONAR is a flexible and open framework: perfSONAR services can ‘wrap around’ existing data collection tools

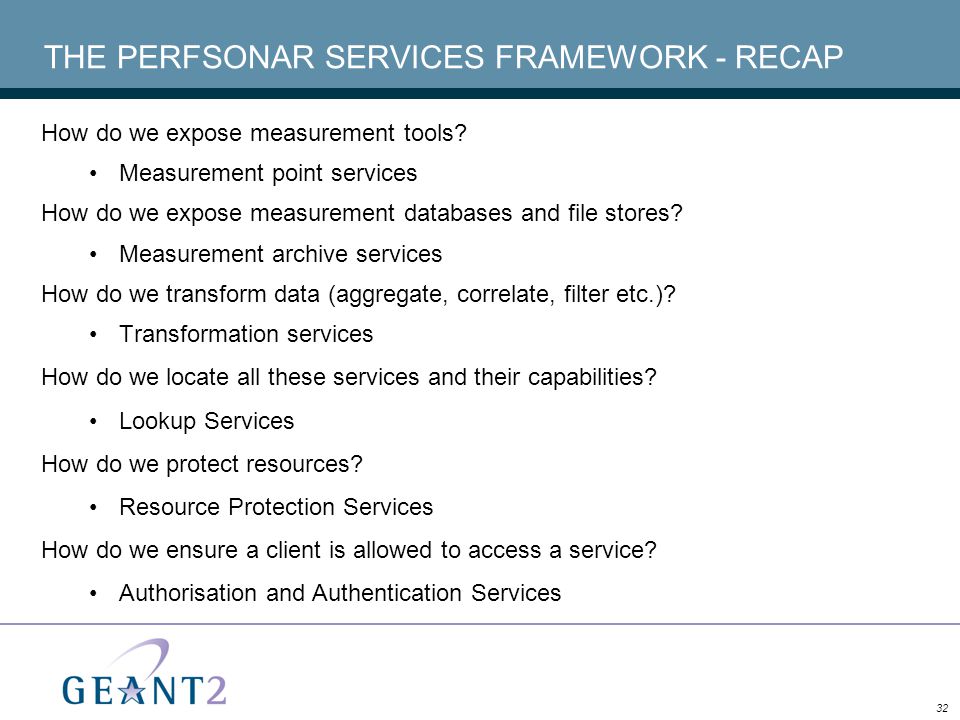

32. 32 THE PERFSONAR SERVICES FRAMEWORK - RECAP How do we expose measurement tools? Measurement point services How do we expose measurement databases and file stores? Measurement archive services How do we transform data (aggregate, correlate, filter etc.)? Transformation services How do we locate all these services and their capabilities? Lookup Services How do we protect resources? Resource Protection Services How do we ensure a client is allowed to access a service? Authorisation and Authentication Services
