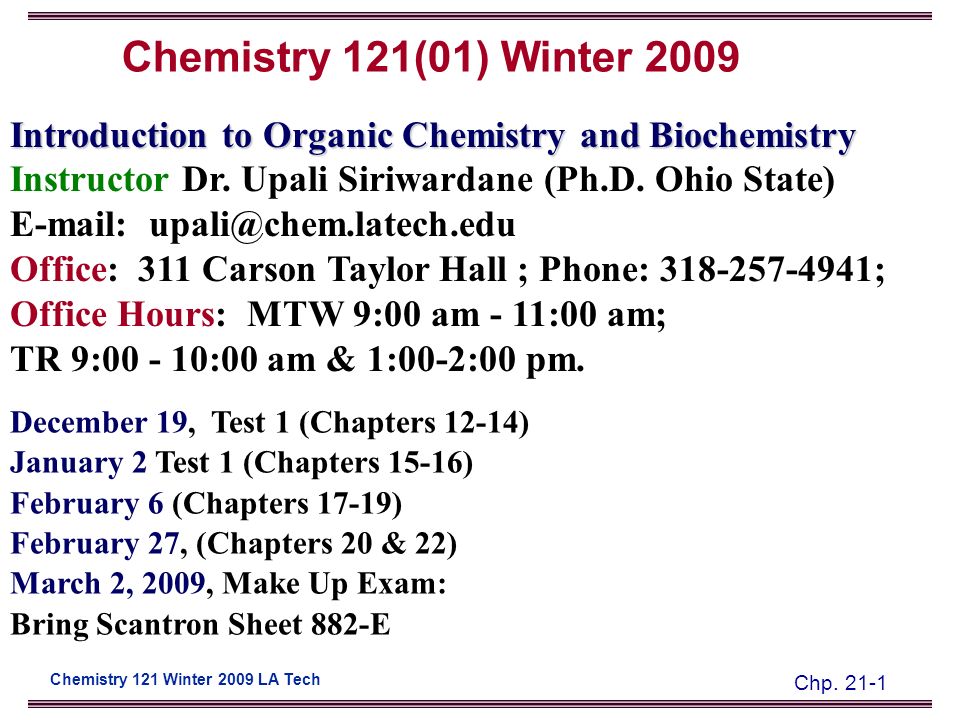

1. Chp. 21-1 Chemistry 121 Winter 2009 LA Tech Introduction to Organic Chemistry and Biochemistry Instructor Dr. Upali Siriwardane (Ph.D. Ohio State) E-mail: upali@chem.latech.edu Office: 311 Carson Taylor Hall ; Phone: 318-257-4941; Office Hours: MTW 9:00 am - 11:00 am; TR 9:00 - 10:00 am & 1:00-2:00 pm. December 19, Test 1 (Chapters 12-14) January 2 Test 1 (Chapters 15-16) February 6 (Chapters 17-19) February 27, (Chapters 20 & 22) March 2, 2009, Make Up Exam: Bring Scantron Sheet 882-E Chemistry 121(01) Winter 2009

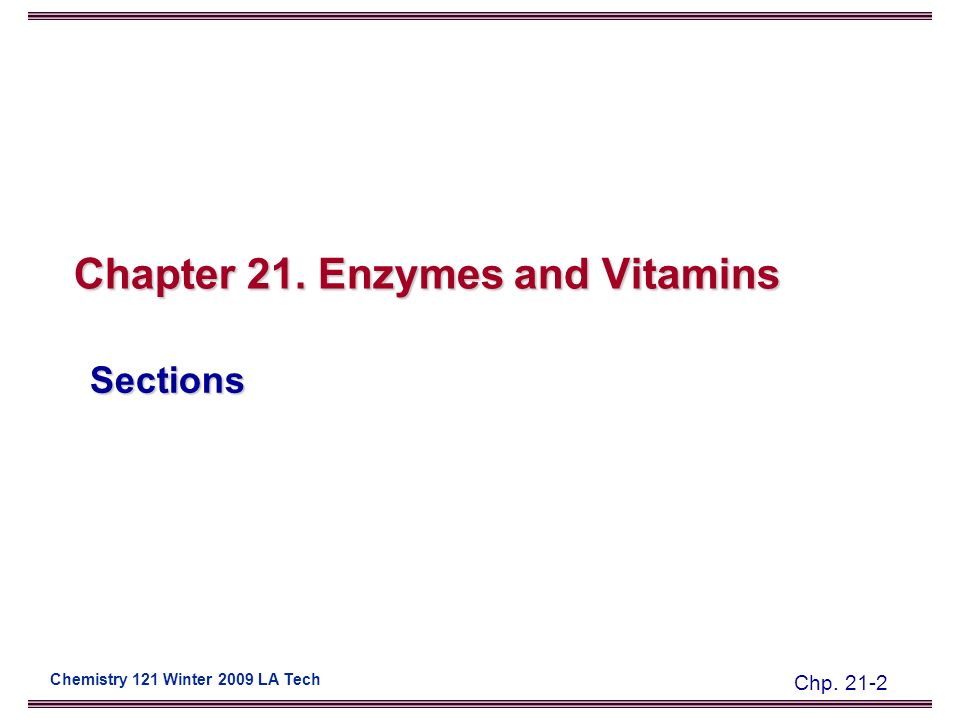

2. Chp. 21-2 Chemistry 121 Winter 2009 LA Tech Chapter 21. Enzymes and Vitamins Sections

3. Chp. 21-3 Chemistry 121 Winter 2009 LA Tech Chapter 21. Enzymes and Vitamins 21.1 General Characteristics of Enzymes 21.2 Nomenclature and Classification of Enzymes 21.3 Enzyme Structure 21.4 Models of Enzyme Action 21.5 Enzyme Specificity 21.6 Factors That Affect Enzyme Activity 21.7 Enzyme Inhibition 21.8 Regulation of Enzyme Activity: Allosteric Enzymes 21.9 Regulation of Enzyme Activity: Zymogens 21.10 Antibiotics That Inhibit Enzyme Activity 21.11 Medical Uses of Enzymes 21.12 Vitamins 21.13 Water-Soluble Vitamins 21.14 Fat-Soluble Vitamins

4. Chp. 21-4 Chemistry 121 Winter 2009 LA Tech Chapter 21. Enzymes Nomenclature and Classification Activation Energy Enzyme-Substrate Interaction Cofactors and Coenzymes Effect of pH and Temperature Regulation of Enzyme Activity

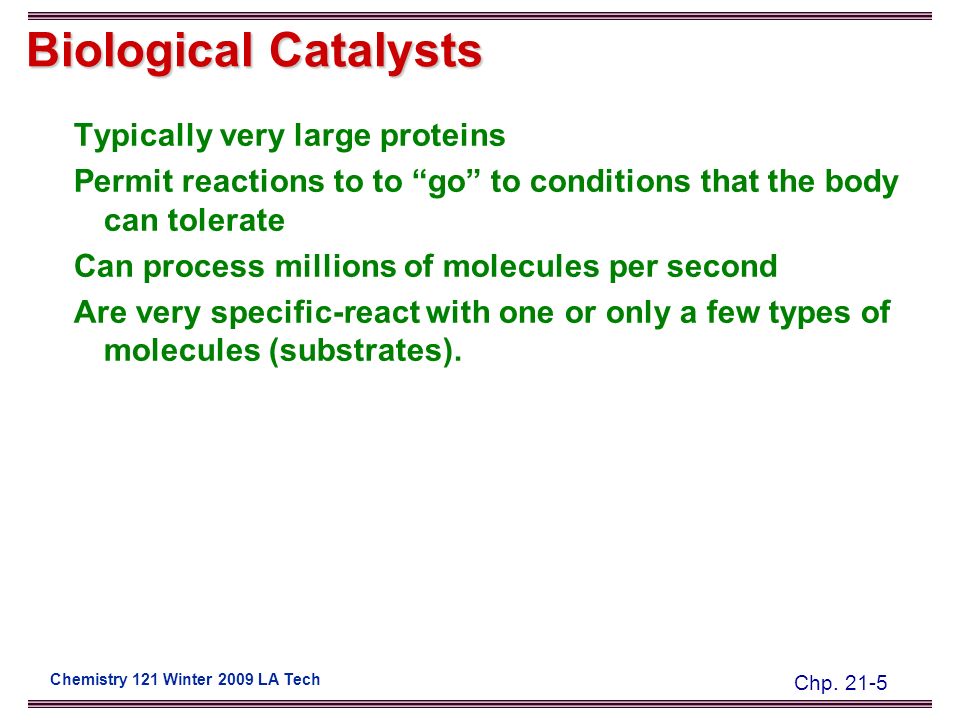

5. Chp. 21-5 Chemistry 121 Winter 2009 LA Tech Biological Catalysts Typically very large proteins Permit reactions to to “go” to conditions that the body can tolerate Can process millions of molecules per second Are very specific-react with one or only a few types of molecules (substrates).

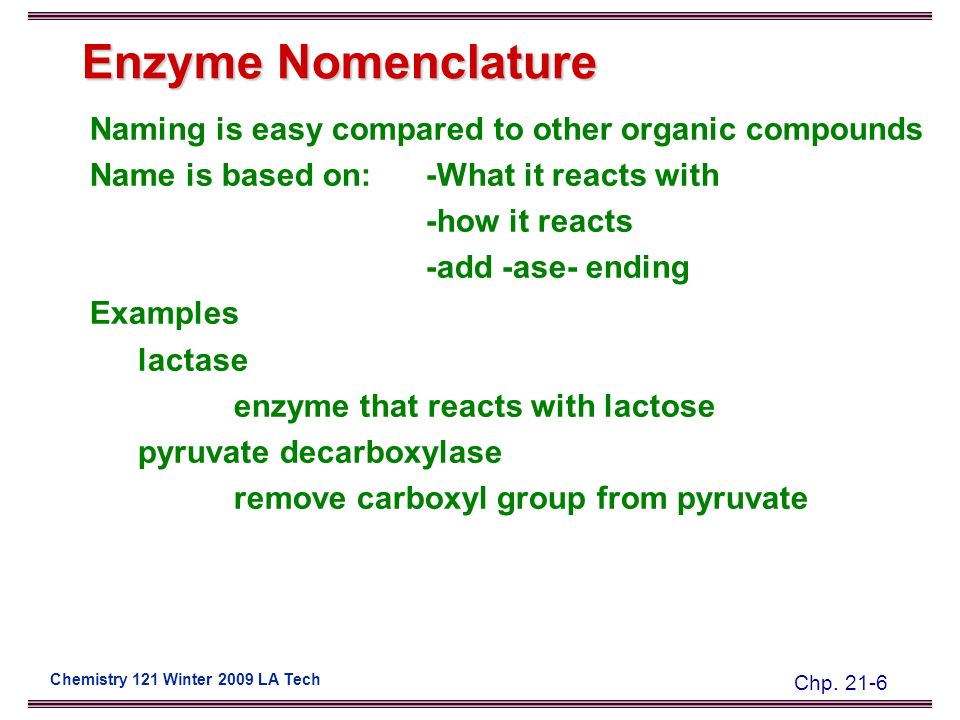

6. Chp. 21-6 Chemistry 121 Winter 2009 LA Tech Enzyme Nomenclature Naming is easy compared to other organic compounds Name is based on:-What it reacts with -how it reacts -add -ase- ending Examples lactase enzyme that reacts with lactose pyruvate decarboxylase remove carboxyl group from pyruvate

7. Chp. 21-7 Chemistry 121 Winter 2009 LA Tech Classification of Enzymes Oxidoreductases: catalyze oxidation-reduction. Transferases: transfer of functional groups. Hydrolases: catalyze hydrolysis reactions. Lyases: catalyse the removal of chemical groups. Isomerases: catalyze isomerization reactions. Ligases: catalyze formation of chemical bonds, join two molecules

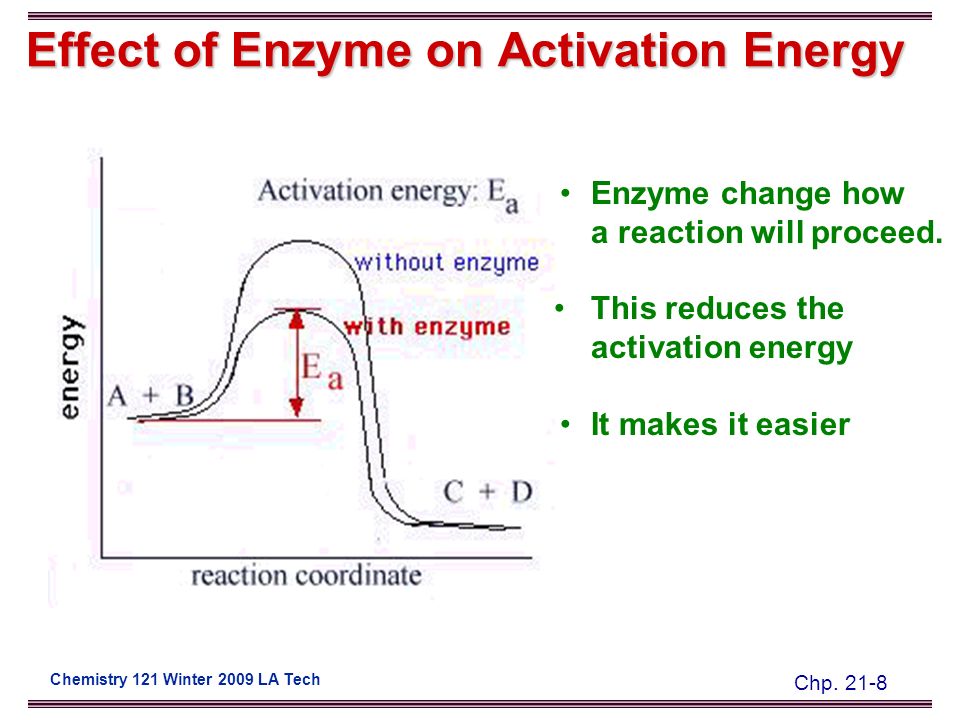

8. Chp. 21-8 Chemistry 121 Winter 2009 LA Tech Effect of Enzyme on Activation Energy Enzyme change how a reaction will proceed. This reduces the activation energy It makes it easier

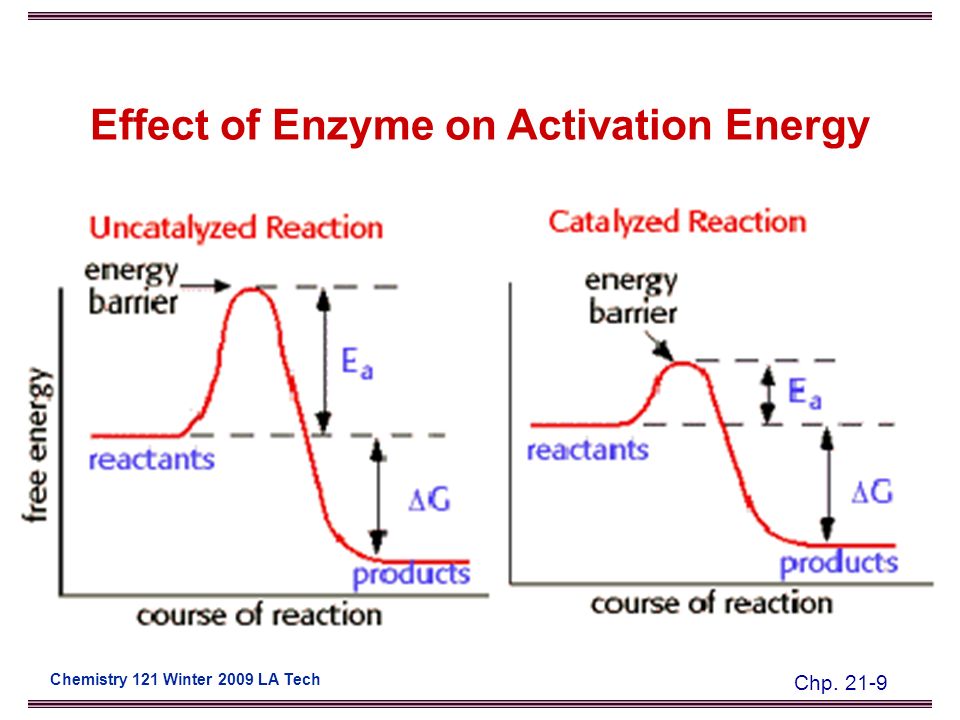

9. Chp. 21-9 Chemistry 121 Winter 2009 LA Tech Effect of Enzyme on Activation Energy

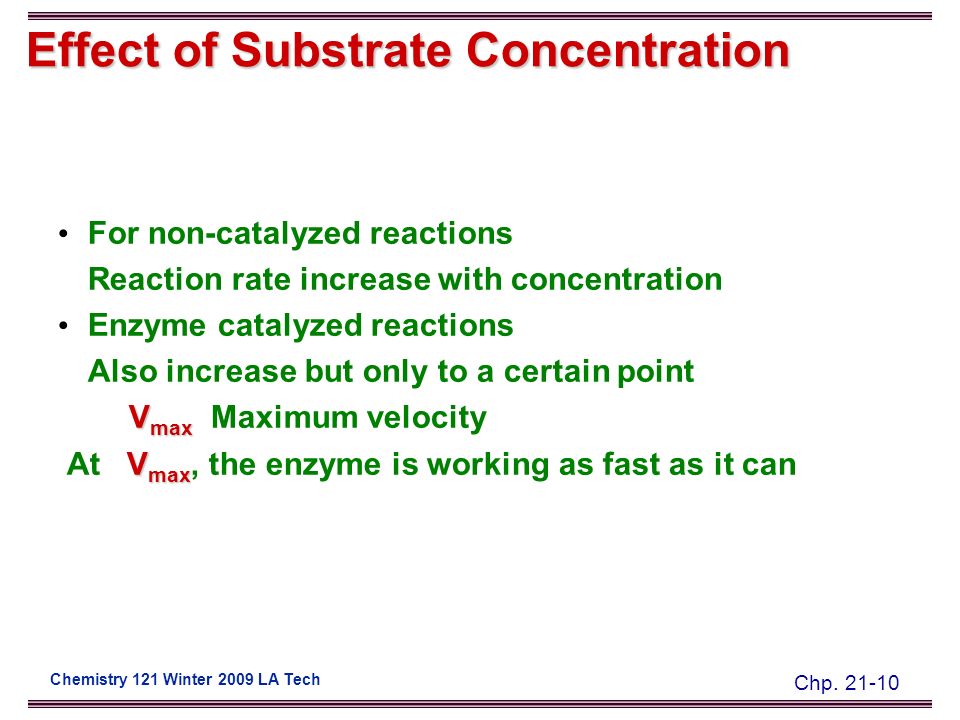

10. Chp. 21-10 Chemistry 121 Winter 2009 LA Tech Effect of Substrate Concentration For non-catalyzed reactions Reaction rate increase with concentration Enzyme catalyzed reactions Also increase but only to a certain point V max V max Maximum velocity V max At V max, the enzyme is working as fast as it can

11. Chp. 21-11 Chemistry 121 Winter 2009 LA Tech Effect of Substrate Concentration

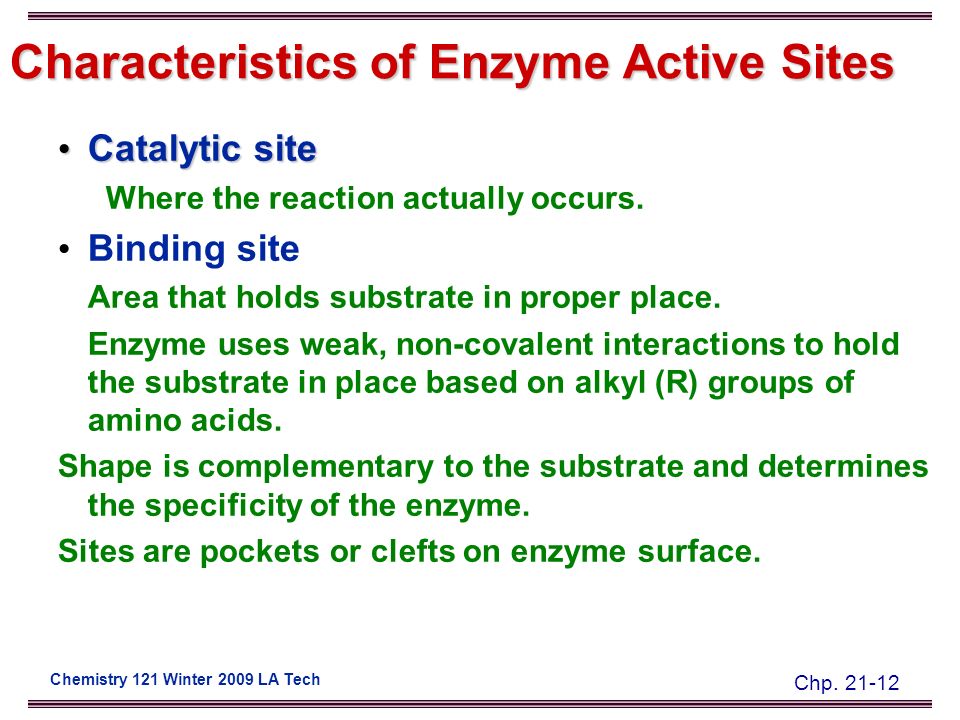

12. Chp. 21-12 Chemistry 121 Winter 2009 LA Tech Characteristics of Enzyme Active Sites Catalytic siteCatalytic site Where the reaction actually occurs. Binding site Area that holds substrate in proper place. Enzyme uses weak, non-covalent interactions to hold the substrate in place based on alkyl (R) groups of amino acids. Shape is complementary to the substrate and determines the specificity of the enzyme. Sites are pockets or clefts on enzyme surface.

13. Chp. 21-13 Chemistry 121 Winter 2009 LA Tech Steps in Enzymatic Reactions Enzyme and substrate combine to form a complex Complex goes through a transition state -which is not quite substrate or product A complex of the enzyme and the product is produced Finally the enzyme and product separate All these steps are equilibria All these steps are equilibria Lets review each step Lets review each step

14. Chp. 21-14 Chemistry 121 Winter 2009 LA Tech The Players

15. Chp. 21-15 Chemistry 121 Winter 2009 LA Tech Formation of Enzyme-substrate Complex

16. Chp. 21-16 Chemistry 121 Winter 2009 LA Tech Formation of the Transition State

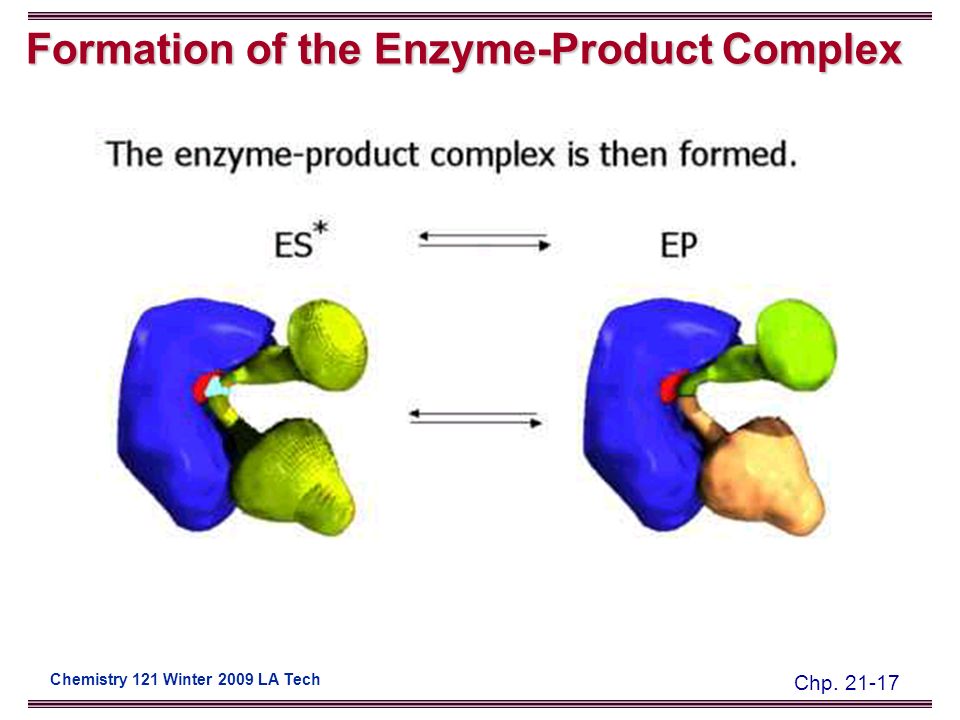

17. Chp. 21-17 Chemistry 121 Winter 2009 LA Tech Formation of the Enzyme-Product Complex

18. Chp. 21-18 Chemistry 121 Winter 2009 LA Tech

19. Chp. 21-19 Chemistry 121 Winter 2009 LA Tech

20. Chp. 21-20 Chemistry 121 Winter 2009 LA Tech

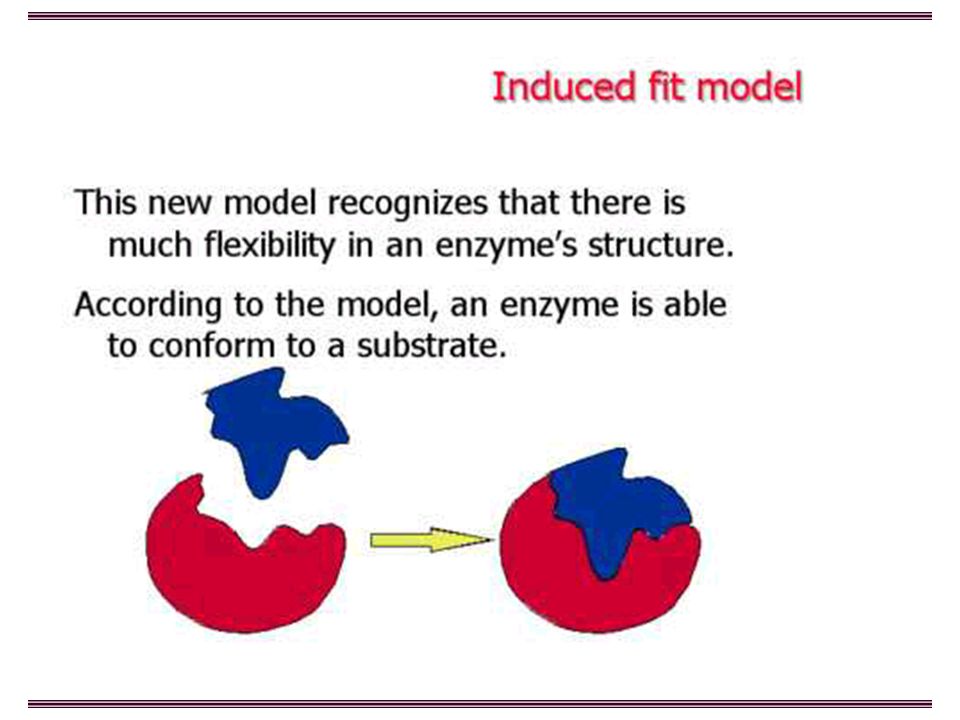

21. Chp. 21-21 Chemistry 121 Winter 2009 LA Tech

22. Chp. 21-22 Chemistry 121 Winter 2009 LA Tech

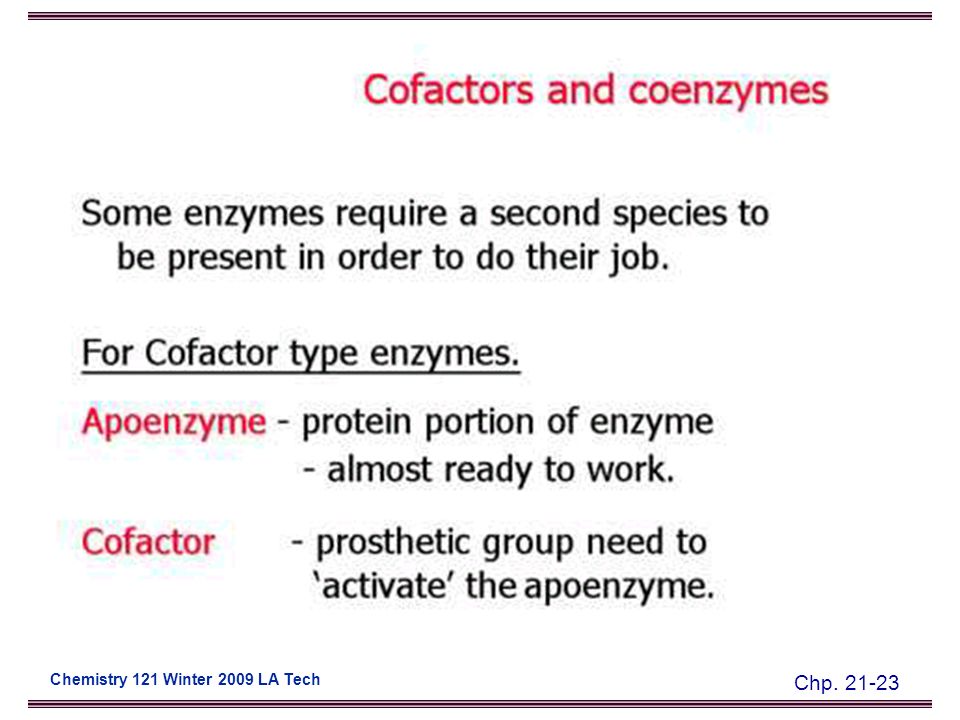

23. Chp. 21-23 Chemistry 121 Winter 2009 LA Tech

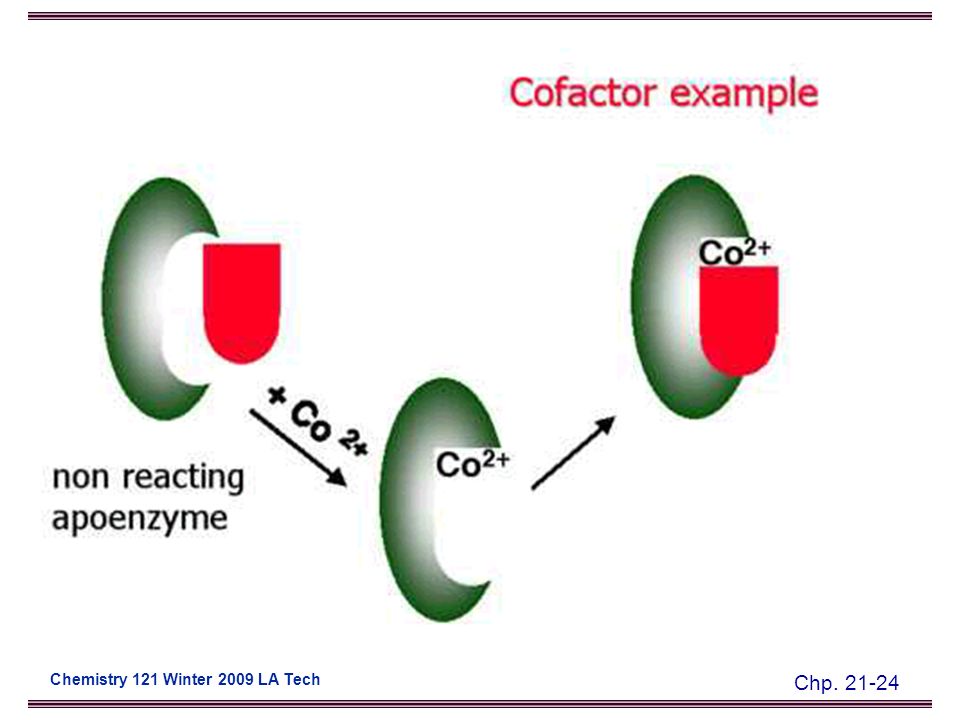

24. Chp. 21-24 Chemistry 121 Winter 2009 LA Tech

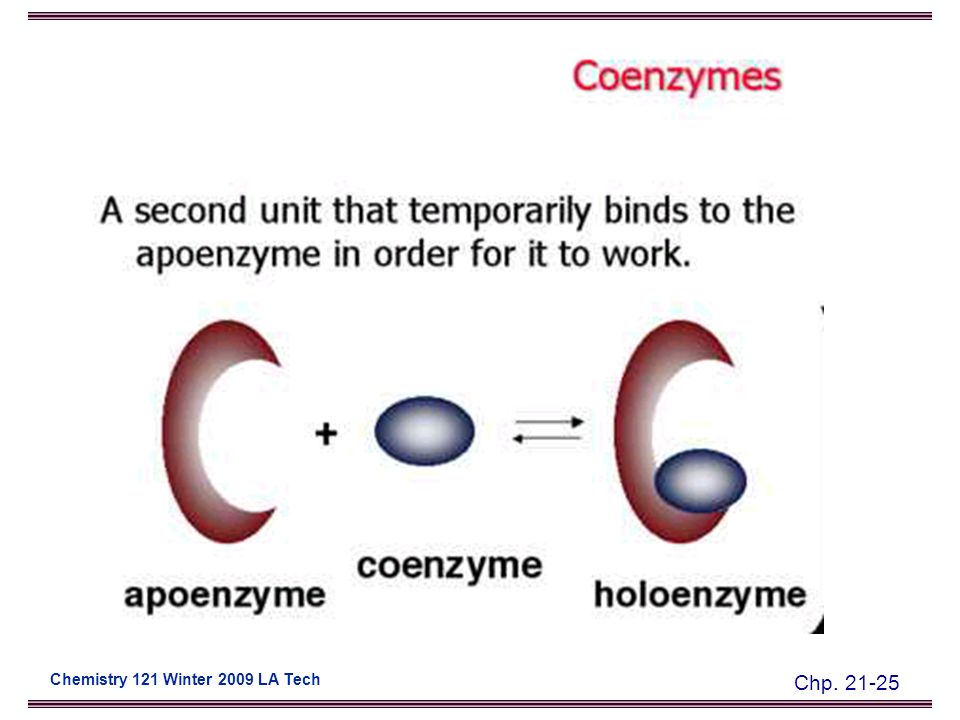

25. Chp. 21-25 Chemistry 121 Winter 2009 LA Tech

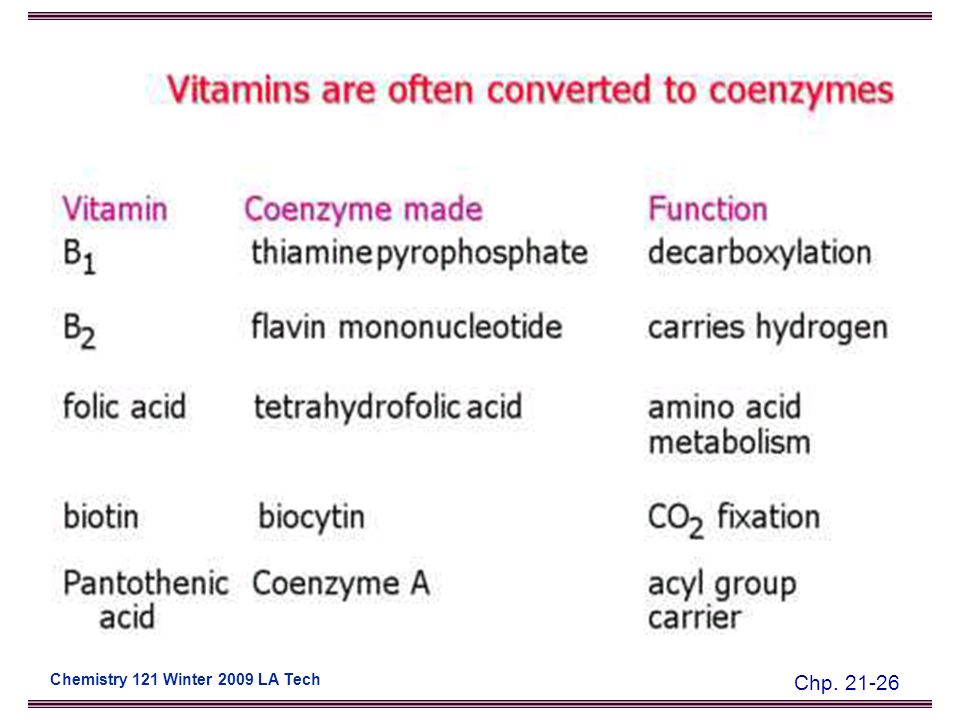

26. Chp. 21-26 Chemistry 121 Winter 2009 LA Tech

27. Chp. 21-27 Chemistry 121 Winter 2009 LA Tech

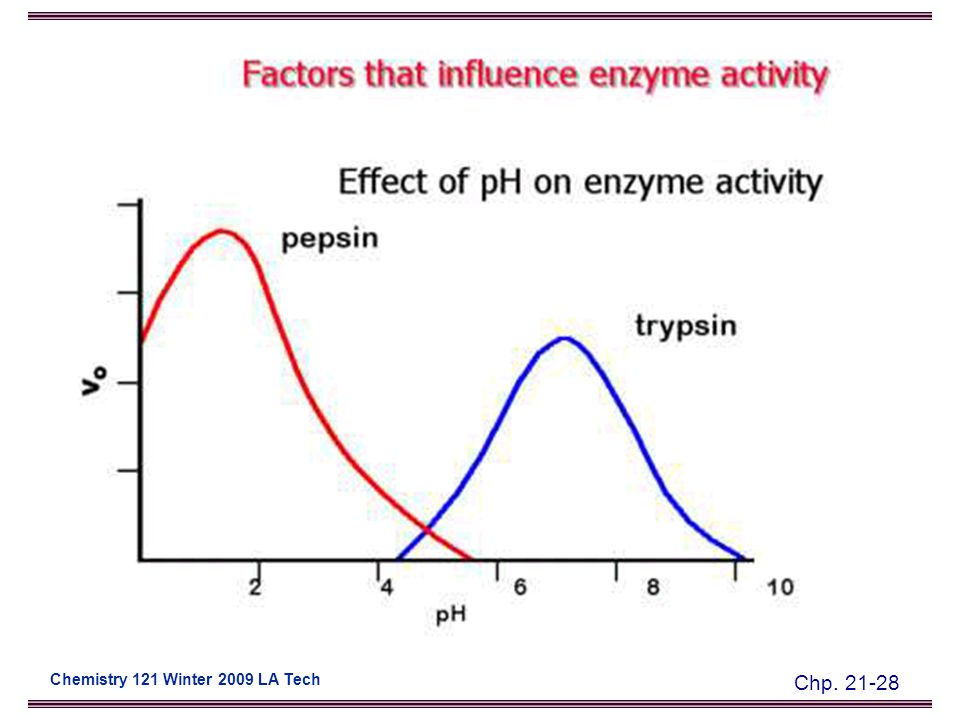

28. Chp. 21-28 Chemistry 121 Winter 2009 LA Tech

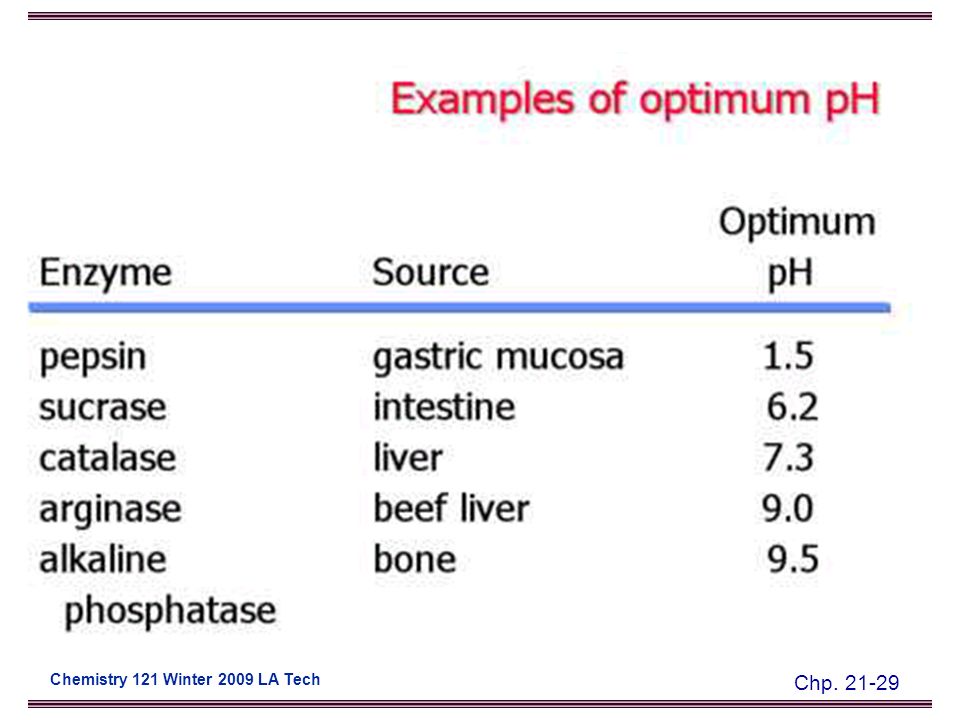

29. Chp. 21-29 Chemistry 121 Winter 2009 LA Tech

30. Chp. 21-30 Chemistry 121 Winter 2009 LA Tech

31. Chp. 21-31 Chemistry 121 Winter 2009 LA Tech

32. Chp. 21-32 Chemistry 121 Winter 2009 LA Tech

33. Chp. 21-33 Chemistry 121 Winter 2009 LA Tech

34. Chp. 21-34 Chemistry 121 Winter 2009 LA Tech

35. Chp. 21-35 Chemistry 121 Winter 2009 LA Tech

36. Chp. 21-36 Chemistry 121 Winter 2009 LA Tech

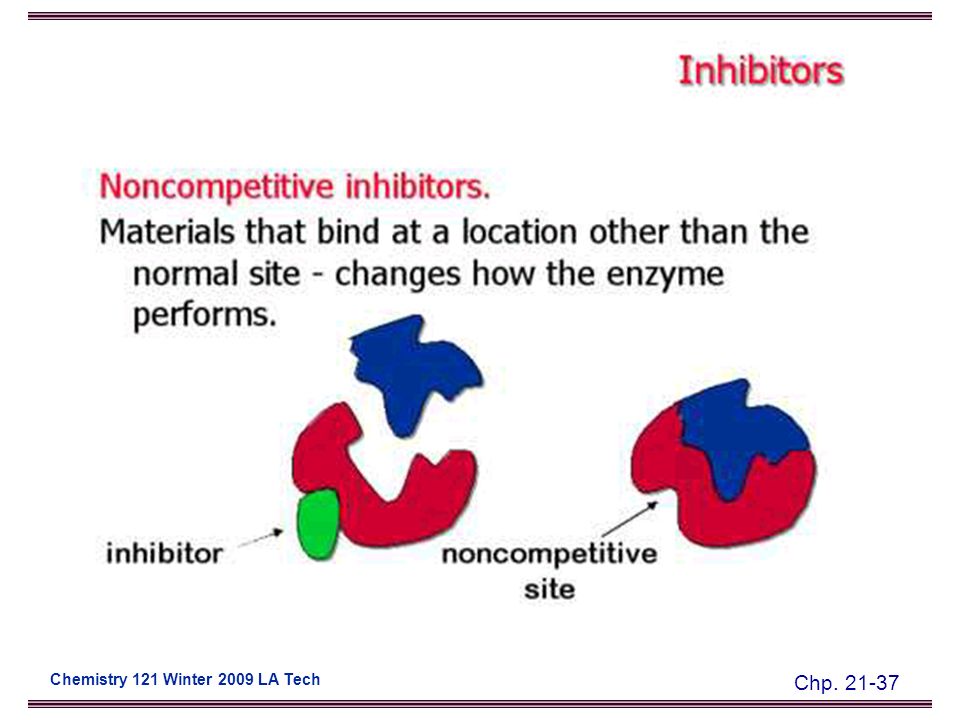

37. Chp. 21-37 Chemistry 121 Winter 2009 LA Tech

38. Chp. 21-38 Chemistry 121 Winter 2009 LA Tech

39. Chp. 21-39 Chemistry 121 Winter 2009 LA Tech

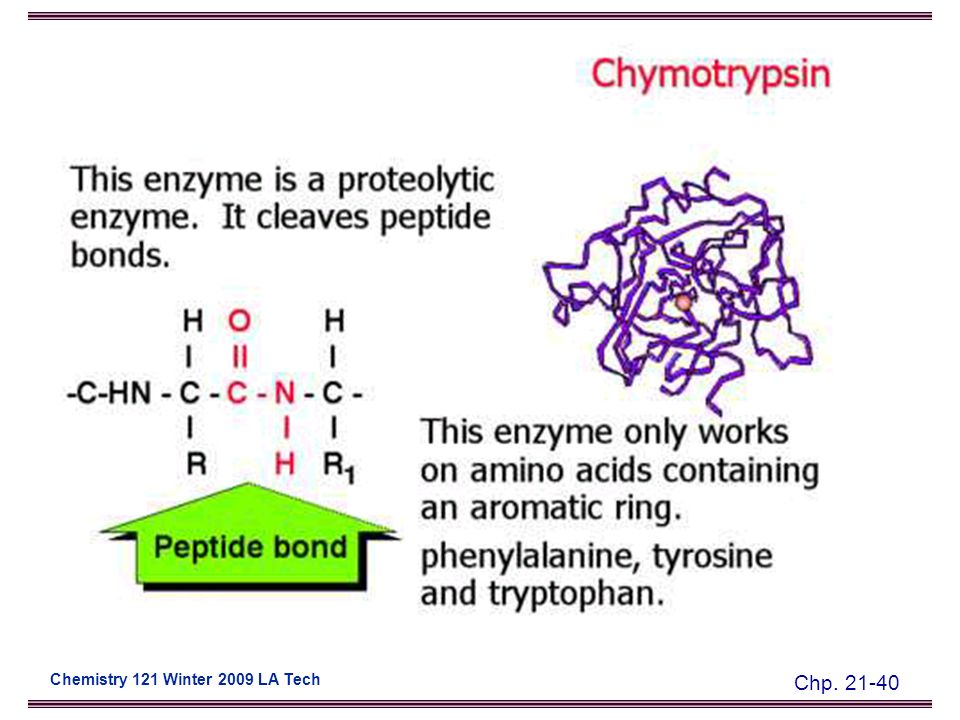

40. Chp. 21-40 Chemistry 121 Winter 2009 LA Tech

41. Chp. 21-41 Chemistry 121 Winter 2009 LA Tech

42. Chp. 21-42 Chemistry 121 Winter 2009 LA Tech

43. Chp. 21-43 Chemistry 121 Winter 2009 LA Tech

44. Chp. 21-44 Chemistry 121 Winter 2009 LA Tech

45. Chp. 21-45 Chemistry 121 Winter 2009 LA Tech

46. Chp. 21-46 Chemistry 121 Winter 2009 LA Tech

47. Chp. 21-47 Chemistry 121 Winter 2009 LA Tech

48. Chp. 21-48 Chemistry 121 Winter 2009 LA Tech

49. Chp. 21-49 Chemistry 121 Winter 2009 LA Tech

50. Chp. 21-50 Chemistry 121 Winter 2009 LA Tech
