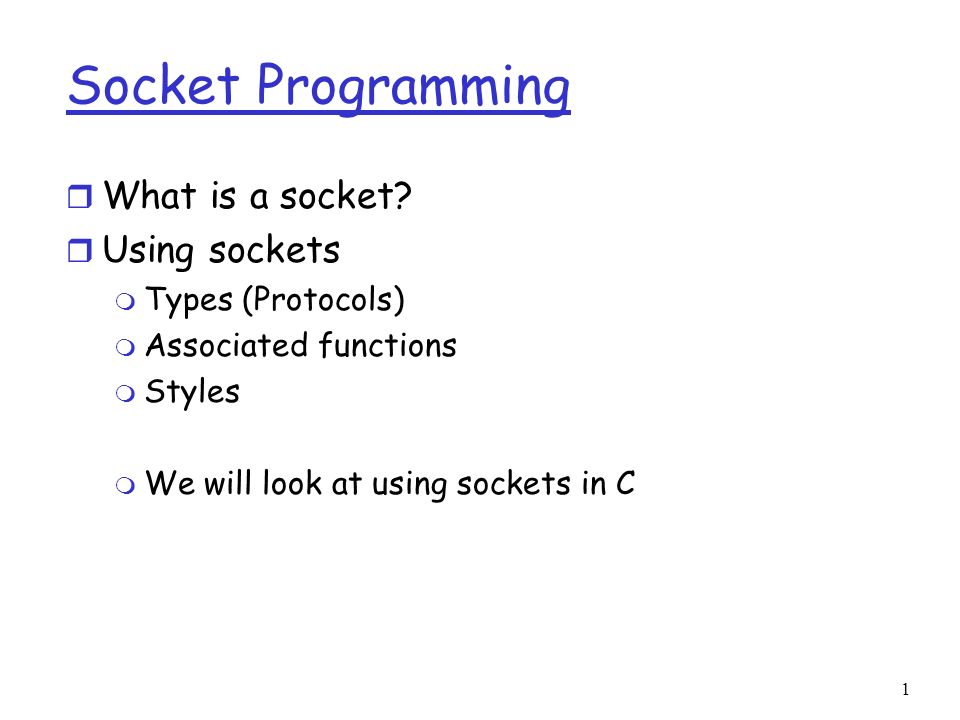

1. 1 Socket Programming r What is a socket? r Using sockets m Types (Protocols) m Associated functions m Styles m We will look at using sockets in C

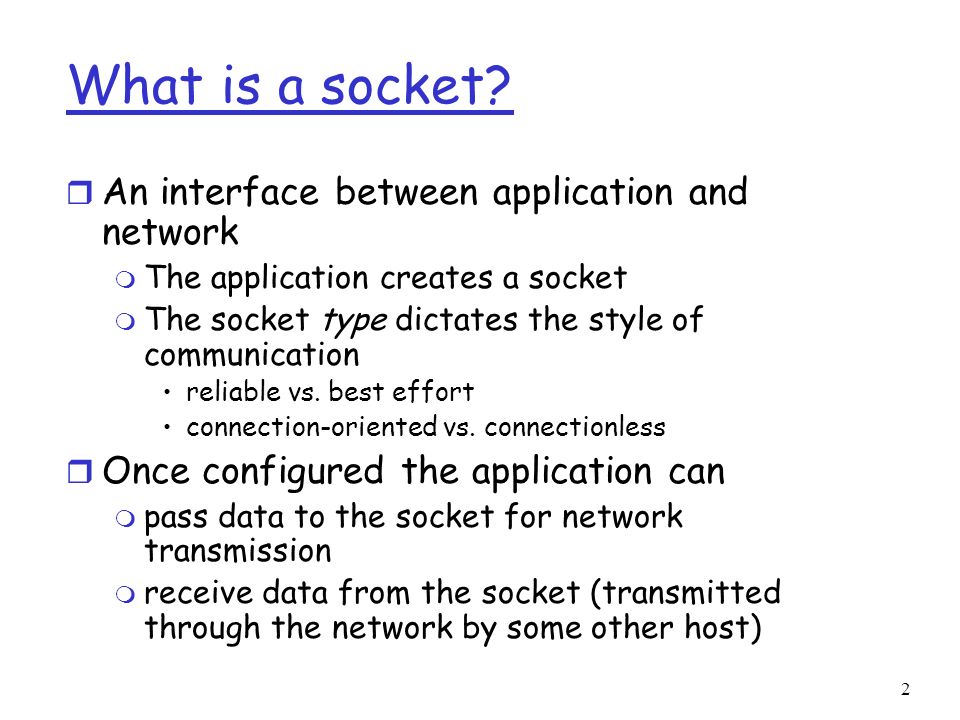

2. 2 What is a socket? r An interface between application and network m The application creates a socket m The socket type dictates the style of communication reliable vs. best effort connection-oriented vs. connectionless r Once configured the application can m pass data to the socket for network transmission m receive data from the socket (transmitted through the network by some other host)

3. 3 Two essential types of sockets r SOCK_STREAM m a.k.a. TCP m reliable delivery m in-order guaranteed m connection-oriented m bidirectional r SOCK_DGRAM m a.k.a. UDP m unreliable delivery m no order guarantees m no notion of “connection” – app indicates dest. for each packet m can send or receive App socket 3 2 1 Dest. App socket 3 2 1 D1 D3 D2 Q: why have type SOCK_DGRAM ?

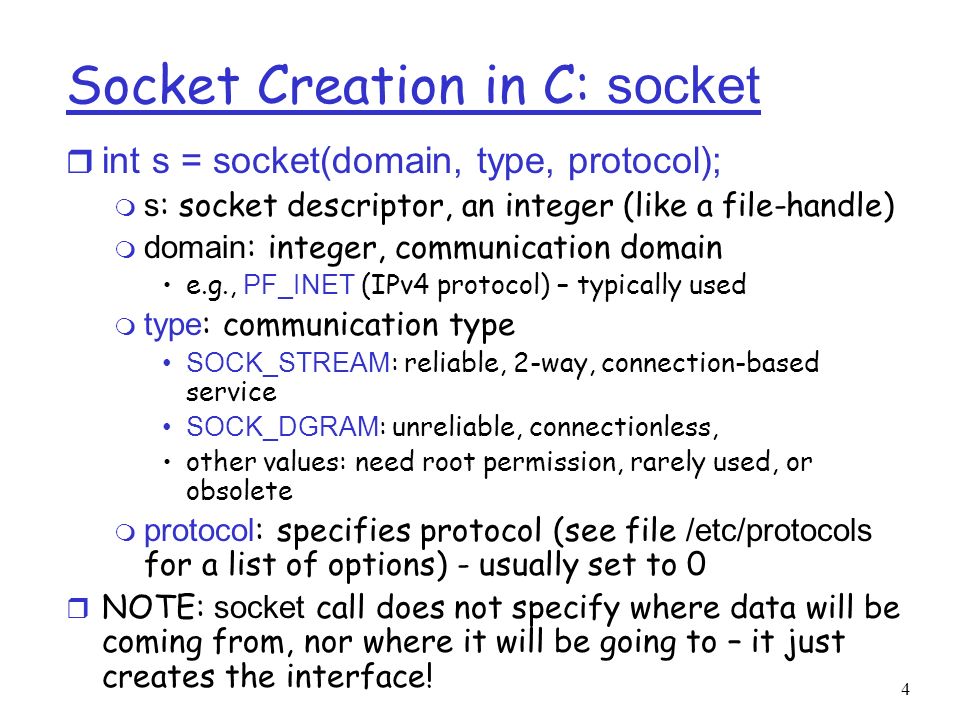

4. 4 Socket Creation in C: socket r int s = socket(domain, type, protocol);  s : socket descriptor, an integer (like a file-handle)  domain : integer, communication domain e.g., PF_INET (IPv4 protocol) – typically used  type : communication type SOCK_STREAM : reliable, 2-way, connection-based service SOCK_DGRAM : unreliable, connectionless, other values: need root permission, rarely used, or obsolete  protocol : specifies protocol (see file /etc/protocols for a list of options) - usually set to 0  NOTE: socket call does not specify where data will be coming from, nor where it will be going to – it just creates the interface!

5. 5 A Socket-eye view of the Internet r Each host machine has an IP address r When a packet arrives at a host medellin.cs.columbia.edu (128.59.21.14) cluster.cs.columbia.edu (128.59.21.14, 128.59.16.7, 128.59.16.5, 128.59.16.4) newworld.cs.umass.edu (128.119.245.93)

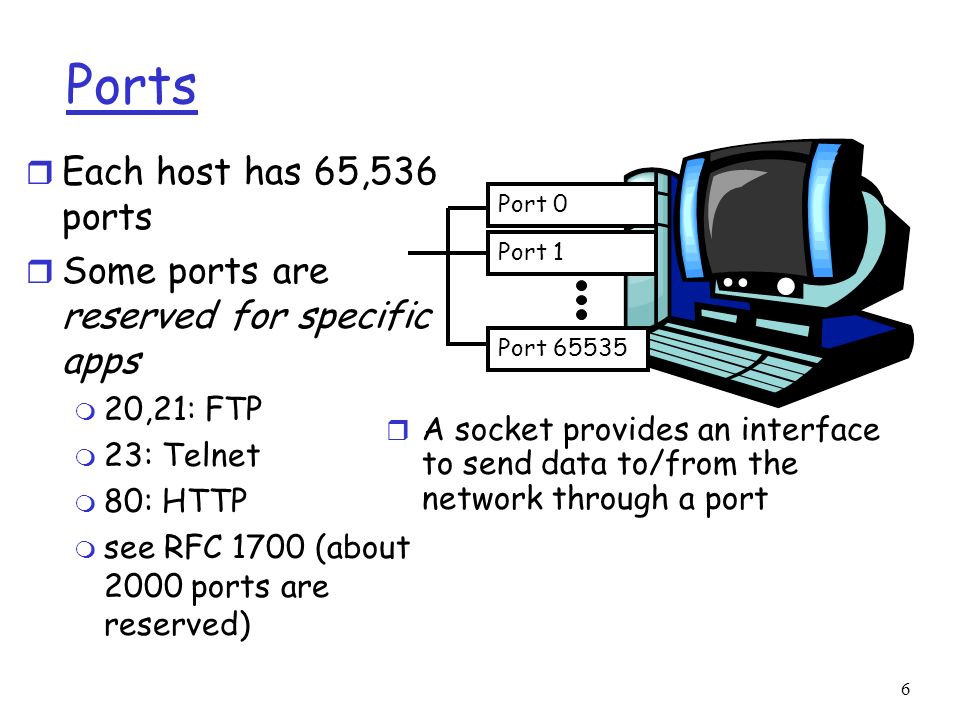

6. 6 Ports Port 0 Port 1 Port 65535 r Each host has 65,536 ports r Some ports are reserved for specific apps m 20,21: FTP m 23: Telnet m 80: HTTP m see RFC 1700 (about 2000 ports are reserved) r A socket provides an interface to send data to/from the network through a port

7. 7 Addresses, Ports and Sockets r Like apartments and mailboxes m You are the application m Your apartment building address is the address m Your mailbox is the port m The post-office is the network m The socket is the key that gives you access to the right mailbox (one difference: assume outgoing mail is placed by you in your mailbox) r Q: How do you choose which port a socket connects to?

8. 8 The bind function r associates and (can exclusively) reserves a port for use by the socket r int status = bind(sockid, &addrport, size);  status : error status, = -1 if bind failed  sockid : integer, socket descriptor  addrport : struct sockaddr, the (IP) address and port of the machine (address usually set to INADDR_ANY – chooses a local address)  size : the size (in bytes) of the addrport structure  bind can be skipped for both types of sockets. When and why?

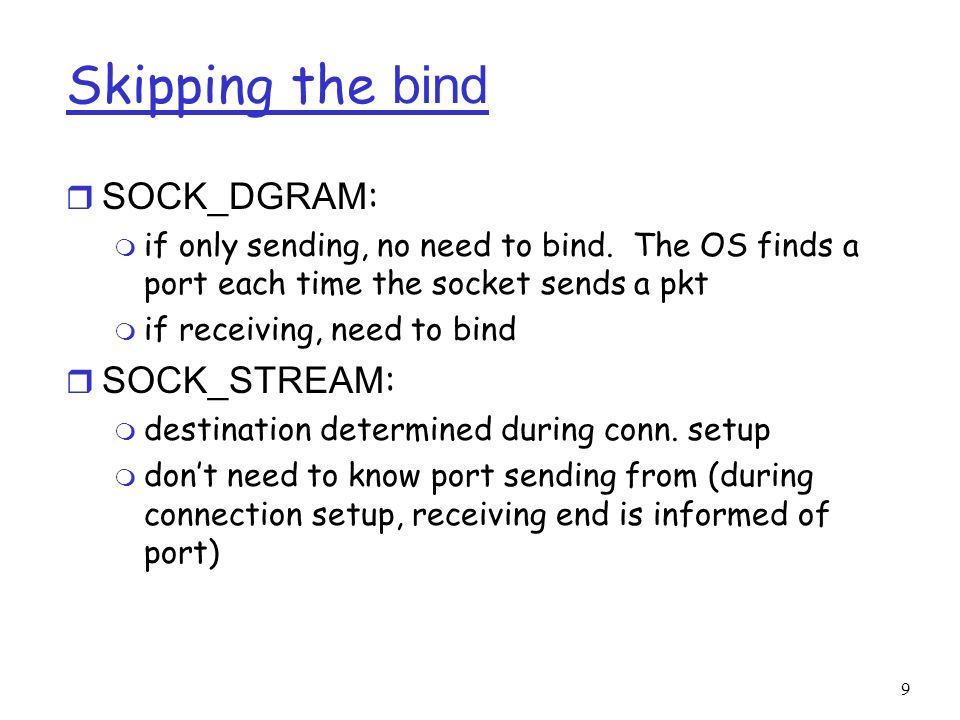

9. 9 Skipping the bind  SOCK_DGRAM : m if only sending, no need to bind. The OS finds a port each time the socket sends a pkt m if receiving, need to bind  SOCK_STREAM : m destination determined during conn. setup m don’t need to know port sending from (during connection setup, receiving end is informed of port)

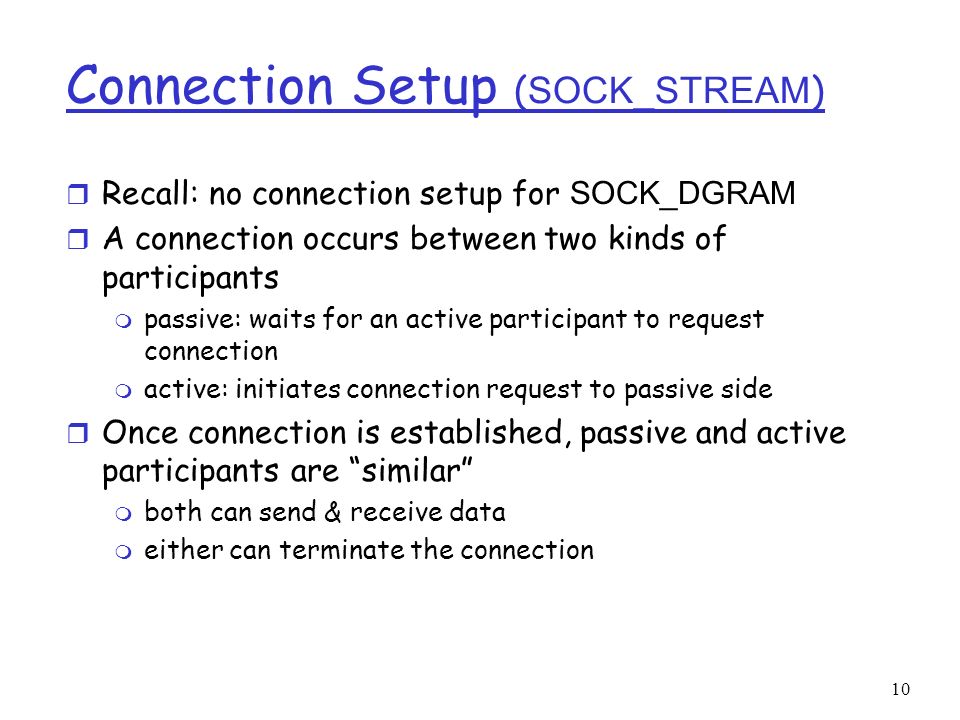

10. 10 Connection Setup ( SOCK_STREAM )  Recall: no connection setup for SOCK_DGRAM r A connection occurs between two kinds of participants m passive: waits for an active participant to request connection m active: initiates connection request to passive side r Once connection is established, passive and active participants are “similar” m both can send & receive data m either can terminate the connection

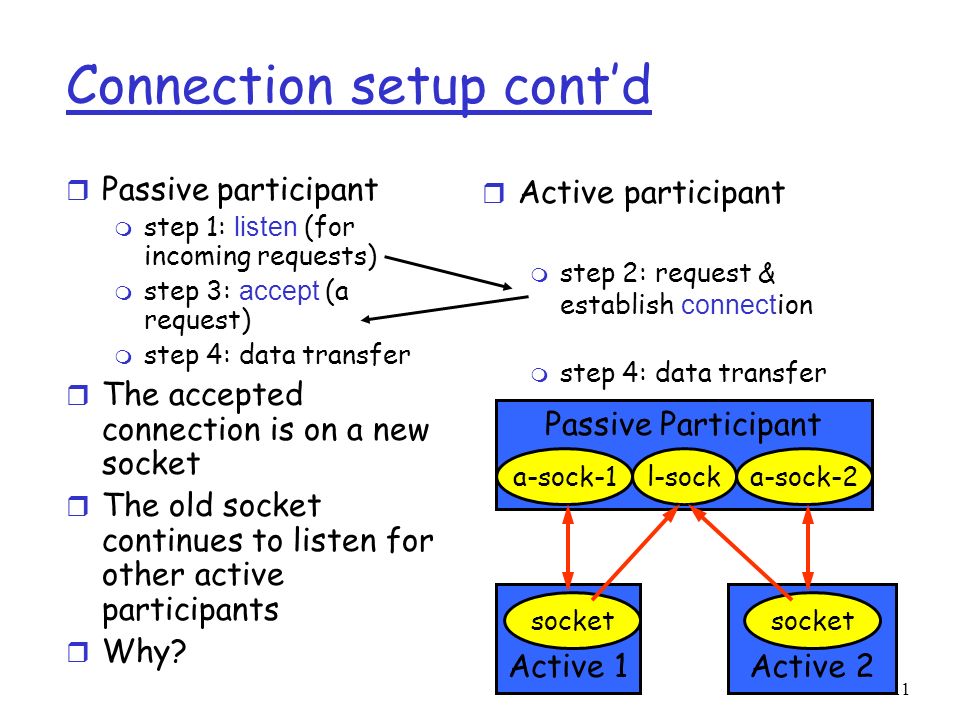

11. 11 Connection setup cont’d r Passive participant  step 1: listen (for incoming requests)  step 3: accept (a request) m step 4: data transfer r The accepted connection is on a new socket r The old socket continues to listen for other active participants r Why? r Active participant  step 2: request & establish connect ion m step 4: data transfer Passive Participant l-socka-sock-1a-sock-2 Active 1 socket Active 2 socket

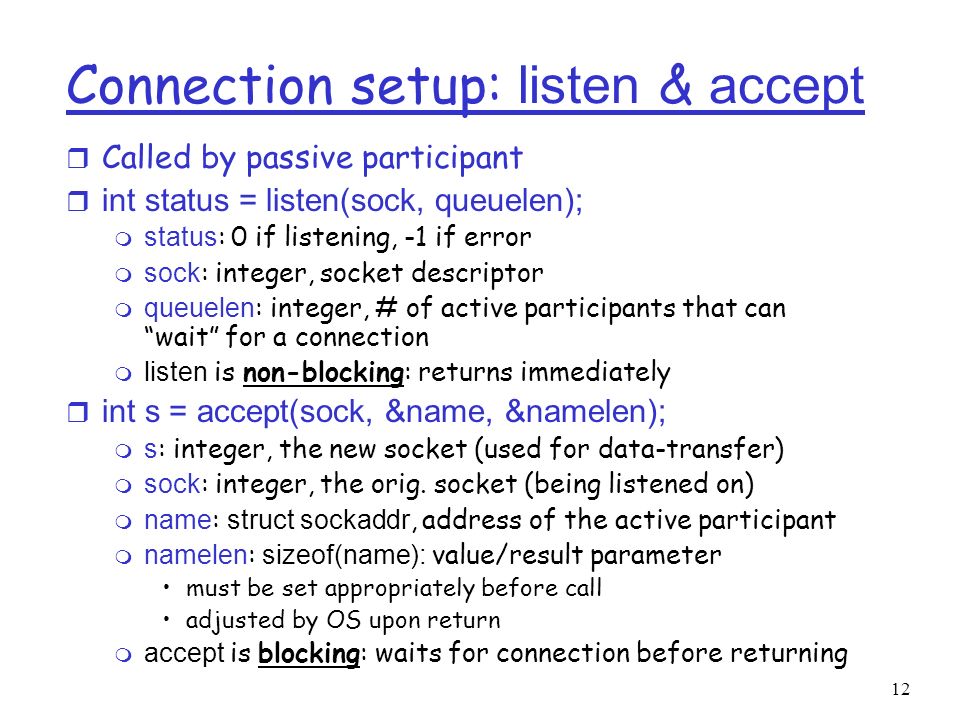

12. 12 Connection setup: listen & accept r Called by passive participant r int status = listen(sock, queuelen);  status : 0 if listening, -1 if error  sock : integer, socket descriptor  queuelen : integer, # of active participants that can “wait” for a connection  listen is non-blocking: returns immediately r int s = accept(sock, &name, &namelen);  s : integer, the new socket (used for data-transfer)  sock : integer, the orig. socket (being listened on)  name : struct sockaddr, address of the active participant  namelen : sizeof(name): value/result parameter must be set appropriately before call adjusted by OS upon return  accept is blocking: waits for connection before returning

13. 13 connect call r int status = connect(sock, &name, namelen);  status : 0 if successful connect, -1 otherwise  sock : integer, socket to be used in connection  name : struct sockaddr : address of passive participant  namelen : integer, sizeof(name)  connect is blocking

14. 14 Sending / Receiving Data  With a connection ( SOCK_STREAM ): m int count = send(sock, &buf, len, flags); count : # bytes transmitted (-1 if error) buf : char[], buffer to be transmitted len : integer, length of buffer (in bytes) to transmit flags : integer, special options, usually just 0 m int count = recv(sock, &buf, len, flags); count : # bytes received (-1 if error) buf : void[], stores received bytes len : # bytes received flags : integer, special options, usually just 0 m Calls are blocking [returns only after data is sent (to socket buf) / received]

15. 15 Sending / Receiving Data (cont’d)  Without a connection ( SOCK_DGRAM ): m int count = sendto(sock, &buf, len, flags, &addr, addrlen); count, sock, buf, len, flags : same as send addr : struct sockaddr, address of the destination addrlen : sizeof(addr) m int count = recvfrom(sock, &buf, len, flags, &addr, &addrlen); count, sock, buf, len, flags: same as recv name : struct sockaddr, address of the source namelen : sizeof(name): value/result parameter r Calls are blocking [returns only after data is sent (to socket buf) / received]

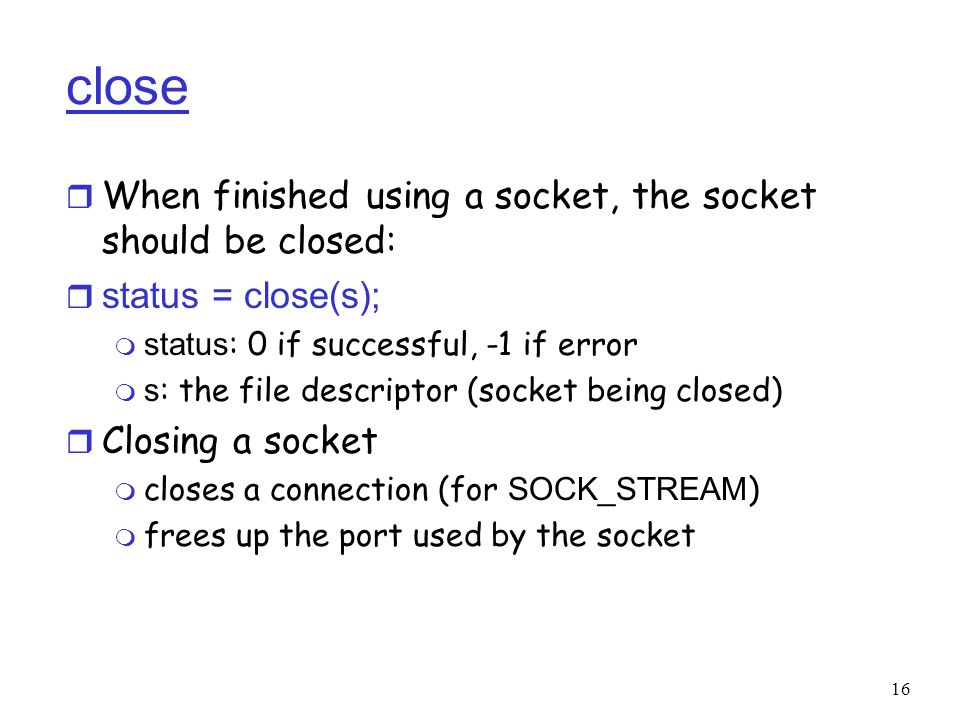

16. 16 close r When finished using a socket, the socket should be closed: r status = close(s);  status : 0 if successful, -1 if error  s : the file descriptor (socket being closed) r Closing a socket  closes a connection (for SOCK_STREAM ) m frees up the port used by the socket

17. 17 The struct sockaddr r The generic: struct sockaddr { u_short sa_family; char sa_data[14]; };  sa_family specifies which address family is being used determines how the remaining 14 bytes are used r The Internet-specific: struct sockaddr_in { short sin_family; u_short sin_port; struct in_addr sin_addr; char sin_zero[8]; }; m sin_family = AF_INET  sin_port : port # (0-65535)  sin_addr : IP-address  sin_zero : unused

18. 18 Address and port byte-ordering r Address and port are stored as integers m u_short sin_port; (16 bit) m in_addr sin_addr; (32 bit) struct in_addr { u_long s_addr; }; r Problem: m different machines / OS’s use different word orderings little-endian: lower bytes first big-endian: higher bytes first m these machines may communicate with one another over the network 128.119.40.12 1281194012 12.40.119.128 1281194012 Big-Endian machine Little-Endian machine WRONG!!!

19. 19 Solution: Network Byte-Ordering r Defs: m Host Byte-Ordering: the byte ordering used by a host (big or little) m Network Byte-Ordering: the byte ordering used by the network – always big-endian r Any words sent through the network should be converted to Network Byte-Order prior to transmission (and back to Host Byte-Order once received) r Q: should the socket perform the conversion automatically? r Q: Given big-endian machines don’t need conversion routines and little-endian machines do, how do we avoid writing two versions of code?

20. 20 UNIX’s byte-ordering funcs r u_long htonl(u_long x); r u_short htons(u_short x); r u_long ntohl(u_long x); r u_short ntohs(u_short x); r On big-endian machines, these routines do nothing r On little-endian machines, they reverse the byte order r Same code would have worked regardless of endian- ness of the two machines 128.119.40.12 1281194012 128.119.40.12 1281194012 Big-Endian machine Little-Endian machine htonl ntohl 12811940121281194012

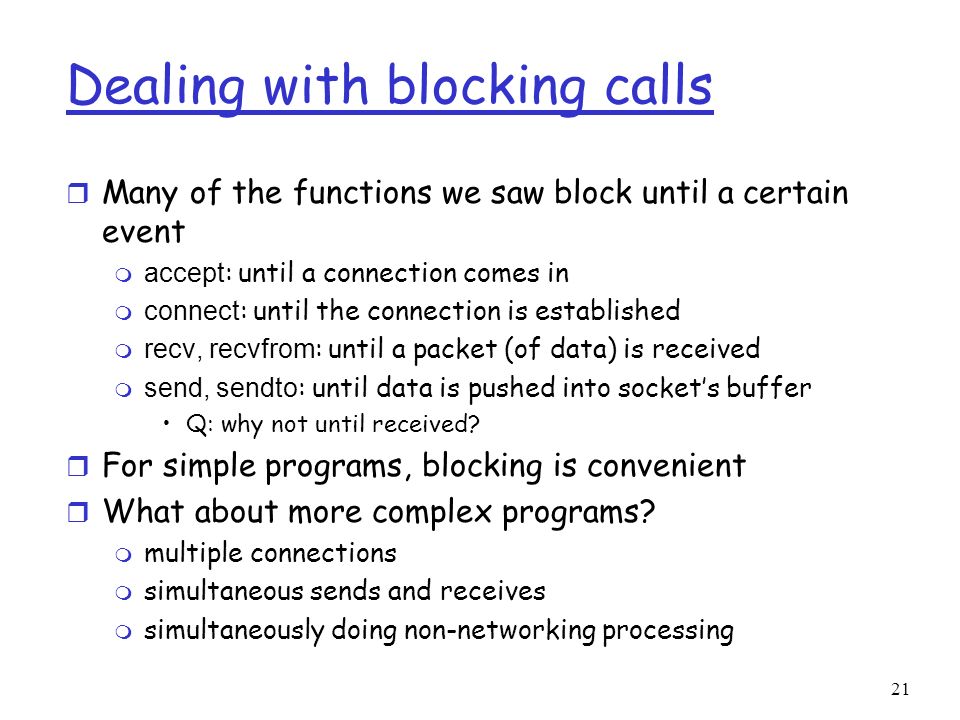

21. 21 Dealing with blocking calls r Many of the functions we saw block until a certain event  accept : until a connection comes in  connect : until the connection is established  recv, recvfrom : until a packet (of data) is received  send, sendto : until data is pushed into socket’s buffer Q: why not until received? r For simple programs, blocking is convenient r What about more complex programs? m multiple connections m simultaneous sends and receives m simultaneously doing non-networking processing

22. 22 Dealing w/ blocking (cont’d) r Options: m create multi-process or multi-threaded code  turn off the blocking feature (e.g., using the fcntl file- descriptor control function)  use the select function call.  What does select do? m can be permanent blocking, time-limited blocking or non- blocking m input: a set of file-descriptors m output: info on the file-descriptors’ status m i.e., can identify sockets that are “ready for use”: calls involving that socket will return immediately

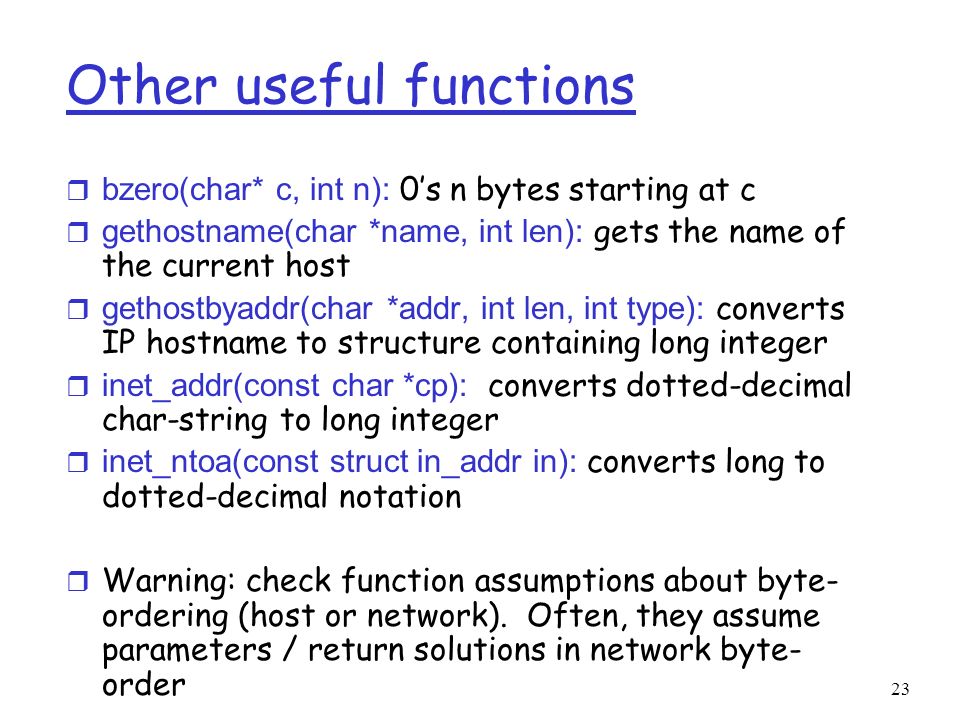

23. 23 Other useful functions  bzero(char* c, int n): 0’s n bytes starting at c  gethostname(char *name, int len): gets the name of the current host  gethostbyaddr(char *addr, int len, int type): converts IP hostname to structure containing long integer  inet_addr(const char *cp): converts dotted-decimal char-string to long integer  inet_ntoa(const struct in_addr in): converts long to dotted-decimal notation r Warning: check function assumptions about byte- ordering (host or network). Often, they assume parameters / return solutions in network byte- order

24. 24 Release of ports  Sometimes, a “rough” exit from a program (e.g., ctrl-c ) does not properly free up a port r Eventually (after a few minutes), the port will be freed r To reduce the likelihood of this problem, include the following code: #include void cleanExit(){exit(0);} m in socket code: signal(SIGTERM, cleanExit); signal(SIGINT, cleanExit);

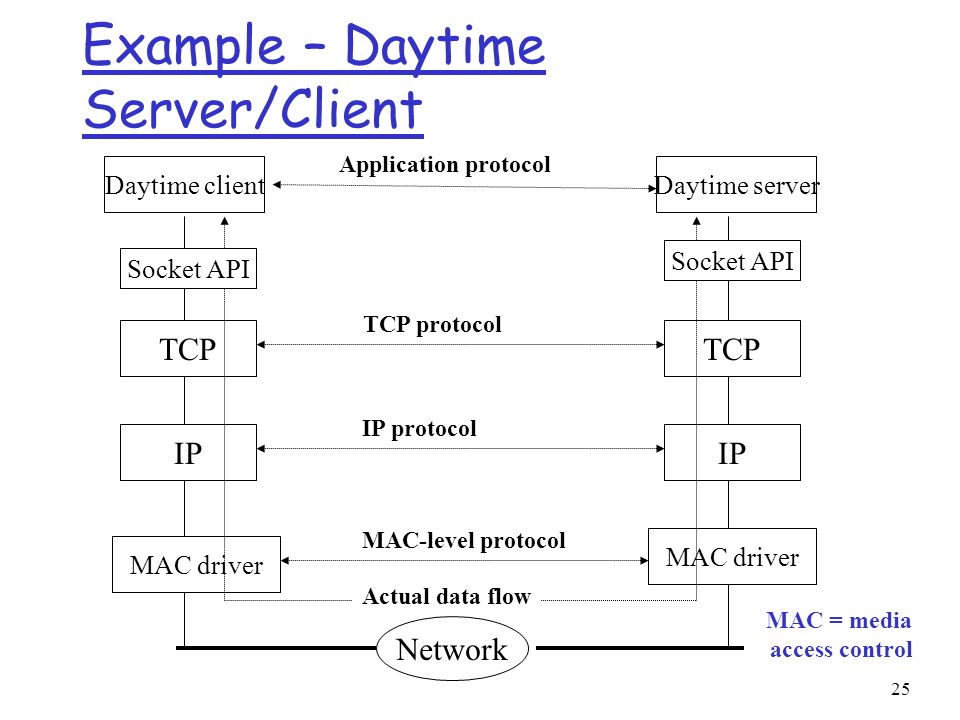

25. 25 Example – Daytime Server/Client TCP MAC driver Daytime client IP Network TCP Daytime server IP MAC driver Application protocol TCP protocol IP protocol MAC-level protocol Actual data flow Socket API MAC = media access control

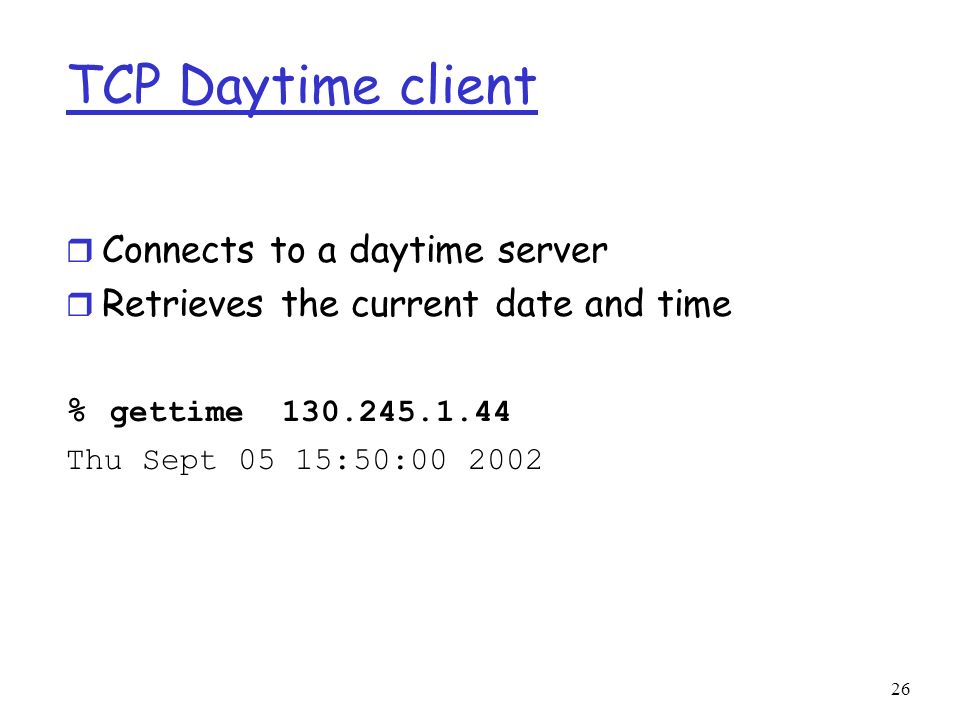

26. 26 TCP Daytime client r Connects to a daytime server r Retrieves the current date and time % gettime 130.245.1.44 Thu Sept 05 15:50:00 2002

27. 27 #include "unp.h" int main(int argc, char **argv) { int sockfd, n; char recvline[MAXLINE + 1]; struct sockaddr_in servaddr; if( argc != 2 )err_quit(“usage : gettime ”); /* Create a TCP socket */ if ( (sockfd = socket(AF_INET, SOCK_STREAM, 0)) < 0) err_sys("socket error"); /* Specify server’s IP address and port */ bzero(&servaddr, sizeof(servaddr)); servaddr.sin_family = AF_INET; servaddr.sin_port = htons(13); /* daytime server port */ if (inet_pton(AF_INET, argv[1], &servaddr.sin_addr) <= 0) err_quit("inet_pton error for %s", argv[1]);

28. 28 /* Connect to the server */ if (connect(sockfd, (SA *) &servaddr, sizeof(servaddr)) < 0) err_sys("connect error"); /* Read the date/time from socket */ while ( (n = read(sockfd, recvline, MAXLINE)) > 0) { recvline[n] = 0; /* null terminate */ printf(“%s”, recvline); } if (n < 0) err_sys("read error"); close(sockfd); }

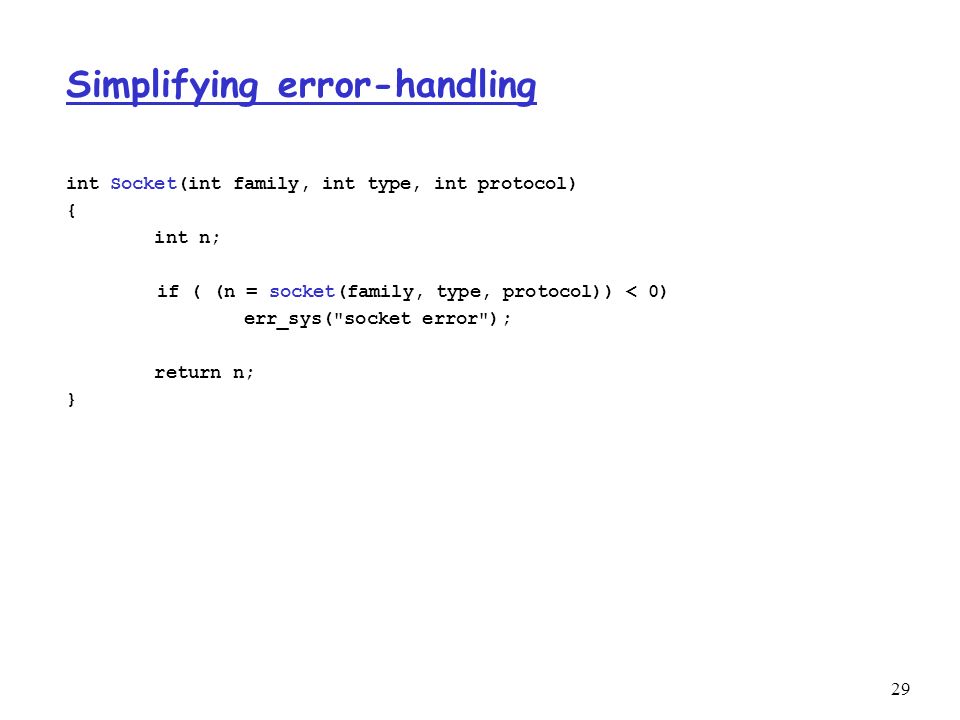

29. 29 Simplifying error-handling int Socket(int family, int type, int protocol) { int n; if ( (n = socket(family, type, protocol)) < 0) err_sys("socket error"); return n; }

30. 30 r Waits for requests from Client r Accepts client connections r Send the current time r Terminates connection and goes back waiting for more connections. TCP Daytime Server

31. 31 #include "unp.h" #include int main(int argc, char **argv) { int listenfd, connfd; struct sockaddr_in servaddr; char buff[MAXLINE]; time_t ticks; /* Create a TCP socket */ listenfd = Socket(AF_INET, SOCK_STREAM, 0); /* Initialize server’s address and well-known port */ bzero(&servaddr, sizeof(servaddr)); servaddr.sin_family = AF_INET; servaddr.sin_addr.s_addr = htonl(INADDR_ANY); servaddr.sin_port = htons(13); /* daytime server */ /* Bind server’s address and port to the socket */ Bind(listenfd, (SA *) &servaddr, sizeof(servaddr));

32. 32 /* Convert socket to a listening socket */ Listen(listenfd, LISTENQ); for ( ; ; ) { /* Wait for client connections and accept them */ connfd = Accept(listenfd, (SA *) NULL, NULL); /* Retrieve system time */ ticks = time(NULL); snprintf(buff, sizeof(buff), "%.24s\r\n", ctime(&ticks)); /* Write to socket */ Write(connfd, buff, strlen(buff)); /* Close the connection */ Close(connfd); }

33. 33 The Socket Structure INET Address struct in_addr { in_addr_t s_addr; /* 32-bit IPv4 address */ } INET Socket Struct sockaddr_in { uint8_t sin_len; /* length of structure (16) */ sa_family_t sin_family; /* AF_INET */ in_port_t sin_port; /* 16-bit TCP/UDP port number */ struct in_addr sin_addr; /* 32-bit IPv4 address */ char sin_zero[8]; /* unused */ }

34. 34 UDP Client Code r #include r #define MY_PORT_ID 6089 r #define SERVER_PORT_ID 6090 r #define SERV_HOST_ADDR "128.119.40.186" r main(){ int sockid, retcode; r struct sockaddr_in my_addr, server_addr; r char msg[12];

35. 35 UDP Client (cont.) r printf("Client: creating socket\n"); r if ( (sockid = socket(AF_INET, SOCK_DGRAM, 0)) < 0) { printf("Client: socket failed: %d\n",errno); exit(0); } r printf("Client: binding my local socket\n"); bzero((char *) &my_addr, sizeof(my_addr)); r my_addr.sin_family = AF_INET; r my_addr.sin_addr.s_addr = htonl(INADDR_ANY); r my_addr.sin_port = htons(MY_PORT_ID); r if ( (bind(sockid, (struct sockaddr *) &my_addr, sizeof(my_addr)) < 0) ) { printf("Client: bind fail: %d\n",errno); exit(0); }

36. 36 UDP Client (fin) r printf("Client: creating addr structure for server\n"); r bzero((char *) &server_addr, sizeof(server_addr)); server_addr.sin_family = AF_INET; r server_addr.sin_addr.s_addr = inet_addr(SERV_HOST_ADDR); r server_addr.sin_port = htons(SERVER_PORT_ID); r printf("Client: initializing message and sending\n"); r sprintf(msg, "Hello world"); retcode = r sendto(sockid,msg,12,0,(struct sockaddr *) &server_addr, sizeof(server_addr)); r if (retcode <= -1) {printf("client: sendto failed: %d\n",errno); exit(0); } r /* close socket */ r close(sockid); }

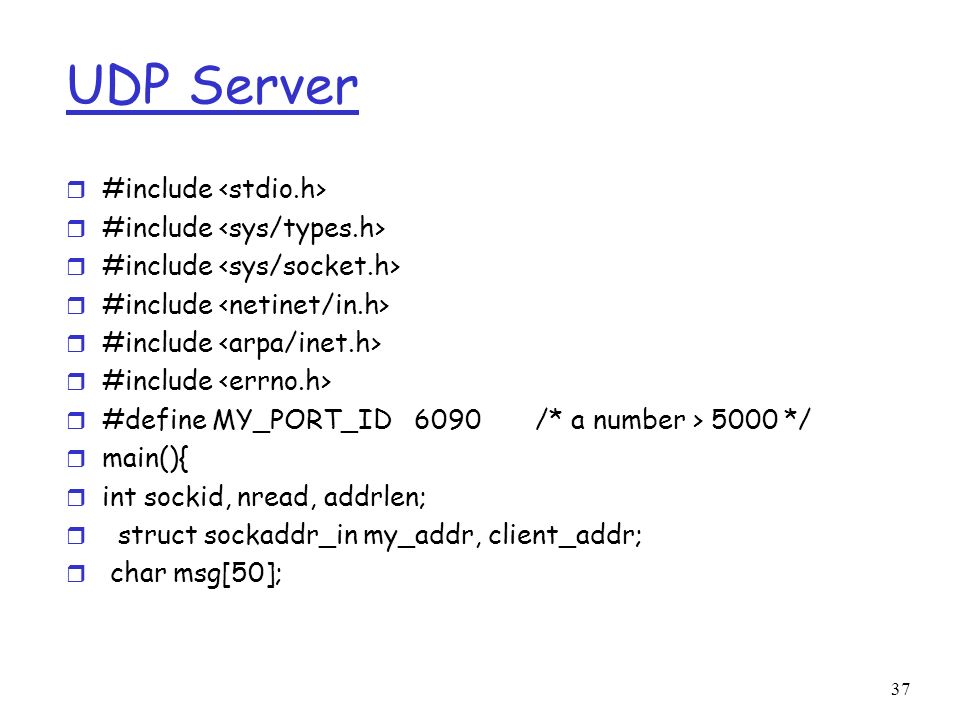

37. 37 UDP Server r #include r #define MY_PORT_ID 6090 /* a number > 5000 */ r main(){ r int sockid, nread, addrlen; r struct sockaddr_in my_addr, client_addr; r char msg[50];

38. 38 UDP Server (cont) r printf("Server: creating socket\n"); r if ( (sockid = socket(AF_INET, SOCK_DGRAM, 0)) < 0) { printf("Server: socket error: %d\n",errno); exit(0); } r printf("Server: binding my local socket\n"); r bzero((char *) &my_addr, sizeof(my_addr)); r my_addr.sin_family = AF_INET; r my_addr.sin_addr.s_addr = htons(INADDR_ANY); r my_addr.sin_port = htons(MY_PORT_ID); r if ( (bind(sockid, (struct sockaddr *) &my_addr, sizeof(my_addr)) < 0) ) { printf("Server: bind fail: %d\n",errno); exit(0); }

39. 39 UDP Server (end) r printf("Server: starting blocking message read\n"); r nread = recvfrom(sockid,msg,11,0, (struct sockaddr *) &client_addr, &addrlen); r printf("Server: return code from read is %d\n",nread); r if (nread >0) printf("Server: message is: %s\n",msg); r close(sockid); r }
