1. CONSTRUCTION 05.02.2013 1 Andrea d'AURIA PH / DT-DI / GAS

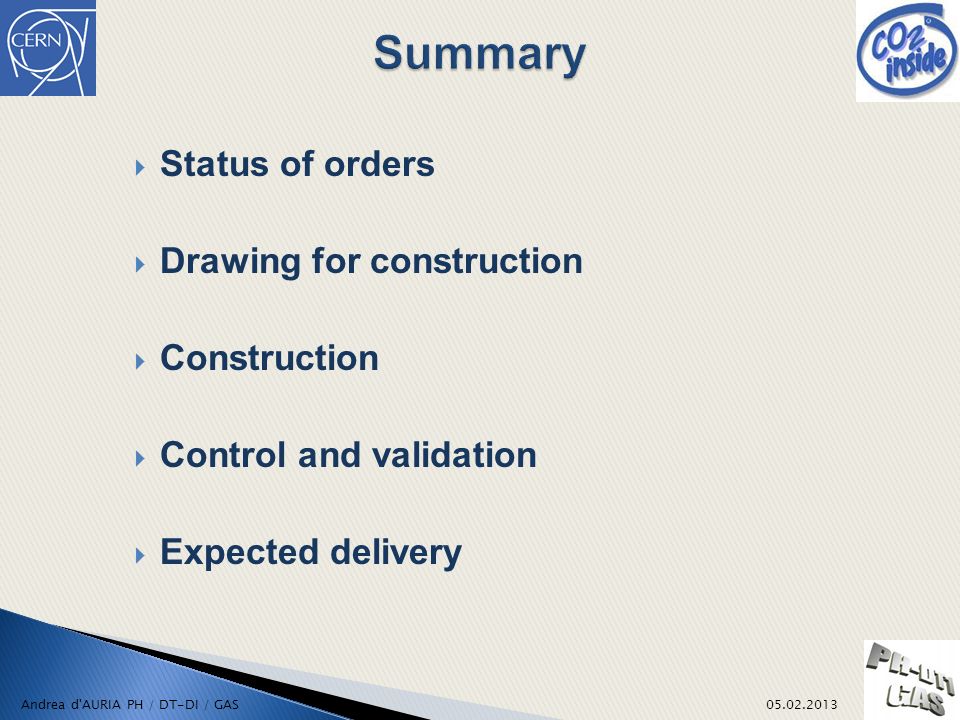

2.  Status of orders  Drawing for construction  Construction  Control and validation  Expected delivery 05.02.2013 Andrea d'AURIA PH / DT-DI / GAS 2

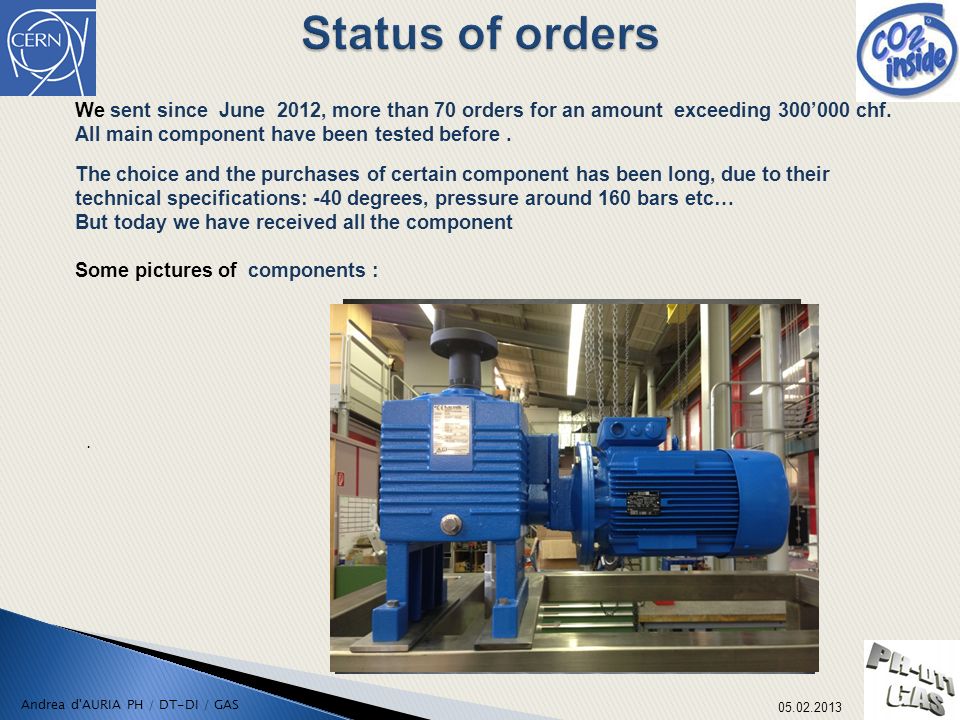

3. We sent since June 2012, more than 70 orders for an amount exceeding 300’000 chf. All main component have been tested before. The choice and the purchases of certain component has been long, due to their technical specifications: -40 degrees, pressure around 160 bars etc… But today we have received all the component Some pictures of components :. 3 05.02.2013 Manifold pneumatic valve Safety valve Plant Pneumatic valve Andrea d'AURIA PH / DT-DI / GAS

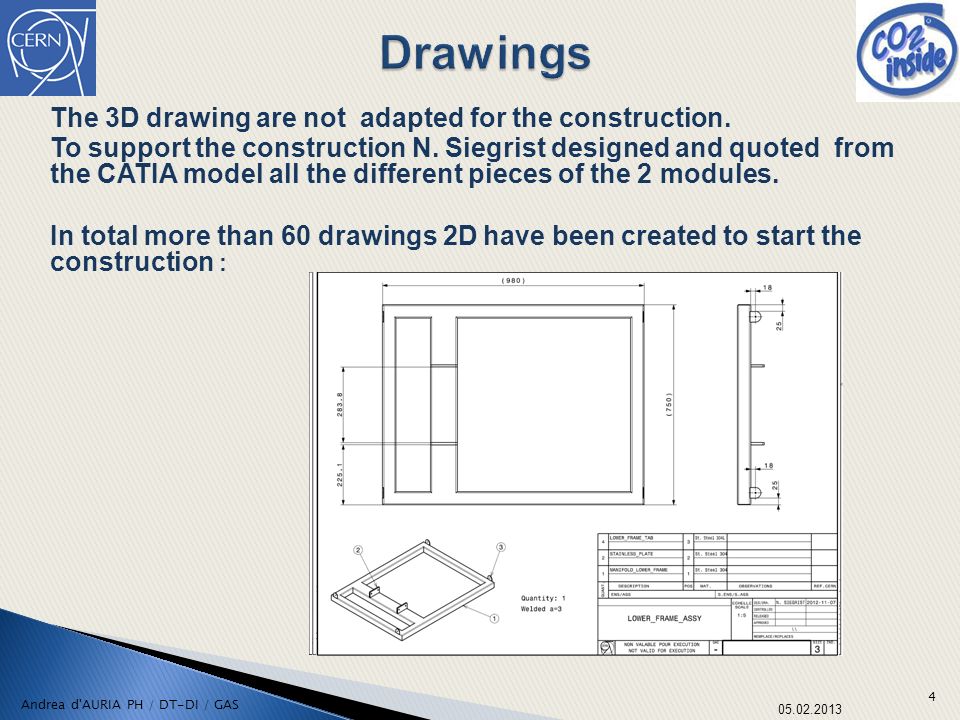

4. 4 The 3D drawing are not adapted for the construction. To support the construction N. Siegrist designed and quoted from the CATIA model all the different pieces of the 2 modules. In total more than 60 drawings 2D have been created to start the construction : Andrea d'AURIA PH / DT-DI / GAS 05.02.2013

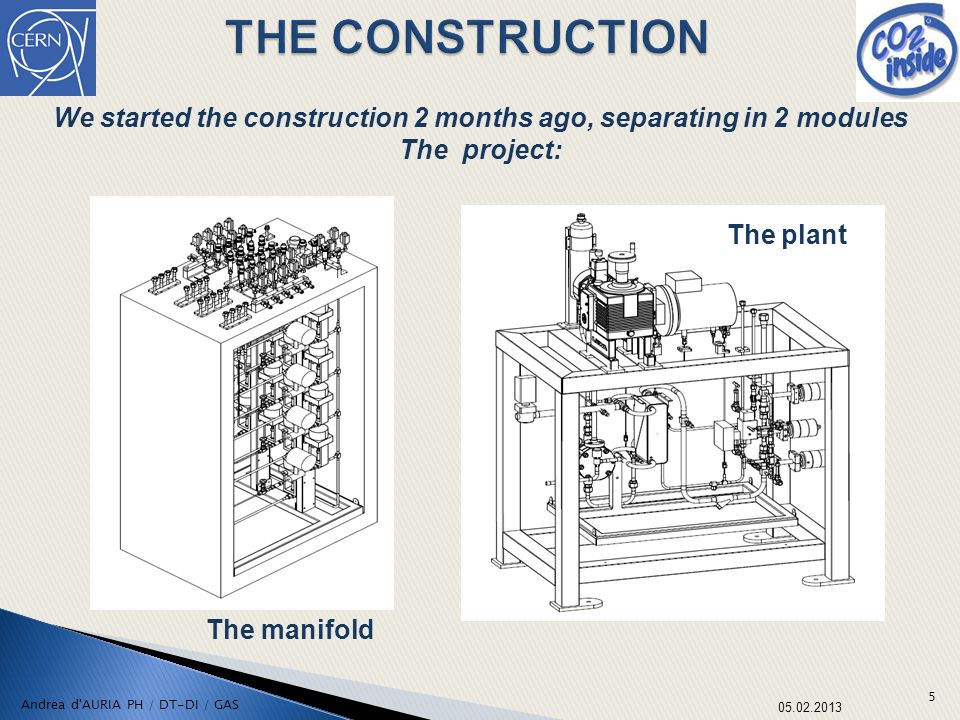

5. 5 We started the construction 2 months ago, separating in 2 modules The project: Andrea d'AURIA PH / DT-DI / GAS 05.02.2013 The plant The manifold

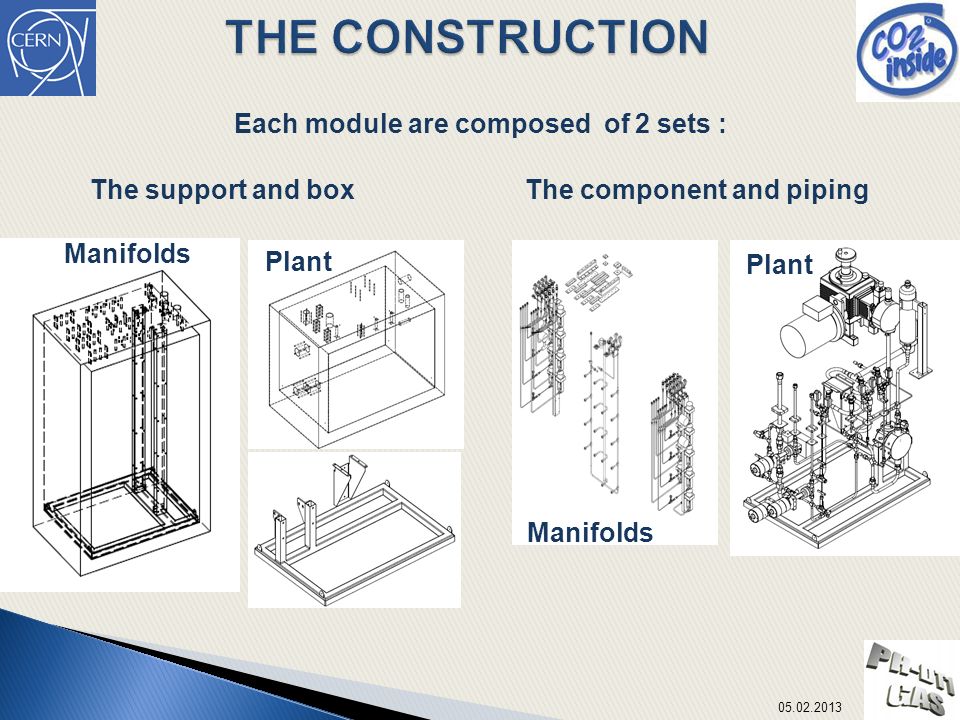

6. 6 Each module are composed of 2 sets : The support and box The component and piping Plant Manifolds Plant 05.02.2013

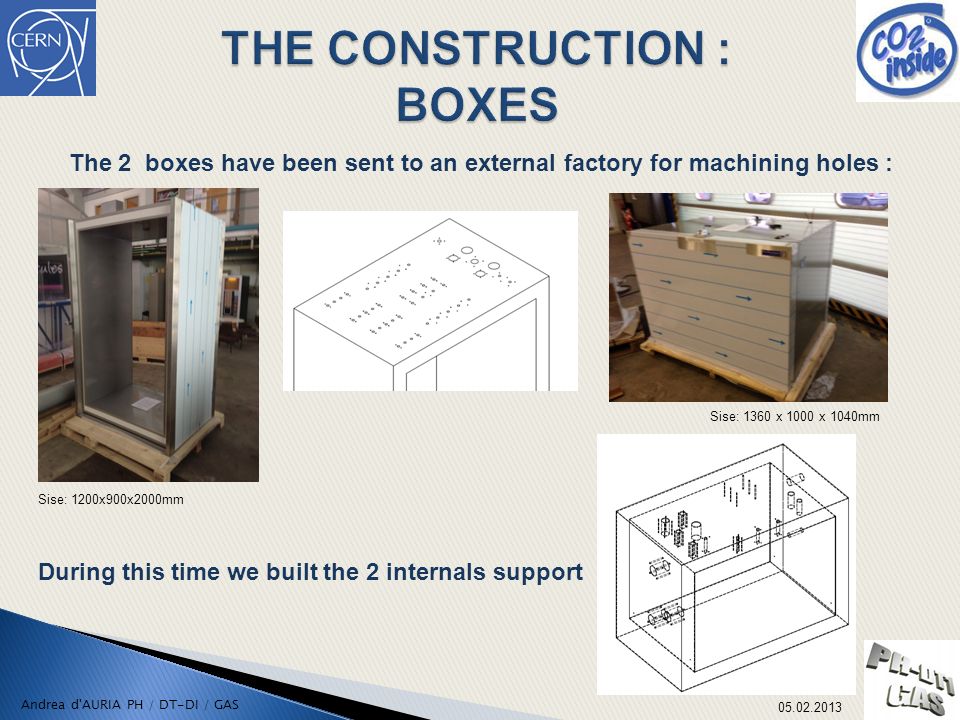

7. 7 The 2 boxes have been sent to an external factory for machining holes : Sise: 1360 x 1000 x 1040mm Sise: 1200x900x2000mm During this time we built the 2 internals support Andrea d'AURIA PH / DT-DI / GAS 05.02.2013

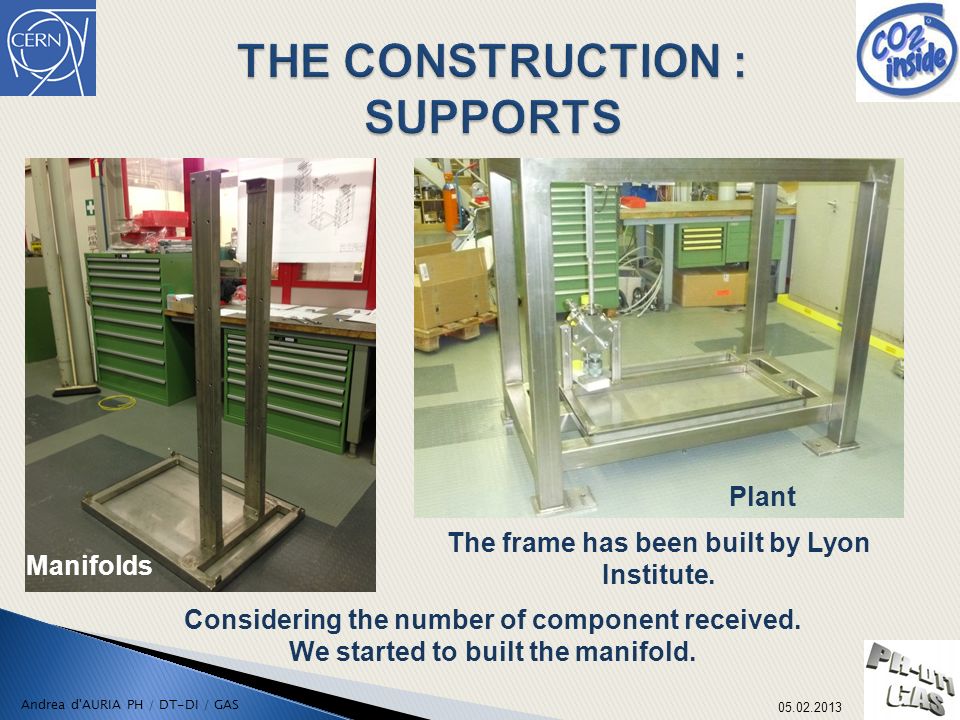

8. 8 Considering the number of component received. We started to built the manifold. Andrea d'AURIA PH / DT-DI / GAS 05.02.2013 Manifolds Plant The frame has been built by Lyon Institute.

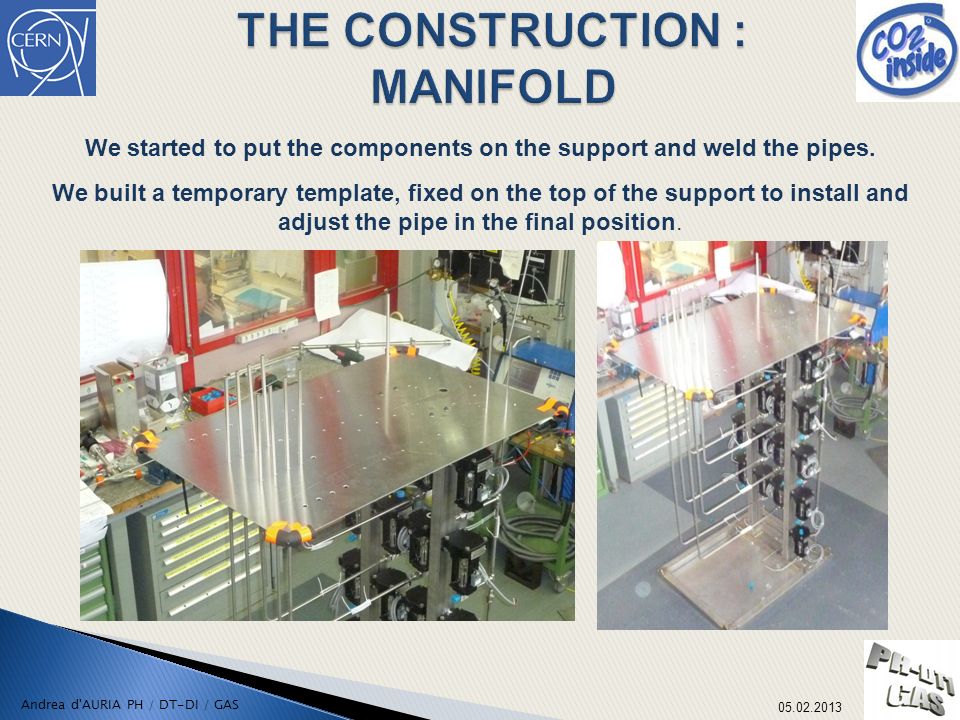

9. 9 We started to put the components on the support and weld the pipes. We built a temporary template, fixed on the top of the support to install and adjust the pipe in the final position. Andrea d'AURIA PH / DT-DI / GAS 05.02.2013

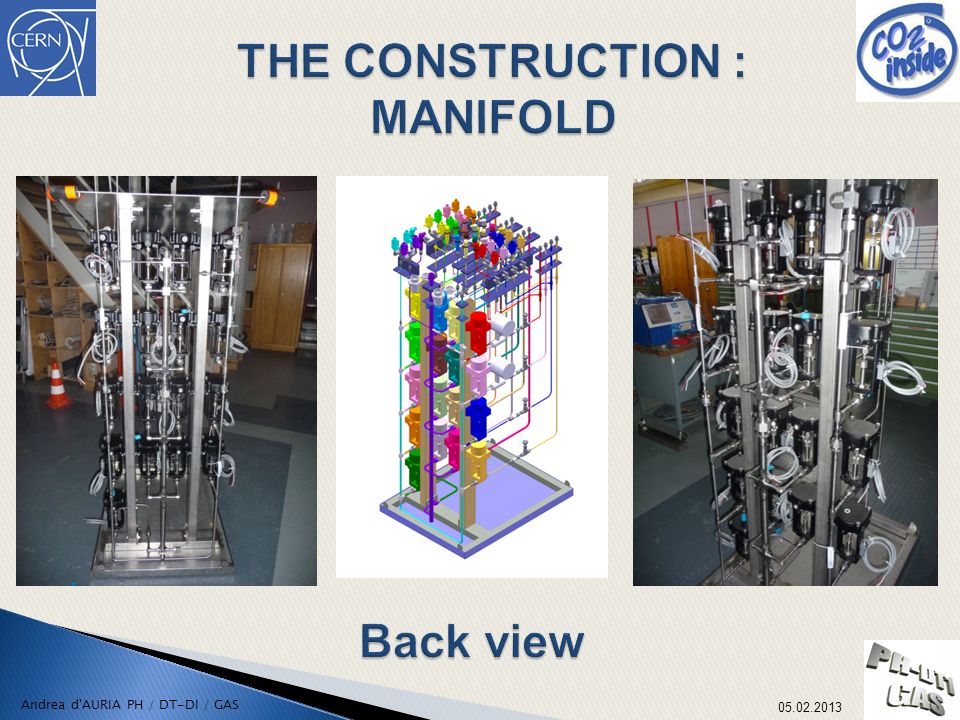

10. 10 Andrea d'AURIA PH / DT-DI / GAS 05.02.2013

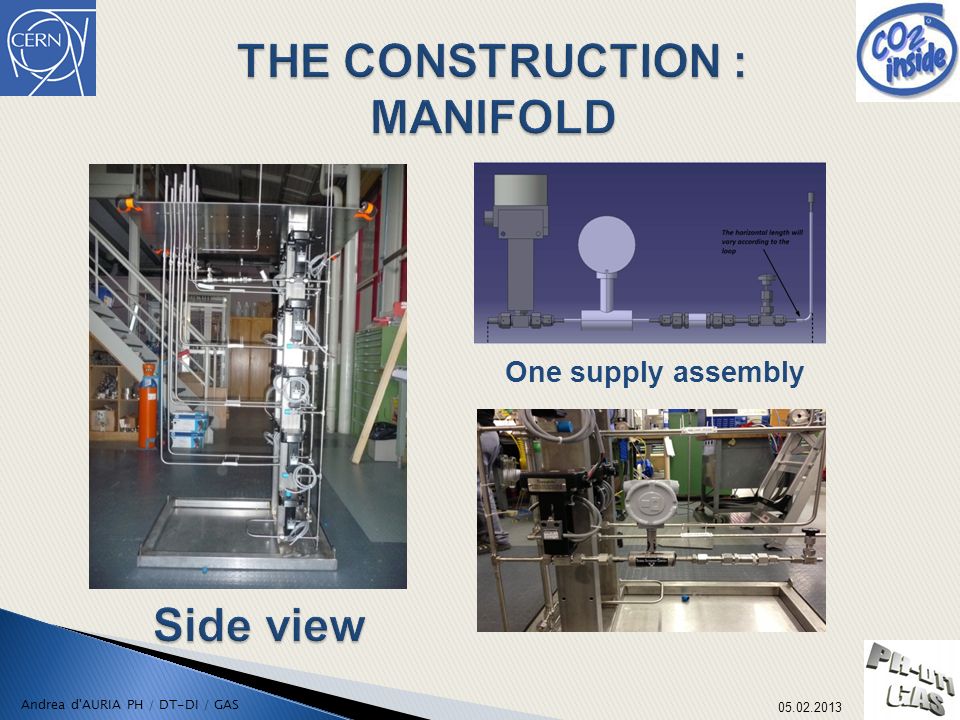

11. 11 One supply assembly Andrea d'AURIA PH / DT-DI / GAS 05.02.2013

12. 12 Andrea d'AURIA PH / DT-DI / GAS 05.02.2013

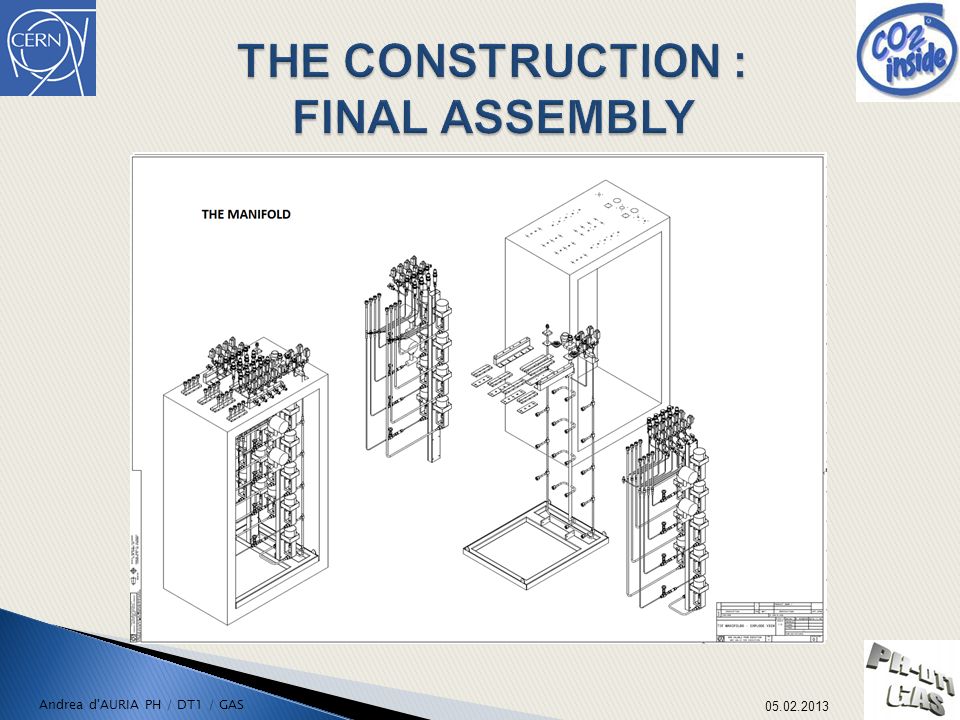

13. Andrea d'AURIA PH / DT1 / GAS 13

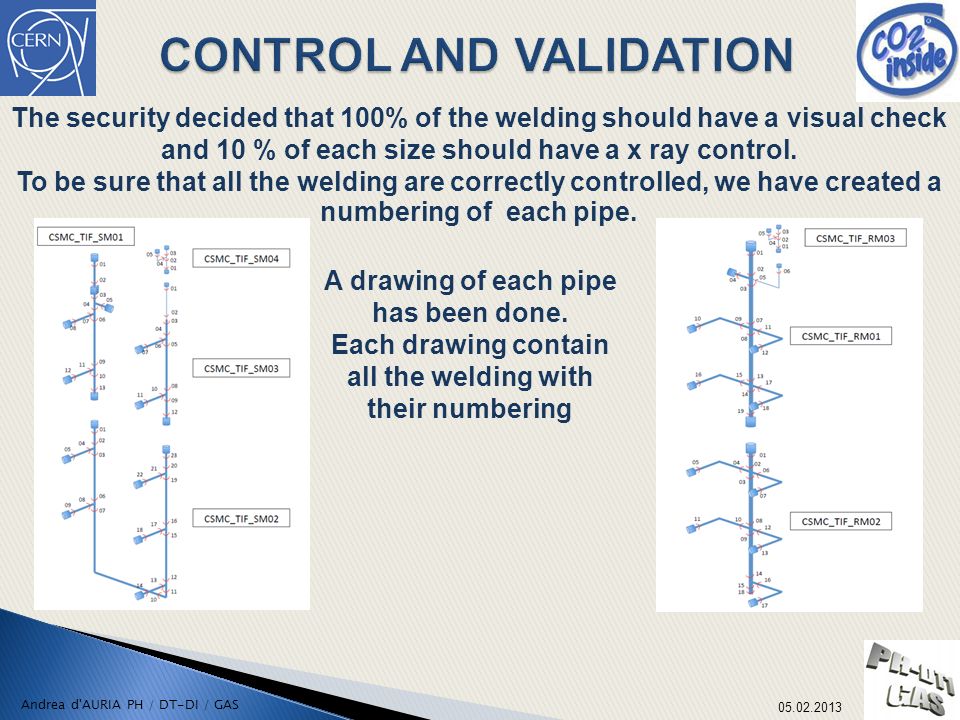

14. 14 The security decided that 100% of the welding should have a visual check and 10 % of each size should have a x ray control. To be sure that all the welding are correctly controlled, we have created a numbering of each pipe. Andrea d'AURIA PH / DT-DI / GAS 05.02.2013 A drawing of each pipe has been done. Each drawing contain all the welding with their numbering

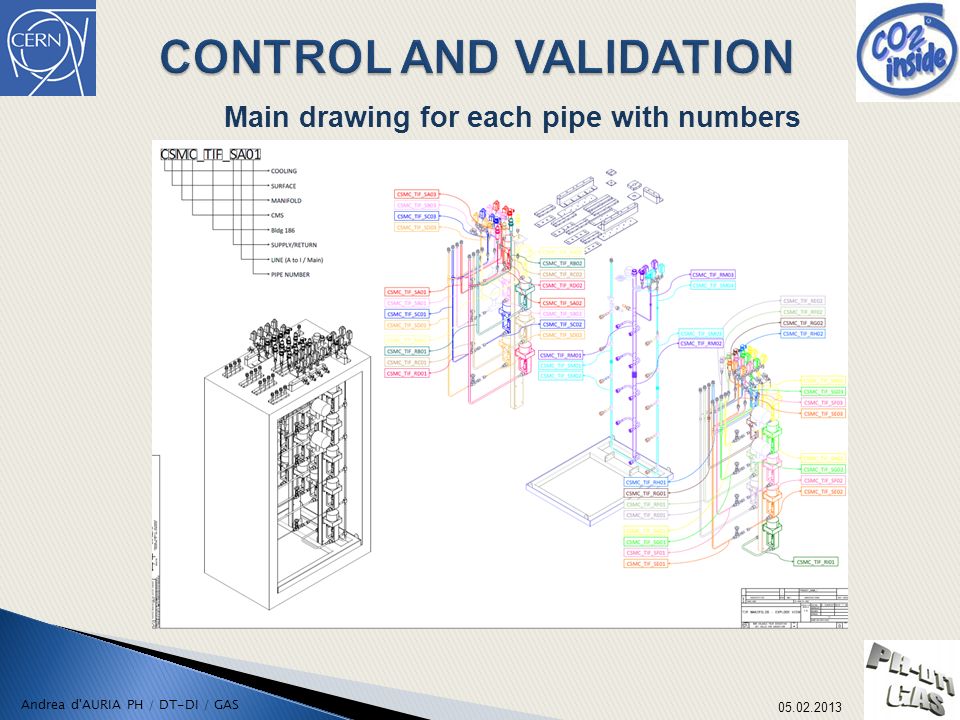

15. 15 Main drawing for each pipe with numbers Andrea d'AURIA PH / DT-DI / GAS 05.02.2013

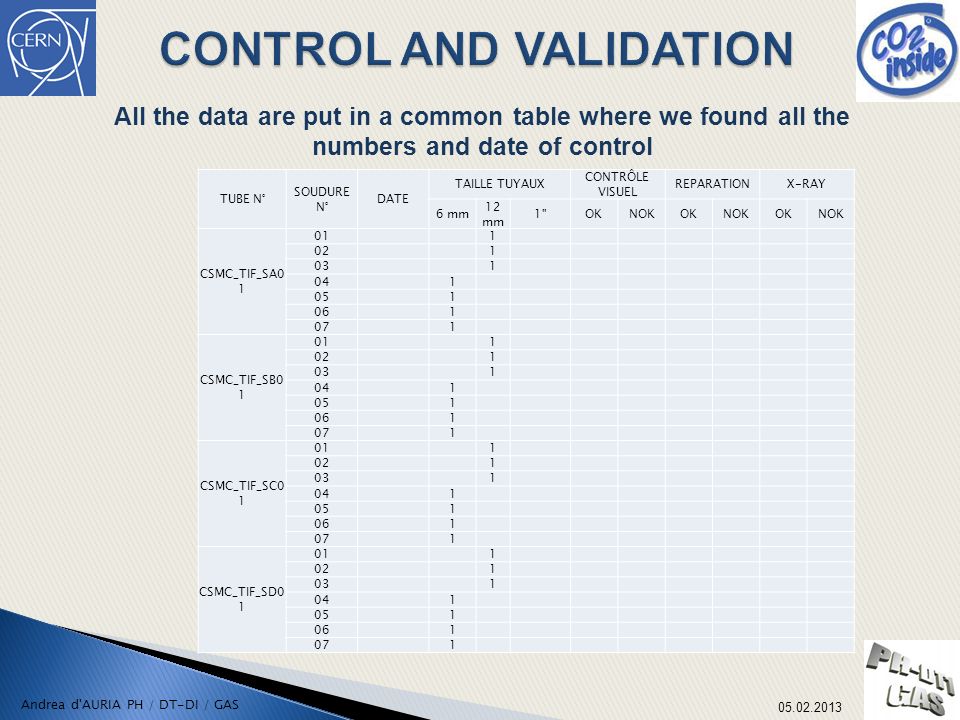

16. 16 All the data are put in a common table where we found all the numbers and date of control TUBE N° SOUDURE N° DATE TAILLE TUYAUX CONTRÔLE VISUEL REPARATIONX-RAY 6 mm 12 mm 1"OKNOKOKNOKOKNOK CSMC_TIF_SA0 1 01 1 02 1 03 1 04 1 05 1 06 1 07 1 CSMC_TIF_SB0 1 01 1 02 1 03 1 04 1 05 1 06 1 07 1 CSMC_TIF_SC0 1 01 1 02 1 03 1 04 1 05 1 06 1 07 1 CSMC_TIF_SD0 1 01 1 02 1 03 1 04 1 05 1 06 1 07 1 Andrea d'AURIA PH / DT-DI / GAS 05.02.2013

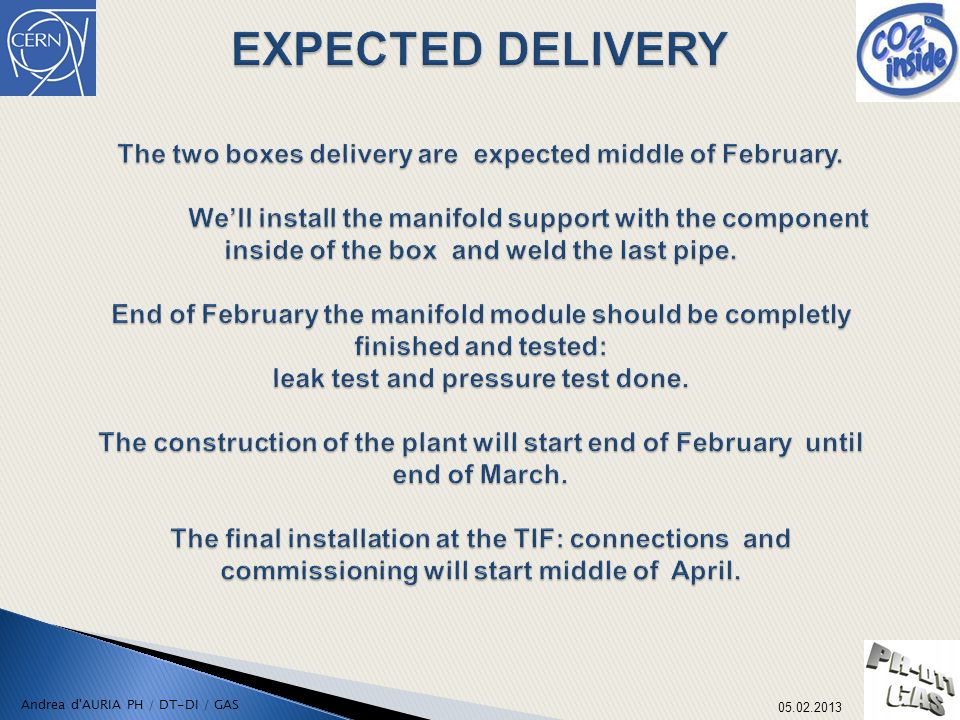

17. 17 Andrea d'AURIA PH / DT-DI / GAS 05.02.2013
