1 Atomic Structure Revision Atoms and the periodic table 1. What is the charge on a neutron? 2.What is the mass of an electron? 3.What is the positive particle in the nucleus called?

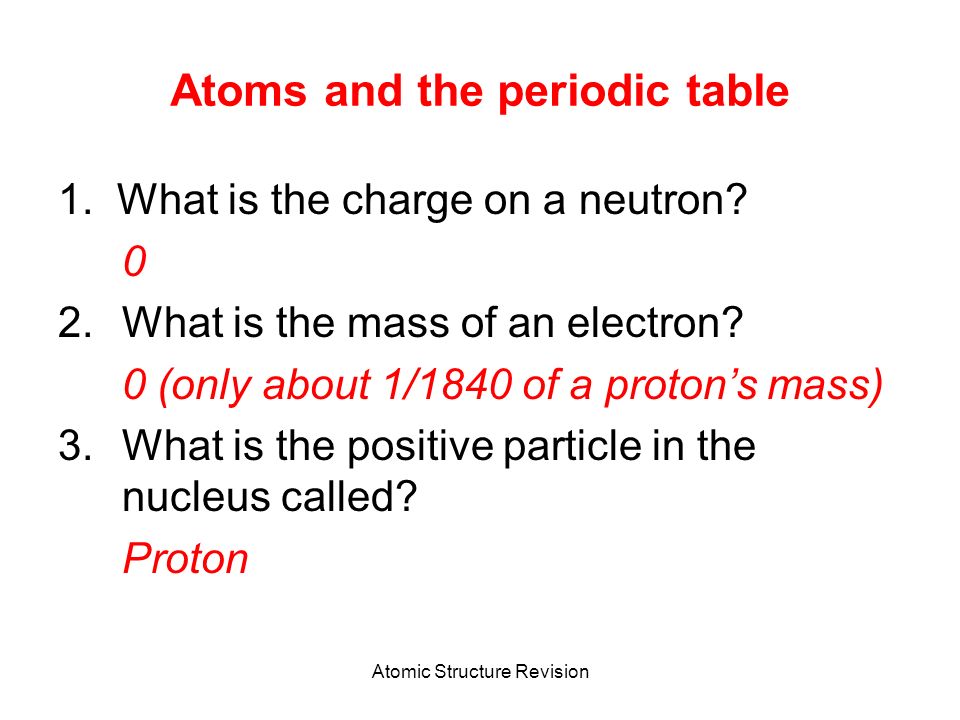

2 Atomic Structure Revision 1. What is the charge on a neutron? 0 2.What is the mass of an electron? 0 (only about 1/1840 of a proton’s mass) 3.What is the positive particle in the nucleus called? Proton Atoms and the periodic table

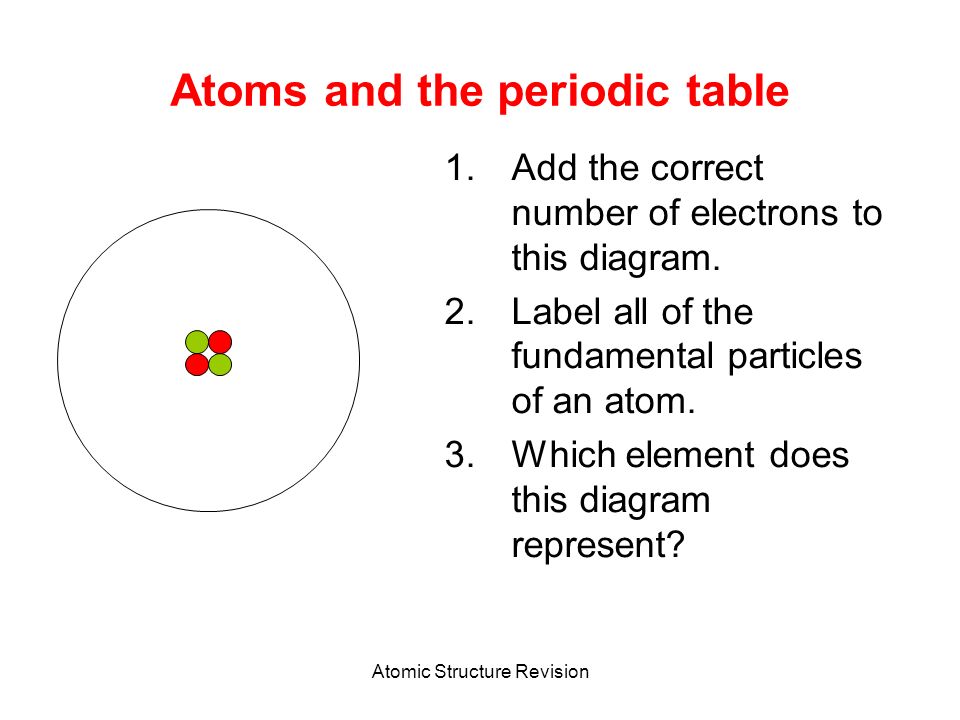

3 Atomic Structure Revision 1.Add the correct number of electrons to this diagram. 2.Label all of the fundamental particles of an atom. 3.Which element does this diagram represent? Atoms and the periodic table

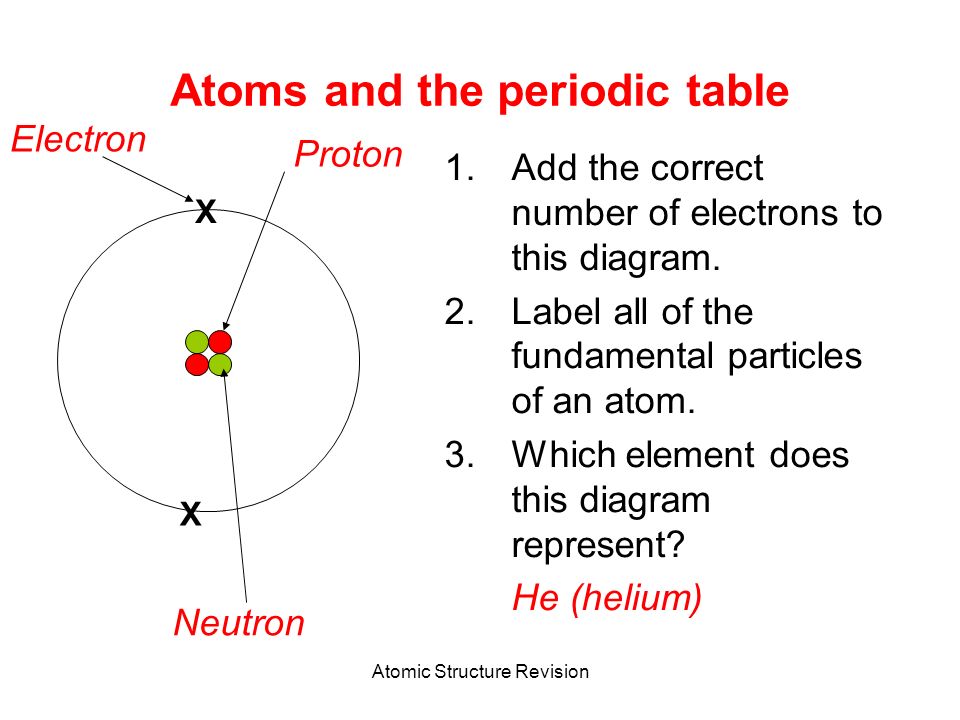

4 Atomic Structure Revision 1.Add the correct number of electrons to this diagram. 2.Label all of the fundamental particles of an atom. 3.Which element does this diagram represent? He (helium) Proton Neutron X X Electron Atoms and the periodic table

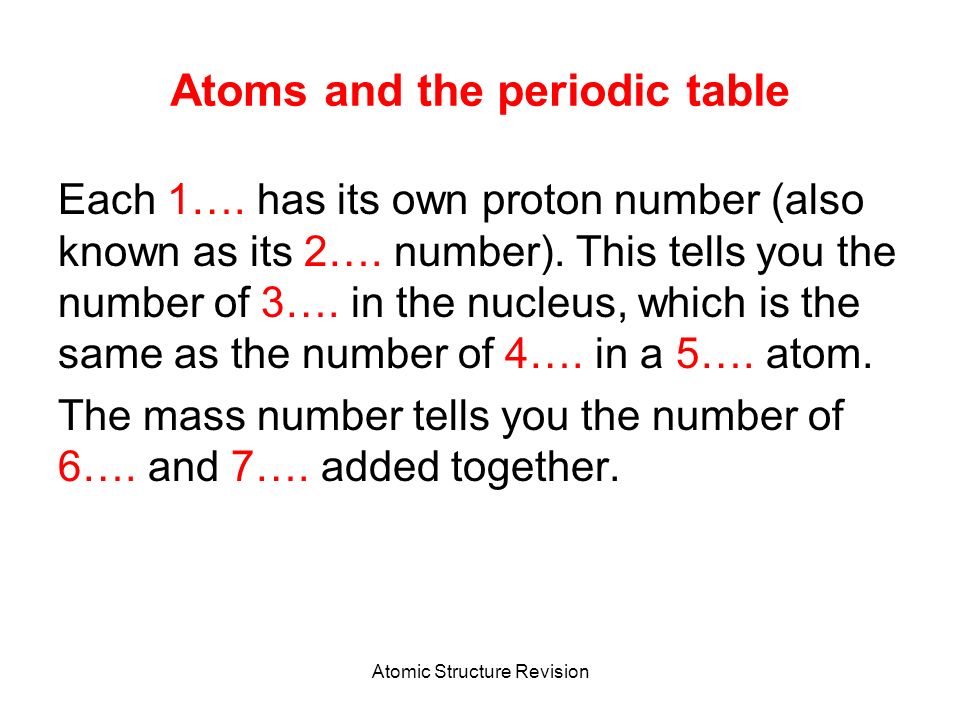

5 Atomic Structure Revision Each 1…. has its own proton number (also known as its 2…. number). This tells you the number of 3…. in the nucleus, which is the same as the number of 4…. in a 5…. atom. The mass number tells you the number of 6…. and 7…. added together. Atoms and the periodic table

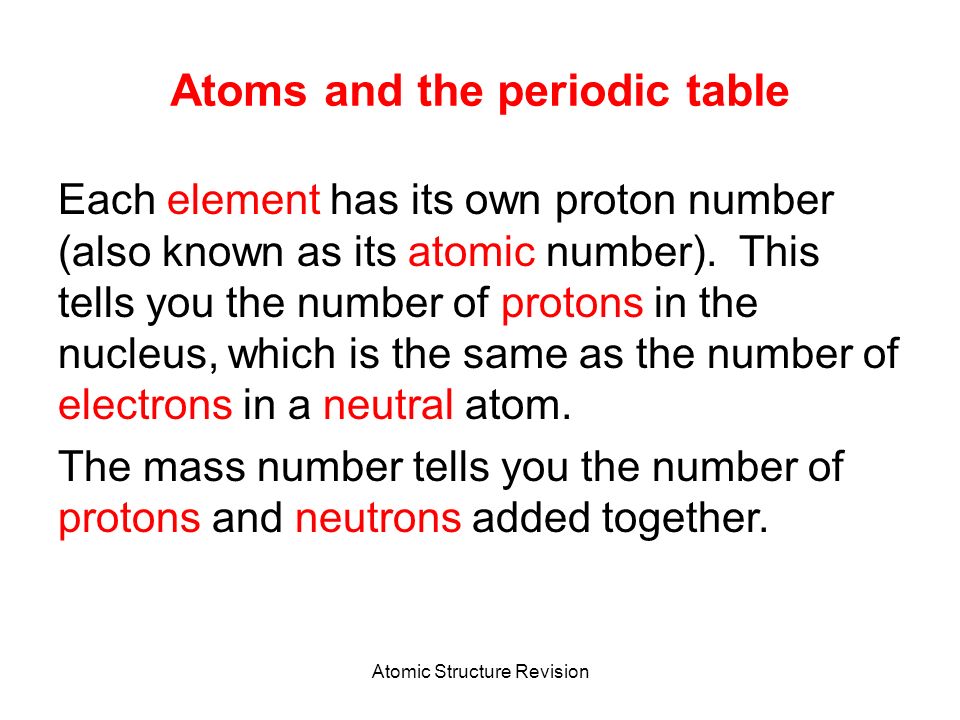

6 Atomic Structure Revision Each element has its own proton number (also known as its atomic number). This tells you the number of protons in the nucleus, which is the same as the number of electrons in a neutral atom. The mass number tells you the number of protons and neutrons added together. Atoms and the periodic table

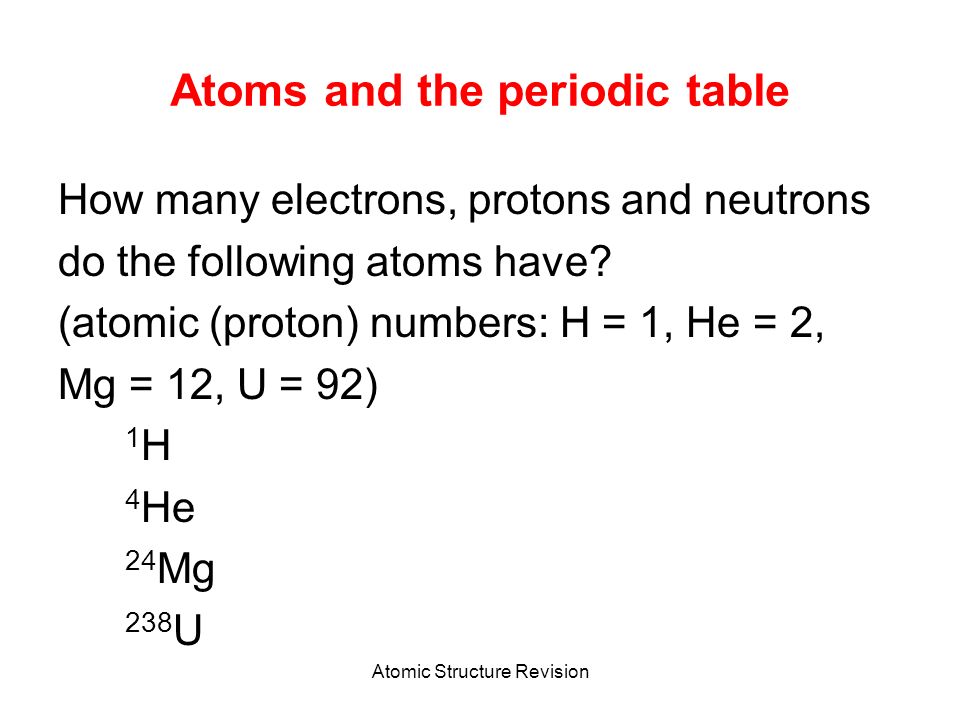

7 Atomic Structure Revision How many electrons, protons and neutrons do the following atoms have? (atomic (proton) numbers: H = 1, He = 2, Mg = 12, U = 92) 1 H 4 He 24 Mg 238 U Atoms and the periodic table

8 Atomic Structure Revision How many electrons, protons and neutrons do the following atoms have? (atomic (proton) numbers: H = 1, He = 2, Mg = 12, U = 92) 1 Hp = 1, n = 0, e = 1 4 Hep = 2, n = 2, e = 2 24 Mgp = 12, n = 12, e = 12 238 Up = 92, n = 146, e = 92 Atoms and the periodic table

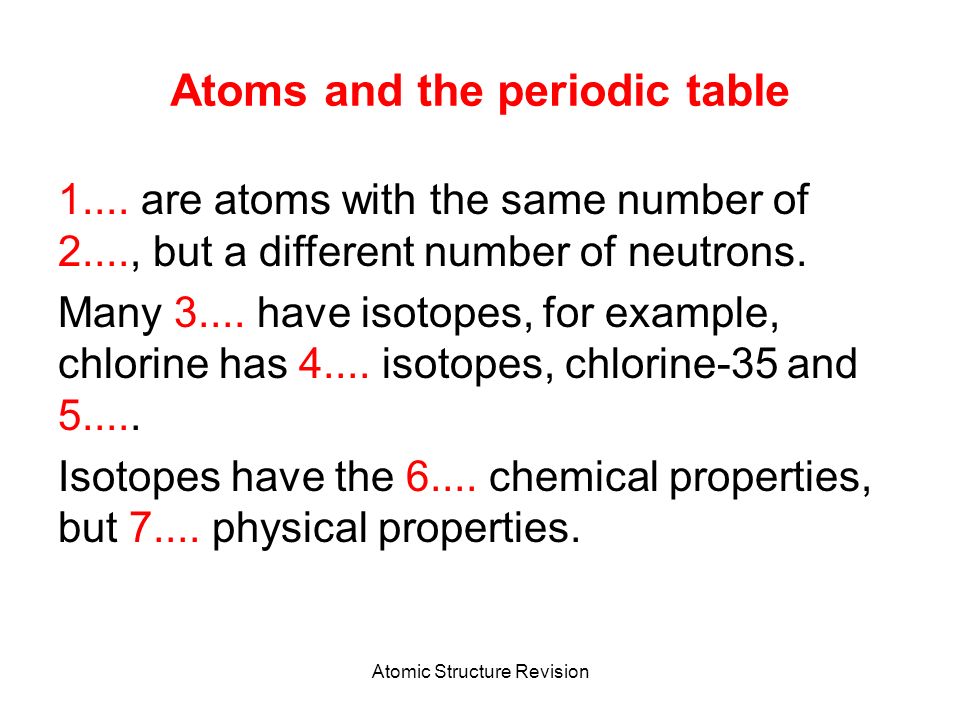

9 Atomic Structure Revision 1.... are atoms with the same number of 2...., but a different number of neutrons. Many 3.... have isotopes, for example, chlorine has 4.... isotopes, chlorine-35 and 5..... Isotopes have the 6.... chemical properties, but 7.... physical properties. Atoms and the periodic table

10 Atomic Structure Revision Isotopes are atoms with the same number of protons, but a different number of neutrons. Many elements have isotopes, for example, Chlorine has 2 isotopes, chlorine-35 and chlorine-37. Isotopes have the same chemical properties, but different physical properties. Atoms and the periodic table

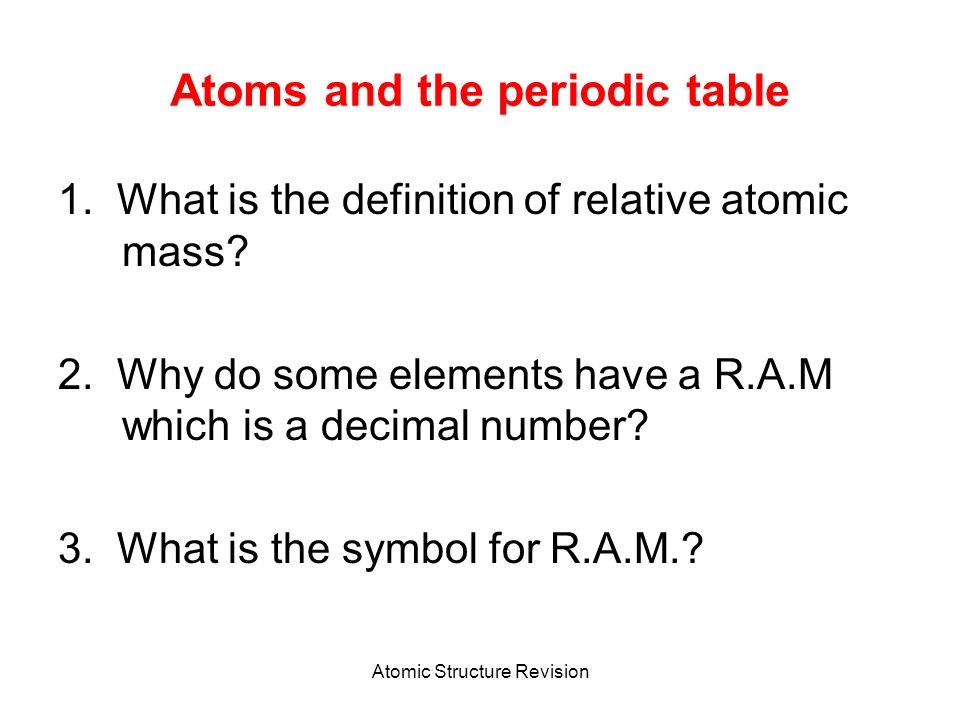

11 Atomic Structure Revision 1. What is the definition of relative atomic mass? 2. Why do some elements have a R.A.M which is a decimal number? 3. What is the symbol for R.A.M.? Atoms and the periodic table

12 Atomic Structure Revision 1. What is the definition of relative atomic mass? The mass of an atom compared to 1 atom of 12 C 2.Why do some elements have a R.A.M which is a decimal number? It takes into account the proportions of each isotope 3.What is the symbol for R.A.M.? A r Atoms and the periodic table

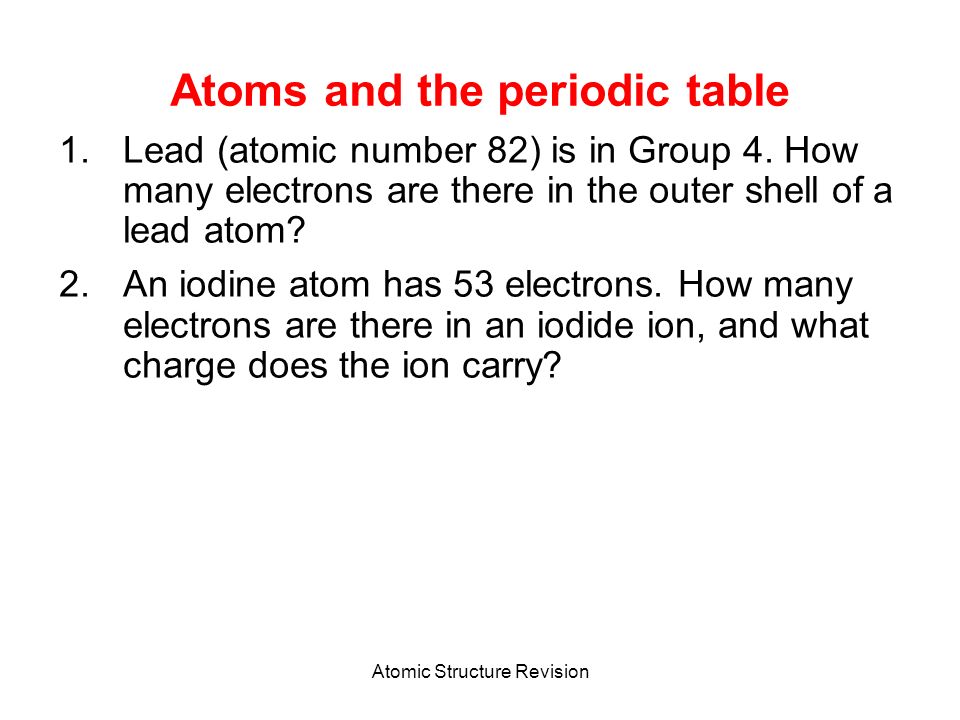

13 Atomic Structure Revision 1. Lead (atomic number 82) is in Group 4. How many electrons are there in the outer shell of a lead atom? 2.An iodine atom has 53 electrons. How many electrons are there in an iodide ion, and what charge does the ion carry? Atoms and the periodic table

14 Atomic Structure Revision 1. Lead (atomic number 82) is in Group 4. How many electrons are there in the outer shell of a lead atom? 4 2.An iodine atom has 53 electrons. How many electrons are there in an iodide ion, and what charge does the ion carry? 54 electrons; 1 negative charge Atoms and the periodic table

15 Atomic Structure Revision
