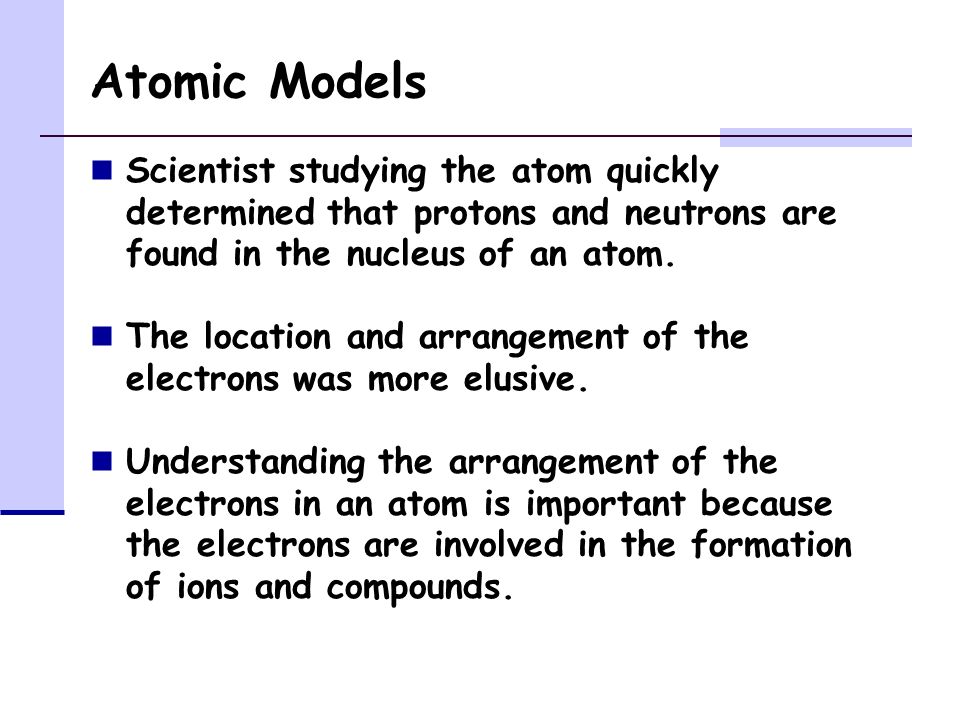

1. Atomic Models Scientist studying the atom quickly determined that protons and neutrons are found in the nucleus of an atom. The location and arrangement of the electrons was more elusive. Understanding the arrangement of the electrons in an atom is important because the electrons are involved in the formation of ions and compounds.

2. Atomic Models Elements in the same group exhibit similar chemical and physical properties. Alkali Metals: Very reactive Form cations with +1 charge Halogens: Form anions with -1 charge Noble Gases Inert (unreactive) Do not form ions Why?

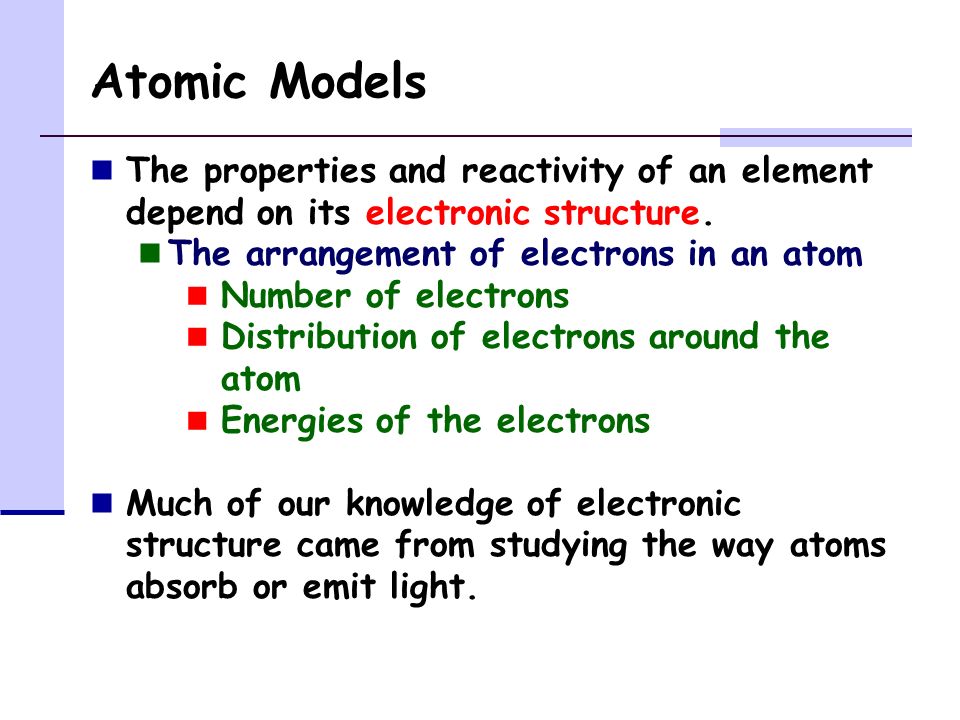

3. Atomic Models The properties and reactivity of an element depend on its electronic structure. The arrangement of electrons in an atom Number of electrons Distribution of electrons around the atom Energies of the electrons Much of our knowledge of electronic structure came from studying the way atoms absorb or emit light.

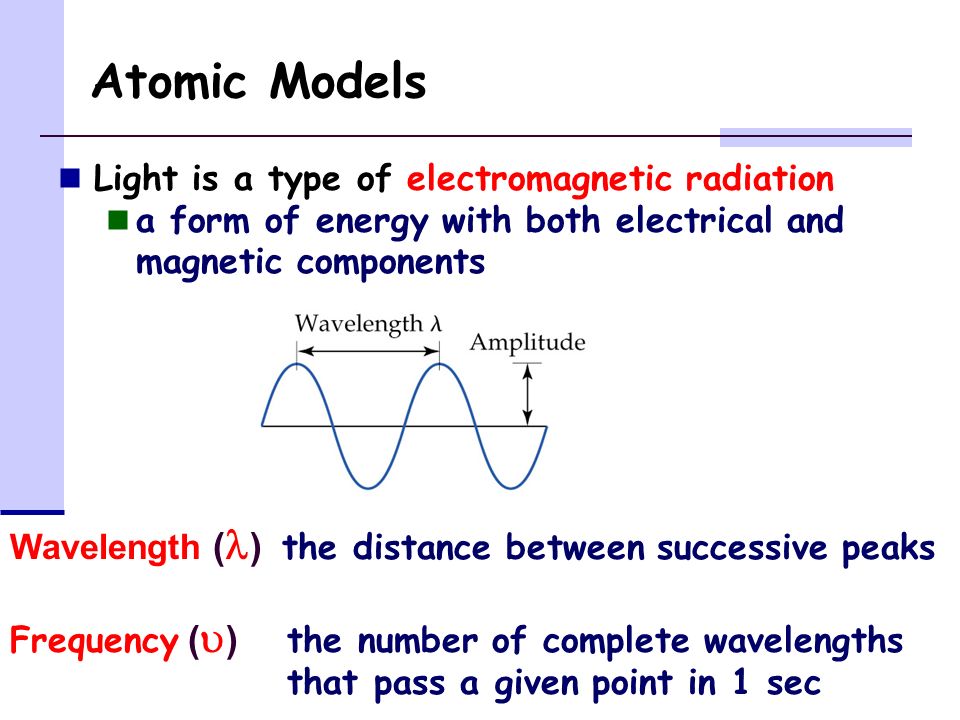

4. Atomic Models Light is a type of electromagnetic radiation a form of energy with both electrical and magnetic components Wavelength ( ) the distance between successive peaks Frequency (  ) the number of complete wavelengths that pass a given point in 1 sec

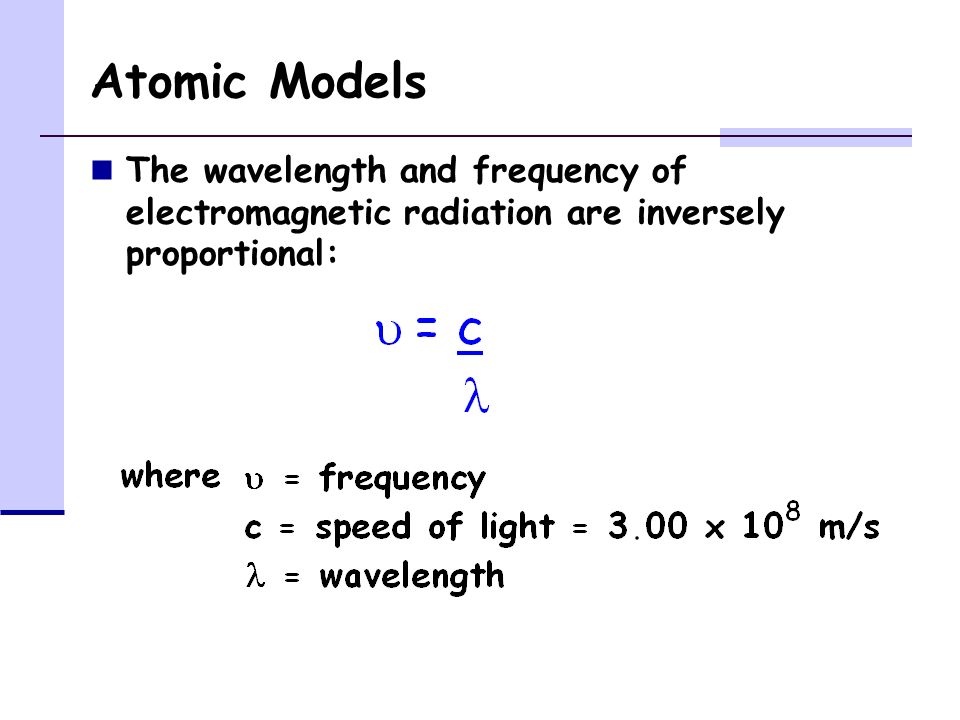

5. Atomic Models The wavelength and frequency of electromagnetic radiation are inversely proportional:

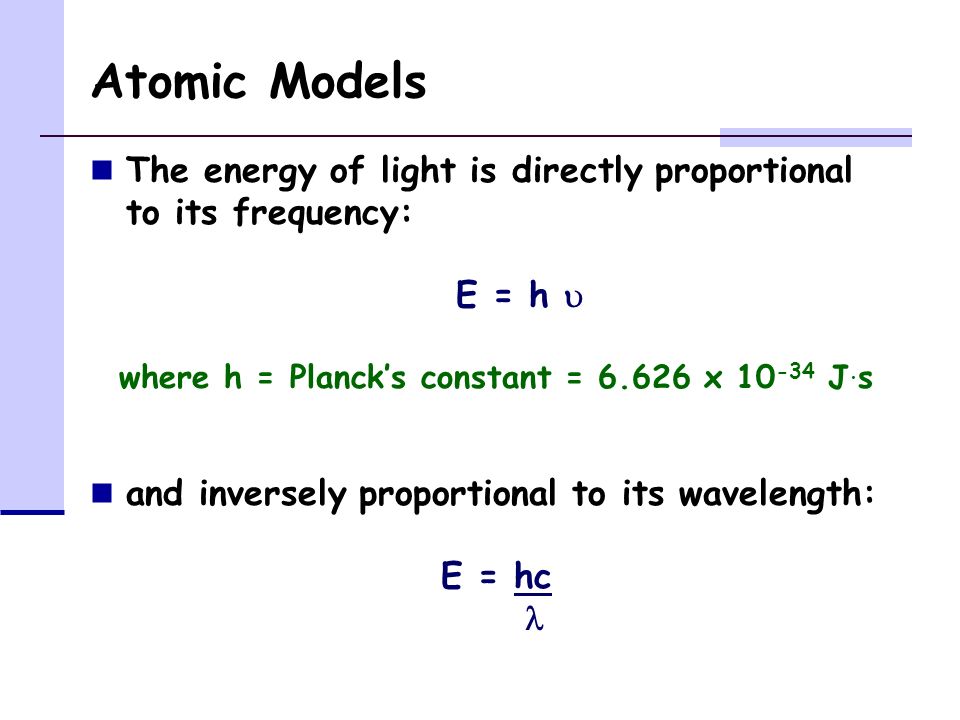

6. Atomic Models The energy of light is directly proportional to its frequency: E = h  where h = Planck’s constant = 6.626 x 10 -34 J. s and inversely proportional to its wavelength: E = hc

7. Atomic Models The electromagnetic spectrum: High E Low E

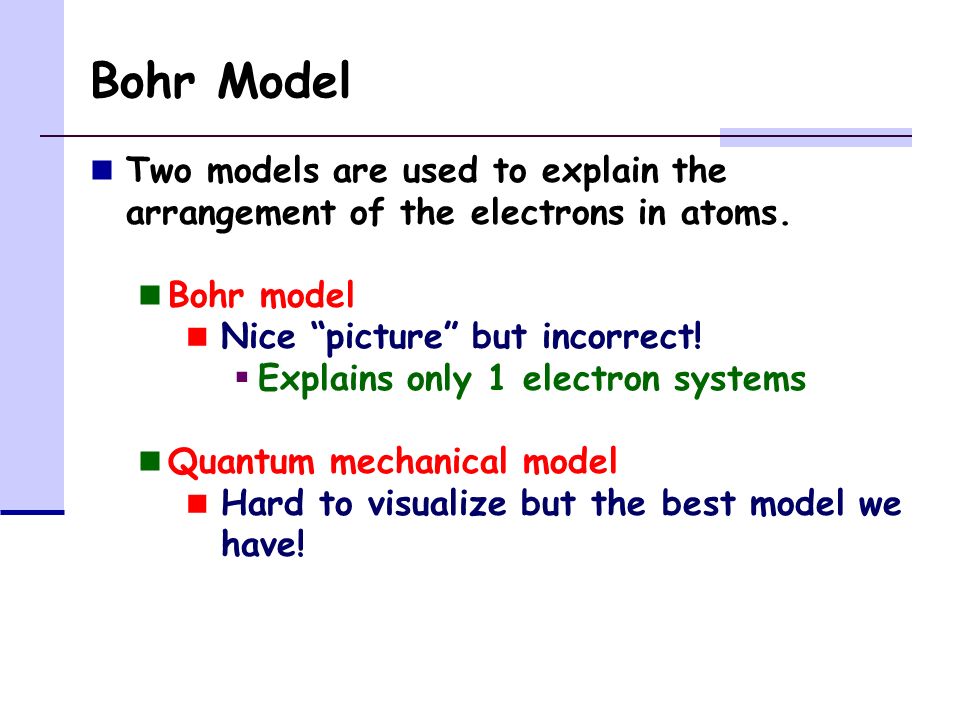

8. Bohr Model Two models are used to explain the arrangement of the electrons in atoms. Bohr model Nice “picture” but incorrect!  Explains only 1 electron systems Quantum mechanical model Hard to visualize but the best model we have!

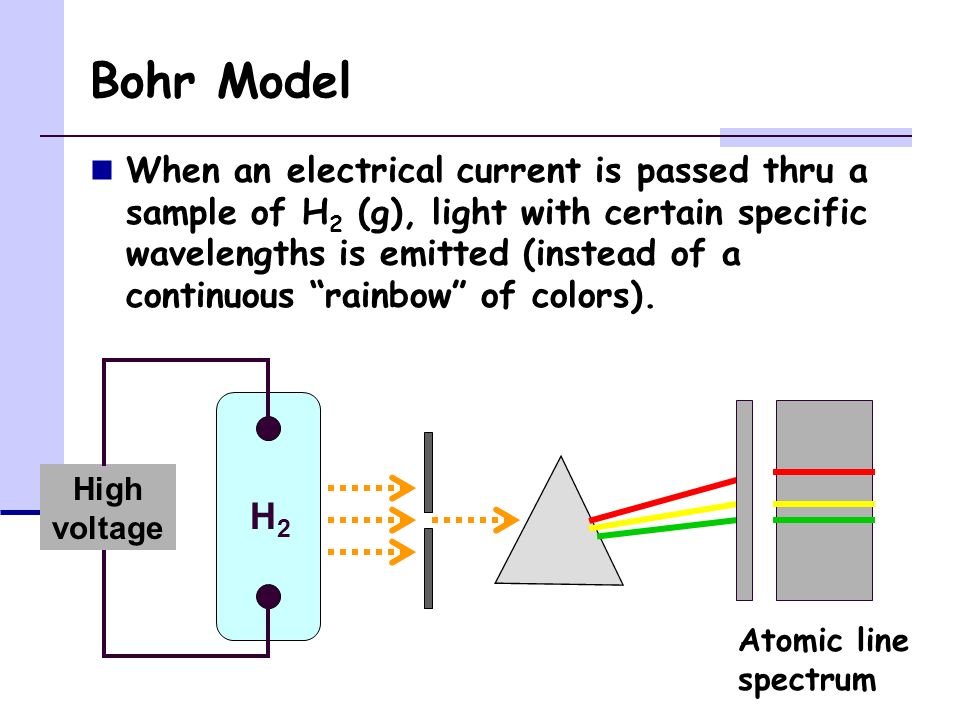

9. Bohr Model When an electrical current is passed thru a sample of H 2 (g), light with certain specific wavelengths is emitted (instead of a continuous “rainbow” of colors). High voltage H2H2 Atomic line spectrum

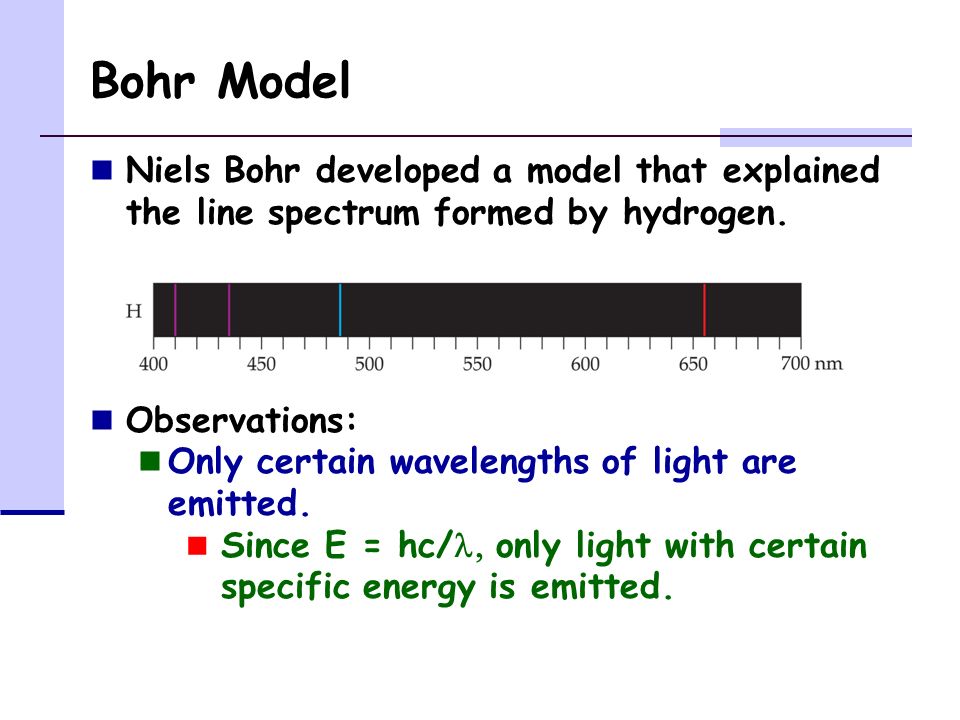

10. Bohr Model Niels Bohr developed a model that explained the line spectrum formed by hydrogen. Observations: Only certain wavelengths of light are emitted. Since E = hc/  only light with certain specific energy is emitted.

11. Bohr Model Bohr explained the line spectrum of hydrogen by assuming that the energy of an electron is quantized. Restricted to certain values

12. Bohr Model According to Bohr: Electrons are confined to specific energy states called orbits. Only orbits of specific radii are allowed. An electron in an allowed orbit has a very specific energy.

13. Bohr Model An electron in the ground state (the lowest energy state) can move to a higher energy orbit by absorbing energy. An electron in the excited state (a higher energy state) emits energy as a photon (a packet of light) when it falls back to a lower energy level. The light emitted has a wavelength that corresponds to the energy difference between the two orbits.

14. Bohr Model

15. The Bohr model effectively explains the line spectra of atoms and ions with a single electron H, He +, Li 2+ Another model is needed to explain the reactivity and behavior of more complex atoms or ions Quantum mechanical model

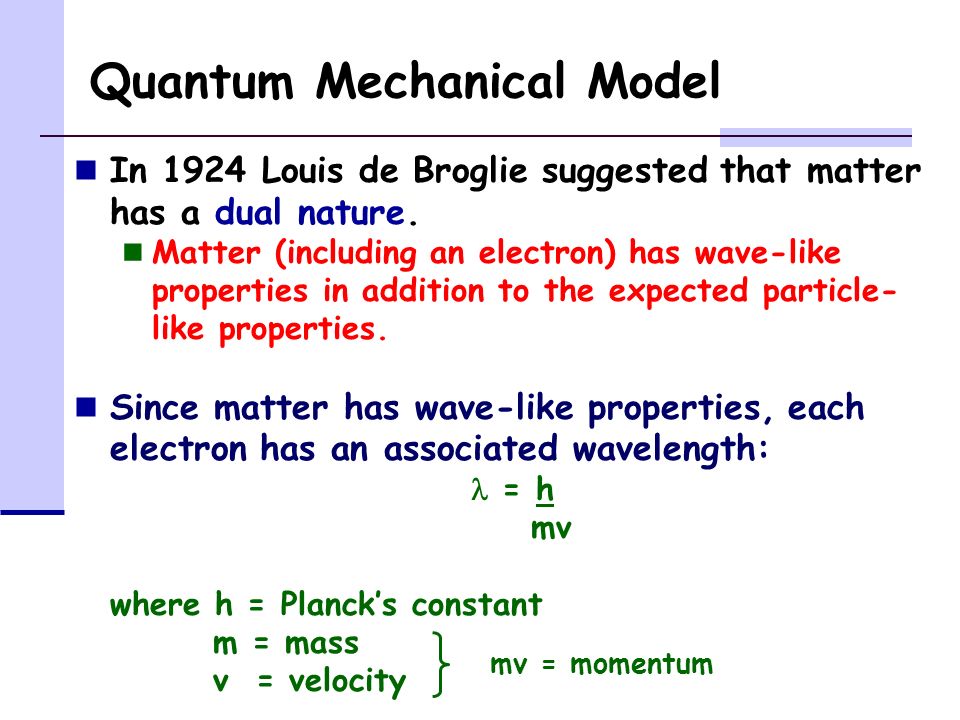

16. Quantum Mechanical Model In 1924 Louis de Broglie suggested that matter has a dual nature. Matter (including an electron) has wave-like properties in addition to the expected particle- like properties. Since matter has wave-like properties, each electron has an associated wavelength: = h mv where h = Planck’s constant m = mass v = velocity mv = momentum

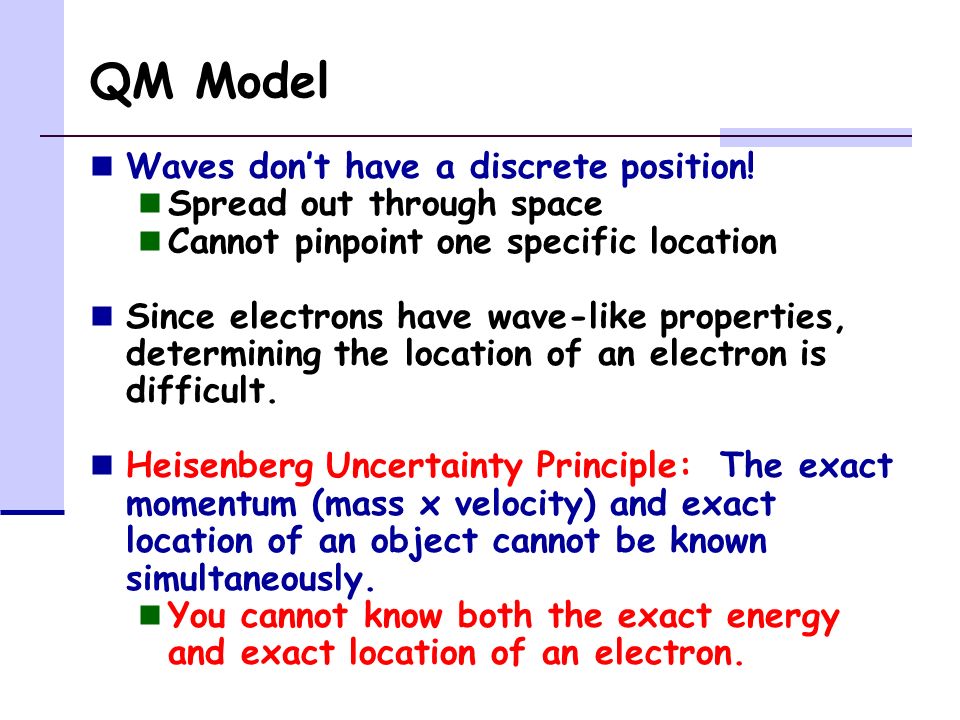

17. QM Model Waves don’t have a discrete position! Spread out through space Cannot pinpoint one specific location Since electrons have wave-like properties, determining the location of an electron is difficult. Heisenberg Uncertainty Principle: The exact momentum (mass x velocity) and exact location of an object cannot be known simultaneously. You cannot know both the exact energy and exact location of an electron.

18. QM Model In 1926 Schroedinger developed an equation that incorporates both the particle-like and wave-like behavior of electrons. Solving the Schroedinger wave equation leads to a series of mathematical functions called wave functions (  ) Wave function (  ): a mathematical description of an allowed energy state (orbital) for an electron

19. QM Model Each wave function (  ) has a precisely known energy, but the exact location of the electron cannot be determined.  2 is used to obtain a map of electron density the probability of finding an electron in a particular region of space. high electron density  high probability of finding the electron

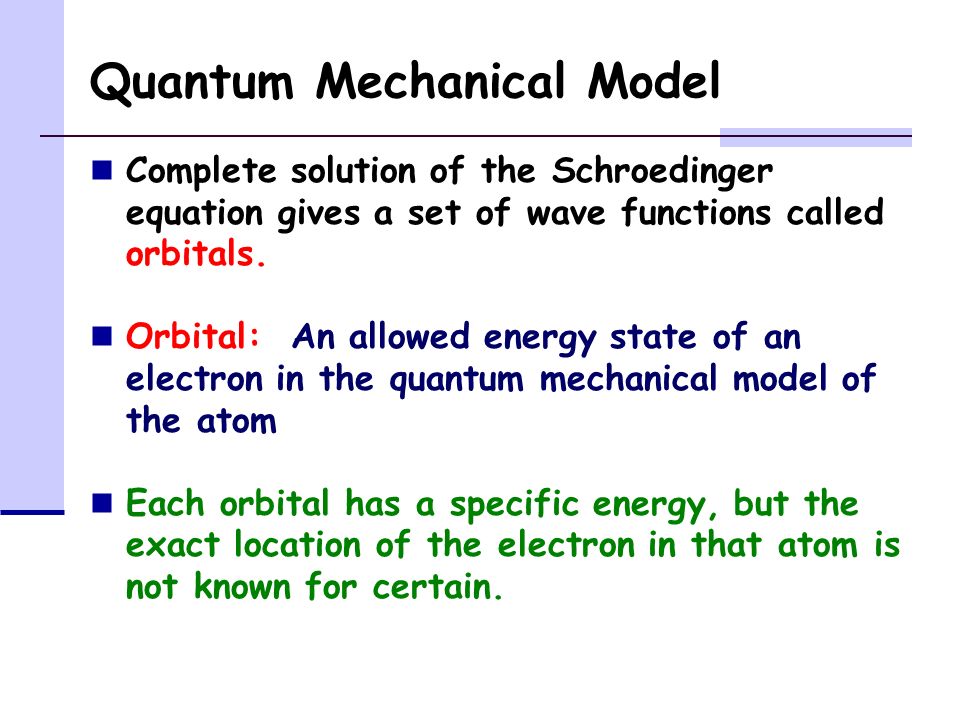

20. Quantum Mechanical Model Complete solution of the Schroedinger equation gives a set of wave functions called orbitals. Orbital: An allowed energy state of an electron in the quantum mechanical model of the atom Each orbital has a specific energy, but the exact location of the electron in that atom is not known for certain.

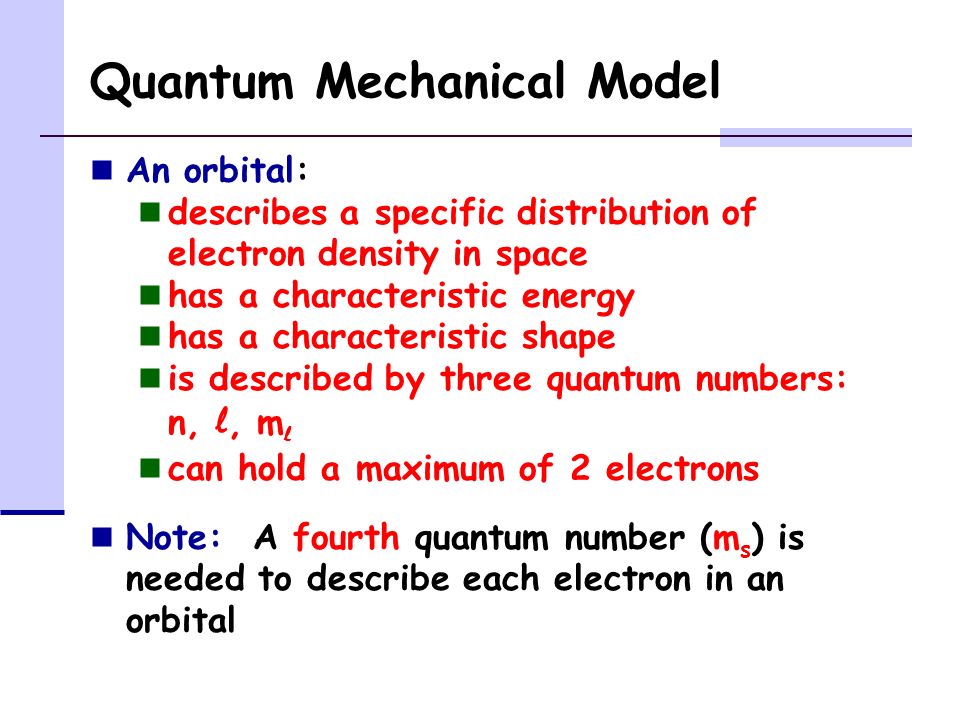

21. Quantum Mechanical Model An orbital: describes a specific distribution of electron density in space has a characteristic energy has a characteristic shape is described by three quantum numbers: n, l, m l can hold a maximum of 2 electrons Note: A fourth quantum number (m s ) is needed to describe each electron in an orbital

22. Quantum Mechanical Model Principal quantum number (n): Allowed values: n = 1, 2, 3, 4, etc describes the energy of the electron as n increases, the energy of the electron increases as n increases, the electron is more loosely bound to the atom indicates the average distance of the electron from the nucleus as n increases, the average distance from the nucleus increases

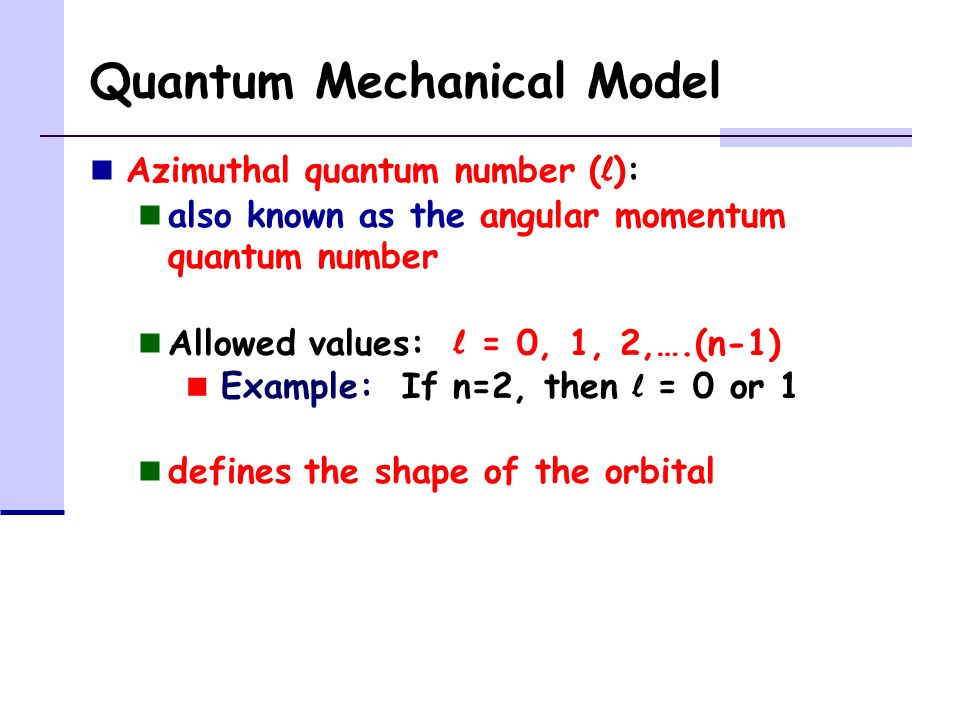

23. Quantum Mechanical Model Azimuthal quantum number ( l ): also known as the angular momentum quantum number Allowed values: l = 0, 1, 2,….(n-1) Example: If n=2, then l = 0 or 1 defines the shape of the orbital

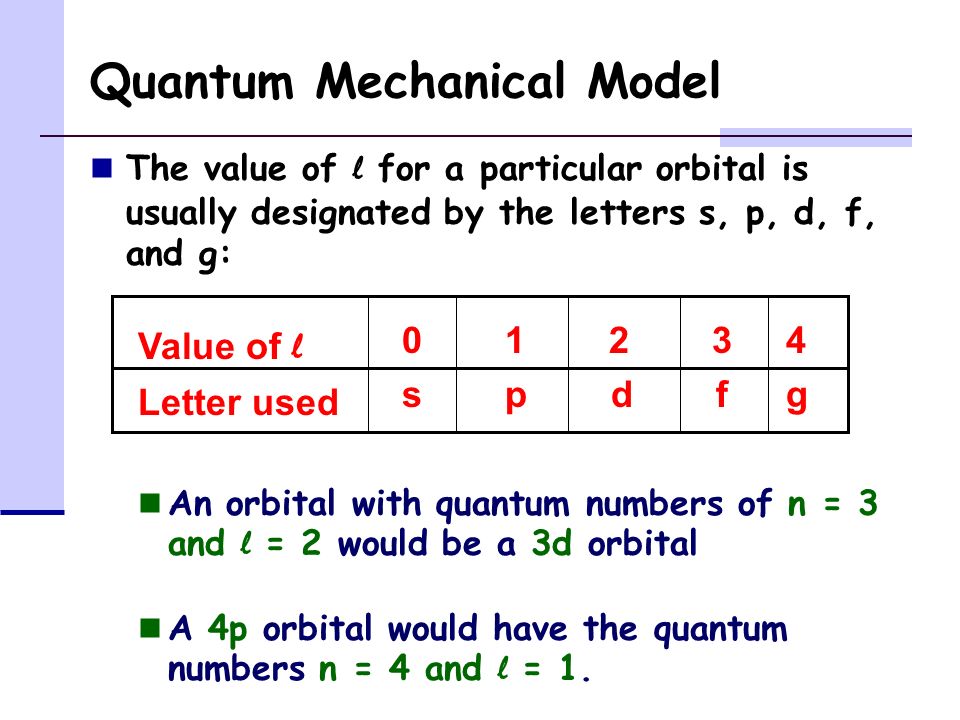

24. Quantum Mechanical Model The value of l for a particular orbital is usually designated by the letters s, p, d, f, and g: An orbital with quantum numbers of n = 3 and l = 2 would be a 3d orbital A 4p orbital would have the quantum numbers n = 4 and l = 1. Value of l Letter used 0 1 2 34 s p d fg

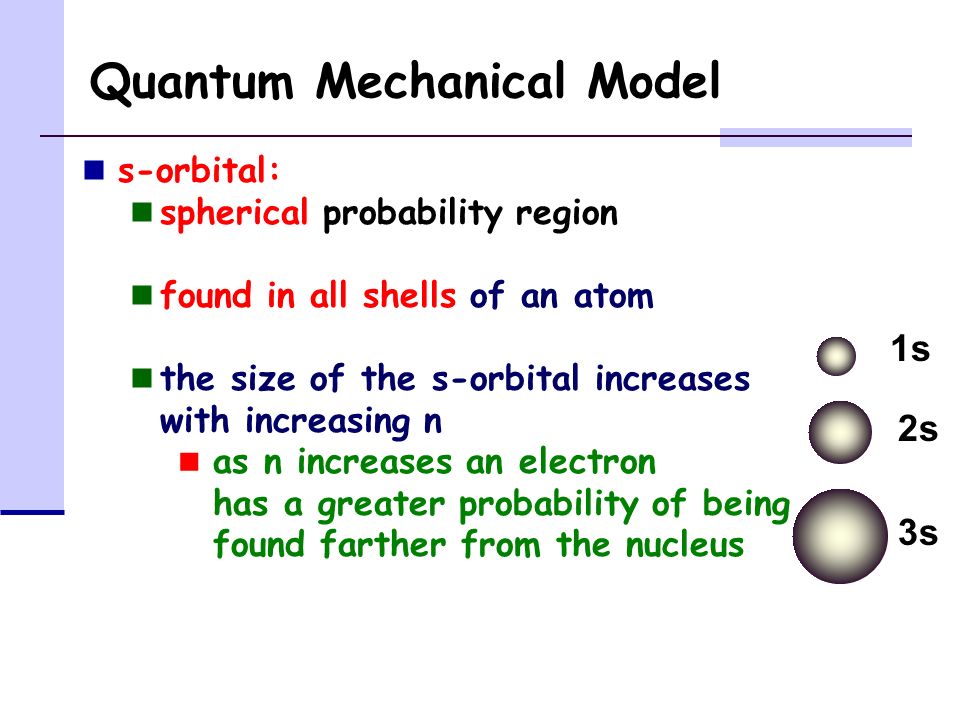

25. Quantum Mechanical Model s-orbital: spherical probability region found in all shells of an atom the size of the s-orbital increases with increasing n as n increases an electron has a greater probability of being found farther from the nucleus 1s 3s 2s

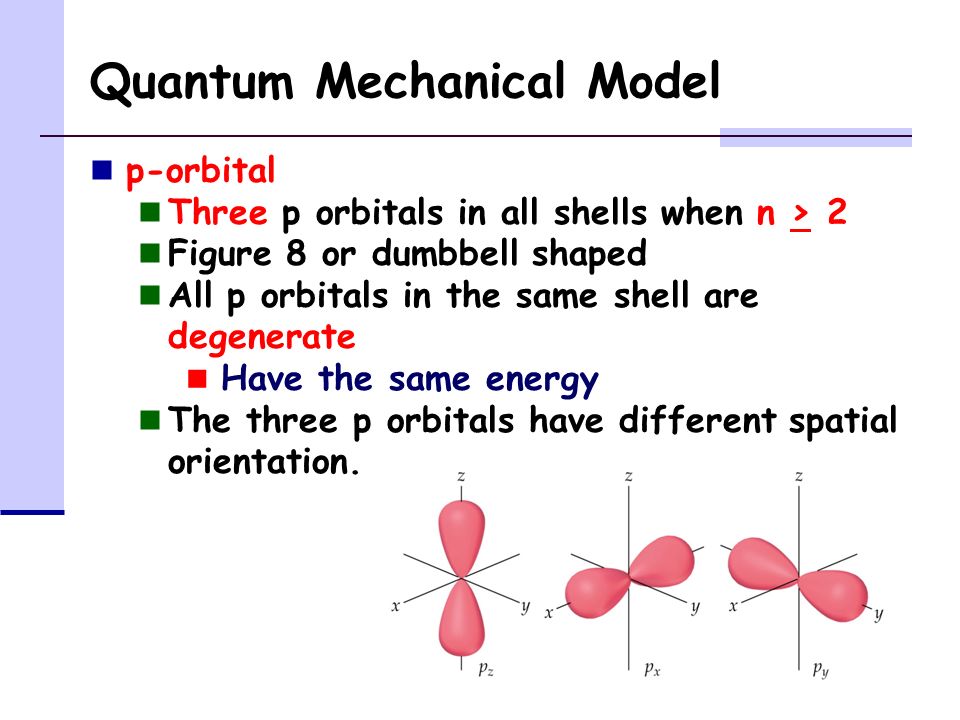

26. Quantum Mechanical Model p-orbital Three p orbitals in all shells when n > 2 Figure 8 or dumbbell shaped All p orbitals in the same shell are degenerate Have the same energy The three p orbitals have different spatial orientation.

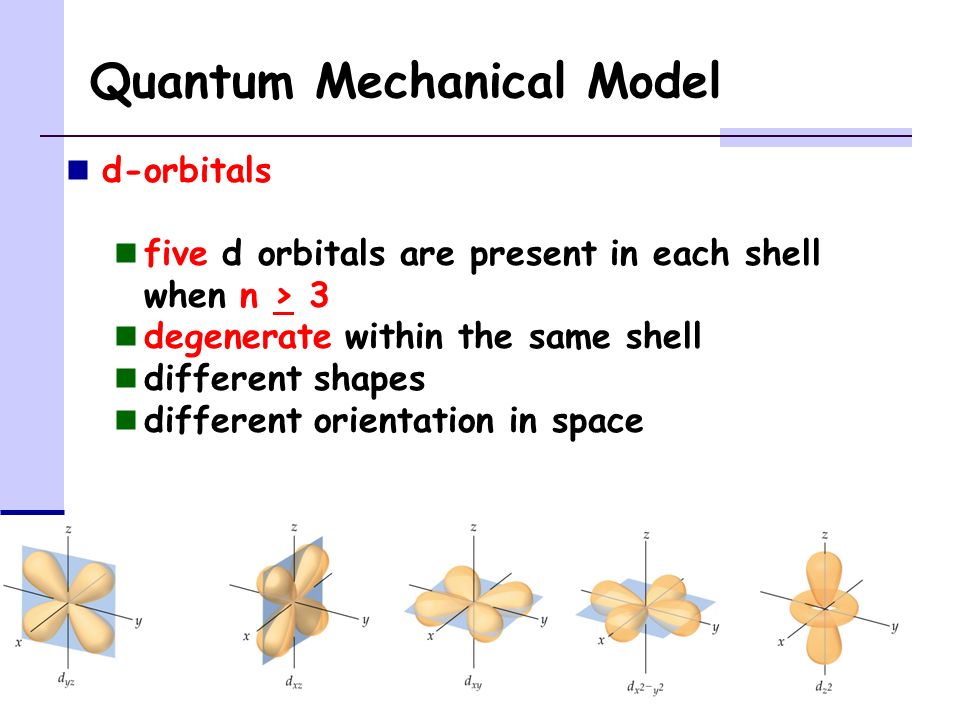

27. Quantum Mechanical Model d-orbitals five d orbitals are present in each shell when n > 3 degenerate within the same shell different shapes different orientation in space

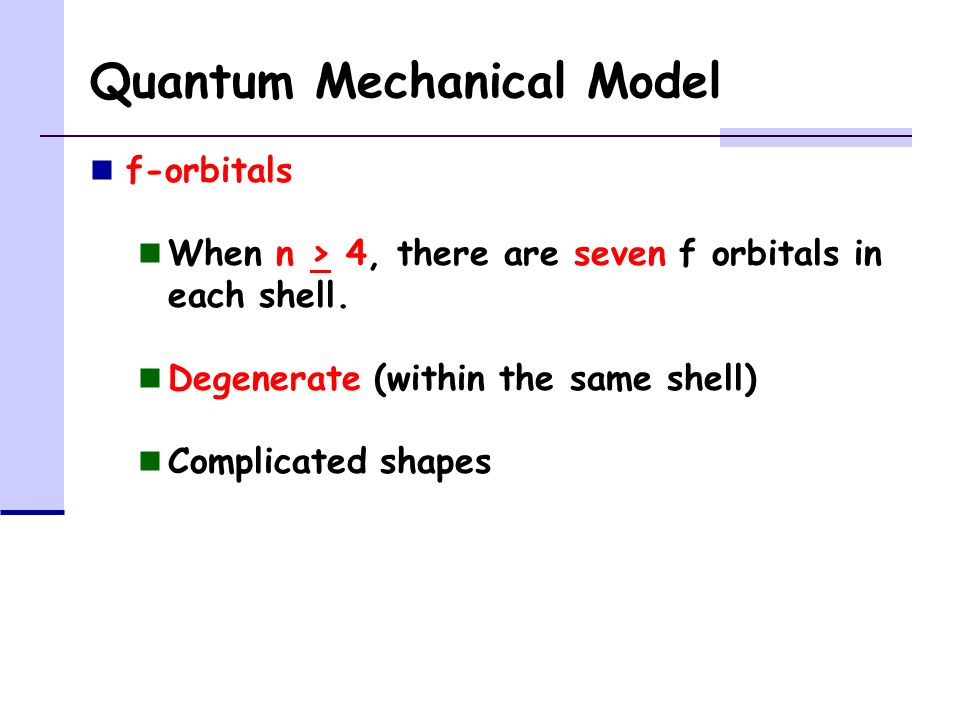

28. Quantum Mechanical Model f-orbitals When n > 4, there are seven f orbitals in each shell. Degenerate (within the same shell) Complicated shapes

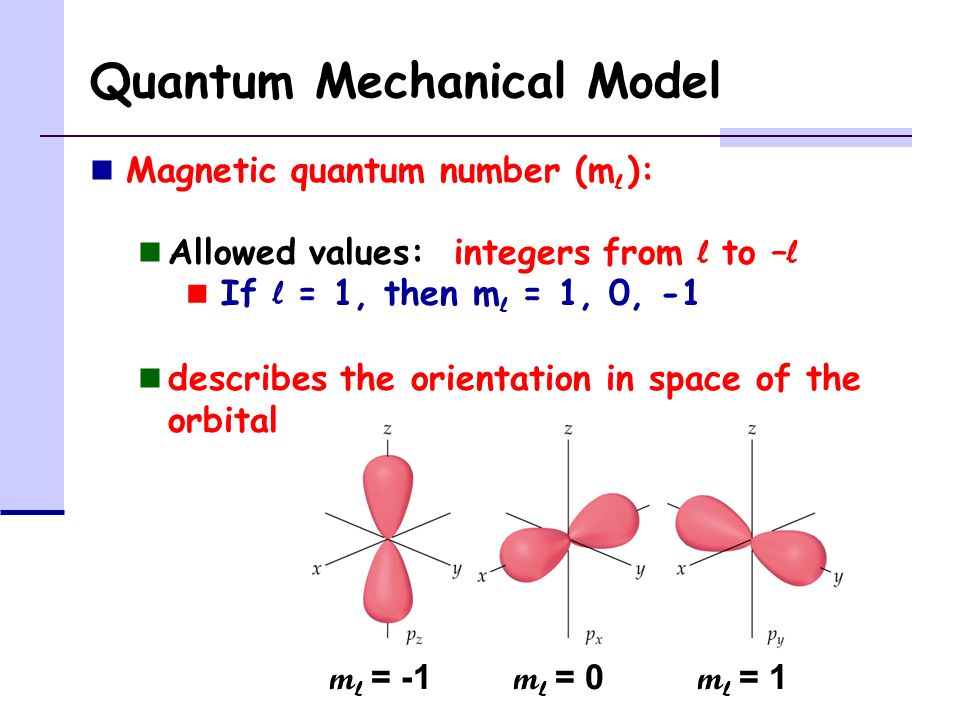

29. Quantum Mechanical Model Magnetic quantum number (m l ): Allowed values: integers from l to – l If l = 1, then m l = 1, 0, -1 describes the orientation in space of the orbital m l = -1 m l = 0 m l = 1

30. Quantum Mechanical Model The first three quantum numbers (n, l, m l ) describe an individual orbital. A fourth quantum number is used to describe each electron found in an orbital. Electron spin quantum number (m s ) Allowed values: m s = + 1/2 ( ) m s = -1/2 ( )

31. Quantum Mechanical Model Electron spin: a property of electrons that make it behave as if it were a tiny magnet spinning on its axis
