1. Chapter 4 Data Structures ADT Examples  Stack  Queue  Trees

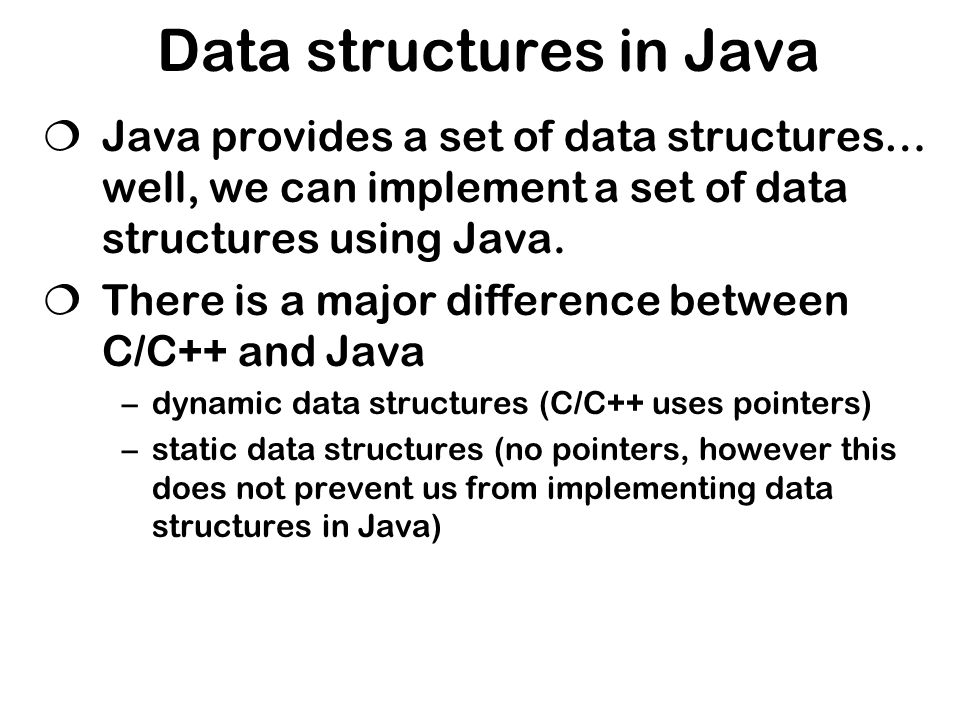

2. Data structures in Java  Java provides a set of data structures… well, we can implement a set of data structures using Java.  There is a major difference between C/C++ and Java –dynamic data structures (C/C++ uses pointers) –static data structures (no pointers, however this does not prevent us from implementing data structures in Java)

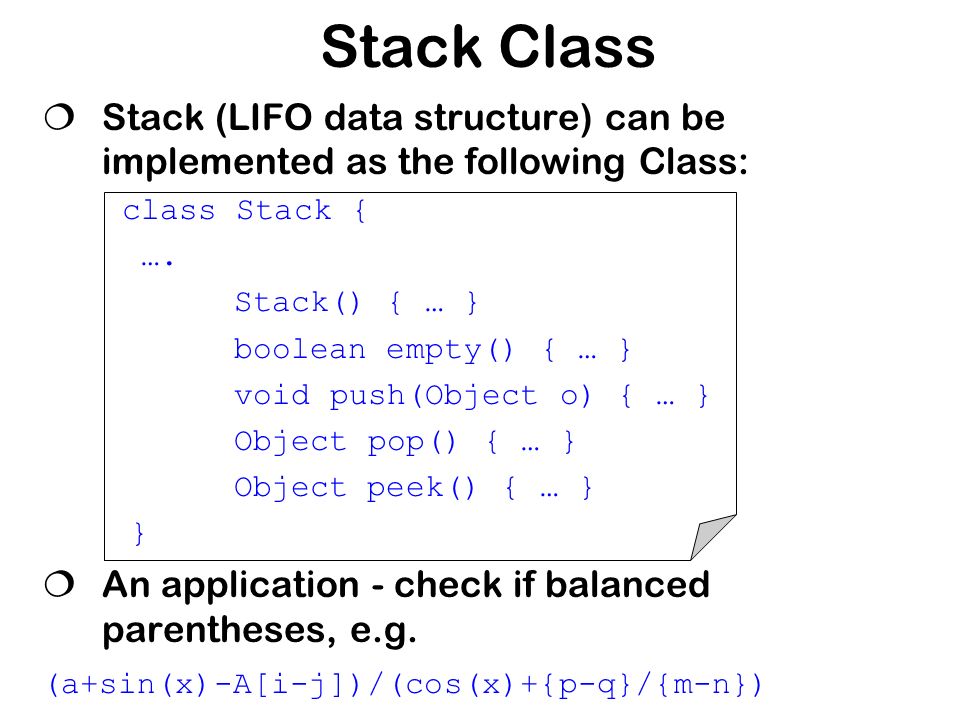

3. Stack Class  Stack (LIFO data structure) can be implemented as the following Class: class Stack { …. Stack() { … } boolean empty() { … } void push(Object o) { … } Object pop() { … } Object peek() { … } }  An application - check if balanced parentheses, e.g. (a+sin(x)-A[i-j])/(cos(x)+{p-q}/{m-n})

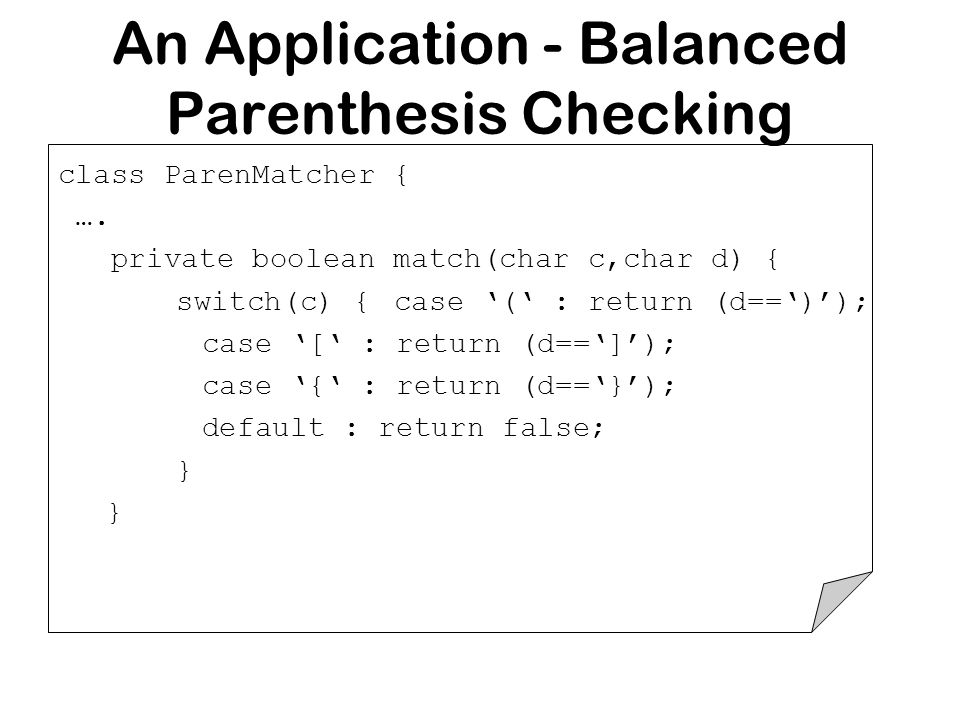

4. An Application - Balanced Parenthesis Checking class ParenMatcher { …. private boolean match(char c,char d) { switch(c) { case ‘(‘ : return (d==‘)’); case ‘[‘ : return (d==‘]’); case ‘{‘ : return (d==‘}’); default : return false; }

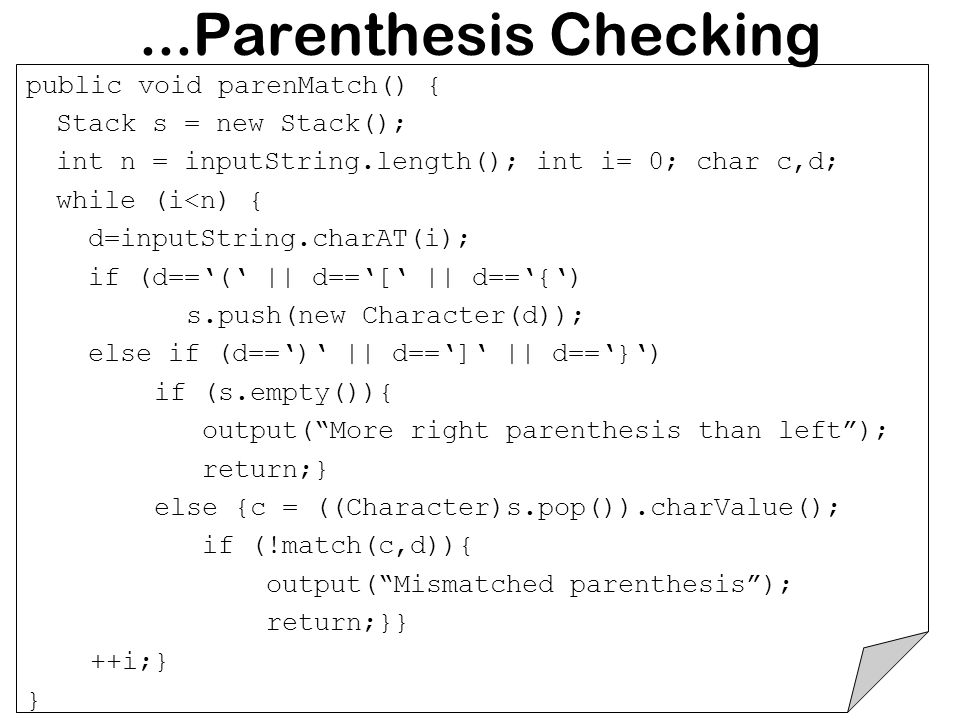

5. ...Parenthesis Checking public void parenMatch() { Stack s = new Stack(); int n = inputString.length(); int i= 0; char c,d; while (i<n) { d=inputString.charAT(i); if (d==‘(‘ || d==‘[‘ || d==‘{‘) s.push(new Character(d)); else if (d==‘)‘ || d==‘]‘ || d==‘}‘) if (s.empty()){ output(“More right parenthesis than left”); return;} else {c = ((Character)s.pop()).charValue(); if (!match(c,d)){ output(“Mismatched parenthesis”); return;}} ++i;} }

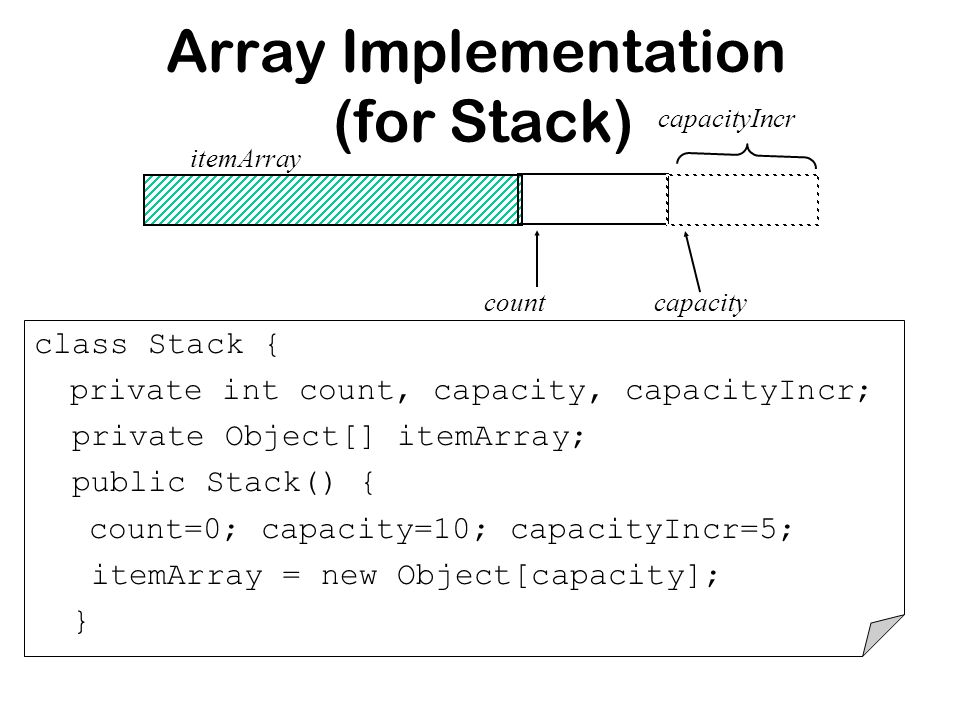

6. Array Implementation (for Stack) class Stack { private int count, capacity, capacityIncr; private Object[] itemArray; public Stack() { count=0; capacity=10; capacityIncr=5; itemArray = new Object[capacity]; } itemArray countcapacity capacityIncr

7. Stack Methdos public boolean empty() {return (count==0); } public Object pop(){ if (count==0) return null; else {return itemArray[--count];} } public Object peek(){ if (count==0) { return null; } else {return itemArray[count-1];} }

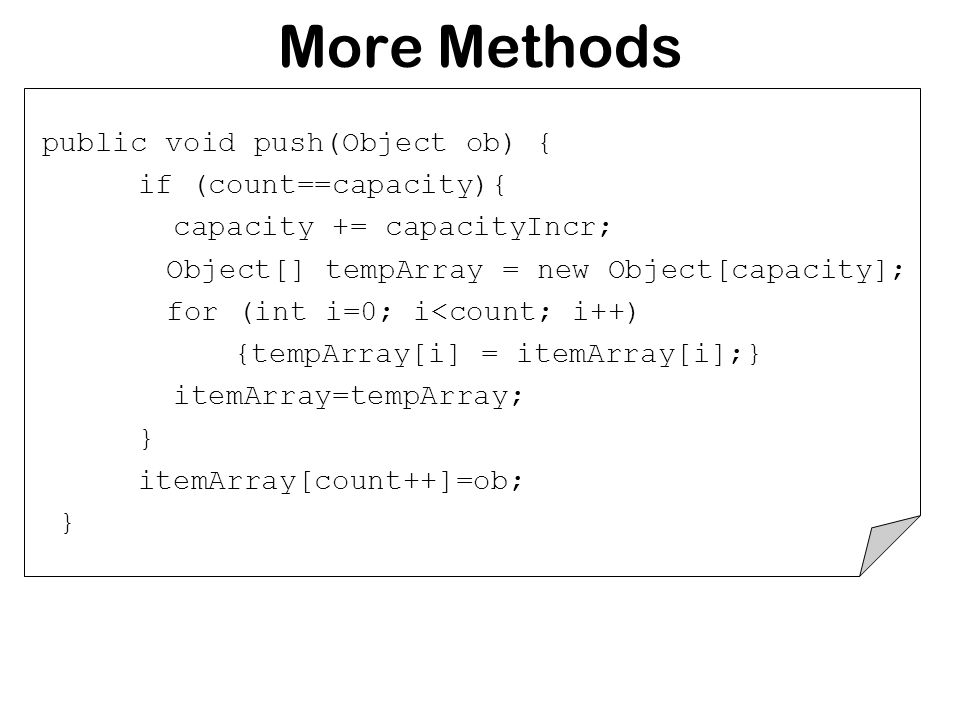

8. More Methods public void push(Object ob) { if (count==capacity){ capacity += capacityIncr; Object[] tempArray = new Object[capacity]; for (int i=0; i<count; i++) {tempArray[i] = itemArray[i];} itemArray=tempArray; } itemArray[count++]=ob; }

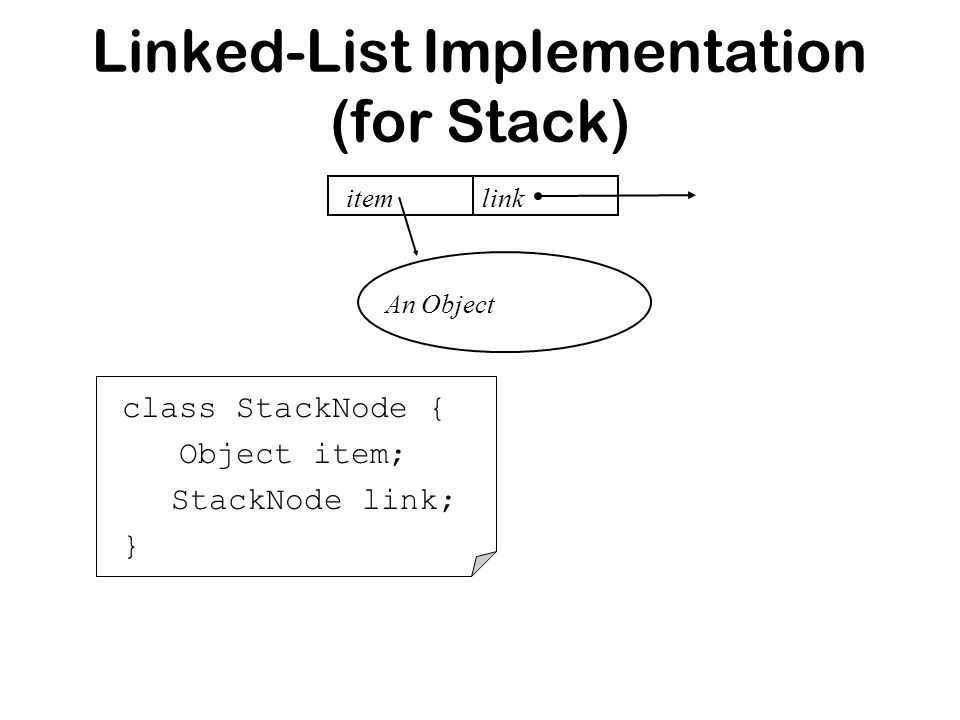

9. Linked-List Implementation (for Stack) class StackNode { Object item; StackNode link; } itemlink An Object

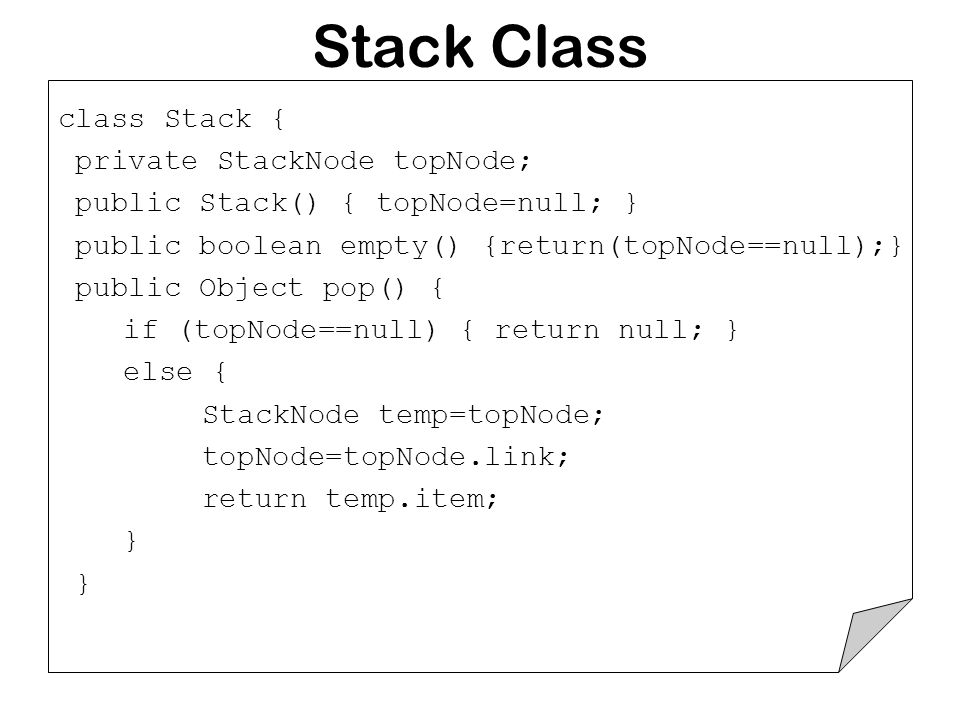

10. Stack Class class Stack { private StackNode topNode; public Stack() { topNode=null; } public boolean empty() {return(topNode==null);} public Object pop() { if (topNode==null) { return null; } else { StackNode temp=topNode; topNode=topNode.link; return temp.item; }

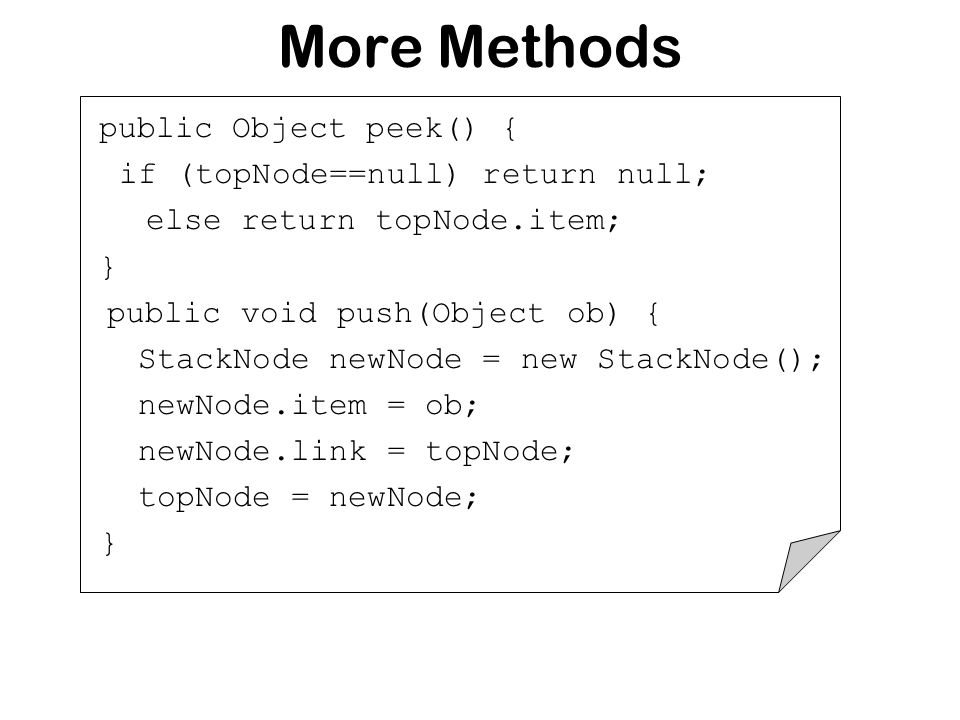

11. More Methods public Object peek() { if (topNode==null) return null; else return topNode.item; } public void push(Object ob) { StackNode newNode = new StackNode(); newNode.item = ob; newNode.link = topNode; topNode = newNode; }

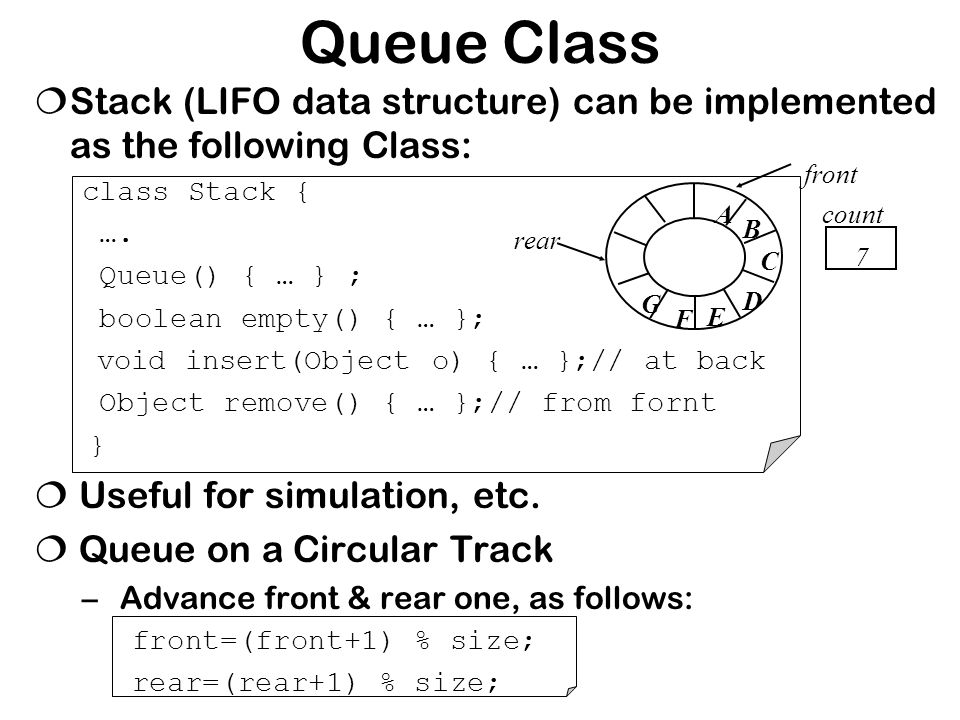

12. Queue Class  Stack (LIFO data structure) can be implemented as the following Class: class Stack { …. Queue() { … } ; boolean empty() { … }; void insert(Object o) { … };// at back Object remove() { … };// from fornt }  Useful for simulation, etc.  Queue on a Circular Track – Advance front & rear one, as follows: front=(front+1) % size; rear=(rear+1) % size; front rear A B C D E F G count 7

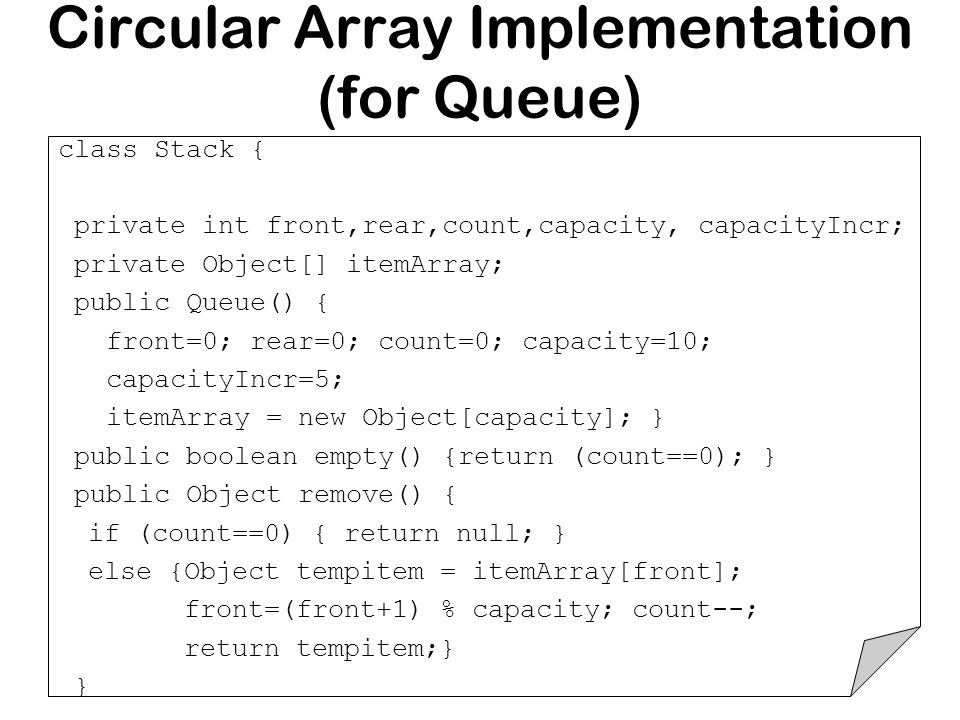

13. Circular Array Implementation (for Queue) class Stack { private int front,rear,count,capacity, capacityIncr; private Object[] itemArray; public Queue() { front=0; rear=0; count=0; capacity=10; capacityIncr=5; itemArray = new Object[capacity]; } public boolean empty() {return (count==0); } public Object remove() { if (count==0) { return null; } else {Object tempitem = itemArray[front]; front=(front+1) % capacity; count--; return tempitem;} }

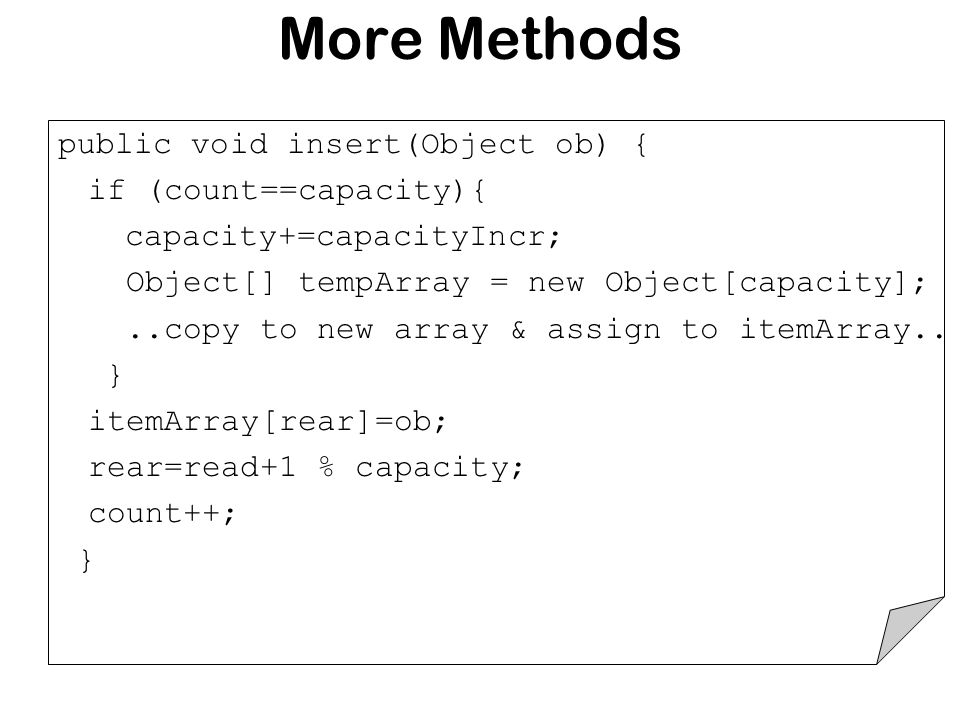

14. More Methods public void insert(Object ob) { if (count==capacity){ capacity+=capacityIncr; Object[] tempArray = new Object[capacity];..copy to new array & assign to itemArray.. } itemArray[rear]=ob; rear=read+1 % capacity; count++; }

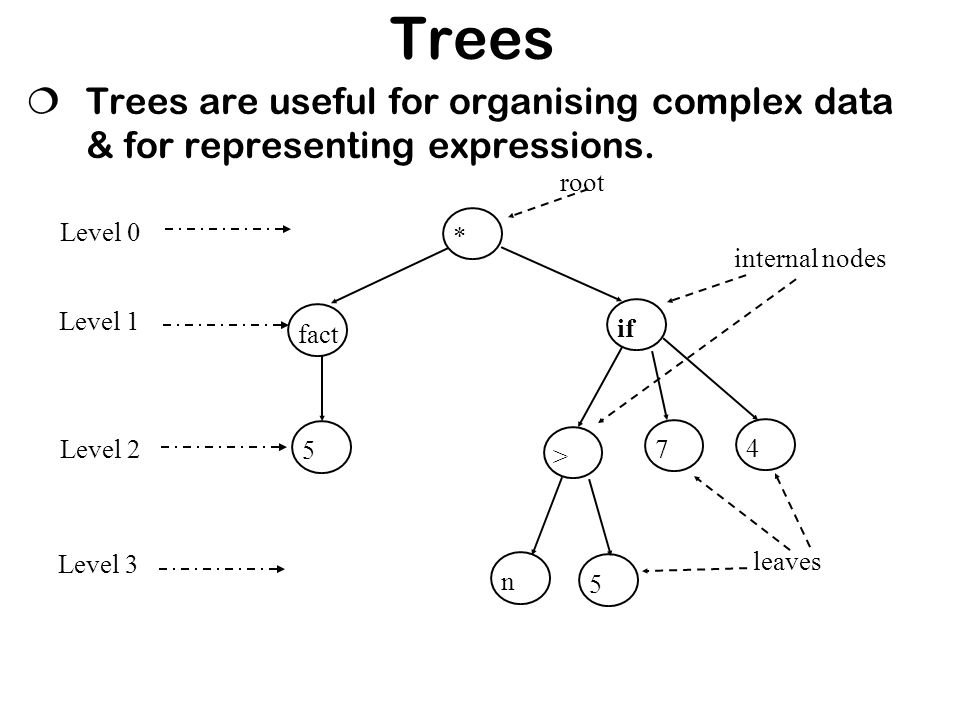

15. Trees  Trees are useful for organising complex data & for representing expressions. * fact if 5 > n 7 4 5 root internal nodes leaves Level 0 Level 1 Level 2 Level 3

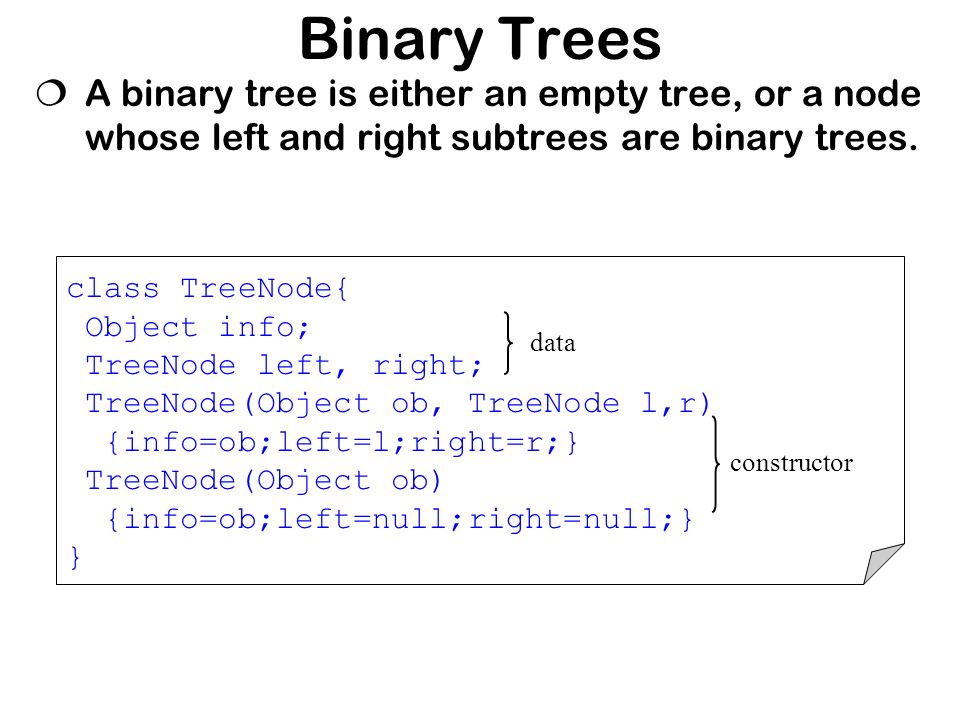

16. Binary Trees  A binary tree is either an empty tree, or a node whose left and right subtrees are binary trees. class TreeNode{ Object info; TreeNode left, right; TreeNode(Object ob, TreeNode l,r) {info=ob;left=l;right=r;} TreeNode(Object ob) {info=ob;left=null;right=null;} } data constructor

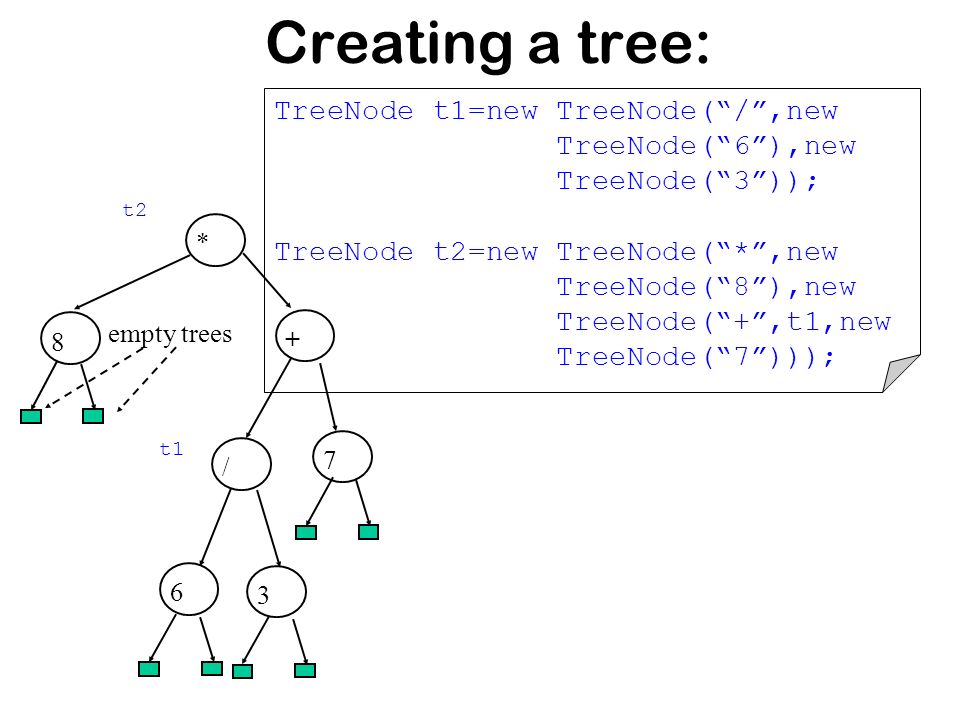

17. Creating a tree: * + / 6 7 3 8 empty trees t2 t1 TreeNode t1=new TreeNode(“/”,new TreeNode(“6”),new TreeNode(“3”)); TreeNode t2=new TreeNode(“*”,new TreeNode(“8”),new TreeNode(“+”,t1,new TreeNode(“7”)));

18. Tree Traversals  There are three common ways of tree traversals  pre-order traversal  in-order traversal  post-order traversal

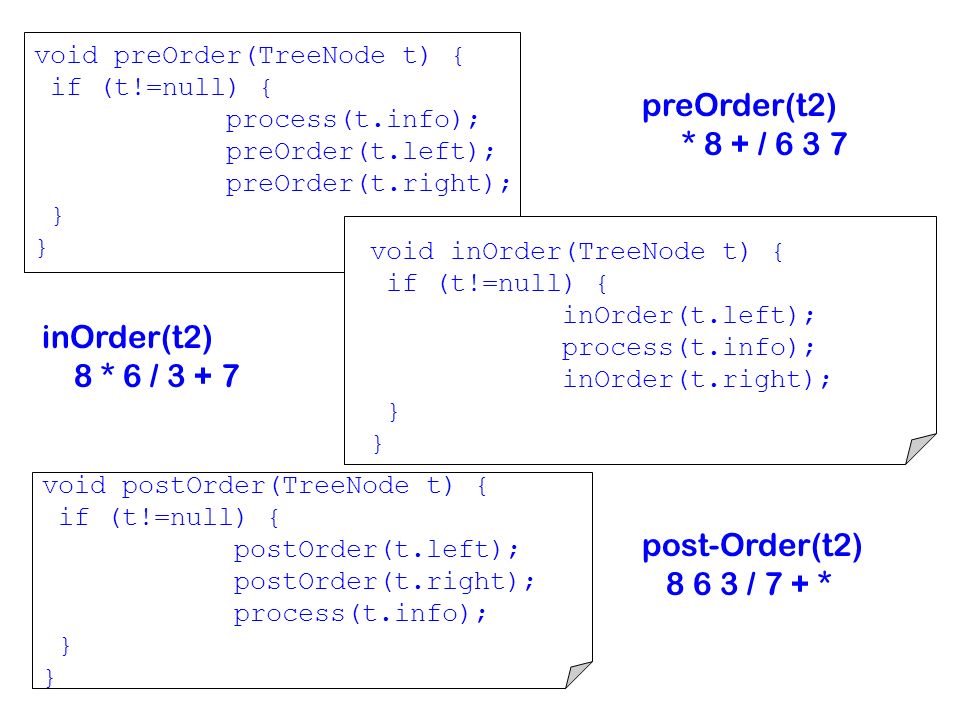

19. void preOrder(TreeNode t) { if (t!=null) { process(t.info); preOrder(t.left); preOrder(t.right); } void inOrder(TreeNode t) { if (t!=null) { inOrder(t.left); process(t.info); inOrder(t.right); } void postOrder(TreeNode t) { if (t!=null) { postOrder(t.left); postOrder(t.right); process(t.info); } preOrder(t2) * 8 + / 6 3 7 inOrder(t2) 8 * 6 / 3 + 7 post-Order(t2) 8 6 3 / 7 + *

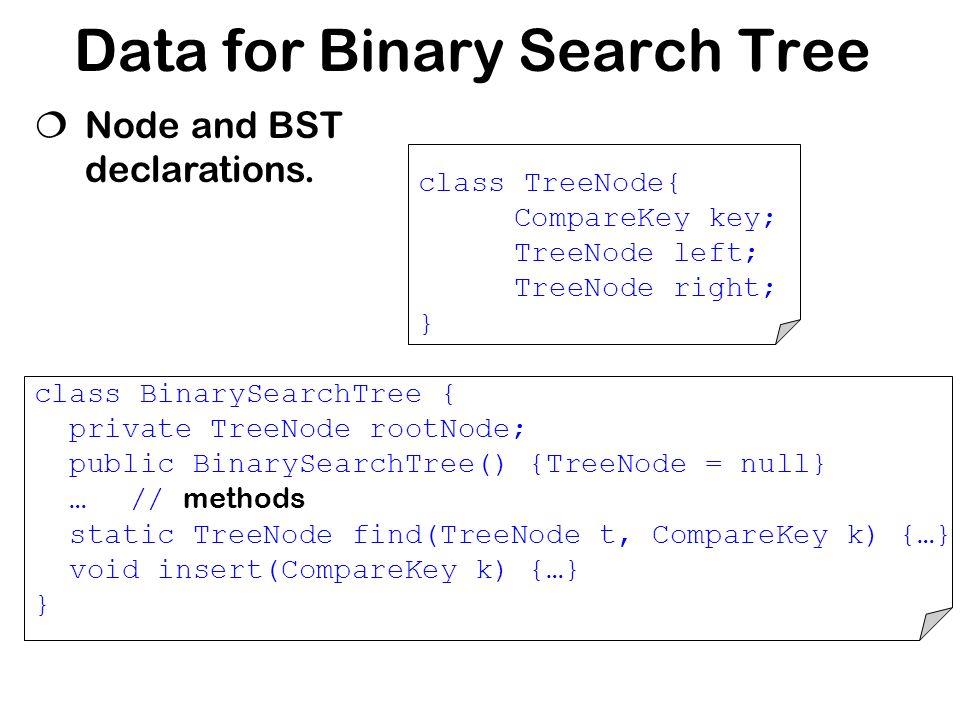

20. Data for Binary Search Tree class TreeNode{ CompareKey key; TreeNode left; TreeNode right; } class BinarySearchTree { private TreeNode rootNode; public BinarySearchTree() {TreeNode = null} …// methods static TreeNode find(TreeNode t, CompareKey k) {…} void insert(CompareKey k) {…} }  Node and BST declarations.

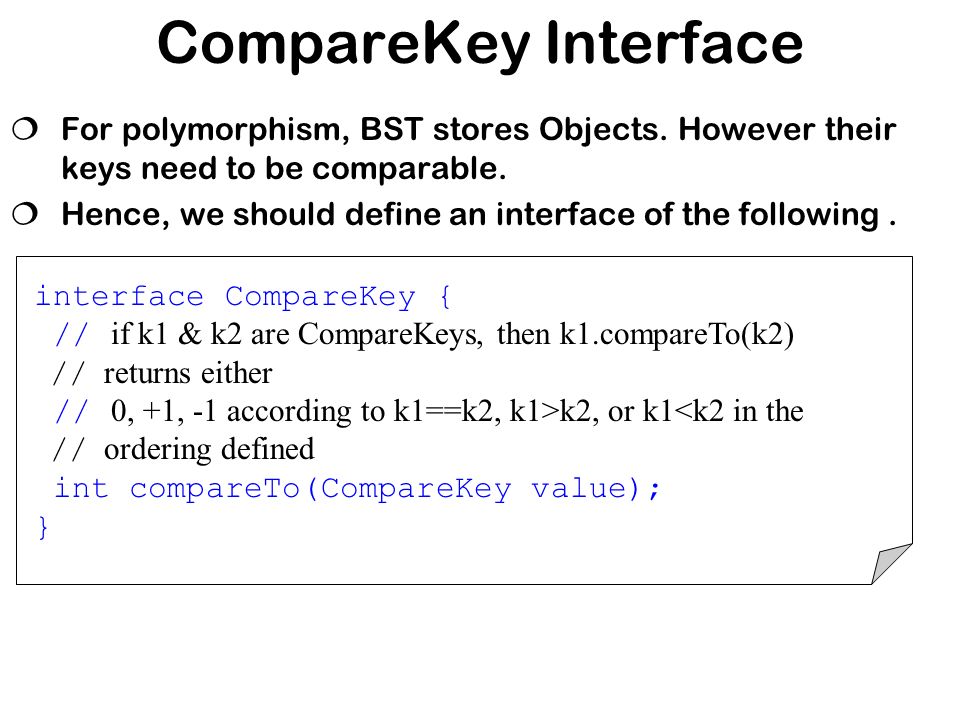

21. CompareKey Interface  For polymorphism, BST stores Objects. However their keys need to be comparable.  Hence, we should define an interface of the following. interface CompareKey { // if k1 & k2 are CompareKeys, then k1.compareTo(k2) // returns either // 0, +1, -1 according to k1==k2, k1>k2, or k1<k2 in the // ordering defined int compareTo(CompareKey value); }

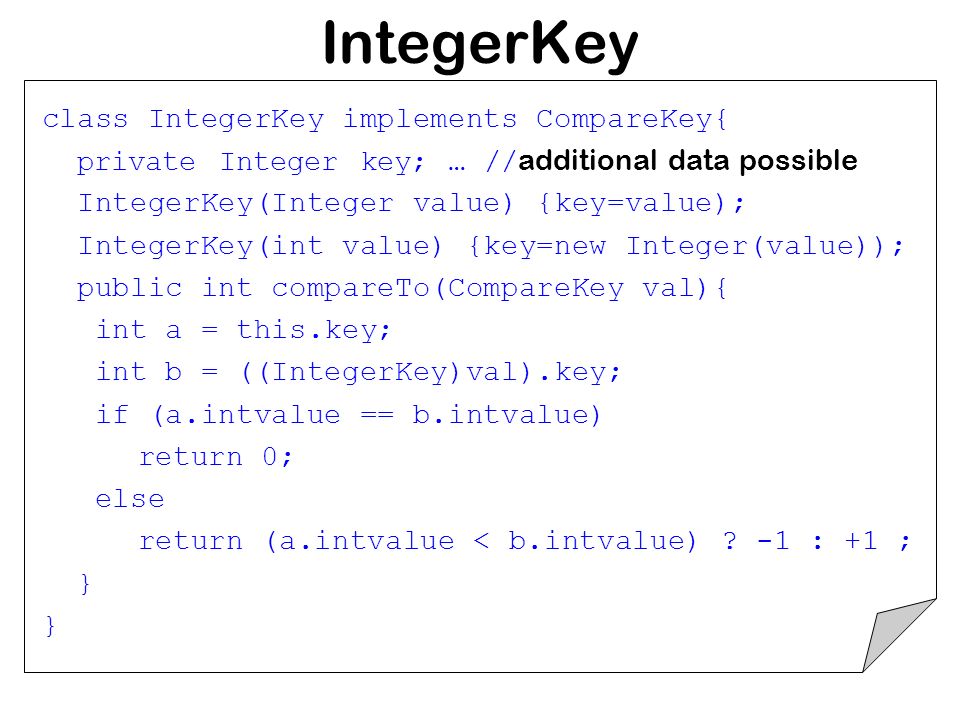

22. IntegerKey class IntegerKey implements CompareKey{ private Integer key; … // additional data possible IntegerKey(Integer value) {key=value); IntegerKey(int value) {key=new Integer(value)); public int compareTo(CompareKey val){ int a = this.key; int b = ((IntegerKey)val).key; if (a.intvalue == b.intvalue) return 0; else return (a.intvalue < b.intvalue) ? -1 : +1 ; }

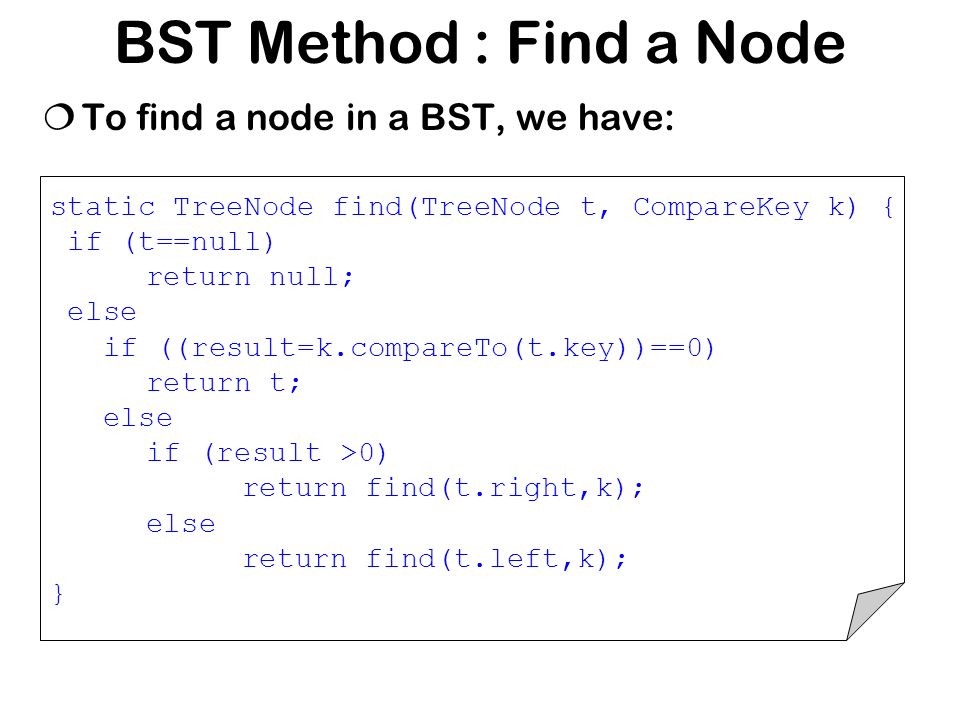

23. BST Method : Find a Node  To find a node in a BST, we have: static TreeNode find(TreeNode t, CompareKey k) { if (t==null) return null; else if ((result=k.compareTo(t.key))==0) return t; else if (result >0) return find(t.right,k); else return find(t.left,k); }

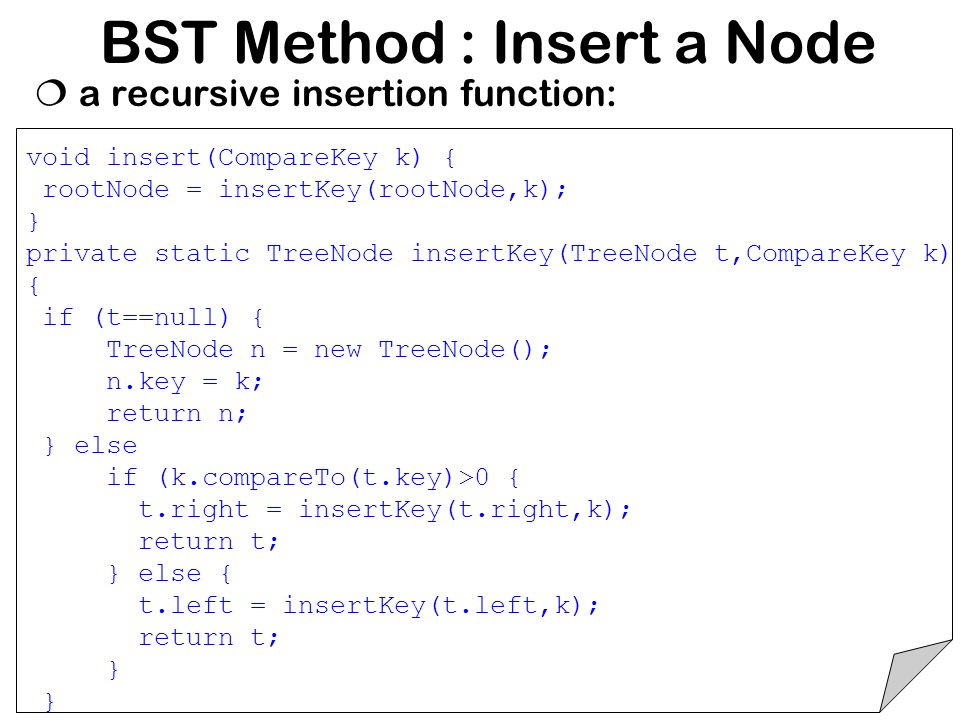

24. BST Method : Insert a Node  a recursive insertion function: void insert(CompareKey k) { rootNode = insertKey(rootNode,k); } private static TreeNode insertKey(TreeNode t,CompareKey k) { if (t==null) { TreeNode n = new TreeNode(); n.key = k; return n; } else if (k.compareTo(t.key)>0 { t.right = insertKey(t.right,k); return t; } else { t.left = insertKey(t.left,k); return t; }
