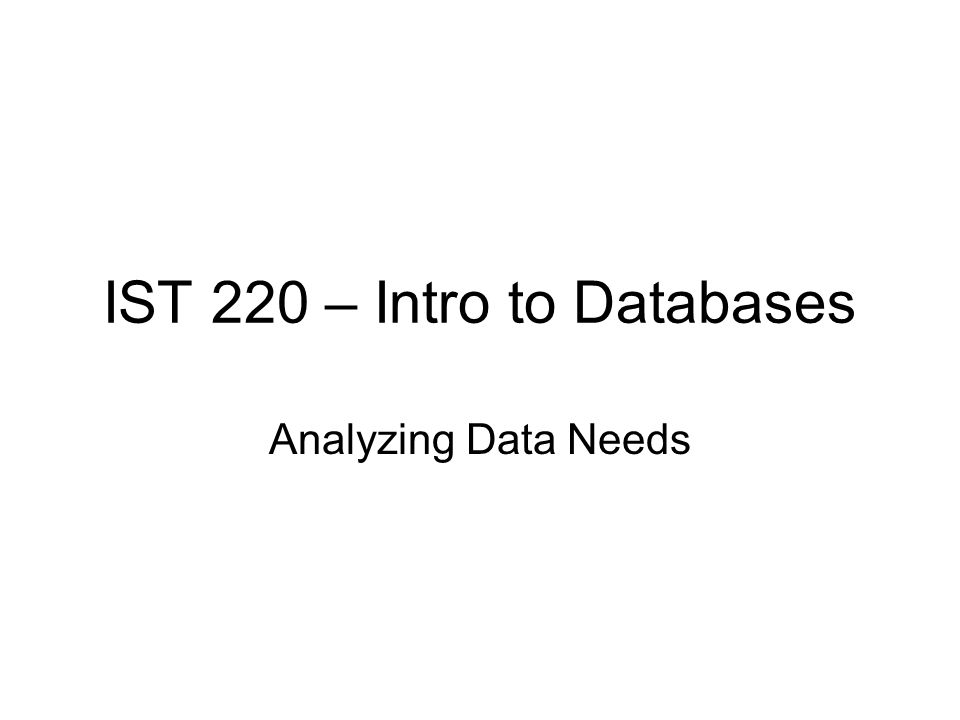

1. IST 220 – Intro to Databases Analyzing Data Needs

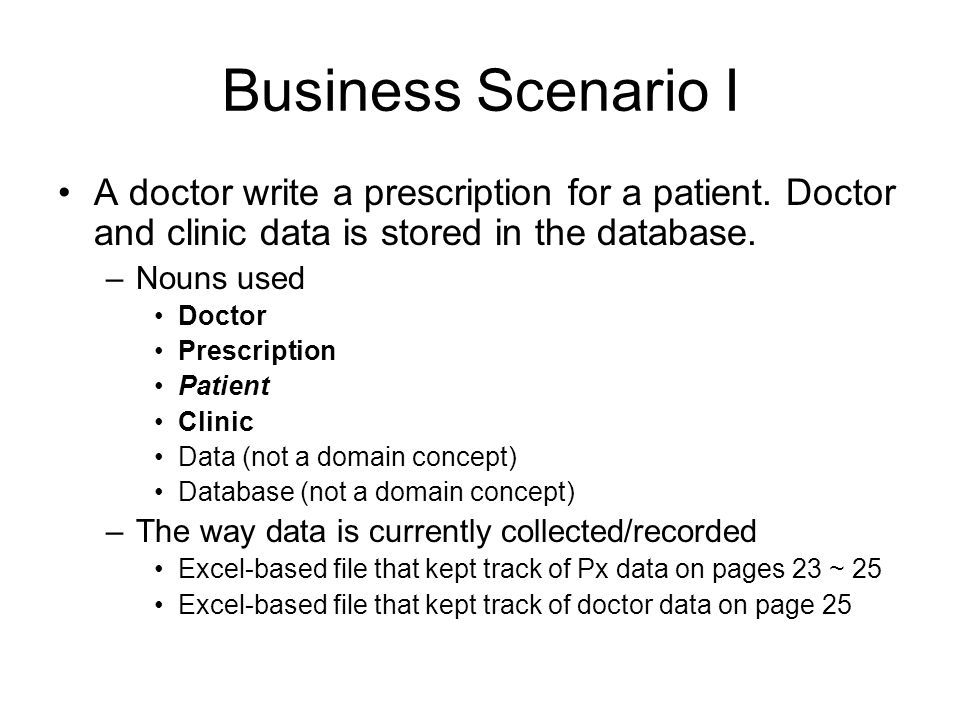

2. Business Scenario I A doctor write a prescription for a patient. Doctor and clinic data is stored in the database. –Nouns used Doctor Prescription Patient Clinic Data (not a domain concept) Database (not a domain concept) –The way data is currently collected/recorded Excel-based file that kept track of Px data on pages 23 ~ 25 Excel-based file that kept track of doctor data on page 25

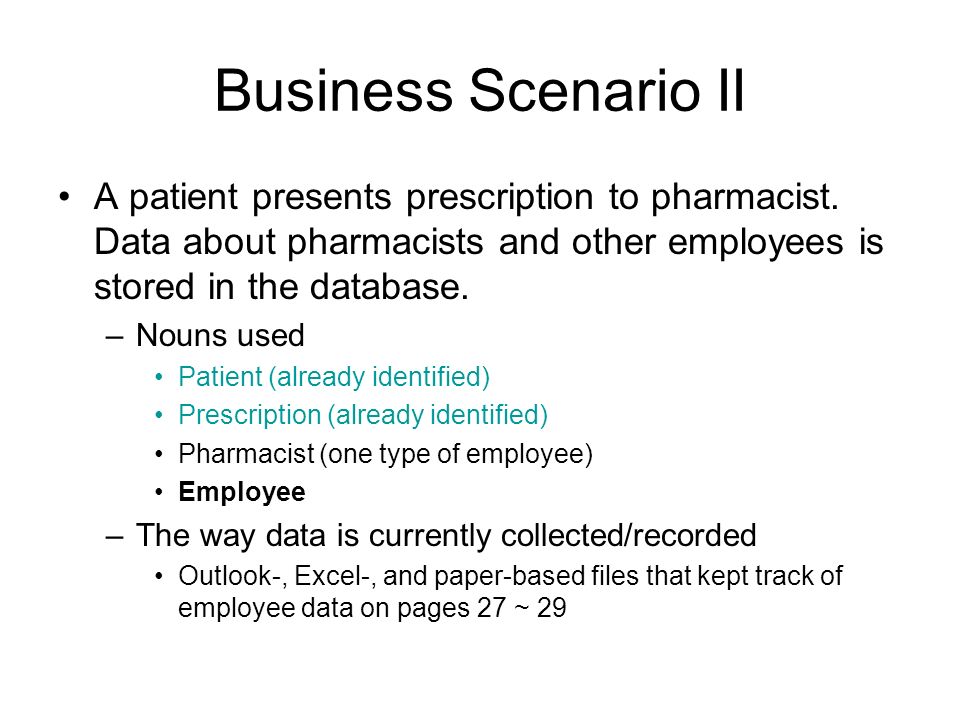

3. Business Scenario II A patient presents prescription to pharmacist. Data about pharmacists and other employees is stored in the database. –Nouns used Patient (already identified) Prescription (already identified) Pharmacist (one type of employee) Employee –The way data is currently collected/recorded Outlook-, Excel-, and paper-based files that kept track of employee data on pages 27 ~ 29

4. Business Scenario III Pharmacy staff enters customer, insurance, and prescription data into the database. –Nouns used Customer (a better term for patient) Insurance (with additional discussion with the client, you got to know that they kept track of health plans for customer households) Staff (essentially employees, but, together with pharmacist, it can be implied that there is a need for)  job title –The way data is currently collected/recorded Paper-based form used to collect data on page 20 Excel-based file that kept track of the data on pages 21 ~ 22

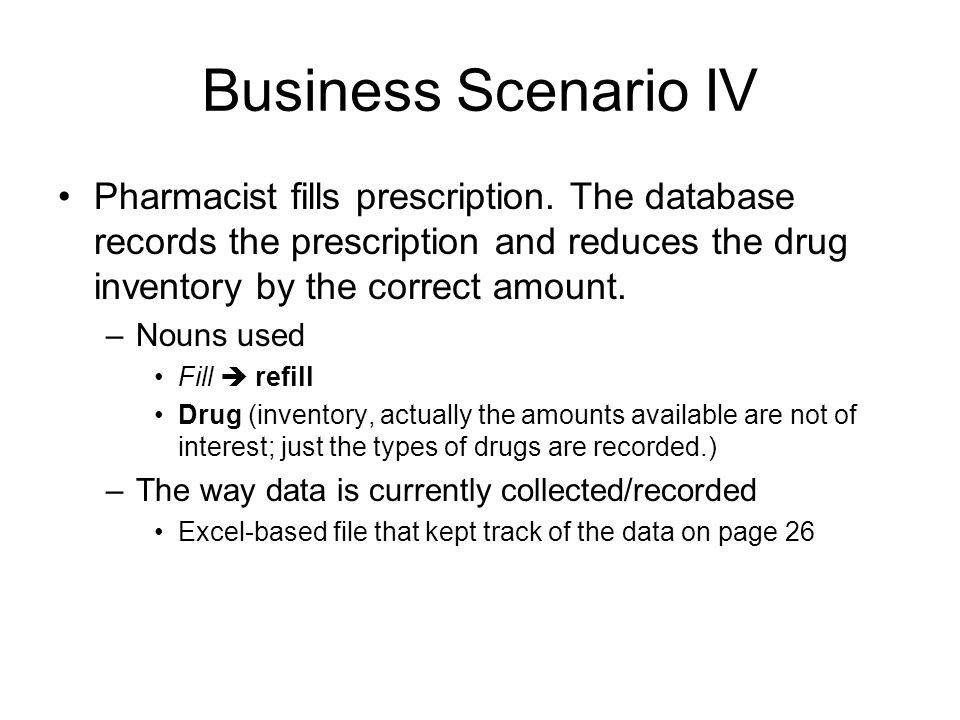

5. Business Scenario IV Pharmacist fills prescription. The database records the prescription and reduces the drug inventory by the correct amount. –Nouns used Fill  refill Drug (inventory, actually the amounts available are not of interest; just the types of drugs are recorded.) –The way data is currently collected/recorded Excel-based file that kept track of the data on page 26

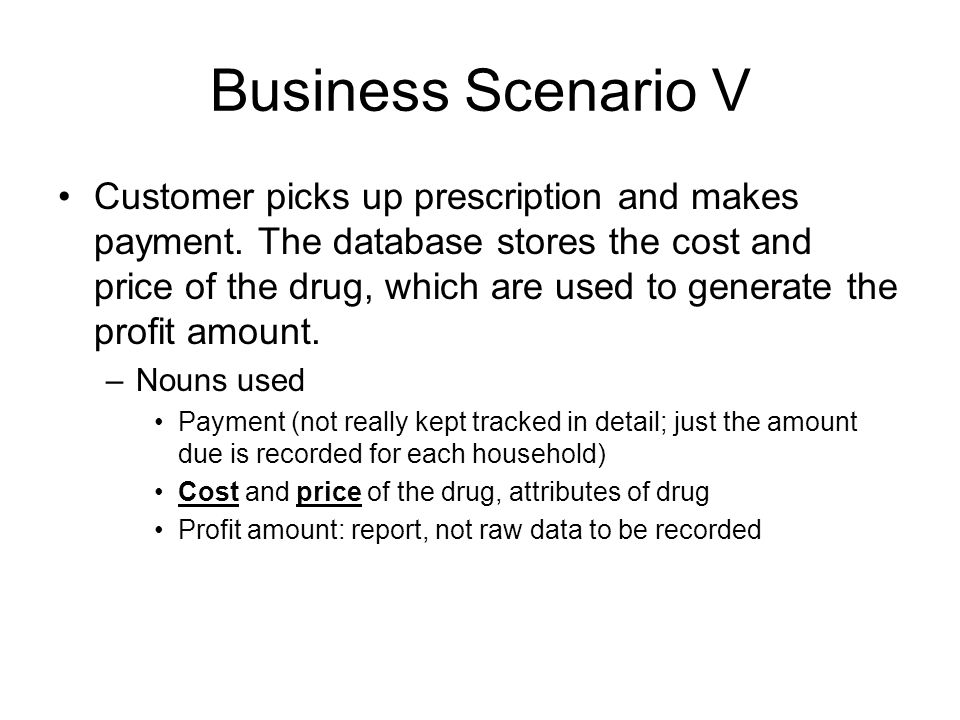

6. Business Scenario V Customer picks up prescription and makes payment. The database stores the cost and price of the drug, which are used to generate the profit amount. –Nouns used Payment (not really kept tracked in detail; just the amount due is recorded for each household) Cost and price of the drug, attributes of drug Profit amount: report, not raw data to be recorded

7. Missing Information Maria (the HR director) needs to keep track of Training classes for staff to maintain their certifications Performance review –Nouns used Training class (and employee training enrollment) Review (attribute of employee)

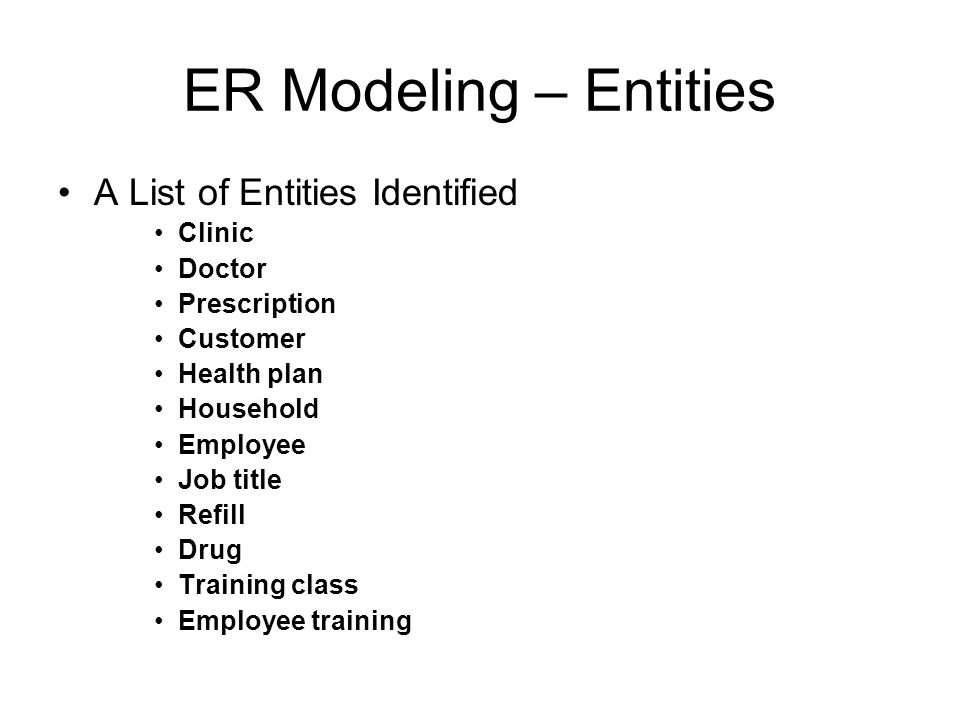

8. ER Modeling – Entities A List of Entities Identified Clinic Doctor Prescription Customer Health plan Household Employee Job title Refill Drug Training class Employee training

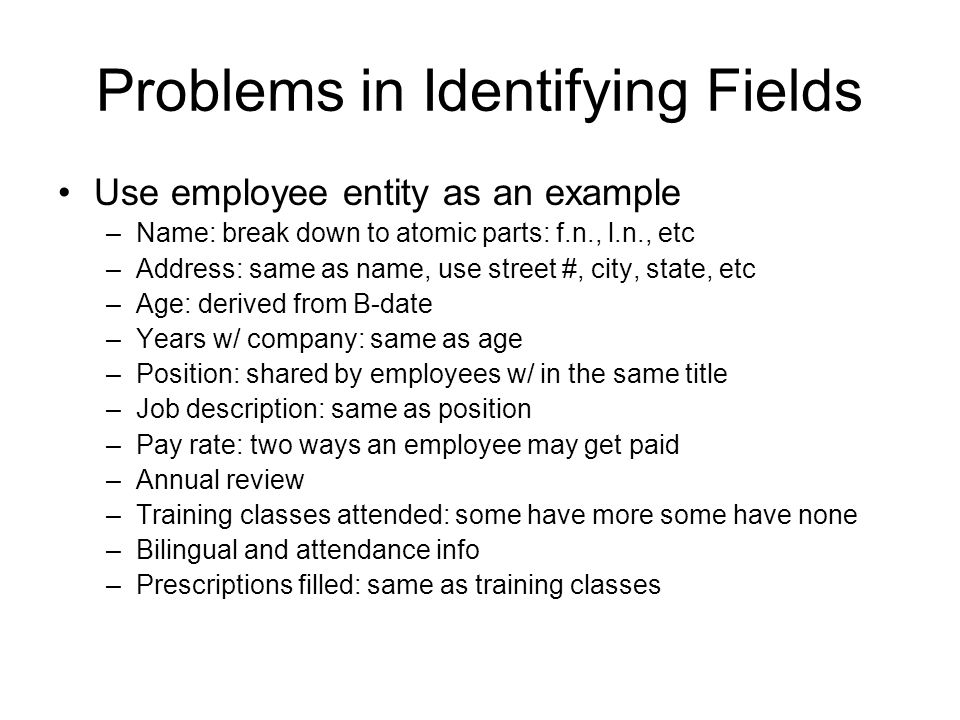

9. Problems in Identifying Fields Use employee entity as an example –Name: break down to atomic parts: f.n., l.n., etc –Address: same as name, use street #, city, state, etc –Age: derived from B-date –Years w/ company: same as age –Position: shared by employees w/ in the same title –Job description: same as position –Pay rate: two ways an employee may get paid –Annual review –Training classes attended: some have more some have none –Bilingual and attendance info –Prescriptions filled: same as training classes

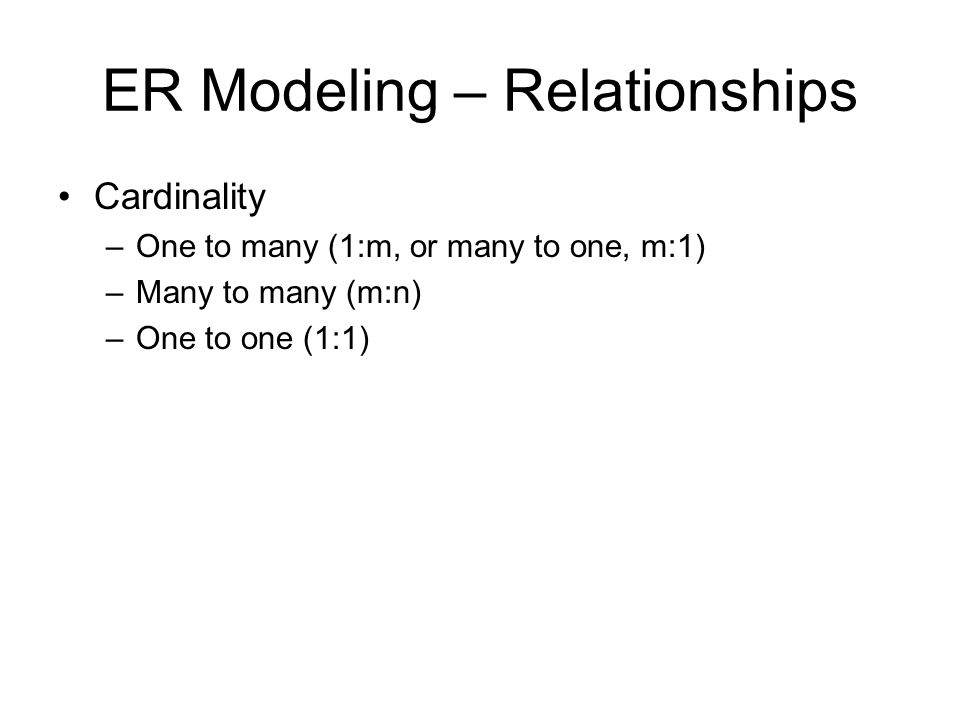

10. ER Modeling – Relationships Cardinality –One to many (1:m, or many to one, m:1) –Many to many (m:n) –One to one (1:1)

11. ER Modeling – Relationships Referential integrity –Primary key: a unique identifier that can distinguish records from each other, such as ClinicID in the Clinic table –Foreign key: a field added to a child table (one the many side) to relate its records to the associated record in the parent table (on the one side), such as the ClinicID in the Doctor table Foreign: a field doesn’t naturally belong to a child table, yet copied from the parent table Key: it’s a (primary) key in the parent table, though not in the child table in which the FK exists
