1. Overview of: The Telencephalon Haines Chapter 16 Neurology Academic Half-Day Robert Altman PGY 2 March 4th 2009

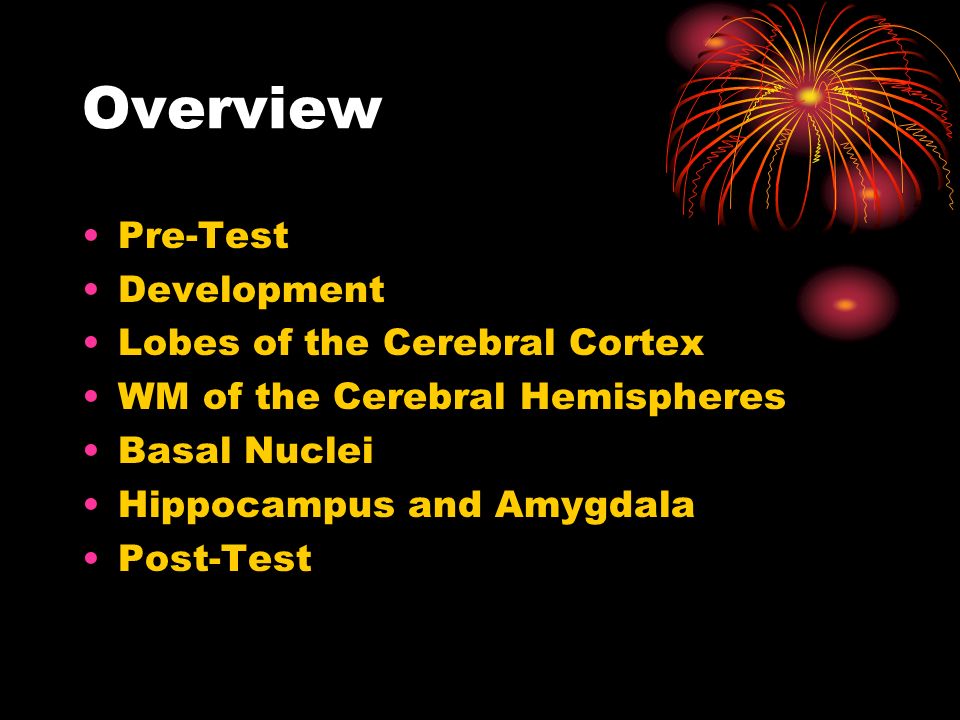

2. Overview Pre-Test Development Lobes of the Cerebral Cortex WM of the Cerebral Hemispheres Basal Nuclei Hippocampus and Amygdala Post-Test

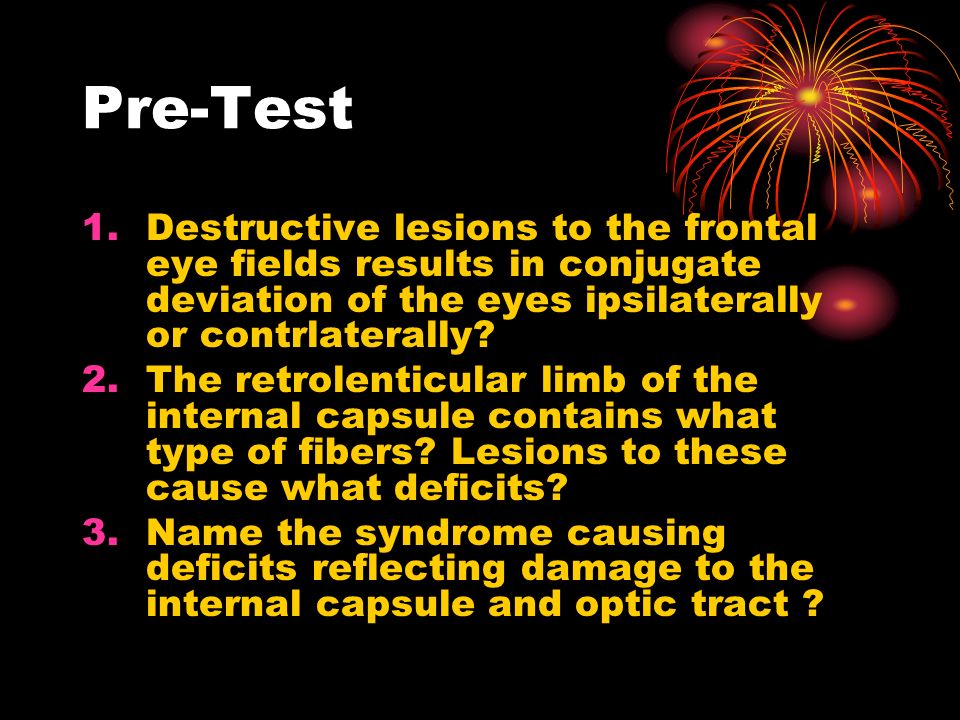

3. Pre-Test 1.Destructive lesions to the frontal eye fields results in conjugate deviation of the eyes ipsilaterally or contrlaterally? 2.The retrolenticular limb of the internal capsule contains what type of fibers? Lesions to these cause what deficits? 3.Name the syndrome causing deficits reflecting damage to the internal capsule and optic tract ?

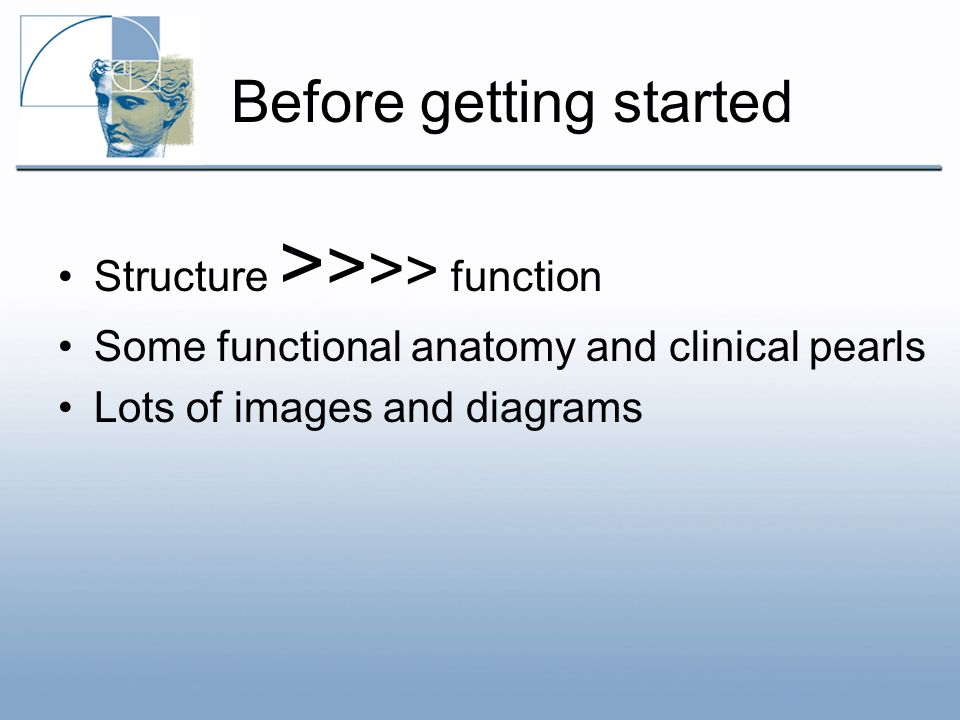

4. Before getting started Structure > > > > function Some functional anatomy and clinical pearls Lots of images and diagrams

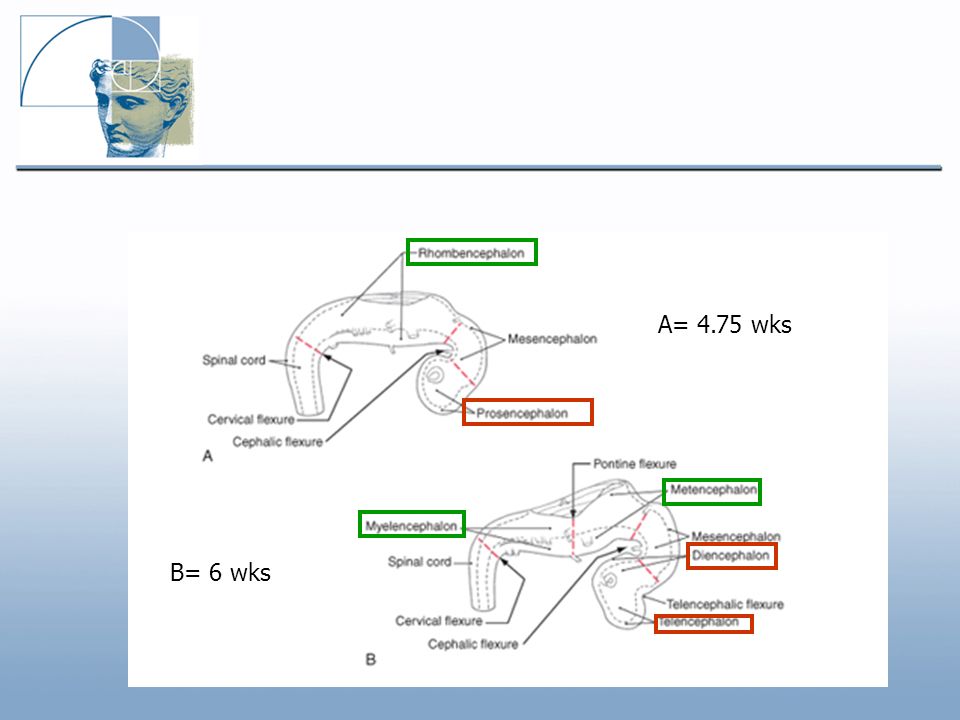

5. B= 6 wks A= 4.75 wks

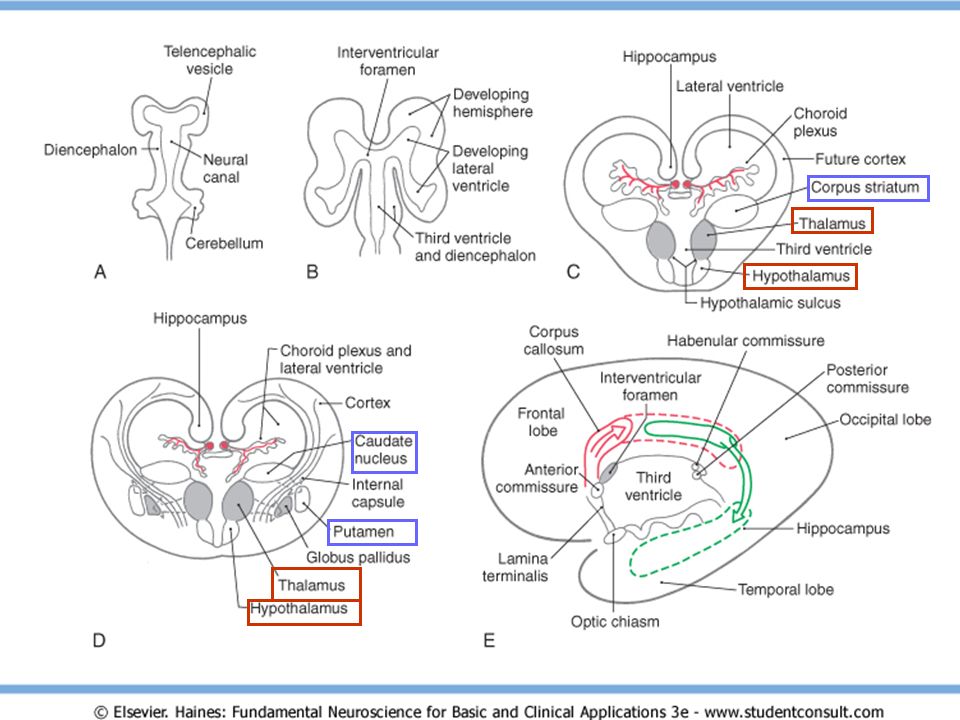

6. Development Telencephalic flexure develops at 5 wks Cerebral vesicles enlarge Pull on neural canal – lateral ventricles Interventricular foramina (connections of lateral ventricles to 3 rd ) are initially large but become smaller as development progresses

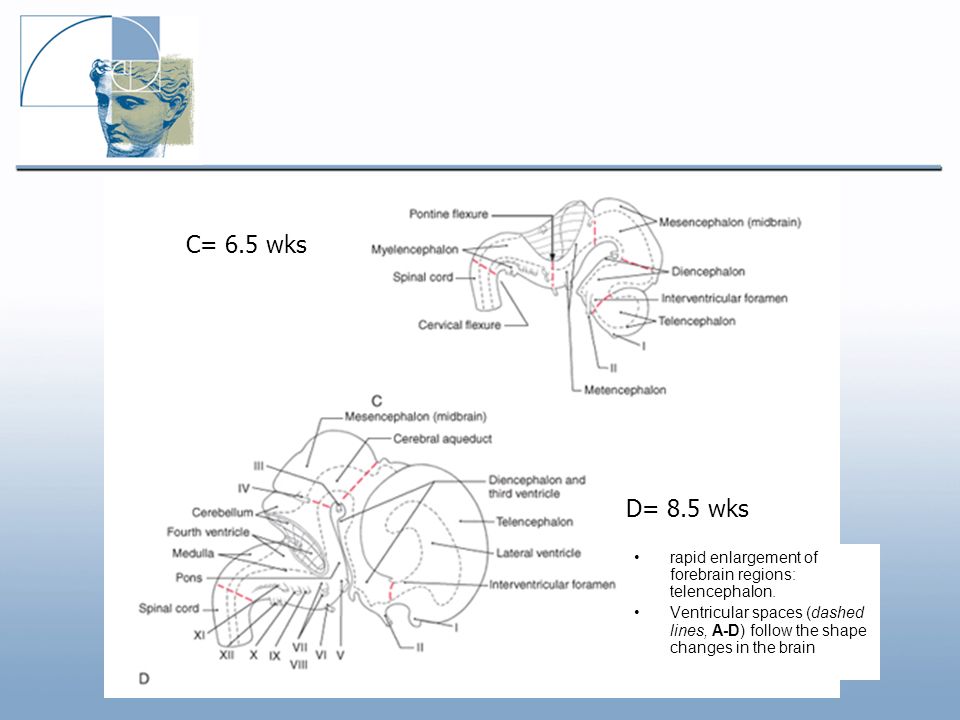

8. C= 6.5 wks D= 8.5 wks rapid enlargement of forebrain regions: telencephalon. Ventricular spaces (dashed lines, A-D) follow the shape changes in the brain

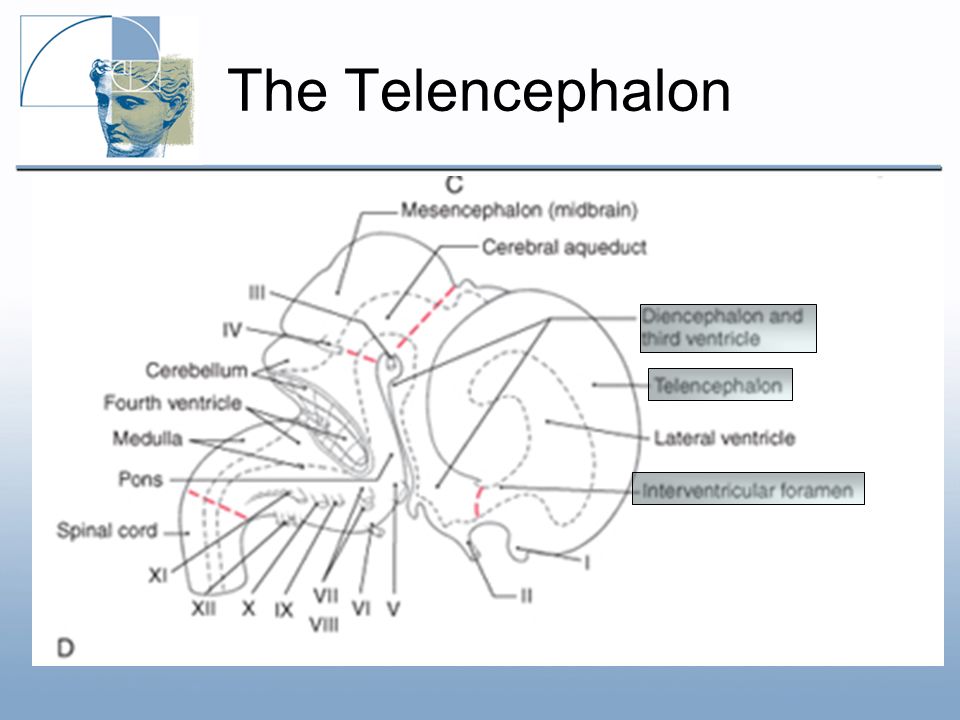

9. The Telencephalon

10. Developmental Defects Largely a review of chapter 5 Improper migration of maturing neurons on radial glia Structural +/- functional defects in cerebral cortex –Lissencephaly –Pachygyria –Microgyria –Holoprosencephaly (pre-neurulation defect) Alobar holoprosencephaly Semilobar holoprosencephaly Lobar holoprosencephaly –Anencephaly –Agenesis of the corpus callosum Failure of the anterior neuropore to close. The lamina terminalis represents the adult position of the anterior neuropore

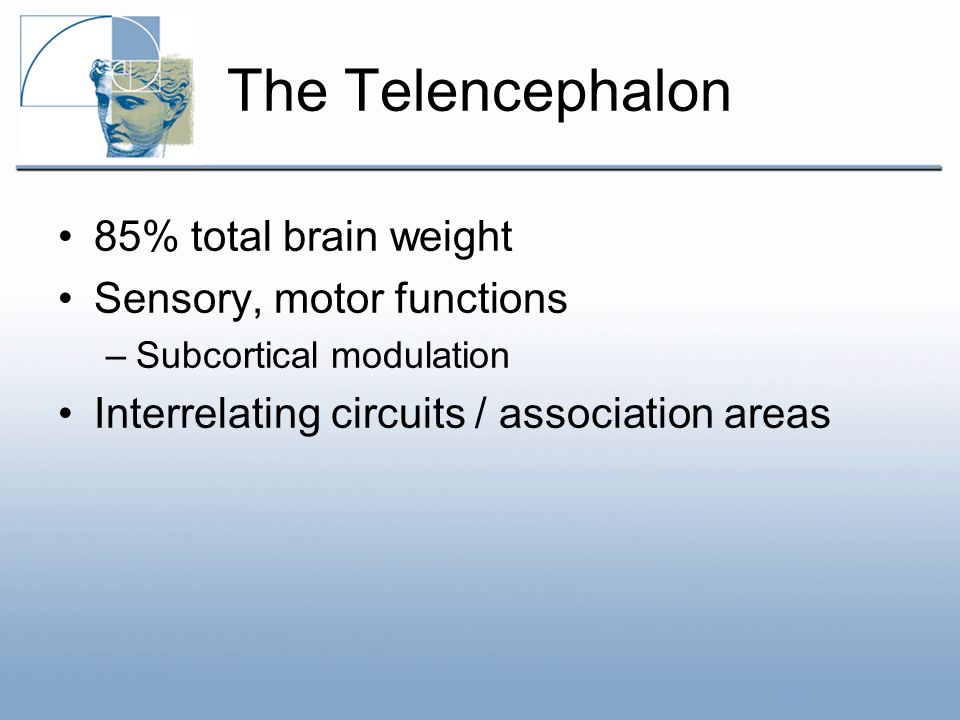

11. The Telencephalon 85% total brain weight Sensory, motor functions –Subcortical modulation Interrelating circuits / association areas

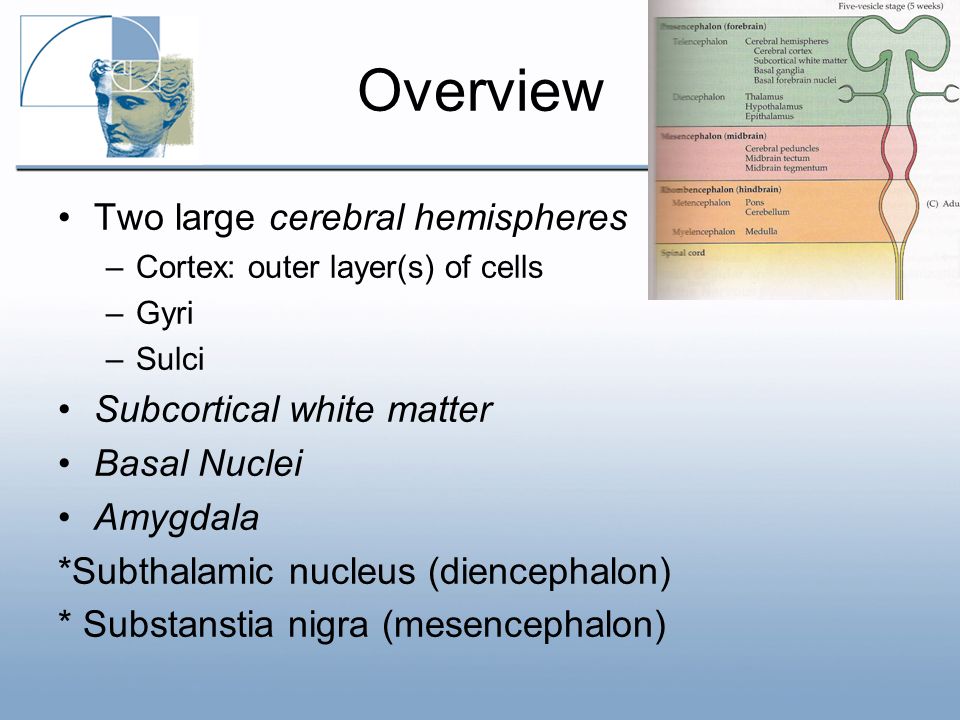

12. Overview Two large cerebral hemispheres –Cortex: outer layer(s) of cells –Gyri –Sulci Subcortical white matter Basal Nuclei Amygdala *Subthalamic nucleus (diencephalon) * Substanstia nigra (mesencephalon)

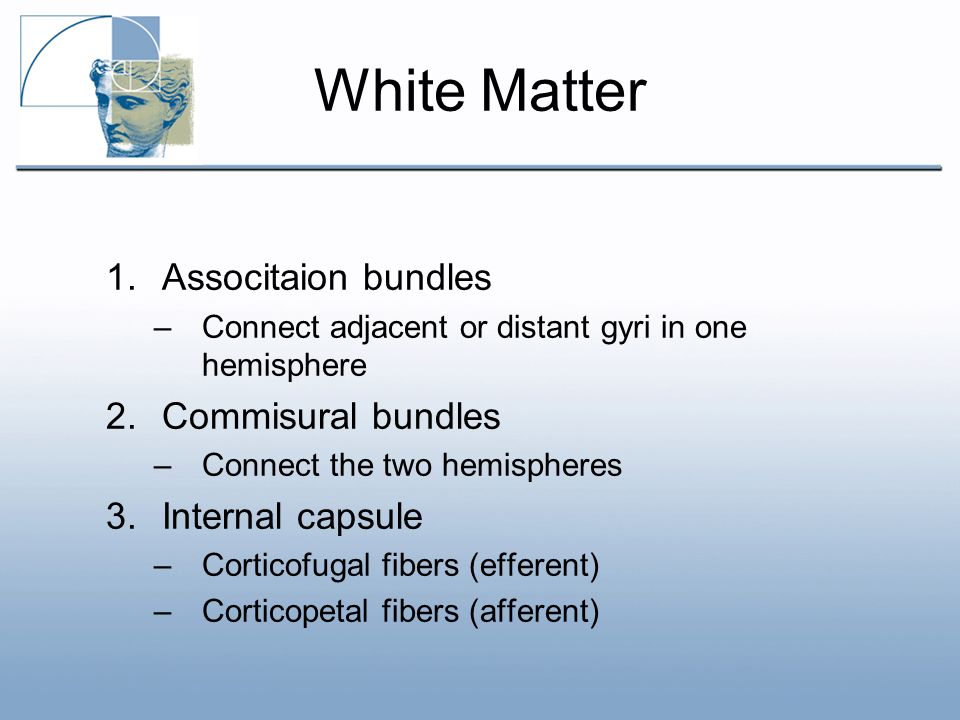

13. White Matter 1.Associtaion bundles –Connect adjacent or distant gyri in one hemisphere 2.Commisural bundles –Connect the two hemispheres 3.Internal capsule –Corticofugal fibers (efferent) –Corticopetal fibers (afferent)

14. Hippocampal Complex and Amygdala In walls of temporal horn of lateral ventricle Axons coalesce: –Fornix (H) –StriaTerminalis (A)

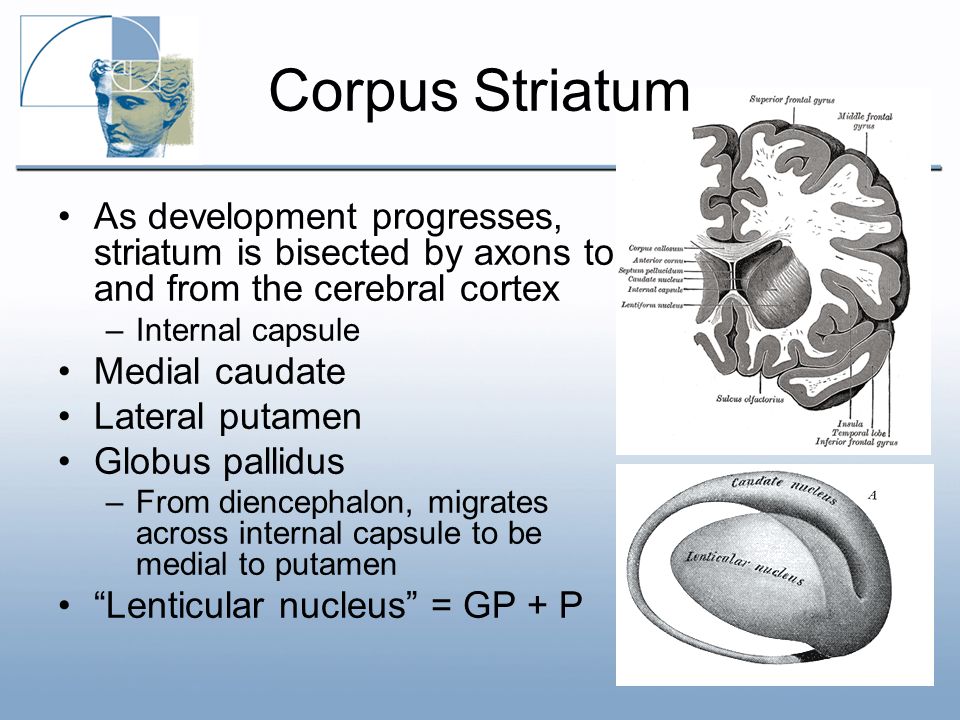

15. As development progresses, striatum is bisected by axons to and from the cerebral cortex –Internal capsule Medial caudate Lateral putamen Globus pallidus –From diencephalon, migrates across internal capsule to be medial to putamen “Lenticular nucleus” = GP + P Corpus Striatum

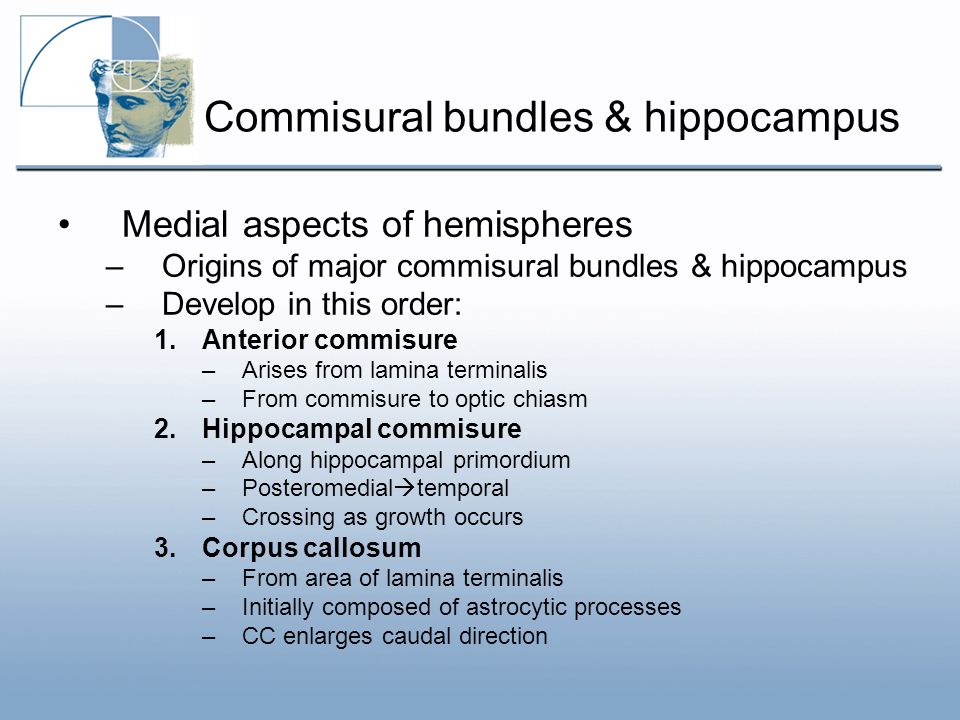

17. Commisural bundles & hippocampus Medial aspects of hemispheres –Origins of major commisural bundles & hippocampus –Develop in this order: 1.Anterior commisure –Arises from lamina terminalis –From commisure to optic chiasm 2.Hippocampal commisure –Along hippocampal primordium –Posteromedial  temporal –Crossing as growth occurs 3.Corpus callosum –From area of lamina terminalis –Initially composed of astrocytic processes –CC enlarges caudal direction

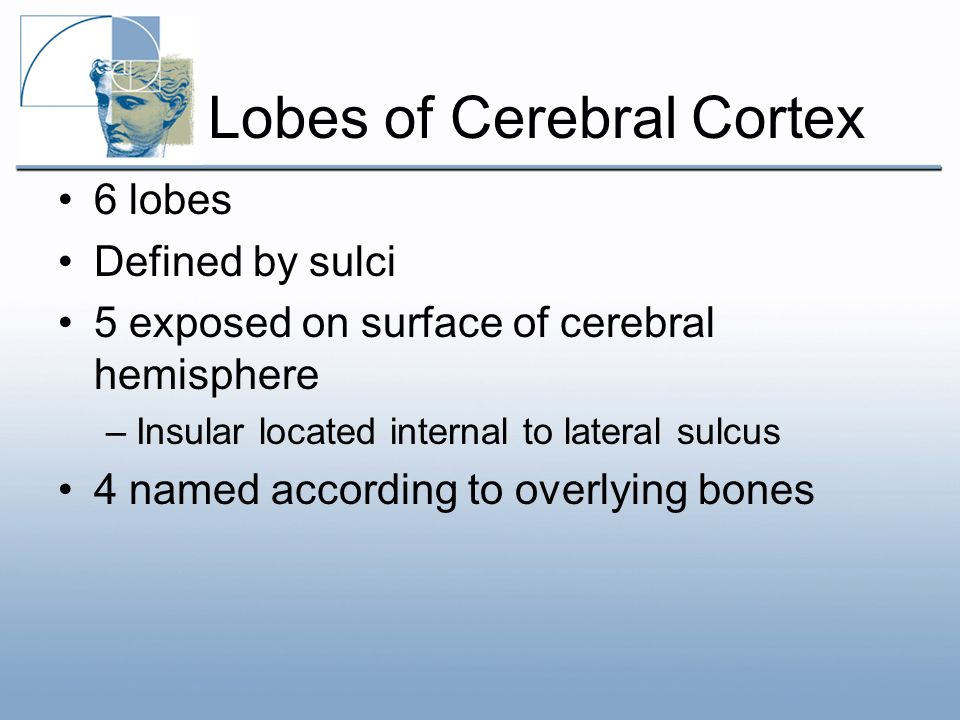

19. Lobes of Cerebral Cortex 6 lobes Defined by sulci 5 exposed on surface of cerebral hemisphere –Insular located internal to lateral sulcus 4 named according to overlying bones

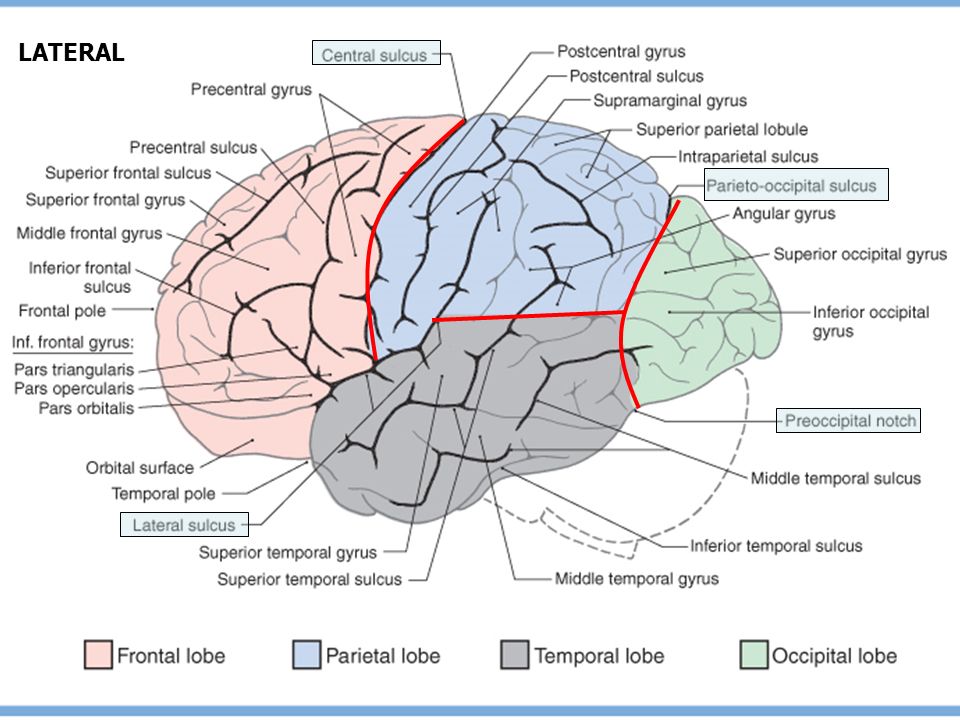

20. LATERAL

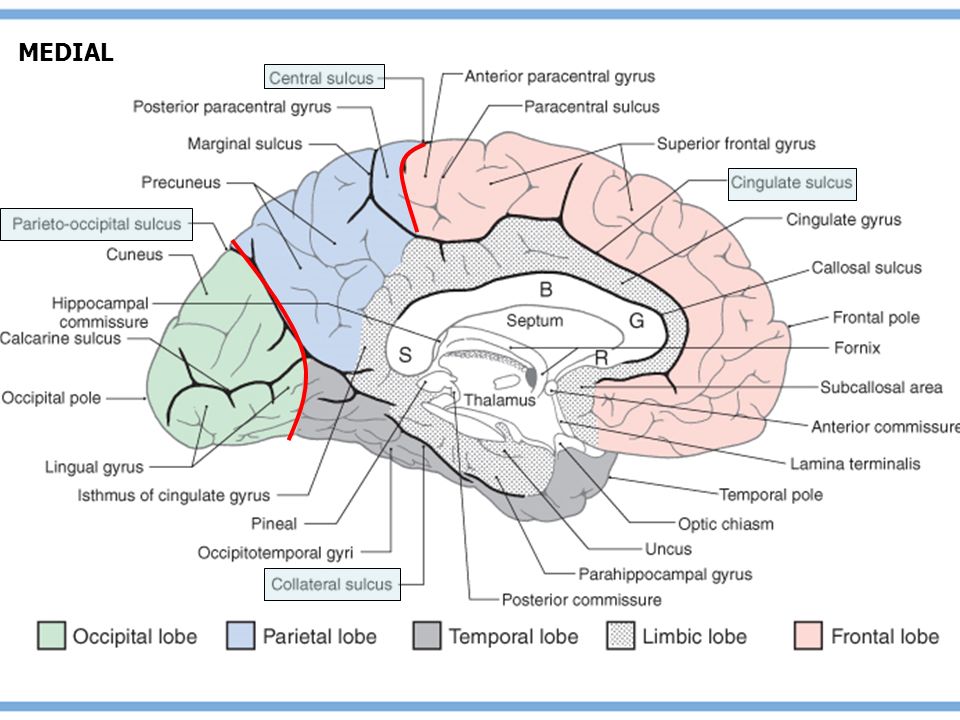

21. MEDIAL

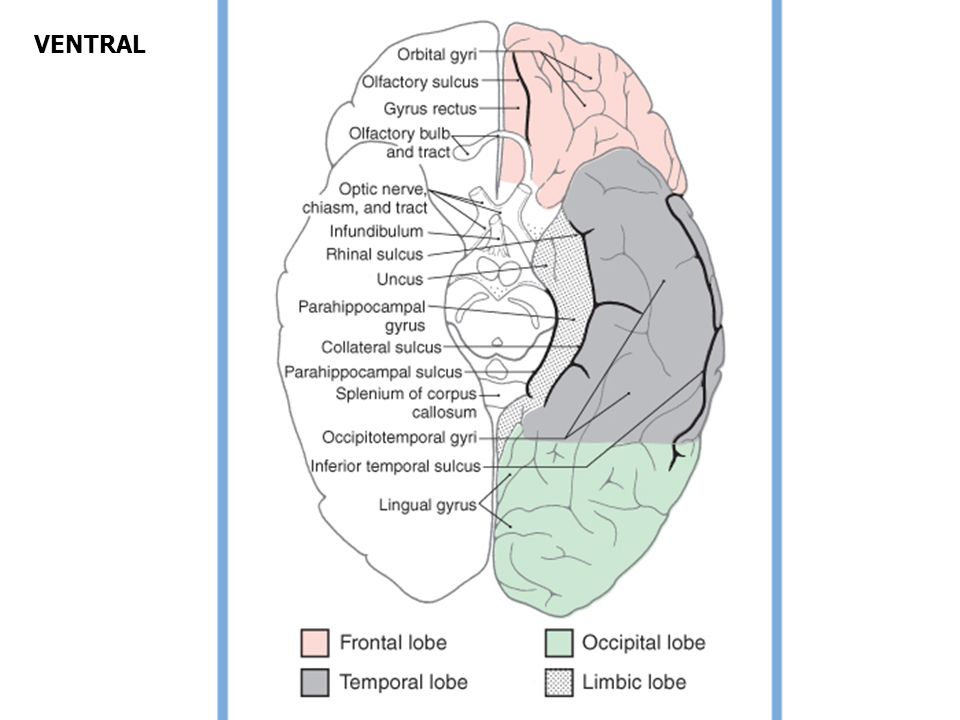

22. VENTRAL

23. “Insular Lobe” Deep to Sylvian sulcus Satisfies definition as subdivision of cerebral cortex –Separated from adjoining cortical structures by a named sulcus Circular sulcus of the insula

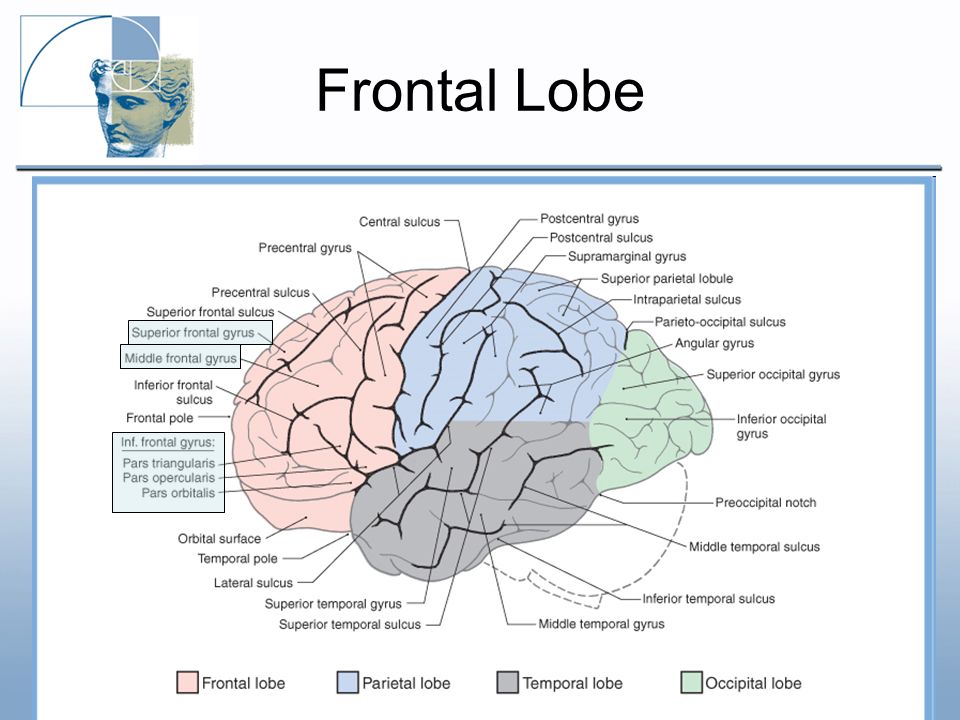

24. Frontal Lobe

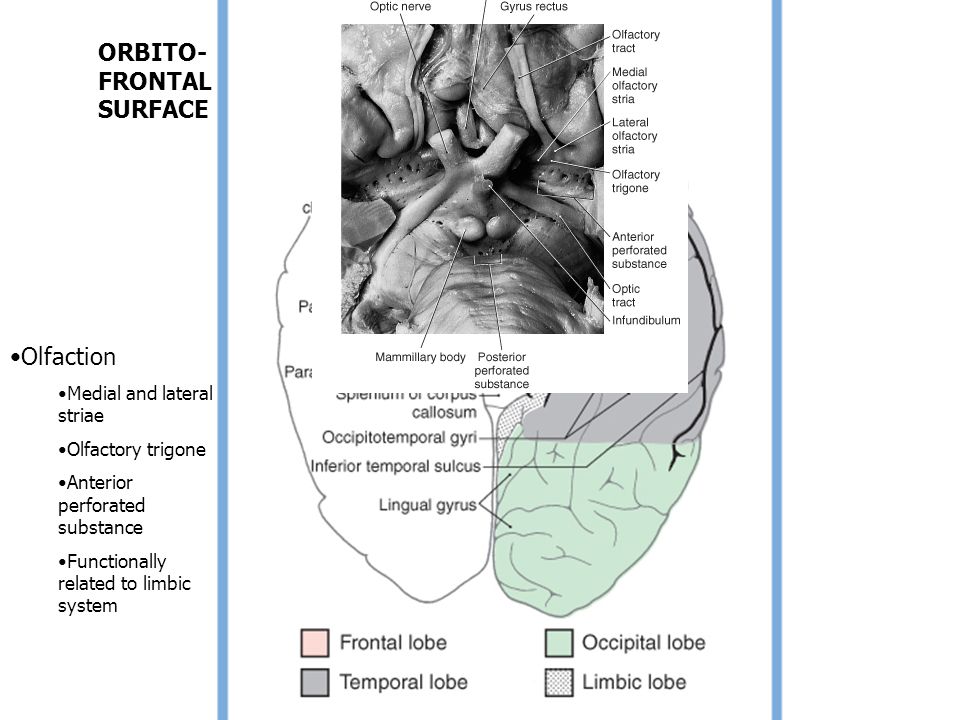

25. ORBITO- FRONTAL SURFACE Olfaction Medial and lateral striae Olfactory trigone Anterior perforated substance Functionally related to limbic system

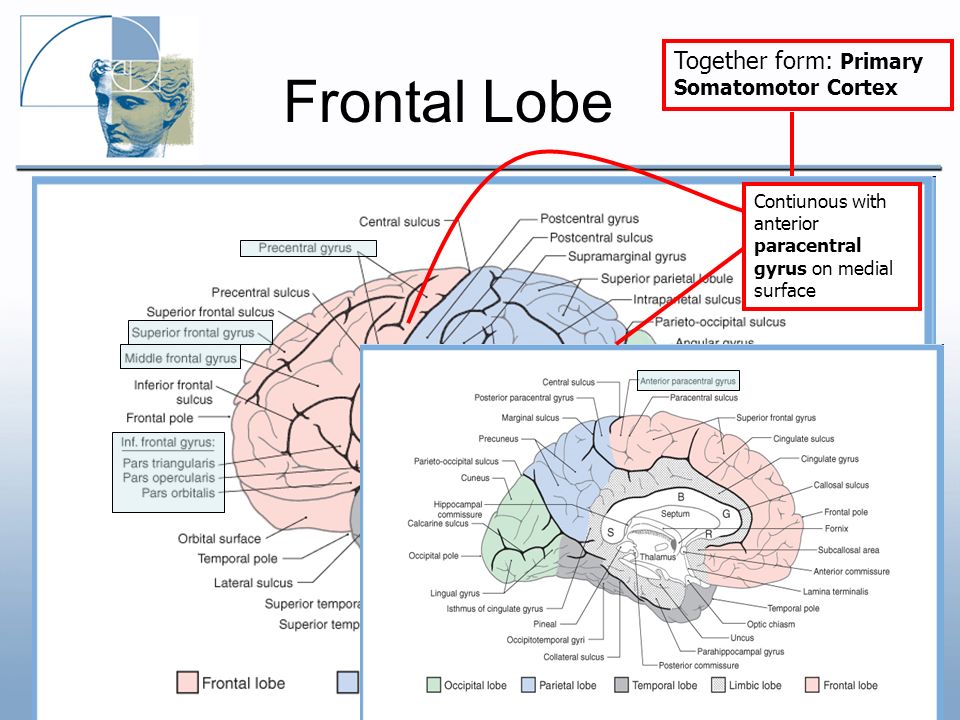

26. Frontal Lobe Contiunous with anterior paracentral gyrus on medial surface Together form: Primary Somatomotor Cortex

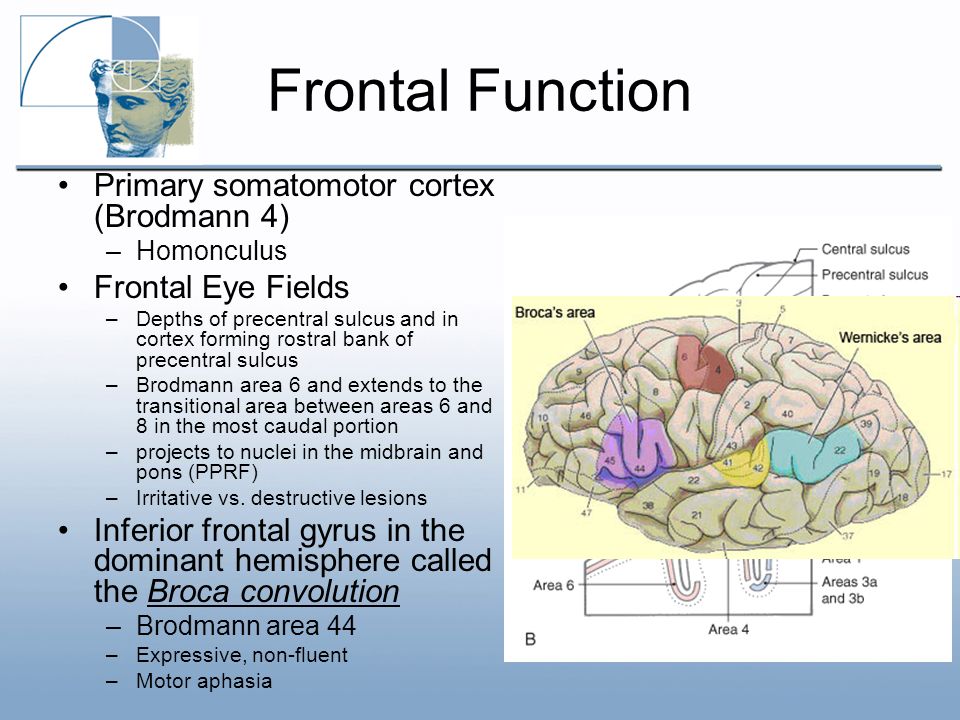

27. Frontal Function Primary somatomotor cortex (Brodmann 4) –Homonculus Frontal Eye Fields –Depths of precentral sulcus and in cortex forming rostral bank of precentral sulcus –Brodmann area 6 and extends to the transitional area between areas 6 and 8 in the most caudal portion –projects to nuclei in the midbrain and pons (PPRF) –Irritative vs. destructive lesions Inferior frontal gyrus in the dominant hemisphere called the Broca convolution –Brodmann area 44 –Expressive, non-fluent –Motor aphasia

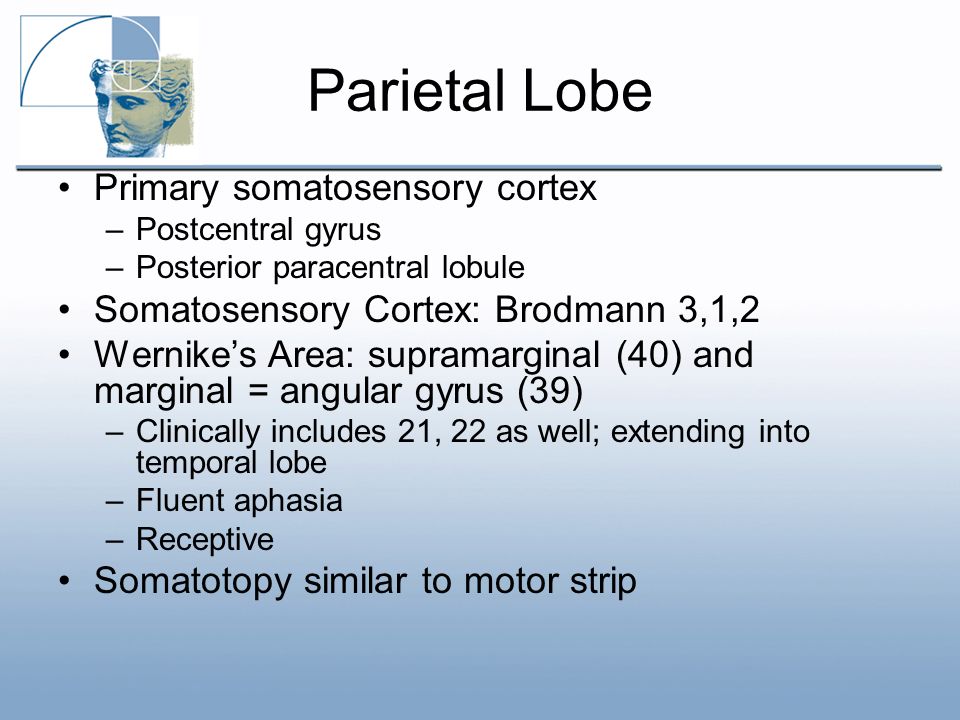

28. Parietal Lobe Primary somatosensory cortex –Postcentral gyrus –Posterior paracentral lobule Somatosensory Cortex: Brodmann 3,1,2 Wernike’s Area: supramarginal (40) and marginal = angular gyrus (39) –Clinically includes 21, 22 as well; extending into temporal lobe –Fluent aphasia –Receptive Somatotopy similar to motor strip

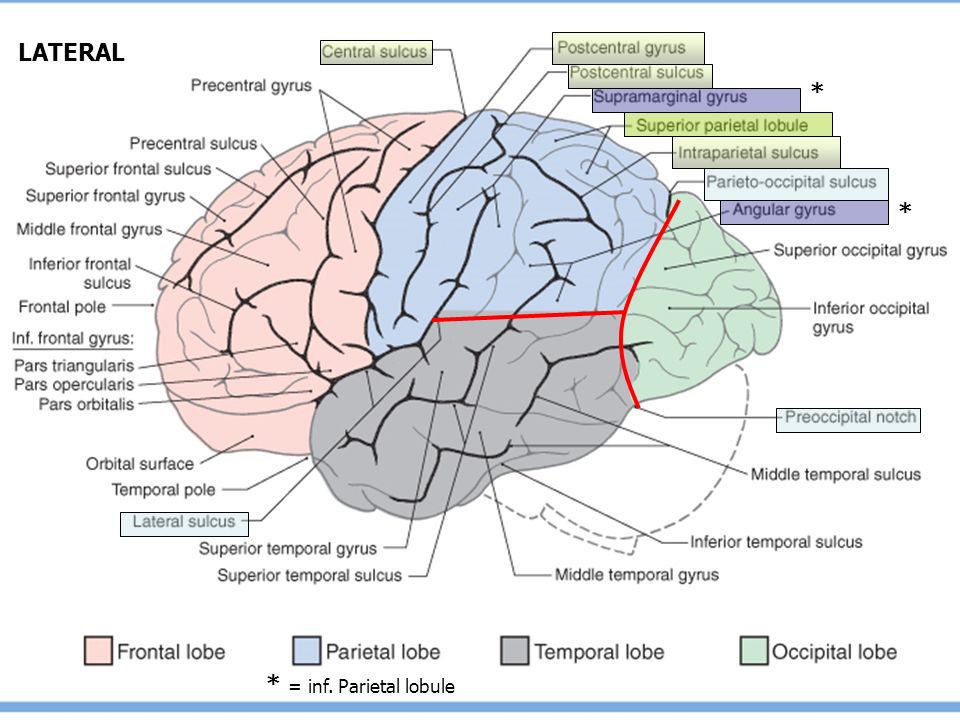

29. LATERAL * * * = inf. Parietal lobule

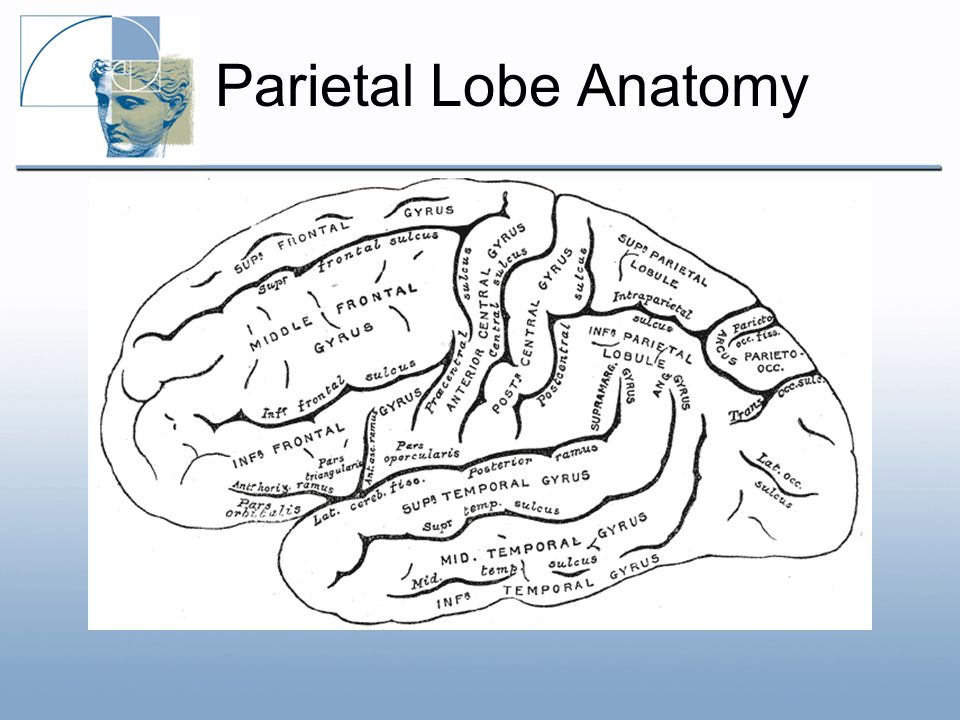

31. Parietal Lobe Anatomy

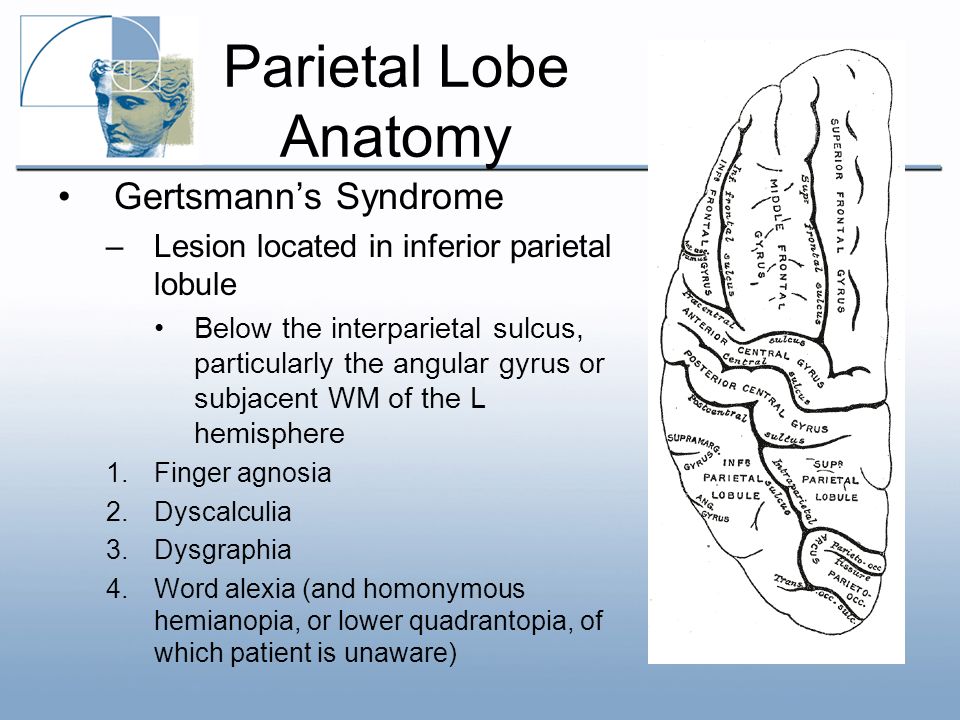

32. Gertsmann’s Syndrome –Lesion located in inferior parietal lobule Below the interparietal sulcus, particularly the angular gyrus or subjacent WM of the L hemisphere 1.Finger agnosia 2.Dyscalculia 3.Dysgraphia 4.Word alexia (and homonymous hemianopia, or lower quadrantopia, of which patient is unaware)

33. “Optic Ataxia” Defect in the superior parietal lobule of the dominant hemisphere –It represents a multi-modal sensory integration center; cerebellar inputs, striate cortex inputs (areas 5 and 7) –Outputs to 6,8 the visual components of movement (impaired judgement of depth)

34. Temporal Lobe Between the lateral and collateral sulcus Superior, middle, inferior temporal gyri Occipitotemporal gyri Superior temporal sulcus Inferior temporal sulcus Transverse temporal gyri (of Heschl) –Primary auditory cortex (Brodmann 41, 42) –Lesions result not in deafness, but in interpreting sounds, localizing sound in space

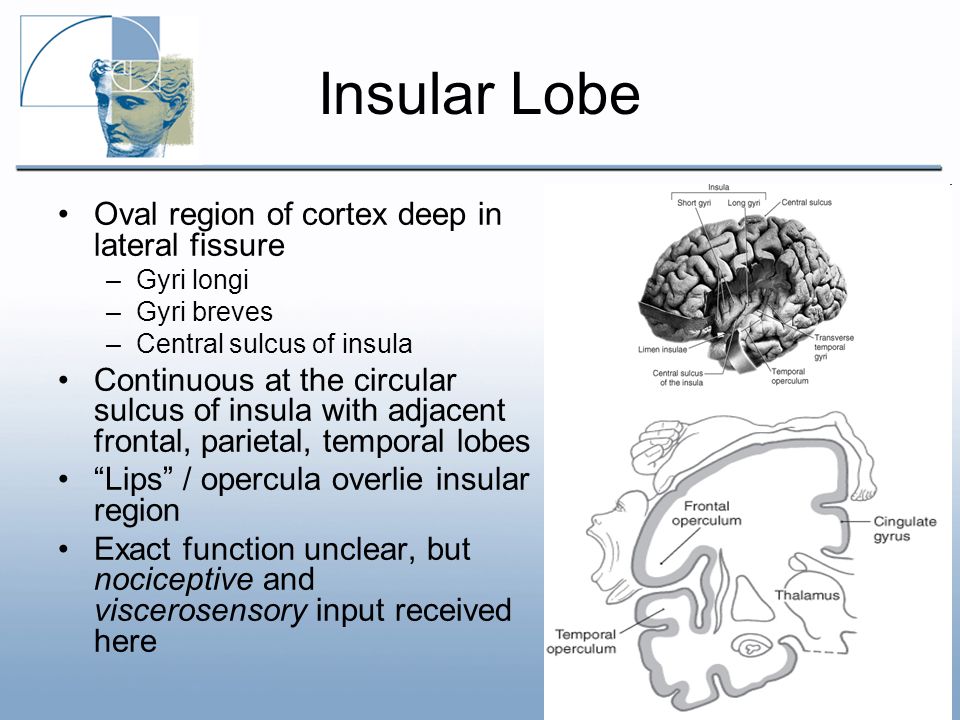

35. Insular Lobe Oval region of cortex deep in lateral fissure –Gyri longi –Gyri breves –Central sulcus of insula Continuous at the circular sulcus of insula with adjacent frontal, parietal, temporal lobes “Lips” / opercula overlie insular region Exact function unclear, but nociceptive and viscerosensory input received here

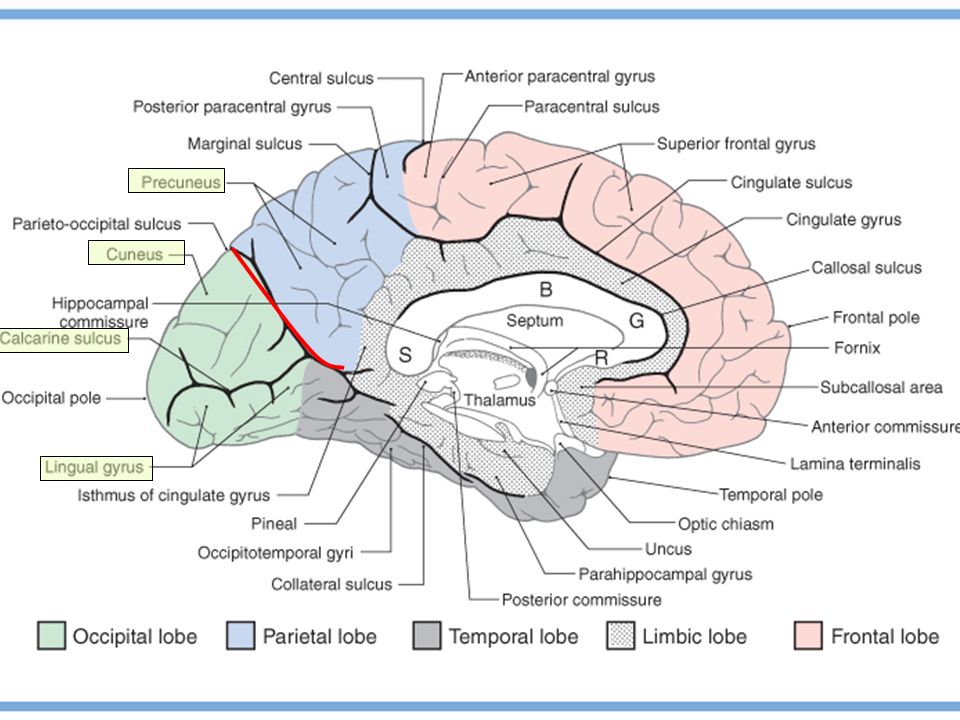

36. Occipital Lobe Medial surface: –Parieto-occipital sulcus separates the cuneus (occipital) from pre-cuneus (parietal) –Calcarine fissure/sulcus Separates the cuneus from the lingual gyrus Primary Visual Cortex –Brodmann 17, areas directly bordering calcarine fissure

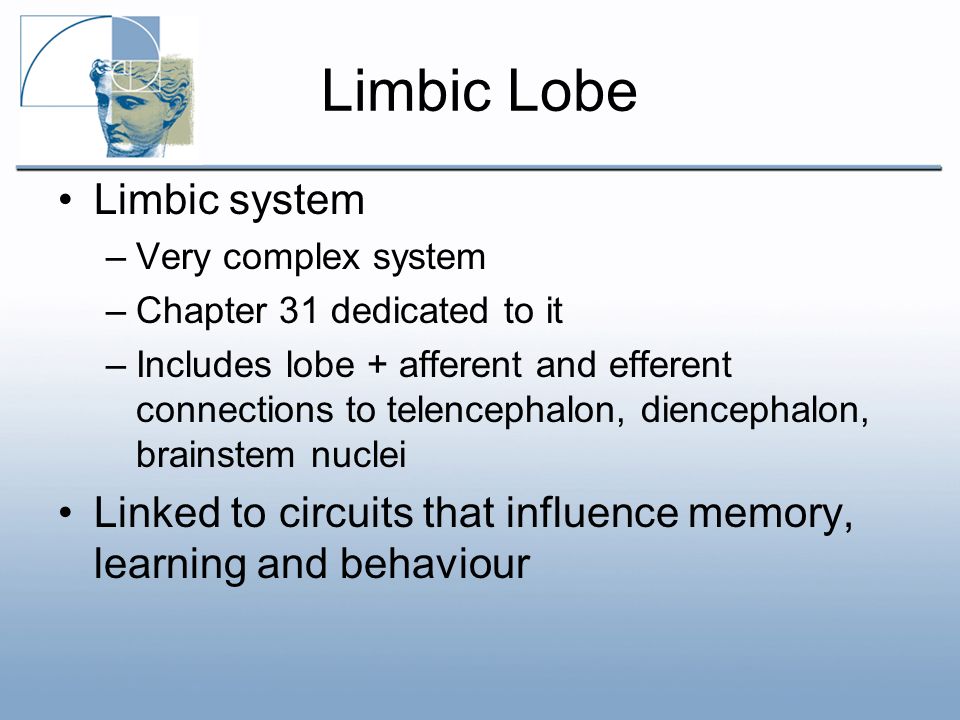

38. Limbic Lobe Limbic system –Very complex system –Chapter 31 dedicated to it –Includes lobe + afferent and efferent connections to telencephalon, diencephalon, brainstem nuclei Linked to circuits that influence memory, learning and behaviour

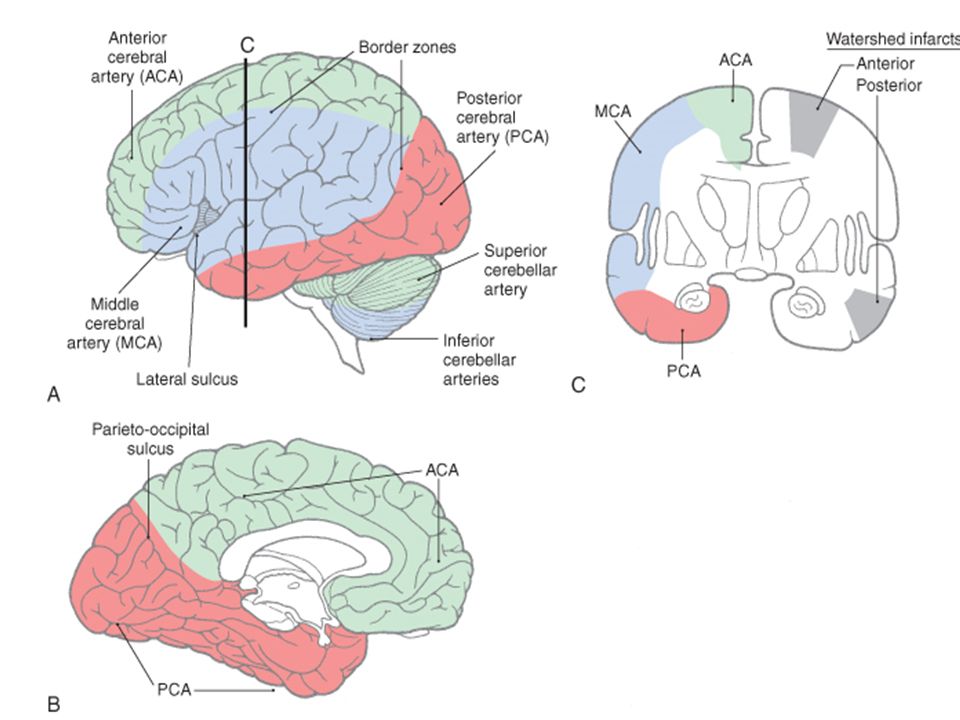

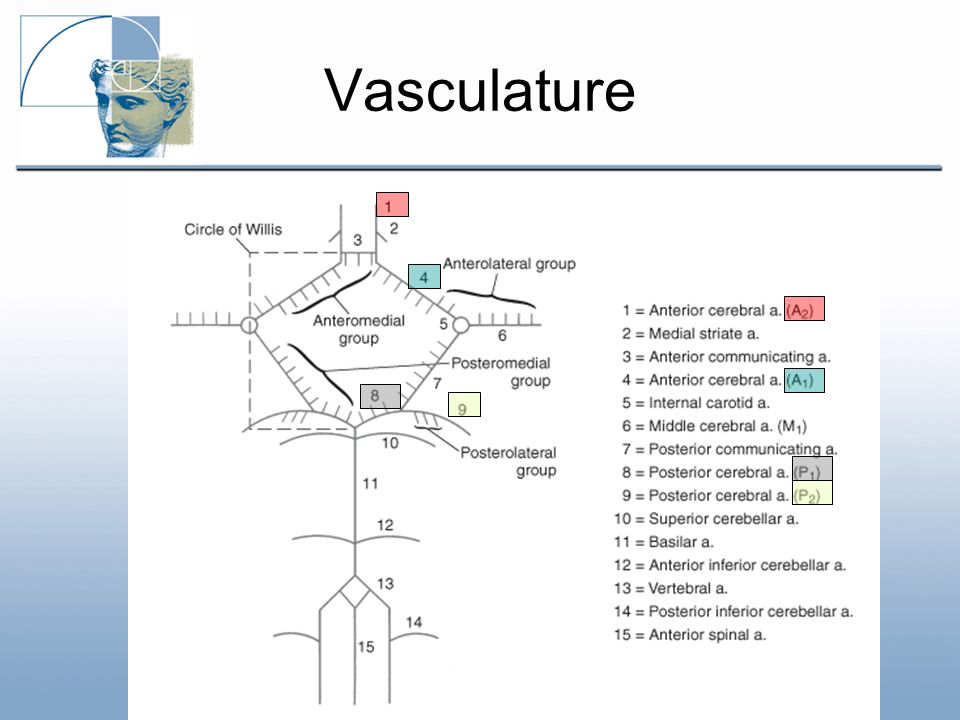

39. Vasculature

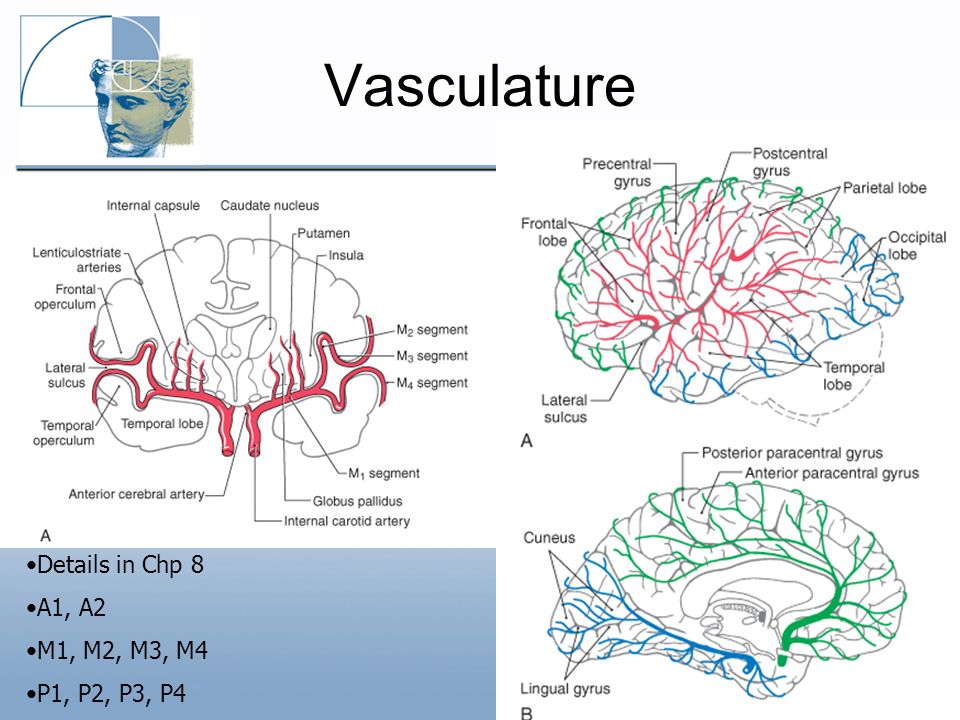

40. Details in Chp 8 A1, A2 M1, M2, M3, M4 P1, P2, P3, P4

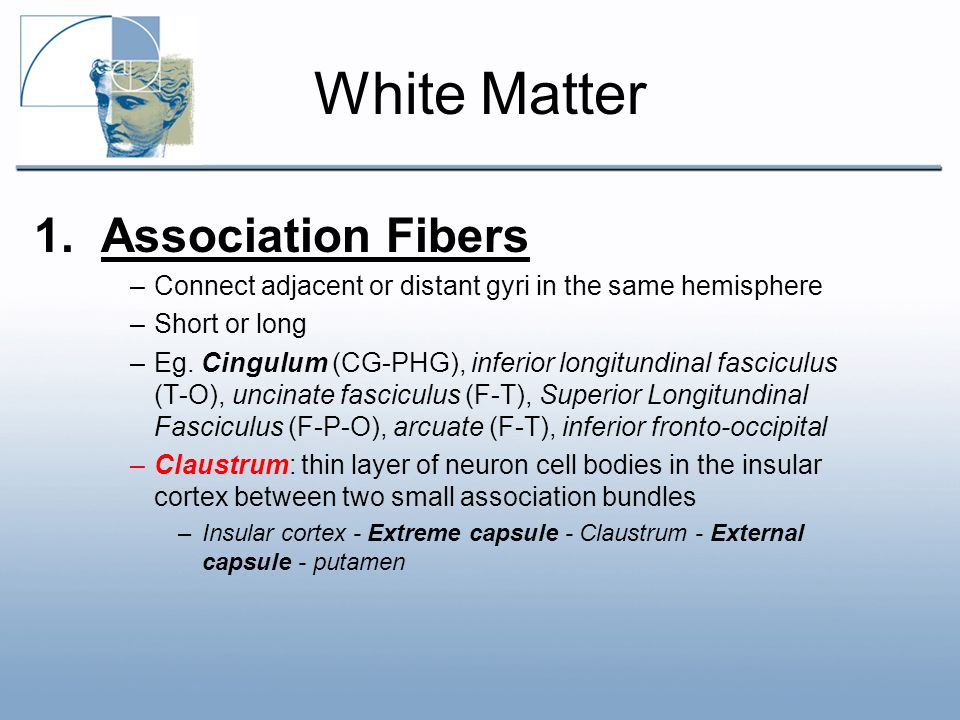

43. White Matter 1. Association Fibers –Connect adjacent or distant gyri in the same hemisphere –Short or long –Eg. Cingulum (CG-PHG), inferior longitundinal fasciculus (T-O), uncinate fasciculus (F-T), Superior Longitundinal Fasciculus (F-P-O), arcuate (F-T), inferior fronto-occipital –Claustrum: thin layer of neuron cell bodies in the insular cortex between two small association bundles –Insular cortex - Extreme capsule - Claustrum - External capsule - putamen

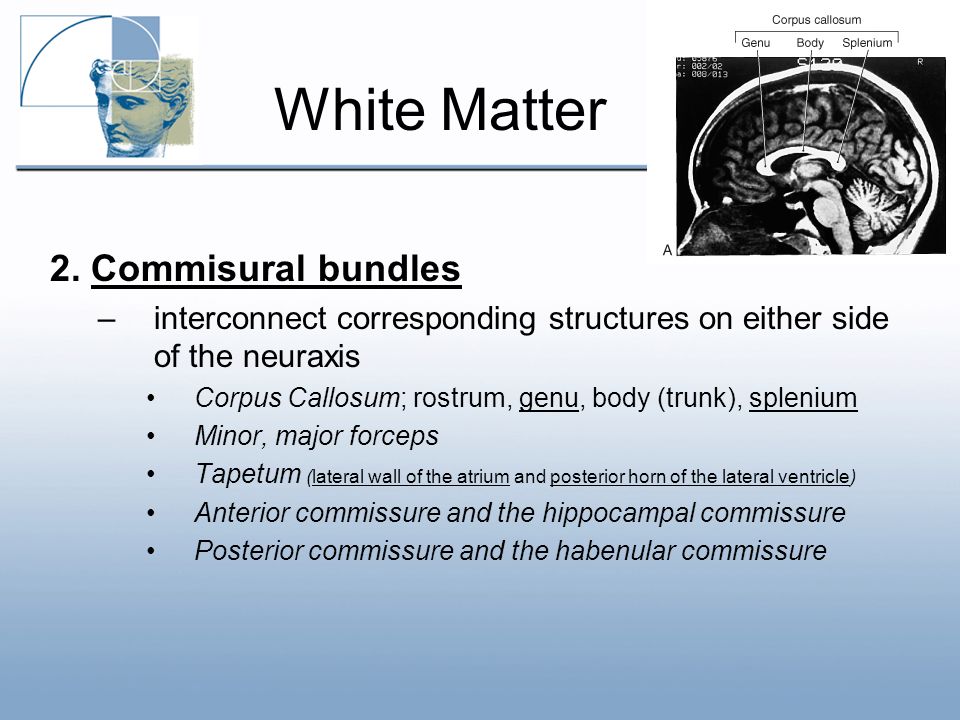

46. White Matter 2. Commisural bundles –interconnect corresponding structures on either side of the neuraxis Corpus Callosum; rostrum, genu, body (trunk), splenium Minor, major forceps Tapetum (lateral wall of the atrium and posterior horn of the lateral ventricle) Anterior commissure and the hippocampal commissure Posterior commissure and the habenular commissure

47. Commisures

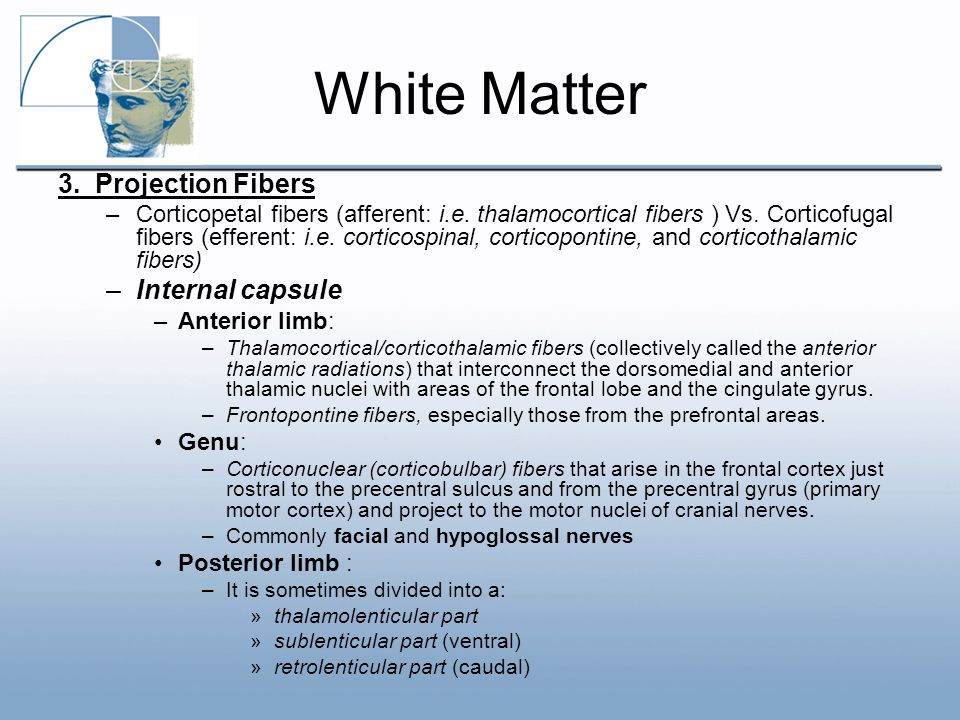

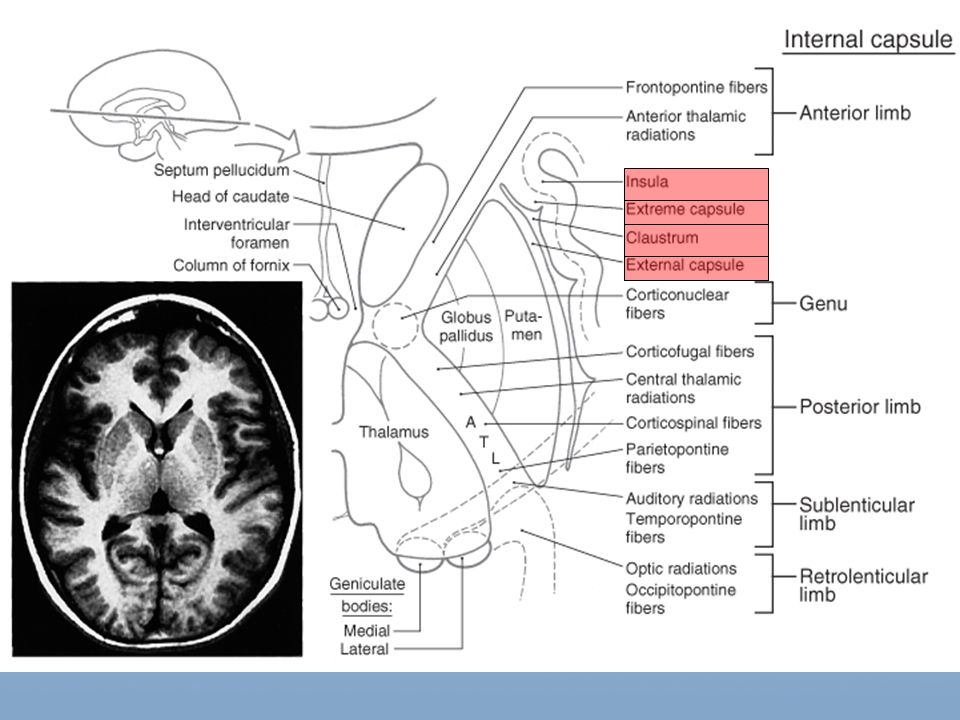

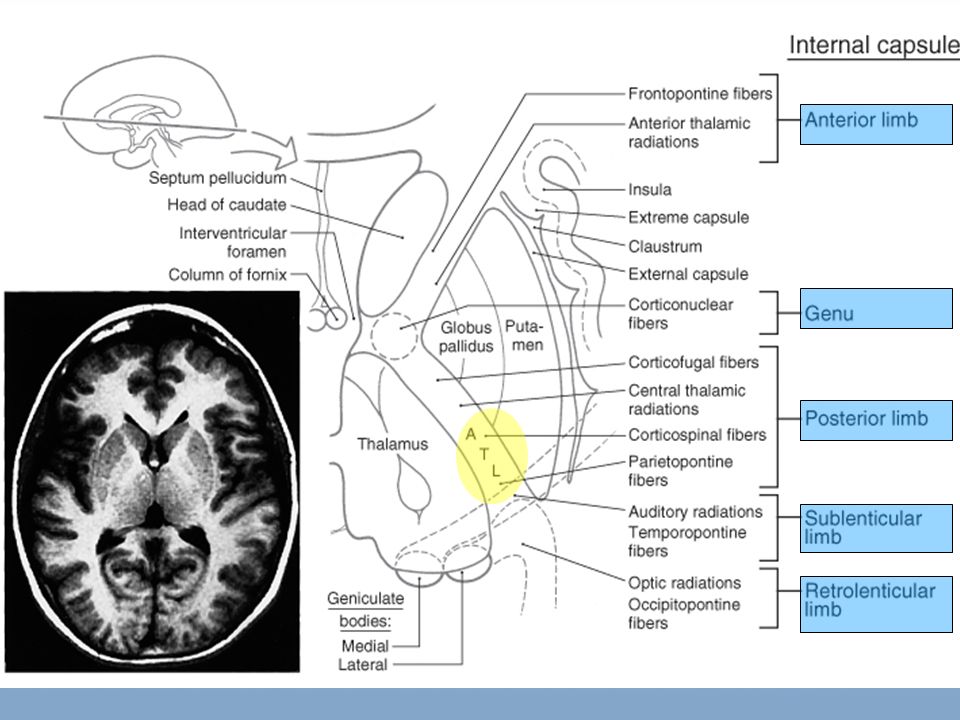

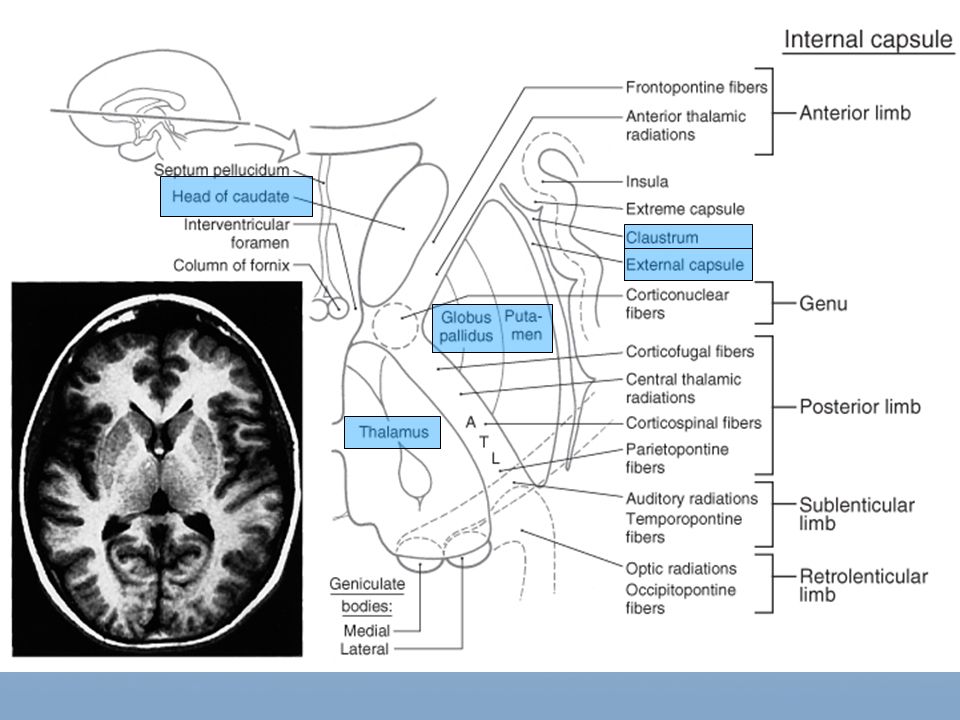

48. White Matter 3. Projection Fibers –Corticopetal fibers (afferent: i.e. thalamocortical fibers ) Vs. Corticofugal fibers (efferent: i.e. corticospinal, corticopontine, and corticothalamic fibers) –Internal capsule –Anterior limb: –Thalamocortical/corticothalamic fibers (collectively called the anterior thalamic radiations) that interconnect the dorsomedial and anterior thalamic nuclei with areas of the frontal lobe and the cingulate gyrus. –Frontopontine fibers, especially those from the prefrontal areas. Genu: –Corticonuclear (corticobulbar) fibers that arise in the frontal cortex just rostral to the precentral sulcus and from the precentral gyrus (primary motor cortex) and project to the motor nuclei of cranial nerves. –Commonly facial and hypoglossal nerves Posterior limb : –It is sometimes divided into a: »thalamolenticular part »sublenticular part (ventral) »retrolenticular part (caudal)

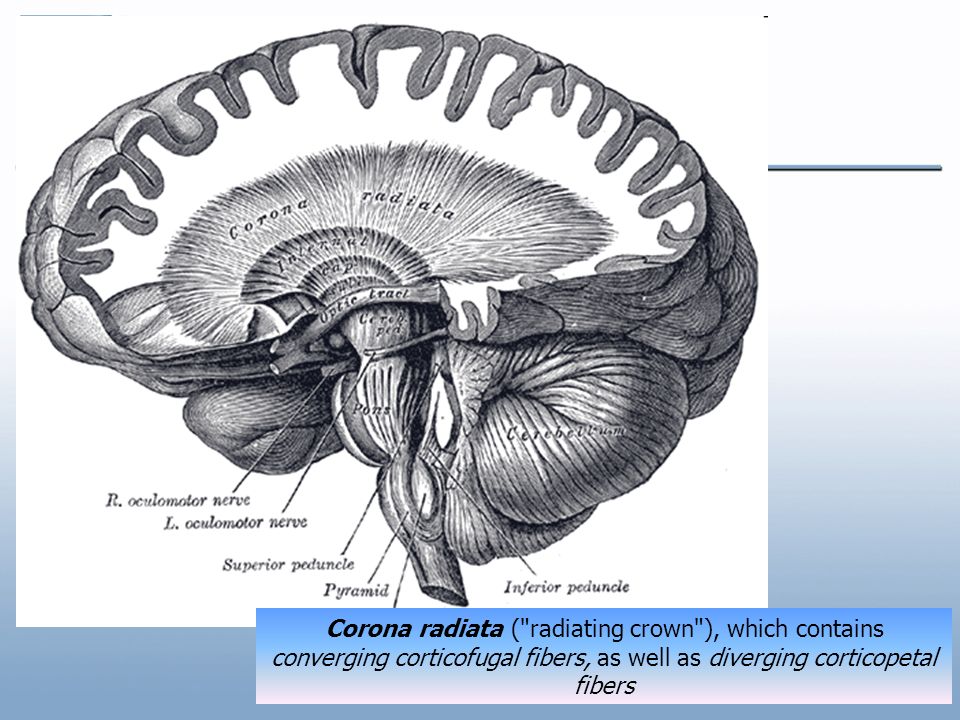

49. Corona radiata ("radiating crown"), which contains converging corticofugal fibers, as well as diverging corticopetal fibers

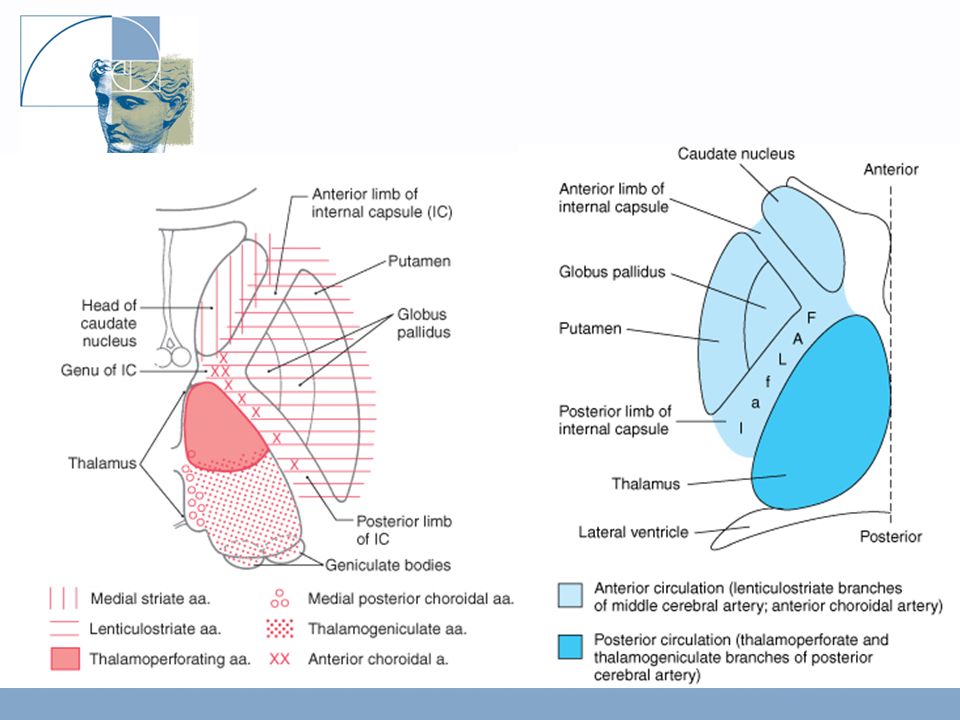

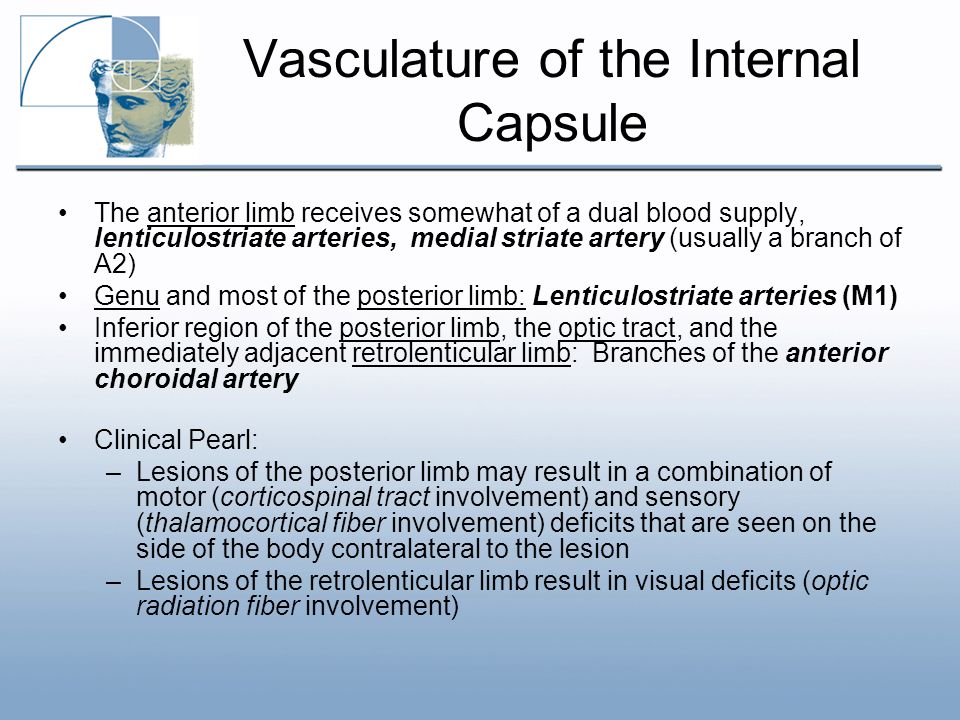

51. Vasculature of the Internal Capsule The anterior limb receives somewhat of a dual blood supply, lenticulostriate arteries, medial striate artery (usually a branch of A2) Genu and most of the posterior limb: Lenticulostriate arteries (M1) Inferior region of the posterior limb, the optic tract, and the immediately adjacent retrolenticular limb: Branches of the anterior choroidal artery Clinical Pearl: –Lesions of the posterior limb may result in a combination of motor (corticospinal tract involvement) and sensory (thalamocortical fiber involvement) deficits that are seen on the side of the body contralateral to the lesion –Lesions of the retrolenticular limb result in visual deficits (optic radiation fiber involvement)

53. Thalamic vasculature

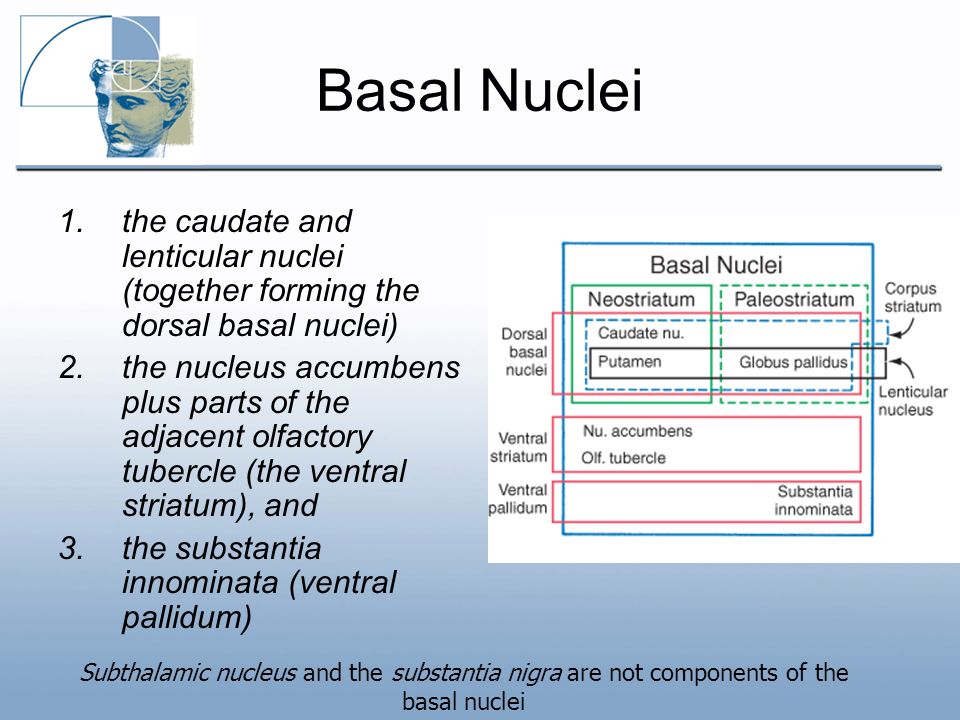

54. Basal Nuclei 1.the caudate and lenticular nuclei (together forming the dorsal basal nuclei) 2.the nucleus accumbens plus parts of the adjacent olfactory tubercle (the ventral striatum), and 3.the substantia innominata (ventral pallidum) Subthalamic nucleus and the substantia nigra are not components of the basal nuclei

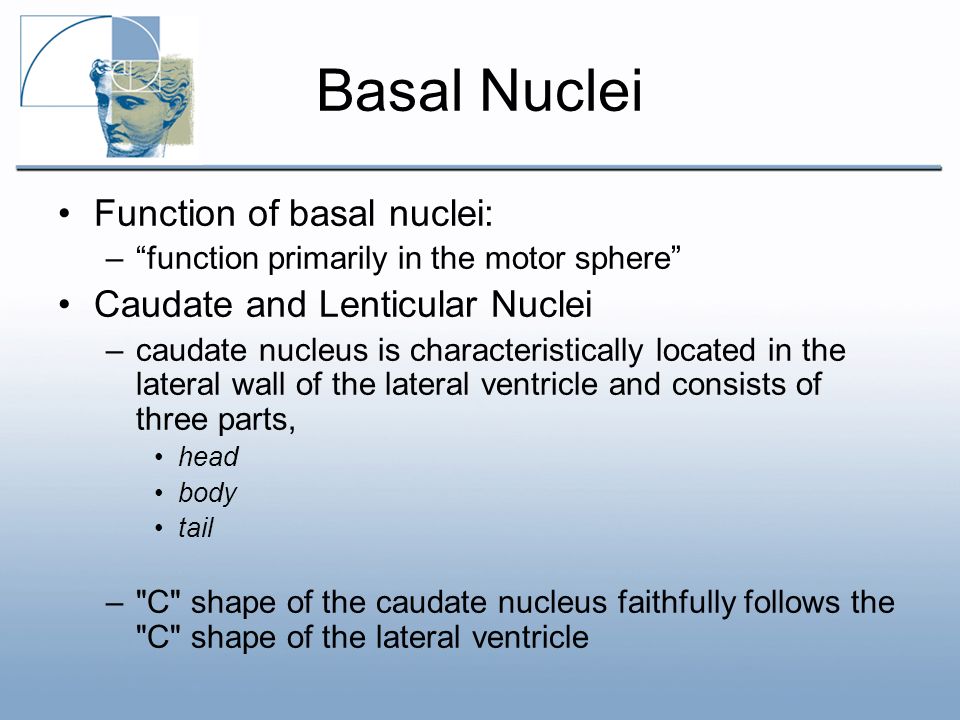

55. Basal Nuclei Function of basal nuclei: –“function primarily in the motor sphere” Caudate and Lenticular Nuclei –caudate nucleus is characteristically located in the lateral wall of the lateral ventricle and consists of three parts, head body tail –"C" shape of the caudate nucleus faithfully follows the "C" shape of the lateral ventricle

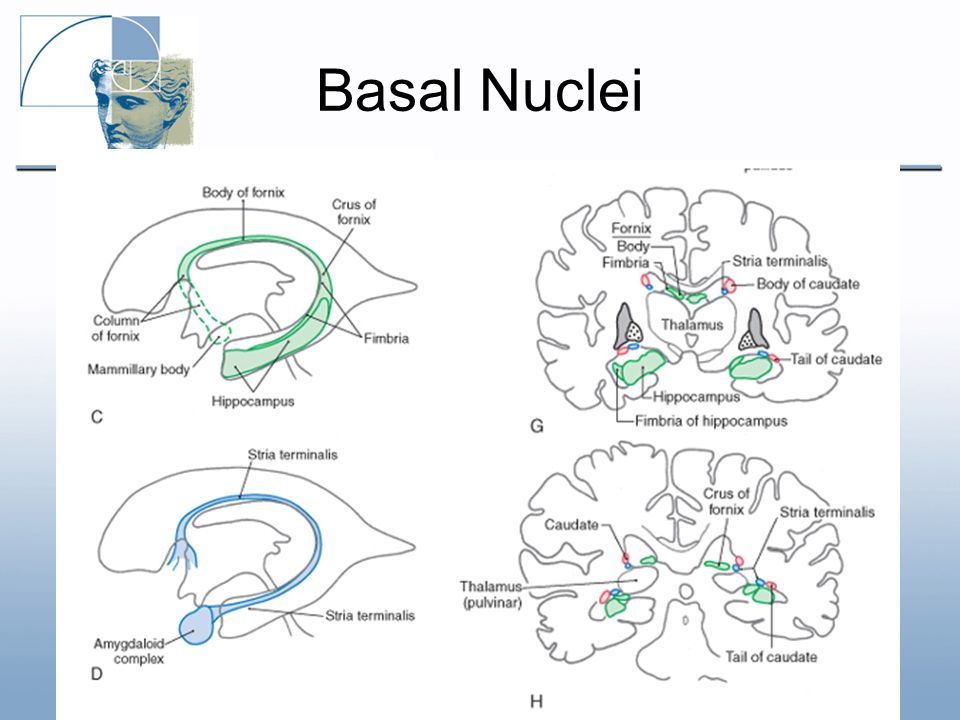

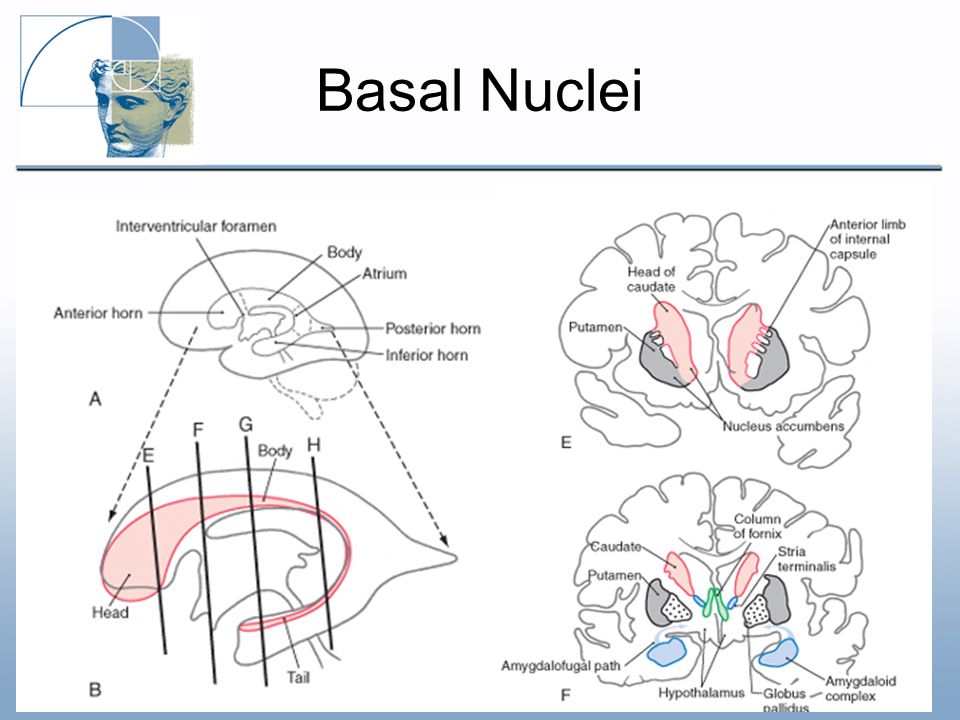

56. Basal Nuclei

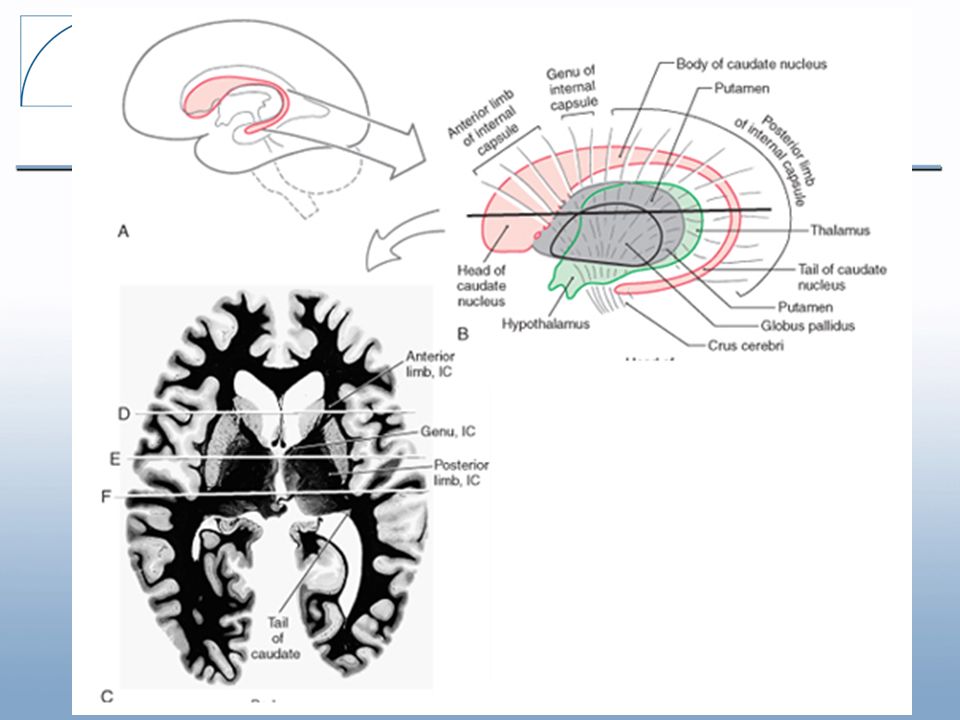

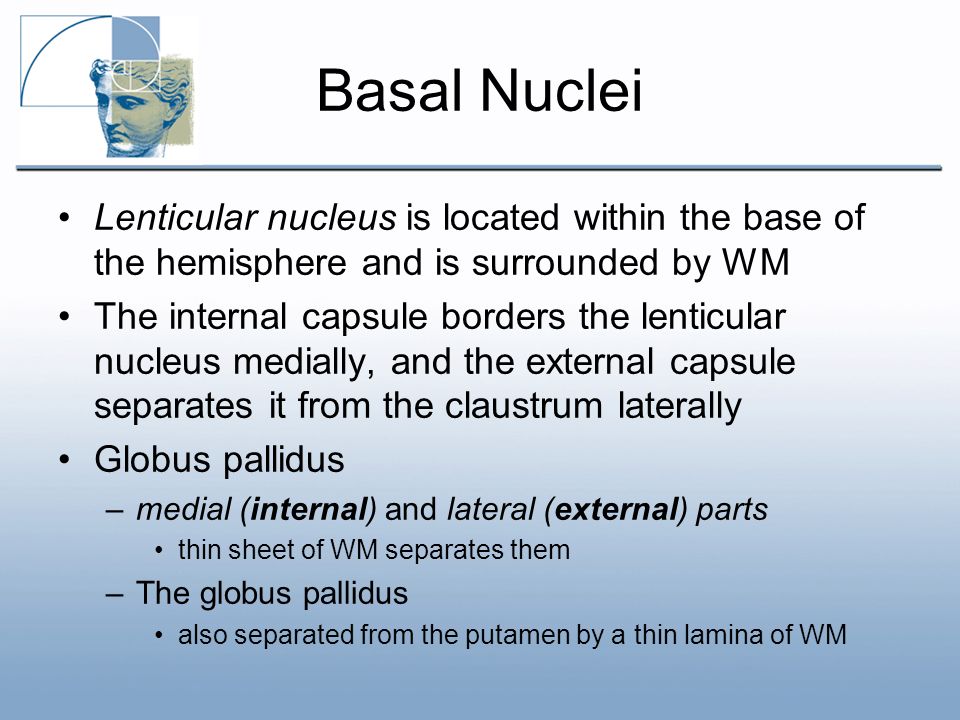

58. Lenticular nucleus is located within the base of the hemisphere and is surrounded by WM The internal capsule borders the lenticular nucleus medially, and the external capsule separates it from the claustrum laterally Globus pallidus –medial (internal) and lateral (external) parts thin sheet of WM separates them –The globus pallidus also separated from the putamen by a thin lamina of WM

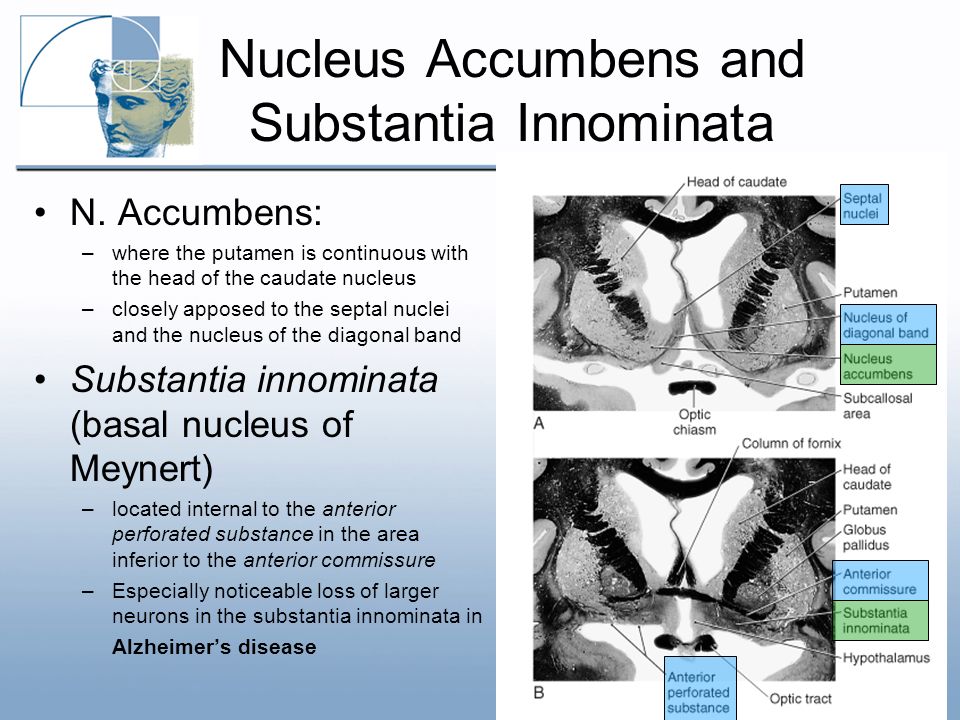

62. Nucleus Accumbens and Substantia Innominata N. Accumbens: –where the putamen is continuous with the head of the caudate nucleus –closely apposed to the septal nuclei and the nucleus of the diagonal band Substantia innominata (basal nucleus of Meynert) –located internal to the anterior perforated substance in the area inferior to the anterior commissure –Especially noticeable loss of larger neurons in the substantia innominata in Alzheimer’s disease

63. Subthalamic Nucleus and Substantia Nigra Intimately allied with the basal nuclei based on their connections The subthalamic nucleus = flattened, lens-shaped cell group located rostral to the substantia nigra It is medial to the internal capsule and is capped by a thin sheet of fibers called the lenticular fasciculus Lesions of the subthalamic nucleus, which are commonly hemorrhagic in origin, result in a contralateral hemiballismus The substantia nigra, a part of the midbrain, is found internal to the crus cerebri and immediately caudal to the subthalamic nucleus –pars reticulata –pars compacta numerous melanin-containing neuron cell bodies utilize dopamine as their neurotransmitter Integral in pathogenesis of PD

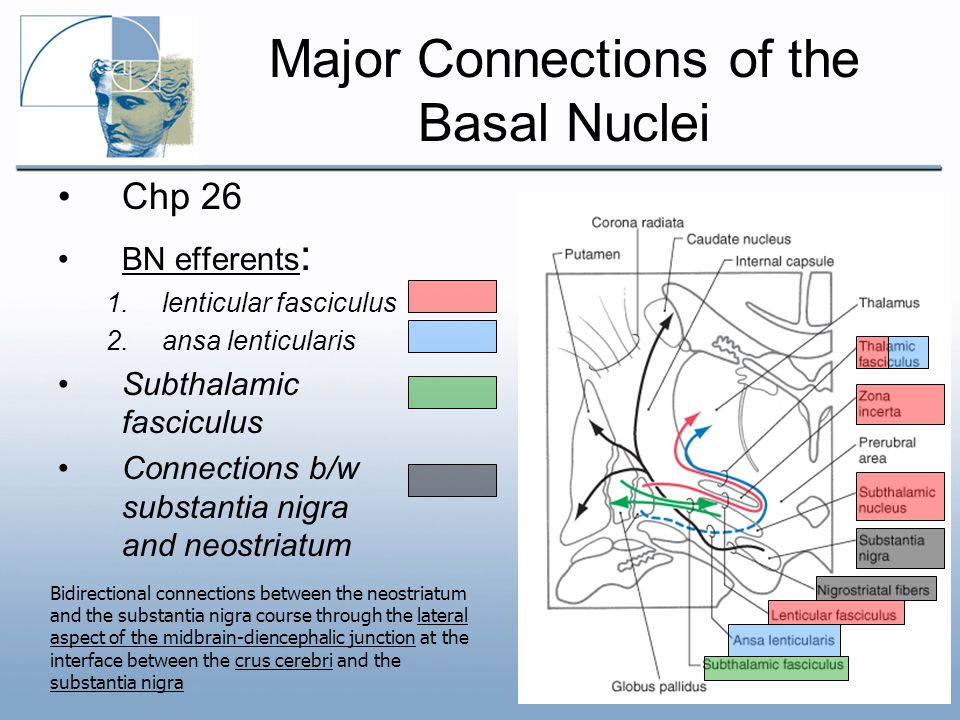

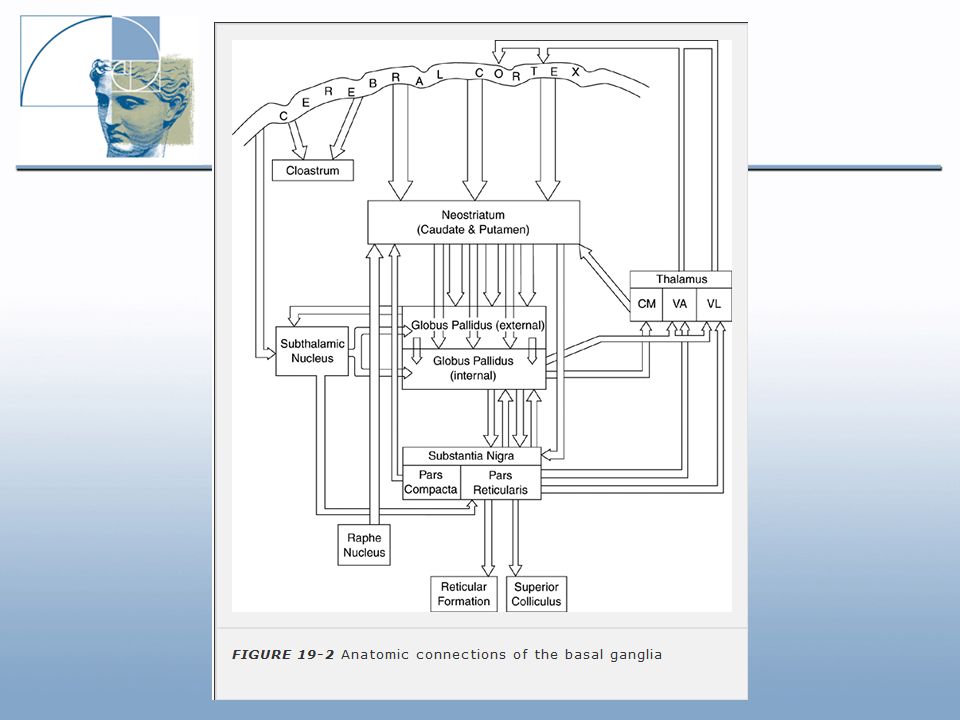

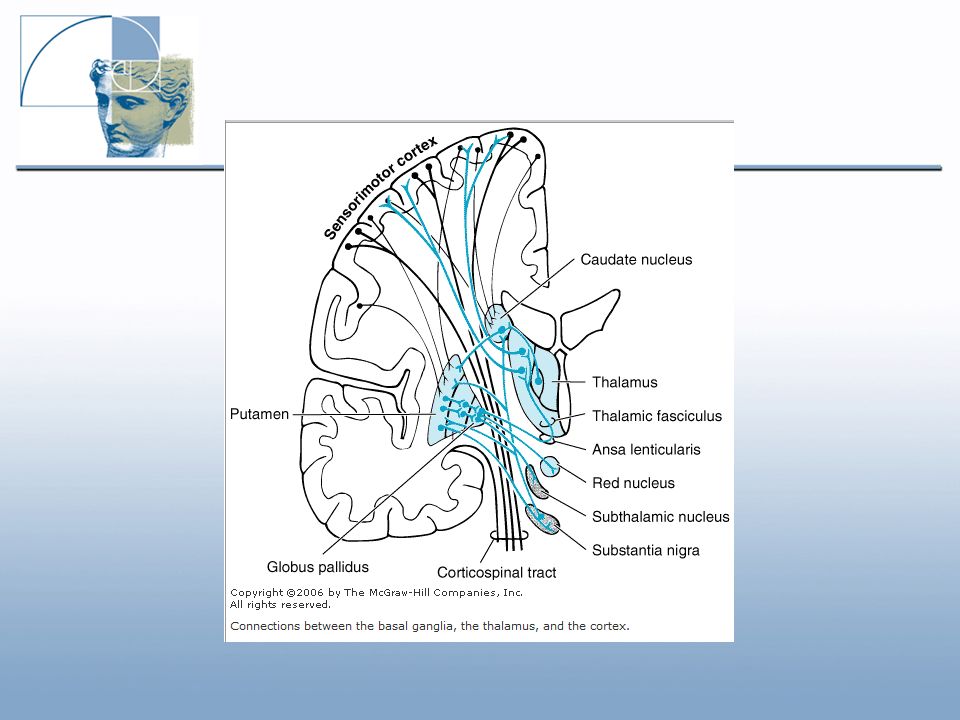

64. Major Connections of the Basal Nuclei Chp 26 BN efferents : 1.lenticular fasciculus 2.ansa lenticularis Subthalamic fasciculus Connections b/w substantia nigra and neostriatum Bidirectional connections between the neostriatum and the substantia nigra course through the lateral aspect of the midbrain-diencephalic junction at the interface between the crus cerebri and the substantia nigra

67. Vasculature of the Basal Nuclei and Related Structures The blood supply to the caudate and putamen is provided by branches of the medial striate artery, lenticulostriate branches of the M1 segment, and the anterior choroidal artery. –The medial striate artery, usually a branch of A2, serves much of the head of the caudate nucleus. –The tail of the caudate, adjacent portions of the lenticular nucleus, and adjacent temporal lobe structures (hippocampus, choroid plexus) receive their blood supply via the anterior choroidal artery. It is important to remember that the anterior choroidal artery also serves the optic tract and inferior regions of the posterior limb of the internal capsule. The blood supply to the subthalamic nucleus and the substantia nigra arises from the posteromedial branches of the P1 segment and branches of the posterior communicating artery.

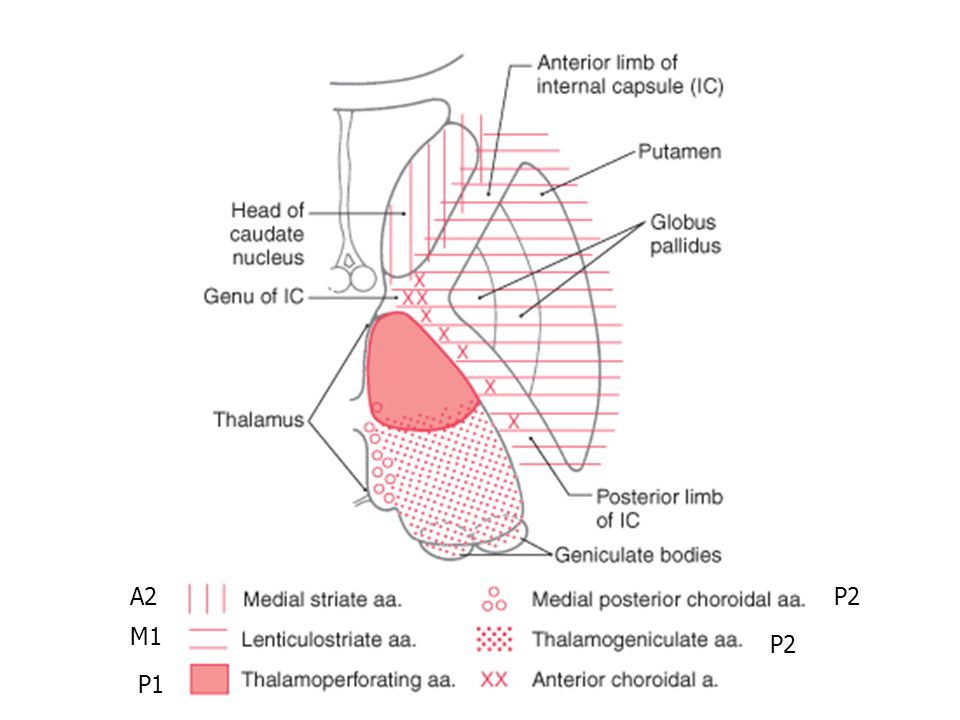

68. P2 P1 P2 A2 M1

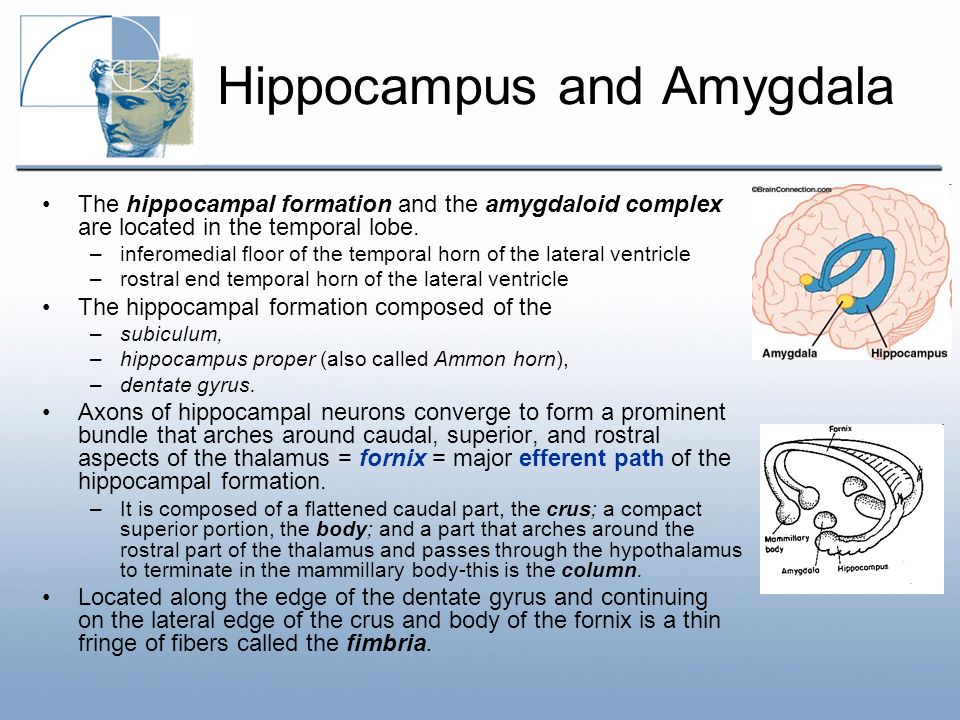

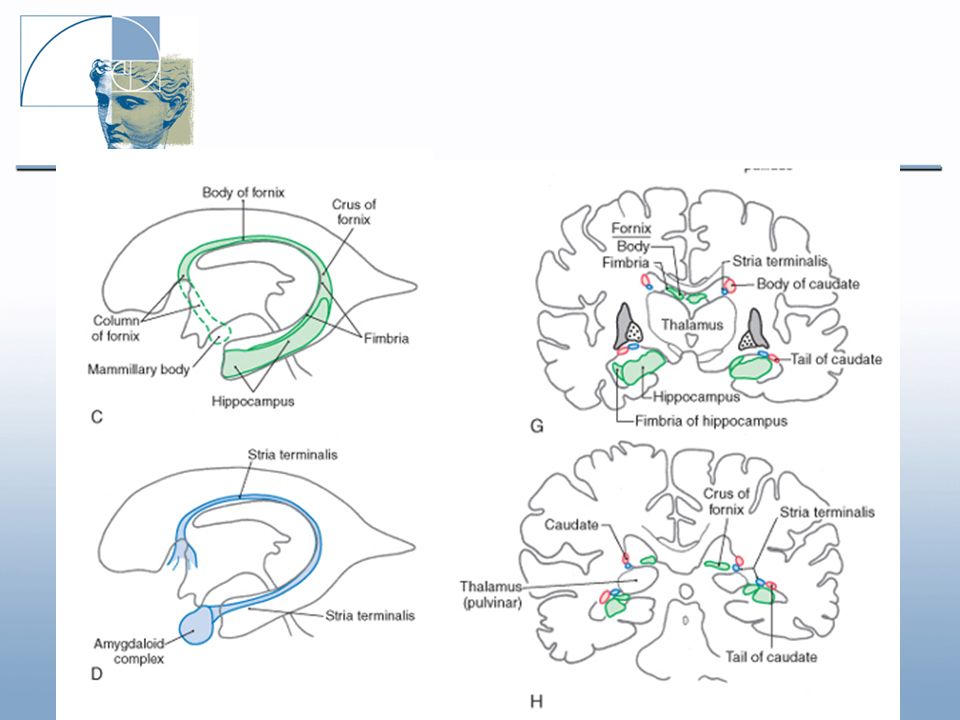

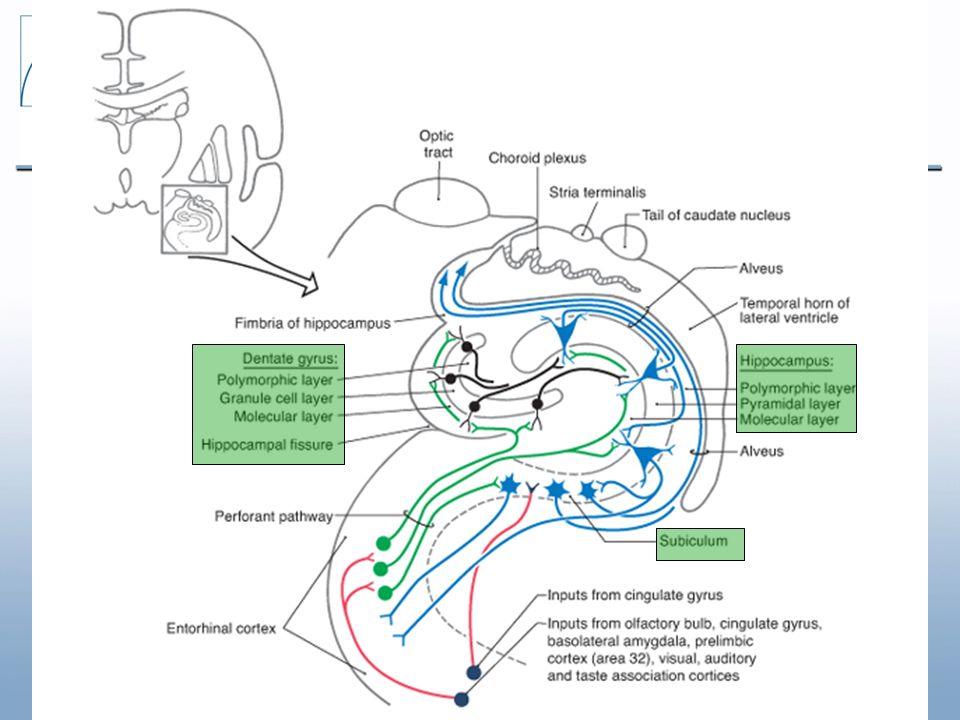

69. Hippocampus and Amygdala The hippocampal formation and the amygdaloid complex are located in the temporal lobe. –inferomedial floor of the temporal horn of the lateral ventricle –rostral end temporal horn of the lateral ventricle The hippocampal formation composed of the –subiculum, –hippocampus proper (also called Ammon horn), –dentate gyrus. Axons of hippocampal neurons converge to form a prominent bundle that arches around caudal, superior, and rostral aspects of the thalamus = fornix = major efferent path of the hippocampal formation. –It is composed of a flattened caudal part, the crus; a compact superior portion, the body; and a part that arches around the rostral part of the thalamus and passes through the hypothalamus to terminate in the mammillary body-this is the column. Located along the edge of the dentate gyrus and continuing on the lateral edge of the crus and body of the fornix is a thin fringe of fibers called the fimbria.

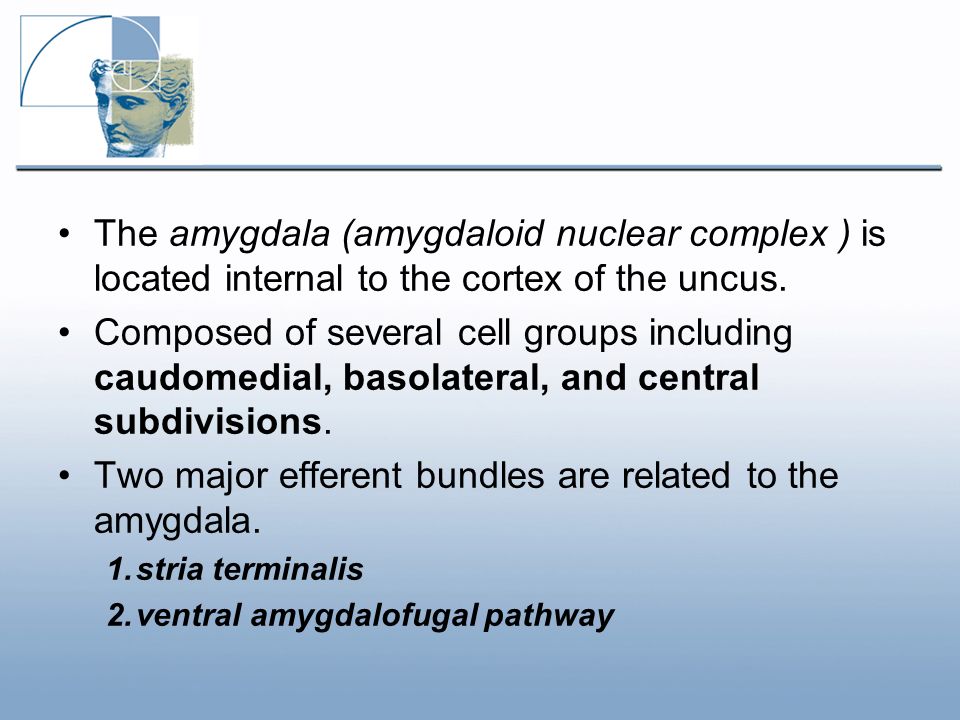

72. The amygdala (amygdaloid nuclear complex ) is located internal to the cortex of the uncus. Composed of several cell groups including caudomedial, basolateral, and central subdivisions. Two major efferent bundles are related to the amygdala. 1.stria terminalis 2.ventral amygdalofugal pathway

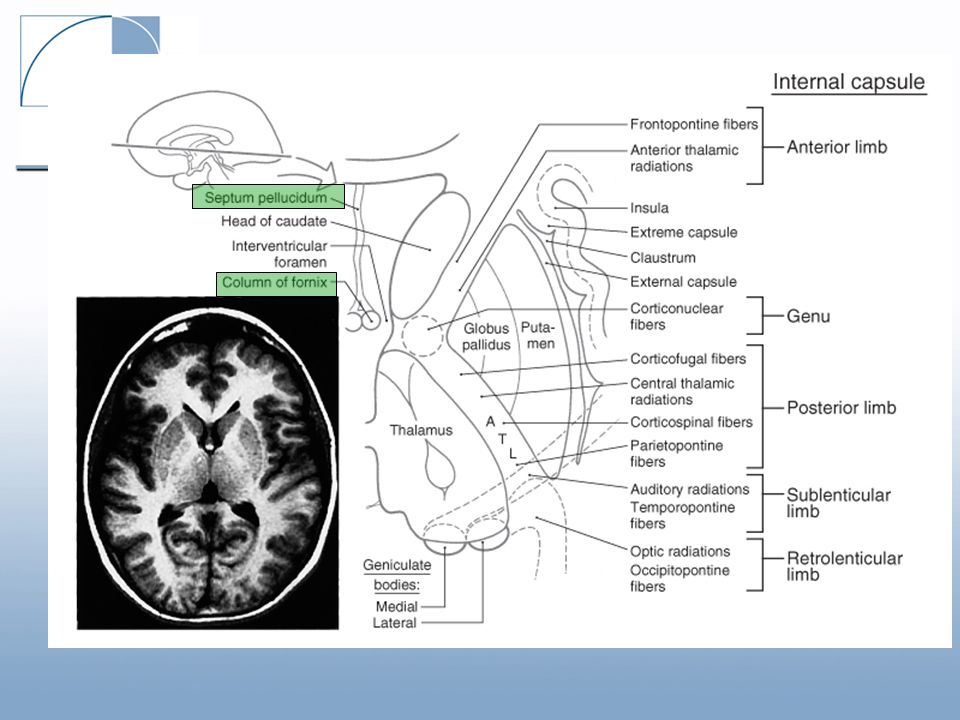

74. The septal nuclei are medially adjacent to the nucleus accumbens and continuous with sheets of neuronal cell bodies that extend into the septum pellucidum. –extends, in general, from the fornix to the inner surface of the corpus callosum. –forms the medial wall of the anterior horns and a small part of the bodies of the lateral ventricles. –In general, the septal nuclei have complex interconnections with hippocampal, amygdaloid, and other limbic structures.

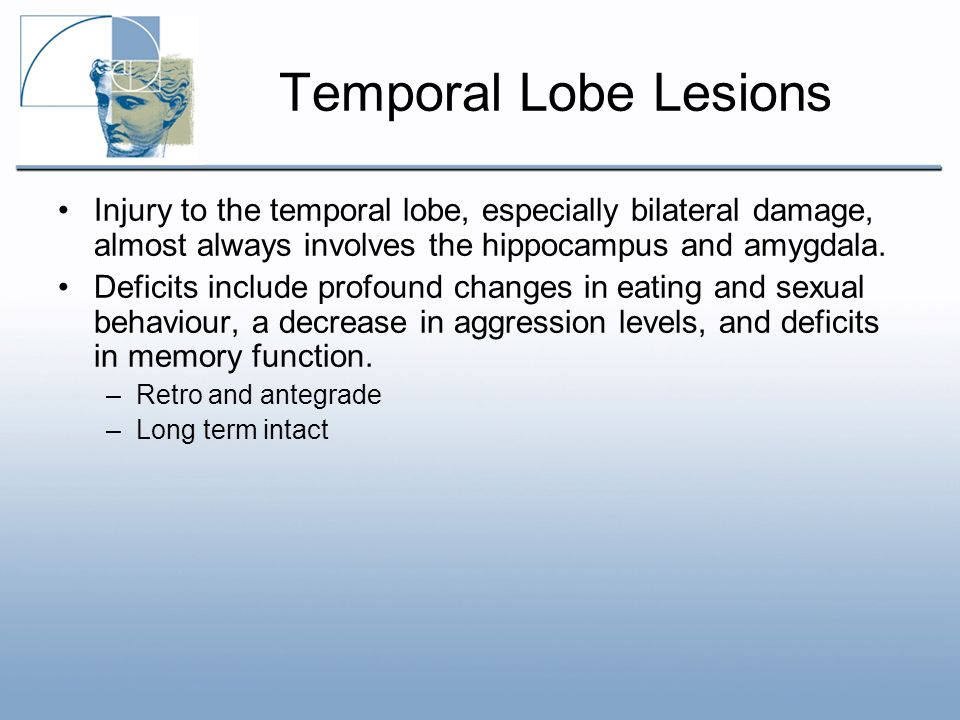

76. Temporal Lobe Lesions Injury to the temporal lobe, especially bilateral damage, almost always involves the hippocampus and amygdala. Deficits include profound changes in eating and sexual behaviour, a decrease in aggression levels, and deficits in memory function. –Retro and antegrade –Long term intact

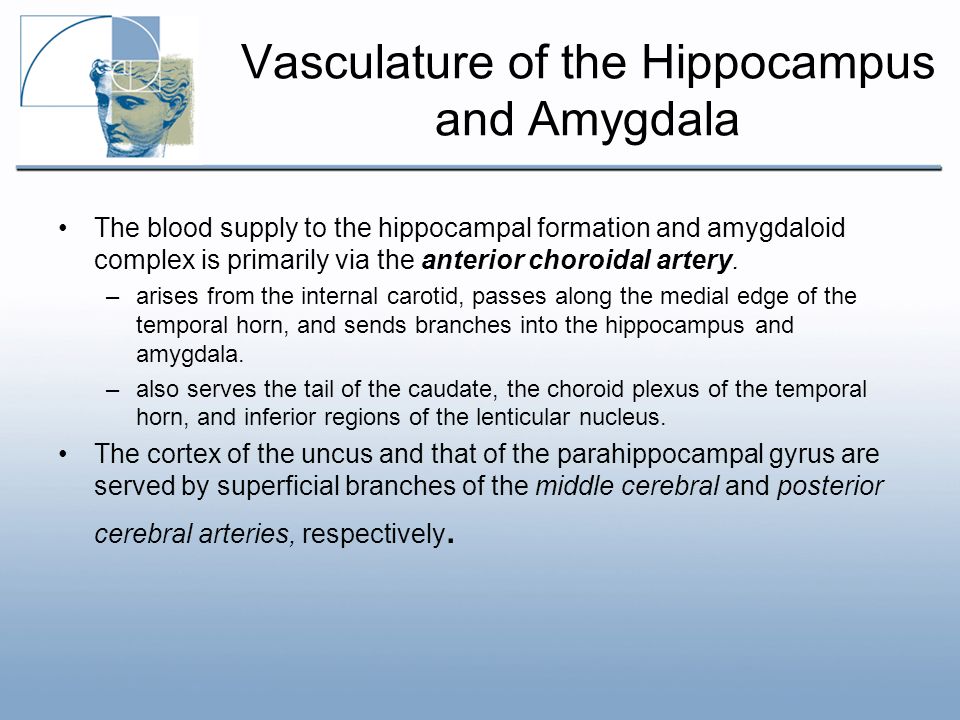

77. Vasculature of the Hippocampus and Amygdala The blood supply to the hippocampal formation and amygdaloid complex is primarily via the anterior choroidal artery. –arises from the internal carotid, passes along the medial edge of the temporal horn, and sends branches into the hippocampus and amygdala. –also serves the tail of the caudate, the choroid plexus of the temporal horn, and inferior regions of the lenticular nucleus. The cortex of the uncus and that of the parahippocampal gyrus are served by superficial branches of the middle cerebral and posterior cerebral arteries, respectively.

78. The End

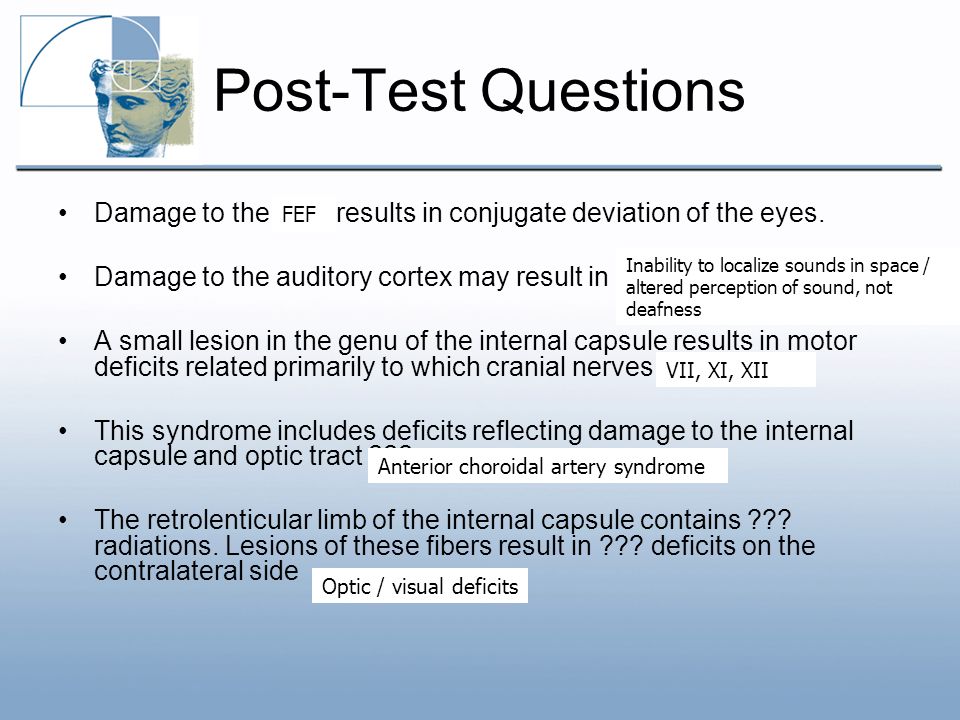

79. Post-Test Questions Damage to the ??? results in conjugate deviation of the eyes. Damage to the auditory cortex may result in ??? A small lesion in the genu of the internal capsule results in motor deficits related primarily to which cranial nerves ??? This syndrome includes deficits reflecting damage to the internal capsule and optic tract ??? The retrolenticular limb of the internal capsule contains ??? radiations. Lesions of these fibers result in ??? deficits on the contralateral side FEF Inability to localize sounds in space / altered perception of sound, not deafness VII, XI, XII Anterior choroidal artery syndrome Optic / visual deficits

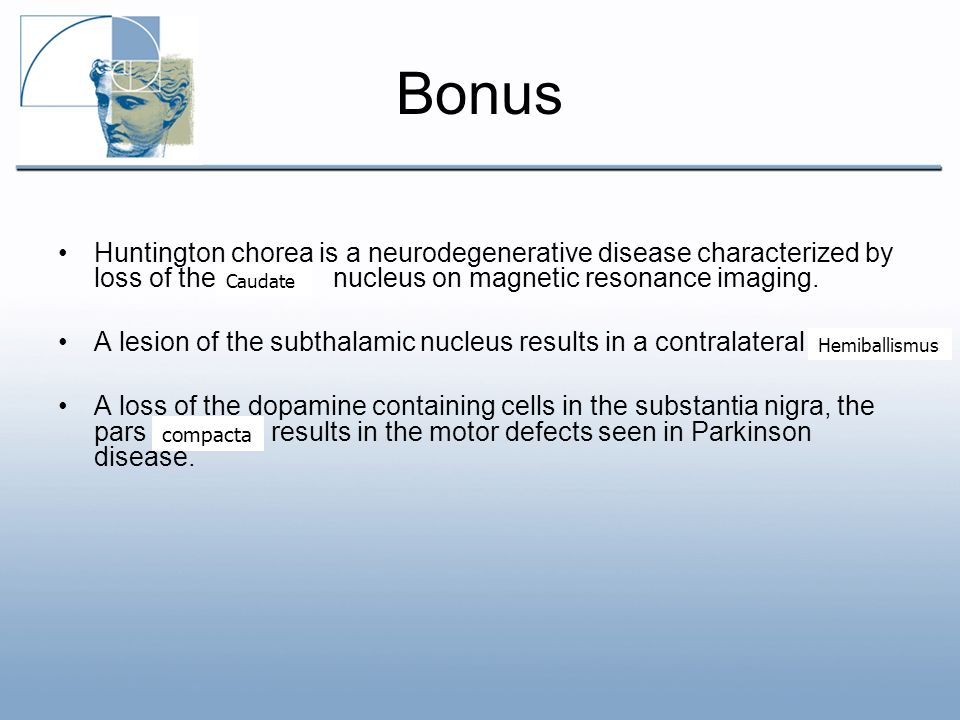

80. Bonus Huntington chorea is a neurodegenerative disease characterized by loss of the ??? nucleus on magnetic resonance imaging. A lesion of the subthalamic nucleus results in a contralateral ??? A loss of the dopamine containing cells in the substantia nigra, the pars ???, results in the motor defects seen in Parkinson disease. Caudate Hemiballismus compacta

81. Thank You Questions?
