1. Lesson 25 Lenses Eleanor Roosevelt High School Chin-Sung Lin

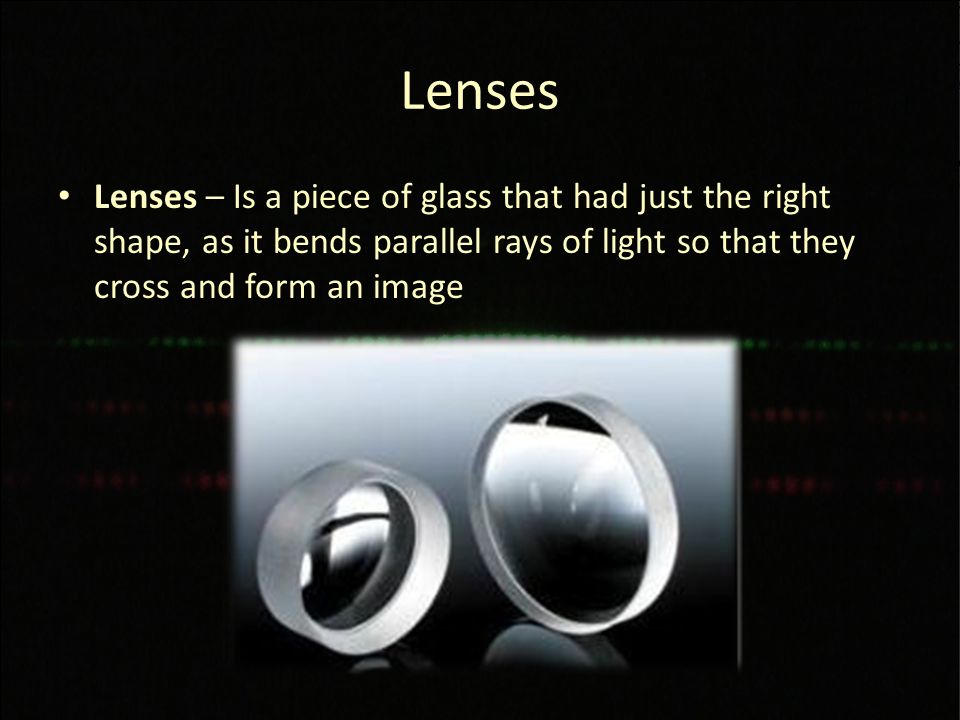

2. Lenses Lenses – Is a piece of glass that had just the right shape, as it bends parallel rays of light so that they cross and form an image

3. Lenses When arranged in certain positions, prisms bend incoming parallel rays so they converge to or diverge from a single point

4. Lenses Real lenses are made up of solid pieces of glass with surfaces that are usually ground to a spherical shape

5. Converging Lenses Converging lenses occur where it’s the thickest in the middle, causing parallel rays of light to converge to a focus

6. Diverging Lenses Diverging lenses are the thinnest in the middle and causes parallel rays of light to diverge

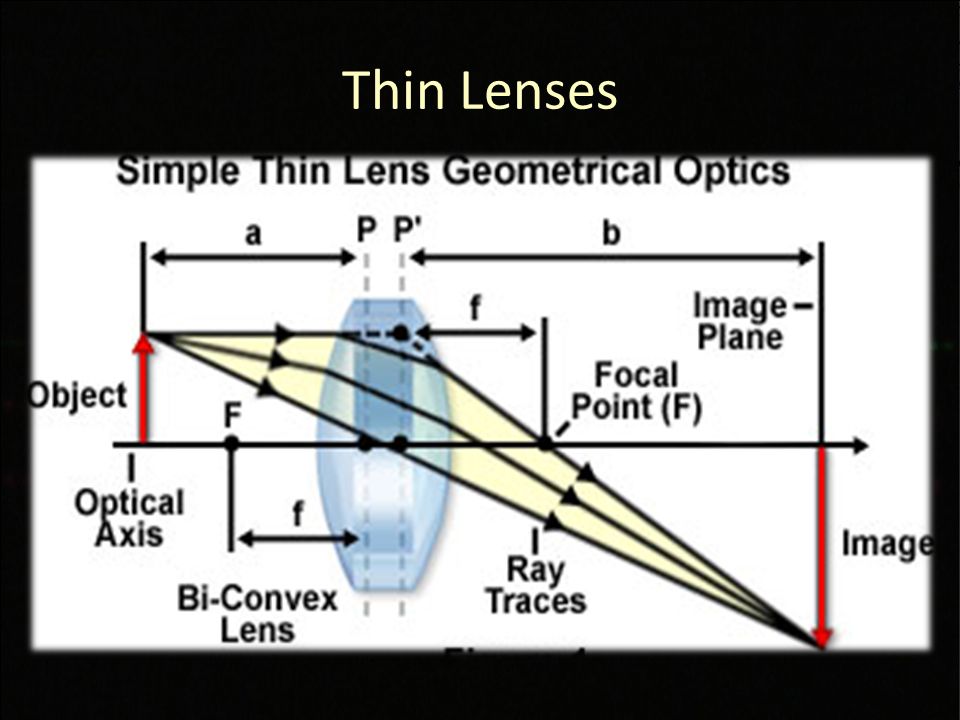

7. Thin Lenses

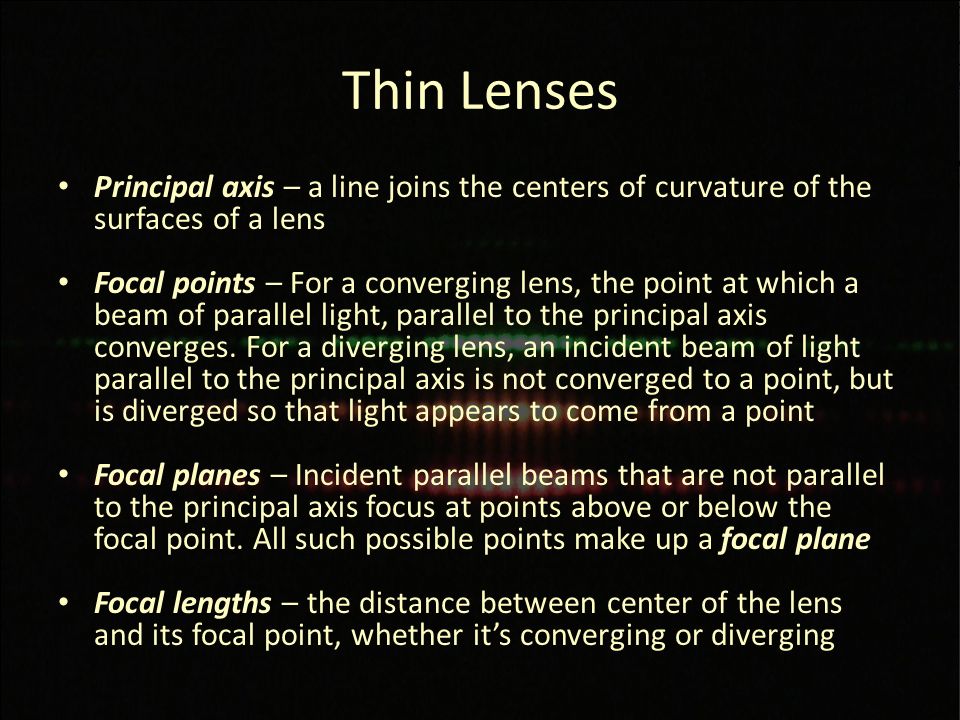

8. Principal axis – a line joins the centers of curvature of the surfaces of a lens Focal points – For a converging lens, the point at which a beam of parallel light, parallel to the principal axis converges. For a diverging lens, an incident beam of light parallel to the principal axis is not converged to a point, but is diverged so that light appears to come from a point Focal planes – Incident parallel beams that are not parallel to the principal axis focus at points above or below the focal point. All such possible points make up a focal plane Focal lengths – the distance between center of the lens and its focal point, whether it’s converging or diverging

9. Image Formation by Lens An object can be seen through a small angle of view, when it’s far away. That same object can be seen through a larger angle, when it’s closer

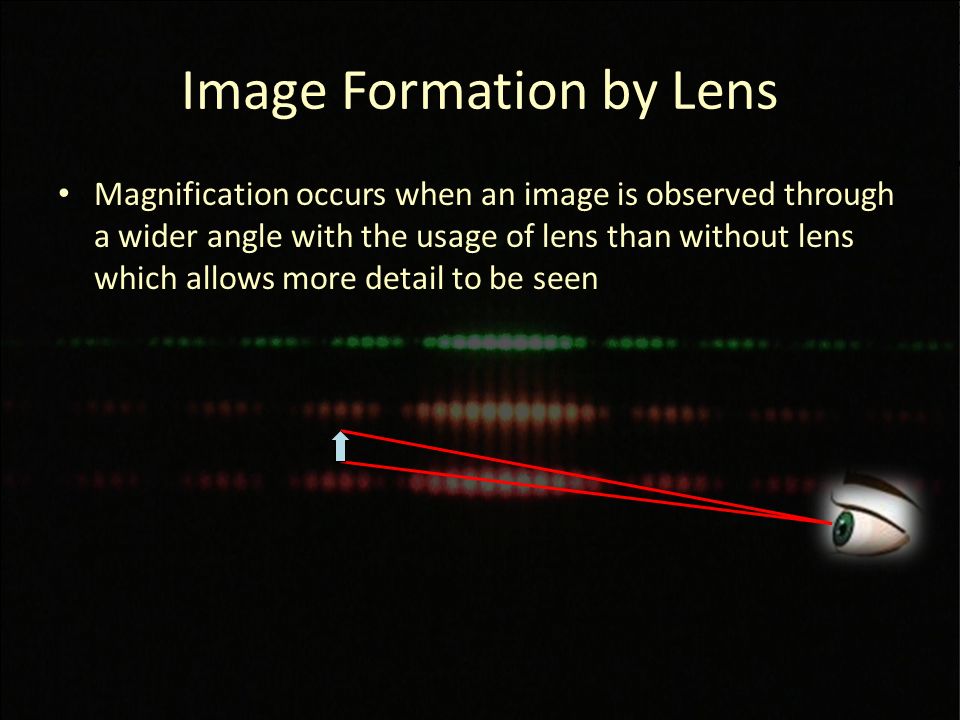

10. Image Formation by Lens Magnification occurs when an image is observed through a wider angle with the usage of lens than without lens which allows more detail to be seen

11. Image Formation by Lens With a magnifying glass, it’s held closer to an object. Converging lens will magnify only when the object is between the focal point and lens

12. Image Formation by Lens A virtual image is formed through refraction that can be seen by an observer but cannot be projected on a screen since light from the object doesn’t actually come to a focus

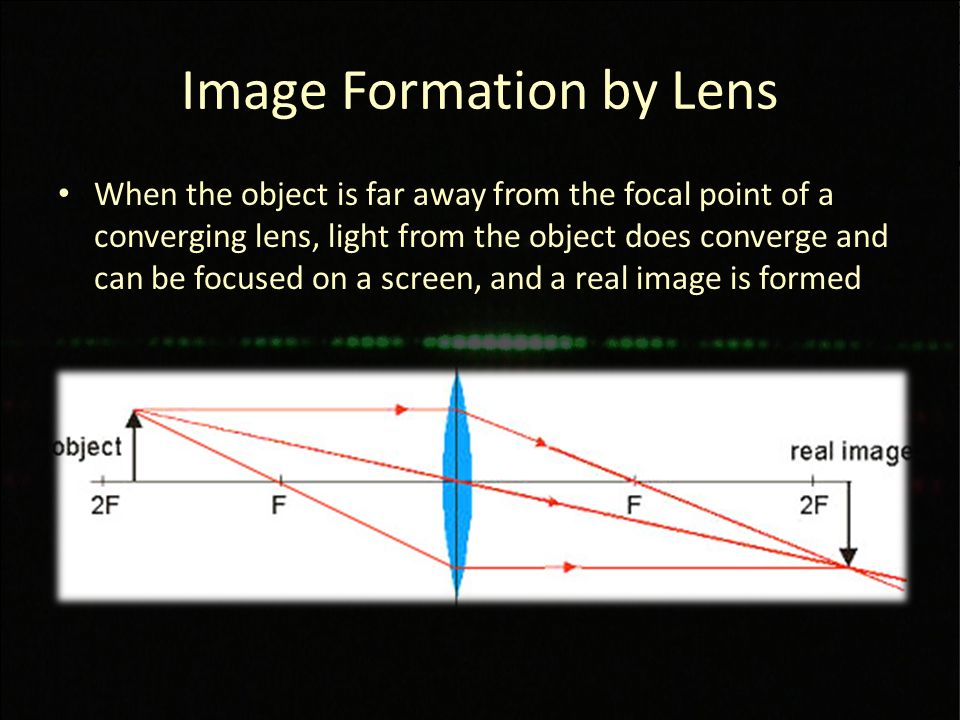

13. Image Formation by Lens When the object is far away from the focal point of a converging lens, light from the object does converge and can be focused on a screen, and a real image is formed

14. Image Formation by Lens Converging lenses are used for projecting slides, motion pictures on a screen

15. Image Formation by Lens When a diverging lens is used alone, image is always virtual and smaller than the actual object. It does not matter how far or how close the object is

16. Construction of Images: Ray Diagrams Ray diagrams show principal rays that can be used to determine the size and location of an image Size and location of the object, distance from the center of lens must be known Paths of two rays from a point on the object must be known Path of one refracted ray is known from the definition of the focal point

17. Construction of Images: Ray Diagrams

18. A ray parallel to principal axis will be refracted by the lens to the focal point A ray of light will pass through the center with no appreciable change in direction A ray of light that passes through the focal point in front of the lens emerges from the lens and proceeds parallel to the principal axis Any two of the rays is enough to locate the relative size and location of the image

19. Construction of Images: Ray Diagrams For converging lenses: when the distance from the lens to the object is more than the focal length

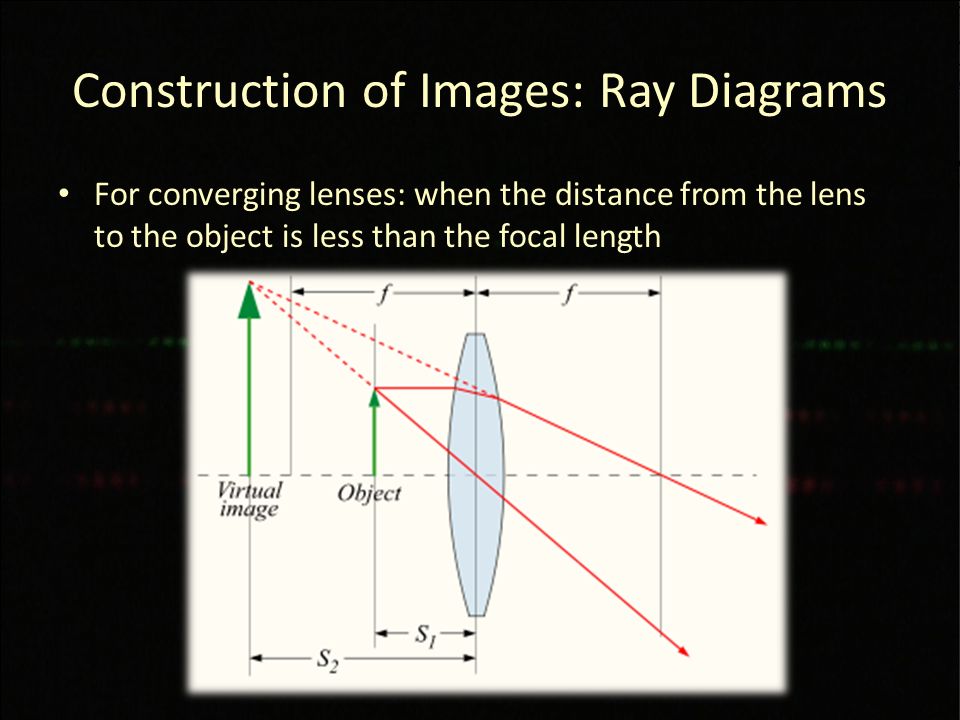

20. Construction of Images: Ray Diagrams For converging lenses: when the distance from the lens to the object is less than the focal length

21. Construction of Images: Ray Diagrams For diverging lenses

22. Construction of Images: Ray Diagrams

23. Optical Instruments Eyes

24. Optical Instruments Telescope

25. Optical Instruments Compound Microscope

26. Optical Instruments Camera

27. Defects in Vision Normal Vision

28. Defects in Vision Nearsighted & Farsighted

29. Defects in Vision Nearsighted vision correction

30. Defects in Vision Farsighted vision correction

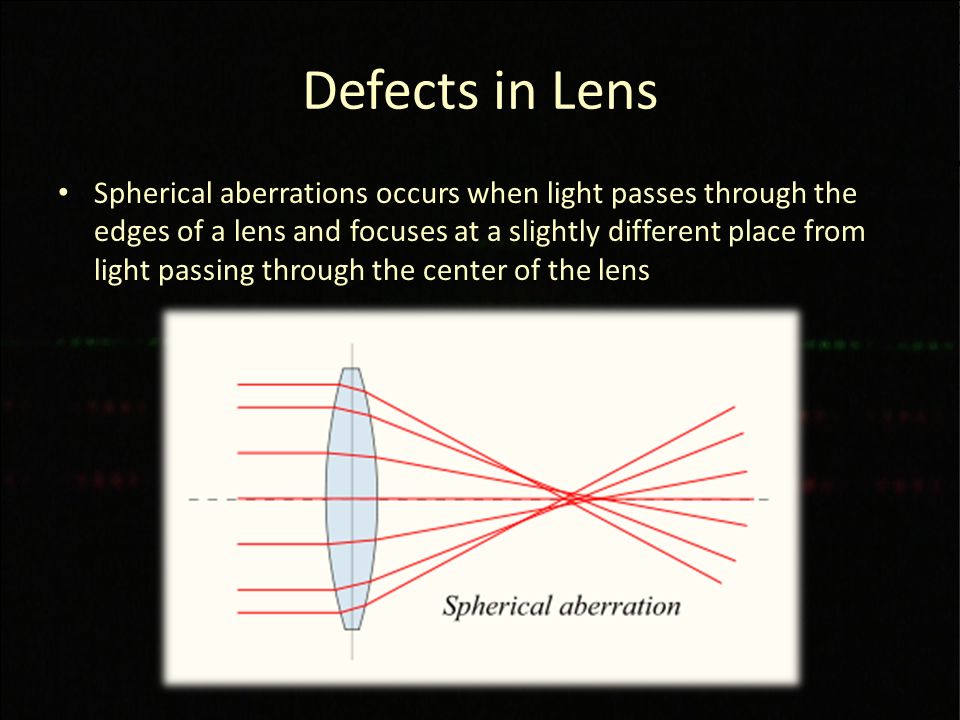

31. Defects in Lens Spherical aberrations occurs when light passes through the edges of a lens and focuses at a slightly different place from light passing through the center of the lens

32. Defects in Lens Chromatic aberration is a result of the different speeds of light of various colors, the different refractions they undergo, and hence they don’t come to focus in the same place
