1. Wokshop 07.05.2008 Ellen Gerlach Saxony-Anhalt Environmental Protection Agency Germany 1 Regulation About The European Waste Catalogue (Abfallverzeichnisverordnung- AVV)

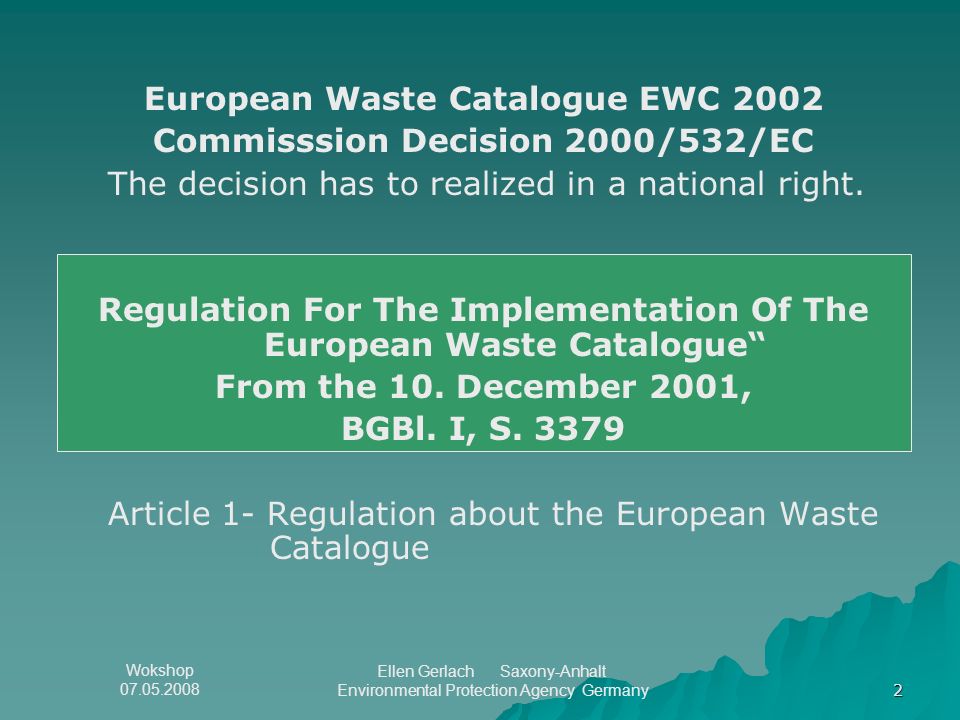

2. Wokshop 07.05.2008 Ellen Gerlach Saxony-Anhalt Environmental Protection Agency Germany 2 European Waste Catalogue EWC 2002 Commisssion Decision 2000/532/EC The decision has to realized in a national right. Regulation For The Implementation Of The European Waste Catalogue“ From the 10. December 2001, BGBl. I, S. 3379 Article 1- Regulation about the European Waste Catalogue

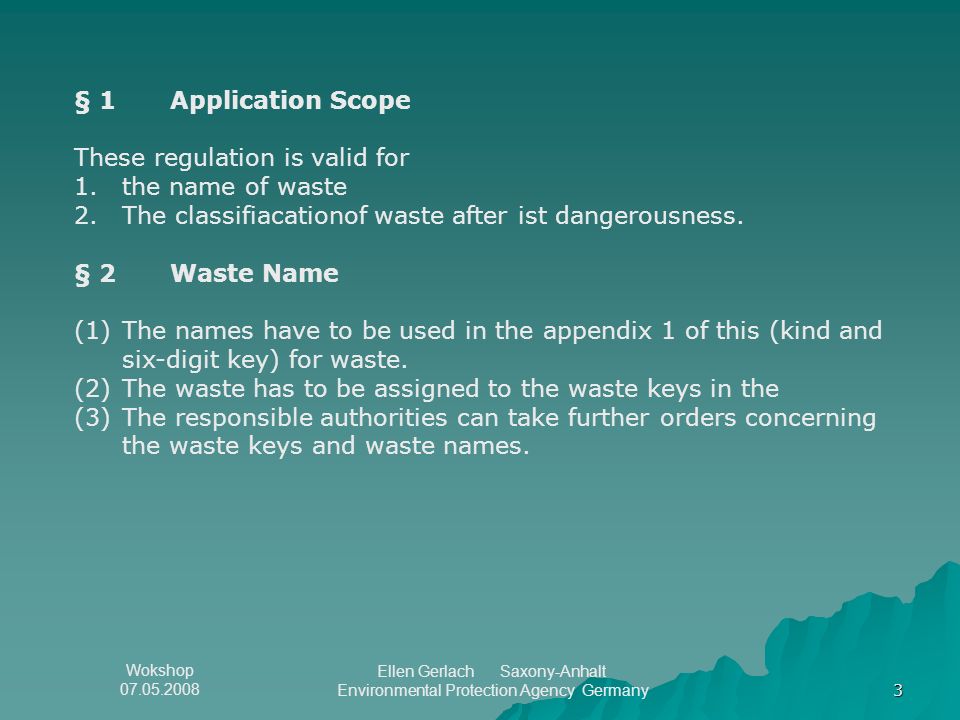

3. Wokshop 07.05.2008 Ellen Gerlach Saxony-Anhalt Environmental Protection Agency Germany 3 § 1Application Scope These regulation is valid for 1.the name of waste 2.The classifiacationof waste after ist dangerousness. § 2Waste Name (1)The names have to be used in the appendix 1 of this (kind and six-digit key) for waste. (2)The waste has to be assigned to the waste keys in the (3)The responsible authorities can take further orders concerning the waste keys and waste names.

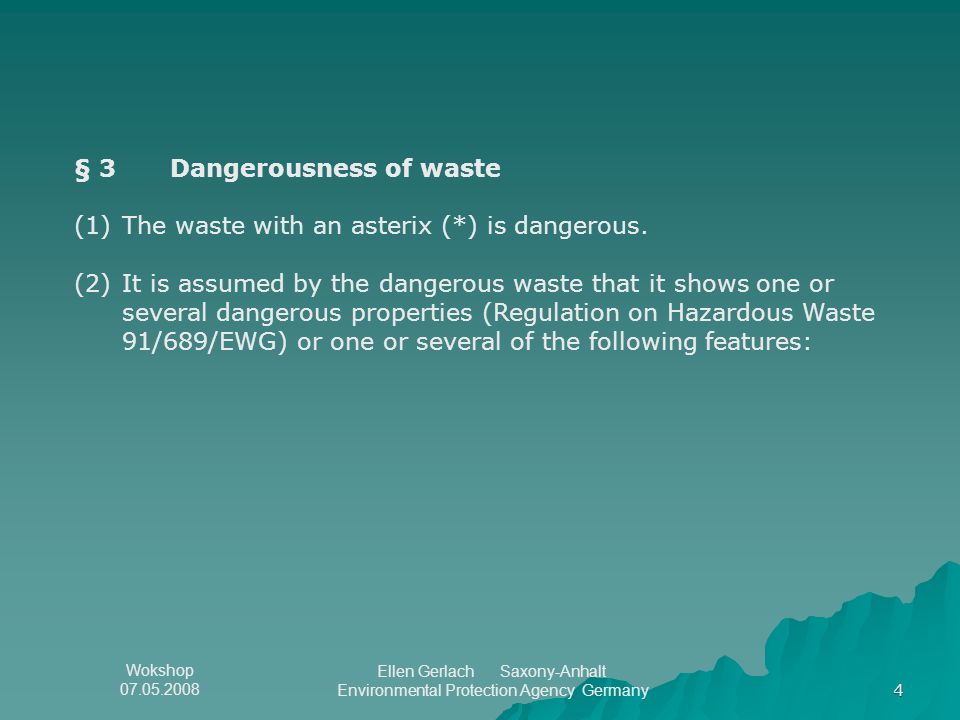

4. Wokshop 07.05.2008 Ellen Gerlach Saxony-Anhalt Environmental Protection Agency Germany 4 § 3Dangerousness of waste (1)The waste with an asterix (*) is dangerous. (2)It is assumed by the dangerous waste that it shows one or several dangerous properties (Regulation on Hazardous Waste 91/689/EWG) or one or several of the following features:

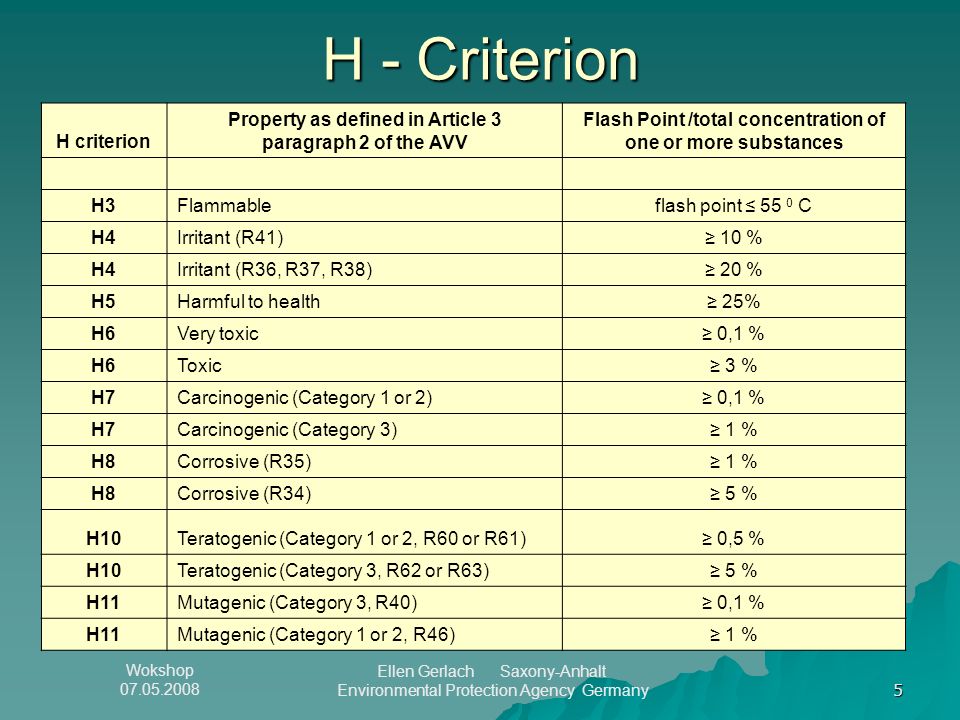

5. Wokshop 07.05.2008 Ellen Gerlach Saxony-Anhalt Environmental Protection Agency Germany 5 H - Criterion H criterion Property as defined in Article 3 paragraph 2 of the AVV Flash Point /total concentration of one or more substances H3Flammableflash point ≤ 55 0 C H4Irritant (R41)≥ 10 % H4Irritant (R36, R37, R38)≥ 20 % H5Harmful to health≥ 25% H6Very toxic≥ 0,1 % H6Toxic≥ 3 % H7Carcinogenic (Category 1 or 2)≥ 0,1 % H7Carcinogenic (Category 3)≥ 1 % H8Corrosive (R35)≥ 1 % H8Corrosive (R34)≥ 5 % H10Teratogenic (Category 1 or 2, R60 or R61)≥ 0,5 % H10Teratogenic (Category 3, R62 or R63)≥ 5 % H11Mutagenic (Category 3, R40)≥ 0,1 % H11Mutagenic (Category 1 or 2, R46)≥ 1 %

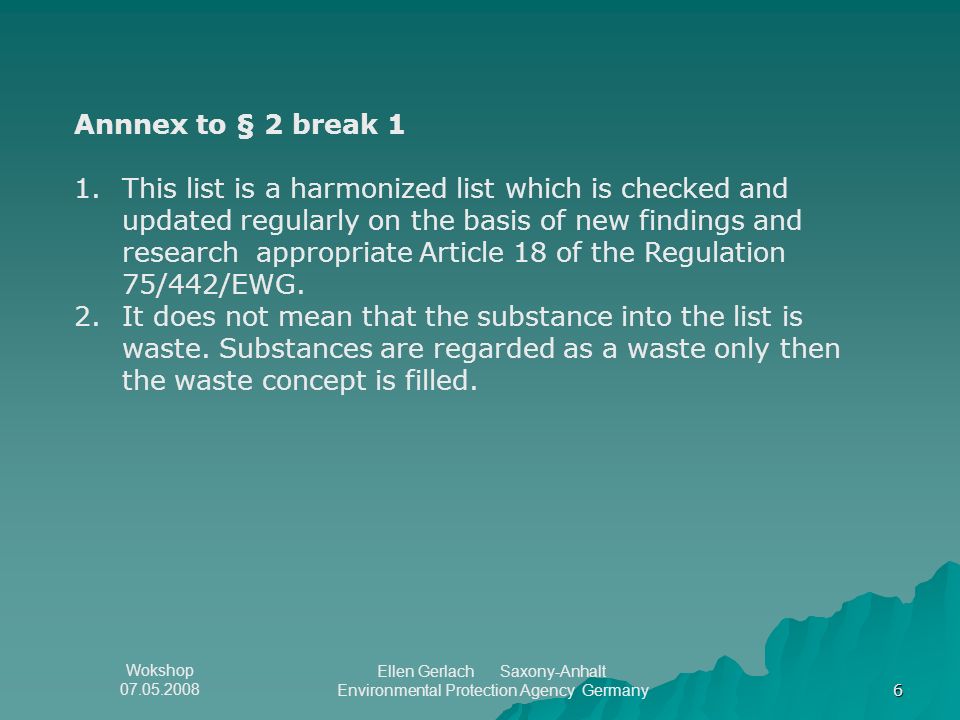

6. Wokshop 07.05.2008 Ellen Gerlach Saxony-Anhalt Environmental Protection Agency Germany 6 Annnex to § 2 break 1 1.This list is a harmonized list which is checked and updated regularly on the basis of new findings and research appropriate Article 18 of the Regulation 75/442/EWG. 2.It does not mean that the substance into the list is waste. Substances are regarded as a waste only then the waste concept is filled.

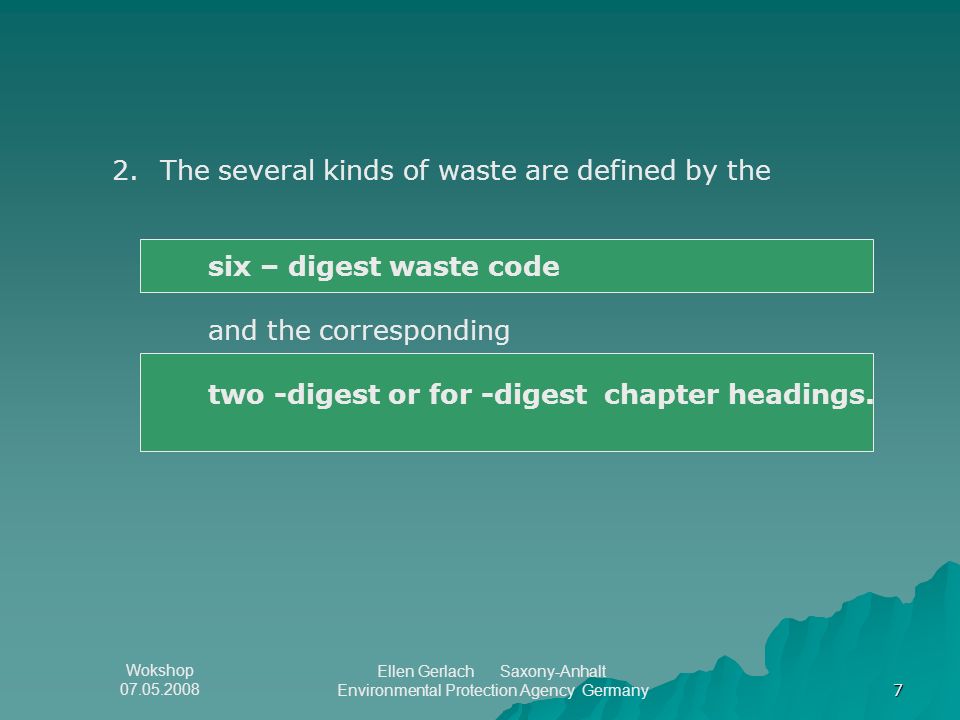

7. Wokshop 07.05.2008 Ellen Gerlach Saxony-Anhalt Environmental Protection Agency Germany 7 2.The several kinds of waste are defined by the six – digest waste code and the corresponding two -digest or for -digest chapter headings.

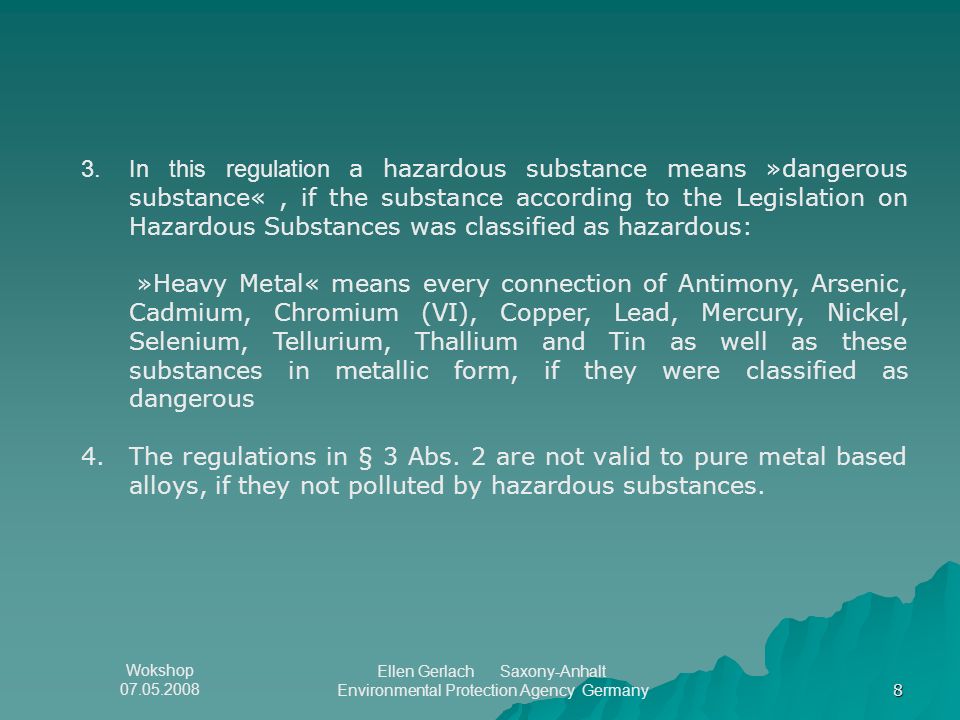

8. Wokshop 07.05.2008 Ellen Gerlach Saxony-Anhalt Environmental Protection Agency Germany 8 3.In this regulation a hazardous substance means »dangerous substance«, if the substance according to the Legislation on Hazardous Substances was classified as hazardous: »Heavy Metal« means every connection of Antimony, Arsenic, Cadmium, Chromium (VI), Copper, Lead, Mercury, Nickel, Selenium, Tellurium, Thallium and Tin as well as these substances in metallic form, if they were classified as dangerous 4.The regulations in § 3 Abs. 2 are not valid to pure metal based alloys, if they not polluted by hazardous substances.

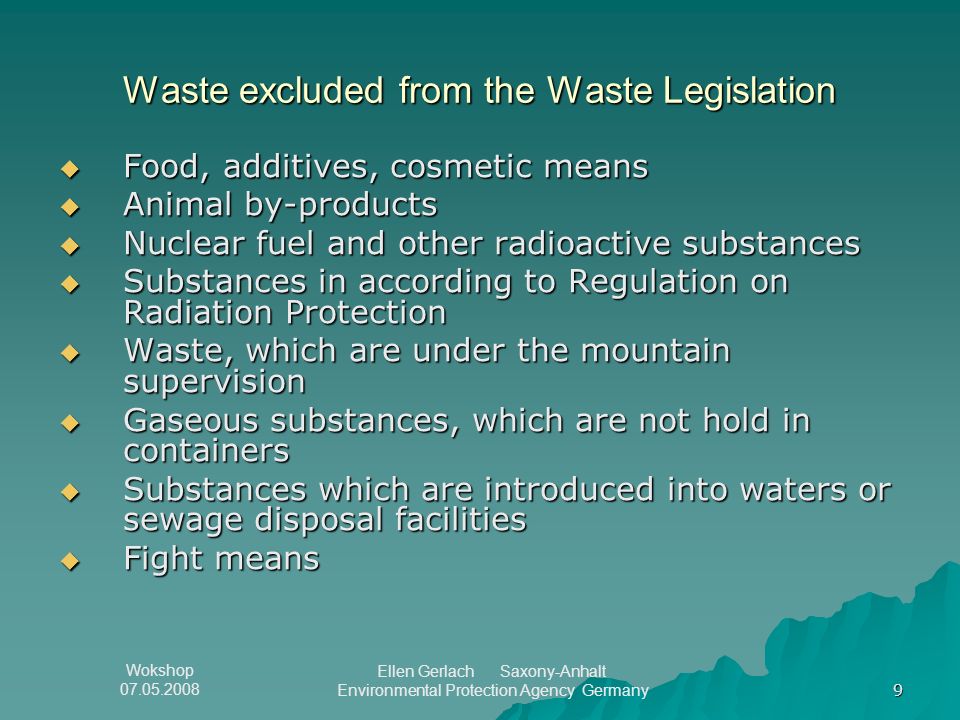

9. Wokshop 07.05.2008 Ellen Gerlach Saxony-Anhalt Environmental Protection Agency Germany 9 Waste excluded from the Waste Legislation  Food, additives, cosmetic means  Animal by-products  Nuclear fuel and other radioactive substances  Substances in according to Regulation on Radiation Protection  Waste, which are under the mountain supervision  Gaseous substances, which are not hold in containers  Substances which are introduced into waters or sewage disposal facilities  Fight means

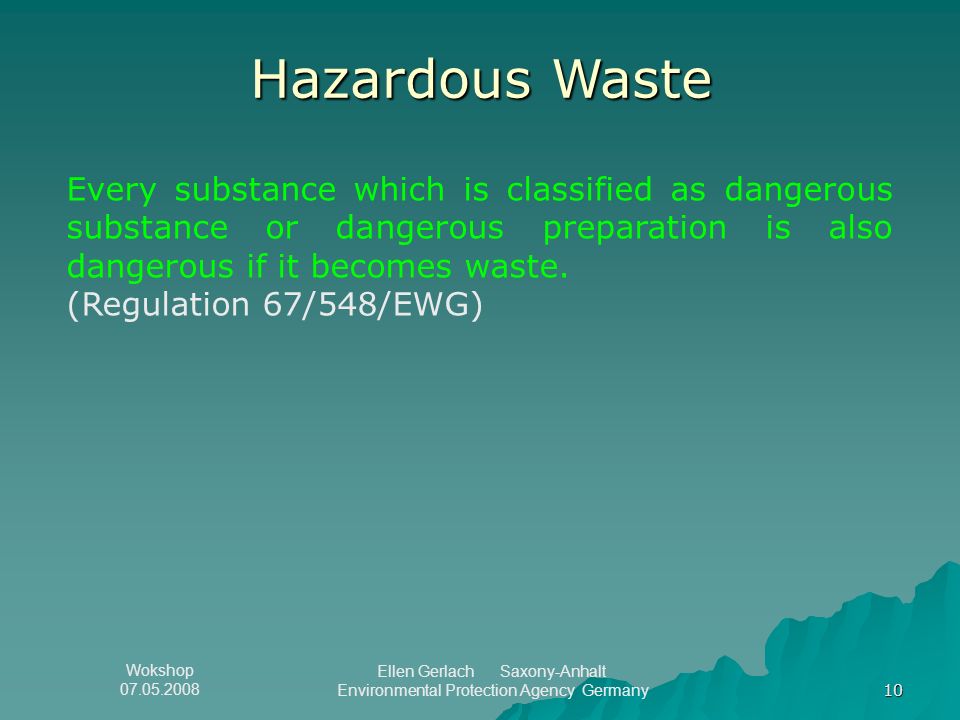

10. Wokshop 07.05.2008 Ellen Gerlach Saxony-Anhalt Environmental Protection Agency Germany 10 Every substance which is classified as dangerous substance or dangerous preparation is also dangerous if it becomes waste. (Regulation 67/548/EWG) Hazardous Waste

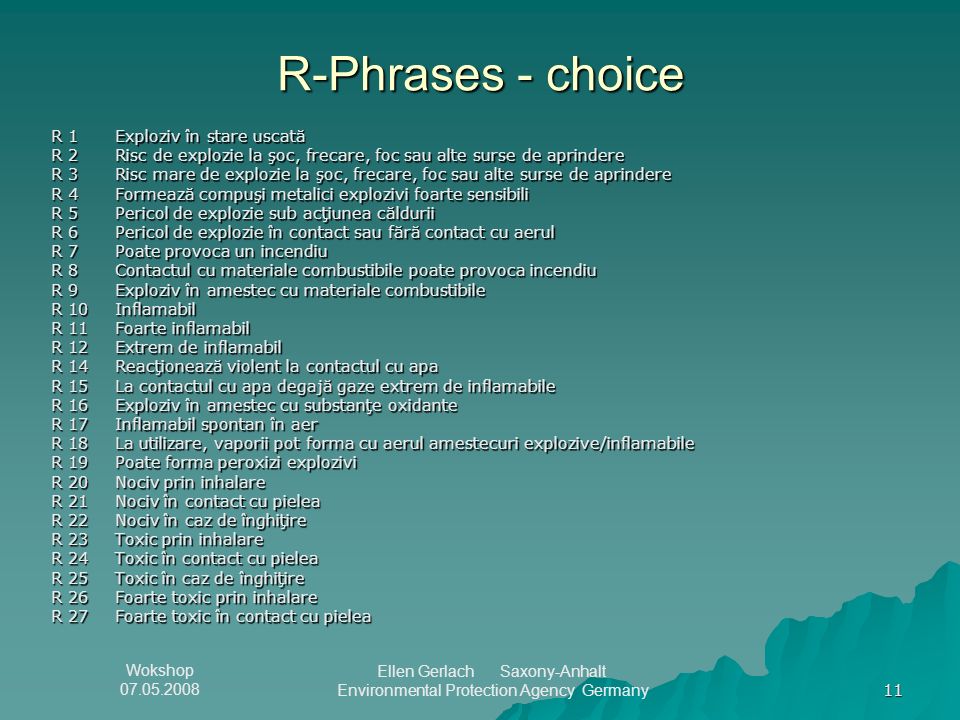

11. Wokshop 07.05.2008 Ellen Gerlach Saxony-Anhalt Environmental Protection Agency Germany 11 R-Phrases - choice R 1Exploziv în stare uscată R 2Risc de explozie la şoc, frecare, foc sau alte surse de aprindere R 3Risc mare de explozie la şoc, frecare, foc sau alte surse de aprindere R 4Formează compuşi metalici explozivi foarte sensibili R 5Pericol de explozie sub acţiunea căldurii R 6Pericol de explozie în contact sau fără contact cu aerul R 7Poate provoca un incendiu R 8Contactul cu materiale combustibile poate provoca incendiu R 9Exploziv în amestec cu materiale combustibile R 10Inflamabil R 11Foarte inflamabil R 12Extrem de inflamabil R 14Reacţionează violent la contactul cu apa R 15La contactul cu apa degajă gaze extrem de inflamabile R 16Exploziv în amestec cu substanţe oxidante R 17Inflamabil spontan în aer R 18La utilizare, vaporii pot forma cu aerul amestecuri explozive/inflamabile R 19Poate forma peroxizi explozivi R 20Nociv prin inhalare R 21Nociv în contact cu pielea R 22Nociv în caz de înghiţire R 23Toxic prin inhalare R 24Toxic în contact cu pielea R 25Toxic în caz de înghiţire R 26Foarte toxic prin inhalare R 27Foarte toxic în contact cu pielea

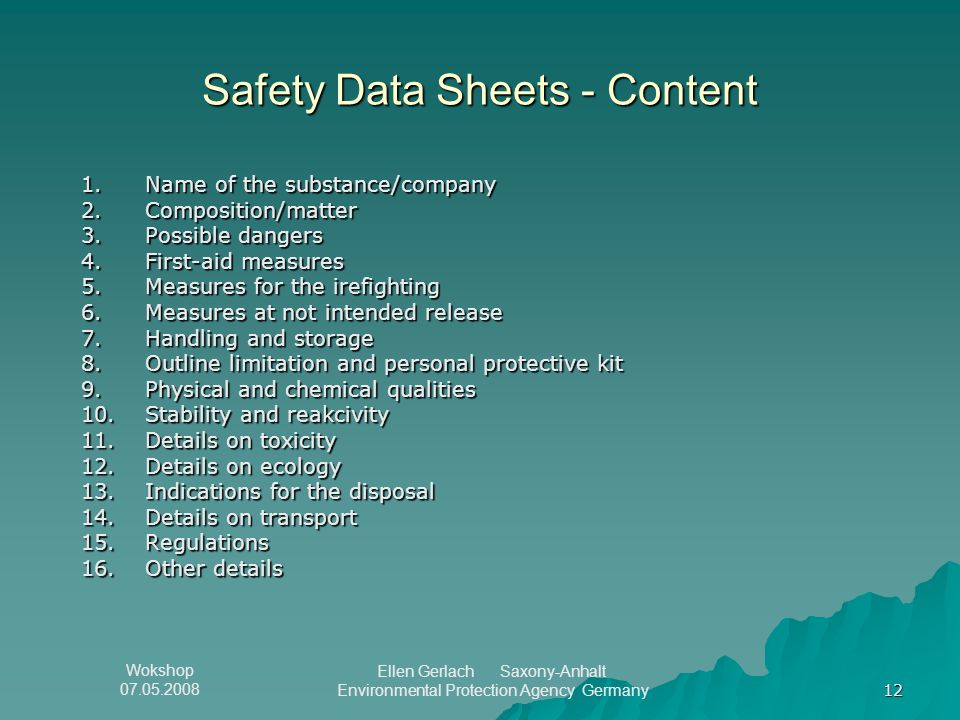

12. Wokshop 07.05.2008 Ellen Gerlach Saxony-Anhalt Environmental Protection Agency Germany 12 Safety Data Sheets - Content 1.Name of the substance/company 2.Composition/matter 3.Possible dangers 4.First-aid measures 5.Measures for the irefighting 6.Measures at not intended release 7.Handling and storage 8.Outline limitation and personal protective kit 9.Physical and chemical qualities 10.Stability and reakcivity 11.Details on toxicity 12.Details on ecology 13.Indications for the disposal 14.Details on transport 15.Regulations 16.Other details

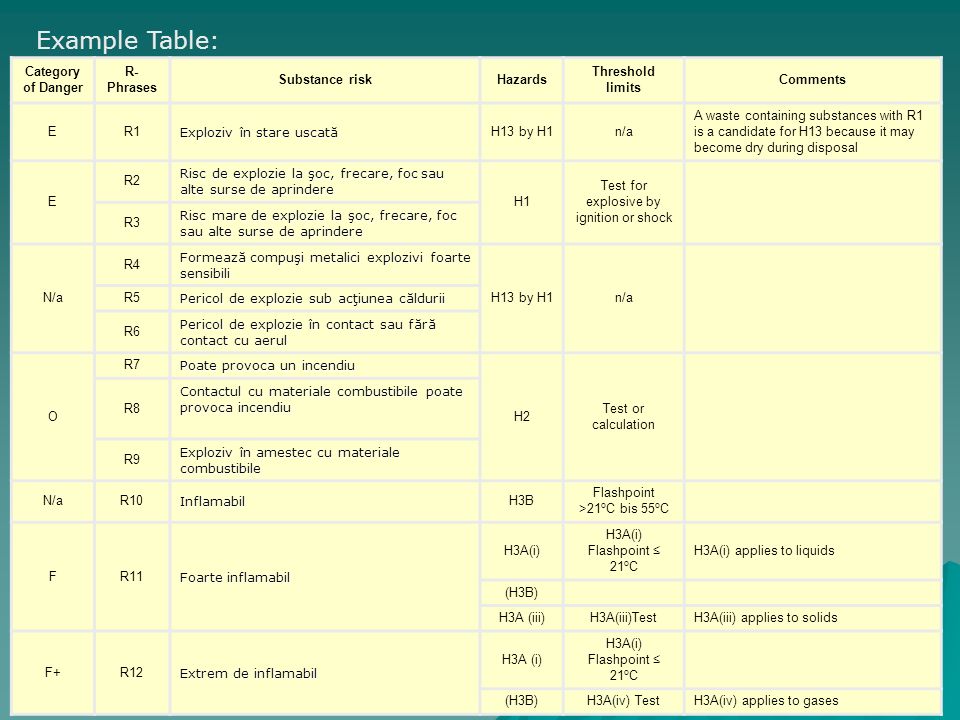

13. Wokshop 07.05.2008 Ellen Gerlach Saxony-Anhalt Environmental Protection Agency Germany 13 Category of Danger R- Phrases Substance riskHazards Threshold limits Comments ER1 Exploziv în stare uscată H13 by H1n/a A waste containing substances with R1 is a candidate for H13 because it may become dry during disposal E R2 Risc de explozie la şoc, frecare, foc sau alte surse de aprindere H1 Test for explosive by ignition or shock R3 Risc mare de explozie la şoc, frecare, foc sau alte surse de aprindere N/a R4 Formează compuşi metalici explozivi foarte sensibili H13 by H1n/a R5 Pericol de explozie sub acţiunea căldurii R6 Pericol de explozie în contact sau fără contact cu aerul O R7 Poate provoca un incendiu H2 Test or calculation R8 Contactul cu materiale combustibile poate provoca incendiu R9 Exploziv în amestec cu materiale combustibile N/aR10Inflamabil H3B Flashpoint >21 o C bis 55 o C FR11 Foarte inflamabil H3A(i) H3A(i) Flashpoint ≤ 21 o C H3A(i) applies to liquids (H3B) H3A (iii)H3A(iii)TestH3A(iii) applies to solids F+R12 Extrem de inflamabil H3A (i) H3A(i) Flashpoint ≤ 21 o C (H3B)H3A(iv) TestH3A(iv) applies to gases Example Table:

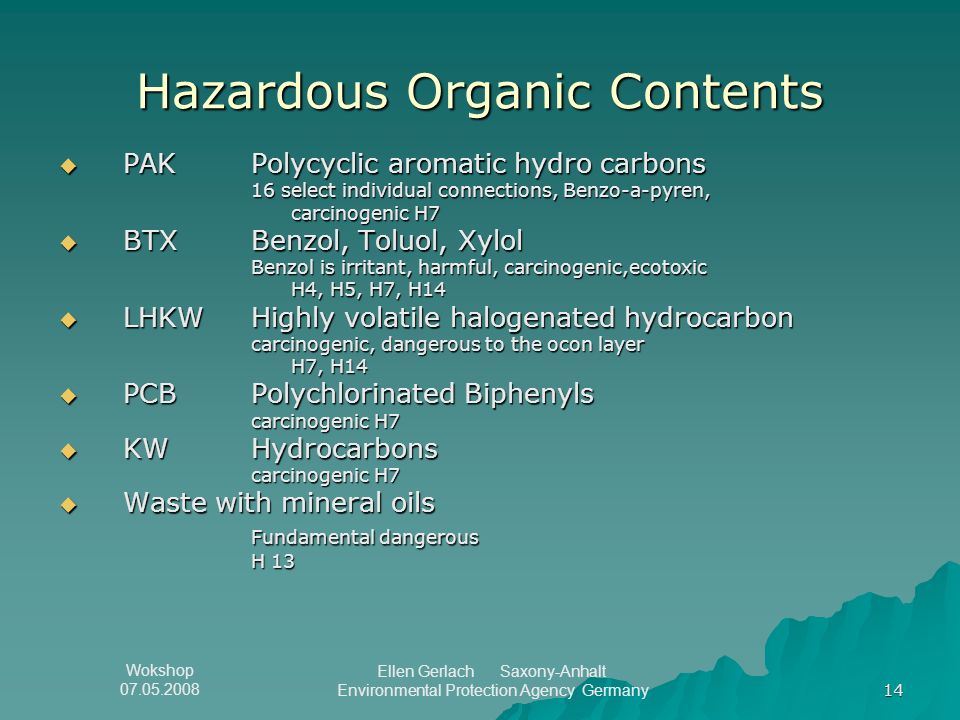

14. Wokshop 07.05.2008 Ellen Gerlach Saxony-Anhalt Environmental Protection Agency Germany 14 Hazardous Organic Contents  PAK Polycyclic aromatic hydro carbons 16 select individual connections, Benzo-a-pyren, carcinogenic H7  BTX Benzol, Toluol, Xylol Benzol is irritant, harmful, carcinogenic,ecotoxic H4, H5, H7, H14  LHKW Highly volatile halogenated hydrocarbon carcinogenic, dangerous to the ocon layer H7, H14  PCBPolychlorinated Biphenyls carcinogenic H7  KWHydrocarbons carcinogenic H7  Waste with mineral oils Fundamental dangerous H 13

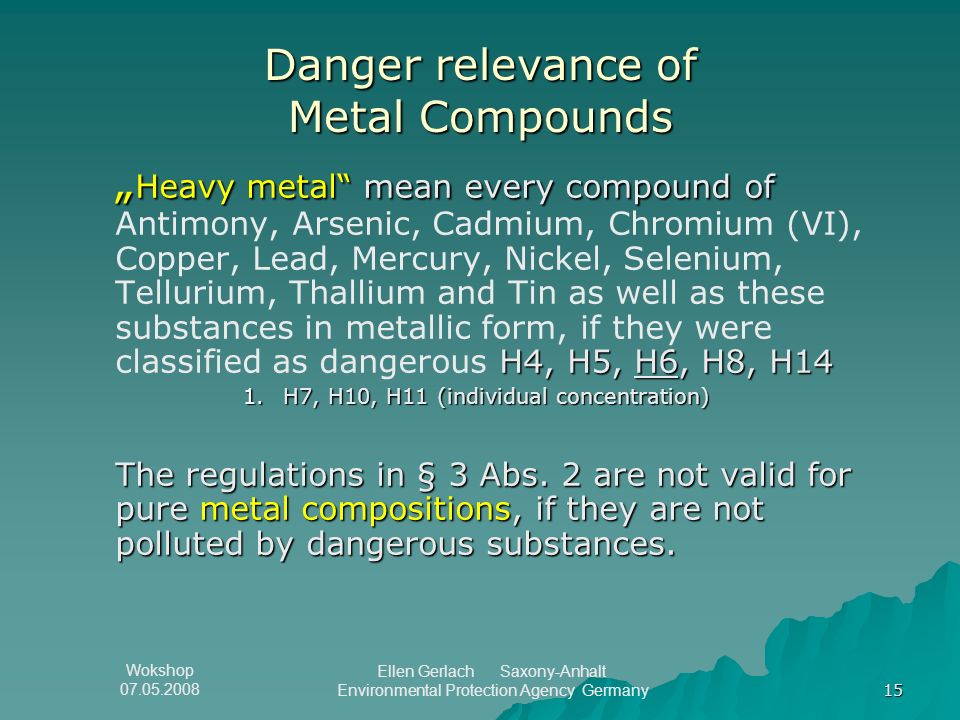

15. Wokshop 07.05.2008 Ellen Gerlach Saxony-Anhalt Environmental Protection Agency Germany 15 Danger relevance of Metal Compounds „ Heavy metal“ mean every compound of H4, H5, H6, H8, H14 „ Heavy metal“ mean every compound of Antimony, Arsenic, Cadmium, Chromium (VI), Copper, Lead, Mercury, Nickel, Selenium, Tellurium, Thallium and Tin as well as these substances in metallic form, if they were classified as dangerous H4, H5, H6, H8, H14 1.H7, H10, H11 (individual concentration) The regulations in § 3 Abs. 2 are not valid for pure metal compositions, if they are not polluted by dangerous substances.

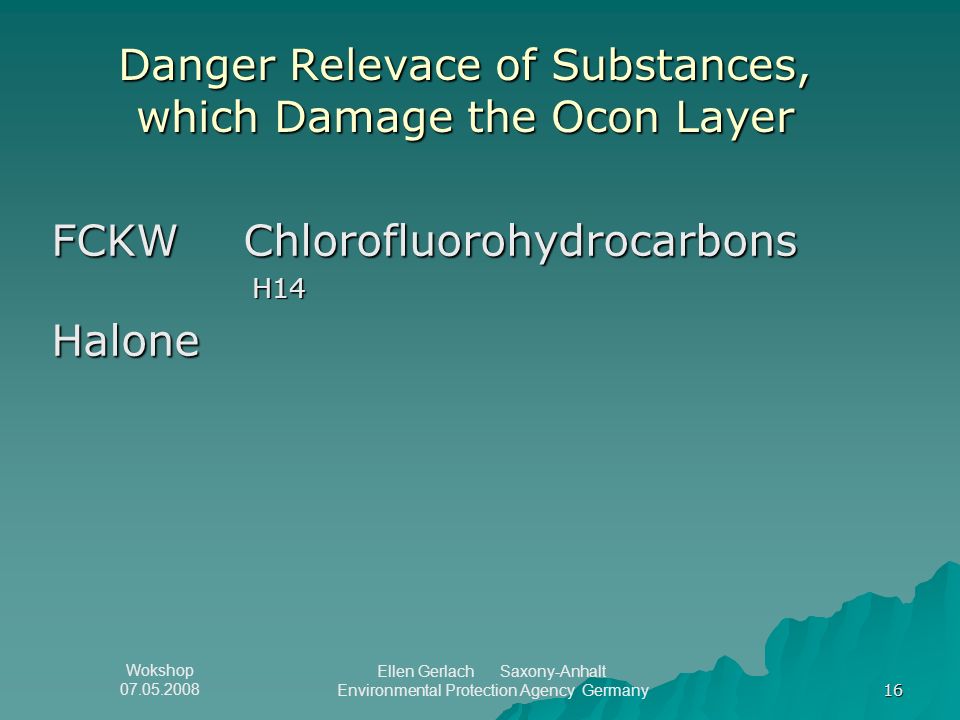

16. Wokshop 07.05.2008 Ellen Gerlach Saxony-Anhalt Environmental Protection Agency Germany 16 Danger Relevace of Substances, which Damage the Ocon Layer FCKW Chlorofluorohydrocarbons H14 H14Halone

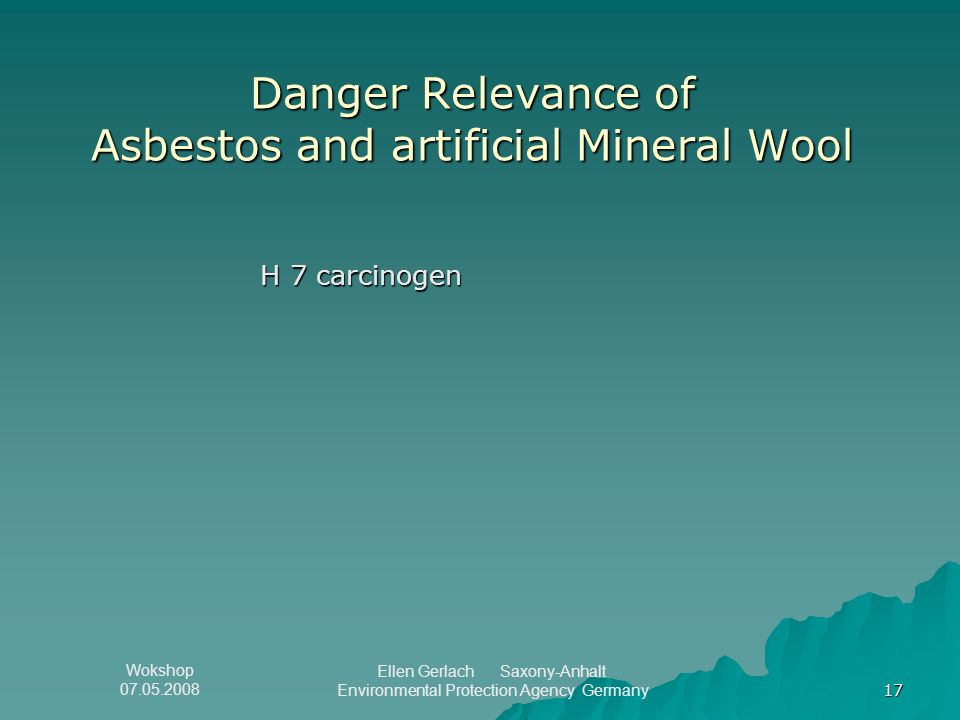

17. Wokshop 07.05.2008 Ellen Gerlach Saxony-Anhalt Environmental Protection Agency Germany 17 Danger Relevance of Asbestos and artificial Mineral Wool H 7 carcinogen H 7 carcinogen

18. Wokshop 07.05.2008 Ellen Gerlach Saxony-Anhalt Environmental Protection Agency Germany 18 Methods of the Assessment of hazardous Properties 1.Is the waste Directive waste? 2.Does the domestic legislation contain specific provisions that relate to the waste in question? 3.How is the waste coded and classified on the EWC 2002? 4.Is the composition of the waste known or can it be determined? 5.Does the waste contain “dangerous substances”? 6.Is there any reason to indicate the waste may be hazardous (e.g. test results)? 7.Does the waste possess any of the hazardous properties H1 to H14?

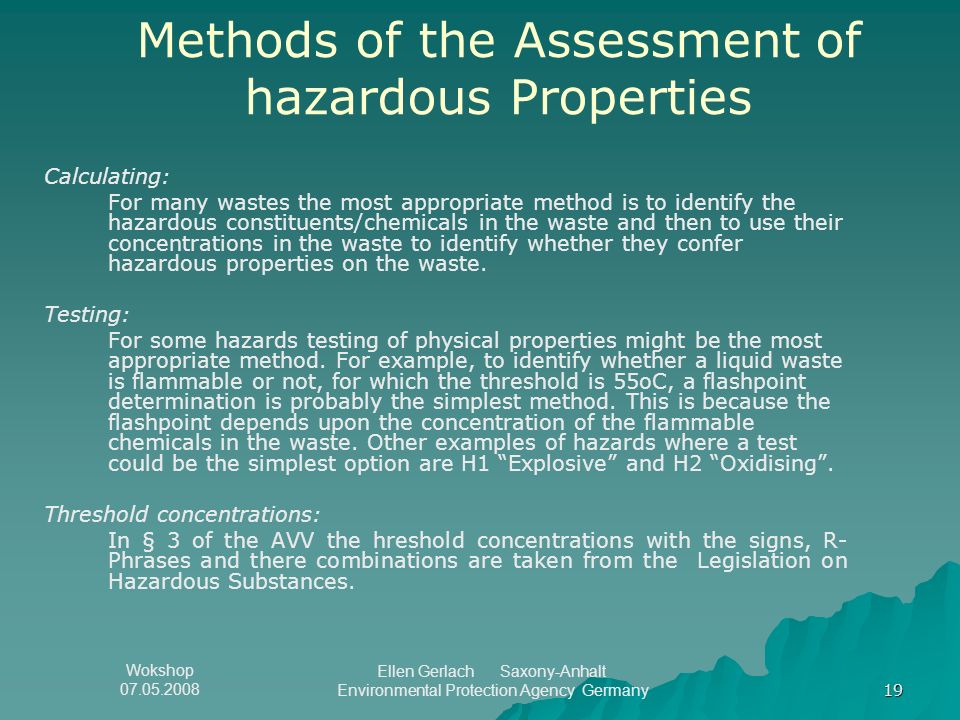

19. Wokshop 07.05.2008 Ellen Gerlach Saxony-Anhalt Environmental Protection Agency Germany 19 Methods of the Assessment of hazardous Properties Calculating: For many wastes the most appropriate method is to identify the hazardous constituents/chemicals in the waste and then to use their concentrations in the waste to identify whether they confer hazardous properties on the waste. Testing: For some hazards testing of physical properties might be the most appropriate method. For example, to identify whether a liquid waste is flammable or not, for which the threshold is 55oC, a flashpoint determination is probably the simplest method. This is because the flashpoint depends upon the concentration of the flammable chemicals in the waste. Other examples of hazards where a test could be the simplest option are H1 “Explosive” and H2 “Oxidising”. Threshold concentrations: In § 3 of the AVV the hreshold concentrations with the signs, R- Phrases and there combinations are taken from the Legislation on Hazardous Substances.
