1. Guide to Computer Forensics and Investigations, Second Edition Chapter 8 Macintosh and Linux Boot Processes and File Systems

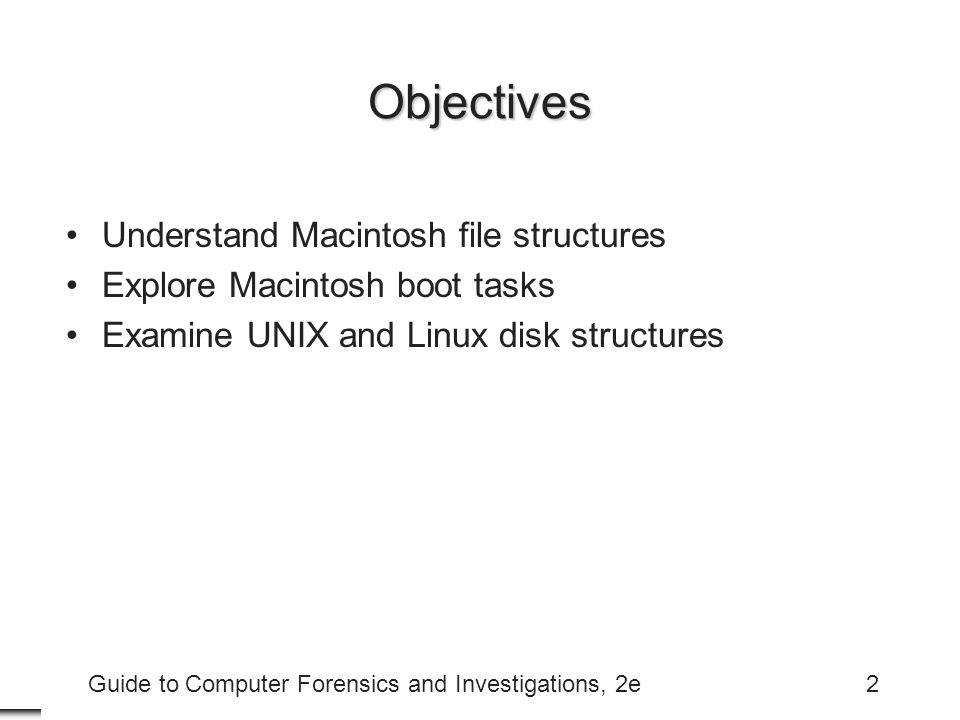

2. Guide to Computer Forensics and Investigations, 2e2 Objectives Understand Macintosh file structures Explore Macintosh boot tasks Examine UNIX and Linux disk structures

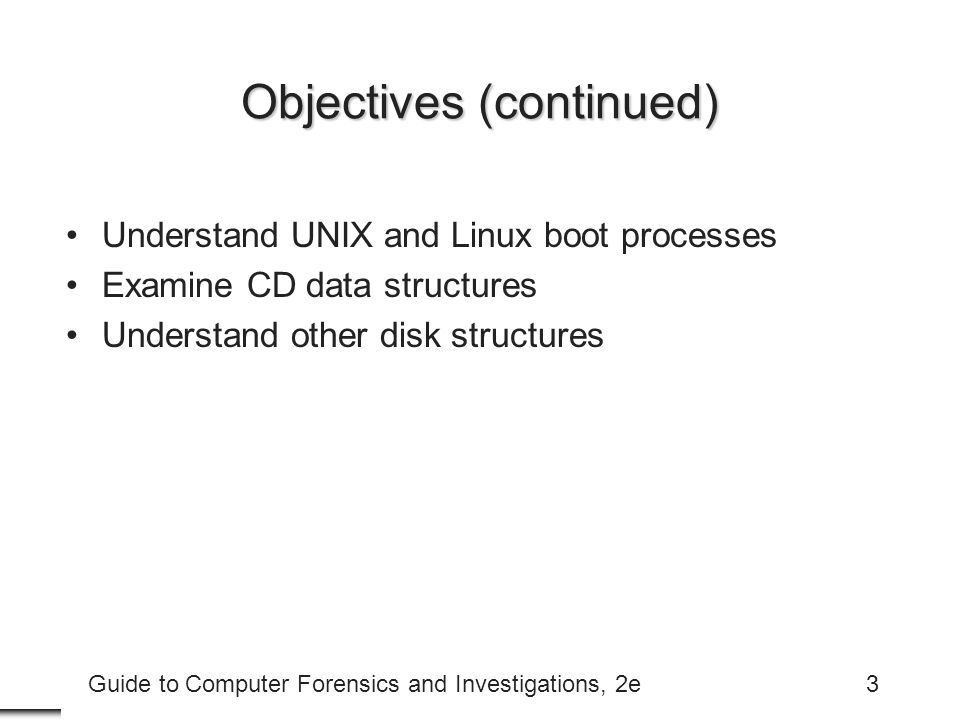

3. Guide to Computer Forensics and Investigations, 2e3 Objectives (continued) Understand UNIX and Linux boot processes Examine CD data structures Understand other disk structures

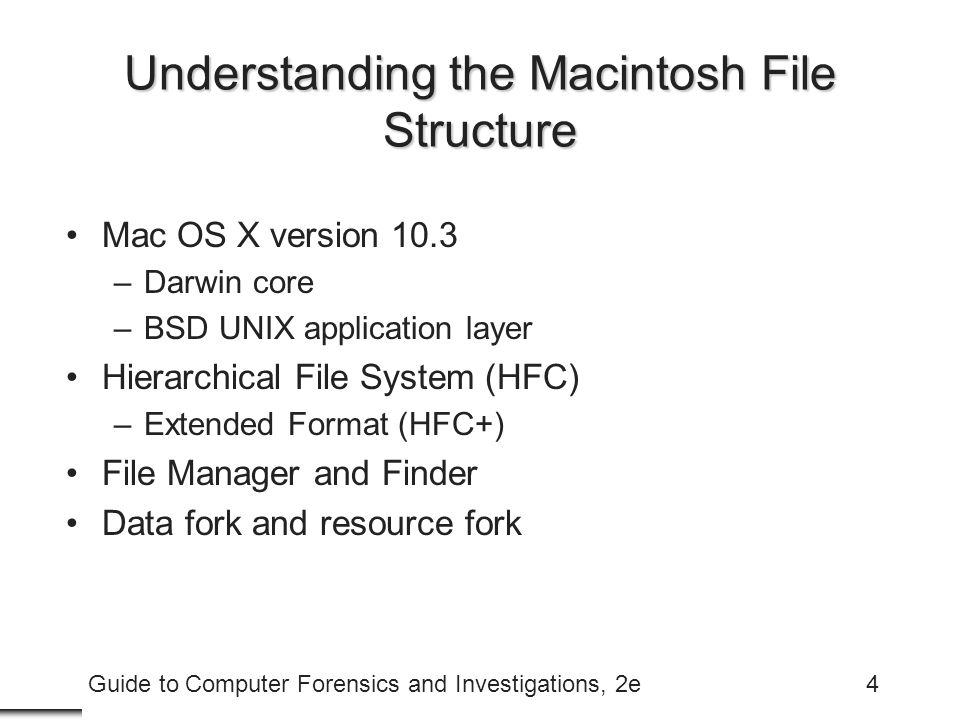

4. Guide to Computer Forensics and Investigations, 2e4 Understanding the Macintosh File Structure Mac OS X version 10.3 –Darwin core –BSD UNIX application layer Hierarchical File System (HFC) –Extended Format (HFC+) File Manager and Finder Data fork and resource fork

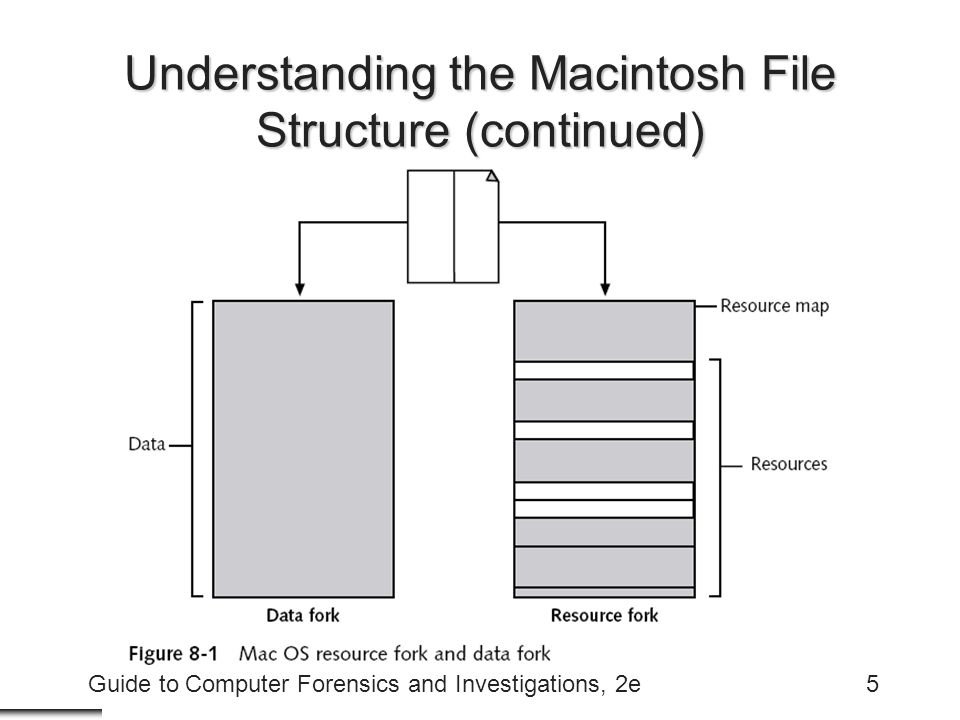

5. Guide to Computer Forensics and Investigations, 2e5 Understanding the Macintosh File Structure (continued)

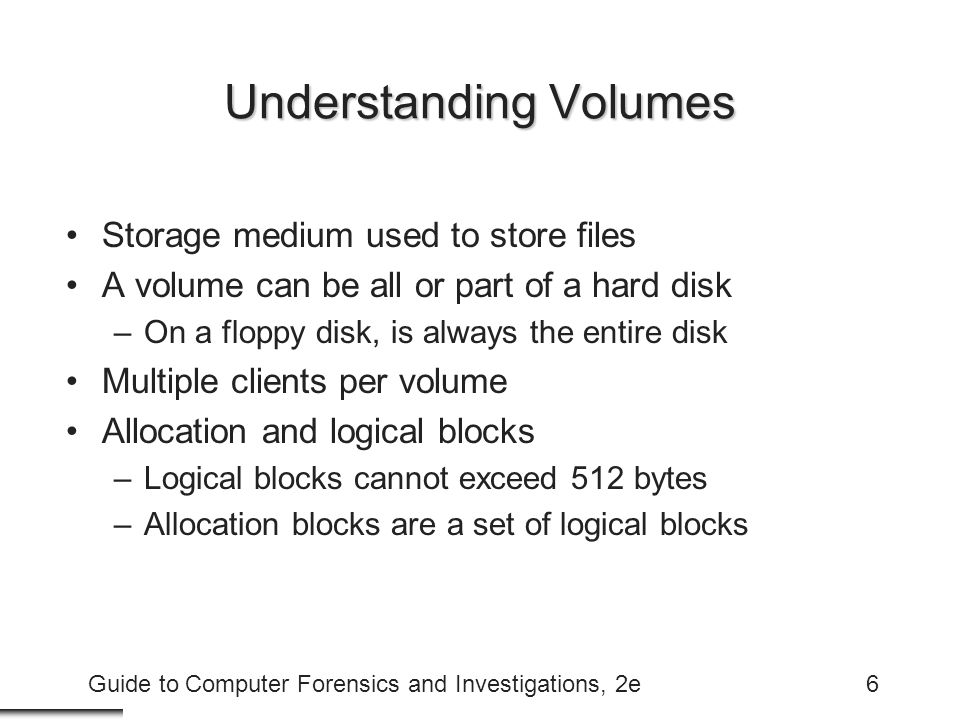

6. Guide to Computer Forensics and Investigations, 2e6 Understanding Volumes Storage medium used to store files A volume can be all or part of a hard disk –On a floppy disk, is always the entire disk Multiple clients per volume Allocation and logical blocks –Logical blocks cannot exceed 512 bytes –Allocation blocks are a set of logical blocks

7. Guide to Computer Forensics and Investigations, 2e7 Understanding Volumes (continued)

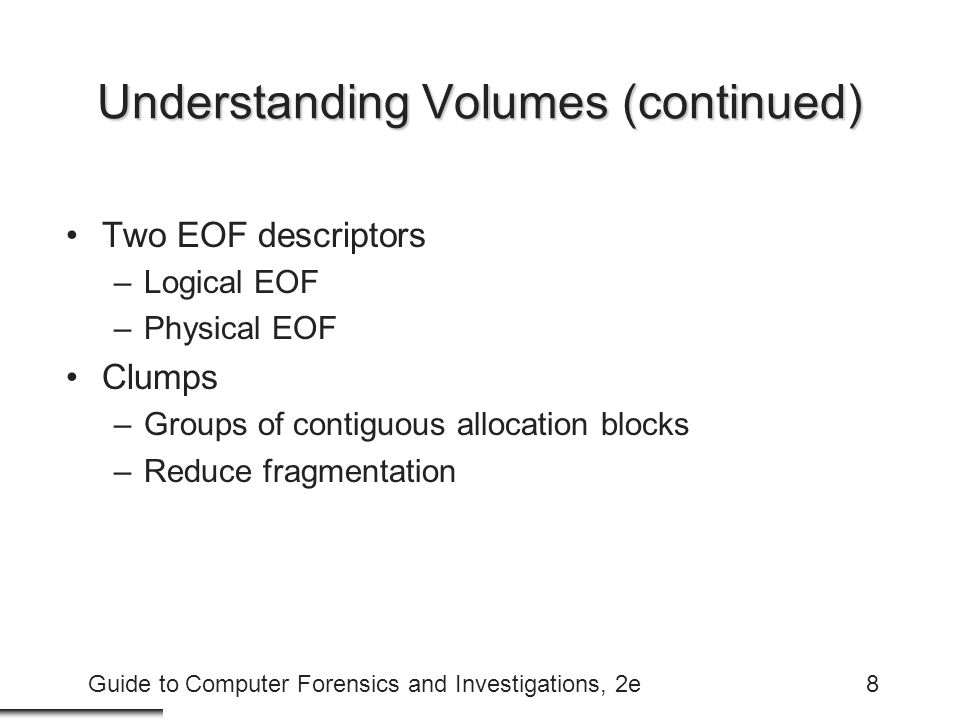

8. Guide to Computer Forensics and Investigations, 2e8 Understanding Volumes (continued) Two EOF descriptors –Logical EOF –Physical EOF Clumps –Groups of contiguous allocation blocks –Reduce fragmentation

9. Guide to Computer Forensics and Investigations, 2e9 Understanding Volumes (continued)

10. Guide to Computer Forensics and Investigations, 2e10 Exploring Macintosh Boot Tasks Use Open Firmware –Processor- and system-independent firmware Older Macintosh OSs –First two logical blocks are boot blocks –Master Directory Block (MDB) or Volume Information Block (VIB) –Extents overflow file –Volume Control Block (VCB)

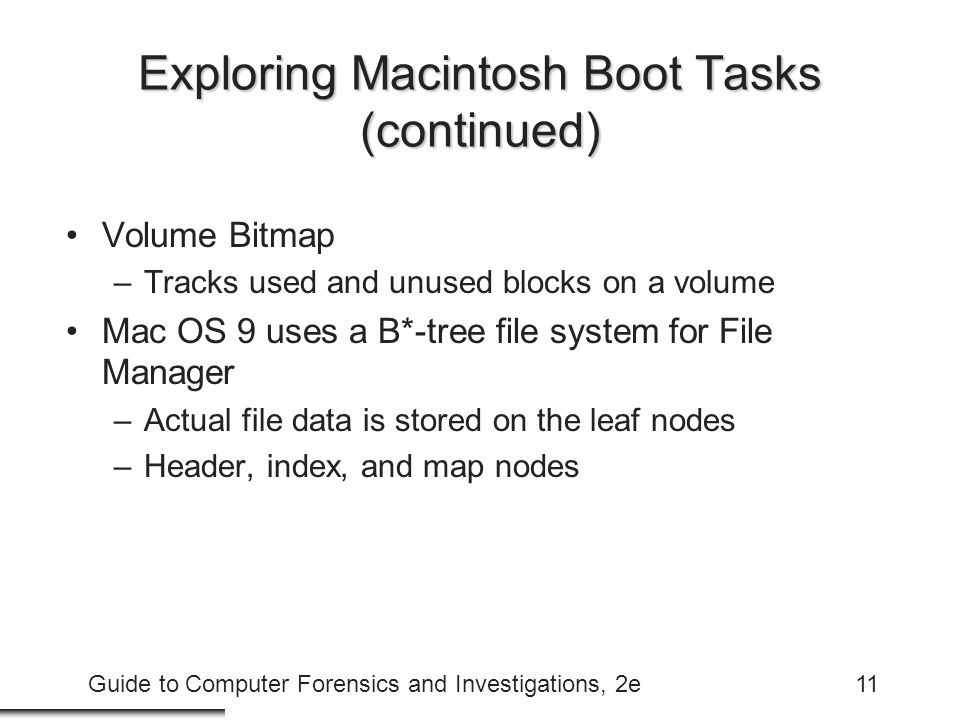

11. Guide to Computer Forensics and Investigations, 2e11 Exploring Macintosh Boot Tasks (continued) Volume Bitmap –Tracks used and unused blocks on a volume Mac OS 9 uses a B*-tree file system for File Manager –Actual file data is stored on the leaf nodes –Header, index, and map nodes

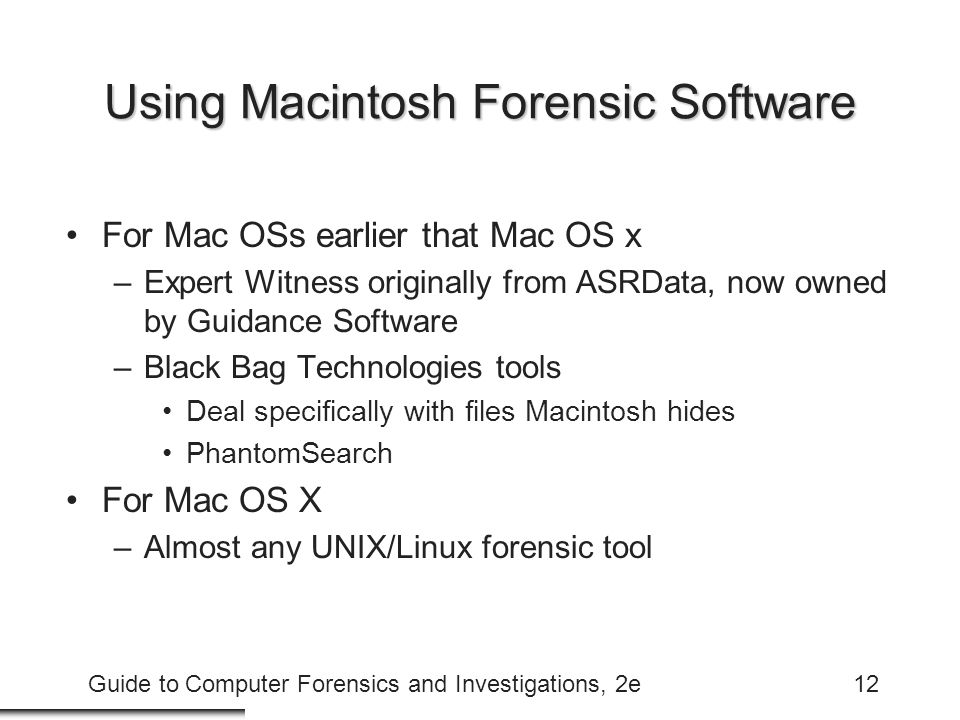

12. Guide to Computer Forensics and Investigations, 2e12 Using Macintosh Forensic Software For Mac OSs earlier that Mac OS x –Expert Witness originally from ASRData, now owned by Guidance Software –Black Bag Technologies tools Deal specifically with files Macintosh hides PhantomSearch For Mac OS X –Almost any UNIX/Linux forensic tool

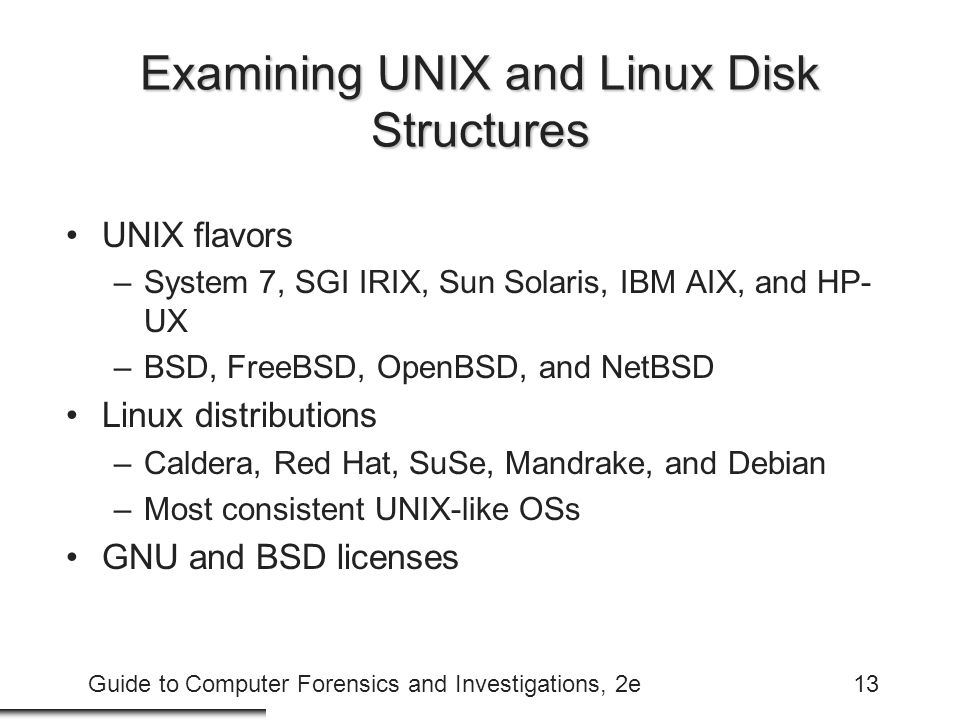

13. Guide to Computer Forensics and Investigations, 2e13 Examining UNIX and Linux Disk Structures UNIX flavors –System 7, SGI IRIX, Sun Solaris, IBM AIX, and HP- UX –BSD, FreeBSD, OpenBSD, and NetBSD Linux distributions –Caldera, Red Hat, SuSe, Mandrake, and Debian –Most consistent UNIX-like OSs GNU and BSD licenses

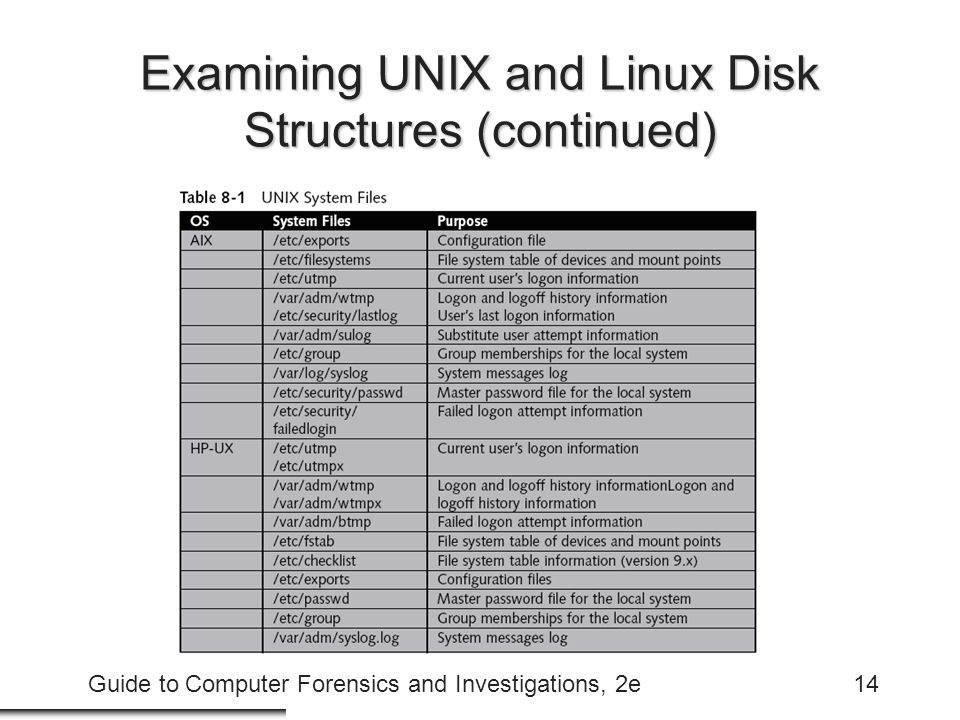

14. Guide to Computer Forensics and Investigations, 2e14 Examining UNIX and Linux Disk Structures (continued)

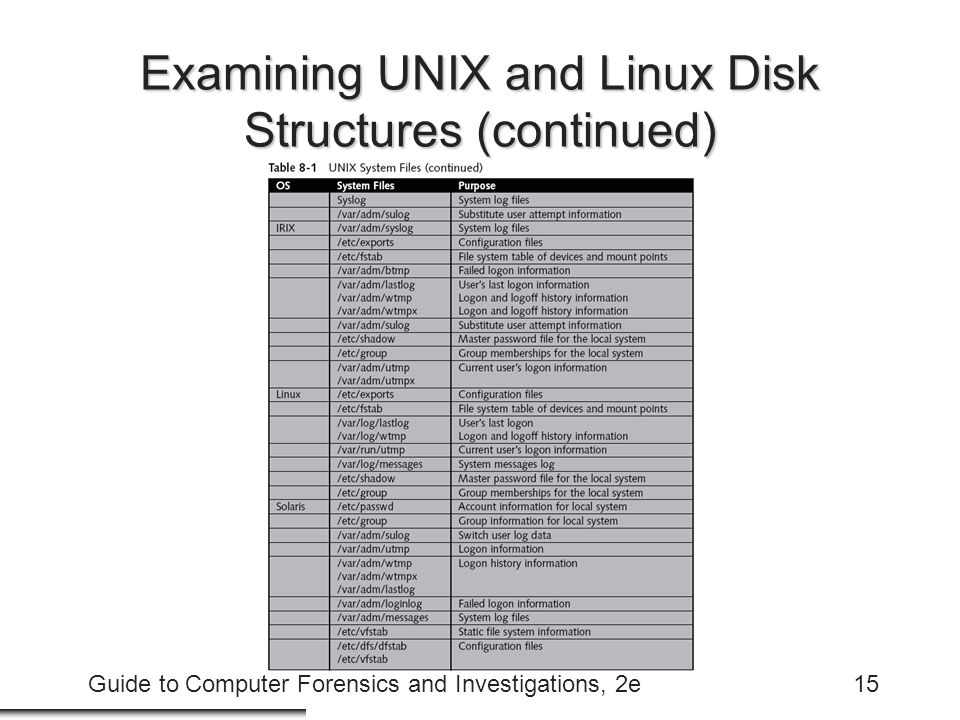

15. Guide to Computer Forensics and Investigations, 2e15 Examining UNIX and Linux Disk Structures (continued)

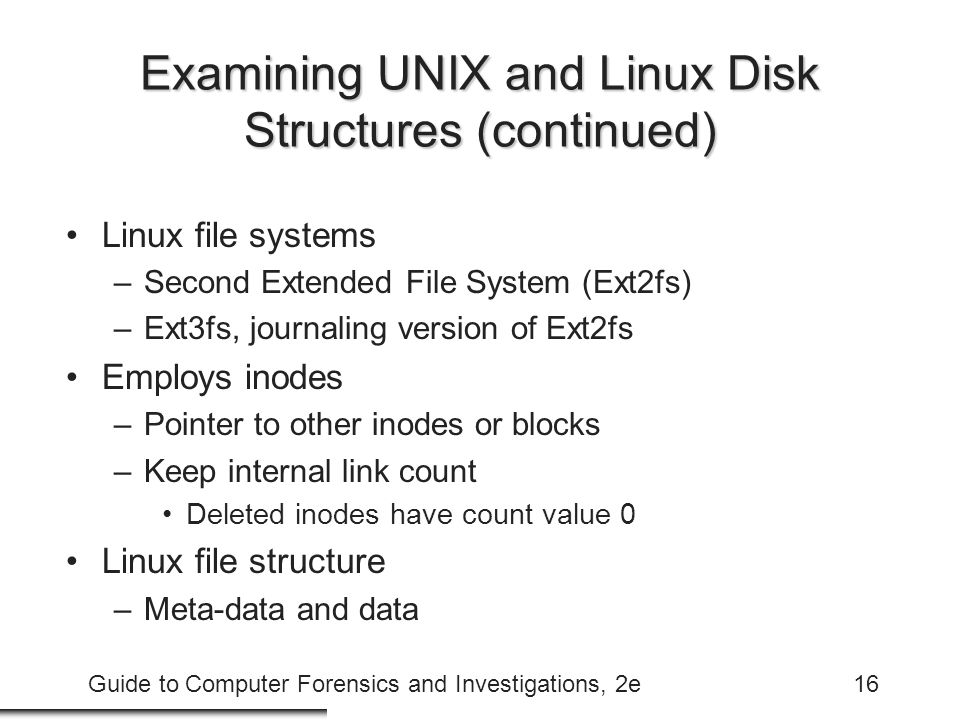

16. Guide to Computer Forensics and Investigations, 2e16 Examining UNIX and Linux Disk Structures (continued) Linux file systems –Second Extended File System (Ext2fs) –Ext3fs, journaling version of Ext2fs Employs inodes –Pointer to other inodes or blocks –Keep internal link count Deleted inodes have count value 0 Linux file structure –Meta-data and data

17. Guide to Computer Forensics and Investigations, 2e17 Examining UNIX and Linux Disk Structures (continued)

18. Guide to Computer Forensics and Investigations, 2e18 UNIX and Linux Overview Everything is a file –Files are defined as objects UNIX consists of four components Boot block –Disk allocation unit of at least 512 bytes –Contains the bootstrap code –Only one

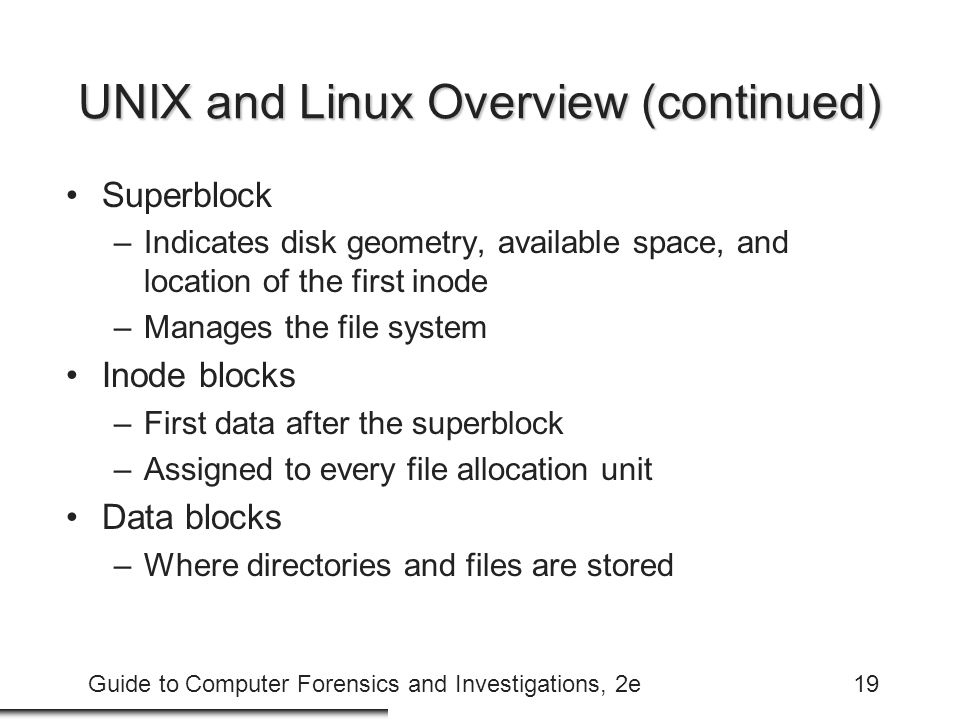

19. Guide to Computer Forensics and Investigations, 2e19 UNIX and Linux Overview (continued) Superblock –Indicates disk geometry, available space, and location of the first inode –Manages the file system Inode blocks –First data after the superblock –Assigned to every file allocation unit Data blocks –Where directories and files are stored

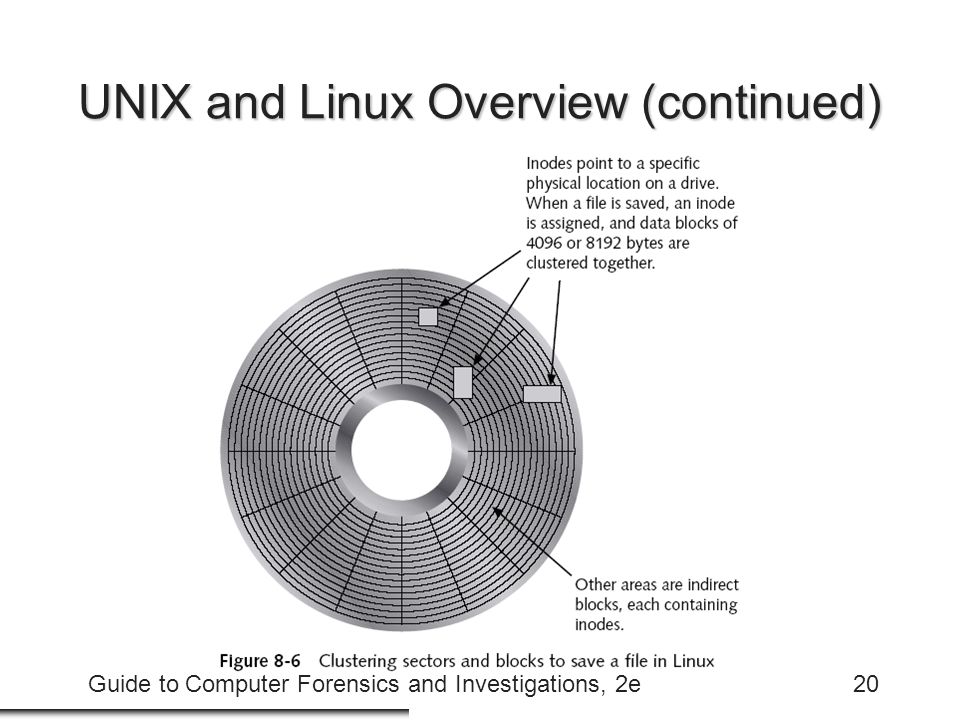

20. Guide to Computer Forensics and Investigations, 2e20 UNIX and Linux Overview (continued)

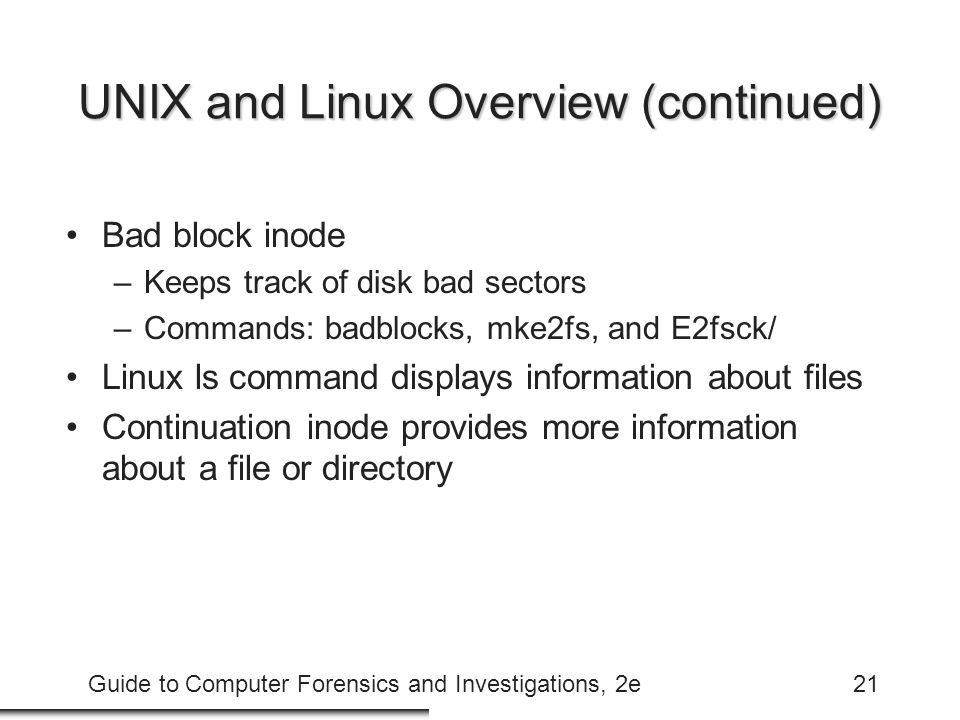

21. Guide to Computer Forensics and Investigations, 2e21 UNIX and Linux Overview (continued) Bad block inode –Keeps track of disk bad sectors –Commands: badblocks, mke2fs, and E2fsck/ Linux ls command displays information about files Continuation inode provides more information about a file or directory

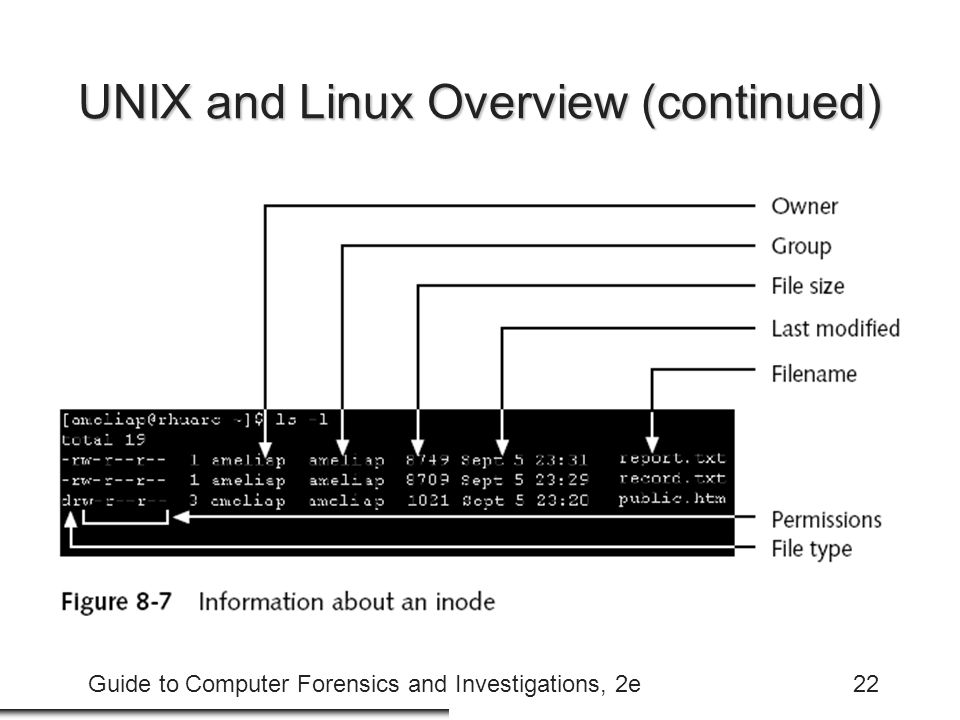

22. Guide to Computer Forensics and Investigations, 2e22 UNIX and Linux Overview (continued)

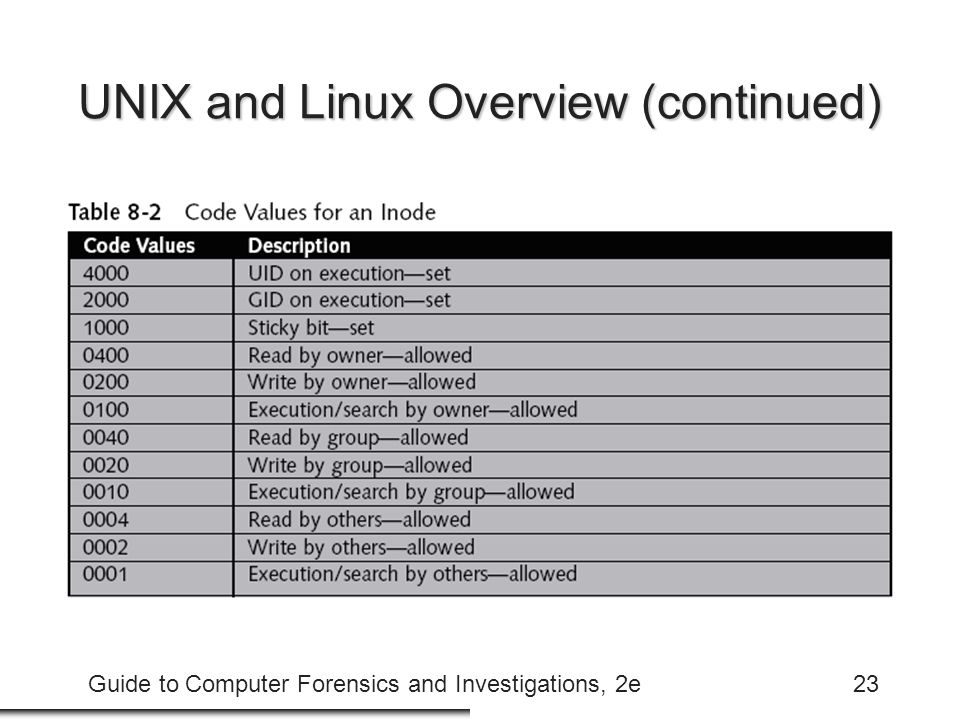

23. Guide to Computer Forensics and Investigations, 2e23 UNIX and Linux Overview (continued)

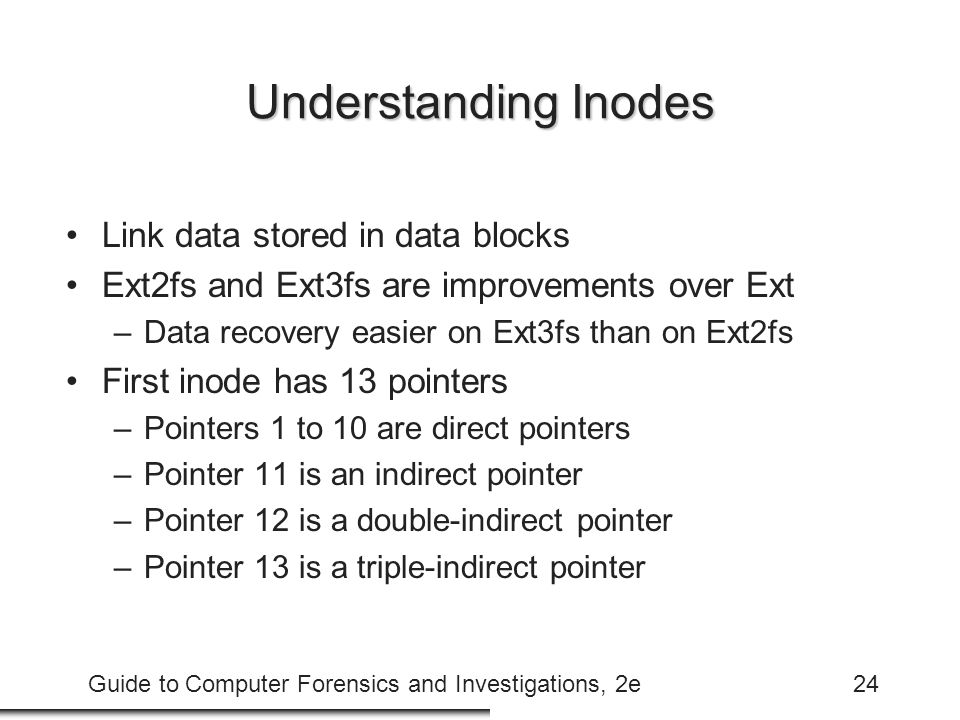

24. Guide to Computer Forensics and Investigations, 2e24 Understanding Inodes Link data stored in data blocks Ext2fs and Ext3fs are improvements over Ext –Data recovery easier on Ext3fs than on Ext2fs First inode has 13 pointers –Pointers 1 to 10 are direct pointers –Pointer 11 is an indirect pointer –Pointer 12 is a double-indirect pointer –Pointer 13 is a triple-indirect pointer

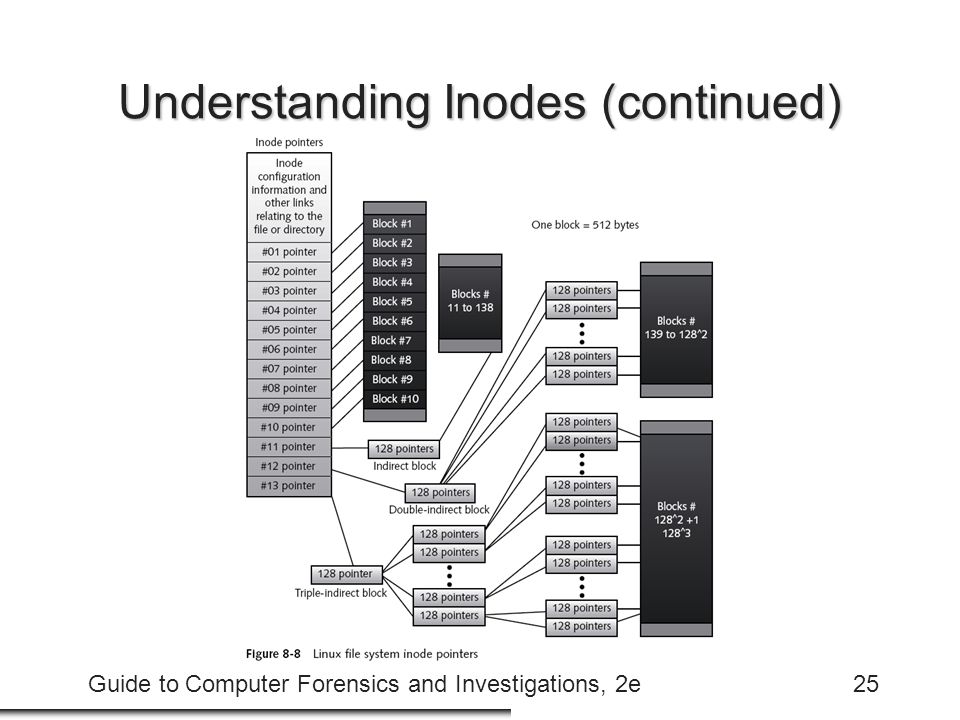

25. Guide to Computer Forensics and Investigations, 2e25 Understanding Inodes (continued)

26. Guide to Computer Forensics and Investigations, 2e26 Understanding Inodes (continued)

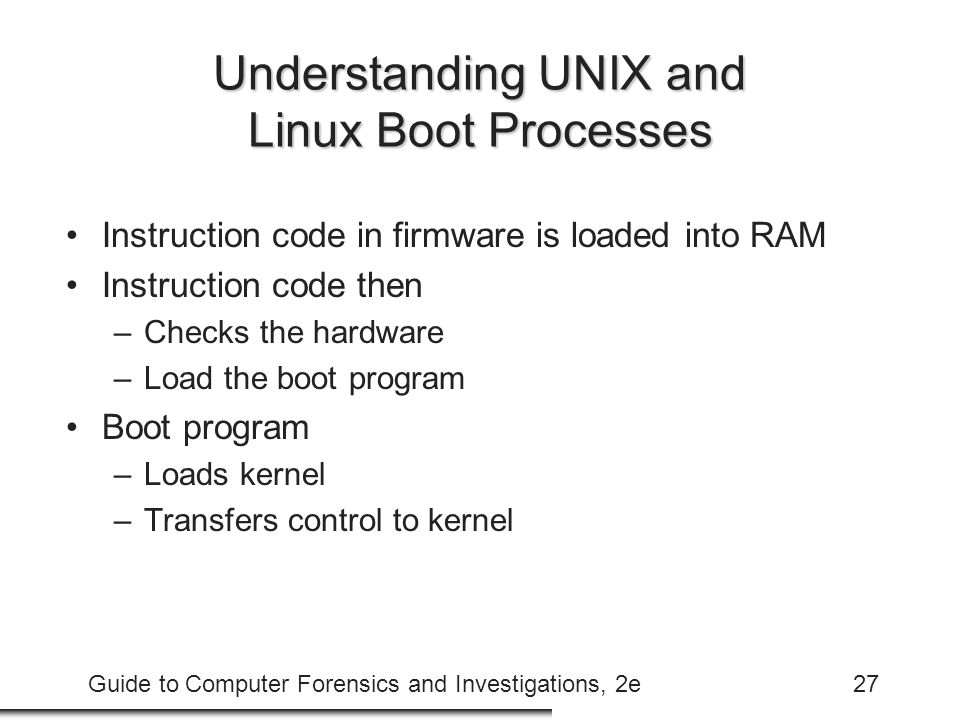

27. Guide to Computer Forensics and Investigations, 2e27 Understanding UNIX and Linux Boot Processes Instruction code in firmware is loaded into RAM Instruction code then –Checks the hardware –Load the boot program Boot program –Loads kernel –Transfers control to kernel

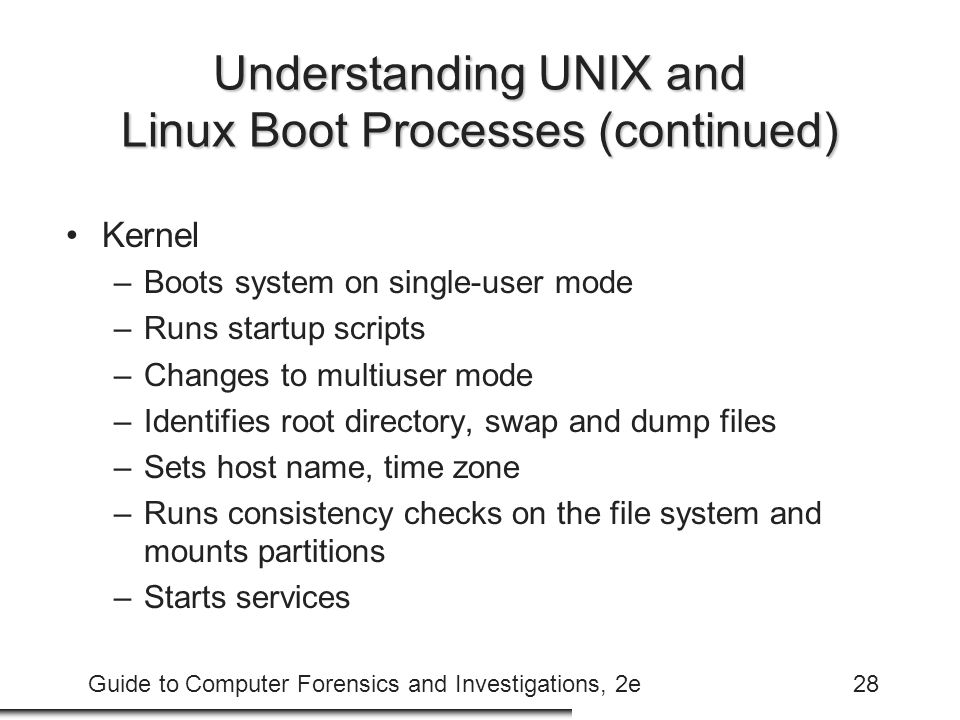

28. Guide to Computer Forensics and Investigations, 2e28 Understanding UNIX and Linux Boot Processes (continued) Kernel –Boots system on single-user mode –Runs startup scripts –Changes to multiuser mode –Identifies root directory, swap and dump files –Sets host name, time zone –Runs consistency checks on the file system and mounts partitions –Starts services

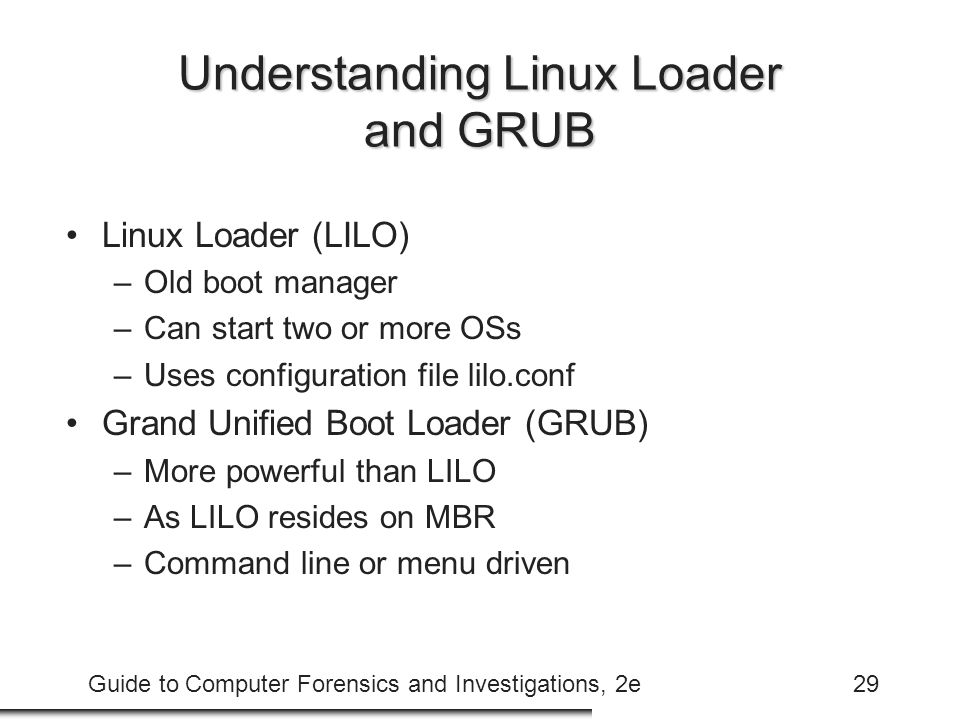

29. Guide to Computer Forensics and Investigations, 2e29 Understanding Linux Loader and GRUB Linux Loader (LILO) –Old boot manager –Can start two or more OSs –Uses configuration file lilo.conf Grand Unified Boot Loader (GRUB) –More powerful than LILO –As LILO resides on MBR –Command line or menu driven

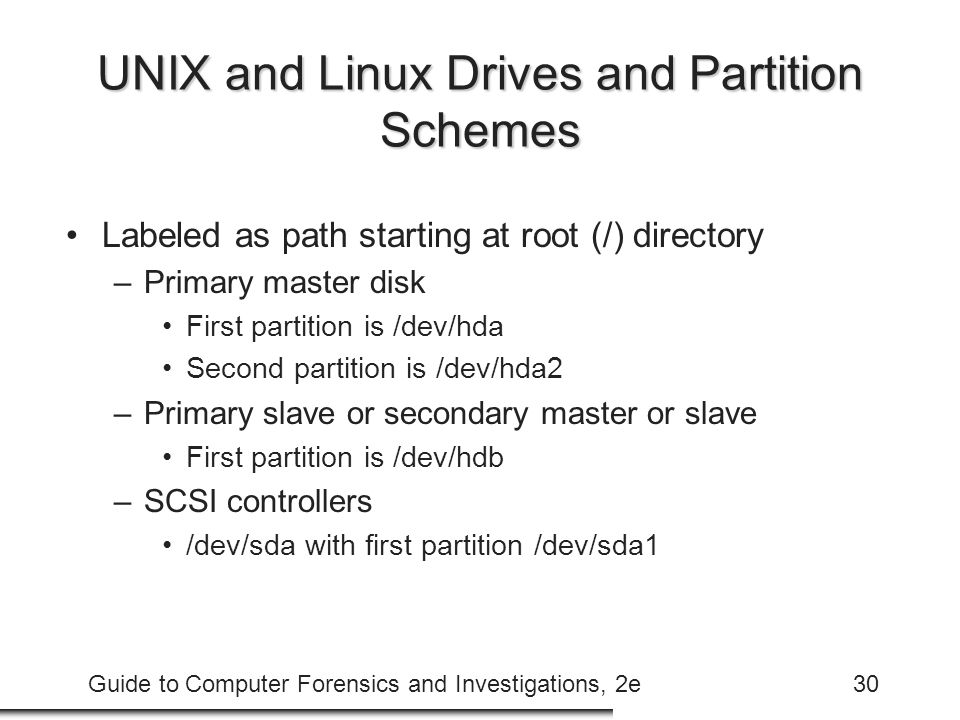

30. Guide to Computer Forensics and Investigations, 2e30 UNIX and Linux Drives and Partition Schemes Labeled as path starting at root (/) directory –Primary master disk First partition is /dev/hda Second partition is /dev/hda2 –Primary slave or secondary master or slave First partition is /dev/hdb –SCSI controllers /dev/sda with first partition /dev/sda1

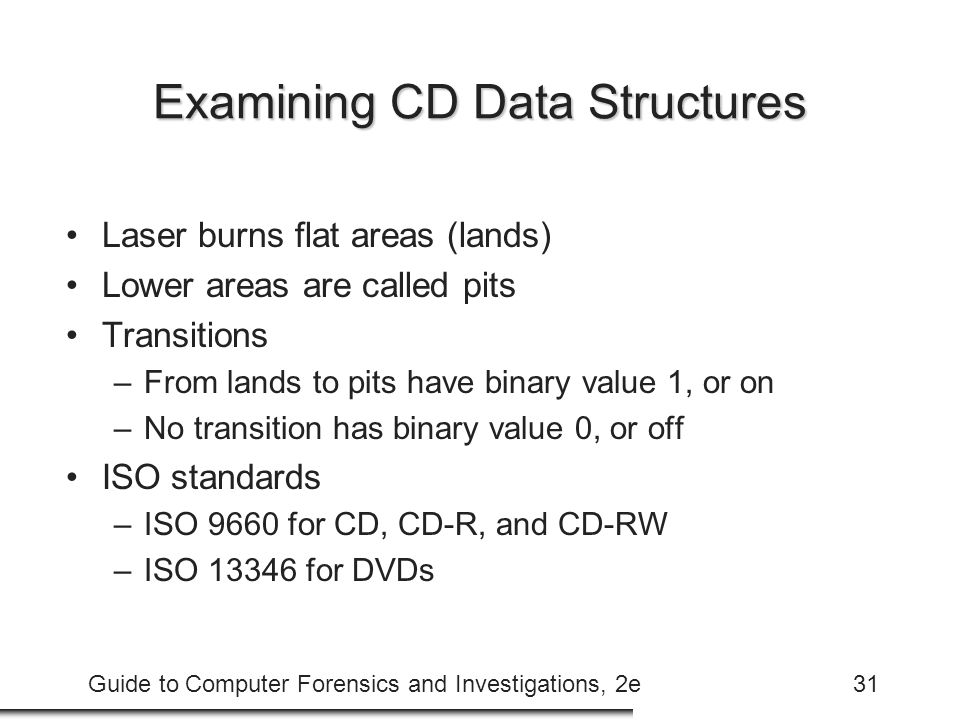

31. Guide to Computer Forensics and Investigations, 2e31 Examining CD Data Structures Laser burns flat areas (lands) Lower areas are called pits Transitions –From lands to pits have binary value 1, or on –No transition has binary value 0, or off ISO standards –ISO 9660 for CD, CD-R, and CD-RW –ISO 13346 for DVDs

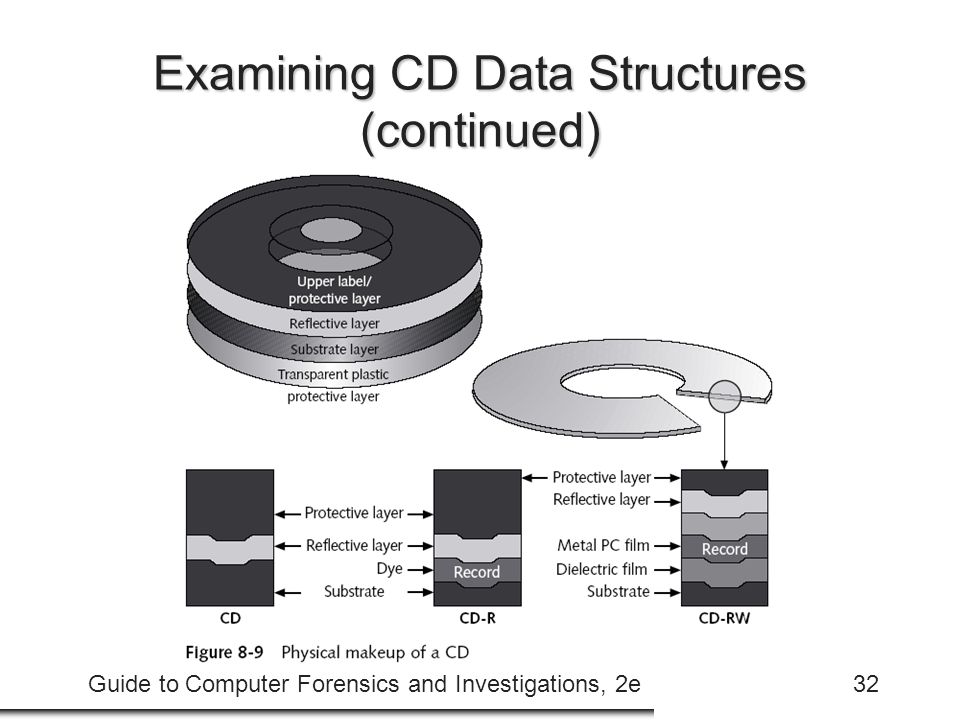

32. Guide to Computer Forensics and Investigations, 2e32 Examining CD Data Structures (continued)

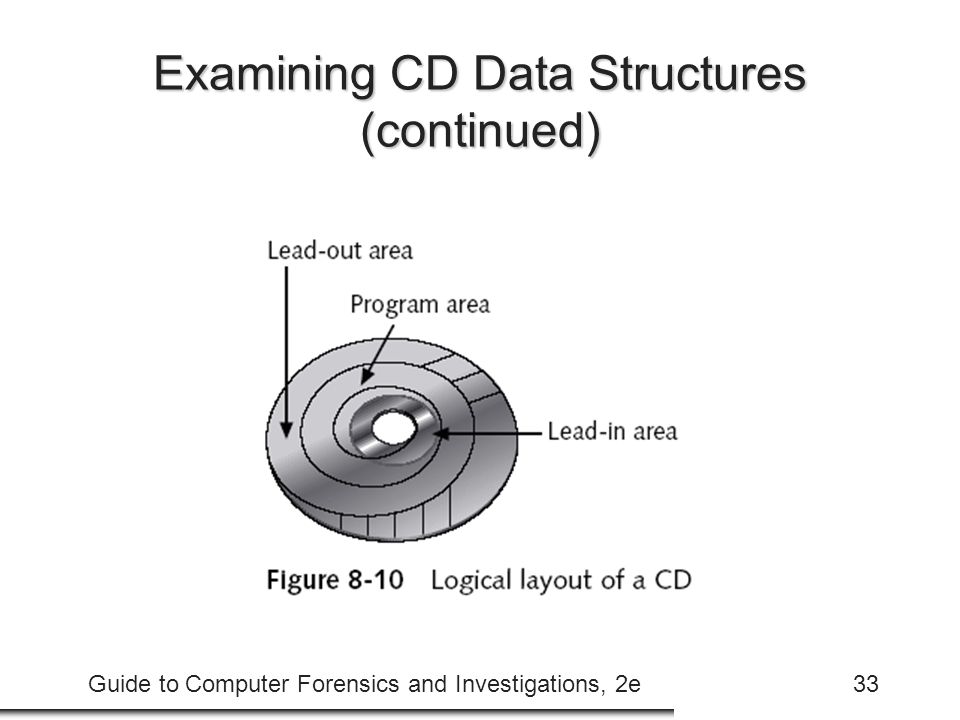

33. Guide to Computer Forensics and Investigations, 2e33 Examining CD Data Structures (continued)

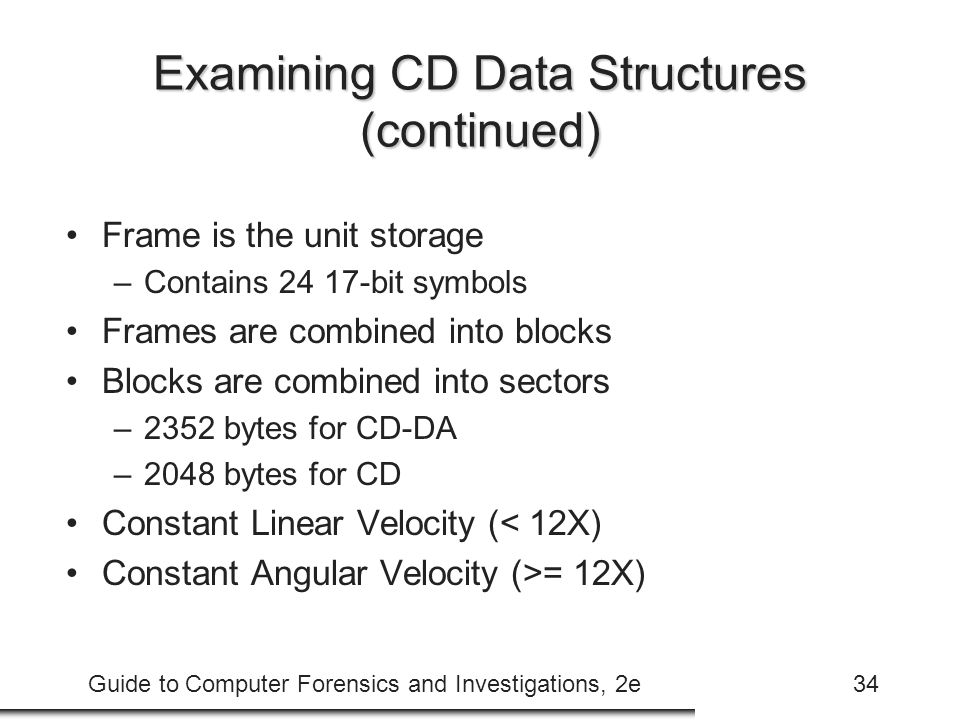

34. Guide to Computer Forensics and Investigations, 2e34 Examining CD Data Structures (continued) Frame is the unit storage –Contains 24 17-bit symbols Frames are combined into blocks Blocks are combined into sectors –2352 bytes for CD-DA –2048 bytes for CD Constant Linear Velocity (< 12X) Constant Angular Velocity (>= 12X)

35. Guide to Computer Forensics and Investigations, 2e35 Understanding Other Disk Structures SCSI disks IDE/EIDE disks RAID configurations

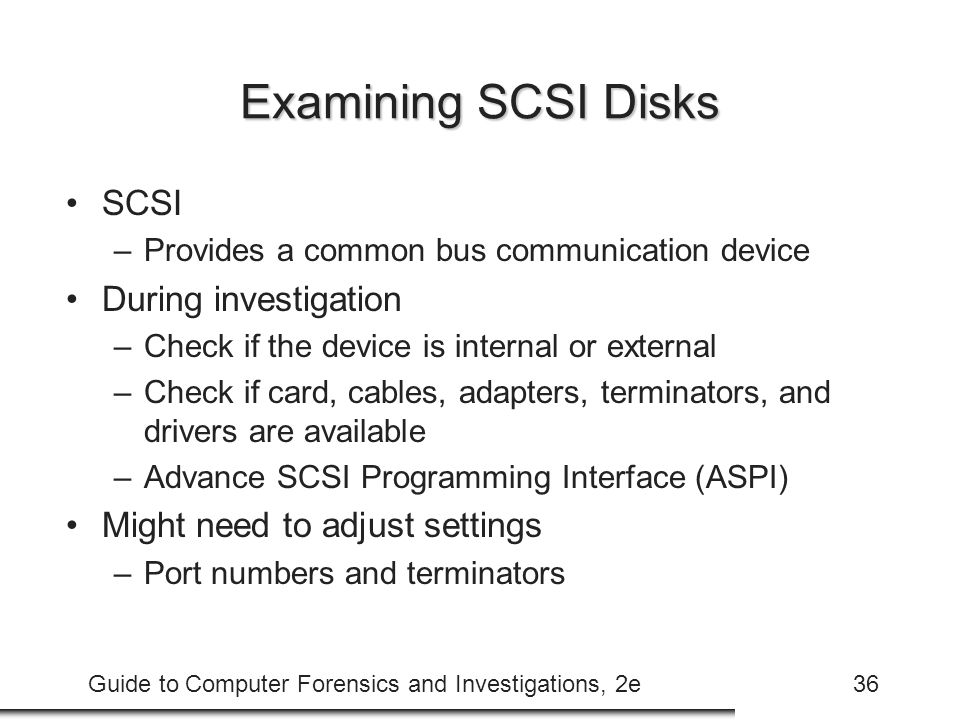

36. Guide to Computer Forensics and Investigations, 2e36 Examining SCSI Disks SCSI –Provides a common bus communication device During investigation –Check if the device is internal or external –Check if card, cables, adapters, terminators, and drivers are available –Advance SCSI Programming Interface (ASPI) Might need to adjust settings –Port numbers and terminators

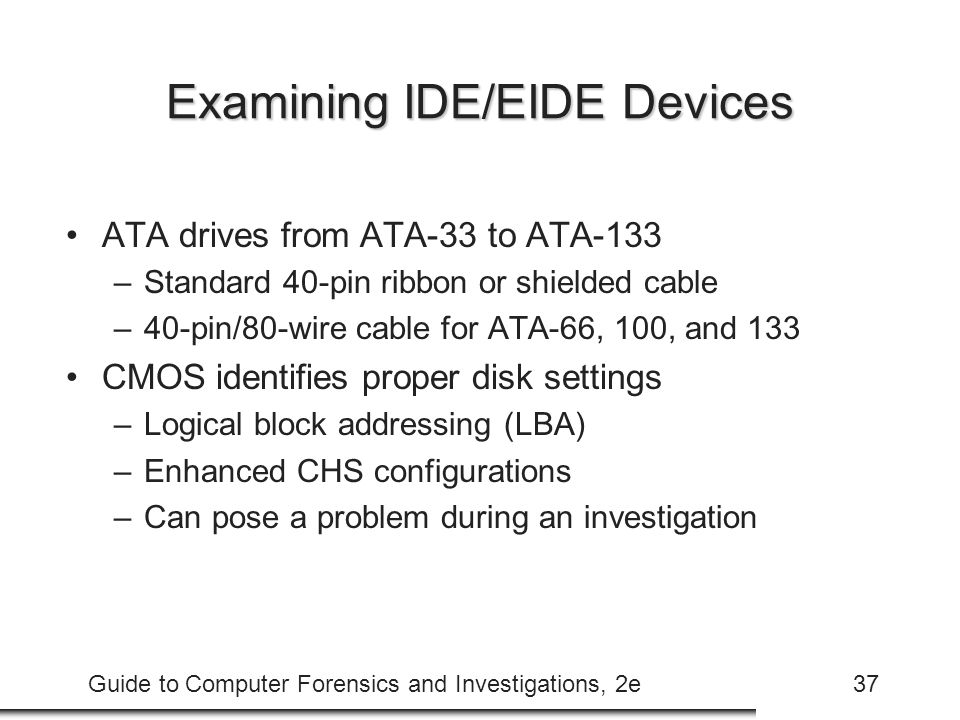

37. Guide to Computer Forensics and Investigations, 2e37 Examining IDE/EIDE Devices ATA drives from ATA-33 to ATA-133 –Standard 40-pin ribbon or shielded cable –40-pin/80-wire cable for ATA-66, 100, and 133 CMOS identifies proper disk settings –Logical block addressing (LBA) –Enhanced CHS configurations –Can pose a problem during an investigation

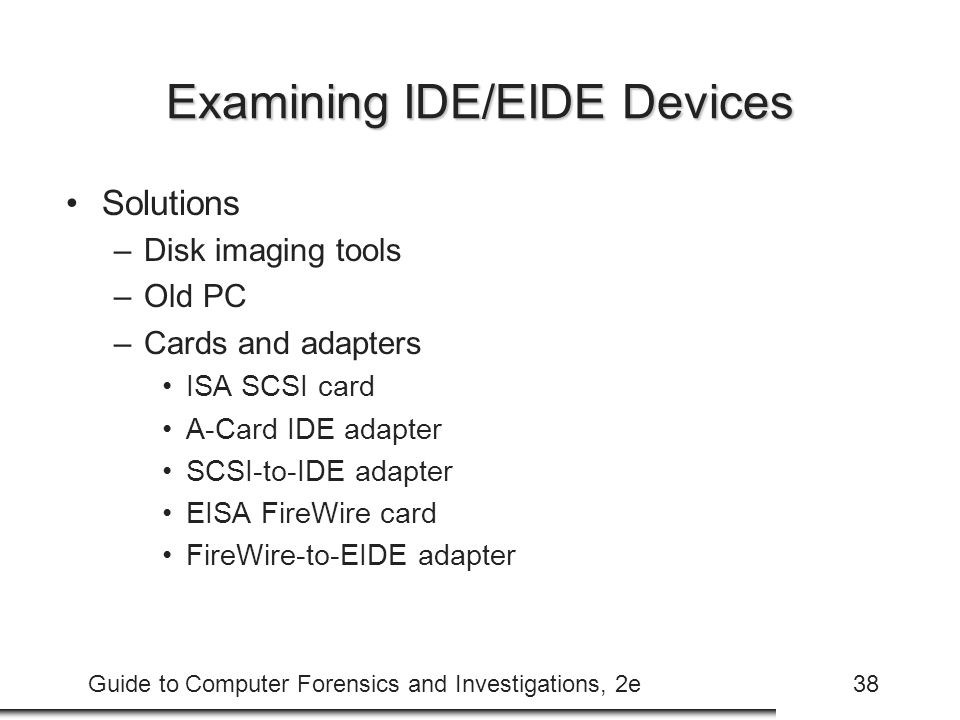

38. Guide to Computer Forensics and Investigations, 2e38 Examining IDE/EIDE Devices Solutions –Disk imaging tools –Old PC –Cards and adapters ISA SCSI card A-Card IDE adapter SCSI-to-IDE adapter EISA FireWire card FireWire-to-EIDE adapter

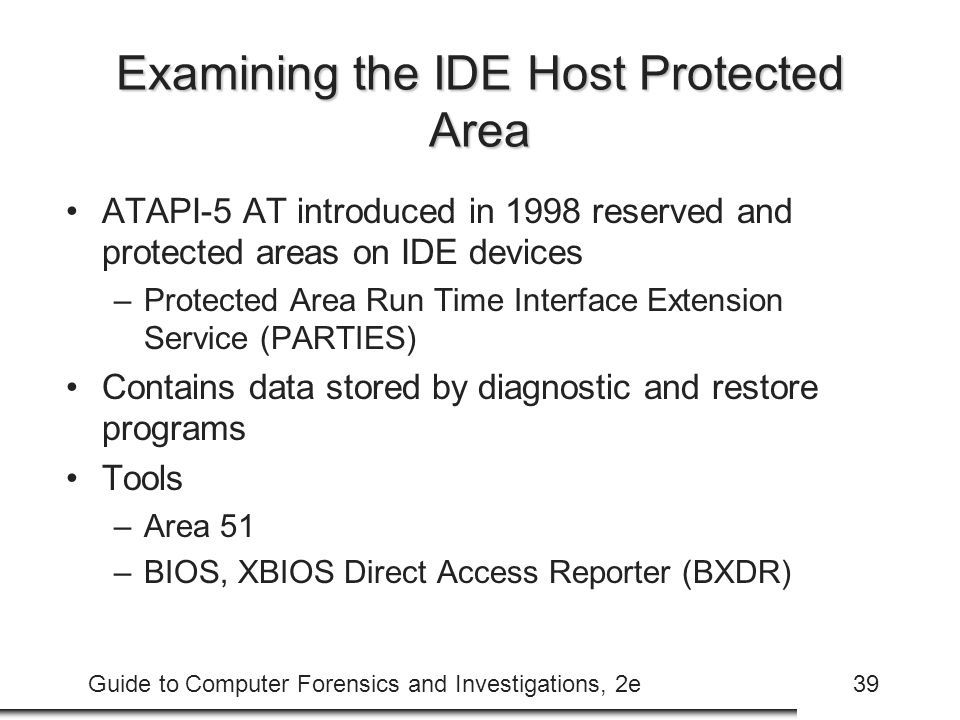

39. Guide to Computer Forensics and Investigations, 2e39 Examining the IDE Host Protected Area ATAPI-5 AT introduced in 1998 reserved and protected areas on IDE devices –Protected Area Run Time Interface Extension Service (PARTIES) Contains data stored by diagnostic and restore programs Tools –Area 51 –BIOS, XBIOS Direct Access Reporter (BXDR)

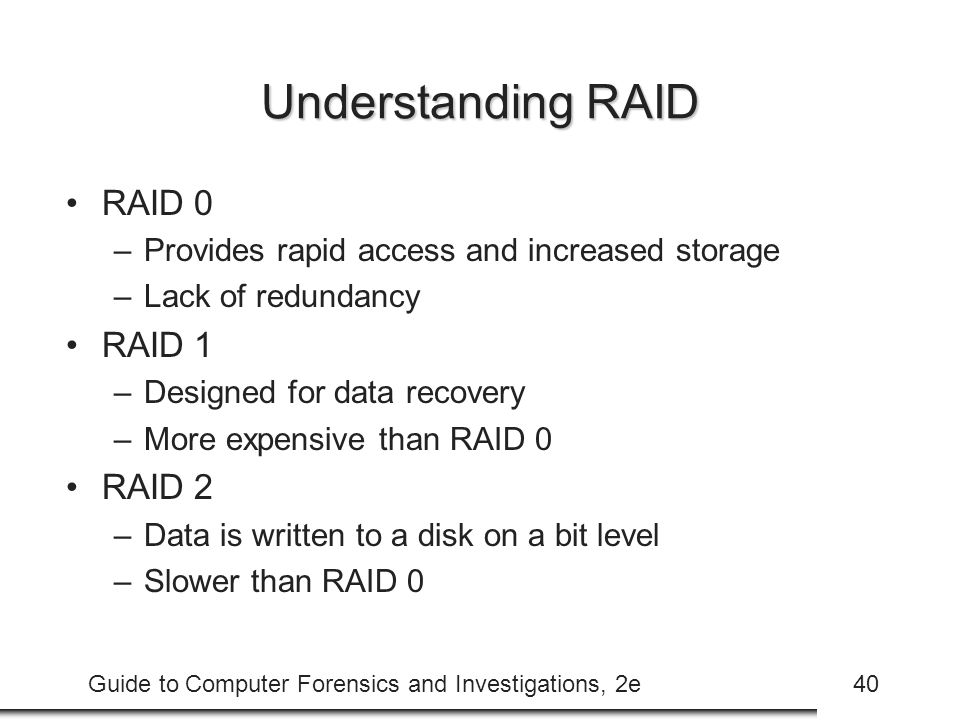

40. Guide to Computer Forensics and Investigations, 2e40 Understanding RAID RAID 0 –Provides rapid access and increased storage –Lack of redundancy RAID 1 –Designed for data recovery –More expensive than RAID 0 RAID 2 –Data is written to a disk on a bit level –Slower than RAID 0

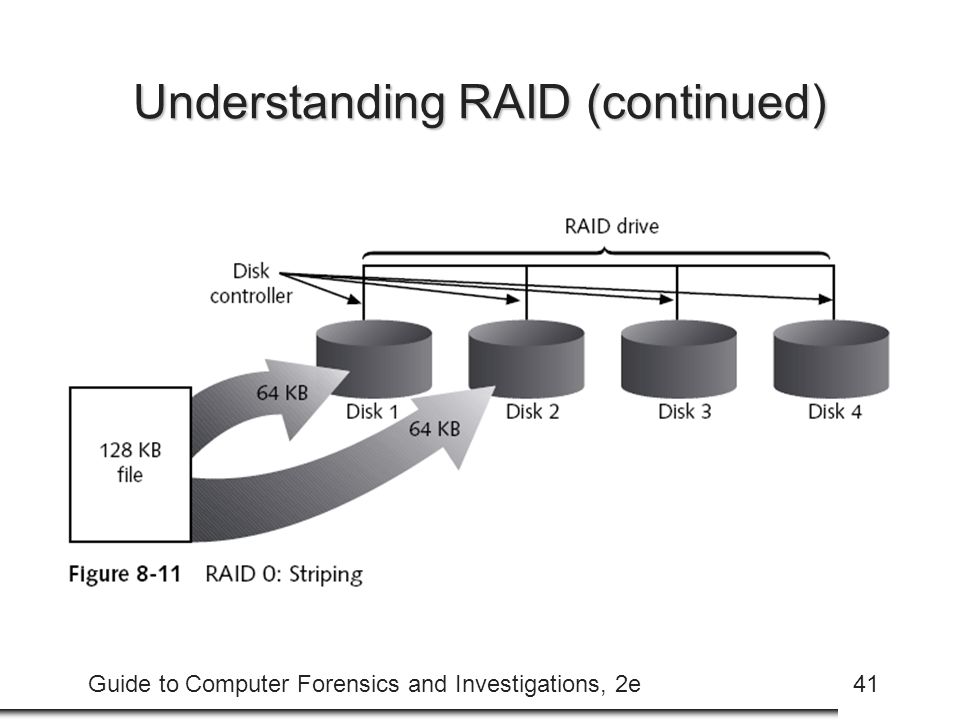

41. Guide to Computer Forensics and Investigations, 2e41 Understanding RAID (continued)

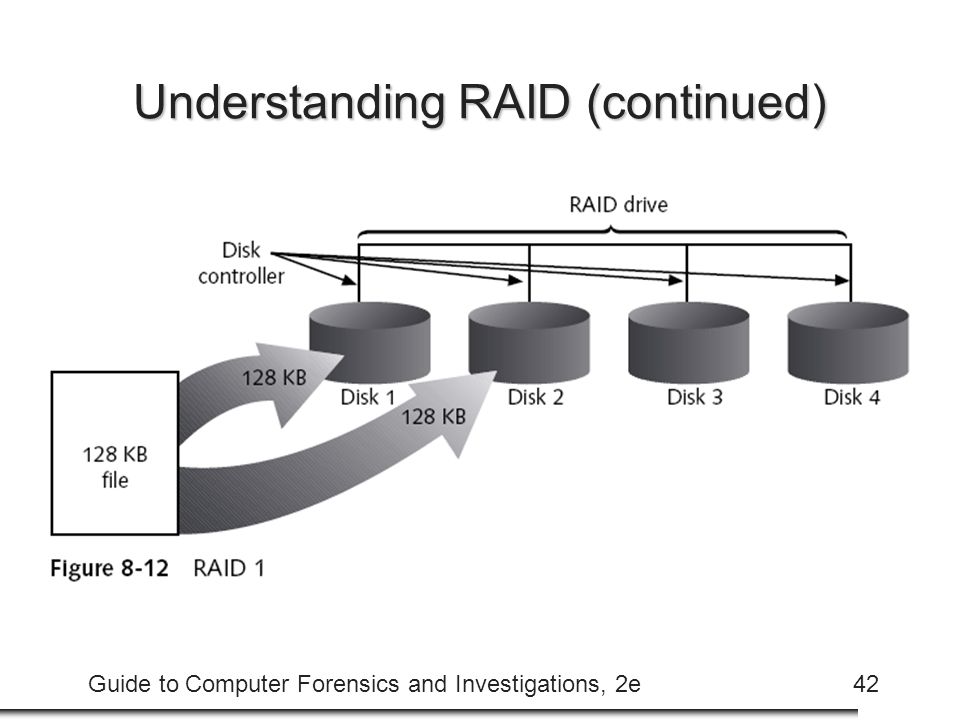

42. Guide to Computer Forensics and Investigations, 2e42 Understanding RAID (continued)

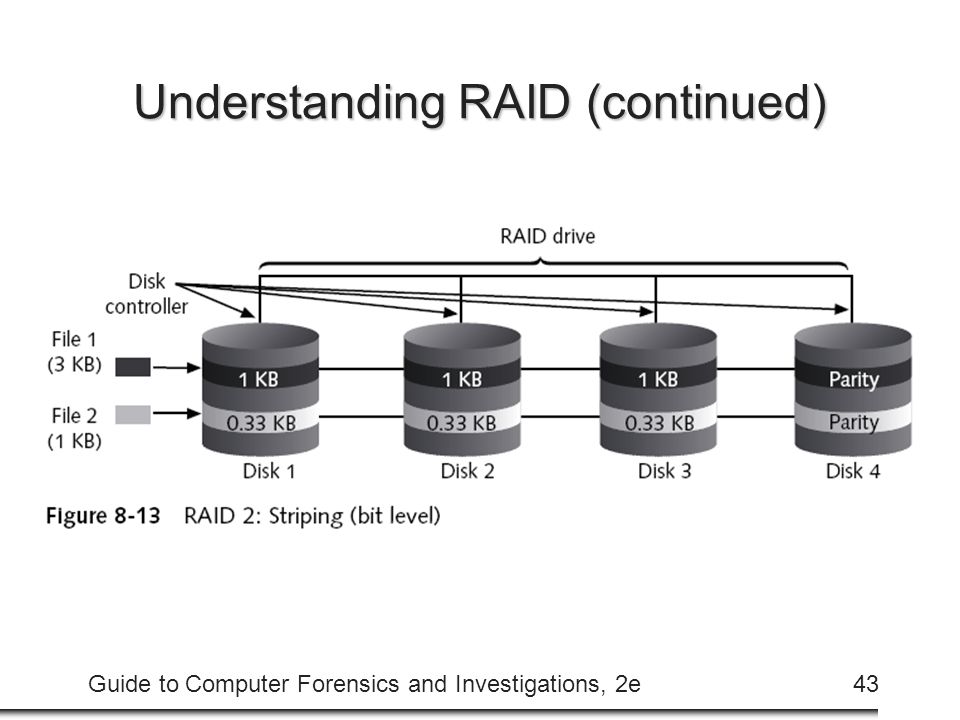

43. Guide to Computer Forensics and Investigations, 2e43 Understanding RAID (continued)

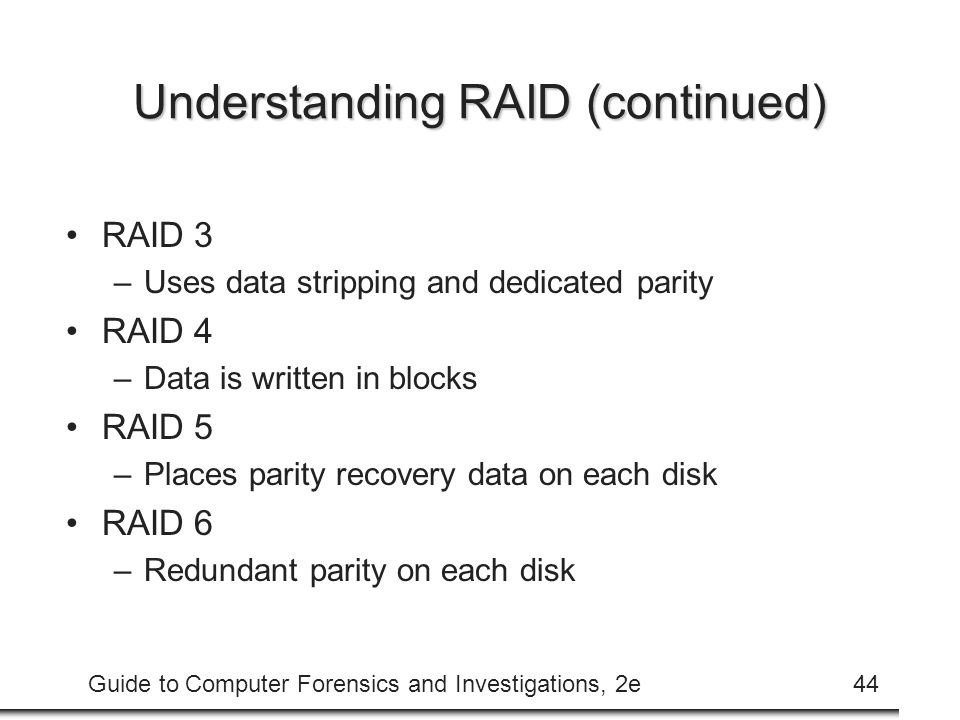

44. Guide to Computer Forensics and Investigations, 2e44 Understanding RAID (continued) RAID 3 –Uses data stripping and dedicated parity RAID 4 –Data is written in blocks RAID 5 –Places parity recovery data on each disk RAID 6 –Redundant parity on each disk

45. Guide to Computer Forensics and Investigations, 2e45 Understanding RAID (continued)

46. Guide to Computer Forensics and Investigations, 2e46 Summary Macintosh uses HFS –Hierarchical structure Mac OS file structure –Data fork and resource fork Volume refers to any storage media –Allocation and logical blocks Ext2fs uses inodes –Ext3fs: journaling version of Ext2fs

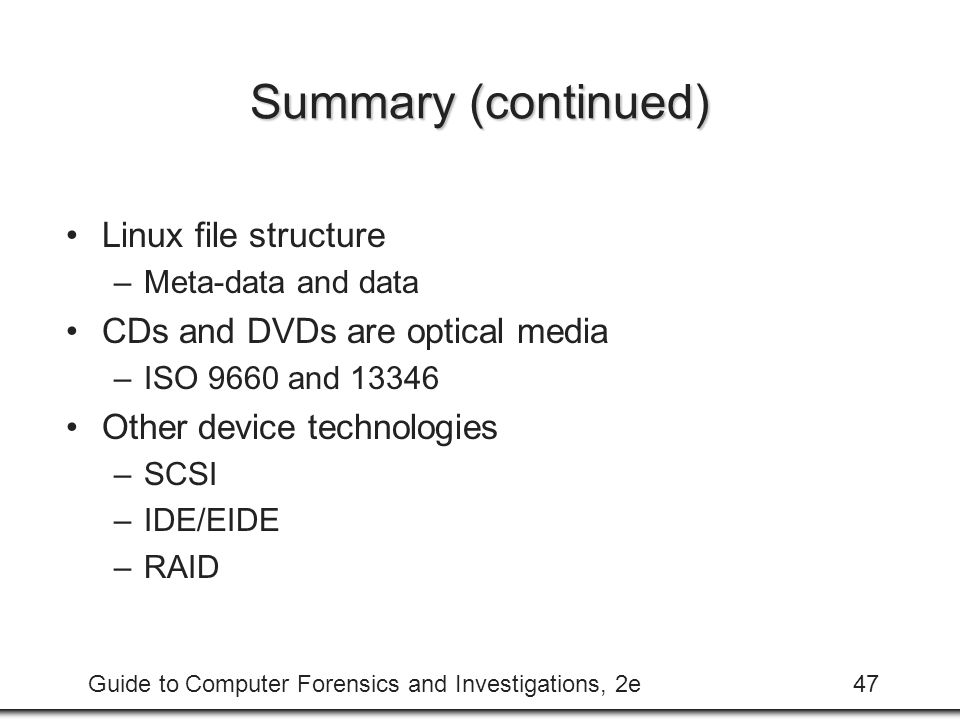

47. Guide to Computer Forensics and Investigations, 2e47 Summary (continued) Linux file structure –Meta-data and data CDs and DVDs are optical media –ISO 9660 and 13346 Other device technologies –SCSI –IDE/EIDE –RAID
