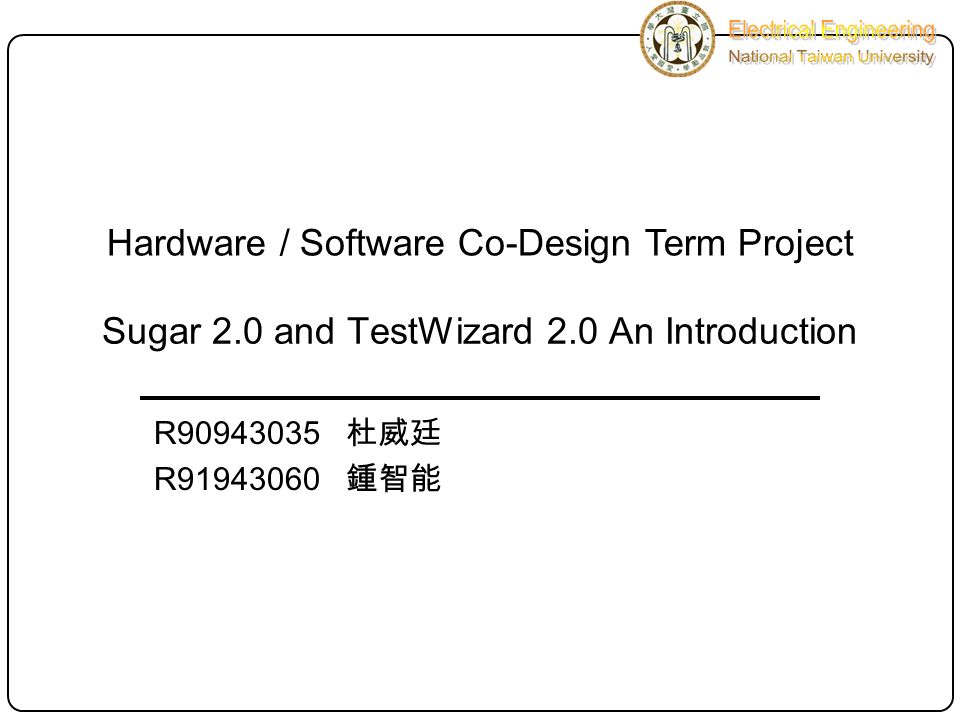

1. Sugar 2.0 and TestWizard 2.0 An Introduction R90943035 杜威廷 R91943060 鍾智能 Hardware / Software Co-Design Term Project

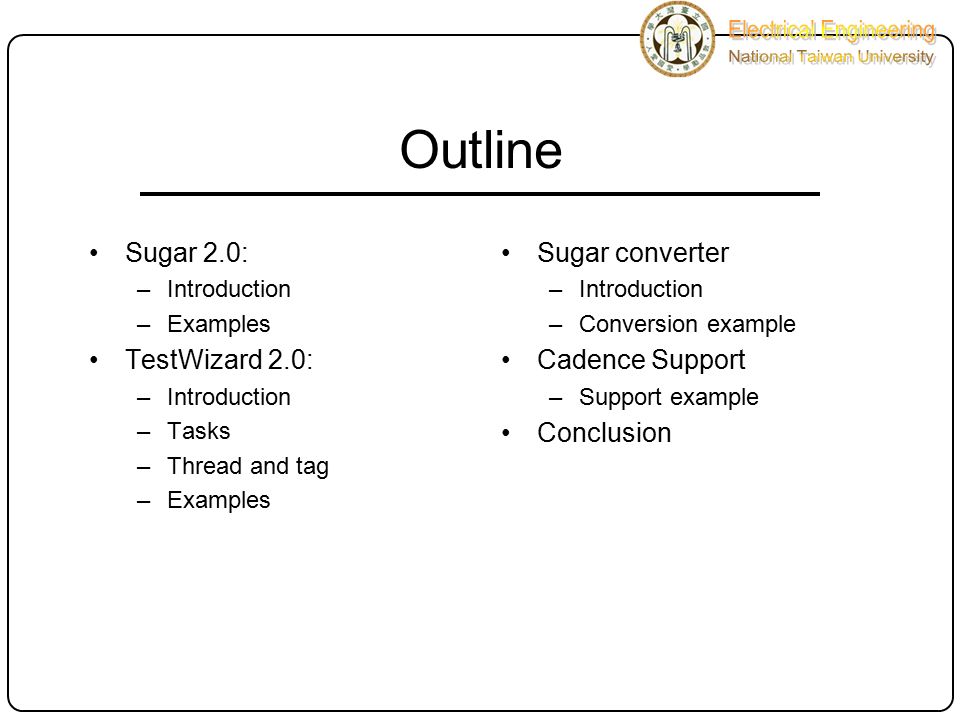

2. Outline Sugar 2.0: –Introduction –Examples TestWizard 2.0: –Introduction –Tasks –Thread and tag –Examples Sugar converter –Introduction –Conversion example Cadence Support –Support example Conclusion

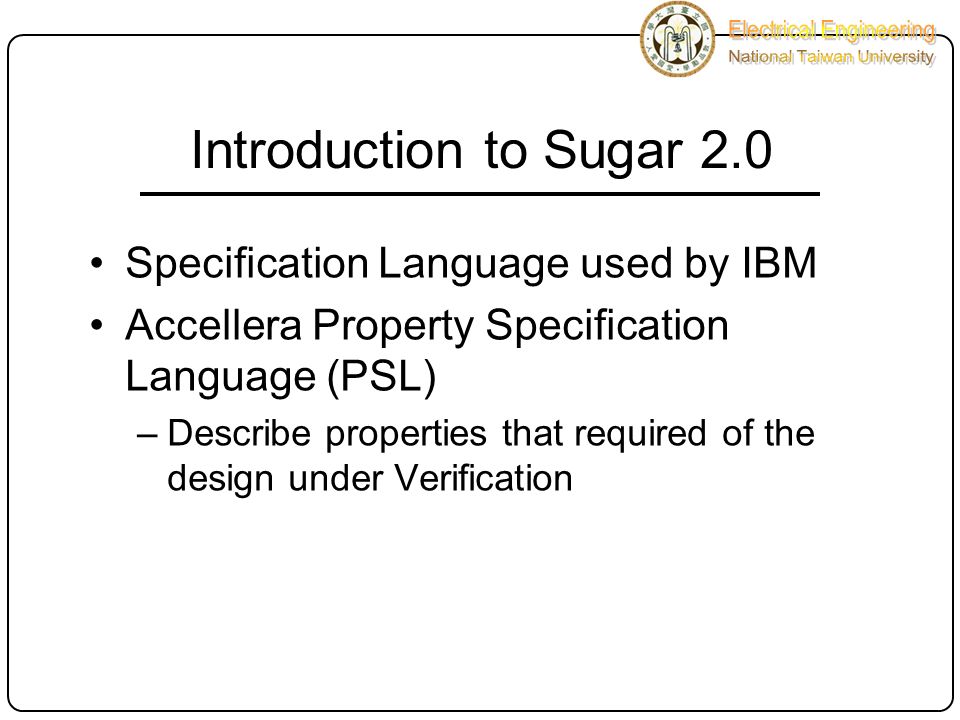

3. Introduction to Sugar 2.0 Specification Language used by IBM Accellera Property Specification Language (PSL) –Describe properties that required of the design under Verification

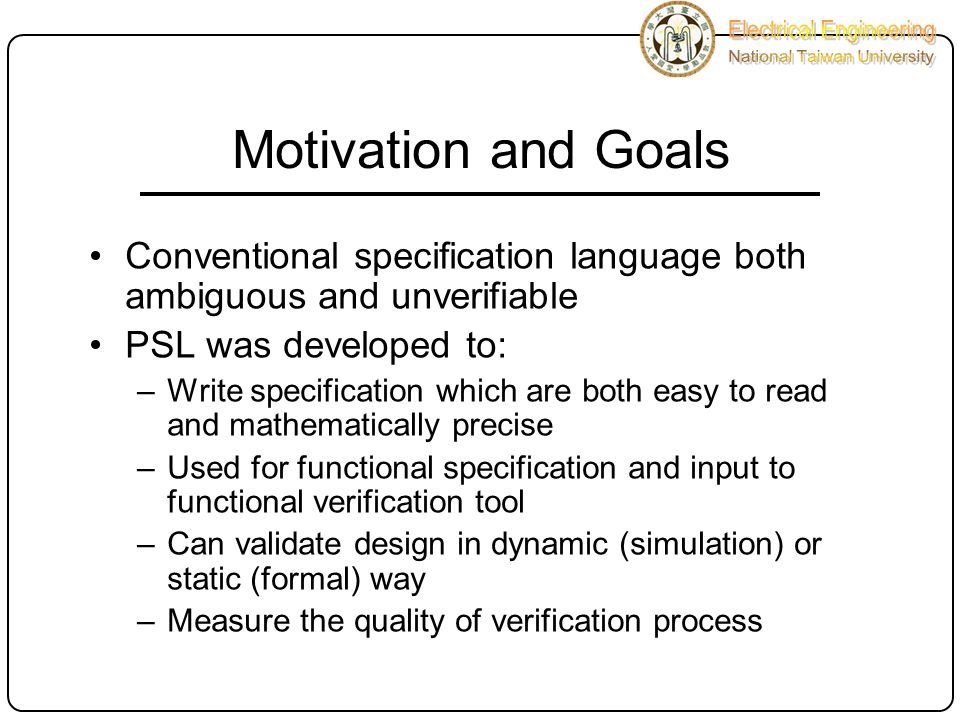

4. Motivation and Goals Conventional specification language both ambiguous and unverifiable PSL was developed to: –Write specification which are both easy to read and mathematically precise –Used for functional specification and input to functional verification tool –Can validate design in dynamic (simulation) or static (formal) way –Measure the quality of verification process

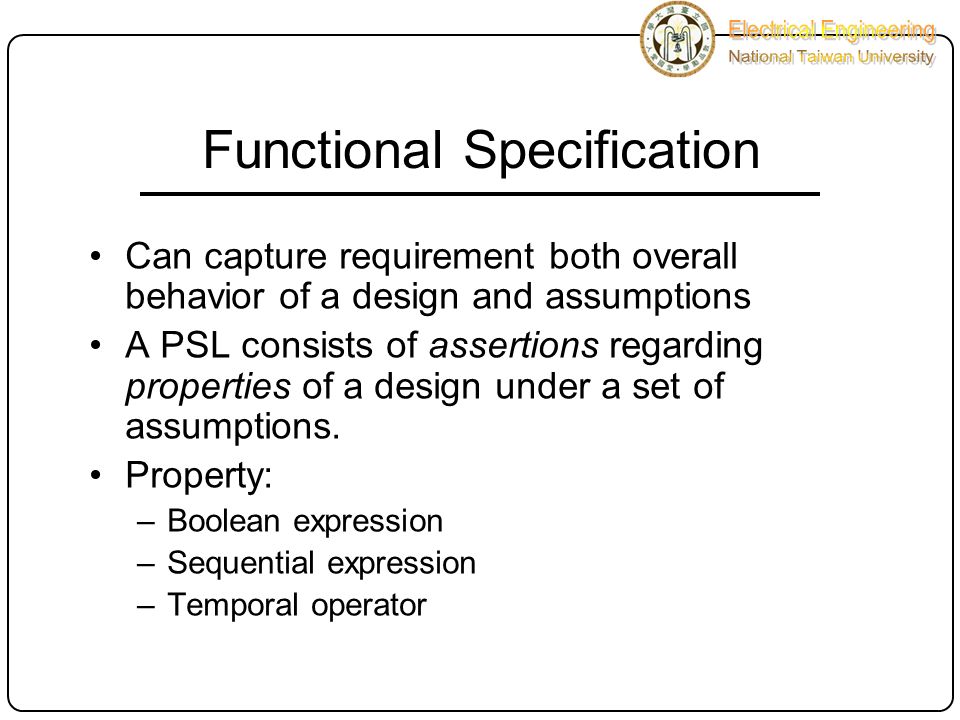

5. Functional Specification Can capture requirement both overall behavior of a design and assumptions A PSL consists of assertions regarding properties of a design under a set of assumptions. Property: –Boolean expression –Sequential expression –Temporal operator

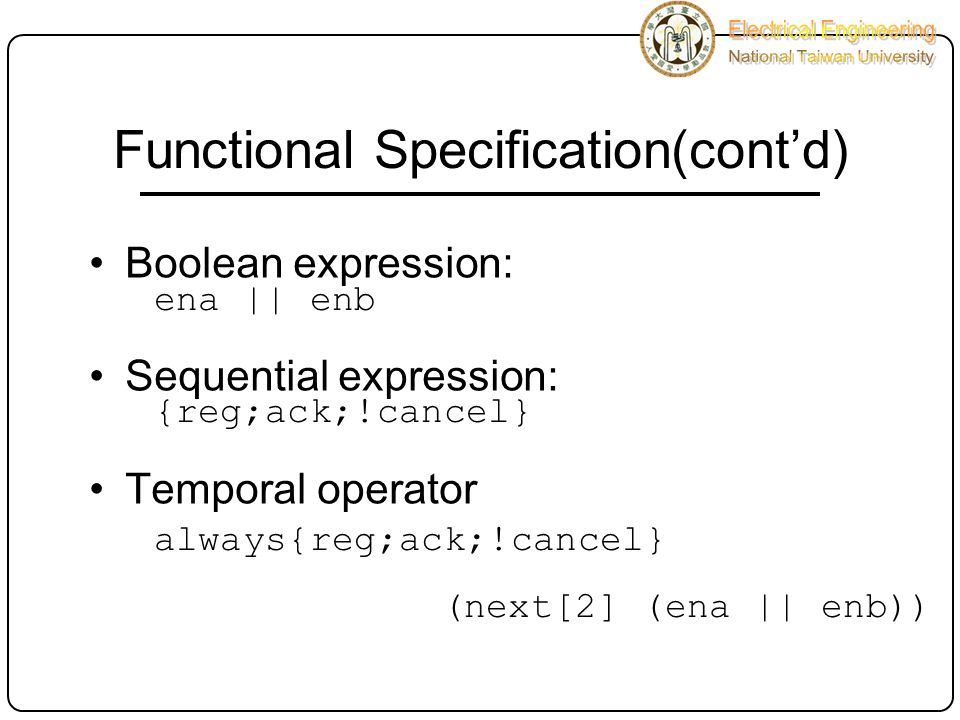

6. Functional Specification(cont’d) Boolean expression: Sequential expression: Temporal operator ena || enb {reg;ack;!cancel} always{reg;ack;!cancel} (next[2] (ena || enb))

7. Functional Specification(cont’d) Assert always{reg;ack;!cancel} (next[2] (ena || enb))

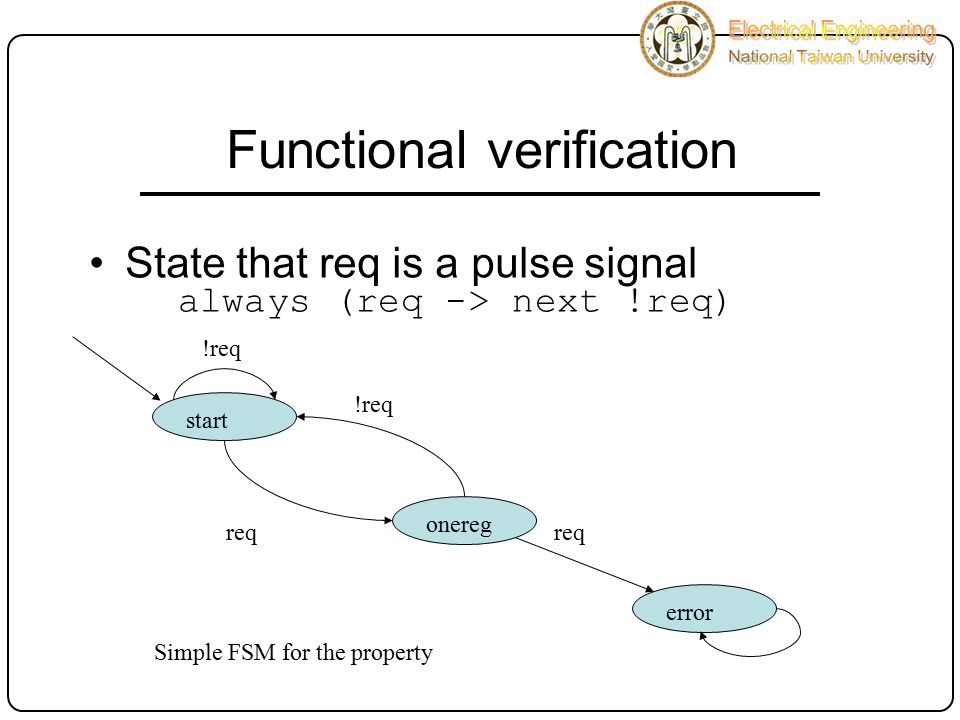

8. Functional verification State that req is a pulse signal always (req -> next !req) start onereg error !req req Simple FSM for the property

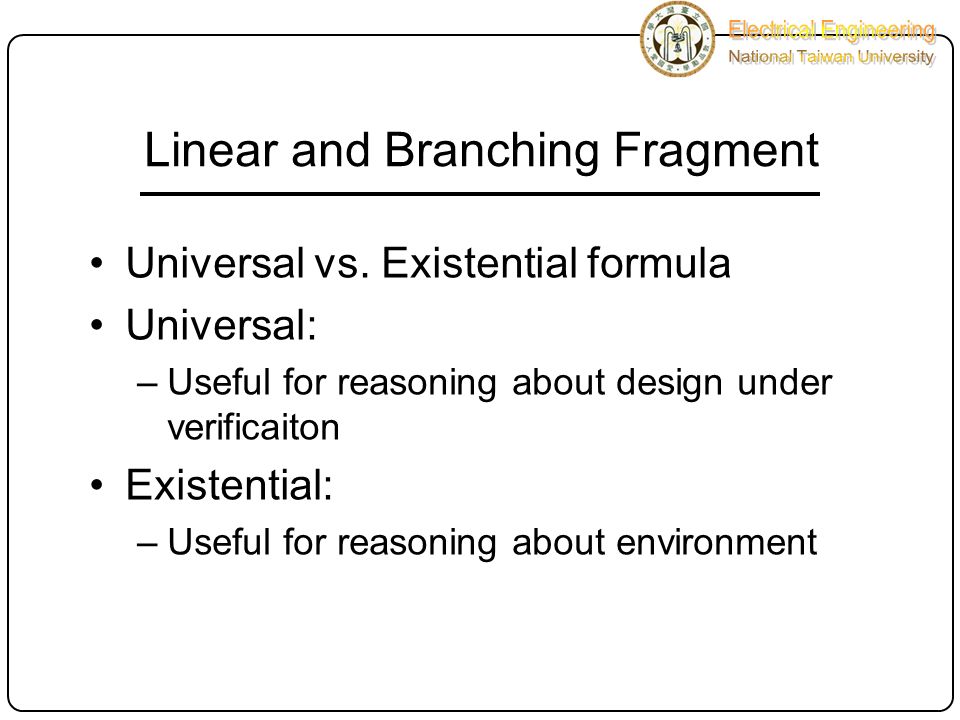

9. Linear and Branching Fragment Universal vs. Existential formula Universal: –Useful for reasoning about design under verificaiton Existential: –Useful for reasoning about environment

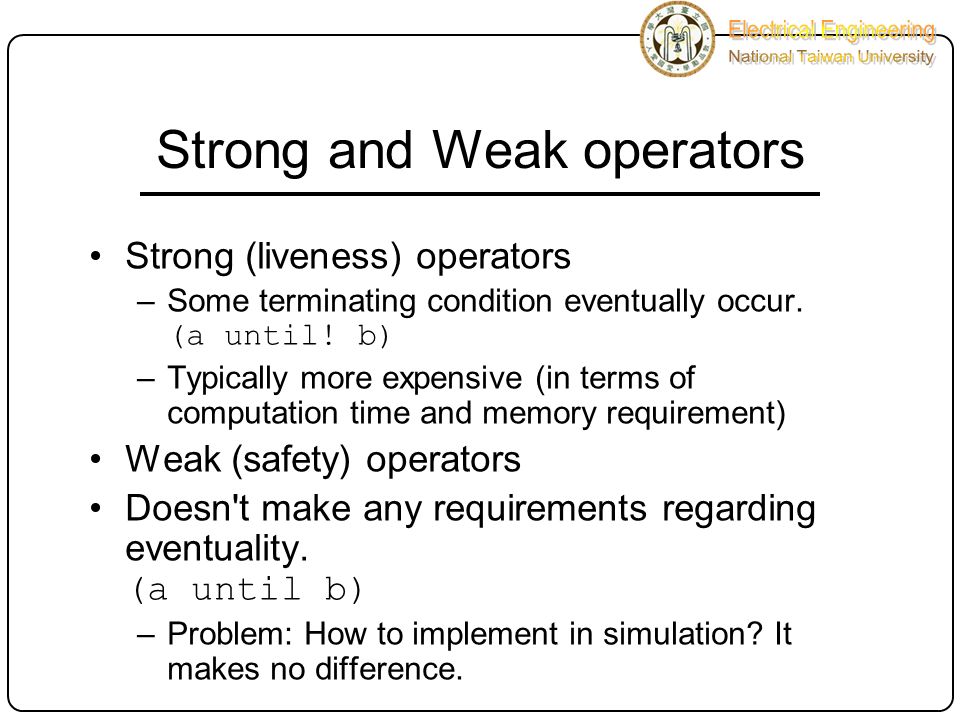

10. Strong and Weak operators Strong (liveness) operators –Some terminating condition eventually occur. (a until! b) –Typically more expensive (in terms of computation time and memory requirement) Weak (safety) operators Doesn't make any requirements regarding eventuality. (a until b) –Problem: How to implement in simulation? It makes no difference.

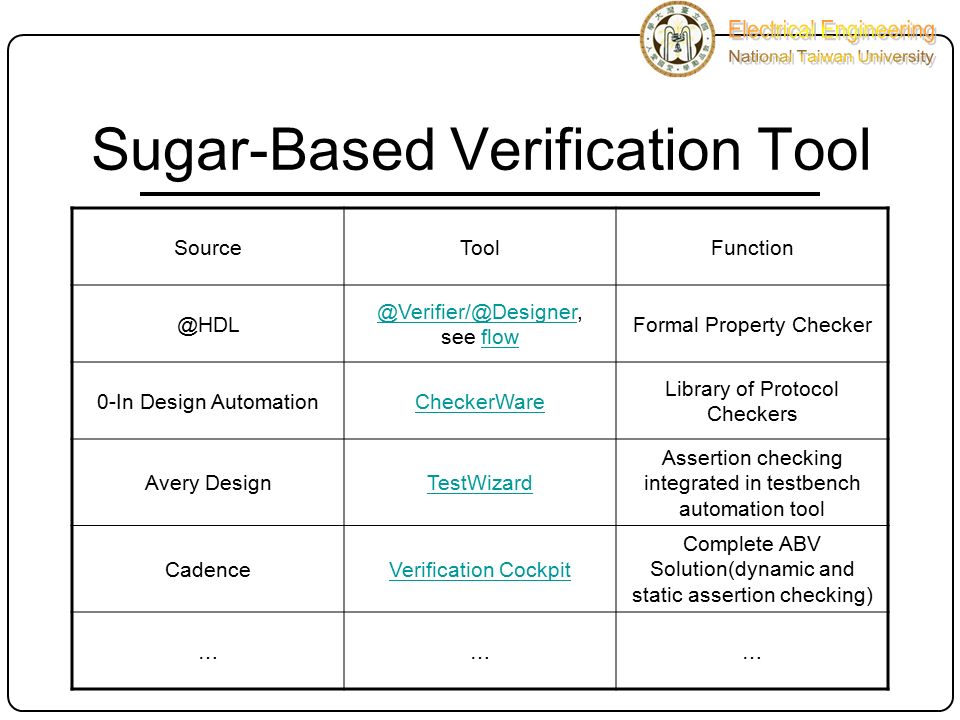

11. Sugar-Based Verification Tool SourceToolFunction @HDL @Verifier/@Designer@Verifier/@Designer, see flowflow Formal Property Checker 0-In Design AutomationCheckerWare Library of Protocol Checkers Avery DesignTestWizard Assertion checking integrated in testbench automation tool CadenceVerification Cockpit Complete ABV Solution(dynamic and static assertion checking) ………

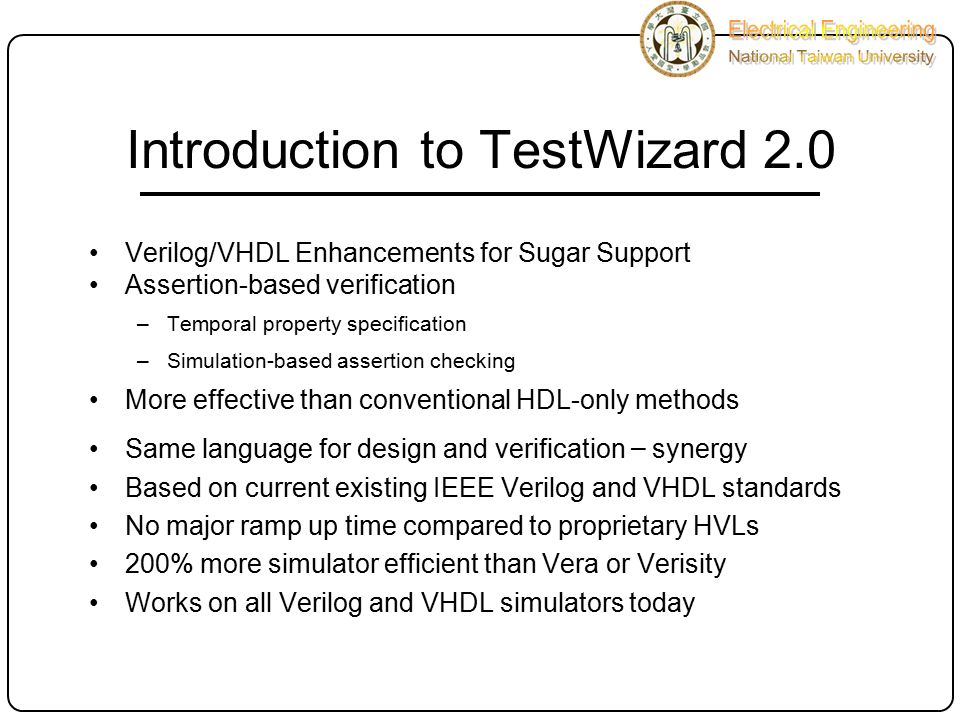

12. Introduction to TestWizard 2.0 Verilog/VHDL Enhancements for Sugar Support Assertion-based verification –Temporal property specification –Simulation-based assertion checking More effective than conventional HDL-only methods Same language for design and verification – synergy Based on current existing IEEE Verilog and VHDL standards No major ramp up time compared to proprietary HVLs 200% more simulator efficient than Vera or Verisity Works on all Verilog and VHDL simulators today

13. Assertions “ On the Fly ” protocol verification of System-level and Interface protocols Powerful & concise temporal property semantics to Verilog/VHDL Repeating sequences Temporal ranges Conditional sequences Logical or/and Highly reusable Comparable to Sugar (Accellera FPSL WG) Sugar-to-TestWizard translator available soon

14. Basic Introduction Assertions in TestWizard 2.0 are also called “ Sequence ” Provided as Verilog user defined system tasks/functions or VHDL procedure calls Sequence function returns “ handle ” to construct complex temporal logic property An event is considered “ true ” if the signal ’ s value is one A sequence is succeeded if no rule is violated, otherwise it is failed Supports synchronous/asynchronous/multi-clock rules Added threads and tags for better temporal logic management

15. Timing Constraint Tasks seq_handle= $tb_seq(clock, list of events) –Events should occur in order. If clock is specified, check events at clock edge. If clock is “ 0 ”, it is asynchronous checking seq_handle= $tb_seq1(clock, list of events) –Events should occur in order at every successive clock edge seq_handle= $tb_seq_range(clock, range, event); –Event should occur within range of clocks –$tb_seq_range($tb_posedge(clk), $tb_range(1, 3), a); seq_handle= $tb_seq_within(cond, event) –Cond must be true throughout the event seq_handle= $tb_seq_before(event1, event2) –Event1 must occur before event2

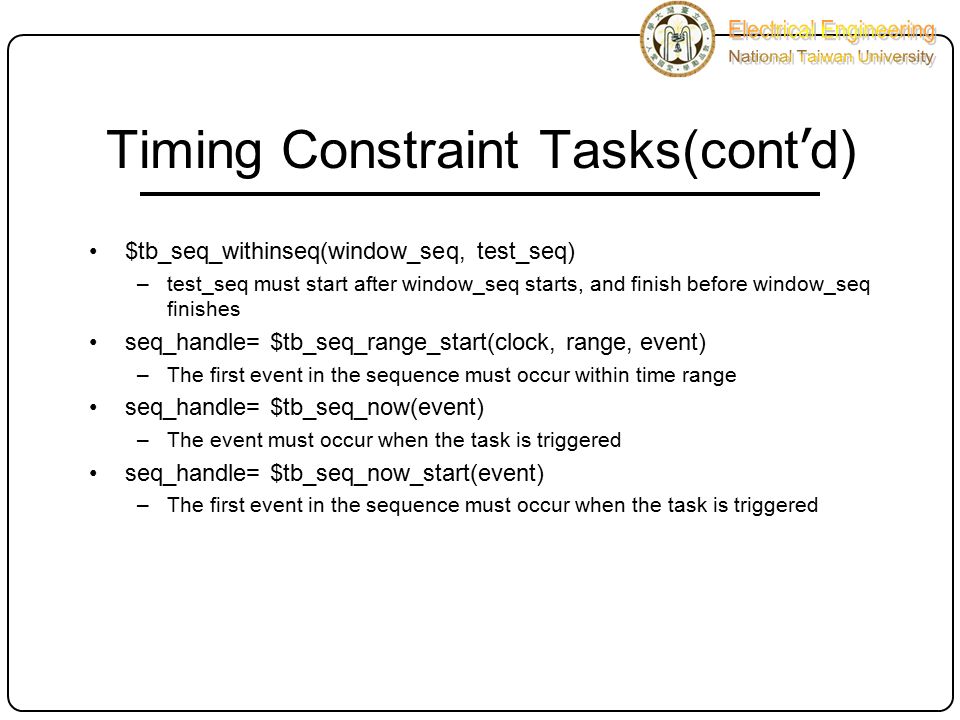

16. Timing Constraint Tasks(cont ’ d) $tb_seq_withinseq(window_seq, test_seq) –test_seq must start after window_seq starts, and finish before window_seq finishes seq_handle= $tb_seq_range_start(clock, range, event) –The first event in the sequence must occur within time range seq_handle= $tb_seq_now(event) –The event must occur when the task is triggered seq_handle= $tb_seq_now_start(event) –The first event in the sequence must occur when the task is triggered

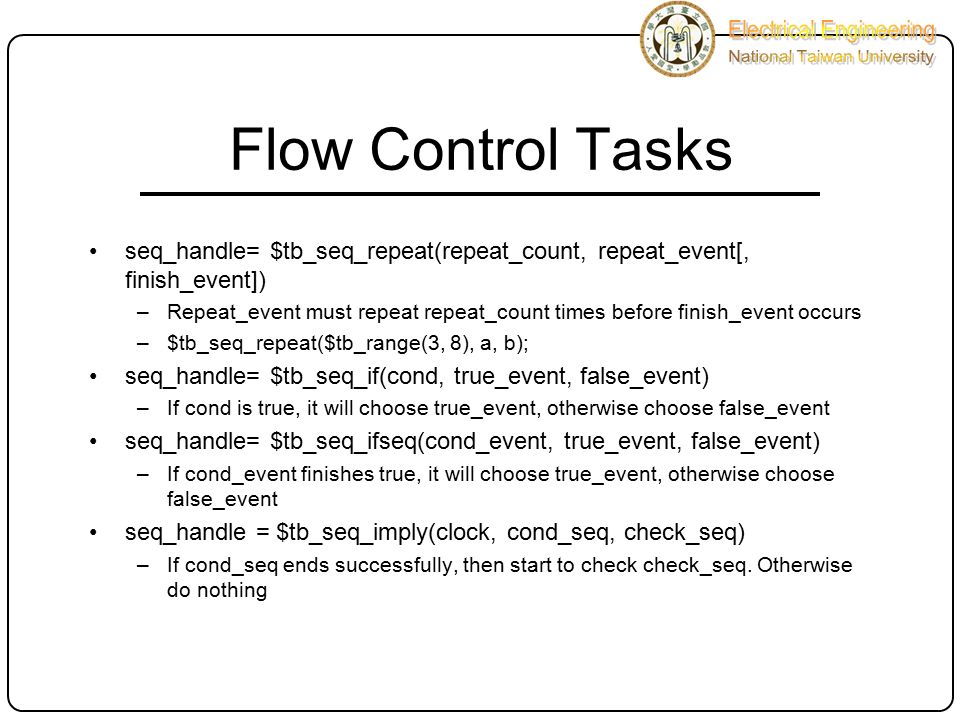

17. Flow Control Tasks seq_handle= $tb_seq_repeat(repeat_count, repeat_event[, finish_event]) –Repeat_event must repeat repeat_count times before finish_event occurs –$tb_seq_repeat($tb_range(3, 8), a, b); seq_handle= $tb_seq_if(cond, true_event, false_event) –If cond is true, it will choose true_event, otherwise choose false_event seq_handle= $tb_seq_ifseq(cond_event, true_event, false_event) –If cond_event finishes true, it will choose true_event, otherwise choose false_event seq_handle = $tb_seq_imply(clock, cond_seq, check_seq) –If cond_seq ends successfully, then start to check check_seq. Otherwise do nothing

18. Flow Control Tasks(cont ’ d) seq_handle = $tb_seq_imply0(cond_seq, check_seq) –When the first event of cond_seq executes, check_seq will start to be checked. If cond_seq fails, nothing will happen. If cond_seq succeeds, the result of check_seq will determine the result of $tb_seq_imply0.

19. Logic Related Tasks seq_handle= $tb_seq_and(list of events) –All the events must become true at the same time for its own event to be true seq_handle= $tb_seq_par(list of events) –All checks begin at the same time, and all events must succeed seq_handle= $tb_seq_or(list of events) –Any of the events from other $tb_seqs must be true for its own event to be true seq_handle= $tb_seq_not(event) –Its own event is true only if event fails

20. Thread and Tag Why thread? –There can be multiple temporal logic streams flowing concurrently –For example, in a sequence “ a b c d e ”, all of the following may exist: “ a b c d e, a b c d e, a b c d e ” –Need a way to distinguish between them –Every thread has its unique ID Why tag? –Attach information to your temporal logic rules –Information flows with your temporal logic streams! –For example, split completion in PCI-X, unique ID is saved Sugar doesn't have similar property.

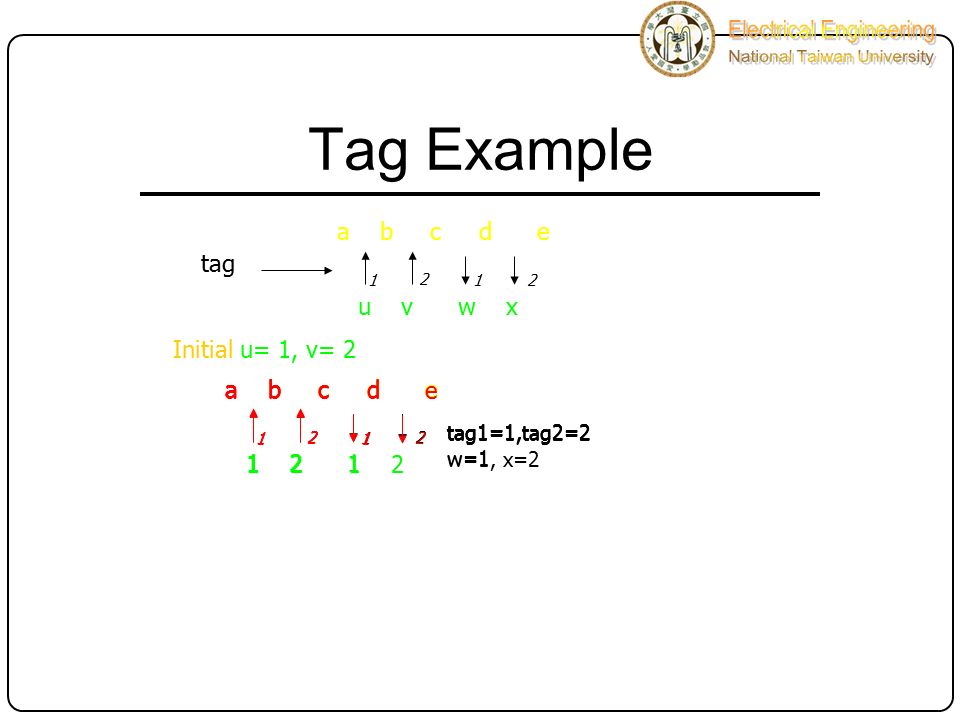

21. Tag Example a b c d e tag u v w x 1 2 2 1 Initial u= 1, v= 2 a b c d e 1 1 2 2 1 tag1=1 a b c d e 1 2 1 2 2 1 tag1=1,tag2=2 a b c d e 1 2 1 1 2 2 1 tag1=1,tag2=2 w=1 a b c d e 1 2 1 2 2 1 tag1=1,tag2=2 w=1, x=2

22. Thread Control Tasks(cont ’ d) $tb_seq_trigger(seq_handle, result_var[, num_threads]) –Starts a sequence checking. If any of the threads succeeds, bit0 of result_var will toggle. If any thread fails, bit1 of result_var will toggle $tb_seq_disable(list of seq_handles) –Stop the sequence checking $tb_seq_disable_thread(seq_handle[, thread_id(s)]) –Stop some of the threads in the sequence thread_id = $tb_seq_thread_find(seq_handle, tag_handle, match_value, from_thread_id) –Find the thread with which value saved in tag matches match_value

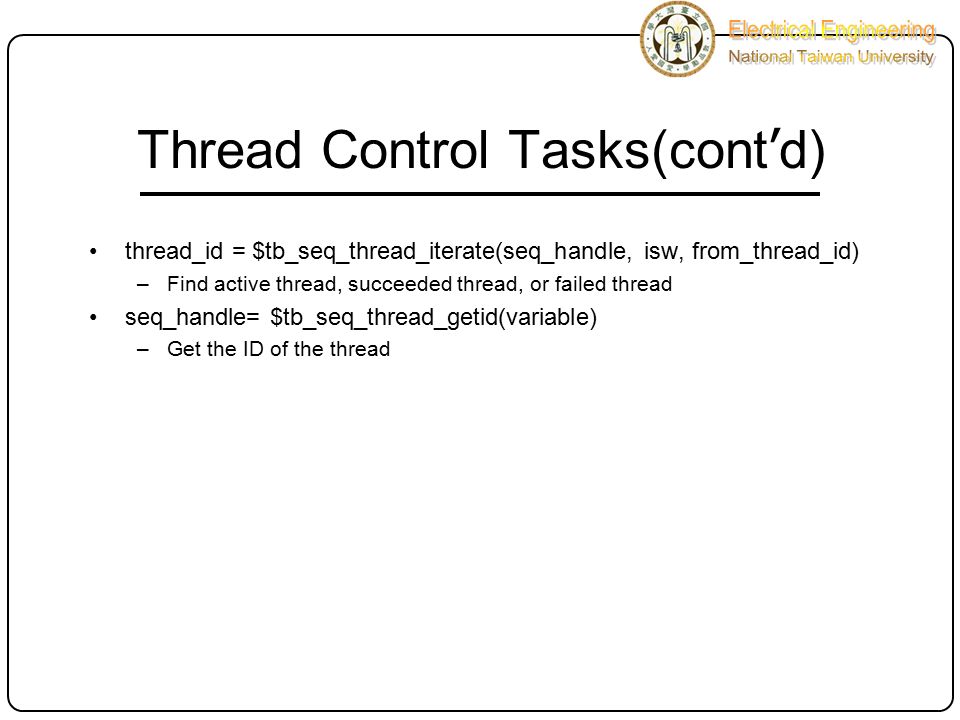

23. Thread Control Tasks(cont ’ d) thread_id = $tb_seq_thread_iterate(seq_handle, isw, from_thread_id) –Find active thread, succeeded thread, or failed thread seq_handle= $tb_seq_thread_getid(variable) –Get the ID of the thread

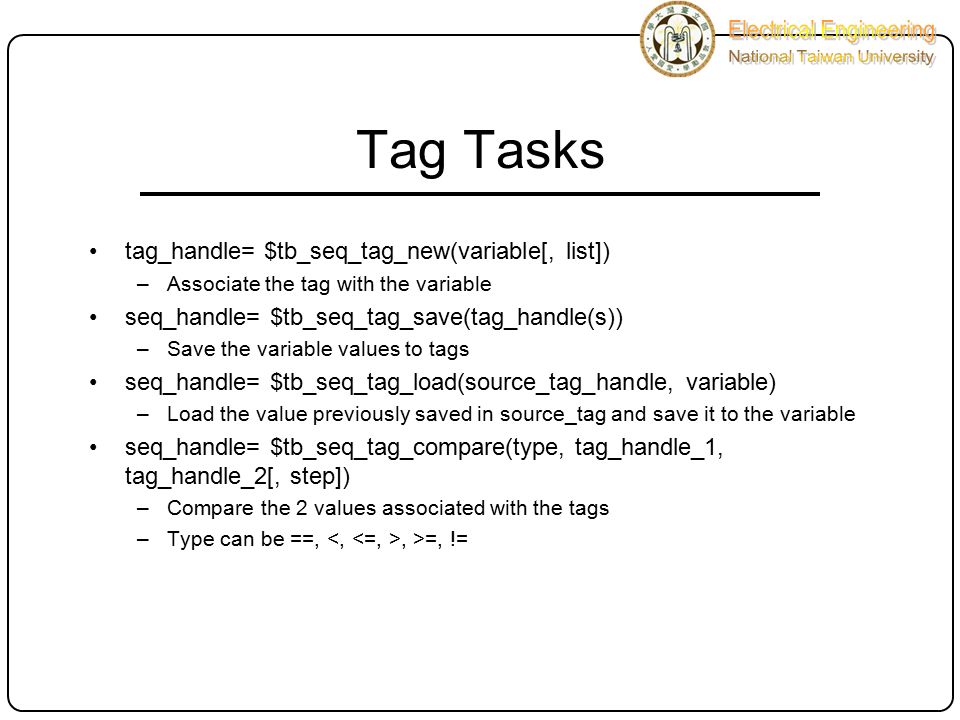

24. Tag Tasks tag_handle= $tb_seq_tag_new(variable[, list]) –Associate the tag with the variable seq_handle= $tb_seq_tag_save(tag_handle(s)) –Save the variable values to tags seq_handle= $tb_seq_tag_load(source_tag_handle, variable) –Load the value previously saved in source_tag and save it to the variable seq_handle= $tb_seq_tag_compare(type, tag_handle_1, tag_handle_2[, step]) –Compare the 2 values associated with the tags –Type can be ==,, >=, !=

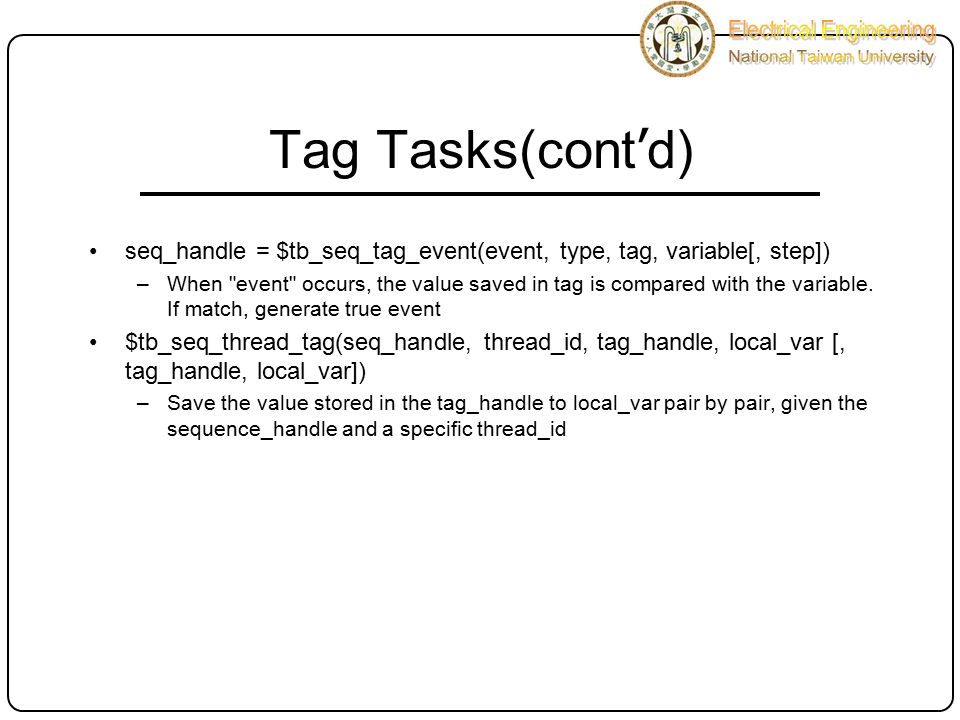

25. Tag Tasks(cont ’ d) seq_handle = $tb_seq_tag_event(event, type, tag, variable[, step]) –When "event" occurs, the value saved in tag is compared with the variable. If match, generate true event $tb_seq_thread_tag(seq_handle, thread_id, tag_handle, local_var [, tag_handle, local_var]) –Save the value stored in the tag_handle to local_var pair by pair, given the sequence_handle and a specific thread_id

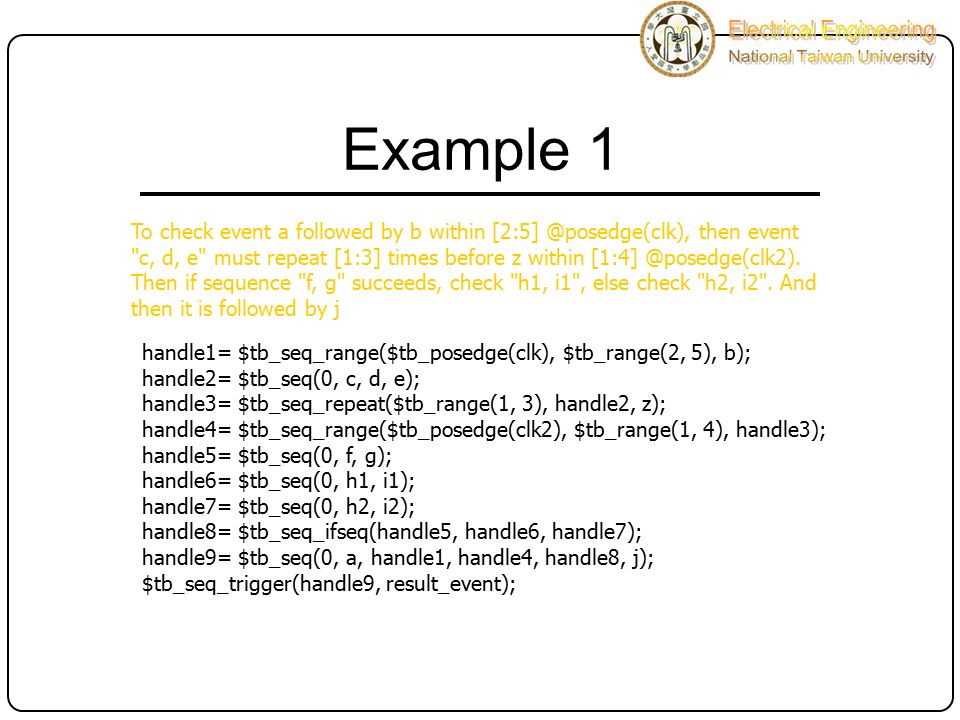

26. Example 1 To check event a followed by b within [2:5] @posedge(clk), then event "c, d, e" must repeat [1:3] times before z within [1:4] @posedge(clk2). Then if sequence "f, g" succeeds, check "h1, i1", else check "h2, i2". And then it is followed by j handle1= $tb_seq_range($tb_posedge(clk), $tb_range(2, 5), b); handle2= $tb_seq(0, c, d, e); handle3= $tb_seq_repeat($tb_range(1, 3), handle2, z); handle4= $tb_seq_range($tb_posedge(clk2), $tb_range(1, 4), handle3); handle5= $tb_seq(0, f, g); handle6= $tb_seq(0, h1, i1); handle7= $tb_seq(0, h2, i2); handle8= $tb_seq_ifseq(handle5, handle6, handle7); handle9= $tb_seq(0, a, handle1, handle4, handle8, j); $tb_seq_trigger(handle9, result_event);

27. Example 2 Use Verilog to assist Sugar:{high_pri_req->next_event_e(grant)[1..8](dst == high_pri)} English: After high_pri_req, we expect dst == high_pri to occur on one of the 1 st through 8 th occurrence of grant int i = 1; int j = 8; assign event1 = dst == high_pri; h1 = $tb_seq_thread_getid(Vevent1_trigger); h2 = $tb_seq(0,true,h1,Vevent1_end); h3 = $tb_seq_range_start($tb_posedge(clock),0,h2); h4 = $tb_seq_imply(0,high_pri_req,h3);

28. Example 2(cont ’ d) always @(Vevent1_trigger) grant_count_start = 1; always @(posedge clock) begin if(grant_count_start == 1) begin if(grant == 1) grant_count = grant_count + 1; if(grant_count > j) grant_count_start = 0; end if((grant_count_start == 1)&&(grant_count >= i)&&(grant_count <= j)) begin if(event1 == true) Vevent1_end = 1; else if(grant_count == j) $display("error at %t", $stime);end

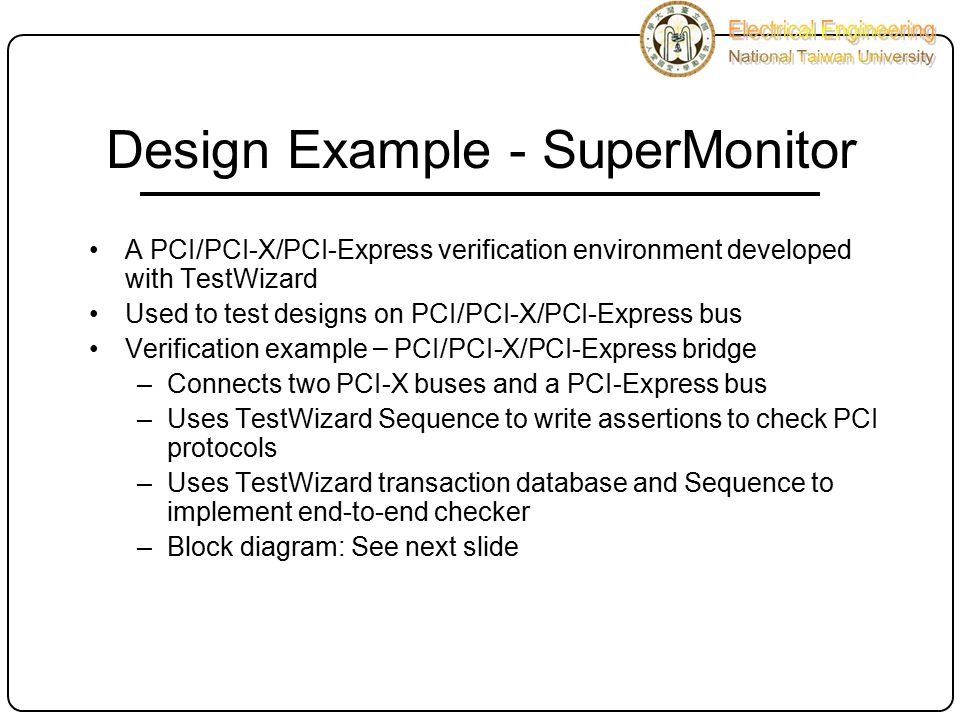

29. Design Example - SuperMonitor A PCI/PCI-X/PCI-Express verification environment developed with TestWizard Used to test designs on PCI/PCI-X/PCI-Express bus Verification example – PCI/PCI-X/PCI-Express bridge –Connects two PCI-X buses and a PCI-Express bus –Uses TestWizard Sequence to write assertions to check PCI protocols –Uses TestWizard transaction database and Sequence to implement end-to-end checker –Block diagram: See next slide

31. Sugar Converter Converter Sugar property to TestWizard automatically. Sugar vs. TestWizard –Vunit Module –Property A sequence which should be triggered.

32. Rule Table … Sugar: next event1 (Forward one clock cycle). Sequence: reg true = 1; $tb_seq1(clock, true, event1); …

33. Conversion Example Sugar example: vunit unit1{ property property1 = (Signal_a | Signal_b)@new_clock; } Converted Verilog code ： module unit1 ( clock, rst, new_clock, Signal_a, Signal_b ); inputclock; inputrst; inputnew_clock; inputSignal_a; inputSignal_b;

34. Conversion Example(cont’d) reg [1:0] result1 = 0; reg flag1 = 0; integer h1_1, h1_2, h1_3; initial begin h1_2 = $tb_seq($tb_posedge(new_clock), Signal_a ); h1_3 = $tb_seq($tb_posedge(new_clock), Signal_b ); h1_1 = $tb_seq_or( h1_2, h1_3 ); end always @(posedge rst) begin if(flag1 == 0) flag1 = 1; else if(flag1 == 1) $tb_seq_disable(h1_1 ); $tb_seq_trigger(h1_1, result1); end

35. Conversion Example(cont’d) always @(result1[0]) begin if($stime != 0) $display("error at %t ", $stime); end always @(result1[1]) begin if($stime != 0) $display("success at %t ", $stime); end endmodule

36. Usage Put conversion module into the module which want to verify.

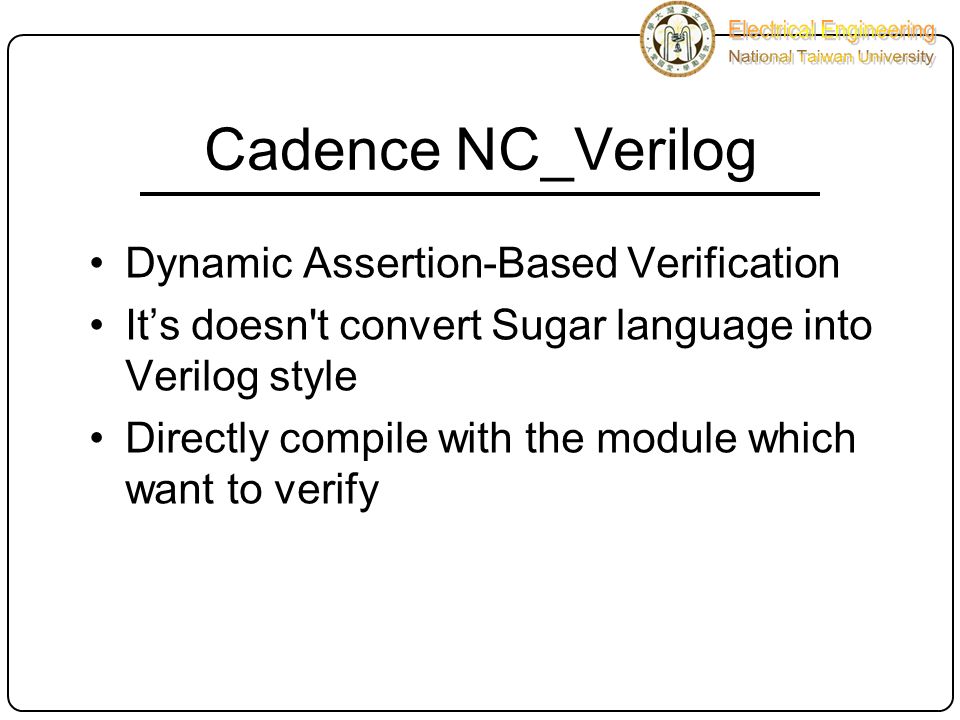

37. Cadence NC_Verilog Dynamic Assertion-Based Verification It’s doesn't convert Sugar language into Verilog style Directly compile with the module which want to verify

38. Usage module; … // Declare a property call “MY_ASSERTION” // pargma property MY_ASSERTION = <interesting event // or sequence of events> // Tell the simulator to creat an assertion from // the MY_ASSERTION property. // pragma assert MY_ASSERTION; … endmodule

39. Conclusions TestWizard uses native Verilog/VHDL syntax –Easy to learn: No need to learn another language –Portable: Works with all major simulators –Fast: Integrated with simulators directly through PLI, no interpreter in between Tags and threads make temporal logic properties more powerful than ever Low readability Complicated

40. Reference IEEE Std 1076, 2000 edition, 2000. IEEE Std 1364-2001, 2001. Cindy Eisner and Dana Fisman, Sugar 2.0 Proposal Presented to Accellera Formal Verification Technical Committee, March 20, 2002 IBM, Guide to Sugar Formal specification Language Version 1.3.1, November 2000 Accellera, Sugar Formal Specification Language Reference Manual Draft Version x.y(Draft 2), May 17, 2002 Accellera, Sugar Formal Specification Language Reference Manual Version 1.0, January 31, 2003 http://www.haifa.il.ibm.com/projects/verification/focs/index.htmlhttp://www.haifa.il.ibm.com/pr Cadnece, Writing and Using Assertions in Cadence’s Dynamic Assertion-Based Verification for NV-Verilog, Version 4.1, November, 2002
