1 Analyzing Attribute Dependencies Aleks Jakulin & Ivan Bratko Faculty of Computer and Information Science University of Ljubljana Slovenia

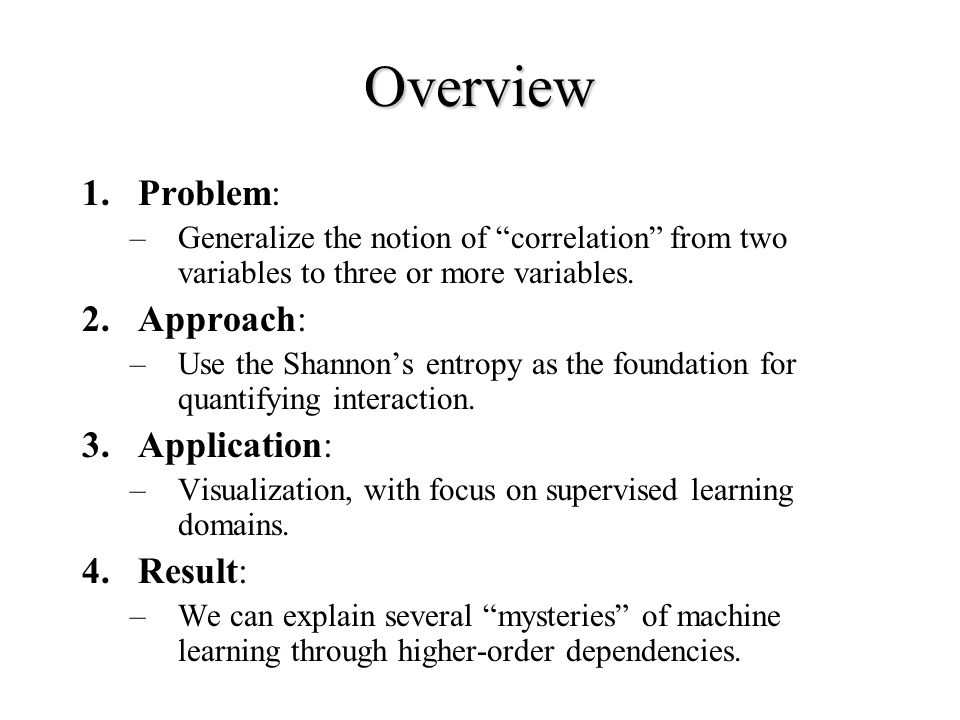

2 Overview 1.Problem: –Generalize the notion of “correlation” from two variables to three or more variables. 2.Approach: –Use the Shannon’s entropy as the foundation for quantifying interaction. 3.Application: –Visualization, with focus on supervised learning domains. 4.Result: –We can explain several “mysteries” of machine learning through higher-order dependencies.

3 Problem: Attribute Dependencies C BA label attribute importance of attribute Bimportance of attribute A 3-Way Interaction: What is common to A, B and C together; and cannot be inferred from any subset of attributes. attribute correlation 2-Way Interactions

4 Approach: Shannon’s Entropy C Entropy given C’s empirical probability distribution (p = [0.2, 0.8]). A H(A) Information which came with knowledge of A I(A;C)=H(A)+H(C)-H(AC) Mutual information or information gain --- How much have A and C in common? H(C|A) = H(C)-I(A;C) Conditional entropy --- Remaining uncertainty in C after knowing A. H(AB) Joint entropy

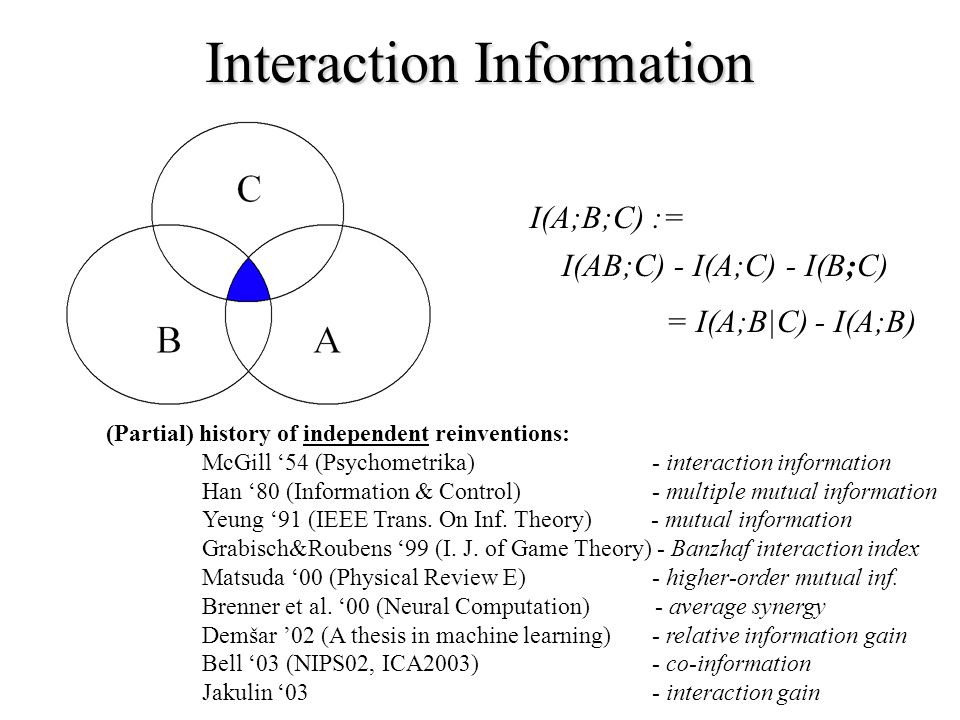

5 Interaction Information I(A;B;C) := I(AB;C)- I(B;C)- I(A;C) = I(A;B|C) - I(A;B) (Partial) history of independent reinventions: McGill ‘54 (Psychometrika) - interaction information Han ‘80 (Information & Control) - multiple mutual information Yeung ‘91 (IEEE Trans. On Inf. Theory) - mutual information Grabisch&Roubens ‘99 (I. J. of Game Theory) - Banzhaf interaction index Matsuda ‘00 (Physical Review E) - higher-order mutual inf. Brenner et al. ‘00 (Neural Computation) - average synergy Demšar ’02 (A thesis in machine learning) - relative information gain Bell ‘03 (NIPS02, ICA2003) - co-information Jakulin ‘03 - interaction gain

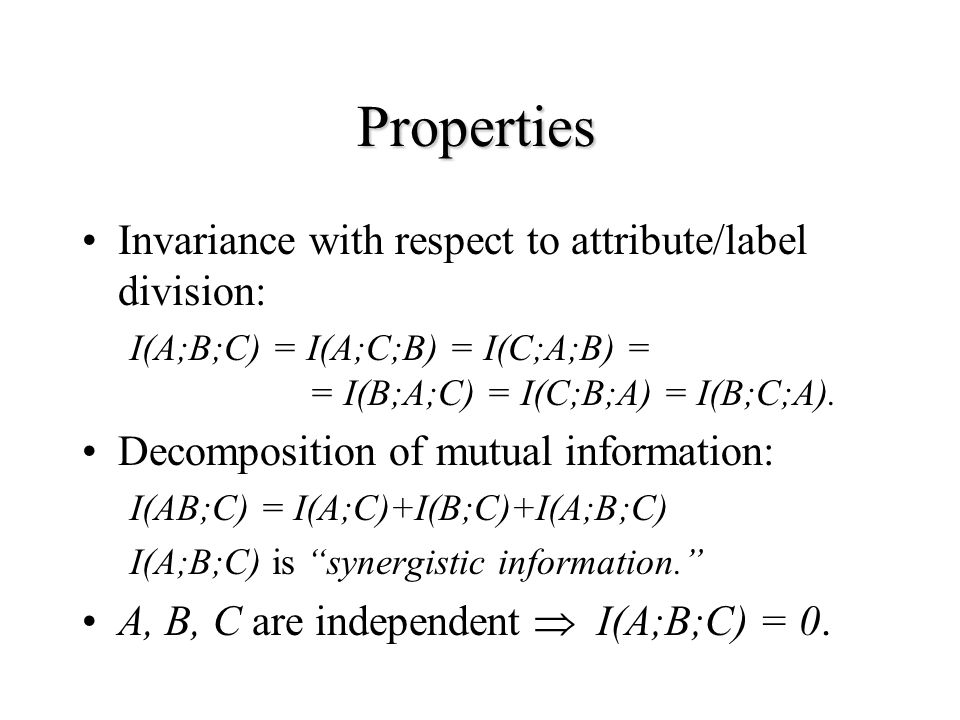

6 Properties Invariance with respect to attribute/label division: I(A;B;C) = I(A;C;B) = I(C;A;B) = = I(B;A;C) = I(C;B;A) = I(B;C;A). Decomposition of mutual information: I(AB;C) = I(A;C)+I(B;C)+I(A;B;C) I(A;B;C) is “synergistic information.” A, B, C are independent  I(A;B;C) = 0.

7 Positive and Negative Interactions If any pair of the attributes is conditionally independent w/r to a third attribute, the 3- information “neutralizes” the 2-information: I(A;B|C) = 0  I(A;B;C) = -I(A;B) Interaction information may be positive or negative: –Positive: XOR problem (A = B  C) synergy –Negative: conditional independence, redundant attributes redundancy –Zero: Independence of one of the attributes or a mix of synergy and redundancy.

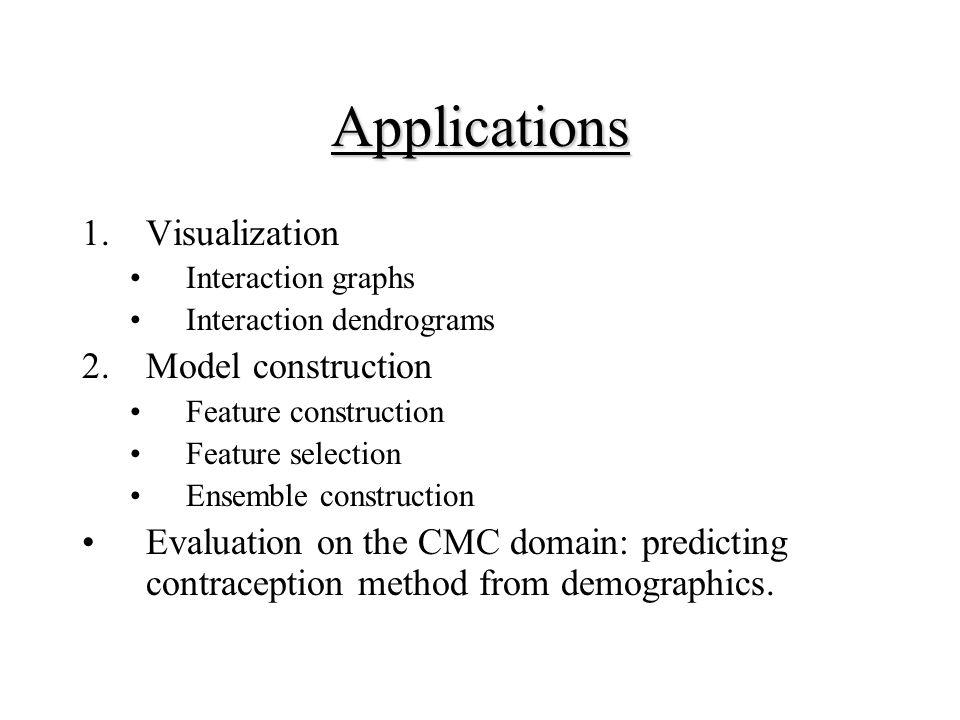

8 Applications 1.Visualization Interaction graphs Interaction dendrograms 2.Model construction Feature construction Feature selection Ensemble construction Evaluation on the CMC domain: predicting contraception method from demographics.

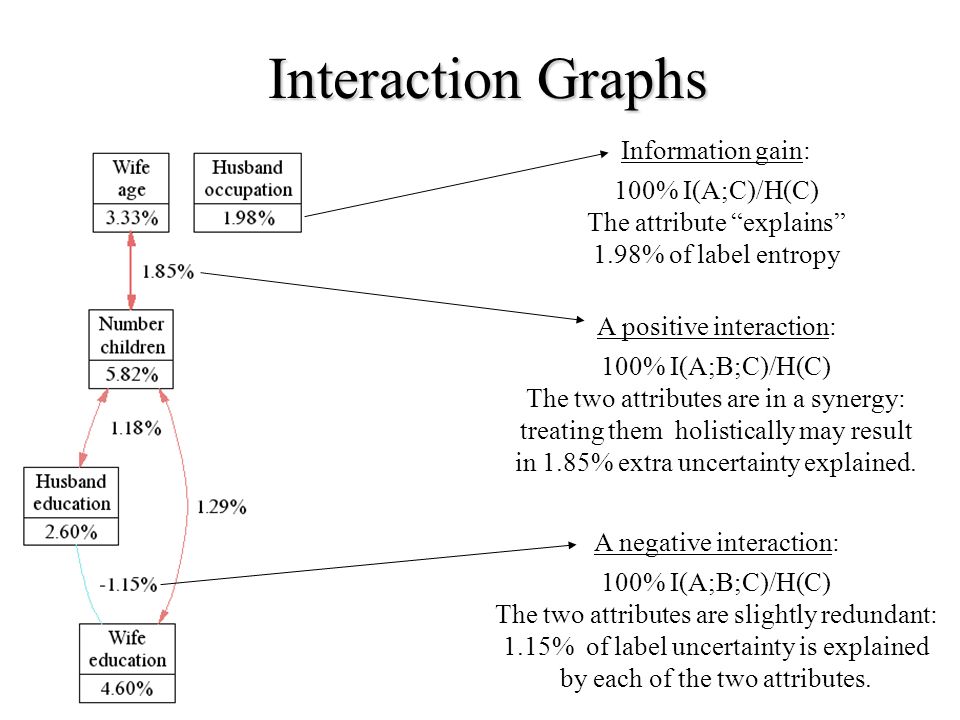

9 Interaction Graphs Information gain: 100% I(A;C)/H(C) The attribute “explains” 1.98% of label entropy A positive interaction: 100% I(A;B;C)/H(C) The two attributes are in a synergy: treating them holistically may result in 1.85% extra uncertainty explained. A negative interaction: 100% I(A;B;C)/H(C) The two attributes are slightly redundant: 1.15% of label uncertainty is explained by each of the two attributes.

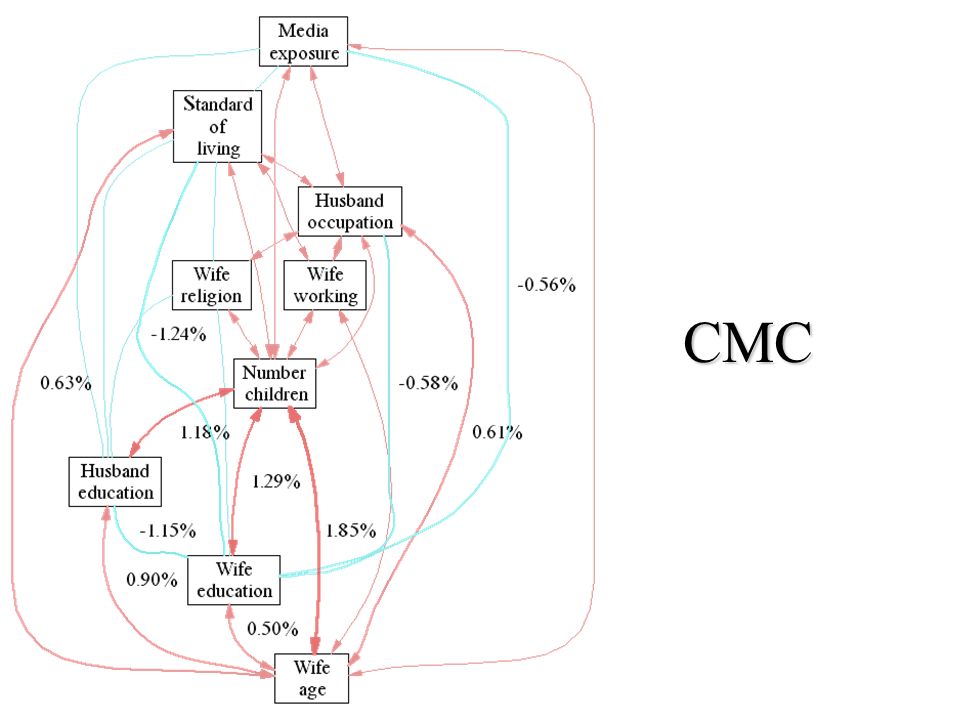

10 CMC

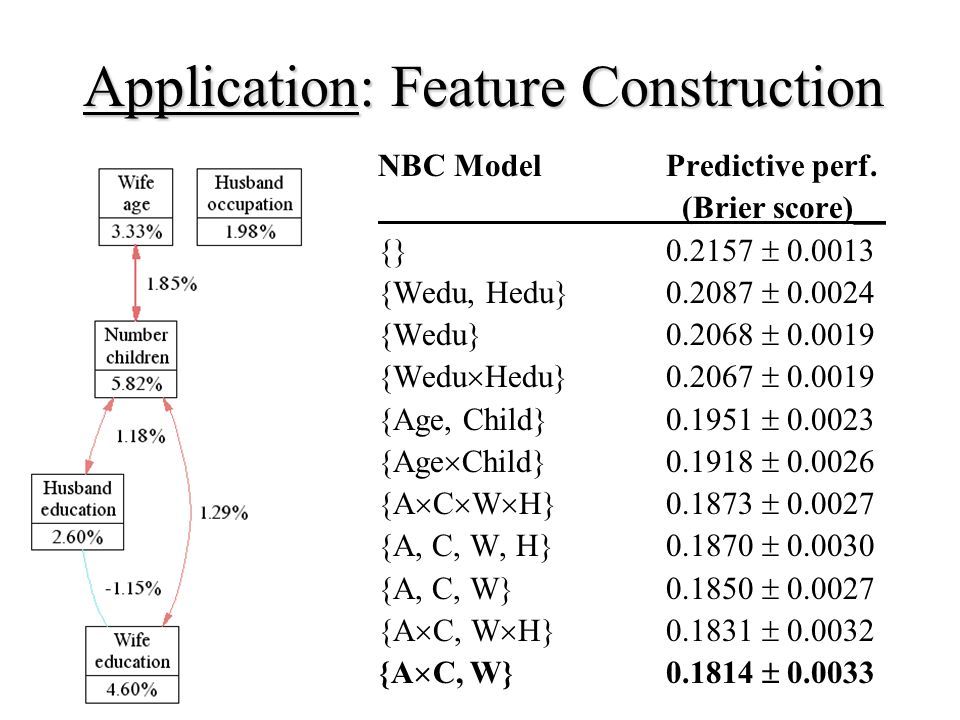

11 Application: Feature Construction NBC Model Predictive perf. (Brier score)__ {} 0.2157  0.0013 {Wedu, Hedu} 0.2087  0.0024 {Wedu} 0.2068  0.0019 {Wedu  Hedu}0.2067  0.0019 {Age, Child} 0.1951  0.0023 {Age  Child} 0.1918  0.0026 {A  C  W  H} 0.1873  0.0027 {A, C, W, H} 0.1870  0.0030 {A, C, W}0.1850  0.0027 {A  C, W  H} 0.1831  0.0032 {A  C, W} 0.1814  0.0033

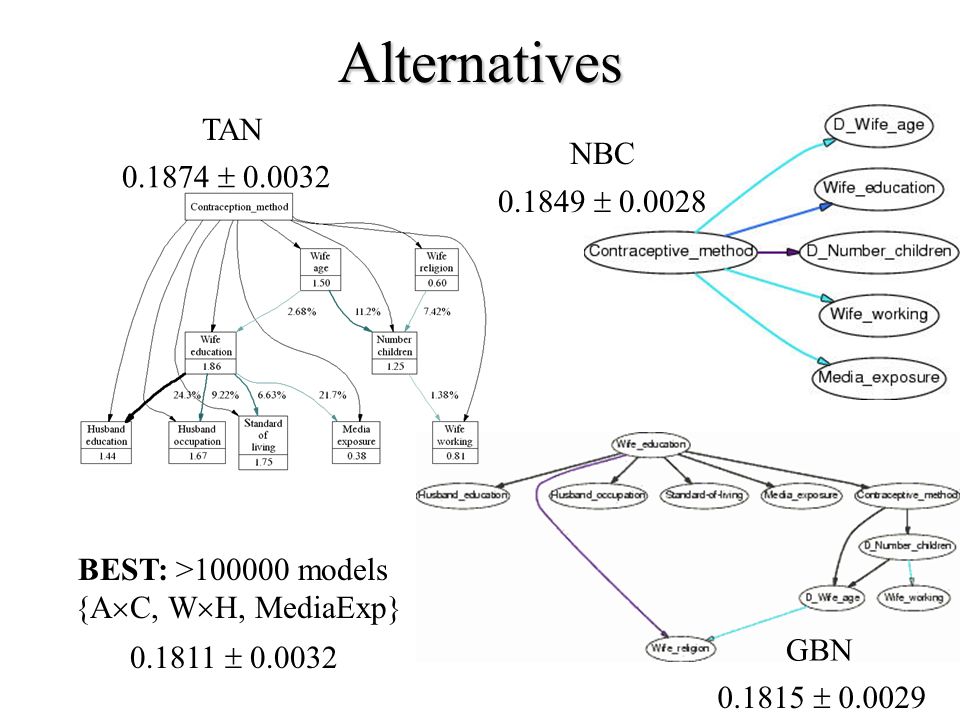

12 Alternatives GBN NBC TAN 0.1874  0.0032 0.1815  0.0029 0.1849  0.0028 BEST: >100000 models {A  C, W  H, MediaExp} 0.1811  0.0032

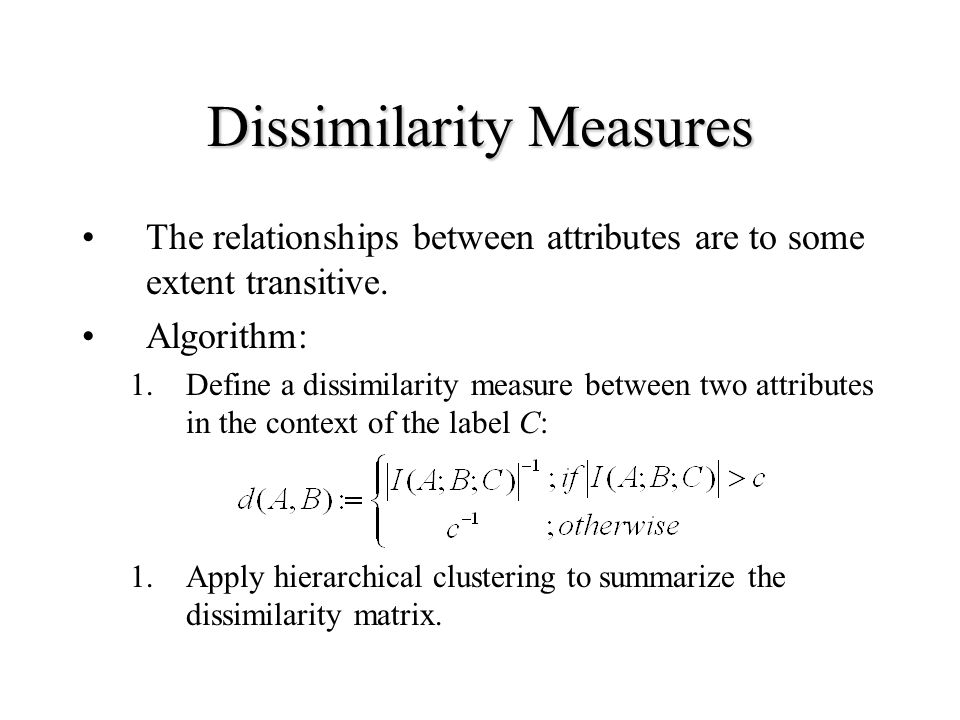

13 Dissimilarity Measures The relationships between attributes are to some extent transitive. Algorithm: 1.Define a dissimilarity measure between two attributes in the context of the label C: 1.Apply hierarchical clustering to summarize the dissimilarity matrix.

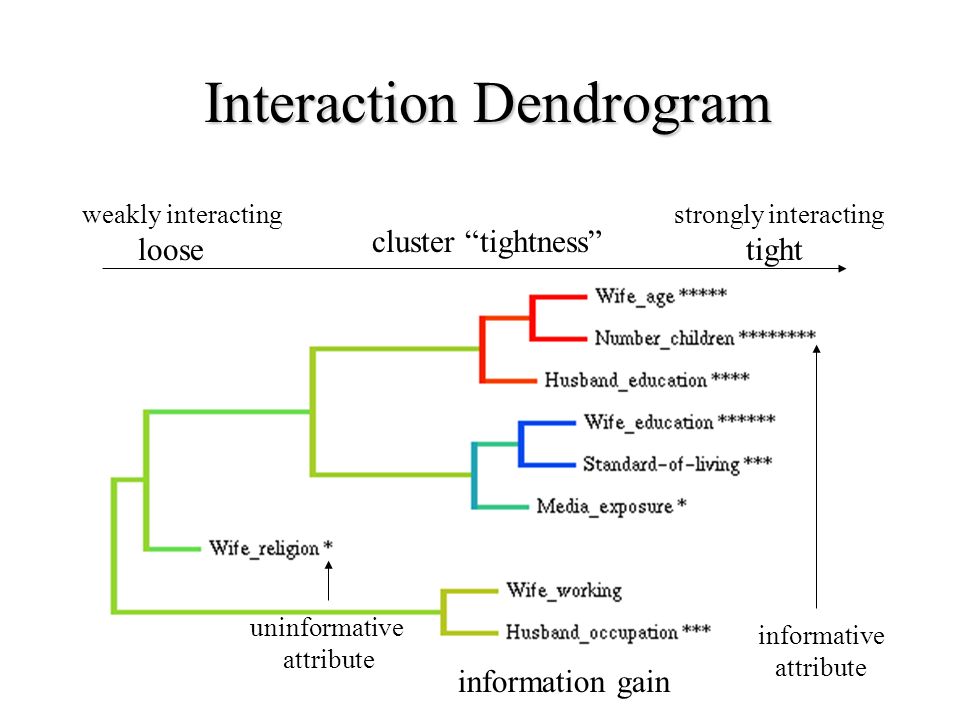

14 Interaction Dendrogram cluster “tightness” loosetight information gain uninformative attribute informative attribute weakly interactingstrongly interacting

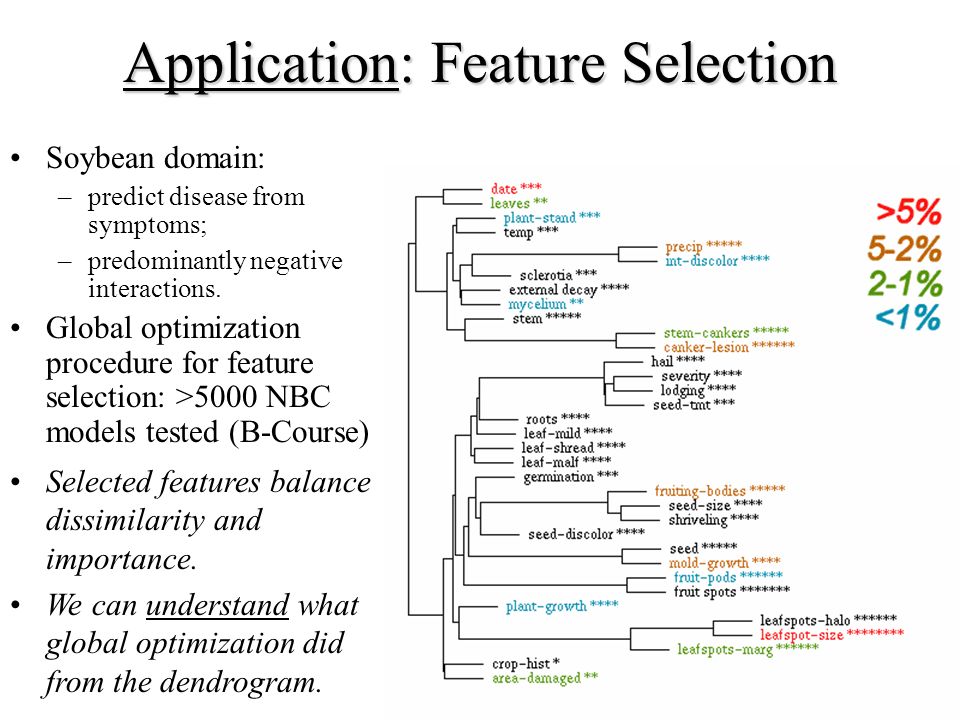

15 Application: Feature Selection Soybean domain: –predict disease from symptoms; –predominantly negative interactions. Global optimization procedure for feature selection: >5000 NBC models tested (B-Course) Selected features balance dissimilarity and importance. We can understand what global optimization did from the dendrogram.

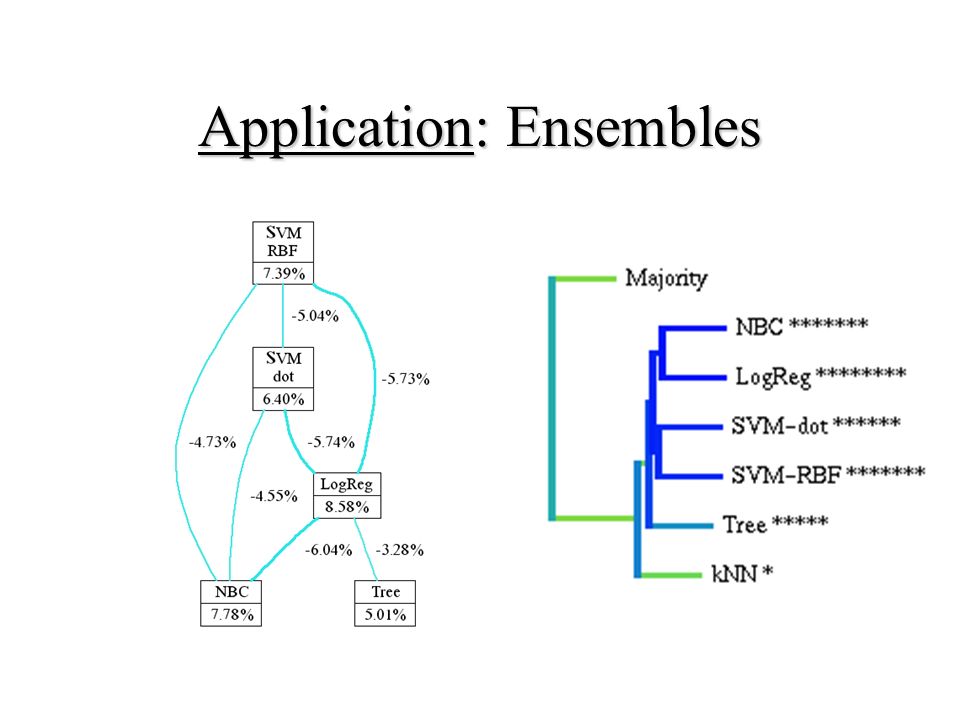

16 Application: Ensembles

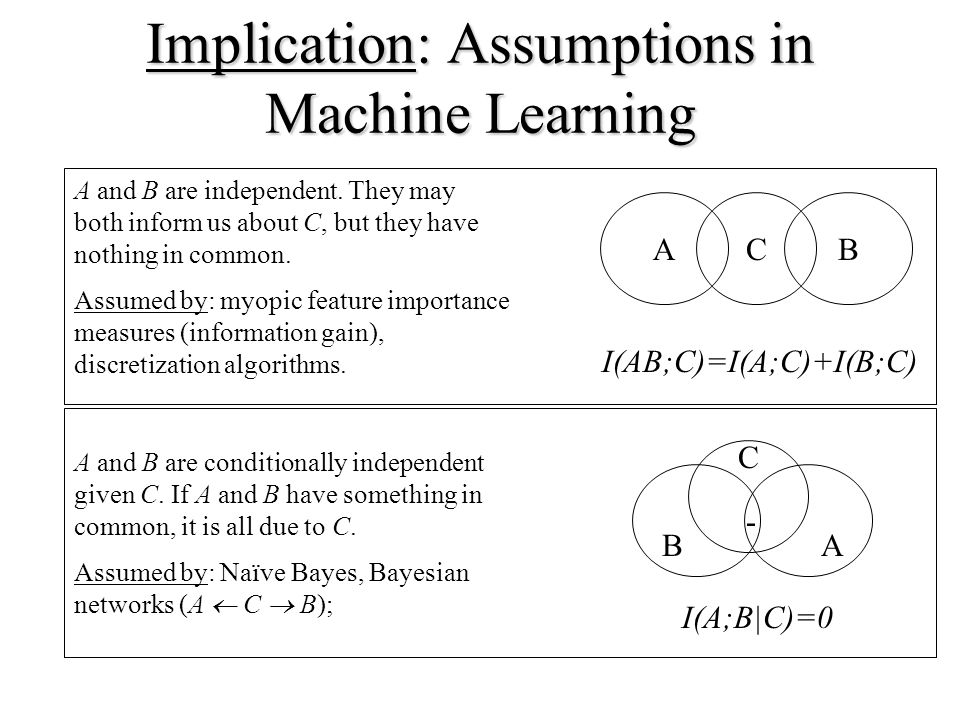

17 Implication: Assumptions in Machine Learning A CB I(AB;C)=I(A;C)+I(B;C) A and B are independent. They may both inform us about C, but they have nothing in common. Assumed by: myopic feature importance measures (information gain), discretization algorithms. C BA I(A;B|C)=0 A and B are conditionally independent given C. If A and B have something in common, it is all due to C. Assumed by: Naïve Bayes, Bayesian networks (A  C  B); -

18 Work in Progress Overfitting: the interaction information computations do not account for the increase in complexity. Support for numerical and ordered attributes. Inductive learning algorithms which use these heuristics automatically. Models that are based on the real relationships in the data, not on our assumptions about them.

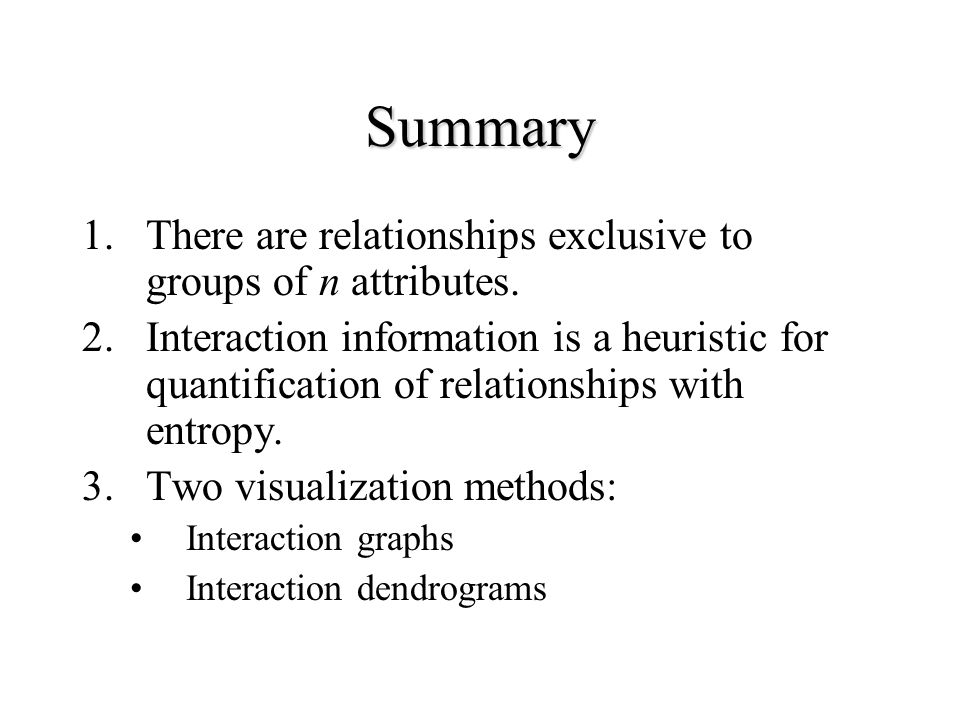

19 Summary 1.There are relationships exclusive to groups of n attributes. 2.Interaction information is a heuristic for quantification of relationships with entropy. 3.Two visualization methods: Interaction graphs Interaction dendrograms
