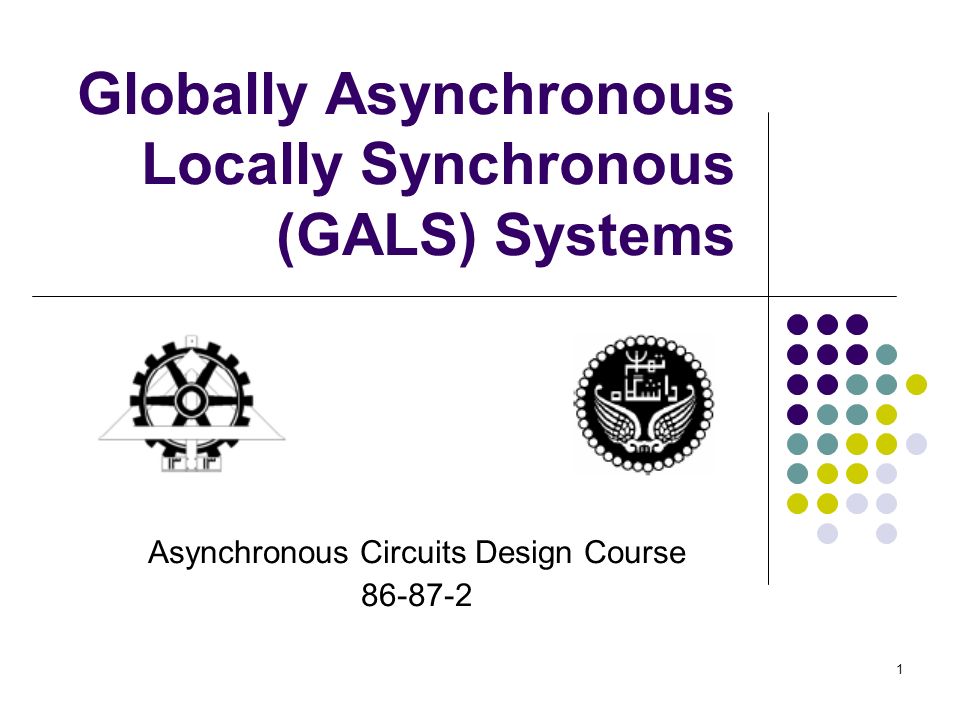

1. 1 Globally Asynchronous Locally Synchronous (GALS) Systems Asynchronous Circuits Design Course 86-87-2

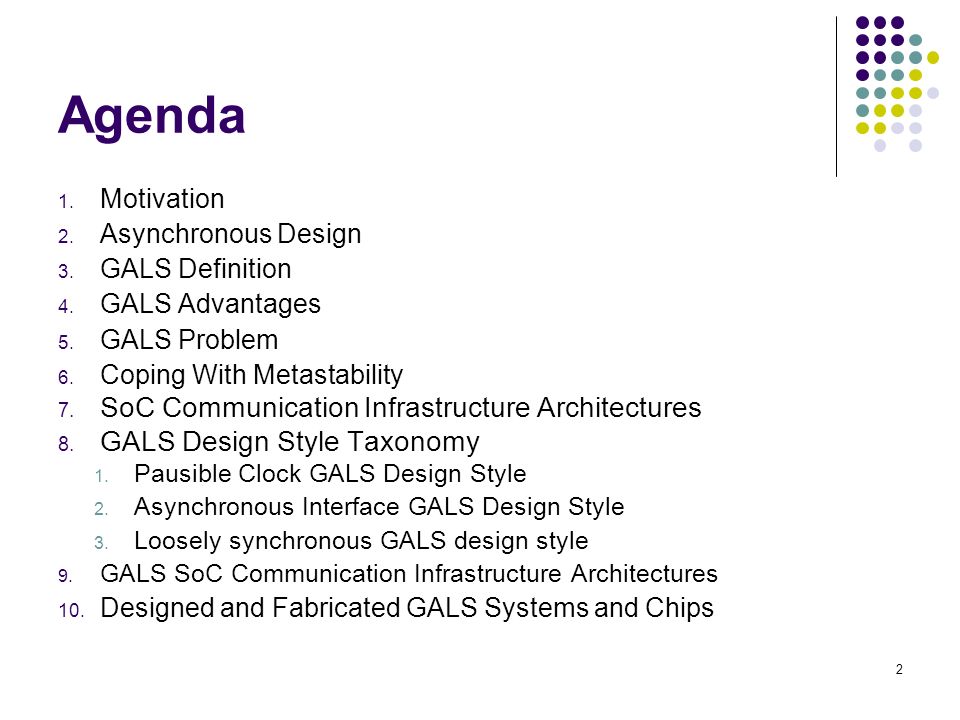

2. 2 Agenda 1. Motivation 2. Asynchronous Design 3. GALS Definition 4. GALS Advantages 5. GALS Problem 6. Coping With Metastability 7. SoC Communication Infrastructure Architectures 8. GALS Design Style Taxonomy 1. Pausible Clock GALS Design Style 2. Asynchronous Interface GALS Design Style 3. Loosely synchronous GALS design style 9. GALS SoC Communication Infrastructure Architectures 10. Designed and Fabricated GALS Systems and Chips

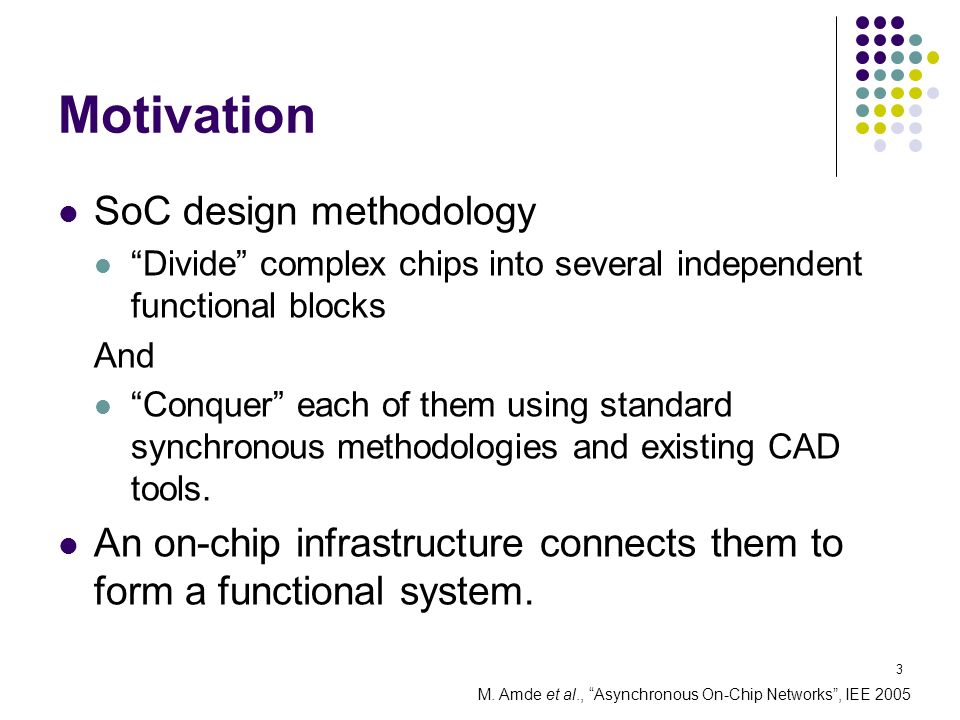

3. 3 Motivation SoC design methodology “Divide” complex chips into several independent functional blocks And “Conquer” each of them using standard synchronous methodologies and existing CAD tools. An on-chip infrastructure connects them to form a functional system. M. Amde et al., “Asynchronous On-Chip Networks”, IEE 2005

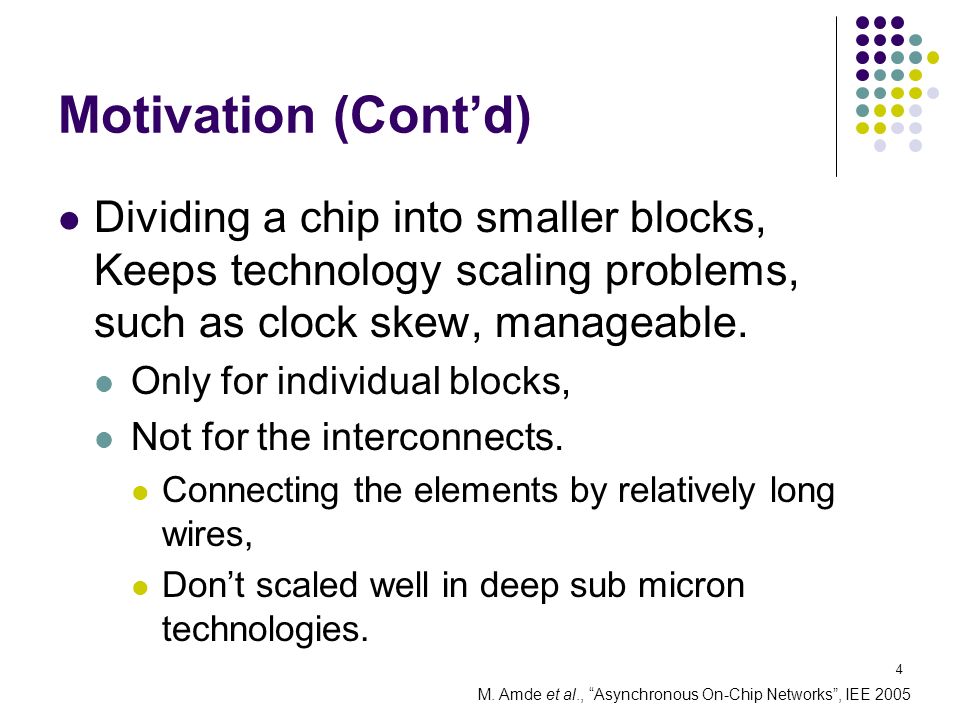

4. 4 Motivation (Cont’d) Dividing a chip into smaller blocks, Keeps technology scaling problems, such as clock skew, manageable. Only for individual blocks, Not for the interconnects. Connecting the elements by relatively long wires, Don’t scaled well in deep sub micron technologies. M. Amde et al., “Asynchronous On-Chip Networks”, IEE 2005

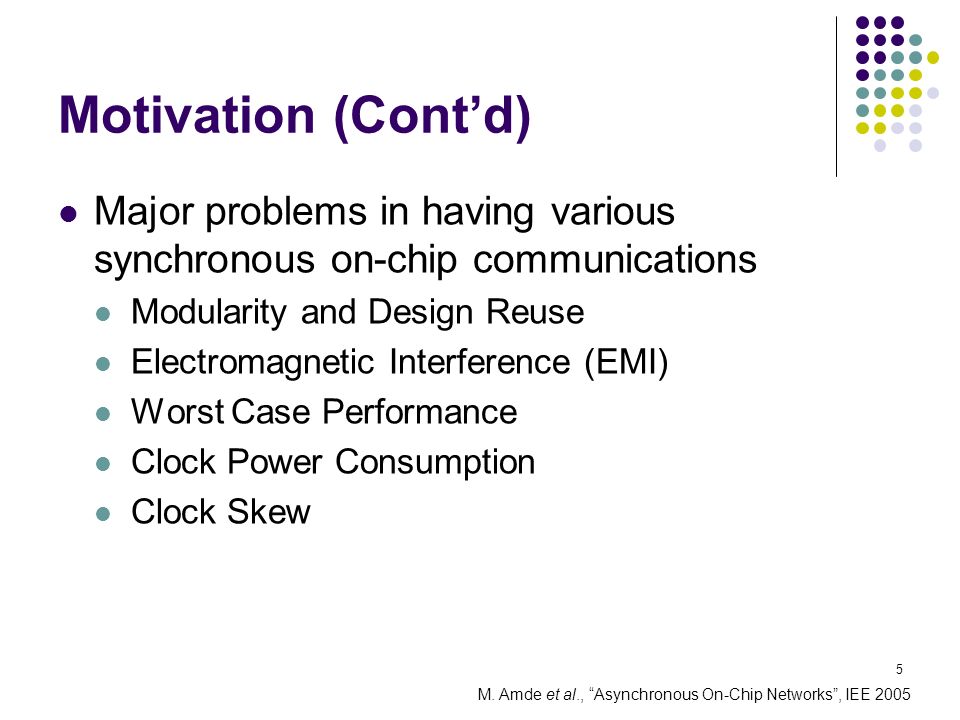

5. 5 Motivation (Cont’d) Major problems in having various synchronous on-chip communications Modularity and Design Reuse Electromagnetic Interference (EMI) Worst Case Performance Clock Power Consumption Clock Skew M. Amde et al., “Asynchronous On-Chip Networks”, IEE 2005

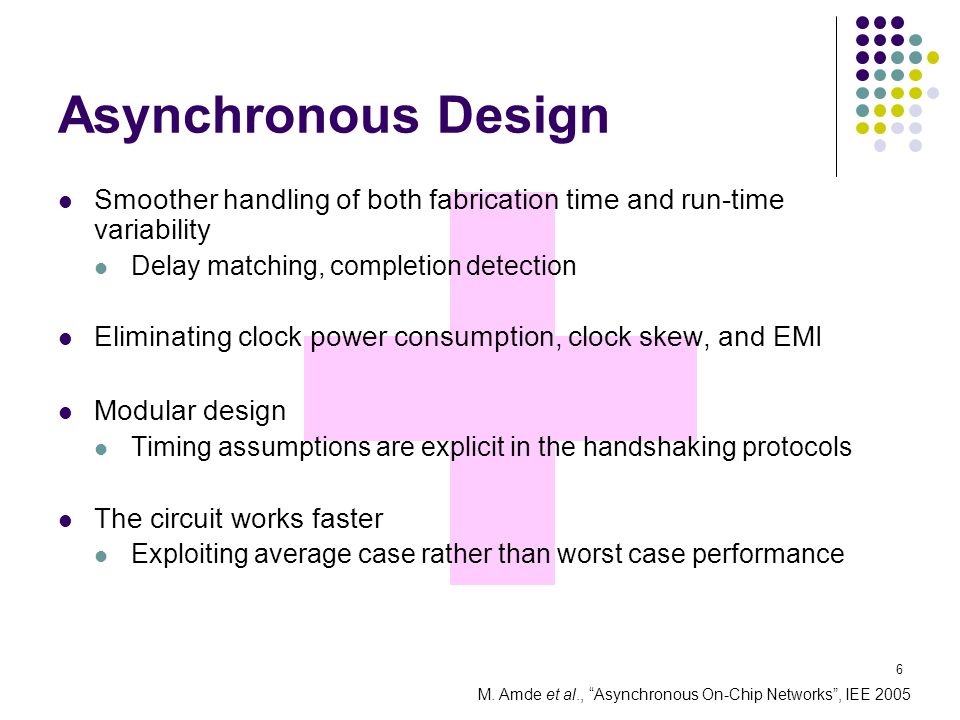

6. 6 Asynchronous Design Smoother handling of both fabrication time and run-time variability Delay matching, completion detection Eliminating clock power consumption, clock skew, and EMI Modular design Timing assumptions are explicit in the handshaking protocols The circuit works faster Exploiting average case rather than worst case performance M. Amde et al., “Asynchronous On-Chip Networks”, IEE 2005

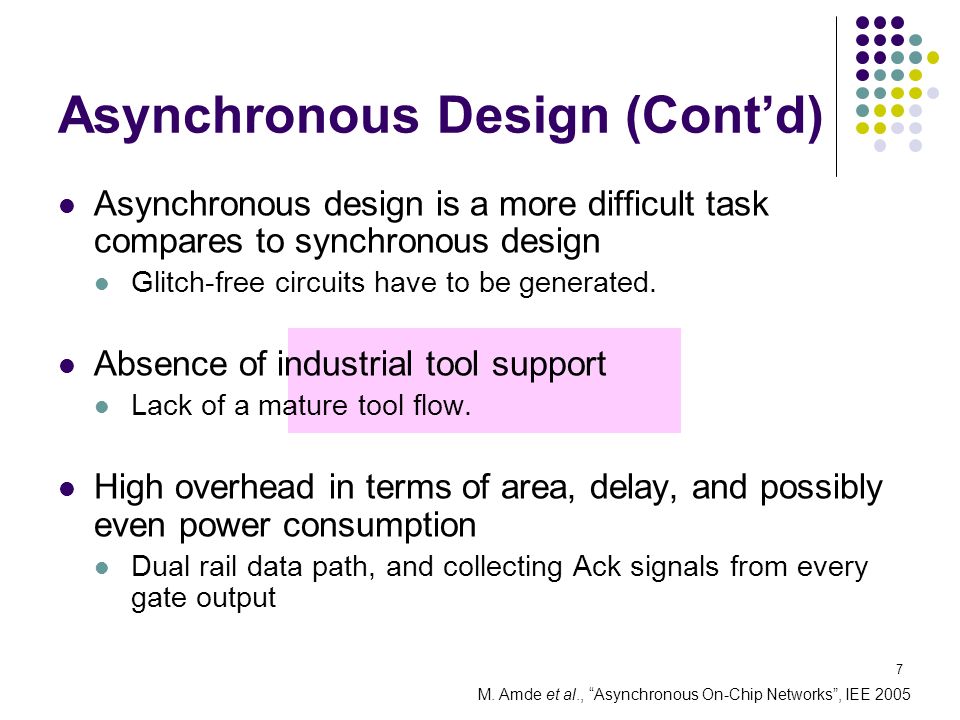

7. 7 Asynchronous Design (Cont’d) Asynchronous design is a more difficult task compares to synchronous design Glitch-free circuits have to be generated. Absence of industrial tool support Lack of a mature tool flow. High overhead in terms of area, delay, and possibly even power consumption Dual rail data path, and collecting Ack signals from every gate output M. Amde et al., “Asynchronous On-Chip Networks”, IEE 2005

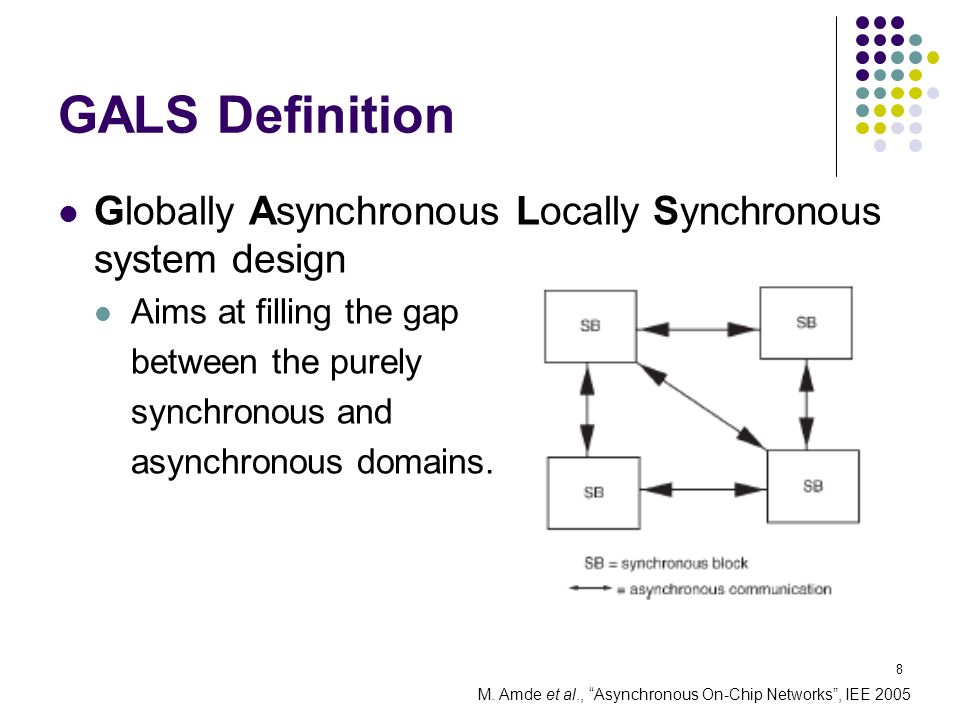

8. 8 GALS Definition Globally Asynchronous Locally Synchronous system design Aims at filling the gap between the purely synchronous and asynchronous domains. M. Amde et al., “Asynchronous On-Chip Networks”, IEE 2005

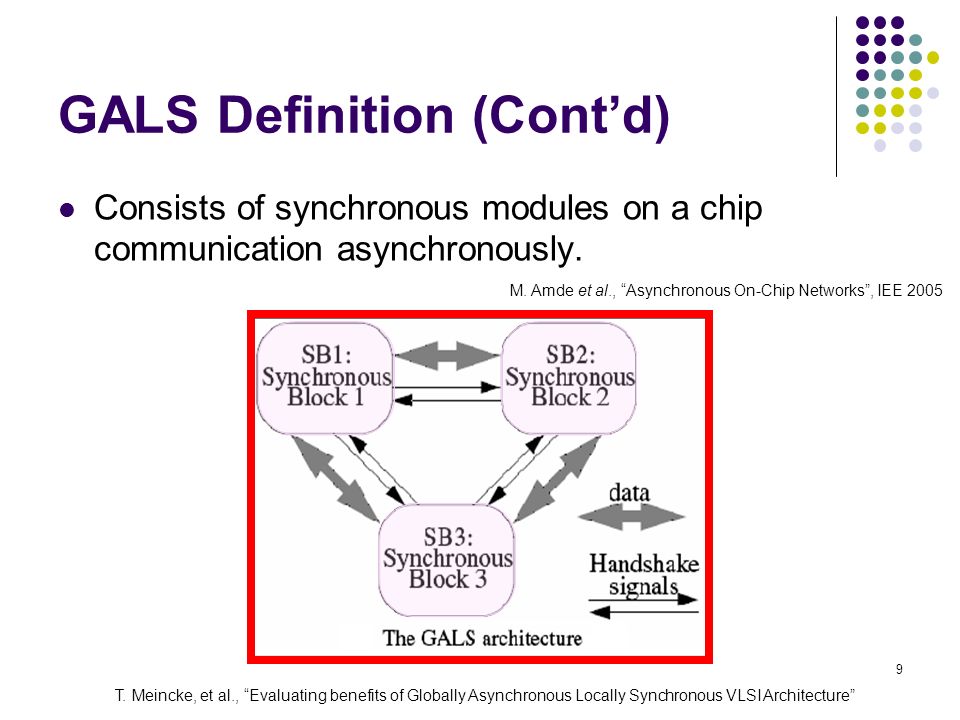

9. 9 GALS Definition (Cont’d) Consists of synchronous modules on a chip communication asynchronously. M. Amde et al., “Asynchronous On-Chip Networks”, IEE 2005 T. Meincke, et al., “Evaluating benefits of Globally Asynchronous Locally Synchronous VLSI Architecture”

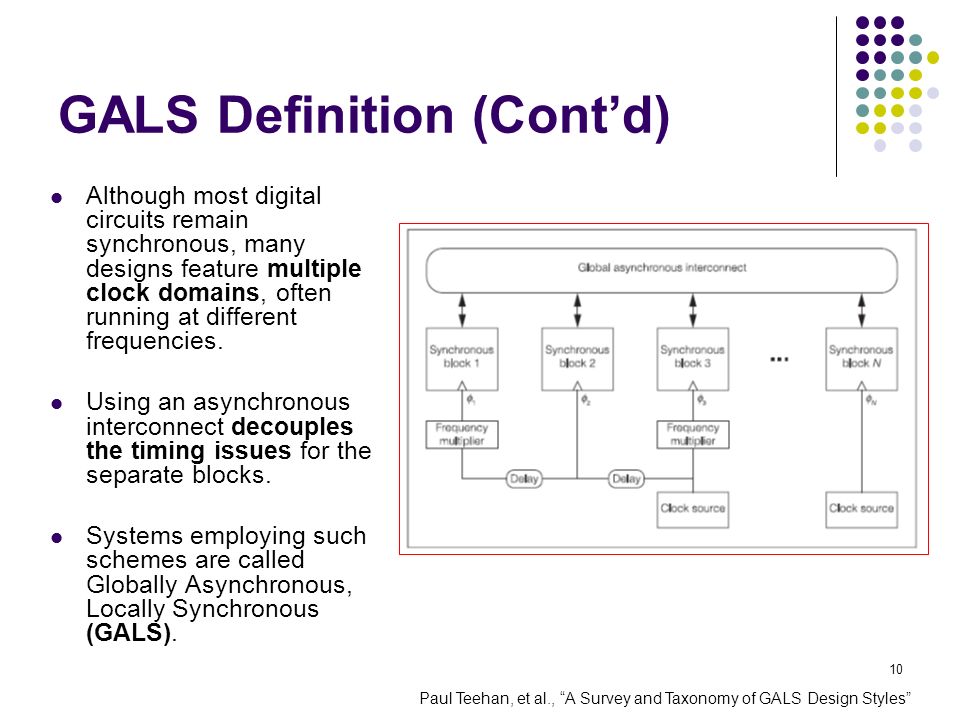

10. 10 GALS Definition (Cont’d) Although most digital circuits remain synchronous, many designs feature multiple clock domains, often running at different frequencies. Using an asynchronous interconnect decouples the timing issues for the separate blocks. Systems employing such schemes are called Globally Asynchronous, Locally Synchronous (GALS). Paul Teehan, et al., “A Survey and Taxonomy of GALS Design Styles”

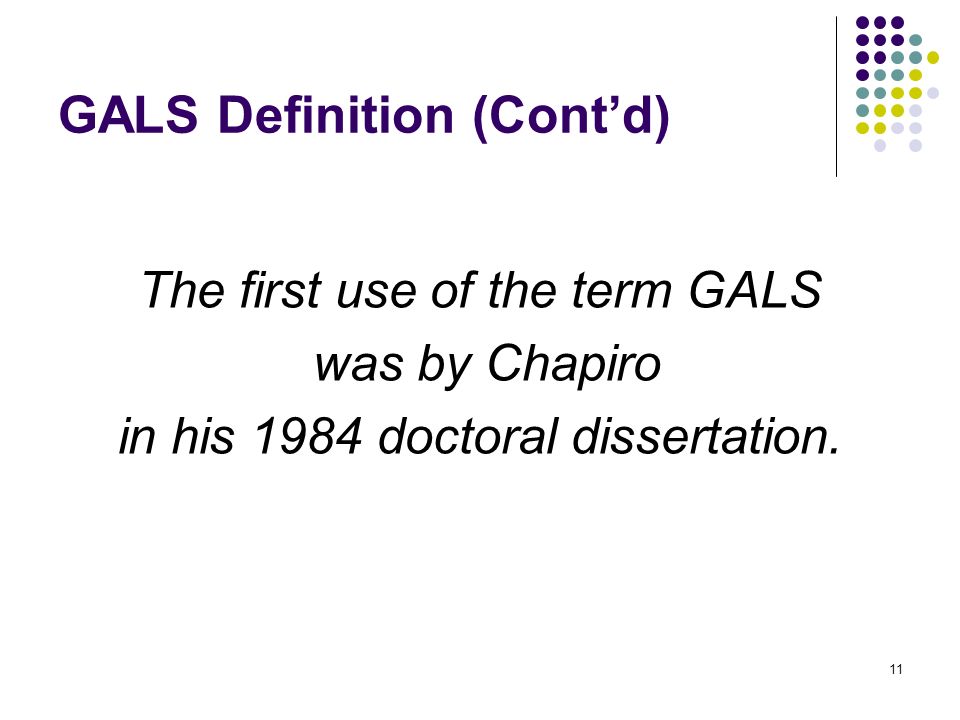

11. 11 GALS Definition (Cont’d) The first use of the term GALS was by Chapiro in his 1984 doctoral dissertation.

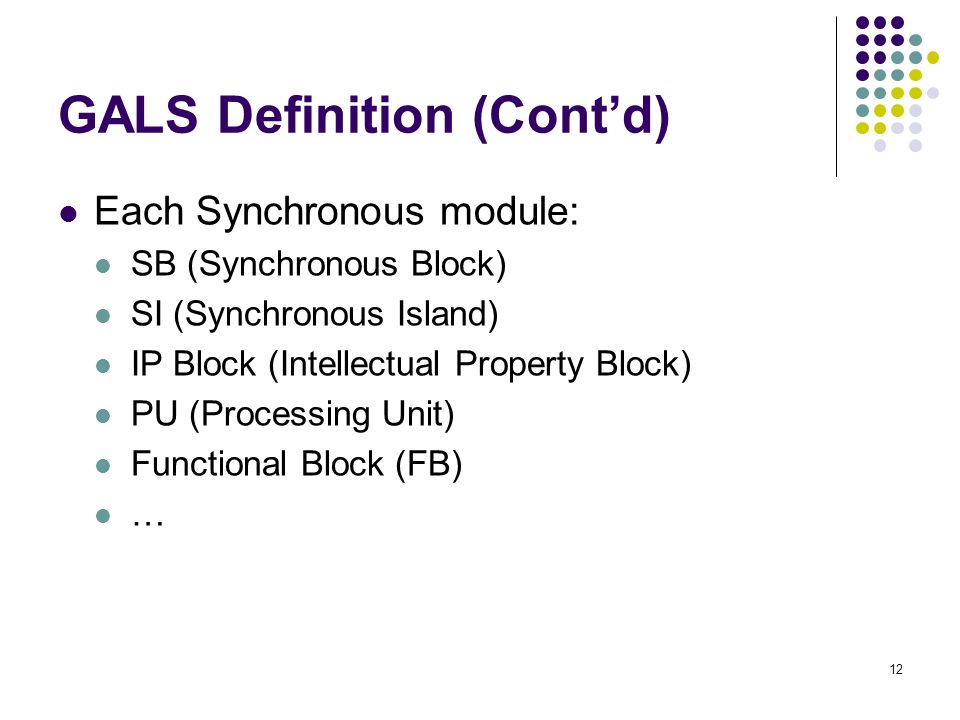

12. 12 GALS Definition (Cont’d) Each Synchronous module: SB (Synchronous Block) SI (Synchronous Island) IP Block (Intellectual Property Block) PU (Processing Unit) Functional Block (FB) …

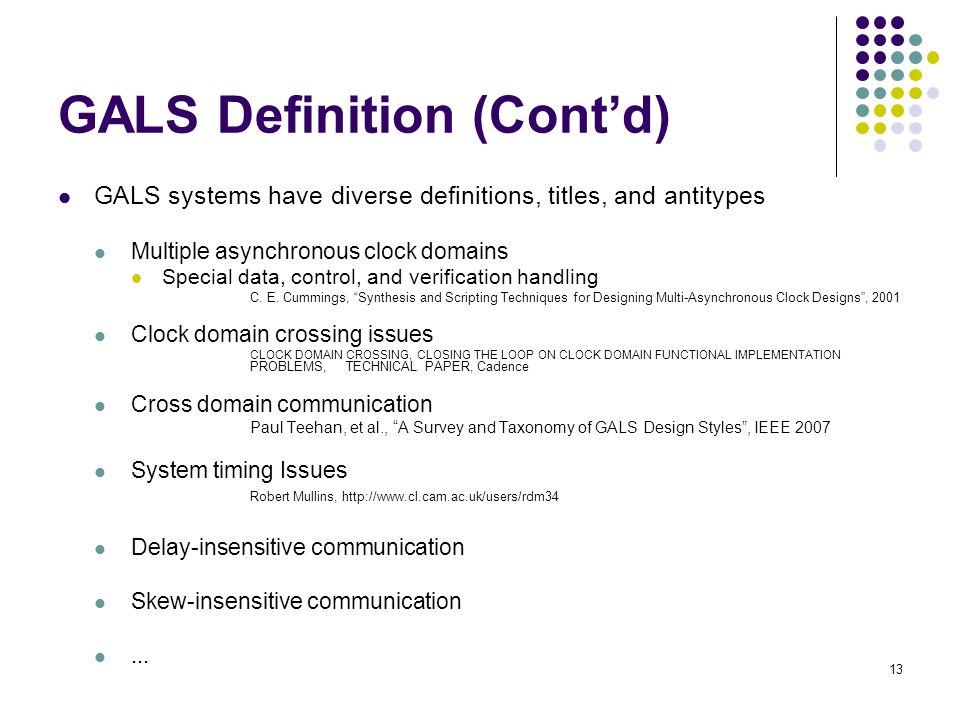

13. 13 GALS Definition (Cont’d) GALS systems have diverse definitions, titles, and antitypes Multiple asynchronous clock domains Special data, control, and verification handling C. E. Cummings, “Synthesis and Scripting Techniques for Designing Multi-Asynchronous Clock Designs”, 2001 Clock domain crossing issues CLOCK DOMAIN CROSSING, CLOSING THE LOOP ON CLOCK DOMAIN FUNCTIONAL IMPLEMENTATION PROBLEMS, TECHNICAL PAPER, Cadence Cross domain communication Paul Teehan, et al., “A Survey and Taxonomy of GALS Design Styles”, IEEE 2007 System timing Issues Robert Mullins, http://www.cl.cam.ac.uk/users/rdm34 Delay-insensitive communication Skew-insensitive communication...

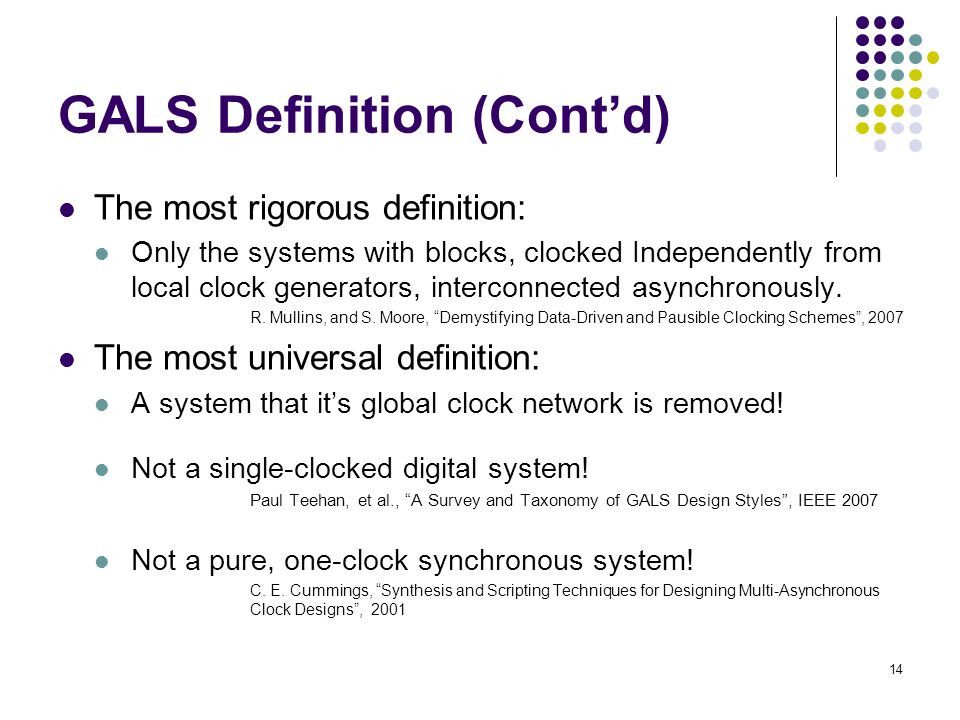

14. 14 GALS Definition (Cont’d) The most rigorous definition: Only the systems with blocks, clocked Independently from local clock generators, interconnected asynchronously. R. Mullins, and S. Moore, “Demystifying Data-Driven and Pausible Clocking Schemes”, 2007 The most universal definition: A system that it’s global clock network is removed! Not a single-clocked digital system! Paul Teehan, et al., “A Survey and Taxonomy of GALS Design Styles”, IEEE 2007 Not a pure, one-clock synchronous system! C. E. Cummings, “Synthesis and Scripting Techniques for Designing Multi-Asynchronous Clock Designs”, 2001

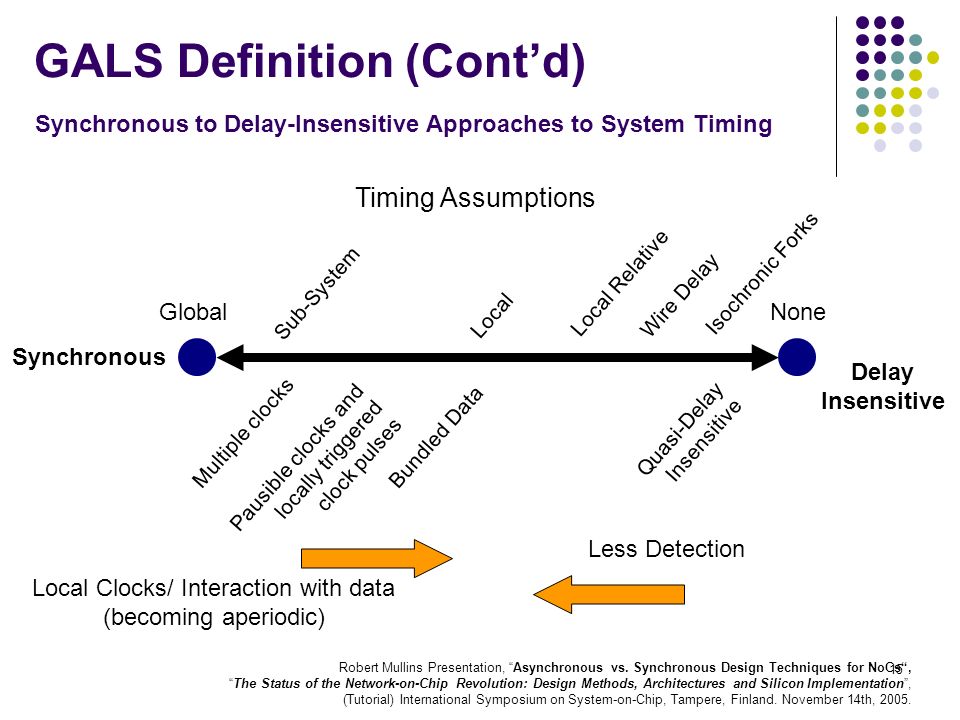

15. 15 GALS Definition (Cont’d) Synchronous Delay Insensitive GlobalNone Timing Assumptions Local Relative Wire Delay Less Detection Sub-System Local Isochronic Forks Multiple clocks Pausible clocks and locally triggered clock pulses Bundled Data Quasi-Delay Insensitive Local Clocks/ Interaction with data (becoming aperiodic) Synchronous to Delay-Insensitive Approaches to System Timing Robert Mullins Presentation, “Asynchronous vs. Synchronous Design Techniques for NoCs“, “The Status of the Network-on-Chip Revolution: Design Methods, Architectures and Silicon Implementation”, (Tutorial) International Symposium on System-on-Chip, Tampere, Finland. November 14th, 2005.

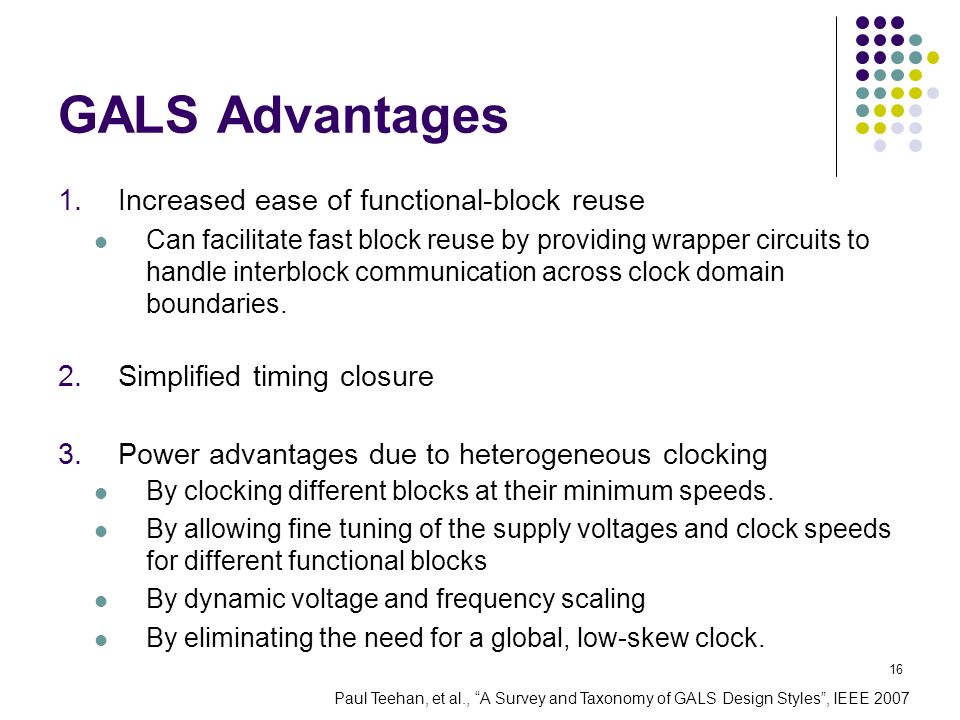

16. 16 GALS Advantages 1.Increased ease of functional-block reuse Can facilitate fast block reuse by providing wrapper circuits to handle interblock communication across clock domain boundaries. 2.Simplified timing closure 3.Power advantages due to heterogeneous clocking By clocking different blocks at their minimum speeds. By allowing fine tuning of the supply voltages and clock speeds for different functional blocks By dynamic voltage and frequency scaling By eliminating the need for a global, low-skew clock. Paul Teehan, et al., “A Survey and Taxonomy of GALS Design Styles”, IEEE 2007

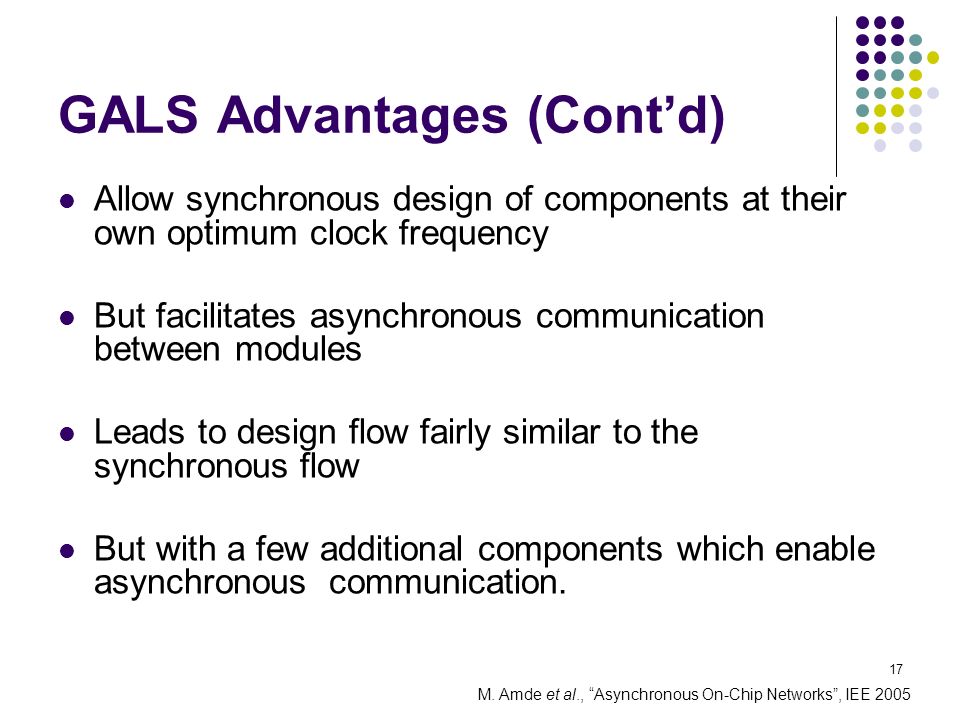

17. 17 GALS Advantages (Cont’d) Allow synchronous design of components at their own optimum clock frequency But facilitates asynchronous communication between modules Leads to design flow fairly similar to the synchronous flow But with a few additional components which enable asynchronous communication. M. Amde et al., “Asynchronous On-Chip Networks”, IEE 2005

18. 18 GALS Advantages (Cont’d) Eliminates the global clock leading to huge reduction of power consumption and alleviating the clock skew problem. Facilities modular system design which is scalable. Because of close resemblance to synchronous design, can attract the attention of synchronous designers who are not willing to experiment with asynchronous design. M. Amde et al., “Asynchronous On-Chip Networks”, IEE 2005

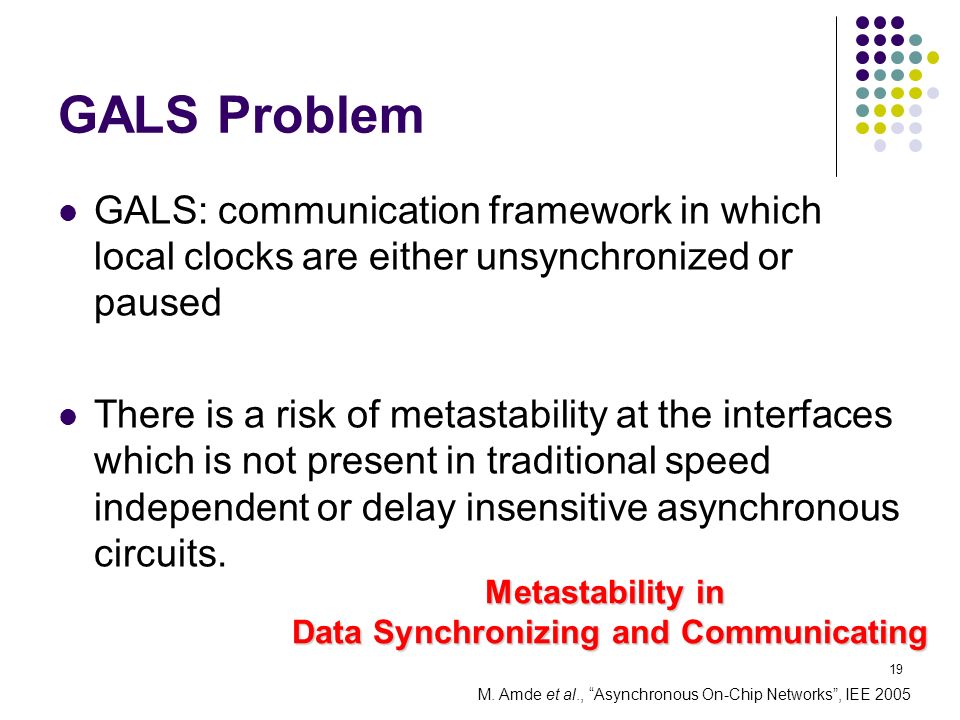

19. 19 GALS Problem GALS: communication framework in which local clocks are either unsynchronized or paused There is a risk of metastability at the interfaces which is not present in traditional speed independent or delay insensitive asynchronous circuits. Metastability in Data Synchronizing and Communicating M. Amde et al., “Asynchronous On-Chip Networks”, IEE 2005

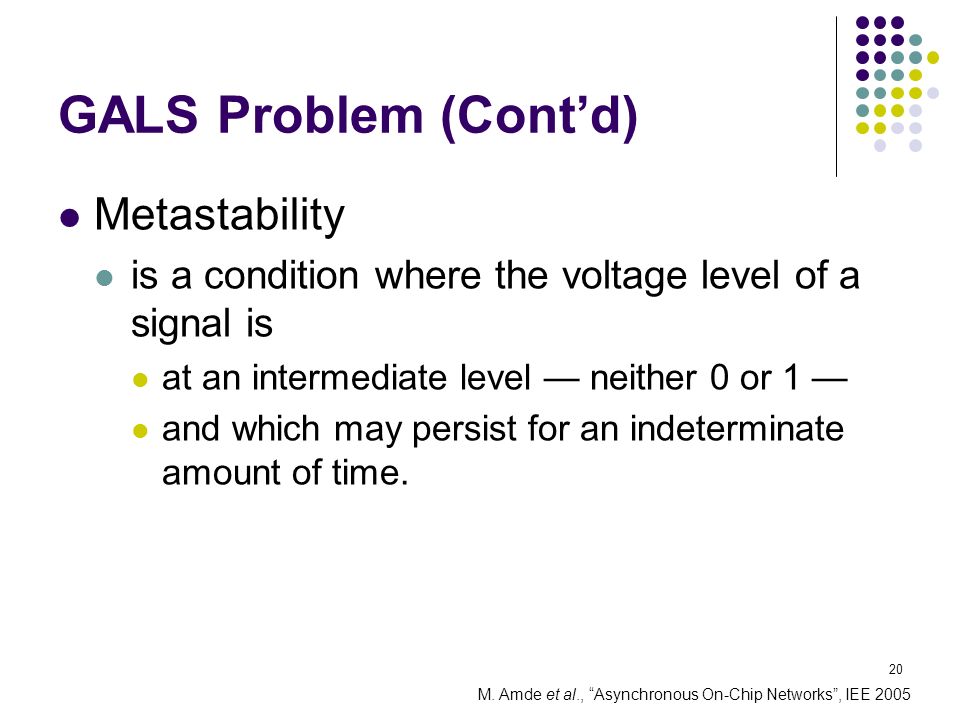

20. 20 GALS Problem (Cont’d) Metastability is a condition where the voltage level of a signal is at an intermediate level — neither 0 or 1 — and which may persist for an indeterminate amount of time. M. Amde et al., “Asynchronous On-Chip Networks”, IEE 2005

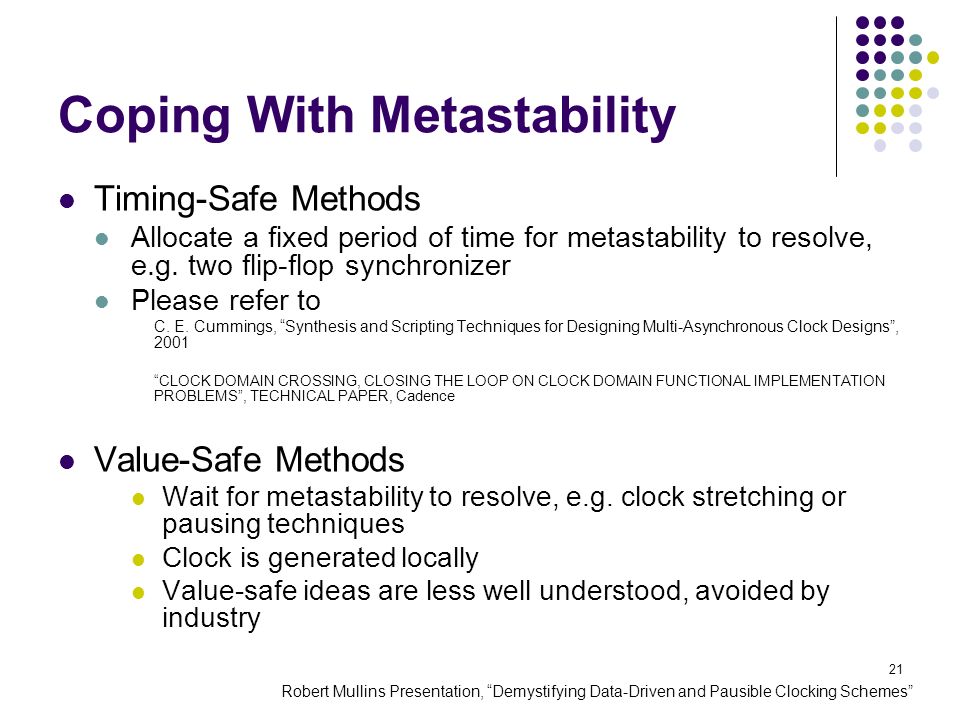

21. 21 Coping With Metastability Timing-Safe Methods Allocate a fixed period of time for metastability to resolve, e.g. two flip-flop synchronizer Please refer to C. E. Cummings, “Synthesis and Scripting Techniques for Designing Multi-Asynchronous Clock Designs”, 2001 “CLOCK DOMAIN CROSSING, CLOSING THE LOOP ON CLOCK DOMAIN FUNCTIONAL IMPLEMENTATION PROBLEMS”, TECHNICAL PAPER, Cadence Value-Safe Methods Wait for metastability to resolve, e.g. clock stretching or pausing techniques Clock is generated locally Value-safe ideas are less well understood, avoided by industry Robert Mullins Presentation, “Demystifying Data-Driven and Pausible Clocking Schemes”

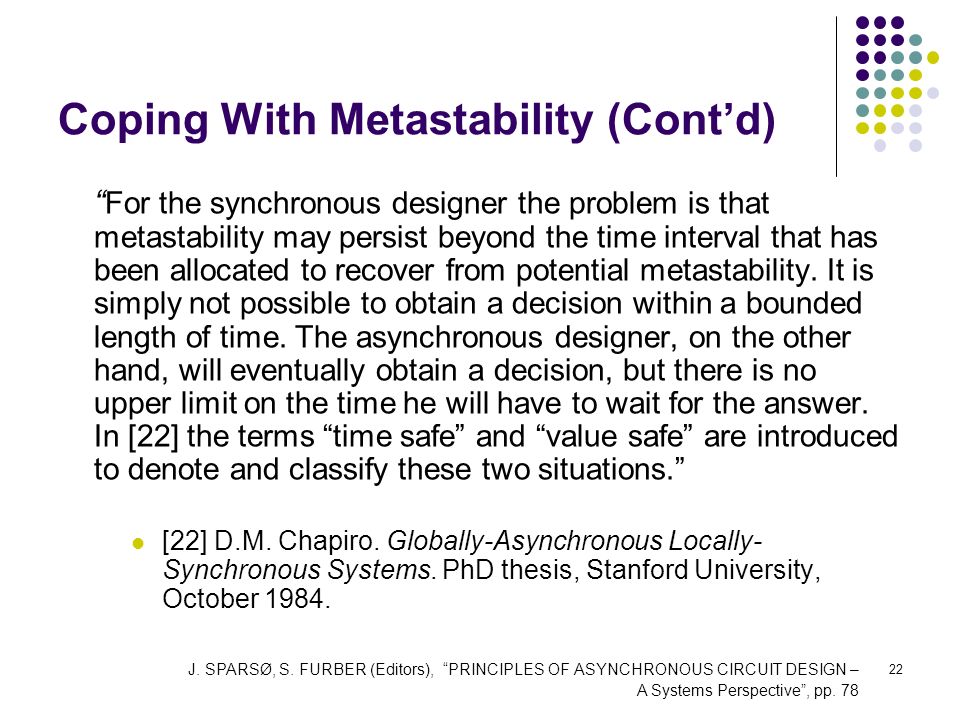

22. 22 Coping With Metastability (Cont’d) “ For the synchronous designer the problem is that metastability may persist beyond the time interval that has been allocated to recover from potential metastability. It is simply not possible to obtain a decision within a bounded length of time. The asynchronous designer, on the other hand, will eventually obtain a decision, but there is no upper limit on the time he will have to wait for the answer. In [22] the terms “time safe” and “value safe” are introduced to denote and classify these two situations.” [22] D.M. Chapiro. Globally-Asynchronous Locally- Synchronous Systems. PhD thesis, Stanford University, October 1984. J. SPARSØ, S. FURBER (Editors), “PRINCIPLES OF ASYNCHRONOUS CIRCUIT DESIGN – A Systems Perspective”, pp. 78

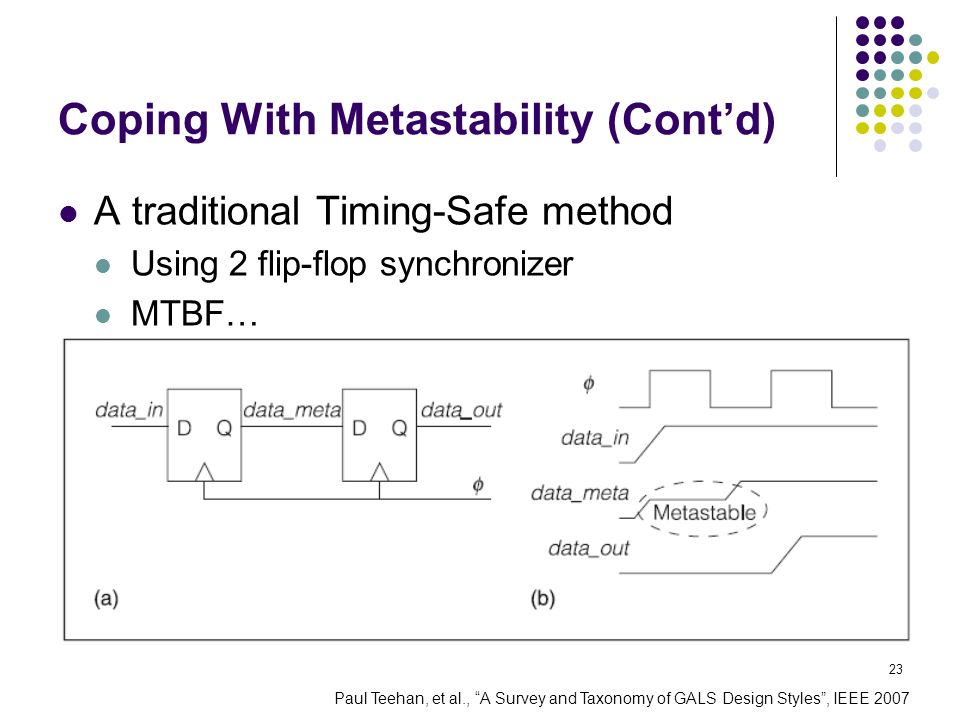

23. 23 Coping With Metastability (Cont’d) A traditional Timing-Safe method Using 2 flip-flop synchronizer MTBF… Paul Teehan, et al., “A Survey and Taxonomy of GALS Design Styles”, IEEE 2007

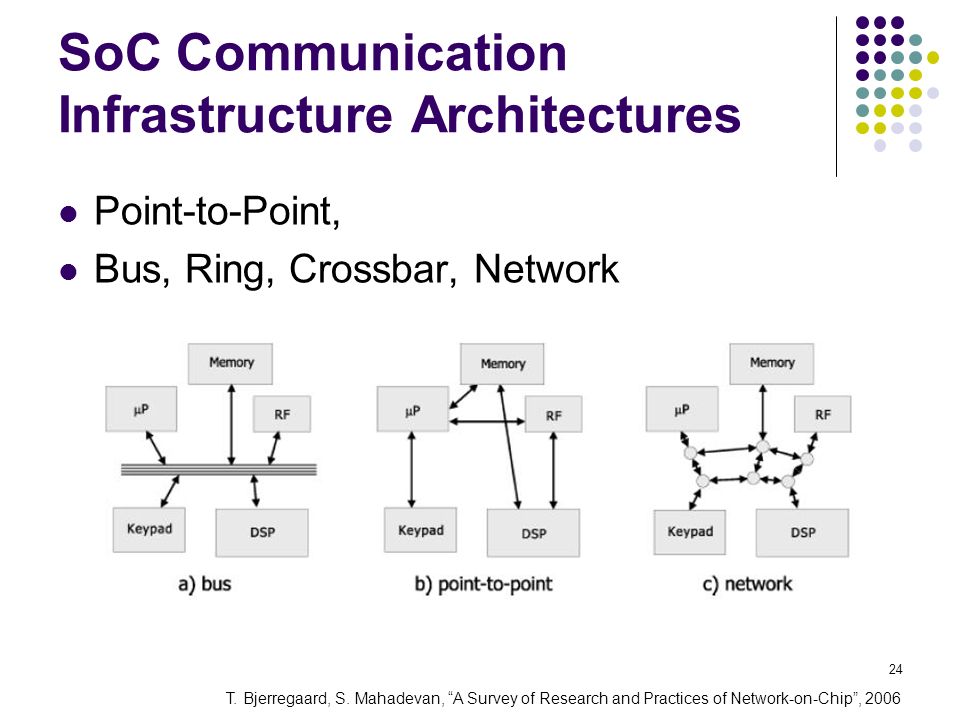

24. 24 SoC Communication Infrastructure Architectures Point-to-Point, Bus, Ring, Crossbar, Network T. Bjerregaard, S. Mahadevan, “A Survey of Research and Practices of Network-on-Chip”, 2006

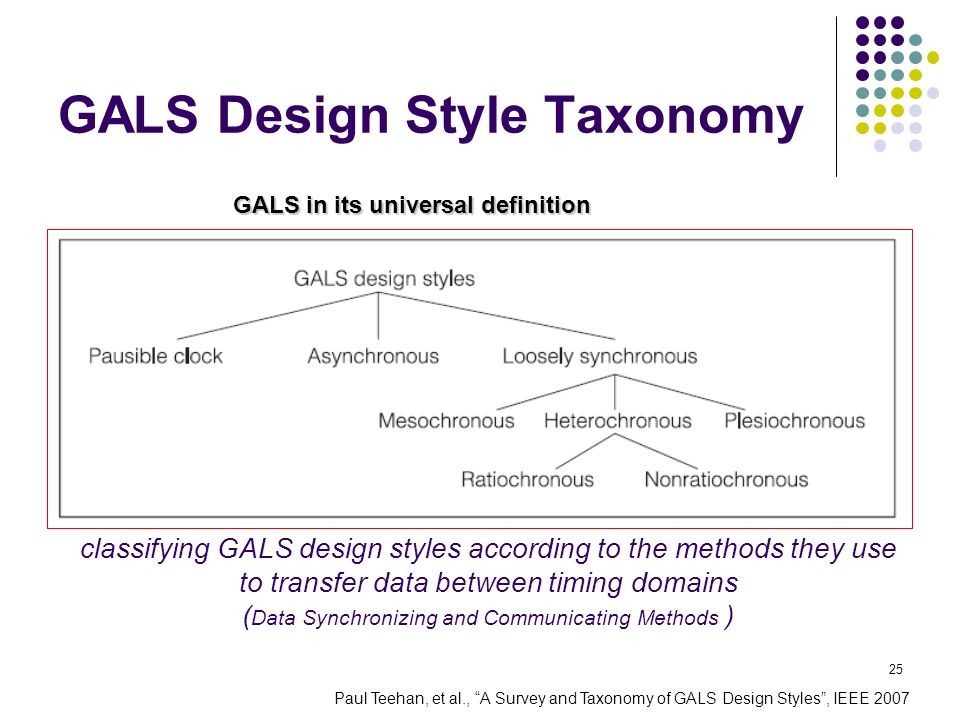

25. 25 GALS Design Style Taxonomy classifying GALS design styles according to the methods they use to transfer data between timing domains ( Data Synchronizing and Communicating Methods ) Paul Teehan, et al., “A Survey and Taxonomy of GALS Design Styles”, IEEE 2007 GALS in its universal definition

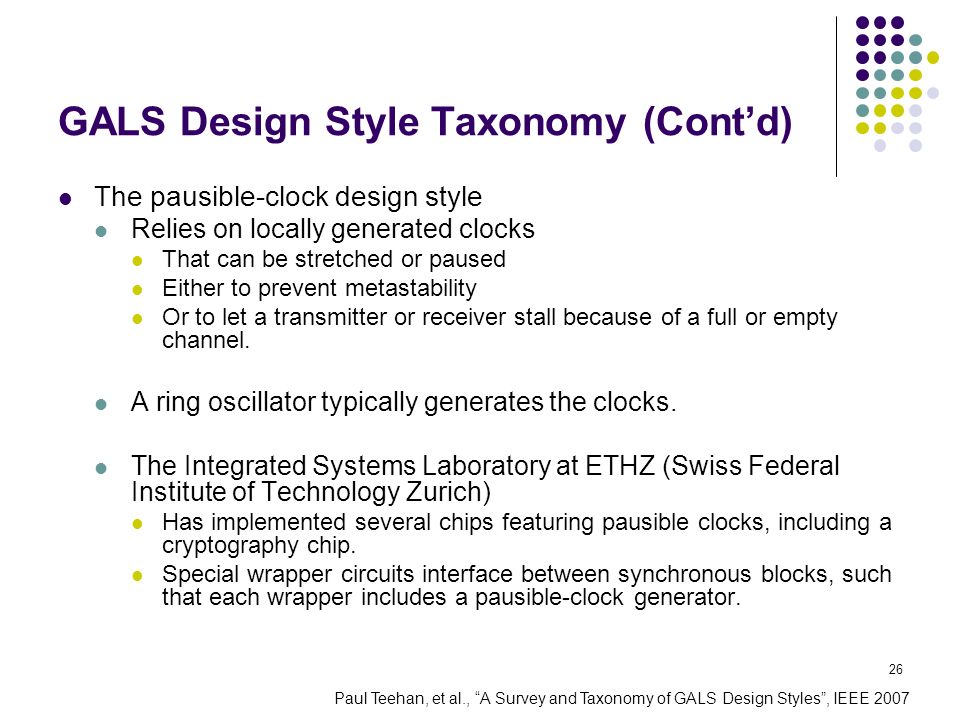

26. 26 GALS Design Style Taxonomy (Cont’d) The pausible-clock design style Relies on locally generated clocks That can be stretched or paused Either to prevent metastability Or to let a transmitter or receiver stall because of a full or empty channel. A ring oscillator typically generates the clocks. The Integrated Systems Laboratory at ETHZ (Swiss Federal Institute of Technology Zurich) Has implemented several chips featuring pausible clocks, including a cryptography chip. Special wrapper circuits interface between synchronous blocks, such that each wrapper includes a pausible-clock generator. Paul Teehan, et al., “A Survey and Taxonomy of GALS Design Styles”, IEEE 2007

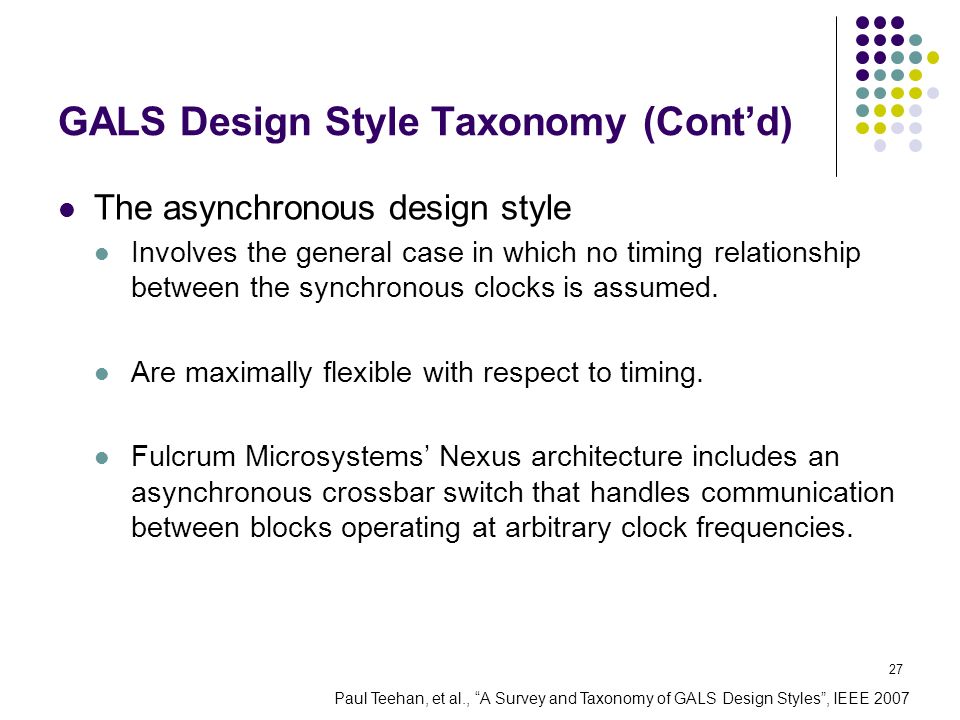

27. 27 GALS Design Style Taxonomy (Cont’d) The asynchronous design style Involves the general case in which no timing relationship between the synchronous clocks is assumed. Are maximally flexible with respect to timing. Fulcrum Microsystems’ Nexus architecture includes an asynchronous crossbar switch that handles communication between blocks operating at arbitrary clock frequencies. Paul Teehan, et al., “A Survey and Taxonomy of GALS Design Styles”, IEEE 2007

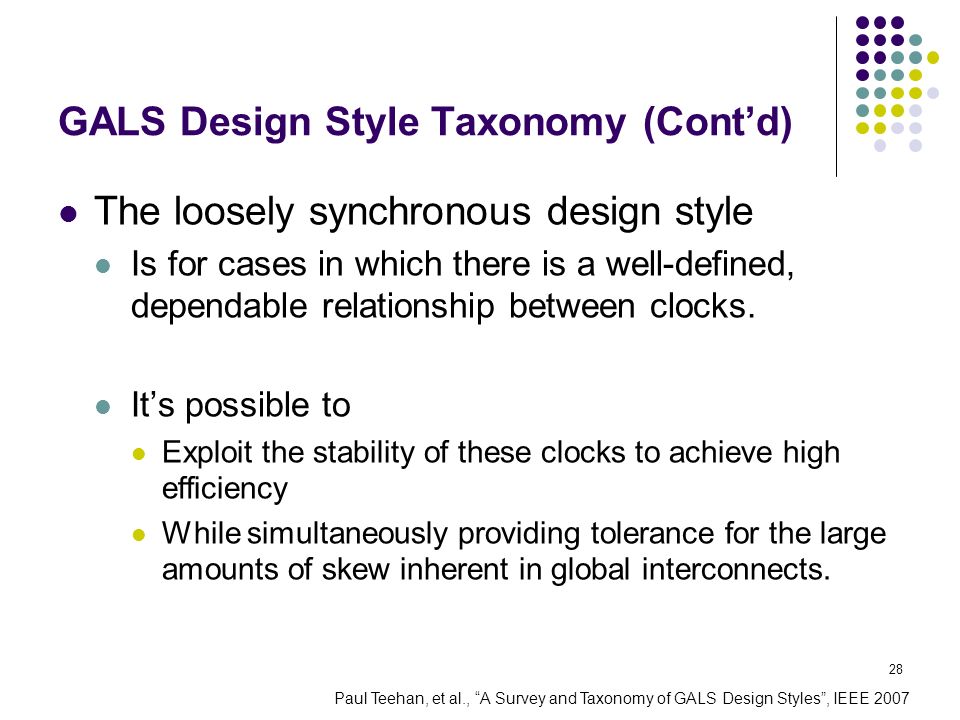

28. 28 GALS Design Style Taxonomy (Cont’d) The loosely synchronous design style Is for cases in which there is a well-defined, dependable relationship between clocks. It’s possible to Exploit the stability of these clocks to achieve high efficiency While simultaneously providing tolerance for the large amounts of skew inherent in global interconnects. Paul Teehan, et al., “A Survey and Taxonomy of GALS Design Styles”, IEEE 2007

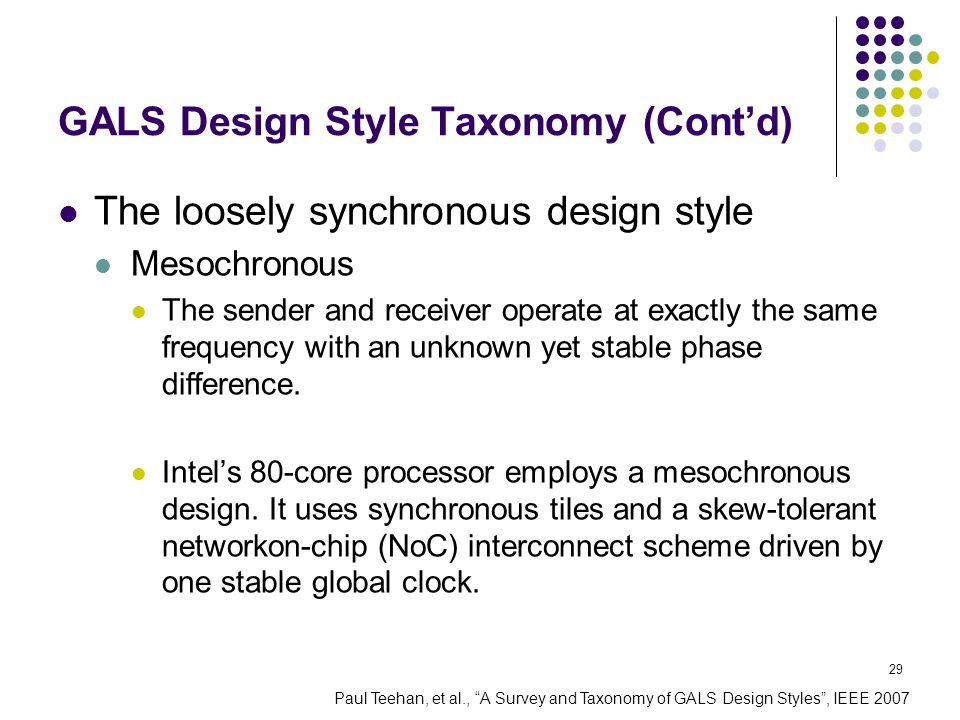

29. 29 GALS Design Style Taxonomy (Cont’d) The loosely synchronous design style Mesochronous The sender and receiver operate at exactly the same frequency with an unknown yet stable phase difference. Intel’s 80-core processor employs a mesochronous design. It uses synchronous tiles and a skew-tolerant networkon-chip (NoC) interconnect scheme driven by one stable global clock. Paul Teehan, et al., “A Survey and Taxonomy of GALS Design Styles”, IEEE 2007

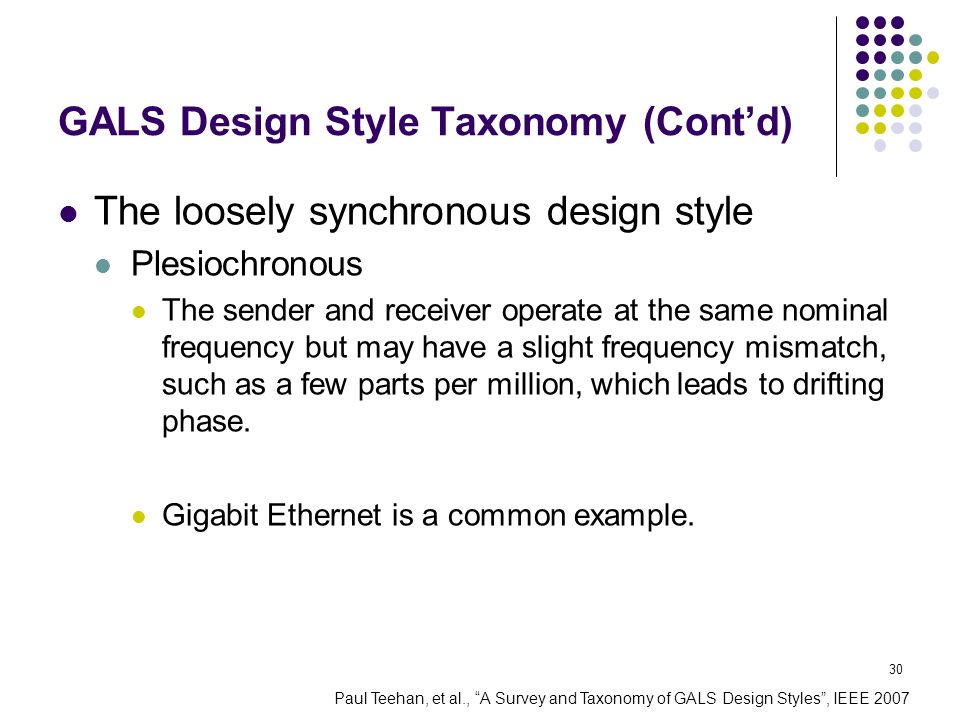

30. 30 GALS Design Style Taxonomy (Cont’d) The loosely synchronous design style Plesiochronous The sender and receiver operate at the same nominal frequency but may have a slight frequency mismatch, such as a few parts per million, which leads to drifting phase. Gigabit Ethernet is a common example. Paul Teehan, et al., “A Survey and Taxonomy of GALS Design Styles”, IEEE 2007

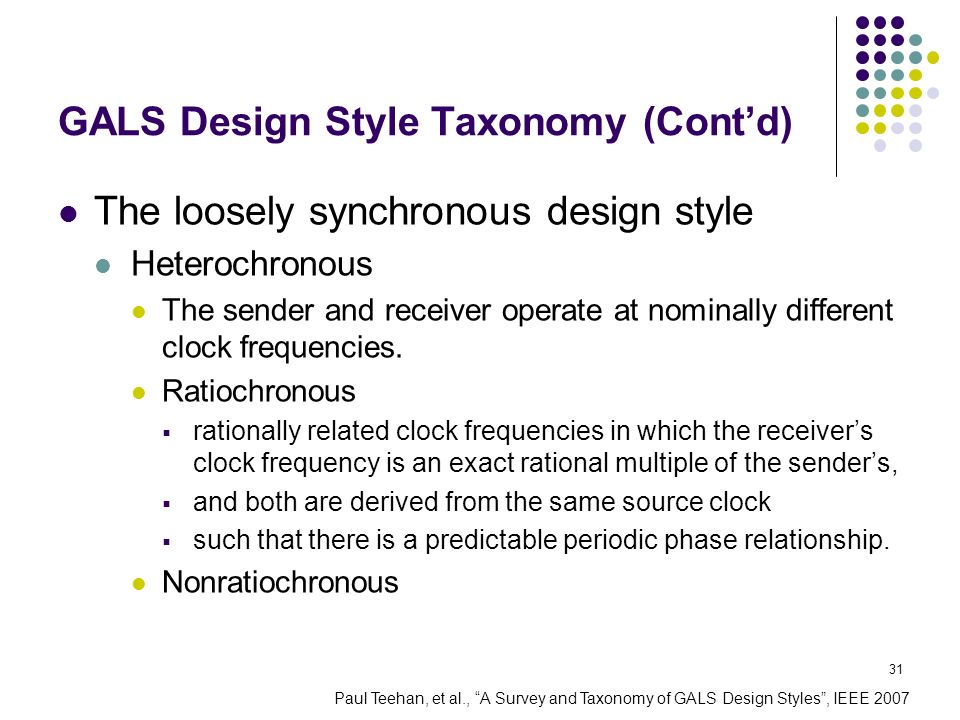

31. 31 GALS Design Style Taxonomy (Cont’d) The loosely synchronous design style Heterochronous The sender and receiver operate at nominally different clock frequencies. Ratiochronous  rationally related clock frequencies in which the receiver’s clock frequency is an exact rational multiple of the sender’s,  and both are derived from the same source clock  such that there is a predictable periodic phase relationship. Nonratiochronous Paul Teehan, et al., “A Survey and Taxonomy of GALS Design Styles”, IEEE 2007

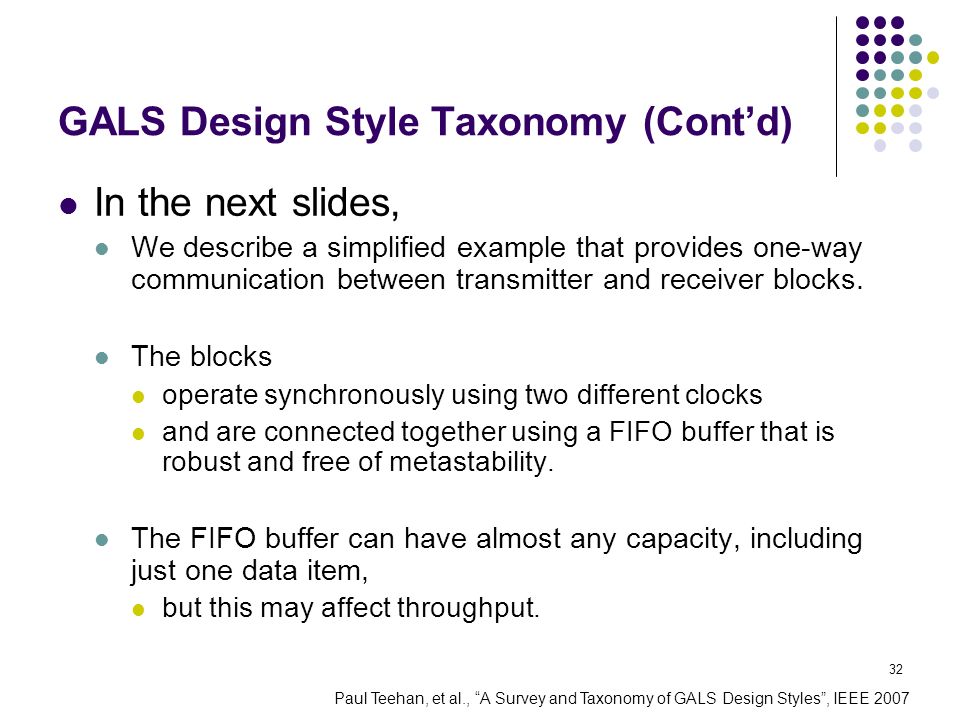

32. 32 GALS Design Style Taxonomy (Cont’d) In the next slides, We describe a simplified example that provides one-way communication between transmitter and receiver blocks. The blocks operate synchronously using two different clocks and are connected together using a FIFO buffer that is robust and free of metastability. The FIFO buffer can have almost any capacity, including just one data item, but this may affect throughput. Paul Teehan, et al., “A Survey and Taxonomy of GALS Design Styles”, IEEE 2007

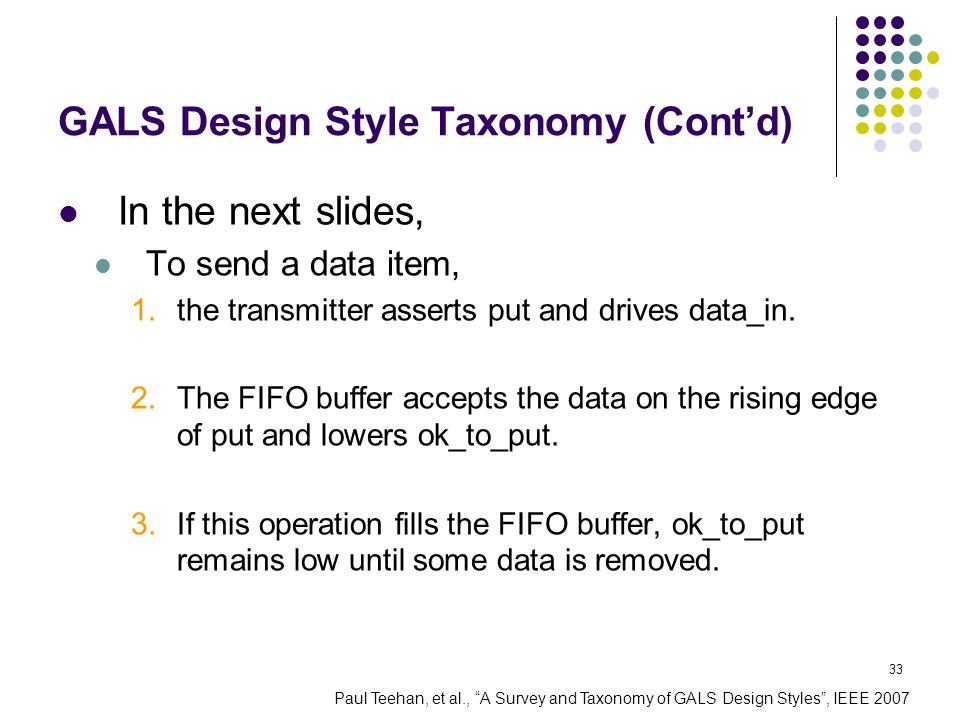

33. 33 GALS Design Style Taxonomy (Cont’d) In the next slides, To send a data item, 1.the transmitter asserts put and drives data_in. 2.The FIFO buffer accepts the data on the rising edge of put and lowers ok_to_put. 3.If this operation fills the FIFO buffer, ok_to_put remains low until some data is removed. Paul Teehan, et al., “A Survey and Taxonomy of GALS Design Styles”, IEEE 2007

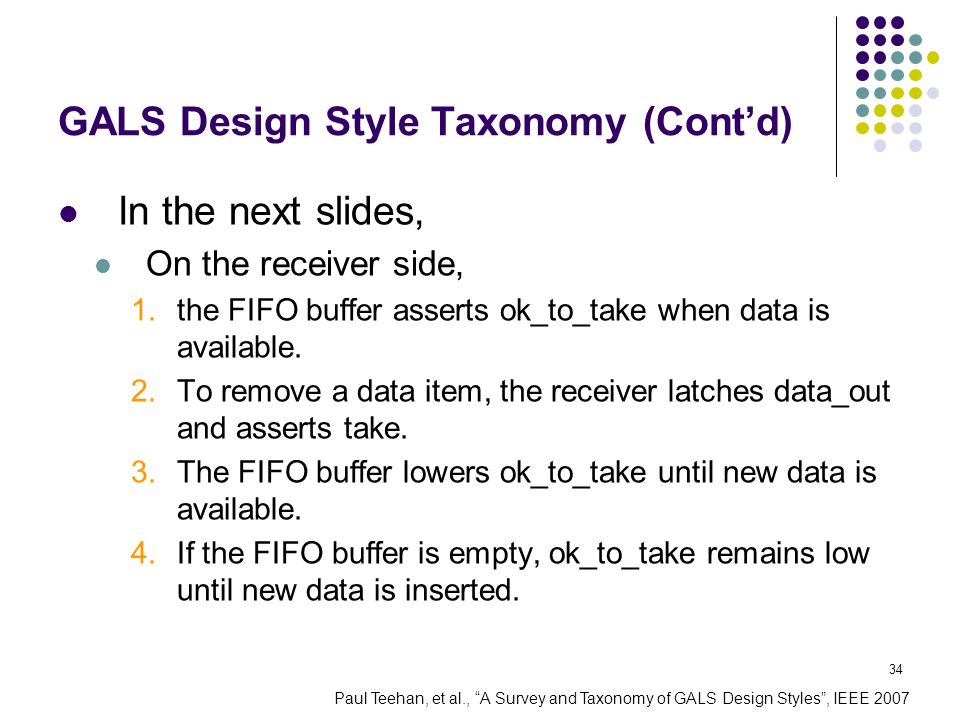

34. 34 GALS Design Style Taxonomy (Cont’d) In the next slides, On the receiver side, 1.the FIFO buffer asserts ok_to_take when data is available. 2.To remove a data item, the receiver latches data_out and asserts take. 3.The FIFO buffer lowers ok_to_take until new data is available. 4.If the FIFO buffer is empty, ok_to_take remains low until new data is inserted. Paul Teehan, et al., “A Survey and Taxonomy of GALS Design Styles”, IEEE 2007

35. 35 Pausible Clock GALS Design Style The Chapiro’s GALS approach using pausible clocks to enable separate clock domains to communicate without metastability. each locally synchronous block generates its own clock with a ring oscillator. Each ring oscillator’s period is set according to the speed requirements of the block it drives. Paul Teehan, et al., “A Survey and Taxonomy of GALS Design Styles”, IEEE 2007

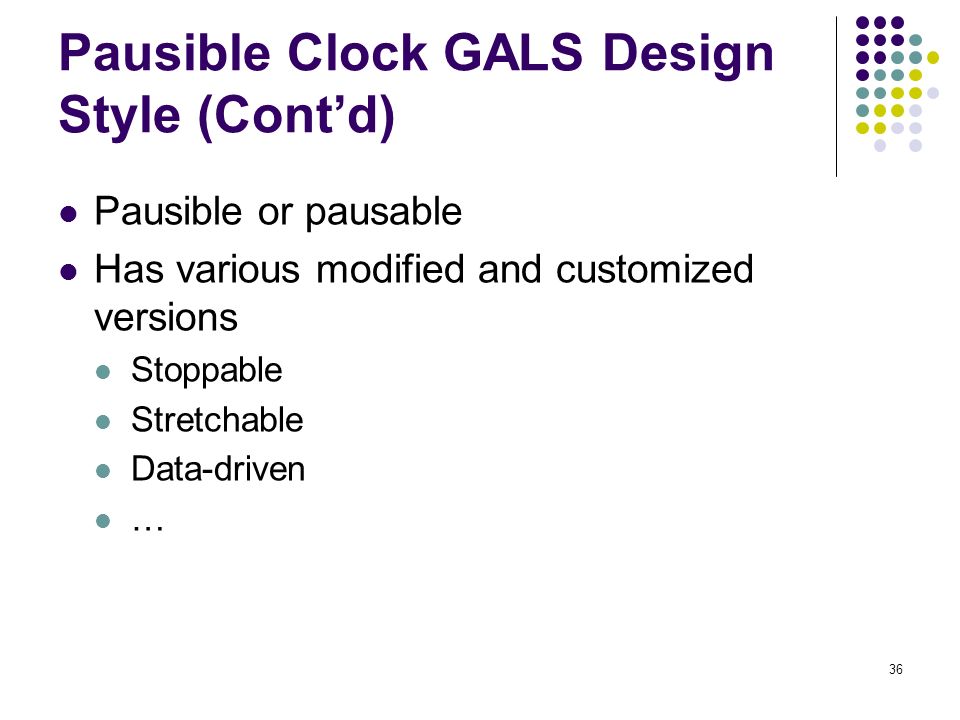

36. 36 Pausible Clock GALS Design Style (Cont’d) Pausible or pausable Has various modified and customized versions Stoppable Stretchable Data-driven …

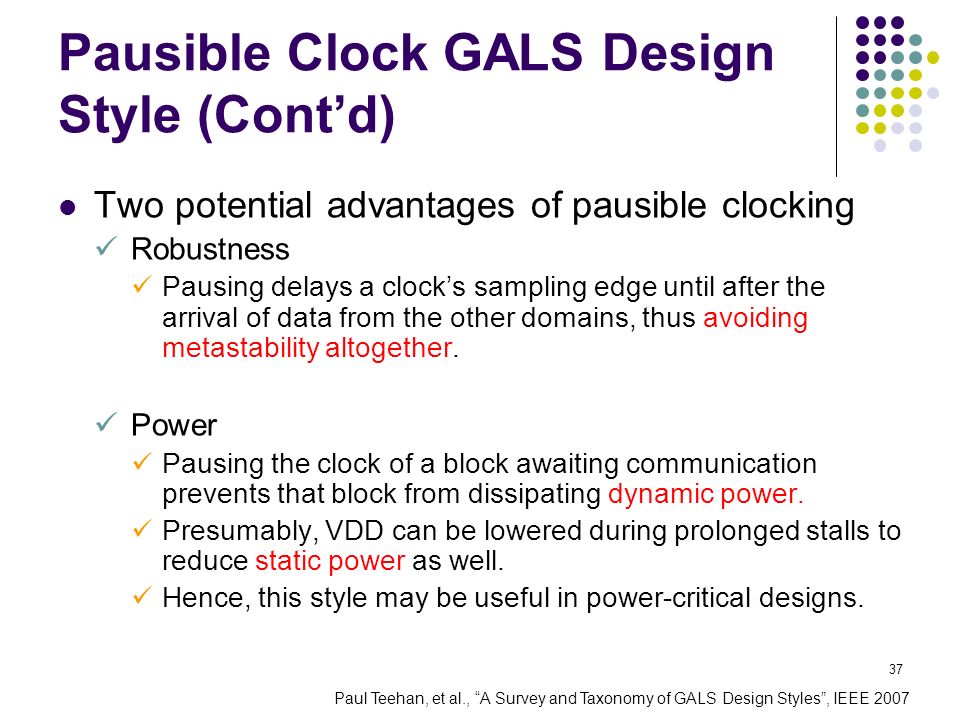

37. 37 Pausible Clock GALS Design Style (Cont’d) Two potential advantages of pausible clocking Robustness Pausing delays a clock’s sampling edge until after the arrival of data from the other domains, thus avoiding metastability altogether. Power Pausing the clock of a block awaiting communication prevents that block from dissipating dynamic power. Presumably, VDD can be lowered during prolonged stalls to reduce static power as well. Hence, this style may be useful in power-critical designs. Paul Teehan, et al., “A Survey and Taxonomy of GALS Design Styles”, IEEE 2007

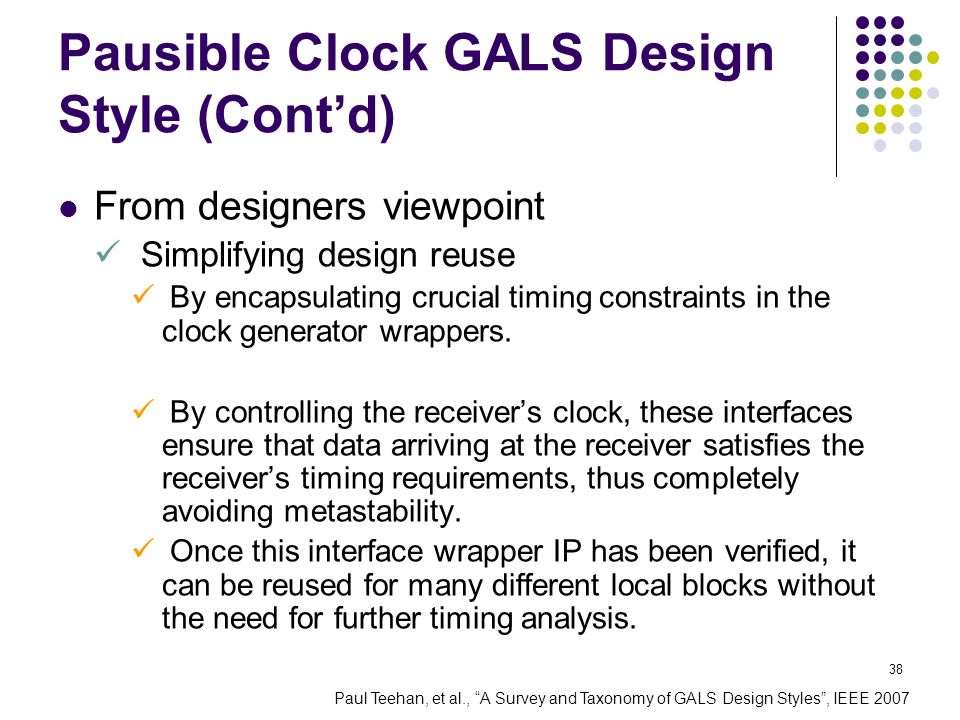

38. 38 Pausible Clock GALS Design Style (Cont’d) From designers viewpoint Simplifying design reuse By encapsulating crucial timing constraints in the clock generator wrappers. By controlling the receiver’s clock, these interfaces ensure that data arriving at the receiver satisfies the receiver’s timing requirements, thus completely avoiding metastability. Once this interface wrapper IP has been verified, it can be reused for many different local blocks without the need for further timing analysis. Paul Teehan, et al., “A Survey and Taxonomy of GALS Design Styles”, IEEE 2007

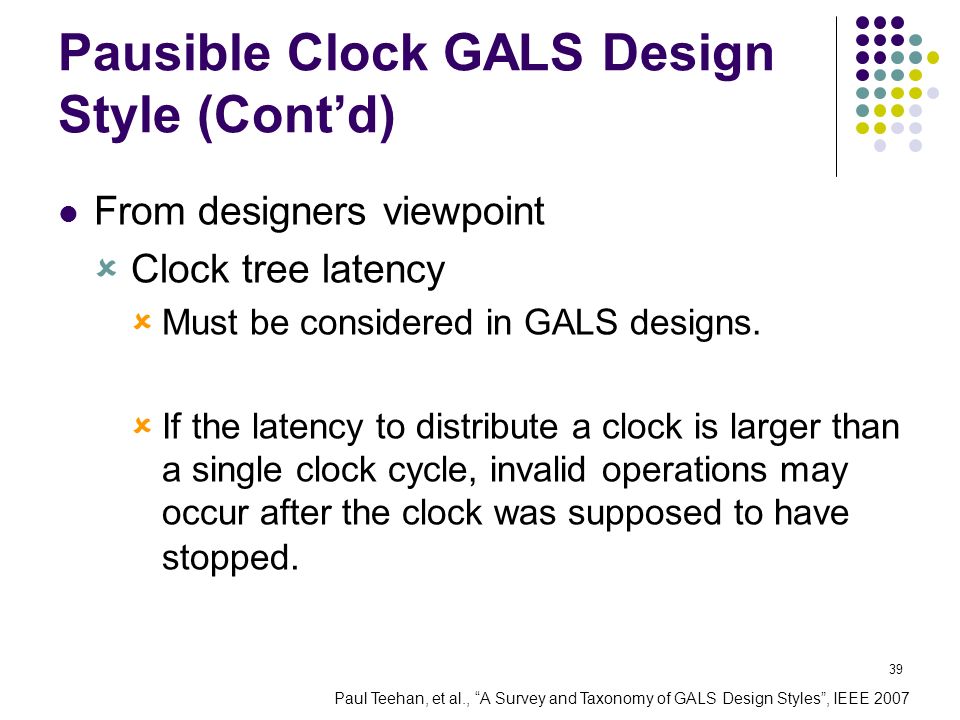

39. 39 Pausible Clock GALS Design Style (Cont’d) From designers viewpoint  Clock tree latency  Must be considered in GALS designs.  If the latency to distribute a clock is larger than a single clock cycle, invalid operations may occur after the clock was supposed to have stopped. Paul Teehan, et al., “A Survey and Taxonomy of GALS Design Styles”, IEEE 2007

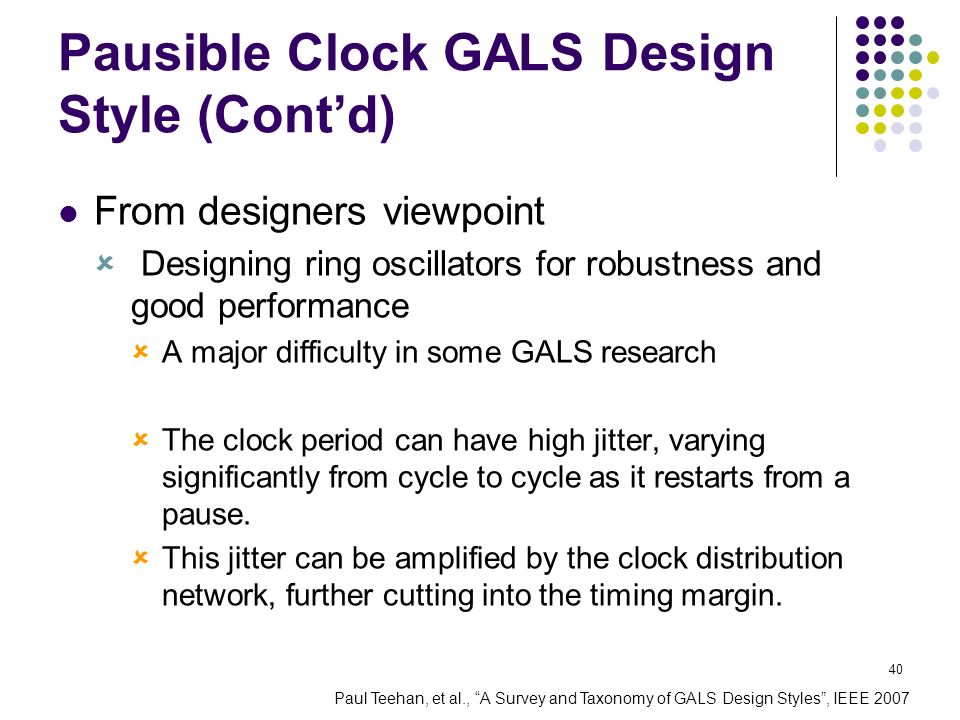

40. 40 Pausible Clock GALS Design Style (Cont’d) From designers viewpoint  Designing ring oscillators for robustness and good performance  A major difficulty in some GALS research  The clock period can have high jitter, varying significantly from cycle to cycle as it restarts from a pause.  This jitter can be amplified by the clock distribution network, further cutting into the timing margin. Paul Teehan, et al., “A Survey and Taxonomy of GALS Design Styles”, IEEE 2007

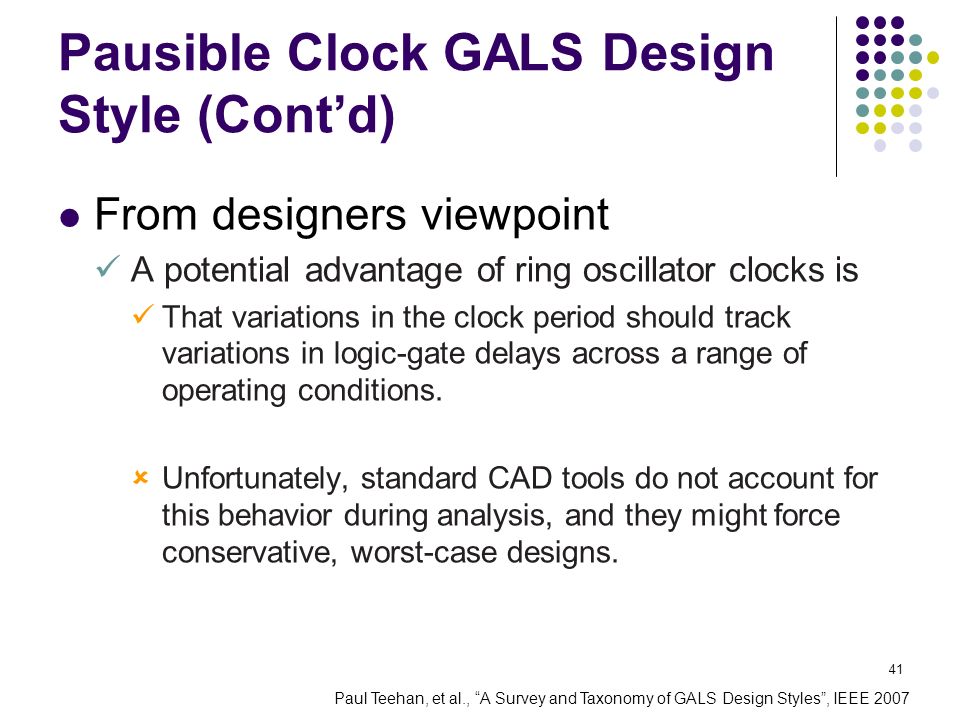

41. 41 Pausible Clock GALS Design Style (Cont’d) From designers viewpoint A potential advantage of ring oscillator clocks is That variations in the clock period should track variations in logic-gate delays across a range of operating conditions.  Unfortunately, standard CAD tools do not account for this behavior during analysis, and they might force conservative, worst-case designs. Paul Teehan, et al., “A Survey and Taxonomy of GALS Design Styles”, IEEE 2007

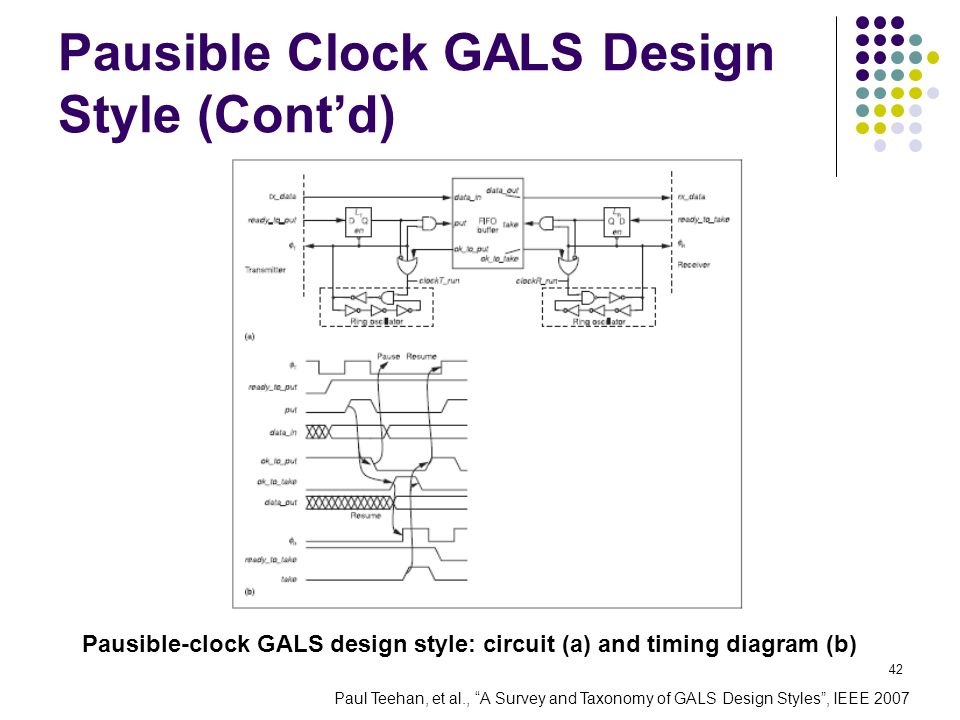

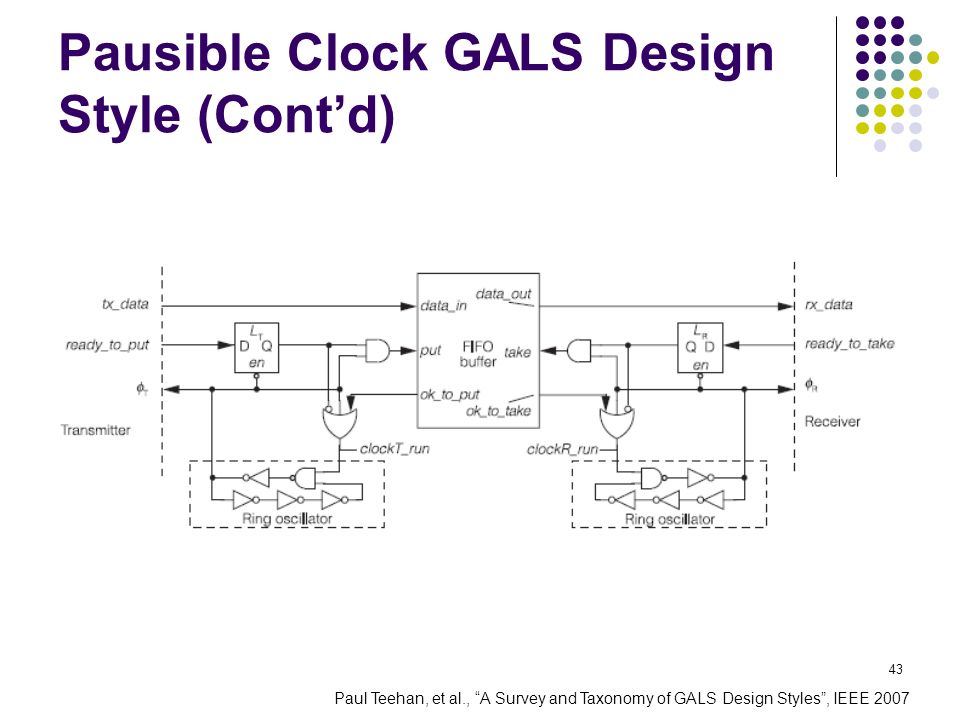

42. 42 Pausible Clock GALS Design Style (Cont’d) Paul Teehan, et al., “A Survey and Taxonomy of GALS Design Styles”, IEEE 2007 Pausible-clock GALS design style: circuit (a) and timing diagram (b)

43. 43 Pausible Clock GALS Design Style (Cont’d) Paul Teehan, et al., “A Survey and Taxonomy of GALS Design Styles”, IEEE 2007

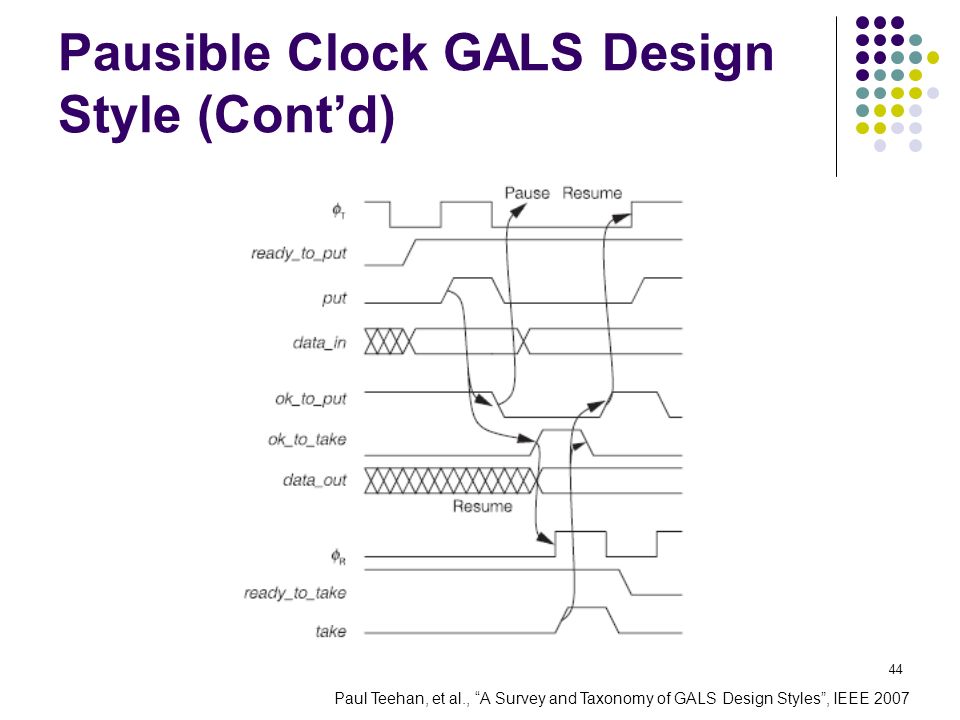

44. 44 Pausible Clock GALS Design Style (Cont’d) Paul Teehan, et al., “A Survey and Taxonomy of GALS Design Styles”, IEEE 2007

45. 45 Asynchronous Interface GALS Design Style Uses circuits known as synchronizers to transfer signals arriving from an outside timing domain to the local timing domain. Although simple asynchronous interfaces suffer from low throughput,  This limitation can be overcome with careful designs. Paul Teehan, et al., “A Survey and Taxonomy of GALS Design Styles”, IEEE 2007

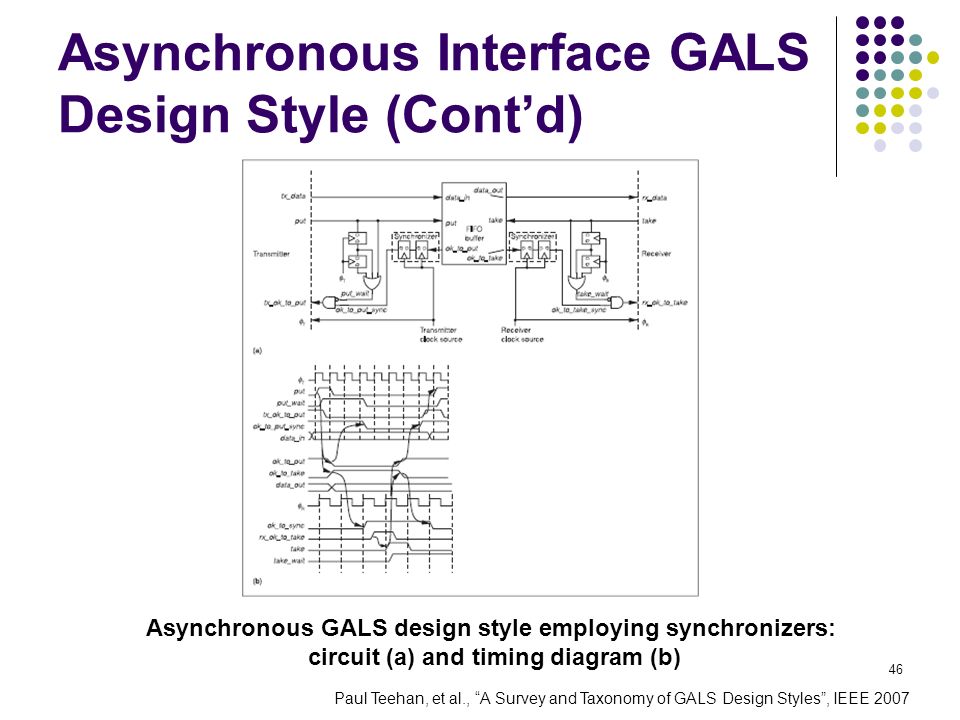

46. 46 Asynchronous Interface GALS Design Style (Cont’d) Paul Teehan, et al., “A Survey and Taxonomy of GALS Design Styles”, IEEE 2007 Asynchronous GALS design style employing synchronizers: circuit (a) and timing diagram (b)

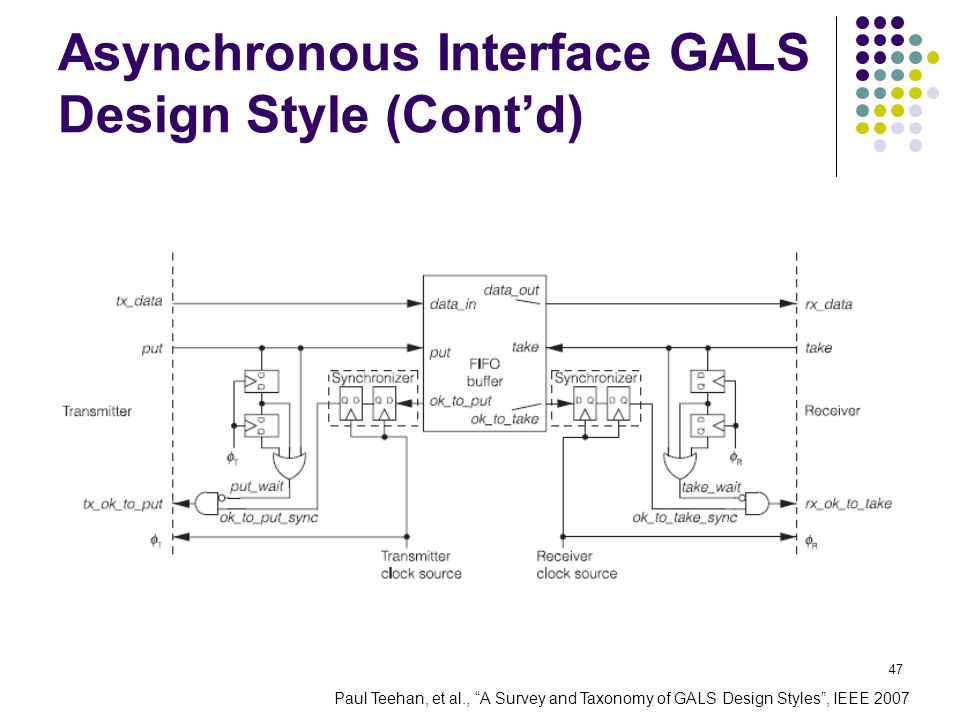

47. 47 Asynchronous Interface GALS Design Style (Cont’d) Paul Teehan, et al., “A Survey and Taxonomy of GALS Design Styles”, IEEE 2007

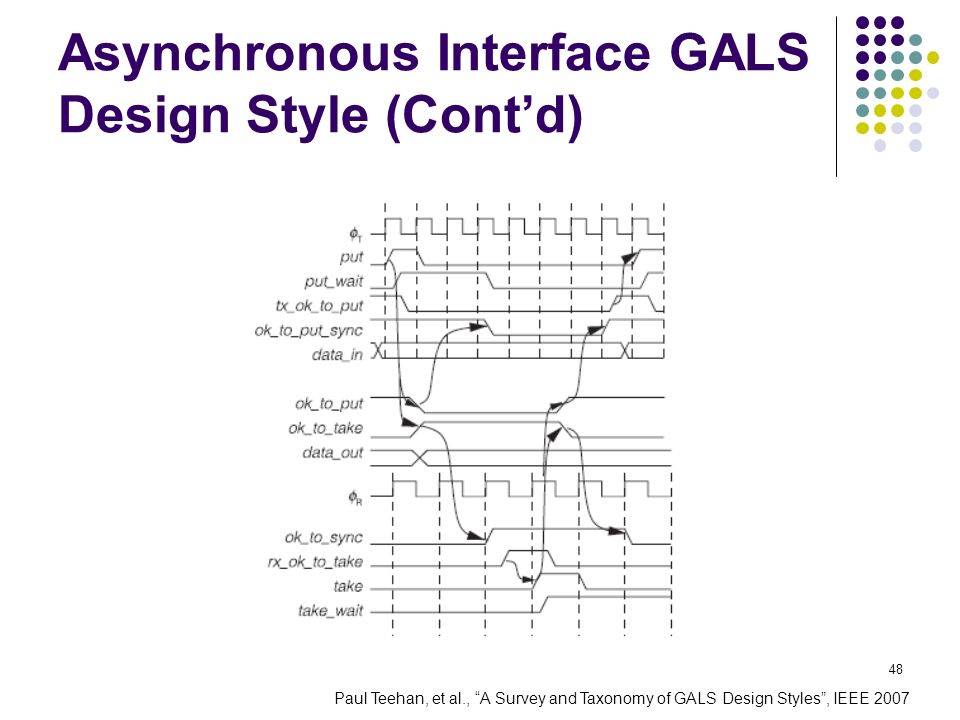

48. 48 Asynchronous Interface GALS Design Style (Cont’d) Paul Teehan, et al., “A Survey and Taxonomy of GALS Design Styles”, IEEE 2007

49. 49 Asynchronous Interface GALS Design Style (Cont’d)  This simplistic design can transfer at most  One datum for every three cycles of transmitter clock φ T or receiver clock φ R  whichever is slower Paul Teehan, et al., “A Survey and Taxonomy of GALS Design Styles”, IEEE 2007

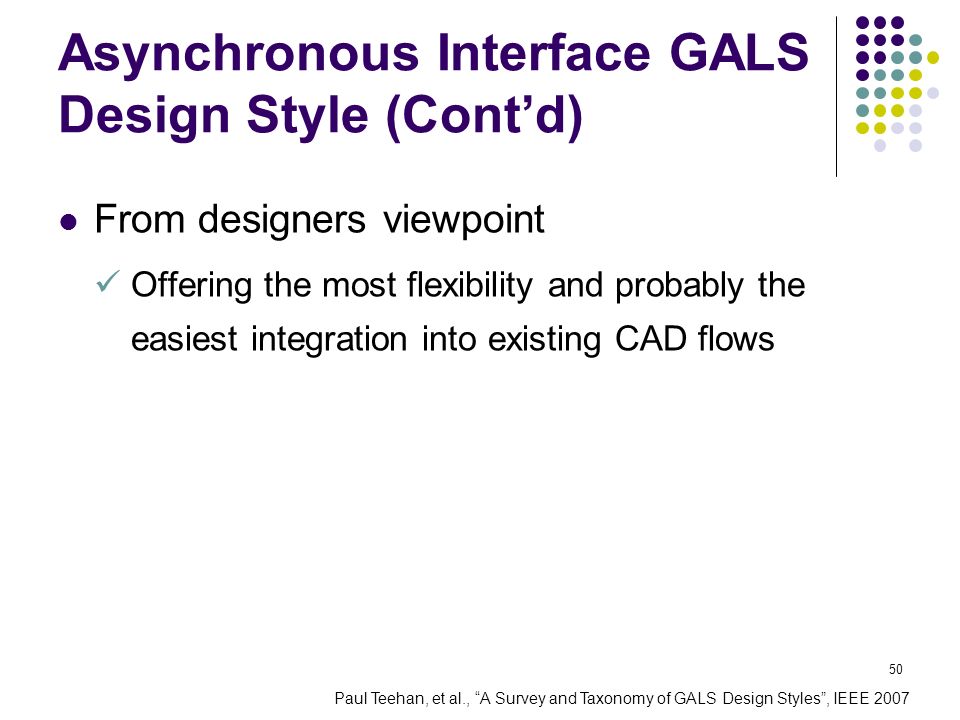

50. 50 Asynchronous Interface GALS Design Style (Cont’d) From designers viewpoint Offering the most flexibility and probably the easiest integration into existing CAD flows Paul Teehan, et al., “A Survey and Taxonomy of GALS Design Styles”, IEEE 2007

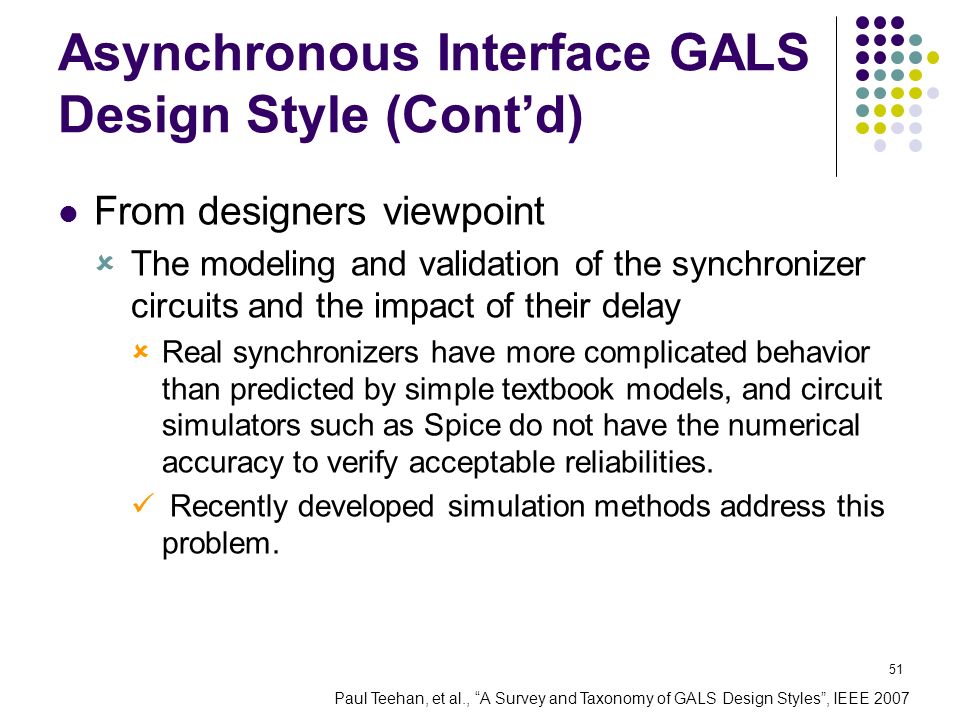

51. 51 Asynchronous Interface GALS Design Style (Cont’d) From designers viewpoint  The modeling and validation of the synchronizer circuits and the impact of their delay  Real synchronizers have more complicated behavior than predicted by simple textbook models, and circuit simulators such as Spice do not have the numerical accuracy to verify acceptable reliabilities. Recently developed simulation methods address this problem. Paul Teehan, et al., “A Survey and Taxonomy of GALS Design Styles”, IEEE 2007

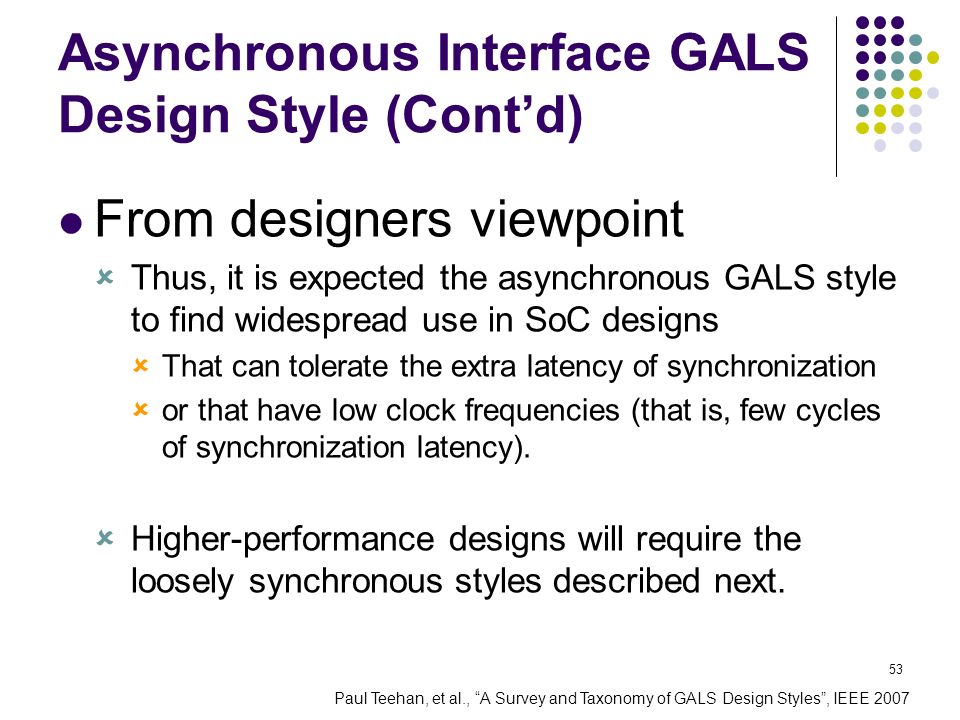

52. 52 Asynchronous Interface GALS Design Style (Cont’d) From designers viewpoint  A rule of thumb for synchronizer design is that at least 40 gate delays should be budgeted for metastability to resolve to a stable, logical value.  For a 0.13-micron process with a 60 ps gate delay, synchronization adds about 2.5 ns of delay when crossing timing domains. Paul Teehan, et al., “A Survey and Taxonomy of GALS Design Styles”, IEEE 2007

53. 53 Asynchronous Interface GALS Design Style (Cont’d) From designers viewpoint  Thus, it is expected the asynchronous GALS style to find widespread use in SoC designs  That can tolerate the extra latency of synchronization  or that have low clock frequencies (that is, few cycles of synchronization latency).  Higher-performance designs will require the loosely synchronous styles described next. Paul Teehan, et al., “A Survey and Taxonomy of GALS Design Styles”, IEEE 2007

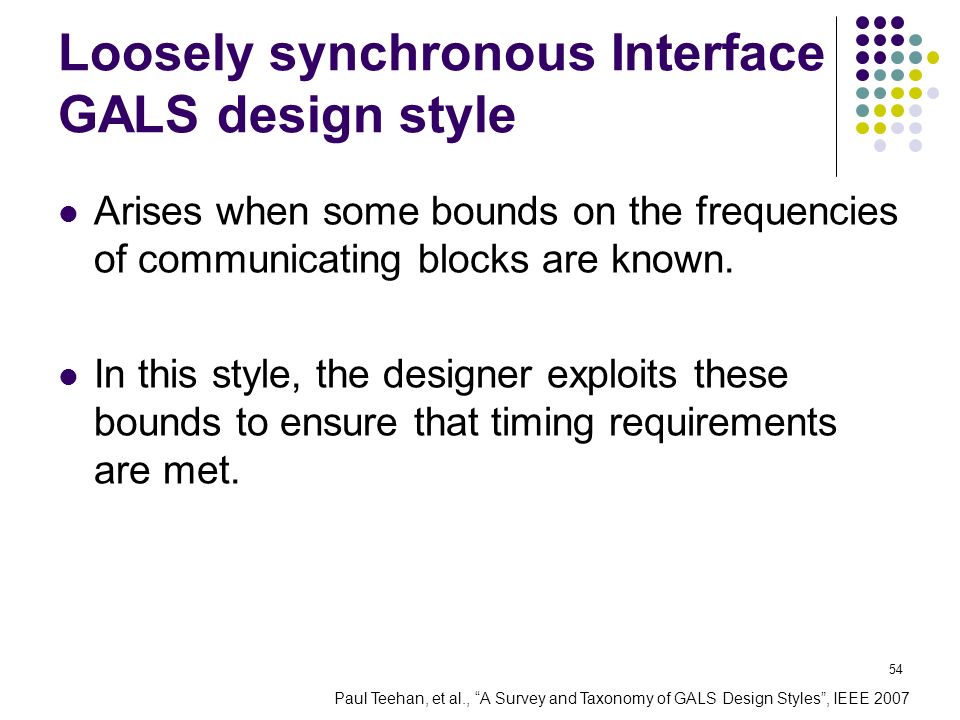

54. 54 Loosely synchronous Interface GALS design style Arises when some bounds on the frequencies of communicating blocks are known. In this style, the designer exploits these bounds to ensure that timing requirements are met. Paul Teehan, et al., “A Survey and Taxonomy of GALS Design Styles”, IEEE 2007

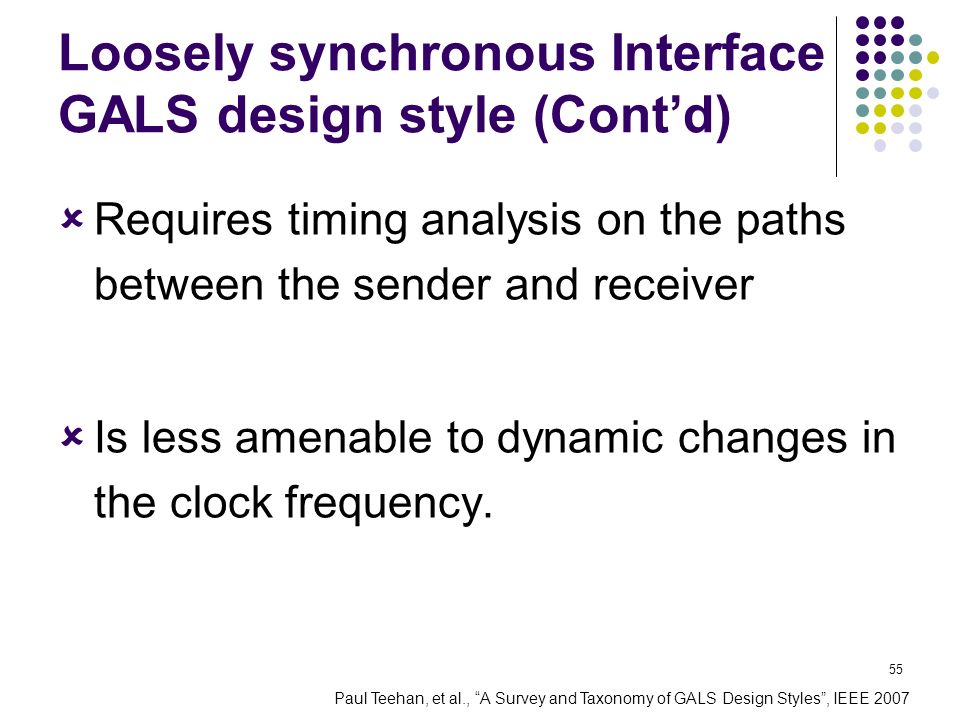

55. 55 Loosely synchronous Interface GALS design style (Cont’d)  Requires timing analysis on the paths between the sender and receiver  Is less amenable to dynamic changes in the clock frequency. Paul Teehan, et al., “A Survey and Taxonomy of GALS Design Styles”, IEEE 2007

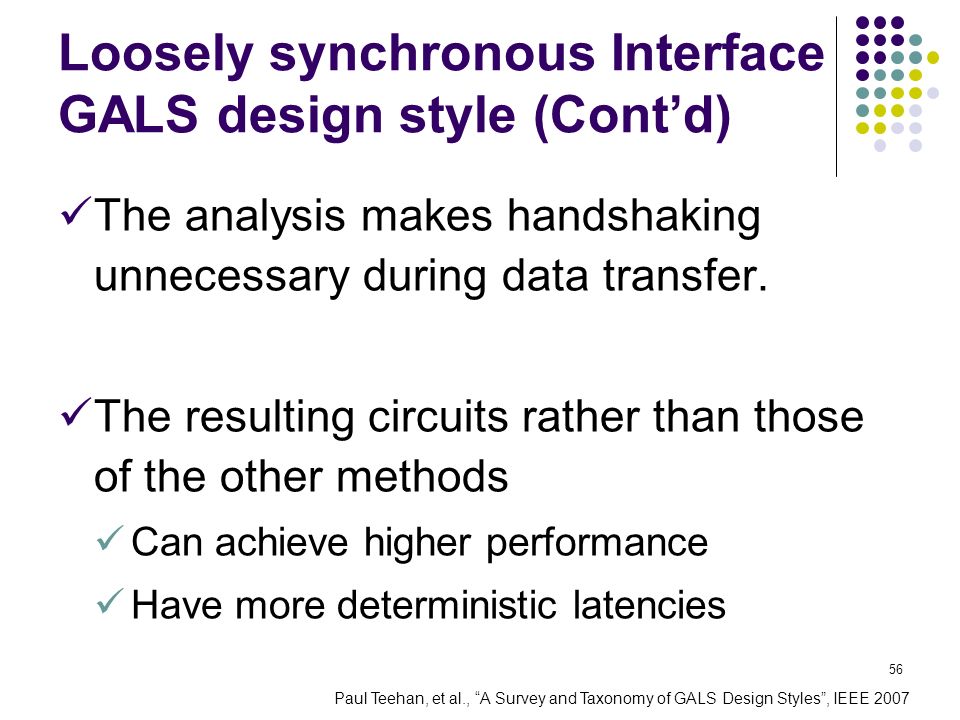

56. 56 Loosely synchronous Interface GALS design style (Cont’d) The analysis makes handshaking unnecessary during data transfer. The resulting circuits rather than those of the other methods Can achieve higher performance Have more deterministic latencies Paul Teehan, et al., “A Survey and Taxonomy of GALS Design Styles”, IEEE 2007

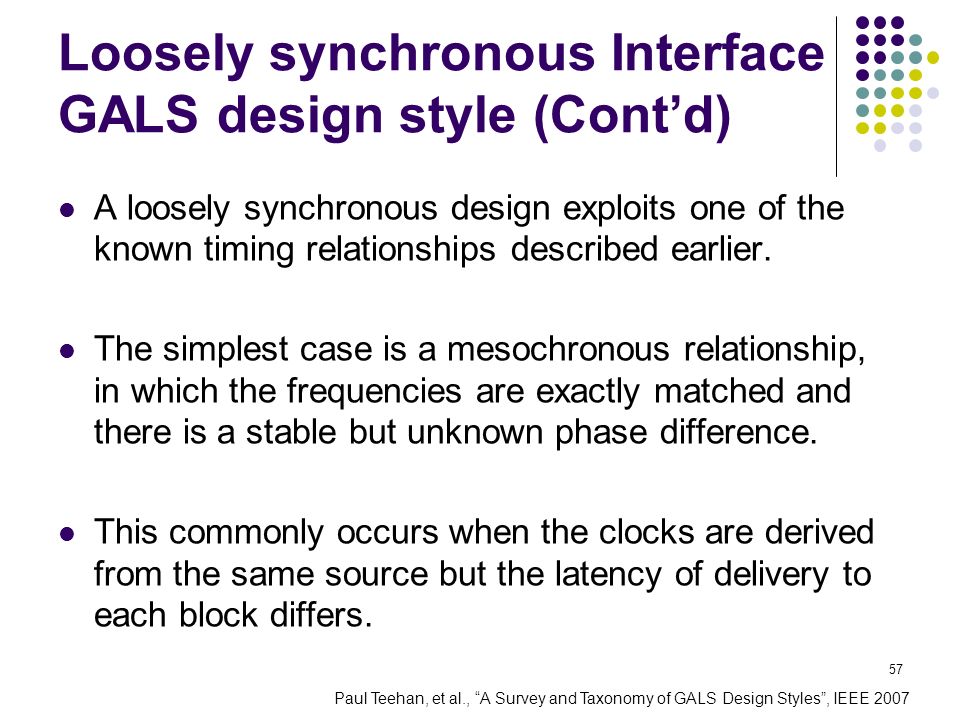

57. 57 Loosely synchronous Interface GALS design style (Cont’d) A loosely synchronous design exploits one of the known timing relationships described earlier. The simplest case is a mesochronous relationship, in which the frequencies are exactly matched and there is a stable but unknown phase difference. This commonly occurs when the clocks are derived from the same source but the latency of delivery to each block differs. Paul Teehan, et al., “A Survey and Taxonomy of GALS Design Styles”, IEEE 2007

58. 58 Loosely synchronous Interface GALS design style (Cont’d) The mesochronous example shown in the next slides is based on the Stari (Self-Timed At Receiver’s Input) scheme in which clocks φ T and φ R are derived from the same source. The receiver uses a self-timed FIFO buffer to compensate for the phase difference. Paul Teehan, et al., “A Survey and Taxonomy of GALS Design Styles”, IEEE 2007

59. 59 Loosely synchronous Interface GALS design style (Cont’d) The key to high-performance operation is to initialize the FIFO buffer to be half full. To get the FIFO buffer half full, special initialization is needed. Paul Teehan, et al., “A Survey and Taxonomy of GALS Design Styles”, IEEE 2007

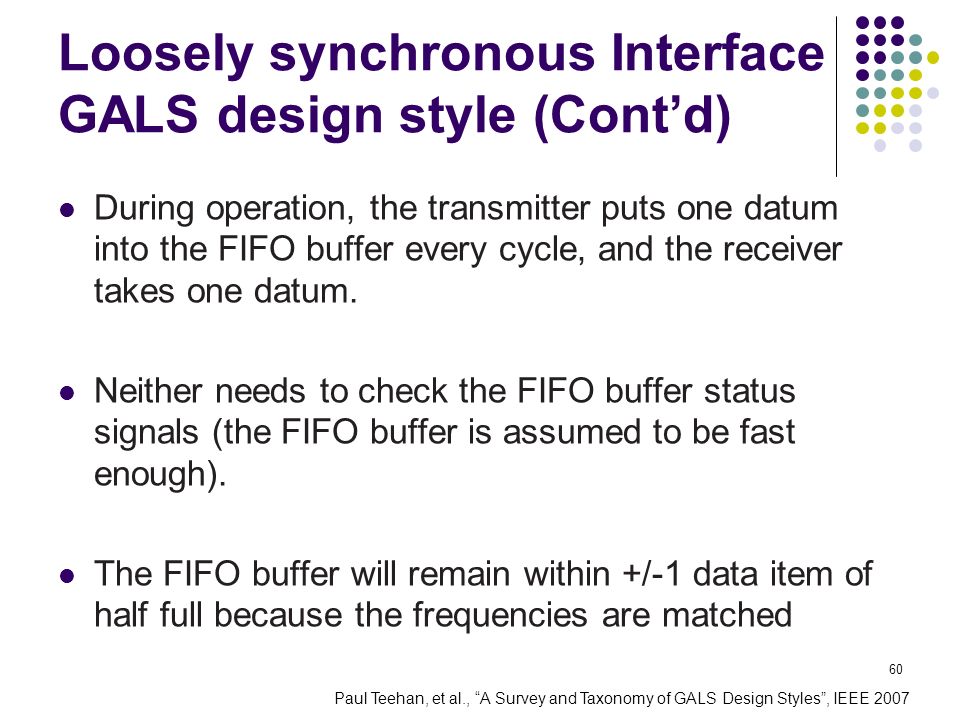

60. 60 Loosely synchronous Interface GALS design style (Cont’d) During operation, the transmitter puts one datum into the FIFO buffer every cycle, and the receiver takes one datum. Neither needs to check the FIFO buffer status signals (the FIFO buffer is assumed to be fast enough). The FIFO buffer will remain within +/-1 data item of half full because the frequencies are matched Paul Teehan, et al., “A Survey and Taxonomy of GALS Design Styles”, IEEE 2007

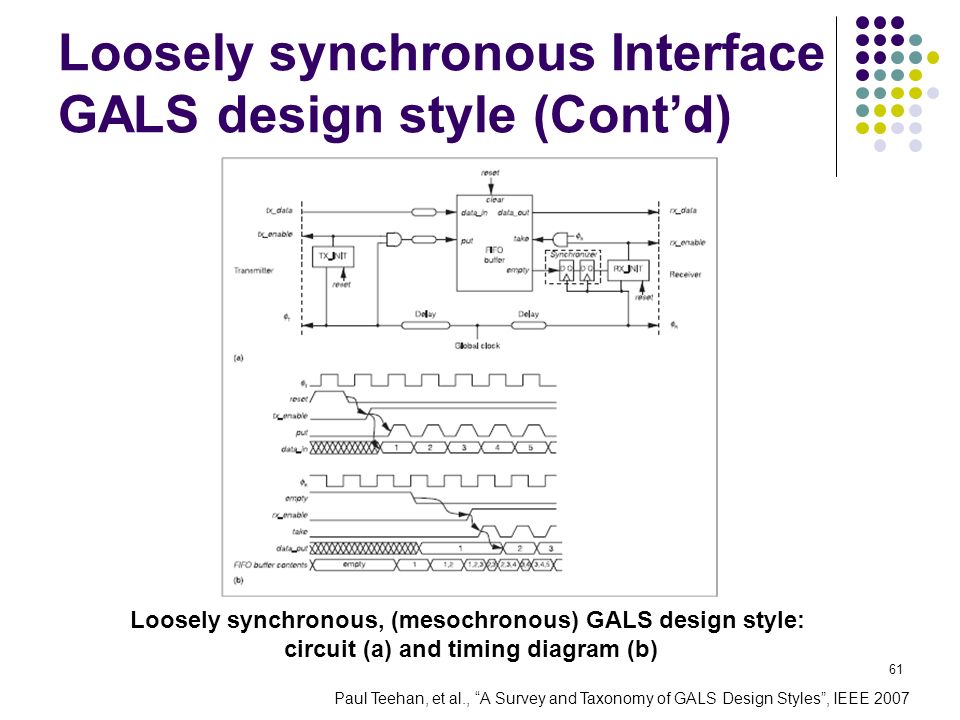

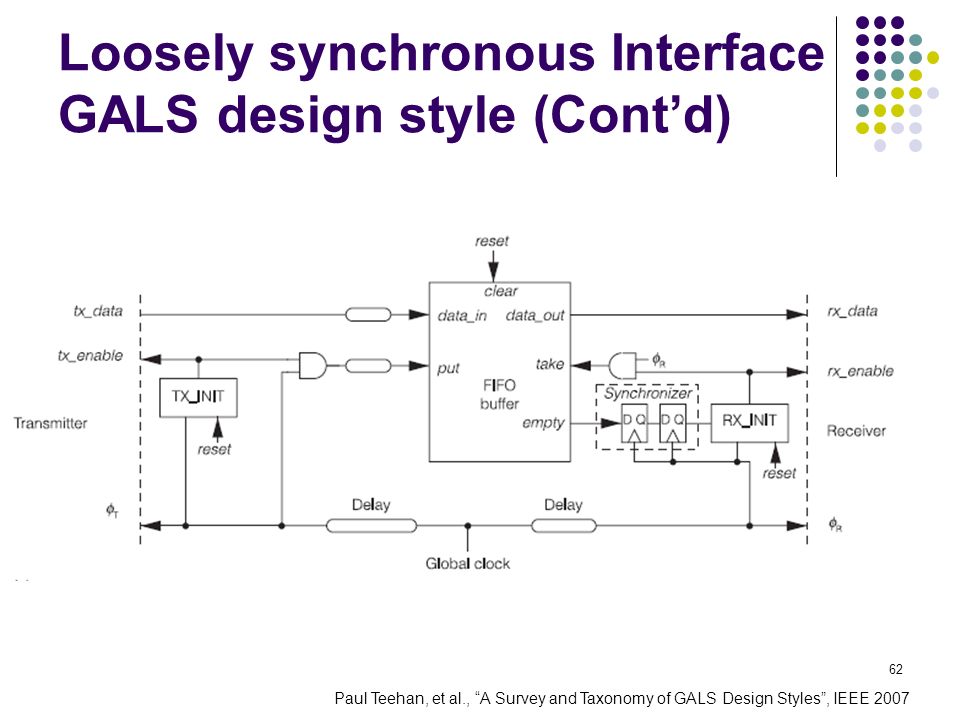

61. 61 Loosely synchronous Interface GALS design style (Cont’d) Paul Teehan, et al., “A Survey and Taxonomy of GALS Design Styles”, IEEE 2007 Loosely synchronous, (mesochronous) GALS design style: circuit (a) and timing diagram (b)

62. 62 Loosely synchronous Interface GALS design style (Cont’d) Paul Teehan, et al., “A Survey and Taxonomy of GALS Design Styles”, IEEE 2007

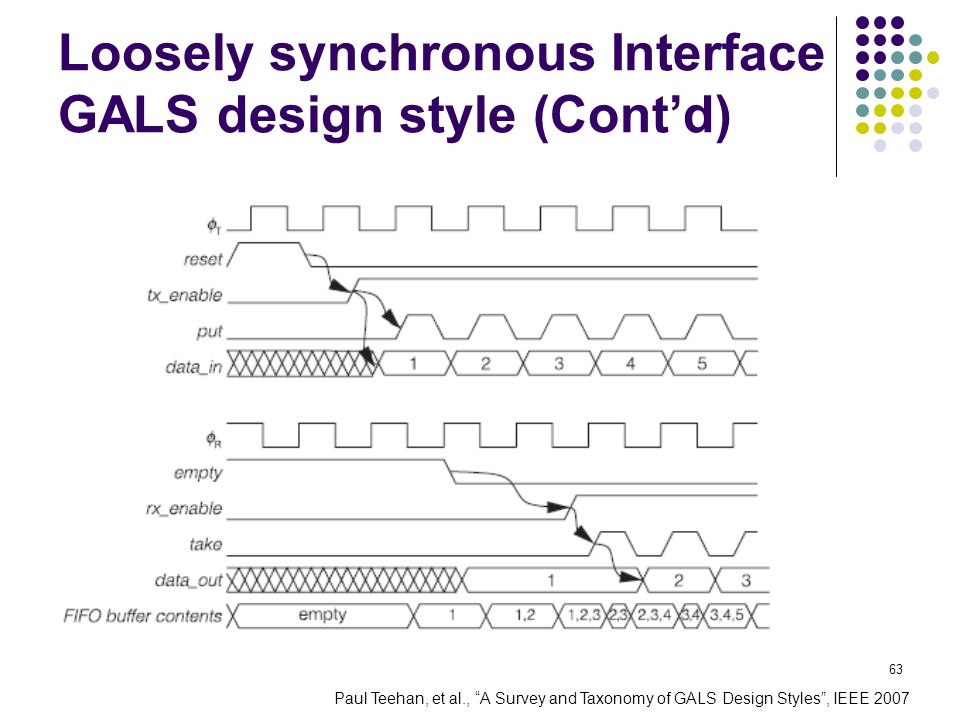

63. 63 Loosely synchronous Interface GALS design style (Cont’d) Paul Teehan, et al., “A Survey and Taxonomy of GALS Design Styles”, IEEE 2007

64. 64 Loosely synchronous Interface GALS design style (Cont’d) From designers viewpoint The need for “high clock frequencies” and “low latency” in high-performance designs will make them candidates for loosely synchronous techniques. Paul Teehan, et al., “A Survey and Taxonomy of GALS Design Styles”, IEEE 2007

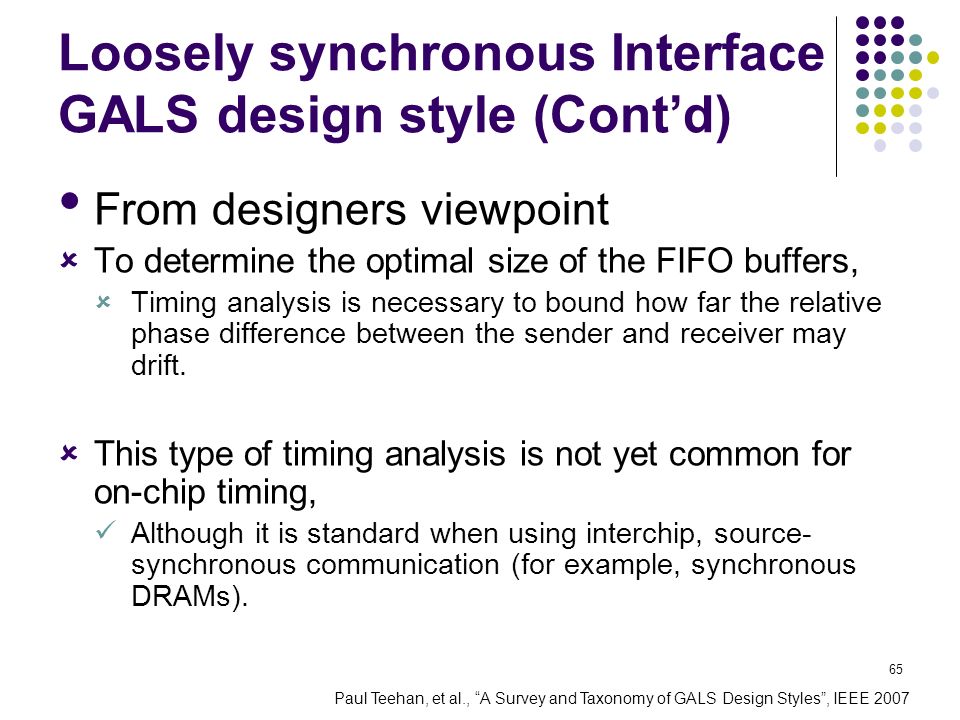

65. 65 Loosely synchronous Interface GALS design style (Cont’d) From designers viewpoint  To determine the optimal size of the FIFO buffers,  Timing analysis is necessary to bound how far the relative phase difference between the sender and receiver may drift.  This type of timing analysis is not yet common for on-chip timing, Although it is standard when using interchip, source- synchronous communication (for example, synchronous DRAMs). Paul Teehan, et al., “A Survey and Taxonomy of GALS Design Styles”, IEEE 2007

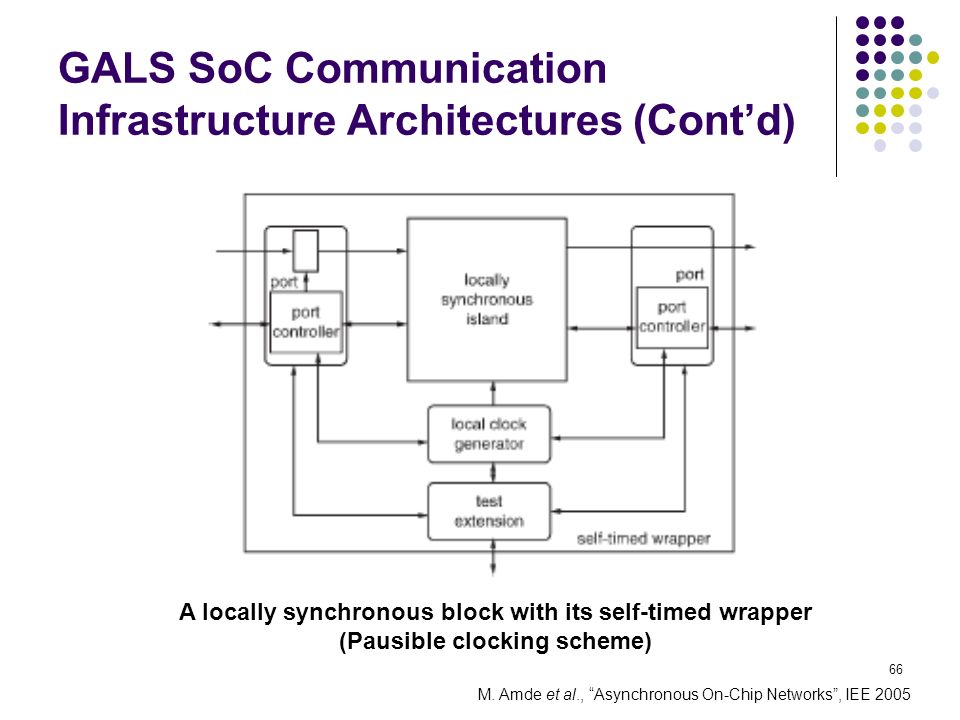

66. 66 GALS SoC Communication Infrastructure Architectures (Cont’d) M. Amde et al., “Asynchronous On-Chip Networks”, IEE 2005 A locally synchronous block with its self-timed wrapper (Pausible clocking scheme)

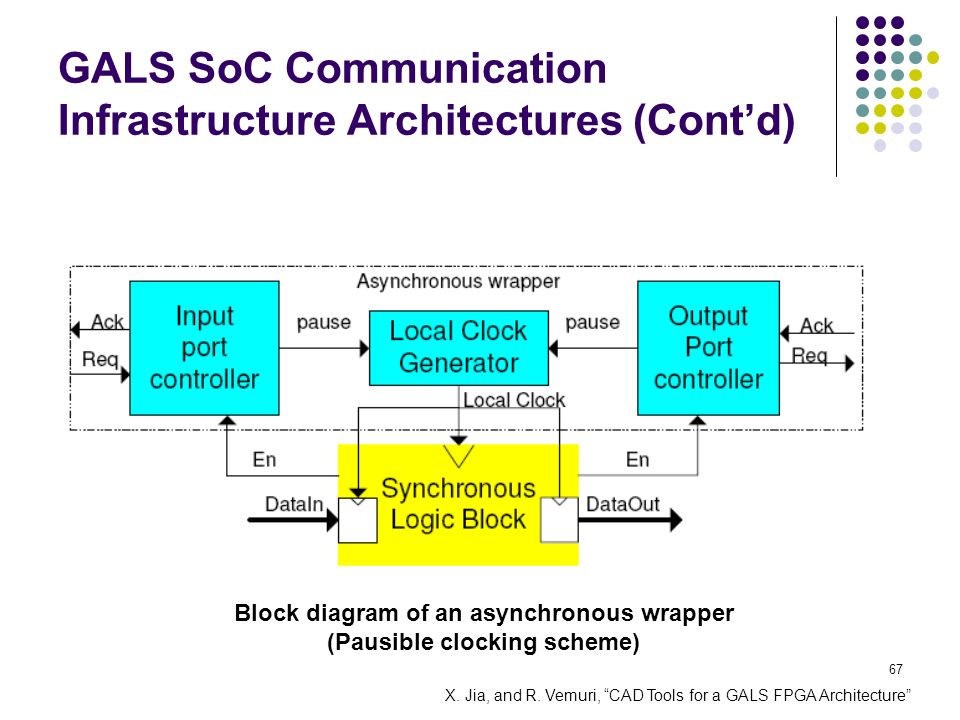

67. 67 GALS SoC Communication Infrastructure Architectures (Cont’d) X. Jia, and R. Vemuri, “CAD Tools for a GALS FPGA Architecture” Block diagram of an asynchronous wrapper (Pausible clocking scheme)

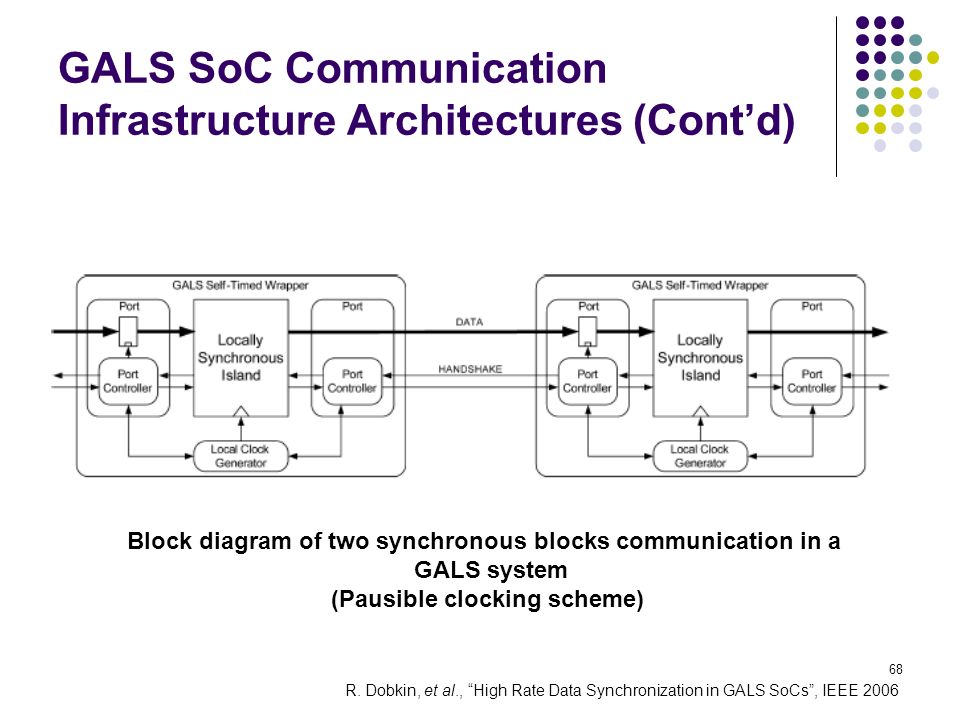

68. 68 GALS SoC Communication Infrastructure Architectures (Cont’d) R. Dobkin, et al., “High Rate Data Synchronization in GALS SoCs”, IEEE 2006 Block diagram of two synchronous blocks communication in a GALS system (Pausible clocking scheme)

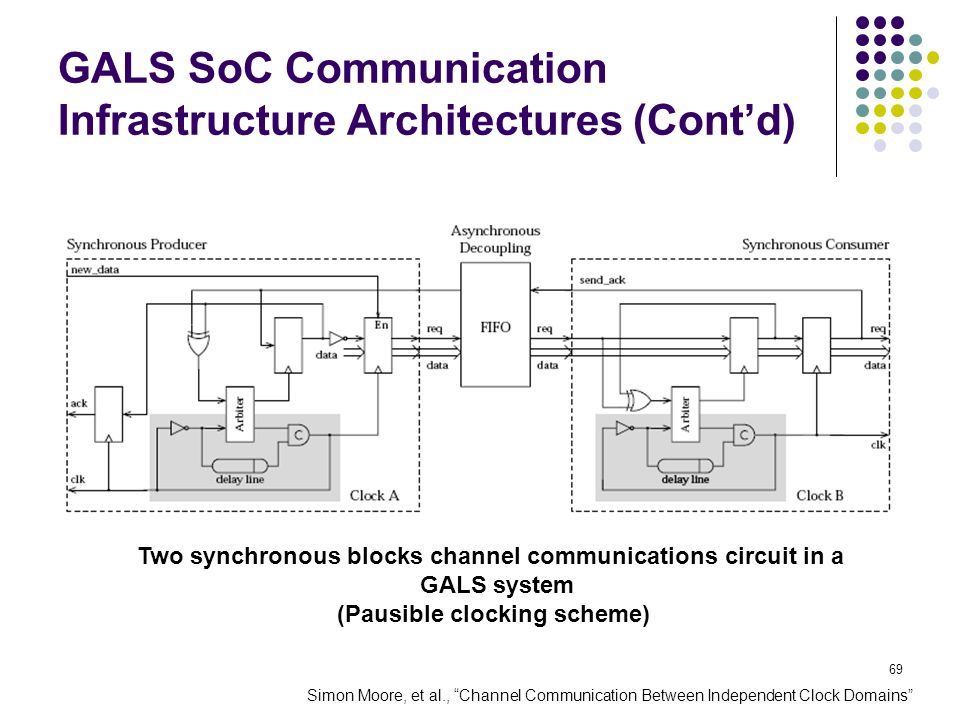

69. 69 GALS SoC Communication Infrastructure Architectures (Cont’d) Simon Moore, et al., “Channel Communication Between Independent Clock Domains” Two synchronous blocks channel communications circuit in a GALS system (Pausible clocking scheme)

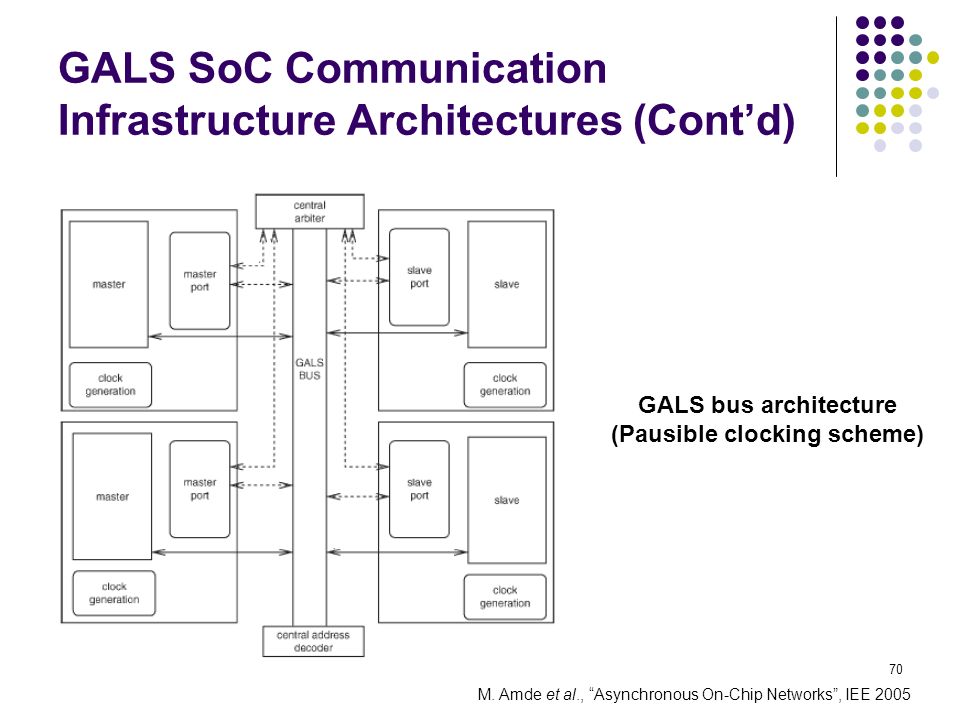

70. 70 GALS SoC Communication Infrastructure Architectures (Cont’d) M. Amde et al., “Asynchronous On-Chip Networks”, IEE 2005 GALS bus architecture (Pausible clocking scheme)

71. 71 GALS SoC Communication Infrastructure Architectures (Cont’d) M. Amde et al., “Asynchronous On-Chip Networks”, IEE 2005 GALS Ring architecture (Pausible clocking scheme)

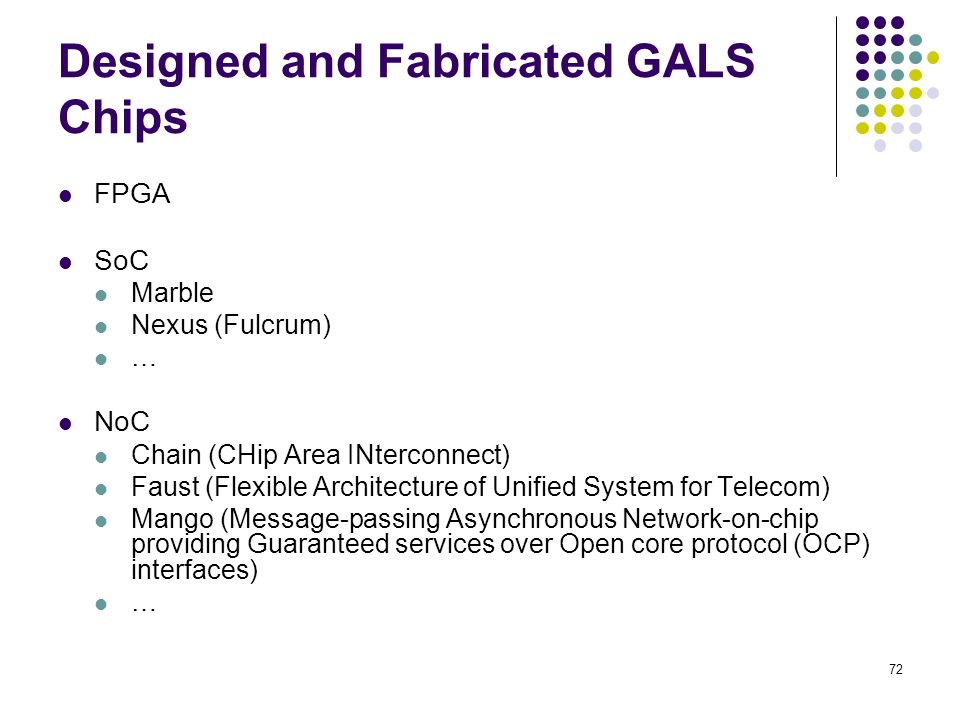

72. 72 Designed and Fabricated GALS Chips FPGA SoC Marble Nexus (Fulcrum) … NoC Chain (CHip Area INterconnect) Faust (Flexible Architecture of Unified System for Telecom) Mango (Message-passing Asynchronous Network-on-chip providing Guaranteed services over Open core protocol (OCP) interfaces) …

73. 73 Designed and Fabricated GALS Chips (Cont’d) T. S. T. Mak, et al., “On-FPGA Communication: An Opportunity for GALS?”, Proceedings of the Eighteenth UK Asynchronous Forum, 2006

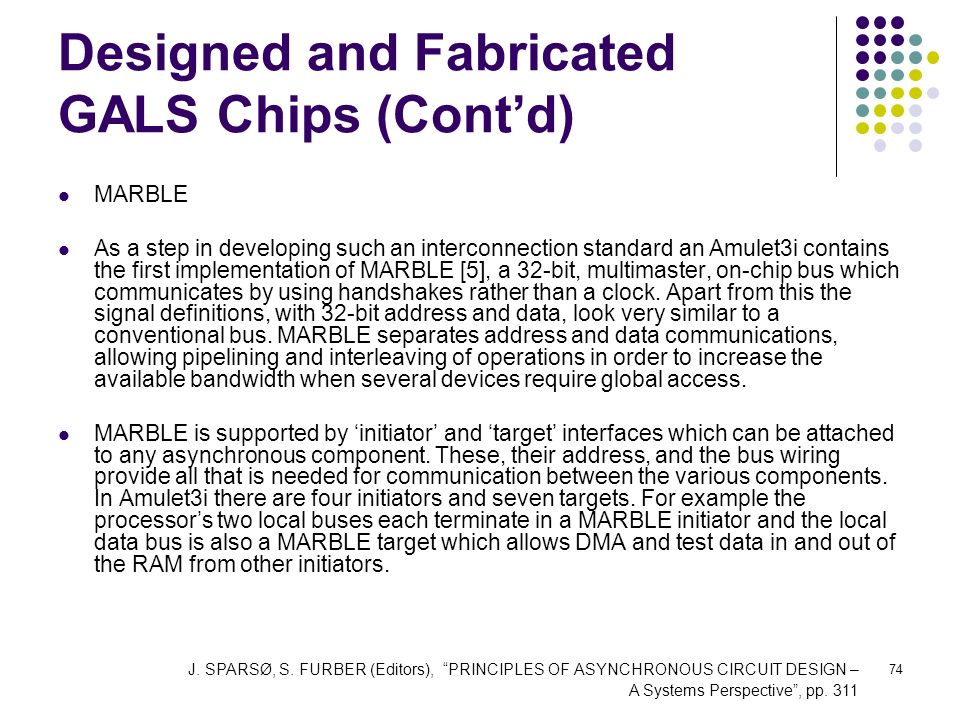

74. 74 Designed and Fabricated GALS Chips (Cont’d) MARBLE As a step in developing such an interconnection standard an Amulet3i contains the first implementation of MARBLE [5], a 32-bit, multimaster, on-chip bus which communicates by using handshakes rather than a clock. Apart from this the signal definitions, with 32-bit address and data, look very similar to a conventional bus. MARBLE separates address and data communications, allowing pipelining and interleaving of operations in order to increase the available bandwidth when several devices require global access. MARBLE is supported by ‘initiator’ and ‘target’ interfaces which can be attached to any asynchronous component. These, their address, and the bus wiring provide all that is needed for communication between the various components. In Amulet3i there are four initiators and seven targets. For example the processor’s two local buses each terminate in a MARBLE initiator and the local data bus is also a MARBLE target which allows DMA and test data in and out of the RAM from other initiators. J. SPARSØ, S. FURBER (Editors), “PRINCIPLES OF ASYNCHRONOUS CIRCUIT DESIGN – A Systems Perspective”, pp. 311

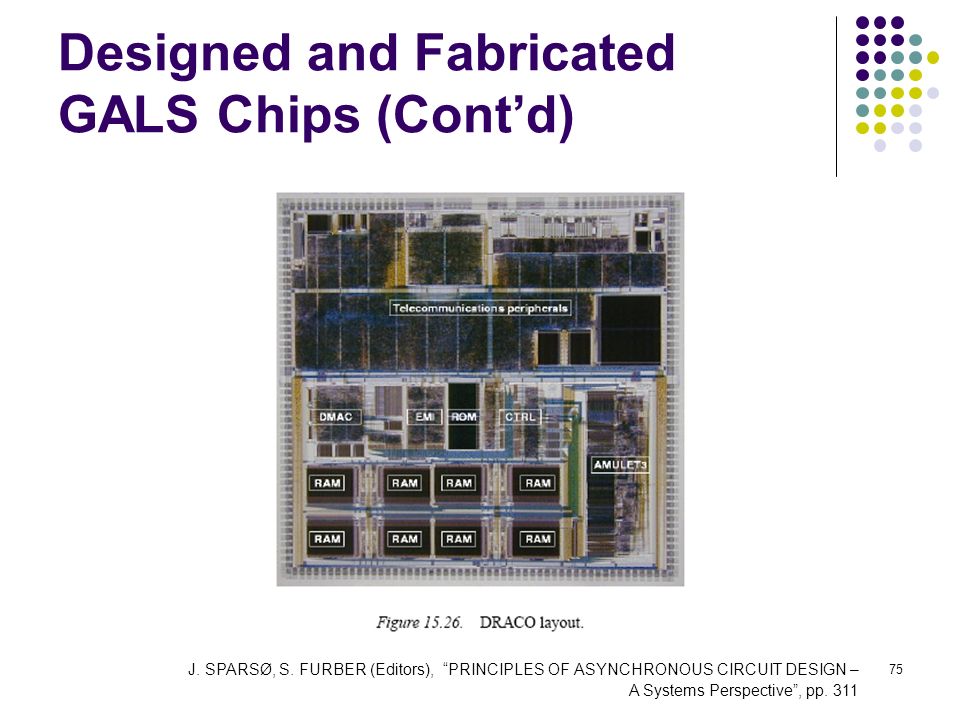

75. 75 Designed and Fabricated GALS Chips (Cont’d) J. SPARSØ, S. FURBER (Editors), “PRINCIPLES OF ASYNCHRONOUS CIRCUIT DESIGN – A Systems Perspective”, pp. 311

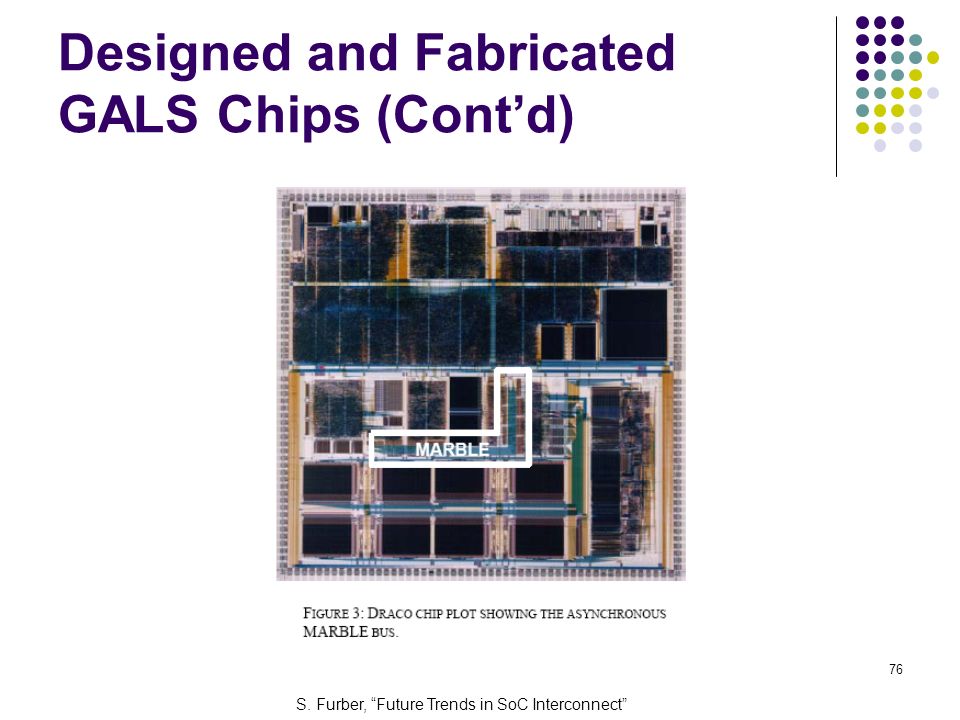

76. 76 Designed and Fabricated GALS Chips (Cont’d) S. Furber, “Future Trends in SoC Interconnect”

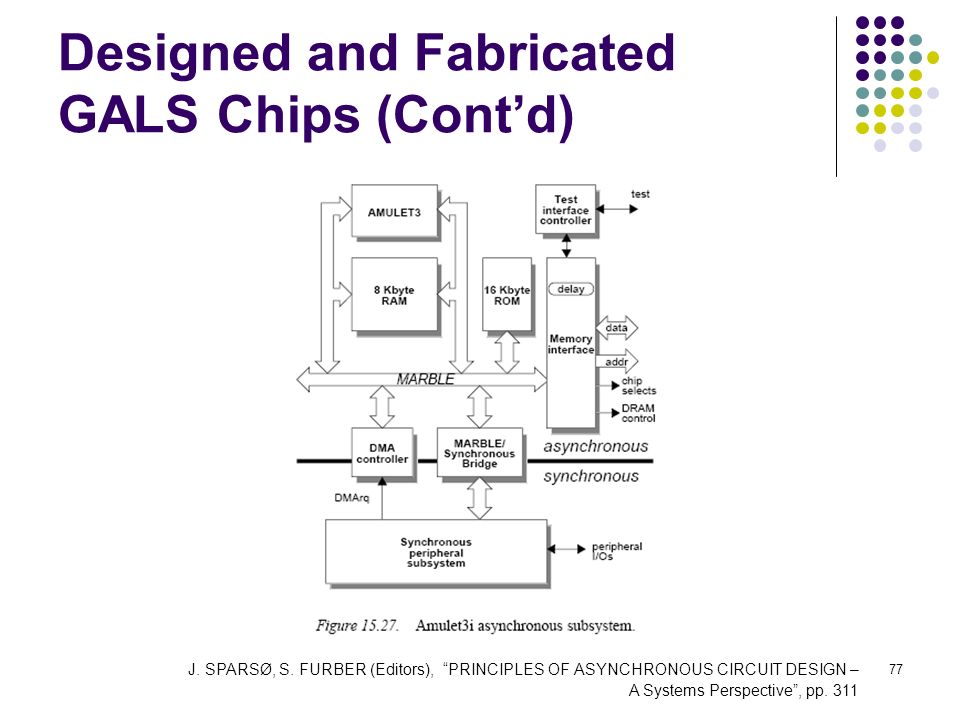

77. 77 Designed and Fabricated GALS Chips (Cont’d) J. SPARSØ, S. FURBER (Editors), “PRINCIPLES OF ASYNCHRONOUS CIRCUIT DESIGN – A Systems Perspective”, pp. 311

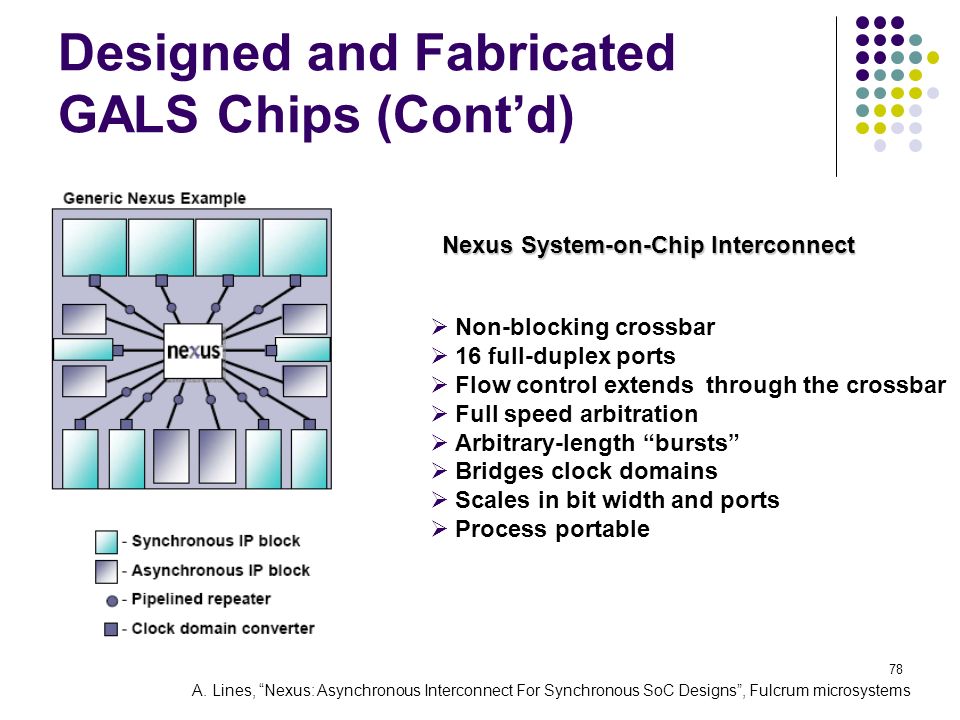

78. 78 Designed and Fabricated GALS Chips (Cont’d) A. Lines, “Nexus: Asynchronous Interconnect For Synchronous SoC Designs”, Fulcrum microsystems Nexus System-on-Chip Interconnect  Non-blocking crossbar  16 full-duplex ports  Flow control extends through the crossbar  Full speed arbitration  Arbitrary-length “bursts”  Bridges clock domains  Scales in bit width and ports  Process portable

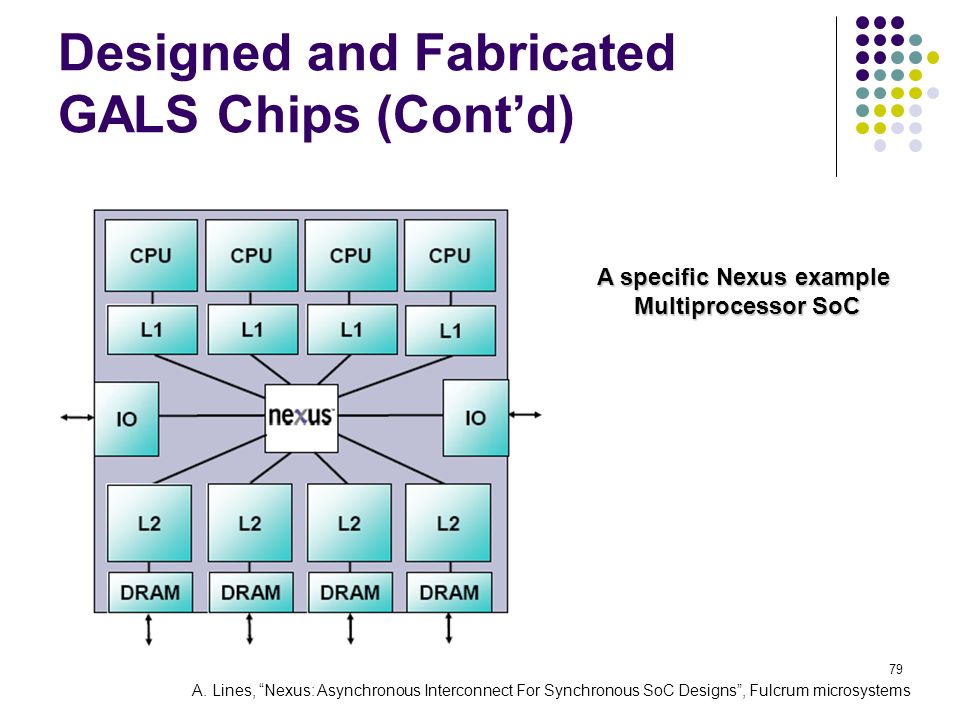

79. 79 Designed and Fabricated GALS Chips (Cont’d) A specific Nexus example Multiprocessor SoC Multiprocessor SoC A. Lines, “Nexus: Asynchronous Interconnect For Synchronous SoC Designs”, Fulcrum microsystems

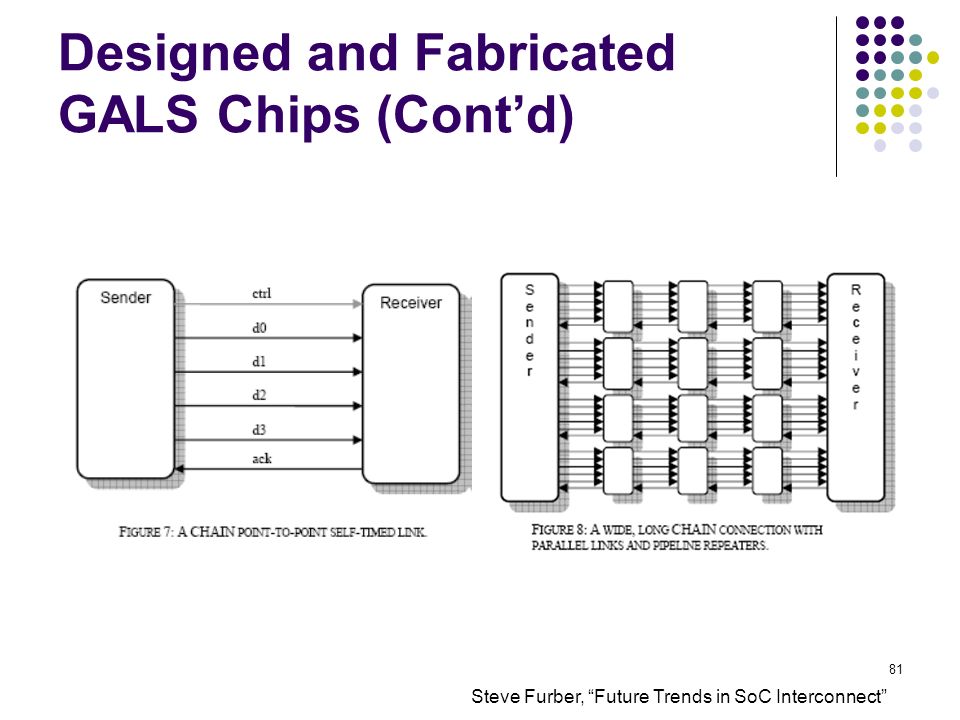

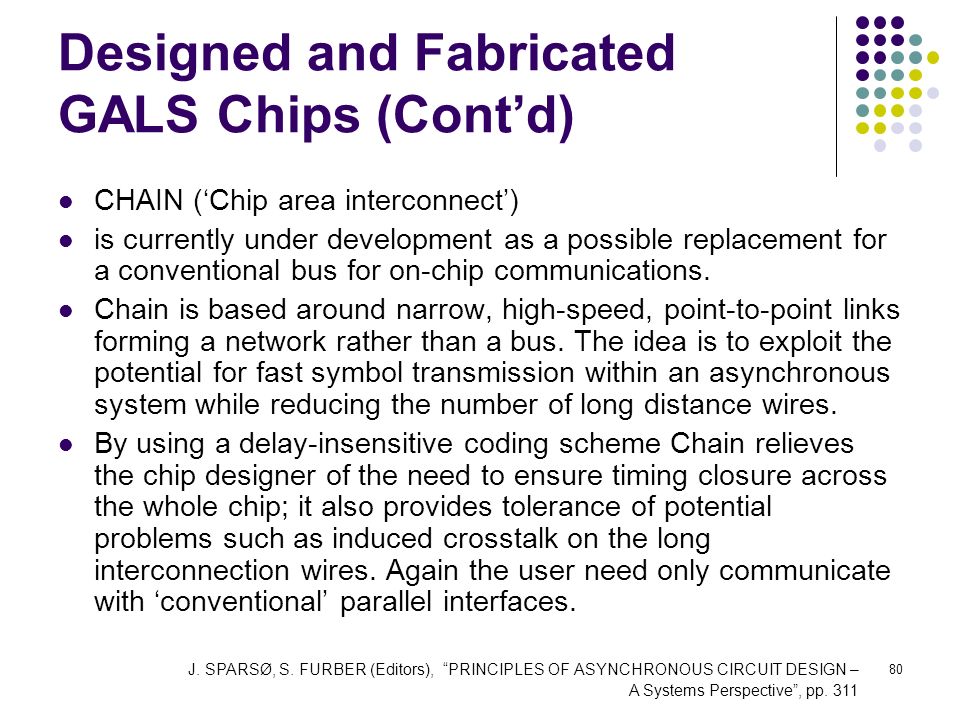

80. 80 Designed and Fabricated GALS Chips (Cont’d) CHAIN (‘Chip area interconnect’) is currently under development as a possible replacement for a conventional bus for on-chip communications. Chain is based around narrow, high-speed, point-to-point links forming a network rather than a bus. The idea is to exploit the potential for fast symbol transmission within an asynchronous system while reducing the number of long distance wires. By using a delay-insensitive coding scheme Chain relieves the chip designer of the need to ensure timing closure across the whole chip; it also provides tolerance of potential problems such as induced crosstalk on the long interconnection wires. Again the user need only communicate with ‘conventional’ parallel interfaces. J. SPARSØ, S. FURBER (Editors), “PRINCIPLES OF ASYNCHRONOUS CIRCUIT DESIGN – A Systems Perspective”, pp. 311

81. 81 Designed and Fabricated GALS Chips (Cont’d) Steve Furber, “Future Trends in SoC Interconnect”

82. 82 Designed and Fabricated GALS Chips (Cont’d) FAUST (Flexible Architecture of Unified System for Telecom) A complete System-on-Chip (SoC) framework based on an asynchronous Network-on-Chip (NoC) Supports complex Multi-Carrier OFDM-based telecom applications. D. Lattard, et al, “A Telecom Baseband Circuit based on an Asynchronous Network-on-Chip”, ISSCC 2007

83. 83 Designed and Fabricated GALS Chips (Cont’d) Faust Block diagram D. Lattard, et al, “A Telecom Baseband Circuit based on an Asynchronous Network-on-Chip”, ISSCC 2007

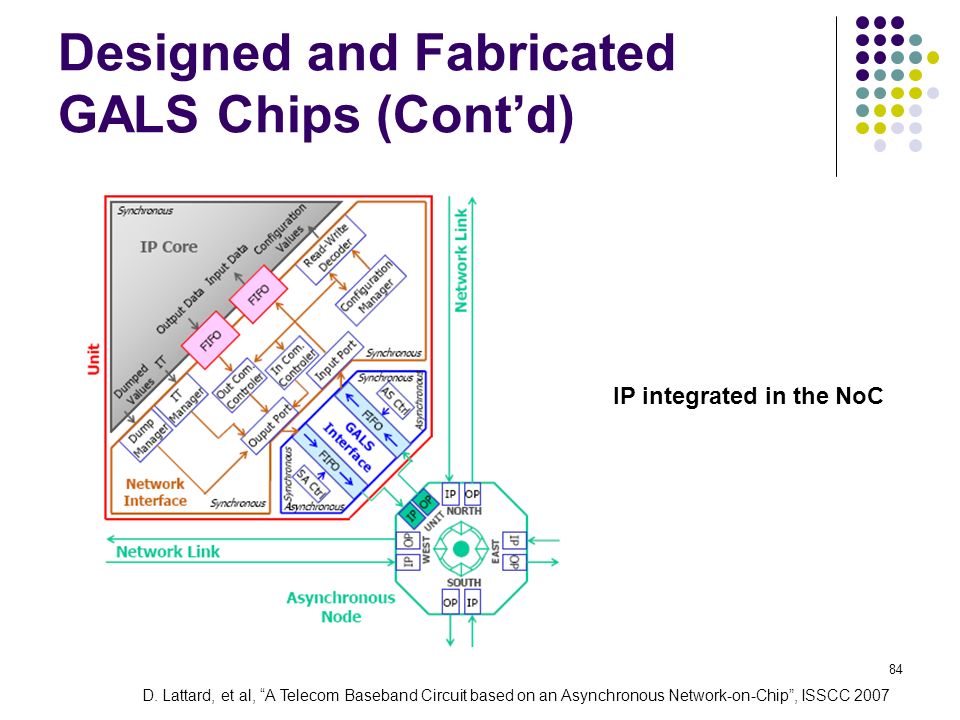

84. 84 Designed and Fabricated GALS Chips (Cont’d) IP integrated in the NoC D. Lattard, et al, “A Telecom Baseband Circuit based on an Asynchronous Network-on-Chip”, ISSCC 2007

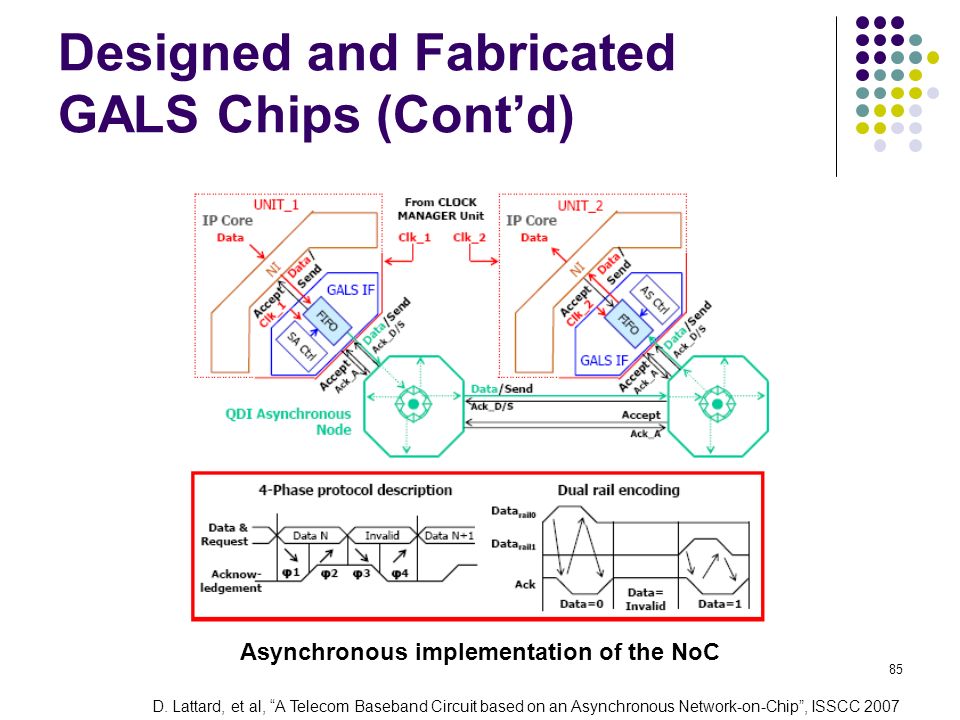

85. 85 Designed and Fabricated GALS Chips (Cont’d) Asynchronous implementation of the NoC D. Lattard, et al, “A Telecom Baseband Circuit based on an Asynchronous Network-on-Chip”, ISSCC 2007

86. 86 Designed and Fabricated GALS Chips (Cont’d) MANGO-based SoC The network consists of NAs implementing the network access points, routers, and pipelined links. MANGO (Message-passing Asynchronous Network-on-chip providing Guaranteed services over Open core protocol (OCP) interfaces) T. Bjerregaard and J. Sparsø, “Implementation of guaranteed services in the MANGO clockless network-on-chip”, IEE 2006
